Product Summary
The PIR Model ITR601 is a wireless, indoor motion
detector designed for use with Videofied security systems.
The detector includes the following features:
> Lithium battery for long life.
> Standard coverage lens (26ft./8 m distance).
> Dual tamper function provides detection for both wall
and cover tamper.
> Transmits check-in/status signal every 8 minutes.
Installation Guidelines
For easier installation, programming and RF testing
should be done to check for good communication between
the control panel and all system devices before mounting.
Install the detector and other system devices in the order
of the following steps:
> Programming/RF Testing - program detector
and all other devices into the control panel and test
RF communication from each intended device location
to the control panel.
> Mounting - mount detector at the tested location.
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.

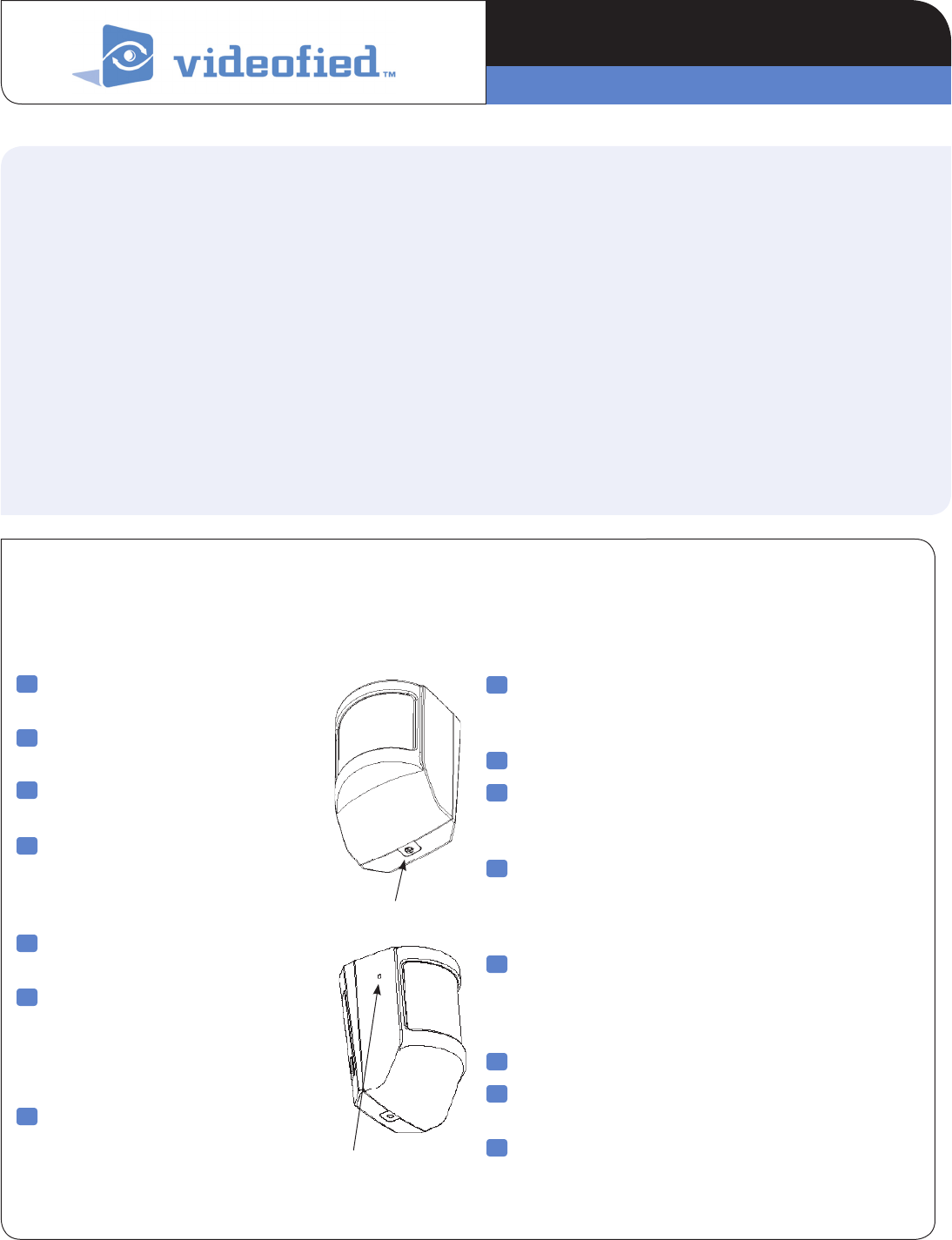

1 Loosen bottom screw, separate base
from detector and install battery.
2 Re-attach base to secure tamper
switch.
3 Put control panel into programming
/configuration mode.
4 Using a programmed alphanumeric
keypad, proceed through menus until
the display shows RECORDING
DEVICES.
5 Press Yes. The display shows PRESS
PROGRAM BUTTON OF DEVICE.
6 Press and release program button
on detector using a paper clip end.
The detector LED flashes. Wait for
keypad display to show DETECTOR
(1 - 24) RECORDED.
7 Press Yes. The display shows
RADIO RANGE TEST? Press Yes
again. The detector LED starts
flashing and keypad display shows
TEST IN PROGRESS.
8 Take detector to its intended mounting location and
make sure LED flashes continuously, indicating good
communication with control panel.
9 Press Yes to end radio range test, then press Esc/No.
10 The display shows AREA ASSIGNMENT AREA:
1. Press either arrow button repeatedly until desired
AREA number appears, then press Yes.
11 The display shows NAME + LOCATION. Enter appropriate
device name/location (up to 16 characters), then press
Yes. The display shows the device number and name
for your verification.
12 Press Yes. The display shows VERIFY DETECTION?
Press Yes again and verify detector operation. For
example, wave your hand in front of detector to
activate its LED indicating detection.
13 Press Yes to end detection verification.
14 The display shows ADD A NEW DEVICE?
Repeat steps 1 - 13 for remaining detectors.
15 When finished programming, put the control panel
in operating mode.
www.videofied.com
Program Button
Screw
PRODUCT INSTALLATION SHEET
PIR ITR601
Made by RSI VIDEO TECHNOLOGIES 2223-ITRIS March 2012
WARNING : Do not cover the Fresnel lens !
Mounting
> Use proper tools and hardware.
> Mount indoors in a temperature-controlled environment.
> Mount camera 2.1 to 2.3 (6.9 to 7.5 ft.) from the floor.
> Mount the detector on an outside wall, aimed at the area
to be protected.
> Do not aim detector at windows, especially those that
let in direct sunlight, or at heat sources such as lamps,
fireplaces, radiators, and heating vents.
> Do not aim detector at moving objects such as curtains,
fans, or animals in cages.

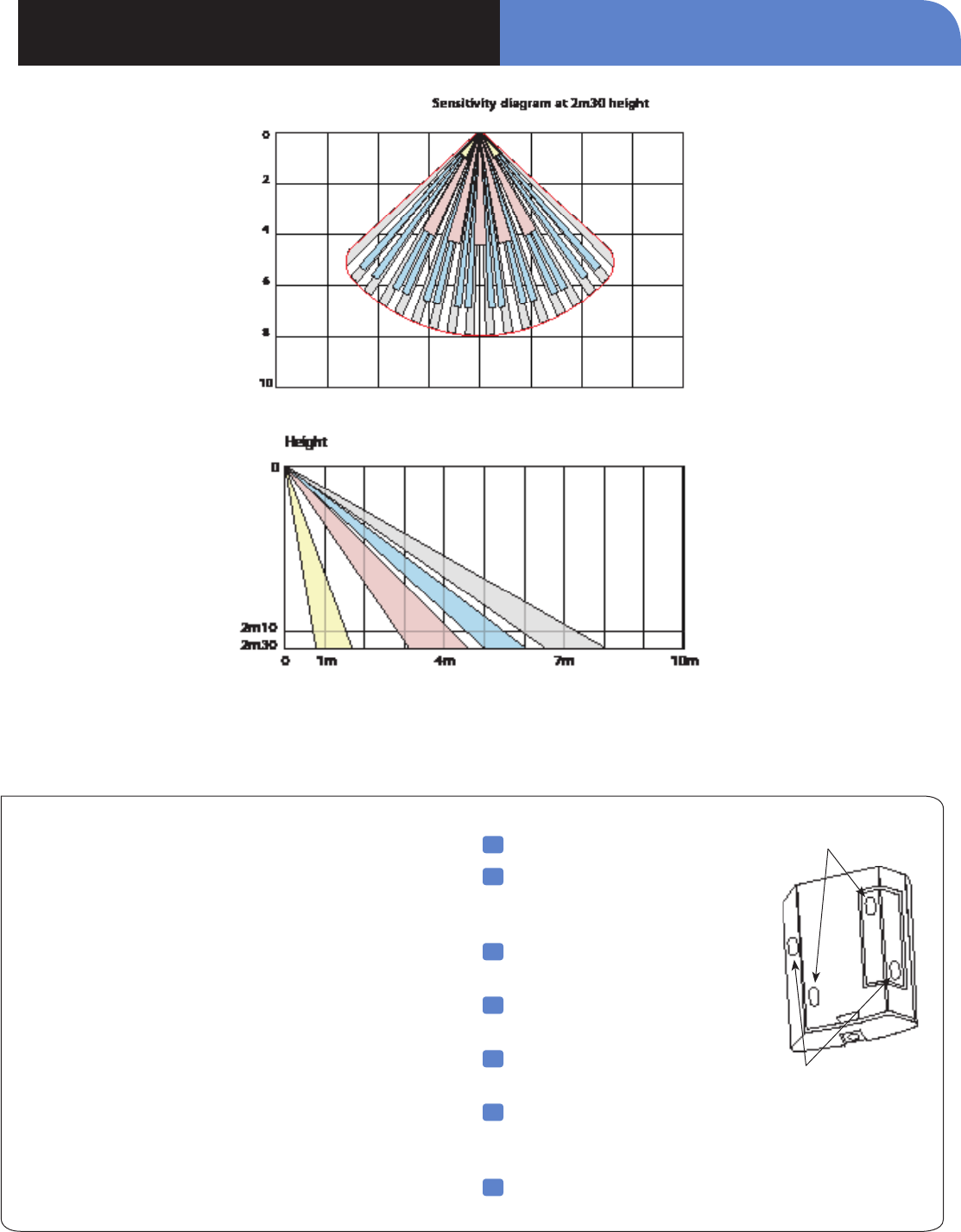

1 Separate base from detector.
2 Hold detector base against
mounting surface and mark the
two appropriate mounting holes.
3 Drill pilot holes and install anchors
where needed.
4 Mount detector base to surface
using appropriate screws
5 Install battery into detector,
observing correct polarity.
6 Place unit on the mounting surface so mounting holes
line up with pilot holes/anchors and secure the device
with the appropriate screws.
7 Attach detector to base and secure with screw.
Flat Wall Mounting
Corner Mounting Holes
PIR ITR601 INSTALLATION DATA SHEET
www.videofied.com
Electrical Data
Panel Compatibility XL, Visio, XT, XTIP
Power requirements One 3.6 V Lithium battery
Nominal Voltage 3.6v
Low battery limit 2.7v
Battery type SAFT AA Lithium, LS14500
Battery life (estimated) Up to 4 years
Current Consumption
Standby (1h average) 35 uA
Max 70mA
RF technology S2View®
Radio type Spread Spectrum Bidirectional RF
Operating frequency 915 MHz (US)
Transmission security AES algorithm encryption
Supervision Panel polls devices every 8 minutes
Antenna Integrated
Tamper detection Wall and cover tampered
Video sequence in intrusion 5 frames/s for 10 seconds
Motion detector technology Passive infrared DSP
Motion detector type Dual element
Motion Lens Fresnel
Motion Detection angle 90°
Motion Detection distance Up to 26 ft / 8m
Motion Detection pattern 24 facets
Operating temperature 14° - 104° F (-10° - 40° C)
Maximum relative humidity 75%, non-condensing
Certifications FCC Part 15C
Physical Data
Material ABS—ULV0
Dimensions (LxWxD): 2.95in x 2.16in x 2.16in
(75 mm x 55 mm x 55 mm)
Weight 3 oz./82 g (without battery)
Installation/Mounting
Camera/Base One screw secures camera to base;
two screws secure camera base to
mounting surface, flat or corner mount.
Mounting Height 6.9-7.5 Feet (2.1-2.3 meters)
PIR ITR601 INSTALLATION DATA SHEET
www.videofied.com
EMEA SALES
23, avenue du Général Leclerc
92340 BOURG-LA-REINE
FRANCE
Hotline: +33 (0)820 846 620
Fax: +33 (0)1 82 69 80 10
© 2011 RSI VIDEO TECHNOLOGIES. VIDEOFIED® is a Registered Trademark of RSI VIDEO TECHNOLOGIES.
S2View® is a registered trademark of RSI VIDEO TECHNOLOGIES. Specications subject to change without notice.
USA SALES
4455 White Bear Parkway, Suite 700
White Bear Lake, MN 55110
USA
Hotline: +1 877 206 5800
Fax: +1 651 762 4693
