The OMVC 201/601/702 MotionViewer is a wireless, battery
operated, motion activated outdoor camera designed for use in
Videofied®security systems.
• Powered by 4 Lithium batteries for extended battery life.
• Lens for vertical curtain detection - Detection pattern : 80cm width
and up to 12m distance.
• 4 infrared LEDs for 12m night vision.
• Standard detection distance (up to 12 meters).
• Fully weatherproof (IP65) and temperature resistant
(-20°C/+60°C).
• Tilt sensor tamper.
• Transmits check-in/status signal every 8 minutes.
Product Summary
Installation Guidelines
For easier installation, programming and RF testing should be done to check for
good communication between the control panel and all system devices before
mounting system devices.
Install the detector and other system devices in the order of the following steps:
> Programming/RF Testing - program detector and all other devices into the
control panel and test RF communication from each intended device location to
the control panel.
> Mounting - mount detector at the tested location.
Mounting
> Use proper tools and hardware.
> Mount camera between 2.5 m to 4 m height.
> The OMV MotionViewer detection distance may vary depending on weather
and the detector mounting (height, tilt). The OMV is not suitable to protect an
area, it needs to be used to protect the perimetry of an installation.
> Mount detector aimed toward the spot to protect.
> In order to reduce false alarms, do not aim the detector toward vegetation, a
road, or unlimited space.
> Do not cover the Fresnel lens. Use only the provided masking kit to block
detection towards specific spots (trees, bushes, etc.).

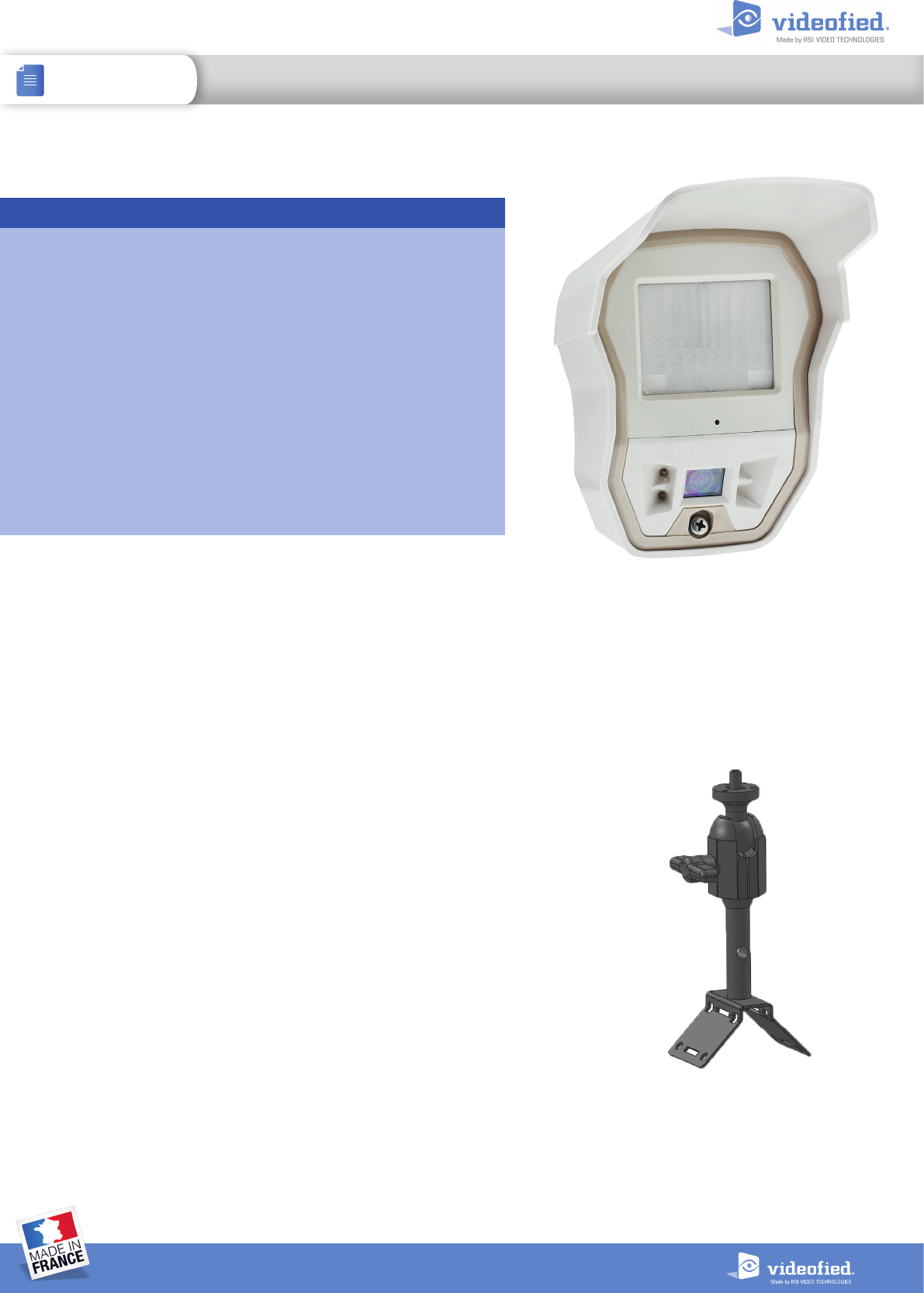

MB110 Mounting kit for
Outdoor MotionViewer
DOC. - REF. 213-OMVC
VERSION : JULY 2015
1
INSTALL SHEET OMVC OUTDOOR MOTION VIEWER
Programming/RF Testing/Mounting
The following provides summarized steps for device programming,
testing, and mounting. For complete details, refer to the control panel
installation manual.

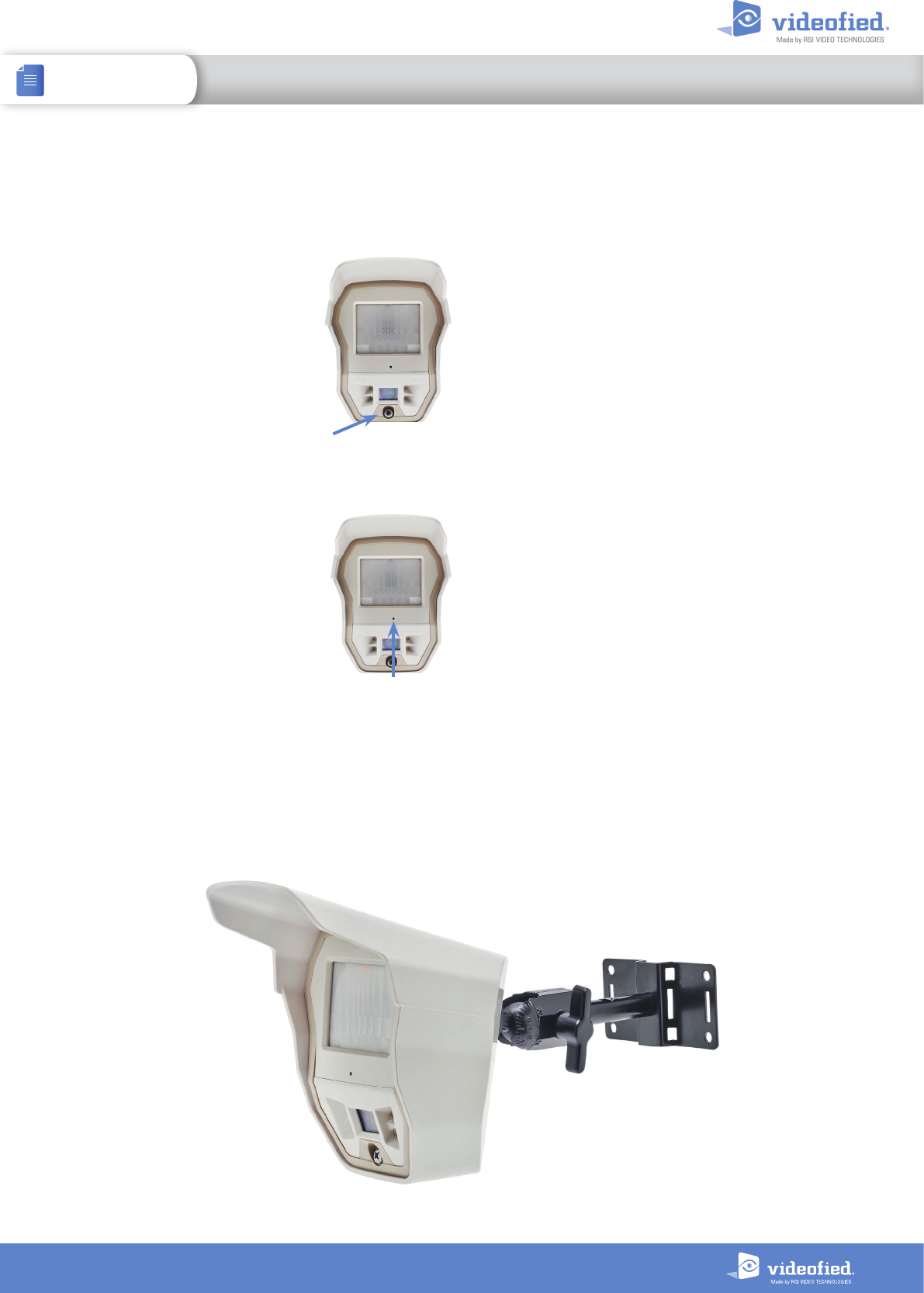

1 Separate the base from the box
2 Install 3 3.6V LS14500 SAFT
batteries observing correct polarity.
3 Put control panel into
Programming/Configuration mode.
4 Using a programmed
alphanumeric keypad, proceed
through menus until the display shows
ADD A NEW DEVICE.
5 Press OK/YES. the display shows PRESS PROGRAM BUTTON OF
DEVICE.
6 Press and release program button on
the OMV MotionViewer.
The OMV PIR flashes.
7 Wait for keypad display to show
CAMERA(1 - 25) PROGRAMMED. Press
OK/YES, the display shows RADIO
RANGE TEST? Press OK/YES again. The
camera LED starts flashing and keypad
display shows RF TEST.
8 Take the OMV camera to its intended mounting location and
make sure LED flashes continuously or you receive a 9/9 indicating
good communication with the control panel.
9 Press OK/YES to end radio range test then press ESC/NO.
10 The keypad displays :
AREA ALLOCATION :
AREA : 1
Press either arrow button repeatedly until desired area number appear
then press OK/YES. By default all devices in Area 1 are automatically
delayed.
11 The display shows NAME + LOCATION:
Enter appropriate device name/location (up to 16 characters), then
press OK/YES. The display shows the device number and name for
your verification.
12 Mount the DCV on the wall or the MB 110 Mounting kit. Follow
the installation guidelines shown in page 1.
13 Press OK/YES. The display shows FUNCTIONAL DEVICE TEST?
Press OK/YES and verify camera operation. For example, wave your
hand in front of the sensor to activate its LED indicating detection.
14 Press OK/YES to end detection verification.
15 The display shows OPERATION COMPLETED or ADD A NEW
DEVICE? Press YES/OK. Repeat steps 1 – 14 for remaining cameras.
16 When finished, exit from configuration mode.
Screw
IN IT button
2
INSTALL SHEET OMVC OUTDOOR MOTION VIEWER
3
INSTALL SHEET OMVC OUTDOOR MOTION VIEWER
Security notes / (FR) Notes de sécurité / (DE) Hinweise zur Sicherheit
Français
• Retirez les piles avant toute opération de
maintenance !
• Attention ! Il y a un risque d'explosion si la batterie
utilisée est remplacée par un mauvais modèle !
• Respectez la polarité lors de la mise en place des
piles !
• Ne jetez pas les batteries usagées !
Ramenez-les à votre installateur ou à un point de
collecte spécialisé.
English
• Remove the batteries before any
maintenance !
• WARNING, there is a risk of explosion if a battery
is replaced by an improper model !
• Observe polarity when setting up the batteries!
• Do not litter the batteries when they are used!
Dispose of it properly according to Lithium Metal
requirements
Deutsch
• Batterien vor jeglichen Wartungsarbeiten
entfernen!
• Vorsicht, es besteht Explosionsgefahr, wenn eine
Batterie durch eine Batterie falschen Models
ersetzt wird!
• Achten Sie beim Einsetzen der Batterien auf die
Polung!
• Entsorgen Sie Batterien nicht im normalen
Haushaltsmüll! Bringen Sie Ihre verbrauchten
Batterien zu den öffentlichen Sammelstellen.
FCC Regulatory Information for USA and CANADA
FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI Video Technologies may void the FCC
authorization to operate this equipment.
FCC Part 15.105 Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
> Reorient or relocate the receiving antenna.
> Increase the separation between the equipment and receiver.
> Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
> Consult the dealer or an experienced radio/TV technician for help.
Radio frequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la Partie 15 des règlementations de la FCC et avec la norme RSS-210 de l’Industrie Canadienne.
Son fonctionnement est soumis aux deux conditions suivantes :
1 Cet appareil ne doit pas causer d’interférences nuisibles et
2 Cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable.
4
www.videofied.com
INSTALL SHEET OMVC OUTDOOR MOTION VIEWER
Power requirements Type C - 4 Lithium batteries 3,6 V LS14500
Battery life
Standard usage (up to 5 videos per month)
4 years
High usage (about 30 videos per month)
2 years
Panel compatibility W, XL, XT, XV and their variants
ELECTRICAL PROPERTIES
RF S2View® technology
Radio type Spread spectrum bidirectionnal
Operating frequency
• 868MHz - OMVC 201 (Europe, Africa, Asia)
• 915 MHz - OMVC 601 (USA, Canada, South America)
• 920 MHz - OMVC 702 (Australia, South America)
Transmission security AES encryption algorithm
Supervision Radio, batteries, tamper, position
Radio antenna Integrated
RADIO PROPERTIES
Camera
Angle 90°
Sensor type CMOS
Daylight video Programmable : Color or B&W
Night video Automatic black & white infrared
Infrared illumination Automatic with 4 IR LEDs
Infrared illumination distance Up to 12m
Video
Video format MJPEG-WMV, MJPEG-DIFF
Frame rate 5 images per second
Video duration Programmable (10 seconds by default)
Video resolution QVGA (320x240)
Quality SQ or HQ
Average video file size 220 kb
Format JPEG
Resolution VGA (640x480)
Quality HQ or SQ
Average image file size 8 kb
VIDEO PROPERTIES
Tamper detection
Tilt Position change, shock, wall and cover tamper
BOX
Physical properties
Material Polycarbonate UL94
Dimensions 130,5mm x 102,44mm x 141,5mm
Weight 261g (without batteries)
Installation / Mounting
Mounting height 2.5m to 4m
Mounting angle 5° to 10°
Mounting Use mounting kit (sold separately)
Environmental data
Operating temperature -20°/+60°C
Max. relative humidity 95%, without condensing
Protection marking IP 65
DETECTION PROPERTIES
Infrared detection specifications
Technology Passive infrared DSP
Type Dual element sensor
Detection lens 80 cm vertical curtain for 12m distance
Organisme certificateur :
CNPP Cert.
Route de La Chapelle Réanville CS22265
F—27950 SAINT MARCEL
Tel : +33(0)2.32.53.63.63
Fax: +33(0)2.32.53.64.46
Sites Internet : http://www.cnpp.com
Email : certification@cnpp.com
Organisme certificateur :
AFNOR Certification
11, rue François de Pressensé
93571 Saint Denis La Plaine Cedex
Tel : +33(0)1.41.62.80.00
Fax: +33(0)1.49.17.90.00
Sites Internet : http://www.afnor.org
et http://www.marque-nf.com
E-mail : certification@afnor.org
STANDARDS AND CERTIFICATIONS
EN50131-4 Grade 2 -- Type W
NF EN50131-4 2009 Grade 2 -- Type W
NF EN50130-4 2011
NF EN50130-5 2011 Environment class II
Matériels de sécurité electronique, détection d’intrusion
DISPOSITIF D’ALARME SONORE
Marque commerciale Videofied
Référence produits OMVC 210
N° de certification
