RVI 600 WISELINK RADIO HUB
INSTALLATION SHEET
DOC. - REF. 21XS-RVI 600
MODIF. DATE : FEBRUARY 2017
1
Installation

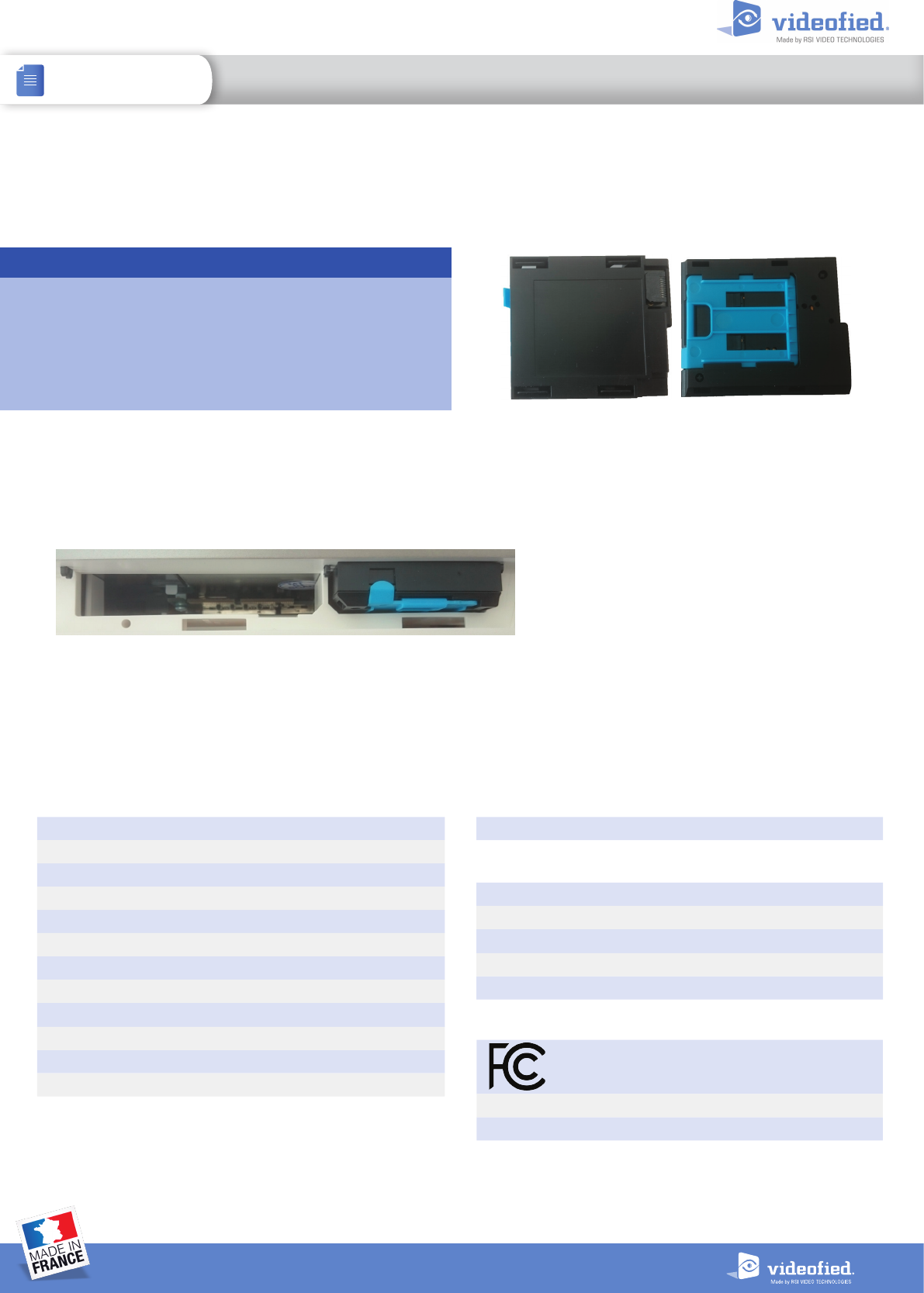

The installation of the RVI 600 is done with the panel
powered down.
Please make sure the module is properly fitted.
Once installed in the right direction, power the
panel.
The RVI 600 is a radio hub for the Wiselink protocol.
It is installed on Honeywell LYRIC AIO panels to allow
the use of Videofied® MontionViewer devices.
Product Summary
ELECTRICAL PROPERTIES
Panel compatibility Lyric AIO (TBC by HON)
Power requirements
Nominal voltage 3.3 V
Low voltage limit 3.1 V
Current consumption
Standby 25-30 mA
Max 225 mA
RF technology
Radio Type Frequency Hopping Spread Spectrum Bidirectional RF
Central frequency 915MHz - RVI600 (USA, Canada)
Transmission security AES encryption algorithm
Printed Antenna Integrated
INSTALLATION / MOUNTING
Module Maintained by board edge connector
PHYSICAL PROPERTIES
Material ABS-ULV0
Dimensions 51 mm x 61 mm x 13.5 mm
Weight 26 g
Operating temperature -10°C/+55°C
Max relative humidity 75%, without condensing
915MHz (RVI 600)
USA FCC Part 15C
Canada IC RSS-247 Issue 1
STANDARDS AND CERTIFICATIONS
INSTALLATION SHEET
2
www.videofied.com
RVI 600 WISELINK RADIO HUB
EMEA SALES
23, avenue du Général Leclerc
92340 BOURG-LA-REINE
FRANCE
E-Mail : emeasales@rsivideotech.com
North American Headquarters
1375 Willow Lake Blvd, Suite 103
Vadnais Heights, MN 55110
USA
E-Mail : usasales@rsivideotech.com
The EC declaration of conformity of
this product is available by flashing
that QR code :
FCC Regulatory Information for USA and CANADA
FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI Video Technologies may void the FCC
authorization to operate this equipment.
FCC Part 15.105 Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
> Reorient or relocate the receiving antenna.
> Increase the separation between the equipment and receiver.
> Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
> Consult the dealer or an experienced radio/TV technician for help.
Radio frequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 20 cm between the radiator and your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s)
Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
1 L’appareil ne doit pas produire de brouillage, et
2 L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre
le fonctionnement..
This symbol on the product or on its packaging indicates that this product should not be treated as household
waste. It must be handed over to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health. The recycling of materials will help to conserve natural
resources. For more information about recycling of this product, please contact your local municipality, your
waste disposal service or the company that installed the product.
