Product Summary
The Interior Siren SE601 is a wireless siren
designed for use with Videofied security systems.
The siren includes the following features:
> Totally wireless, battery operated.
> Dual tamper function provides detection for both wall
and cover tamper.
> Transmits check-in/status signal every 8 minutes.
Installation Guidelines
For easier installation, programming and RF testing
should be done to check for good communication between
the control panel and all system devices before mounting
system devices. Install the siren and other system devices
in the order of the following steps:
> Programming/RF Testing - program siren and
all other devices into the control panel and test
RF communication from each intended device
location to the control panel.
> Mounting - mount siren at the tested location.
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.

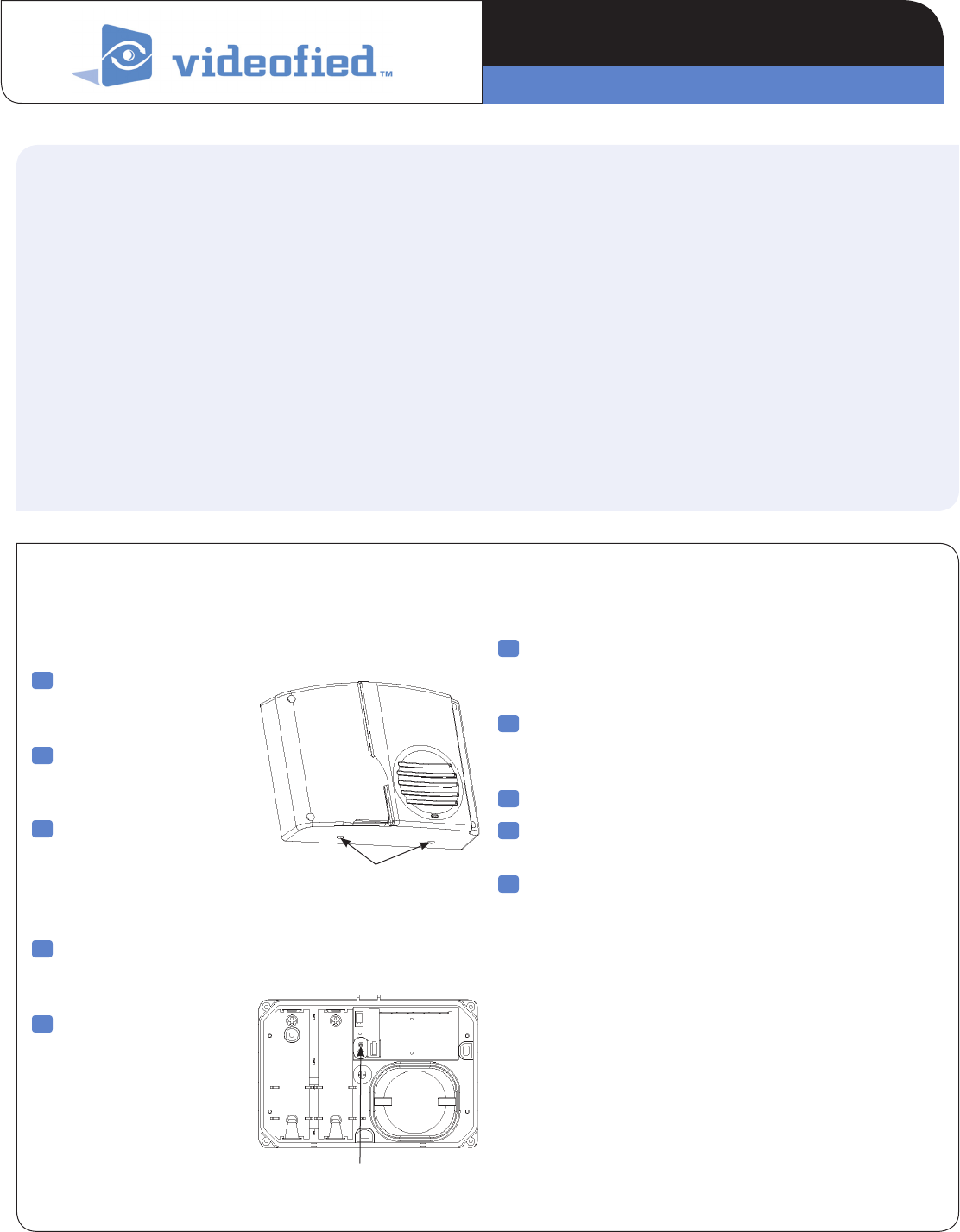

1 Remove bottom screws,
separate cover from siren
and install batteries.
2 Put control panel
into programming/
configuration mode.
3 Using a programmed
alphanumeric keypad,
proceed through menus
until the display shows
ADD A NEW DEVICE.
4 Press Yes. The display
shows PRESS PROGRAM
BUTTON OF DEVICE.
5 Press and release
program button on siren
using a paper clip end.
The siren LED flashes.
Wait for keypad display
to show SIREN (1 - 25)
RECORDED.
6 Press Yes. The display shows RADIO RANGE TEST?
Press Yes again. The siren LED starts flashing and
keypad display shows TEST IN PROGRESS.
7 Take siren to its intended mounting location and
make sure LED flashes continuously, indicating good
communication with control panel.
8 Press Yes to end radio range test, then press Esc/No.
9 The display shows RECORDING A NEW DEVICE?
Repeat steps 4 - 8 for remaining sirens.
10 When finished, exit from configuration mode.
Screws
Program Button
PRODUCT INSTALLATION SHEET
Indoor Siren SE601
Made by RSI VIDEO TECHNOLOGIES 2205 - SEIS March 2012
www.videofied.com

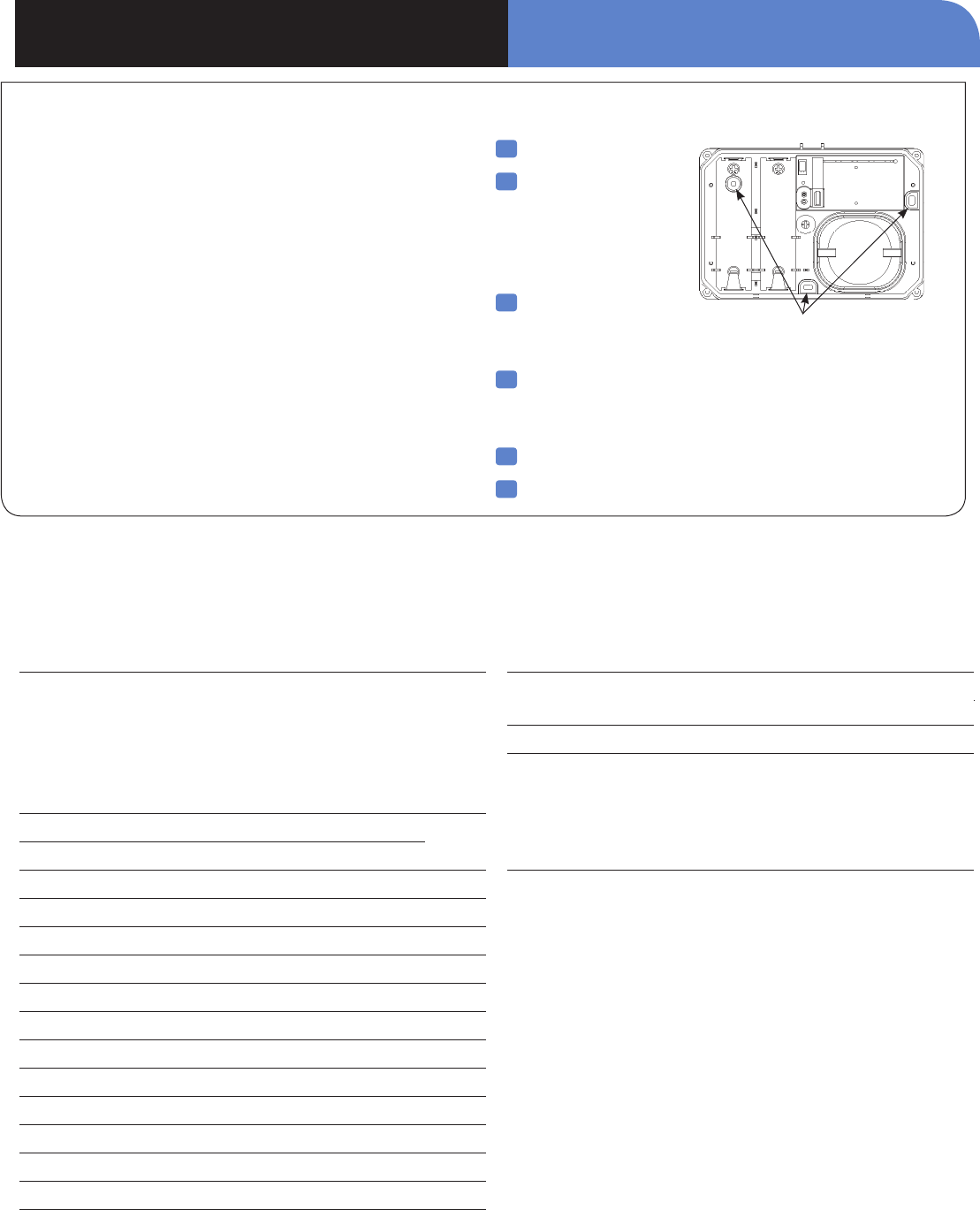

Mounting
> Use proper tools and hardware.
> Mount where siren can be heard by occupants.
> Mount out-of-reach of intruders to help prevent
disabling of unit.
1 Remove batteries.
2 Hold unit up
against mounting
surface and mark
the three mounting
holes.
3 Drill pilot holes
and install anchors
where needed.
4 Place unit on mounting surface so mounting holes
line up with pilot holes/anchors and secure unit with
appropriate screws.
5 Install batteries, observing correct polarity.
6 Attach front cover.
Electrical Data
Panel Compatibility XL, Visio, XT, XTIP
Power requirements Four 1.5 V Alkaline Batteries
Nominal Voltage 6V
Low Battery Limit 4.2V
Battery type Energizer Alkaline LR20, D size
Battery life Up to 4 years
RF technology S2View®
Radio type Spread Spectrum Bidirectional
Operating frequency 915 MHz
Transmission security AES encryption algorithm
Supervision Polled signal every 8 minutes
Antenna Integrated
Tamper detection Wall and cover tampered
Speaker impedance 4 ohms
Output level 110 dB @ 1 meter
Output duration Configured in Control Panel
Built-in sounder Emits entry/exit delay beeps, alarms
Operating temperature -10°/+40°C (14°/104°F)
Maximum relative humidity 70%, non-condensing
Approvals FCC Part 15C
Physical Data
Material ABS—ULV0
Dimensions (LxWxD) 280 mm x 158 mm x 57 mm
11 in. x 6-1/4 in. x 2-1/4 in.
Weight 740 g/26 oz.(without batteries)
Installation/Mounting
Siren/Base Two screws secure siren to base; three screws
secure siren base to mounting surface.
Mounting Holes
Indoor Siren SE601 INSTALLATION DATA SHEET
EMEA SALES
23, avenue du Général Leclerc
92340 BOURG-LA-REINE
FRANCE
Hotline: +33 (0)820 846 620
Fax: +33 (0)1 82 69 80 10
© 2011 RSI VIDEO TECHNOLOGIES. VIDEOFIED® is a Registered Trademark of RSI VIDEO TECHNOLOGIES.
S2View® is a registered trademark of RSI VIDEO TECHNOLOGIES. Specications subject to change without notice.
USA SALES
4455 White Bear Parkway, Suite 700
White Bear Lake, MN 55110
USA
Hotline: +1 877 206 5800
Fax: +1 651 762 4693
www.videofied.com
Indoor Siren SE601 PRODUCT INSTALLATION SHEET
FCC Regulatory Information for USA and CANADA
FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI VideoTechnologies may void the FCC
authorization to operate this equipment.
FCC Part 15.105 Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radio frequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
