Users Manual
8242 DECT Handset
Reference Guide
1.) Phone description
1 Answer the call
2 Hang up
3 Return to previous menu; erase a character; delete an entire field
4 Access menu
5 Navigate and confirm
6 Numeric digit keys
7 Soft key: Left; Mid; Right
8 Home: Back to homepage
F1: Function key 1
F2: Function key 2
Silent: set to silent mode
9 LED:
• green steady: the phone is on the charger and the battery is fully charged
• red steady: the phone is on the charger and the battery is charging
• slow yellow flashing: telephonic event such as unread message, missed call, etc.
• rapid yellow flashing: incoming call
10 3.5mm jack plug for headset
11 Volume up; Volume down; Emergency call
12 5V supply input to charger
13 Micro USB port to PC
14 Power on/ off handset
1
2
3
4
5
9
6
7
8
11
10
12
13
14
14

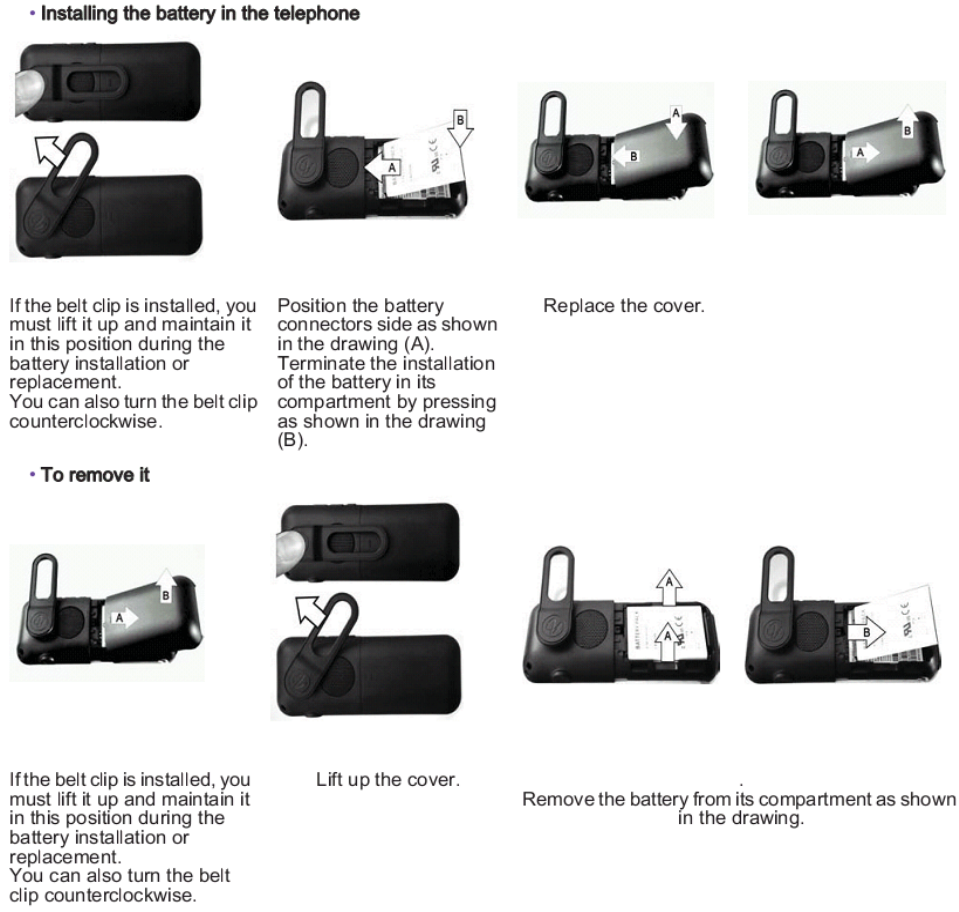

2.) Installing the battery in the handset

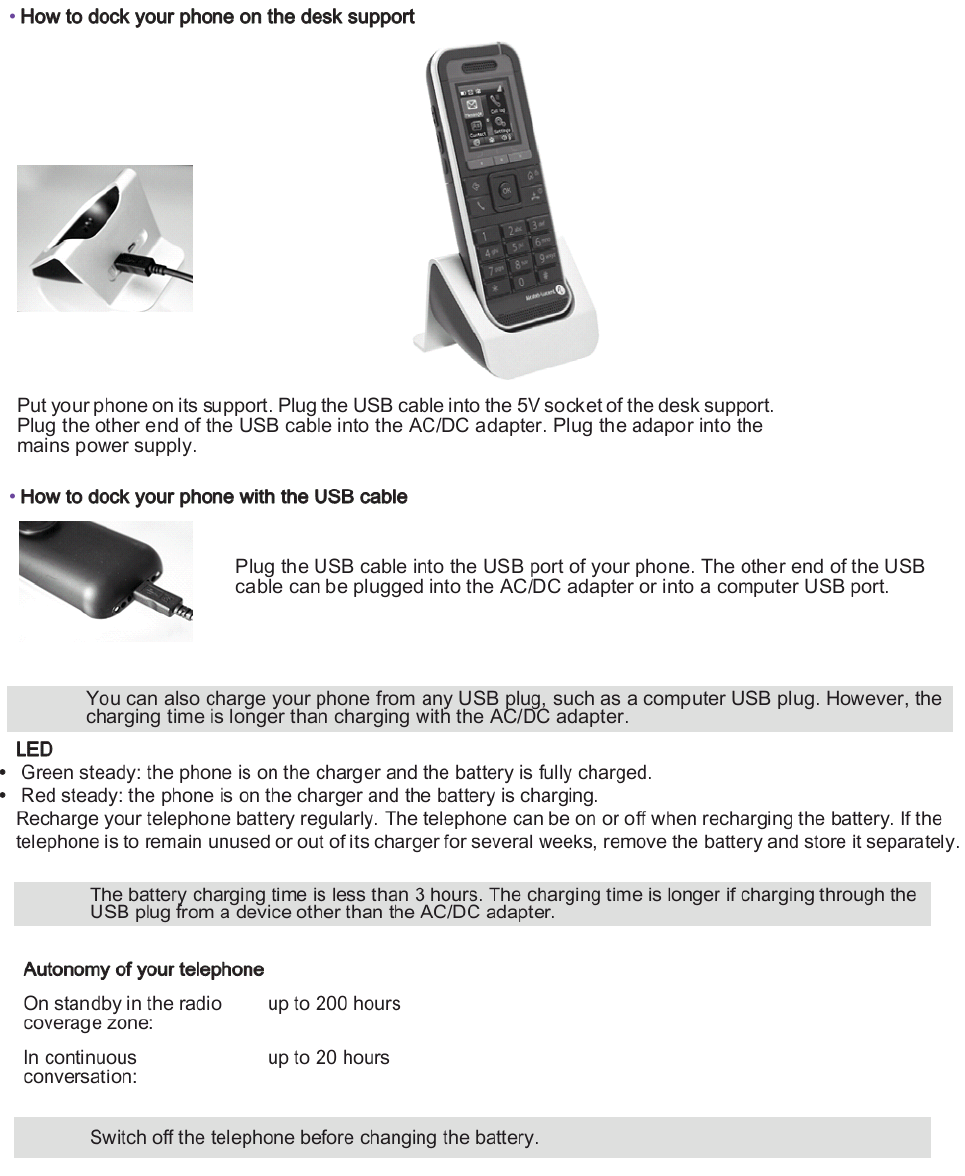

3.) Charging handset battery

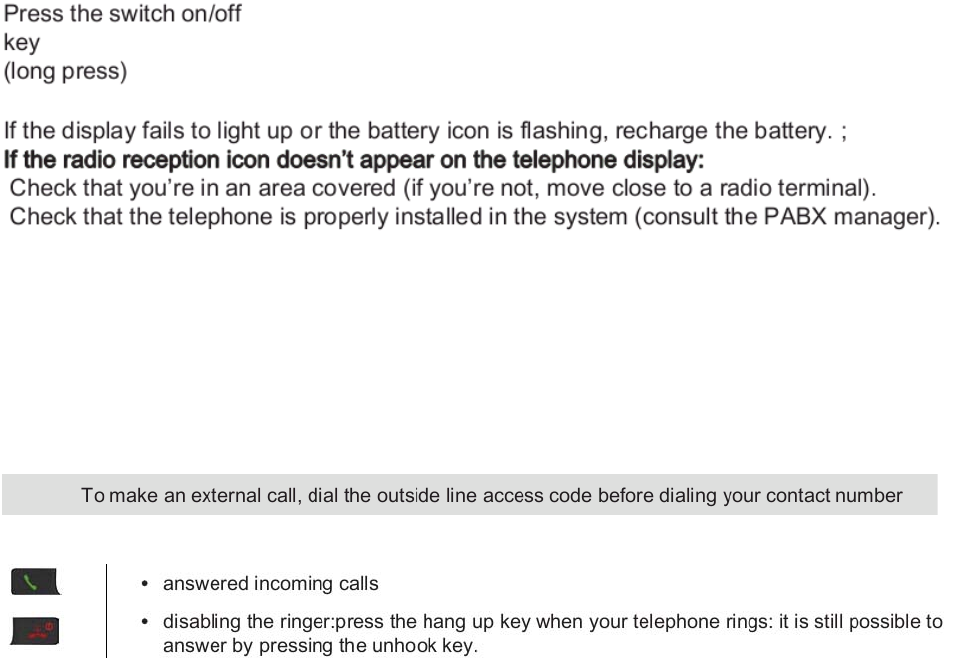

4.) Switching on handset
5.) Call for conversation
5.1) Making a call
x Dial numeric digit keys
x Send the call, you are in communication
x Press hang up key to end the call
5.1) Receiving a call
x Use the following 82x2 DECT Handset charging units:
- 8232 DECT Handset Desktop charger (3BN67331AA),
- 82x2 DECT Handset Dual Charger (3BN67341AA)
they need the following Power Supply Units:
- 8232 DECT Handset Desktop charger PSU Europe (3BN67335AA)
Friwo FW7713/XX. (rating I/P:AC 100-240V, 150mA; O/P: DC 5V, 1A)
- 8232 DECT Handset Desktop charger PSU WW (3BN67336AA)
Friwo FW7712 (rating I/P:AC 100-240V, 125mA; O/P: DC 5V, 0.9A)
You can charge the device by connecting it to a USB 2.0 port (type A). Use only the cable provided with
the 8232 DECT Handset Desktop Charger (USB "A" plug), or with the 82x2 DECT Handset Dual
Charger
x To prevent possible hearing damage, do not listen at high volume levels for long periods.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Privacy of communications may not be ensured when using this telephone!
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
x Reorient or relocate the receiving antenna.
x Increase the separation between the equipment and receiver.
x Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
x Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information
SAR tests are conducted using standard operating positions accepted by the FCC with the
phone transmitting at its highest certified power level in all tested frequency bands, although
the SAR is determined at the highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value, in general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a new model phone is a available for sale to the public, it must be tested and certified to
the FCC that it does not exceed the exposure limit established by the FCC, Tests for each
phone are performed in positions and locations (e.g. at the ear and worn on the body)as
required by the FCC.
For body worn operation, this model phone has been tested and meets the FCC RF exposure
guidelines when used with an accessory designated for this product or when used with an accessory that
Contains no metal.
Customer Information
1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom
of this equipment is a label that contains, among other information, a product identifier in the format
US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
2. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the
applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug
is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See
installation instructions for details.
3. If this equipment [US: T7HW4NANCT8121] causes harm to the telephone network, the telephone company will
notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical,
the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.
4. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect
the operation of the equipment. If this happens the telephone company will provide advance notice in order for you
to make necessary modifications to maintain uninterrupted service.
5. If trouble is experienced with this equipment [US: T7HW4NANCT8121], for repair or warranty information, Service
can be facilitated through our office at:
U.S. Agent Company name: RTX America Inc.
Address: 501 AirTech Parkway Plainfield IN 46168 USA
Tel: 1-408-441-8600
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the
equipment until the problem is resolved.
6. Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not alternate or repair
any parts of device except specified. For repair procedures, follow the instructions outlined under the limited
warranty.
7. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service
commission or corporation commission for information.
8. The FCC Registration Number [US: T7HW4NANCT8121]
9. This product is equipped with a corded or cordless handset, it is hearing aid compatible
CS03:
This product meets the applicable Industry Canada technical specifications. / Le présent matériel est conforme aux
specifications techniques applicables d’Industrie Canada.
RSS(Category I Equipment):
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un
type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les
risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de
sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement
d'une communication satisfaisante.
