Users Manual
G355/ G955
1. Volume up key
2. Volume down key
3. SOS key
4. OK key
5. Off hook/enquiry (green phone key)
6. Headset jack connector
7. Microphone
8. Earpiece
9. Color display
10. Soft keys
11. On hook/clear/power (red phone key)
12. Navigational keys
(Up/Right/Down/Left Nav. Key)
13. Keypad (0-9, *, #)
keys 1-9: long press for speed dialling (if
programmed).
*: used in text editor to enter a star symbol
and special characters, or to insert pause
in dial mode.
0: used in text editor to enter space and
special characters.
#: used in text editor to capitalize letters and
type numbers. Long press activates the
silent mode.
I755s / I755d
Reference Guide
G355 / G955 / I755s / I755d
Package Contents:
G355 / G955 I755s / I755d
Handset Handset
Battery Battery
2 Belt clips Belt clip (attached
to handset)
Removing tool Belt clip cover
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
1
2
3
4
5
6
7
9
8
11
12
13
10
DECT model G355 / G955 and I755s / I755d – ReferenceGuide
Main menu items
Messaging Calls
Contacts Calendar
Settings Accessories
GETTING STARTED
Press and hold the Red phone key for a few seconds.
In Idle mode, press the Ok key, and then press the Lock soft key.
To unlock, press the Ok key, and then press the Unlock soft key.
In Idle mode, type the number you want to dial, and then press the Green phone key.
Press the Green phone key.
Press the Red phone key.
Press the Reject soft key.
During a call, press the Green phone key and dial the number of the party you want to
consult. You can toggle between the two parties, by pressing the Green phone key.
To transfer the first call to the enquiry call party, press the Red phone key.
During a call, press the volume up or volume down buttons on the side of the phone.
During a call, press the Spk on soft key. To deactivate: press the Spk off soft key.
During a call, press the Mute soft key. To turn the microphone on again, press the
Unmute soft key.
In Idle mode, press the Menu soft key, choose Messaging,Inbox, select Listen to
voicemail, and then scroll to the required message. Press the Select soft key.
Top row icons
Signal strength
Message waiting
Voice mail waiting
Caller filter active
Bluetooth active
Keys locked
Missed calls
Silent mode
Battery indication
Listen t
o voicemail messages
Make an enquiry call
(also known as
broker call)
Answer a c
all
End
a call
Reject
a call
Turning the phone on and off
Lock/unlock your phone
Make a call
Change the v
olume
Use the s
peakerphone
M
ut
e a call
DECT model G355 / G955 and I755s / I755d – ReferenceGuide
Note: You may need to enter your voicemail number first.
In Idle mode, press the Menu soft key, choose Messaging,New and draft. Now you can
enter text.
In Idle mode, press the Menu soft key, choose Settings,General, and select Shortcuts.
Now you can assign a function to one of the navigational keys.
In Idle mode, press the Menu soft key, choose Contacts.
Select the contact that you want to assign and press the More soft key.
Choose Speed dial and press OK.
Scroll to the speed dialling key number that you want and press the Add/Replace soft key.
(If a number has already been assigned to this key, it will be replaced.)
In Idle mode, press the Menu soft key, choose Settings,Connectivity,Register.
Select the required base, OK.
Enter the Park code, OK/Skip.If only one DECT system is available, then just press Skip.
Enter the PIN code, OK.The PIN is generated by the DECT Manager.
Enter Network Name, Save.This will be shown on the idle display.
Enter Number, Save.This is the phone number assigned to the DECT handset.
REMOVING TOOL (G355 and G955 only)
MENU FUNCTIONS
There are 6 menus, all of which you access from the Main menu. A menu may have several
tabs. Use the navigational keys to go to the required tab. The soft keys may provide you
with additional options.
To enter the main menu: in Idle mode, press the Menu key. To leave a menu, press the
Red phone key.
Make a
speed dialling key
Register the handset
Make a s
hortcut
Using the menu
Write
a
text message
(G955 only)
DECT model G355 / G955 and I755s / I755d – ReferenceGuide
1. Messaging
New and draft 1)
Inbox 1)
Sent messages 1)
Settings
oOverwrite old 1)
oSent messages 1)
oVoicemail number
oDisplay
oAuto answer msg
oSilent answer msg
2. Calls
All
Answered
Dialed
Missed
3. Contacts
Private
oNew contact
Central directory
4. Calendar
5. Settings
General
oProfiles
-Select profile
-Edit profile
-Reset profiles
oTime & date
-Time
-Date
oLanguage
oShortcuts
-Left nav. key
-Up nav. key
-Right nav. key
-Down nav. key
oLED signal
-LED singal off
-Missed VIP call
-Low battery
oSecurity
-Phone lock
-Automatic keylock
-Change PIN code
-Proxy password
oHandset name
oReset settings2)
oReset memory card (optional)
oStatus
Sounds & alerts
oRing volume
oRing external
oRing internal
oRing unknown call
oRing normal msg. 1)
oRing urgent msg. 1)
oRing emergency 1)
oIncreasing ring
oAlert volume
oAlert tone
oIncreasing alert
oVibrator 1)
oKey sound
oConfirmation sound
oCoverage warning
oCharger warning
oRing pattern times
Display
oWallpaper
oThemes
oStart up screen
oPower save
Calls
oUnits
-Call time
-Message count
oAnswer mode
-Normal
-Any key
-Automatic
oCaller filter 1)
-Mode
-List
oEmergency call
-Message
-Number
oMandown call 3)
-Mode
-Message
-Number
-Auto answer
-Delay
-Prealarm time
oSilent charging
Connectivity
oRegister
oDeregister
oNetwork select
oBluetooth (optional)1)
-Enabled/Disabled
-Search for devices
-Paired devices
6. Accessories
Calculator
Stopwatch
Alarms
oAlarm
oRecurrent alarm
1) This menu item is only available on the G955 and then I755s / I755d.
2) This resets menu settings to their original values but has no effect on your contacts etc.
3) This menu item is only available on the I755s / I755d.
Menu list
Additional information I755s/I755d/I755 Multi charger rack
Additional information I755s/I755d/I755 Multi charger rack
Additional Information
I755s/I755d/I755 Multi charger rack
Product disposal information
For countries in the European Union
The symbol depicted here has been affixed to your product in order to
inform you that electrical and electronic products should not be disposed
of as municipal waste.
Electrical and electronic products including the cables, plugs and accessories should
be disposed of separately in order to allow proper treatment, recovery and recycling.
These products should be taken to a designated facility where the best available
treatment, recovery and recycling techniques are available. Separate disposal has
significant advantages: valuable materials can be re-used and it prevents the
dispersion of unwanted substances into the municipal waste stream. This contributes
to the protection of human health and the environment.
Please be informed that a fine may be imposed for illegal disposal of electrical and
electronic products via the general municipal waste stream. In order to facilitate
separate disposal and environmentally sound recycling, arrangements have been
made for local collection and recycling. In case your electrical and electronic
products need to be disposed of please refer to your supplier or the contractual
agreements that your company has made upon acquisition of these products.
At www.nec-philips.com/weee you can find information about separate disposal and environmentally
sound recycling.
For countries outside the European Union
Disposal of electrical and electronic products in countries outside the European
Union should be done in line with the local regulations. If no arrangement has
been made with NEC Philips Unified Solutions or your supplier, please contact the
local authorities for further information.
Battery disposal information
Defect or exhausted batteries should never be disposed of as municipal waste. Re-
turn old batteries to the battery supplier, a licensed battery dealer or a designated
collection facility. Do not incinerate batteries.
Regulatory information Europe
Declaration of conformity
Česky
ními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
http://www.nec-philips.com/doc
Dansk
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
http://www.nec-philips.com/doc
Deutsch
instimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen
Bestim
http://www.nec-philips.com/doc
Eesti
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjako-
hastele sätetele.
http://www.nec-philips.com/doc
English
the essential requirements and other relevant provisions of Directive 1999/5/EC.
http://www.nec-philips.com/doc
Español
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de
la Directiva 1999/5/CE.
http://www.nec-philips.com/doc
Ελληνική
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Η NEC Philips ΕΝΟΠΟΙΗΜΕΝΕS ΛΥSΕΙS ΔΗΛΩΝΕΙ ΟΤΙ “I755s/I755d“
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
http://www.nec-philips.com/doc
Français
-
forme aux exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
http://www.nec-philips.com/doc
Regulatory information
Europe
Declaration of conformity
Íslenska
grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
http://www.nec-philips.com/doc
Italiano
ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
http://www.nec-philips.com/doc
Latviski
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
http://www.nec-philips.com/doc
Lietuvių
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
http://www.nec-philips.com/doc
Malti
1999/5/EC.
http://www.nec-philips.com/doc
Magyar
vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
http://www.nec-philips.com/doc
Nederlands
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG.
http://www.nec-philips.com/doc
Norsk
med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
http://www.nec-philips.com/doc
1
3
2
4
PN 60081179 ver. 1.0
Important safety information

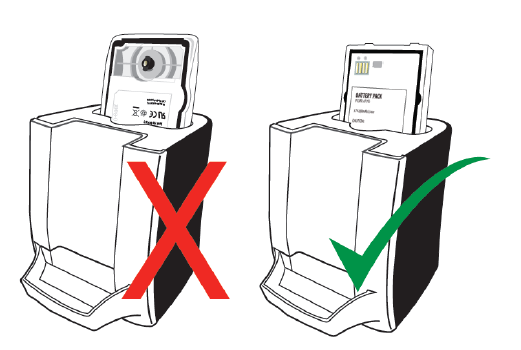

Charge the battery or handset only in combination with
I755s/I755d DECT Handset Desktop charger and the TEN
PAO AC/DC adaptor S008CM1200040 that comes with the
product or with the I755 Multi-charger rack and the TEN
PAO AC/DC adaptor S040EM1200250. Plug the TEN PAO
AC/DC adaptor S008CM1200040 or TEN PAO AC/DC
adaptor S040EM1200250 in a wall outlet socket near
the equipment for easy access/removal of the AC/DC
adaptor.
Important battery information
This product uses rechargeable Lithium-lon batteries 3.7V,
650mAh. Only use batteries that come with the handset
or dedicated spare Shenzhen Bak Technology Co., Ltd
batteries marked with
CAUTION: Risk of explosion if battery is replaced by an
incorrect type. Dispose of used batteries according to
the instructions. For battery replacement or removal
please unlock the battery knob on the battery. Never
disassemble, customize or short-circuit batteries. Do not
place battery in fire or heat the battery. Charge the
battery or handset only in combination with I755s/I755d
Desktop charger and the TEN PAO AC/DC adaptor
S008CM1200040 that comes with the product or with
the I755 Multi - charger rack and the TEN PAO AC/DC
adaptor S040EM1200250
Battery Pack for I755
Sensitive Electronic Environment
Any radio-based equipment can potentially cause
interference with other equipment and can be interfered from other equipment. This also
applies for DECT equipment. However due to the very low transmission power level the
chances for interference are very small. Research proves that operational DECT phones
normally dont influence electronic equipment however some precautions must be taken
into account for sensitive electronic equipment e.g. sensitive laboratory equipment.
When DECT phones operate in straight nearness of sensitive electronic equipment
incidental influence can appear. You are advised not to place the DECT phone on or close
(less than 10cm) to this kind of equipment, even in standby mode. Please also use the
other documentation supplied with the various parts of your telephone system.
OK
1 2 ABC 3 DEF
4 GHI 5 JKL 6 MNO
7 PQRS 8 TUV 9 WXYZ
0#
*
Additional information I755s/I755d/I755 Multi charger rack
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
Additional information I755s/I755d/I755 Multi charger rack
Additional information I755s/I755d/I755 Multi charger rack
Additional information I755s/I755d/I755 Multi charger rack
Additional information I755s/I755d/I755 Multi charger rack
Additional information I755s/I755d/I755 Multi charger rack
Regulatory information
Europe
Declaration of conformity
Polski
z wymaganiami i innymi warunkami Dyrektywy 1999/5/EC.
http://www.nec-philips.com/doc
Português
com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
http://www.nec-philips.com/doc
Slovensko
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
http://www.nec-philips.com/doc
Slovensky
a všetky príslušné ustanovenia Smernice 1999/5/ES.
http://www.nec-philips.com/doc
Suomi
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
http://www.nec-philips.com/doc
Svenska
mmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
http://www.nec-philips.com/doc
NEC PHILIPS Solutions
Anton Philipsweg 1
1223 KZ Hilversum
The Netherlands
Regulatory information United States
Interference information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The I755s/I755d Desktop Charger and the I755 Multi charger rack comply with Part 18 of
the FCC Rules
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
0979
Changes or modications to this unit not expressly approved by the party responsible
for compliance could void user’s authority to operate the equipment.
Privacy of communications may not be ensured when using this phone.
Exposure to Radio Frequency (RF) Signals:
This wireless phone is a radio transmitter and receiver. It is designed and manufactured
not to exceed the emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission (FCC) of the U.S. Government. These limits
are part of comprehensive guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on the safety standards previously set
by both U.S. and international standards bodies. These standards include a substantial
safety margin designed to assure the safety of all persons, regardless of age and health.
This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
absorption rate (SAR) for uncontrolled environment/general population exposure limits
IEEE 1528-2003”
For body worn operation, this handset has also been tested and meets the FCC RF
exposure guideline when used with the NEC belt clip supplied for this product. Use of
other accessories may not ensure compliance with FCC RF exposure guidelines.
Regulatory information
Canada
Interference information:
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
The
I755s/I755d
Desktop Charger and I755 Multi charger rack are ISM devices that comply with
Canadian ICES-001
Privacy of communications may not be ensured when using this equipment.
Exposure to Radio Frequency (RF) Signals
This wireless phone is a radio transmitter and receiver. It is designed and manufactured
not to exceed the emission limit for exposure to radio frequency (RF) energy set by
the Ministry of Health (Canada), Safety Code 6. These limits are part of comprehensive
guidelines and established permitted levels of RF energy for the general population.
These guidelines are based on the safety standards previously set by international
standard bodies. These standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age and health.
This device and its antenna must not be co-located or operating in conjunction with any
other antenna or transmitter.
This device has been shown to be capable of compliance for localized specific absorption
rate (SAR) for uncontrolled environment / general public exposure limits specific in ANSI/
IEEE C95.1-1992 and had been tested in accordance with the measurement procedures
specified in IEEE 1528-2003.
For body worn operation, this handset has also been tested and meets the RF exposure
limits of IC RSS-102 when used with the belt clip supplied with this product. Use of other
accessories may not ensure compliance with IC RSS-102 RF exposure limits
This Class B digital apparatus complies with Canadian ICES-003
CET appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Cet appareil ISM est conforme a la norme NMB-001 du Canada
Le present materiel est conforme aux specifications techniques applicables d Industrie
Canada
Hearing Aid Compatibility (HAC/VC):
This handset meets the IC CS-03 issue 9 Part V standard for Hearing Aid Compatibility.
56
7 8
Hearing Aid Compatibility (HAC/VC):
This handset meets the FCC standard for Hearing Aid Compatibility.
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
“I755s/I755d“
CHARGING THE SPARE BATTERY
When using the I755d/I755s Desktop Charger to charge a (spare) battery pack, please
make sure the battery pack is placed in the spare battery pack charging slot as shown on
the picture on the right.
Compliance Statement United States and Canada
Note: This device complies with Part 18 of the FCC Rules.
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.
