Introduction
Telloisasmallquadcopterthatfeaturesavisionpositioningsystemandanonboardcamera.
Usingitsvisionsystemandadvancedflightcontroller,itcanhoverinplaceandissuitablefor
flyingindoors.Tellocaptures5megapixelphotosandstreamslivevideototheTelloappona
mobiledeviceat720p.Itsmaximumflighttimeisapproximately13minutes.

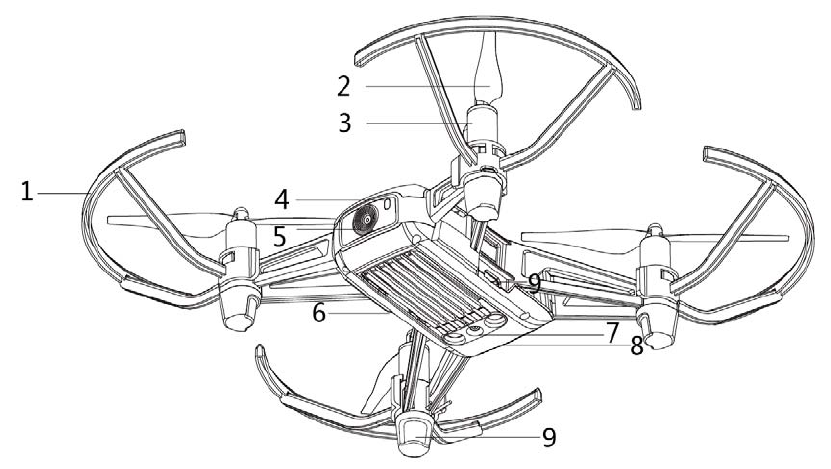

1. PropellerGuards
2. Propellers
3. Motors
4. AircraftStatusIndicator
5. Camera
6. PowerButton
7. VisionSystem
8. Battery
9. Antennas
Specifications
• Aircraft(Model:TLW004)
Weight(PropellerGuardsIncluded)80g
MaxSpeed 22km/h
MaxFlightTime 13 minutes
OperatingTemperature 32°to104°F(0°to40°C)
OperatingFrequency 2.4‐2.4835GHz
• Camera
MaxImageSize 2592*1936
VideoRecordingModes HD:1280×72030p
Video
MP4
• Battery
Capacity 1100mAh
Voltage 3.8V
BatteryTypeLipo
Energy4.18Wh
NetWeight 26g
ChargingTem peratureRange 41°to104°F(5°to40°C)
MaxChargingPower 10W
1. DownloadingtheTelloAppandWatching
TutorialVideos
Searchfor“Tello”ontheAppStoreorGooglePlayorscantheQRcodetodownloadtheappon
yourmobiledevice.
Toensureflightsafety,watchthetutorialvideosontheofficialTellowebsiteorintheTelloapp
beforeyourfirstflight.
2. ChargingtheBattery
ConnecttheMicroUSBportontheaircrafttotheUSBadapterusingthestandardmicroUSB
cabletochargetheaircraft.
Chargingtime:1hourand30minutes.
ThebatteryisfullychargedwhentheAircraftStatusIndicatorchangesfromsolidyellowtosolid
green.
PleaseusetheFCC/CEincluded5V/1A USBadapterforcharging.
3. PreparingforTakeoff

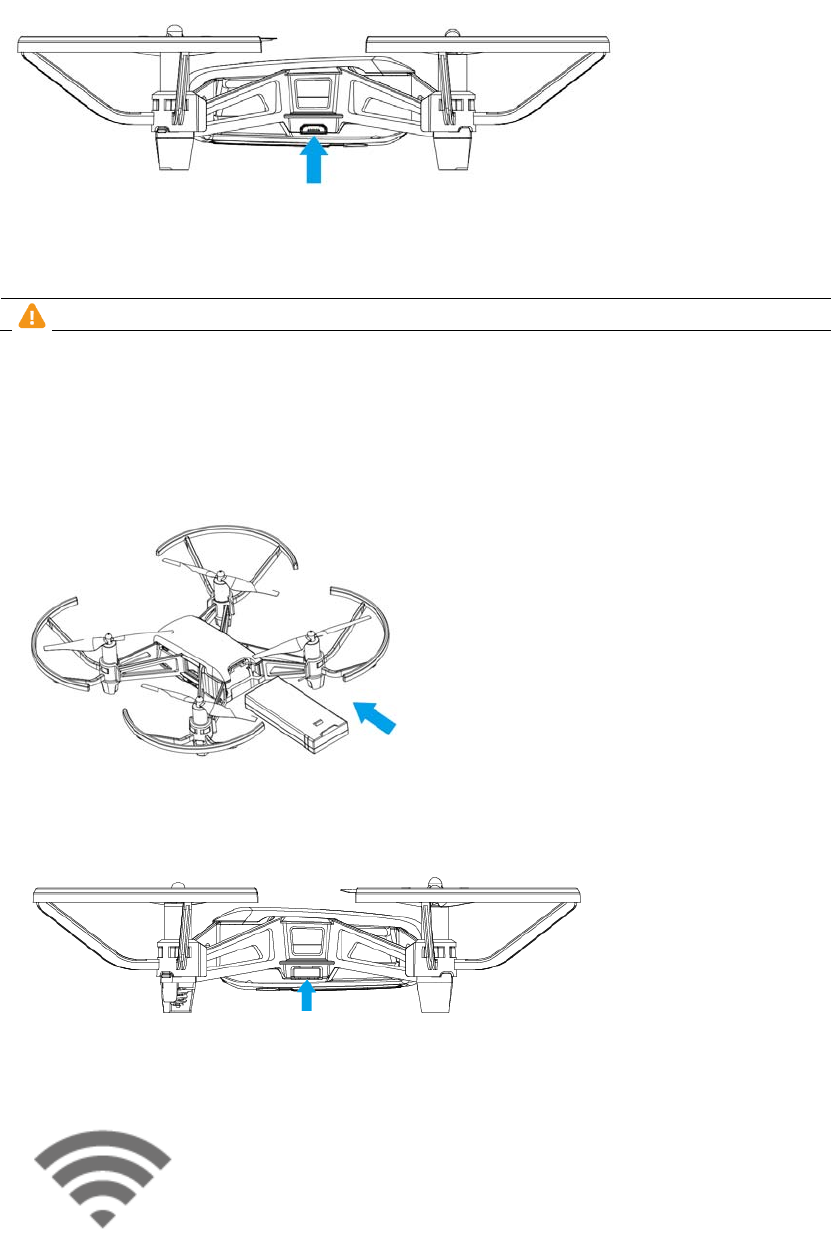

Insertthebatteryintotheaircraftasshown.
Pressthepowerbuttononcetoturnontheaircraft.
EnableWi‐FionyourmobiledeviceandconnecttotheTello‐XXXnetwork.
ThenlaunchtheTelloapp.ConnectionhasbeenestablishedwhentheAircraftStatusIndicator
blinksgreenslowlyandthelivecameraviewisshownonyourmobiledevice.
4. Flight
AutoTakeoff&Landing
Operation

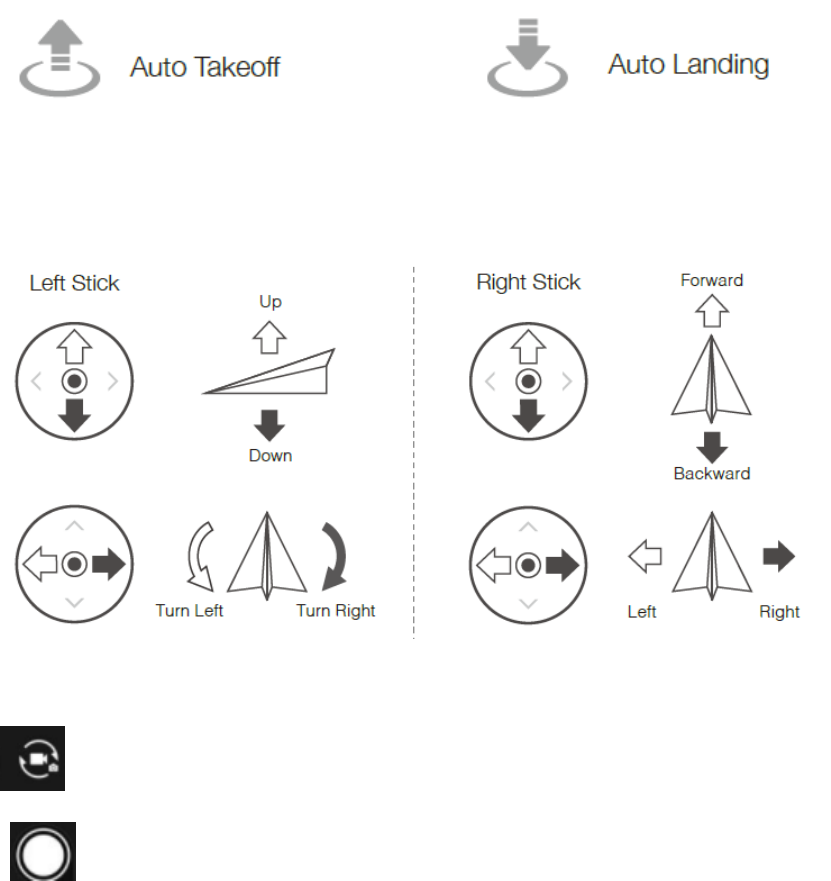

UsetheVirtualJoysticksintheapptocontroltheaircraft.Theleftstickcontrolstheaircraft's
altitudeandheading,whiletherightstickcontrolsforward,backward,left,andrightmovement.
TakingPhotos&RecordingVideo
TaptoswitchbetweenPhotomodeandVideomode.
Taptotakeaphotoorrecordvideo.
ComplianceInformation
FCC ComplianceNotice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. In order to avoid the possibility of exceeding the FCC
radio frequency exposure limits, human proximity to the antenna shall not be less than
20cm during normal operation.
ISEDC RSS Warning
This device complies with licence-exempt RSS standard (s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
CNR d'ISEDC applicables aux
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
ISEDC Radiation Exposure Statement:
This equipment complies with ISEDC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.
KCC Warning Message
“해당무선설비는운용중전파혼신가능성이있으므로인명안전과관련된서비스
는할수없습니다.”
“해당무선설비는운용중전파혼신가능성이있음”
NCC Warning Message
低功率電波輻射性電機管理辦法
第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者
均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有
干擾現象時，應改善至無干擾時方得繼續使用。前項合法通信，指依電信法規
定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用
電波輻射性電機設備之干擾。
EU Compliance Statement: Shenzhen RYZE Tech Co.,Ltd. hereby declares that this
device is in compliance with the essential requirements and other relevant provisions
of the Directive 2014/53/EU.
A copy of the EU Declaration of Conformity is available online
atwww.ryzerobotics.com/euro‐compliance
