RadarFind R221012 INDOOR EQUIPMENT LOCATION SYSTEM User Manual Reader Installation Manual V2

PLM Reader

Model R22-1012 with P10-xx10 PlugSert option

Installation Instructions

RadarFind™ Corporation

877-RadarFind (723-2734)

www.radarfind.com

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 2 of 10

DANGER:

• Risk of electric shock. Disconnect all supplies before working on any

circuit.

• It is important to follow all instructions shipped with this product.

Failure to follow all safety precautions and instructions may result in

property damage, serious injury, or death to you or others.

Cautions:

• Risk of malfunction. Use only copper wires of size 12AWG (or larger)

suitable for 105°C (221°F).

• Installation should conform to national, state, and local electrical codes.

• Gauge of electric supply wires should be of appropriate section, function of

line current, as per NEC electrical code.

• This device must be installed directly into the electrical system.

• This device must be installed by a trained and licensed electrician who is

thoroughly familiar with the National Electrical Code and follows the NEC

Guidelines as well as state and local codes.

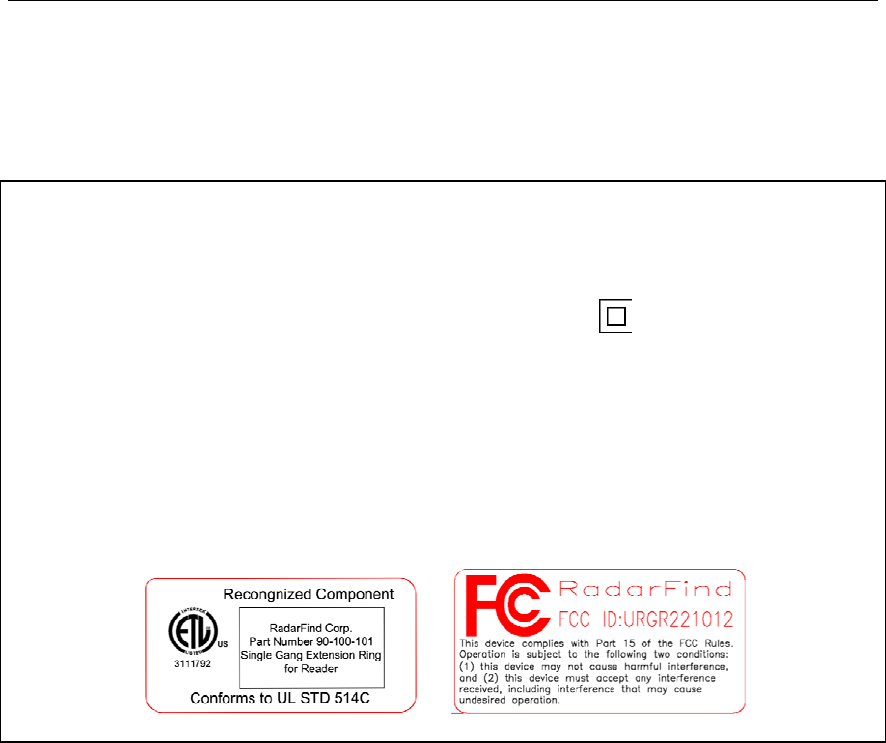

Reader Model

R22-1012

Fcc ID:

URGR221012

[15.19] This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference

that may cause undesired operation.

[15.21] Information to user: Changes or modifications not

expressly approved by the RadarFind Corporation could void the

user's authority to operate the equipment

[15.105] NOTE: This equipment has been tested and found to

comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the

equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be

required to correct the interference at his own expense.

[15.247] This equipment operates under Section 15.247 of the

Title 47 FCC Rules.

[15.249] This equipment operates under Section 15.249 of the

Title 47 FCC Rules.

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 3 of 10

General Safety Information

• Wear safety goggles when working under conditions that might be hazardous to your

eyes.

• Keep tools where you and others will not fall over them.

• Keep the installation area clear during the installation.

• Do not wear loose clothing that could become caught in the equipment.

Electrical Safety Information

• Before working on electrical equipment, remove jewelry (necklaces, rings, watches, and

so on).

• Locate the emergency on/off switch closest to the installation site.

• Before installation, turn OFF the power.

• Refer to the site’s safety precautions for details about site-specific hazards.

• Refer to the Reader name plate for information on voltage and current.

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 4 of 10

Preparing for Installation

Note: Read all instructions before installing or operating this equipment.

Site Selection Criteria

The selection of the mounting location for the reader and the method of connecting it into the

existing electrical system must be accomplished under the direction of the facilities engineer and

the safety engineer responsible for the proposed building or location.

The installation location must be indoors and protected from all weather and water. All provided

mounting fasteners must be used for secure and safe attachment.

Equipment Assessment

Caution: If the equipment is damaged, do not attempt to install or operate it.

1. When the equipment arrives, unpack the unit(s).

2. Check for damage that may have occurred in transit.

3. Contact the carrier immediately to file a claim stating the extent of the damage, or contact

Radarfind customer service for repair or replacement.

4. Review the following checklist to ensure that all necessary materials are available for

installation.

 Reader unit

 2—3/4” #6 screws – For mounting Reader

to existing electrical box. Wired Reader only

 4—hollow wall “Polly” anchors

 4—3” #6 screws for use with the “Polly” wall

anchors

 4—plastic mounting hole plugs

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 5 of 10

Installing a RadarFind Plug-in Reader

Warning: ALWAYS confirm that Location ID label on top of Reader matches

Location ID on map for where Reader will be installed. If it is necessary to

install a Reader in any other location for any reason RadarFind must be

notified immediately.

Note: A RadarFind Reader can only be installed with the ground pin orientation the same

as the existing receptacle. If it is necessary to install a Reader 180 degrees off-axis from

the existing receptacle the orientation of the existing receptacle must be reversed by an

electrician.

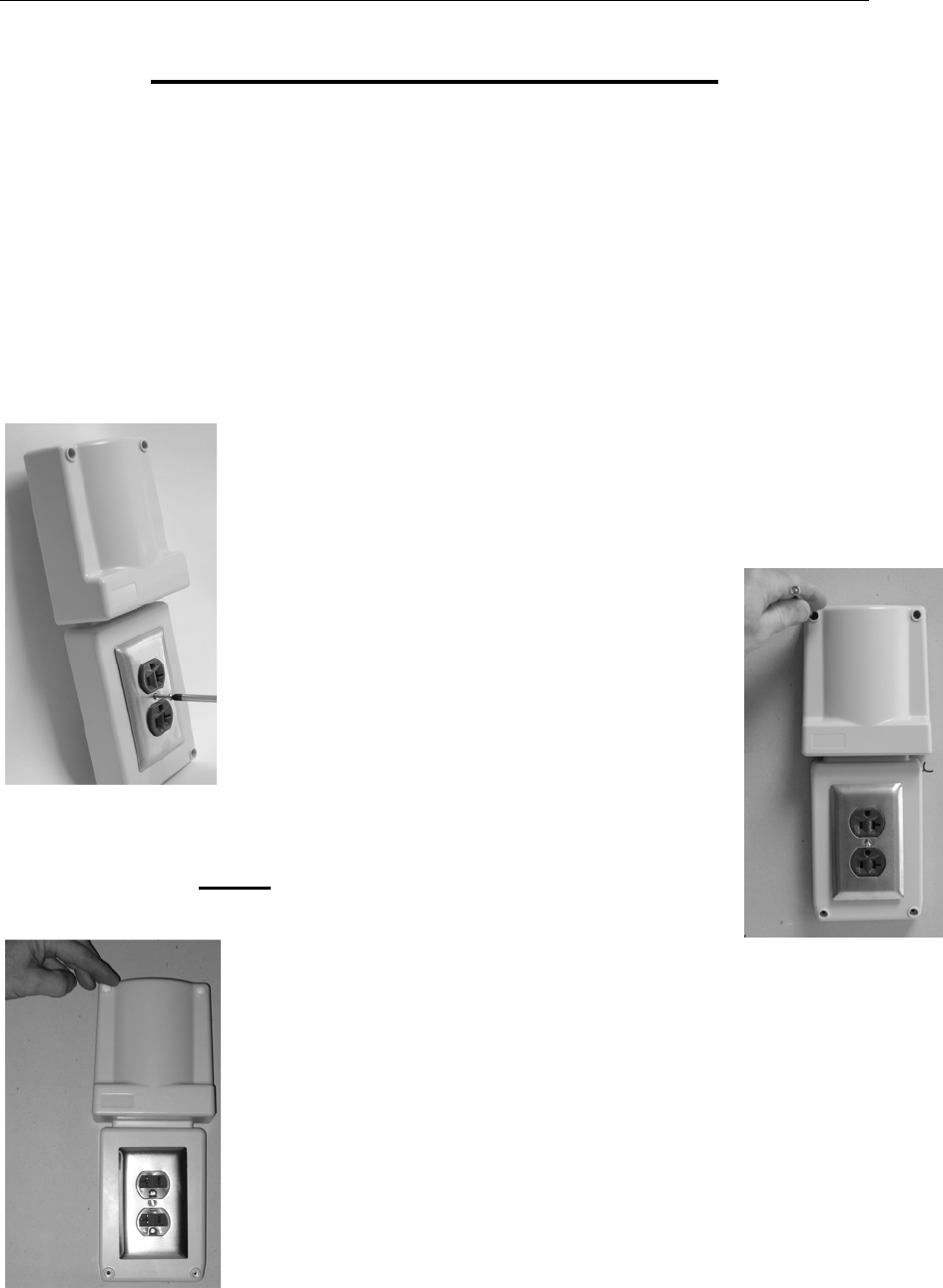

Plug-in Installation Procedure

1. Unscrew Reader receptacle plate screw approximately ¾”

2. Remove existing receptacle cover plate.

3. Plug Reader into existing receptacle

4. Level Reader and mark wall for four corner

mounting anchors.

5. Remove Reader.

6.

7. Insert included wall anchors at punch marked locations, tighten

until securely compressed into wall, then remove screws from

anchors and discard. (The heads on the anchor screws are too large to be

used in the Reader)

8. Plug Reader into receptacle.

9. Insert and secure 4 corners using the (4) 3” #6 screws,

tighten to 12 inch pounds.

10. Tighten Reader receptacle cover plate screw

11. Plug four corner holes with plugs provided.

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 6 of 10

Hard wiring a Reader

In places where the Reader must be installed off-axis to the receptacle or over a quad

box the Reader Plug-Sert must be removed and the Reader must be wired directly into

the receptacle box.

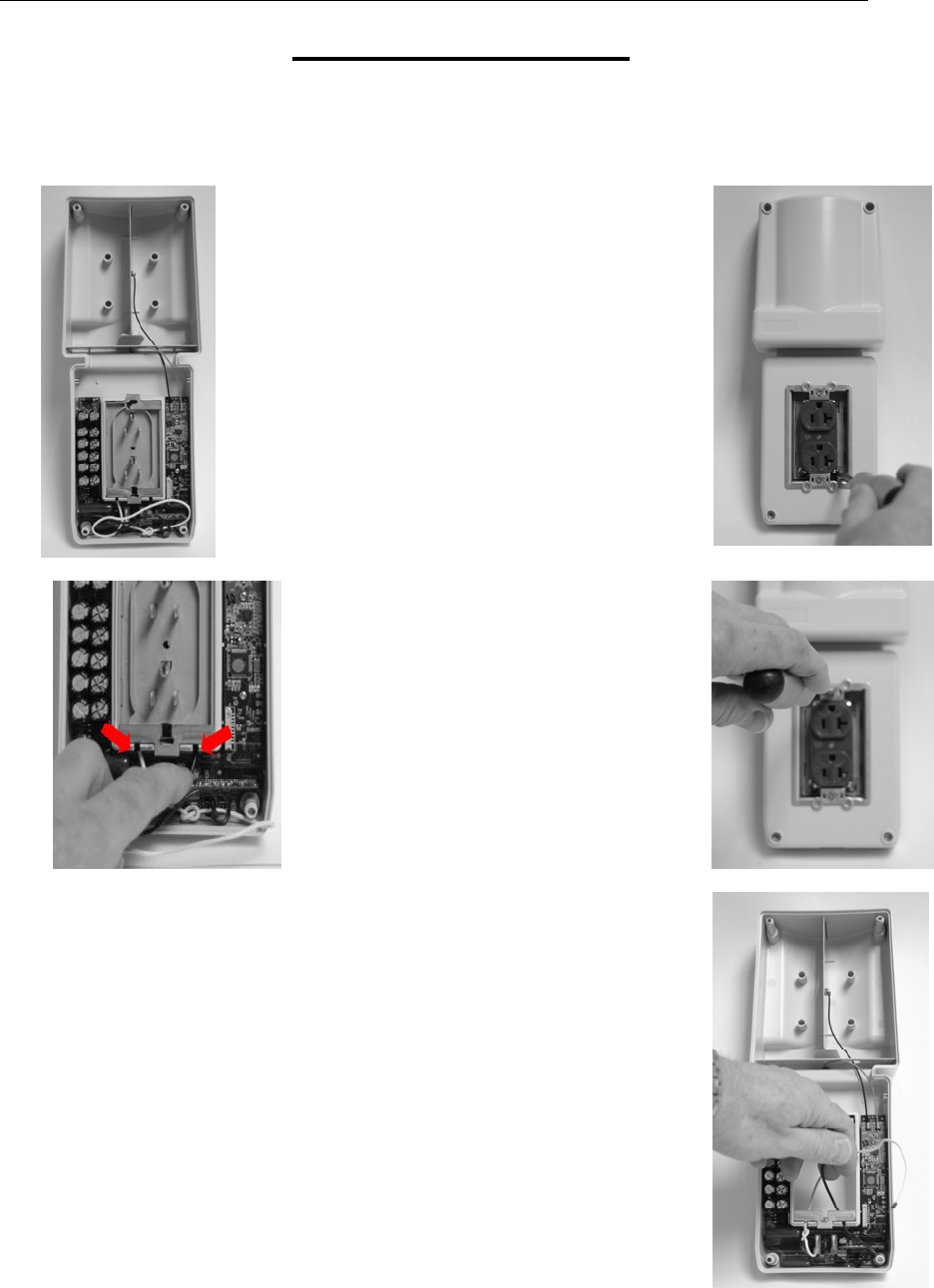

Removing the Plug-Sert from Reader

1. Remove Reader back plate

2. Remove Reader cover plate

3. Loosen Plug-Sert wire tap screws, from

the bottom front of the Reader behind

the receptacle

4. Pull Reader tap wires out of Plug-

Sert from inside the back of the

Reader

5. Remove receptacle mounting

screws

6. Pull the Plug-Sert out of the front

of the Reader

7. Feed Reader tap wires through slots

in Reader cavity

8. Replace Reader back plate

9. Proceed with wired Reader instructions

on next page.

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 7 of 10

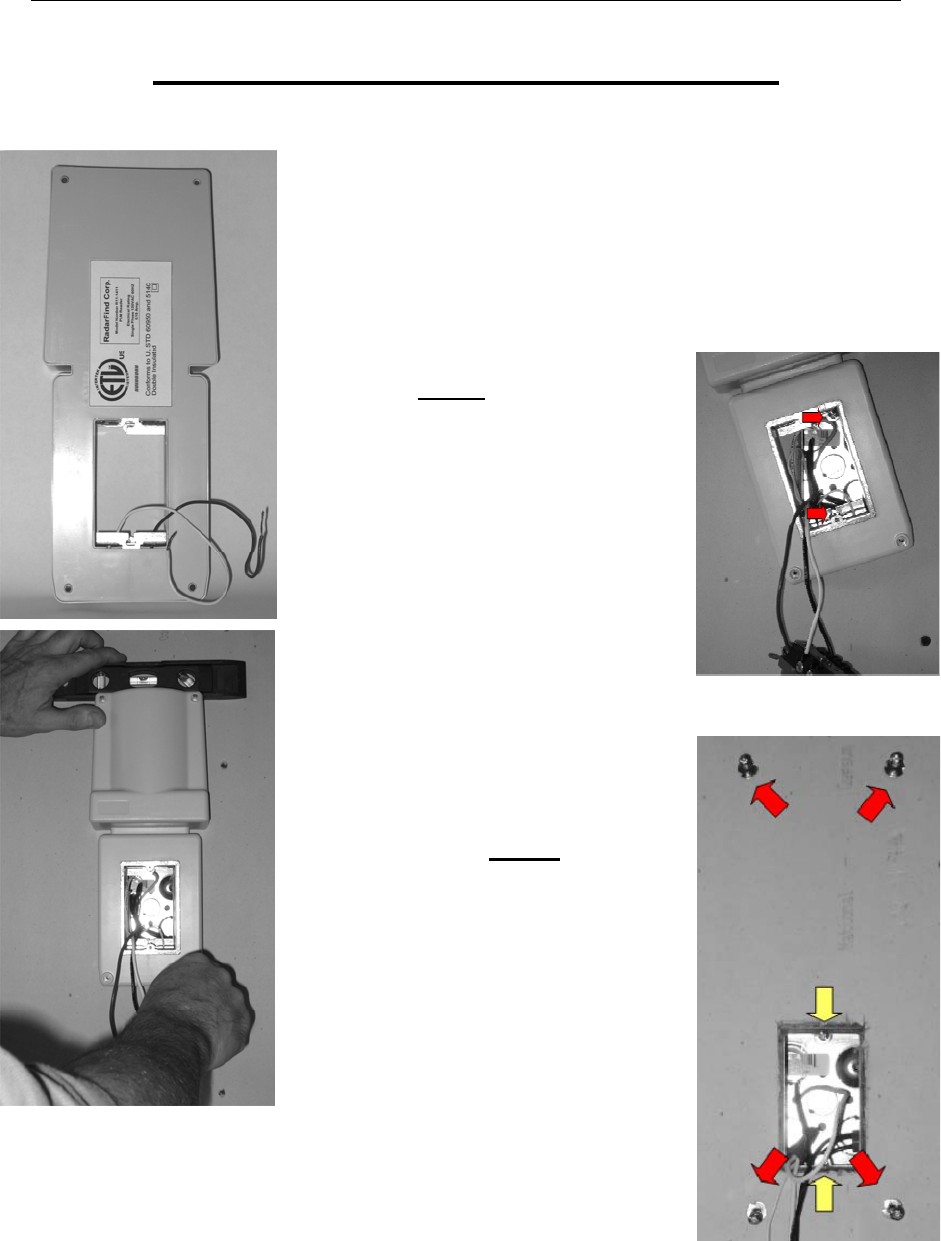

Hard wired Reader Installation Procedure

1. Turn off the power to the outlet.

2. Remove the existing receptacle cover plate and

mounting screw, set aside screws for use later.

3. Unscrew receptacle, save screws for later use, and pull

receptacle out of box.

NOTE: If Reader orientation is off axis to the existing receptacle or if

the existing receptacle is an quad see Reader mounting adapter

plate 80-000-1019 adapter plate. (Pg. 10 )

4. Start bottom receptacle

mounting screw from

installation kit into the box hole,

(YELLOW) leaving approx ½”

protruding, cut screw if required

to avoid contact with wires in

the box.

5. Pull receptacle through Reader

from back and place Reader

temporarily over box, sliding

slot in Reader mounting frame

over bottom box screw, level,

and mark corner holes with

punch.

6. Remove Reader. Insert included

wall anchors at punch marked

locations, tighten until securely

compressed into wall, then

remove screws (RED) from

anchors and discard. (The heads

on the anchor screws are too large

to be used in the Reader)

7. Start top receptacle mounting

screw into the box hole,

(YELLOW) leaving approx ½”

protruding, cut screw if required

to avoid contact with wires in

the box.

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 8 of 10

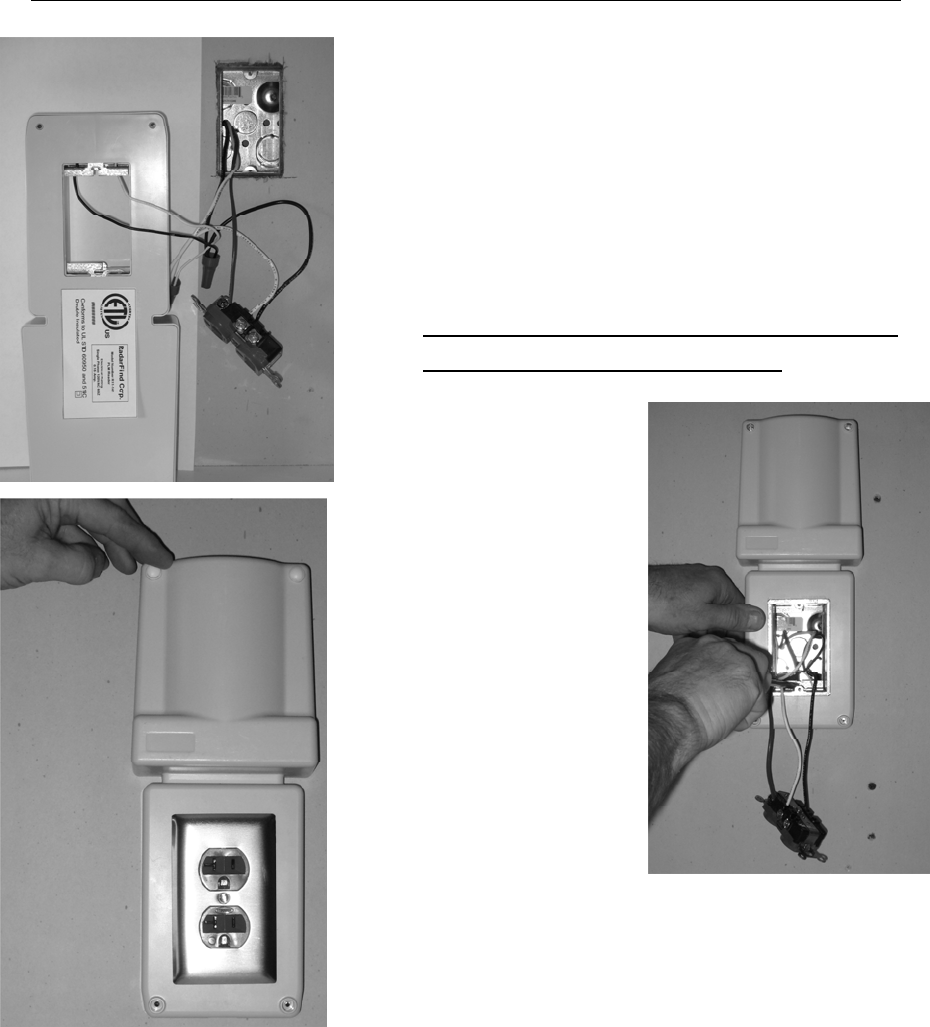

8. Wire Reader into circuit with Reader leads

protruding from rear of Reader.

9. Pass receptacle through reader cavity and tip

Reader onto the protruding box screws (RED) by

sliding slotted end of metal mounting frame onto

bottom screw, tipping the Reader to left and

turning clock-wise onto top screw.

IMPORTANT ! Use caution to assure that no wires

are caught under metal Reader frame.

10. Tilt the Reader

straight, level, and

tighten box screws

loosely.

11. Insert and secure 4

corners using the (4)

3” #6 screws, tighten

to 12 inch pounds.

12. Tighten box screws

(RED) and reinstall

receptacle onto

Reader mounting

bracket using the

original receptacle

screws, tighten to 12

inch pounds.

13. Replace outlet plate and cover four mounting

holes with plastic plugs, provided.

14. Restore power to the outlet.

Note : See Reader mounting adapter plate (Pg. 10 ) for mounting at 90 Degrees to single gang

receptacles or on quad-box receptacles.

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 9 of 10

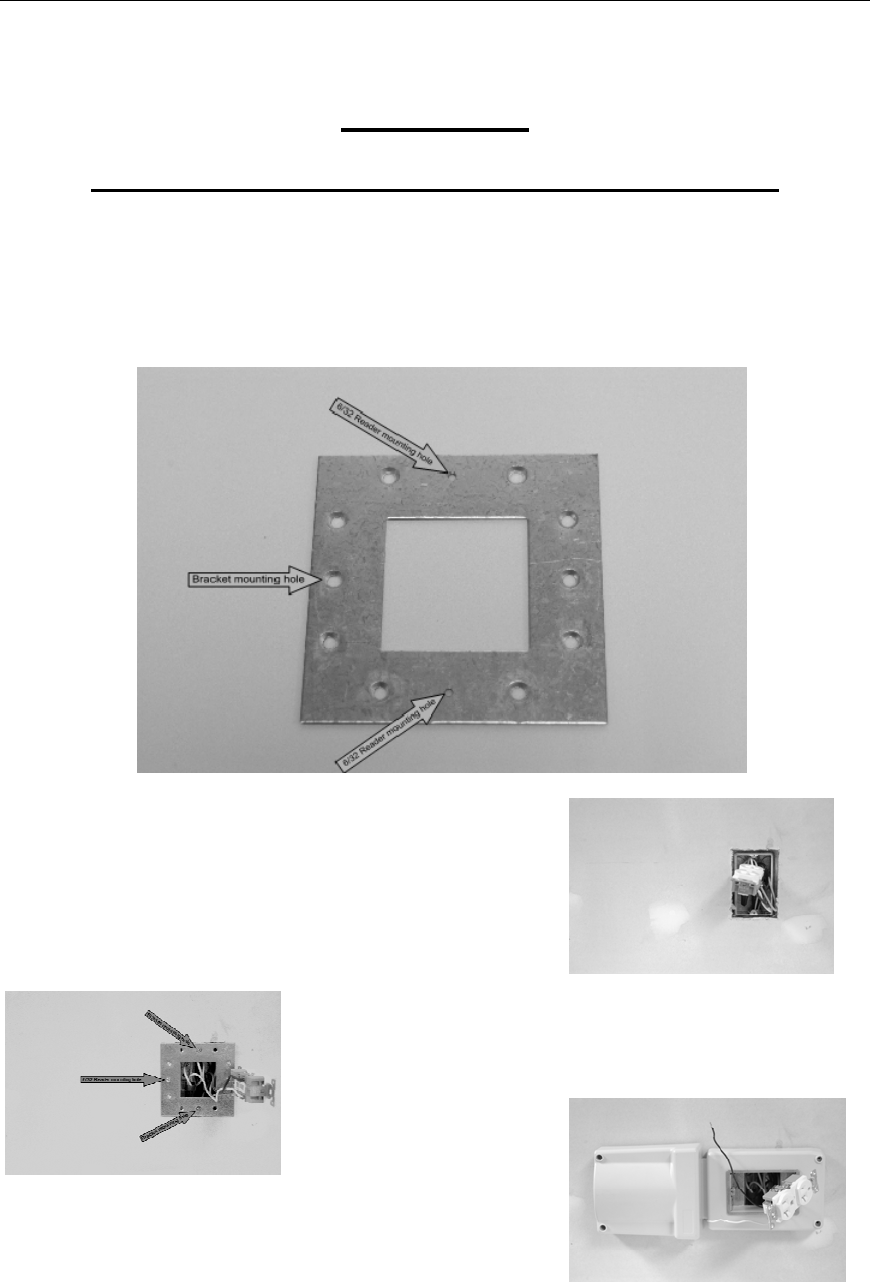

Accessories

Reader mounting adapter plate – 80-000-1019

In some cases other objects near a receptacle, such as railings or cabinets, will prevent

the Reader from being installed in its default position or orientation. RadarFind Readers

may be hard wired at a 90 degree angle over single gang wall receptacles or in any

orientation over quad receptacles with the accessory adapter plate.

1 – Remove PlugSert module from Reader

2 - Remove cover plate and receptacle mounting screws,

tip receptacle up from wall.

3 – Install adapter plate with tapped 6/32 Reader mounting

holes for desired Reader orientation.

4 – Install Reader onto adapter plate according to the

Hard wired Reader Installation Procedure.

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 10 of 10

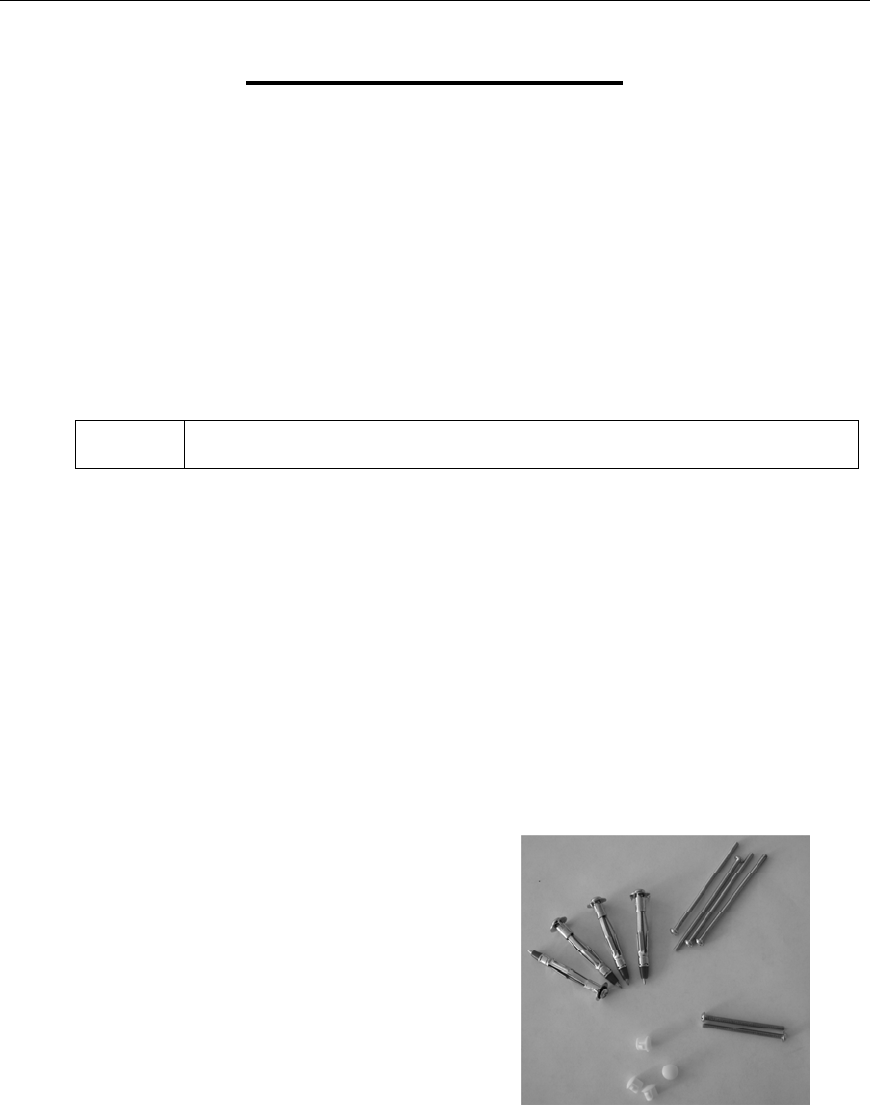

Tamper-resistant mounting accessories

RadarFind R11-1411 Readers are packaged with standard 6/32 combination head screws

for the center plate retention screw and the four corner anchor screws. Tamper resistant

screws and matching drivers are available as accessories.

Note: The Reader UL 914C approval - for use as an electrical extension ring - when installed as a

direct wired device requires the use of the provided wall anchors on all four corners. The 50-100-

1020 tamper-resistant screws are custom manufactured for use with these UL approved wall

anchors.

RadarFind R11-1411 Reader Accessories

Part Number Description

80-100-1019

Adapter mounting plate for R11-1411 Reader

50-100-1019

(1) 6/32 2” tamper-resistant center plate

screw for R11-1411 Reader

50-100-1020 (4) 6 /32 3” tamper-resistant wall mounting

screws for R11-1411 Reader

50-100-1021 Tamper-resistant screw driver for 50-100-

1019

50-100-1022 Tamper-resistant screw driver for 50-100-

1020 for R11-1411 Reader

Radarfind Corporation

12/5/2008 PLM Reader Installation Instructions Page 11 of 10

Technical Specifications:

Part # - R22-1012

AC supply: 108-130 VAC RMS, single phase 60HZ

Power: 1.2 VA

Double Insulated

Communications: FHSS FCC Subpart 15.249 and 15.247

RF frequency range: FSK channel between 902 and 928 MHz

Transmit power: +8dBm maximum

Antenna: 6 dB gain cardioid

Operating: 0 to 40º C, 5% to 90% RH, non condensing

Dimensions: 5” W x 12.3” L x 2.25” D

(4 mounting holes for wall anchors)

RadarFind R221012 INDOOR EQUIPMENT LOCATION SYSTEM User Manual Reader Installation Manual V2

RadarFind Corporation INDOOR EQUIPMENT LOCATION SYSTEM Reader Installation Manual V2

Contents

Installation Manual

Navigation menu

Namespaces

Views

Navigation
