Technical Data
Sheet
STRAIGHT BULKHEAD JACK FULL CRIMP CABLE 2.6/50 S
PAGE
1
/
2
ISSUE
1438B
SERIES
SMA
PART NUMBER
R125312120
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written
agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.

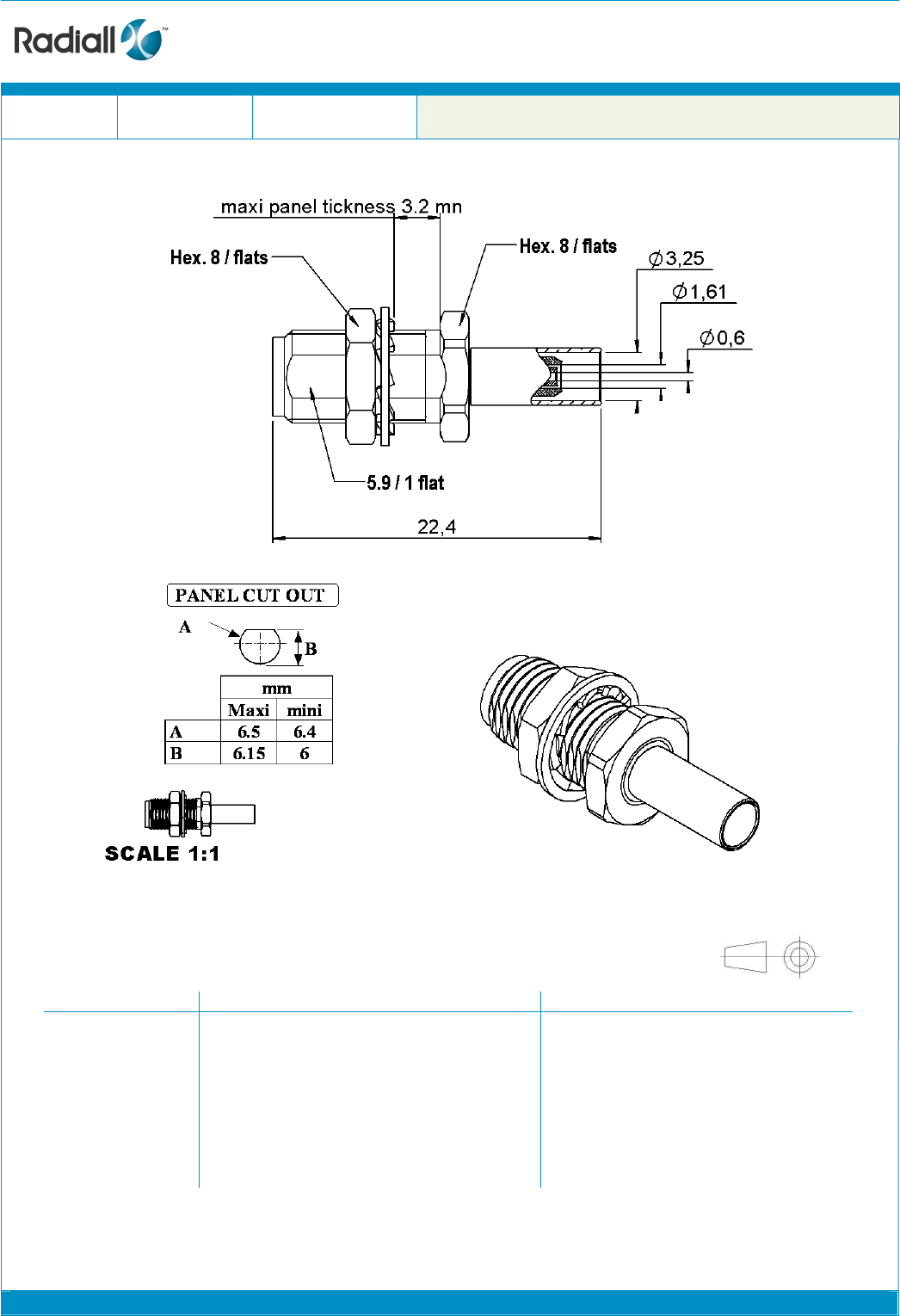

All dimensions are in mm.
. .
pn ao
COMPONENTS MATERIALS PLATING (
µ
m)
Body
GOLD 0.5 OVER NICKEL 2
Center contact
BERYLLIUM COPPER
GOLD 1.3 OVER NICKEL2
Outer contact
-
-
Insulator
PTFE
Gasket
-
Others parts
BRASS
GOLD 0.2 OVER NICKEL 2
- - -
- - -
Technical Data
Sheet
STRAIGHT BULKHEAD JACK FULL CRIMP CABLE 2.6/50 S
PAGE
2
/
2
ISSUE
1438B
SERIES
SMA
PART NUMBER
R125312120
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written
agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
PACKAGING
Standard Unit Other
100
Contact us
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
50
Ω
Frequency
0
-
12.4
GHz
VSWR
1.15
+
0,0200
x F(GHz) Maxi
Insertion loss
0.04
√
F(GHz) dB Maxi
RF leakage - (
-
- F(GHz)) dB Maxi
Voltage rating
250
Veff Maxi
Dielectric withstanding voltage
750
Veff mini
Insulation resistance
5000
M
Ω
mini
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating End
18
N mini
Axial force – Opposite end
18
N mini
Torque
N
A
N.cm mini
Recommended torque
Mating
NA
N.cm
Panel nut
150
N.cm
Clamp nut
NA
N.cm
A/F clamp nut
0,0000
mm
Mating life
500
Cycles mini
Weight
3,6000
g
ENVIRONMENTAL
Operating temperature
-
65/+165
°C
Hermetic seal
NA
Atm.cm3/s
Panel leakage
NA
SPECIFICATION
CABLE ASSEMBLY
Stripping
a b c d e f
mm
3
6,3
10,8
0
7,8
0
Assembly instruction: Crimp 02
Recommended cable(s)
RG 316
KX 22A
RG 188
Characteristics indicated on this data sheet are those that can be achieved with the highest
performance cable. Intrinsic limitations of the cable may diminish the performance of the
assembly
Cable retention
- pull off
90
N mini
- torque
-
N.cm
TOOLING
OTHER CHARACTERISTICS
-
Part Number Description Hexagon
R282281000 CRIMPING TOOL 2x4(pos5)
R282967012 POSITONER FOR CRIMPING TOOL
And - (et)
R282271000 CRIMPING TOOL 3.25
Or - (ou)
R282293000 CRIMPING TOOL M22520/5-01
R282235003 CRIMPING DIES M22520/5-03 3.25
