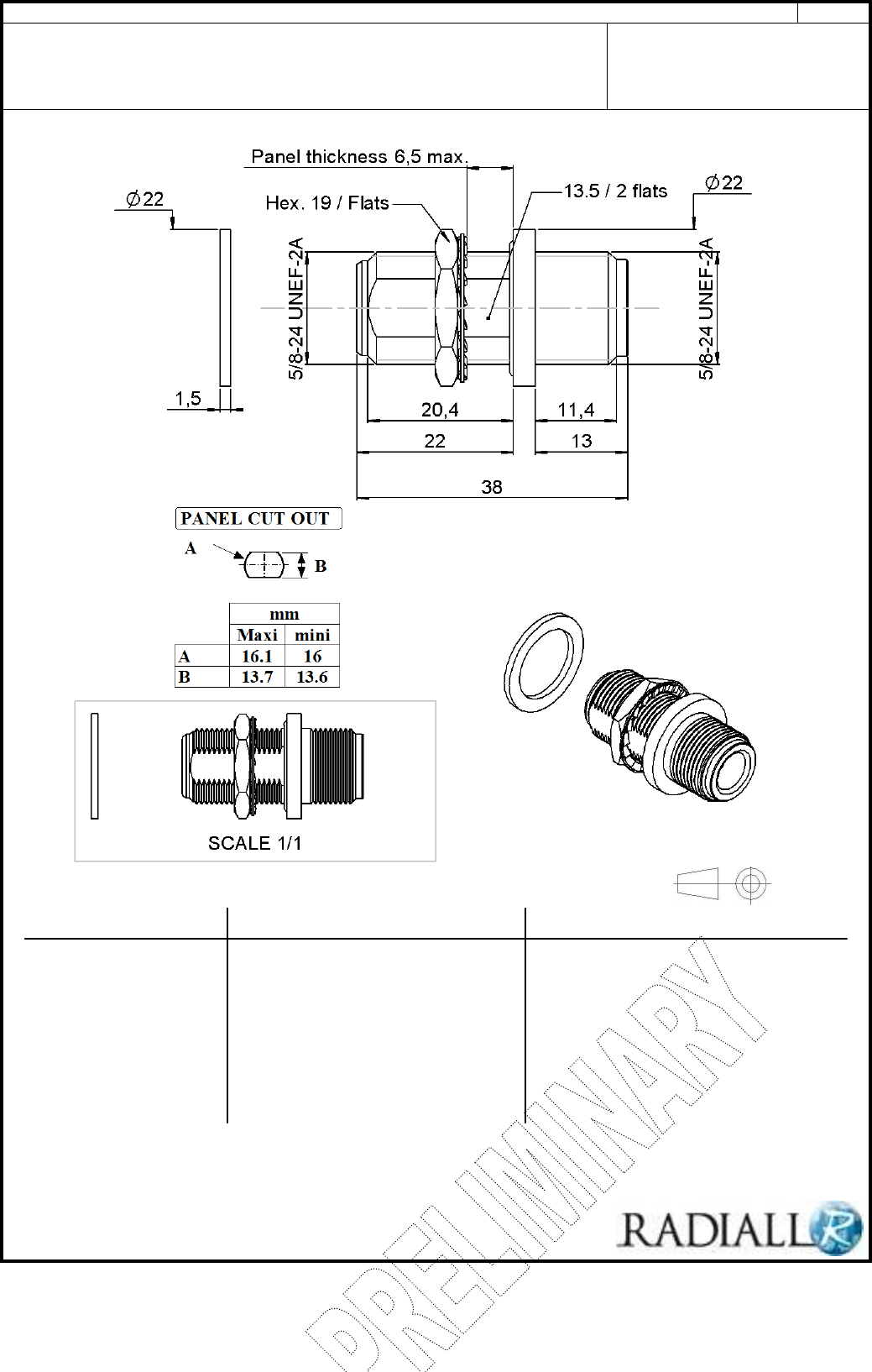

TECHNICAL DATA SHEET
1 / 2
FEMALE-FEMALE HERMETIC ADAPTOR
R161.753.000
BULKHEAD TYPE - PANEL SEAL
Series : N
Issue : 1426 F
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
All dimensions are in mm.
.
.
po
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BRASS
BERYLLIUM COPPER
BRASS
PTFE+GLASS BEAD
BLACK FLUOROCARBON
BRASS
-
-
PLATING (
µm
)
BBR 2
GOLD 0.5 OVER NICKEL 2
BBR 2
BBR 2
-
-
TECHNICAL DATA SHEET
2 / 2
FEMALE-FEMALE HERMETIC ADAPTOR
R161.753.000
BULKHEAD TYPE - PANEL SEAL
Series : N
Issue : 1426 F
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
PACKAGING
SPECIFICATION
Standard
Unit
Other
LEA COAN14HO
50
‘W’ option
Contact us
N 282 Rev3
ELECTRICAL CHARACTERISTICS
ENVIRONMENTAL
Impedance
50
Ω
Operating temperature
-
55/+155
° C
Frequ
ency
0
-
11
GHz
Hermetic seal
10
-
6
Atm.cm3/s
VSWR
1.45
+
0,0000
x F(GHz) Maxi
Panel leakage
IP67
Insertion loss
0.10
√
F(GHz) dB Maxi
RF leakage
-
(
101
- F(GHz)) dB Maxi
Voltage rating
1400
Veff Maxi
Dielectric withstanding voltage
2500
Veff mini
Insulation resistance 5000
M
Ω
mini
OTHER CHARACTERISTICS
Assembly instruction
Others
:
-
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force
–
Mating end
27
N mini
Axial force
–
Opposite end
27
N mini
Torque
NA
N.cm mini
Recommended torque
Mating
NA
N.cm
Panel nut
500
N.cm
Mating life
500
Cycles mini
Weight
47,7000
g
