RF CHARACTERISTICS
Number of ways : 6
Frequency range : 0 - 18 GHz
Impedance : 50 Ohms
Depending on application, carrier powers and frequencies, PIM measurements can vary.
PIM testing is not measured during product acceptance test.
ELECTRICAL CHARACTERISTICS
Actuator : NORMALLY OPEN
Nominal current ** : 102 mA
Actuator voltage (Vcc) : 28V (24 to 30V) / POSITIVE COMMON
Terminals : solder pins (250°C max. / 30 sec.)
MECHANICAL CHARACTERISTICS
Connectors***** : SMA female per MIL-C 39012
Life : 2 million cycles per position
Switching Time*** : < 15 ms
Construction : Splashproof
Weight : < 180 g
ENVIRONMENTAL CHARACTERISTICS
Operating temperature range : -25°C to +70°C
Storage temperature range : -55°C to +85°C
(* Average power at 25°C per RF Path)
(** At 25° C ±10%)
(*** Nominal voltage ; 25° C)
(***** Recommended mating torque: 80-120 N.cm)
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written
agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
R573403610LP
SERIE : SPnT
PAGE 1/2
ISSUE
SP6T Ramses Low PIM SMA 18GHz Normally open 12Vdc Positive common
Pins Terminals
11-10-17
PART NUMBER :
3rd order PIM
Frequency (GHz)
DC - 3
3 - 8
- 160 dBc at 1770 MHz
8 - 12.4
12.4 - 18
0.40 dB
0.50 dB
1.30
VSWR max
1.20
Tone 1
1810 MHz, approximately 43 dBm
1.40
1.50
Average power (*)
240 W
150 W
120 W
Insertion loss max
0.20 dB
0.30 dB
Tone 2
Isolation min
80 dB
70 dB
60 dB
60 dB
1850 MHz, approximately 43 dBm
Passive intermodulation
100 W

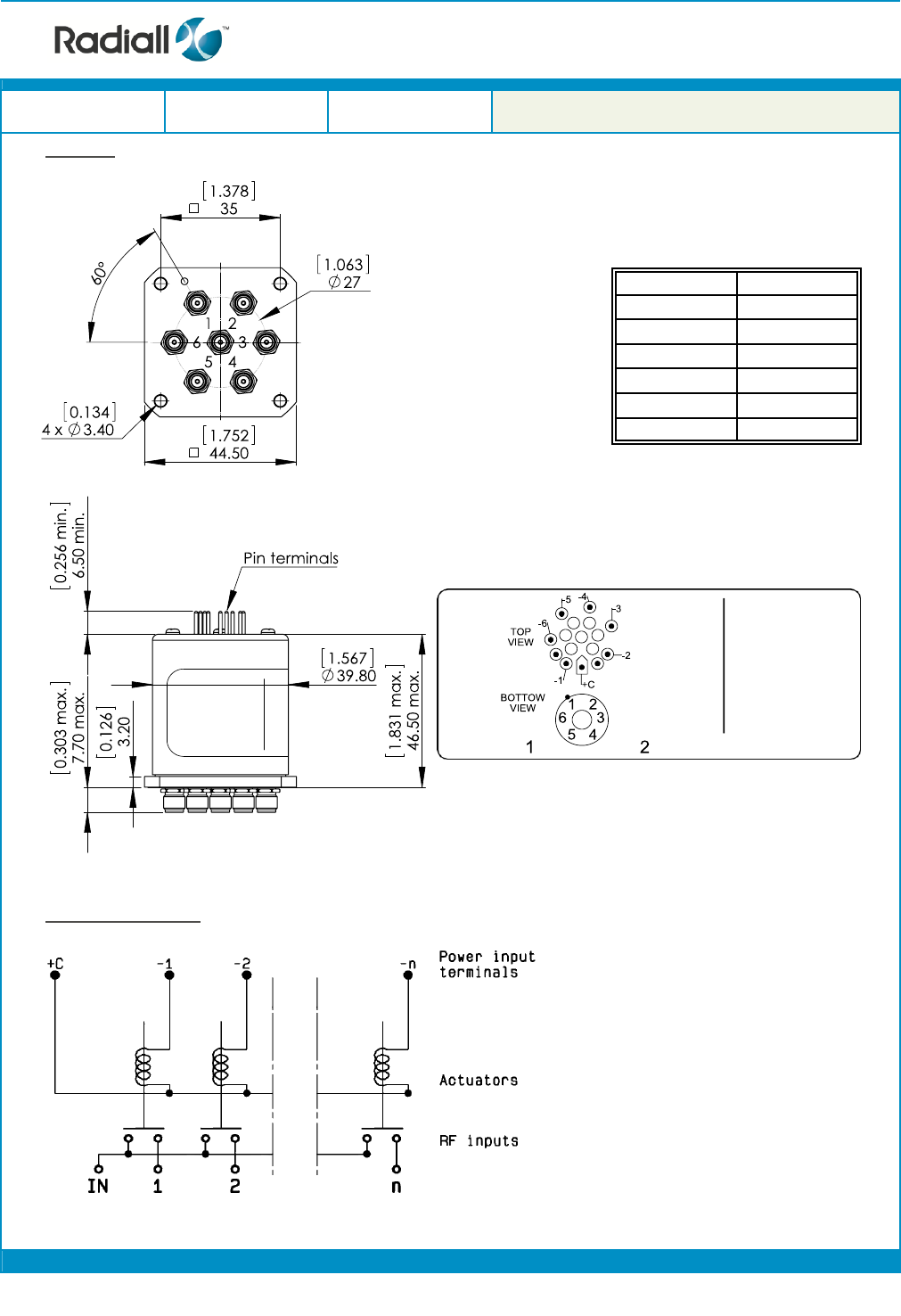

DRAWING
General tolerances : ±0,5 mm [0,02 in]
SCHEMATIC DIAGRAM
+C -6
IN ↔ 6
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written
agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
PAGE 2/2
SERIE : SPnT
PART NUMBER :
Technical Data Sheet
SP6T Ramses Low PIM SMA 18GHz Normally open 12Vdc Positive common
Pins Terminals
ISSUE
11-10-17
R573403610LP
Voltage
RF Continuity
+C -1
IN ↔ 1
+C -2
IN ↔ 2
+C -3
IN ↔ 3
+C -4
IN ↔ 4
+C -5
IN ↔ 5
RADIALL®
R573403610LP
0 - 18 GHz
Un : 28V
Lot : _ _ _ _
LABEL
