Users Manual

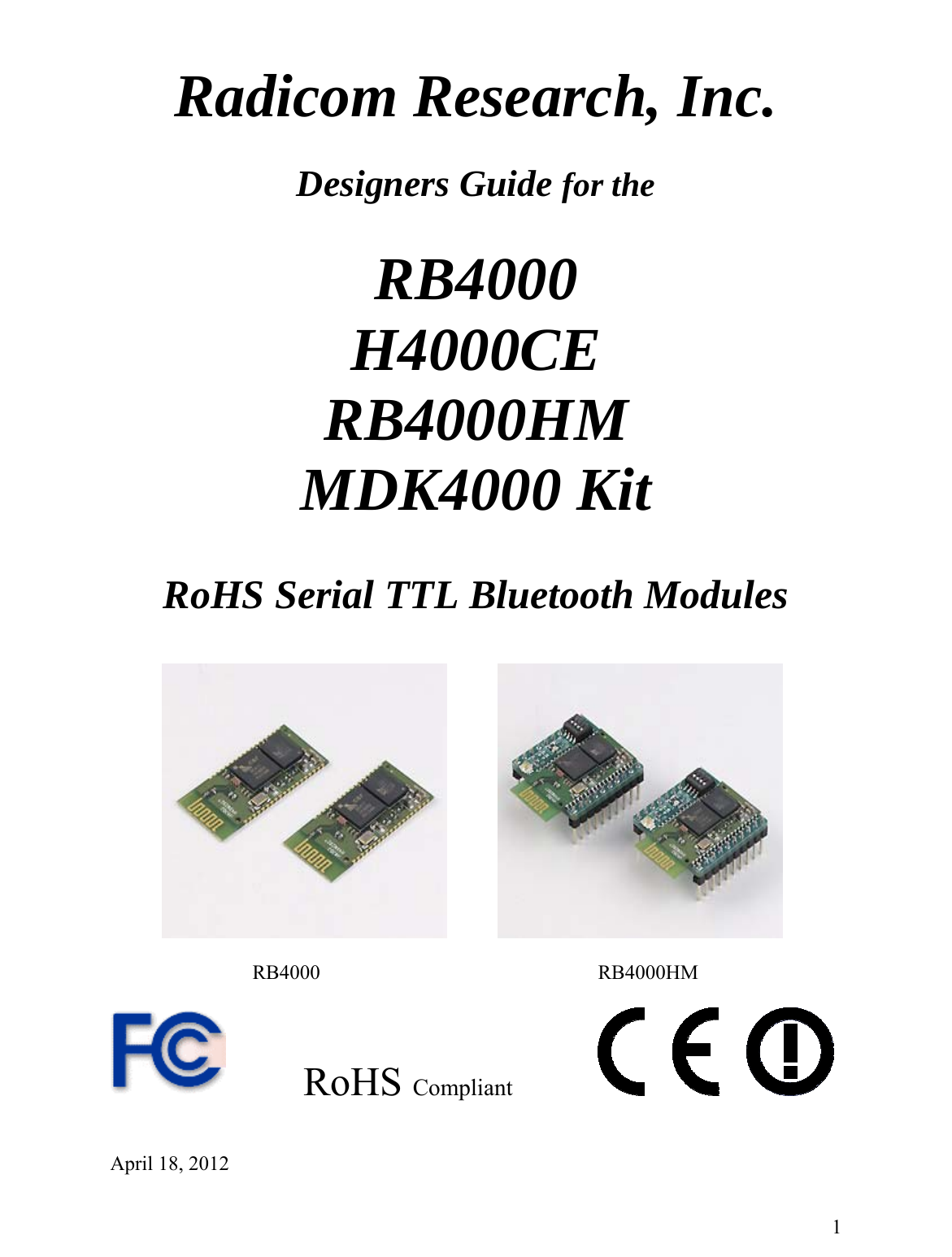

Radicom Research, Inc. Designers Guide for the RB4000 H4000CE RB4000HM MDK4000 Kit RoHS Serial TTL Bluetooth Modules RB4000 RB4000HM RoHS Compliant 1April 18, 2012

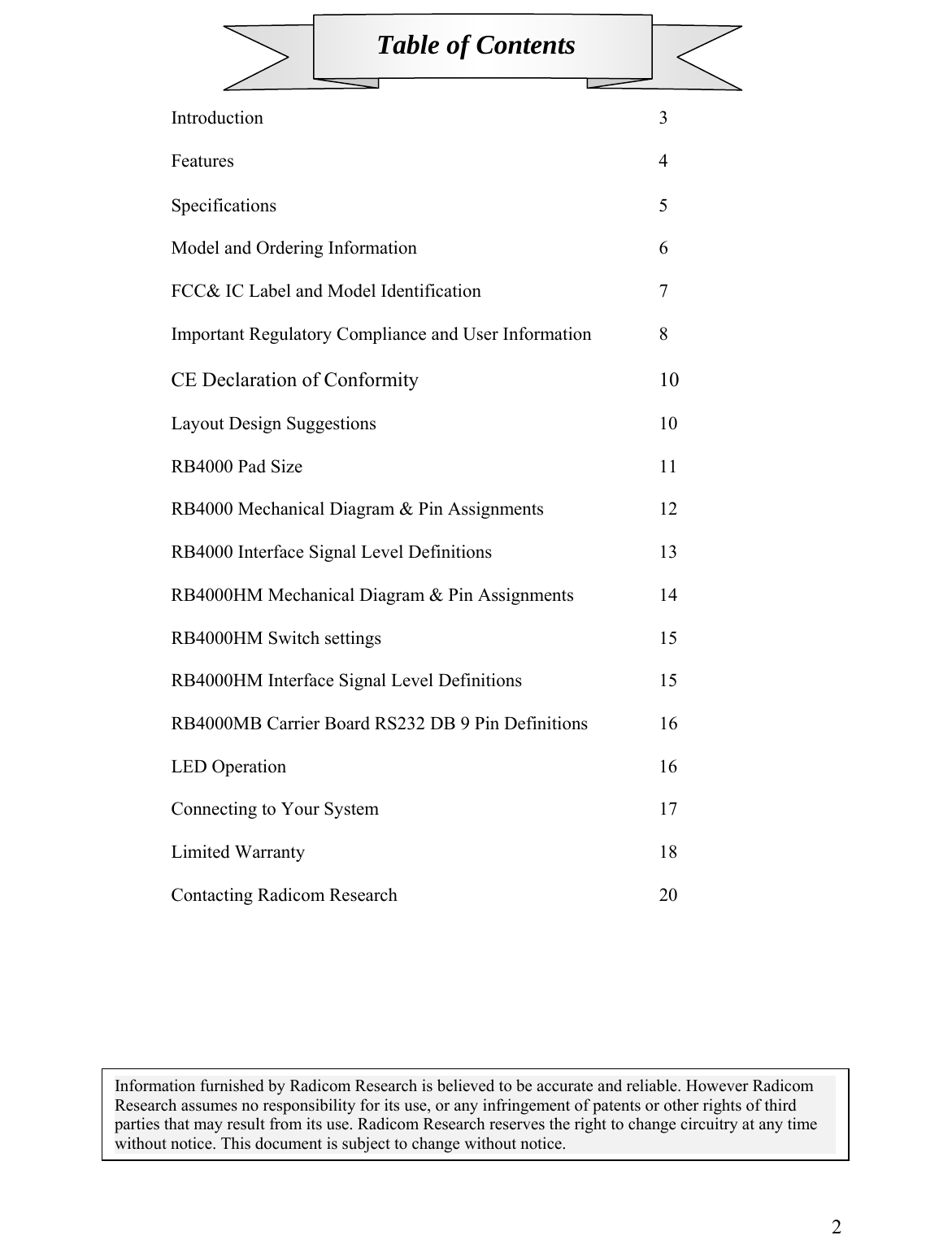

Table of Contents Introduction 3 Features 4 Specifications 5 Model and Ordering Information 6 FCC& IC Label and Model Identification 7 Important Regulatory Compliance and User Information 8 CE Declaration of Conformity 10 Layout Design Suggestions 10 RB4000 Pad Size 11 RB4000 Mechanical Diagram & Pin Assignments 12 RB4000 Interface Signal Level Definitions 13 RB4000HM Mechanical Diagram & Pin Assignments 14 RB4000HM Switch settings 15 RB4000HM Interface Signal Level Definitions 15 RB4000MB Carrier Board RS232 DB 9 Pin Definitions 16 LED Operation 16 Connecting to Your System 17 Limited Warranty 18 Contacting Radicom Research 20 2Information furnished by Radicom Research is believed to be accurate and reliable. However Radicom Research assumes no responsibility for its use, or any infringement of patents or other rights of third parties that may result from its use. Radicom Research reserves the right to change circuitry at any time without notice. This document is subject to change without notice.

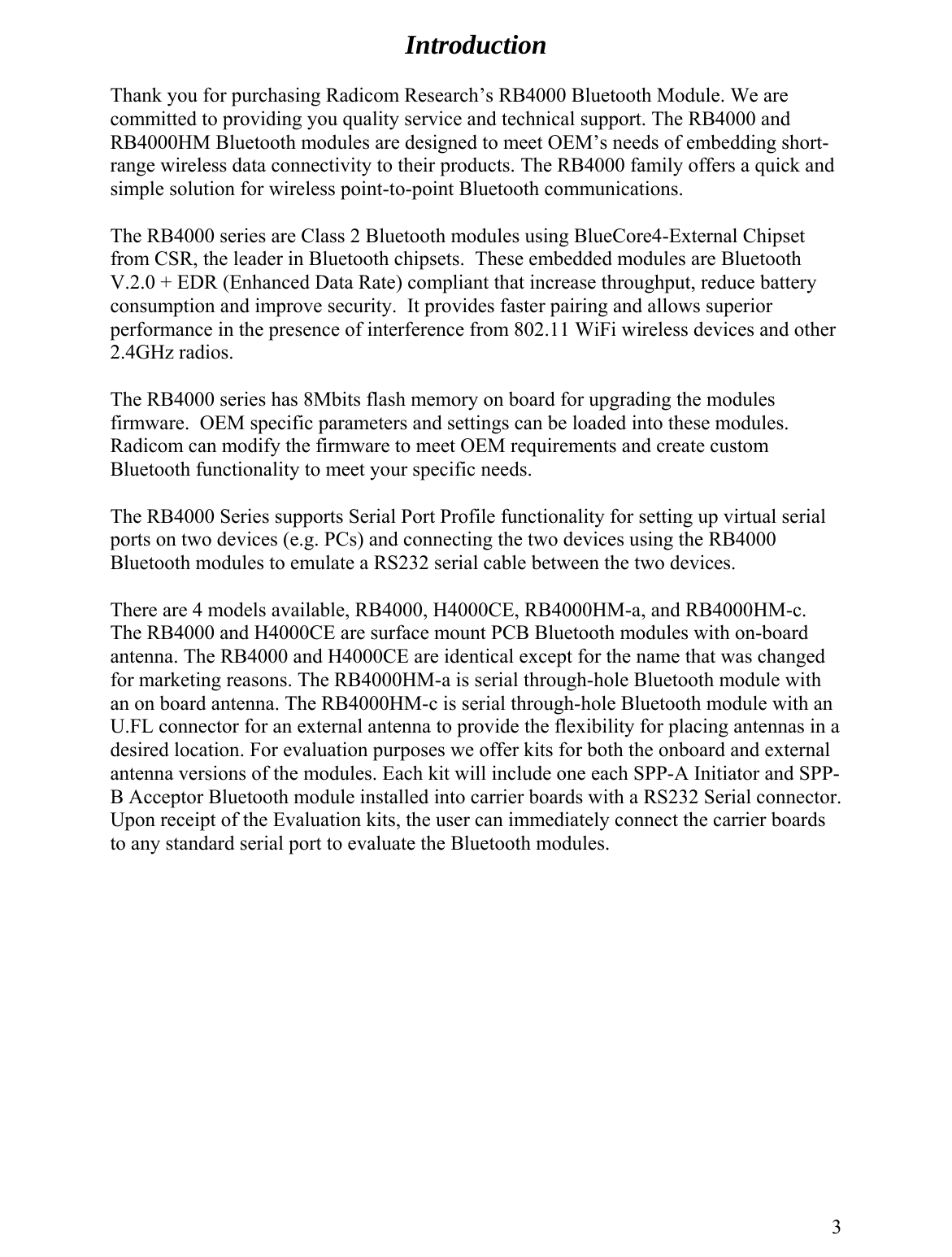

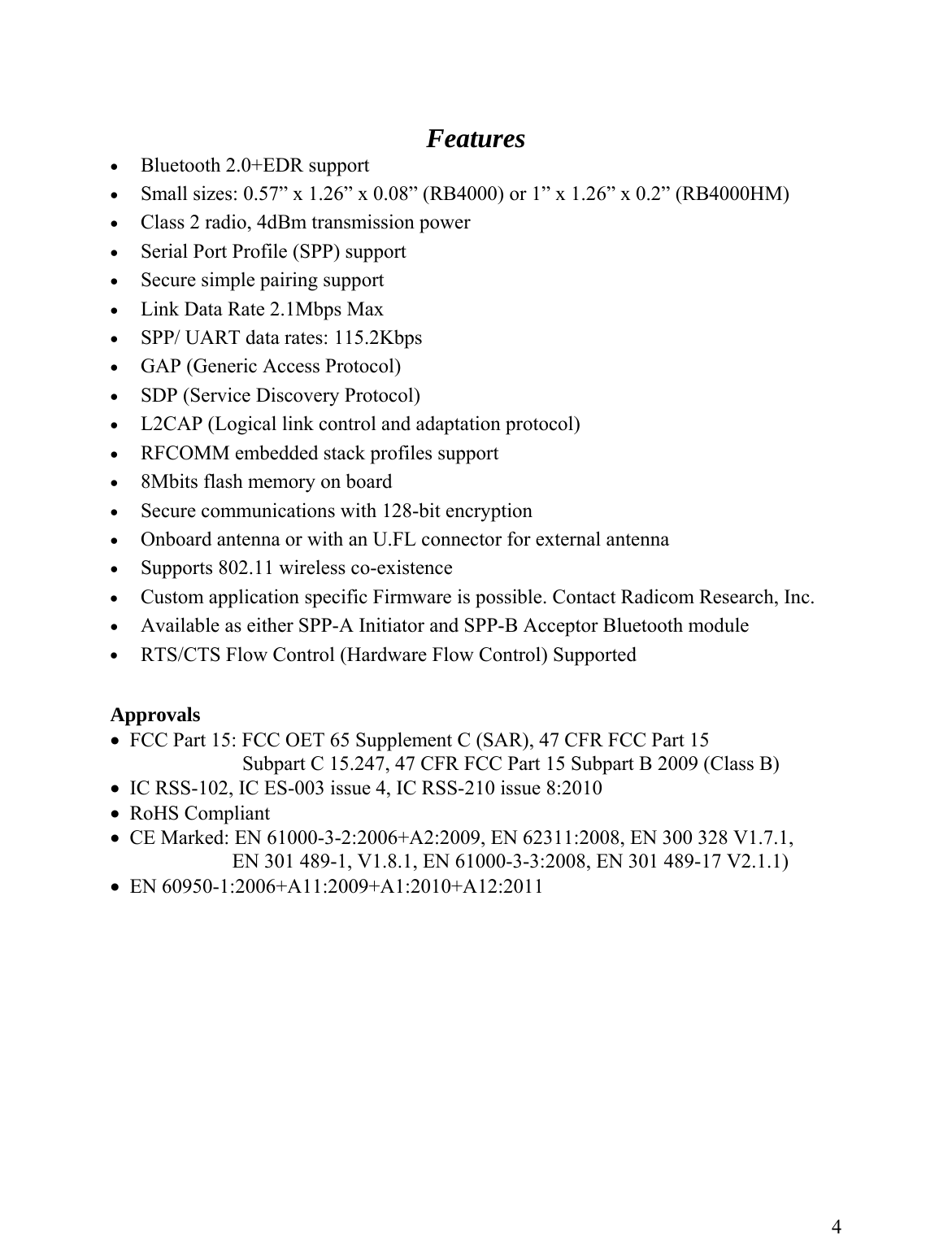

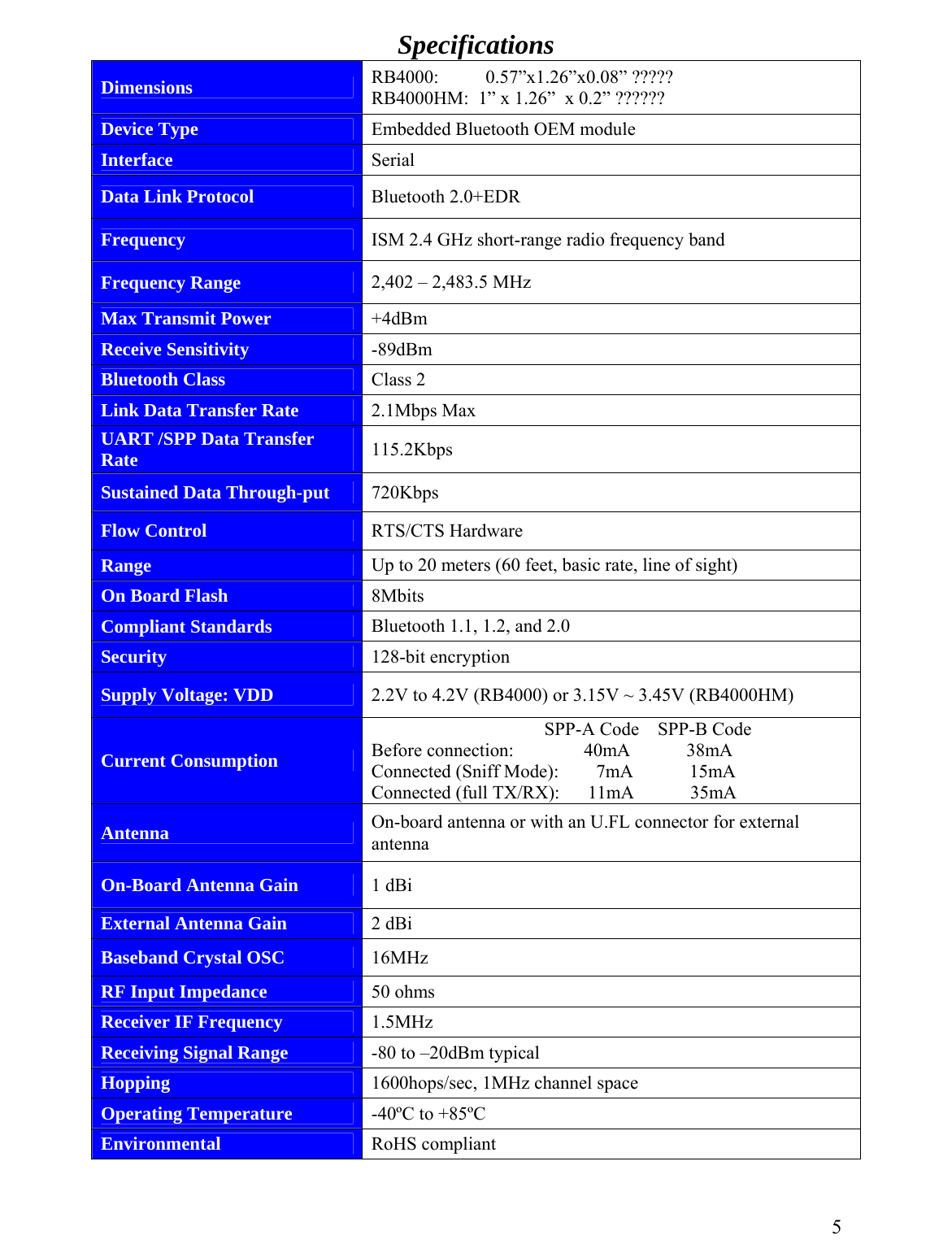

Specifications Dimensions RB4000: 0.57”x1.26”x0.08” ????? RB4000HM: 1” x 1.26” x 0.2” ?????? Device Type Embedded Bluetooth OEM module Interface Serial Data Link Protocol Bluetooth 2.0+EDR Frequency ISM 2.4 GHz short-range radio frequency band Frequency Range 2,402 – 2,483.5 MHz Max Transmit Power +4dBm Receive Sensitivity -89dBm Bluetooth Class Class 2 Link Data Transfer Rate 2.1Mbps Max UART /SPP Data Transfer Rate 115.2Kbps Sustained Data Through-put 720Kbps Flow Control RTS/CTS Hardware Range Up to 20 meters (60 feet, basic rate, line of sight) On Board Flash 8Mbits Compliant Standards Bluetooth 1.1, 1.2, and 2.0 Security 128-bit encryption Supply Voltage: VDD 2.2V to 4.2V (RB4000) or 3.15V ~ 3.45V (RB4000HM) Current Consumption SPP-A Code SPP-B Code Before connection: 40mA 38mA Connected (Sniff Mode): 7mA 15mA Connected (full TX/RX): 11mA 35mA Antenna On-board antenna or with an U.FL connector for external antenna On-Board Antenna Gain 1 dBi External Antenna Gain 2 dBi Baseband Crystal OSC 16MHz RF Input Impedance 50 ohms Receiver IF Frequency 1.5MHz Receiving Signal Range -80 to –20dBm typical Hopping 1600hops/sec, 1MHz channel space Operating Temperature -40ºC to +85ºC Environmental RoHS compliant 5

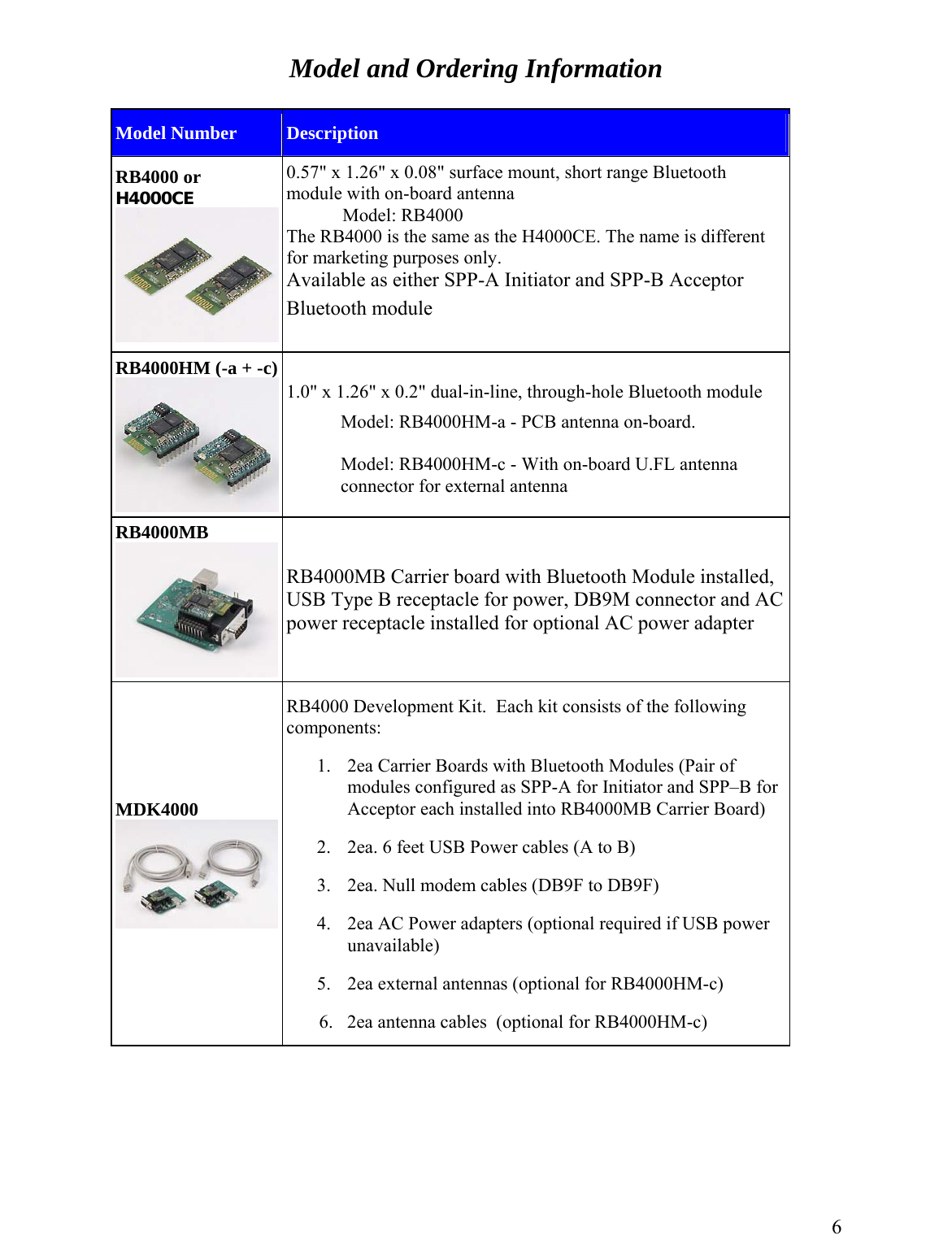

Model and Ordering Information Model Number Description RB4000 or H4000CE 0.57" x 1.26" x 0.08" surface mount, short range Bluetooth module with on-board antenna Model: RB4000 The RB4000 is the same as the H4000CE. The name is different for marketing purposes only. Available as either SPP-A Initiator and SPP-B Acceptor Bluetooth module RB4000HM (-a + -c) 1.0" x 1.26" x 0.2" dual-in-line, through-hole Bluetooth module Model: RB4000HM-a - PCB antenna on-board. Model: RB4000HM-c - With on-board U.FL antenna connector for external antenna RB4000MB RB4000MB Carrier board with Bluetooth Module installed, USB Type B receptacle for power, DB9M connector and AC power receptacle installed for optional AC power adapter MDK4000 RB4000 Development Kit. Each kit consists of the following components: 1. 2ea Carrier Boards with Bluetooth Modules (Pair of modules configured as SPP-A for Initiator and SPP–B for Acceptor each installed into RB4000MB Carrier Board) 2. 2ea. 6 feet USB Power cables (A to B) 3. 2ea. Null modem cables (DB9F to DB9F) 4. 2ea AC Power adapters (optional required if USB power unavailable) 5. 2ea external antennas (optional for RB4000HM-c) 6. 2ea antenna cables (optional for RB4000HM-c) 6

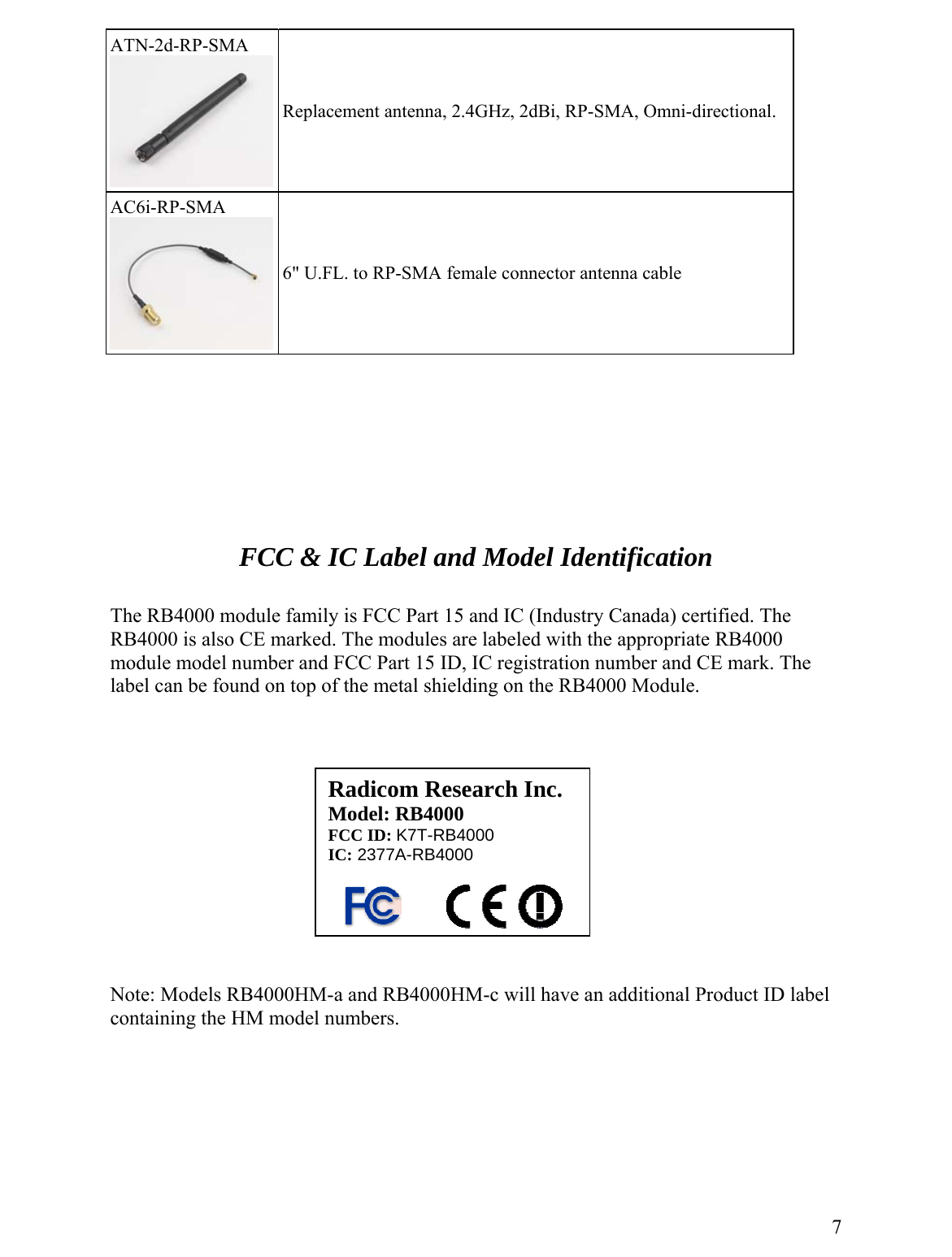

ATN-2d-RP-SMA Replacement antenna, 2.4GHz, 2dBi, RP-SMA, Omni-directional. AC6i-RP-SMA 6" U.FL. to RP-SMA female connector antenna cable FCC & IC Label and Model Identification The RB4000 module family is FCC Part 15 and IC (Industry Canada) certified. The RB4000 is also CE marked. The modules are labeled with the appropriate RB4000 module model number and FCC Part 15 ID, IC registration number and CE mark. The label can be found on top of the metal shielding on the RB4000 Module. Note: Models RB4000HM-a and RB4000HM-c will have an additional Product ID label containing the HM model numbers. 7Radicom Research Inc. Model: RB4000 FCC ID: K7T-RB4000 IC: 2377A-RB4000

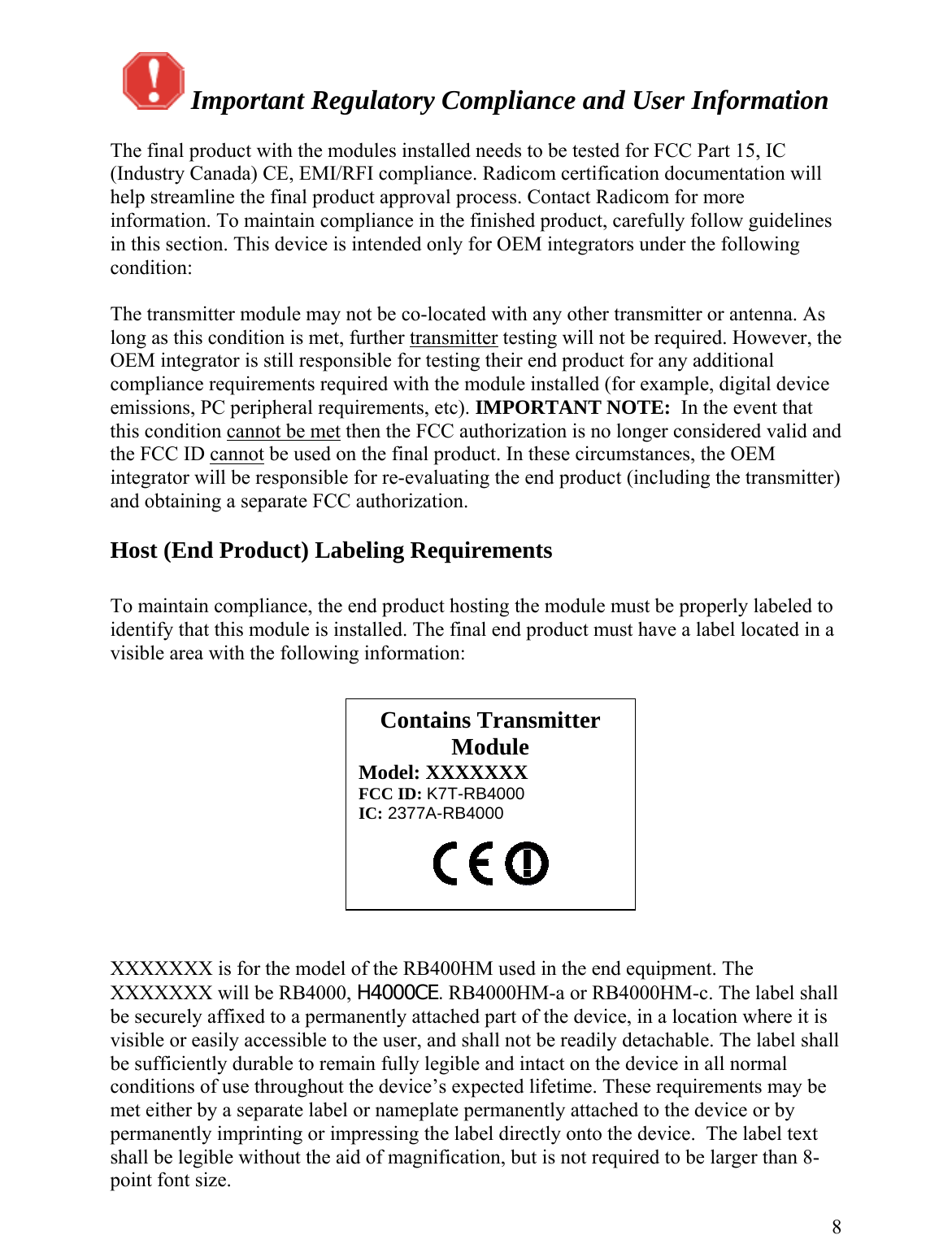

Important Regulatory Compliance and User Information The final product with the modules installed needs to be tested for FCC Part 15, IC (Industry Canada) CE, EMI/RFI compliance. Radicom certification documentation will help streamline the final product approval process. Contact Radicom for more information. To maintain compliance in the finished product, carefully follow guidelines in this section. This device is intended only for OEM integrators under the following condition: The transmitter module may not be co-located with any other transmitter or antenna. As long as this condition is met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with the module installed (for example, digital device emissions, PC peripheral requirements, etc). IMPORTANT NOTE: In the event that this condition cannot be met then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Host (End Product) Labeling Requirements To maintain compliance, the end product hosting the module must be properly labeled to identify that this module is installed. The final end product must have a label located in a visible area with the following information: XXXXXXX is for the model of the RB400HM used in the end equipment. The XXXXXXX will be RB4000, H4000CE. RB4000HM-a or RB4000HM-c. The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. These requirements may be met either by a separate label or nameplate permanently attached to the device or by permanently imprinting or impressing the label directly onto the device. The label text shall be legible without the aid of magnification, but is not required to be larger than 8-point font size. 8Contains Transmitter Module Model: XXXXXXX FCC ID: K7T-RB4000 IC: 2377A-RB4000

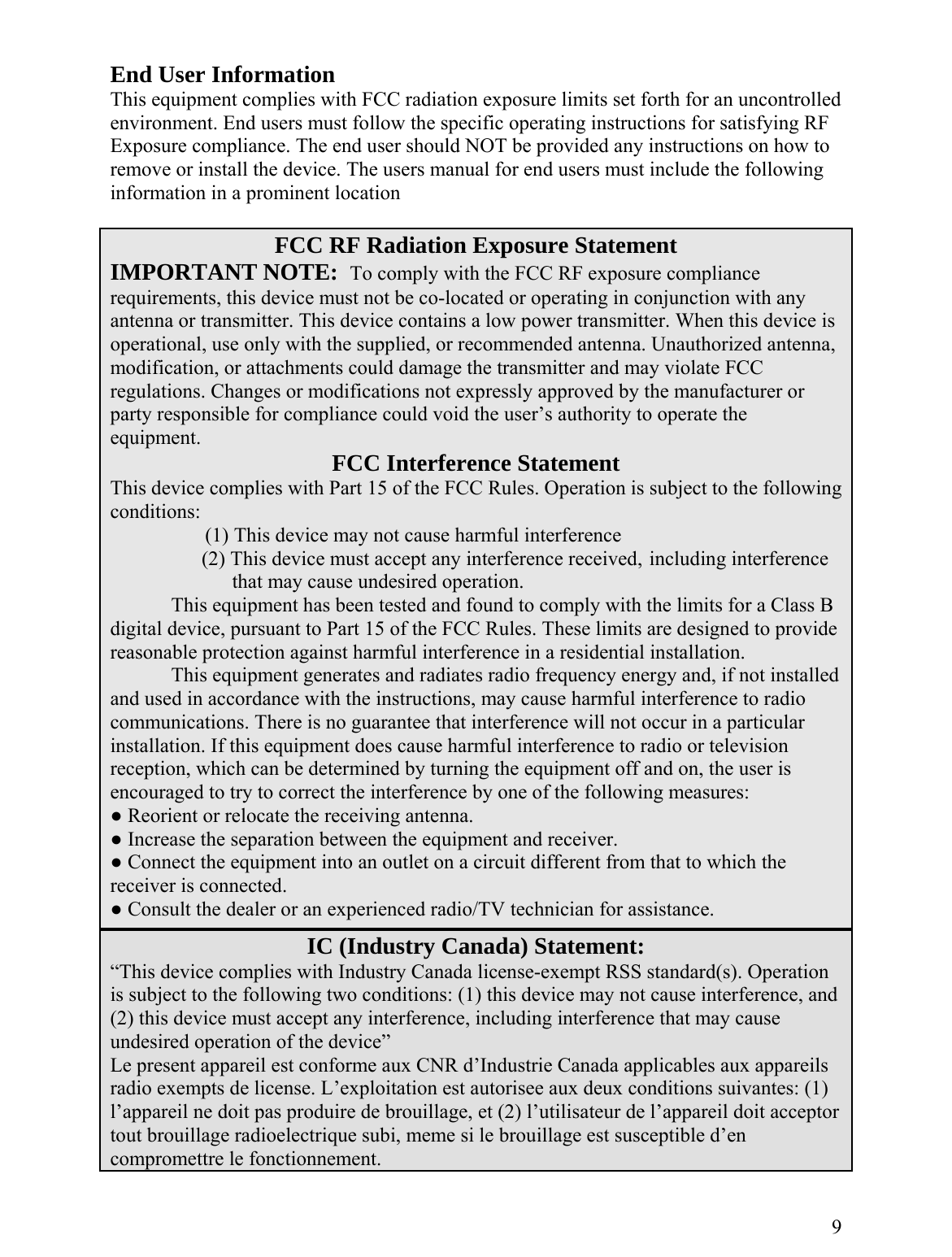

End User Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF Exposure compliance. The end user should NOT be provided any instructions on how to remove or install the device. The users manual for end users must include the following information in a prominent location FCC RF Radiation Exposure Statement IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any antenna or transmitter. This device contains a low power transmitter. When this device is operational, use only with the supplied, or recommended antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. Changes or modifications not expressly approved by the manufacturer or party responsible for compliance could void the user’s authority to operate the equipment. FCC Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and radiates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for assistance. IC (Industry Canada) Statement: “This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device” Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de license. L’exploitation est autorisee aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit acceptor tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. 9

CE Declaration of Conformity For the following equipment: Radicom Research Inc. Bluetooth Module Model(s): RB4000, H4000CE, RB4000HM-a, and RB4000HM-c are herewith confirmed to comply with the requirements set out in the Council (European parliament) Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility of Radio and Telecom device (1999/5/CE). For the evaluation regarding this Directive, the following standards were applied: EN 61000-3-2:2006+A2:2009, EN 300 328 V1.7.1, EN 62311: 2008, EN 301 489-1, V1.8.1, EN 61000-3-3:2008, EN 301 489-17 V2.1.1 EN 60950-1:2006+A11:2009+A1: 2010+A12:2011 ________________________ This equipment is marked with the and can be used throughout the European community. France – 2.4GHz for Metropolitan France: In all Metropolitan departments, wireless LAN frequencies can be used under the following conditions, either for public or private use: • Indoor use: maximum power (EIRP*) of 100 mW for the entire 2400-2483.5 MHz frequency band • Outdoor use: maximum power (EIRP*) of 100 mW for the 2400-2454 MHz band and with maximum power (EIRP*) of 10 mW for the 2454-2483 MHz band Europe – R&TTE Compliance Statement: Hereby, Radicom Research Inc. declares that this equipment complies with the essential requirements and other relevant provisions of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). Layout Design Suggestions • General Layout Rules- All Printed Circuit Boards must comply with UL94V0 standard for flammability. Always use RoHS compliant Parts and materials. • Suggestions for Layout: 101. Do not place Power circuit, X’tal, Inductor, etc near RF area.

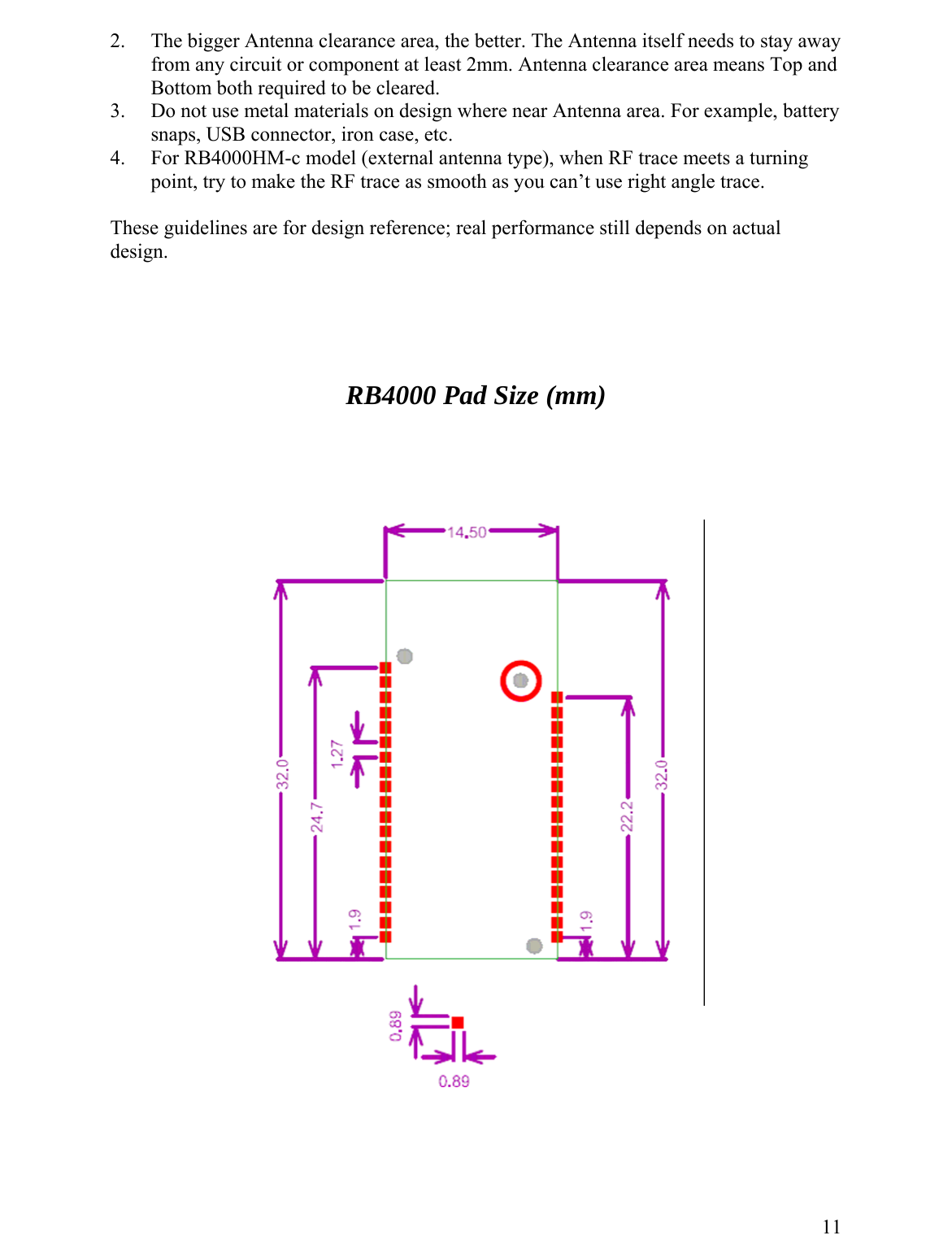

2. The bigger Antenna clearance area, the better. The Antenna itself needs to stay away from any circuit or component at least 2mm. Antenna clearance area means Top and Bottom both required to be cleared. 3. Do not use metal materials on design where near Antenna area. For example, battery snaps, USB connector, iron case, etc. 4. For RB4000HM-c model (external antenna type), when RF trace meets a turning point, try to make the RF trace as smooth as you can’t use right angle trace. These guidelines are for design reference; real performance still depends on actual design. RB4000 Pad Size (mm) 11

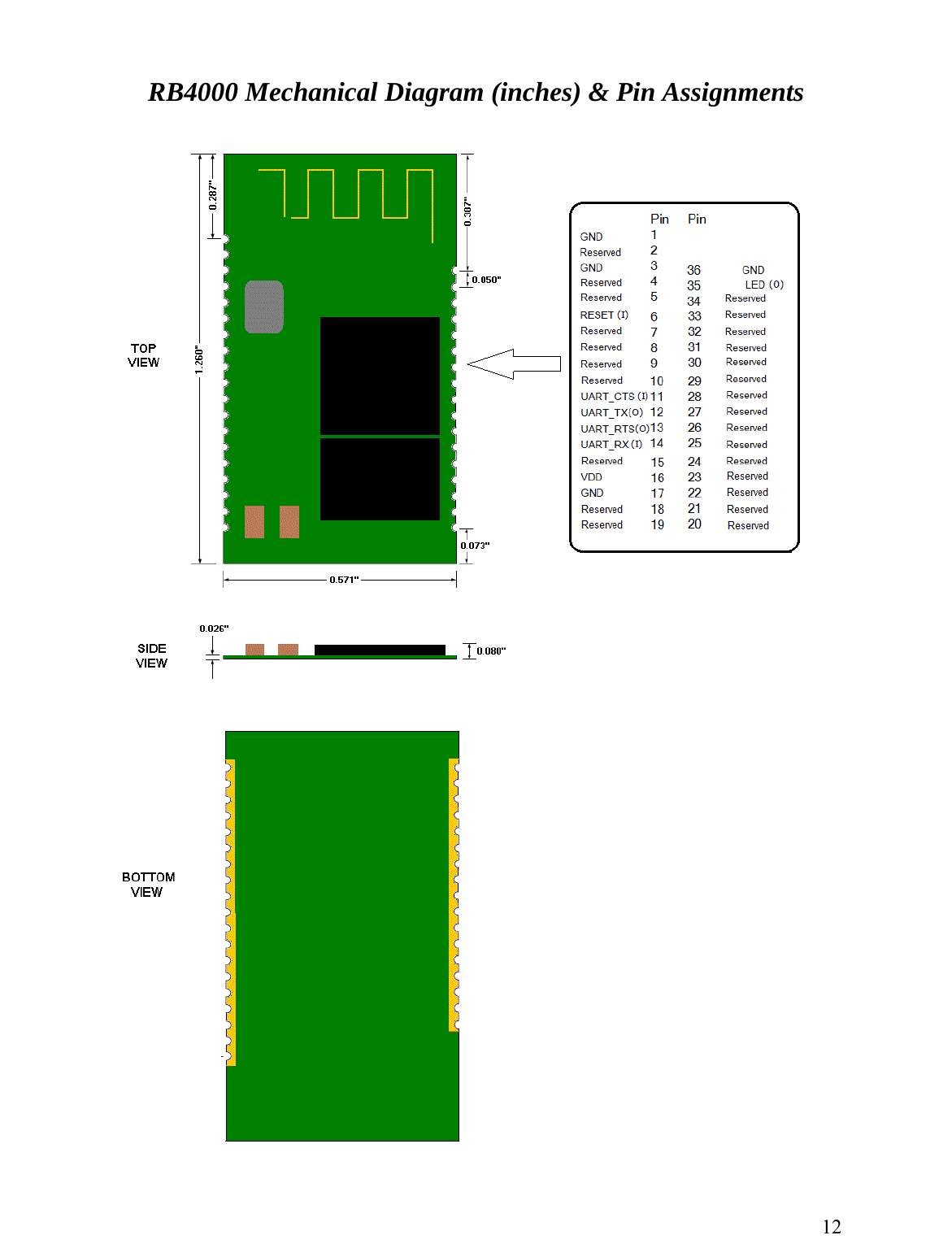

RB4000 Mechanical Diagram (inches) & Pin Assignments 12

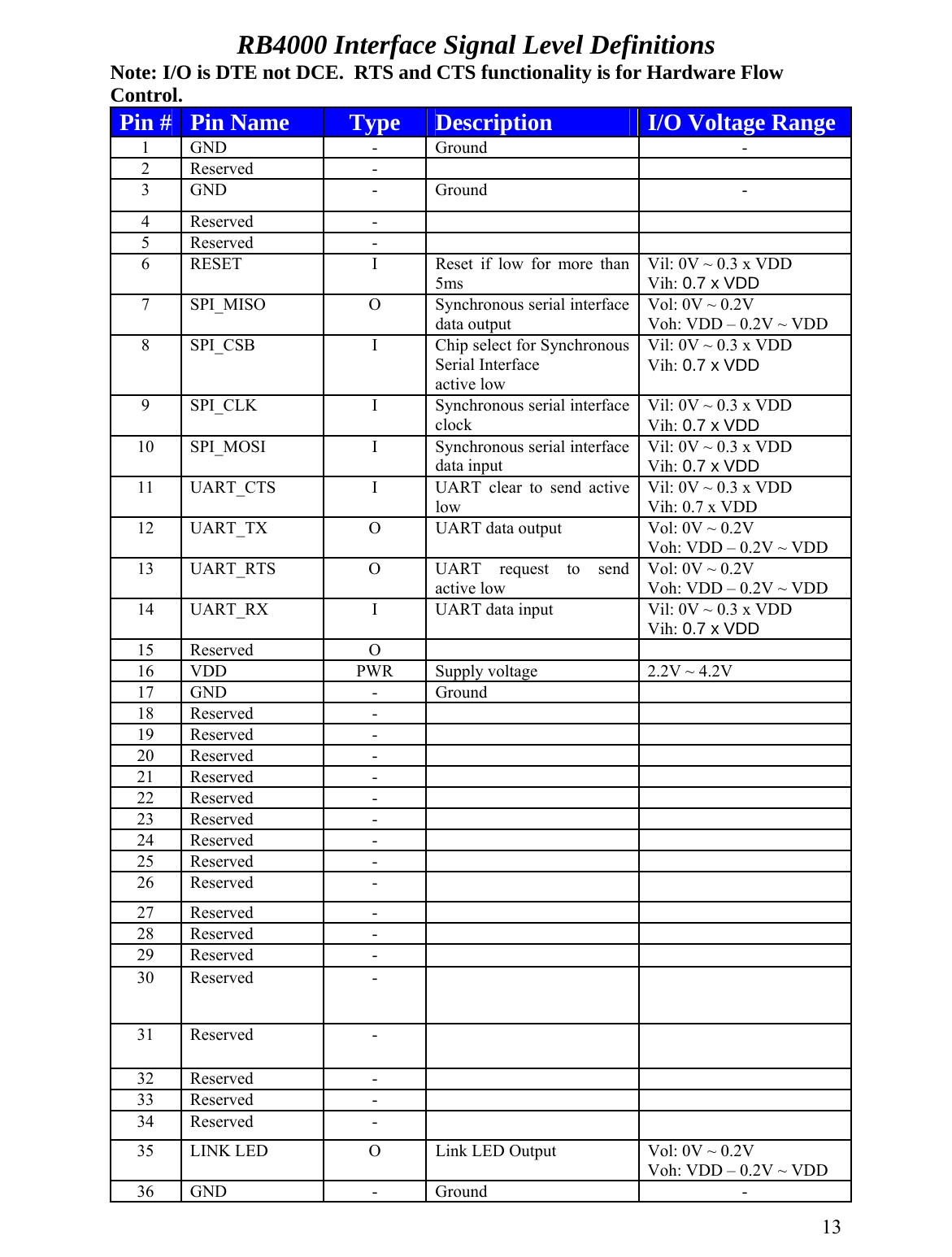

RB4000 Interface Signal Level Definitions Note: I/O is DTE not DCE. RTS and CTS functionality is for Hardware Flow Control. 13Pin # Pin Name Type Description I/O Voltage Range 1 GND - Ground - 2 Reserved - 3 GND - Ground - 4 Reserved - 5 Reserved - 6 RESET I Reset if low for more than 5ms Vil: 0V ~ 0.3 x VDD Vih: 0.7 x VDD 7 SPI_MISO O Synchronous serial interface data output Vol: 0V ~ 0.2V Voh: VDD – 0.2V ~ VDD 8 SPI_CSB I Chip select for Synchronous Serial Interface active low Vil: 0V ~ 0.3 x VDD Vih: 0.7 x VDD 9 SPI_CLK I Synchronous serial interface clock Vil: 0V ~ 0.3 x VDD Vih: 0.7 x VDD 10 SPI_MOSI I Synchronous serial interface data input Vil: 0V ~ 0.3 x VDD Vih: 0.7 x VDD 11 UART_CTS I UART clear to send active low Vil: 0V ~ 0.3 x VDD Vih: 0.7 x VDD 12 UART_TX O UART data output Vol: 0V ~ 0.2V Voh: VDD – 0.2V ~ VDD 13 UART_RTS O UART request to send active low Vol: 0V ~ 0.2V Voh: VDD – 0.2V ~ VDD 14 UART_RX I UART data input Vil: 0V ~ 0.3 x VDD Vih: 0.7 x VDD 15 Reserved O 16 VDD PWR Supply voltage 2.2V ~ 4.2V 17 GND - Ground 18 Reserved - 19 Reserved - 20 Reserved - 21 Reserved - 22 Reserved - 23 Reserved - 24 Reserved - 25 Reserved - 26 Reserved - 27 Reserved - 28 Reserved - 29 Reserved - 30 Reserved - 31 Reserved - 32 Reserved - 33 Reserved - 34 Reserved - 35 LINK LED O Link LED Output Vol: 0V ~ 0.2V Voh: VDD – 0.2V ~ VDD 36 GND - Ground -

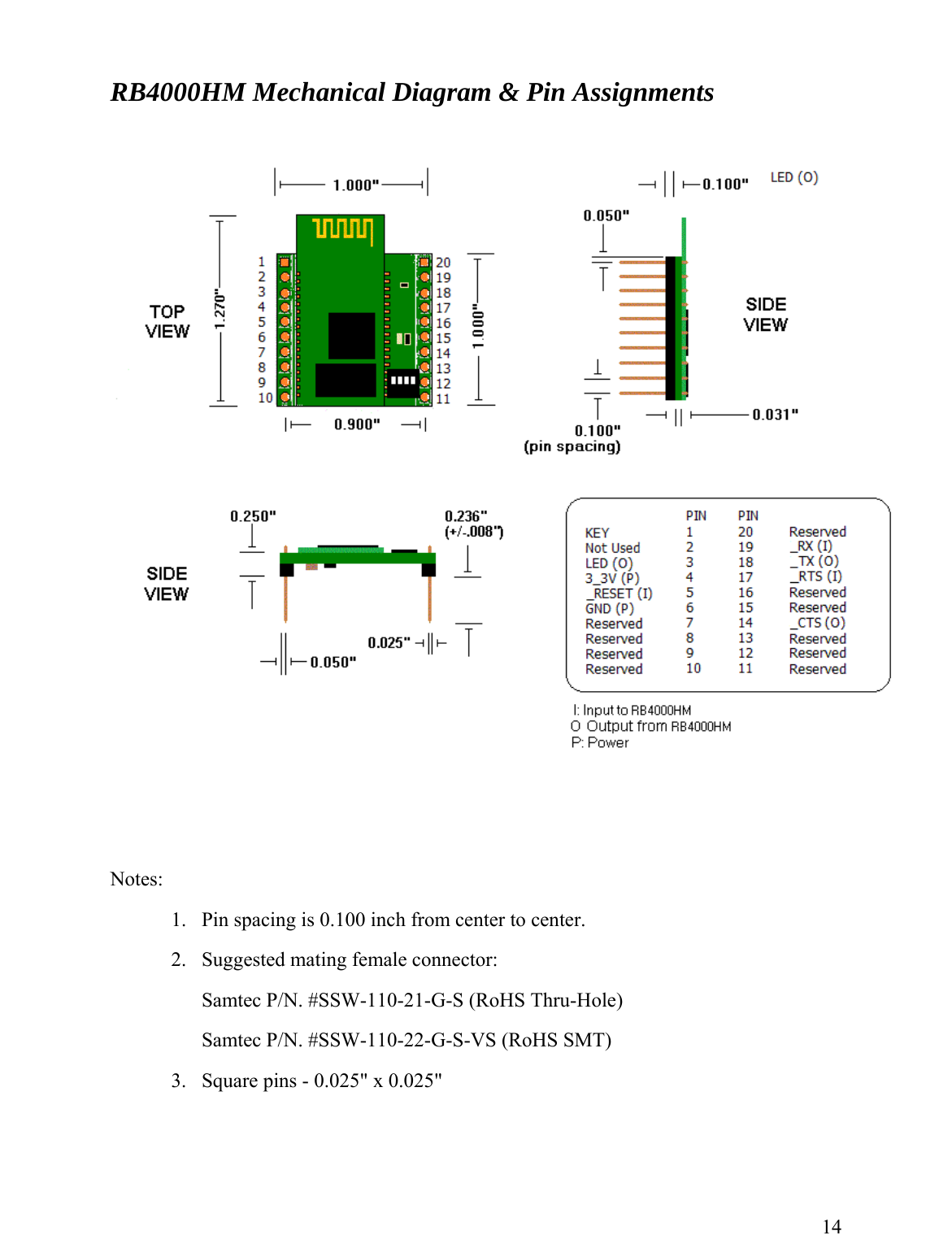

RB4000HM Mechanical Diagram & Pin Assignments Notes: 1. Pin spacing is 0.100 inch from center to center. 2. Suggested mating female connector: Samtec P/N. #SSW-110-21-G-S (RoHS Thru-Hole) Samtec P/N. #SSW-110-22-G-S-VS (RoHS SMT) 3. Square pins - 0.025" x 0.025" 14

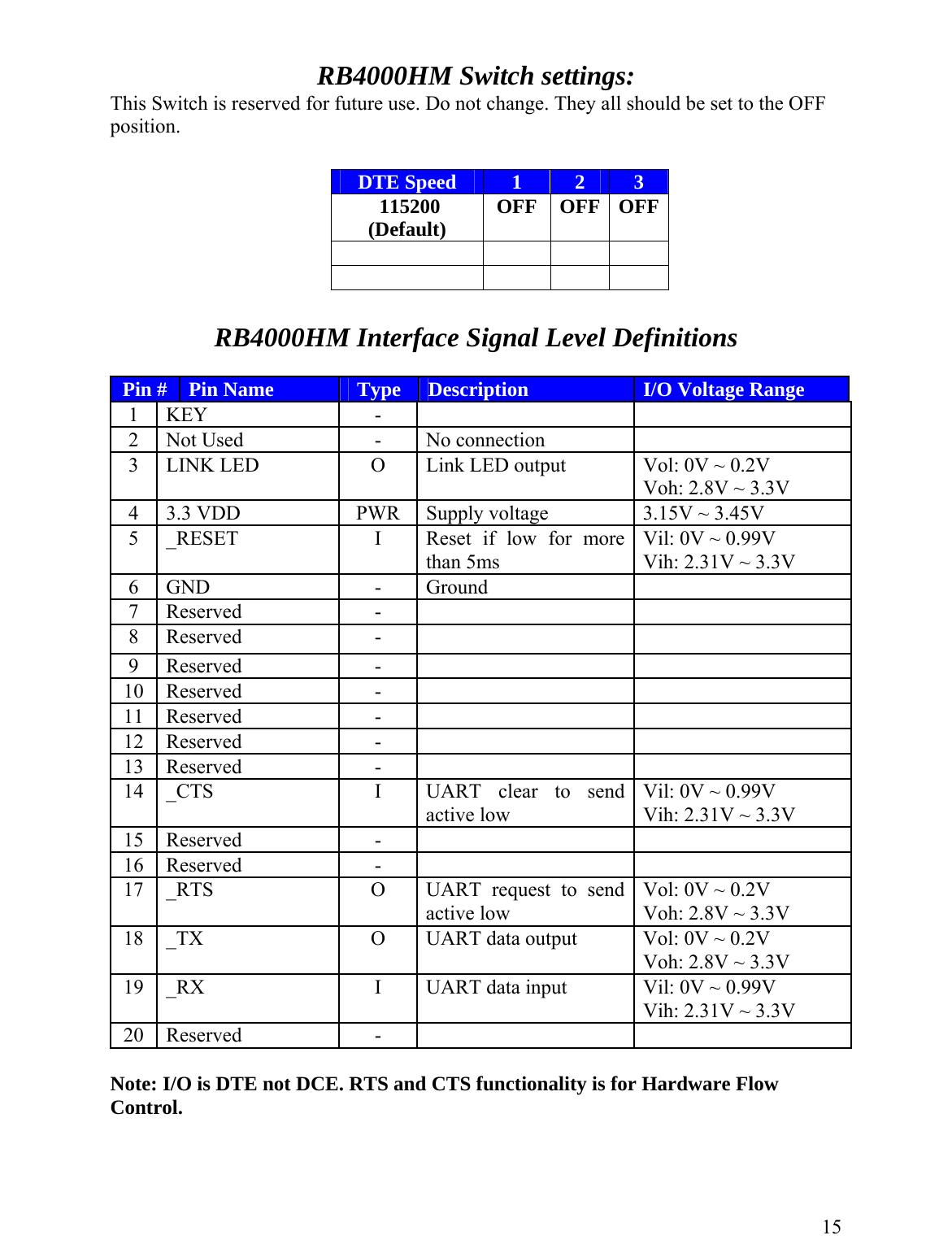

RB4000HM Switch settings: This Switch is reserved for future use. Do not change. They all should be set to the OFF position. DTE Speed 1 2 3 115200 (Default) OFF OFF OFF RB4000HM Interface Signal Level Definitions Pin # Pin Name Type Description I/O Voltage Range 1 KEY - 2 Not Used - No connection 3 LINK LED O Link LED output Vol: 0V ~ 0.2V Voh: 2.8V ~ 3.3V 4 3.3 VDD PWR Supply voltage 3.15V ~ 3.45V 5 _RESET I Reset if low for more than 5ms Vil: 0V ~ 0.99V Vih: 2.31V ~ 3.3V 6 GND - Ground 7 Reserved - 8 Reserved - 9 Reserved - 10 Reserved - 11 Reserved - 12 Reserved - 13 Reserved - 14 _CTS I UART clear to send active low Vil: 0V ~ 0.99V Vih: 2.31V ~ 3.3V 15 Reserved - 16 Reserved - 17 _RTS O UART request to send active low Vol: 0V ~ 0.2V Voh: 2.8V ~ 3.3V 18 _TX O UART data output Vol: 0V ~ 0.2V Voh: 2.8V ~ 3.3V 19 _RX I UART data input Vil: 0V ~ 0.99V Vih: 2.31V ~ 3.3V 20 Reserved - 15Note: I/O is DTE not DCE. RTS and CTS functionality is for Hardware Flow Control.

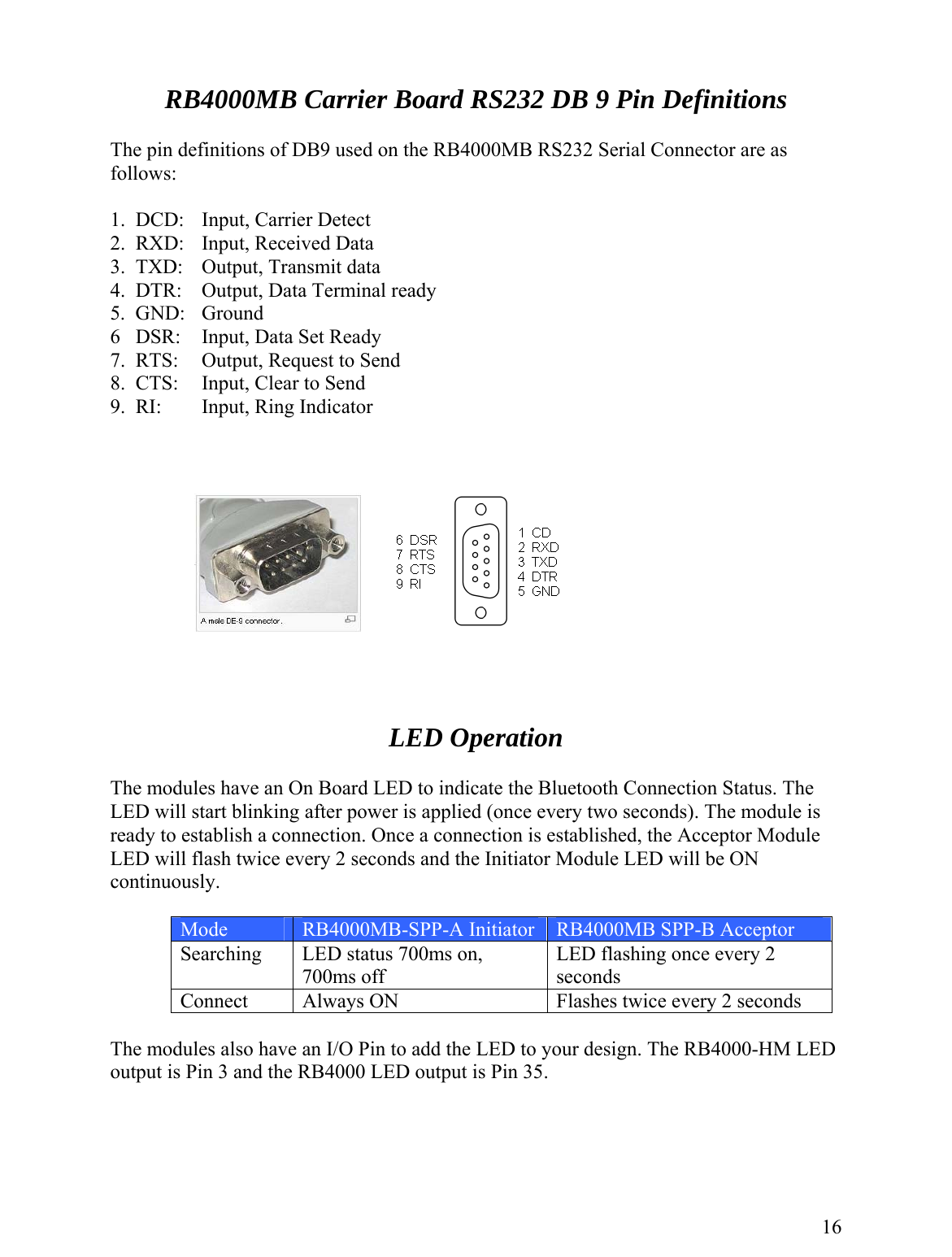

RB4000MB Carrier Board RS232 DB 9 Pin Definitions The pin definitions of DB9 used on the RB4000MB RS232 Serial Connector are as follows: 1. DCD: Input, Carrier Detect 2. RXD: Input, Received Data 3. TXD: Output, Transmit data 4. DTR: Output, Data Terminal ready 5. GND: Ground 6 DSR: Input, Data Set Ready 7. RTS: Output, Request to Send 8. CTS: Input, Clear to Send 9. RI: Input, Ring Indicator LED Operation The modules have an On Board LED to indicate the Bluetooth Connection Status. The LED will start blinking after power is applied (once every two seconds). The module is ready to establish a connection. Once a connection is established, the Acceptor Module LED will flash twice every 2 seconds and the Initiator Module LED will be ON continuously. Mode RB4000MB-SPP-A Initiator RB4000MB SPP-B Acceptor Searching LED status 700ms on, 700ms off LED flashing once every 2 seconds Connect Always ON Flashes twice every 2 seconds The modules also have an I/O Pin to add the LED to your design. The RB4000-HM LED output is Pin 3 and the RB4000 LED output is Pin 35. 16

Connecting to Your System NOTE: Do Not Plug in the USB cable and AC power adapter at the same time. Only use one or the other. Plugging in both the USB cable and AC power adapter may damage the USB port on your PC or USB device. Below is a simple example to show how the Radicom Bluetooth modules work. This example demonstrates how the Bluetooth Modules can connect to each other. 1. RB4000MB-SPP-A Initiator setup: Open HyperTerminal and select an available Serial Comport. Set the DTE speed to 115200bps, 8 Data bit, No Parity bit, One Stop bit and No Flow control. 2. Connect one end of the RS232 Null modem cable (DB9 Female to DB9 Female) to the Serial Comport and the other end of the cable to the RB4000MB-SPP-A 3. Apply power using either a USB cable or Optionally provided AC power adapter to RB4000MB-SPP-A. The modules Firmware message should show up on the HyperTerminal screen and the LED on the RB4000MB-SPP-A should be ON. 4. RB4000MB-SPP-B setup: Open HyperTerminal and select an available Serial Comport. Set the DTE speed to 115200bps, 8 Data bit, No Parity bit, One Stop bit and No Flow control. 5. Connect one end of the RS232 Null modem cable (DB9 Female to DB9 Female) to the Serial Comport and the other end of the cable to the RB4000MB-SPP-B. 6. Apply power using either a USB cable or Optionally provided AC power adapter to RB4000MB-SPP-A. The modules Firmware message should show up on the HyperTerminal screen and the LED on the RB4000MB-SPP-B then start blinking. 7. When both Modules are powered-up, they should automatically connect to each other as long as the modules are within acceptable distance, for example, 10m in home or office). 8. The on board LEDs will show the modules Connect Status. Note(s): They further apart the modules are, the longer it may take to connect and the slower the data transfers will be. If the modules do not connect make sure that the firmware displayed reflects that one module contains Initiator firmware and the other module contains Acceptor firmware. For example, the Initiator should display SPP-B XXX and the Acceptor should display SPP-A XXX where XXX is the firmware version. 17Note: When Connected and no data activity, the modules will enter lower power Sniff Mode after 5 to 7 seconds of inactivity. Any transmitted or received data will cause the module to exit Sniff Mode and resume normal operation.

Limited Warranty Warranty Coverage and Duration Radicom Research, Inc. (“RRI”) warrants to the original purchaser its RRI-manufactured products (“Product”) against defects in material and workmanship under normal use and service for a period of one year from the date of delivery. During the applicable warranty period, at no charge, RRI will, at its option, either repair, replace or refund the purchase price of this Product, provided it is returned in accordance with the terms of this warranty to RRI. Repair, at the option of RRI, may include the replacement of parts, boards or other components with functionally equivalent reconditioned or new parts, boards or other components. Replaced parts, boards or other components are warranted for the balance of the original applicable warranty period. All replaced items shall become the property of RRI. RRI MAKES NO GUARANTEE OR WARRANTY THAT THE PRODUCT WILL PREVENT OCCURRENCES, OR THE CONSEQUENCES THEREOF, WHICH THE PRODUCT IS DESIGNED TO DETECT. This expressed limited warranty is extended by RRI to the original end-user purchaser only, and is not assignable or transferable to any other party. This is the complete warranty for the Product manufactured by RRI, and RRI assumes no obligation or liability for additions or modifications to this warranty. In no case does RRI warrant the installation, maintenance or service of the Product. RRI is not responsible in any way for any ancillary equipment not furnished by RRI that is attached to or used in connection with the Product, or for operation of the Product with any ancillary equipment, and all such equipment is expressly excluded from this warranty. Because of wide variations in topographical and atmospheric conditions, which may require availability of repeater stations or of particular radio frequencies, RRI assumes no liability for range, coverage or suitability of the Product for any particular application. Buyer acknowledges that RRI does not know a particular purpose for which buyer wants the product, and that buyer is not relying on RRI’s skill and judgment to select or furnish suitable goods. What this Warranty does NOT Cover: (a) Defects or damage resulting from use of the Product in other than its normal and customary manner. (b) Defects or damage from misuse, accident or neglect. (c) Defects of damage from improper testing, operation, maintenance, installation, alteration, modification or adjustment. (d) Disassembly or repair of the Product in such a manner as to adversely affect performance or prevent adequate inspection and testing to verify any warranty claim. (e) Any Product that has had its serial number or date code removed or made illegible. 18

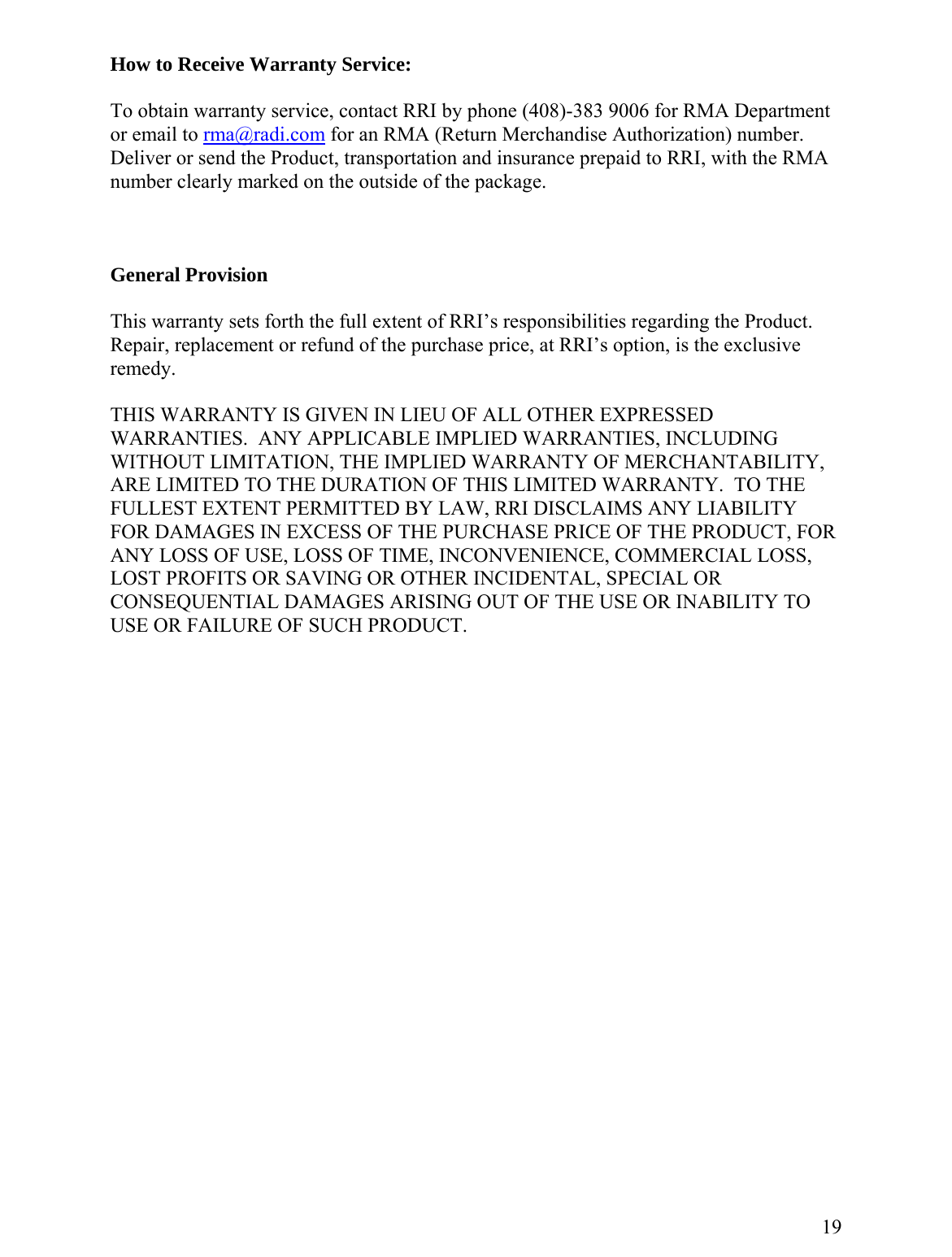

How to Receive Warranty Service: To obtain warranty service, contact RRI by phone (408)-383 9006 for RMA Department or email to rma@radi.com for an RMA (Return Merchandise Authorization) number. Deliver or send the Product, transportation and insurance prepaid to RRI, with the RMA number clearly marked on the outside of the package. General Provision This warranty sets forth the full extent of RRI’s responsibilities regarding the Product. Repair, replacement or refund of the purchase price, at RRI’s option, is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESSED WARRANTIES. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. TO THE FULLEST EXTENT PERMITTED BY LAW, RRI DISCLAIMS ANY LIABILITY FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVING OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE OR FAILURE OF SUCH PRODUCT. 19

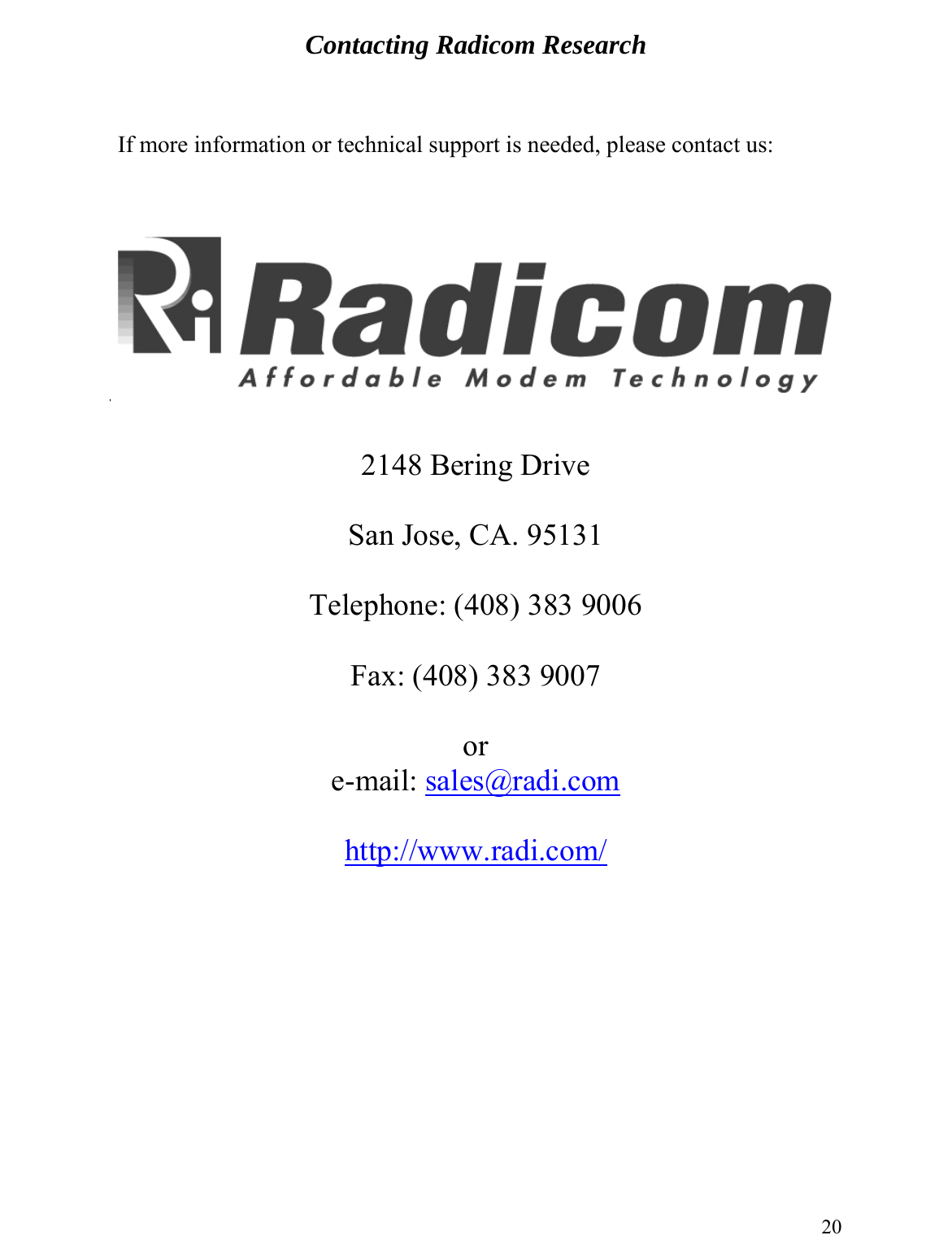

Contacting Radicom Research If more information or technical support is needed, please contact us: 2148 Bering Drive San Jose, CA. 95131 Telephone: (408) 383 9006 Fax: (408) 383 9007 or e-mail: sales@radi.com http://www.radi.com/ 20
