Radicom Research Inc BT4.2 module

User Manual

Radicom Research, Inc.
Preliminary Designers Guide
for the
RB8762
(RoHS BLE4.2 Serial Bluetooth Modules)
and
RB8762EVK Evaluation Kit
RB8762-a RB8762-c
RoHS Compliant
November 16, 2016
RB8762 Designers Guide_draft v04 2
Table of Contents
Introduction ................................................................................................................................ 3
RB8762EVK and BLE Functionality ......................................................................................... 4
Features ...................................................................................................................................... 5
Approvals ................................................................................................................................... 6
Electronic Characteristics ........................................................................................................... 6
Model and Ordering Information ............................................................................................... 7
RB8762 Module Mechanical Dimensions & Pin Definitions .................................................... 8
RB8762HM Mechanical Dimensions & Pin Definitions ........................................................... 9
RB8762MB Mechanical Dimensions ......................................................................................... 10
RB8762MB RS232 DB9 Pin Definitions ................................................................................... 11
Layout Design Suggestions ........................................................................................................ 11
Operating RB8762MB ................................................................................................................ 12
Supported AT Command List ..................................................................................................... 13
RB8762-Slave Operations .......................................................................................................... 14
RB8762-Master Operations ........................................................................................................ 15

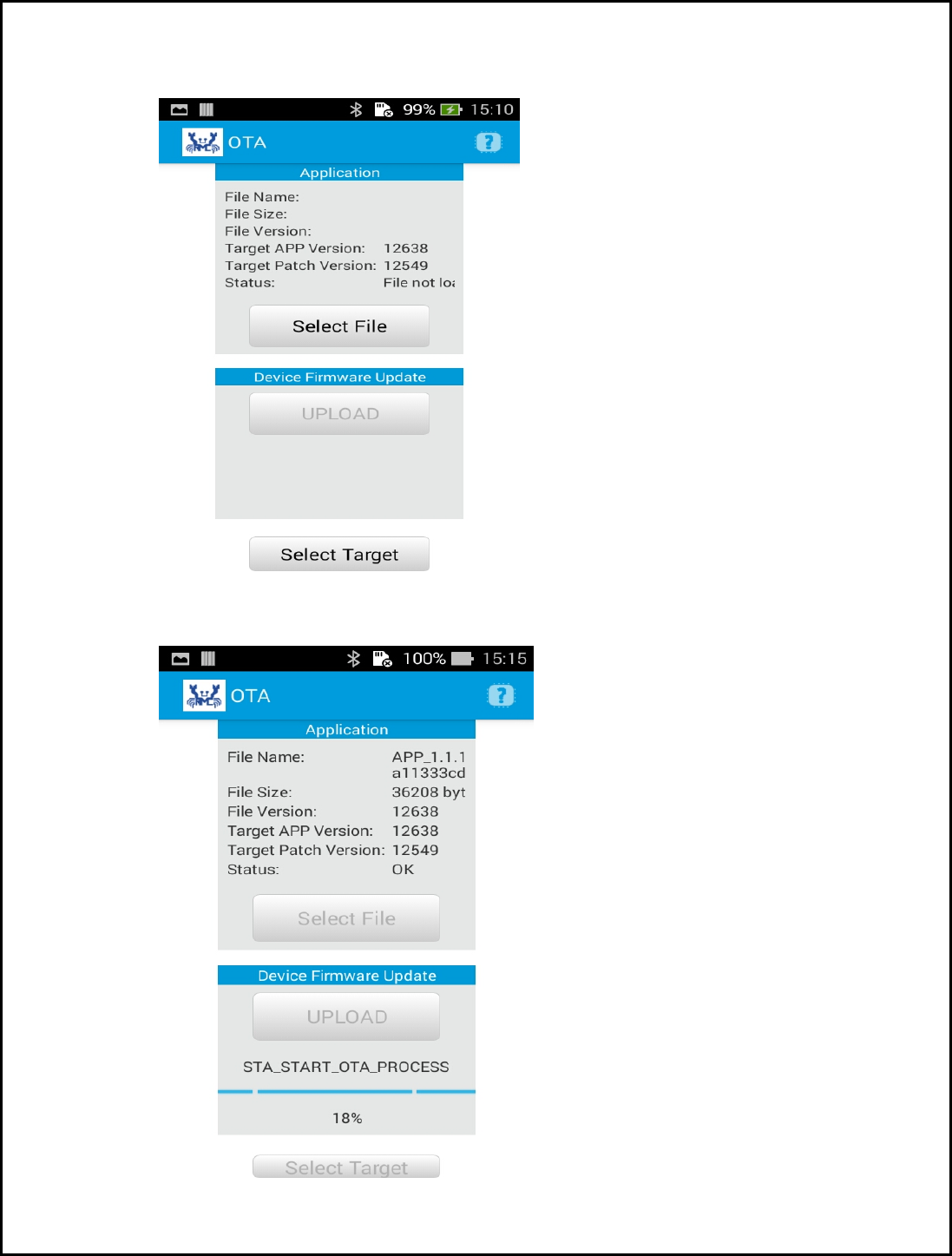

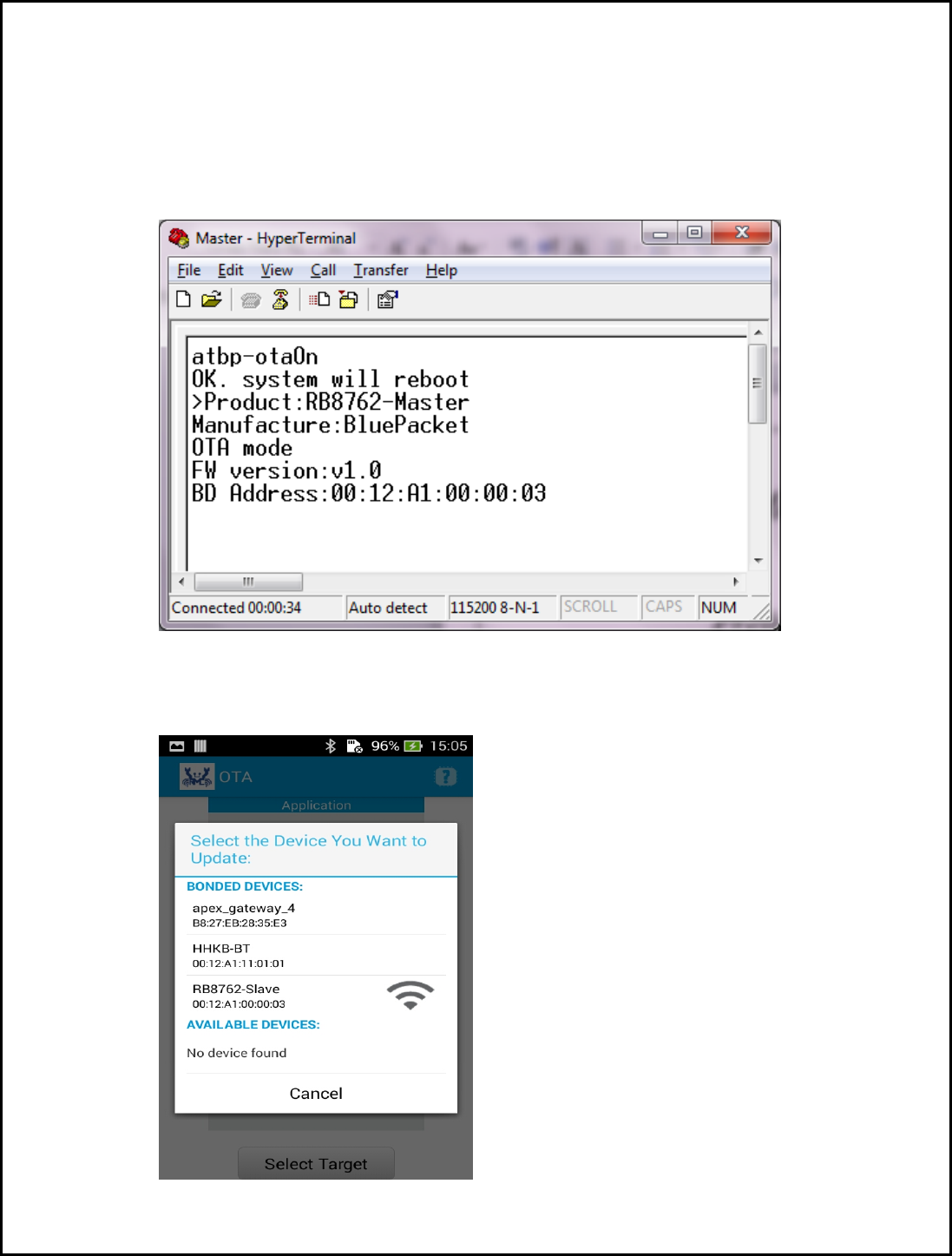

OTA Upgrading Firmware .......................................................................................................... 17

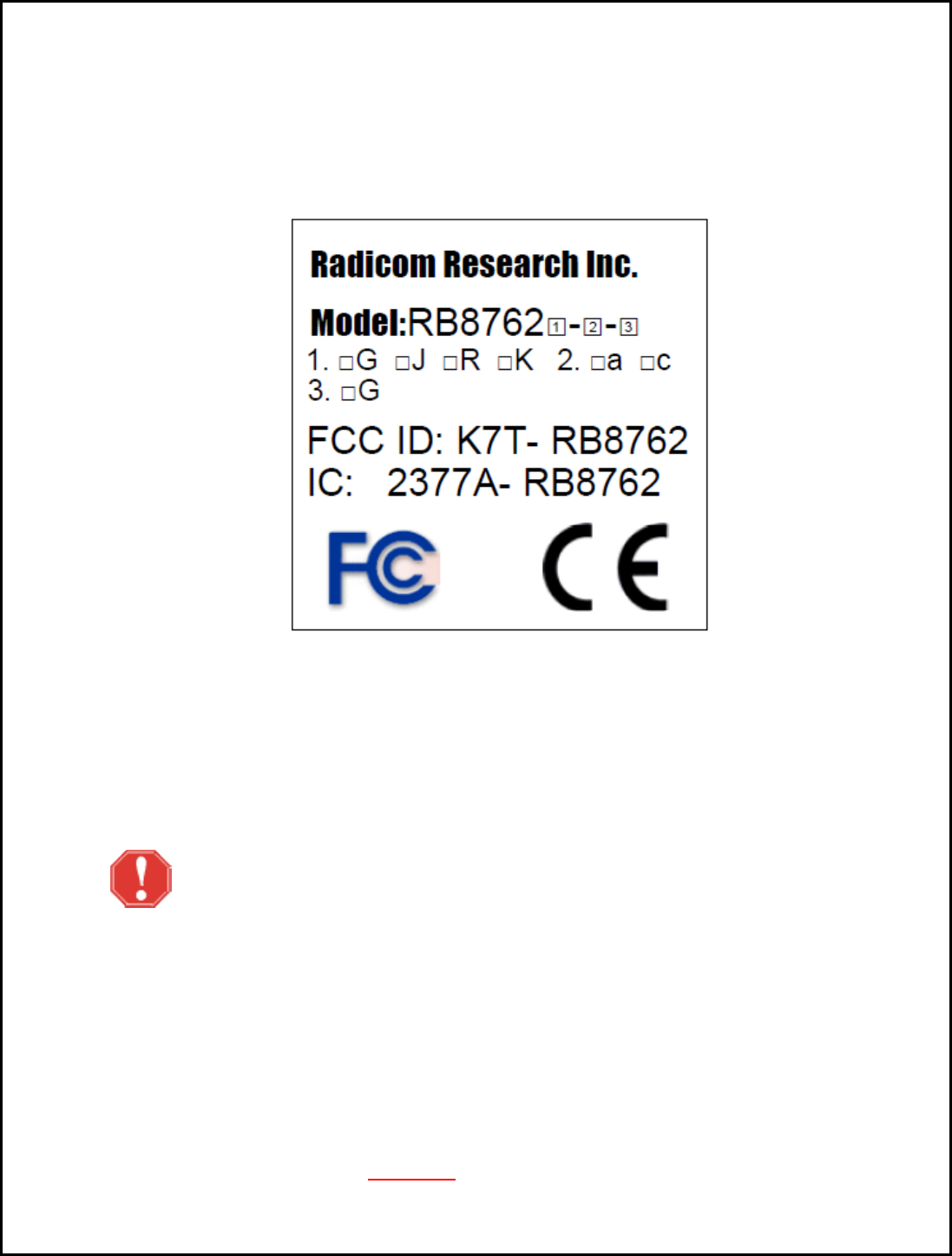

FCC & IC Label and Model Identification ................................................................................. 20
Important Regulatory Compliance and User Information .......................................................... 20
CE Declaration of Conformity ................................................................................................... 23
Limited Warranty ........................................................................................................................ 24
Contacting Radicom ................................................................................................................... 26
Information furnished b
y
Radicom Research is believed to be accurate and reliable. However
Radicom Research assumes no responsibility for its use, or any infringement of patents or other
rights of third parties that may result from its use. Radicom Research reserves the right to change
circuitry at any time without notice. This document is subject to change without notice.
RB8762 Designers Guide_draft v04 3
Introduction
Thank you for choosing Radicom RB8762 Module. We are committed to providing you
quality service and technical support. The RB8762 modules are designed to meet OEM’s
needs of embedding low power, wireless data connectivity to their products. The RB8762
family offers a quick and simple solution for wireless Bluetooth communications.
The Radicom RB8762 module is designed to meet the emerging market for Bluetooth 4.2
applications. These embedded Bluetooth 4.2 modules integrate entire profiles, applications,
and Bluetooth protocol stack, so no external processor is needed. The module contains an
internal S-Flash so custom parameters and settings can be easily loaded into these modules.
The RB8762 can be factory configured for other Bluetooth cost-effective and power-efficient
wireless consumer products such as watches, medical sensors, mice, TV remote controls and
fitness trainers. Contact Radicom for help to add the BLE Data Protocol functionality to your
4.0 Bluetooth device or for help in determining which Bluetooth Module is the best fit for
your particular Bluetooth application.
The RB8762 family modules can be powered with standard 3V3 low power. In lowest mode
it consumes only uA level power and will wake up in few hundred microseconds. The
RB8762 family provides superior performance in the presence of interference from 802.11
(WiFi) wireless devices and other 2.4GHz radios.
The RB8762 modules support quick connections and data transfers allowing an application
to establish a Bluetooth connection within a few milliseconds for short communication bursts
before quickly disconnecting the Bluetooth connection to save power. It takes much less
time to make a connection than conventional Bluetooth wireless technology and consumes
approximately only 1/20th of the power of Bluetooth Basic Rate.
The RB8762 is available in surface mount (SMD) or through-hole (Dip) hardware designs.
The RB8762 module is the surface mount model. The RB8762 can also mounted on a
conversion board to create the RB8762HM model for serial through-hole designs.
RB8762 Designers Guide_draft v04 4
RB8762EVK and BLE Functionality
Radicom provides RB8762EVK Development Kits to provide a quick platform for testing
and evaluating the RB8762 and RB8762HM Bluetooth modules. The kit includes two
RB8762 modules mounted on the RB8762HM Dip Module. Each RB8762HM is installed
into a RB8762MB evaluation board. One of the RB8762HM is configured to operate in BLE
Data Protocol Master mode. The other RB8762HM is configured to operate in BLE Data
Protocol Slave mode. The RB8762MB boards have an RS232 Serial Port Connector that
allows the user to immediately connect to any standard serial port to evaluate the Bluetooth
modules.
The RB8762 modules are defaulted to use the BLE Data Protocol. For BLE Data Protocol
operation, you need one Radicom Master and one Radicom Slave module. The Slave Model
RB8762-S advertises or broadcasts the Bluetooth signal. The Master Model RB8762-M will
scan for Bluetooth signals and then request a Bluetooth connection. The RB8762-S Slave can
then accept the connection for BLE Data transfers. The RB8762-S Slave can also operate
with remote devices that also support the BLE Data Protocol.
RB8762 Designers Guide_draft v04 5
Features
Support the Bluetooth 4.2 core specification
Frequency Range 2.402 – 2.480 GHz
Integrate MCU to execute Bluetooth protocol stack
Ultra low power consumption with intelligent PMU
Supports Host and Client modes
Support fully multiple Low Energy states
Support LE L2CAP Connection Oriented Channel Support
Support LE low duty directed advertising
Support LE data length extension feature
Integrated Bluetooth low energy stack including ATT, GATT, SMP, L2CAP, GAP
Generic Applications for GAP Central, Peripheral, Observer and Broadcaster Roles
Support OTA (Over-the-Air) programming
Firmware upgradeable through serial port
Support internal 32KHz OSC or external 32KHz clock input for low power mode
Low power 3.3V operation
TX Power: -1±2 dBm Max ~ RX Sensitivity: -92.5dBm Min
Range: Up to 20 meters (line of sight)
15 GPIOs, 3 configurable LED pins
Hardware Keyscan and Quad-decoder
Embedded 256KB flash
Embedded IR transceiver
Embedded 8-CH 12-bit ADC
Support AES128/192/256 encrypt/decrypt engine
Serial Interface ( SPI / I2C / PWM)
Support 3wire/2wire SPI
Wake-up interrupt
Watch Dog Timer
Small sizes: RB8762 ~ 0.67” x 0.59”
RB8762HM ~ 0.67” x 1.09”
On-board microprocessor, RAM and ROM
On-board antenna or on-board U.FL connector for external antenna
-20°C to +85°C temperature operating
RB8762 Designers Guide_draft v04 6
Approvals (pending)
RoHS Compliant
Electronic Characteristics
MinimumTypicalMaximumUnit
Operation voltage 2.35 3.3 3.6 V
Output Power 0 dBm
Sensitivity -92.5 dBm
Current Consumption *
Pairing mode 4.4 mA
RX active 616 uA
* The Current Consumption is code dependent. Bluetooth functions and characteristics
will vary depending on the application firmware that is loaded into the RB8762 module.
The standard code is for BLE Slave. Using any RB8762 I/O (output) will draw more
current and change the overall current consumption.
RB8762 Designers Guide_draft v04 7

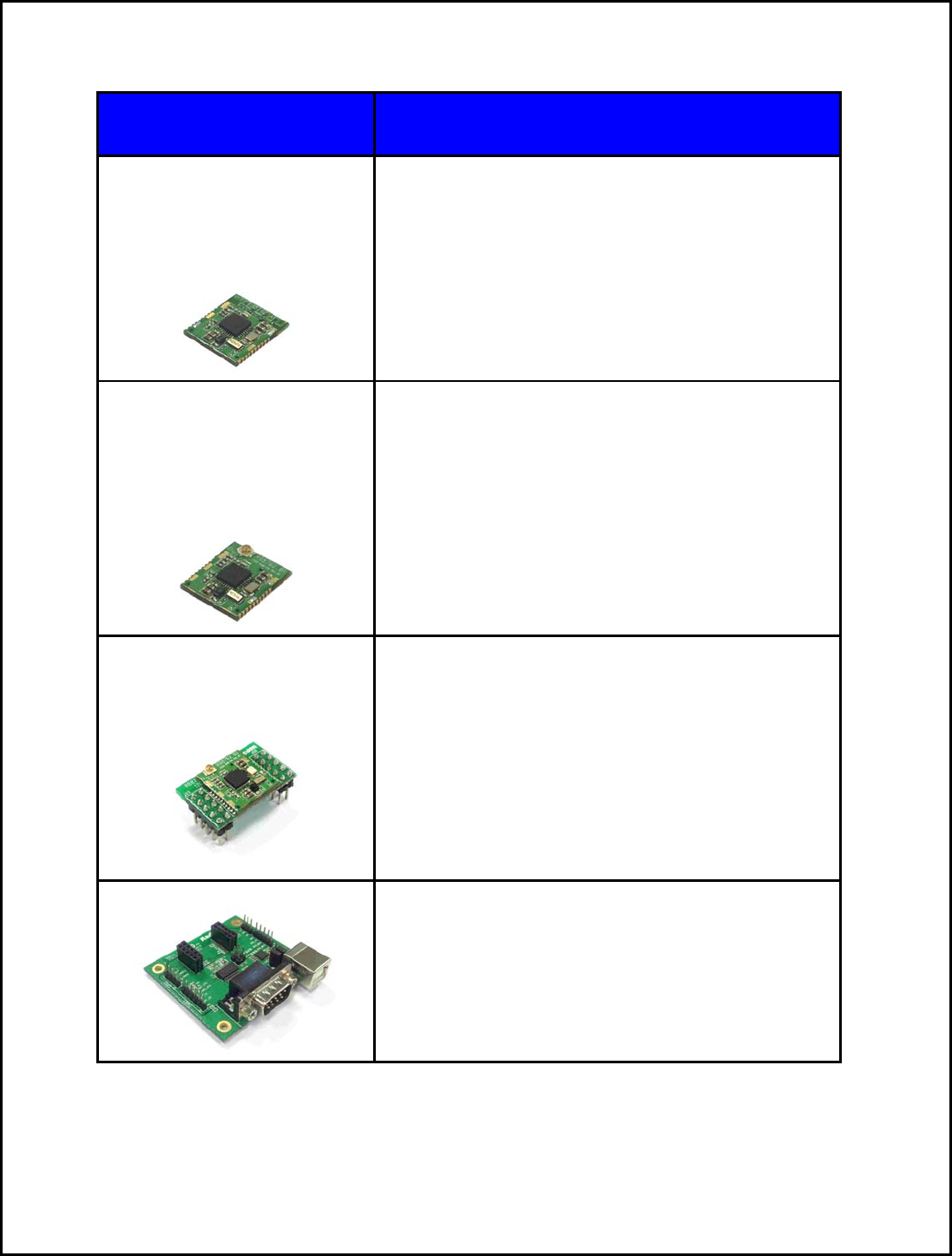

Model and Ordering Information
Model Numbers Description
RB8762G-a-G , RB8762J-a-
G
,
RB8762R-a-G , RB8762K-a-G ,
RB8762G-a , RB8762J-a ,
RB8762R-a , RB8762K-a,
RB8762G , RB8762J , RB8762R ,
RB8760K ,
Surface mount RB8762 Bluetooth module with on-board
antenna.
RB8762G-c-G , RB8762J-c-
G
,
RB8762R-c-G , RB8762G-c-G
RB8762K-c-G , RB8762G-c ,
RB8762J-c , RB8762R-c ,
RB8762K-c , RB8762G ,
RB8762J , RB8762R ,
RB8760K ,
Surface mount RB8762 Bluetooth module with on-board
U.FL connector for external antenna.
Models: RB8762-c-S with Slave Code
 RB8762-c-M with Master Code
RB8762G , RB8762J , RB8762R ,
RB8760K ,
RB8762-c-HM,RB8762-c-HMG ,
RB8762-a-HM ,RB8762-a-HMG
Dual-in-line, through-hole Bluetooth module. RB8762
mounted on Half Inch PCB for DIP (through-hole) interface.
e
RB8762MB
Base board for RB8762HM plug-in and easy
implementation. This base board provides interface
connectors as……
Models: RB8762MBR with RS232 interface
RB8762MBU with USB interface
RB8762 Designers Guide_draft v04 8
RB8762EVK
RB8762EV
K
Evaluation Kit. Each kit consists of the
following components:
1. 1ea RB8762HM through-hole (DIP) module
2. 1ea RB8762MBR or RB8762MBU Base Board
3. 1ea 6 feet USB Power cables (A to B)
4. 1ea 6 feet null modem cables (DB9F to DB9F)
5. 1ea SMA antenna and U.FL connector antenna cable
(optional accessories for –c external antenna models)
RB8762 Designers Guide_draft v04 9

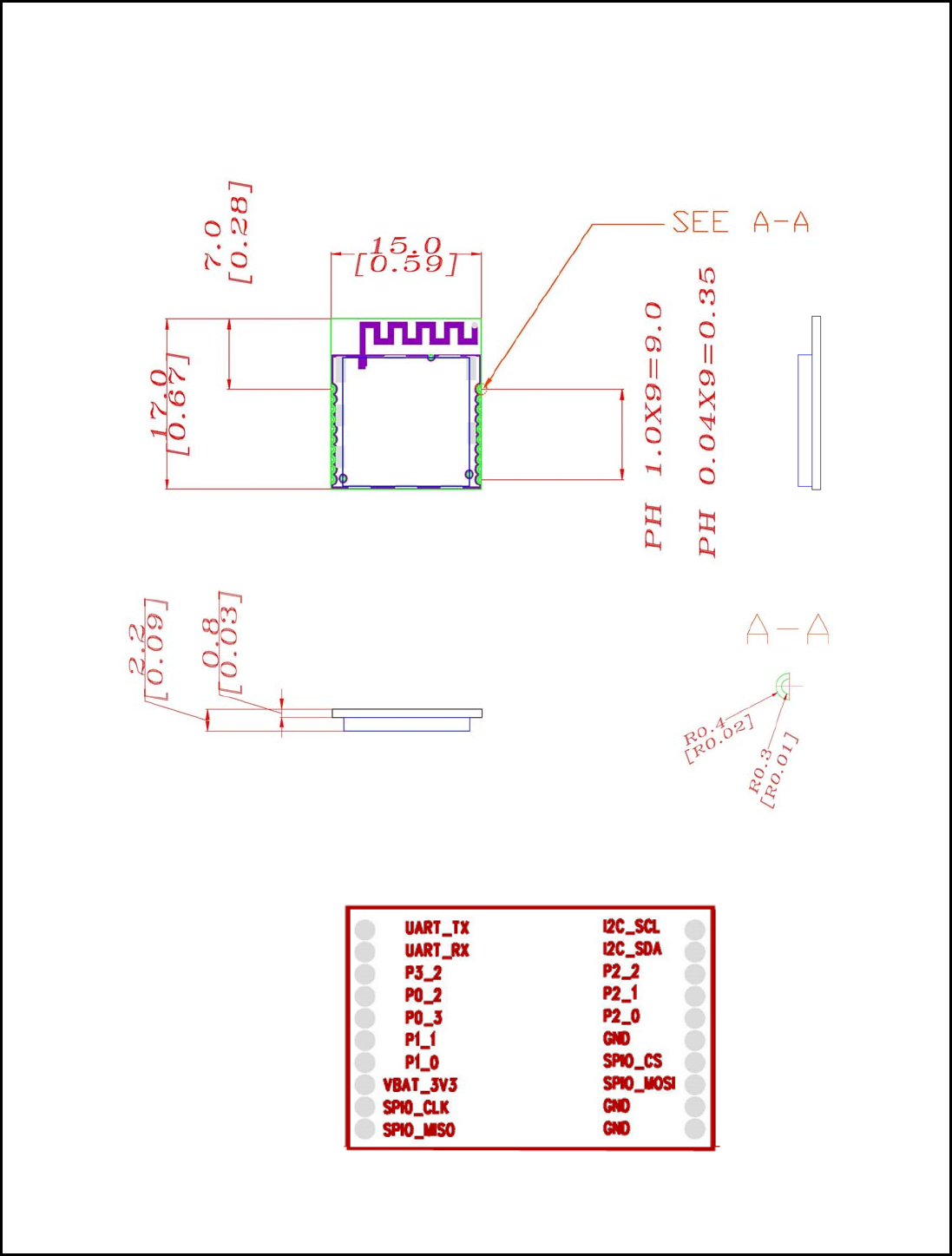

RB8762 Module Mechanical Dimensions & Pin Definitions
Module size = 0.67” x 0.59” x 0.09”
Board size = 0.03”
Pin Definitions:
Top View:
Side View:
Unit: mm[inch]
RB8762 Designers Guide_draft v04 10
RB8762-HM Mechanical Dimensions & Pin Definitions
RB8762HM size = 0.67” x 1.09” x 0.15” (without pin header height)
Pin header pitch = 2.54mm
Pin Definitions:
Top View:
Side View:
Unit: mm[inch]
RB8762 Designers Guide_draft v04 11

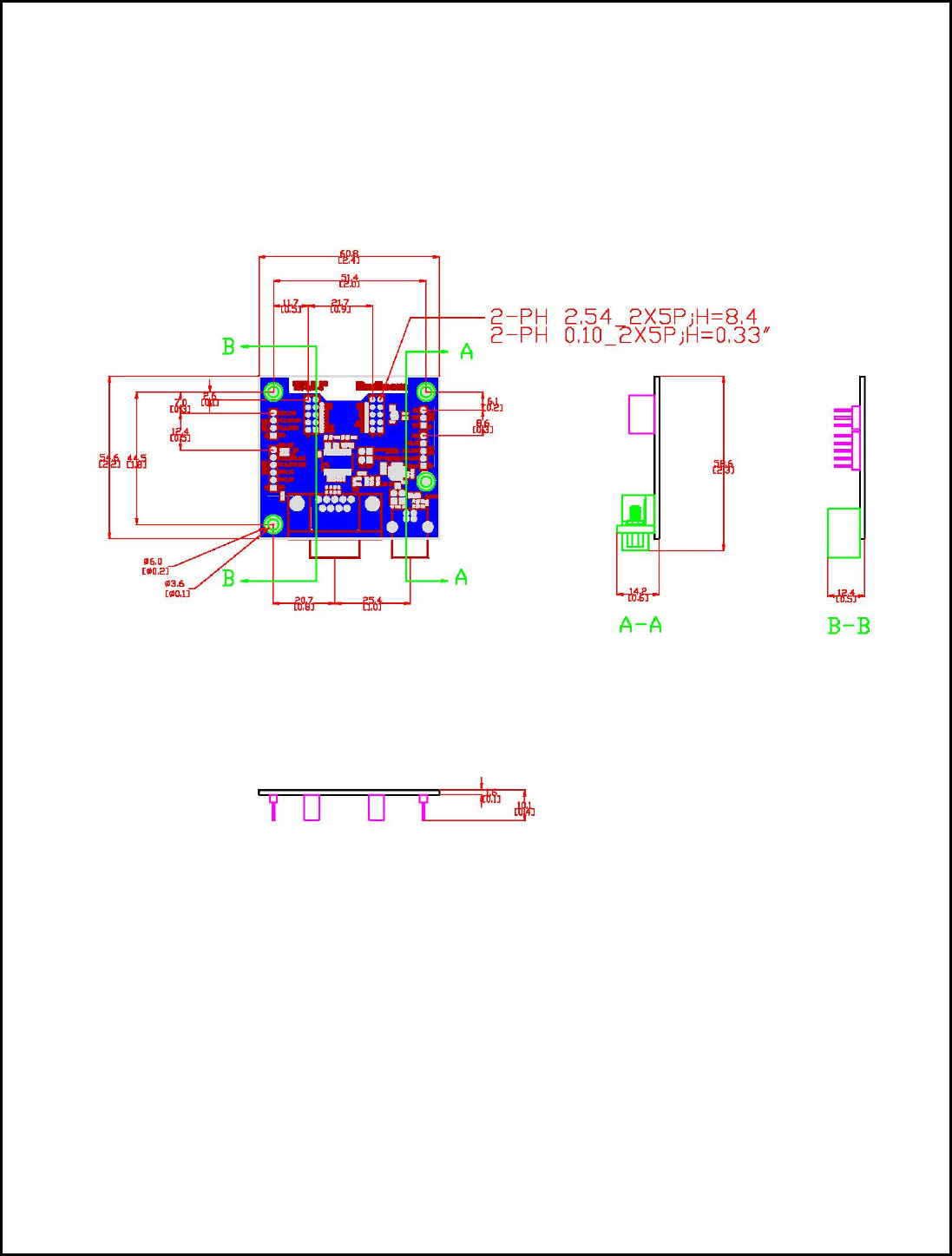

RB8762MB Mechanical Dimensions
Evaluation Board size = 2.2” x 2.4” x 0.4”
Top View:
Side View:
Unit: mm[inch]
RB8762 Designers Guide_draft v04 12

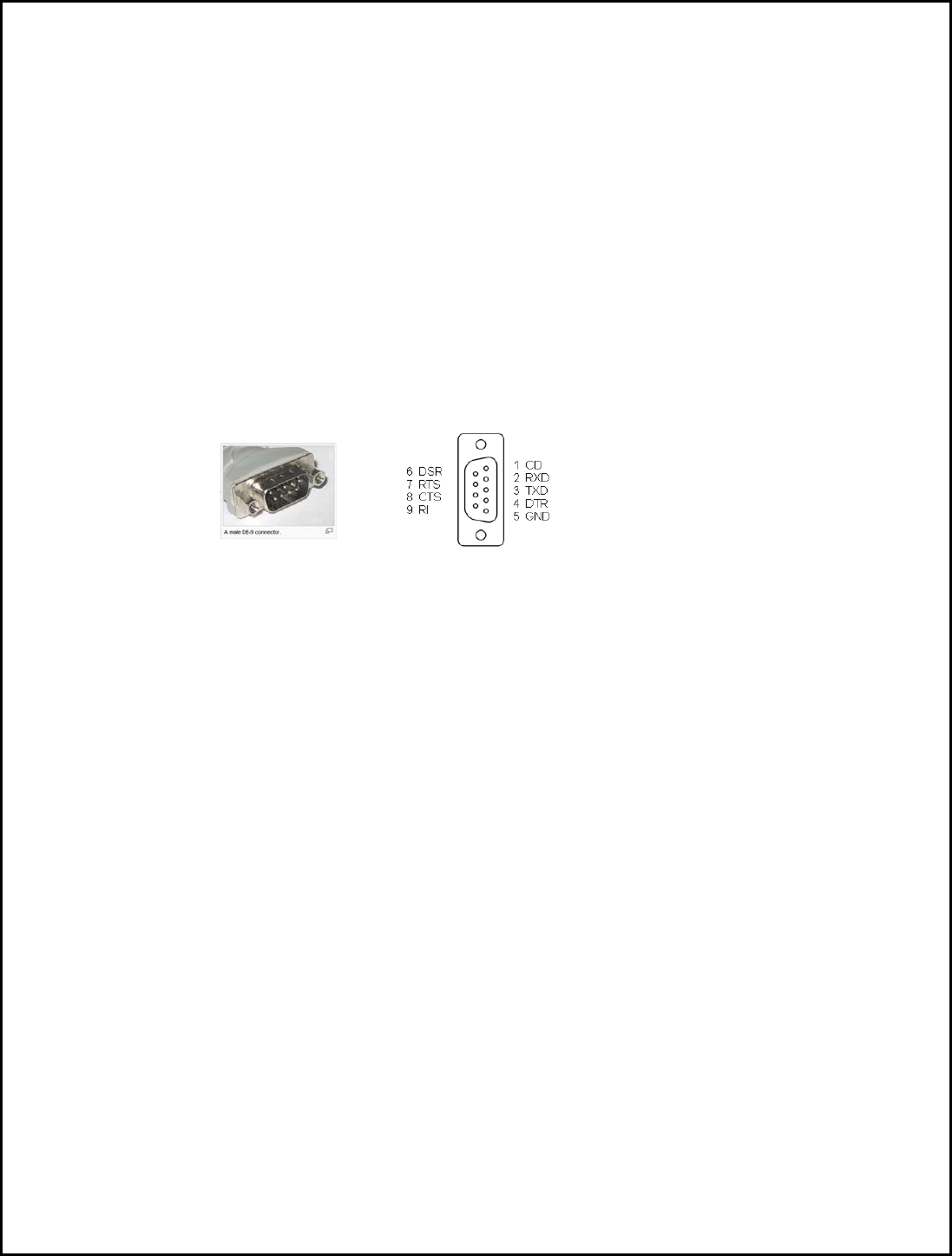

RB8762MB RS232 DB9 Pin Definitions
The pin definitions of DB9 used on the RB8762MB RS232 Serial Connector are as follows:
1. DCD: Input, Carrier Detect
2. RXD: Input, Received Data
3. TXD: Output, Transmit data
4. DTR: Output, Data Terminal ready
5. GND: Ground
6 DSR: Input, Data Set Ready
7. RTS: Output, Request to Send
8. CTS: Input, Clear to Send
9. RI: Input, Ring Indicator
Layout Design Suggestions
General Layout Rules- All Printed Circuit Boards must comply with UL94V0 standard
for flammability. Always use RoHS compliant Parts and materials.
Suggestions for Layout:
1. Do not place Power circuit, X’tal, Inductor, etc near RF area.
2. The bigger Antenna clearance area, the better. The Antenna itself needs to stay away
from any circuit or component at least 3mm. Antenna clearance area means Top and
Bottom both required to be cleared.
3. Do not use metal materials on design where near Antenna area. For example, battery
snaps, USB connector, iron case, etc.
These guidelines are for design reference; real performance still depends on actual design.
RB8762 Designers Guide_draft v04 13
Operating RB8762MB
Introduction - Radicom provides RB8762MB Development Kit to provide a quick platform
for testing and evaluating the RB8762HM Bluetooth module. Each RB8762MB has an USB
connector for providing power and also for UART interface. Through this USB-UART
interface you can issue AT commands to instruct the modules to establish a Bluetooth
connection to transmit and receive data.
Hardware Set-up - To provide power to the RB8762MB, plug one end of the USB cable
into USB connector on the RB8762MB. Plus the other end into the PC USB port.
PC Set-up - Turn on the PC. To send the AT commands and transmit & receive data with the
RB8762MB use a serial communication package such as HyperTerminal. Set the appropriate
COM port for each side with the DTE speed set to 115200 and parity set to 8N1.

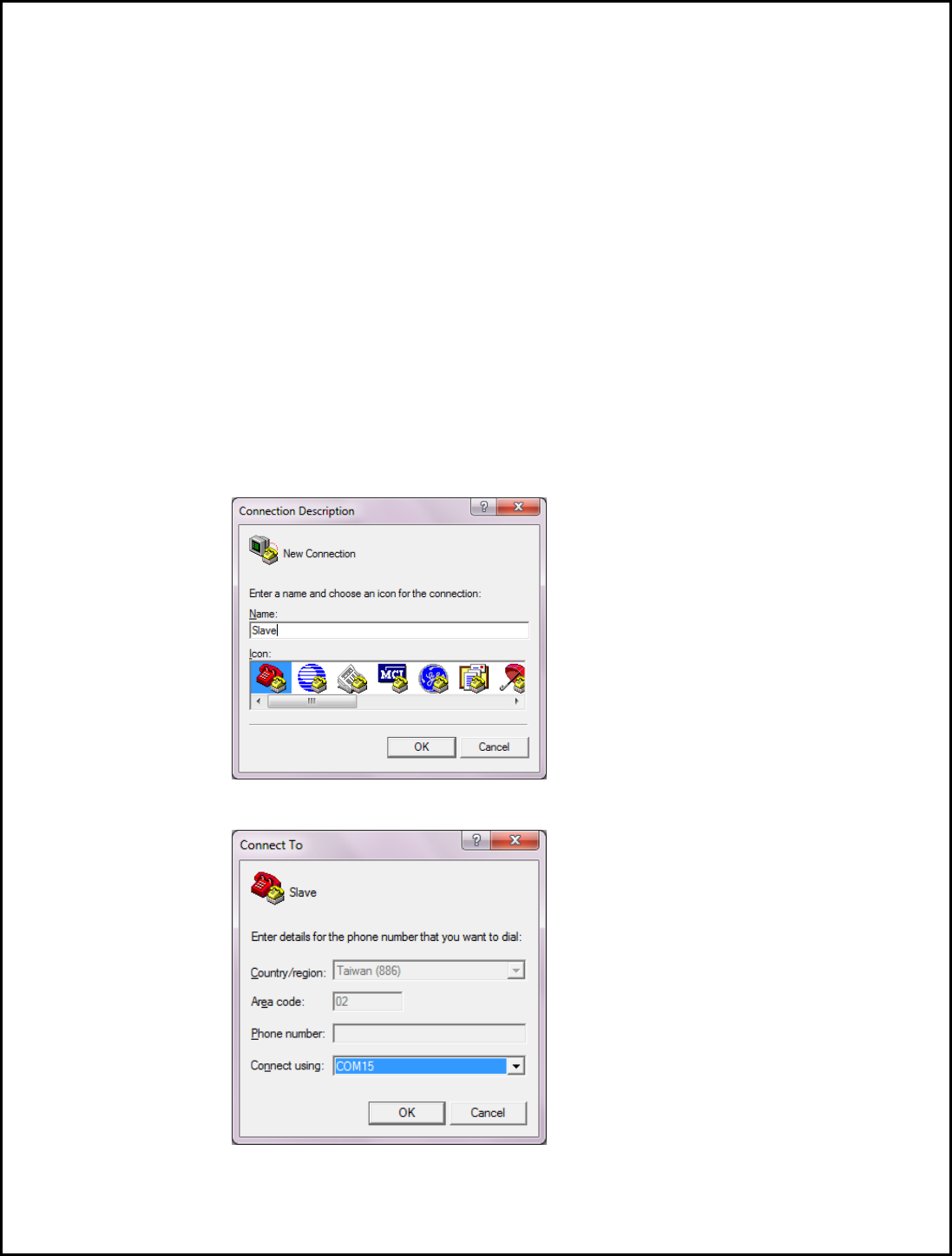

Step 1: Hyper terminal setting is as follows:
Step 2: Choose the appropriate COM port.
RB8762 Designers Guide_draft v04 14

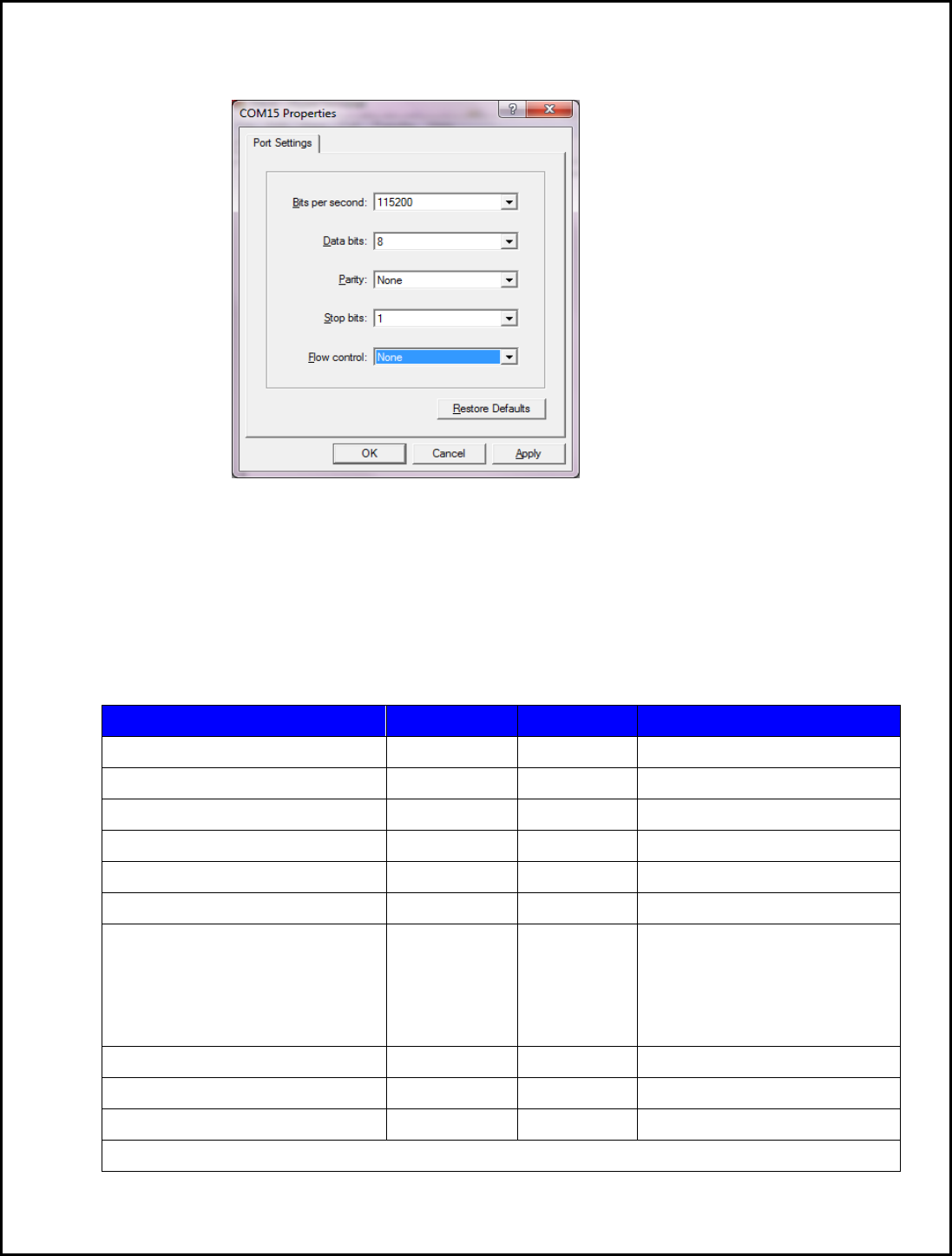

Step 3: COM Properties:
Baud rate: 115200, 8 data bits, None parity, 1 stop bits and None flow control.
Step 4: Click OK button to complete the settings.

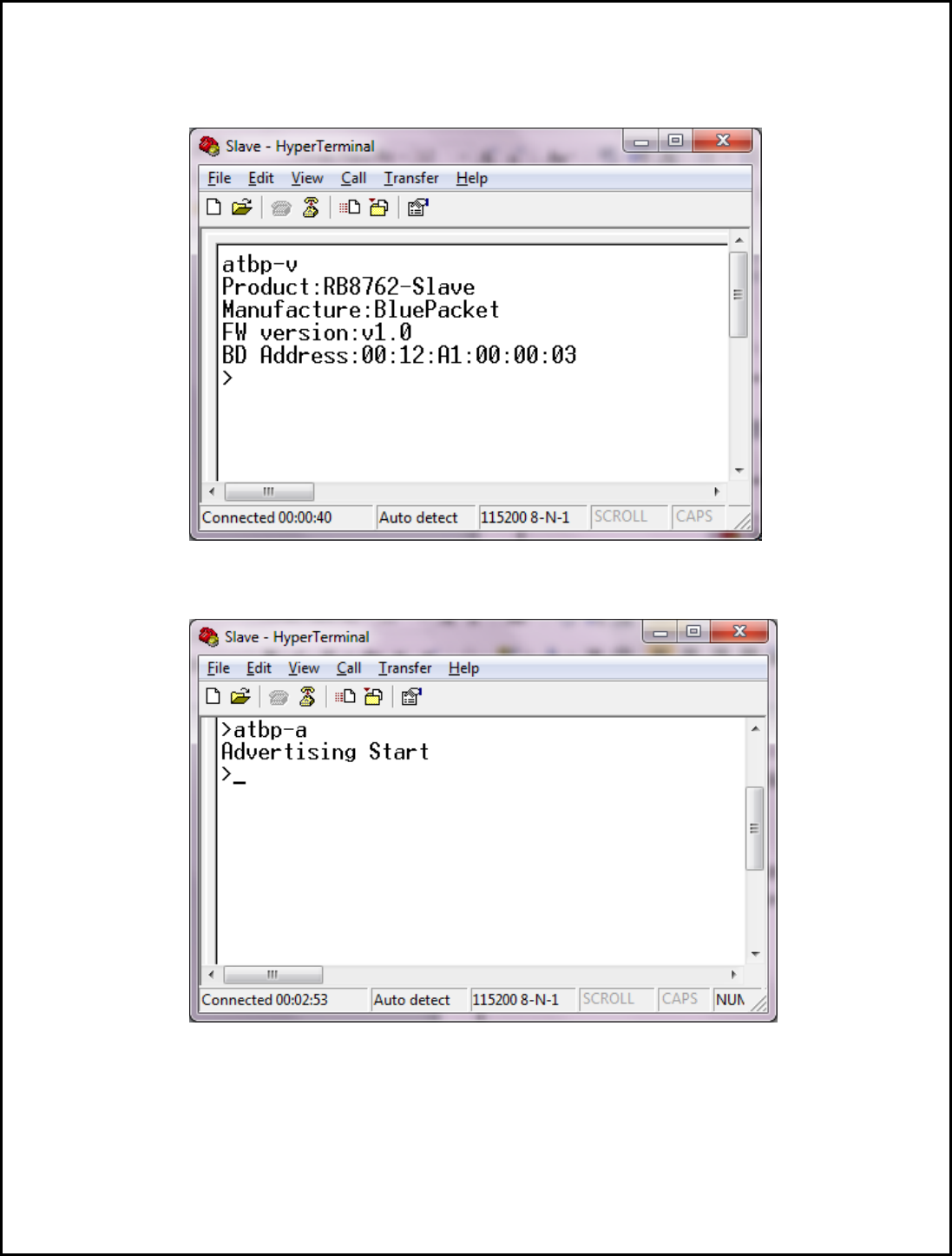

Set-Up verification – Issue atbp-v in hyper terminal. If RB8762MB is properly setup, you
will see the device information, such as product name, manufacturer name, firmware version
and BD address.
Supported AT Command List –
AT C o mma nd s Slave Side Master Side Description
atbp-v Get device information
atbp-a Invalid Advertising On
atbp-otaOn Invalid OTA mode On
atbp-otaOff Invalid OTA mode Off
scan Invalid Scanning On
stopscan Invalid Scanning Off
rembd x11 x22 x33 x44 x55 x66 Invalid
To remember the BD address.
11/22/33/44/55/66 is the
device BD address you wish
to connect.
con Invalid Connect a Slave device
rssiread Invalid Read Slave device RSSI
disc Invalid Disconnect a Slave device
Note: Upper case or lower case sensitive.
RB8762 Designers Guide_draft v04 15
RB8762-Slave Operations:
Step 1:
atbp-v: get device information
Step 2:
atbp-a: enter advertising mode
Step 3: When RB8762-Slave enters advertising mode, it can be connected by a BLE
Master, i.e. RB8762-Master.
RB8762 Designers Guide_draft v04 16
RB8762-Master Operations:
Step 1:
scan: enter scan mode.
Step 2:
stopscan: once the device BD address is shown, please stop scan mode.
Step 3:
rembd x00 x02 x5b x00 x15 x10: to remember the device BD address.
RB8762 Designers Guide_draft v04 17

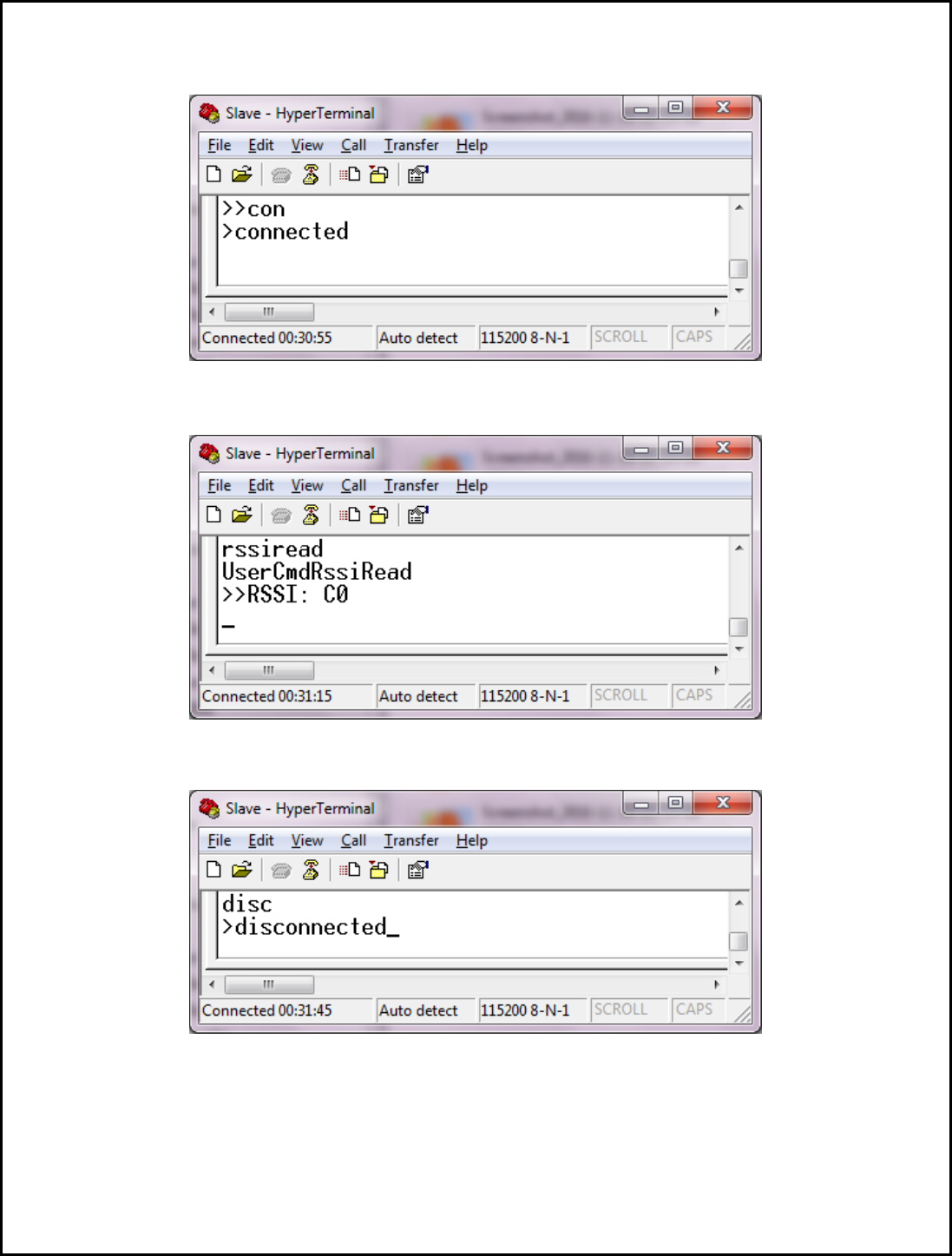

Step 4:
con: connect the device.
Step 5:
rssiread: to read the device RSSI value.
Step 6:
disc: to disconnect the device.
RB8762 Designers Guide_draft v04 18
OTA Upgrading Firmware
Operating steps:
1. Plug in USB cable to power on RB8762MB.
2. Issue atbp-otaOn to enter OTA mode in RB8762-Master side.
Note: Skip this process if you’re using RB8762-Slave.
3. Install OTA APP in your smart phone (please contact manufacturer for Android or iOS APP).
4. Launch the OTA APP and search for the RB8762 device name. The device name is
either “RB8762-Master” or “RB8762-Slave”.
RB8762 Designers Guide_draft v04 19
5. Save the new firmware file to your smart phone, and click “Select File” from APP.
Click “UPLOAD”.
6. The firmware upgrade will start immediately, and it will take approximately 40
seconds to complete an update.
RB8762 Designers Guide_draft v04 20

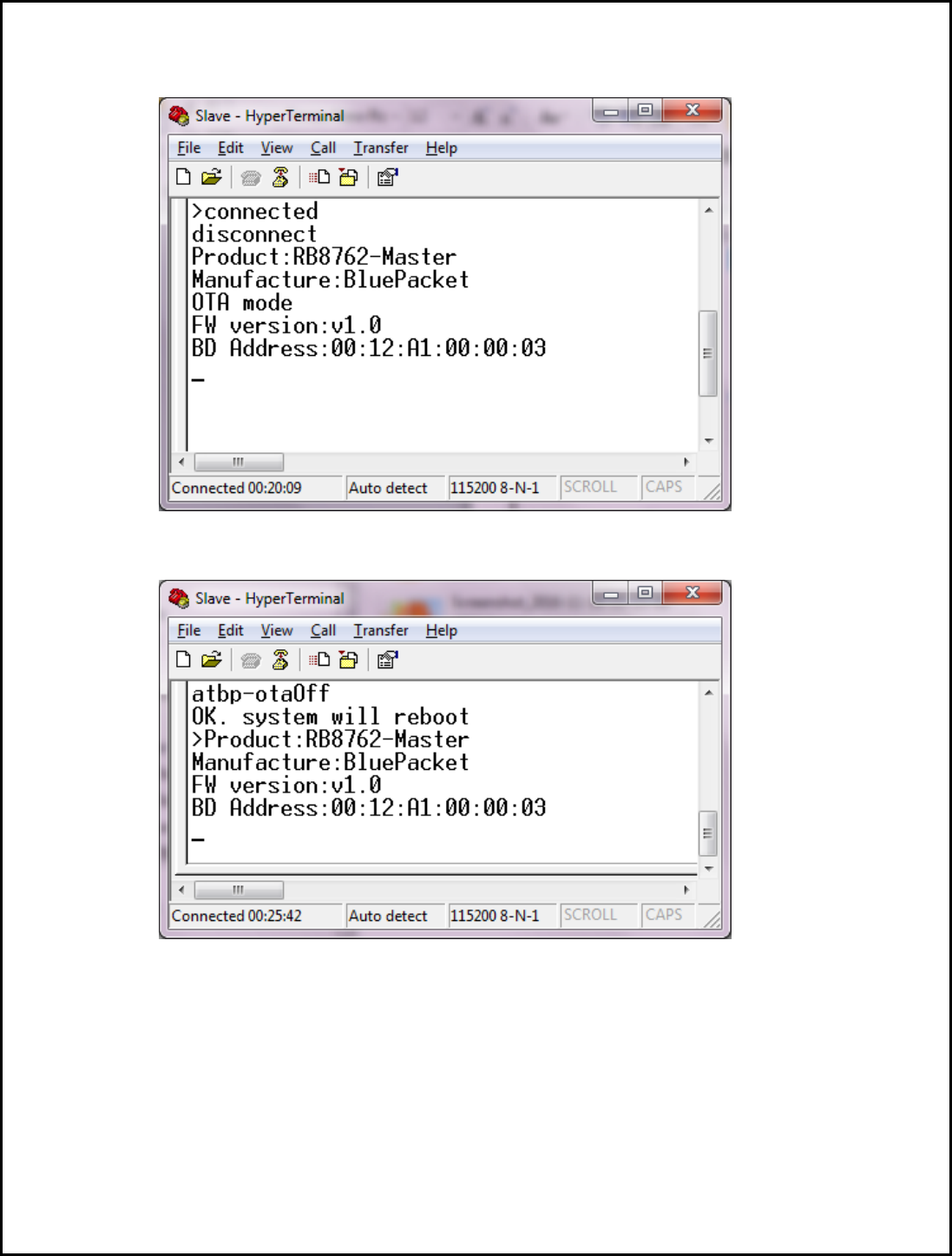

7. When new firmware upgraded successfully through OTA, you will see the new
information shown on hyper terminal.
8. atbp-otaOff: Escape OTA mode in RB8762-Master side.
Note: Skip this process if you’re using RB8762-Slave.
RB8762 Designers Guide_draft v04 21
FCC & IC Label and Model Identification
The RB8762 module family is FCC Part 15 and IC (Industry Canada) certified. The RB8762
is also CE marked. The modules are labeled with the RB8762 module model number and
FCC Part 15 ID, IC registration number and CE mark. The label can be found on top of the
metal shielding on the RB8762 Module.
Note: Models RB8762 will have an additional Product ID label containing the HM model
number.
Important Regulatory Compliance and User Information
The final product with the modules installed needs to be tested for FCC Part 15, IC (Industry
Canada) CE, EMI/RFI compliance. Radicom certification documentation will help
streamline the final product approval process. Contact Radicom for more information. To
maintain compliance in the finished product, carefully follow guidelines in this section. This
device is intended only for OEM integrators under the following condition:
The transmitter module may not be co-located with any other transmitter or antenna. As long
as this condition is met, further transmitter testing will not be required. However, the OEM
integrator is still responsible for testing their end product for any additional compliance
RB8762 Designers Guide_draft v04 22
requirements required with the module installed (for example, digital device emissions, PC
peripheral requirements, etc). IMPORTANT NOTE: In the event that this condition cannot
be met then the FCC authorization is no longer considered valid and the FCC ID cannot be
used on the final product. In these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
Host (End Product) Labeling Requirements
The final end product must be labeled in a visible area with the following: "Contains TX
FCC ID: K7T-RB8762".
RB8762 is for the model of the module used in the end equipment. The RB8762 will be
RB8762x-x-x, RB8762-x-HM, and RB8762-x-HMG. The label shall be securely affixed to a
permanently attached part of the device, in a location where it is visible or easily accessible
to the user, and shall not be readily detachable. The label shall be sufficiently durable to
remain fully legible and intact on the device in all normal conditions of use throughout the
device’s expected lifetime. These requirements may be met either by a separate label or
nameplate permanently attached to the device or by permanently imprinting or impressing
the label directly onto the device. The label text shall be legible without the aid of
magnification, but is not required to be larger than 8-point font size.
End User Information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
Exposure compliance. The end user should NOT be provided any instructions on how to
remove or install the device. The users manual for end users must include the following
information in a prominent location.
d
RB8762 Designers Guide_draft v04 23
FCC RF Radiation Exposure Statement
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, this
device must not be co-located or operating in conjunction with any antenna or transmitter. This
device contains a low power transmitter. When this device is operational, use only with the supplied,
or recommended antenna. Unauthorized antenna, modification, or attachments could damage the
transmitter and may violate FCC regulations. Changes or modifications not expressly approved by
the manufacturer or party responsible for compliance could void the users authority to operate the
equipment.
FCC Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates and radiates radio
frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. There is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for assistance.
IC (Industry Canada) Statement:
“This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device”
Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de license. L’exploitation est autorisee aux deux conditions suivantes: (1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit acceptor tout brouillage
radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement.
RB8762 Designers Guide_draft v04 24
CE Declaration of Conformity
For the following equipment:
Radicom Research Inc. Bluetooth Module
Model(s): RB8762, RB8762HM
are herewith confirmed to comply with the requirements set out in the Council (European
parliament) Directive on the Approximation of the Laws of the
Member States relating to Electromagnetic Compatibility of Radio and Telecom device
(1999/5/CE). For the evaluation regarding this Directive, the following
standards were applied:
EN 61000-4-2:2010, EN 300 328 V1.7.1:2006, EN 62311: 2008,
EN 61000-4-3:2010, EN 301 489-17 V2.1.1, EN301 489-1 V1.92,
EN 60950-1:2006+A11:2009+A1: 2010+A12:2011,
This equipment is marked with and can be used throughout the European
community.
France – 2.4GHz for Metropolitan France:
In all Metropolitan departments, wireless LAN frequencies can be used under the following
conditions, either for public or private use:
Indoor use: maximum power (EIRP*) of 100 mW for the entire 2400-2483.5
MHz frequency band
Outdoor use: maximum power (EIRP*) of 100 mW for the 2400-2454 MHz
band and with maximum power (EIRP*) of 10 mW for the 2454-2483 MHz
band
Europe – R&TTE Compliance Statement:
Hereby, Radicom Research Inc. declares that this equipment complies with the essential
requirements and other relevant provisions of DIRECTIVE 1999/5/CE OF THE
EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment
and telecommunication terminal Equipment and the mutual recognition of their conformity
(R&TTE).
RB8762 Designers Guide_draft v04 25
Limited Warranty
Warranty Coverage and Duration
Radicom Research, Inc. (“RRI”) warrants to the original purchaser its RRI-manufactured
products (“Product”) against defects in material and workmanship under normal use and
service for a period of one year from the date of delivery.
During the applicable warranty period, at no charge, RRI will, at its option, either repair,
replace or refund the purchase price of this Product, provided it is returned in accordance
with the terms of this warranty to RRI. Repair, at the option of RRI, may include the
replacement of parts, boards or other components with functionally equivalent reconditioned
or new parts, boards or other components. Replaced parts, boards or other components are
warranted for the balance of the original applicable warranty period. All replaced items shall
become the property of RRI.
RRI MAKES NO GUARANTEE OR WARRANTY THAT THE PRODUCT WILL
PREVENT OCCURRENCES, OR THE CONSEQUENCES THEREOF, WHICH THE
PRODUCT IS DESIGNED TO DEFECT.
This expressed limited warranty is extended by RRI to the original end-user purchaser only,
and is not assignable or transferable to any other party. This is the complete warranty for the
Product manufactured by RRI, and RRI assumes no obligation or liability for additions or
modifications to this warranty. In no case does RRI warrant the installation, maintenance or
service of the Product. RRI is not responsible in any way for any ancillary equipment not
furnished by RRI that is attached to or used in connection with the Product, or for operation
of the Product with any ancillary equipment, and all such equipment is expressly excluded
from this warranty. Because of wide variations in topographical and atmospheric conditions,
which may require availability of repeater stations or of particular radio frequencies, RRI
assumes no liability for range, coverage or suitability of the Product for any particular
application. Buyer acknowledges that RRI does not know a particular purpose for which
buyer wants the product, and that buyer is not relying on RRI’s skill and judgment to select
or furnish suitable goods.
RB8762 Designers Guide_draft v04 26
What this Warranty does NOT Cover:
(a) Defects or damage resulting from use of the Product in other than its normal and
customary manner.
(b) Defects or damage from misuse, accident or neglect.
(c) Defects of damage from improper testing, operation, maintenance, installation, alteration,
modification or adjustment.
(d) Disassembly or repair of the Product in such a manner as to adversely affect performance
or prevent adequate inspection and testing to verify any warranty claim.
(e) Any Product that has had its serial number or date code removed or made illegible.
How to Receive Warranty Service:
To obtain warranty service, contact RRI by phone (408)-383 9006 for RMA Department or
email to rma@radi.com for an RMA (Return Merchandise Authorization) number. Deliver
or send the Product, transportation and insurance prepaid to RRI, with the RMA number
clearly marked on the outside of the package.
General Provision
This warranty sets forth the full extent of RRI’s responsibilities regarding the Product.
Repair, replacement or refund of the purchase price, at RRI’s option, is the exclusive remedy.
THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESSED WARRANTIES.
ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION,
THE IMPLIED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY. TO THE FULLEST EXTENT
PERMITTED BY LAW, RRI DISCLAIMS ANY LIABILITY FOR DAMAGES IN
EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE,
LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR
SAVING OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE OR FAILURE OF SUCH
PRODUCT.
RB8762 Designers Guide_draft v04 27
Contacting Radicom Research
If more information or technical support is needed, please contact us:
2148 Bering Drive
San Jose, CA. 95131
Telephone: (408) 383 9006
Fax: (408) 383 9007
or
e-mail: sales@radi.com
http://www.radi.com/

Navigation menu
