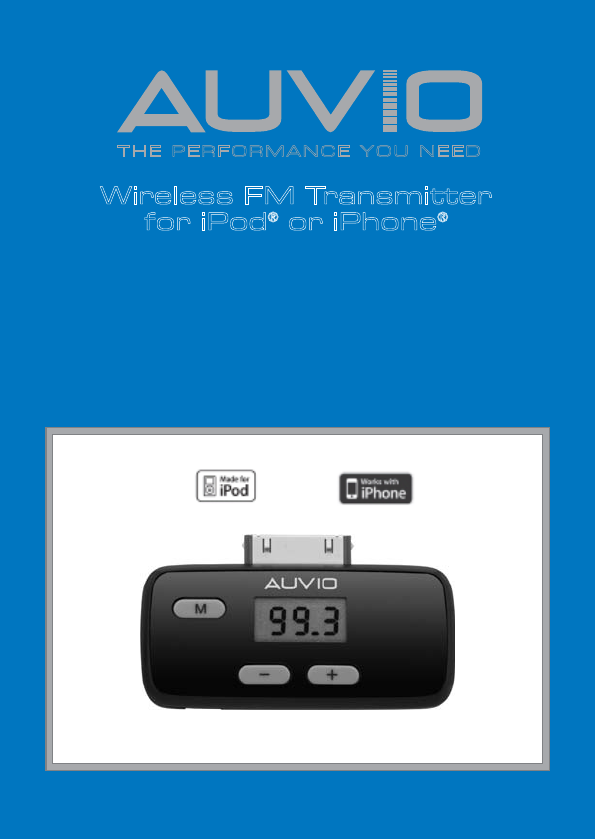

Wireless FM Transmitter
for iPod® or iPhone®
User’s Guide 1200768
Please read this user’s guide before using your new transmitter.
2/2
2
2
Package contents
FM Transmitter
User’s Guide
USB Cable
Quick Start
Features
Listen to your iPod/iPhone music through your FM radio.
Charge your iPod/iPhone while the music plays.
IMPORTANT SAFETY INFORMATION
Connect and operate this product BEFORE operating your vehicle.
Pay attention to the road. Attempting to drive and operate your
transmitter at the same time can cause a serious traffic accident!
Please drive responsibly.

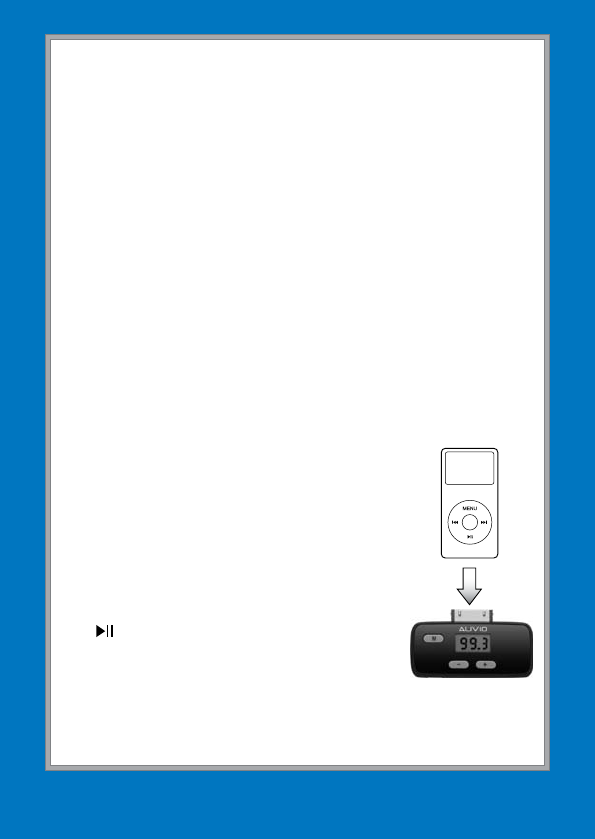

1 Connect the transmitter
Plug the FM transmitter into the iPod/iPhone and begin playing
music. The FM transmitter powers on and
displays the last used frequency.
n Notes:
The transmitter draws power from your
iPod/iPhone so make sure it is charged
before use.
If your FM transmitter does not power on
after connecting to the iPod/iPhone, press
on your iPod/iPhone twice.
The protective case of the iPod/iPhone
may need to be removed in order to fully
connect the FM transmitter.
3
3
2 Tune your transmitter
To save frequencies
1. Press + or - to find the desired frequency.
2. Press and hold M until M1 flashes.
3. Press + or - to select the desired memory location then
press and hold M to store the memory location.
4. Repeat steps 1-3 to save a frequency in M2 and M3.
Select a saved frequency
Press M once, M1 and its frequency appear.
Press M twice, M2 and its frequency appear.
Press M three times, M3 and its frequency appear.
3 Tune your radio
Tune your FM radio to the frequency displayed on the transmitter.
4 Listen to music
Use your iPod/iPhone to find a song, and use the volume controls
on the radio to adjust the volume.
n Notes:
The volume control on your iPod/iPhone does not control the
sound on the radio.
Due to different radio set and antenna position in the vehicles,
the best position to use the FM transmitter in each vehicles
may be different. However, the rule of thumb is to put the FM
transmitter close to the antenna.
4
4
Charge your iPod/iPhone
with the Transmitter

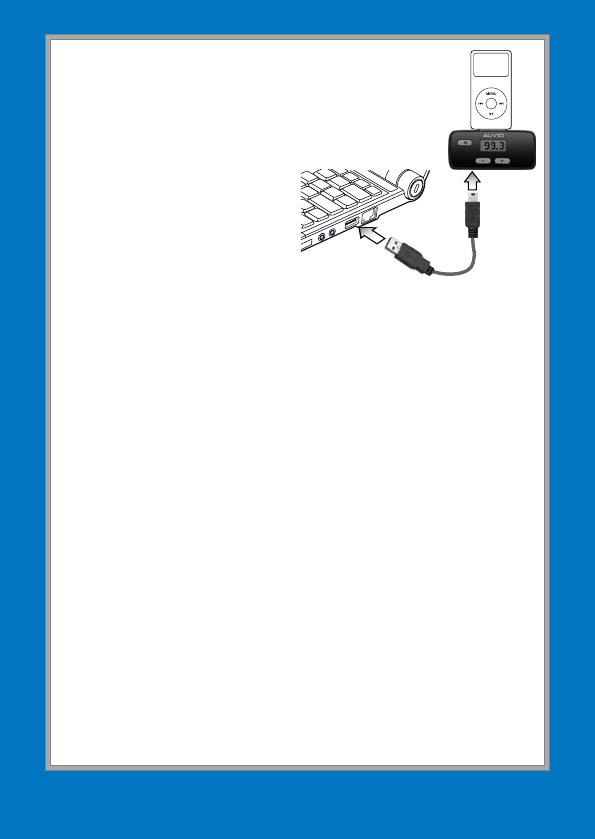

To charge your iPod/iPhone, connect the supplied
USB cable to the transmitter and to your computer
or other USB power output
device.
n Note: The USB port lets
you charge iPod/iPhone only. It
cannot be used for data transfer.
RBDS Transmission
RBDS protocol transmits both audio and track information from
your iPod/iPhone to your radio receiver. If your radio is RBDS
capable, “AUVIO” appears in the Program Service Name area and
the currently playing music title is shown in the Radio Text area.
n Note: Actual operation to view display text may vary
according to individual radio receivers. Please refer to the user’s
guide of your receiver for details.
Use with iPhone Application
If you are using the transmitter with iPod Touch or the iPhone
with OS3.0 or above, you can download FM Navi from Apple App
Store. This application allows you to control all functions of the
transmitter through iPod Touch/iPhone screen. Your saved channels
will upload to application automatically and all your settings in the
application would be stored in the transmitter in turn.
Download FM Navi
Download FM Navi from Apple App store then follow the on-
screen instruction to install. (Refer to the instructions for your
iPhone/iPod for more details.)
5
5
Use FM Navi
1. Plug the FM transmitter into the iPod/iPhone.
2. Choose a song to play and start playback. The transmitter
turns on.
3. Return to your iPhone/iPod’s home screen. Find and
tap the FM Navi icon to run the application.
n Note: After the transmitter is plugged in, run the FM Navi
application or start music playback to turn on the transmitter. If
FM Navi is not running, the transmitter turns off 2 minutes after
music is paused or stopped.
Once your music playlist is created in iPhone/iPod application, FM
Navi allows you to control music playback and FM transmission in
the same screen.

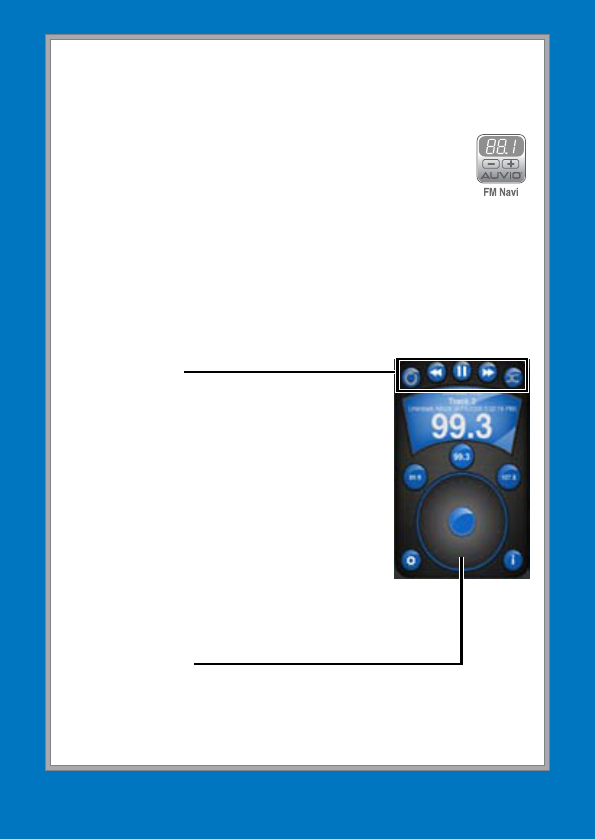

Music Controls
Repeat - Tap repeatedly to select
repeat all tracks, current track or turn
off repeat.
9 - Tap to start and pause playback.
@ - Tap to skip to previous song or
touch and hold to fast backwards.
I - Tap skip to next song or touch
and hold to fast forward.
Shuffle - Tap repeatedly to shuffle all
tracks or turn off shuffle.
Control your Transmitter
Tune Frequency
Tune Up : Touch and rotate the wheel clockwise.
Tune Down: Touch and rotate the wheel anticlockwise.
6
6

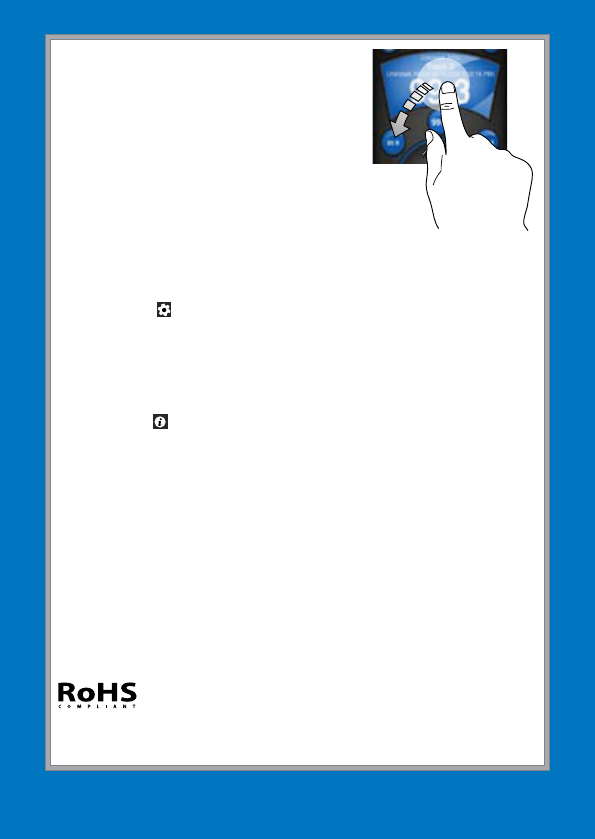

Store Channel Frequency
Touch and hold the frequency shown
on the FM Navi display until a white
cursor appears, then drag it to the
desired memory location to save
current frequency.
Select a Stored Channel Frequency
Tab any of the 3 memory buttons
to select frequency. The selected
memory is enlarged.
Change Background Color
1. Tap the icon to show available background colors.
2. Tap the desired color.
3. Tap a to close.
More Information
Tap the icon for help.
n Notes: Update your iPod or iPhone to the latest firmware
version for the best use of this FM transmitter.
Specifications
Audio input .................................................. 30-pin iPod connector
Transmitting frequency ........... 88.1–107.9 MHz with 0.2 MHz step
Modulation ..........................................................FM stereo, RBDS
Operating range ............................................................10 - 30 feet
Specifications are subject to change and improvement without notice. Actual product may vary from the
images found in this document.
