Radio Shack 1500044T 2.4GHz Digital Wireless Rear Speaker Kit - Transmitter User Manual
RadioShack Corporation 2.4GHz Digital Wireless Rear Speaker Kit - Transmitter Users Manual
Users Manual
© 2011. Ignition L.P. All rights reserved. Auvio is a registered trademark used by Ignition L.P.
Package and user documentation are recyclable. User documentation contains recycled material.
Printed
in China
03A11
1500044
See the User’s Guide for complete instructions.
Start Here
Package contents
THE PERFORMANCE YOU NEED
®
®
Wireless Speaker Kit

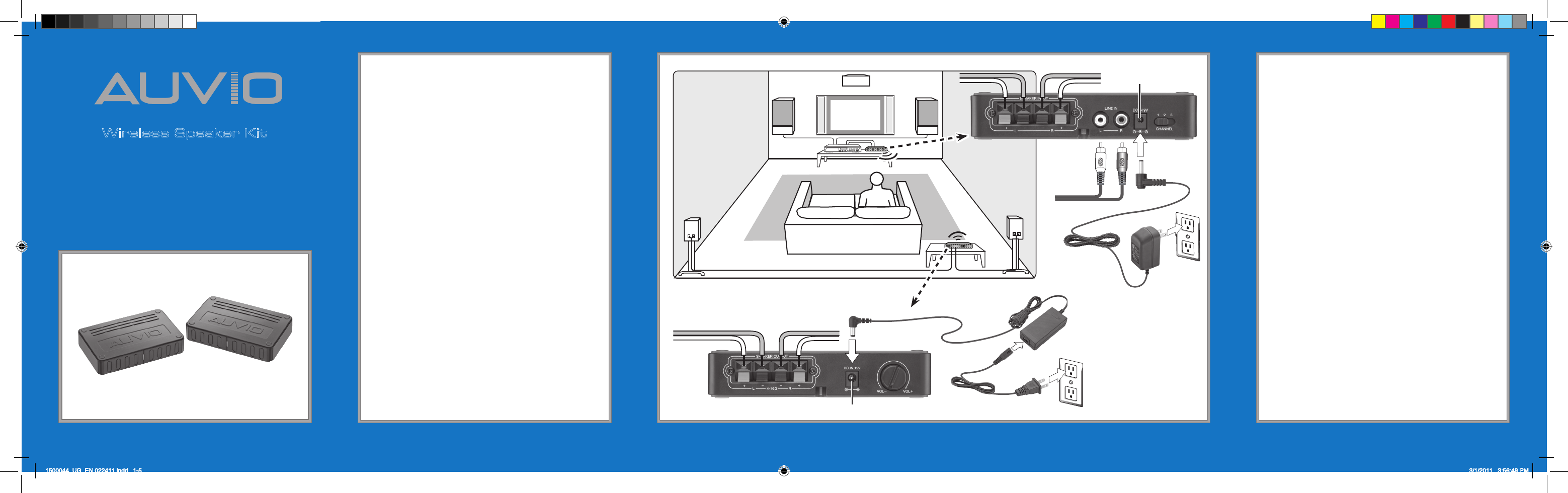

Quick Start 1500044
Connect the Receiver
Connect the Transmitter
Quick Start
User’s
Guide
Transmitter 9V AC Adapter
Use Your Speaker Kit
2
1
3
15V AC Adapter
6-foot
Speaker Wires Stands (2)
Receiver
Transmitter
Receiver
- OR -
Amplifier
From amplifier
speaker output
From line out
To rear speakers
AO0468AAA1
1500044 QS_022411.indd 1 3/1/2011 11:05:44 AM
THE PERFORMANCE YOU NEED
®
®
Wireless Speaker Kit
User’s Guide 1500044
Please read this user’s guide before using your new
speaker kit.
2
23
34
45
5
Package contents
Transmitter D Receiver
9V AC Adapter D 15V AC Adapter
Stands (2) D 6-foot speaker wire (2)
User’s Guide D Quick Start
Features
2.4GHz digital wireless link provides crystal clear audio
signals.
Three-channel selection to avoid potential interference
in the environment.
Up to 115 feet (35m) operation distance between
transmitter and receiver (line of sight).
1 Install the Transmitter
1. Make sure your amplifier is off. Connect the
transmitter to your amplifier‘s speaker output
terminals with the provided 6-foot speaker cords,
matching polarities. Or connect your transmitter to
the amplifier’s RCA output ports with RCA cables (not
included).
2. Connect the supplied AC adapter (9V, 200mA) to the
DC IN 9V jack, then plug it into a standard household
outlet.
2 Install the Receiver
1. Connect the surround speakers to the receiver with
speaker wires, matching polarities.
2. Connect the supplied AC adapter (15V, 4A) to the
DC IN 15V jack, and then plug it into a standard
household outlet.
n Notes:
Make sure the exposed tips of each cord do not touch
each other, and make sure they are fully inserted into the
terminals.
This rear speaker kit is designed for connecting to your
amplifier surround speaker terminals only.
For speaker wires that have proprietary connectors, you may
strip the end of the wires to allow connection to the receiver.
However, check with the speaker manufacturer before doing
this, as it may void the warranty.
When the RCA cables are connected, audio input from the
speaker terminal will be disabled.
Unplug the AC adapters from the AC outlet before unplugging
it from the transmitter or receiver.
Use the supplied AC adapters only. Using an AC adapter not
designed for this product may cause damage.
3 Place the Transmitter and
Receiver
The transmitter and receiver must be placed within 100 feet
for proper operation. They can be placed horizontally on a
flat surface, vertically in the provided stands or mounted on
a wall, using the mounting holes on the bottom.
DC IN 9V
DC IN 15V
- OR -
To rear speakers
From amplifier speaker output
From line out
1500044_UG_EN 022411.indd 1-5 3/1/2011 3:56:49 PM
6
67
78
89
910
10
L.P. will, at its option, unless otherwise provided by law: (a) repair the product
without charge for parts and labor; (b) replace the product with the same or
a comparable product; or (c) refund the purchase price. All replaced parts and
products, and products on which a refund is made, become the property of
Ignition L.P. New or reconditioned parts and products may be used in the
performance of warranty service. Repaired or replaced parts and products
are warranted for the remainder of the original warranty period. You will be
charged for repair or replacement of the product made after the expiration of
the warranty period.
IGNITION L.P. EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDI-
TIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED
WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE
ON THE EXPIRATION OF THE STATED WARRANTY PERIOD.
EXCEPT AS DESCRIBED ABOVE, IGNITION L.P. SHALL HAVE NO LIABILITY
OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY
OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS
OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFOR-
MANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULT-
ING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY,
REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, EVEN IF IGNITION L.P. HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts
or the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights which vary from
state to state. You may contact Ignition L.P. at: Ignition L.P., 3102 Maple Ave
Suite 450, Dallas, TX 75201 02/09
For product support, call
1-866-315-0426
FCC Information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
D Reorient or relocate the receiving antenna.
D Increase the separation between the equipment and receiver.
D Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
D Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Ignition L.P. may cause
interference and void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Limited Warranty
Ignition L.P. warrants this product against defects in materials and work-
manship under normal use by the original purchaser for ninety (90) days
after the date of purchase. IGNITION L.P. MAKES NO OTHER EXPRESS
WARRANTIES.
This warranty does not cover: (a) damage or failure caused by or attributable
to abuse, misuse, failure to follow instructions, improper installation or
maintenance, alteration, accident, Acts of God (such as floods or lightning),
or excess voltage or current; (b) improper or incorrectly performed repairs by
persons who are not a Ignition L.P. Authorized Service Facility; (c) consum-
ables such as fuses or batteries; (d) ordinary wear and tear or cosmetic
damage; (e) transportation, shipping or insurance costs; (f) costs of product
removal, installation, set-up service, adjustment or reinstallation; and (g)
claims by persons other than the original purchaser.
Should a problem occur that is covered by this warranty, take the product and
the sales receipt as proof of purchase date to the place of purchase. Ignition
Printed
in China
03A11
1500044
Get more from your audio and video equipment. See what
you’ve been missing. With Auvio, you control the experience.
Auvio was established by a group of technophiles to provide
high quality audio and video products without the high sticker
price. The Auvio philosophy is for you to experience audio
and video as it was intended to be: pure and distortion free.
We know electronics can be intimidating. Auvio simplifies
your experience by providing the right products, with the
right specs, to work with your equipment.
Be confident about your purchase: your new Auvio product
incorporates the latest technology, is built to the highest
quality standards, and reduces environmental impact by
complying with RoHS environmental restrictions.
Protect the environment by recycling used electronics. Go to
E-CyclingCentral.com to find an electronic recycling center near you.
© 2011. Ignition L.P. All rights reserved. Auvio is
a registered trademark used by Ignition L.P.
Complies with the European Union’s “Restriction of Hazardous
Substances Directive,” which protects the environment by
restricting specific hazardous materials and products.
2. Adjust the receiver’s VOL +/- control
to balance the front and rear speaker
sound level. This step is only necessary
during first-time installation of the
speaker kit with your system.
3. After balance setup, simply use the
volume control on your amplifier to adjust speaker
volume during playback.
Change the Channel
If you experience audio dropouts or
interference during use, change the channel
on the transmitter with the Channel Switch.
The receiver’s channel will automatically
“hop” to the new transmitter settings.
Optimize Your Surround Sound
There is a small delay between the transmitter and
receiver. Many A/V receivers let you adjust the amount
of delay between the front and rear speakers in your
surround system. To optimize your system when tuning
your speaker setup, we recommend you shorten the rear
speaker delay response by around 20 milliseconds.
Specifications
Audio Output Power ....................2x25W RMS (at 4 ohms)
Frequency Response ......................................50-20,000Hz
Audio Distortion .......................................................... <1%
Signal to Noise Ratio ............................................... >80dB
Speaker Impedance Supported by Receiver ........ 4-16 ohm
Specifications are subject to change and improvement without notice.
Actual product may vary from the images found in this document.
n Notes:
If you need to mount the receiver on a wall, install it against
the wall in such a way that the ventilation slots are not
blocked.
To optimize the reception performance, place the transmitter
and receiver in the same orientation.
4 Use Your Speaker Kit
1. Once the AC adapters are connected, the green LED
indicators turn on and the speaker kit enters standby
mode.
2. Turn on your amplifier and then play the audio or video
source through your amplifier.
3. When an audio signal is detected by the transmitter
and the transmitter signal is detected by the receiver,
the speaker kit will automatically go into active mode.
The transmitter and receiver LEDs will both turn blue.
Adjust the Volume Balance
1. Power on the transmitter and receiver, and then turn
on the amplifier and adjust it to your normal listening
level.
- OR -
LED Indicator
AO0469AAA1
1500044_UG_EN 022411.indd 6-10 3/1/2011 3:56:50 PM
