Radio Shack 330284T Wireless Digital Earbuds (Transmitter) User Manual

RadioShack Corporation Wireless Digital Earbuds (Transmitter)

User Manual

THE PERFORMANCE YOU NEED
TM

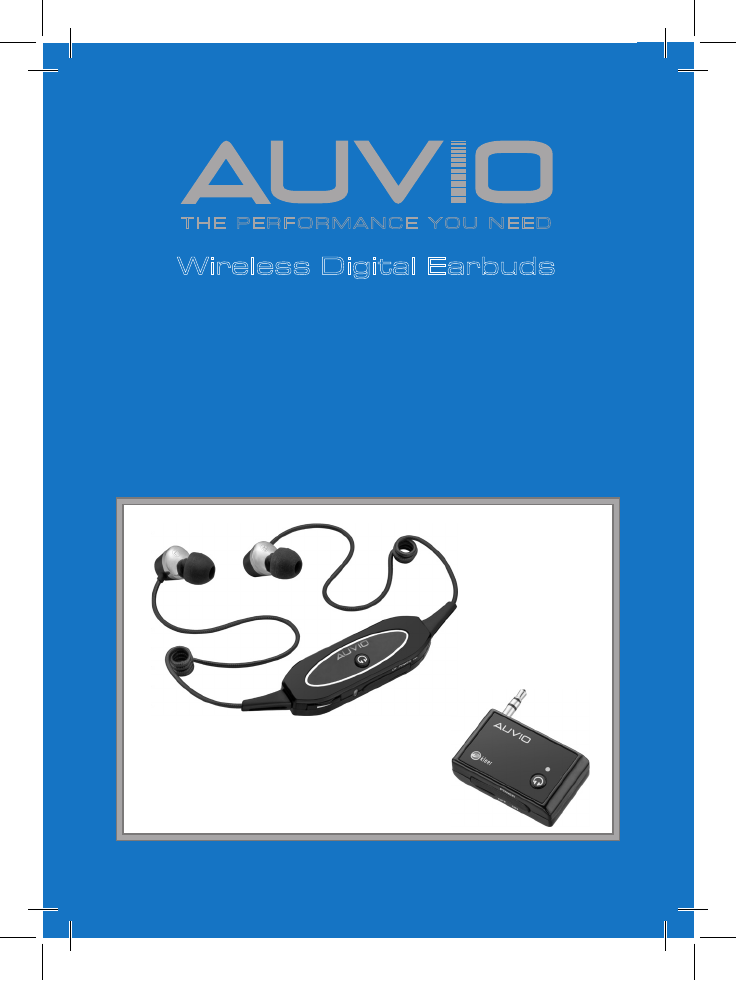

Wireless Digital Earbuds
User’s Guide 33-284
Please read this user’s guide before using your earbuds.
33-284_082609_UG.indd 1 8/26/2009 4:33:44 PM
2
2
Package contents
Wireless Earbuds
Wireless Transmitter
Micro USB to USB charging Y-cable
Carrying pouch
Silicone tips (three pairs in S/M/L size)
User’s Guide
Quick Start
Features
KleerTM technology delivers uncompressed CD-quality
digital sound and a much longer battery life than
standard Bluetooth earbuds
2.4GHz transmission provides a static-free wireless
range of up to 30 feet (9.14m)
Recharges using any computer or USB charger
Extremely lightweight for comfortable use over long
periods of time
In-ear design reduces outside noise to improve audio
quality
Compatible with MP3, CDP, DVDP, iPod and other
Kleer™ enabled audio devices
33-284_082609_UG.indd 2 8/26/2009 4:33:45 PM
3
3
1 Charge
1. �pen the cover and slide both of the�pen the cover and slide both of the ON/OFF
switches to ON. The power LED on the transmitter
and the AUVI� logo on the earbuds light blue.

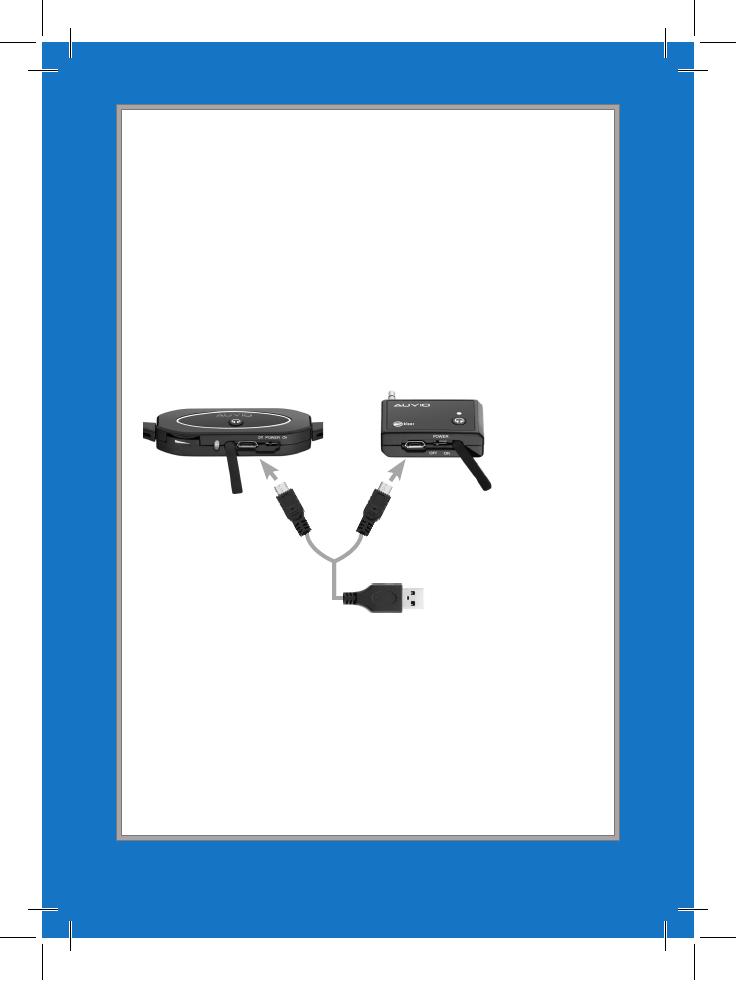

2. Connect the USB plug of the supplied Y-cable to the
USB port of your computer or any USB charger.
3. Connect the Y-cable’s micro USB plugs to the micro
USB port on your earbuds and transmitter.
n Note: Charge the built-in battery for at least 2 hours
before first use.
Both LEDs turn off when charging is completed.
nNotes:
Music does not play while charging.
Charge your earbuds and transmitter if the power
LEDs flashes several times a second.
Connect to the
USB Port on your
computer or any
USB charger.
33-284_082609_UG.indd 3 8/26/2009 4:33:48 PM
4
4

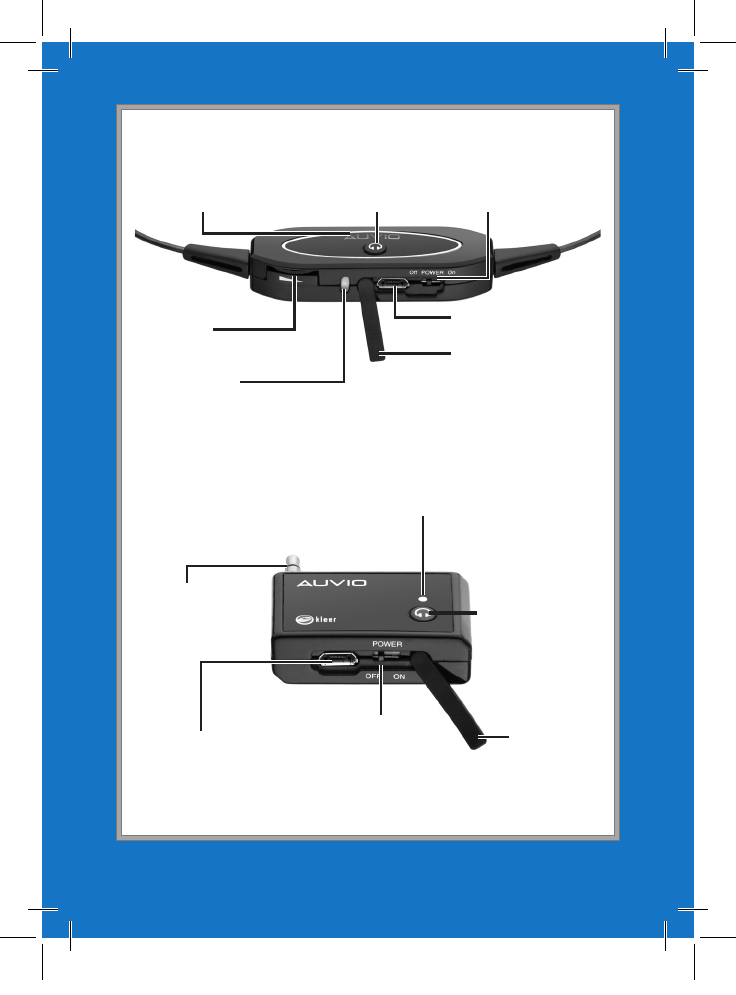

Volume
Power button
Press and hold to
enter sleep mode.
Cover
ON/OFF
Slide to turn the
earbuds on/off.
Micro USB Port
Micro USB Port
3.5mm Plug
ON/OFF
Slide to turn the
transmitter on/off.
Cover
Power LED
Lights red when turned on.
Flashes red several times a second when battery
power is low.
Flashes red every second when synchronizing.
Flashes red every five seconds when synchronized.
Lights blue (only on the transmitter) when charging.(only on the transmitter) when charging.when charging.
Power button
Press and hold to
enter sleep mode.
AUVIO logo
Lights blue when
charging.
33-284_082609_UG.indd 4 8/26/2009 4:33:48 PM
5
5
2 Synchronize
Make sure both of the ON/OFF switches are set to ON.
The earbuds and the transmitter enter synchronizing
mode, and both of the power LEDs flash on and off several
times every second. This will take several seconds.
After successful synchronization, the unit enters Listening
Mode. Both of the power LEDs flash on and off every five
seconds. You are ready to listen to music.
3 Listen to Music
1. Slide both of the ON/OFF switches to ON.
2. Connect the transmitter to the 3.5mm headphone jack
on your audio device to listen to your music.
nNote: If the medium sized earbud tips do not fit
properly, twist them off and replace them with either the
included small or large tips.
Sleep Mode
1. Press and hold (Power Button) on your earbuds
or transmitter for about two seconds to enter Sleep
mode, the music stops playing.
2. Press again to restart music playback.
nNotes:
Pressing and holding on the transmitter will turn
both the transmitter and receiver off, while pressing and
holding on the receiver only turns off the receiver.
Slide ON/OFF to OFF on both the earbuds and
transmitter if you are not going to use the earbuds for
a month or longer.
33-284_082609_UG.indd 5 8/26/2009 4:33:48 PM
6
6
Handling and Disposal:
Do not burn or bury batteries. Do not puncture or
crush. Do not disassemble.
Recycle lithium batteries. Do not dispose of in the
trash.
Never allow loose cells to short circuit against battery
tabs or other conductive items. Keep loose cells and
battery packs out of reach of children.
If the electrolyte in the cells should get on your skin,
thoroughly wash with soap and water. If in the eyes,
rinse thoroughly with cool water. Immediately seek
medical attention.
Charging
Use only chargers rated for lithium cells. Be sure the
charger’s voltage and current settings are correct for
the battery pack being charged.
Charge batteries on a fireproof surface away from
flammable items or liquids.
Do not charge inside an automobile, especially while
driving.
Follow the manufacturer’s instructions for charging the
product and do not charge longer than recommended.
Unplug the charger when the battery is charged.
Recycle your old rechargeable batteries at one of the many
collection sites in the U.S. and Canada. To find the site
nearest you, visit www.call2recycle.org or call toll-
free 1-877-2-RECYCLE.
33-284_082609_UG.indd 6 8/26/2009 4:33:48 PM
7
7
Listening Safely
Do not wear headphones, earphones, or earbuds while
operating a motor vehicle or riding a bicycle. This can
create a traffic hazard and could be illegal in some areas.
To protect your hearing, follow these guidelines:
Do not listen at high volume levels. Extended high-
volume listening can lead to permanent hearing loss.
Set the volume to the lowest setting. Then turn
on your audio device and adjust the volume to a
comfortable level.
Avoid increasing the volume. Your ears will adapt
to the volume level, so a level that does not cause
discomfort could still damage your hearing.
Specifications
Range ....................... About 10 Meters (almost 33 feet) indoors
Normal operation time ........................................... Up to 7hours
�peration current ........................................................8 – 13mA
Standby current ................................................... 0.25 – 0.35mA
Battery recharge time ............................................... 2 – 3 hours
Dimensions
Earbuds ....................................... 2.4×0.8×0.4 in (60×20×9 mm)
Dongle .......................................... 0.5×1.6×1 in (12×40×25 mm)
Weight
Receiver (earbud) .....................................................0.7 oz (20 g)
Transmitter (adapter) ................................................0.4 oz (12 g)
Audio characteristics
Audio frequency response ....................................20Hz – 20KHz
Distortion ................................................... <1% (20Hz – 20KHz)
Signal to Noise Ratio ..........................................................75 dB
Ear speaker impedance .................................................. 16 �hm
Sampling frequency ...................................................... 44.1KHz
33-284_082609_UG.indd 7 8/26/2009 4:33:48 PM
8
8
Radio characteristics
Frequency range ........................................... 2,400 ~ 2,480MHz
Channel space ............................................. 5MHz (16Channels)
Transmission power ..................................................Up to 0dBm
Data rate ..................................................................... 2.37Mbps
Channel separation ..............................................................55dB
Specifications are subject to change and improvement without
notice. Actual product may vary from the product images in this
document.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Ignition L.P. may cause interfer-
ence and void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. �peration is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Limited Warranty
Ignition L.P. warrants this product against defects in materials and workmanship under
normal use by the original purchaser for ninety (90) days after the date of purchase.
IGNITI�N L.P. MAKES N� �THER EXPRESS WARRANTIES.
This warranty does not cover: (a) damage or failure caused by or attributable to abuse,
misuse, failure to follow instructions, improper installation or maintenance, alteration,
accident, Acts of God (such as floods or lightning), or excess voltage or current; (b)
improper or incorrectly performed repairs by persons who are not a Ignition L.P.
Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear
and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of
33-284_082609_UG.indd 8 8/26/2009 4:33:48 PM
9
9
product removal, installation, set-up service, adjustment or reinstallation; and (g) claims
by persons other than the original purchaser.
Should a problem occur that is covered by this warranty, take the product and the
sales receipt as proof of purchase date to the place of purchase. Ignition L.P. will, at
its option, unless otherwise provided by law: (a) repair the product without charge for
parts and labor; (b) replace the product with the same or a comparable product; or (c)
refund the purchase price. All replaced parts and products, and products on which a
refund is made, become the property of Ignition L.P. New or reconditioned parts and
products may be used in the performance of warranty service. Repaired or replaced
parts and products are warranted for the remainder of the original warranty period. You
will be charged for repair or replacement of the product made after the expiration of the
warranty period.
IGNITI�N L.P. EXPRESSLY DISCLAIMS ALL WARRANTIES AND C�NDITI�NS N�T
STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE
IMP�SED BY LAW, INCLUDING THE IMPLIED WARRANTY �F MERCHANTABILITY
AND, IF APPLICABLE, THE IMPLIED WARRANTY �F FITNESS F�R A PARTICULAR
PURP�SE, SHALL EXPIRE �N THE EXPIRATI�N �F THE STATED WARRANTY
PERI�D.
EXCEPT AS DESCRIBED ABVE, IGNITI�N L.P. SHALL HAVE N� LIABILITY �R
RESP�NSIBILITY T� THE PURCHASER �F THE PR�DUCT �R ANY �THER PERS�N
�R ENTITY WITH RESPECT TANY LIABILITY, L�SS �R DAMAGE CAUSED
DIRECTLY �R INDIRECTLY BY USE �R PERF�RMANCE �F THE PR�DUCT �R
ARISING �UT �F ANY BREACH �F THIS WARRANTY, INCLUDING, BUT N�T LIMITED
T�, ANY DAMAGES RESULTING FR�M INC�NVENIENCE AND ANY L�SS �F TIME,
DATA, PR�PERTY, REVENUE, �R PR�FIT AND ANY INDIRECT, SPECIAL, INCIDEN-
TAL, �R C�NSEQUENTIAL DAMAGES, EVEN IF IGNITI�N L.P. HAS BEEN ADVISED
�F THE P�SSIBILITY �F SUCH DAMAGES.
Some States do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damages, so the above limitations
or exclusions may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights which vary from State to State. You may contact Ignition
L.P. at:
Ignition L.P., 3102 Maple Ave. Suite 450, Dallas, TX 75201
02/09
For product support, call 1-866-315-0426
Kleer is a trademark of the Kleer Corporation.
33-284_082609_UG.indd 9 8/26/2009 4:33:49 PM
10
10
© 2009. Ignition L.P. All rights reserved.
Auvio is a trademark used by Ignition L.P.
Printed
in China
08A09
33-284
Get more from your audio and video equipment. See what
you’ve been missing. With Auvio, you control the experience.
Auvio was established by a group of technophiles to provide
high quality audio and video products without the high sticker
price. The Auvio philosophy is for you to experience audio
and video as it was intended to be: pure and distortion free.
We know electronics can be intimidating. Auvio simplifies
your experience by providing the right products, with the
right specs, to work with your equipment.
Be confident about your purchase: your new Auvio product
incorporates the latest technology, is built to the highest
quality standards, and reduces environmental impact by
complying with RoHS environmental restrictions.
Protect the environment by recycling used electronics. Go to
E-CyclingCentral.com to find an electronic recycling center near you.
33-284_082609_UG.indd 10 8/26/2009 4:33:49 PM

Navigation menu
