USERS GUIDE

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 1 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

PDL GX

Internal

Product Specification

NOT FOR EXTERNAL RELEASE

Document ID: GXSPC3-0.DOC

PRC #: 00DM

any means. The only controlled copy of this document is kept in electronic form on the VTECH computer

network. All printed copies are uncontrolled documents and are not updated. This Procedure is the

property of VTECH Engineering Canada Ltd., and shall be returned upon request

Prepared By Gordon Ryley

Title Project Manager

Approved By

Title

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 2 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

Revision History

Revision No Description Page Effective Date

Preliminary July 21,’98

1 First Release Aug 14,’98

2 Updated Release with UI changes All Sept 22, 1998

2.1 Incorporated Regulatory Requirements

and Page Key operation 6,37 24-SEP-98

2.2 Changes to Electrical Specs. Changed

title to Internal Product Spec.

Added Base LED Operation

All 22-OCT-98

2.3 Revised after TM1 Review Comments.

Added Call Forward Display and changes

to menu displays

All 5-NOV-98

2.4 Revised Call Forward operation as per

Radio Shack req’s. Corrected redial

examples. Corrected CID Recall Option

examples. Revised CLEAR MEMORY

menu operation. Defined VMWI as a

factory programmable option.

Minor corrections to other sections.

pp. 15, 22, 23,

25, 29, 34-38,

and 42.

25-NOV-98

3.0 Removed OUT OF AREA message

description from CID. Corrected last

message for Step 6 on SET RING TYPE

description. Corrected Set Ring Volume

description Step 6 to say LOW instead of

HIGH.

Added CID display of telephone numbers

section.

Added Red/Green or All Red LED

Indicator Options

All 18-JAN-99

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 3 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

Table of Contents

1. Overview....................................................................................6

1.1 General Description................................................................................... 6

1.2 Regulatory Standards................................................................................ 6

1.3 Feature List ................................................................................................ 7

1.3.1 Basic Features.....................................................................................................................7

1.3.2 Unique Features ..................................................................................................................7

1.3.3 Features Not Provided ........................................................................................................8

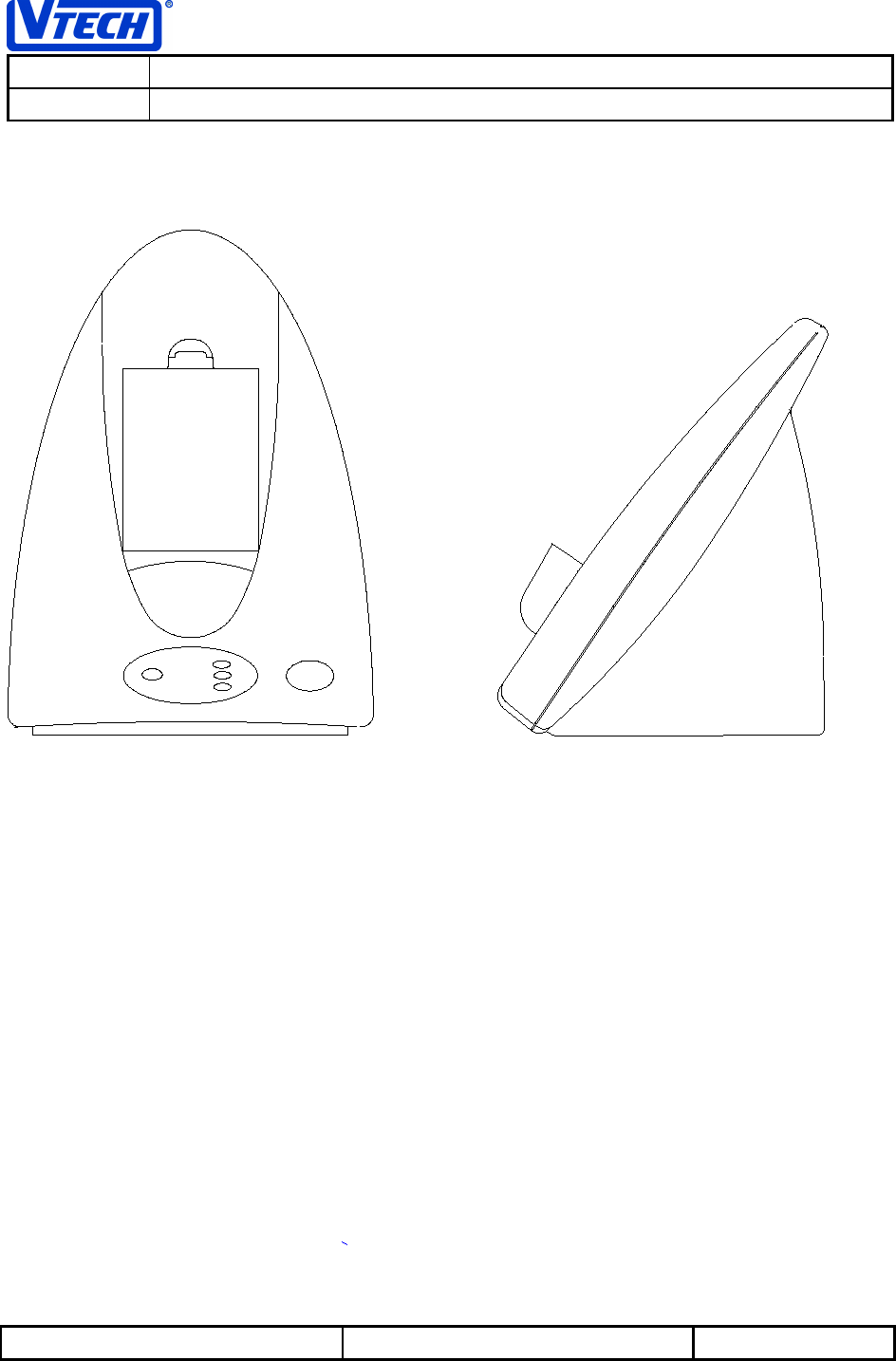

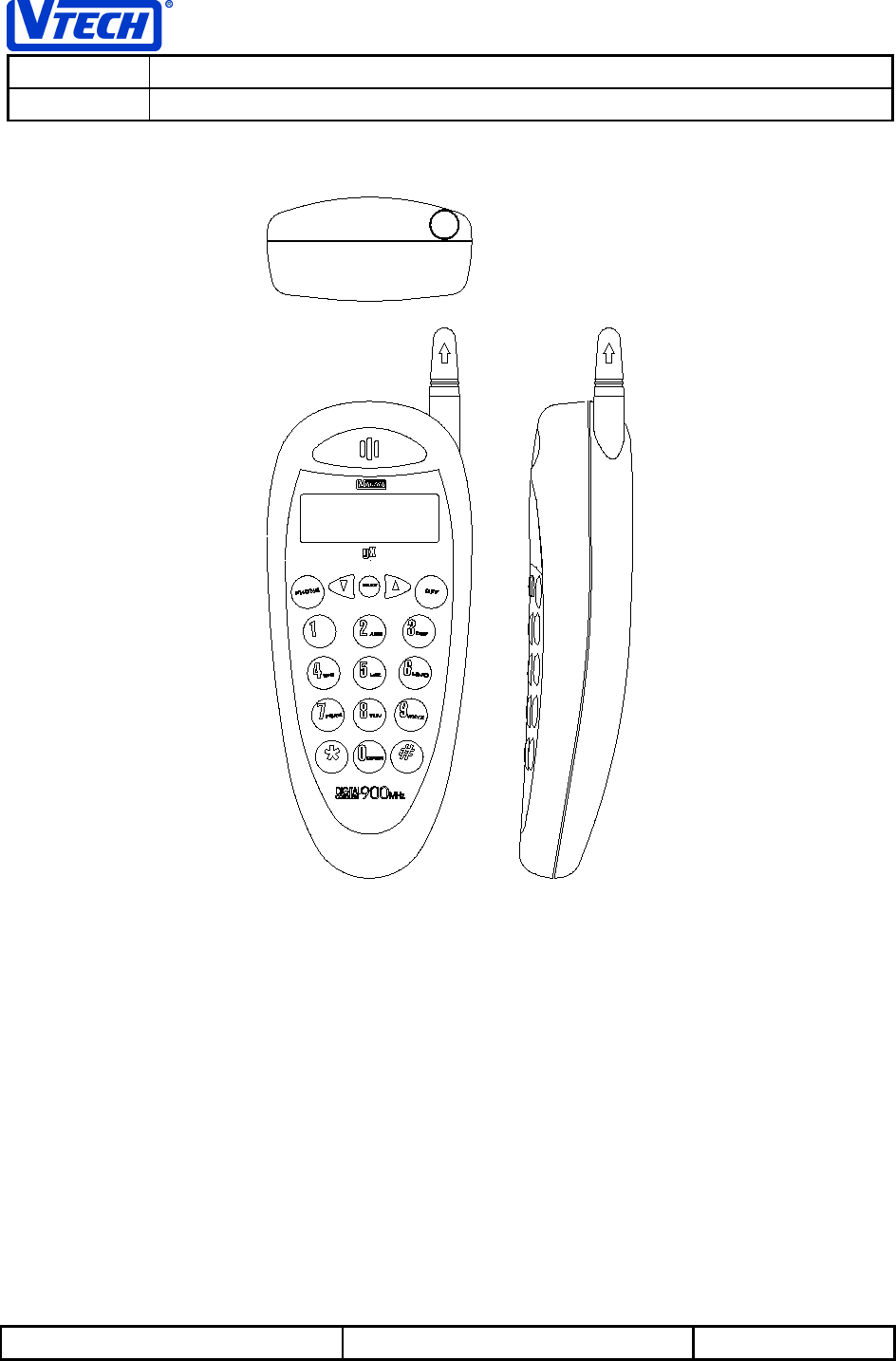

1.4 Cosmetic Styling........................................................................................ 9

2. Functional Description .............................................................11

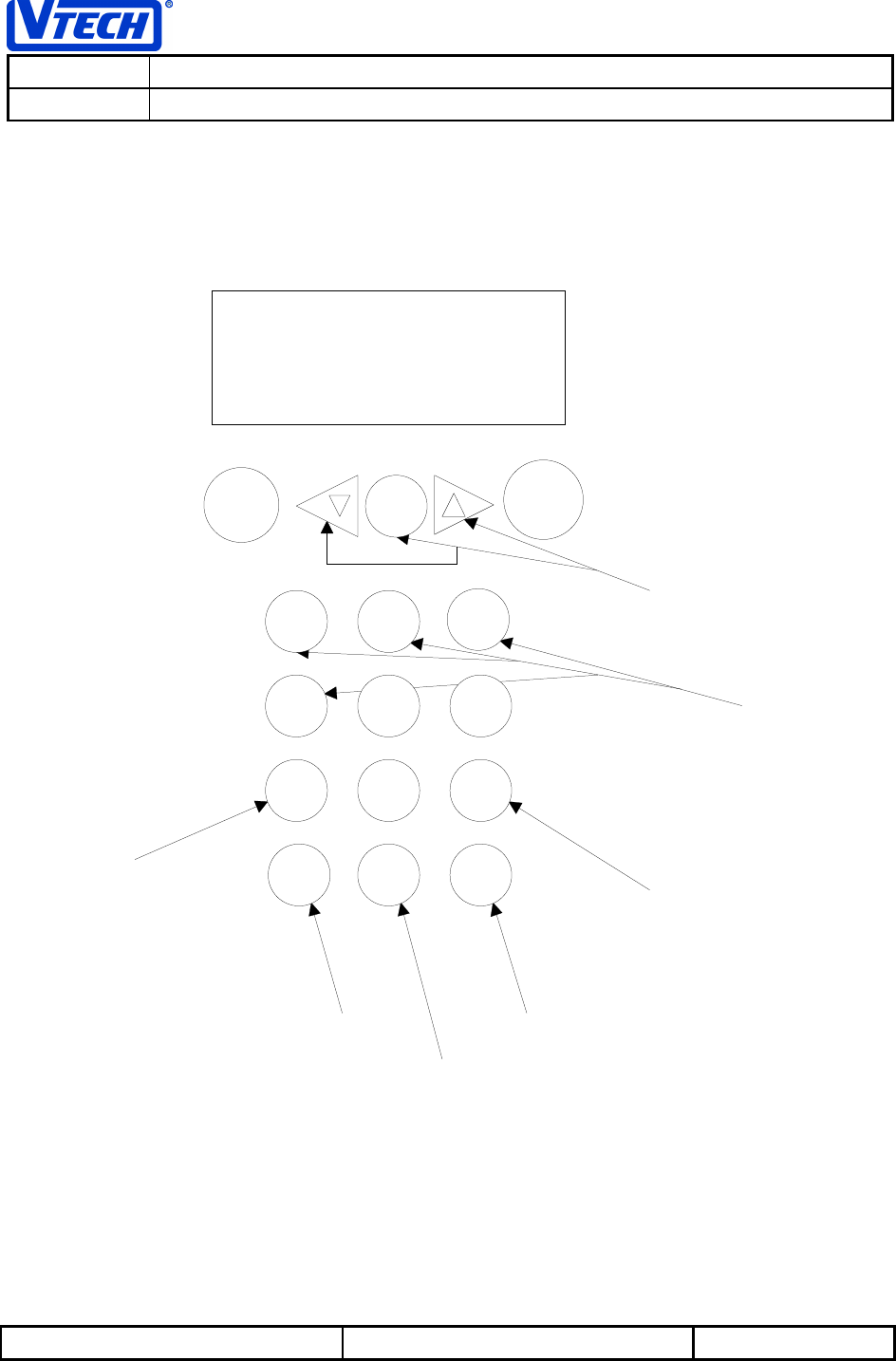

2.1 Handset Display and Keypad Layout ....................................................... 11

2.2 Base Key Layout and Indicators............................................................... 12

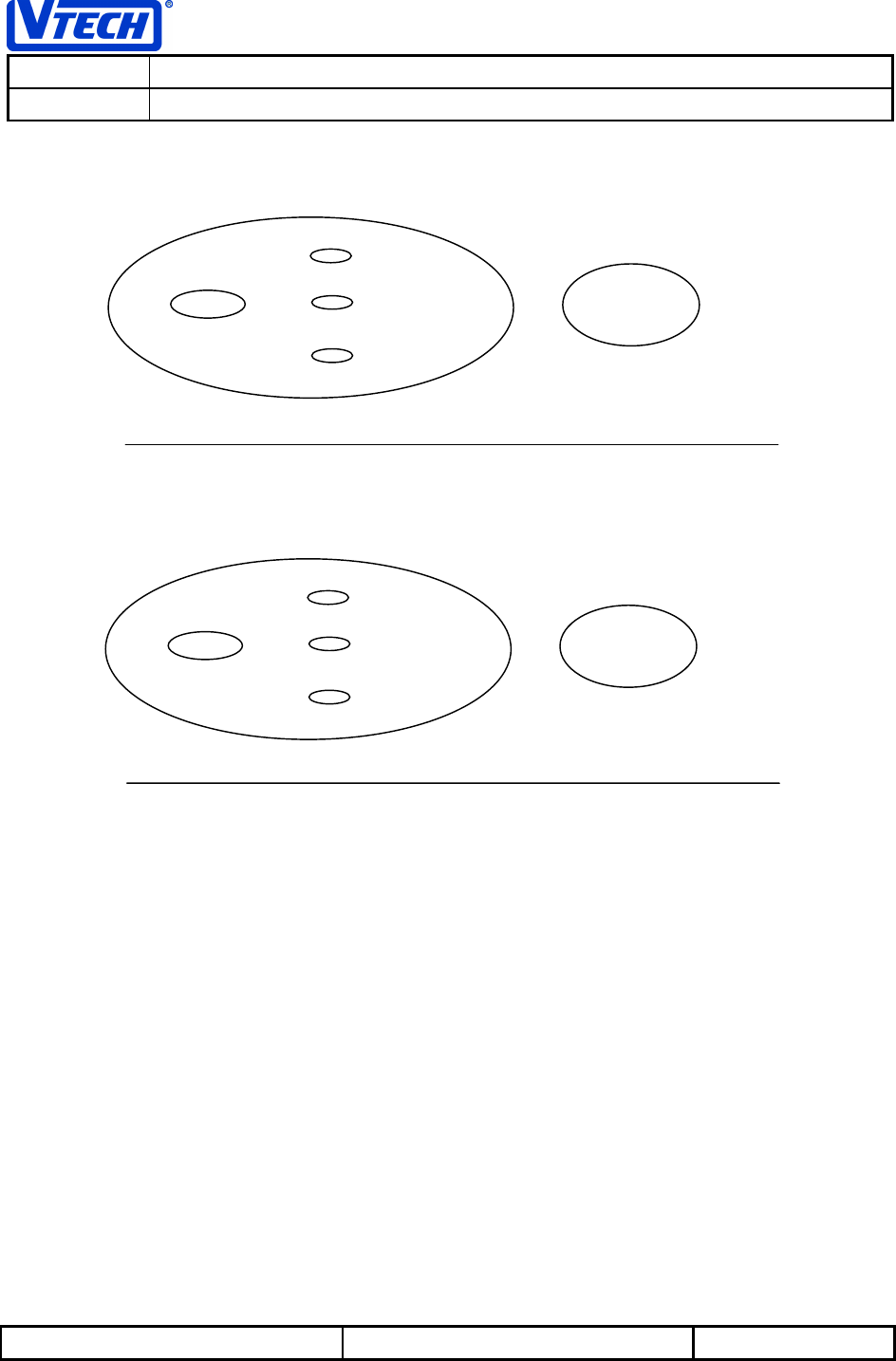

2.3 Base LED User Interface Status Indicators............................................. 13

3. User Interface Specification.....................................................14

3.1 User Interface Status Tones ..................................................................... 14

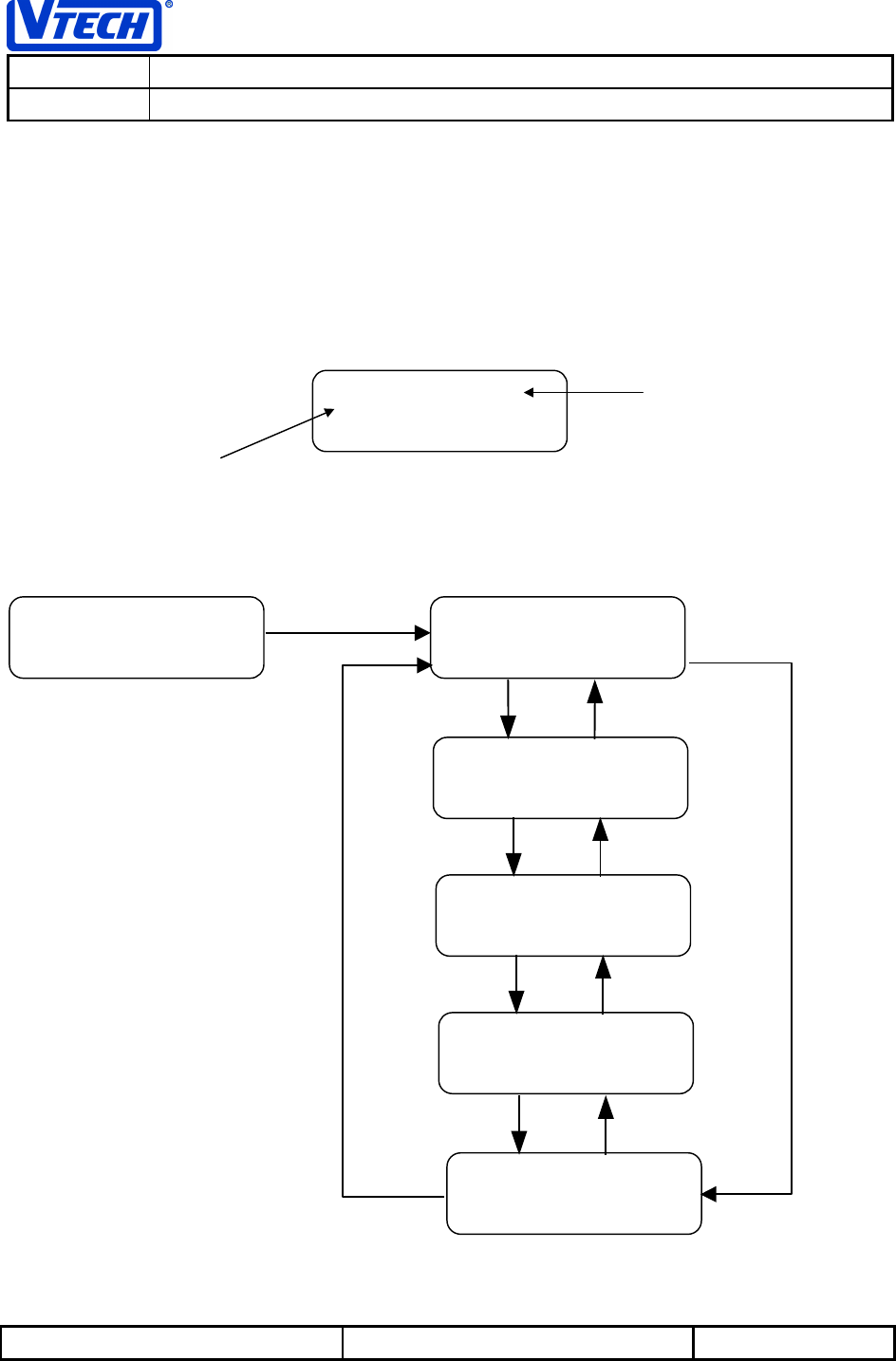

3.2 Navigation/Features/Menus ...................................................................... 14

3.2.1 On Hook State Menus .........................................................................................................15

3.2.2 Off Hook State Menus.........................................................................................................15

3.2.3 Mode Timeout......................................................................................................................16

3.3 Dial Modes.................................................................................................. 17

3.3.1 Pre-Seizure (On-Hook) Dialing or Pre-Dial........................................................................17

3.3.1.1 Pre-Dial Digit Entry and Editing .....................................................................................17

3.3.1.2 Pre-Dial Example .............................................................................................................18

3.3.2 Post-Seizure Dialing (Off-Hook) or Live Dial ....................................................................19

3.4 Using SELECT or PHONE key When Recalling Numbers ...................... 19

3.4.1 Pre-Dial Recall Example Using PHONE Key (WYSIWYG)................................................20

3.4.2 Pre-Dial Recall Using SELECT Key....................................................................................20

3.4.3 Live-Dial Recall Using PHONE or SELECT Key................................................................21

3.5 Placing A Call on Hold............................................................................... 21

3.6 Last Number Redial................................................................................... 22

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 4 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.6.1 Review/Recalling Most Recently Dialed Numbers from Redial Memory .......................22

3.6.1.1 Redial Example Using PHONE key from Pre-Dial Mode:.............................................23

3.6.1.2 Redial Example Using PHONE key from Live-Dial Mode: ...........................................24

3.6.2 Storing Redial Records.......................................................................................................24

3.7 Incoming Calls ........................................................................................... 25

3.7.1 Ringing .................................................................................................................................25

3.7.2 Answering the Incoming Call .............................................................................................25

3.7.3 Terminating the Incoming Call...........................................................................................25

3.8 Calling Line ID Functions.......................................................................... 26

3.8.1 CID Type I .............................................................................................................................26

3.8.2 Call Forward Indicator.........................................................................................................26

3.8.3 New Calls Indicator .............................................................................................................27

3.8.3.1 New Calls LED Indicator Option.....................................................................................27

3.8.4 CID Type II ............................................................................................................................27

3.8.5 Review/Recall Telephone Numbers from CID Memory....................................................27

3.8.5.1 CID Number Recall Options............................................................................................29

3.8.6 Deleting a CID Record in Review Mode.............................................................................30

3.8.7 Call Forward Display of Telephone Numbers...................................................................31

3.9 Speed Dial Functions ................................................................................ 32

3.9.1 Programming Speed Dial Memory.....................................................................................32

3.9.1.1 Program Speed Dial Example.........................................................................................32

3.9.2 Review/Recall Telephone Number from Speed Dial Memory .........................................33

3.9.2.1 Speed Dial Review Example...........................................................................................34

3.9.3 Deleting a Speed Dial Location in Review Mode..............................................................35

3.10 Clearing CID, Speed Dial Memory and VMWI .......................................... 36

3.10.1 Clear Memory Menu Structure If VMWI Is Supported......................................................36

3.10.2 Clear Memory Menu Structure If VMWI Is NOT Supported .............................................36

3.10.3 Clearing The Visual Message Waiting Indicator (If VMWI Option is Supported) ..........37

3.10.4 Clearing All CID Records ....................................................................................................38

3.10.5 Clearing All Speed Dial Locations .....................................................................................39

3.11 Flashing the Line/Switching Over to New Call........................................ 40

3.12 Visual Message Waiting Indication (VMWI)............................................. 40

3.12.1 VMWI LED Display Option ..................................................................................................40

3.13 Setup Mode Options.................................................................................. 41

3.13.1 Ring Type Setting (4 selection and OFF) ..........................................................................42

3.13.2 Ringer Volume Control (High or Low)...............................................................................43

3.13.3 Dialing Type Selection (Tone or Pulse).............................................................................44

3.13.4 Keyclick Selection (On or Off)............................................................................................45

3.14 Page Key Operation................................................................................... 46

3.15 In Use/Charging LED Indicator................................................................. 46

3.15.1 Red/Green LED Option........................................................................................................46

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 5 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.15.1.1 In Use/Charging LED Display State Priority (Red/Green LEDs)................................46

3.15.2 All Red LED Option..............................................................................................................46

3.15.2.1 In Use/Charging LED Display State Priority (All Red LEDs)......................................47

3.16 Temporary Tone Activation....................................................................... 47

3.17 Ear Piece Volume Adjustment.................................................................. 47

3.18 Spare Battery/POTS mode ........................................................................ 48

3.19 Low Battery Warning................................................................................. 48

3.20 Parallel Set Indication ............................................................................... 48

3.21 Headset Jack.............................................................................................. 49

3.22 No Telephone Line Connected ................................................................. 49

3.23 Display Priority of Non Mode Specific Messages ................................... 50

3.24 Channel Search/Out of Range Indication ................................................ 51

4. Electrical Specifications...........................................................52

4.1 Operating Conditions ................................................................................ 52

4.2 DC Electrical Characteristics.................................................................... 52

4.3 Audio Specification ................................................................................... 53

4.4 Telephone Line Interface Specification ................................................... 54

4.5 Calling Line Identification Specification.................................................. 55

4.6 Radio Specification ................................................................................... 56

4.6.1 Frequency Allocation ..........................................................................................................56

4.6.2 Base Unit Frequencies........................................................................................................56

4.6.3 Handset Unit Frequencies ..................................................................................................56

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 6 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

1. Overview

1.1 General Description

The PDL GX is a 900 MHz digital cordless telephone in a form factor which half the size of the existing

VTECH digital product. This is a higher end product by virtue of the level of integration required in order to

meet the form factor requirements. This is also a full featured phone which is menu driven with a 2x12

alphanumeric display capable of receiving Caller ID type I and type II.

1.2 Regulatory Standards

As a requirement for sale in the United States, the product will comply with the electrical specifications

defined in the following documents:

• FCC Part 15 Radio Emissions Requirements

• FCC Part 68 Telephone Line Interface Requirements

• UL 1459 Safety Requirements

As a requirement for sale in Canada, the product will comply with the electrical specifications defined in

the following documents:

• IC RSS-210 Radio Emissions Requirements

• IC CS-03 Telephone Line Interface Requirements

• CSA 225 Safety Requirements

In addition to the above mandatory regulations, the recommendations provided in EIA-470-B, TIA 571,

TIA631and IEC801-2 will be used as a guideline.

The caller ID display module meets protocol requirements specified in the following standards documents:

Bellcore TR-NWT-001401 Issue 1

“ Visual Message Waiting Indicator”

Bellcore TR-NWT-000030 Issue 2

"Voiceband Data Transmission Interface Generic Requirements"

Bellcore TR-NWT-000031 Issue 4

"CLASS Feature: Calling Number Delivery"

Bellcore TR-NWT-001188 Issue 1

"CLASS Feature: Calling Name Delivery Generic Requirements"

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 7 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

1.3 Feature List

1.3.1 Basic Features

• Name / number caller ID display with 50 call storage capacity

• 32kbps ADPCM voice coding

• 2 row by 12 character 5x7 dot matrix alpha-numeric LCD display on handset

• 10 channel operation with auto channel selection

• 900 MHz Operation

• 24 bit digital security code for 16.8 million combinations

• DTMF and Pulse dialing

• 20 number/location programmable memory for up to 20 digit phone number

• Automatic search for best available channel

• Low battery detect and warning indicator

• Handset power saving 7 days (less during out-of-range) 1

• 7.0 Hours continuous talk time 1

• Volume adjust on handset

• Hearing-aid compatible receiver

• Provisions for spare handset battery pack in the base unit

• Complete battery back-up in case of power failure

• Backlit LCD on the handset

• Auto hang-up when returning the handset to the base cradle.

• Detachable power supply

• Support for headsets with 2.5mm jacks.

1 Note that this is only when masked ROM is used. Use of external ROM will diminish the talk/standby

time.

1.3.2 Unique Features

• Use of E2PROM in base unit for permanent memory storage of security code

• Use of E2PROM in the handset for nonvolatile storage of the security code, CID messages and speed

dial numbers

• Handset allows for on-the-fly battery replacement

• Fully digital link between handset and base

• Digitally-scrambled voice communication between handset and base has extremely high immunity to

noise and interfering signals

• Out-of-range indication while the handset is in use and in standby mode

• Removable battery pack

• Easy answer - When the phone rings simply press any key (except OFF) on the handset to answer

when in idle mode.

• A faster charge (.2C) capability will be provided on the base for the handset battery. The unit will

automatically switch over to regular trickle charge (.1C) when required.

• The electrical design will support charging in the face up position.

• Ringer muting

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 8 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

1.3.3 Features Not Provided

• The privacy feature is not provided

• Stutter dial tone detection

• Automatic line drop is not provided

• Name dialing is not provided

• Multi handset capability is not provided.

• There is no Page LED on the base

• No other modes of operation available while on HOLD

• Manual channel change has been deleted as the auto channel change algorithm takes care of this

function.

• Automatic security code updating when the handset is cradled has been eliminated. The base and

handset security codes are now factory preset and stored in E2PROM for the life of the unit. New

security codes are therefore not generated every time the unit is re-cradled.

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 9 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

1.4 Cosmetic Styling

Base Unit

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 10 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

Handset Unit

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 11 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

2. Functional Description

2.1 Handset Display and Keypad Layout

1 2 3

4GHI 5IJK 6MNO

7PQRS 8TUV 9WXYZ

*0OPER #

PHONE OFF

SELECT

2 X12 LCD DISPLAY

MENU NAVIGATIONAL

KEYS

CID RECALL

PREFIX OPTIONS

PRESS AND

HOLD TO

VIEW

PRESS AND

HOLD TO VIEW

CID TIME & DATE

TEMP.

TONE ACTIVATION HOLD

TO DELETE

CID & SPEED DIAL

LOCATION

HOLD TO ENTER

PAUSE DIGIT IN

PRE-DIAL

ABC DEF

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 12 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

2.2 Base Key Layout and Indicators

PAGE

POWER

IN USE/CHARGING

SPARE BATTERY

MESSAGE WAITING

PAGE

POWER

IN USE/CHARGING

SPARE BATTERY

NEW CALLS

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 13 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

2.3 Base LED User Interface Status Indicators

The following status is indicated on the base unit LED display:

Status Type Description

POWER When the POWER LED is lit solid RED, it indicates that power to the base

unit is on.

IN USE (off hook) When the IN USE/CHARGING LED is lit solid GREEN it indicates that the

phone is off-hook.

RINGING When the IN USE/CHARGING LED is flashing GREEN at a rate of 16 Hz

during the ON cycle of the power ringing signal (2 sec ON/ 4 seconds OFF),

it indicates that the telephone line is ringing.

CALL HOLD When the IN USE/CHARGING LED is flashing GREEN at a rate of 4 Hz, it

indicates that the telephone line has been placed on hold.

CHARGING When the IN USE/CHARGING LED is lit solid RED it indicates that the

cradle is charging the handset battery

ON-HOOK & NO

HANDSET IN CRADLE When the IN USE/CHARGING LED is OFF and the POWER LED is lit solid

or flashing RED, it indicates that the telephone line is on hook and no

handset is installed in the cradle.

SPARE BATTERY When this LED is lit solid RED it indicates that a spare battery is installed in

the base unit.

MESSAGE WAITING When this indicator is lit solid RED, it indicates that messages are waiting

from the CO.

NEW CALLS When this indicator is lit solid RED, it indicates that you have received new

calls when caller ID is supported.

POTS MODE When the POWER LED blinks RED, it indicates that the base is running off

of the spare battery and is in POTS mode

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 14 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3. User Interface Specification

3.1 User Interface Status Tones

The following tones are generated in response to various user stimuli:

Type Description

CONFIRMATION TONE Generated whenever a programming command requested by the user is

completed satisfactorily

ERROR TONE Generated whenever the user tries to perform an erroneous function or

aborts programming

KEYCLICK Generated whenever a key is pressed

3.2 Navigation/Features/Menus

Various menu items are available to the user when the telephone is on hook or off hook. These menu

items are used to enter various modes of operation. The menu items are selectable and scrollable via the

navigational keys on the handset which are the ▲, ▼ and the SELECT keys – refer to Section 2.1

Handset Display and Keypad Layout.

Note: On some models the up arrow key is designated as a right arrow key, and the down arrow is

designated as the left arrow. These shall be treated as equivalent.

To enter menu selection the user must press the SELECT key. The first menu item will appear in the

display. The user can then review the available choices by either scrolling forward with the ▲ key or

scrolling backward with the ▼ key. All menu items will wrap around and can be cycled through in the

forward and backward direction.

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 15 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.2.1 On Hook State Menus

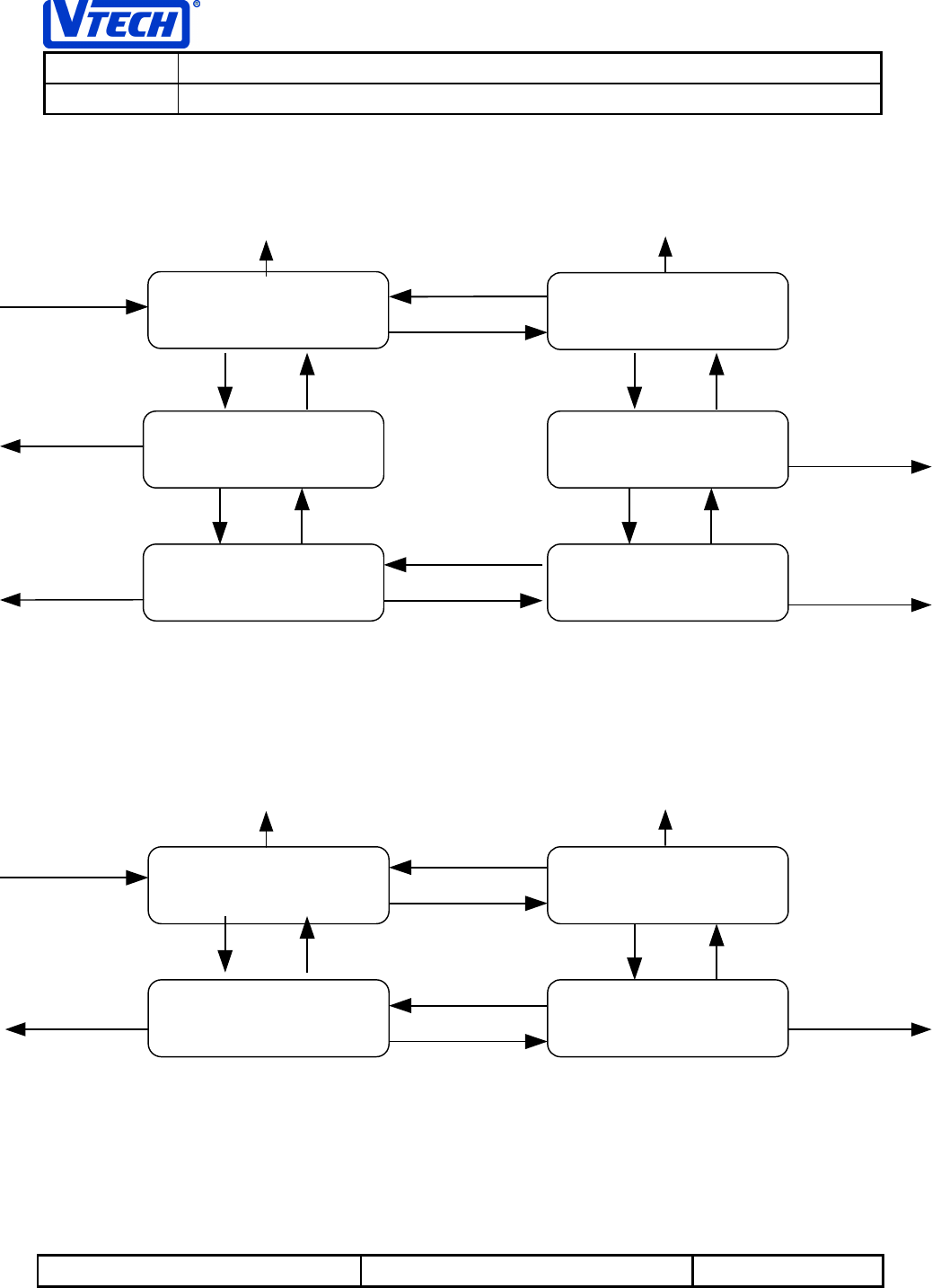

The following diagram shows the menu sequence available when the telephone is on hook.

Figure 1 – MENU SEQUENCE IN THE ON HOOK STATE

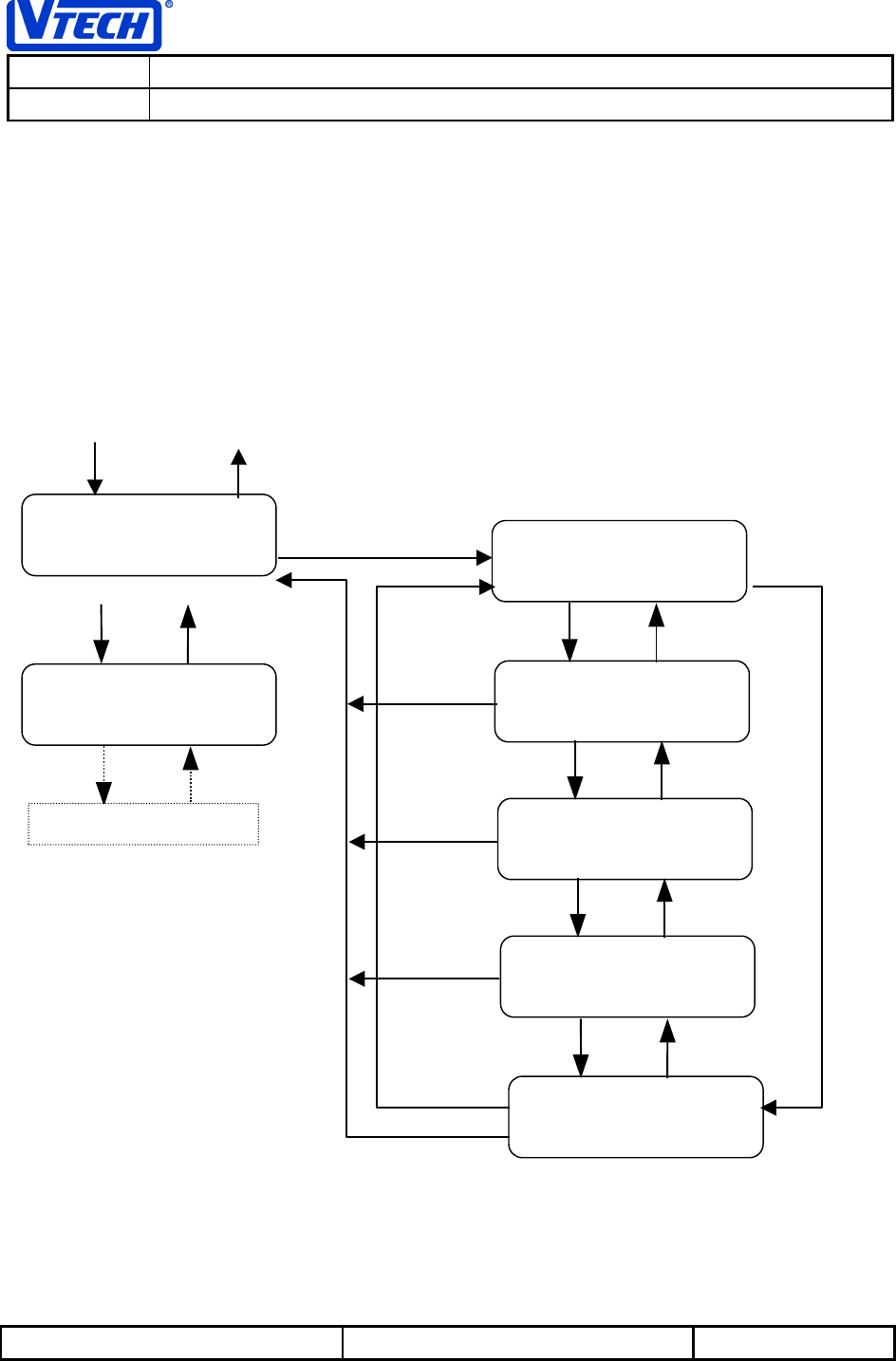

3.2.2 Off Hook State Menus

The following menus are displayed whenever the phone is off hook.

Figure 3.1.2 - MENU SEQUENCE IN THE OFF HOOK STATE

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS

DMFBSDMFBS

DMFBS

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DJE

DJEDJE

DJE

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

Press ▲ Key Press ▼ Key Press ▼ Key Press ▲ Key

Press ▼ Key

Press ▲ Key

Press ▼ Key

Press SELECT Key

Press PHONE or

OFF Key to Exit

QSPHSBN

QSPHSBNQSPHSBN

QSPHSBN

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

Press ▲ Key Press ▼ Key

DBMM!IPME

DBMM!IPMEDBMM!IPME

DBMM!IPME

GFBUVSF

GFBUVSFGFBUVSF

GFBUVSF

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ DJE

DJEDJE

DJE

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

Press ▼ Key Press ▲ Key

Press ▼ Key

Press ▲ Key

Press ▼ Key

Press SELECT Key

Press PHONE or

OFF Key to Return To Call Press PHONE or

OFF Key to Exit

Press PHONE or

OFF Key to Exit

Press PHONE or

OFF Key to Exit

TFUVQ!NPEF

TFUVQ!NPEFTFUVQ!NPEF

TFUVQ!NPEF

Press ▲ Key Press ▼ Key Press ▼ Key Press ▲ Key

Press PHONE or

OFF Key to Exit

Press PHONE or

OFF Key to Exit Press PHONE or

OFF Key to Exit

Press PHONE or

OFF Key to Exit

Press PHONE or

OFF Key to Exit

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 16 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

In general, to exit from the current menu/mode the user can press the OFF key; this will bring the user

back one step.

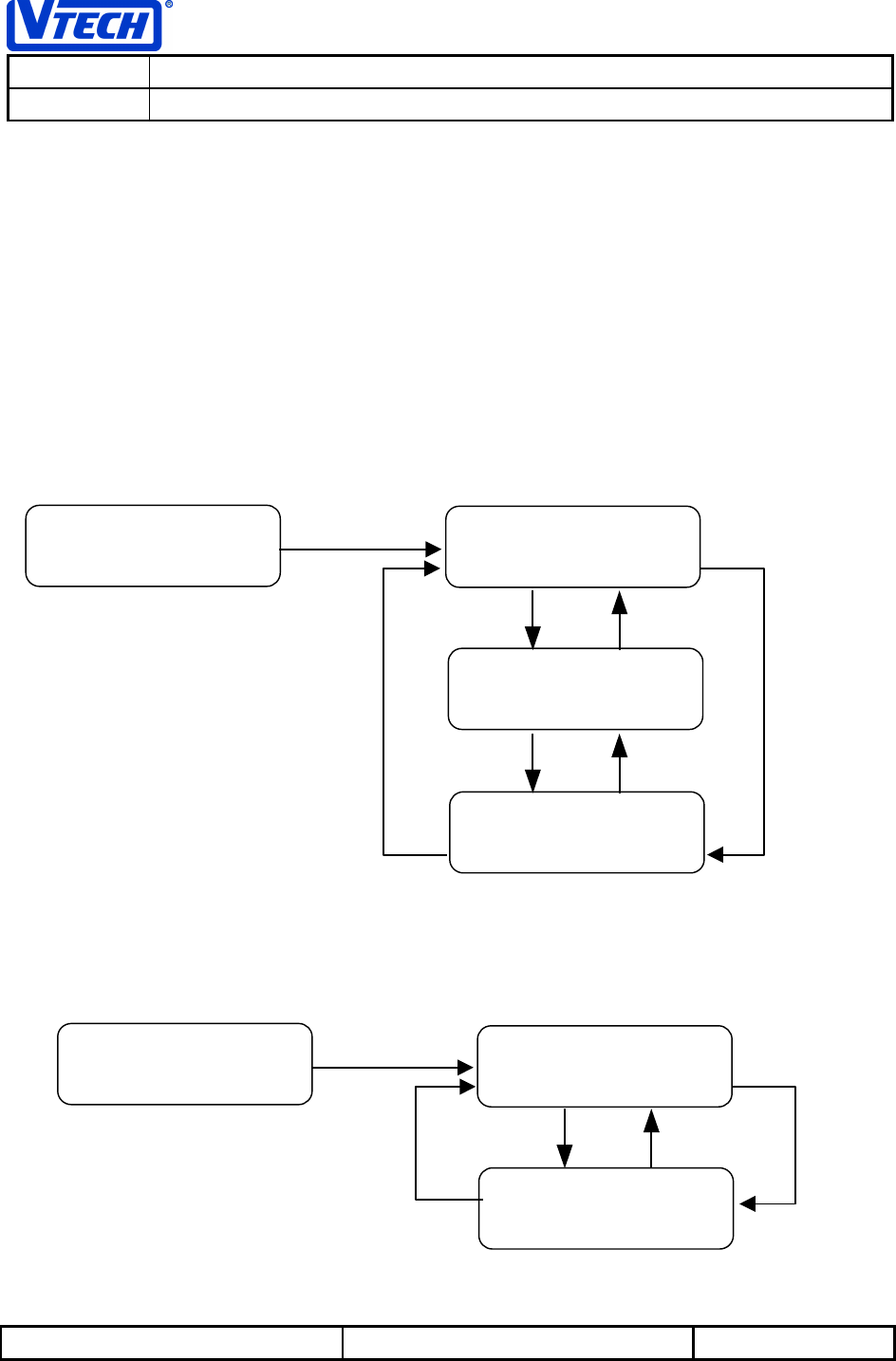

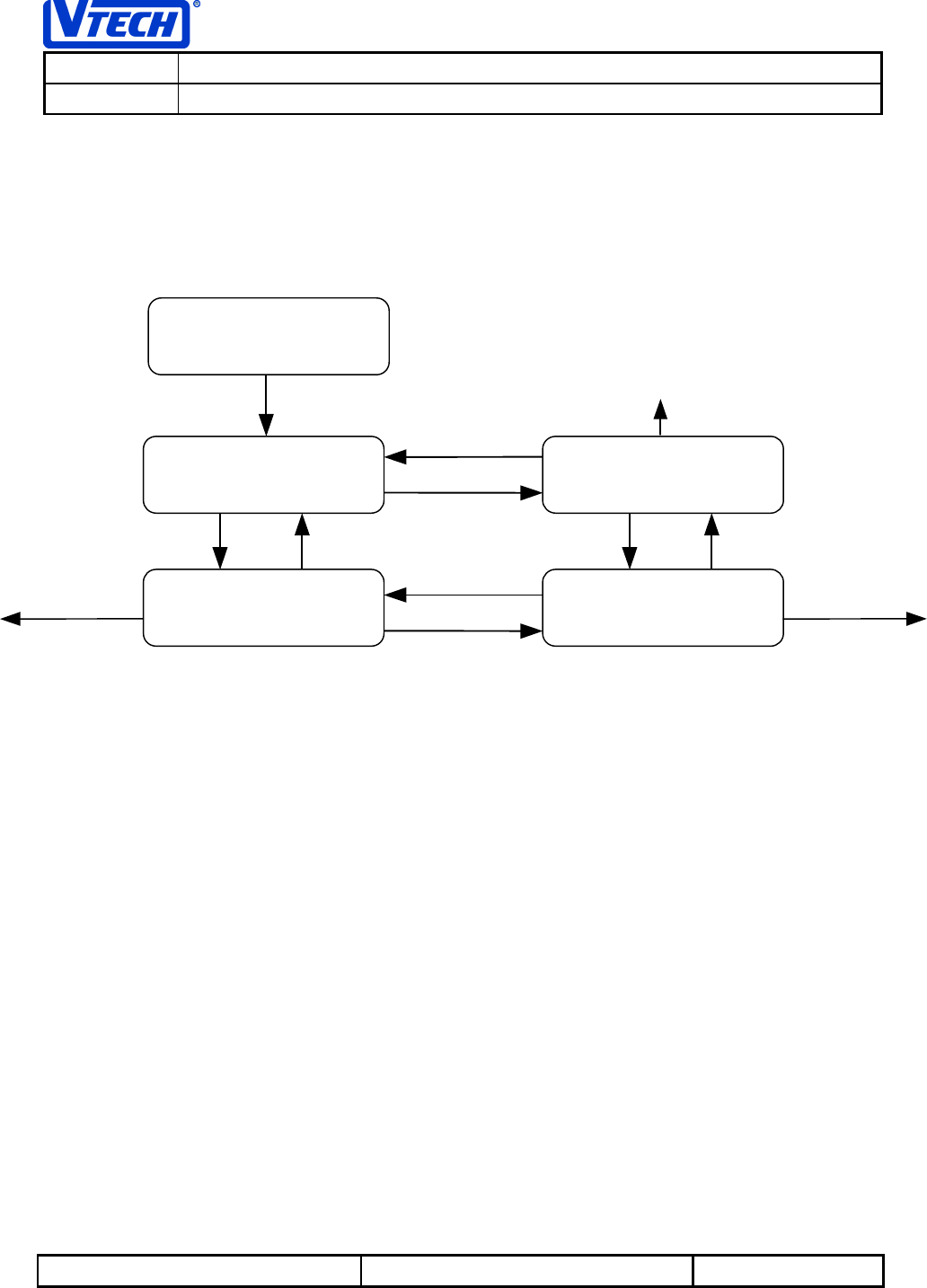

For example, using the diagram below, pressing the SELECT key while on hook in idle mode will bring up

the “REDIAL MEMORY” menu. Subsequent presses of the ▲▼ keys will allow the user to navigate

through the other menu items. If the user presses the SELECT key when the menu item “REDIAL

MEMORY” is displayed, the user will enter the redial memory function. Pressing the ▲▼ keys while in

this menu will allow the user to review the last 5 numbers dialed. Pressing the OFF key anytime while

within this state will return the user back up to the “REDIAL MEMORY” main menu item. Subsequent

presses of the ▲▼ keys will allow the user to navigate through the other menu items. Pressing the OFF

key will exit the user from the main menu and return the user to the idle mode.

3.2.3 Mode Timeout

The handset will have a built in menu display timeout feature whereby if it detects that no key has been

pressed within 30 seconds, it will exit the current menu item and return to the appropriate on hook idle or

off hook state. The exception to this is when the phone call is placed on hold. If a call is on hold, the call

will remain on hold until the user manually takes it off hold or cradles the handset.

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ Press SELECT

Press SELECT Key Press OFF Key to Exit

to Idle Mode

S2!3684467

S2!3684467S2!3684467

S2!3684467

S4!3684467

S4!3684467S4!3684467

S4!3684467

S5!3684467

S5!3684467S5!3684467

S5!3684467

S6!3684467

S6!3684467S6!3684467

S6!3684467

S3!3684467

S3!3684467S3!3684467

S3!3684467

Press ▲ Key Press ▼ Key

Press ▲ Key

Press OFF

Press ▲ Key Press ▼ Key

DJE

DJEDJE

DJE

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

Press ▲ Key Press ▼ Key

OTHER MENU ITEMS

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 17 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.3 Dial Modes

3.3.1 Pre-Seizure (On-Hook) Dialing or Pre-Dial

Pre-Seizure dialing or Pre-dial refers to a mode of operation where the user enters a phone number or

recalls a number from memory to be dialed prior to going off hook or seizing the line.

3.3.1.1 Pre-Dial Digit Entry and Editing

When the handset is idle and in on hook mode, the user can enter the digits of the phone number using

the keys 0 through 9 and the ✼ and # keys. If a dial pause is required in the phone number string, the

user can press and hold the # key. A P will be displayed after 1 second and this indicates a pause interval

of 1 second. A total of 20 digits can be entered using pre-dial.

To delete a digit the user can press the ▼ key. The digit to the left of the cursor will be deleted. The

cursor is always positioned to right of the last digit on the display. To delete the entire display, press the

OFF key.

The following shows a sample display of a user entered phone number.

Note: The on hook status is indicated by the cursor as an underscore when pre-dialing

As a general rule in pre-dial mode, the user can append to the displayed pre-dial digits with a phone

number recalled from CID, Speed Dial or Redial memory up to the maximum of 20 digits.

To dial the telephone number displayed on the LCD, press the PHONE key.

On Hook

Cursor

!:3684467`

!:3684467`!:3684467`

!:3684467`

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 18 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.3.1.2 Pre-Dial Example

Phone State: On Hook

1. User enters phone number 9 257 3356:

2. User wishes to correct the number to enter a dial pause after

the 9. The user presses the ▼ key 7 times to put the cursor

after the 9 digit :

3. Press and hold the # key for 1 second to insert a dial pause:

4. User re-enters the rest of the digits 257 3356:

5. User presses PHONE key to go off-hook and complete call:

!:3684467`

!:3684467`!:3684467`

!:3684467`

!:`

!:`!:`

!:`

!:Q`

!:Q`!:Q`

!:Q`

!:Q3684467`

!:Q3684467`!:Q3684467`

!:Q3684467`

!:3684467]

!:3684467]!:3684467]

!:3684467]

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 19 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.3.2 Post-Seizure Dialing (Off-Hook) or Live Dial

Post-Seizure dialing or Live Dial refers to a mode of operation where the user goes off-hook or seizes the

line before entering the phone number or recalling a number from memory to be dialed. This type of

dialing is the normal method used in most corded telephones.

Live Dial or off-hook mode is indicated by a solid block cursor as shown in the example display below:

In Live Dial the user can only recall telephone numbers from memory. No programming/editing functions

are allowed in Live-dial.

When the user takes the phone off hook without pre-dial digits on the display, the message ‘PHONE ON’

will be shown.

The IN USE/CHARGING LED on the base will be lit GREEN to indicate the handset is in use and the

telephone line is off-hook. As the user manually enters digits the corresponding DTMF tone will be

generated and remain on for the duration the key is held when the dial mode is set to TONE , or, if the dial

mode is set to PULSE, the pulse digits will be dialed. A KEYCLICK will also be generated to acknowledge

the user of the manual entry.

3.4 Using SELECT or PHONE key When Recalling Numbers From Memory

The cordless telephone supports “What You See Is What You Get“ (WYSIWYG) dialing when a user

recalls any dialing memory location while in pre-dial mode and presses the PHONE key instead of the

SELECT key.

This feature allows the user to scroll through any memory recall locations (e.g. CID Recall, Last Number

Redial and Speed Dial) and select the number to be dialed. By pressing the PHONE key when in pre-dial

mode only, the number as shown on the recall display will be dialed exactly as shown. This feature

prevents any dialing errors caused by accidentally leaving digits on the pre-dial display prior to making the

memory recall selection.

If a user wishes to recall a memory location for further editing in pre-dial mode, the user can always press

the SELECT key to recall the number and append it to any digits already entered on the display prior to

the memory recall.

!:3684467]

!:3684467]!:3684467]

!:3684467] Solid Block Cursor

Indicates Off-Hook

QIPOF!PO

QIPOF!POQIPOF!PO

QIPOF!PO

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 20 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

If a user recalls a memory location when in live-dial mode and presses either the PHONE or SELECT key,

the number recalled will be immediately dialed in addition to any digits previously dialed during this call.

3.4.1 Pre-Dial Recall Example Using PHONE Key (WYSIWYG)

1. User enters a few digits in pre-dial mode (e.g. 52)

2. The user recalls a number from a redial location R2 which has

the number 3334422 stored in it. (See Section 3.6.1

Review/Recalling Most Recently Dialed Numbers from Redial

Memory)

3. User presses PHONE key. The previously entered digits 52

are cleared from the pre-dial display, the phone goes off-hook

and the number 3334422 is immediately dialed.

3.4.2 Pre-Dial Recall Using SELECT Key

1. User enters a few digits in pre-dial mode (e.g. 52)

2. The user recalls a number from a redial location R2 which has

the number 3334422 stored in it. (See Section 3.6.1

Review/Recalling Most Recently Dialed Numbers from Redial

Memory)

3. User presses SELECT key. The redial number is recalled and

appended to the previously entered digits as shown:

S3!4445553

S3!4445553S3!4445553

S3!4445553

!4445553]

!4445553]!4445553]

!4445553]

!63`

!63`!63`

!63`

S3!4445553

S3!4445553S3!4445553

S3!4445553

!634445553`

!634445553`!634445553`

!634445553`

!63`

!63`!63`

!63`

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 21 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.4.3 Live-Dial Recall Using PHONE or SELECT Key

1. User presses PHONE key to go off-hook and dials the a

telephone number in live-dial mode (e.g. 2245555):

2. The user recalls a number from a redial location R2 which has

the number 3334422 stored in it. (See Section 3.6.1

Review/Recalling Most Recently Dialed Numbers from Redial

Memory).

3. User presses PHONE or SELECT key while still in live-dial.

The recalled number is dialed out and the display shows the

previously dialed number plus the appended recalled redial

number.

3.5 Placing A Call on Hold

The user can place the call on HOLD when in Live-dial model. This keeps the connection to the

destination but with the incoming, and outgoing audio muted. An example of how to place a call on HOLD

is shown below:

Phone State: In Use Mode (Off-Hook)

4. Press the SELECT key in order to activate the menu. The

following will be displayed:

2. The user presses the SELECT key again in order to place the

call on HOLD and the following will be displayed while the call is

on hold:

The IN USE/CHARGING LED on the base unit will also flash GREEN twice per second to indicate the hold

condition at the base station.

To cancel the hold condition the user can simply press the PHONE key or the OFF key. The user also

has the option to terminate the current call on hold by simply cradling the handset into the base unit.

DBMM!IPME

DBMM!IPMEDBMM!IPME

DBMM!IPME

GFBUVSF

GFBUVSFGFBUVSF

GFBUVSF

DBMM!PO!IPME

DBMM!PO!IPMEDBMM!PO!IPME

DBMM!PO!IPME

S3!4445553

S3!4445553S3!4445553

S3!4445553

!3566664445

!3566664445!3566664445

!3566664445

!553]

!553]!553]

!553]

!3356666]

!3356666]!3356666]

!3356666]

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 22 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

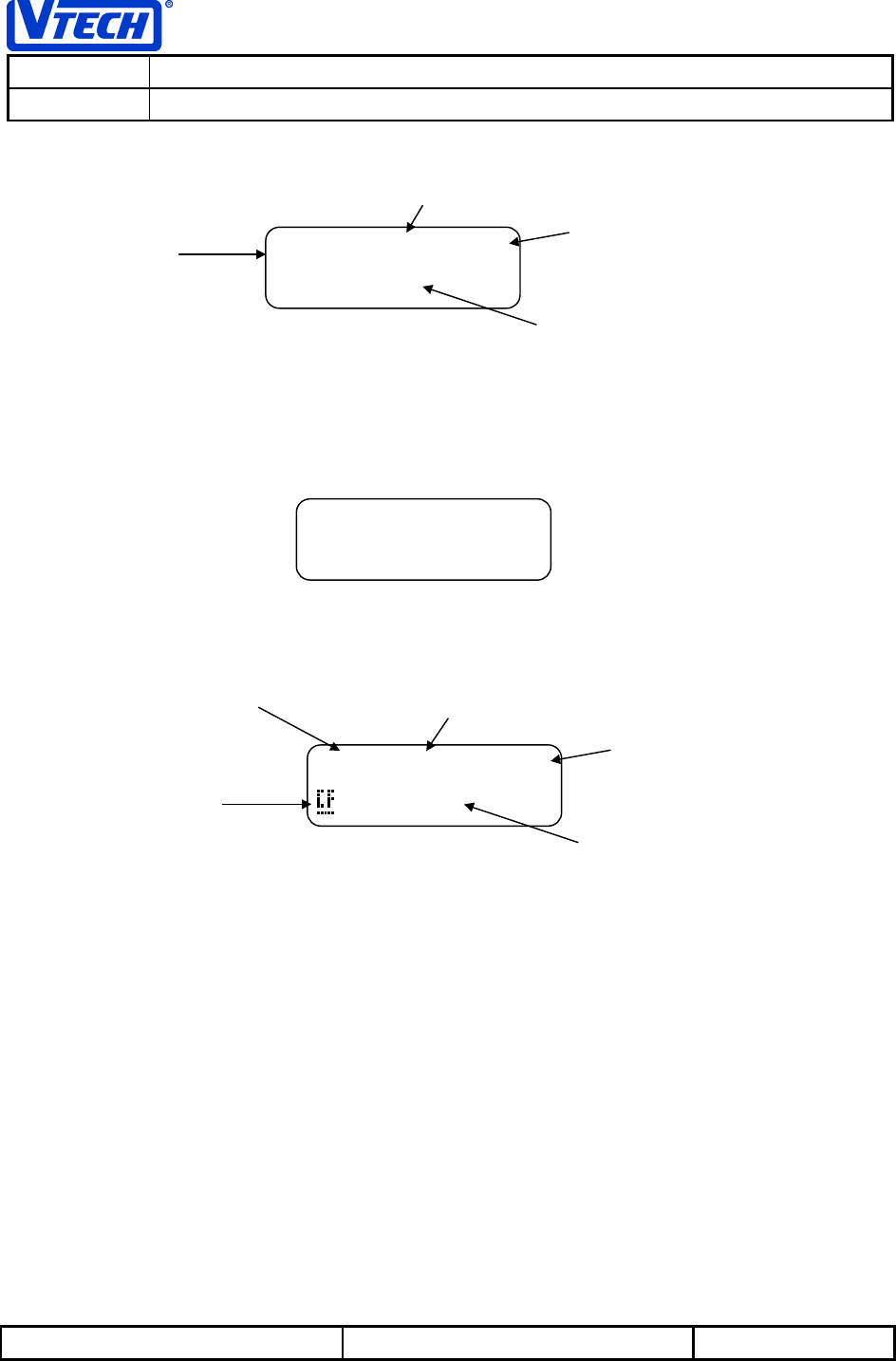

3.6 Last Number Redial

3.6.1 Review/Recalling Most Recently Dialed Numbers from Redial Memory

To access the Redial memory select “REDIAL MEMORY” from the menu. There are 5 Redial locations,

which will store the last five telephone numbers dialed. The memory is organized in order of the most

recently dialed number in location 1 to the least recent dialed in location 5.

An example of a redial telephone number presented in the display is shown below:

A Redial phone number can be up to a maximum of 20 digits.

The user can scroll through the five Redial locations using the ▼ or ▲ keys.

To recall the Redial number for further editing when in pre-dial mode, press the SELECT key. Refer to

Section 3.3.1.1 Pre-Dial Digit Entry and Editing and Section 3.4 Using SELECT or PHONE key When

Recalling Numbers From Memory for more details.

Redial Location

Number

Saved Phone

Number

S2!3684467

S2!3684467S2!3684467

S2!3684467

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ S2!3684467

S2!3684467S2!3684467

S2!3684467

S4!3684467

S4!3684467S4!3684467

S4!3684467

S5!3684467

S5!3684467S5!3684467

S5!3684467

S6!3684467

S6!3684467S6!3684467

S6!3684467

S3!3684467

S3!3684467S3!3684467

S3!3684467

Press ▲ Key Press ▼ Key

Press ▼ Key

Press ▲ Key

Press SELECT

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 23 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

Note: When Redial numbers are recalled from memory in pre-dial mode using the SELECT key,

they are automatically appended to any digits already entered on the display. To ensure that only

the redial number will be dialed, the user should ensure that no digits appear in the pre-dial

display before recalling the redial number entry. See Section 3.4 Using SELECT or PHONE key

When Recalling Numbers From Memory for more details.

After recalling and editing the desired redial number, the user can press the PHONE key to go off hook

and immediately dial the number on the display.

While in pre-dial mode, the user can directly recall and dial the desired redial number, by scrolling to the

desired redial location and then pressing the PHONE key. This will cause the telephone to clear any

previously entered pre-dial digits, go off-hook, and immediately dial the number in the redial location

exactly as displayed.

When recalling redial numbers in live-dial mode, press either the PHONE key or the SELECT key and this

will immediately dial the number in the selected redial location. Note that in live-dial mode, any recalled

redial number will be appended to any digits already dialed.

To exit from Redial review without recalling the telephone number, press the OFF key. The user is then

returned to the menu selection mode.

3.6.1.1 Redial Example Using PHONE key from Pre-Dial Mode:

Assume that the user has made 4 previous telephone calls to the following numbers in the following order:

233 4566, 876 1356 , 455 5677 and 257 3356.

Phone State: Idle Mode (On-Hook).

1. To recall the 3rd most recent dialed number from the redial

memory, the user first presses the SELECT key and the

following menu item is displayed:

2. The user presses the SELECT key again in order to enter the

REDIAL MEMORY function. The phone number of the last call

made is displayed:

3. To select the 3rd most recently dialed number, the user scrolls

back through the redial list by pressing the ▲ key until record

number R3 is found:

4. The user presses the PHONE key to dial the number and

complete the call.

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

S2!3684467

S2!3684467S2!3684467

S2!3684467

S4!9872467

S4!9872467S4!9872467

S4!9872467

!9872467]

!9872467]!9872467]

!9872467]

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 24 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.6.1.2 Redial Example Using PHONE key from Live-Dial Mode:

Assume that the user has made 4 previous telephone calls to the following numbers in the following order:

233 4566, 876 1356 , 455 5677 and 257 3356.

Phone State: Live Dial Mode (Off-Hook) and user has not entered any digits.

1. To recall the 3rd most recent dialed number from the redial

memory, the user first presses the SELECT key and the

following menu item is displayed:

2. The user presses the SELECT key again in order to enter the

REDIAL MEMORY function. The phone number of the last call

made is displayed:

3. To select the 3rd most recently dialed number, the user scrolls

back through the redial list by pressing the ▲ key until record

number R3 is found:

4. The user presses the PHONE key to dial the number and

complete the call.

3.6.2 Storing Redial Records

Phone numbers are stored in redial memory only when the phone goes off hook and the call is made. Any

subsequent digits entered after the phone has gone off-hook (post line seizure or live dialing) will be

appended to the number and saved in the redial memory up to the maximum of 20 digits.

If a user enters a phone number using pre-dial and does not go off-hook, the number will not be saved in

redial memory.

Any subsequent dialing digits entered after the PHONE key is pressed (live dialing) will also be stored. A

combination of the first 20 digits whether pre-dialed and live-dialed will be stored; In the case where there

are less than 20 digits, storage will be triggered by activation of a line flash or an OFF key press.

After a hook switch flash, the numbers previously dialed are immediately saved in the current redial

memory location and all subsequent numbers after the flash are recorded in a new redial memory

location.

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

S2!3684467

S2!3684467S2!3684467

S2!3684467

S4!9872467

S4!9872467S4!9872467

S4!9872467

!9872467]

!9872467]!9872467]

!9872467]

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 25 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.7 Incoming Calls

3.7.1 Ringing

Both the base and handset have provision to indicate an incoming call once a power ringing signal from

the CO has been detected. The base IN USE LED will flash at a rate of 16 Hz during the ON cycle of the

power ringing signal. If the handset is idle, and the user has not pre-dialed any digits, the handset will

display:

The LCD back light will come on as soon as ringing has been detected and ringing and will follow the

power ring signal cadence. This message will persist while the CO power ringing signal is active and for 5

more seconds after the last ring signal is received. However, the message will be immediately overwritten

by an incoming CID message if received. The handset will ring using the programmed ringer type and

level selected in Setup Mode.

3.7.2 Answering the Incoming Call

The user is provided with a quick method of answering the incoming call by pressing any key on the

handset (except the OFF key) once ringing has been detected and if the phone is in the idle state (no

menus active). This feature allows the user to answer the call without having to find the PHONE key

which may be difficult in a low ambient light condition.

If the user has any menus are active when the phone rings, the user must press the PHONE key to

answer the call.

3.7.3 Terminating the Incoming Call

The user can press the OFF key when the telephone is off hook to terminate the call or by simply cradling

the handset back into its base. Pressing the OFF key in any menu selection mode will not hang up the

call since it will return the user to the menu.

When the handset is returned to the cradle the base CHARGING LED will be lit RED to indicate the

handset is being charged.

JODPNJOH

JODPNJOHJODPNJOH

JODPNJOH

DBMM

DBMMDBMM

DBMM

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 26 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

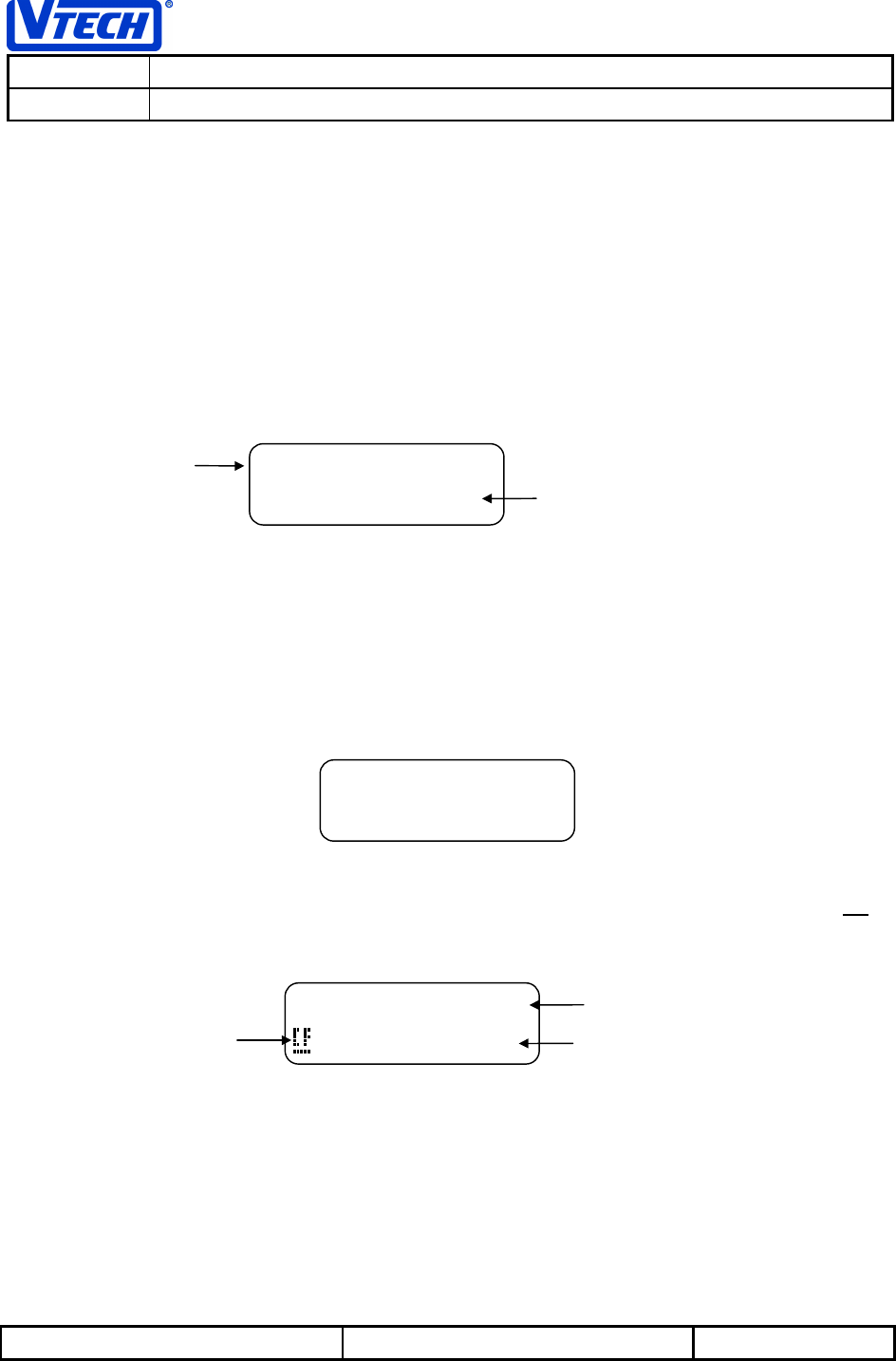

3.8 Calling Line ID Functions

The telephone is capable of decoding, saving and displaying up to 50 calling line ID numbers (CID).

Calling line ID is a paid feature provided by the telephone company (TELCO) which sends the telephone

number of the caller to the user so that he can identify who is calling before answering the call.

3.8.1 CID Type I

Upon successful reception of the CID data sent by the CO between the first and the second power ringing,

the display on the handset will show the name and number field received appropriately.

This display will persist for the duration of ringing and will remain active for 5 seconds after the last

detected power ring on signal.

Once new valid CID data is received, the new calls counter will be incremented by one.

The name and number field may also display ‘PRIVATE’ or ‘UNAVAILABLE’ if it’s blocked or is not

provided by the CO. If erroneous CID data as is received (as determined by a checksum error) the

following message will be displayed:

3.8.2 Call Forward Indicator

In some cases, a user may receive calls forwarded from another telephone. To indicate this a ‘CF’ is

displayed in the first character of the number field as shown below:

This feature helps a user to identify that the call he received was not made directly to this telephone.

This feature can be disabled via a bit flag in EEPROM during factory programming to support those

customers who do not require the feature.

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

715.384.6242

715.384.6242715.384.6242

715.384.6242

Name Field: The

first 12 characters

of this field are

displayed. Number Field: Hyphenation is only

inserted when the number received

is 10 digits

DBMM!JE

DBMM!JEDBMM!JE

DBMM!JE

FSSPS

FSSPSFSSPS

FSSPS

Name Field: The first 12

characters of this field are

displayed.

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

!715384.6242

!715384.6242!715384.6242

!715384.6242 Number Field: Hyphenation is only

inserted when the number received

is 10 digits

Call Forward Indicator

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 27 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.8.3 New Calls Indicator

The handset will display the number of new calls received this will be based on the received CID data.

The new calls will count the number of calls received since last CID review. Refer to Section 3.8.1

Review/Recall Telephone Numbers from CID Memory. Once the user reviews the CID records the New

Calls status will be cleared.

The following shows an example of a single and multiple new calls display. The new calls display will

always displayed on the top line when the handset is idle. This message has the lowest priority and may

be over written by other messages.

3.8.3.1 New Calls LED Indicator Option

The New Calls LED indicator on the base will flash at a rate of twice per second, on models equipped with

this indicator. The base indicator will match the handset New Calls status.

3.8.4 CID Type II

The telephone is capable of receiving Call Waiting CID type II. If during a normal phone call, another call

comes in with CID information, alerting tones (subscriber alert signal tone or SAS) will be heard in the

handset earpiece to notify the user of the 2nd call. The phone will mute both audio paths, acknowledge

back to the CO via a DTMF tone and then receive, decode and display the new CID information.

The new CID information will be displayed in the same manner as defined in Section 3.8.1 CID Type I.

The new CID information will be displayed for 10 seconds and will then be stored in E2PROM. This new

CID information will also cause the New Calls counter to be incremented.

3.8.5 Review/Recall Telephone Numbers from CID Memory.

When the telephone is on-hook, the CID information stored in memory can be reviewed or recalled. To

access the CID memory, press the SELECT key to bring up the menu. Then use the ▲▼ keys to select

“CID MEMORY” from the menu.

A total of up to 50 CID records can be saved. Any saved CID records can be reviewed and recalled. The

user can scroll through the CID records using the ▼ or ▲ keys. Any empty CID memory locations will

not be displayed. For example, if CID records 01 through 18 are active and the remaining CID records are

empty, then if the user presses the ▲ key while displaying record #18, the next record displayed will be

record #01.

Upon entering the “CID MEMORY” menu item, the most recent record (record #1) will be displayed. The

records are saved such that the most recent record is displayed first and the oldest record is displayed

last. The top line of the display will show the record number and the name (if it exists) and the second line

will show the phone number (if it exists). An example display is shown below:

4!OFX!DBMMT

4!OFX!DBMMT4!OFX!DBMMT

4!OFX!DBMMT

2!OFX!DBMM

2!OFX!DBMM2!OFX!DBMM

2!OFX!DBMM

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 28 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

The name and the phone number field may have “PRIVATE” or “UNAVAILABLE” instead. This will

depend on the CID information received from the CO.

In the above example the most right character on the top line indicates that there are more characters in

the name field. To view the entire name field the user can press and hold the 9 key.

The date and time stamp of the CID record can also be viewed by pressing and holding down the 7 key.

The display format of the telephone number with time stamp is shown below.

12!WUFDI!FMF

12!WUFDI!FMF12!WUFDI!FMF

12!WUFDI!FMF

DUSOD

DUSODDUSOD

DUSOD

Arrow indicates there are more

characters in Name Field

1212

12!

!WUFDI!FMÄ

WUFDI!FMÄWUFDI!FMÄ

WUFDI!FMÄ

384.6242

384.6242384.6242

384.6242

CID Memory Location

Number

CID Name Field

CID Phone Number

Field

23;41Q!KVO12

23;41Q!KVO1223;41Q!KVO12

23;41Q!KVO12

!!384.6242

!!384.6242!!384.6242

!!384.6242

Time Field

Date Field

Phone Number Field

AM/PM Indicator

Call Forward Indicator

(Optional)

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 29 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.8.5.1 CID Number Recall Options

To recall the telephone number from the CID record for editing or dialing the user can press the following

keys to select the dial string options:

Phone State: Idle Mode (On-Hook) and no digits currently entered using pre-dial mode.

Assume that the following CID record exists:

1. Press the SELECT key to recall the number exactly as

displayed and append them to the digits previously entered on

the display. This can be used for Direct Dial Numbers where the

telephone company sends the exact number needed to dial the

caller. The following will be displayed:

2. Press the PHONE key to recall the CID number exactly as

displayed, go off-hook and dial the CID number. This can be

used for Direct Dial Numbers where the telephone company

sends the exact number needed to dial the caller:

3. Press the 1 key to recall the Long Distance Prefix (1) + Area

Code + Exchange Code + Line Code (e.g. 16042735131 -- 11

digits):

4. Press the 2 key to recall the Area Code + Exchange Code +

Line Code (e.g. 6042735131 -- 10 digits):

5. Press the 3 key to recall the Long Distance Prefix (1) +

Exchange Code + Line Code (e.g. 12735131 -- 8 digits):

6. Press the 4 key to recall the Exchange Code + Line Code (e.g.

2735131 -- 7 digits):

NOTE: If the CO only sends a 7-digit phone number and the 2 key is pressed, the user will only get the

seven-digit phone number. If the 1 key is pressed in this case, a 1 digit will precede the 7 digit phone

number.

After recalling the desired CID number using the SELECT key and format in pre-dial mode, press the

PHONE key to go off hook and dial out the phone number displayed. If the telephone was already off-

hook, pressing either SELECT, 1, 2, 3 or 4 will immediately dial the formatted CID number selected and

append it to any previously dialed digits.

To exit from memory review without recalling the phone number from the CID record, press the OFF key.

The user is then returned to the “CID MEMORY” menu item.

12!WUFDI!FMÄ

12!WUFDI!FMÄ12!WUFDI!FMÄ

12!WUFDI!FMÄ

715.384.6242

715.384.6242715.384.6242

715.384.6242

!7153846242

!7153846242!7153846242

!7153846242

!`!`

!7153846242

!7153846242!7153846242

!7153846242

!`!`

!23846242`

!23846242`!23846242`

!23846242`

!7153846242

!7153846242!7153846242

!7153846242

!]!]

!2715384624

!2715384624!2715384624

!2715384624

!2`

!2`!2`

!2`

!3846242`

!3846242`!3846242`

!3846242`

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 30 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.8.6 Deleting a CID Record in Review Mode

While reviewing any of the CID record, the user has the ability to delete the current CID record in view.

The user presses and holds the 0 key and will be acknowledged with a KEYCLICK and the LCD will

display the following message:

To abort the deletion of the call record, the user must press the OFF key. To proceed with the deletion,

the user must press the 0 key again. A KEYCLICK will be generated to indicate the deletion of the CID

record followed by the message:

This message will be removed once deletion has completed. The user is then returned back to CID

review. The next oldest CID record will shift into the deleted location. For example if the user deletes

location 5, previous location 6 is shifted to 5, previous location 7 is shifted to location 6, and so on. To

clear all CID memory, refer to Section 3.10 Clearing CID, Speed Dial Memory and VMWI.

EFMFUF!DBMM@

EFMFUF!DBMM@EFMFUF!DBMM@

EFMFUF!DBMM@

1>ZFT!PGG>OP

1>ZFT!PGG>OP1>ZFT!PGG>OP

1>ZFT!PGG>OP

EFMFUJOH

EFMFUJOHEFMFUJOH

EFMFUJOH

TJOHMF!DBMM

TJOHMF!DBMMTJOHMF!DBMM

TJOHMF!DBMM

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 31 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.8.7 Call Forward Display of Telephone Numbers

The following examples show how the incoming CID telephone number would be displayed for various

length telephone numbers:

NUMBER OF DIGITS IN

TELEPHONE NUMBER WITHOUT CALL FORWARD

DISPLAY ENABLED WITH CALL FORWARD

DISPLAY ENABLED

11 WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

2715384.6242

2715384.62422715384.6242

2715384.6242

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

2.384.6242

2.384.62422.384.6242

2.384.6242

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

715.384.6242

715.384.6242715.384.6242

715.384.6242

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

15.384.6242

15.384.624215.384.6242

15.384.6242

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

384.6242

384.6242384.6242

384.6242

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

!715384.6242

!715384.6242!715384.6242

!715384.6242

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

!!384.6242

!!384.6242!!384.6242

!!384.6242

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

!27153846242

!27153846242!27153846242

!27153846242

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

!!2.384.6242

!!2.384.6242!!2.384.6242

!!2.384.6242

WUFDI!FMFDUS

WUFDI!FMFDUSWUFDI!FMFDUS

WUFDI!FMFDUS

!!15384.6242

!!15384.6242!!15384.6242

!!15384.6242

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 32 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.9 Speed Dial Functions

The telephone has 20 speed dial memory locations which can be programmed and recalled for quick

access to frequently dialed numbers.

3.9.1 Programming Speed Dial Memory

Programming the Speed Dial Memory is only allowed, in the on hook condition. The user may copy any

phone number on the display into any of the 20 locations in the Speed Dial memory. This means that the

user can enter the desired digits on the display (pre-dial), and then access the “PROGRAM SPEED DIAL”

menu item in order to store it into the Speed Dial Memory.

In general the user can recall a phone number from memory such as CID, Speed Dial or Redial onto the

display.

Once all the desired digits to be programmed are shown in the display the user can select the

“PROGRAM SPEED DIAL” menu item. An example programming sequence is shown as follows:

3.9.1.1 Program Speed Dial Example

Phone State: On hook

1. Enter or recall the following number to be programmed into

speed dial memory while the telephone is on hook.

2. Press SELECT key to display the menu:

3. Use the ▲▼ keys to select the following menu item:

4. Press the SELECT key to select the PROGRAM SPEED DIAL

menu item:

5. Enter the 2 digit speed dial memory location under which to

store the telephone number (e.g. 18):

Immediately after entering the 2nd digit, the speed dial location

will be programmed with the number 591 6678. If the speed

dial entry was correctly saved, a CONFIRMATION TONE will be

generated.

If the user enters an invalid location number, an ERROR TONE

will be generated.

!6:27789`

!6:27789`!6:27789`

!6:27789`

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

QSPHSBN

QSPHSBNQSPHSBN

QSPHSBN

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

QHN!TQE!EJBM

QHN!TQE!EJBMQHN!TQE!EJBM

QHN!TQE!EJBM

MPDBUJPO!``

MPDBUJPO!``MPDBUJPO!``

MPDBUJPO!``

QHN!TQE!EJBM

QHN!TQE!EJBMQHN!TQE!EJBM

QHN!TQE!EJBM

MPDBUJPO!29

MPDBUJPO!29MPDBUJPO!29

MPDBUJPO!29

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 33 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

6. The user can abort programming at any time by pressing the

OFF key. In this case and ERROR TONE will be generated

and the following will be displayed:

3.9.2 Review/Recall Telephone Number from Speed Dial Memory

To access the Speed Dial memory, select “SPEED DIAL MEMORY” from the menu. There are 20 speed

dial memory locations for recall or review. Upon entering the “SPEED DIAL MEMORY” menu item, the

user will be prompted with the following display:

The user can directly access any speed dialing location by entering a two digit location number or scroll

sequentially through the memory locations using the ▼ or ▲ keys.

The following is an example display of a speed dial location:

The location number is displayed on the top left followed by the stored telephone number.

A total of 20 digits can be stored in any given location.

When the telephone is on-hook, the user can recall and append the speed dial number to any digits

already on the display by pressing the SELECT key. The user can also press the PHONE key to recall

and immediately dial the speed dial number as displayed.

If the telephone is already off-hook, the user can immediately recall the selected speed dial number by

pressing the SELECT or PHONE key. The display will show the speed dial number recalled for dialing

appended to any other digits previously dialed on this call.

In on-hook mode only, the user may recall the phone number for further editing (i.e., pre-dial) by pressing

the SELECT key.

To exit from reviewing the Speed Dial review session, press the OFF key. The user is then returned to the

“SPEED DIAL MEMORY“ menu item.

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

MPDBUJPO!``

MPDBUJPO!``MPDBUJPO!``

MPDBUJPO!``

QSPHSBNNJOH

QSPHSBNNJOHQSPHSBNNJOH

QSPHSBNNJOH

JODPNQMFUF

JODPNQMFUFJODPNQMFUF

JODPNQMFUF

T14!6662323

T14!6662323T14!6662323

T14!6662323

Speed Dial

Location Number

Saved Phone

Number

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 34 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.9.2.1 Speed Dial Review Example

An example of a speed dial review is shown as follows:

Phone Mode: Off-Hook (Live Dial) and no previous digits have been dialed.

1. Press the SELECT key and the following will be displayed:

2. Use the ▲▼ keys to select the following menu item:

3. Press the SELECT key to select the “SPEED DIAL MEMORY”

menu item:

4. Directly enter the 2 digit speed dial memory location (e.g. 03):

5. Immediately after the 2nd digit is entered, the speed dial

number will be displayed:

6. The user can also review other speed dial locations using the

▲▼ keys .

7. To make the call to this number press the PHONE key and the

following will be displayed :

DBMM!IPME

DBMM!IPMEDBMM!IPME

DBMM!IPME

GFBUVSF

GFBUVSFGFBUVSF

GFBUVSF

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

MPDBUJPO!``

MPDBUJPO!``MPDBUJPO!``

MPDBUJPO!``

T14!6662323

T14!6662323T14!6662323

T14!6662323

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

MPDBUJPO!14

MPDBUJPO!14MPDBUJPO!14

MPDBUJPO!14

T15!27155562

T15!27155562T15!27155562

T15!27155562

367

367367

367

!2715556236

!2715556236!2715556236

!2715556236

!7]

!7]!7]

!7]

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 35 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.9.3 Deleting a Speed Dial Location in Review Mode

While reviewing any of the Speed Dial location in on-hook mode, the user has the ability to delete the

speed dial location in view. The user presses and holds the 0 key and will be acknowledged with a

KEYCLICK and the LCD will display the following message:

To abort the deletion of the speed dial location, the user must press the OFF key. To proceed with the

deletion, the user must press the 0 key again. A KEYCLICK will be generated to indicate the deletion of

the speed dial followed by the message:

This message will be removed once deletion has completed. The user is then returned back to Speed

Dial review with the current location containing blanks signifying that it is empty. To clear all Speed Dial

memory refer to Section 3.10 Clearing CID, Speed Dial Memory and VMWI.

EFMFUF!TQE@

EFMFUF!TQE@EFMFUF!TQE@

EFMFUF!TQE@

1>ZFT!PGG>OP

1>ZFT!PGG>OP1>ZFT!PGG>OP

1>ZFT!PGG>OP

T12!EFMFUFE

T12!EFMFUFET12!EFMFUFE

T12!EFMFUFE

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 36 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.10 Clearing CID, Speed Dial Memory and VMWI

The user can clear all of CID and Speed dial memory by selecting the ‘CLEAR MEMORY’ menu item.

Within this menu item the user can chose to clear either the CID Memory or the Speed Dial memory.

If the VMWI Option is supported, then the VMWI Indicator can also be cleared using the ‘CLEAR

MEMORY’ menu item. VMWI support is indicated using a status bit in EEPROM memory which is

programmed in the factory. See Section 3.12 Visual Message Waiting Indication (VMWI) for more

information on VMWI.

The OFF key can be pressed to cancel the clear function, the user will be returned to the appropriate

CLEAR menu item.

3.10.1 Clear Memory Menu Structure If VMWI Is Supported

3.10.2 Clear Memory Menu Structure If VMWI Is NOT Supported

DMFBS

DMFBSDMFBS

DMFBS

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS!WNXJ

DMFBS!WNXJDMFBS!WNXJ

DMFBS!WNXJ

DMFBS!DJE

DMFBS!DJEDMFBS!DJE

DMFBS!DJE

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS

DMFBSDMFBS

DMFBS

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

Press ▲ Key Press ▼ Key

Press ▲ Key

Press ▲ Key Press ▼ Key

Press ▼ Key

Press SELECT

DMFBS

DMFBSDMFBS

DMFBS

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ DMFBS!DJE

DMFBS!DJEDMFBS!DJE

DMFBS!DJE

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS

DMFBSDMFBS

DMFBS

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

Press ▲ Key Press ▼ Key

Press SELECT

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 37 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.10.3 Clearing The Visual Message Waiting Indicator (If VMWI Option is Supported)

Note: If VMWI is supported as indicated by a status bit in EEPROM memory, then this sub-menu

item will be displayed.

The following example shows how to clear the VMWI:

Phone State: On Hook

1. Press the SELECT key to activate the menu. The following will

be displayed:

2. Use the ▲▼ keys to select the CLEAR MEMORY menu item:

3. Press the SELECT key to enter the CLEAR MEMORY function

and the following will be displayed:

4. Use the ▲▼ keys to choose the desired memory item to clear.

In this example, the user will select CLEAR VMWI.

5. Press and hold the 0 key to select the item to be cleared.

After 1 second, the following message will be displayed to ask

the user to confirm the clear:

6. Press the 0 key again to clear the selected item. While the item

is being cleared, the following confirmation message.

7. After 5 seconds the display will return to the CLEAR MEMORY

display item:

Note: Clearing VMWI will turn off both the message indicator on the handset and the LED indicator on the

base. This allows the user to clear the indicators if the Messaging service fails to update the no message

waiting status to the user.

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS

DMFBSDMFBS

DMFBS

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS!DJE

DMFBS!DJEDMFBS!DJE

DMFBS!DJE

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS!WNXJ@

DMFBS!WNXJ@DMFBS!WNXJ@

DMFBS!WNXJ@

1>ZFT!PGG>OP

1>ZFT!PGG>OP1>ZFT!PGG>OP

1>ZFT!PGG>OP

DMFBSJOH

DMFBSJOHDMFBSJOH

DMFBSJOH

WNXJ

WNXJWNXJ

WNXJ

DMFBS

DMFBSDMFBS

DMFBS

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS!WNXJ

DMFBS!WNXJDMFBS!WNXJ

DMFBS!WNXJ

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 38 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.10.4 Clearing All CID Records

The following example shows how to clear all CID records:

Phone State: On Hook

1. Press the SELECT key to activate the menu. The following will

be displayed:

2. Use the ▲▼ keys to select the CLEAR MEMORY menu item:

3. Press the SELECT key to enter the CLEAR MEMORY function

and the following will be displayed :

4. Press and hold the 0 key to select the item to be cleared.

After 1 second, the following message will be displayed to ask

the user to confirm the clear:

5. Press the 0 key again to clear the selected item. While the item

is being cleared, the following confirmation message.

6. After 5 seconds the display will return to the CLEAR MEMORY

display item:

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS

DMFBSDMFBS

DMFBS

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS!DJE

DMFBS!DJEDMFBS!DJE

DMFBS!DJE

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMS!BMM!DJE@

DMS!BMM!DJE@DMS!BMM!DJE@

DMS!BMM!DJE@

1>ZFT!PGG>OP

1>ZFT!PGG>OP1>ZFT!PGG>OP

1>ZFT!PGG>OP

DMFBSJOH

DMFBSJOHDMFBSJOH

DMFBSJOH

BMM!DJE

BMM!DJEBMM!DJE

BMM!DJE

DMFBS

DMFBSDMFBS

DMFBS

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 39 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.10.5 Clearing All Speed Dial Locations

The following example shows how to clear all speed dial locations:

Phone State: On Hook

1. Press the SELECT key to activate the menu. The following will

be displayed:

2. Use the ▲▼ keys to select the CLEAR MEMORY menu item:

3. Press the SELECT key to enter the CLEAR MEMORY function

and the following will be displayed :

4. Use the ▲▼ keys to choose the desired memory item to clear.

In this example, the user will select all speed dial locations.

5. Press and hold the 0 key to select the item to be cleared.

After 1 second, the following message will be displayed to ask

the user to confirm the clear:

6. Press the 0 key again to clear the selected item. While the item

is being cleared, the following confirmation message.

7. After 5 seconds the display will return to the CLEAR MEMORY

display item:

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS

DMFBSDMFBS

DMFBS

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS!DJE

DMFBS!DJEDMFBS!DJE

DMFBS!DJE

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

DMFBS

DMFBSDMFBS

DMFBS

TQFFE!EJBM

TQFFE!EJBMTQFFE!EJBM

TQFFE!EJBM

DMS!BMM!TQE@

DMS!BMM!TQE@DMS!BMM!TQE@

DMS!BMM!TQE@

1>ZFT!PGG>OP

1>ZFT!PGG>OP1>ZFT!PGG>OP

1>ZFT!PGG>OP

DMFBSJOH

DMFBSJOHDMFBSJOH

DMFBSJOH

TQFFE!EJBMT

TQFFE!EJBMTTQFFE!EJBMT

TQFFE!EJBMT

DMFBS

DMFBSDMFBS

DMFBS

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 40 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.11 Flashing the Line/Switching Over to New Call

The user can press the PHONE key to flash (or quickly break) the telephone line.

The flash feature is use for such features as call waiting, where pressing the phone key will cause a hook

switch flash and will signal to the CO to place the original call on hold and then switch over to the new call.

The new call will remain connected until the user activates another hook switch flash to switch back to the

first call again

3.12 Visual Message Waiting Indication (VMWI)

The Visual Message Waiting Indication (VMWI) packet information transmitted by the CO is decoded by

the telephone. The status is displayed on the LCD on the handset. Visual Message Waiting information

is part of the Integrated Voice Messaging Services provided by the local telephone company if supported.

The VMWI display is an option which can be enabled or disabled via a status bit in EEPROM during

factory programming.

Upon detection of a message waiting status from the CO, the indication “MSG. WAITING” is displayed on

the second line of the LCD. However, this message will only be displayed when the handset is in idle

mode (on hook). This message indication is displayed with the New Calls indicator as shown below.

3.12.1 VMWI LED Display Option

If the VMWI display is supported, it can also be optionally indicated on the base via the ‘MESSAGE

WAITING’ LED on those models equipped with this feature. It will flash at a rate of twice per second when

there is a message waiting at the service provider. This status can also be manually cleared – see

Section 3.10 Clearing CID, Speed Dial Memory and VMWI.

4!OFX!DBMMT

4!OFX!DBMMT4!OFX!DBMMT

4!OFX!DBMMT

NTH/!XBJUJOH

NTH/!XBJUJOHNTH/!XBJUJOH

NTH/!XBJUJOH

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 41 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.13 Setup Mode Options

There are three user configurable items, which are accessible through the “SETUP MODE” menu. All

settings in setup will be kept in non-volatile memory.

TFU!SJOH

TFU!SJOHTFU!SJOH

TFU!SJOH

UZQF

UZQFUZQF

UZQF

TFU!SJOH

TFU!SJOHTFU!SJOH

TFU!SJOH

WPMVNF

WPMVNFWPMVNF

WPMVNF TFU!EJBM

TFU!EJBMTFU!EJBM

TFU!EJBM

UZQF

UZQFUZQF

UZQF

TFU!LFZDMJDL

TFU!LFZDMJDLTFU!LFZDMJDL

TFU!LFZDMJDL

Press ▲ Key Press ▼ Key Press ▼ Key Press ▲ Key

Press ▼Key

Press ▲Key

Press ▲ Key

Press ▼ Key

Press SELECT Key

Press PHONE or

OFF Key to Exit

Press PHONE or

OFF Key to Exit

Press PHONE or

OFF Key to Exit

TFUVQ!NPEF

TFUVQ!NPEFTFUVQ!NPEF

TFUVQ!NPEF

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 42 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.13.1 Ring Type Setting (4 selection and OFF)

To set the ring type, select the “RING TYPE” menu item in setup mode. The user can use the ▲▼ keys to

select the ringer tone type from OFF and 1 through 4. The associated ringing tone will be activated for 2

seconds after a change in ringer type value is made. To exit the ring type setup, press the OFF key to

return to the “RING TYPE” menu item. The original ring type setting prior to entering this mode will be

maintained unless the user confirms the desired setting by pressing the SELECT key after selecting the

ring type number.

The default factory setting is ring type 1.

The following example shows how to set the ringer type to 4.

Phone State: On Hook

1. Press the SELECT key to activate the menu. The following will

be displayed :

2. Use the ▲▼ keys to select the SETUP MODE menu item:

3. Press the SELECT key to enter the SETUP MODE function and

the following will be displayed:

4. Press the SELECT key to display the current RING TYPE

setting and allow editing of the RING TYPE parameter:

5. Use the ▲▼ keys to select ringer type 4:

6. Press the SELECT key to save the new ringer type. A

CONFIRMATION TONE will be generated. Use the ▲▼ keys

to select the next SETUP MODE item to program.

TFUVQ!NPEF

TFUVQ!NPEFTFUVQ!NPEF

TFUVQ!NPEF

TFU!SJOH

TFU!SJOHTFU!SJOH

TFU!SJOH

UZQF

UZQFUZQF

UZQF

TFU!SJOH

TFU!SJOHTFU!SJOH

TFU!SJOH

UZQF

UZQFUZQF

UZQF

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

SJOH

SJOHSJOH

SJOH

UZQF!5

UZQF!5UZQF!5

UZQF!5 !

SJOH

SJOHSJOH

SJOH

UZQF!y

UZQF!yUZQF!y

UZQF!y !

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 43 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.13.2 Ringer Volume Control (High or Low)

To set the ringer volume, the user must select the “SET RING VOLUME” menu item in setup mode. The

display will show the current setting.

The user can set the ringer volume to high or low by pressing the ▲ or ▼ key. The selected ringer type will

activate for 2 seconds during the volume adjustment to allow the user to hear the selected level. To

confirm the desired setting press the SELECT key, otherwise press OFF to exit setting the ringer volume.

The default factory ringer volume setting is High.

The following display shows how to set the ringer volume to low.

Phone State: On Hook

1. Press the SELECT key to activate the menu. The following will

be displayed :

2. Use the ▲▼ keys to select the SETUP MODE menu item:

3. Press the SELECT key to enter the SETUP MODE function and

the following will be displayed:

4. Use the ▲▼ keys to select the SET RING VOLUME menu item:

5. Press the SELECT key to display the current RING VOLUME

setting and allow editing of the RING VOLUME parameter:

6. Use the ▲▼ keys to select the LOW volume setting:

7. Press the SELECT key to save the new ringer type. A

CONFIRMATION TONE will be generated. Use the ▲▼ keys

to select the next SETUP MODE item to program.

TFUVQ!NPEF

TFUVQ!NPEFTFUVQ!NPEF

TFUVQ!NPEF

TFU!SJOH

TFU!SJOHTFU!SJOH

TFU!SJOH

UZQF

UZQFUZQF

UZQF

TFU!SJOH

TFU!SJOHTFU!SJOH

TFU!SJOH

WPMVNF

WPMVNFWPMVNF

WPMVNF

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

SJOH

SJOHSJOH

SJOH

WPMVNF!IJHI

WPMVNF!IJHIWPMVNF!IJHI

WPMVNF!IJHI

TFU!SJOH

TFU!SJOHTFU!SJOH

TFU!SJOH

WPMVNF

WPMVNFWPMVNF

WPMVNF

SJOH

SJOHSJOH

SJOH

WPMVNF!MPX

WPMVNF!MPXWPMVNF!MPX

WPMVNF!MPX

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 44 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.13.3 Dialing Type Selection (Tone or Pulse)

To set the dialing type, the user must select the “SET DIAL TYPE” menu item in setup mode. The display

will show the current setting. The user can setup the telephone for either TONE or PULSE dialing by

pressing the ▲ or ▼ key. To confirm the desired setting press the SELECT key, otherwise press OFF to

exit setting the dialing type.

The default factory setting of dial type is Tone.

The following display shows how to set the dialing type to pulse.

Phone State: On Hook

1. Press the SELECT key to activate the menu. The following will

be displayed :

2. Use the ▲▼ keys to select the SETUP MODE menu item:

3. Press the SELECT key to enter the SETUP MODE function and

the following will be displayed:

4. Use the ▲▼ keys to select the SET DIAL TYPE menu item:

5. Press the SELECT key to display the current DIAL TYPE setting

and allow editing of the DIAL TYPE parameter:

6. Use the ▲▼ keys to select the PULSE setting:

7. Press the SELECT key to save the new ringer type. A

CONFIRMATION TONE will be generated. Use the ▲▼

keys to select the next SETUP MODE item to program.

TFUVQ!NPEF

TFUVQ!NPEFTFUVQ!NPEF

TFUVQ!NPEF

TFU!SJOH

TFU!SJOHTFU!SJOH

TFU!SJOH

UZQF

UZQFUZQF

UZQF

TFU!EJBM

TFU!EJBMTFU!EJBM

TFU!EJBM

UZQF

UZQFUZQF

UZQF

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

EJBM!UZQF

EJBM!UZQFEJBM!UZQF

EJBM!UZQF

QVMTF

QVMTFQVMTF

QVMTF !

TFU!EJBM

TFU!EJBMTFU!EJBM

TFU!EJBM

UZQF

UZQFUZQF

UZQF

EJBM!UZQF

EJBM!UZQFEJBM!UZQF

EJBM!UZQF

UPOF

UPOFUPOF

UPOF !

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 45 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.13.4 Keyclick Selection (On or Off)

To enable or disable keyclick, the user must select the “KEYCLICK” menu item in setup mode. The

display will show the current setting. The user can turn the keyclick ON or OFF by pressing the ▲ or ▼

key. To confirm the desired setting press the SELECT key, otherwise press OFF key to exit setting the

dialing type.

The default factory setting of keyclick is On.

The following display shows how to turn the keyclick off.

Phone State: On Hook

1. Press the SELECT key to activate the menu. The following will

be displayed :

2. Use the ▲▼ keys to select the SETUP MODE menu item:

3. Press the SELECT key to enter the SETUP MODE function and

the following will be displayed:

4. Use the ▲▼ keys to select the SET KEYCLICK menu item:

5. Press the SELECT key to display the current KEYCLICK setting

and allow editing of the KEYCLICK parameter:

6. Use the ▲▼ keys to select the OFF setting:

7. Press the SELECT key to save the new ringer type. A

CONFIRMATION TONE will be generated. Use the ▲▼ keys

to select the next SETUP MODE item to program.

TFUVQ!NPEF

TFUVQ!NPEFTFUVQ!NPEF

TFUVQ!NPEF

TFU!SJOH

TFU!SJOHTFU!SJOH

TFU!SJOH

UZQF

UZQFUZQF

UZQF

TFU!LFZDMJDL

TFU!LFZDMJDLTFU!LFZDMJDL

TFU!LFZDMJDL

SFEJBM

SFEJBMSFEJBM

SFEJBM

NFNPSZ

NFNPSZNFNPSZ

NFNPSZ

LFZDMJDL

LFZDMJDLLFZDMJDL

LFZDMJDL

POPO

PO !

TFU!LFZDMJDL

TFU!LFZDMJDLTFU!LFZDMJDL

TFU!LFZDMJDL

LFZDMJDL

LFZDMJDLLFZDMJDL

LFZDMJDL

PGG

PGGPGG

PGG !

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 46 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.14 Page Key Operation

As a convenience feature, the PAGE key on the base can be used to page a handset as a means of

signaling the user or to help locate a misplaced handset.

Pressing the PAGE key when the telephone is on hook causes the handset to ring 5 times and display the

message:

To stop the handset from ringing during an on hook page, press any key.

Pressing the PAGE key when the telephone is off hook causes the handset to ring once and display the

above message for < 2 seconds.

The default volume for the page ring is HIGH.

3.15 In Use/Charging LED Indicator

3.15.1 Red/Green LED Option

The In Use/Charging LED is a dual mode indicator. When the telephone is off-hook or in use, the

indicator will be lit GREEN.

When the handset is on the cradle and charging the indicator will be lit RED.

When the telephone line is on hold, the In Use/Charging LED will flash GREEN at a 4 Hz rate.

When the telephone line is ringing, the In Use/Charging LED will flash GREEN at a rate of 16 Hz during

the ON cycle of the power ringing signal.

3.15.1.1 In Use/Charging LED Display State Priority (Red/Green LEDs)

LED Display State Indication Priority

Ringing 16 HZ FLASHING GREEN

during ON power ring cycle 1

(HIGHEST)

On Hold 4 Hz FLASHING GREEN 2

In Use SOLID GREEN 3

Charging SOLID RED 4

No Handset in Cradle and Idle Mode OFF 5

(LOWEST)

3.15.2 All Red LED Option

The In Use/Charging LED is a dual mode indicator. When the telephone is off-hook or in use, the

indicator will be lit low intensity RED.

When the handset is on the cradle and charging the indicator will be lit high intensity RED.

When the telephone line is on hold, the In Use/Charging LED will flash low intensity RED at a 4 Hz rate.

CBTF!QBHJOH

CBTF!QBHJOHCBTF!QBHJOH

CBTF!QBHJOH

IBOETFU

IBOETFUIBOETFU

IBOETFU

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 47 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

When the telephone line is ringing, the In Use/Charging LED will flash low intensity RED at a rate of 16

Hz during the ON cycle of the power ringing signal.

3.15.2.1 In Use/Charging LED Display State Priority (All Red LEDs)

LED Display State Indication Priority

Ringing 16 HZ FLASHING

LOW INTENSITY RED

during ON power ring cycle

(HIGHEST)

On Hold 4 Hz FLASHING

LOW INTENSITY RED 2

In Use SOLID

LOW INTENSITY RED 3

Charging SOLID

HIGH INTENSITY RED 4

No Handset in Cradle and Idle Mode OFF 5

(LOWEST)

3.16 Temporary Tone Activation

When the unit is setup for PULSE dialing (see Section 3.13 Setup Mode Options for details on dial type

setup), the user can temporarily switch to tone mode by pressing the ✼ key. This tone mode shall remain

active until the OFF key is pressed.

3.17 Ear Piece Volume Adjustment

The user can adjust the volume level of the incoming audio by pressing the ▲ or ▼ key. This can only be

done while the phone is off hook, not on HOLD, and not in any menu selection modes. The initial press of

either the ▲ or ▼ key will bring up the volume display at the current setting.

To adjust the volume press the ▲ or ▼ key to select the desired volume level. The number of filled

characters shown on the display denotes the volume levels. There are in total, 4 volume levels.

The volume level display will remain active for 5 seconds after the last ▲ or ▼ key press.

WPMVNF!]]]]

WPMVNF!]]]]WPMVNF!]]]]

WPMVNF!]]]]

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 48 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.18 Spare Battery/POTS mode

This telephone has provision to charge a spare handset battery in the base unit. This spare battery also

powers the base during an AC power failure. This mode of operation is referred to as POTS mode; which

stands for Plain Old Telephone System. When a spare battery is installed, it is indicated on the base by

the SPARE BATTERY LED being lit solid RED. When POTS mode is in effect and a spare battery is

installed, the SPARE BATTERY LED flashes RED.

The handset will also display the following message when POTS mode is active:

3.19 Low Battery Warning

When the handset battery voltage drops below the specified value in Section 4.2 DC Electrical

Characteristics. The handset will have the message ‘LOW BATTERY’ on the top line of the display

A warning tone is emitted from the handset when the phone is first activated during a low battery

condition. The low battery warning tone and message is suppressed if the user was in any other modes of

operation, such as CID, Speed Dial review, etc. Until the LCD is cleared of other messages, a timer will

count up 5 seconds after which, the low battery warning tone is be generated and the low battery warning

is displayed on the LCD.

3.20 Parallel Set Indication

When another extension is off hook on the same phone line, and when the unit is in standby mode, the

telephone will detect this condition and inform the user.

The handset LCD will display the following when the unit detects that another extension on the same line

is off-hook

This display will remain on continuously for the duration of the condition. This display supersedes the ‘XX

NEW CALLS’ display. This display is not active during an out of range condition.

The ‘XX NEW CALLS’ is returned to the display when the ‘EXTENSION IN USE’ message is cancelled.

There will be no parallel set indication visible on the base unit.

FYUFOTJPO

FYUFOTJPOFYUFOTJPO

FYUFOTJPO

JO!VTF

JO!VTFJO!VTF

JO!VTF

MPX!CBUUFSZ

MPX!CBUUFSZMPX!CBUUFSZ

MPX!CBUUFSZ

DIFDL!BD

DIFDL!BDDIFDL!BD

DIFDL!BD

QPXFS

QPXFSQPXFS

QPXFS

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 49 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.21 Headset Jack

A jack capable of mating with a 2.5mm plug headset is provided on the handset. When the headset is

plugged in, the earpiece receiver and handset microphone are disconnected and the headset earpiece

and microphone are used for conversation instead.

3.22 No Telephone Line Connected

If the phone cannot detect any DC from the telephone line, the following message will be displayed on the

handset to prompt the user to check that the base unit is connected to the telephone line.

DIFDL!UFM

DIFDL!UFMDIFDL!UFM

DIFDL!UFM

MJOF

MJOFMJOF

MJOF

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 50 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.23 Display Priority of Non Mode Specific Messages

PRIORITY MESSAGE DISPLAY

HIGHEST

2 OR

4 OR

7 AND/OR

LOWEST OR

DIBOOFM

DIBOOFMDIBOOFM

DIBOOFM

TFBSDIJOH///

TFBSDIJOH///TFBSDIJOH///

TFBSDIJOH///

PVU!PG!SBOHF

PVU!PG!SBOHFPVU!PG!SBOHF

PVU!PG!SBOHF QBHJOH

QBHJOHQBHJOH

QBHJOH

JODPNJOH

JODPNJOHJODPNJOH

JODPNJOH

DBMM

DBMMDBMM

DBMM

SJOHFS!PGG

SJOHFS!PGGSJOHFS!PGG

SJOHFS!PGG

=DJE!OBNF?

=DJE!OBNF?=DJE!OBNF?

=DJE!OBNF?

=DJE!OVNCFS?

=DJE!OVNCFS?=DJE!OVNCFS?

=DJE!OVNCFS?

MPX!CBUUFSZ

MPX!CBUUFSZMPX!CBUUFSZ

MPX!CBUUFSZ

DIFDL!BD

DIFDL!BDDIFDL!BD

DIFDL!BD

QPXFS

QPXFSQPXFS

QPXFS

yy!OFX!DBMMT

yy!OFX!DBMMTyy!OFX!DBMMT

yy!OFX!DBMMT NTH/!XBJUJOH

NTH/!XBJUJOHNTH/!XBJUJOH

NTH/!XBJUJOH

FYUFOTJPO

FYUFOTJPOFYUFOTJPO

FYUFOTJPO

JO!VTF

JO!VTFJO!VTF

JO!VTF DIFDL!UFM/

DIFDL!UFM/DIFDL!UFM/

DIFDL!UFM/

MJOF

MJOFMJOF

MJOF

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 51 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

3.24 Channel Search/Out of Range Indication

When the handset is off-hook and the RF link is broken between the handset and base, the handset

alerter will emit a beep signaling a “CHANNEL SEARCHING..” condition as the handset begins scanning

for the base.

The “CHANNEL SEARCHING..” indication will remain on the LCD as the handset tries to reestablish

communication with the base. If this is not done within 30 seconds, the unit will display “CALL DROPPED”

for 3 seconds and will then enter standby mode (idle/low power mode). At intervals of 10 seconds, the

handset will wake up and display “CHANNEL SEARCHING..” again as it scans all 10 channels (channels

0 through 9) before blanking the display and reentering standby mode.

Note: Once entering standby mode while in an out-of-range condition, the handset will emit out-of-range

tones at 10 second intervals until the battery dies or the handset is able to re-establish communication

with the base. In this condition, the battery life will be greatly diminished.

If the PHONE key is pressed while the unit is in an out-of-range condition and in standby mode, a

KEYCLICK will be generated and after two seconds the out-of-range warning beep is generated and

channel search will be initiated. The “CHANNEL SEARCHING..” message then appears on the display for

30 seconds. After 30 seconds the unit will display “CALL DROPPED” for 3 seconds and enter standby

mode.

If the unit is within range of the base, the handset will automatically re-establish the link within 15 seconds.

The unit will then display:

for 3 seconds and then blank the display and enter into standby mode.

DIBOOFM

DIBOOFMDIBOOFM

DIBOOFM

TFBSDIJOH///

TFBSDIJOH///TFBSDIJOH///

TFBSDIJOH///

GPVOE

GPVOEGPVOE

GPVOE

DIBOOFM!y

DIBOOFM!yDIBOOFM!y

DIBOOFM!y

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 52 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

4. Electrical Specifications

4.1 Operating Conditions

Parameter Min Typ Max Units

Operating Temperature Range 0 251402°C

Base Unit Operating Voltage (AC Voltage, 60Hz) 96 1201144 Vrms

Base Unit Operating Voltage (AC Adapter Output) 91Vdc

Handset Operating Voltage23.2 3.61,3 4.2 Vdc

Notes:

1. Typical value represents the nominal testing value

2. NiMH Battery should not be operated above 40 °C.

3. Handset operates from a 3-cell NiMH Battery.

4.2 DC Electrical Characteristics

Specifications marked with * are guaranteed at the nominal testing temperature and voltage on all units

with the use of automated production test equipment (ATE)

Parameter Min Typ Max Units

* Base Unit Current - Standby Mode1,2 90 118 mA

* Base Unit Current - Talk Mode1,2 120 158 mA

Handset Current - Sleep Mode3TBD TBD mA

* Handset Current - Wake Mode 41 51 mA

* Handset Current - Talk Mode 61 86 mA

* Handset Sleep Duration - Standby Mode TBD TBD ms

Handset Wake Duration - Standby Mode TBD TBD ms

* Low Battery Detection Threshold (HS) 3.5 Vdc

* ASIC Shutdown Threshold (HS) 3.1 Vdc

Handset Standby Time 7 Days

Handset Continuous Talk Time 7 Hours

Fast Charge – Handset Battery 120 mA

Slow Charge – Handset Battery 60 mA

Spare Battery Charge 30 mA

Notes:

1. DC current from 9V power supply

2. Cradle and spare battery charge currents = 0mA

3. Averaged over one complete wake up cycle.

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 53 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

4.3 Audio Specification

Specifications marked with * are guaranteed at the nominal testing temperature and voltage on all units

with the use of automated production test equipment (ATE).

Parameter Min Typ Max Units

* Transmit Objective Loudness Rating (TOLR)1-40 -46 -53 dB

* Receive Objective Loudness Rating (ROLR)1,2 51 +46 41 dB

* Sidetone Objective Loudness Rating (SOLR)3+3 +8 +19 dB

* Receive volume adjustment range 12 TBD TBD dB

* Transmit Direction Acoustic Overload (into microphone)4105 dBspl

* Receive Direction Acoustic Overload (from receiver)4105 dBspl

Transmit Direction Noise520 dBrnC

Receive Direction Noise2,5 40 dB(A)

Peak Acoustic Pressure6130 dBspl

Notes:

1. Tested using 0kft of simulated telephone line

2. Tested at normal (low) volume level

3. Base unit connected to 0kft of simulated telephone line terminated with 900Ω

4. Acoustic level that results in 5% THD, measured at 1kHz through a 5kHz lowpass filter

5. Handset isolated from sound input and mechanical disturbances

6. Tested at high volume level

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 54 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

4.4 Telephone Line Interface Specification

Specifications marked with * are guaranteed at the nominal testing temperature and voltage on all units

with the use of automated production test equipment (ATE).

Parameter Min Typ Max Units

* DTMF Frequency Tolerance -1.5 +1.5 %

* DTMF Low Group Tone Level1-7.5 -5.0 -4.0 dBm

* DTMF High Group Tone Level1-5.5 -3.0 -2.0 dBm

DTMF Combined Tone Level1+2.0 dBm

DTMF High Group Pre-emphasis (Twist) 2.0 4.0 dB

Pulse Dialing Break Duration 60 ms

Pulse Dialing Make Duration 40 ms

Pulse Dialing Rate 10 pps

Ring Detection Frequency2,3 15 68 Hz

Ring Response Voltage340 Vrms

Ring No-Response Voltage425 Vrms

Notes:

1. Measured across a 900Ω terminating impedance

2. The ringer must ring with signals within this range

3. Measured with a frequency of 20Hz

4. The ringer must not ring with signals within this range

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 55 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

4.5 Calling Line Identification Specification

Parameter Min Typ Max Units

Receive Space Frequency 2178 2200 2222 Hz

Receive Mark Frequency 1188 1200 1212 Hz

Receive Baud Rate 1188 1200 1212 Baud

Mark FSK Detector Sensitivity -32 -12 dBm

Space FSK Detector Sensitivity -36 -32 dBm

FSK Detector Twist -10 +10 dB

CAS Detection Sensitivity -32 dBm

Channel Seizure Delays 300 Bits

Immunity to Stuffed Mark Bits 360 Bits

CAS

Frequency limits Lower Tone 2023.5 2130 2236.5 Hz

Upper Tone 2612.5 2130 2887.5 Hz

Dynamic Range (per tone) -32 -14 dBm

Twist < 6 dB

Tone Duration 75 85 mS

ACK

Signal Duration 55 65 mS

Notes:

VTECH ENGINEERING CANADA LIMITED

TITLE PDL GX Internal Product Specification

MODEL PDL GX

Reference: PRC 00DM Revision: 3.0 Page: 56 of 56

This document is proprietary to VTECH ENGINEERING CANADA LTD. 26649

Specifications are preliminary and are subject to change without notice.

4.6 Radio Specification

RF radiated field strength <50 mV/meter @ 3m

RF Channel Spacing 300 kHz

Channel Bandwidth 150 kHz (20dB bandwidth)

Receive IF Frequency 10.7MHz

Operating Temperature Range 0 to +50°C

Handset Transmission Frequency 925.05 - 927.75 MHz

Base Transmission Frequency 902.3 - 905.0 MHz

Transmitter Frequency Stability ±5 kHz, 0 to +50°C

Receiver Noise Figure < 5.5dB

Sensitivity for 30dB SINAD < -106 dBm at duplexer

Image Rejection (RF) > 60 dB

Adjacent Channel Rejection > 55 dB

Receiver Muting Level Between -109 dBm and -107 dBm

4.6.1 Frequency Allocation

The RF channels are allocated in fixed pairs as indicated in the tables below. The duplex frequency is

maintained at a fixed 22.75MHz for all 10 channels.

4.6.2 Base Unit Frequencies

Channel # Transmit Frequency Receive Frequency Rx LO Frequency

1 902.30 MHz 925.05 MHz 914.35 MHz

2 902.60 MHz 925.35 MHz 914.65 MHz

3 902.90 MHz 925.65 MHz 914.95 MHz

4 903.20 MHz 925.95 MHz 915.25 MHz

5 903.50 MHz 926.25 MHz 915.55 MHz

6 903.80 MHz 926.55 MHz 915.85 MHz

7 904.10 MHz 926.85 MHz 916.15 MHz

8 904.40 MHz 927.15 MHz 916.45 MHz

9 904.70 MHz 927.45 MHz 916.75 MHz

10 905.00 MHz 927.75 MHz 917.05 MHz

4.6.3 Handset Unit Frequencies

Channel # Transmit Frequency Receive Frequency Rx LO Frequency

1 925.05 MHz 902.30 MHz 913.00 MHz

2 925.35 MHz 902.60 MHz 913.30 MHz

3 925.65 MHz 902.90 MHz 913.60 MHz

4 925.95 MHz 903.20 MHz 913.90 MHz

5 926.25 MHz 903.50 MHz 914.20 MHz

6 926.55 MHz 903.80 MHz 914.50 MHz

7 926.85 MHz 904.10 MHz 914.80 MHz

8 927.15 MHz 904.40 MHz 915.10 MHz

9 927.45 MHz 904.70 MHz 915.40 MHz

10 927.75 MHz 905.00 MHz 915.70 MHz

Radio Shack 4301106 CORDLESS TELEPHONE User Manual USERS GUIDE

RadioShack Corporation CORDLESS TELEPHONE USERS GUIDE

USERS GUIDE

Navigation menu

Namespaces

Views

Navigation
