Owner’s Manual
Please read before using this equipment.
900MHz Cordless Telephone
with Call Waiting/Caller ID
43-1122.C.fm Page 1 Wednesday, December 13, 2000 1:56 PM
2Read This Before Installation
ˆ
Read This Before Installation
This telephone has been tested and found to
comply with all applicable UL and FCC stan-
dards.
We have designed your 900MHz Cordless
Phone with Call Waiting/Caller ID to conform
to federal regulations, and you can connect it
to most telephone lines. However, each de-
vice, such as a telephone or answering ma-
chine, that you connect to the telephone line
draws power from the telephone line. We re-
fer to this power draw as the device's ringer
equivalence number, or REN. The REN is on
the bottom of your phone.
If you use more than one phone or other de-
vice on the line, add up all of the RENs. If the
total is more than five (three in rural areas),
your telephones might not ring. If ringer oper-
ation is impaired, remove a device from the
line.
FCC STATEMENT
Your telephone complies with Part 68 of FCC
Rules. You must, upon request, provide the
FCC registration number and the REN to
your telephone company. Both numbers are
on the bottom of your telephone.
Note: You must not connect your telephone
to:
• coin-operated systems
• party-line systems
• most electronic key telephone systems
THE FCC WANTS YOU TO
KNOW
In the unlikely event that your phone causes
problems on the phone line, the phone com-
pany can temporarily discontinue your ser-
vice. If this happens, the phone company
attempts to notify you in advance. If advance
notice is not practical, the phone company
notifies you as soon as possible and advises
you of your right to file a complaint with the
FCC.
Also, the phone company can make changes
to its lines, equipment, operations, or proce-
dures that could affect the operation of this
telephone. The telephone company notifies
you of these changes in advance, so you can
WARNING: To reduce the risk of fire or
shock hazard, do not expose this product to rain
or moisture.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICE-
ABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED PERSONNEL.
This symbol is intended to alert
you to the presence of uninsu-
lated dangerous voltage within
the product’s enclosure that might
be of sufficient magnitude to con-
stitute a risk of electric shock. Do
not open the product’s case.
This symbol is intended to inform
you that important operating and
maintenance instructions are
included in the literature accom-
panying this product.
!
!
© 2000 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com are trademarks used by RadioShack Corporation.
43-1122.C.fm Page 2 Wednesday, December 13, 2000 1:56 PM
3
Read This Before Installation
take the necessary steps to prevent interrup-
tion of your telephone service.
LIGHTNING
Your telephone has built-in protection circuits
to reduce the risk of damage from surges in
telephone line and power line current. These
protection circuits meet or exceed the FCC
requirements. However, lightning striking the
telephone or power lines can damage your
telephone.
Lightning damage is not common. Neverthe-
less, if you live in an area that has severe
electrical storms, we suggest that you unplug
your phone when storms approach to reduce
the possibility of damage.
IMPORTANT SAFETY
INSTRUCTIONS
When using your telephone equipment, ba-
sic safety precautions should always be fol-
lowed to reduce the risk of fire, electric shock
and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions
marked on the product.
3. Never install telephone wiring during a
lightning storm.
4. Never install telephone jacks in wet
locations unless the jack is specifically
designed for wet locations.
5. Never touch uninstalled telephone wires
or terminals unless the telephone line
has been disconnected at the network
interface.
6. Use caution when installing or modifying
telephone lines.
7. Do not fix the AC power supply cord to
building surfaces with metal fittings (if
the product has an AC power cord).
8. Unplug this product from the wall outlet
before cleaning. Do not use liquid clean-
ers or aerosol cleaners. Use a damp
cloth for cleaning.
9. Do not use this product near water, for
example, near a bathtub, wash bowl,
kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool.
10. Do not place this product on an unstable
cart, stand, or table. The product may
fall, causing serious damage to the
product.
11. Slots and openings in the cabinet and
the back or bottom are provided for ven-
tilation. To protect it from overheating,
these openings must not be blocked or
covered. The openings should never be
blocked by placing the product on a bed,
sofa, rug, or other similar surface. This
product should never be placed near or
over a radiator or heat register. This
product should not be placed in a built-in
installation unless proper ventilation is
provided.
12. This product should be operated only
from the type of power source indicated
on the marking label. If you are not sure
of the type of power supply to your
home, consult your local power com-
pany.
13. Do not allow anything to rest on the
power cord. Do not locate this product
where the cord will be stepped on.
14. Do not overload wall outlets and exten-
sion cords as this can result in a risk of
fire or electric shock.
15. Never push objects of any kind into this
product through cabinet slots as they
43-1122.C.fm Page 3 Wednesday, December 13, 2000 1:56 PM
4Read This Before Installation
may touch dangerous voltage points or
short out parts that could result in a risk
of fire or electric shock. Never spill liquid
of any kind on the product.
16. To reduce the risk of electric shock, do
not disassemble this product. Take it to
a qualified service technician when ser-
vice or repair work is required. Opening
or removing covers may expose you to
dangerous voltage or other risks. Incor-
rect reassemble can cause electric
shock when the product is subsequently
used.
17. Unplug this product from the wall outlet
and refer servicing to qualified service
personnel under the following condi-
tions:
• When the power cord plug is dam-
aged or frayed.
• If liquid has been spilled, into the
product.
• If the product has been exposed to
rain or water.
• If the product does not operate nor-
mally by following the operating
instructions. Adjust only those con-
trols that are covered by the operat-
ing instructions because improper
adjustment of other controls may
result in damage and will often
require extensive work by a qualified
technician to restore the product to
normal operation.
• If the product has been dropped or
the cabinet has been damaged.
• If the product exhibits a distinct
change in performance.
18. Avoid using a telephone (other than a
cordless type) during an electrical storm.
There may be a remote risk of electric
shock from lightning.
19. Do not use the telephone to report a gas
leak in the vicinity of the leak.
Battery Safety Instructions
Caution: To reduce the risk of fire or injury,
read and follow these instructions.
1. Use only the appropriate type and size
battery pack specified in the instruction
manual provided for this product.
2. Do not dispose of the battery pack in a
fire. The cell may explode. Check with
local codes for possible special disposal
instructions.
3. Do not open or mutilate the battery
pack. Released electrolyte is corrosive
and may cause damage to the eyes or
skin. It may be toxic if swallowed.
4. Exercise care in handling the battery
pack in order not to short it with conduct-
ing materials such as rings, bracelets,
and keys. The battery or conductor may
overheat and cause burns.
5. Charge the battery pack provided or
identified for use with this product only in
accordance with the instructions and
limitations specified in the instruction
manual provided for this product.
6. Observe proper polarity orientation
between the battery pack and battery
charger.
SAVE THESE INSTRUCTIONS
43-1122.C.fm Page 4 Wednesday, December 13, 2000 1:56 PM
5
Contents
ˆ
Contents
Features .................................................................................................................................. 6
Installation .............................................................................................................................. 7
Selecting a Location ............................................................................................................ 7
On a Desk Top ................................................................................................................ 7
On a Wall Plate ............................................................................................................... 8
Connecting and Charging the Battery Pack ........................................................................ 9
Setting the Dialing Mode ................................................................................................... 10
Setting the Ringer Tone and Volume ................................................................................. 10
Turning Auto Talk On/Off .................................................................................................... 11
Turning Caller ID/Call Waiting On/Off ................................................................................. 11
Storing Your Area Code ...................................................................................................... 11
Operation .............................................................................................................................. 12
Making and Receiving Calls .............................................................................................. 12
Selecting the Channel ....................................................................................................... 12
Adjusting the Handset’s Volume ........................................................................................ 12
Using Redial ...................................................................................................................... 12
Using Flash ....................................................................................................................... 12
Using Tone Services on a Pulse Line ................................................................................ 13
Paging ............................................................................................................................... 13
Using a Headset ................................................................................................................ 13
Memory Dialing ................................................................................................................. 13
Storing a Number and Name in Memory ...................................................................... 13
Entering a Pause .......................................................................................................... 14
Editing or Deleting a Number in Memory ...................................................................... 14
Reviewing Memory Numbers ........................................................................................ 15
Dialing a Memory Number ............................................................................................ 15
Chain-Dialing Service Numbers .................................................................................... 15
Testing Stored Emergency Numbers ............................................................................ 15
Caller ID Operation .............................................................................................................. 16
Important Caller ID Information ......................................................................................... 16
Reviewing Caller ID Records ............................................................................................ 16
Caller ID Messages ....................................................................................................... 16
Adding/Deleting the Area Code ......................................................................................... 17
Dialing Numbers from a Caller ID Record ......................................................................... 17
Storing a Caller ID Record in Memory ............................................................................... 17
Deleting Caller ID Records ................................................................................................ 17
Deleting a Single Caller ID Record ............................................................................... 17
Deleting All Caller ID Records ...................................................................................... 17
Troubleshooting ................................................................................................................... 18
Care ................................................................................................................................... 19
43-1122.C.fm Page 5 Wednesday, December 13, 2000 1:56 PM
6Features
ˆ
Features
Your RadioShack 900 MHz Cordless Tele-
phone uses advanced technology to give you
superior audio quality and extended range.
The phone’s Caller ID unit records each call-
er’s telephone number (and name, if avail-
able in your area) and the date and time of
the call, as provided by your local phone
company to Caller ID service subscribers. If
you subscribe to Call Waiting with Caller ID,
the phone shows you the incoming caller in-
formation, even when you are already talking
on the phone.
Your phone’s other features include:
10-Number Memory Dialing — lets you
store up to 10 numbers in memory for easy
dialing.
Headset Jack — lets you connect an option-
al headset for hands-free convenience.
Hearing-Aid Compatibility — lets you use
the phone with hearing aids that have a T
(telephone) switch.
20-Record CID Capacity — stores up to 20
call records in Caller ID.
Volume Control — lets you adjust the
volume you hear through the handset.
Page — lets you send a signal from the base
to the handset to page someone or to help
you locate the handset.
Adjustable Ringer/Tone Volume — lets
you choose between two volumes and tones
for the phone’s ringer.
Facedown or Faceup Handset Charging
— you can place the handset on the base
facedown or faceup to show the Caller ID
display.
Ample Talk and Standby Time — the sup-
plied battery (when fully charged) provides
about 7 hours of talk time or 7 days of stand-
by time.
Security Access-Protection Code — auto-
matically prevents other cordless phone us-
ers from using your phone line while the
handset is off the base.
Auto Talk — lets you set the phone to an-
swer a call by simply lifting the handset from
the base.
Important:
• Cordless phones such as this one
require AC power to operate. When the
power is off, you cannot make or receive
calls using your phone. To be safe, you
should also have a phone that does not
need AC power to operate (not a cord-
less phone), so you can still make and
receive calls if there is an AC power fail-
ure.
• When AC power is lost, the phone loses
the security access-protection code con-
nection between the base and the hand-
set. When power is restored, put the
handset on the base briefly to restore
this connection so you can use the
handset.
• Your phone operates on standard radio
frequencies as allocated by the FCC. It
is possible for other radio units operating
nearby on similar frequencies to unin-
tentionally intercept your conversation or
cause interference. This possible lack of
privacy can occur with any cordless
phone.
43-1122.C.fm Page 6 Wednesday, December 13, 2000 1:56 PM
7
Installation
ˆ
Installation
SELECTING A LOCATION
You can place the phone’s base on a desk or
table, or mount it on a standard wall plate or
directly on a wall. Select a location that is:
• near an accessible AC outlet
• near a telephone line jack
• out of the way of normal activities
• away from electrical machinery, electri-
cal appliances, metal walls or filing cabi-
nets, wireless intercoms, alarms, and
room monitors
• away from other cordless phones
The base’s location affects the handset’s
range. If you have a choice of several loca-
tions, try each to see which provides the best
performance.
Cautions:
You must use a Class 2 power
source that supplies 9V DC
and delivers at least 210 mA.
Its center tip must be set to positive and
its plug must fit the phone's DC IN 9V
jack. The supplied adapter meets these
specifications. Using an adapter that
does not meet these specifications
could damage the phone or the adapter.
• Always connect the AC adapter to the
phone before you connect it to AC
power. When you finish, disconnect the
adapter from AC power before you dis-
connect it from the phone.
Your telephone connects directly to a modu-
lar telephone line jack. If your telephone wir-
ing does not have a modular jack, you can
update the wiring yourself using jacks and
adapters (available at your local RadioShack
store), or have the telephone company up-
date the wiring for you. You must use com-
patible modular jacks that are compliant with
Part 68 of
FCC Rules
.
Note: The USOC number of the jack to be
installed is RJ11C (or RJ11W for a wall plate
jack).
On a Desk Top
Follow these steps to place the base on a
desk, shelf, or table.
1. Plug one end of the supplied long modu-
lar cord into the TEL LINE jack on the
back of the base.
2. Plug the modular cord’s other end into a
modular phone line jack.
3. Insert the supplied AC adapter’s barrel
plug into the DC IN 9V jack on the back of
the base.

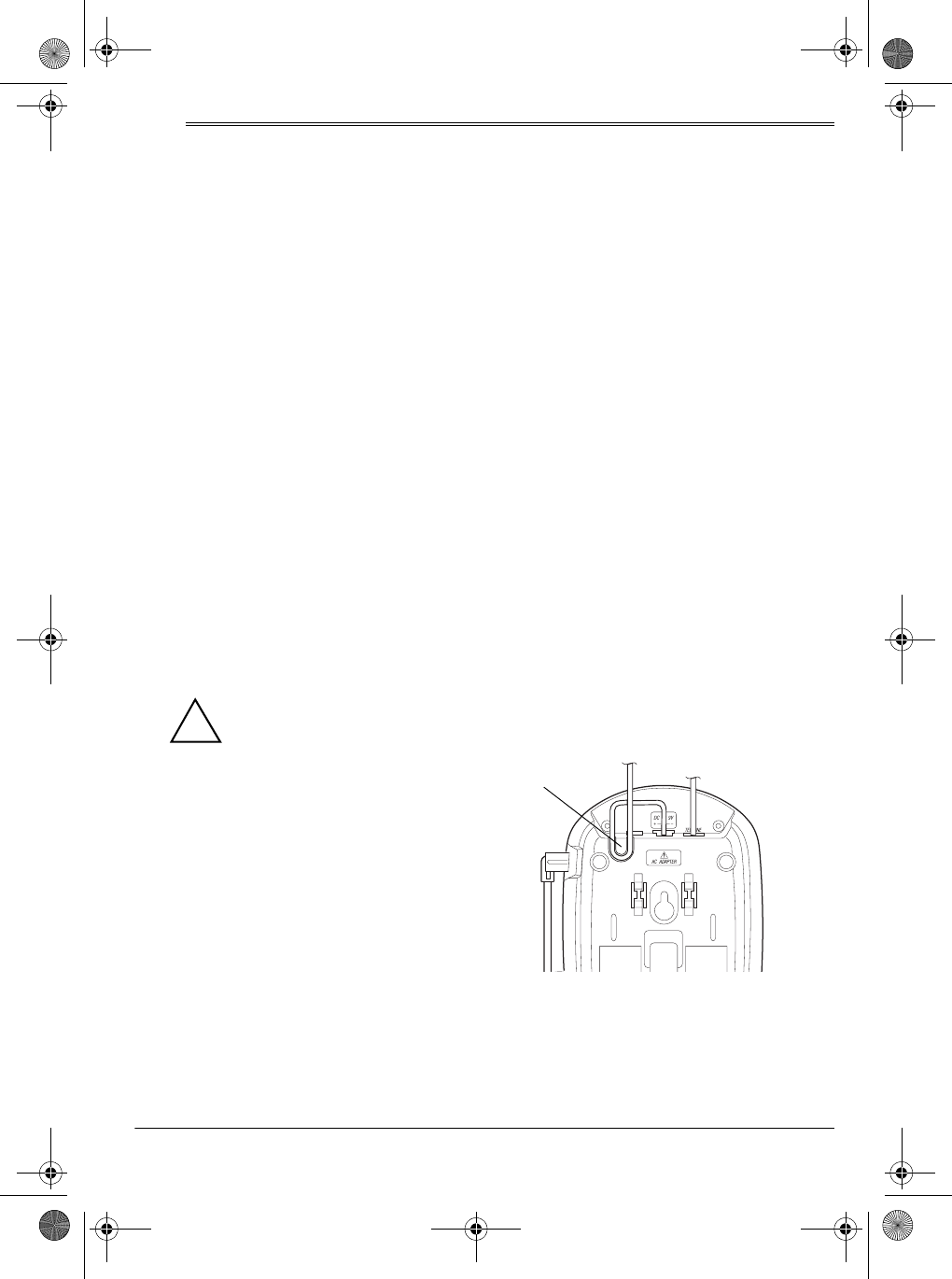

4. Route the adapter’s cord through the
strain relief slot on the base.
5. Plug the adapter into a standard AC out-
let.
6. Lift the base’s antenna to a vertical posi-
tion.
!
Strain
Relief
Slot
43-1122.C.fm Page 7 Wednesday, December 13, 2000 1:56 PM
8Installation

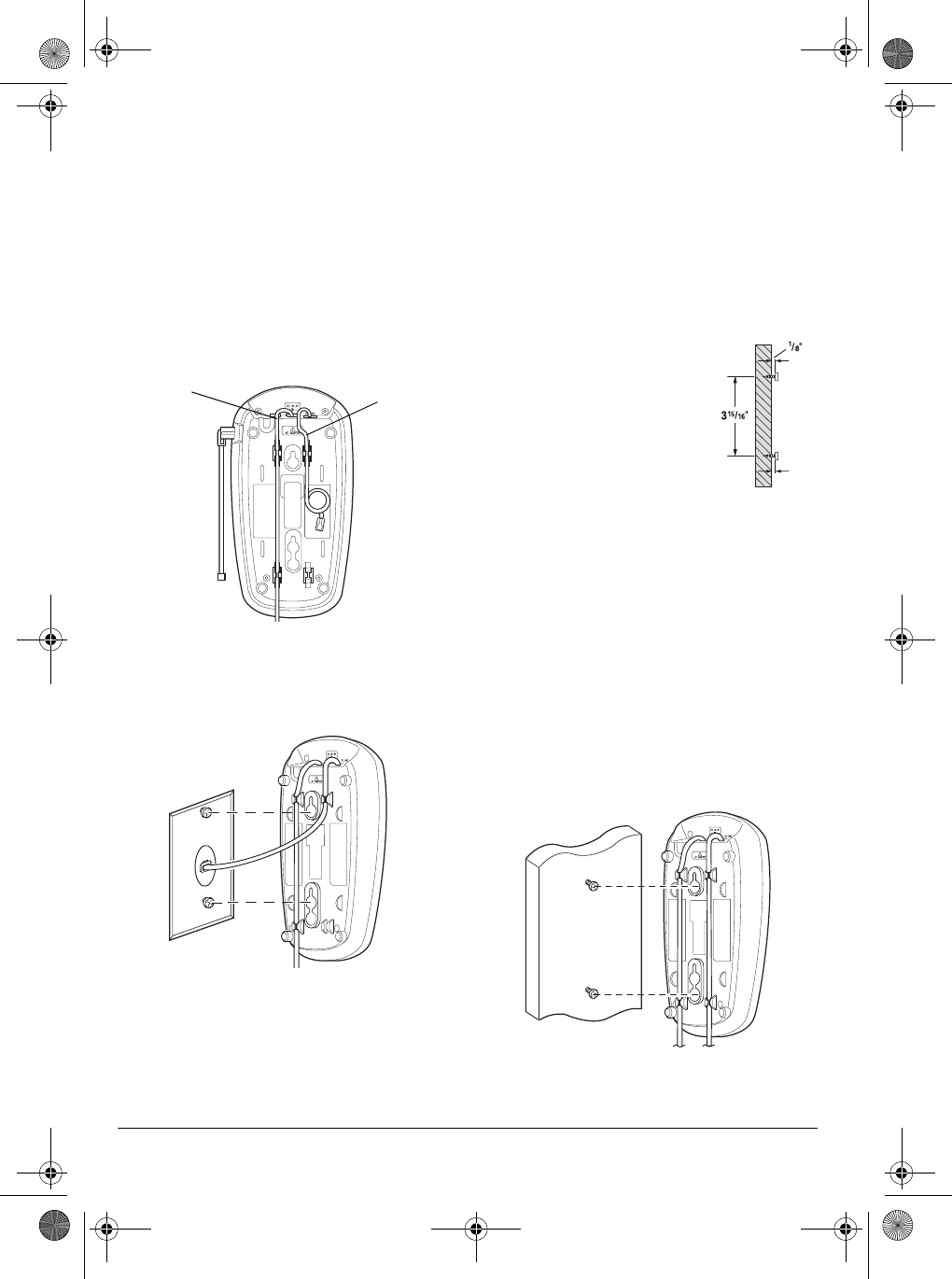

On a Wall Plate
1. Plug one end of the supplied short mod-
ular cord into the TEL LINE jack on the
back of the base.
2. Insert the supplied AC adapter’s barrel
plug into the DC IN 9V jack on the back of
the base.
3. Route the adapter and modular cords
through the grooves on the bottom of
the base.
4. Plug the short modular cord into the wall
plate jack, then align the base’s keyhole
slots with the wall plate studs and slide
the base down to secure it.
5. Plug the adapter into a standard AC out-
let.
6. Push up on the handset holder, then lift
and remove it. Turn it over and rotate it
so that the oval-shaped indention is at
the bottom, then slide it down into its
slot. Snap it back into place so that it
holds the handset.
On a Wall
To mount the phone directly on a wall, you
need two screws (not supplied) with heads
that fit into the keyhole slots on the bottom of
the base.
1. Drill two holes 315/16
inches (100 mm) apart.
Then thread a screw
into each hole, letting
the heads extend about
1/8 inch (3 mm) from the
wall.
2. Plug one end of the supplied long modu-
lar cord into the TEL LINE jack on the
back of the base.
3. Insert the supplied AC adapter’s barrel
plug into the DC IN 9V jack on the back of
the base.
4. Route the adapter and modular cords
through the grooves on the bottom of
the base.
5. Align the bracket’s keyhole slots with the
mounting screws and slide the base
downward to secure it.
AC Cord Modular
Telephone
Cord
43-1122.C.fm Page 8 Wednesday, December 13, 2000 1:56 PM
9
Installation
6. Plug the modular cord’s other end into
the phone jack, and plug the adapter
into a standard AC outlet.
CONNECTING AND
CHARGING THE BATTERY
PACK
The phone comes with a rechargeable
nickel-cadmium battery pack in the handset,
but not connected. Before using your phone,
you must connect the battery pack, then
charge it for about 24 hours.

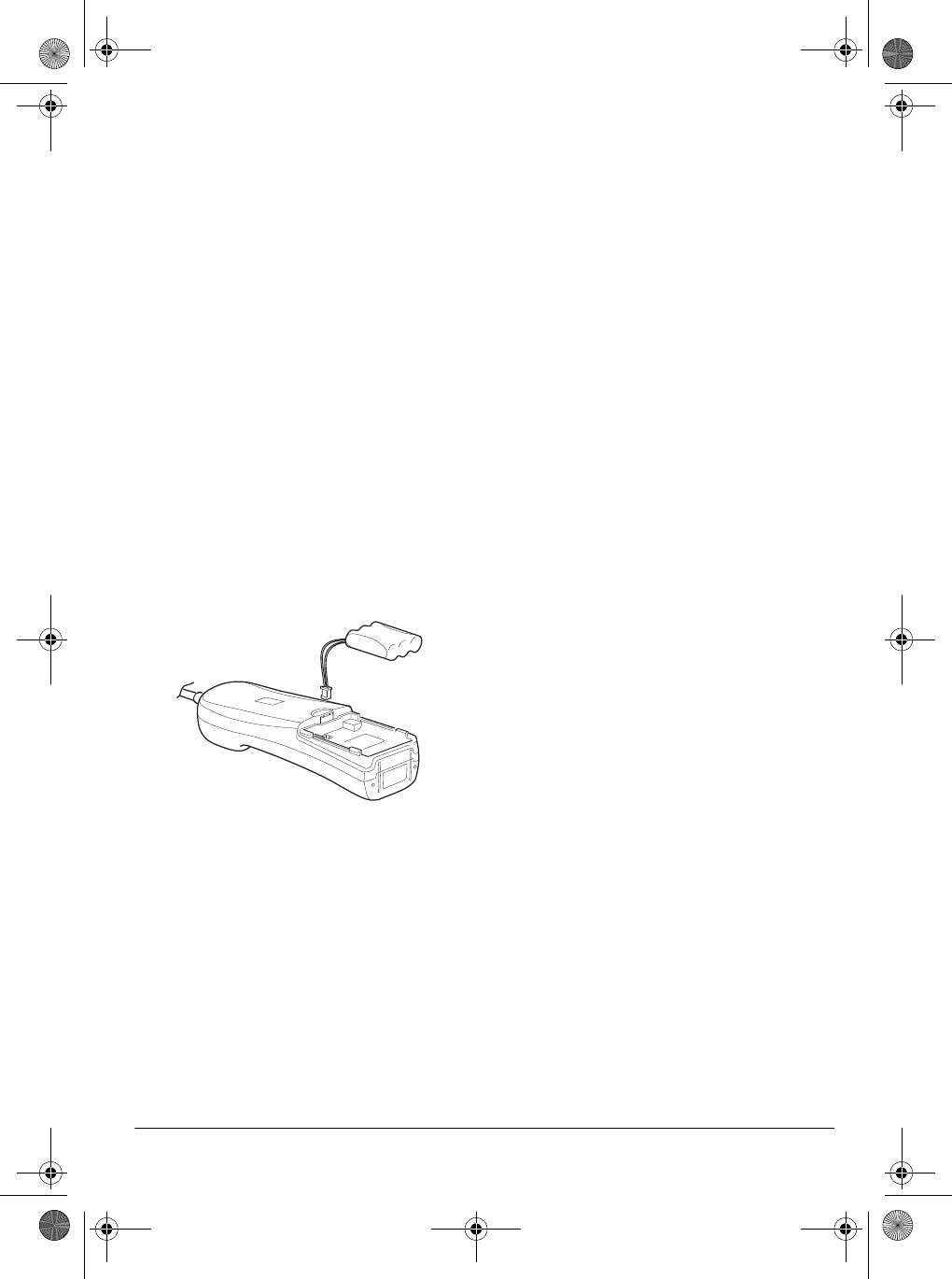

1. Press down and slide off the battery
compartment cover.
2. Lift the battery pack out of the compart-
ment.
3. Plug the battery pack’s connector into
the socket in the compartment (the con-
nector fits only one way), then place the
battery pack in the compartment.
4. Replace the cover.
To charge the battery pack, place the hand-
set either faceup or facedown on the base.
The CHARGE/IN USE indicator on the base
lights and Total:00 appears on the hand-
set display.
Recharge the battery pack when Low Bat-
tery flashes on the display.
Important: Be sure the battery pack is prop-
erly connected before you try to charge it.
The CHARGE/IN USE indicator lights when
the handset is on the base, even if the bat-
tery pack is not connected.
Notes:
• When you first use the phone after
charging or recharging the battery pack,
the phone might not work and you might
hear an error tone when you press
TALK. Return the handset to the base for
about 5 seconds to reset the security
access-protection code.
• If the base loses power for about an
hour while the handset is away from it,
the security access-protection code
might be lost. To reset the code, return
the handset to the base for about 5 sec-
onds.
The handset does not lose its security
access-protection code even if the bat-
tery pack is completely discharged.
• Using a pencil eraser, clean the charg-
ing contacts on the handset and base
about once a month.
• If the battery pack becomes weak during
a call, the handset beeps every 3 sec-
onds and Low Battery flashes. When
this happens, you cannot make a call
until you recharge the battery pack.
• About once a month, fully discharge the
battery by keeping the handset off the
base until Low Battery flashes on
the display. Otherwise, the battery pack
loses its ability to fully recharge.
• If the display is blank and the phone
does not work, recharge the battery
pack. (The battery power might be too
low to light the display.)
• If you are not going to use your phone
for an extended period, disconnect the
battery pack. This increases the battery
pack’s usable life.
43-1122.C.fm Page 9 Wednesday, December 13, 2000 1:56 PM
10 Installation
• The supplied battery pack should last for
about a year. If the battery pack does
not hold a charge for more than 2 hours
after an overnight charge, replace it with
a new 3.6-volt, 600 mAh battery pack
with a connector that fits the socket in
the battery compartment. You can order
a replacement battery pack through your
local RadioShack store. Install the new
battery pack and charge it for about 24
hours.
Warning: Dispose of the old battery pack
promptly and properly. Do not burn or bury it.
See “Battery Safety Instructions” on Page 4
for additional information on proper battery
handling.
If you have trouble replacing the battery
pack, take the phone to your local
RadioShack for assistance.
Important: The EPA certified
RBRC® Battery Recycling Seal
on the nickel-cadmium (Ni-Cd)
battery indicates RadioShack
is voluntarily participating in an
industry program to collect and recycle these
batteries at the end of their useful life, when
taken out of service in the United States or
Canada. The RBRC program provides a con-
venient alternative to placing used Ni-Cd bat-
teries into the trash or the municipal waste
stream, which may be illegal in your area.
Please call 1-800-THE-SHACK (1-800-843-
7422) for information on Ni-Cd battery recy-
cling and disposal bans/restrictions in your
area. RadioShack’s involvement in this pro-
gram is part of the company’s commitment to
preserving our environment and conserving
our natural resources.
SETTING THE DIALING
MODE
Your phone is set for tone dialing. If you have
pulse service, change the dialing mode. If
you are not sure which type of service you
have, do this test.
1. Lift the handset, press TALK, and listen
for a dial tone.
2. Press any number other than 0.
Note: If your phone system requires that
you dial an access code (9, for example)
before you dial an outside number, do
not dil the access code either.
If the dial tone stops, you have touch-
tone service. If the dial tone continues,
you have pulse service.
3. Press TALK.
To set the dialing mode, hold down FLASH
until the phone beeps and Pulse Dial-
ing or Tone Dialing appears. Press #/
7
77
7 to set pulse mode or ∗/TONE to set tone
mode.
Notes:
• The phone exits the setting mode if a
call or page is received, or if you press
TALK.
• If the battery pack power becomes too
low, the dial mode might reset to tone. If
you are on a pulse line and cannot make
a call, hold down FLASH to check the
current dialing mode. Set to pulse mode
if necessary.
SETTING THE RINGER TONE
AND VOLUME
You can select one of four different ringer
tone/volume settings on the handset. Lift the
handset and repeatedly press 8
88
8 or 9
99
9 to
select the desired ringer setting. Each time
you press the button, the phone rings at the
selected setting and the display shows Ring
Type A High,
Ring Type A Low,
43-1122.C.fm Page 10 Wednesday, December 13, 2000 1:56 PM
11
Installation
Ring Type B High, or Ring Type B
Low.
TURNING AUTO TALK ON/
OFF
Your phone is preset so you must press
TALK when you lift the handset from the base
to answer a call. With Auto Talk turned on,
you can answer a call by just lifting the hand-
set from the base. If the handset is away
from the base, you can answer by pressing
any key.
Follow these steps to turn Auto Talk on or
off.
1. Lift the handset and hold down CALL ID
until the menu appears with Auto
Talk selected.
2. Press SELECT to change the Auto Talk
setting. On or Off appears indicating
the selected setting.
3. Return the handset to the base (or press
CALL ID) to store the new setting.
TURNING CALLER ID/CALL
WAITING ON/OFF
If you subscribe to Call Waiting with Caller ID
service, you can set the phone to show Call-
er ID information for an incoming call even
while you are using the phone.
Follow these steps to turn the Caller ID/Call
Waiting feature on or off.
1. Lift the handset and hold down CALL ID
until the menu appears with Auto
Talk selected.
2. Press 2 or 9
99
9 to move the cursor to
CIDCW: (Caller ID/Call Waiting).
3. Press SELECT to turn the Caller ID/Call
Waiting setting on or off. On or Off
appears indicating the selected setting.
4. Return the handset to the base to store
the new setting.
STORING YOUR AREA
CODE
You can store your local area code in the
phone’s memory so it will not store the area
code if you receive a local call. If you need to
add or store the area code for a local num-
ber, you can add it afterwards (see “Adding/
Deleting the Area Code” on Page 17).
Important: In some areas, the area code is
necessary even for a local call. If you live in
such an area, do not store the area code.
Follow these steps to store your area code.
1. Lift the handset and hold down CALL ID
until the menu appears with Auto
Talk selected.
2. Press 3 or 9
99
9 to move the cursor to
Area Code:.
3. Press SELECT, then enter your three-
digit area code. If you make a mistake,
repeatedly press 6
66
6 or 7
77
7 to move the
cursor over the incorrect digit, then enter
the correct number.
Note: If an area code is already stored,
it appears on the display after you hold
down CALL ID. Press DELETE three
times to delete the area code. Then
enter your area code.
4. Press SELECT to store the area code,
then press CALL ID or return the handset
to the base to clear the display.
43-1122.C.fm Page 11 Wednesday, December 13, 2000 1:56 PM
12 Operation
ˆ
Operation
The handset window has plastic film on it to
protect it during shipment. Carefully peel off
the film before using your phone.
MAKING AND RECEIVING
CALLS
To make a call, lift the handset and press
TALK. Talk and the current volume setting
appear on the handset’s display, and the
CHARGE/IN USE indicator on the base
lights. Dial the number. The number appears
on the handset as you dial, then the call’s
elapsed time appears. To end a call, place
the handset on the base or press TALK.
You can also dial the number before you
press TALK. If you make a mistake, press
DELETE until the incorrect entry is erased,
then enter the correct number. To delete the
entire number, hold down DELETE.
When you receive a call, Incoming Call
appears. To answer the call, lift the handset
and press TALK. If Auto Talk is on, just lift the
handset. If the handset is away from the
base, press any key. Talk appears on the
handset’s display. To end a call, place the
handset on the base or press TALK.
SELECTING THE CHANNEL
The phone has 40 channels. If the call dis-
connects or you experience difficulty hearing
the conversation during a call, press CH on
the handset to select a different channel.
Scanning appears as your phone search-
es for a clear channel.
ADJUSTING THE
HANDSET’S VOLUME
To adjust the volume of the sound you hear
through the handset during a call, press 8
88
8
or 9
99
9 on the handset until you obtain the de-
sired volume level. Volume Maximum,
Volume High, Volume Medium, or
Volume Low appears on the handset dis-
play. Once you set the volume level, the set-
ting is maintained even after you hang up the
phone.
Note: When you press 8
88
8 while the volume
is maximum or 9
99
9 while the volume is low,
the setting does not change. The phone
sounds three short beeps.
USING REDIAL
You can quickly dial the last number you di-
aled. Lift the handset and press REDIAL/
PAUSE, then TALK. The phone dials the num-
ber.
Notes:
• You can also press REDIAL/PAUSE after
pressing TALK.
• The redial memory holds up to 32 digits,
so you can redial long-distance as well
as local numbers.
• The redial memory also holds pause
entries (see “Entering a Pause” on
Page 14).
USING FLASH
FLASH performs the electronic equivalent of
a switchhook operation for special services,
such as Call Waiting. For example, if you
have Call Waiting, press FLASH to answer an
incoming call without disconnecting the cur-
rent call. Press FLASH again to return to the
first call.
Note: If you do not have any special phone
services, pressing FLASH might disconnect
the current call.
43-1122.C.fm Page 12 Wednesday, December 13, 2000 1:56 PM
13
Operation
USING TONE SERVICES ON
A PULSE LINE
Some special services require tone signals
(such as bank-by-phone). If you have pulse
dialing, you can still use these special tone
services.
Dial the service’s main number. When the
service answers, press ∗/TONE. Any addi-
tional numbers you dial are sent as tone sig-
nals.
The phone’s dial mode resets to pulse when
you make or receive a call.
PAGING
To send a page from the base to the handset
or to locate the handset when the phone is
not in use, press PAGE/FIND on the base.
The handset beeps for 15 seconds.
To locate the handset using a continuous
beep, press and hold PAGE/FIND longer than
2 seconds. The handset beeps for 1 minute.
If you still cannot locate the handset, release
PAGE/FIND, then press again. The handset
beeps for another minute.
To stop the page, press any key on the
handset, place the handset on the base, or
press PAGE/FIND on the base again.
Note: The phone rings when a call comes in
while you are using the page feature.
USING A HEADSET
You can make or answer calls with hands-
free convenience using an optional headset
that has a 3/32-inch (2.5-mm) plug. Your local
RadioShack store has a variety of headsets
available.
To connect the headset, gently flip open the
rubber headset jack cover on the side of the
handset, then insert the headset’s plug into
the jack.
Notes:
• Connecting a headset disconnects the
handset’s earpiece and microphone.
•8
88
8 or 9
99
9 on the handset also controls
the headset’s volume.
• If you place the handset on the base to
recharge it while the headset is con-
nected, be sure the handset seats prop-
erly.
• With a headset connected, you can
make or answer calls as usual using the
keys on the handset.
• You can use a handset holder (available
from your local RadioShack store) to
hang the handset on your belt for
greater convenience when using a
headset.
• When you finish using the headset, dis-
connect it from the handset and close
the rubber cover to protect the jack.
MEMORY DIALING
You can store up to 10 phone numbers and
names in memory, then dial a stored number
by entering its memory location number.
Each number can be up to 20 digits, and
each name can be up to 14 characters.
Storing a Number and Name in
Memory
1. Lift the handset.
2. Hold down MEM until Memory Store
and a list of memory location numbers
appears.
3. Select an empty memory location (or the
one you want to replace) by entering the
location number (1–0) or using 8
88
8 or 9
99
9
to scroll through the list.
43-1122.C.fm Page 13 Wednesday, December 13, 2000 1:56 PM
14 Operation
4. Press SELECT. Store Name appears.
If you do not want to enter a name, skip
to Step 6.
5. To enter a name, use the number keys.
Refer to the letters on the number keys
to select the desired letter. Press the key
once for the first letter in the upper case,
press twice for second letter in the upper
case, and so on. To enter the lower case
letter, press four times (or five times) to
display the first letter in lower case, five
or six times for second letter, and so on.
For example, to enter John: press 5
once; upper case J appears. Then
press 6 six times; lower case o appears.
Press 4 five times; lower case h
appears. Finally, press 6 five times;
lower case n appears.
To enter two letters from the same key in
a row, press #/7
77
7 to move the cursor to
the next position. For example to enter
AB, press 2; A appears. Then press #/
7
77
7, the cursor moves to next position,
then press 2 twice so B appears.
To enter a space, press #/7
77
7 twice with-
out entering any character.
To enter a number, repeatedly press the
corresponding number key until the
number appears.
To enter a special character, press 0.
Each time you press 0, the following
characters appear in this order:
∗ # – & ( ) (space) 0
If you make a mistake, use ∗/TONE/6
66
6
or #/7
77
7 to move the cursor over the
error, then enter the correct character, or
press DELETE to delete a character. To
delete all characters, hold down DELETE
for at least 1 second.
6. Press SELECT. Store Number
appears.
7. Enter the number and any tone and
pause entries (see “Using Tone Services
on a Pulse Line” on Page 13 and “Enter-
ing a Pause” on Page 14).
Note: Each tone or pause entry uses
one digit of memory.
8. Press SELECT. The phone beeps and
Memory n Stored appears (n = num-
ber). After two seconds, Memory
Store appears, and you can repeat
Steps 3–8 to store more numbers.
To replace a stored number, simply store a
new one in its place.
Entering a Pause
In some telephone systems, you must dial an
access code (9, for example) and wait for a
second dial tone before you can dial an out-
side number. You can store the access code
with the phone number. However, you
should also store a pause after the access
code to allow the outside line time to con-
nect.
To enter a 2-second pause, press REDIAL/
PAUSE. You can add more pause entries for
a longer pause.
Editing or Deleting a Number in
Memory
1. Lift the handset.
2. Hold down MEM until Memory Store
and a list of memory location numbers
appear on the handset display.
3. Choose a memory location (1–0) by
pressing a number or by repeatedly
pressing
8
88
8 or 9
99
9.
43-1122.C.fm Page 14 Wednesday, December 13, 2000 1:56 PM
15
Operation
4. Press SELECT. Three options (Edit
Memory n, Delete Memory n and
Go Back) appear. Press 8
88
8 or 9
99
9 to
choose the option then press SELECT to
choose it.
Edit Memory n — edit the record as
described in Steps 5 through 8 of “Stor-
ing a Number and Name in Memory” on
Page 13.
Delete Memory n — the display
prompts you to confirm the deletion.
Press
8
88
8 or 9
99
9 to move the cursor to
Yes, then press SELECT or DELETE.
The phone beeps, and Memory n
Deleted appears.
Go Back — returns you to the list of
memory numbers.
Reviewing Memory Numbers
To review your memory numbers, press
MEM. The list of memory location numbers
(1–0) appears with the name stored with
each number (or <Memory n> if you did not
store a name).
To see the stored phone numbers, press 7
77
7.
Only the first 13 characters/numbers appear
for number. To see the rest of the number,
press 7
77
7 when the number is on the display.
Press 6
66
6 to return to the name display.
To exit the memory number list, press MEM.
Note: To view the name and number at the
same time, press SELECT when the cursor is
by a memory location number. To exit this
display, hold down DELETE until the display
clears.
Dialing a Memory Number
To dial a number stored in memory, lift the
handset and press MEM. The list of memory
location numbers appears. Choose a memo-
ry location (1–0) by pressing a number or by
repeatedly pressing 8
88
8 or 9
99
9, then press
TALK.
You can also dial a memory number after
pressing
TALK. Press MEM (the display does
not change but the phone’s memory recall
activates), then press the desired memory lo-
cation number.
Chain-Dialing Service Numbers
For quick recall of numbers for special ser-
vices (such as bank-by-phone), store each
group of numbers in its own memory loca-
tion.
Dial the service’s main number first. Then, at
the appropriate place in the call, press MEM
and enter the number for the location where
the additional information is stored.
Testing Stored Emergency Num-
bers
If you store an emergency service’s number
(police department, fire department, ambu-
lance) and you choose to test the stored
number, make the test call during the late
evening or early morning hours to avoid peak
demand periods. Also, remain on the line to
explain the reason for your call.
43-1122.C.fm Page 15 Wednesday, December 13, 2000 1:56 PM
16 Caller ID Operation
ˆ
Caller ID Operation
If you subscribe to Caller ID service from
your phone company, the phone company
sends information about the call, as well as
the time and date, between the first and sec-
ond rings of every call you receive. The
phone displays this information after the sec-
ond ring, and it stores up to 20 Caller ID
records for later review. It also shows if the
caller information is unavailable or if the
name and number were blocked by the caller
(see “Caller ID Messages”).
If you subscribe to Call Waiting with Caller
ID, you hear a tone through the handset
when a call comes in, then the Caller ID
record appears.
If the phone’s Caller ID memory becomes
full, any new call replaces the oldest call’s
record.
IMPORTANT CALLER ID
INFORMATION
To use the phone’s Caller ID and Caller ID
with Call Waiting features, you must be in an
area where those services are available and
you must subscribe to those services
through your local phone company.
Where Caller ID is offered, one or more op-
tions are generally available:
• caller’s number only
• caller’s name only
• caller’s name and number
REVIEWING CALLER ID
RECORDS
If the handset is face-up on the base, it
shows the number of new and total Caller ID
records and lets you view the display for any
new records.
To review the Caller ID records, lift the hand-
set and press CALL ID. The number of new
Caller ID records, if any, and the total num-
ber of records appears. Repeatedly press 9
99
9
to scroll through the Caller ID records from
the newest to the oldest, or 8
88
8 to scroll back
through the records. To scroll quickly through
the records, hold down 8
88
8 or 9
99
9.
The top line of each record shows the date,
time and the number of calls from that num-
ber. The second line shows the caller’s name
(if available), and the third line shows the
caller’s phone number.
Caller ID Messages
Display Description
New: XX
Total: XX
Shows the number of
new Caller ID records
(records you have not
reviewed) and the
total number of
records.
Private Name or
Private Number The caller has
blocked the caller ID
information.
Unknown Name or
Unknown Number The caller is not within
a Caller ID service
area.
Incomplete Data Appears if there was
an error during the
transmission of Caller
ID information. Occa-
sional errors are nor-
mal. If the phone
frequently displays
Incomplete Data, con-
tact your local tele-
phone company or
your local RadioShack
store.
43-1122.C.fm Page 16 Wednesday, December 13, 2000 1:56 PM
17
Caller ID Operation
ADDING/DELETING THE
AREA CODE
The display shows the area code of an in-
coming call, unless the call comes from the
area code you stored (see “Storing Your
Area Code” on Page 11). You can add the
area code to the display or delete it. With the
record displayed, press 3 to add or delete the
area code.
Numbers are stored in memory as they ap-
pear on the display, with or without the area
code. Numbers in Caller ID records remain
the same, even if you add or delete the area
code (to make a call, for example).
DIALING NUMBERS FROM A
CALLER ID RECORD
To dial a local number stored in a Caller ID
record, recall the record, then press TALK.
To add or delete the area code, press 3 be-
fore you press TALK.
If the call is long distance, press 1 (
1 ap-
pears before the displayed number) before
you press TALK.
Note: If a Caller ID record does not contain a
phone number (if it was blocked by the caller,
for example) you cannot dial from that
record.
STORING A CALLER ID
RECORD IN MEMORY
Follow these steps to store the name and
number from a Caller ID record into a memo-
ry location.
1. Press CALL ID then 9
99
9 to recall the
record you want to store. To add or
delete the area code, press 3. If it is a
long distance number, press 1.
2. Press MEM. Select Location
appears.
3. Choose a memory location (1–0) by
pressing a number or by repeatedly
pressing
8
88
8 or 9
99
9, then press SELECT.
If the selected location is empty, the
phone beeps to confirm that it stored the
number, then the Caller ID record
appears.
If a record exists in the selected loca-
tion, Replace Memory? appears,
prompting you to confirm the replace-
ment. Press 8
88
8 or 9
99
9 to move the cursor
to Yes or No, then press SELECT.
DELETING CALLER ID
RECORDS
You can delete Caller ID records individually
or all at once.
Deleting a Single Caller ID Record
Follow these steps to delete a single Caller
ID record.
1. Press CALL ID then 9
99
9 to recall the record
you want to delete.
2. Press DELETE. Delete Message? ap-
pears, prompting you to confirm the deletion.
3. Press 8
88
8 to move the cursor to Yes, then
press SELECT or DELETE. The phone beeps
once, indicating that the record was deleted.
Deleting All Caller ID Records
Follow these steps to delete all Caller ID
records.
1. Press CALL ID so the record totals appear.
2. Press DELETE. Delete All? appears,
prompting you to confirm the deletion.
43-1122.C.fm Page 17 Wednesday, December 13, 2000 1:56 PM
18 Troubleshooting
3. Press 8
88
8 to move the cursor to Yes, then
press SELECT or DELETE. The phone beeps once and TOTAL:00 appears, indicating
that all Caller ID records were deleted.
ˆ
Troubleshooting
We do not expect you to have any problems with your phone, but if you do, these suggestions
might help.
Problem Suggestions
The phone does not
work or works poorly.
Be sure the base’s phone line cord and AC adapter are correctly and securely
connected.
Be sure the battery pack in the handset is connected and charged.
Return the handset to the base for about 5 seconds to reset the security
access-protection code.
The display flashes
slowly when the hand-
set is faceup on the
base.
Make sure the battery pack in the handset is properly connected.
The handset stops
working or works
poorly during a call.
Move the handset closer to the base.
Lift the base’s antenna to a fully vertical position.
Be sure the handset’s battery pack is charged. (If the battery pack power is too
low, the handset cannot display Low Battery.)
Low volume or
unusual sounds.
Someone has picked up another phone on the same line. Hang up the other
phone.
Your conversation is
difficult to hear due to
dropout or muting.
Keep the handset away from computers, remote control toys, wireless micro-
phones, alarm systems, intercoms, room monitors, fluorescent lights, and elec-
trical appliances.
Move to another location or turn off the source of interference.
Press CH to change the channel.
Hang up and redial the number.
The phone cannot be
operated at a useful
distance from the base
because the signal
becomes weak or
noisy (handset’s range
has decreased).
Lift the base’s antenna to a vertical position.
Be sure neither the handset’s nor base’s antenna is touching a metal surface.
Return the handset to the base and recharge the battery pack.
The handset battery
pack does not charge.
Check the charging contacts on the handset and base. If they are dirty, clean
them with a pencil eraser.
Be sure the battery pack is connected correctly.
Be sure the handset is properly seated on the base.
Replace the battery pack.
43-1122.C.fm Page 18 Wednesday, December 13, 2000 1:56 PM
19
Troubleshooting
If you still have problems, disconnect the phone. If other phones on the same line work proper-
ly, the fault is in this phone or its installation. If you cannot find the problem, take the phone to
your local RadioShack store for assistance.
CARE
Keep the phone dry; if it gets wet, wipe it dry immediately. Use and store the phone only in nor-
mal temperature environments. Handle the phone carefully; do not drop it. Keep the phone
away from dust and dirt, and wipe it with a damp cloth occasionally to keep it looking new.
Modifying or tampering with the telephone’s internal components can cause a malfunction and
might invalidate its warranty and void your FCC authorization to operate it. If your telephone is
not performing as it should, take it to your local RadioShack store for assistance. If the trouble
is affecting the telephone lines, the phone company can ask you to disconnect your telephone
until you have resolved the problem.
The handset does not
ring or receive a page.
Move the handset closer to the base.
Lift base’s antenna to a vertical position.
Be sure the battery pack in the handset is connected and charged.
Move the base away from other electrical devices.
You have an incoming
call, but do not receive
any Caller ID informa-
tion.
Let the phone ring twice before you answer so the system has time to record
the Caller ID information.
Check that the system is correctly and securely connected.
Check with your phone company to verify that your Caller ID service is active.
Problem Suggestions
43-1122.C.fm Page 19 Wednesday, December 13, 2000 1:56 PM
43-1122
UCZZ01308BZ
12A00
Printed in China
C
RadioShack Corporation
Fort Worth, Texas 76102
Limited One-Year Warranty
This product is warranted by RadioShack against manufacturing defects in material and workman-
ship under normal use for one (1) year from the date of purchase from RadioShack company-owned
stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN,
RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUD-
ING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIM-
ITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED
HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RE-
SPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY
LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFOR-
MANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, IN-
CLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS
OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limita-
tion of incidental or consequential damages, so the above limitations or exclusions may not apply to
you.
In the event of a product defect during the warranty period, take the product and the RadioShack
sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, un-
less otherwise provided by law: (a) correct the defect by product repair without charge for parts and
labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase
price. All replaced parts and products, and products on which a refund is made, become the prop-
erty of RadioShack. New or reconditioned parts and products may be used in the performance of
warranty service. Repaired or replaced parts and products are warranted for the remainder of the
original warranty period. You will be charged for repair or replacement of the product made after the
expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse,
accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or
maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs
other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as
fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs
of product removal, installation, set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
We Service What We Sell
12/99
