Contents
Welcome/Features 2
Quick Reference Guide 3
Controls and Functions 4
Getting Started
Read this First 6
Checking the Package Contents 7
Setting up the Phone 8
Mounting the Base Unit on a Wall 12
Terminology 13
Setting Menu Options 14
Basics
Making and Receiving Calls 17
Adjusting the Handset Ringer and
Earpiece Volume 18
Redial 19
Tone Dialing Switch-over 19
Traveling Out-of-Range 19
Selecting a Different Channel 20
Page 20
Flash and Call Waiting 20
Memory Dialing
Storing Phone Numbers and Names 21
Steps for Entering Names and Special Characters 23
Making Calls with Memory Dialing 25
Chain Dialing 26
Editing a Stored Name and/or Phone Number 27
Erasing a Stored Name and Phone Number 29
RocketDial
RocketDial 30
Storing and Editing the RocketDial 30
Making Calls with the RocketDial 30
Deleting the RocketDial 31
Caller ID Features
Caller ID 32
When the Telephone Rings 32
Viewing the Caller ID Message List 33
Deleting Information from the Caller ID List 34
Using the Caller ID List 36
Additional Information
Changing the Digital Security Code 38
Installing the Beltclip 38
Headset Installation 38
Note on Power Sources 39
Maintenance 39
Troubleshooting 40
General Information 42
Precautions & Warranty 43
I.C. Notice 45
Index 46
[ 2 ]
Welcome Congratulations on your purchase of the Uniden EXI2246 cordless telephone. This phone
is designed and engineered to exacting standards for reliability, long life, and outstand-
ing performance.
Note: Some illustrations in this manual may differ from the actual unit for
explanation purpose.
The EXI2246 features include AutoTalkTM and AutoStandbyTM. AutoTalk allows you to
answer a call by just removing the handset from the base so you don't have to waste time
pushing buttons or flipping switches. AutoStandby allows you to hang up by simply
returning the handset to the base.
The UltraClear PlusTM true compander circuitry virtually eliminates background noise. This
innovative technology, together with 20 different channels, provides you with the best
possible reception during all your conversations.
To protect you against misbilled calls which might result from your phone being activated
by other equipment, the EXI2246 has Random CodeTM digital security which automatically
selects one of approx. 260,000 digital security codes for the handset and base. Also, the
AutoSecureTM feature electronically locks your phone when the handset is in the base.
RocketDialTM is a one touch speed dial key that automatically dials your most important
or frequently called number. The number dialed, is a preset number stored by the user.
Be sure to visit our web site: www.uniden.com
Features • 2.4 GHz Extended Range Technology
• 3 Line Backlit Display
• Caller ID and Call Waiting Caller ID
• RocketDial
• 10 Number Memory Dialing
• The Keypad Facing Up/Down Charging
• 32 Digit Redial
• Flash and Pause
• English or French Display Option
• Tone/Pulse Dialing
• Page/Find handset
• 7 Hour Talk Time/14 Day Standby Time
• Handset Earpiece and Ringer Volume
Control
• Hearing Aid Compatible
• 20 Channel Autoscan
Uniden®is a registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, UltraClear Plus, Random Code, AutoSecure, and RocketDial are trademarks of
Uniden America Corporation.
As ENERGY STAR®Partner, Uniden has determined that this product or
product models meets the ENERGY STAR®guide lines for energy efficiency.
ENERGY STAR®is a U.S. registered mark.
QUICK REFERENCE GUIDE [ 3]
Step 1 Charging the Battery
TO INSTALL THE HANDSET BATTERY CONNECT TO A PHONE LINE
When the handset battery pack is fully charged,
after 15-20 hours of charging, plug the telephone
cord into the base unit and then into a telephone
wall jack.
Your phone is set for tone dialing. If your local
network requires pulse dialing, please see “Choose
the dialing mode” on page 15.
1Remove the cover.

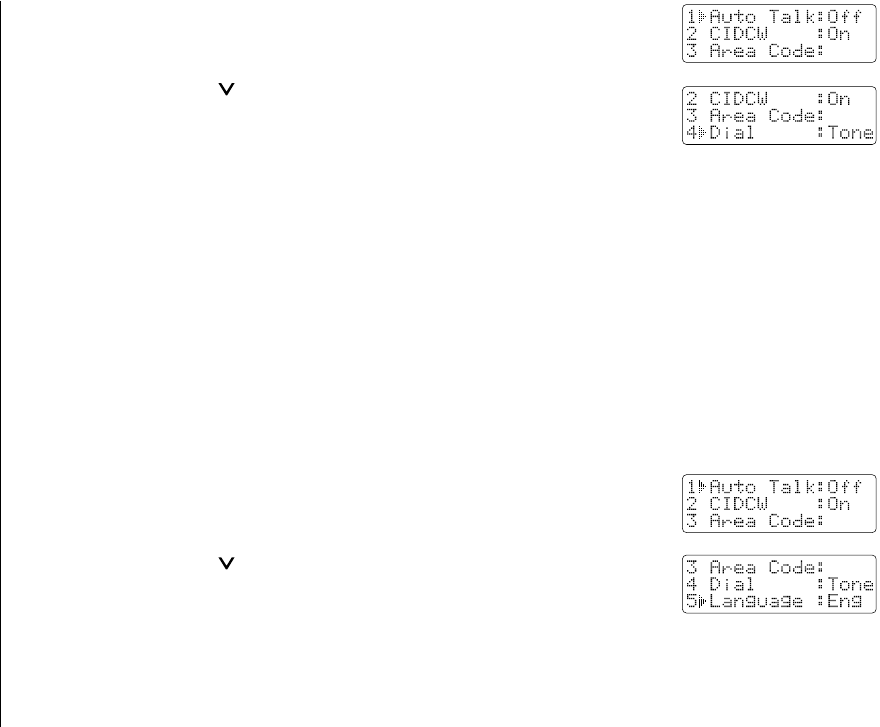

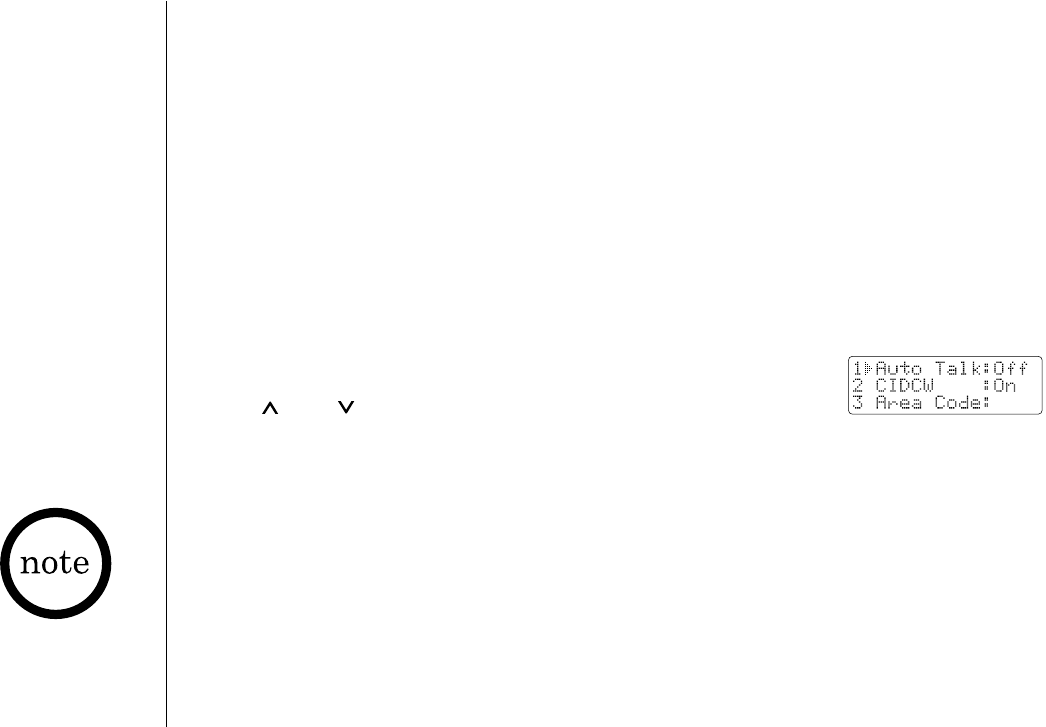

TO CHANGE CALLER ID OPTIONS
1Press and hold cid/menu.
2Press or to move the pointer to an
option.
3Press select to change the option setting.
4Press end and return the handset to the
base.
TO CHOOSE THE LANGUAGE
1Press and hold cid/menu.
2Press or to move the pointer to
Language.
3Press select to select Eng (English) or
Fr. (French).
4Press end and return the handset to the
base.
1Plug AC adapter cord into the base unit
and then into a 120V AC outlet.
2Place the handset on the base.
2Connect the battery pack
connector with the
correct polarity.
3Replace the cover.
TO PLUG INTO AC POWER
Note: You must charge the battery continuously for
15 - 20 hours before using the phone.

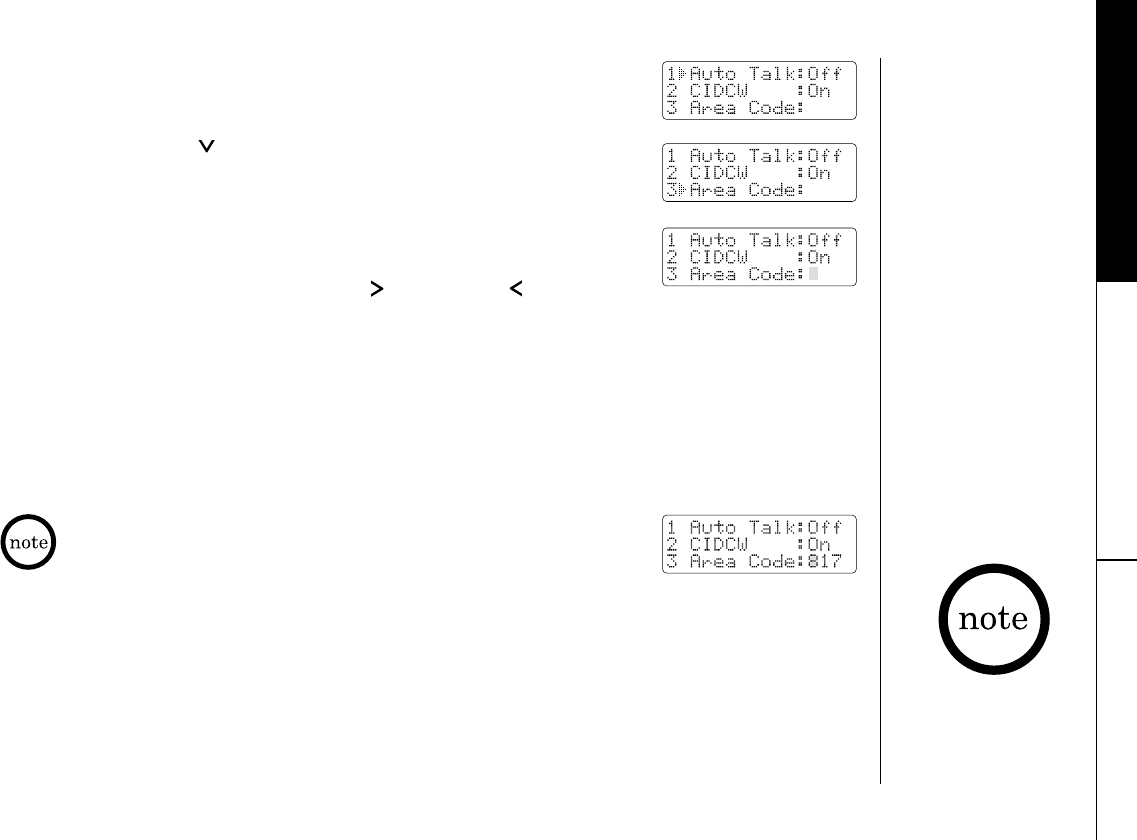

Note: Three Caller ID options are available: AutoTalk,
Caller ID on Call Waiting (CIDCW), and Area Code.
QUICK REFERENCE GUIDE
Step 2 Connecting Step 3
Setting Up the Caller ID/Language

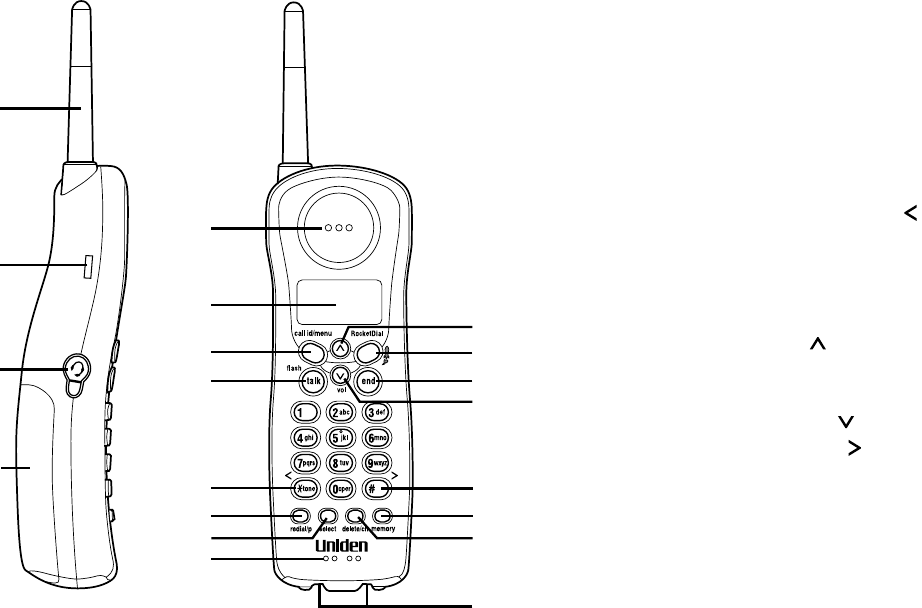

CONTROLS AND FUNCTIONS[ 4 ]
2
3
4
1
5
7
6
8
9
11
20
16
15
14
13
10
12 19
18
17
1. Handset antenna
2. Beltclip holes
3. Optional headset jack
4. Handset battery compartment
5. Handset earpiece
6. LCD display
7. Caller ID/menu key
8. Talk flash key
9. */tone/left cursor ( ) key
10. Redial/pause (p) key
11. Select key
12. Handset microphone and
ringer speaker
13. Volume up ( ) key
14. RocketDial key
15. End key
16. Volume down ( ) key
17. #/right cursor ( ) key
18. Memory key
19. Delete/channel (ch) key
20. Handset charging contacts

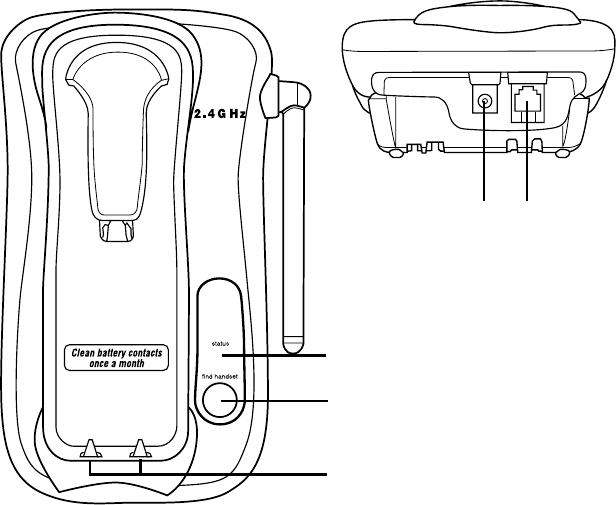

Controls and Functions
21
22
24 25
23
21. Status LED
22. Find handset key
23. Base charging contacts
24. DC IN 9V jack
25. Telephone line jack
CONTROLS AND FUNCTIONS [ 5]
GETTING STARTED[ 6 ]
Read this First
This cordless telephone must be set up before use. Follow these steps:
About the digital security code
This cordless telephone uses a
digital security code to prevent
unauthorized access to your base
unit. This security code prevents
other cordless handset from
making calls through your base
unit.
A random security code will be
assigned automatically between
your base unit and handset when
you charge the battery pack for
the first time.
If you want to reset the security
code, see page 38.
Step 1 (page 7)
Unpack the telephone and accessories.
Step 2 (page 8)
Next, choose the best location to
set up the base unit.
Step 3 (page 9 to 11)
Then, insert the battery pack into
the handset. Connect the base unit.
You must charge the battery pack
for 15-20 hours before plugging
into the telephone line and using
the phone.
GETTING STARTED
GETTING STARTED [ 7]
Checking the Package Contents
Uniden Parts Department at (800) 554-3988
Hours: M-F 7:00 a.m. to 5:00 p.m. CST. We can also be
reached on the web at www.uniden.com
Make sure you have received the following items in the package. If any of these
items are missing or damaged, contact the Uniden Parts Department.
• Base unit
• Handset
• AC adapter
• Rechargeable battery
• Telephone cord
• Beltclip
• This Owner’s Manual
GETTING STARTED[ 8 ]
Setting up the Phone
Do the following steps:
A. Choose the best location C. Connect the base unit
B. Install the battery pack
A. Choose the best location
Before choosing a location for your new phone, read the INSTALLATION
CONSIDERATIONS included in the PRECAUTIONS AND IMPORTANT SAFETY INSTRUCTIONS
brochure. Here are some important guidelines you should consider:
•The location should be close to both a phone jack and a continuous power outlet
which is not switchable.
•Keep the base and handset away from sources of electrical noise such as motors,
microwave ovens, and fluorescent lighting.
•Be sure there is sufficient space to raise the base antenna to a vertical position.
•The base can be placed on a desk, tabletop, or mounted on a standard wall plate.

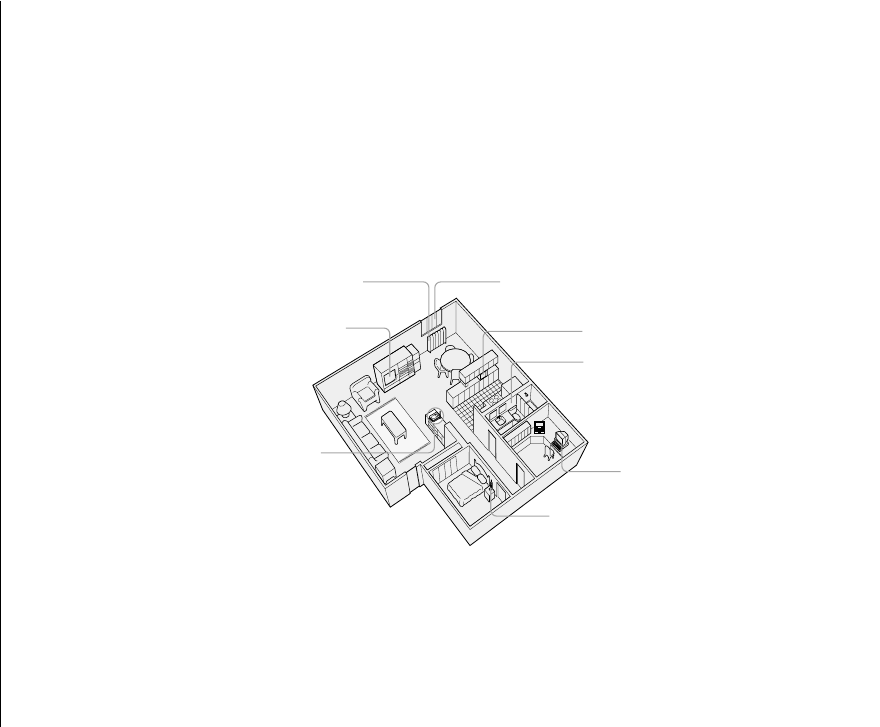

Avoid excessive moisture,
extremely low temperatures,
dust, mechanical vibration, or
shock
Avoid heat sources, such as radiators,
air ducts, and sunlight
Avoid television sets and other
electronic equipment
Avoid noise sources such as a window by a
street with heavy traffic
Avoid microwave ovens
Avoid personal computers
Avoid other cordless telephones
Choose a central location
GETTING STARTED
GETTING STARTED [ 9]

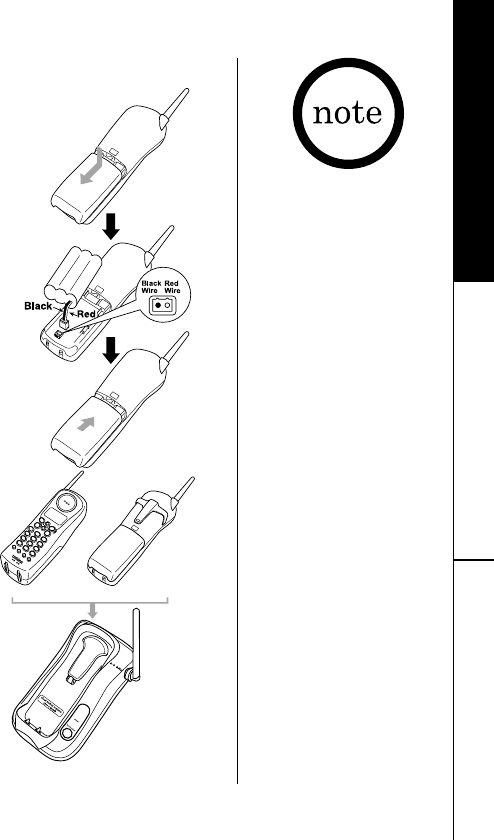

B. Install the battery pack
Charge the battery pack for at least 15-20 hours
before plugging the phone line into your phone.
1) Press in on the battery cover release and slide the cover
down until it comes off.
2) Connect the battery pack connector observing correct
polarity (black and red wires) to the jack inside the
battery compartment.
Do not exert any force on this connection. It could cause
damage to the battery or to the handset. The plastic
connectors will fit together in only one way.
Once you are certain that you have made a good
connection, then insert the battery pack into the battery
compartment. Do not pinch the wires.
3) Securely close the battery compartment cover by sliding
it up until it snaps into place.
4) Place the handset on the base.
Use only the Uniden
battery (BT-905)
supplied with your
phone. Replacement
batteries are also
available through the
Uniden Parts
Department.
(See page 7.)
GETTING STARTED[ 10 ]
Even when the
battery pack is not
being used, it will grad-
ually discharge over a
long period of time. For
optimum performance,
be sure to return the
handset to the base unit
after a telephone call.
Battery use time (per charge)
From fully charged (15-20 hours charge time)
• Seven hours continuous use
• Fourteen days when the handset is in the standby mode

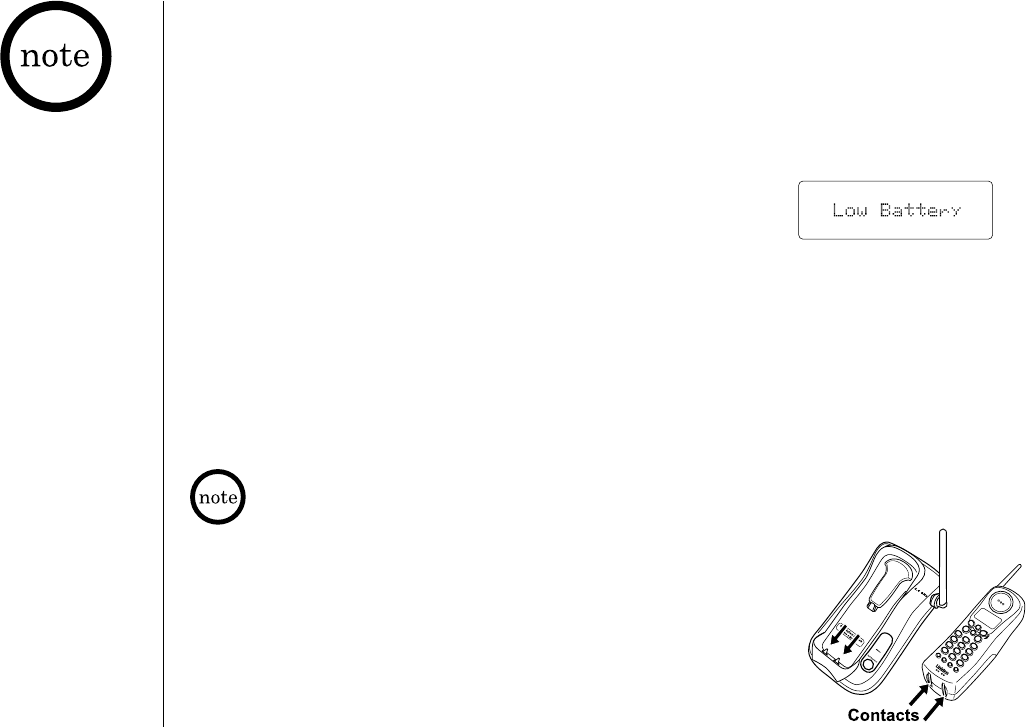

Low Battery Alert
When the battery pack is very low and needs to be
charged, the phone is programmed to eliminate functions
in order to save power. If the phone is not in use,
¨Low Battery¨ appears on the LCD and none of the keys
will operate.
If the phone is in use, ¨Low Battery¨ flashes and the
handset beeps. Complete your conversation as quickly as
possible and return the handset to the base unit
for charging.
Cleaning the Battery Charging Contacts
To maintain a good charge, it is important to clean the
battery contacts on the handset and base unit with a
dry cloth or a pencil eraser about once a month.
Do not use any liquids or solvents.
The last number dialed in the redial memory, the names
and the numbers stored in the memory locations are
retained for up to 30 minutes while you replace the
battery pack.
GETTING STARTED
GETTING STARTED [ 11]
• Use only the supplied AD-310 AC adapter. Do not use any other AC adapter.
• Connect the AC adapter to a continuous power supply.
• Place the base unit close to the AC outlet so that you can unplug the AC adapter easily.
C. Connect the base unit
1) Connect the AC adapter to the DC IN 9V jack
and to a standard 120V AC wall outlet.
2) Set the base on a desk or tabletop, and
place the handset on the base unit.
3) Make sure that the status LED illuminates. If
the LED does not illuminate, check to see
that the AC adapter is plugged in and that the handset makes good contact with
the base charging contacts.
Place the handset in
the base with the
keypad facing forward
for charging.
Place the power cord so
that it does not create a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.
•After installing the battery pack in the handset, charge your handset at least 15-20
hours before plugging into the phone line. Once the handset battery pack is fully
charged, connect the telephone line cord to the base and telephone wall outlet.
4) Connect the telephone line cord to the TEL LINE jack and
to a telephone outlet once the handset is fully charged.
Modular
If your telephone outlet isn't modular,
contact your telephone company
for assistance.
GETTING STARTED[ 12 ]
Mounting the Base Unit on a Wall
Standard wall plate mounting
This phone can be mounted on any standard wall plate.
1) Plug the AC adapter into the DC IN 9V jack.
2) Wrap the AC adapter cord inside the molded
wiring channel as shown.
3) Plug the AC adapter into a standard 120V AC
wall outlet.
4) Plug the telephone line cord into the TEL LINE
jack. Wrap the cord inside the molded wiring
channel as shown.
5) Plug the telephone line cord into the telephone
outlet.
6) Raise the antenna to a vertical position.
7) Align the mounting slots on the base with the mounting posts on the wall. Then
push in and down until the phone is firmly seated.
DO NOT use an AC outlet
controlled by a wall
switch.
GETTING STARTED
GETTING STARTED [ 13]
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone directly to the
wall. Before doing this, consider the following:
•Avoid electrical cables, pipes, or other items behind the mounting location that
could cause a hazard when inserting screws into the wall.
•Try to mount your phone within 5 feet of a working phone jack to avoid excessive
lengths.
•Make sure the wall material is capable of supporting the weight of the base
and handset.
•Use #10 screws (minimum length of 1-3/8 inches) with anchoring devices suitable
for the wall material where the base unit will be placed.
1) Insert two mounting screws into the wall, (with their
appropriate anchoring device), 3-15/16 inches apart. Allow
about 1/8 of an inch between the wall and screw heads for
mounting the phone.
2) Refer to steps 1 through 6 on pages 12 to mount the telephone.
Terminology
Throughout this manual, terms such as Standby and Talk Mode are used. Below is the
terminology explanation.
•Standby Mode - The handset is not in use, off the base, and talk/flash has not
been pressed. A dial tone is not present.
•Talk Mode - The handset is off the base and talk/flash has been pressed enabling
a dial tone.
GETTING STARTED[ 14 ]
Setting Menu Options
There are five setup options available. They are Caller ID options [AutoTalk, CIDCW
(Caller ID on Call Waiting), Area Code], Dial Mode and Language.
AutoTalk allows you to answer the phone without pressing the talk/flash button. If
the phone rings when AutoTalk is on, simply remove the handset from the base and
the phone automatically answers the call. Or if the handset is not on the base, press
any key to answer the call. If the phone rings when AutoTalk is off, you must press
talk/flash to answer the call.
Caller ID options
To change your AutoTalk and CIDCW:
1) Press and hold call id/menu. The following screen appears.
2) Use and or a number key (1 and 2) to move the pointer
to the selection that you would like to change.
Press select to toggle between ¨On¨ and ¨Off¨ for AutoTalk and CIDCW.
3) Press end to complete the setting. Or return the handset to the base unit to
complete the setting. The handset returns to the standby mode.
To enter your Area Code
If you enter a 3-digit area code number in the Area Code option, your local area
code does not appear in Caller ID messages. Do not program this option, if your
calling area requires 10-digit dialing.
When reviewing Caller ID messages, you will see only the local seven digit number.
For calls received from outside your local area code, you will see a full 10-digit number.
If your calling area
requires 10-digit
dialing, do not program
this option.
GETTING STARTED
GETTING STARTED [ 15]
1) When the phone is in the standby mode, press and hold
call id/menu. The Caller ID setting screen appears.
2) Press 3or press twice to select ¨Area Code¨.
3) Press select.
4) Use the number keys (0 to 9), #/ , */tone/ or
delete/ch to enter the 3-digit area code.
5) Press select. A confirmation tone sounds and the displayed area code is entered.
6) Press end to complete the setting. Or return the handset to the base unit to
complete the setting. The handset returns to the standby mode.
When the area code has already been stored in memory, the
stored area code will be displayed. To change it, use the
delete/ch and number keys to enter the new area code. Then
press select. A confirmation tone sounds.
To complete the setting, press end or return the handset to the
base unit.
Choosing the dialing mode
Most phone systems use tone dialing which sends DTMF tones through the phone
lines. However some phone systems still use pulse dialing such as in rural areas. The
default setting is tone dialing. Depending on your dialing system, set the mode as
follows:
Make sure your battery
pack is fully charged
before choosing the
dial mode.
GETTING STARTED[ 16 ]
1) When the phone is in the standby mode, press and hold
call id/menu. The following screen appears.
2) Press 4or press three times to select ¨Dial¨.
3) Press select to toggle between ¨Tone¨ and ¨Pulse¨ for
each setting.
4) Press end to complete the setting. Or return the handset to the base unit to
complete the setting. The handset returns to the standby mode.
•If you are not sure of your dialing system, set for tone dialing. Make a trial call. If
the call connects, leave the setting as is, otherwise set for pulse dialing.
•If your phone system requires pulse dialing and you need to send the DTMF tones for
certain situations during a call, you may "switch-over" to tone dialing. (Refer to
"Tone Dialing Switch-over" on page 19.)
Setting the Language
1) When the phone is in the standby mode, Press and hold
call id/menu. The following screen appears.
2) Press 5or press four times to select ¨Language¨.
3) Press select to toggle between ¨Eng¨ and ¨Fr.¨ for each
setting.
4) Press end to complete the setting. Or return the handset to the base unit to
complete the setting. The handset returns to the standby mode.
BASICS
BASICS [ 17]
Making and Receiving Calls
Pick up the handset (AutoTalk)
or pick up the handset and press
talk/flash.
1) Pick up the handset.
2) Press talk/flash.
3) Listen for the dial tone.
4) Dial the number.
OR
1) Pick up the handset.
2)
Dial the number, then press
talk/flash
.
Press end, or return the handset to
the base (AutoStandby).
1) Pick up the handset.
2) Press talk/flash.
3) Listen for the dial tone.
4) Press redial/p.
OR
1) Pick up the handset.
2) Press redial/P, then press
talk/flash.
Handset On Base Handset Off Base
To answer
a call
To make
a call
To hang up
To redial
Press talk/flash, any number,
*/tone or #/ .
1) Press talk/flash.
2) Listen for the dial tone.
3) Dial the number.
OR
Dial the number, then press
talk/flash.
Press end.
1) Press talk/flash.
2) Listen for the dial tone.
3) Press redial/p.
OR
Press redial/P, then press
talk/flash.
Refer to page 14
"Setting Menu Options"
to turn on the AutoTalk
feature if desired.
BASICS[ 18 ]
Adjusting the Handset Ringer and Earpiece Volume
Handset ringer tone and volume
Press or in standby mode to select one of five ringer
tones and volume combinations.
Earpiece volume
Pressing or during a call will change the earpiece volume
of the handset. This setting will remain in effect after the
telephone call has ended.
Ringer Mute
You can temporarily mute the ringer tone. When the handset is off the base and the
phone is ringing, press end. The ringer tone will return to normal starting with the
next incoming call.
When you press in Maximum mode or in Low mode, an error
tone sounds.
Ring Type A
High
Ring Type A
Low
Ring Type B
High
Ring Type B
Low
Ringer Off
BASICS
BASICS [ 19]
Redial
The redial/p key redials the last number dialed. The redialed number can be up to 32
digits long.
Tone Dialing Switch-over
Some telephone companies use equipment that requires
pulse dialing (sometimes referred to as rotary dialing). If
you need to enter tone dialing digits, you can switch-over
to tone dialing during the call. For example, entering your
bank account number after you have called your bank.
Initially make your call with the pulse dialing mode. Once your call connects, press
*/tone/ . Enter the desired number. These digits will be sent as tone dialing.
Once the call ends, the tone mode is canceled and pulse dialing mode resumes.
Traveling Out-of-Range
During a call, as you begin to move your handset too far from your base unit, noise
increases. If you pass the range limits of the base unit, your call will terminate
within 1 minutes.
• The tone feature only
applies when the dial
mode is set to pulse.
• This special number
can be stored in a
memory location. This
is referred to as Chain
Dialing (See page 26.)
BASICS[ 20 ]
Flash and Call Waiting
If you have "Call Waiting" service and a call waiting tone
sounds while you are on a call, press talk/flash to accept
the waiting call. There is a short pause, then you will hear
the new caller. To return to the original caller, press
talk/flash again.
Page
To locate the handset (while it's off the base), press
find handset on the base. The handset beeps for 60 seconds.
Paging is canceled when pressing any key or the handset is
returned to the base.
Selecting a Different Channel
If you encounter interference while using your phone, you can manually change the
phone´s channel for clear operation. This function works only when the phone is
in use.
Press delete/ch. ¨Scanning¨ appears on the display, indicating the phone is
changing to another channel. For more information on interference, refer to
"Precautions" on page 43.
You can cancel paging
by pressing the find
handset key on
the base.
hints
You must subscribe through your local telephone company to
receive Call Waiting Service.
MEMORY DIALING
MEMORY DIALING [ 21]
Storing Phone Numbers and Names
Memory Dialing allows you to dial a number using just a few key presses. Your
EXI2246 stores up to 10 names/numbers in the handset.
1) Press and hold memory until ¨Memory Store¨ is displayed.
2) Press or , or enter a number (0 - 9) to select the
memory location where you would like to store
the number.
3) Press select. The following screen appears and a cursor
flashes indicating that the display is ready for the name to
be entered.
If this screen appears, the selected memory location is
already stored. Then you must either edit the entry in
this location, delete the entry in this location, or select
¨Go Back¨ to choose another location.
4) To enter a name (up to 14 characters), use the number keys.
• See the "Steps for entering names and special characters". (See pages 23-24)
• Use #/ and */tone/ to move the cursor to the desired location.
• Use delete/ch to delete characters as needed.
• Press and hold delete/ch to delete all the characters.
• If a name is not required, go to step 5.
Memory Store
1
2
Store Name
Edit Memory 1
Delete Memory 1
Go Back
• In memory dialing
operation, you must
press a key within 30
seconds or the phone
will return to standby.
If you return the
handset to the base,
the phone will return
to standby also.
• You have 30 seconds
after pressing
memory to enter the
number you wish to
store. Otherwise, an
error tone will sound.
MEMORY DIALING[ 22 ]
The pause feature is
useful for long distance
calling, credit card
dialing, or sequences
that require a pause
between digits.
5) Press select. ¨Store Number¨ is displayed.
The cursor flashes indicating that the display is ready for
the number to be entered.
6) Use the number keys to enter the phone number.
The phone number cannot exceed 20 digits.
Use redial/p to enter a pause in the dialing sequence.
The display shows a ¨P¨. Each pause counts as one digit and
represents a two second delay of time between the digits.
Use delete/ch to delete digits as needed.
7) Press select. You will hear a confirmation tone, and the
following screen appears. Memory storage is complete.
For example, if you store a name and number into memory
location number 7, the display shows
¨Memory 7 Stored¨.
After about 2 seconds, ¨Memory Store¨ is displayed. Repeat
steps 2 - 7 to store more numbers.
8) Press end to return to standby mode.
Store Number
8002971023
Memory 7 Stored
Memory Store
7 UNIDEN CORP
8 <Memory 8>
Store Number
MEMORY DIALING
MEMORY DIALING [ 23]
Steps for Entering Names and Special Characters
Refer to the letters on the number keys to select the desired characters.
With each press of a numeric key, the displayed character appears in the following
order: Upper case letters first, lower case letters next and finally the number
corresponding to the key.
If you make a mistake while entering a name
Use */tone/ or #/ to move the cursor to the incorrect character. Press
delete/ch to erase the wrong character, then enter the correct character. To delete
all characters, press and hold delete/ch.
Number of times key is pressed
keys 1 2 3 4 5 6 7 8 9
1
ABCabc2
DEFdef3
GHIghi4
JKLjkl5
MNOmno6
PQRSpqrs7
TUVtuv8
WXYZwxyz9
*#-&()(blank) 0
2
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
0
1
MEMORY DIALING[ 24 ]
For example, to enter Uniden;
1) Pick up the handset and press and hold memory.
2) Enter a number or press , to select a memory location number.
3) Press select.
4) Press 8twice.
5) Press 6five times.
6) Press 4six times.
7) Press 3four times, then press #/ to more the cursor to the right.
8) Press 3five times.
9) Press 6five times.
10) When finished, press select.
To continue to store the telephone number, proceed to step 6 on page 22.
If the next character uses the same number key, you must press #/ to move the cursor
over. Otherwise the next time you press the number key, it changes the character that
was previously set.
MEMORY DIALING
MEMORY DIALING [ 25]
Making Calls with Memory Dialing
Memory dialing from Standby Mode
1) Press memory.
The handset displays your programmed
memory locations.
2) Press or , or enter the number (0 - 9) to
select the memory location you would like to dial.
3) Press talk/flash. ¨Talk¨ and the volume setting appear
on the display. Then the displayed number is dialed.
Display a Programmed Number
Use #/and */tone/to toggle between the names display and the numbers
display.
When the stored phone number has 15 or more digits, ¨\¨ is
displayed next to the 13th digit. Press #/ to see the extra
digits and */tone/ to return.
1 UNIDEN CORP
2 JOHN DOE
3 MOM AND DAD
Talk
0123456789012
Program name Program number
1 8002971023
2 5452930
3 8175551212
1 UNIDEN CORP
2 JOHN DOE
3 MOM AND DAD
5 012345678901
6 0118135543290
7
• If you press select
before talk/flash, you
can confirm the name
and the number
stored in the selected
memory location.
• To exit the memory
function without
dialing, press end.
The handset returns
to standby.
• Whenever you are
using a memory menu
screen, you must
press a key within 30
seconds or the phone
will return to standby.
MEMORY DIALING[ 26 ]
Memory dialing from Talk Mode
1) Press talk/flash. ¨Talk¨ and the
volume setting appears.
2) Press memory.
3) Enter a number (0 - 9) to select the memory location of
the desired phone number. The selected phone number is
displayed. Then the number is dialed.
4) To hang up, press end.
Chain Dialing
The memory locations on the handset are not limited to phone numbers. You can also
store a group of numbers (up to 20 digits) that you need to enter once your call
connects. This is referred to as Chain Dialing.
An example of this is a bank account number. Once you have called your bank, and
are prompted to enter the account number, simply press memory and the location
number where the special number has been stored.
Store your special number with an identifying name. (Refer to "Storing Phone
Numbers and Names" on page 21.)
Talk Talk
Volume High
Talk 0:00
Talk 0:35
0123456789012
If you select a memory
location that does not
have a stored number,
the handset will beep
rapidly and the phone
will not dial.
MEMORY DIALING
MEMORY DIALING [ 27]
Editing a Stored Name and/or Phone Number
1) Press and hold memory until ¨Memory Store¨ is displayed.
2) Press or , or enter a number (0 - 9) to select the
memory location you would like to edit.
3) Press select.
The following screen appears with the memory location
number that you have selected in the display.
4) Press or to select ¨Edit Memory¨, then press select.
The following screen appears. The cursor flashes indicating
that the display is ready for the name to be edited. When a
name has not been stored, the cursor appears at the
beginning of the second line.
5) Use the number keys, */tone/ , #/ , or delete/ch to
edit the name. (See page 21.)
To edit only the phone number, skip this step.
6) Press select. The following screen appears.
The cursor flashes indicating that the display is ready for
the number to be edited.
Memory Store
1 UNIDEN CORP
2 JOHN DOE
Edit Memory 2
Delete Memory 2
Go Back
Store Name
UNIDEN CORP
Store Number
8002971023
MEMORY DIALING[ 28 ]
7) Use the number key, redial/p or delete/ch to edit the
phone number.
The phone number cannot exceed 20 digits. (See page 22.)
If you don´t want to change the phone number, skip this step.
8) Press select. You hear a confirmation tone, and the
following screen appears. The memory storage is complete.
For example, if you store a name and number into memory
location number 1, the display shows ¨Memory 1 Stored¨.
After about 2 seconds, ¨Memory Store¨ is displayed.
9) Press end to return to standby mode.
Memory 1 Stored
Memory Store
1 UNIDEN CORP
2 JOHN DOE
MEMORY DIALING
MEMORY DIALING [ 29]
Erasing a Stored Name and Phone Number
1) Press and hold memory until ¨Memory Store¨ is displayed.
2) Press or , or enter a number (0 - 9) to select the
memory location you would like to erase.
3) Press select.
The following screen appears with the memory location
number that you have selected in the display.
4) Press to move the pointer down to ¨Delete Memory¨.
5) Press select. The following confirmation screen appears.
6) Press to move the pointer to ¨Yes¨.
7) Press select or delete/ch.
You hear a confirmation tone, and the following screen
appears.
8) After about 2 seconds, the display returns to the
¨Memory Store¨ screen.
You may delete the information in another memory location
(return to step 2) or press end to return to standby mode.
Memory Store
1 UNIDEN CORP
2 JOHN DOE
Edit Memory 2
Delete Memory 2
Go Back
Edit Memory 2
Delete Memory 2
Go Back
Delete Memory 2?
Yes
No
Memory 2 Deleted
Memory Store
2
3 MOM AND DAD
Memory Store
1 UNIDEN CORP
2 JOHN DOE
ROCKETDIAL[ 30 ]
Edit Number
Delete Number
Go Back
Store Number
Number Stored
RocketDial
You can store your most frequently dialed number in the
RocketDial location. The RocketDial allows you to dial a
number with one key press. (There is no need to press talk.
The phone will automatically dial the number stored.)
Storing and Editing the RocketDial
1) When the phone is in the standby mode, press and hold
RocketDial. Following display appears.
If this screen appears, there is a number already stored.
Press or to select ¨Edit Number¨, then press select.
2) Store the number by following step 6 under "Storing Phone
Numbers and Names" on page 22.
3) Press select.
You hear a confirmation tone, and the following screen
appears. Memory storage is complete.
• If the RocketDial does
not have a stored
number, the handset
will beep rapidly and
the phone will not
dial.
Making Calls with the RocketDial
When the phone is in the standby mode, simply press RocketDial. The number stored
in the RocketDial memory location is instantly dialed.
Store Number
Store Number Store Number
800
• Memory location
for the RocketDial
is independent
from the memory
location for
Memory dial.
ROCKETDIAL
ROCKETDIAL [ 31]
Deleting the RocketDial
1) When the phone is in the standby mode, press and hold
RocketDial. Following display appears.
2) Press or to select ¨Delete Number¨.
3) Press select. Following display appears.
4) Press to move the pointer to ¨Yes¨.
5) Press select or delete/ch.
You hear a confirmation tone, and the following display
appears. After about 2 seconds, the handset returns to
standby mode.
Edit Number
Delete Number
Go Back
Delete Number?
Yes
No
Number Deleted
CALLER ID FEATURES[ 32 ]
Caller ID
You must subscribe to Caller ID service to use this feature.
When the telephone rings, the Caller ID feature allows you to view the caller´s name
and phone number on the display before you answer the phone.
The handset displays the phone number of the incoming call, the name, and time.
Additionally, you can dial the displayed number and store the information for
memory dialing.
Make sure you have turned on the Caller ID/Call Waiting feature. (See page 14.)
When the Telephone Rings
1) When the Caller ID message is received, the display shows the caller´s phone
number along with the date and time. The incoming call information is stored in
the Caller ID record. If the Caller ID service includes the caller´s name, the
caller´s name appears on the display (up to 15 letters).
Here are some typical displays;
5/11 12:30PM
UNIDEN CORP
800-297-1023
The date and
time received
Caller's name
Caller's phone number
When the phone number and
name data are received
When a private number is receivedWhen a private name is received
When invalid data is received
• If you answer a call
before the Caller ID
message is received
(Example: before the
second ring), the
Caller ID message will
not appear.
• When the call is
received via a
telephone company
that does not offer
Caller ID service, the
caller´s phone
number and name do
not appear.
(This includes
international calls.)
• When the call is via a
private branch
exchange (PBX), the
caller´s phone
number and name
may not appear.
CALLER ID FEATURES
CALLER ID FEATURES [ 33]
2) When you pick up the phone, the display changes to ¨Talk¨. (AutoTalk feature is
set to on.)
Viewing the Caller ID Message List
The Caller ID list stores information for up to 30 incoming calls - even
unanswered calls.
1) Press cid/menu.
The summary screen appears.
The screen shows the number of new messages and
total messages.
2) Press to display the latest Caller ID message.
3) Press to see the next message. Or press to see
previous message.
4) Press end to return to standby mode.
When an unknown number is receivedWhen an unknown name is received
Data errors appear as ¨ ¨.
New :01
Total:02
5/17 12:30PM 03
UNIDEN CORP
800-297-1023
• In Caller ID operation,
if no key is pressed for
more than 30 seconds,
an error tone sounds
and the telephone
returns to the
standby mode.
• If a call comes in via a
telephone system that
does not offer Caller ID
service, no information
is stored.
• Each message can be
up to 15 characters
for the phone number
and the name.
• The number of calls
from the same Caller
ID appears next to
the received time.
Once you read the
new message, the
number will
disappear.
CALLER ID FEATURES[ 34 ]
• While using the
¨Delete All?¨ or
¨Delete Message?¨
screen if no key is
pressed for more than
30 seconds, an error
tone sounds and the
telephone returns
to standby.
• If you get an
incoming call or page,
the deleting operation
is canceled and the
telephone returns to
standby so you can
answer the call
or page.
Deleting Information from the Caller ID List
The EXI2246 stores up to 30 messages. If the phone receives the 31st message, the
oldest one in the list is automatically deleted. Caller ID data can also be deleted
manually.
Deleting a Caller ID message
1) Press call id/menu. Display the message to be deleted from
the Caller ID list by pressing or .
2) Press delete/ch.
3) Press or to select ¨Yes¨ or ¨No¨.
4) Press select or delete/ch.
When the pointer is at ¨Yes¨:
A tone sounds and the Caller ID message is deleted.
The next Caller ID message is then displayed.
When the pointer is at ¨No¨:
The display returns to the Caller ID message.
Deleting all Caller ID names/numbers
1) Press call id/menu.
2) Press delete/ch.
5/17 12:30PM 03
UNIDEN CORP
800-297-1023
Delete Message?
Yes
No
New :01
Total:02
Delete All?
Yes
No
CALLER ID FEATURES
CALLER ID FEATURES [ 35]
3) Press or to select ¨Yes¨ or ¨No¨.
4) Press select or delete/ch.
When the pointer is at ¨Yes¨:
A tone sounds and all stored Caller ID messages
are deleted.
When the pointer is at ¨No¨:
The display returns to the summary screen.
Total:00
New :01
Total:02
CALLER ID FEATURES[ 36 ]
Using the Caller ID List
Calling a party from the Caller ID list
You can place a call from the Caller ID list. The EXI2246 stores up to 30 messages.
1) Press call id/menu. Select the phone number that you want
to dial by pressing or .
2) Press talk/flash. The displayed phone number dials
automatically.
Long Distance calls and Area Code Setting/Cancellation
Pressing 1while the incoming Caller ID information is displayed (in step 1) will
place the prefix “1” in the display to set up for a long distance call. Pressing 3will
set or cancel an area code setting.
Dial edit
You can temporarily edit the Caller ID number that is displayed by pressing select.
A cursor appears in the display. Press delete/ch to move the cursor left, make your
changes and then press talk/flash. This will not change the number in the Caller ID
list memory.
If you want to save this new number, store the information in memory.
(See page 37.)
5/17 12:30PM 03
UNIDEN CORP
800-297-1023
Talk
8002971023
• You cannot make a
call from the Caller ID
list if your EXI2246 is
connected to
private branch
exchange (PBX).
• When a long distance
call has been set,
¨1¨ appears in
the display.
CALLER ID FEATURES
CALLER ID FEATURES [ 37]
Storing Caller ID messages in Memory dialing
Messages shown in the Caller ID list can be stored in memory dialing.
Using the incoming call information (i.e., Caller ID list), the phone number of the
party on the Caller ID list can be stored in memory.
1) Press call id/menu.
Select the phone number to be stored from the Caller ID list
by pressing or .
2) Press memory.
3) Press and or enter a number (0 - 9) to select the
memory location to be stored.
4) Press select.
You hear a confirmation tone, and the number is stored in
memory.
The display returns to the Caller ID list.
5/17 12:30PM 03
UNIDEN CORP
800-297-1023
Select Location
1
2 JONE DOE
5/17 12:30PM 03
UNIDEN CORP
800-297-1023
Replace Memory?
Yes
No
If a message has already been stored in the selected memory
number location, a confirmation screen is displayed. Press to
select ¨Yes¨. Press select to overwrite. The display returns to the
Caller ID list.
You can not store a
Caller ID message if no
phone number appears
in the message.
ADDITIONAL INFORMATION[ 38 ]
Changing the Digital Security Code
The digital security code is an identification code used to connect the handset and
the base unit. Normally, setting the code is not necessary.
The first time you charge your handset, the security code is automatically set.
(See "About the digital security code", page 6.)
In the rare situation that you suspect another cordless telephone is using the same
security code, you can change the code.
1) Remove the handset from the base unit. Press and hold find handset on the base.
2) The handset begins emitting a paging sound. While holding find handset, place
the handset on the base unit. The paging sound stops.
Leave the handset on the base for more than 3 seconds. A new random security
code is set.
Installing the Beltclip
To attach the beltclip
Insert the beltclip into the holes on each side of the handset. Press down until it clicks.
To remove the beltclip
Pull both sides of the beltclip to release the tabs from the holes.
Headset Installation
Your phone may be used with an optional headset, the Uniden HS910.
To use this feature, insert headset plug into the headset jack.
Your phone is ready for hands-free conversations.
(Headset may be purchased by calling the Uniden Parts Department or
visiting the web site. See Page 7.)
If the handset battery
pack is completely
discharged or the
battery pack is removed,
the digital security code
will be lost. If this
happens, a new security
code is set
automatically next
time the battery pack
is charged.
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 39]
Note on Power Sources
Battery replacement and handling
When the operating time becomes short, even after a battery is recharged, please replace the battery.
With normal usage, your battery should last about one year.
Please contact your place of purchase or the Uniden Parts Department for a replacement battery.
Warning: To avoid the risk of personal injury or property damage from fire or electrical shock, only use the
Uniden battery model and Uniden adapter model specifically designated for this product.
Power Failure
During the period that the power is off, you will not be able
to make or receive calls with the telephone.
Caution
• Use only specified Uniden battery pack (BT-905).
• Do not remove the battery from the handset to charge it.
• Never throw the battery into a fire, disassemble it, or heat it.
• Do not remove or damage the battery casing.
Caution
Do not use paint thinner,
benzene, alcohol, or other
chemical products.
Doing so may discolor the
surface of the telephone
and damage the finish.
Maintenance
When slightly dirty
Wipe with a soft, dry cloth.
When very dirty
Wipe with a soft cloth that has been dampened with diluted, neutral detergent.
Dry with a dry cloth.
When the charging terminals become dirty
Wipe with a dry cloth or a pencil eraser, if necessary.
(See page 10 for the location of charging terminals.)
ADDITIONAL INFORMATION[ 40 ]
Troubleshooting
If your phone is not performing to your expectations, please try these simple steps first.
Symptom
The status LED won't
illuminate when the
handset is placed in the
base.
The audio sounds weak
and/or scratchy.
Can't make or receive calls.
Suggestion
•Make sure the AC adapter is plugged into the base and wall outlet.
•Make sure the handset is properly seated in base.
•Make sure the charging contacts on the handset and base are clean.
•Make sure that the base antenna is in a vertical position.
•Move the handset and/or base to a different location away from metal
objects or appliances and try again.
•Press delete/ch to help eliminate background noise.
•Make sure that you are not too far from the base.
•Check both ends of the base telephone line cord.
•Make sure the AC adapter is plugged into the base and wall outlet.
•Disconnect the AC adapter for a few minutes, then reconnect it.
•Reset the digital security code (See page 38).
•Make sure that you are not too far from the base.
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 41]
Symptom
The handset doesn't ring or
receive a page.
Severe noise interference.
The Caller ID does not
display.
If you still have a problem.
Suggestion
• The battery pack may be weak. Charge the battery for 15-20 hours.
• The handset may be too far away from the base unit.
• Place the base unit away from appliances or metal objects.
• Reset the digital security code (See page 38).
• Keep the handset away from microwave ovens, computers, remote control
toys, wireless microphones, alarm systems, intercoms, room monitors,
fluorescent lights, and electrical appliances.
• Move to another location or turn off the source of interference.
• The handset was picked up before the second ring.
• The call was placed through a switch board.
• Call your local telephone company to verify your Caller ID service
is current.
• Charge the handset.
• Call our customer hotline at 1-800-297-1023.
ADDITIONAL INFORMATION[ 42 ]
General Information
The phone complies with FCC Parts 15 and 68.
Operating temperature: -10°to 50°C (+14°F to +122°F)
AC Adapter Information
AC Adapter part number: AD-310
Input Voltage: 120V AC 60Hz
Output Voltage: 9V DC 210 mA
Battery Information
Battery part number: BT-905
Capacity: 600 mAH, 3.6V
Battery use time (per charge)
From fully charged
Talk mode duration: 7 hours
Standby mode duration: 14 days
Recharge your phone on a regular basis by returning the handset to the base after each phone call. When
the operating time becomes short, even after the battery is recharged, please replace the battery. With
normal usage, the battery should last about one year.
A replacement Uniden adapter and battery may be purchased at your local Uniden dealer or by contacting
the Uniden Parts Department (800) 554-3988. Hours are from 7:00 a.m. to 5:00 p.m. Central Time, Monday
through Friday. We can also be reached on the web at www.uniden.com
Specifications, features, and availability of optional accessories are all subject to change without prior
notice.
If the handset is left off of the base, the actual Talk mode duration will be reduced respective to the amount of
time the handset is off the base.
[ 43 ]
ADDITIONAL
INFORMATION
Precautions!
Before you read anything else, please observe the following:
Warning!
Uniden America Corporation DOES NOT represent this unit to be water-
proof. To reduce the risk of fire, electrical shock, or damage to the unit,
DO NOT expose this unit to rain or moisture.
Rechargeable Nickel-Cadmium Battery Warning
• This equipment contains a rechargeable nickel-cadmium battery.
• Cadmium is a chemical known to the State of California to cause can-
cer.
• The rechargeable nickel-cadmium battery contained in this equip-
ment may explode if disposed of in a fire.
•Do not short-circuit the battery.
• Do not charge the rechargeable nickel-cadmium battery used in this
equipment in any charger other than the one designed to charge this
battery as specified in the owner’s manual. Using another charger
may damage the battery or cause the battery to explode.
Rechargeable Nickel-Cadmium
Batteries Must Be Recycled or
Disposed of Properly
• Uniden voluntarily participates in an RBRC®
industry program to collect and recycle nickel-cadmium batteries at
the end of their useful life, when taken out of service within the
United States. The RBRC® program provides a convenient alternative
to placing used nickel-cadmium batteries into the trash or municipal
waste stream, which is illegal in some areas.
• Through the RBRC® program, Uniden makes it easy for you to drop
off the used battery at local retailers of replacement nickel-cadmium
batteries. You may also contact your local recycling center for infor-
mation on where to return the used battery. Please call 1-800-8-BAT-
TERY for information on Ni-Cd battery recycling in your area.
Uniden's involvement in this program is part of its commitment to
protecting our environment and conserving natural resources.
• RBRC® is a registered trademark of the Rechargeable Battery
Recycling Corporation.
Important Safety Instructions
When using your telephone equipment, these basic safety precautions
should always be followed to reduce the risk of fire, electrical shock,
and injury to persons:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Use a dry
cloth for cleaning without liquid or aerosol cleaners.
4. Do not use this product near water; for example, near a bathtub,
wash bowl, kitchen sink or laundry tub, in a wet basement, or near a
swimming pool.
5. Do not place this product on an unstable cart, stand, or table. The
telephone may fall, causing serious damage to the unit.
6. Slots and openings in the cabinet and the back or bottom are pro-
vided for ventilation. To protect the product from overheating, these
openings must not be blocked or covered. This product should never
be placed near or over a radiator or heat register. This product
should not be placed in a built-in installation unless proper ventila-
tion is provided.
7. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your dealer or local power com-
pany.
8. Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be damaged by persons walking on it.
9. Do not overload wall outlets and extension cords, as this can result
in the risk of fire or electrical shock.
10. Never push objects of any kind into this product through cabinet
slots, as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electric shock. Never spill liquid
of any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product.
Take it to qualified service personnel when service or repair work is
required. Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrect reassembly can cause electric shock
when the appliance is subsequently used.
12. Unplug this product from the wall outlet and refer servicing to quali-
fied service personnel under the following conditions:
A. When the power supply cord is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally when following the
operating instructions. (Adjust only those controls that are
covered by the operating instructions. Improper adjustment
of other controls may result in damage and will often require
extensive repair work by a qualified technician.)
E. If the product has been dropped or the cabinet has been
damaged.
F. If the product exhibits a distinct change in performance.
13. Do not use the telephone to report a gas leak in the vicinity of the
leak.
Additional Battery Safety Precautions
Caution! To reduce the risk of fire or injury to persons by the bat-
tery, read and follow these instructions:
1. Use only Uniden battery pack specified in the owner’s manual.
2. Do not dispose of the battery pack in a fire. The cell may explode.
Check the nickel-cadmium battery disposal package insert for dispos-
al instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is cor-
rosive and may cause damage to the eyes or skin. It may be toxic if
swallowed.
4. Exercise care in handling the battery in order not to short the bat-
tery with conducting materials such as rings, bracelets, and keys.
The battery or conductor may overheat and cause burns.
5. Charge the battery pack provided with or identified for use with this
product only in accordance with the instructions and limitations
specified in the owner’s manual provided for this product.
6. Observe proper polarity orientation between the battery pack and
battery charger.
SAVE THESE INSTRUCTIONS!
Important Electrical Considerations
Unplug all electrical appliances when you know an electrical storm is
approaching. Lightning can pass through your household wiring and
damage any device connected to it. This phone is no exception.
Warning!
Please do not attempt to unplug any appliance during an electrical
storm.
The FCC Wants You To Know
Changes or modifications to this product not expressly approved by
Uniden, or operation of this product in any way other than as detailed
by the owner’s manual, could void your authority to operate this prod-
uct. The equipment cannot be used on public coin phone service provid-
ed by the telephone company. Connection to party line service is sub-
ject to state tariffs. (Contact the state public utility commission, public
service commission or corporation commission for information.)
Range
Your new phone is designed to achieve the maximum possible range by
transmitting and receiving according to the highest specifications set
forth by the FCC. We have rated this phone to operate at a maximum
distance with the qualification that the range depends upon the envi-
ronment in which the telephone is used. Many factors limit range, and it
would be impossible to include all the variables in our rating. The
Maximum Range rating of this phone is meant to be used as a means of
comparison against other range claims.
Telephone Line Problems
The FCC has granted the telephone company the right to disconnect ser-
vice in the event that your phone causes problems on the telephone
line. Also, the telephone company may make changes in facilities and
services which may affect the operation of your unit. However, your
telephone company must give adequate notice in writing prior to such
actions to allow you time for making necessary arrangements to contin-
ue uninterrupted service.
If you are having trouble with your telephone service, you must first
disconnect your phone to determine if it is the cause of your problem. If
you determine that it is the cause, you must leave it disconnected until
the trouble has been corrected.
Radio Interference
Radio interference may occasionally cause buzzing and humming in your
cordless handset, or clicking noises in the base. This interference is
caused by external sources such as TV, refrigerator, vacuum cleaner, flu-
orescent lighting, or electrical storm. Your unit is NOT DEFECTIVE. If
these noises continue and are too distracting, please check around your
home to see what appliances may be causing the problem. In addition,
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instruc-
tions in the literature accompanying the appliance.
ADDITIONAL INFORMATION[ 44 ]
we recommend that the base not be plugged into a circuit that also
powers a major appliance because of the potential for interference. Be
certain that the antenna on the unit is fully extended when needed.
In the unlikely event that you consistently hear other voices or distract-
ing transmissions on your phone, you may be receiving radio signals
from another cordless telephone or other source of interference. If you
cannot eliminate this type of interference, you need to change to a dif-
ferent channel.
Finally, it should be noted that some cordless telephones operate at fre-
quencies that may cause interference to nearby TVs and VCRs. To mini-
mize or prevent such interference, the base of the cordless telephone
should not be placed near or on top of a TV or VCR. If interference is
experienced, moving the cordless telephone farther away from the TV or
VCR will often reduce or eliminate the interference.
More Than One Cordless Telephone
If you want to use more than one cordless telephone in your home, they
must operate on different channels. Press the channel key to select a
channel that provides the clearest communication.
Cordless Telephone Privacy
Cordless telephones are radio devices. Communications between the
handset and base of your cordless telephone are accomplished by means
of radio waves which are broadcast over the open airways. Because of
the inherent physical properties of radio waves, your communications
can be received by radio receiving devices other than your own cordless
telephone unit. Consequently, any communications using your cordless
telephone may not be private.
Installation Considerations
Selecting a Location
Before choosing a location for your new phone, there are some impor-
tant guidelines you should consider:
• The location should be close to both a phone jack and continuous
power outlet. (A continuous power outlet is an AC outlet which does
not have a switch to interrupt its power.)
• Keep the base and handset away from sources of electrical noise
such as motors or fluorescent lighting.
• Be sure there is sufficient space to fully extend the base antenna.
• The base can be placed on a desk or tabletop or mounted on a stan-
dard telephone wall plate.
• You should charge your new phone for 15-20 hours before complet-
ing the installation or using the handset.
Telephone Line Outlets
There are two types of phone outlets:
Modular Jack
Most phone equipment available now uses modular jacks. Phone cords
are fitted with a molded plastic connector which plugs into this type of
jack. If you do not have modular phone jacks, contact your local tele-
phone company for information about their installation.
Hardwired Jack
Some equipment is wired directly to a phone jack, and these types of
installations require a modular jack converter. This type of installation is
not difficult; however, you should contact your Uniden telephone dealer
or a telephone supply store for advice about the proper adapter or con-
verter for your particular situation.
Connecting the Telephone Cords
Consider these safety guidelines before connecting the telephone cords:
Caution!
• Never install telephone wiring during a lightning storm.
• Never touch uninsulated telephone wires or terminals unless the tele-
phone line has been disconnected.
• Use caution when installing or modifying telephone lines.
Applying Power to the Base
This phone requires an AC outlet, without a switch to interrupt power,
and the included AC adapter. To relieve strain on the DC plug when the
phone is placed on a desk or table, wrap the power cord around the
strain relief notch on the bottom of the base.
NOTE: Place the power cord so that it does not create a trip
hazard, or where it could become chafed and create a fire
or other electrical hazards.
Adapter Safety Features
If the AC adapter furnished with this phone has a polarized line plug (a
plug having one blade wider than the other), this plug will fit into the
power outlet only one way. If you are unable to insert the plug fully
into the outlet, try reversing the plug.
Do not alter the shape of the blades of the polarized plug!
NOTE: If you cannot plug the AC adapter into the outlet, con-
tact someone about replacing the outlet.
Plug the AC Adapter into a standard 120 VAC wall outlet.
Do not use an outlet controlled by a wall switch.
Use only the Uniden AC Adapter supplied with this phone.
One Year Limited Warranty
Important:Evidence of original purchase is required for warranty ser-
vice.
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original
retail owner, this Uniden Product to be free from defects in materials
and craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate
and be of no further effect 12 months after the date of original retail
sale. The warranty is invalid if the Product is (A) damaged or not main-
tained as reasonable or necessary, (B) modified, altered, or used as part
of any conversion kits, subassemblies, or any configurations not sold by
Uniden, (C) improperly installed, (D) serviced or repaired by someone
other than an authorized Uniden service center for a defect or malfunc-
tion covered by this warranty, (E) used in any conjunction with equip-
ment or parts or as part of any system not manufactured by Uniden, or
(F) installed or programmed by anyone other than as detailed by the
owner’s manual for this product.
STATEMENT OF REMEDY: In the event that the product does not conform
to this warranty at any time while this warranty is in effect, warrantor
will either, at its option, repair or replace the defective unit and return
it to you without charge for parts, service, or any other cost (except
shipping and handling) incurred by warrantor or its representatives in
connection with the performance of this warranty. Warrantor, at its
option, may replace the unit with a new or refurbished unit. THE LIMIT-
ED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY
PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL
OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS,
IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT LIM-
ITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR PRO-
VIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSE-
QUENTIAL DAMAGES. Some states do not allow this exclusion or limita-
tion of incidental or consequential damages so the above limitation or
exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state. This warranty
is void outside the United States of America.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after fol-
lowing the instructions in the owner’s manual you are certain that the
Product is defective, pack the Product carefully (preferably in its origi-
nal packaging). The Product should include all parts and accessories
originally packaged with the Product. Include evidence of original pur-
chase and a note describing the defect that has caused you to return it.
The Product should be shipped freight prepaid, by traceable means, to
warrantor at:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd. Fort Worth, TX 76155
(800) 297-1023, 8 a.m. to 5 p.m. Central, Monday through Friday
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 45]
I.C. Notice
Notice: The Industry Canada label identifies certified equipment. This certification means that the
equipment meets certain telecommunications network protective, operational and safety requirements as
prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department
does not guarantee the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the
facilities of the local telecommunications company. The equipment must also be installed using an
acceptable method of connection. The customer should be aware that compliance with the above
conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by the supplier.
Any repairs or alterations made by the users of this equipment, or equipment malfunctions, may give
the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility,
telephone lines and internal metallic water pipe system, if present, are connected together.
This precaution may be particularly important in rural areas.
Caution: Users should not attempt to make such connections themselves, but should contact the
appropriate electric inspection authority, or electrician, as appropriate.”
Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of
the maximum number of terminals allowed to be connected to a telephone interface. The termination on an
interface may consist of any combination of devices subject only to the requirement that the sum of the
Ringer Equivalence Numbers of all the devices does not exceed 5.
