Radio Shack 6301123 Remote Door Bell (Receiver) User Manual www RadioShack with CircleR eps
RadioShack Corporation Remote Door Bell (Receiver) www RadioShack with CircleR eps
Users Manual
© 2002 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com are trademarks
used by RadioShack Corporation.
63-1123
OWNER’S MANUAL — Please read before using this equipment.
Thank you for purchasing the RadioShack
Single Bell Wireless Door Chime. It works as
a doorbell, remote pager, or an alert. You
can add an optional external sensor to have
a chime that alerts you when someone
walks into a room. The door chime’s three-
position channel switch helps prevent other
transmitters or radio devices from sounding
the chime.
/1706+0)"6*'"
64#05/+66'4"
1. Remove the transmitter from the holder.
2. Use the holder as a template to mark
two screw holes on the wall.
3. Remove the holder from the mounting
surface and drill two 3/16 inch diameter
holes. Insert one of the supplied
anchors into each hole.
4. Drive a screw through the holder into
each hole.
5. The transmitter can be slid in and out of
the holder. To lock the transmitter, fix it
with a size M2.6 screw at the bottom of
the holder.
+056#..+0)"
$#66'4+'5"#0&"
5'.'%6+0)"%*#00'.5
The door chime requires three AAA batteries
in the transmitter and three C batteries in the
receiver. For best performance and longest
life, we recommend RadioShack alkaline
batteries. .
..
.
+0"6*'"64#05/+66'4
1. Slide the transmitter's battery
compartment door in the direction of the
arrow to remove it.
2. Use a small flat-blade screwdriver to
slide the switch inside the battery
compartment to the desired channel for
the transmitter.
3. Install three AAA batteries as indicated
by the polarity symbols (+ and –)
marked inside.
4. Replace the compartment door. If the
transmitter's LED indicator dims,
replace the batteries.
+0"6*'"4'%'+8'4
1. Slide the receiver's battery
compartment door in the direction of the
arrow to remove it.
2. Slide the switch inside the battery
compartment to select the same
channel for the receiver as is selected
for the transmitter. ±
3. Install three C batteries as indicated by
the polarity symbols (+ and –) marked
inside.
4. Replace the compartment door. If the
receiver's LED flashes with a short
beep tone, replace its batteries.
#"+/2146#06"#
If an icon appears at the end of a paragraph,
go to the box on that page with the
corresponding icon for pertinent information.
Rý— Warning °
°°
° — Hint
.
..
. — Caution ± — Note
# — Important

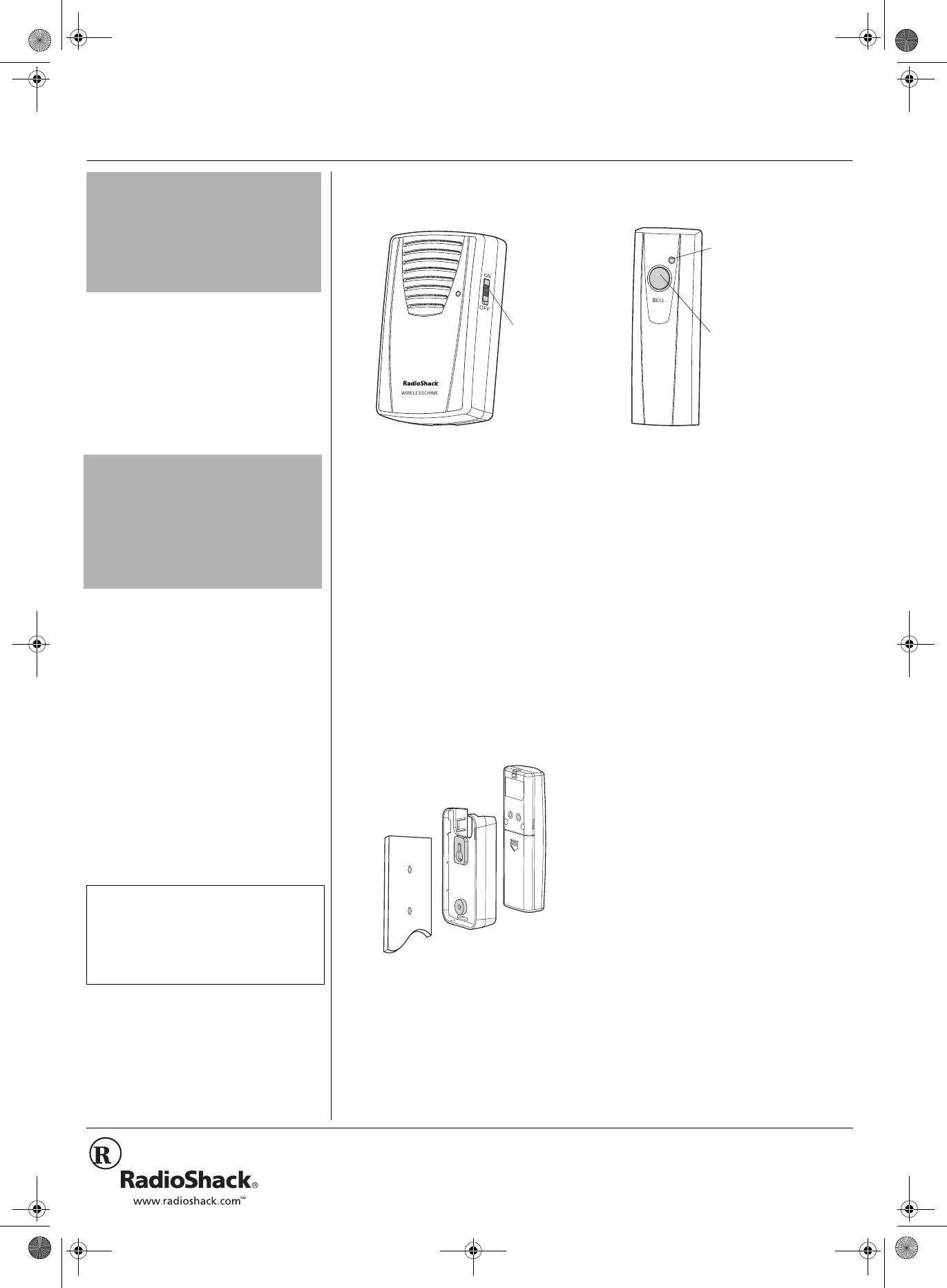

Receiver Transmitter
Slide ON/OFF to ON
so that when BELL
is pressed on the
transmitter, a door
chime sounds.
BELL — Press BELL
to hear the door
chime.
Indicator — Lights when
BELL is pressed.
."%#76+10".
• Use only fresh batteries of the required size
and type. Always remove old or weak
batteries. They can leak chemicals that
destroy electronic circuits
• Do not mix old and new batteries, different
types of batteries (standard, alkaline, or
rechargeable), or rechargeable batteries of
different capacities.
."%#76+10".
• Use only fresh batteries of the required size
and type. Always remove old or weak
batteries. They can leak chemicals that
destroy electronic circuits
• Do not mix old and new batteries, different
types of batteries (standard, alkaline, or
rechargeable), or rechargeable batteries of
different capacities.
±"016'"±"
The channel settings must be the same for the
transmitter and the receiver. If the door chime
occasionally sounds without anyone pressing
BELL, change the channel settings for both
the transmitter and receiver.
5KPING"$GNN"9KTGNGUU"&QQT"%JKOG
63-1123.fm Page 1 Thursday, June 6, 2002 12:41 PM
63-1123
AO0113AAA1
06A02
Printed in China
RadioShack Corporation
Fort Worth, Texas 76102
12'4#6+10
Slide ON/OFF on the receiver to ON. When
BELL is pressed on the transmitter, the
transmitter’s indicator lights and the door
chime sounds. ±
':6'40#."5'0514"
There are two holes on the back of the
transmitter that can be used to connect an
optional external sensor (avilable at your
local RadioShack store).
6*'"(%%"9#065";17"
61"-019
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the
FCC
Rules
. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Consult your local RadioShack store or
an experienced radio/TV technician for
help.
• If you cannot eliminate the interference,
the FCC requires that you stop using
your door chime.
Changes or modifications not expressly
approved by RadioShack may cause
interference and void the user’s authority to
operate the equipment.
52'%+(+%#6+105
Frequency ........................433.92 MHz ± 600KHz
Transmitter current consumption...............<10mA
Receiver current consumption...<2mA @ standby
< 85mA @ sound playing
Receiver battery low.......................... 2.4V ± 0.1V
Receiver audio power...............> 80dBA @ 25cm
Transmitter operating
temperature ..................................–20°C to 60°C
(–4°F to 140°F)
Specifications are typical; individual units might
vary. Specifications are subject to change without
notice.
±"016'"±"
•Press BELL until the transmitter’s indicator
lights. Otherwise, the receiver may not work
properly.
• If you don't want to hear the door chime,
slide ON/OFF on the receiver to OFF.
