OWNER’S MANUAL — Please read before using this equipment.
Thank you for purchasing the RadioShack
Single Bell Wireless Door Chime. It works as
a doorbell, remote pager, or an alert. You
can add an optional external sensor to have
a chime that alerts you when someone
walks into a room. The door chime’s three-
position channel switch helps prevent other
transmitters or radio devices from sounding
the chime.
/1706+0)"6*'"
64#05/+66'4"
1. Remove the transmitter from the holder.
2. Use the holder as a template to mark
two screw holes on the wall.
3. Remove the holder from the mounting
surface and drill two 3/16 inch diameter
holes. Insert one of the supplied
anchors into each hole.
4. Drive a screw through the holder into
each hole.
5. The transmitter can be slid in and out of
the holder. To lock the transmitter, fix it
with a size M2.6 screw at the bottom of
the holder.
+056#..+0)"
$#66'4+'5"#0&"
5'.'%6+0)"%*#00'.5
The door chime requires three AAA batteries
in the transmitter and three C batteries in the
receiver. For best performance and longest
life, we recommend RadioShack alkaline
batteries. .
..
.
+0"6*'"64#05/+66'4
1. Slide the transmitter's battery
compartment door in the direction of the
arrow to remove it.
2. Use a small flat-blade screwdriver to
slide the switch inside the battery
compartment to the desired channel for
the transmitter.
3. Install three AAA batteries as indicated
by the polarity symbols (+ and –)
marked inside.
4. Replace the compartment door. If the
transmitter's LED indicator dims,
replace the batteries.
+0"6*'"4'%'+8'4
1. Slide the receiver's battery
compartment door in the direction of the
arrow to remove it.
2. Slide the switch inside the battery
compartment to select the same
channel for the receiver as is selected
for the transmitter. ±
3. Install three C batteries as indicated by
the polarity symbols (+ and –) marked
inside.
4. Replace the compartment door. If the
receiver's LED flashes with a short
beep tone, replace its batteries.
#"+/2146#06"#
If an icon appears at the end of a paragraph,
go to the box on that page with the
corresponding icon for pertinent information.
Rý— Warning °
°°
° — Hint
.
..
. — Caution ± — Note
# — Important

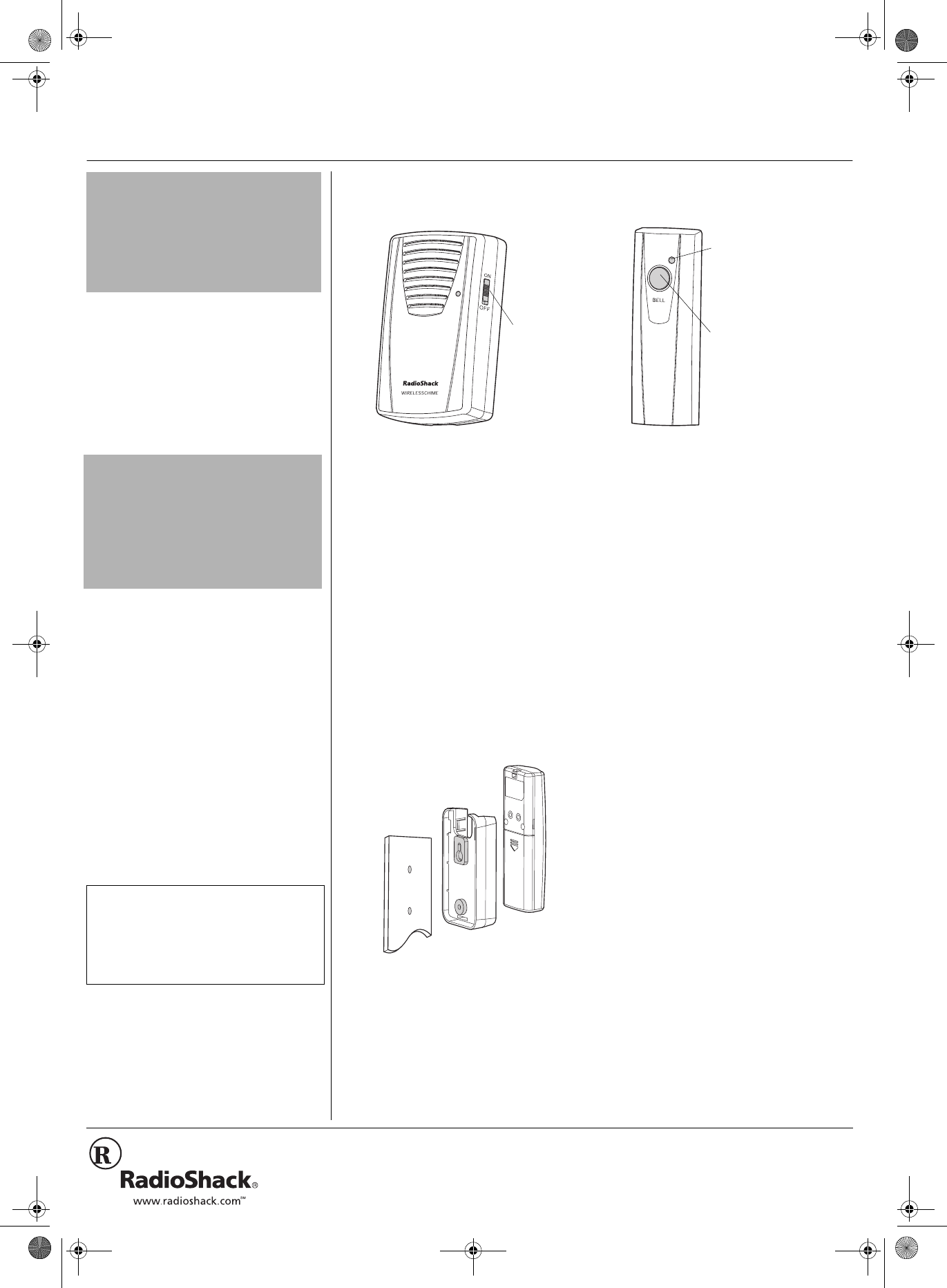

Receiver Transmitter
Slide ON/OFF to ON
so that when BELL
is pressed on the
transmitter, a door
chime sounds.
BELL — Press BELL
to hear the door
chime.
Indicator — Lights when
BELL is pressed.
."%#76+10".
• Use only fresh batteries of the required size
and type. Always remove old or weak
batteries. They can leak chemicals that
destroy electronic circuits
• Do not mix old and new batteries, different
types of batteries (standard, alkaline, or
rechargeable), or rechargeable batteries of
different capacities.
."%#76+10".
• Use only fresh batteries of the required size
and type. Always remove old or weak
batteries. They can leak chemicals that
destroy electronic circuits
• Do not mix old and new batteries, different
types of batteries (standard, alkaline, or
rechargeable), or rechargeable batteries of
different capacities.
±"016'"±"
The channel settings must be the same for the
transmitter and the receiver. If the door chime
occasionally sounds without anyone pressing
BELL, change the channel settings for both
the transmitter and receiver.
5KPING"$GNN"9KTGNGUU"&QQT"%JKOG
63-1123.fm Page 1 Thursday, June 6, 2002 12:41 PM
63-1123
AO0113AAA1
06A02
Printed in China
RadioShack Corporation
Fort Worth, Texas 76102
12'4#6+10
Slide ON/OFF on the receiver to ON. When
BELL is pressed on the transmitter, the
transmitter’s indicator lights and the door
chime sounds. ±
':6'40#."5'0514"
There are two holes on the back of the
transmitter that can be used to connect an
optional external sensor (avilable at your
local RadioShack store).
6*'"(%%"9#065";17"
61"-019
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the
FCC
Rules
. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Consult your local RadioShack store or
an experienced radio/TV technician for
help.
• If you cannot eliminate the interference,
the FCC requires that you stop using
your door chime.
Changes or modifications not expressly
approved by RadioShack may cause
interference and void the user’s authority to
operate the equipment.
52'%+(+%#6+105
Frequency ........................433.92 MHz ± 600KHz
Transmitter current consumption...............<10mA
Receiver current consumption...<2mA @ standby
< 85mA @ sound playing
Receiver battery low.......................... 2.4V ± 0.1V
Receiver audio power...............> 80dBA @ 25cm
Transmitter operating
temperature ..................................–20°C to 60°C
(–4°F to 140°F)
Specifications are typical; individual units might
vary. Specifications are subject to change without
notice.
±"016'"±"
•Press BELL until the transmitter’s indicator
lights. Otherwise, the receiver may not work
properly.
• If you don't want to hear the door chime,
slide ON/OFF on the receiver to OFF.
Limited One-Year Warranty
This product is warranted by RadioShack against manufacturing defects in material and workman-
ship under normal use for one (1) year from the date of purchase from RadioShack company-owned
stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN,
RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUD-
ING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIM-
ITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED
HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RE-
SPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY
LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFOR-
MANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, IN-
CLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS
OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limita-
tion of incidental or consequential damages, so the above limitations or exclusions may not apply to
you.
In the event of a product defect during the warranty period, take the product and the RadioShack
sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, un-
less otherwise provided by law: (a) correct the defect by product repair without charge for parts and
labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase
price. All replaced parts and products, and products on which a refund is made, become the prop-
erty of RadioShack. New or reconditioned parts and products may be used in the performance of
warranty service. Repaired or replaced parts and products are warranted for the remainder of the
original warranty period. You will be charged for repair or replacement of the product made after the
expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse,
accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or
maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs
other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as
fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs
of product removal, installation, set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
12/99
63-1123.fm Page 2 Thursday, June 6, 2002 12:41 PM
This device complies with Part 15 of the
FCC Rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful
interference, and (2) This device must
accept any interference received,
including interference that may cause
undesired operation.
