15-2107

Owner’s Manual

Please read before using this equipment.

8-In-One Touch Screen

Remote Control

2

ˆ

Read This First

FCC STATEMENT

This device complies with Part 15 of

FCC Rules

. Opera-

tion is subject to the following two conditions: (1) this de-

vice may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

Changes or modifications not expressly approved by the

party responsible for compliance void the user’s authori-

ty to operate the equipment.

© 2001 RadioShack Corporation.

All Rights Reserved.

RadioShack and RadioShack.com are

trademarks used by RadioShack Corporation.

U.S.Patents 5,414,761; 5,552,917; 5,228,077; 5,255,313; 5,698,353; 5,959,751;

5,515,052; 5,537,463; 5,614,906; 6,014,092. Other patents pending.

3

ˆ

Contents

Features ..................................................................... 5

A Quick Look at the Keys ........................................ 6

The Hard Keys ....................................................... 6

The Touch Screen Keys ......................................... 7

Touch Screen Organization ................................ 7

AMP (Audio Amplifier) Controls ......................... 9

CAB (Cable Box) Controls ............................... 10

CD (CD Player) Controls .................................. 10

DVD (DVD Player) Controls ............................. 11

HOME (Home Automation) Controls ................ 12

LDP (Laser Disc Player) Controls .................... 13

MISC (Miscellaneous Audio Service)

Controls ............................................................ 14

SAT (Satellite Receiver) Controls ..................... 15

TAPE (Audio Cassette) Controls ...................... 16

TUN (Audio Receiver) Controls ....................... 17

TV (Television) Controls ................................... 18

VCR (Video Cassette Recorder) Controls ........ 19

VID (Video Accessory) Controls ....................... 20

Preparation .............................................................. 21

Installing Batteries ................................................ 21

Setting the Clock .................................................. 22

Adjusting Sound ................................................... 23

Setting Up The Remote ........................................ 23

Manufacturer Code Search .................................. 25

Programming Favorite Channel Scan .................. 26

Programming Macros ........................................... 28

Deleting a Macro .............................................. 29

Programming Home Theater Mode ...................... 29

Control Groups ................................................. 30

Device Groups ................................................. 30

Setting Up Home Theater ................................ 30

Programming Home Theater Macros ............... 32

Programming a Timed Macro Sequence .............. 33

Operation ................................................................. 36

Selecting a Device ................................................ 36

Controlling a Selected Device .............................. 36

Using Channel Scan ............................................. 37

Using Favorite Channel Scan ............................... 37

Using a Macro ...................................................... 37

4

Using Home Theater ............................................ 38

Using a Timed Macro Sequence .......................... 38

Using Volume Lock .............................................. 38

Locking the Volume ......................................... 39

Unlocking the Volume ...................................... 39

Using Learning ..................................................... 40

Learning a Function ......................................... 40

Deleting a Learned Function ........................... 42

Using Key Mover .................................................. 42

Moving a Key ................................................... 43

Deleting a Moved Key ..................................... 43

Using Operation Reset ......................................... 44

Troubleshooting ..................................................... 46

Care ..................................................................... 46

Manufacturers’ Codes ............................................ 47

Amplifier Codes ............................................... 47

Audio Cassette Device Codes ......................... 47

Audio Receiver Codes ..................................... 48

Cable Box Codes ............................................. 49

CD Player Codes ............................................. 51

DVD Player Codes .......................................... 53

Home Automation Codes ................................ 54

LD (Laser Disc) Player Codes ......................... 54

Miscellaneous Audio Codes ............................ 55

Satellite Receiver Codes ................................. 55

TV Codes ......................................................... 56

TV/VCR Combo Codes ................................... 60

VCR Codes ...................................................... 61

Video Accessory Codes ................................... 66

Specifications ......................................................... 67

5

Features

ˆ

Features

Your RadioShack 8-In-One Touch Screen Remote Con-

trol is an advanced universal remote control with touch

screen control of up to eight home entertainment devic-

es.

Its features include:

Key Mover — allows keys to be copied from one device

to another, or to a different position in the same device

mode.

Home Theater Feature — lets you combine different

device applications under one convenient mode.

Learning — lets you add missing or unique functions

from other remote controls.

Programmable Macro Keys — can be programmed

with up to 15 keystrokes each to perform repetitive tasks

with the press of one key.

Extensive Searchable Code Library — contains re-

mote control codes for most available brands, as well as

discontinued devices.

Favorite Channel Scan — lets you preview favorite

channels.

Automatic Backlighting — changes the illumination in

response to tilt movement and ambient lighting.

Easy Device Setup — can be programmed by device

code or by library search.

Real-Time Clock and Timed Macro Sequences — for

away-from-home device control.

Powerful Infrared Beam — lets you operate your home

entertainment devices from a greater distance than with

many of the original remote controls.

Non-Volatile Memory — retains programming even

when the batteries are removed.

6A Quick Look at the Keys

ˆ

A Quick Look at the

Keys

This section contains a listing of all the remote’s keys for

all available devices that can be setup using this remote

control.

For your device, not every function may be available or

have the same name. For operation details on remote

control keys, refer to the devices’ owner’s manuals.

THE HARD KEYS

The most-often used remote control functions are as-

signed to hard keys and are located below the touch

screen. A beep sounds each time you press a hard key.

If desired, the beep can be disabled (see “Adjusting

Sound” on Page 23).

If a pressed key issues an IR signal, the red light blinks

and — flashes.

Note: If the Macro (1M, 2M, and 3M) keys have not been

programmed, the red light and — do not flash.

After you select a device, aim the remote control at the

device and use the hard keys as follows:

Key Function

POWER Use to turn the selected device on or

off.

VOL+/ – Use to adjust the volume level of the

selected device.

MUTE Use to mute or restore the volume of

the selected device.

CH+/– Use to change to the next higher (or

lower) channel of the selected device.

7

A Quick Look at the Keys

THE TOUCH SCREEN KEYS

The remote control features a touch screen organized as

a grid of soft keys (keys that change function via soft-

ware) and respond to touch commands.

Each time you touch a soft key, a beep sounds, confirm-

ing your command. When you touch a device key (TV,

VCR/DVD, CAB/SAT, RECVR, AUX 1, AUX 2, AUX 3, or

AUX 4) a double beep sounds. If you touch a key in error,

a higher-pitched beep sounds and ?DL7B?:

?DL7B?:?DL7B?:

?DL7B?: appears. If a

pressed key issues an IR signal, the red light blinks and

— flashes.

Note: You can disable the beep (see “Adjusting Sound”

on Page 23).

Touch Screen Organization

The touch screen has two groups of keys: Remote Con-

trol Function Keys and Mode Keys.

Remote Control Function Keys — Use to remotely

control a selected device. The keys function according to

the type of device you select and the information dictat-

ed by the manufacturer’s code for that device (see “Man-

ufacturers’ Codes” on Page 47).

SCAN Use to preview all available channels

for a selected device at three-second

intervals.

Press again to stop the scan at a

desired channel.

To view favorite channels, SCAN must

be programmed first. See “Program-

ming Favorite Channel Scan” on

Page 26.

1M, 2M, or 3M After programming, use to run a macro.

See “Programming Macros” on

Page 28.

PUse to program advanced features.

Hold down for three seconds to enter

the program mode.

Key Function

8A Quick Look at the Keys

Mode Keys — Use to select a device you wish to con-

trol. The default mode includes TV, VCR/DVD, CAB/SAT,

and RECVR keys. The secondary mode includes AUX 1,

AUX 2, AUX 3, and AUX 4. The home theater mode in-

cludes THEATER, SET 1, SET 2, and SET 3. Press MODE

SHIFT one or more times to view the secondary and

home theater modes. Press it again to return to the de-

fault mode.

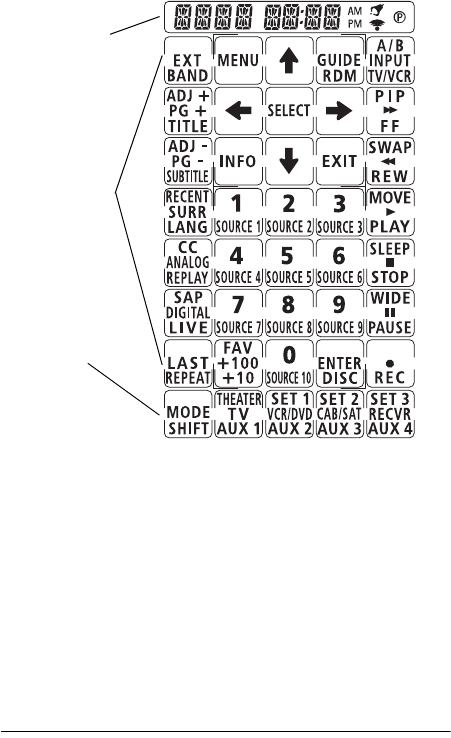

Note: The following illustration shows all possible keys

and icons. Depending on the selected device and its

brand, the keys vary.

Note: The following are displays you might see on the

touch screen depending on how your remote is pro-

grammed. For example, if you programmed RECVR to

control an audio tuner, J

JJ

JKD

KDKD

KD and a set of soft keys to con-

trol a tuner appear. However, if you programmed RECVR

to control an audio amplifier, 7

77

7CF

CFCF

CF and soft keys to control

an amplifier appear.

Display

Function Keys

Mode Keys

9

A Quick Look at the Keys

AMP (Audio Amplifier) Controls

Key Function

BAND Use to select the radio band.

MENU Use to view your amplifier’s main

menu.

RDM Use to activate random play.

INPUT Use to listen to an input signal con-

nected to the amplifier.

INFO Use to display graphical user inter-

face or other information.

EXIT Use to exit display or menu.

SELECT Use to select menu and remote con-

trol programming options.

Arrows Use up/down/left/right cursor arrows

to move through menu and pro-

gramming options.

ADJ +/– Use to adjust surround sound

volume.

FF, REW, PLAY,

STOP, PAUSE, and

REC

Use to control a CD player or audio

cassette (if available).

SURR Use to activate surround sound.

ANALOG Use to select analog inputs/outputs.

DIGITAL Use to select digital inputs/outputs.

REPEAT Use to repeat play a CD or tape (if

available).

Number Keypad Use to enter numbers or select

Source 1–10 as input source.

+10 Use if track is greater than 10.

DISC Use to select a CD or skip a CD (if

available).

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT,

RECVR, AUX 1, AUX 2, AUX 3, and

AUX 4 to select devices. Use THE-

ATER to select Home Theater

mode. Use SET 1, SET 2, and SET

3 to run programmed macros in

Home Theater mode.

10 A Quick Look at the Keys

CAB (Cable Box) Controls

CD (CD Player) Controls

Control Function

MENU Use to view your cable box’s main menu.

GUIDE Use to view the program guide.

A/B Use to switch between A and B chan-

nels.

EXIT Use to exit display or menu.

INFO Use to display graphical user interface or

other information.

FAV Use with Favorite Channel Scan (see

“Programming Favorite Channel Scan”

on Page 26).

SELECT Use to select menu and remote control

programming options.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

PG +/– Page up or down through menu or guide

pages.

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control VOD (video on demand).

LAST Use to display the last-viewed channel.

Number Keypad Use 0–9 to enter channel numbers.

ENTER Use to enter channel numbers on some

cable box models.

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET 2,

and SET 3 to run programmed macros in

Home Theater mode.

Control Function

BAND Use to select CD track.

MENU Use to view your CD’s main menu.

11

A Quick Look at the Keys

DVD (DVD Player) Controls

RDM Use to activate random play.

INPUT Use to listen to an input signal con-

nected to the CD.

EXIT Use to exit display or menu.

INFO Use to display graphical user interface

or other information.

SURR Use to activate surround sound.

SELECT Use to select menu and remote control

programming options.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

ADJ +/– Use to adjust surround sound volume.

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control CD transport.

ANALOG Use to select analog inputs/outputs.

DIGITAL Use to select digital inputs/outputs.

REPEAT Use to repeat play a CD or tape.

Number Keypad Use 0–9 to enter track numbers.

+10 Use to enter track numbers greater than

10.

DISC Use to select different CD or skip CD.

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET

2, and SET 3 to run programmed mac-

ros in Home Theater mode.

Control Function

EXT Use to select external input or antenna.

MENU Use to view your DVD’s main menu.

GUIDE Use to view the program guide.

TV/VCR Use to switch between TV or DVD.

Control Function

12 A Quick Look at the Keys

HOME (Home Automation) Controls

SELECT Use to select menu and remote control

programming options.

ANALOG Use to select analog inputs/outputs.

DIGITAL Use to select digital inputs/outputs.

REPEAT Use to repeat play a track.

EXIT Use to exit display or menu.

INFO Use to display graphical user interface or

other information.

TITLE Use to go to DVD’s main title.

SUBTITLE Use to select subtitle options.

LANG Use to select language options.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control DVD transport.

Number Keypad Use 0–9 to enter chapter numbers.

+10 Use to enter chapter numbers greater

than 10.

ENTER Use to enter numbers on some DVD

player models.

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET 2,

and SET 3 to run programmed macros in

Home Theater mode.

Control Function

SELECT Use to select menu and remote control

programming options.

TV/VCR Use to switch between TV and VCR.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

Control Function

13

A Quick Look at the Keys

LDP (Laser Disc Player) Controls

STOP Use to stop a function.

Number Keypad Use 0–9 to enter numbers.

REPEAT Use to repeat a function.

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET

2, and SET 3 to run programmed mac-

ros in Home Theater mode.

Control Function

EXT Use to select external input or antenna

MENU Use to view your LPD’s main menu.

GUIDE Use to view the program guide.

TV/VCR Use to switch between TV or LPD.

REPEAT Use to repeat a chapter.

EXIT Use to exit display or menu.

INFO Use to display graphical user interface

or other information.

SELECT Use to select menu and remote control

programming options.

TITLE Use to go to LDP’s main title.

SUBTITLE Use to select subtitle options.

LANG Use to select language options.

ANALOG Use to select analog outputs.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control LPD transport.

Number Keypad Use 0–9 to enter track numbers.

+10 Use to enter track numbers greater

than 10.

Control Function

14 A Quick Look at the Keys

MISC (Miscellaneous Audio Service)

Controls

ENTER Use to enter channel numbers on some

LPD models.

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET

2, and SET 3 to run programmed mac-

ros in Home Theater mode.

Control Function

BAND Use to select the radio band.

MENU Use to view your miscellaneous audio

service’s main menu.

RDM Use to activate random play.

INPUT Use to listen to an input signal.

EXIT Use to exit display or menu.

INFO Use to display graphical user interface

or other information.

SELECT Use to select menu and remote control

programming options.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

ADJ +/– Use to adjust surround sound volume.

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control a miscellaneous audio

device (if available).

SURR Use to activate surround sound feature.

ANALOG Use to select analog inputs/outputs.

DIGITAL Use to select digital inputs/outputs.

REPEAT Use to repeat play a track.

Number Keypad Use to enter numbers or select Source

1–10 as input source.

+10 Use to enter numbers greater than 10.

Control Function

15

A Quick Look at the Keys

SAT (Satellite Receiver) Controls

DISC Use to select different CD or skip CD.

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET

2, and SET 3 to run programmed mac-

ros in Home Theater mode.

Control Function

EXT Use to select external input or antenna.

MENU Use to view your satellite’s main menu.

GUIDE Use to view the program guide.

SELECT Use to select menu and remote control

programming options.

TV/VCR Use to switch between TV and VCR.

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control CD or audio cassette

devices.

FAV Use with Favorite Channel Scan (see

“Programming Favorite Channel Scan”

on Page 26).

EXIT Use to exit display or menu.

INFO Use to display graphical user interface or

other information.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

PG +/– Use to page up or down through menu or

guide pages.

SURR Use to activate surround sound volume.

CC Use to select closed caption feature.

SAP Use to activate a secondary audio chan-

nel.

LAST Use to view the last-viewed channel.

Keypad Use 0–9 to enter channel numbers.

Control Function

16 A Quick Look at the Keys

TAPE (Audio Cassette) Controls

ENTER Use to enter channel numbers on some

TV models.

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET 2,

and SET 3 to run programmed macros in

Home Theater mode.

Control Function

EXT Use to select external input or antenna.

A/B Use to switch between A and B decks.

SELECT Use to select menu and remote control

programming options.

Arrows Use up/down/ cursor arrows to move

through menu and programming

options.

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control tape transports.

REPEAT Use to repeat play a tape track (if avail-

able).

Keypad Use 0–9 to enter track numbers.

+10 Use to enter track numbers greater than

10.

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET

2, and SET 3 to run programmed mac-

ros in Home Theater mode.

Control Function

17

A Quick Look at the Keys

TUN (Audio Receiver) Controls

Control Function

BAND Use to select the radio band.

MENU Use to view your tuner’s main menu.

RDM Use to activate random play.

INPUT Use to listen to an input signal con-

nected to the amplifier.

EXIT Use to exit display or menu.

INFO Use to display graphical user interface

or other information.

SELECT Use to select menu and remote control

programming options.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

ADJ +/– Use to adjust surround sound volume.

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control CD or audio cassette

devices.

SURR Use to activate surround sound feature.

ANALOG Use to select analog inputs/outputs.

DIGITAL Use to select digital inputs/outputs.

REPEAT Use to repeat play a CD or tape track (if

available).

Keypad Use to enter numbers or select Source

1–10 as input source.

+10 Use to enter numbers greater than 10.

DISC Use to select different CD or skip CD.

MODE SHIFT Use to select a different mode.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET

2, and SET 3 to run programmed mac-

ros in Home Theater mode.

18 A Quick Look at the Keys

TV (Television) Controls

Control Function

EXT Use to select external input.

MENU Use to view your TV’s main menu.

GUIDE Use to view the program guide.

INPUT Use to view an input signal connected to

the TV.

EXIT Use to exit display or menu.

INFO Use to display graphical user interface

or other information.

SELECT Use to select menu and remote control

programming options.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

ADJ +/– Use to adjust PIP channel +/– or picture.

PIP Use to activate picture-in-picture (PIP).

SWAP In PIP mode, use to swap small picture

with large picture.

MOVE In PIP mode, use to move small picture

to different points on TV screen.

SURR Use to activate surround sound volume.

CC Use to select closed caption feature.

SLEEP Use to select sleep timer feature.

SAP Use to activate a secondary audio chan-

nel.

WIDE Use to select widescreen (16:9) format.

LAST Use to view the last-viewed channel.

Keypad Use 0–9 to enter channel numbers.

+100 Use to enter channel numbers greater

than 100.

ENTER Use to enter channel numbers on some

TV models.

MODE SHIFT Use to select a different mode.

19

A Quick Look at the Keys

VCR (Video Cassette Recorder) Controls

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET

2, and SET 3 to run programmed mac-

ros in Home Theater mode.

Control Function

EXT Use to select external input.

MENU Use to view your VCR’s main menu.

GUIDE Use to view the program guide.

TV/VCR Use to switch between TV and VCR.

EXIT Use to exit display or menu.

INFO Use to display graphical user interface

or other information.

LAST Use to revert to the last-viewed channel.

SELECT Use to select menu and remote control

programming options.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

ADJ +/– Use to adjust tracking+/–.

SURR Use to activate surround sound.

REPLAY Use to select replay (for hard disc

recorders).

LIVE Use to return to live broadcast (for hard

disc recorders).

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control VCR transports.

Keypad Use 0–9 to enter channel numbers.

+100 Use to enter channel numbers greater

than 100.

ENTER Use to enter channel numbers on some

VCR models.

MODE SHIFT Use to select a different mode.

Control Function

20 A Quick Look at the Keys

VID (Video Accessory) Controls

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET

2, and SET 3 to run programmed mac-

ros in Home Theater mode.

Control Function

EXT Use to select DTV (digital TV).

MENU Use to view the main menu.

GUIDE Use to view the program guide.

INPUT Use to view an input signal connected to

the video accessory.

SELECT Use to select menu and remote control

programming options.

EXIT Use to exit display or menu.

INFO Use to display graphical user interface or

other information.

Arrows Use up/down/left/right cursor arrows to

move through menu and programming

options.

PG +/– Use to page up or down through menu

pages.

SURR Use to activate surround sound.

CC Use to select closed caption feature.

SAP Use to activate a secondary audio chan-

nel.

FF, REW, PLAY,

STOP, PAUSE,

and REC

Use to control VOD (video on demand).

LAST Use to view the last-viewed channel.

Keypad Use 0–9 to enter channel numbers.

+100 Use to enter channel numbers greater

than 100.

ENTER Use to enter channel numbers on some

video accessory models.

MODE SHIFT Use to select a different mode.

Control Function

21

Preparation

ˆ

Preparation

If you have any problems programming your remote, call

customer service at 888-269-8705.

INSTALLING BATTERIES

Your remote requires four AAA batteries (not supplied)

for power. For the best performance and longest life, we

recommend RadioShack alkaline batteries.

Cautions:

• Use only fresh batteries of the required size and

recommended type.

• Do not mix old and new batteries or different types

of batteries (standard or alkaline).

Follow these steps to install batteries.

1. Push in the battery compartment cover’s tab and lift

off the cover.

2. Place the batteries in the compartment as indicated

by the polarity symbols (+ and –) marked inside.

3. Replace the cover. The tab should click when the

cover is locked.

If the batteries are inserted correctly, the entire

touch screen display becomes active. After few sec-

onds of inactivity, the touch screen turns off to con-

serve battery life.

Mode Keys Use TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, and AUX 4 to

select devices. Use THEATER to select

Home Theater mode. Use SET 1, SET 2,

and SET 3 to run programmed macros in

Home Theater mode.

Control Function

22 Preparation

When BEMý87JJ

BEMý87JJBEMý87JJ

BEMý87JJ appears or the remote stops operating

properly, replace the batteries.

Warning: Dispose of old batteries promptly and proper-

ly. Do not burn or bury them.

Caution: If you do not plan to use the remote for a

month or longer, remove the batteries. Batteries can

leak chemicals that can destroy electronic parts.

SETTING THE CLOCK

Note: You must reset the clock each time you replace

the batteries.

1. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup at any time, hold down P again

for at least 3 seconds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, followed by

the last-used mode screen.

2. Touch the down arrow six times until 9BE9Aý I;J

9BE9Aý I;J9BE9Aý I;J

9BE9Aý I;J

appears.

Note: If you scroll past 9BE9AýI;J

9BE9AýI;J9BE9AýI;J

9BE9AýI;J, touch the up arrow

to scroll to it.

3. Touch SELECT. The day and time appear and the

day flashes.

4. Repeatedly touch the up or down arrows until the

current day appears. Touch SELECT. The hour

flashes.

5. Repeatedly touch the up or down arrows until the

current hour (and 7C

7C7C

7C or FC

FCFC

FC) appears. Touch

SELECT. The minute digit flashes.

6. Repeatedly touch the up or down arrows until the

current minute appears. Touch SELECT. The day

flashes.

7. If you made an error, repeat Steps 4–6 to correctly

set the values.

23

Preparation

8. To save the settings, hold down SELECT until IK9#

IK9#IK9#

IK9#

9;II

9;II9;II

9;II appears. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used

screen.

ADJUSTING SOUND

Your remote has three alert beep tones.

Sound is preset to On. Follow these steps to turn sound

off or on.

1. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P for at least 3 sec-

onds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

2. Touch the up arrow. IEKD:

IEKD:IEKD:

IEKD: appears.

Note: If you scroll past IEKD:

IEKD:IEKD:

IEKD:, touch the down arrow

to return to it.

3. Touch SELECT. ED

EDED

ED or E

EE

E<<

<<<<

<< appears.

Note: If you change your mind, touch the up or

down arrows until you see ED

EDED

ED, then continue with

Step 4.

4. Touch SELECT. IK99;II

IK99;IIIK99;II

IK99;II appears, then ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=, then

the last-used mode screen.

SETTING UP THE REMOTE

Note: If no key is pressed for 60 seconds, the remote

control automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and

the remote returns to the previous mode screen.

1. Find the codes for your device(s) in “Manufacturers’

Codes” on Page 47. On the supplied label, write

Tone Type of Alert

One low tone Valid key press or touch

One high tone Invalid key press or touch

Double low tone Valid mode key touch

24 Preparation

down the codes for the brand of each device you

want to program.

Note: Some manufacturers may have several

codes listed. Try each until you find the right one. If

you cannot find the correct code, see “Manufacturer

Code Search” on Page 25.

2. Turn on all home entertainment devices.

3. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

4. Touch

SELECT. The last selected mode appears.

Note: To exit this mode at any time, hold down P

again for at least 3 seconds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then

the last-used mode screen.

5. Touch the desired mode key (TV, VCR/DVD, CAB/

SAT, RECVR, AUX 1, AUX 2, AUX 3, or AUX 4). The

default or previously set device and code appear.

6. If the displayed device is not the desired type, use

the up or down arrows to scroll to a device you

want. Then touch SELECT. The selected device and

its (default or previously set) code appear.

Note: There are 13 different devices available for

setup. Refer to “A Quick Look at the Keys” on

Page 6 for additional information on a desired

device.

7. Using the keypad, enter the first 4-digit manufac-

turer’s code for the desired device and then touch

SELECT. If you’ve entered a correct code, IK99;II

IK99;IIIK99;II

IK99;II

appears.

If the code is not correct

, D

DD

DEJý<EKD:

EJý<EKD:EJý<EKD:

EJý<EKD: appears instead.

Enter the next code until IK99;II

IK99;IIIK99;II

IK99;II appears.

Note: For TV/VCR combinations, touch VCR/DVD in

Step 4 and use the VCR code listed for your model

under “TV/VCR Combo Codes” on Page 60. If your

TV/VCR combination also lists a TV code, you must

program the TV separately by repeating Steps 4

25

Preparation

and 5 to add volume control. In Step 3, press TV;

then in Step 4, enter the TV code.

8. Point the remote control at the device you want to

control and press POWER. The device should turn

off. Try other remote control keys to see if they also

function properly.

If the remote control does not operate all your

device’s functions, try the other codes listed in

“Manufacturers’ Codes” on Page 47 for your brand

of device. Otherwise, use the search method to find

a working code (see “Manufacturer Code Search”).

If only a few functions do not seem to work, try

learning those keys (see “Learning a Function” on

Page 40).

9. Repeat Steps 3 through 7 to set up other devices.

To exit the programming mode, hold down P for at least

3 seconds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears. The remote control returns

to the last-used mode screen.

MANUFACTURER CODE SEARCH

If your home entertainment device does not respond to

remote control commands after trying all of the codes

listed for your brand, or if your brand is not listed at all,

try searching for your code using the following proce-

dure.

Note: If no key is pressed for 60 seconds, the remote

control automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and

the remote returns to the previous mode screen.

Follow these steps to search for your code.

1. Turn on all home entertainment devices.

2. Touch a mode key (TV, VCR/DVD, CAB/SAT, RECVR,

AUX 1, AUX 2, AUX 3, or AUX 4) you want to set up.

The default or previously set device and code

appear.

3. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

26 Preparation

Note: To exit setup, hold down P for at least 3 seconds.

;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode screen.

4. Touch the down arrow. 9E:;ýI;Jý

9E:;ýI;Jý9E:;ýI;Jý

9E:;ýI;Jýchanges to I;7H9>

I;7H9>I;7H9>

I;7H9>.

Note: If you scroll past I;7H9>

I;7H9>I;7H9>

I;7H9>, touch the up arrow

to return to it.

5. Touch SELECT. The last selected mode and its

(default or previously set) code appear.

6. If needed, touch the up arrow (or down) to scroll up

(or down) to the desired device.

7. Point the remote control at the desired device, then

touch SELECT. The red light and — flash.

If the device does not respond

, continue pointing

the remote control at the desired device and touch

the up (or down) arrow to scroll up (or down) to the

next code in the library. A new code appears, and

the red light and — flash.

Repeat this step until you find a working code.

Note: The search is complete when all possible

codes have been tried. ;

;;

;D:ý 9O9B;ý

D:ý 9O9B;ýD:ý 9O9B;ý

D:ý 9O9B;ý appears, then

;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=. The remote control exits the program and

returns to the last-used mode.

8. Once you have found a working code, touch

SELECT.

IK99;II

IK99;IIIK99;II

IK99;II appears, then ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=, then the

last-used mode screen.

To find a code for another device, repeat Steps 2–8.

PROGRAMMING FAVORITE CHANNEL

SCAN

You can program the remote control to scan up to ten fa-

vorite channels.

Only devices with television tuners can be programmed

for Favorite Channel Scan, including televisions, VCRs,

and cable/satellite receivers. If you select another type

of device (receiver, DVD or CD player, and so on), ?D#

?D#?D#

?D#

L7B?:

L7B?:L7B?:

L7B?: appears. An auxiliary device can be selected as

27

Preparation

long as it has been set up as a television, VCR, cable

box, or satellite receiver).

Important: If you program Favorite Channel Scan, you

can no longer use SCAN for Channel Scan (see “Using

Channel Scan” on Page 37). If you want to use the re-

mote for Channel Scan after you have programmed it for

Favorite Channel Scan, you must reset the entire opera-

tion of the remote (see “Using Operation Reset” on

Page 44). You lose all stored information.

Note: If no key is pressed for 60 seconds, the remote

control automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and

the remote returns to the previous mode screen.

Follow these steps to program Favorite Channel Scan.

1. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P again for at least 3

seconds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

2. Touch the up arrow twice. <7Lý9>7D

<7Lý9>7D<7Lý9>7D

<7Lý9>7D appears.

Note: If you scroll past <7Lý 9>7D

<7Lý 9>7D<7Lý 9>7D

<7Lý 9>7D, touch the down

arrow to return to it.

3. Touch SELECT. The last selected mode appears.

4. Touch a device key (TV, VCR/DVD, CAB/SAT, AUX 1,

AUX 2, AUX 3, or AUX 4). The selected mode

appears.

5. Touch

SELECT.

;DJý9>7D

;DJý9>7D;DJý9>7D

;DJý9>7D appears.

6. Enter a favorite channel by touching the corre-

sponding numbers on the keypad. To accept the

entry, touch SELECT. ;DJý9>7D

;DJý9>7D;DJý9>7D

;DJý9>7D appears.

Note: A channel number can be up to four digits (for

example, 2, 13, 132, or 1024).

7. Repeat Step 6 up to nine more times to enter other

favorite channels for the same device.

28 Preparation

Important: You can store up to 10 channels. If you

store ten channels, the remote control will automati-

cally exit the program. IK99;II

IK99;IIIK99;II

IK99;II appears, then ;N?J#

;N?J#;N?J#

;N?J#

?D=

?D=?D=

?D=. If you want to store less than 10 channels, hold

down SELECT for at least 3 seconds after entering

the last desired channel. IK99;II

IK99;IIIK99;II

IK99;II appears, then

;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=.

PROGRAMMING MACROS

Your remote control has three macro keys (1M, 2M, and

3M) you can use to program commonly-used operations.

You can store up 15 keystrokes (including learned keys)

on each macro key. For example, you can create a mac-

ro that will instantly power on the TV and cable box and

then tune-in a favorite channel.

1. Turn off all home entertainment devices.

2. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

3. Touch the down arrow four times. C79HEý A;O

C79HEý A;OC79HEý A;O

C79HEý A;O

appears.

Note: If you scroll past C79HEý A;O

C79HEý A;OC79HEý A;O

C79HEý A;O

, touch the up

arrow to return to it.

4. Touch SELECT. I;BýC79HE

I;BýC79HEI;BýC79HE

I;BýC79HE appears.

5. Press a macro key (1M, 2M, or 3M). ;DJý C79HE

;DJý C79HE;DJý C79HE

;DJý C79HE

appears. For the example, press 1M.

Note: Pressing a previously-programmed macro

key will overwrite its contents.

6. Press the appropriate keys in the desired order.

For the example, entering the following keys in the

below order to program 1M to turn on the TV and

cable box, then tune the cable to channel 061.

Touch TV. I;BýJEý;D:

I;BýJEý;D:I;BýJEý;D:

I;BýJEý;D: appears.

Note: I;Bý JEý ;D:

I;Bý JEý ;D:I;Bý JEý ;D:

I;Bý JEý ;D: prompts you to press SELECT

when you reach the end of the macro sequence you

are entering.

29

Preparation

Press POWER to turn on the TV.

Touch CAB/SAT to select the cable box.

Press POWER to turn on the cable box.

Touch 0 6 1 to enter the channel.

Hold down SELECT until IK99;II

IK99;IIIK99;II

IK99;II appears. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=

appears, then the last-used mode screen.

Deleting a Macro

Note: If no key is pressed for 60 seconds, the remote

control automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and

the remote returns to the previous mode screen.

Follow these steps to delete a macro.

1. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P for at least 3 sec-

onds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

2. Touch the down arrow four times. C79HEý A;O

C79HEý A;OC79HEý A;O

C79HEý A;O

appears.

Note: If you scroll past the desired macro key (1M,

2M, or 3M), touch the up arrow to return to it.

3. Touch SELECT. I;BýC79HE

I;BýC79HEI;BýC79HE

I;BýC79HE appears.

4. Select the macro key (1M, 2M, or 3M) you want to

delete and press it once. ;DJýC79HE

;DJýC79HE;DJýC79HE

;DJýC79HE appears.

5. Hold down SELECT until IK99;II

IK99;IIIK99;II

IK99;II appears. This

action overwrites the existing data with no data.

;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode screen.

PROGRAMMING HOME THEATER

MODE

Your remote control includes a custom Home Theater

mode that allows you to access four groups of remote

control keys without changing device modes. Moreover,

30 Preparation

three macro keys are included for exclusive use in the

Home Theater mode.

Control Groups

The remote control keys you can combine for Home

Theater mode are divided into the following four control

groups:

Menu Controls — MENU, SELECT, up/down/left/right ar-

rows, EXIT, GUIDE, PG +, PG –

Audio Controls — VOL+, VOL–, MUTE, and SURR

Channel Controls — CH+, CH–, Number Keypad 0–9,

LAST, INPUT, TV/VCR, INFO, +100, ENTER, DISC, EXT,

and BAND

Playback Controls — PLAY, STOP, FF, REW, PAUSE,

REC, REPLAY, and LIVE

Note: POWER is inactive in the Home Theater mode.

Device Groups

The four control groups can be assigned to the following

home theater devices:

Menu Controls — TV, VCR, CAB (Cable Box), SAT

(Satellite Receiver), DVD, CD, RECVR (Tuner or Audio

Receiver), Amp (Audio Amplifier), and VID (Video Ac-

cessory)

Audio Controls —TV, VCR, CAB (Cable Box), CD,

RECVR (Tuner or Audio Receiver), and AMP (Tuner or

Audio Amplifier)

Channel Controls — TV, VCR, CAB (Cable Box), SAT

(Satellite Receiver), RECVR (Audio Receiver), AMP (Au-

dio Amplifier), and VID (Video Accessory)

Playback Controls — VCR, CAB (Cable Box), DVD,

CD, and RECVR (Audio Receiver)

Setting Up Home Theater

1. Turn on all home entertainment devices.

31

Preparation

2. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P again for at least 3

seconds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

3. Touch the up arrow three times. J

JJ

J>;7J;H

>;7J;H>;7J;H

>;7J;H appears.

Note: If you scroll past J>;7J;H

J>;7J;HJ>;7J;H

J>;7J;H, touch the down

arrow to return to it.

4. Touch SELECT. FB7O879A

FB7O879AFB7O879A

FB7O879A appears.

5. Press SELECT again. A device appears (for exam-

ple, JL

JLJL

JL). Using the mode keys, touch a device (for

example, DVD) whose playback controls you want to

control in Home Theater mode. Then touch SELECT.

7K:?E

7K:?E7K:?E

7K:?E appears.

6. Press SELECT again. A device appears (for exam-

ple, JL

JLJL

JL). Using the mode keys, touch a device (for

example, RECVR) whose audio controls you want to

control in Home Theater mode. Then touch SELECT.

9>7DD;B

9>7DD;B9>7DD;B

9>7DD;B appears.

7. Press SELECT again. A device appears (for exam-

ple, JL

JLJL

JL). Using the mode keys, touch a device (for

example, TV) whose channel controls you want to

control in Home Theater mode. Then touch SELECT.

C;DK

C;DKC;DK

C;DK appears.

8. Press SELECT again. A device appears (for exam-

ple, JL

JLJL

JL). Using the mode keys, touch a device (for

example, TV) whose menu controls you want to con-

trol in Home Theater mode. Then touch SELECT.

FB7O879Aý

FB7O879AýFB7O879Aý

FB7O879Aýappears.

9. Hold down SELECT until IK99;II

IK99;IIIK99;II

IK99;II appears. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=

appears, then the last-used mode screen.

If you want to change any of the operations, repeat

Steps 1–9.

32 Preparation

Programming Home Theater Macros

The Home Theater mode also includes three exclusive

macro keys (SET 1, SET 2, and SET 3). You can store up

to 15 keystrokes (including learned keys) on each macro

key. For example, you can create a macro that powers

on each device in your home theater system with the

convenience of a single key touch.

Note: Macros can include learned keys, but not moved

keys.

1. Turn off all home entertainment devices.

2. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

3. Touch the down arrow four times. C79HEý A;O

C79HEý A;OC79HEý A;O

C79HEý A;O

appears.

Note: If you scroll past C79HEý A;O

C79HEý A;OC79HEý A;O

C79HEý A;O

, touch the up

arrow to return to it.

4. Touch SELECT. I;BýC79HE

I;BýC79HEI;BýC79HE

I;BýC79HE appears.

5. Press a macro key (SET 1, SET 2, or SET 3). ;DJ

;DJ;DJ

;DJ

C79HE

C79HEC79HE

C79HE appears. For the example, press SET 1.

Note: Pressing a previously-programmed macro

key will overwrite its contents.

6. Press the appropriate keys in the desired order.

For the example, entering the following keys in the

below order to program SET 1 to turn on the TV and

cable box, then tune the cable to channel 061.

Touch TV. I;BýJEý;D:

I;BýJEý;D:I;BýJEý;D:

I;BýJEý;D: appears.

Note: I;Bý JEý ;D:

I;Bý JEý ;D:I;Bý JEý ;D:

I;Bý JEý ;D: prompts you to press SELECT

when you reach the end of the macro sequence you

are entering.

Press POWER to turn on the TV.

Touch CAB/SAT to select the cable box.

Press POWER to turn on the cable box.

33

Preparation

Enter the channel 0 6 1 by touching each key.

Hold down SELECT until IK99;II

IK99;IIIK99;II

IK99;II appears. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=

appears, then the last-used mode screen.

PROGRAMMING A TIMED MACRO

SEQUENCE

You can use timed macro sequences to store up to 15

keystrokes (including learned keys) to be run on a spe-

cific day and time.

You can also use timed macro sequences to turn on a

device for a preset time period on a daily or weekly ba-

sis. For example, you can use it as an alternative meth-

od of recording an hour-long soap opera (that starts at

2:00 PM on Channel 4, each weekday) on your VCR.

Note: If no key is pressed for 60 seconds, the remote

control automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and

the remote returns to the previous mode screen.

Follow these steps to program a timed macro sequence.

1. Turn on all home entertainment devices.

2. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P for at least 3 sec-

onds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

3. Touch the up arrow four times. C79HEýI;G

C79HEýI;GC79HEýI;G

C79HEýI;G appears.

Note: If you scroll past C79HEýI;G

C79HEýI;GC79HEýI;G

C79HEýI;G, touch the down

arrow to return to it.

4. Touch SELECT. 8;=ýJ?C;

8;=ýJ?C;8;=ýJ?C;

8;=ýJ?C; appears. The day and time

appear, with the day flashing.

5. Enter the beginning day and time of your TV pro-

gram. For this example, enter the following data:

Touch the up or down arrow until the desired day

appears (for the example, scroll to C¶<

C¶<C¶<

C¶<). Touch

SELECT. The hour flashes.

34 Preparation

Touch the up or down arrow until the desired hour

appears (and 7C

7C7C

7C or FC

FCFC

FC). For the example, scroll to (

((

(

FC

FCFC

FC. Touch SELECT. The minutes flash.

Touch the up or down arrow until the desired min-

utes appear (for the example, scroll to &&

&&&&

&&). Touch

SELECT. The day flashes.

Verify the desired day and time. If needed, repeat

Step 5 to correctly set the values.

To save the beginning day and time settings, hold

down SELECT until 8;=ý C79HE

8;=ý C79HE8;=ý C79HE

8;=ý C79HE appears. Then ;DJ

;DJ;DJ

;DJ

C79HE

C79HEC79HE

C79HE appears.

6. Enter the next step of the macro sequence. For the

example, you have entered the beginning time for

the macro and you must now program the VCR to

turn on and record your television show. Enter the

following data:

Touch the mode key of the desired device (for the

example, touch VCR/DVD). I;BýJEý;D:

I;BýJEý;D:I;BýJEý;D:

I;BýJEý;D: appears and

remains on the screen until you finish programming

this step of the macro.

Press POWER to turn on the VCR.

Touch 0 4 to enter channel 04.

Touch REC.

Hold down SELECT until ;D:ýJ?C;

;D:ýJ?C;;D:ýJ?C;

;D:ýJ?C; appears.

Enter the ending day and time when your TV pro-

gram stops.

Note: If you have chosen C¶<

C¶<C¶<

C¶< as the beginning day,

the day field cannot be changed.

Touch the up or down arrow until the desired day

appears (for the example, scroll to C¶<

C¶<C¶<

C¶<). Touch

SELECT. The hour flashes.

Touch the up or down arrow until the desired hour

appears (AM or PM). For the example, scroll to )

))

)

FC

FCFC

FC. Touch SELECT. The minutes flash.

35

Preparation

Touch the up or down arrow until the desired min-

utes appear (for the example, scroll to &&

&&&&

&&). Touch

SELECT. The day flashes.

Verify the desired day and time. If needed, repeat

Step 6 to correctly set the values.

To save the beginning day and time settings, hold

down SELECT until ;D:ý C79HE

;D:ý C79HE;D:ý C79HE

;D:ý C79HE appears. Then ;DJ

;DJ;DJ

;DJ

C79HE

C79HEC79HE

C79HE appear.

7. Enter the ending macro sequence. For the example,

follow these steps:

Touch VCR/DVD to select the VCR. I;Bý JEý ;D:

I;Bý JEý ;D:I;Bý JEý ;D:

I;Bý JEý ;D:

appears.

Press

POWER to turn off the VCR.

8. To save the macro, hold down SELECT until IK99;II

IK99;IIIK99;II

IK99;II

appears. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= and F

FF

F appear, followed by the last-

used mode screen.

36 Operation

ˆ

Operation

If you have any problems operating your remote, call

customer service at 888-269-8705.

SELECTING A DEVICE

Once you have programmed your remote control, use

the following steps to become familiar with the selection

and control of your devices.

1. Pick up the remote control or touch the touch screen

once, anywhere on the screen, to activate the dis-

play. The default mode is set to TV.

Note: When the remote control is not in use, the

touch screen turns off after a preset time to con-

serve battery life. When activated, the remote con-

trol remembers and displays the last-used mode.

2. Point the remote control at the device you want to

control.

3. Using the Mode Keys, touch a desired device key

(for example, VCR/DVD). If necessary, touch the

MODE SHIFT key repeatedly to display other device

choices. The selected device appears, along with

the appropriate remote control keys. Refer to “A

Quick Look at the Keys” on Page 6 to view lists of

the available keys for each device.

CONTROLLING A SELECTED DEVICE

Press or touch the appropriate hard and soft keys to

control a desired function. For example, from the VCR

mode, press POWER (hard key) to turn on the VCR.

Then insert a tape and touch PLAY (soft key) to start

playback.

Refer to “A Quick Look at the Keys” on Page 6 for tables

of the available keys for each device and their functions.

Note: The selected device will not respond if it has not

been set up. Check the following table to see if the de-

fault factory settings cover any of your system devices. If

37

Operation

not, set up your entertainment devices (see “Setting Up

The Remote” on Page 23).

USING CHANNEL SCAN

If you have not programmed your remote for Favorite

Channel Scan, you can use SCAN to scan all channels of

the desired device.

Press SCAN to begin scanning. To stop scanning on the

desired channel, press SCAN again.

Important: If you program Favorite Channel Scan, you

can no longer use SCAN for Channel Scan. If you want to

use the remote for Channel Scan after you have pro-

grammed it for Favorite Channel Scan, you must reset

the entire operation of the remote (see “Using Operation

Reset” on Page 44). You lose all stored information.

USING FAVORITE CHANNEL SCAN

Select the desired device using the mode keys. Then

aim the remote control at the device and press SCAN.

Previews of your favorite channels at 3-second intervals.

Press SCAN again to stop the scan on a desired chan-

nel.

USING A MACRO

Aim the remote control at the devices and press the pro-

grammed macro key (see “Programming Macros” on

Page 28).

Mode Key Default Brand (Model)

TV RCA (T0047)

VCR/DVD RCA (V0060)

CAB/SAT RCA (C0476)

RECVR Pioneer (R1023)

AUX 1 Panasonic TV (T0250)

AUX 2 Pioneer DVD (Y0525)

AUX 3 RCA SAT (S0566)

AUX 4 Pioneer CD (D0032)

38 Operation

USING HOME THEATER

1. Touch MODE SHIFT one or more times until the THE-

ATER key appears.

2. Touch THEATER. Your custom set of Home Theater

remote control keys appear.

3. Use the keys as usual. The keys operate only the

devices you assigned them to. For example, if you

assigned the playback keys to your VCR, any time

you press PLAY (or any other key from the menu

controls) the VCR plays. PLAY no longer operates

your DVD or other devices.

4. To exit Home Theater mode, press the device key

(for example, VCR/DVD) of the desired mode. If nec-

essary, touch the MODE SHIFT key repeatedly to dis-

play other device choices.

USING A TIMED MACRO SEQUENCE

To use a Timed Macro Sequence, place the remote con-

trol so it faces the device used in the macro. In the ex-

ample, aim the remote control at the VCR.

At the appropriate time, the macro sequence will auto-

matically run to turn on the VCR, record the show, and

then turn off the VCR.

USING VOLUME LOCK

Your remote control‘s Volume Lock is preset to unlock.

Pressing the volume and mute keys directly controls the

volume of the currently-selected device. If you change to

another mode, the volume controls automatically trans-

fer to the newly-selected device.

However, you may want to lock the volume controls to

one or more modes. For example, you can lock the vol-

ume controls to the TV mode. This way, TV volume is al-

ways controllable no matter what mode is selected.

39

Operation

Locking the Volume

Note: If no key is pressed for 60 seconds, the remote

control automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and

the remote returns to the previous mode screen.

1. Turn on all home entertainment devices.

2. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P for at least 3 sec-

onds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

3. Touch the down arrow seven times. LEBý BE9A

LEBý BE9ALEBý BE9A

LEBý BE9A

appears.

Note: If you scroll past LEBýBE9A

LEBýBE9ALEBýBE9A

LEBýBE9A, touch the up arrow

to return to it.

4. Touch SELECT. JEýCE:;

JEýCE:;JEýCE:;

JEýCE:; appears.

5. Touch a mode once (for example, TV) where you

want the volume controls to be locked. IK99;II

IK99;IIIK99;II

IK99;II

appears, then ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=, then the last-used mode

screen.

Unlocking the Volume

When no key is pressed for 60 seconds, the remote con-

trol automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and the

remote returns to the previous mode screen.

1. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P for at least 3 sec-

onds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

2. Touch the down arrow eight times. LEBý KDBE9A

LEBý KDBE9ALEBý KDBE9A

LEBý KDBE9A

appears.

Note: If you scroll past LEBý KDBE9A

LEBý KDBE9ALEBý KDBE9A

LEBý KDBE9A, touch the up

arrow to return to it.

40 Operation

3. Touch SELECT. 7BBýCE:;

7BBýCE:;7BBýCE:;

7BBýCE:; appears.

4.

To unlock all modes

, touch SELECT. KDBE9A;:

KDBE9A;:KDBE9A;:

KDBE9A;:

appears, then ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=, then the last-used mode

screen.

To unlock individual modes

, touch the up or down

arrow. ED;ýCE:;

ED;ýCE:;ED;ýCE:;

ED;ýCE:; appears. Press SELECT. I;BýCE:;

I;BýCE:;I;BýCE:;

I;BýCE:;

appears. Touch a mode (for example, TV) where

you want the volume controls to be unlocked.

KDBE9A;:

KDBE9A;:KDBE9A;:

KDBE9A;: appears, then I;BýCE:;

I;BýCE:;I;BýCE:;

I;BýCE:;.

Note: If the mode is already unlocked, an error

beep sounds and ?DL7B?:

?DL7B?:?DL7B?:

?DL7B?: appears.

To unlock another mode

, repeat Step 4 as often as

needed.

5. To exit the program, hold down P until ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=

appears. The last-used mode screen appears.

USING LEARNING

Your remote control is equipped with a learning program

so you can add a function unique to a home entertain-

ment device (for example, tracking up or down for a

VCR). You can skip this section if you are satisfied with

the remote control operation on all devices.

Learning a Function

This method assumes all devices have been set up. If

not, perform the instructions in “Setting Up The Remote”

on Page 23. Also, have your original remote controls

handy before programming learning.

Follow these steps to learn a function.

1. Select the mode key for the desired learning mode.

2. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P for at least 3 sec-

onds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

41

Operation

3. Touch the down arrow two times. B;7HD

B;7HDB;7HD

B;7HD appears.

Note: If you scroll past B;7HD

B;7HDB;7HD

B;7HD, touch the up key to

return to it.

4. Touch SELECT. The last selected mode appears.

5. If needed, touch a mode key to select a different

device to be learned.

6. Place your original device’s remote control head-to-

head (about 2 inches apart) with the 8-In-One.

Note: For best results, use low-level ambient light-

ing and stay away from high levels of natural day-

light or energy-efficient fluorescent lights.

7. On the original remote control, hold down the key

you want to be learned. On the 8-In-One, touch a

key where you want the learned data to reside. The

red light flashes rapidly and B;7HD?D=

B;7HD?D=B;7HD?D=

B;7HD?D= appears.

Note: Be sure to press (or touch) each key within 5

seconds. Otherwise, an error message appears as

a reminder to perform the actions listed in this step.

If ?DL7B?:

?DL7B?:?DL7B?:

?DL7B?: appears, the selected key cannot be

learned.

If

IK99;II

IK99;IIIK99;II

IK99;II appears, the selected key was learned.

If there is a problem, ;HHEH

;HHEH;HHEH

;HHEH appears. Repeat Step 6

until IK99;II

IK99;IIIK99;II

IK99;II appears.

To learn other functions from the same device’s

remote control, repeat Steps 6 and 7.

8. To exit programming, hold down P for at least 3 sec-

onds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the remote control

returns to the last-used mode screen.

If desired, repeat Steps 2–8 to learn functions from a dif-

ferent device’s remote control.

42 Operation

Deleting a Learned Function

Note: If no key is pressed for 60 seconds, the remote

control automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and

the remote returns to the previous mode screen.

1. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note:

To exit setup, hold down P for at least 3 sec-

onds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

2. Touch the down arrow key three times until :;B

:;B:;B

:;B

B;7HD

B;7HDB;7HD

B;7HD appears.

Note: If you scroll past :;Bý B;7HD

:;Bý B;7HD:;Bý B;7HD

:;Bý B;7HD, touch the up

arrow to return to it.

3. Touch SELECT. The last selected device appears.

4. If necessary, touch a device key (TV, VCR/DVD, CAB/

SAT, RECVR, AUX 1, AUX 2, AUX 3, or AUX 4) that

contains the learned function. The selected mode

appears.

Note: Do not use the arrow keys to locate the

desired device.

5. Touch the key that contains the learned data you

want to delete. :;B;J;:

:;B;J;::;B;J;:

:;B;J;: appears. If the key cannot

be deleted, ?DL7B?:

?DL7B?:?DL7B?:

?DL7B?: appears.

To delete other learned functions for the same

device, repeat Step 5. To delete learned functions

on other devices, repeat Steps 4 and 5.

6. To exit programming, hold down P for at least 3 sec-

onds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

USING KEY MOVER

Your remote control also includes a key mover feature

that allows a key to be copied from one device to anoth-

er, or to a different position in the same device mode.

43

Operation

Moving a Key

For example, follow these steps to copy TV/VCR from

VCR/DVD mode and move it to an unused key in TV

mode:

Note: If there is no activity for 60 seconds, the remote

control automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and

the remote returns to the previous mode screen.

1. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P again for at least 3

seconds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

2. Touch the up arrow five times. A;OCEL;H

A;OCEL;HA;OCEL;H

A;OCEL;H appears.

Note: If you scroll past A;OCEL;H

A;OCEL;HA;OCEL;H

A;OCEL;H, touch the down

arrow to return to it.

3. Touch SELECT. <HECýCE:;

<HECýCE:;<HECýCE:;

<HECýCE:; appears.

4. Touch the mode key where the function key resides

(for the example, touch DVD/VCR). <HECý A;O

<HECý A;O<HECý A;O

<HECý A;O

appears.

5. Touch the function key you want to copy (for the

example, touch TV/VCR). JEýCE:;ý

JEýCE:;ýJEýCE:;ý

JEýCE:;ýappears.

6. Touch the mode key where you want to place the

copy (for the example, touch TV). JEýA;O

JEýA;OJEýA;O

JEýA;O appears.

7. Touch an unused function key (for the example,

touch

EXT).

IK99;II

IK99;IIIK99;II

IK99;II appears. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then

the last-used mode screen.

Deleting a Moved Key

1. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P again for at least 3

seconds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

44 Operation

2. Touch the up arrow five times. A;OCEL;H

A;OCEL;HA;OCEL;H

A;OCEL;H appears.

Note: If you scroll past A;OCEL;H

A;OCEL;HA;OCEL;H

A;OCEL;H, touch the down

arrow to return to it.

3. Touch SELECT. <HECýCE:;

<HECýCE:;<HECýCE:;

<HECýCE:; appears.

4. Touch the mode key where the moved key to be

deleted resides. <HECýA;Oý

<HECýA;Oý<HECýA;Oý

<HECýA;Oýappears.

5. Touch the function key you want to delete. JEýCE:;

JEýCE:;JEýCE:;

JEýCE:;

appears.

6. Repeat Steps 4 and 5 exactly. :;B;J;

:;B;J;:;B;J;

:;B;J; appears, then

;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=, then the last-used mode screen.

Note: Be sure to select the same mode and function

keys you touched in Steps 4 and 5. By repeating

this action, the stored data is overwritten using the

“from” data to clear the original “to” settings.

USING OPERATION RESET

Operation Reset lets you clear all memory settings and

return the unit to its original default values.

Important: Activating this feature completely erases all

your stored settings, including device setups, macros,

learned keys, and home theater macro sets.

Note: If no key is pressed for 60 seconds, the remote

control automatically exits setup. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, and

the remote returns to the previous mode screen.

Follow these steps to activate Operation Reset.

1. Hold down P for at least 3 seconds. 9E:;ý I;J

9E:;ý I;J9E:;ý I;J

9E:;ý I;J

appears.

Note: To exit setup, hold down P again for at least 3

seconds. ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D= appears, then the last-used mode

screen.

2. Touch the down arrow five times until EFIý H;I;J

EFIý H;I;JEFIý H;I;J

EFIý H;I;J

appears.

Note: If you scroll past EFIý H;I;J

EFIý H;I;JEFIý H;I;J

EFIý H;I;J, touch the up

arrow to return to it.

45

Operation

3. Touch SELECT. 9BHI;JKFý

9BHI;JKFý9BHI;JKFý

9BHI;JKFýappears.

4. Touch SELECT. H;I;JýH7C

H;I;JýH7CH;I;JýH7C

H;I;JýH7C appears, then H;I;Jý;(

H;I;Jý;(H;I;Jý;(

H;I;Jý;(,

then ;N?J?D=

;N?J?D=;N?J?D=

;N?J?D=, then the last-used mode screen.

46 Troubleshooting

ˆ

Troubleshooting

If the remote control stops working after you have suc-

cessfully tested the control for each device, or if you are

unable to get the remote control to work at all, do the fol-

lowing:

• Be sure you press the device key for the device you

want to control before you press any other key.

• Confirm that your IR devices are working properly

by using the original remote control or the manual

controls.

• Replace the batteries.

If you have any other problems with your remote, call

customer service at 888-269-8705.

Your RadioShack 8-In-One Touch Screen Remote Con-

trol does not have any user-serviceable parts. Opening

the case, except for the battery cover, may cause per-

manent damage to your remote control.

CARE

Keep the remote dry; if it gets wet, wipe it dry immediate-

ly. Use and store the remote only in normal temperature

environments. Handle the remote carefully; do not drop

it. Keep the remote away from dust and dirt, and wipe it

with a damp cloth occasionally to keep it looking new.

Modifying or tampering with the remote’s internal com-

ponents can cause a malfunction and might invalidate its

warranty. If your remote is not performing as it should,

take it to your local RadioShack store for assistance.

47

Manufacturers’ Codes

ˆ

Manufacturers’ Codes

Amplifier Codes

Audio Cassette Device Codes

Brand Codes

Carver 0269

Curtis Mathes 0300

Denon 0160

Linn 0269

Magnavox 0269

Marantz 0269

Optimus 0300, 0395, 0823

Panasonic 0308

Philips 0269

Pioneer 0013, 0300, 0823

Polk Audio 0269

RCA 0300

Realistic 0395

Technics 0308

Wards 0013

Brand Codes

Akai 0188, 0189

Carver 0261

Fisher 0261

Garrard 0300, 0439

Optimus 0027, 0220, 0300, 0318, 0439

Pioneer 0027, 0220

RCA 0027, 0220, 0261

Rotel 0174

Sanyo 0261

Sony 0243, 0170

Wards 0027

48 Manufacturers’ Codes

Audio Receiver Codes

Brand Codes

ADC 0531

Admiral 0182

Aiwa 0158, 0121, 1089, 1405

Akai 0115

Capetronic 0531, 0690

Carver 0042, 0360, 1089, 1189

Casio 0195

Clarinette 0195

Curtis Mathes 0080

Denon 1104, 1160

Fisher 0042, 0219, 0360

Garrard 0286, 0440, 0744

Hanwah 0741

Harman/Kardon 0110

JBL 0110

JVC 0074

Jensen 0754

Kenwood 0027, 0186, 0042, 1027, 1313, 1569,

1570

Koss 0744

LXI 0181, 0744

Lloyd’s 0195

MCS 0039

Magnavox 0531, 0195, 0364, 1089, 1189

Marantz 0039, 1089, 1189

Memorex 0335

Modulaire 0195

NTDE Geniesom 0744

Onkyo 0135

Optimus 0013, 0300, 0395, 0418, 0531, 0670,

0186, 0080, 0042, 0177, 0181, 0219,

0229, 0286, 0440, 0622, 0690, 0738,

0744, 0754, 0797, 0801, 0823, 0849,

1023, 1074

49

Manufacturers’ Codes

Cable Box Codes

Orient Power 0744

Panasonic 0039, 1518

Penney 0195

Philips 1089, 1189, 1269

Pioneer 0531, 0014, 0080, 1023

Proscan 1254

Quasar 0039

RCA 0531, 0609, 0080, 0300, 0360, 1023,

1074, 1122, 1123, 1254

RadioShack 0744

Realistic 0195, 0001, 0025, 0163, 0177, 0178,

0181, 0182, 0534

Sansui 1089

Sanyo 0219, 0801

Schneider 0364

Scott 0163, 0418

Sharp 0186

Sony 0158, 0415, 1058, 1158, 1258

Soundesign 0670

Sunfire 1313

Symphonic 0182

Teac 0163

Technics 0039, 1308, 1309, 1518

Techwood 0364

Thorens 1189

Victor 0074

Wards 0158, 0014, 0080

Yamaha 0176, 0186, 1176

Yorx 0195

Zenith 0622, 0744

Brand Codes

ABC 0003, 0008

Brand Codes

50 Manufacturers’ Codes

Allegro 0153, 0315

Antronix 0022, 0207

Archer 0153, 0022, 0207, 0797

Cabletenna 0022

Cableview 0022

Century 0153

Citizen 0153, 0315

Contec 0019

Emerson 0797

Everquest 0015

GC Electronics 0207

Garrard 0153

Gemini 0015, 0797

General Instru-

ment

0476

GoldStar 0144

Goodmind 0797

Jasco 0015, 0153, 0315

Jerrold 0003, 0012, 0476, 0015

Memorex 0000

Movie Time 0063

NSC 0063

Oak 0019

Optimus 0021, 0797

Panasonic 0000, 0021

Paragon 0000

Philips 0153

Pioneer 0144, 0533, 0877

Pulsar 0000

Quasar 0000

RCA 0021

RadioShack 0015, 0303, 0315, 0797, 0883

Realistic 0207, 0153

Runco 0000

Brand Codes

51

Manufacturers’ Codes

CD Player Codes

Samsung 0144

Scientific Atlanta 0008, 0477, 0877

Signal 0015

Sprucer 0021

Starcom 0003, 0015

Stargate 0015, 0797

Starquest 0015

TV86 0063

Tandy 0258

Tocom 0012

Toshiba 0000

Tusa 0015

Unika 0153, 0022, 0207

Universal 0153, 0022, 0207

Viewstar 0063, 0258

Zenith 0000, 0525

Brand Codes

Adcom 0155

Aiwa 0157, 0124

Audio Alchemy 0194

BSR 0194

Burmester 0420

California Audio

Labs

0029, 0303

Carrera 0194

Carver 0157, 0179, 0437

DKK 0000

Denon 0003, 0873

Emerson 0305, 0155, 0164

Fisher 0179, 0342

Garrard 0420, 0280

Brand Codes

52 Manufacturers’ Codes

Genexxa 0032, 0305, 0164

Harman/Kardon 0157, 0173, 0426

Hitachi 0032, 0155

JVC 0072

Kenwood 0028, 0037, 0190, 0626, 0681, 0826

Krell 0157

LXI 0305

Linn 0157

MCS 0029

MTC 0420

Magnavox 0157, 0305

Marantz 0029, 0157, 0180, 0626

Mission 0157

NSM 0157

Nikko 0164

Onkyo 0101, 0868

Optimus 0000, 0032, 0179, 0305, 0037, 0420,

0145, 0468, 0175, 0194, 0196, 0280,

0342, 0426, 0437, 0536, 0671, 0775,

0850, 1063, 1075

Panasonic 0029, 0303

Parasound 0420, 0194

Philips 0157, 0626

Pioneer 0032, 0305, 0468, 1063

Polk Audio 0157

Proton 0157

QED 0157

Quasar 0029

RCA 0032, 0179, 0305, 0053, 0468, 0155,

1062

RadioShack 1083

Realistic 0179, 0420, 0155, 0164, 0175, 0180

Rotel 0157, 0420

SAE 0157

Sansui 0157, 0305

Brand Codes

53

Manufacturers’ Codes

DVD Player Codes

Sanyo 0179

Scott 0305, 0155, 0164

Sears 0305

Sharp 0037, 0180, 0861

Sherwood 0180, 0196, 0426, 1067

Sonic Frontiers 0157

Sony 0000, 0185, 0490

Soundesign 0145

Staron 0398

Tascam 0420

Teac 0420, 0180

Technics 0029, 0303

Vector Research 0194

Victor 0072

Wards 0157, 0053, 0559

Yamaha 0036, 0187, 0888

Brand Codes

Apex 0672

Denon 0490, 0634

Fisher 0670

GE 0522

Hitachi 0664

Hiteker 0672

JVC 0558, 0623

Kenwood 0534, 0682

Magnavox 0503, 0675

Marantz 0539

Mitsubishi 0521

Onkyo 0503

Optimus 0571

Panasonic 0490

Brand Codes

54 Manufacturers’ Codes

Home Automation Codes

LD (Laser Disc) Player Codes

Philips 0503, 0539

Pioneer 0525, 0571

Proscan 0522

RCA 0522, 0571, 0704

Samsung 0573

Sharp 0630

Sony 0533

Technics 0490

Theta Digital 0571

Toshiba 0503

Yamaha 0490, 0545

Zenith 0503, 0591

Brand Codes

GE 0240

One For All 0167

RadioShack 0240

Security System 0167

Universal X10 0167

X10 0167

Brand Codes

Aiwa 0203

Denon 0059

Funai 0203

Mitsubishi 0059

NAD 0059

Optimus 0059

Pioneer 0059

Realistic 0203

Brand Codes

55

Manufacturers’ Codes

Miscellaneous Audio Codes

Satellite Receiver Codes

Brand Codes

Aiwa 0159

Sony 0159

Brand Codes

AlphaStar 0772

Chaparral 0216

Echostar 0775, 1005

Expressvu 0775

General Instru-

ment

0627, 0361, 0869

HTS 0775

Hitachi 0819

Hughes Network

Systems

0749

JVC 0775

Jerrold 0627, 0361

Magnavox 0724, 0722

Memorex 0724

Next Level 0869

Panasonic 0701

Philips 0724, 0722, 1076

RCA 0566, 0143, 0392, 0855, 1107

RadioShack 0869

Sony 0639

Star Choice 0869

Toshiba 0749, 0790

Uniden 0724, 0722

Zenith 0856

56 Manufacturers’ Codes

TV Codes

Brand Codes

A-Mark 0003

AOC 0030, 0019, 0003

Admiral 0093, 0463

Aiko 0092

Akai 0030

Alaron 0179

America Action 0180

Anam 0180

Archer 0003

Audiovox 0451, 0180, 0003, 0092, 0623

Baysonic 0180

Belcor 0019

Bell & Howell 0154, 0016

Bradford 0180

Brockwood 0019

Broksonic 0236, 0463, 0003

CXC 0180

Candle 0030, 0056

Carnivale 0030

Carver 0054

Celebrity 0000

Cineral 0451, 0092

Citizen 0060, 0030, 0056, 0092

Concerto 0056

Contec 0180

Craig 0180

Crosley 0054

Crown 0180

Curtis Mathes 0047, 0054, 0154, 0051, 0451, 0093,

0060, 0030, 0145, 0056, 0016, 0166,

0747, 1147, 1347

Daewoo 0451, 0019, 0092, 0623, 0624

Daytron 0019

57

Manufacturers’ Codes

Denon 0145

Dumont 0017, 0019

Dwin 0720

Electroband 0000

Electrohome 0409

Emerson 0154, 0236, 0463, 0180, 0178, 0019,

0179, 0623, 0624

Envision 0030

Fisher 0154

Fujitsu 0179

Funai 0180, 0179, 0171

Futuretech 0180

GE 0047, 0051, 0451, 0093, 0178, 0747,

1147, 1347

Gibralter 0017, 0030, 0019

GoldStar 0030, 0178, 0019, 0056, 0409

Gradiente 0053, 0056

Grunpy 0180, 0179

Hallmark 0178

Harley Davidson 0179

Harman/Kardon 0054

Harvard 0180

Hitachi 0145, 0056, 0016, 0409

Infinity 0054

Inteq 0017

JBL 0054

JCB 0000

JVC 0053

KEC 0180

KTV 0180, 0030

Kenwood 0030, 0019

LG 0056

LXI 0047, 0054, 0154, 0156, 0178, 0747

Logik 0016

Brand Codes

58 Manufacturers’ Codes

Luxman 0056

MGA 0150, 0030, 0178, 0019

MTC 0060, 0030, 0019, 0056

Magnavox 0054, 0030, 0179, 1254

Majestic 0016

Marantz 0054, 0030

Matsushita 0250

Megatron 0178, 0145, 0003

Memorex 0154, 0250, 0463, 0150, 0178, 0179,

0056, 0016, 0030

Midland 0047, 0017, 0051, 0747

Mitsubishi 0093, 0150, 0178, 0019

Motorola 0093

Multitech 0180

NAD 0156, 0178, 0166

NEC 0030, 0019, 0056

NTC 0092

Nikko 0030, 0178, 0092

Onwa 0180

Optimus 0154, 0250, 0166

Optonica 0093, 0165

Orion 0236, 0463, 0179

Panasonic 0051, 0250

Penney 0047, 0156, 0051, 0060, 0030, 0178,

0019, 0056, 0003, 0747, 1347

Philco 0054, 0463, 0030, 0145, 0019

Philips 0054

Pilot 0030, 0019

Pioneer 0166

Portland 0019, 0092

Prism 0051

Proscan 0047, 0747

Proton 0178, 0003

Pulsar 0017, 0019

Quasar 0051, 0250, 0165

Brand Codes

59

Manufacturers’ Codes

RCA 0047, 0051, 0093, 0019, 0679, 0747,

1047, 1147, 1247, 1347, 1447

RadioShack 0047, 0154, 0165, 0180, 0030, 0178,

0019, 0056, 0409, 0747

Realistic 0154, 0165, 0180, 0030, 0178, 0019,

0056

Runco 0017, 0030

SSS 0180, 0019

Sampo 0030

Samsung 0060, 0030, 0178, 0019, 0056

Sansei 0451

Sansui 0463

Sanyo 0154

Scimitsu 0019

Scotch 0178

Scott 0236, 0180, 0178, 0019, 0179

Sears 0047, 0054, 0154, 0156, 0178, 0179,

0056, 0171, 0747

Semivox 0180

Semp 0156

Sharp 0093, 0165

Shogun 0019

Signature 0016

Sony 0000

Soundesign 0180, 0178, 0179

Spectricon 0003

Squareview 0171

Starlite 0180

Supreme 0000

Sylvania 0054, 0030

Symphonic 0171

TMK 0178, 0056

TNCi 0017

Tandy 0093

Tatung 0003

Brand Codes

60 Manufacturers’ Codes

TV/VCR Combo Codes

Technics 0051, 0250

Technol Ace 0179

Techwood 0051, 0056, 0003

Teknika 0054, 0180, 0150, 0060, 0019, 0179,

0056, 0016, 0092

Telefunken 0056

Toshiba 0154, 0156, 0060, 1256

Vector Research 0030

Victor 0053

Vidikron 0054

Vidtech 0178, 0019

Wards 0054, 0165, 0030, 0178, 0019, 0179,

0056, 0016

White Westing-

house

0463, 0623, 0624

Yamaha 0030, 0019

Zenith 0017, 0463, 0016, 0092, 0624

Zonda 0003

Brand Codes

Citizen 0278

Colt 0072

Curtis Mathes 0035 (for TV use 0051)

Daewoo 0278 (for TV use 0624)

Emerson 0278 (for TV use 0624)

Funai 0000

GE 0035 (for TV use 0051), 0048 (for TV use

0093), 0060 (for TV use 0047), 0240

GoldStar 0037 (for TV use 0056)

Harley Davidson 0000

Hitachi 0000

Lloyd’s 0000

Magnasonic 0278

Brand Codes

61

Manufacturers’ Codes

VCR Codes

Magnavox 0000, 0081 (for TV use 0054)

Magnin 0240

Memorex 0037, 0162 (for TV use 0250), 1037,

1162, 1262

MGA 0240

Mitsubishi 0048 (for TV use 0093)

Optimus 0162 (for TV use 0250), 0593, 1162,

1262

Orion 0000

Panasonic 0035 (for TV use 0051), 0162 (for TV use

0250), 1162, 1262

Penney 0035 (for TV use 0051), 0037 (for TV use

0056), 0240

Quasar 0035 (for TV use 0051), 0162 (for TV use

0250)

RadioShack 1037

RCA 0035 (for TV use 0051), 0048 (for TV use

0093), 0060 (for TV use 0047), 0240

Sansui 0000

Sanyo 0240

Sears 0000, 0037 (for TV use 0056)

Sharp 0048 (for TV use 0093)

Sony 0000, 0032 (for TV use 0000)

Sylvania 0081 (for TV use 0054)

Symphonic 0000

Thomas 0000

White Westing-

house

0278 (for TV use 0624)

Zenith 0000

Brand Codes

Admiral 0048, 0209

Adventura 0000

Aiko 0278

Brand Codes

62 Manufacturers’ Codes

Aiwa 0037, 0000, 0307

America Action 0278

American High 0035

Asha 0240

Audiovox 0037

Beaumark 240

Bell & Howell 104

Broksonic 0184, 0209

CCE 0072, 0278

Calix 0037

Canon 0035

Carver 0081

Cineral 0278

Citizen 0037, 0278

Colt 0072

Craig 0037, 0047, 0240, 0072, 0271

Curtis Mathes 0060, 0035, 0162

Cybernex 0240

Daewoo 0045, 0278

Denon 0042

Dynatech 0000

Electrohome 0037

Electrophonic 0037

Emerex 0032

Emerson 0037, 0184, 0000, 0043, 0209, 0278

Fisher 0047, 0104, 0066

Fuji 0035

Funai 0000

GE 0060, 0035, 0048, 0240, 0202

Garrard 0000

Go Video 0432

GoldStar 0037, 0480

Gradiente 0000

HI-Q 0047

Brand Codes

63

Manufacturers’ Codes

Harley Davidson 0000

Harman/Kardon 0081

Harwood 0072

Headquarter 0046

Hitachi 0000, 0042

Hughes Network

Systems

0042

JVC 0067

KEC 0037, 0278

KLH 0072

Kenwood 0067

Kodak 0035, 0037

LXI 0037

Lloyd’s 0000

Logik 0072

MEI 0035

MGA 0240, 0043

MGN Technology 0240

MTC 0240, 0000

Magnasonic 0278, 0593

Magnavox 0035, 0039, 0081, 0000

Magnin 0240

Marantz 0035, 0081

Marta 0037

Matsushita 0035, 0162, 0454

Memorex 0035, 0037, 0048, 0039, 0047, 0240,

0000, 0104, 0209, 0162, 0046, 0268,

0299, 0307, 0454, 1037, 1162, 1262,

Minolta 0042

Mitsubishi 0048, 0067, 0043

Motorola 0035, 0048

Multitech 0000, 0072

NAD 0058

NEC 0104, 0067

Nikko 0037

Brand Codes

64 Manufacturers’ Codes

Noblex 0240

Olympus 0035

Optimus 0037, 0048, 0104, 0162, 0058, 0432,

0454, 0568, 0593, 0619, 1048, 1062,

1162, 1262, 0240

Optonica 0062

Orion 0184, 0209

Panasonic 0035, 0162, 0454, 0616, 1062, 1162,

1262

Penney 0035, 0037, 0240, 0042

Pentax 0042

Philco 0035, 0209

Philips 0035, 0081, 0062, 0618, 1081, 1181

Pilot 0037

Pioneer 0067, 0058

Polk Audio 0081

Profitronic 0240

Proscan 0060, 0202

Protec 0072

Pulsar 0039

Quarter 0046

Quartz 0046

Quasar 0035, 0162, 0454, 1162

RCA 0060, 0035, 0048, 0240, 0042, 0058,

0202, 0619

RadioShack 0000, 1037

Radix 0037

Randex 0037

Realistic 0035, 0037, 0048, 0047, 0000, 0104,

0062, 0046, 0066,0240

ReplayTV 0614, 0616

Runco 0039

STS 0042

Samsung 0240, 0045

Sanky 0048, 0039

Brand Codes

65

Manufacturers’ Codes

Sansui 0000, 0067, 0209, 0271

Sanyo 0047, 0240, 0104, 0046, 0268

Scott 0184, 0045, 0043

Sears 0035, 0037, 0047, 0000, 0042, 0104,

0046, 0066

Semp 0045

Sharp 0048, 0062

Shintom 0072

Shogun 0240

Singer 0072

Sony 0033, 0035, 0032, 0000, 1032

Sylvania 0035, 0081, 0000, 0043

Symphonic 0000, 0593

Tandy 0000, 0104

TMK 0240

Teac 0000

Technics 0035, 0162

Teknika 0035, 0037, 0000

Thomas 0000

Tivo 0618

Toshiba 0045, 0043, 0066

Totevision 0037, 0240

Unitech 0240

Vector 0045

Video Concepts 0045

Videosonic 0240

Wards 0060, 0035, 0048, 0047, 0081, 0240,

0000, 0042, 0072, 0062

White Westing-

house

0209, 0072, 0278

XR-1000 0035, 0000, 0072

Zenith 0039, 0000, 0209

Brand Codes

66 Manufacturers’ Codes

Video Accessory Codes

Brand Codes

Archer 0160

GC Electronics 0160

Jebsee 0160

Magnavox 0818

Philips 0818

RadioShack 0160

Sony 0850

67

Specifications

ˆ

Specifications

Power ..............................................................(4) AAA Batteries

Dimensions (HWD) .................................. 7.3 in × 3.4 in × 1.2 in

(184.5mm × 85.7mm × 31mm)

Weight (Without Batteries) ................................................. 8 oz

(226.8 g)

Specifications are typical; individual units might vary. Specifica-

tions are subject to change and improvement without notice.

RadioShack Corporation

Fort Worth, Texas 76102

15-2107

10A01

Printed in Korea

Limited Ninety-Day Warranty

This product is warranted by RadioShack against manufacturing de-

fects in material and workmanship under normal use for ninety (90)

days from the date of purchase from RadioShack company-owned

stores and authorized RadioShack franchisees and dealers. EXCEPT

AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WAR-

RANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE, ARE LIMITED IN DURATION TO THE DURATION OF THE

WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT

AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY

OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON

OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAM-

AGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFOR-

MANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH

OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY

DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME,

DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN

IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES.

Some states do not allow limitations on how long an implied warranty

lasts or the exclusion or limitation of incidental or consequential dam-

ages, so the above limitations or exclusions may not apply to you.

In the event of a product defect during the warranty period, take the

product and the RadioShack sales receipt as proof of purchase date

to any RadioShack store. RadioShack will, at its option, unless other-

wise provided by law: (a) correct the defect by product repair without

charge for parts and labor; (b) replace the product with one of the

same or similar design; or (c) refund the purchase price. All replaced

parts and products, and products on which a refund is made, become

the property of RadioShack. New or reconditioned parts and products

may be used in the performance of warranty service. Repaired or re-

placed parts and products are warranted for the remainder of the orig-

inal warranty period. You will be charged for repair or replacement of

the product made after the expiration of the warranty period.

This warranty does not cover: (a) damage or failure caused by or at-

tributable to acts of God, abuse, accident, misuse, improper or abnor-

mal usage, failure to follow instructions, improper installation or

maintenance, alteration, lightning or other incidence of excess volt-

age or current; (b) any repairs other than those provided by a

RadioShack Authorized Service Facility; (c) consumables such as

fuses or batteries; (d) cosmetic damage; (e) transportation, shipping

or insurance costs; or (f) costs of product removal, installation, set-up

service adjustment or reinstallation.

This warranty gives you specific legal rights, and you may also have

other rights which vary from state to state.

RadioShack Customer Relations, 200 Taylor Street, 6th Floor,

Fort Worth, TX 76102

12/99
