RadioShack, RadioShack.com, Hypersearch,

Hyperscan, and Adaptaplug are

trademarks used by

RadioShack Corporation.

Motorola, Smartnet and Privacy Plus

are registered trademarks of Motorola Inc.

EDACS is a registered trademark of GE/Ericsson Inc.

20-525 OWNER’S MANUAL — Please read before using this equipment.

! IMPORTANT !

If an icon appears at

the end of a

paragraph, go to the

box on that page with

the corresponding

icon for pertinent

information.

o —Warning

—Caution

!—Important

Ó—Hint

Ô—Note

DEF

ABC

MANUAL

FUNC

SCAN

PRI

TEXT

PAUSE

MODE

TUNE

ATT GHI

PQRS

SEARCH L/OUT PGM ENTER

JKL

TUV

DELAY

MNO

WXYZ

TRUNK

PRO-95 Dual Trunk-Tracking

Handheld Scanner

CONTENTS

Features ................. 2

The FCC Wants You

to Know .................. 6

Scanning

Legally ............... 7

Preparation ............ 9

Power Sources .. 9

Using AC

Power ............... 11

Connecting the

Antenna .......... 12

Connecting an

Earphone/

Headphones .... 13

Connecting an

Extension

Speaker ........... 14

Using the Belt

Clip .................. 15

Transferring Data

to and from

Another Scanner or

a PC ................ 15

FEATURES

Your RadioShack Handheld

Scanner is one of a new

generation of scanners designed

to track MotorolaType I and II

(such as Smartnetand Privacy

Plus) and hybrid analog trunking

systems, and GE/Ericsson

(EDACS) type systems, which

are extensively used in many

communication systems.

Trunking communications systems

let a large group of 2-way radio

users (or even different groups of

2-way radio users) efficiently use a

set of frequencies. Instead of

selecting a specific frequency for a

transmission, the user simply

selects a talk group. The trunking

system automatically transmits the

call on the first available

frequency, and also sends a code

that uniquely identifies that

transmission.

Since the trunking system might

send a call and its response on

different frequencies, it is difficult

to listen to trunked

communications using a regular

scanner. The trunking scanner

monitors the data sent with a 2-

way radio transmission, so you

can hear the call and response for

that user and more easily follow

the conversation.

The scanner also lets you scan

conventional transmissions, and is

preprogrammed with service

search banks for convenience. By

pressing a single button, you can

quickly search those frequencies

Features

About Your

Scanner ............... 15

About the

Keypad ................. 16

Quick Start ........... 19

Understanding

Banks ................... 19

Channel Storage

Banks .............. 19

Search Banks .. 20

Understanding Your

Scanner's Modes . 20

AM Mode ......... 21

FM Mode ......... 21

Motorola

Mode ............... 21

EDACS Mode .. 23

Open and Closed

Modes ............. 25

Operation ............. 26

Turning on the

Scanner and

Setting

Squelch ........... 26

Storing Known

Frequencies into

Channels ......... 26

Storing Trunking

Frequencies into

Channels ......... 28

Storing Text

Tags ................ 29

Finding and Stor-

ing Active

Frequencies .... 32

Listening to the

Weather Band . 39

Using Frequency

Copy ................ 41

Scanning the

Channels ......... 43

Special Features .. 45

Using the Delay

Function .......... 45

Locking Out

Channels or

Frequencies .... 45

Priority ............. 47

Changing the

Receive Mode . 49

Features

most commonly used by public

service and other agencies.

This scanner gives you direct

access to over 59,000 frequencies

including those used by police and

fire departments, ambulance

services, government agencies,

air, and amateur radio services.

Your scanner includes these

features:

Simultaneous Trunking

Operation —trackstwotrunking

systems (Motorola and EDACS)

and conventional systems at the

same time.

Automatic Channel

Programming — automatically

determines the group trunking

frequencies, for Motorola trunking

systems only, once the control

channels are programmed.

10 Channel-Storage Banks —let

youstore100channelsineach

bank (1,000 channels) to group

channels so calls are easier to

identify.

10 ID-Storage Banks —letyou

store 1,000 IDs in 10 ID banks that

have 5 sub-ID banks. 20 IDs are

programmed in each sub-ID bank

and let you easily identify the ID

code.

Weather Alert — automatically

sounds the alarm tone to advise of

hazardous weather conditions

when it detects the alert signal on

the local National Oceanic and

Atmospheric Administration

(NOAA) weather channel during

priority operation.

Using the

Attenuator ....... 50

Turning the Key

Tone On and

Off ................... 51

Using the Display

Backlight ......... 51

Using the

Keylock ........... 52

Changing the

Display

Contrast .......... 53

Cloning the

Programmed

Data ................ 53

Trunking ............... 54

Trunking

Operation ........ 54

Understanding

Trunking .......... 55

Setting Squelch for

the Trunking

Mode ............... 56

Programming

Trunking

Frequencies .... 56

Programming

Motorola Trunking

Systems

(UHF-Lo) ......... 58

Programming

Motorola Trunking

System

(800 MHz) ....... 60

Programming

Fleet Maps ...... 60

Talk Group IDs 62

Storing Talk

Group IDs ........ 62

Talk Group ID

Hold ................. 64

Turning an ID

Sub-Bank

On or Off ......... 65

Locking Out Talk

Group IDs ........ 65

Delay Function in

ID Indication

Mode ............... 66

Features

Digital Weather Alert —displays

the weather event text with four

alert levels so you can see and

hear the reason for the alert.

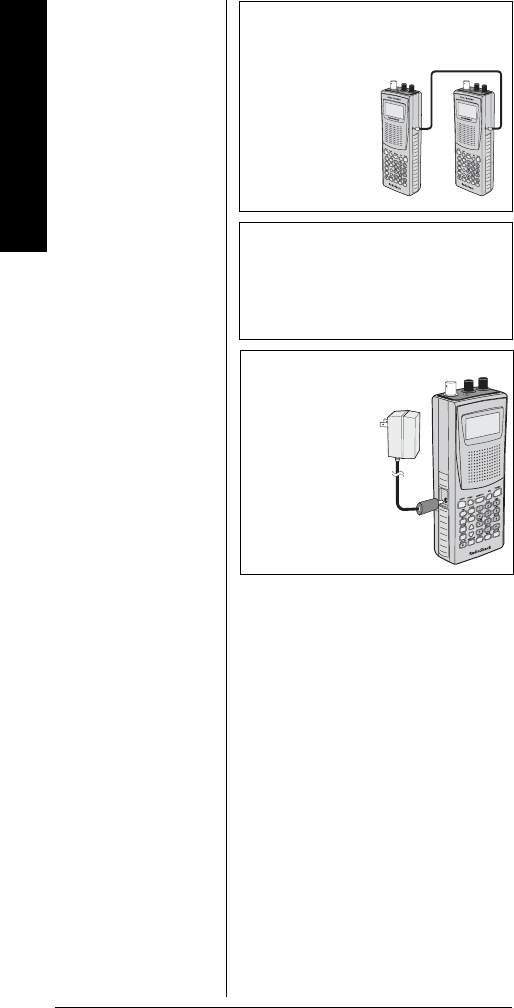

Data Cloning — lets you transfer

the programmed data to another

PRO-95 scanner. You can also

upload or download the

programmed data to or from a PC

using an optional PC interface kit.

12-Character, 4-Line,

Alphanumeric Display — shows

you detailed operating information

clearly.

Triple Conversion

Superheterodyne Receiver —

virtually eliminates any

interference from intermediate

frequency (IF) images, so you

hear only the frequency you

select.

Preprogrammed Frequency

Ranges — lets you search for

transmissions within preset

frequency ranges or within ranges

you set, to reduce search time and

select interesting frequencies

more quickly.

Hyperscan™ and

Hypersearch™ — the scanner

scans at up to 60 channels per

second and searches up to 75

frequencies per second, to help

you quickly find transmissions.

Scan Delay — delays scanning

for about 2 seconds before moving

to another channel in conventional

mode, so you can hear more

replies that are made on the same

channel.

Reviewing Locked-

Out Talk Group

IDs ................... 67

Clearing Talk

Group IDs ........ 67

Clearing All Talk

Group IDs in

One Bank ........ 67

Changing the

Open/Closed

Mode ............... 68

A General Guide to

Frequencies ......... 69

US Weather

Frequencies

(in MHz) ........... 69

Ham Radio

Frequencies ..... 69

Birdie

Frequencies ..... 69

Guidetothe

Action Bands ........ 71

Typical Band

Usage

(in MHz) ........... 71

Band

Allocation ......... 73

Frequency

Conversion ........... 80

Troubleshooting .... 82

Resetting the

Scanner ........... 83

Initializing the

Scanner ........... 83

Care ..................... 84

Specifications ....... 84

Parts and

Accessories .......... 87

Features

Priority Channel —letsyouset

the scanner to check one channel

every 2 seconds so you do not

miss transmissions.

Attenuate — lets you program

your scanner to reduce the

scanner's sensitivity to strong local

signals, to reduce interference or

noise caused by these signals.

Text Input — lets you input a text

label for each channel, talk group

ID, bank, or other memory location

so you can easily identify the

transmission.

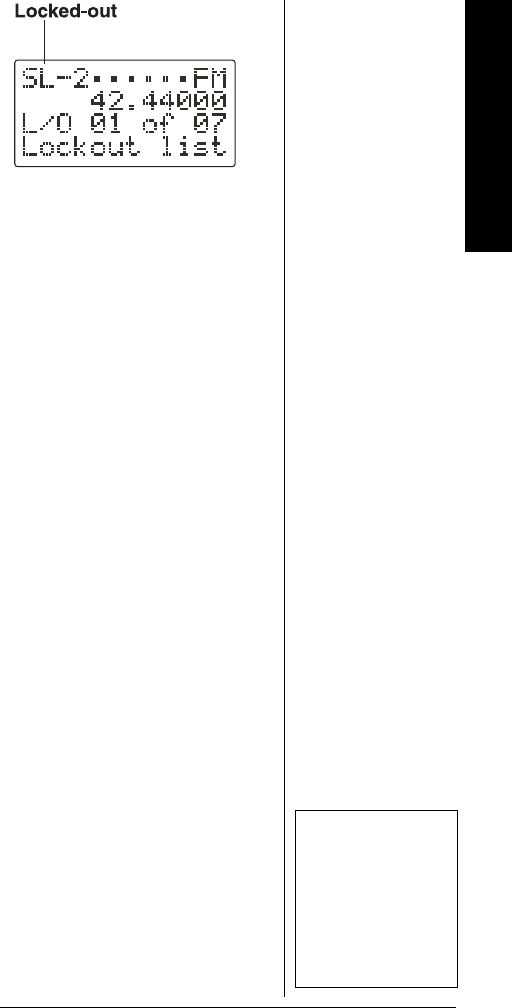

Lock Out Function — lets you set

your scanner to skip over specified

channels or frequencies when

scanning or searching, and skip

over IDs when tracking trunked

systems.

Key Lock — lets you lock the

scanner's keys to prevent

accidentally changing the

scanner's programming.

Flexible Antenna with BNC

Connector — provides excellent

reception and is designed to help

prevent antenna breakage.

Memory Backup — keeps the

frequencies stored in memory for

an extended time even without

internal batteries.

Three Power Options —letyou

power the scanner with internal

batteries (non-rechargeable

batteries or rechargeable

batteries, not supplied). You can

also use an AC adapter (not

supplied) or power the scanner in

The FCC Wants You to Know

a vehicle using a DC adapter (not

supplied).

Supplied Trunking Guide —

provides a quick reference to

public safety trunking radio

systems in the United States.

Your scanner can receive these

frequencies:

•25–54MHz

• 108 – 136.9875 MHz

•137–174MHz

• 216.0025 – 225 MHz

•406–512MHz

• 806 – 823.9875 MHz

• 849 – 868.9875 MHz

•894–960MHz

• 1240 – 1300 MHz

Use “A General Guide to

Frequencies” on Page 69 to help

you target frequency ranges in

your service area so you can

search for a wide variety of

transmissions.

THE FCC WANTS

YOU TO KNOW

This equipment has been tested

and found to comply with the limits

for a scanning receiver, pursuant

to Part 15 of the FCC Rules.

These limits are designed to

provide reasonable protection

against harmful interference in a

residential installation. This

equipment generates, uses and

can radiate radio frequency

energy and, if not installed and

used in accordance with the

The FCC Wants You to Know

instructions, may cause harmful

interference to radio

communications.

However, there is no guarantee

that interference will not occur in a

particular installation. If this

equipment does cause harmful

interference to radio or television

reception, which can be

determined by turning the

equipment off and on, the user is

encouraged to try to correct the

interference by one or more of the

following measures:

• Reorient or relocate the

receiving antenna.

• Increase the separation

between the equipment and

receiver.

• Connect the equipment into

an outlet on a circuit different

from that to which the receiver

is connected.

This device complies with Part 15

of the FCC Rules. Operation is

subject to the following two

conditions:

1. This device may not cause

harmful interference.

2. This device must accept any

interference received,

including interference that

may cause undesired

operation.

SCANNING LEGALLY

Your scanner covers frequencies

used by many different groups

including police and fire

departments, ambulance services,

government agencies, private

The FCC Wants You to Know

companies, amateur radio

services, military operations,

pager services, and wireline

(telephone and telegraph) service

providers. It is legal to listen to

almost every transmission your

scanner can receive. However,

there are some transmissions you

should never intentionally listen to.

These include:

• Telephone conversations

(cellular, cordless, or other

private means of telephone

signal transmission)

• Pager transmissions

• Any scrambled or encrypted

transmissions

According to the Electronic

Communications Privacy Act

(ECPA), you are subject to fines

and possible imprisonment for

intentionally listening to, using, or

divulging the contents of such a

transmission unless you have the

consent of a party to the

communication (unless such

activity is otherwise illegal).

This scanner has been designed

to prevent reception of illegal

transmissions. This is done to

comply with the legal requirement

that scanners be manufactured so

as to not be easily modifiable to

pick up those transmissions. Do

not open your scanner's case to

make any modifications that could

allow it to pick up transmissions

that are illegal to monitor. Doing so

could subject you to legal

penalties.

We encourage responsible, legal

scanner use.

Preparation

In some areas, mobile use of this

scanner is unlawful or requires a

permit. Check the laws in your

area.

PREPARATION

POWER SOURCES

You can power your scanner from

any of three sources:

• internal non-rechargeable

batteries or rechargeable

batteries (not supplied — see

“Using Batteries”).

• standard AC power (with an

optional AC adapter — see

“Using AC Power” on

Page 11)

• vehicle power (with an

optional DC adapter — see

“Using Vehicle Battery Power”

on Page 12) Ô

Using Batteries

You can power the scanner with

four AA batteries (not supplied).

For the longest operation and best

performance, we recommend

alkaline batteries, available at your

local RadioShack store.

You can use either the supplied

non-rechargeable battery holder

(black), or the supplied

rechargeable battery holder

(yellow). If you use the

rechargeable battery holder, we

recommend RadioShack nickel-

metal hydride (Ni–MH) batteries.

Ô NOTE Ô

• Connecting an AC

or DC adapter to

the scanner dis-

connects internal

batteries when you

use the supplied

non-rechargeable

battery holder, but

it does not discon-

nect internal bat-

teries when you

use the supplied

rechargeable

battery holder.

• If you install the

rechargeable

battery holder, you

can operate the

scanner and re-

charge the re-

chargeable

batteries at the

same time. See

“Using Batteries”

and “Charging

Rechargeable

Batteries” on

Page 11.

• If the scanner

stops working

properly after

connecting it to

power, try

resetting it. See

“Resetting/

Initializing the

Scanner” on

Page 83.

• You must charge

rechargeable

batteries before

you use them the

first time. See

“Charging

Rechargeable

Batteries” on

Page 11.

Preparation

You must charge rechargeable

batteries before you use them the

first time. See “Charging

Rechargeable Batteries” on

Page 11. o 

Follow these steps to install the

batteries:

1. Press in on the battery

compartment cover on the

back of the scanner and slide

the cover down to remove it.

2. Pull the battery holder out of

the battery compartment.

3. If you are using non-

rechargeable batteries,place

them into the black holder, as

indicated by the polarity

symbols (+and –)markedon

the holder.

If you are using rechargeable

batteries, place them into the

yellow holder as indicated by

the polarity symbols (+and –)

marked on the holder.

4. Place the battery holder into

the battery compartment.

5. Replace the cover.

When battery power is low, Low

Battery! appears and the scanner

beeps continuously. When battery

power is depleted, the scanner

turns itself off. Replace all four

non-rechargeable batteries, or

recharge the rechargeable

batteries. See “Charging

Rechargeable Batteries” on

Page 11. o 

o WARNING o

Never install non-

rechargeable

batteries in the

rechargeable yellow

battery holder. Non-

rechargeable

batteries can get hot

or explode if you try

to recharge them.

 CAUTION 

• The battery holde

fits only one way.

Do not force it.

• Use only fresh

batteries of the

required size and

recommended

type.

• Always remove

old or weak

batteries.

Batteries can leak

chemicals that

destroy electronic

circuits.

• Do not mix old

and new

batteries, differen

types of batteries

(alkaline or

rechargeable), or

rechargeable

batteries of

different

capacities.

• If you do not plan

to use the

scanner with

batteries for a

month or longer,

remove the

batteries.

Batteries can leak

chemicals that

can destroy

electronic parts.

Preparation

Charging Rechargeable

Batteries

Your scanner has a built-in

charging circuit that lets you

charge nickel-metal hydride (Ni-

MH) or nickel cadmium (Ni-CD)

rechargeable batteries (not

supplied) while they are in the

scanner. To charge rechargeable

batteries, connect an appropriate

AC or DC adapter to the PWR DC

9V jack. For best results we

recommend RadioShack

rechargeable nickel-metal hydride

(NiMH) 1600mAh batteries. !

To charge batteries with a DC

adapter from a DC power source,

youmustusea9V,300mADC

adapter such as RadioShack Cat.

No. 273-1810 or 273-1815 and a

size B Adaptaplug™ (neither

supplied). Both are available at

your local RadioShack store.

Make sure the adapter's voltage is

set to 9V. Ô

It takes about 16 hours to

recharge fully discharged

1600mAh NiMH rechargeable

batteries. You can operate the

scanner while recharging the

rechargeable batteries, but

charging takes longer.

USING AC POWER

You can power the scanner using

a 9V, 300 mA AC adapter and a

size B Adaptaplug (neither

supplied). Both are available at

your local RadioShack store.

 CAUTION 

If you do not plan to

use the scanner with

batteries for a month

or longer, remove the

batteries. Batteries

can leak chemicals

that can destroy

electronic parts.

o WARNING o

Always dispose of

old batteries

promptly and

properly. Do not bury

or burn them.

Ô NOTE Ô

• The scanner can

also charge Ni-Cd

batteries. 600mAh

batteries require 6

hours and

850mAh batteries

require 8 hours to

charge.

• When you charge

Ni-Cd batteries,

do not overcharge

them. Overchar-

ging shortens

battery life.

• Rechargeable

batteries last

longer and deliver

more power if you

let them fully

discharge once a

month. To do this,

use the scanner

until Low Battery!

appears. Then

fully charge the

rechargeable

batteries.

Preparation

1. Connect the Adaptaplug to

the adapter's cord with the tip

set to positive. 

2. Plug the adapter's barrel plug

into the scanner's PWRDC9V

jack.

3. Plug the adapter's two-prong

plug into an AC outlet.

Using Vehicle Battery

Power

You can power the scanner from a

vehicle’s 12V power source (such

as cigarette-lighter socket) using a

9V, 300 mA DC adapter and a size

B Adaptaplug™ adapter (neither

supplied). Both are available at

your local RadioShack store. 

1. Connect the Adaptaplug to

the adapter's cord with the tip

set to positive.

2. Plug the adapter's barrel plug

into the scanner's PWRDC9V

jack.

3. Plug the adapter's cigarette-

lighter plug into your 12V

power source. Ô

CONNECTING THE

ANTENNA

To attach the supplied flexible

antenna to the antenna jack on the

top of your scanner, align the slots

around the antenna's connector

with the tabs on the antenna jack.

Press the antenna down over the

jack and turn the antenna's base

clockwise until it locks into place.

 CAUTION 

You

must

use a

Class 2 power

source that

supplies 9V DC

and delivers at

least 300 mA. Its

center tip must be

set to positive and

its plug must fit

the scanner's

PWRDC9Vjack

Using an adapter

that does not

meet these

specifications

could damage the

scanner or the

adapter.

• Always connect

the AC or DC

adapter to the

scanner before

you connect it to

AC power or

power source.

When you finish,

disconnect the

adapter from AC

power or the

power source

before you

disconnect it from

the scanner.

Ô NOTE Ô

If the scanner does

not operate properly

when you connect a

DC adapter, unplug

the DC adapter from

the power source and

clean the socket, or

check the adapter’s

internal fuse.

Preparation

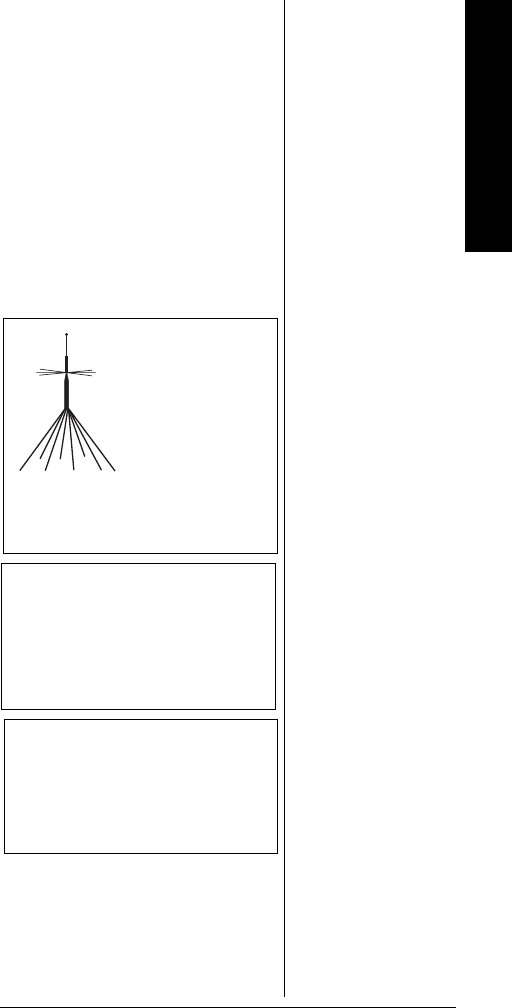

Connecting an Optional

Antenna

The antenna connector on your

scanner makes it easy to use the

scanner with a variety of

antennas, such as an external

mobile antenna or outdoor base

station antenna. Your local

RadioShackstoresellsavarietyof

antennas.

Always use 50-ohm coaxial cable,

such as RG-58 or RG-8, to

connect an outdoor antenna. For

lengths over 50 feet, use RG-8

low-loss dielectric coaxial cable. If

your antenna's cable does not

have a BNC connector, you will

also need a BNC adapter (not

supplied, available at your local

RadioShack store).

Follow the installation instructions

supplied with the antenna, route

the antenna cable to the scanner,

then connect it to the antenna

jack. o

CONNECTING AN

EARPHONE/HEADPHONES

For private listening, you can plug

an 1/8-inch(3.5mm)mini-plug

earphone or headphones (not

supplied), available at your local

RadioShack store, into the jack

on top of your scanner. This

automatically disconnects the

internal speaker.

Listening Safely

To protect your hearing, follow

these guidelines when you use

headphones.

o WARNING o

Use extreme caution

when installing or

removing an outdoor

antenna. If the

antenna starts to fall

letitgo!Itcould

contact overhead

power lines. If the

antenna touches a

power line, touching

the antenna, mast,

cable, or guy wires

can cause

electrocution and

death. Call the powe

company to remove

the antenna. DO

NOT attempt to do

so yourself.

Preparation

• Set the volume to zero before

putting on the headphones.

With the headphones on,

adjust the volume to a

comfortable level.

• Avoid increasing the volume

once you set it. Over time,

your sensitivity to a volume

level decreases, so volume

levels that do not cause

discomfort might damage

your hearing.

• Avoid or limit listening at high

volume levels. Prolonged

exposure to high volume

levels can cause permanent

hearing loss.

Traffic Safety

Wearing headphones while

operating a motor vehicle or riding

a bicycle can create a traffic

hazard and could be illegal in

some areas.

Even though some headphones

let you hear some outside sounds

when listening at normal volume

levels, they still can present a

traffic hazard. Exercise extreme

caution!

CONNECTING AN

EXTENSION SPEAKER

In a noisy area, an amplified

speaker (not supplied), available

at your local RadioShack store,

might provide more comfortable

listening. Plug the speaker cable's

1/8-inch(3.5mm)mini-pluginto

your scanner's jack.Ô

! IMPORTANT !

The EPA

certified

RBRC®

Battery

Recycling

Seal on the nickel-

cadmium (Ni-Cd)

battery indicates

RadioShack is

voluntarily

participating in an

industry program to

collect and recycle

these batteries at the

end of their useful

life, when taken out

of service in the

United States or

Canada. The RBRC

program provides a

convenient alter-

native to placing

used Ni-Cd batteries

into the trash or the

municipal waste

stream, which may

be illegal in your

area. Please call

1-800-THE-SHACK

(1-800-843-7422) fo

information on Ni-Cd

battery recycling and

disposal bans/

restrictions in your

area. RadioShack’s

involvement in this

program is part of

the company’s

commitment to

preserving our

environment and

conserving our

natural resources.

Ô NOTE Ô

You must use an

amplified speaker

with this scanner.

Non-amplified

speakers do not

provide sufficient

volume for

comfortable listening.

About Your Scanner

USING THE BELT CLIP

You can use the belt clip attached

to the back of the scanner for

hands-free carrying when you are

on the go. Slide the belt clip over

your belt or waistband.

TRANSFERRING DATA TO

AND FROM ANOTHER

SCANNER OR A PC

You can transfer the programmed

data to and from another PRO-95

scanner using a connecting cable

which has 1/8-inch phone plugs on

both ends (not supplied). Connect

the cable between each scanner's

PC/IF jacks. See “Cloning the

Programmed Data” on Page 53.

You can also upload or download

theprogrammeddatatoorfroma

PC using an optional PC interface

cable (available through your local

RadioShack store) and optional

PC interface software (available at

www.radioshack.com).

ABOUT YOUR

SCANNER

Once you understand a few simple

terms used in this manual and

familiarize yourself with your

scanner's features, you can put

the scanner to work for you. You

simply determine the type of

communications you want to

receive, then set the scanner to

scan them.

Afrequency is the receiving signal

location (expressed in kHz or

MHz). To find active frequencies,

you can use the search function.

About the Keypad

You can also search the SEARCH

banks, which are preprogrammed

frequencies in the scanner's

memory (see “Searching a

Preprogrammed Frequency

Range” on Page 32 for the

frequency list). You can even

change the frequency range on

one of the SEARCH banks (SR5)

to limit the search.

When you find a frequency, you

can store it into a programmable

memory location called a channel,

which is grouped with other

channels in a channel-storage

bank. You can then scan the

channel-storage banks to see if

there is activity on the frequencies

stored there. Each time the

scanner finds an active frequency,

it stays on that channel until the

transmission ends.

ABOUT THE

KEYPAD

Here is a brief overview of your

scanner's keys and their functions.

SCAN — scans through the

programmed channels.

FUNC (function) — lets you use

various functions by pressing this

key in combination with other

keys.

MANUAL — stops scanning and

lets you directly enter a channel

number.

WX — scans through the seven

preprogrammed weather

channels.

About the Keypad

TRUNK — stores the trunking ID

code or holds the trunking ID while

scanning.

PRI (Priority) — sets and turns the

priority function on or off.

TEXT — lets you input text.

PAUSE — stops search.

MODE — changes the receive

mode (AM, FM, MOT, ED).

/ — turns on/off the

display's backlight, or when used

with FUNC locks/unlocks the

keypad to prevent accidental

entries.

TUNE — lets you input a frequency

and allows you to fine tune a

frequency along with or .

ATT (Attenuate) — turns

attenuation on to reduce the

scanner's sensitivity and block

extremely strong signals, or turns

it off to increase sensitivity.

or — selects the scan or

search direction.

SEARCH — lets you search the six

search banks.

L/OUT (Lock Out) — lets you lock

out a selected channel, skip a

specified frequency during search,

or lock out a selected ID code.

PGM — programs frequencies into

channels.

ENTER — completes the entry of

frequencies and text.

About the Keypad

1— enters a 1, or inputs

characters 0 through 9 in text

mode.

2/ABC — enters a 2, or inputs

characters A, B, or C.

3/DEF — enters a 3, or inputs

characters D, E, or F.

4/GHI — enters a 4, or inputs

characters G, H, or I.

5/JKL — enters a 5, or inputs

characters J, K, or L.

6/MNO — enters a 6, or inputs

characters M, N, or O.

7/PQRS — enters a 7, or inputs

characters P, Q, R, or S.

8/TUV — enters an 8, or inputs

characters T, U, or V.

9/WXYZ — enters a 9, or inputs

characters W, X, Y, or Z.

0— enters a zero, or inputs

characters ., -, #, _, @, +, *, &, /, ',

$, %, !, ^, (, ), ?, ->, ` or <-.

./DELAY — enters a decimal point

(necessary when programming

frequencies), space, or programs

delay time for the selected

channel/search bank, or hyphen

(in trunking ID setting).

CL — clears an incorrect entry.

Quick Start

QUICK START

To help familiarize yourself with

the scanner’s functions, keypad,

and available frequencies, you can

utilize one of these three features

before you begin programming the

scanner.

Preprogrammed Search Banks

— allow you to listen to

frequencies and decide which

frequencies you want to store

when you are ready to program

thescanner.See“Searchinga

Preprogrammed Frequency

Range” on Page 32.

Manual Tuning — allows you to

manually scan through the entire

range of available frequencies

without programming. (See

“Specifications” on Page 84 for a

list of the available frequency

ranges.) Also, see “Deleting

Frequencies from Channels” on

Page 44.

Weather Radio — allows you to

listen to NOAA weather

broadcasts without programming.

See “Listening to the Weather

Band” on Page 39.

UNDERSTANDING

BANKS

CHANNEL STORAGE

BANKS

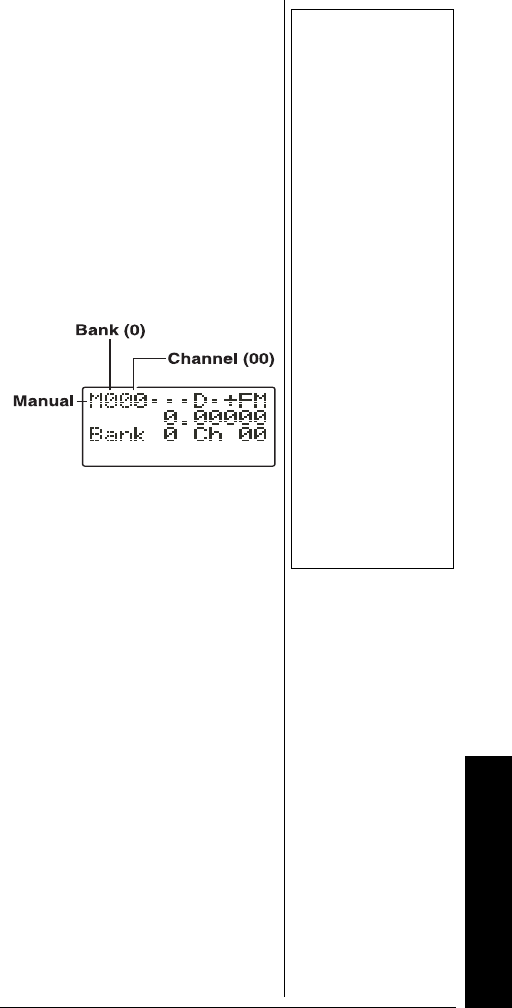

A bank is a storage area for a

group of channels. Channels are

storage areas for frequencies.

Whereas a channel can only

contain one frequency, a bank can

hold numerous channels.

Understanding Your Scanner's Modes

To make it easier to identify and

select the channels you want to

listen to, your scanner divides the

channels into 10 banks (0to 9)of

100 (00 to 99) channels each, a

total of 1,000 channels. You can

use each channel-storage bank to

group frequencies, such as those

used by Motorola trunking,

EDACS trunking, Marine, CB,

Police, Fire, Aircraft and Ham (see

“Typical Band Usage (in MHz)” on

Page 71).

For example, a police department

might use four frequencies, one

foreachsideoftown.Youcould

program the police frequencies

starting with 000 (the first channel

in bank 0) and program the fire

department frequencies starting

with 100 (the first channel in bank

1). The first digit identifies the

bank (0to 9). The second and third

digits identify the channel within

the bank (00 to 99).

SEARCH BANKS

Your scanner has five

preprogrammed search banks and

one limit search bank. You can set

the lower and higher frequency

limit in the limit search bank.Ô

For the default setting, see

“Searching a Preprogrammed

Frequency Range” on Page 32).

UNDERSTANDING

YOUR SCANNER'S

MODES

You can program each channel

with any of four receive modes

(AM,FM,MOT,andED).

Ô NOTE Ô

Forexample,ifyou

wanted to find active

frequencies between

a range of 150.1000

and 150.5000, you

would put both of

those frequencies in

the limit search bank.

Understanding Your Scanner's Modes

However, you cannot program

MOT (Motorola), or ED (EDACS)

mode in VHF. Each receive mode

affects how your scanner operates

when scanning and receiving

transmissions, and also affects

what transmissions you receive

when you set the scanner to the

closed mode. See “Changing the

Receive Mode” on Page 49. Ô

AM MODE

The AM mode sets the scanner to

receive transmissions using

amplitude modulation (AM),

primarily used for aircraft, military,

some amateur radio, and some

government transmissions. (Refer

to “Specifications” on Page 84 for

a list of the frequencies covered.)

When the scanner receives a

transmission on a channel set to

the AM mode, it always stops on

the transmission.

FM MODE

The FM mode sets the scanner to

receive transmissions using

frequency modulation (FM), used

for most public safety

transmissions, as well as

broadcast, business, and amateur

radio transmissions. When the

scanner receives a transmission

on a channel set to the FM mode,

it always stops on the

transmission.

MOTOROLA MODE

You can set your scanner so it

decodes the talk group IDs used

with Motorola trunking systems.

This setting is called the Motorola

mode.

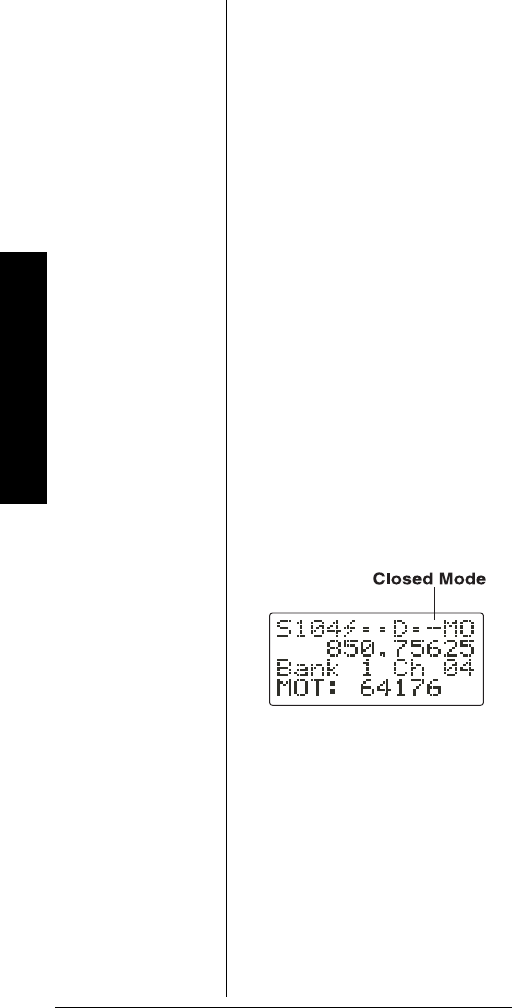

Ô NOTE Ô

Your scanner’s

closed mode lets you

hear only those talk

groups you specify.

For more information,

see “Open and

Closed Modes” on

Page 25.

Understanding Your Scanner's Modes

Motorola systems are trunking

systems used primarily by

business and public safety groups

to efficiently allocate a small

number of frequencies (as few as

five) to many groups of users (as

many as several thousand). To do

this, each group of users in the

system is assigned to a specific

talk group. For example, the east

side patrol officers might all be

assigned to talk group 2160. One

channel in the system is

continuously transmitting data that

identifies which talk groups are

active on which channel. In

addition, this talk group

information is also transmitted as

subaudible data on each active

channel.

When the scanner receives a

transmission on a channel set to

the Motorola mode, it first decodes

the talk group ID data included

with the transmission. In the open

mode, the scanner stops on the

transmission and displays the talk

group ID on the bottom line of the

display. In the closed mode, the

scanner only stops on the

transmission if the talk group ID

matches a talk group ID that you

have stored in the bank's talk

group ID list and have not locked

out.

Motorola trunking systems come

in three categories: Type I, Type II,

and Type I/II Hybrid. Each

category displays and uses talk

group IDs in slightly different

ways.

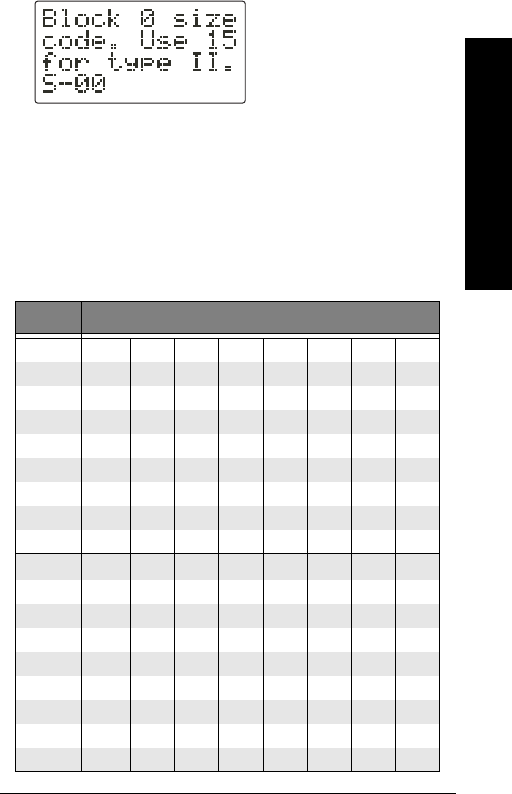

Motorola Type I IDs are in the form

FFF-SS,where:

Understanding Your Scanner's Modes

FFF=Fleet ID

SS=Subfleet ID

Type I systems are usually

organized with different user

groups assigned to different fleets.

To properly map the raw Type I

data to the correct fleet-subfleet

format, you must program the

correct fleet map into the scanner.

Fleet map information is widely

available on the Internet for most

Type I systems in use.

Type II system talk groups are

identified by a 5-digit number.

Valid talk group IDs are divisible

by 16. If you try to enter an invalid

talk group ID, the scanner rounds

the ID down to the next valid ID.

Type I/II hybrid systems use both

fleet-subfleet and 5-digit formats

for talk group IDs. Ô

EDACS MODE

You can set your scanner so it

decodes the talk group IDs used

with EDACS (GE/Ericsson)

trunking systems. This setting is

called the EDACS mode.

EDACS systems are trunking

systems used primarily by

business or private

communications service providers,

as well as by some public safety

organizations. EDACS systems

transmit active talk group

information only on a dedicated

control channel.

EDACS frequencies are organized

in a specific order. Each frequency

Ô NOTE Ô

Motorola Mode

• For example, a

valid fleet-subfleet

ID identifying all

detectives within a

police department

might be 000—12,

where 000

identifies all police

users and 12

identifies the

Detective division.

• If the scanner

decodes control

channel data while

receiving

transmissions

from a Motorola

trunking system,

CNTRL appears on

the bottom line of

the display.

Understanding Your Scanner's Modes

is assigned a Logical Channel

Number (LCN). For the scanner to

correctly switch to an active

frequency, you must program the

frequencies in LCN order, starting

with Memory 01. EDACS talk group

IDs are entered as a 4-digit

decimal number from 0001 to

2047 or AFS (Agency Fleet

Subfleet) number from 00-001 to

15-157.

When there is activity on an

EDACS system, that information is

sent out on the control channel.

The scanner decodes the ID for

the active talk group. In the open

mode, the scanner then goes to

thetransmissionanddisplaysthe

talk group ID on the bottom line of

the display. In the closed mode,

the scanner only goes to

transmissions with IDs that match

talkgroupIDsyouhavestoredin

the bank's talk group ID list which

are not locked out.

Because EDACS scanning

requires clear reception of the

control channel at all times,

EDACS systems tend to have a

smaller usable area. An external

antenna can greatly improve

EDACS scanning in a fringe area.

If you are having trouble scanning

an EDACS system, try manually

selecting the data channel. If you

are getting good reception, the

scanner will indicate talk group

CTL—01. Try changing your location

or using an outdoor antenna to

improve reception.

Understanding Your Scanner's Modes

OPEN AND CLOSED

MODES

You can set your scanner to

change the way it receives

signals. These settings, called

open mode and closed mode,

affect how the scanner receives

signals from communications

systems that use some type of

closed squelch (such as Motorola

and EDACS systems). Ô

You can set each of the scanner's

channel storage banks to open or

closed mode.

In open mode, the scanner scans

signals transmitted in all systems.

The scanner stops on any ID code

and only uses the ID list to look up

ID text tags.

In closed mode, the scanner stops

only on signals that have an ID

code which is found in the ID list

for the bank. Also, the scanner

scans signals transmitted only

under the following conditions:

• When the signals are in the

FM mode.

• When the signals are in the

MOT, or ED mode and the

signal's ID code matches the

programmed ID code.

You can also select the user or

talk groups you want the scanner

toreceiveinclosedmode.

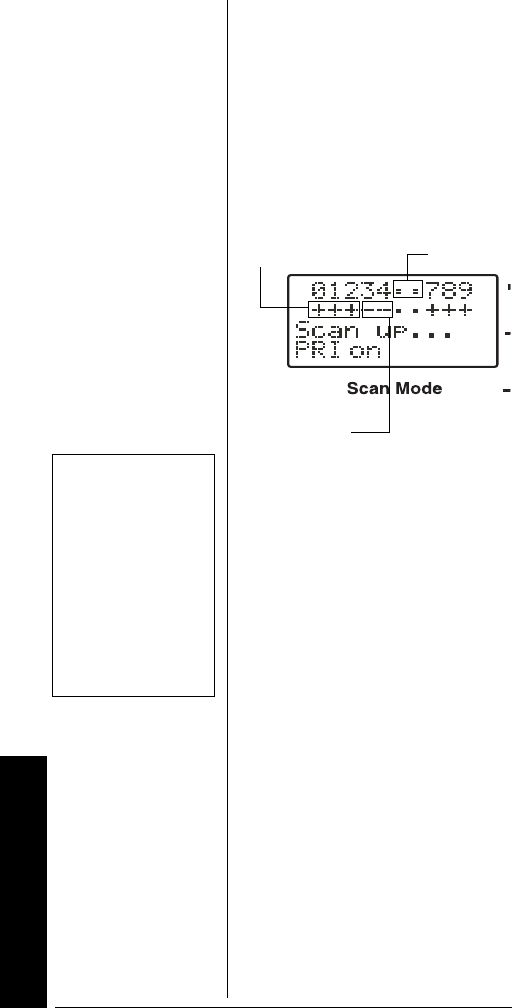

When you set a channel storage

bank to open mode, +appears

under the bank's number while

scanning. When you set a channel

storage bank to closed mode, —

appears under the channel

Ô NOTE Ô

• In open mode, you

hear all active talk

groups except

those you

specifically

exclude, making it

easy to hear

everything going

on. In closed

mode, you hear

only those talk

groups you

specify. This

makesiteasyto

listen only to talk

groups you are

interested in and

exclude others.

• When you select a

channel manually,

any transmission

opens squelch,

regardless of the

current mode.

• When no ID code

is programmed

into the scanner, it

receives the signa

in MOT or ED

mode. In open

mode, the scanner

stops on any

transmission. If

the ID is stored,

the text tag

appears on the

display.

Otherwise, the talk

group ID appears

on the display. In

closed mode, the

scanner only

stops on a

transmission if the

ID is stored.

Operation

storage bank's number while

scanning. OPEN or CLOSED appears

while the scanner is in manual

mode or while the scanner is

receiving a signal during scanning.

See “Changing the Open/Closed

Mode”onPage68formore

information about setting the open

andclosedmodes.

OPERATION

TURNING ON THE

SCANNER AND SETTING

SQUELCH

1. To turn on the scanner, turn

VOLUME clockwise. Welcome

To Dual Trunking appears. After

about 3 seconds, you might

hear a hissing sound. Then

adjust VOLUME to a com-

fortable listening level.

2. Turn SQUELCH fully

counterclockwise until the

indicator points to MIN,then

turn SQUELCH clockwise until

the hissing sound stops.

3. To turn off the scanner, turn

VOLUME counterclockwise to

OFF.Ô

STORING KNOWN

FREQUENCIES INTO

CHANNELS

Good references for active

frequencies are RadioShack's

Police Call, Aeronautical

Frequency Directory,andMaritime

Frequency Directory. We update

these directories every year, so be

Ô NOTE Ô

• The scanner does

not scan if there

are no frequencies

stored in channels.

If the scanner

does not scan and

you have already

stored frequencies

in channels, turn

SQUELCH further

clockwise.

• If the scanner

picks up unwant-

ed, partial, or very

weak trans-

missions, turn

SQUELCH

clockwise to

decrease the

scanner's sen-

sitivity to these

signals. If you

want to listen to a

weak or distant

station, turn

SQUELCH

counterclockwise.

•IfSQUELCH is

adjusted so you

always hear a

hissing sound, the

scanner will not

scan properly.

• To ensure the

scanner operates

properly while in

the trunking mode,

we suggest you

set SQUELCH

using the steps

listed above.

Operation

sure to get a current copy. Also

see the supplied Trunking Guide.

Follow these steps to store

frequencies into channels. Ô

1. Press MANUAL, enter the

bank (0–9) and channel

number (00–99) where you

want to store a frequency,

then press MANUAL again. M

and the bank and channel

number appear at the upper

left corner of the display (for

example: M000).

•Press

FUNC. Then press

or . The bank

number moves in the

direction of the arrow

pressed.

•Press

FUNC. Then hold

down or . The bank

number moves con-

tinuously in the assigned

direction.

•Press

. The channel

number moves upward one

by one. Or, press .The

channel number moves

downward one by one.

2. Press PGM.Mchanges to P.

3. Use the number keys and

./DELAY to enter the fre-

Ô NOTE Ô

• If you are storing

frequencies for an

EDACS system,

you must store

them in order, with

the first frequency

in channel 1 for

the current bank.

For example, if

you want to store

frequencies of

150.0100,

150.0200,

150.0300, and

150.0400 MHz,

you must store

them in Channels

1, 2, 3, and 4

respectively.

• When Mis on the

display, you can

also select your

desired bank and

channel number

with the FUNC

and arrow keys.

Operation

quency (including the decimal

point) you want to store.

Ifyoumakeamistake,press

CL todeleteasingledigitor

press and hold CL about 2

seconds to delete all digits.

4. Press ENTER to store the

frequency into the channel.

5. If necessary, press MODE to

change the receiving mode.

6. If desired, program a text tag

for the channel (see

“Assigning a Text Tag to a

Channel” on Page 29).

7. The next channel in sequence

is ready for programming.

Press PGM and then repeat

steps 3 through 6.

STORING TRUNKING

FREQUENCIES INTO

CHANNELS

1. Press PGM and FUNC then 

or to select the desired

bank to program.

2. Press TRUNK to enter into

trunking mode.

3. Repeatedly press MODE to

select MOT (Motorola) or ED

(EDACS).

4. Press PGM and select the

channel number using

or .

5. Enter the UHF trunking

frequency and press ENTER.

Ô NOTE Ô

• If you made a

mistakeinStep3,

Invalid Freq briefly

appears and the

scanner beeps

when you press

ENTER.Start

again from Step 3

• Your scanner

automatically

rounds the

entered frequency

to the nearest

valid frequency.

For example, if

you enter a

frequency of

151.553, your

scanner accepts it

as 151.550.

• After a

transmission, to

have the scanner

pause for 2

seconds on this

channel before

proceeding to the

next active

transmission,

press ./DELAY to

turn the delay

function on. See

“Using the Delay

Function” on

Page 45. The

scanner stores

this setting in the

channel.

Operation

6. RepeatSteps4and5toenter

the other trunking group

frequencies for EDACS or

additional control channel

frequencies for Motorola

systems.

7. If necessary, press MODE to

change the receiving mode.

STORING TEXT TAGS

You can customize your scanner

by storing text tags (up to 12

characters) for easy identification

of channel transmissions, trunk

IDs, or banks.

Assigning a Text Tag to a

Channel

1. Press MANUAL, enter the

channel number where you

want to enter the text, then

press MANUAL again. Mand

the bank and channel number

appear at the upper left

corner of the display (for

example: M100).

2. Press PGM.Mchanges to P.

3. Press TEXT. The cursor

appears at the third line.

4. Enter the text using the

numeral keys (see “Finding

and Storing Active

Frequencies” on Page 32). Ô

For example, to identify

amateur (ham) radio

transmissions in the 6 meter

range, input “HAM 6m” as

follows:

Ô NOTE Ô

Ifyoumakeamis-

take, press or 

to move to the char-

acter you want to

change.

Operation

• “H” is the second letter

associated with 4 on the

keypad. Press 4then 2.

• “A” is the first letter

associated with 2 on the

keypad. Press 2then 1.

• “M” is the first letter

associated with 6 on the

keypad. Press 6then 1.

• “Space.” Press ./DELAY.

• “6” is the sixth number

associated with 1 on the

keypad. Press 1then 6.

• “m” is the first letter

associated with 6 on the

keypad. Press 6and FUNC

(for the lower case set),

then press 1.

5. Press ENTER to input the text.

Assigning a Text Tag to a

Group ID

1. Press PGM.

2. Press TRUNK.

3. Press FUNC then or to

select the desired bank.

4. Press TRUNK to select the

desired sub-bank.

5. Press or hold down or 

to select the desired group ID.

6. Press TEXT then enter the tag

using the keypad. (See

“Finding and Storing Active

Frequencies” on Page 32).

7. Press ENTER to store.

Operation

Assigning a Text Tag to a

Bank

1. Select a channel within the

desired bank by pressing

MANUAL and entering the

bank number (000 for bank 0

or 200 for bank 2, for example).

Press MANUAL again.

2. Press PGM.

3. Press FUNC then 7.The

cursor appears at the third

line of the display. Enter the

text using the keypad. (See

“Text Input Chart”).

4. Press ENTER to store.

Text Input Chart Ô

Press Character

10123456789

2A B C

2then FUNC a b c

3D E F

3then FUNC d e f

4G H I

4then FUNC g h i

5J K L

5then FUNC j k l

6M N O

6then FUNC m n o

7P Q R S

7then FUNC p q r s

8T U V

8then FUNC t u v

9W X Y Z

9then FUNC w x y z

Ô NOTE Ô

• To access the

numbers, after

you press TEXT

(when you assign

the text tag to a

channel) or you

press FUNC and 7

(when you assign

the text tag to a

bank), press 1.

Then press the

desired number

you want to enter.

• To enter a

lowercase

character or a

character from the

second set for key

0, press FUNC

after pressing the

first numeral key.

Operation

FINDING AND STORING

ACTIVE FREQUENCIES

You can search for transmissions

in the scanner’s preprogrammed

search bank. The search bank is

divided into six search bands. You

can change the search range of

Bank SR5 manually by setting the

lower and higher ends of the

search range. Ô

Searching a

Preprogrammed

Frequency Range

The scanner contains these

preprogrammed search ranges,

stored in the search bank

(SR0 – SR5).

Bank Band

SR0.......................................... Marine

SR1................................................ CB

SR2 ................................... Police/Fire

SR3.......................................... Aircraft

SR4............................................. Ham

SR5... Limit search (User changeable)

Follow these steps to select

preprogrammed search bands and

search them for active

frequencies:

1. Repeatedly press SEARCH to

select your desired search

0. - # _ @ + * &/

0then FUNC $ % ! ^ ( ) ? -> ` <-

/DELAY space

CL backspace

Press Character

Ô NOTE Ô

• You can use the

scanner's delay

feature while

searching the

search bank. See

“Using the Delay

Function” on

Page 45.

• The scanner does

not search locked-

out frequencies

while searching

ranges. See

“Locking Out

Channels or

Frequencies” on

Page 45.

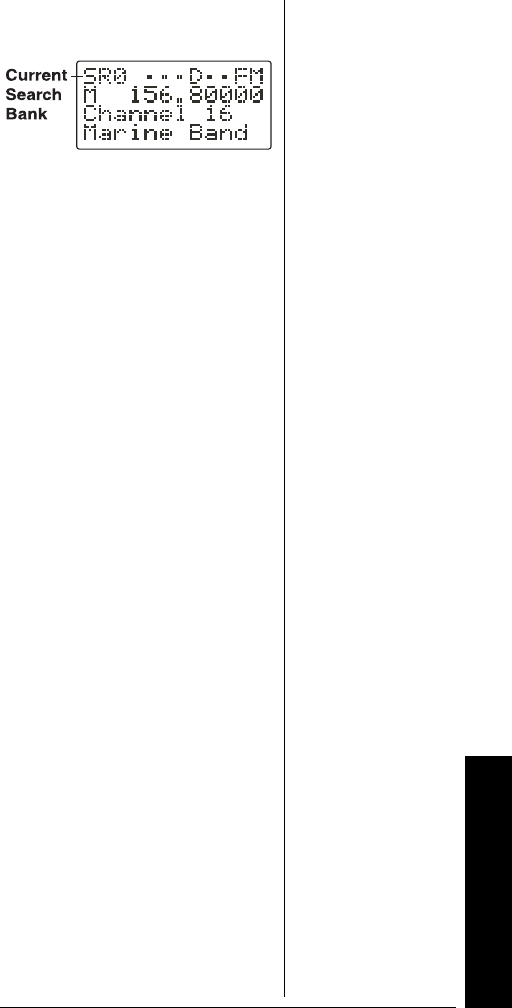

Operation

bank (SR0,SR1,SR2,SR3,SR4,

or SR5).

2. In the marine and CB bands,

you can directly select a

channel or search through the

band. When Mappears at the

left most position of the

second line, you can directly

select a channel (refer to

“Band Charts” on Page 34).

Press the desired channel

number while Mappears to

select it. You can also change

the channels by pressing

or .

3. Press FUNC then SEARCH

while Mappears. Mchanges

to Sand now you can search

through the band. Press

FUNC then SEARCH again to

return to the previous mode.

4. Rotate SQUELCH clockwise

and leave it set to a point just

after the hissing sound stops.

After 2 seconds (if the delay

feature is on), the received

frequency appears and the

scanner starts searching.

5. When the scanner finds an

active frequency, it stops

searching.

Operation

Band Charts

Search bank: SR0 Marine band

Receive mode: FM

Channel Frequency

(MHz) Channel Frequency

(MHz)

01 156.050 05 156.250

06 156.3000 07 156.3500

08 156.4000 09 156.4500

10 156.5000 11 156.5500

12 156.6000 13 156.6500

14 156.7000 15 156.7500

16 156.8000 17 156.8500

18 156.9000 19 156.9500

20 157.0000

161.6000

21 157.0500

22 157.1000 23 157.1500

24 157.2000

161.8000

25 157.2500

161.8500

26 157.3000

161.9000

27 157.3500

161.9500

28 157.4000

162.0000

63 156.1750

64 156.2250

160.825

65 156.2750

66 156.3250 67 156.3750

68 156.4250 69 156.4750

70 156.5250 71 156.5750

72 156.6250 73 156.6750

74 156.7250 77 156.8750

78 156.9250 79 156.9750

80 157.0250 81 157.0750

82 157.1250 83 157.1750

84 157.2250

161.8250

85 157.2750

161.8750

86 157.3250

161.9250

87 157.3750

161.9750

88 157.4250

Operation

Two frequencies are assigned in one channel in some

Marine frequencies. For example, 157.000 and 161.600

are assigned in Channel 20.

Search bank:

SR1 CB band

Receive mode: AM

Channel Frequency

(MHz) Channel Frequency

(MHz)

01 26.9650 02 26.9750

03 26.9850 04 27.0050

05 27.0150 06 27.0250

07 27.0350 08 27.0550

09 27.0650 10 27.0750

11 27.0850 12 27.1050

13 27.1150 14 27.1250

15 27.1350 16 27.1550

17 27.1650 18 27.1750

19 27.1850 20 27.2050

21 27.2150 22 27.2250

23 27.2550 24 27.2350

25 27.2450 26 27.2650

27 27.2750 28 27.2850

29 27.2950 30 27.3050

31 27.3150 32 27.3250

33 27.3350 34 27.3450

35 27.3550 36 27.3650

37 27.3750 38 27.3850

39 27.3950 40 27.4050

Operation

Search bank:

SR2 Police/Fire band

Receive Mode: FM

Group Frequency (MHz) Step

(kHz)

0 33.420–33.980 20

37.020–37.420 20

39.020–39.980 20

42.020–42.940 20

44.620–45.860 40

45.880

45.900

45.940–46.060 40

46.080–46.500 20

1153.770–154.130 60

154.145–154.445 15

154.650–154.950 15

155.010–155.370 60

155.415–155.700 15

155.730–156.210 60

158.730–159.210 60

166.250

170.150

2 453.0375–

453.9625

12.5

458.0375–

458.9625

12.5

460.0125–

460.6375

12.5

465.0125–

465.6375

12.5

3856.2125–

860.9875

866.0125–

868.9875

12.5

Operation

Search bank:

SR3 Aircraft

Receive mode: AM

Search bank:

SR4 Ham band

Receive mode: FM

Search bank:

SR5 Programmable limit search

Receive mode:

FM (Default setting)

Searching Active

Frequencies in Your

Desired Frequency Range

You can program the desired

frequency range for a search.

1. Repeatedly press SEARCH to

select SR5.

2. Press PGM then SEARCH.PSR

(Program Search) appears in

the top line and the cursor

Frequency (MHz) Step

(kHz)

108.000–136.9875 12.5

Group Frequency (MHz) Step

(kHz)

0 28.0000–29.7000 5

150.0000–54.0000 5

2 144.0000–

148.0000

3222.0000–

225.0000

4 420.0000–

450.0000

12.5

51240.0000–

1300.0000

6.25

Operation

blinks Lon the second line for

the lower-end limit frequency.

3. Use the number keys and

./DELAY to enter the desired

lower-end limit frequency

(including the decimal point).

4. Press ENTER to set the

frequency. The cursor moves

to H. If the entered frequency

is incorrect, Invalid Freq briefly

appears.

5. Enter your desired higher-end

frequency and press ENTER.

6. Rotate SQUELCH clockwise

and leave it set to a point just

after the hissing sound stops.

7. Press SEARCH to start

searching. When the scanner

finds an active frequency, it

stops searching. Ô

You can set Zeromatic on or off by

pressing FUNC then 0.PressFUNC

then 0again to reverse the

Zeromatic setting. Whenever this

feature is turned on, Zeromatic ON

briefly appears then zappears at

the first digit of the second line and

the scanner stops at the correct

frequency. When you turn this

feature off, zdisappears and the

scanner stops when it detects an

active signal. Zeromatic functions

only in search banks 2, 3, 4 and 5.

There are several group banks in

SR2 Police/Fire and SR4 ham

bands. You can turn off or on the

groups by pressing the group

numbers. For example to turn off

0,press0.

Ô NOTE Ô

• You can copy and

save a frequency

into a specified

bank, channel, or

priority channel

when the scanner

finds an active

frequency. See

“Using Frequency

Copy” on Page 41

to save the

frequency. The

frequency copy

works only in

search banks 2, 3,

4 and 5.

• While the scanner

is searching, you

can use the seek

search by press-

ing FUNC then 7.

Seek ON appears

on the bottom line.

The scanner stops

at an active

frequency for five

seconds and

restarts searching

automatically. The

scanner repeats

this operation.

Operation

In the Air and Limit search bands,

press FUNC then press to start

searchingupfromthelowest

frequency or press to start

searching down from the highest

frequency.

Manually Tuning a

Frequency

You can manually set the scanner

to move through all receivable

frequencies, or select a specific

frequency as a starting point.

1. Press TUNE.TUNE and the

current frequency appears.

The scanner automatically

begins tuning up or down.

2. Use the number keys to enter

the frequency where you want

the scanner to start.

3. Press ENTER.

4. Press or to move up or

down. When the scanner

finds an active frequency, it

stops on the frequency. Ô

LISTENING TO THE

WEATHER BAND

The FCC (Federal

Communications Commission)

has allocated channels for use by

the National Oceanic and

Atmospheric Administration

(NOAA). Regulatory agencies in

other countries have also

allocated channels for use by their

weather reporting authorities.

NOAA and your local weather

reporting authority broadcast your

local forecast and regional

Ô NOTE Ô

If you press PAUSE

while tuning, the

scanner stops tuning

and ** PAUSED **

appears. Press

PAUSE again, and

the scanner resumes

tuning.

Operation

weather information on one or

more of these channels.

Listening to a Weather

Channel

To hear your local forecast and

regional weather information,

press WX.Yourscannerscans

through the weather band then

stops within a few seconds on the

strongest weather broadcast.

Displaying Weather

Messages

The weather service precedes

each weather alert with a digitally-

encoded SAME (Specific Area

Message Encoding) signal, then a

1050 Hz tone. You can set the

scanner to decode and display the

SAME message when an alert is

broadcast. Then if you are

monitoring a weather channel with

a digitally-encoded SAME signal

when an alert is broadcast, the

scanner will show the type of alert

being broadcast such as Warning,

Watch,Statement,orTest Message.

The scanner will also sound

alternating alert tones and display

Weather ALERT when the scanner

receives a 1050 Hz tone. Ô

To set the scanner to decode and

display SAME messages, press

FUNC then WX while you listen to

the weather channel. DIG WX STBY

and Cancel: F+WX appear.

To set the scanner out of the

SAME standby mode, press FUNC

then WX.DIG WX STBY disappears.

Ô NOTE Ô

• The scanner does

not display the

actual area

affected by SAME

messages. It uses

only the message

portion of the

SAME signal

(Warning,Watch,

Statement,or

Test Message).

• Your scanner can

also receive

weather alert

tones (see

“Priority” on

Page 47). The

scanner sounds

an alert or beep

when it receives

the SAME code. If

you do not stop

the alert, it sounds

the alert (or beep)

for five minutes.

Then the alert

stops and the

scanner beeps

every ten

seconds. If the

scanner receives

a new message

after five minutes,

it sounds the alert

or beep. To stop

the sound and

ready the scanner

to receive a new

alert signal before

thefiveminute

time out, press

any key except

Operation

WX Alert and Beep Tone

Confirmation

1. To test the WX alert, press WX

for more than 2 seconds while

DIG WX STBY appears.

The display indicates the type

of message, and the scanner

sounds an alert or series of

beeps. The beeps automati-

cally change every 3 seconds.

2. Press any key except to

stop test sound mode.

USING FREQUENCY COPY

You can copy a frequency into a

specified channel, a vacant

channel in a specified bank, or a

priority channel. However, you

cannot copy a frequency from the

Marine and CB search bands.

Copying a Frequency into

a Specified Channel

You can copy a frequency into a

specified channel when the

scanner stops on that frequency

during search mode or manual

tuning.

1. Press FUNC then PGM when

you find a frequency.

Chan Store? appears on the

bottom line. After about 1

second, the frequency to be

copied flashes on the

indicator.

2. Press the desired bank and

the channel number where

you want to store the

frequency. The display

indicates the bank and

channel number. After about 1

Operation

second, the frequency to be

copied flashes.

3. Press ENTER. All the

conditions such as receive

mode and delay condition are

copied onto the channel. Chan

Store! briefly appears. The

scanner automatically returns

to search mode.

If you try to copy a frequency

which is already stored, the

scanner sounds the notice

tone 3 times after you press

ENTER.Dupl.f Chxxx appears

at the bottom line. If you want

to copy the duplicate

frequency anyway, press

ENTER,orifnot,pressCL to

cancel.

Copying a Frequency into

a Vacant Channel in a

Specified Bank

You can copy a frequency into a

vacant channel in a specified bank

when the scanner stops on the

frequency during search or tune

mode.

1. Press FUNC then ENTER

when you find a frequency

you want to copy. Bank9 Store?

appears.

2. If you want to copy the

frequency into bank 9, press

ENTER.Itisstoredinthefirst

available vacant channel in

the bank. Or, press your

desired bank number to store,

then press ENTER.Chan Store!

appears for 2 seconds. All the

conditions such as receiving

mode and delay condition are

Operation

copied on the channel. After

about 2 seconds, the scanner

automatically returns to

search mode.

3. If you try to copy a frequency

which is already stored, the

scanner sounds the notice

tone 3 times after you press

ENTER.Dupl.f Chxxx appears

at the bottom line. If you want

to copy the duplicate

frequency anyway, press

ENTER,orifnot,pressCL to

cancel.

Copying a Frequency into

the Priority Channel

You can copy a frequency into the

priority channel (see “Priority” on

Page 47) when the scanner stops

on the frequency during Search,

Scan, Manual, Tune, or WX mode.

Press FUNC then PRI when the

frequency is on the display. The

display flashes twice and the

frequency is copied to the priority

channel.

SCANNING THE

CHANNELS

To begin scanning channels or to

start scanning again after

monitoring a specific channel,

press SCAN.Ô

The scanner scans through all

channels (except those you have

locked out) in the active banks

(see “Turning Channel-Storage

Banks Off and On” on Page 44

and “Locking Out Channels or

Frequencies” on Page 45).

Ô NOTE Ô

• You must store

frequencies into

channels before

the scanner can

scan them. The

scanner does not

scan through

empty channels.

• To change the

scanning

direction, press

or .

Operation

Turning Channel-Storage

Banks Off and On

To turn off banks while scanning,

press the bank's number key so

the bank's number disappears.

For example, to turn off bank 1,

press 1. The scanner does not

scan any of the channels within

the banks you turned off.

To turn on banks while scanning,

press the number key until the

bank's number appears. For

example to turn bank 1 on again,

press 1.Ô

Deleting Frequencies from

Channels

1. Press MANUAL.

2. Use the number keys to enter

the channel with the

frequency you want to delete.

3. Press MANUAL again.

4. Press PGM to enter the pro-

gram mode. Mchanges to P.

5. Press FUNC.

6. Press CL. The frequency

number changes and 0.0000

appears.

Ô NOTE Ô

• You cannot turn

off all banks.

There must be at

least one active

bank.

• You can manually

select any channe

in a bank, even if

the bank is turned

off.

Bank O

Selected for

Scanning in

Open Mode

Selected for

Scanning in

Closed Mode

Special Features

SPECIAL FEATURES

USING THE DELAY

FUNCTION

Many conversations might have a

pause of several seconds between

a query and a reply. To avoid

missing a reply, you can program

a 2-second delay into any of your

scanner's channels. Then, when

the scanner stops on the channel,

Dappears and the scanner

continues to monitor the channel

for 2 seconds after the

transmission stops before it

resumes scanning or searching.

To turn delay on or off, press

./DELAY.

LOCKING OUT

CHANNELS OR

FREQUENCIES

You can scan existing channels or

search frequencies faster by

locking out channels or

frequencies that have a

continuous transmission, such as

a weather channel.

Locking Out Channels

To lock out a channel while

scanning, press L/OUT when the

scanner stops on the channel. To

lock out a channel manually,

select the channel then press

L/OUT so Lappears. Ô

To remove the lockout from a

channel, manually select the

channel and press L/OUT so L

disappears.

Ô NOTE Ô

Using the Delay

Function

Delay is automatically

set as the default for

each channel when

youturnonthe

scanner.

Locking Out

Channels

You can still manually

select locked-out

channels.

Special Features

Reviewing the Lock-Out

Channels

To review all locked out channels,

press MANUAL. Then repeatedly

alternate between pressing FUNC

and then L/OUT to view each

locked-out channel. When you

finish reviewing locked-out

channels, press MANUAL.

Locking Out Frequencies

To lock out a frequency during a

search, press L/OUT when the

scanner stops on that frequency.

The scanner locks out the

frequency, then continues

searching.

Reviewing Locked-Out

Frequencies

To review the frequencies within a

search bank that you locked out:

1. Press SEARCH to set search

mode.

2. Press FUNC then L/OUT.The

locked-out frequency and

Lockout list appear. Press 

or to review the list. The

locked-out number and the

total locked-out number also

appear as L/O XX of YY.(The

tenth of thirty locked out

numbers would appear as L/O

10 of 30.) If the search bank

has no locked-out

frequencies, Empty. Lockout

list appears. Press FUNC then

L/OUT again to cancel

reviewing locked-out

frequencies.

Ô NOTE Ô

• The scanner does

not store locked

out frequencies

during a search.

• You can lock out

as many as 50

frequencies in

each bank. If you

trytolockout

more, Memory

full! appears.

• If you lock out all

frequencies in one

search bank and

only this search

bank is activated,

All ranges Locked

out! appears and

the scanner does

not search.

Special Features

Clearing a Locked-Out

Frequency

To clear a locked-out frequency,

select that frequency (see

“Reviewing Locked-Out

Frequencies” on Page 46), then

press CL.

If all locked-out frequencies are

cleared within a bank, Empty.

Lockout list appears.

Clearing All Locked-Out

Frequencies in a Search

Bank

1. Press SEARCH.

2. Select the search bank in

which you want to clear all

locked-out frequencies.

3. Press FUNC then press L/OUT.

Lockout list appears.

4. Press FUNC then 6.Confirm

list clear? 1=YES. Press other key

for NO. appears. Press 1to

clear all locked-out

frequencies. List cleared

appears for about 2 seconds.

Press any key other than 1to

cancel clear. Ô

PRIORITY

In addition to the 1,000

programmable memory channels,

Ô NOTE Ô

If all frequencies in a

bank you selected

are locked out, you

cannot clear all

locked-out frequen-

cies in that bank at

the same time.

Special Features

the scanner has one priority

channel.

With the priority feature, you can

scan through programmed

channels and still not miss an

important or interesting

transmission on a specific

channel. When priority is turned

on, the scanner checks that

channel every 2 seconds, and

stays on the channel if there is

activity until the activity stops. Ô

To program a frequency in the

priority channel:

1. Press MANUAL.

2. Use the number keys to enter

the channel number which

contains the frequency you

want to program as the

priority channel. Then press

MANUAL again.

3. Press FUNC then PRI.Pri

Channel blinks on the bottom

line.

To program the priority channel

directly:

1. Press PGM.

2. Press PRI.

3. Enter the frequency you want

to enter into the priority

channel, then press ENTER.

To program a weather channel as

the priority channel:

1. Press WX.

Ô NOTE Ô

• The priority

feature does not

operate while the

scanner receives

a trunking voice

channel or during

trunking delay

time. Therefore,

the priority check

seems random

during peak hours.

• If you program a

weather channel

as the priority

channel, the

scanner stays in

the priority

channel only when

the scanner

detects the

weather alert tone

• This scanner

cannot set a

channel as the

priority channel if

the channel's

receive mode is

MOT or ED.

Special Features

2. Select the weather channel

you want to program as the

priority channel.

3. Press FUNC then PRI.Pri

Channel flashes on the bottom

line two times.

To turn on the priority feature,

press PRI so Pappears on the top

line while scanning. PRIon (or PRIwx

if you set the priority to a weather

frequency) appears on the bottom

line. If the scanner detects activity

on the priority channel, Pri Channel

appears. Or if the scanner detects

a weather alert tone in Priority WX

mode, Pri Channel appears for 3

seconds then changes to Weather

ALERT and the scanner sounds an

alert tone (see “Displaying

Weather Messages” on Page 40).

To turn off the priority feature,

press PRI.

CHANGING THE RECEIVE

MODE

The scanner is preset to the most

common AM or FM receive mode

for each frequency range. The

preset mode is correct in most

cases. However, some amateur

radio transmissions and trunked

systems do not operate in the

preset mode. If you try to listen to

atransmissionwhenthescanner

is not set to the correct receive

mode, the transmission might

sound weak or distorted.

If you want to listen to trunking

transmissions in closed mode, you

Ô NOTE Ô

• PriorityWXisonly

for receiving a

weather alert.

• When the scanner

detects a 1050 Hz

alert tone, priority

WX activates and

you receive a

weather alert.

• If you program a

weather frequency

into the priority

channel and the

scanner detects a

weather alert tone

on that frequency,

the scanner

sounds the alert

tone.

Special Features

might have to change the receive

mode.

To change the receive mode,

repeatedly press MODE.The

receive mode changes as follows:

AM — accesses the AM mode

FM — accesses the FM mode

MO — accesses the FM Mode,

Motorola Trunking System (with a

4- or 5-digit ID code)

ED — accesses the FM Mode,

EDACS Trunking System (with

4-digit decimal ID code or 5-digit

AFS code) Ô

USING THE ATTENUATOR

To reduce interference or noise

caused by strong signals, you can

reduce the scanner's sensitivity to

these signals.

There are two attenuator modes in

your scanner. One is normal

attenuator mode in which you set

the attenuator in each channel or

each band/group in the search

and tune mode. The other is global

mode in which you set the

attenuator only once. This setting

isappliedallthetimeinevery

mode.

Press ATT to turn on or off the

attenuator while the channel

number is indicated or while the

scanner is searching through

bands/groups. When the

attenuator is on, Aappears at the

seventh digit in the top line.

Ô NOTE Ô

MO (MOT) and ED

modes are not

available when the

scanner tunes up or

down through the

frequency ranges in

which the trunking

operation is not used

Special Features

Whenyouturnitoff,Achanges to

“.”. You cannot set the attenuator

while the scanner is scanning.

Press FUNC and then ATT to set

the attenuator to its global mode.

Global ATT. appears for 2 seconds

at the bottom line and aor -

appears. ameans the attenuator is

on and -meansitisoff.PressATT

to turn the attenuator on or off.

ATTon or ATT— appears on the

bottom line while scanning.

Press FUNC and then ATT again to

turn off the global attenuation

mode. Normal ATT appears on the

bottom line for about 2 seconds.

TURNING THE KEY TONE

ON AND OFF

Each time you press any of the

scanner's keys, the scanner

sounds a tone. To turn the

scanner's key tone off or on:

1. If the scanner is on, turn

VOLUME OFF/MAX

counterclockwise until it clicks

to turn the scanner off.

2. Turn VOLUME OFF/MAX

clockwise to turn the scanner

on. Welcome To Dual Trunking

appears.

3. While Welcome To Dual Trunking

appears, press 1to turn on

the key tone or 2to turn it off.

USING THE DISPLAY

BACKLIGHT

You can turn on the display's

backlight for easy viewing in dimly

Ô NOTE Ô

Ifyouturnonthe

attenuator, the

scanner might not

receive weak signals

Special Features

lit areas. Press to turn on the

backlight for 5 seconds. To turn off

the backlight before it automatic-

ally turns off, press again.

To turn on the backlight so it does

not turn off automatically, hold

down for about 1 second.

Press while the backlight is on

to turn it off.

You can select the amount of time

the light stays on. Follow these

steps to change the illuminated

time:

1. If the scanner is on, turn it off

and back on again. Welcome to

Dual Trunking appears.

2. While Welcome to Dual Trunking

appears, press .

3. Use Up/Down keys to set Lit off

time 5 seconds appears

4. Press or to select 3,5,

10 or 20 seconds then press

ENTER.

USING THE KEYLOCK

Once you program your scanner,

you can protect it from accidental

program changes by turning on

the key lock feature. When the

keypad is locked, the only controls

that operate are FUNC,/,

SQUELCH,andVOLUME.

You cannot activate the key lock

while you are entering a frequency

into a channel.

To turn on the key lock, press

FUNC then / . Key locked.

appears for about 1 second. Key

Special Features

locked. appears when you press

any key after locking the keypad.

To turn off the key lock, press

FUNC then / . The scanner

beeps three times and Key unlocked

appears.

CHANGING THE DISPLAY

CONTRAST

1. Press MANUAL.

2. Press FUNC then 9.Use Up/

Down keys to set contrast.

appears.

3. Press or to select the

contrast.

4. Press ENTER to set the

display contrast.

CLONING THE

PROGRAMMED DATA

You can transfer the programmed

data to and from another PRO-95

scanner using an optional

connecting cable with 1/8-inch

phone plugs on both ends (not

supplied, available at your local

RadioShack store). Ô

Follow these steps to clone the

data.

1. Turn on both scanners.

2. Connect the connecting cable

to each scanner's PC/IF jack.

*CLONE MODE* UP to send,

remove cable to exit. appears.

3. Press .Confirm send data?

1=YES Press other key for NO.

appears.

Ô NOTE Ô

*CLONE MODE*

Incorrect Model

appears if the

scanner receives

data from another

scanner other than a

PRO-95.

Trunking

4. Press 1to send the data to

the other unit or press any

other key to cancel the

operation.

The scanner sends the data. To

exit the clone mode, remove the

cable.

TRUNKING

TRUNKING OPERATION

The scanner tracks transmissions

that use the Motorola Type I and

Type II (such as Smartnet and

Privacy Plus) and hybrid analog

trunking systems, plus GE/

Ericsson (EDACS) type systems

extensively used in many

communication systems.

Trunking systems allocate a few

frequencies to many different

users. When the mobile unit

transmits a signal, one frequency

is chosen from among the

allocated frequencies in that

trunking system. The user's ID talk

group is sent with the signal.

To receive trunking signals, you

must store all the trunking control

frequencies for Motorola systems

or all the trunking group

frequencies for EDACS in one

bank (see “Storing Known

Frequencies into Channels” on

Page 26) and input ID codes in the

ID memory (see “Storing Talk

Group IDs” on Page 62).

Your PRO-95 automatically

calculates Motorola voice channel

frequencies when it decodes the

control channel. This eliminates

Trunking

the need to enter all the Motorola

group frequencies.

The control channels are subject

to change depending on the day.

Therefore enter all the control

frequencies in the same bank. If

you do not know which is the

control channel, it is better to enter

all the system frequencies into the

same bank. (Refer to the supplied

Trunking Guide.)

When the scanner decodes the

Motorola control channel and finds

the voice channel, the scanner

displays the control channel

memory location on the top line,

the received frequency with VC

(voice channel) on the second

line, the bank and control channel

memory location number on the

third line and the Motorola ID

number on the bottom line. !

When an ID code is received, the

ID list for the bank is searched,

and if found, the text name stored

for the ID appears. If not found,

scanning resumes immediately

unless the bank is in open trunking

mode. Ô

UNDERSTANDING

TRUNKING

In the past, groups that transmit

frequently, such as police

departments, could transmit on

only a few frequencies. This

resulted in heavy traffic and often

required 2-way radio users to wait

for a specific frequency to clear

before transmitting. Trunked

systems allow more groups of

2-way radio users to use fewer

frequencies. Instead of selecting a

! IMPORTANT !

To listen to the

transmission, the

mode of the

programmed

channel must be the

same as that of the

trunking channel

(MOT, or ED).

Ô NOTE Ô

• There might be

more than one talk

group transmitting

atatimeinsome

Motorola trunking

systems. If you set

the scanner to

manually tune in

Motorola trunking

mode, you will

hear the talk group

on that channel,

but the display will

alternate between

all active IDs.

• Trunking group

frequencies are

included in the

supplied Trunking

Guide. Frequency

fleet map and talk

group information

arealsowidely

available on the

Internet, (for

example, at

www.

trunkscanner.

com).

Trunking

specific frequency to transmit on,

a trunked system chooses one of

several frequencies when the

2-way radio user transmits. The

system automatically transmits the

call on that frequency, and also

sends a code that identifies that

2-way radio user's transmission on

a control channel.

Your scanner lets you easily hear

both the call and response

transmissions for that 2-way radio

user and therefore follow the

conversation. For EDACS and

Motorola (above 406 MHz range),

the scanner monitors the control

channel between each

transmission to identify talk groups.

SETTING SQUELCH FOR

THE TRUNKING MODE

Your scanner automatically mutes

the audio during trunk scanning

when it decodes control channel

data. However, we recommend

you turn SQUELCH clockwise and

leave it set to a point just after the

hissing sound stops. This lets the

scanner quickly acquire the data

channel.

PROGRAMMING

TRUNKING FREQUENCIES

You program trunking frequencies

the same as non-trunked

frequencies, except that you must

store the appropriate mode (MOT

or ED) with each frequency. Ô

Follow these steps to program

trunked frequencies:

Ô NOTE Ô

• You can scan only

one type of

trunkedfrequency

either EDACS or

Motorola in a bank

at one time. You

can, however, mix

conventional

channels and

frequencies in a

bank.

• If you are

programming

trunked

frequencies for

Motorola Type I

and hybrid

systems, you must

first program the

fleet map (see

“Programming

Fleet Maps” on

Page 60).

• If you are

programming

frequencies for an

EDACS system

you must store

them in the

Logical Channel

Number order

(usually listed as

LCN#). For

example, LCN1

would go into

channel 01 for the

current bank, and

LCN2 would go

into channel 02.

Trunking

1. Press PGM and press (or hold

down) or to select the

bank. Ô

2. Press TRUNK to enter the ID

program mode.

3. Repeatedly press MODE to

select MOT for Motorola, or ED

for the EDACS (GE/Ericsson)

system to scan. This sets the

talk group ID decoding

method to be used for the

bank. Ô

4. Press PGM to enter the

program mode.

5. Enter the desired trunking

frequency then press ENTER

to store.

Ô NOTE Ô

• To move through

the bank selection

faster, press PGM

then FUNC and

hold down or

.Tomove

through the banks

one at a time,

repeat the

sequence of PGM,

FUNC then or

until you reach

the desired bank.

• If you select Not

trunked instead of

MOT,orED,the

scanner does not

scan trunked

frequencies.

Instead, Not

trunked. Press

mode appears.

Bank 0

Not trunked

Press mode.

P000~.. D.+FM

0.00000

Bank 0 Ch 00

Bank 0—0 ON

ID NO. 00

MOT: none

P000~.. D.+FM

0.00000

Bank 0 Ch 00

P000~.. D.+FM

866.3875

Bank 0 Ch 00

Frequency

Trunking

6. To enter additional trunking

frequencies as subsequent

channels in the same bank,

press PGM or toaccess the

next open channel then enter

the frequencies. (See “Storing

Known Frequencies into

Channels” on Page 26).

7. Press SCAN to start scanning.

Ifyoumakeanerrorintheentry

process, press CL as often as

needed to erase the incorrect

data.

PROGRAMMING

MOTOROLA TRUNKING

SYSTEMS (UHF-LO)

You can program the scanner to

receive transmissions in the UHF-

Lo band (406-512 MHz) of the

Motorola trunking system. You can

receive these transmissions by

checking the trunking system's

control channel. You must

program the system's base

frequency and offset frequency to

do this. Ô

If you try to program an offset

frequency in the UHF-Hi bands

(806-960 MHz), the scanner

ignores the entry.

Follow these steps to program

Motorola trunking frequencies in

the UHF-Lo band:

P001~.. D.+FM

0.00000

Bank 0 Ch 01

channel

Ô NOTE Ô

Programming

Trunking

Frequencies

• If you enter a

frequency that has

already been

entered, the

scanner sounds

an error tone and

displays Dupl. f

and the channel

number that has

been duplicated. If

the dual entry is

an error press CL

and enter the

correct frequency.

If the dual entry is

intentional press

ENTER to accept.

• You may replace

any frequency by

selecting the bank

and channel,

pressing PGM and

entering the new

frequency.

Programming

Motorola Trunking

Systems (UHF-Lo)

Base and offset

frequencies vary for

each type of trunking

system. You can get

information about

these frequencies for

the trunking system

you want to scan

using

www.trunkscanner.

com, other Internet

sources, or locally-

published

guidebooks.

Trunking

1. Press PGM then TRUNK to

enter the ID program mode.

2. Press FUNC and press (or

hold) or to select the

bank.

3. Press MODE and select MOT.

4. Press FUNC then 2.The

display indicates Base freq.: on

the first line, 406.0000 on the

second line, Offset: 380 on the

third line and Step: 25.0kHz on

the bottom line.

5. While Bin Base blinks, if

necessary, press the desired

Base frequency with the

number keys and press

ENTER.Confirmtheentry.Ifit

is incorrect, press the number

keys again to set the base

frequency. After you confirm

the input, press ENTER again.

6. While O in Offset blinks, if

necessary, enter the offset

number and press ENTER.

Confirm the entry. If it is

incorrect, then press the

number keys again to set the

frequency. After you confirm

the input, press ENTER again.

7. While Sin Step blinks,

repeatedly press or to

select the step number, 25.0,

50.0 or 12.5 kHz, then press

ENTER.

8. Press PGM to enter the

program mode. Store the

trunking IDs into the sub-bank

in the same bank.

Trunking

PROGRAMMING

MOTOROLA TRUNKING

SYSTEM (800 MHZ)

Follow these steps to program 800

MHz band Motorola trunking. Ô

1. Press PGM then TRUNK to

enter the ID program mode.

2. Press FUNC then or to

select the desired bank.

3. Press MODE and select

Motorola trunking mode.

4. Press FUNC then 3. Use Up/

Down keys to set 800MHz base.

Normal appears.

5. Press or to select

Normal or Offset and press

ENTER.

• If you are uncertain about the

base frequency, use the

default setting. The default

setting is Normal.

• If you cannot receive with the

Normal setting, change to

Offset. The base frequency in

Normal is 851.0125 MHz. The

base frequency in Offset is

851.0000 MHz.

PROGRAMMING FLEET

MAPS

Youmustsetthefleetmapifyou

want to receive a Motorola Type I

system. Fleet maps are included

along with other information about

Motorola Type I systems at

www.trunkscanner.com.

Follow these steps to program a

fleet map.

Ô NOTE Ô

• On the 800 MHz

trunking band, you

can select a base

frequency (normal

or offset).

• On the 900 MHz

trunking band, you

do not need to set

the base

frequency (base,

offset, step).

Trunking

1. Press PGM then TRUNK.

2. For each bank you want to

program, repeatedly press

FUNC.Thenor to

select the bank.

3. Press FUNC. Then press 8.

Block 0 size code. Use 15 for type

II. S—00 appears.

4. Enter the size code supplied

with the Type I system

information, referring to the

instruction that appears on

the display. If the information

was not supplied, try the

following common fleet maps.

Block Size Code

12345678

0S11 S4 S4 S12 S4 S3 S10 S1

1S11 S4 S4 — S4 S10 S10 S1

2S11 S4 S4 S4 S12 S4 S11 S2

3S11 S4 S4 S4 — S4 S4 S2

4S11 S4 S4 S4 S4 S12 S4 S3

5S11 S4 S4 S4 S4 — S4 S3

6S11 S4 S12 S4 S4 S12 S4 S4

7S11 S4 — S4 S4 — S4 S4

910 11 12 13 14 15 16

0S4 S0 S4 S0 S3 S4 S4 S3

1S4 S0 S0 S0 S3 S3 S4 S10

2S0 S0 S0 S0 S11 S10 S4 S10

3S0 S0 S0 S0 S4 S4 S11 S11

4S0 S0 S0 S0 S4 S4 S11 S0

5S0 S0 S0 S0 S0 S4 S0 S0

6S0 S4 S0 S0 S0 S12 S12 S12

7S0 S4 S0 S4 S0 — — —

Trunking

5. Press ENTER for each entry. If

you make a mistake, press CL

and enter the correct size

code. Ô

6. Press SCAN to start scanning.

TALK GROUP IDS

There are 10 talk group ID banks

and each ID bank has 5 sub-

banks. Each sub-bank has 20 ID

locations. You can program up to

100 talk group IDs in each bank,

so you can program up to 1,000

talk group IDs in 10 banks. When

the scanner stops on a

transmission in the Motorola, or

EDACS mode, it checks to see if

the ID has been stored. In the

closed mode, the scanner only

stops on the transmission and

displays its text tag if you have

stored and not locked out the ID.

In the open mode, the scanner

always stops on a transmission,

but it displays the ID's text tag if

you have stored the ID.

STORING TALK GROUP

IDS

To store a talk group ID, press

TRUNK when the scanner stops on

a voice channel transmission or

when a talk group ID is indicated

in the manual mode. The bottom

line indicates where the ID was

stored as ID save X—XX and then

changes to ID#XXXX.

The first Xin ID save X—XX is the

sub-bank number (0—4)inthe

bank. XX is the number of IDs from

(00—19) in each sub-bank.

Ô NOTE Ô

• The default setting

of the bank is for

Motorola Type II.

However, if you

set Type I and you

want to return to

Type II, enter 15

at Step 5.

• To confirm the

input, repeat

Steps 1–5 and

press ENTER.

Each time you

press ENTER,you

confirm the size

code. If you find

an error, press CL

and begin again at

Step 1.

Trunking

If the ID has already been stored

when you press TRUNK,ID was

saved appears. Ô

Follow these steps to manually

store talk group IDs or to edit a

stored ID.

1. Press PGM.

2. Press TRUNK.

3. To select the bank where you

want to store the ID,

repeatedly press FUNC then

or until you reach the

desired bank.

4. Press MODE to select MOT or

ED.

5. Repeatedly press TRUNK to

select the sub-bank.

6. Press or to select the

location where you desire to

store the ID number.

7. Enter the talk group ID and

press ENTER. If necessary,

use the decimal point for a

hyphen.

Ô NOTE Ô

When you try to store

more than 100 talk

group IDs in a bank,

Memory full!

appears. Clear some

talk group IDs in

order to store new

ones (see “Clearing

Talk Group IDs” on

Page 67).

Bank 0-0 ON

ID No. 00

MOT: none

First

location

Bank 0-0 ON

ID No. 00

MOT: 02992

ID# 02292

Group ID

number

Trunking

8. If you want to tag the ID,

press TEXT, enter the desired

text tag for the ID. Then press

ENTER (see “Text Input Chart”

on Page 31).

9. To store the next ID memory

in sequence, press and

repeat Step 4.

10. Press SCAN to start scanning.

If you entered an ID code that is

already stored in another ID

channel, Dupl ID appears. If you

want to store the ID code, press

ENTER. To cancel the operation,

press CL.

TALK GROUP ID HOLD

You can set your scanner to follow

a trunking signal that you want to

track during scanning. While the

scanner is stopped on a voice

channel (VC appears), hold down

TRUNK until ID hold ON. appears.

When ID hold is activated and the

scanner receives a voice channel,

Bank 0-0 ON

ID No. 01

MOT: none

location

Ô NOTE Ô

• If you made a

mistakeinStep4,

Invalid ID. appears

and the scanner

beeps when you

press ENTER.

Start again at

Step 3.

• You can enter

either decimal or

AFS code for ED

(EDACS) ID. The

default setting is

decimal ID entry.

When you press

FUNC then 2,AFS

format appears

for about 2

seconds. Now you

can enter the ID

code with AFS

format.

Bank 0-0 ON

ID No. 00

MOT: 02992

Dupl ID 1-12

Duplication

Trunking

thescanindicationSat the first

digit in the top line is changed to H.

To release ID hold, press SCAN or

TRUNK.

TURNING AN ID SUB-

BANK ON OR OFF

Follow these steps to turn the ID

sub-bank on or off during the

program mode:

1. Press TRUNK repeatedly to

select the desired sub-bank.

2. Press FUNC then 1to turn the

sub-bank on if it is off or off if it

is on.

Follow these steps to turn the ID

sub-bank on or off during the scan

mode:

1. Press FUNC while the scanner

is stopped on a voice channel

transmission.

2. Press TRUNK. The display

indicates which sub-bank is

turned on or off, and the

active sub-bank number

flashes.

3. Press FUNC and the number

of the sub-bank you desire to

turn on or off. For example to

turn sub-bank 4 on or off,

press FUNC.Then4.

LOCKING OUT TALK

GROUP IDS

1. Press PGM.Ô

2. Press TRUNK.

Ô NOTE Ô

You can only lock out

talk group IDs when

the scanner is in the

closed mode (see

“Open and Closed

Modes” on Page 25).

Trunking

3. Press FUNC,or to

move to the desired bank.

4. Press or to select the

ID memory.

5. Press L/OUT to lock out the

ID. L appears.

6. To remove the lockout from a

trunking ID, manually select

the ID memory, and press

L/OUT until L disappears.

You can confirm the ID code while

the scanner shows the text when

the received signal is a voice

channel.

1. Press TEXT while the scanner

is receiving the voice channel

and indicating the text name.

The ID code appears as

MOT:XXXXXX or ED:XXXX.

2. Press TEXT again to cancel.

DELAY FUNCTION IN ID

INDICATION MODE

You can set the ID delay function

separate from the channel delay.

1. Press FUNC then ./DELAY

while you are programming

the trunked ID. Use Up/Down

keys to set ID delay. 2.0 seconds

appears.

2. Press or to select None,

0.5,1.0,1.5,2.0,2.5,3.0,3.5 or

4.0 seconds.

3. Press ENTER.Ô

Ô NOTE Ô

When activated, ID

delay watches the

control channel

command for the

delay time when the

signal disappears

from the voice

channel.

Trunking

REVIEWING L OCKED-OUT

TALK GROUP IDS

You cannot clear all lockouts from

atalkgroupatthesametime.

1. Press PGM then TRUNK.

2. Press FUNC. Then L/OUT.The

locked out ID appears. If the

ID memory bank has no

locked-out ID, you hear the

low beep tone.

3. Press FUNC then or to

select a search bank. Or, just

press or to search for

any locked out IDs in a bank.

CLEARING TALK GROUP

IDS

1. Press PGM then TRUNK.

2. Press FUNC,or to

select ID memory.

3. Press FUNC then CL.

CLEARING ALL TALK

GROUP IDS IN ONE

BANK

You can clear all talk group IDs

within a bank. This lets you quickly

delete all talk group IDs from a

bank if you want to use the bank to

store different data (such as a new

set of talk group IDs).

1. Press PGM.

2. Press TRUNK to enter a talk

group ID memory mode.

3. Select a talk group ID bank

using FUNC,or .

Trunking

4. Press FUNC then 6.Confirm

list clear? 1=YES Press other key

for NO. appears.

5. Press 1to clear all talk group

IDs within a bank. List cleared

appears.

To cancel the deletion, press any

key except 1. The scanner returns

to the talk group ID memory mode.

CHANGING THE

OPEN/CLOSED MODE

1. Press MANUAL.

2. Press FUNC then or to

select the channel storage

bank.

3. Press FUNC then 5.Bank OPEN.

or Bank CLOSED. appears. After

that message disappears, the

tenth digit on the top line of

the display changes from +to

—or vice versa.

4. Repeat Steps 2 and 3 for

each bank.

A General Guide to Frequencies

A GENERAL GUIDE

TO FREQUENCIES

Reception of the frequencies

covered by your scanner is mainly

“line-of-sight.” That means you

usually cannot hear stations that

are beyond the horizon.

US WEATHER

FREQUENCIES

(IN MHZ)

HAM RADIO

FREQUENCIES

Ham radio operators often

transmit emergency information

when other means of

communication break down. The

chart below shows the frequencies

the scanner receives that ham

radio operators normally use.

BIRDIE FREQUENCIES

Every scanner has birdie

frequencies. Birdies are signals

created inside the scanner's

162.400 162.425 162.450

162.475 162.500 162.525

162.550

Wavelength Frequencies

(MHz)

10-Meter 28.000–29.700

6-Meter 50.000–54.000

2-Meter 144.000–148.000

70-cm 420.000–450.000

33-cm 902.000–928.000

25-cm 1240.000–

1300.000

A General Guide to Frequencies

receiver. These operating

frequencies might interfere with

transmissions on the same

frequencies. If you program one of

these frequencies, you hear only

noise on that frequency. If the

interference is not severe, you

mightbeabletoturnSQUELCH

clockwise to omit the birdie.

The scanner’s birdie frequencies

(in MHz) are::

To find the birdies in your scanner,

begin by disconnecting the

UHF Low Band (MHz)

408.0000 420.7500 433.5000

446.2500 459.0000 471.7500

482.30625 484.5000 497.2500

510.0000

VHF High Band (MHz)

114.7500 116.7375 119.8125

121.1250 123.9750 124.2000

125.9500 126.8250 126.9000

126.9750 127.0500 127.5000

129.0250 129.1500 132.1000

134.7625 135.6750 137.7000

140.2500 140.3850 146.0050

168.9800

VHF Low Band (MHz)

25.5000 38.2500 41.8900

51.000

UHF High Band (MHz)

812.7000 816.0750 852.96875

867.20625 930.64375 1246.1750

1246.2500 1268.7750 1246.2500

Guide to the Action Bands

antenna and moving it away from

the scanner. Make sure that no

other nearby radio or TV sets are

turned on near the scanner. Use

the search function and scan

every frequency range from its

lowest frequency to the highest.

Occasionally, the searching will

stop as if it had found a signal,

often without any sound. This is a

birdie.Makealistofallthebirdies

in your scanner for future

reference.

GUIDE TO THE

ACTION BANDS

TYPICAL BAND USAGE

(IN MHZ)

HF Band

VHF Band

HF Range 25.000–26.960

Citizen’s Band 26.965–27.405

10-Meter

Amateur

28.000–29.700

Low Range 29.700–50.000

6-Meter

Amateur

50.000–54.000

2-Meter

Amateur

144.000–148.000

High Range 148.000–174.000

New Mobile

Narrow Band

220.000–222.000

11/4-Meter

Amateur

222.000–225.000

Guide to the Action Bands

UHF Band

PRIMARY USAGE

As a general rule, most of the

radio activity is concentrated on

the following frequencies:

U.S.

Government

406.000–420.000

70-cm

Amateur

420.000–450.000

Low Range 450.000–470.000

FM-TV Audio

Broadcast,

Wide Band

470.000–512.000

800 band Law

Enforcement

806.000–824.000

Conventional

Systems

851.000–856.000

Conventional/

Trunked

Systems

856.000–861.000

Public Safety 866.000–869.000

Trunked

Private/

General

894.000–960.000

25-cm

Amateur

1240.000–1300.000

VHF Band

Activities Frequencies (MHz)

2-Meter

Amateur

Band

144.000 – 148.000

Government,

Police, and

Fire

153.785 – 155.980

Emergency

Services 158.730 – 159.460

Railroad 160.000 – 161.900

Guide to the Action Bands

BAND ALLOCATION

To help decide which frequency

ranges to scan, use the following

listing of the typical services that

use the frequencies your scanner

receives. These frequencies are

subject to change, and might vary

from area to area. For a more

complete listing, including Fire and

Emergency Services, refer to

Police Call Radio Guide available

at your local RadioShack store.

UHF Band

Activities Frequencies (MHz)

70-

Centimeter

Amateur

Band

420.000 – 450.000

Repeaters

Land-Mobile

“Paired”

Frequencies

450.000 – 470.000

Base Stations 451.025 – 454.950

Mobile Units 456.025 – 459.950

Repeater

Units 460.025 – 464.975

Control

Stations Ô465.025– 469.975

Abbreviation Service

AIR Aircraft

BIFC

Boise (ID)

Interagency Fire

Cache

BUS Business

CAP Civil Air Patrol

CCA Common Carrier

CSB Conventional

Systems

CTSB Conventional/

Trunked Systems

Ô NOTE Ô

Remote control

stations and mobile

units operate at 5

MHz higher than their

associated base

stations and relay

repeater units.

Guide to the Action Bands

FIRE Fire Department

HAM Amateur (Ham)

Radio

GOVT Federal Government

GMR General Mobile

Radio

GTR General Trunked

IND Industrial Services

(Manufacturing,

Construction,

Farming, Forest

Products)

MAR Military Amateur

Radio

MARI Maritime Limited

Coast

(Coast Guard,

Marine Telephone,

Shipboard Radio,

Private Stations)

MARS Military Affiliate

Radio System

MED Emergency/Medical

Services

MIL U.S. Military

MOV Motion Picture/Video

Industry

NEW New Mobile Narrow

NEWS

Relay Press

(Newspaper

Reporters)

OIL Oil/Petroleum

Industry

POL Police Department

PUB Public Services

(Public Safety, Local

Government,

Forestry

Conservation)

PSB Public Safety

PTR Private Trunked

Abbreviation Service

Guide to the Action Bands

HIGH FREQUENCY (HF) —

(3 MHz-30 MHz)

CB Band

(26.965-27.405 MHz)

10-Meter Amateur Band

(28.0-29.7 MHz)

28.000-29.700 ............................ HAM

VERY HIGH FREQUENCY (VHF)

—(30 MHz-300 MHz)

VHF Low Band

(29.7-50 MHz-in 5 kHz steps)

29.700-29.790................................IND

29.900-30.550.................... GOVT, MIL

30.580-31.980...................... IND, PUB

32.000-32.990.................... GOVT, MIL

33.020-33.980.............BUS, IND, PUB

34.010-34.990.................... GOVT, MIL

ROAD Road & Highway

Maintenance

RTV Radio/TV Remote

Broadcast Pickup

TAXI Taxi Services

TELM Telephone

Maintenance

TOW Tow Trucks

TRAN Transportation

Services

(Trucks, Tow Trucks,

Buses, Railroad,

Other)

TSB Trunked Systems

TVN FM-TV Audio

Broadcast

USXX Government

Classified

UTIL Power & Water

Utilities

WTHR Weather

Abbreviation Service

Guide to the Action Bands

35.020-35.980........... BUS, PUB, IND,

................................................... TELM

36.000-36.230.................... GOVT, MIL

36.230-36.990...........Oil Spill Cleanup,

........................................... GOVT, MIL

37.020-37.980...................... PUB, IND

38.000-39.000.................... GOVT, MIL

39.020-39.980...............................PUB

40.000-42.000......... GOVT, MIL, MARI

42.020-42.940...............................POL

42.960-43.180................................IND

43.220-43.680...........TELM, IND, PUB

43.700-44.600............................ TRAN

44.620-46.580..................... POL, PUB

46.600-46.990............................GOVT

47.020-47.400...............................PUB

47.420.................American Red Cross

47.440-49.580...................... IND, PUB

49.610-49.990................................MIL

6-Meter Amateur Band

(50-54 MHz)

50.00-54.00..................................HAM

Aircraft Band (108-136 MHz)

108.000-121.490............................AIR

121.500.......................AIR Emergency

121.510-136.000............................AIR

U.S. Government Band

(137-144 MHz)

137.000-144.000................ GOVT, MIL

2-Meter Amateur Band

(144-148 MHz)

144.000-148.000..........................HAM

VHF High Band (148-174 MHz)

148.050-150.345.........CAP, MAR, MIL

150.775-150.790..........................MED

150.815-150.980.........................TOW,

...................................Oil Spill Cleanup

150.995-151.475.............. ROAD, POL

151.490-151.955.................. IND, BUS

151.985...................................... TELM

152.0075......................................MED

152.270-152.480.........IND, TAXI, BUS

Guide to the Action Bands

152.870-153.020..................IND, MOV

153.035-153.725.......... IND, OIL, UTIL

153.740-154.445................ PUB, FIRE

154.490-154.570.................. IND, BUS

154.585......................Oil Spill Cleanup

154.600-154.625...........................BUS

154.655-156.240.............MED, ROAD,

............................................ POL, PUB

156.255-157.425................. OIL, MARI

157.450....................................... MED

157.470-157.515......................... TOW

157.530-157.725.................. IND, TAXI

157.740.........................................BUS

158.130-158.460..........BUS, IND, OIL,

..........................................TELM, UTIL

158.730-159.465..... POL, PUB, ROAD

159.480.......................................... OIL

159.495-161.565........................ TRAN

161.580-162.000........ OIL, MARI, RTV

162.0125-162.35.... GOVT, MIL, USXX

162.400-162.550....................... WTHR

162.5625-162.6375........... GOVT, MIL,

................................................... USXX

162.6625......................................MED

162.6875-163.225............. GOVT, MIL,

................................................... USXX

163.250........................................MED

163.275-166.225............... GOVT, MIL,

................................................... USXX

166.250................... GOVT, RTV, FIRE

166.275-169.400.............. GOVT, BIFC

169.445-169.505........ Wireless Mikes,

...................................................GOVT

169.55-169.9875... GOVT, MIL, USXX

170.000-170.150... BIFC, GOVT, RTV,

.....................................................FIRE

170.175-170.225....................... GOVT

170.245-170.305......... Wireless Mikes

170.350-170.400............... GOVT, MIL

170.425-170.450......................... BIFC

170.475........................................ PUB

170.4875-173.175........... GOVT, PUB,

.....................................Wireless Mikes

173.225-173.5375.......... MOV, NEWS,

............................................. UTIL, MIL

173.5625-173.5875........................ MIL

...........................Medical/Crash Crews

173.60-173.9875........................GOVT

Guide to the Action Bands

ULTRA HIGH FREQUENCY

(UHF) —(300 MHz-3 GHz)

U. S. Government Band (406-420

MHz)

406.125-419.975........... GOVT, USXX

70-Centimeter Amateur Band

(420-450 MHz)

420.000-450.000......................... HAM

Low Band (450-470 MHz)

450.050-450.925.......................... RTV

451.025-452.025...... IND, OIL, TELM,

..................................................... UTIL

452.0375-453.00................ IND, TAXI,

............................. TRAN TOW, NEWS

453.0125-454.000................ PUB, OIL

455.050-455.925.......................... RTV

457.525-457.600.......................... BUS

458.025-458.175......................... MED

460.0125-460.6375.. FIRE, POL, PUB

460.650-462.175.......................... BUS

462.1875-462.450............... BUS, IND

462.4625-462.525.... IND, OIL, TELM,

..................................................... UTIL

462.550-462.925............... GMR, BUS

462.9375-463.1875..................... MED

463.200-467.925.......................... BUS

FM-TV Audio Broadcast, UHF

Wide Band (470-512 MHz) Ô

(Channels 14 through 20 in 6 MHz

steps)

475.750............................. Channel 14

481.750............................. Channel 15

487.750............................. Channel 16

493.750............................. Channel 17

499.750............................. Channel 18

505.750............................. Channel 19

511.750 ............................. Channel 20

Ô NOTE Ô

Some cities use the

470-512 MHz band

for land/mobile

service.

Guide to the Action Bands

Conventional Systems Band —

Locally Assigned (in 6.25 kHz

steps)

Conventional/Trunked Systems

Band —

Locally Assigned

(in 6.25 kHz steps)

Trunked Systems Band —

Locally Assigned

(in 6.25 kHz steps)

Public Safety Band —

Locally Assigned

(in 6.25 kHz steps)

33-Centimeter Amateur Band

(902-928 MHz in 6.25 kHz steps)

Frequency Range Service

851.0125–855.9875 MHz CSB

Frequency Range Service

856.0125–860.9875 MHz CTSB

Frequency Range Service

861.0125–865.9875 MHz TSB

Frequency Range Service

866.0125–868.9875 MHz PSB

Frequency Range Service

902.000–928.000 HAM

Frequency Conversion

Private Trunked Band (in 6.25 kHz

steps)

General Trunked Band (in 6.25

kHz steps)

23-Centimeter Amateur Band (in

6.25 kHz steps)

FREQUENCY

CONVERSION

The tuning location of a station

can be expressed in frequency

(kHz or MHz) or in wavelength

(meters). The following

informationcanhelpyoumakethe

necessary conversions.

1 MHz (million) =

1,000 kHz (thousand)

To convert MHz to kHz, multiply

the number of megahertz by

1,000:

30.62 (MHz) x 1,000 = 30,620 kHz

Frequency Range Service

935.0125–939.9875 MHz PTR

Frequency Range Service

940.0125–940.9875 MHz GTR

Frequency Range Service

1240.000–1300.000 MHz HAM

Frequency Conversion

To convert from kHz to MHz,

divide the number of kilohertz by

1,000:

127.800 (kHz) / 1,000 = 127.8

MHz

To convert MHz to meters, divide

300 by the number of megahertz:

300/50 MHz = 6 meters

Troubleshooting

TROUBLESHOOTING

Problem Possible Cause Remedy

Scanner is

totally

inoperative.

The AC or DC

adapter is not

connected.

Be sure the adapter's

barrel plug is fully

inserted into the PWR

DC 9V jack.

Batteries have failed Recharge the

rechargeable batteries

or replace the stan-

dard batteries

Poor or no

reception.

An antenna is not

connected or is

connected

incorrectly.

Be sure an antenna is

properly connected to

the scanner.

Programmed

frequencies are the

same as “birdie”

frequencies.

Avoid programming

frequencies listed

under “Birdie

Frequencies” on

Page 69 or only listen

to them manually.

The keypad

does not work.

Keylock is turned on. Turn off keylock.

The scanner might

need to be reset or

initialized.

Turn the scanner off

then on again, or reset/

initialize the scanner

(see “Resetting/

Initializing the Scanner”

on Page 83).

The scanner is

on but will not

scan.

SQUELCH is not

correctly adjusted.

Turn SQUELCH

clockwise.

Only one channel or

no channels are

stored.

Store frequencies into

more than one

channel.

During

scanning, the

scanner locks

on frequencies

that have an

unclear

transmission.

Programmed

frequencies are the

same as “birdie”

frequencies.

Avoid programming

frequencies listed

under “Birdie

Frequencies” on

Page 69, or only listen

to them manually.

Resetting/Initializing the Scanner

RESETTING/

INITIALIZING THE

SCANNER

If the scanner's display locks up or

does not work properly after you

connect a power source, you

might need to reset or initialize it. !

RESETTING THE SCANNER

1. Turn off the scanner, then turn

it on again.

2. Insert a pointed object, such

as a straightened paper clip,

into the reset opening on the

side of the scanner. Then

gently press and release the

reset button inside the

opening.

Pressing the reset button does not

clear the scanner's memory.

INITIALIZING THE

SCANNER

1. Turn off the scanner, then turn

it on again. Welcome To Dual

Trunking appears. !

2. Press 0then 1while Welcome

To Dual Trunking appears.

Initializing Please Wait. appears

for about 2 seconds.

Do not turn off the scanner until

the initialization is complete. When

the initialization is complete M000

appears on the top line of the

display. Bank 0 Ch 00 appears on

the bottom line.

! IMPORTANT !

Resetting/

Initializing the

Scanner

• If you have

problems with the

scanner, first try

toresetittoretain

all memory. If tha

does not work,

you can initialize

the scanner.

• Youcansavethe

information in

your scanner’s

memory into your

computer or

another scanner

before trying to

initialize it. See

“Transferring

Data to and from

Another Scanner

or a PC” on

Page 15.

Initializing the

Scanner

This procedure

clears all information

youstoredinthe

scanner's memory.

Initialize the scanner

only when you are

sure the scanner is

not working properly

Care

CARE

Keep the scanner dry; if it gets

wet, wipe it dry immediately. Use

and store the scanner only in

normal temperature environments.

Handle the scanner carefully; do

not drop it. Keep the scanner away

fromdustanddirt,andwipeitwith

a damp cloth occasionally to keep

it looking new.

Modifying or tampering with the

scanner’s internal components

can cause a malfunction and

might invalidate its warranty and

void your FCC authorization to

operate it. If your scanner is not

performing as it should, take it to

your local RadioShack store for

assistance.

SPECIFICATIONS

Frequency Coverage (MHz)

25–54 ........................ (in 5 kHz steps)

108–136.9875 .......(in 12.5 kHz steps)

137–174............ (in 5, 6.25, or 7.5 kHz

steps)

216.0025–221.9975 .. (in 5 kHz steps)

220.0000–225.0000 .. (in 5 kHz steps)

406–512.................(in 6.25 kHz steps)

806–823.9875........(in 6.25 kHz steps)

849–868.9875........(in 6.25 kHz steps)

894–960.................(in 6.25 kHz steps)

1240–1300 ............(in 6.25 kHz steps)

Memory channels....................... 1,000

Channel memory banks.................. 10

Number of memory channels per bank

100

Talk group ID memories..............1,000

Specifications

ID memory banks............................10

Sub-banks per bank..........................5

Number of memory IDs per sub-bank

........................................................ 20

Sensitivity (20 dB S/N):

FM:

25–54 MHz .............................. 0.3 µV

108 –136.9875 MHz ................. 0.3 µV

137–174 MHz ........................... 0.5 µV

216–225 MHz ........................... 0.5 µV

406–512 MHz ........................... 0.5 µV

806–960 MHz ........................... 0.7 µV

1240–1300 MHz ....................... 0.7 µV

AM:

25–54 MHz .................................. 1 µV

108–136.9875 MHz ..................... 1 µV

137–174 MHz ........................... 1.5 µV

216–225 MHz ........................... 1.5 µV

406–512 MHz .............................. 2 µV

806–960 MHz ............................. 2 µV

1240–1300 MHz ......................... 3 µV

Selectivity:

25 – 27.995 MHz at AM mode

-6 dB ...................................... +/-5 kHz

-50 dB .................................... +/-6 kHz

All frequencies except 25 - 27.995

MHz at AM and FM mode

-6 dB .................................... +/-10 kHz

-50 dB .................................. +/-18 kHz

Spurious Rejection (at 154.1 MHz FM)

40 dB

Scanning Rate ..... Up to 60 Channels

per Second

Search Rate................ Up to 75 Steps

per Second

Delay Time.......................... 2 seconds

Specifications

Intermediate Frequencies (IF):

1st .................................... 380.8 MHz

2nd...................................... 21.4 MHz

3rd.......................................... 455 kHz

Priority Sampling................. 2 seconds

Operating Temperature... -14 to 140° F

(-10 to 60° C)

IF Rejection

380.8 MHz at 154.1 MHz ........ 60 dB

21.4 MHz at 154.1 MHz ........ 100 dB

Squelch Sensitivity:

Threshold (FM and AM)............ 0.5µV

Tight (FM) ................................. 25 dB

Tight (AM) ................................. 20 dB

Antenna Impedance............. 50 Ohms

Audio Output Power (10% THD)

.............................................. 170 mW

Built-in Speaker... 13/8Inches (36 mm)

....................... (8-ohm, Dynamic Type)

Power Requirements:

Batteries......... 4 AA Alkaline Batteries

or 4 AA Rechargeable

Ni-MH Batteries

External Power......................... 9V DC

Current Drain (Squelched) ....... 90 mA

Battery Charge Current.......... 150 mA

Dimensions (HWD) ..... 6 3/16 × 27/16 ×

13/4Inches (157 ×62 ×41 mm)

Weight (without antenna and batteries)

8.5 oz.(240 g)

Specifications are typical: individual

units might vary. Specifications are

subject to change and improvement

without notice.

Parts and Accessories

PARTS AND

ACCESSORIES

Parts and accessories are

available at your local RadioShack

store. Accessories are also

available online at

www.radioshack.com. Parts and

accessories are available but not

limited to the following. Visit your

local RadioShack store or obtain a

RadioShack catalog for a more

complete listing of available

accessories.

RG-8/RG-58

50-Ohm

Coaxial Cable

Use to connect your scanner to

an external antenna.

External

Antenna

Connect to your

scanner’s

external antenna

jack for great

reception of

signals on many

frequencies.

800 MHz Antenna

Connect to your scanner’s

external antenna jack for crisp,

clear reception of 800 MHz

signals.

Parts and Accessories

Connecting Cable

Use to connect

your scanner

to another

scanner so you

can transfer

data between

them.

9V, 300 mA

AC Adapter

Use to connect

your scanner

to AC power.

DUALTRUNKING

1000CHANNELS

PC Interface Cable

Use to connect your scanner to

a PC so you can transfer data

between them.

Notes

NOTES

Notes

RadioShack Corporation

Fort Worth, Texas 76102

20-525

GE-02D-6982

01A03

Printed in China

Limited One-Year Warranty

This product is warranted by RadioShack against manufacturing de-

fects in material and workmanship under normal use for one (1) year

from the date of purchase from RadioShack company-owned stores

and authorized RadioShack franchisees and dealers. EXCEPT AS

PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRAN-

TIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE, ARE LIMITED IN DURATION TO THE DURATION OF THE

WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT

AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY

OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON

OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAM-

AGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFOR-

MANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH

OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY

DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME,

DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN

IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES.

Some states do not allow limitations on how long an implied warranty

lasts or the exclusion or limitation of incidental or consequential dam-

ages, so the above limitations or exclusions may not apply to you.

In the event of a product defect during the warranty period, take the

product and the RadioShack sales receipt as proof of purchase date

to any RadioShack store. RadioShack will, at its option, unless other-

wise provided by law: (a) correct the defect by product repair without

charge for parts and labor; (b) replace the product with one of the

same or similar design; or (c) refund the purchase price. All replaced

parts and products, and products on which a refund is made, become

the property of RadioShack. New or reconditioned parts and products

may be used in the performance of warranty service. Repaired or re-

placed parts and products are warranted for the remainder of the orig-

inal warranty period. You will be charged for repair or replacement of

the product made after the expiration of the warranty period.

This warranty does not cover: (a) damage or failure caused by or at-

tributable to acts of God, abuse, accident, misuse, improper or abnor-

mal usage, failure to follow instructions, improper installation or

maintenance, alteration, lightning or other incidence of excess voltage

or current; (b) any repairs other than those provided by a RadioShack

Authorized Service Facility; (c) consumables such as fuses or batter-

ies; (d) cosmetic damage; (e) transportation, shipping or insurance

costs; or (f) costs of product removal, installation, set-up service ad-

justment or reinstallation.

This warranty gives you specific legal rights, and you may also have

other rights which vary from state to state.

RadioShack Customer Relations, 200 Taylor Street, 6th Floor,

Fort Worth, TX 76102

12/99

Radio Shack Pro 95 Users Manual 20 525

PDF Radio Shack_PRO-95 Wideband Scanner-Reciever_Manual T E X T F I L E S

Radio Shack_PRO-95 Wideband Scanner-Reciever_Manual Radio Shack_PRO-95 Wideband Scanner-Reciever_Manual

MPC582 PRO-95_200-525_OWNERS_MANUAL_69487

RADIO SHACK--PRO95-User-MANUAL RADIO SHACK--PRO95-User-MANUAL

Pro-95 to the manual 21b6d747-d672-46ae-98b0-9e76910fcd04

Navigation menu

Versions of this User Manual:

Views

Navigation
