Radio Sound GMOR Arctic Cat N-Touch Communication System User Manual

Radio Sound Inc Arctic Cat N-Touch Communication System

User Guide

1 FCC ID JOFGMOR IC: 5855A-GMOR User Instructions ARCTIC CAT N-TOUCH COMMUNICATION SYSTEM Table of Contents: Introduction Page 2 Safety and General Information Page 2 Transmit Procedure Antenna Information General Use Information Blasting and Potentially Explosive Areas Licensing Requirements Page 3 GMRS Frequency Allocation Page 3 Communication System Overview Page 4 Communication System Display Overview Page 5 Communication System Set-up Instructions Page 6 Adjusting the Rider’s Volume Channel Selection Interference Elimination Code Selection Adjusting the Passenger’s Volume Muting the Communication System Communication System Set-up Instructions Continued Page 7 Intercom and Voice Activation Sensitivity (VOX) Adjusting the Voice Activation Sensitivity (VOX) Using Your Communication System Page 7 Transmit and Receive Information Getting Started with Transmitting and Receiving Auxiliary Input Jack
2 FCC ID JOFGMOR IC: 5855A-GMOR User Instructions Introduction to Your Arctic Cat N-Touch Communication System: Your snowmobile is equipped with a personal two-way radio communication system and intercom. This will enable you to keep in touch with other riders and to easily talk with your passenger. The communication system uses General Mobile Radio Service (GMRS) radio frequencies. GMRS is a land-mobile radio service available for short-distance two-way communications to facilitate the activities of an adult individual and his or her family members. The radio communication system on your snowmobile has an output power of two watts. Distance performance is dependent on the terrain, weather conditions and the antenna system. This system requires professional installation by an authorized Arctic Cat dealership. Repair and service should also be performed by your dealer. Note: For optimal performance it is important to follow the Set-up Instructions included in this book. Safety and General Information: Read this information before using your radio for safe and efficient operation. Transmit Procedure: Your snowmobile has been equipped with a 2-way radio, meaning it can both transmit and receive radio frequency (RF) signals. To reduce your exposure to the RF signals, it is recommended that you do not transmit more than 50% of the time. By only using the transmission 50% of the time, you will be in compliance with the general population and uncontrolled environment exposure standards. Antenna Information: The supplied antenna meets important product performance specifications and is an integral part of both FCC and Industry Canada compliance. Changing or modifying the antenna in any way could potentially damage the radio and violate FCC and/or Industry Canada regulations. Avoid contact with the antenna when transmitting. This device meets the RF guideline FCC/OET 65 and Canadian health code 6 for mobile devices, which assumes installation provides an antenna distance of at least 20cm (8”) from users and others. General Use Information: Laws regarding the use of radios vary from state to state in the United States, and in Canada. Check the laws in the areas where you ride, and obey them. It is recommended that you give full attention to riding while using your radio. If the riding conditions dictate, pull over to make and receive transmissions. Blasting and Potentially Explosive Areas: Do not use your radio in blasting zones or potentially explosive areas. These areas are generally marked with signs reading “ TURN OFF 2-WAY RADIO”, “BLASTING AREA”, “BLASTING ZONE” or “POTENTIALLY EXPLOSIVE AREA”. Using your communication systems in these areas can interfere with their operations.
3 FCC ID JOFGMOR IC: 5855A-GMOR User Instructions Licensing Requirements: The Federal Communications Commission (FCC) requires General Mobile Radio Service (GMRS) operators to obtain a license prior to operating GMRS radios. Both form 605 and 159 are required for the license. These forms can be requested from the FCC at the following numbers: For Fax Requests: 1-202-418-0177 Mail Requests 1-800-418-3676 FCC GMRS License Questions 1-888-225-5322 The forms can also be completed online at www.fcc.gov. Modifications to this product by persons not deemed qualified by the manufacturer will void the warranty and may void the user’s FCC license to use this product. No license is required for use in Canada. GMRS Frequency Allocation: It is possible to use a GMRS radio from another manufacturer to communicate with your Arctic Cat communication system. The user manual for the other product can be compared for channel compatibility by using the frequency chart below. For example, the Arctic Cat radio uses channel 1 to transmit at 462.5625 MHz, while some handheld radios may use channel 15 for 462.5625. The following chart shows the signal frequency for transmitting (TX) and receiving (RX) radio frequencies. Channel TX/RX Frequency (MHz) 1 462.5625 2 462.5875 3 462.6125 4 462.6375 5 462.6625 6 462.6875 7 462.7125 8 462.5750 9 462.6250 10 462.6750 11 462.5500 12 462.6000 13 462.6500 14 462.7000 15 462.7250

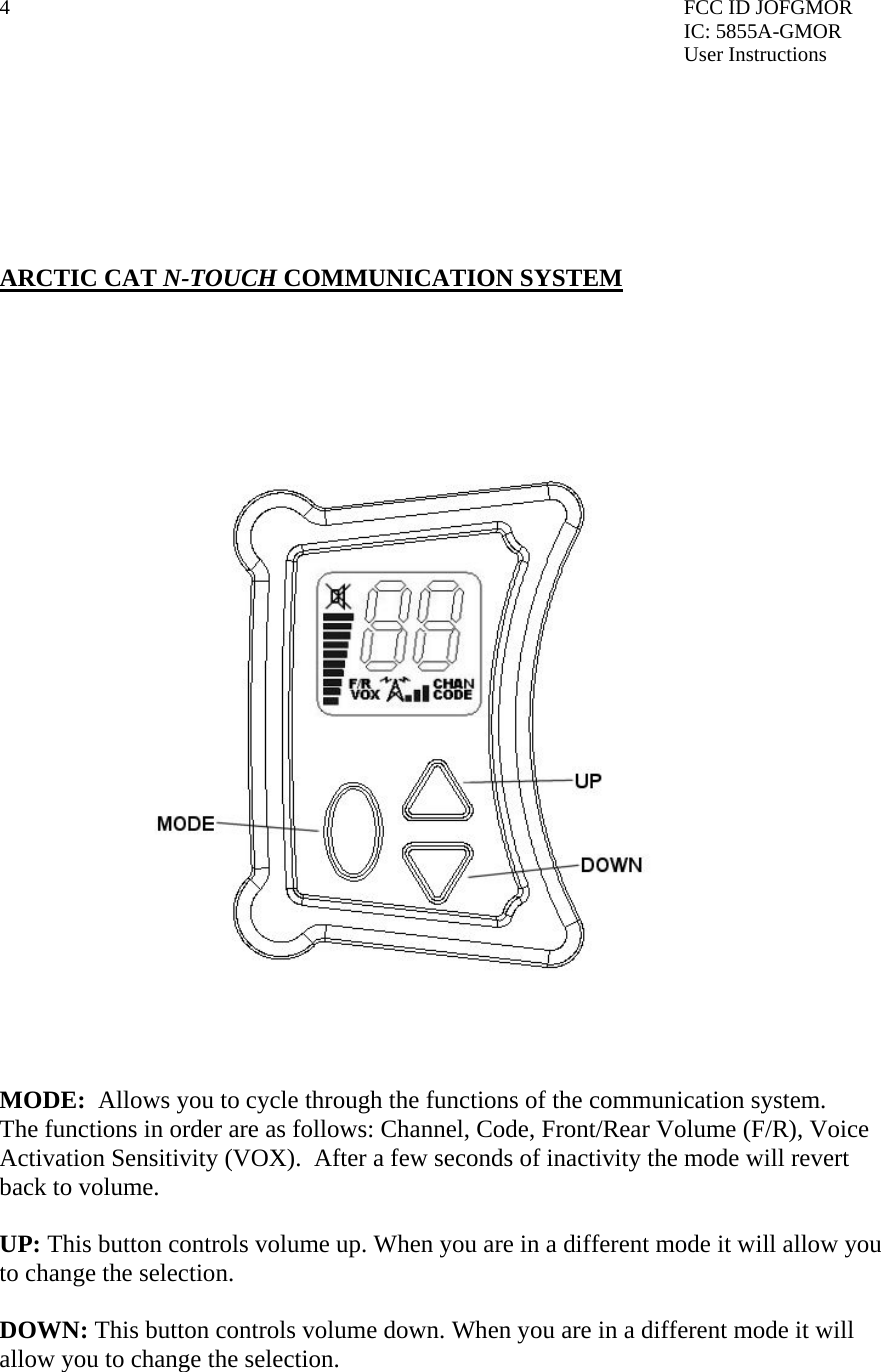

4 FCC ID JOFGMOR IC: 5855A-GMOR User Instructions ARCTIC CAT N-TOUCH COMMUNICATION SYSTEM MODE: Allows you to cycle through the functions of the communication system. The functions in order are as follows: Channel, Code, Front/Rear Volume (F/R), Voice Activation Sensitivity (VOX). After a few seconds of inactivity the mode will revert back to volume. UP: This button controls volume up. When you are in a different mode it will allow you to change the selection. DOWN: This button controls volume down. When you are in a different mode it will allow you to change the selection.

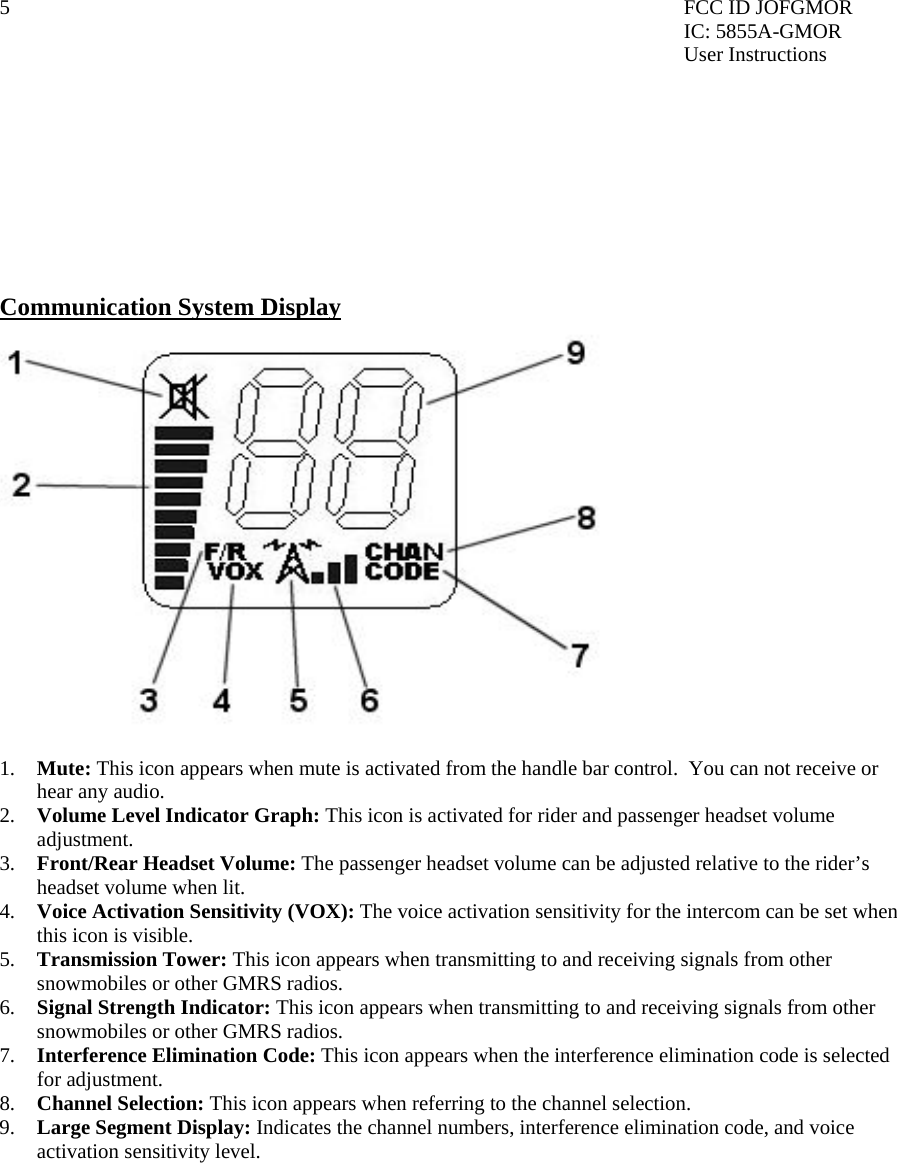

5 FCC ID JOFGMOR IC: 5855A-GMOR User Instructions Communication System Display 1. Mute: This icon appears when mute is activated from the handle bar control. You can not receive or hear any audio. 2. Volume Level Indicator Graph: This icon is activated for rider and passenger headset volume adjustment. 3. Front/Rear Headset Volume: The passenger headset volume can be adjusted relative to the rider’s headset volume when lit. 4. Voice Activation Sensitivity (VOX): The voice activation sensitivity for the intercom can be set when this icon is visible. 5. Transmission Tower: This icon appears when transmitting to and receiving signals from other snowmobiles or other GMRS radios. 6. Signal Strength Indicator: This icon appears when transmitting to and receiving signals from other snowmobiles or other GMRS radios. 7. Interference Elimination Code: This icon appears when the interference elimination code is selected for adjustment. 8. Channel Selection: This icon appears when referring to the channel selection. 9. Large Segment Display: Indicates the channel numbers, interference elimination code, and voice activation sensitivity level.

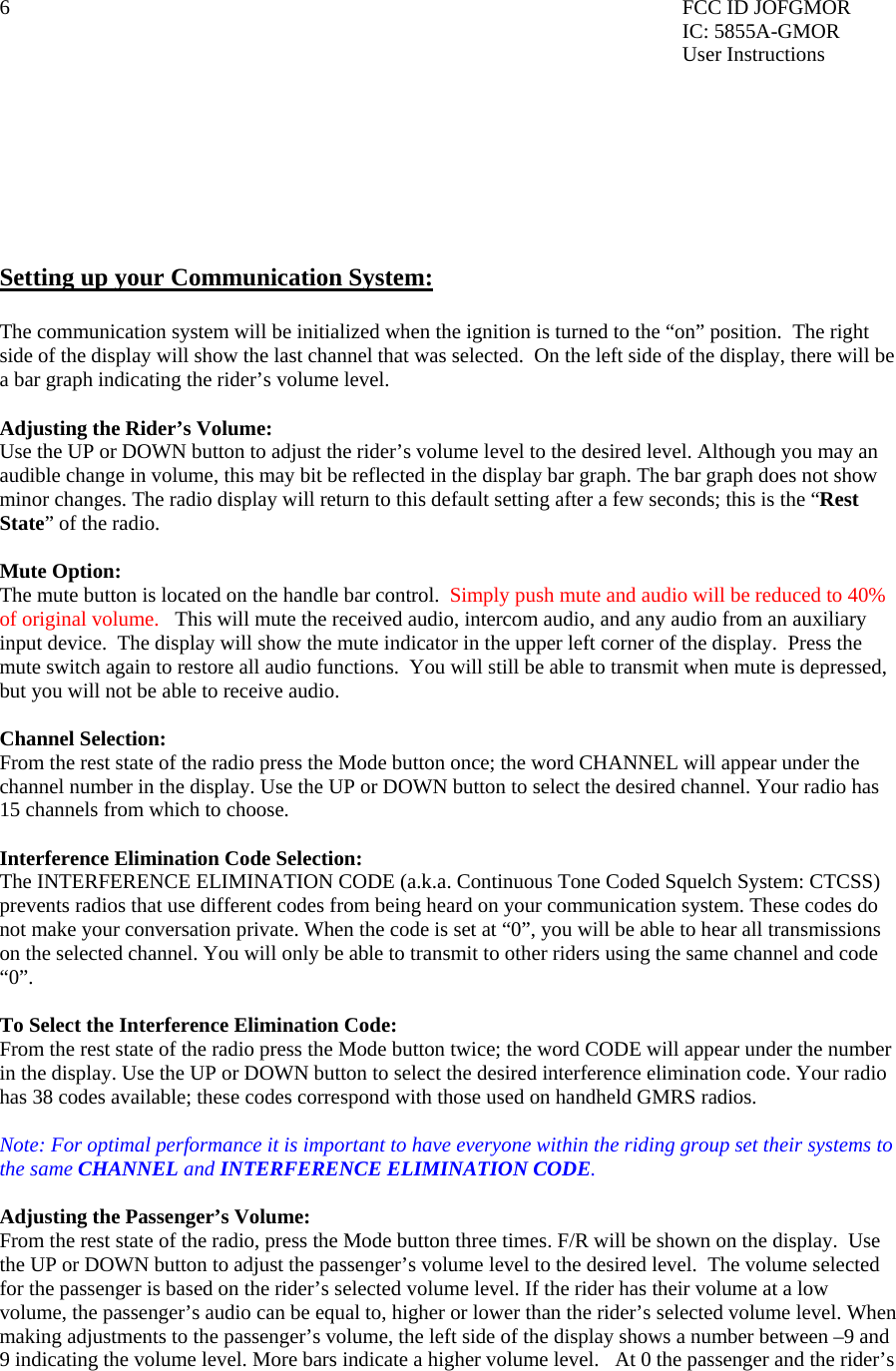

6 FCC ID JOFGMOR IC: 5855A-GMOR User Instructions Setting up your Communication System: The communication system will be initialized when the ignition is turned to the “on” position. The right side of the display will show the last channel that was selected. On the left side of the display, there will be a bar graph indicating the rider’s volume level. Adjusting the Rider’s Volume: Use the UP or DOWN button to adjust the rider’s volume level to the desired level. Although you may an audible change in volume, this may bit be reflected in the display bar graph. The bar graph does not show minor changes. The radio display will return to this default setting after a few seconds; this is the “Rest State” of the radio. Mute Option: The mute button is located on the handle bar control. Simply push mute and audio will be reduced to 40% of original volume. This will mute the received audio, intercom audio, and any audio from an auxiliary input device. The display will show the mute indicator in the upper left corner of the display. Press the mute switch again to restore all audio functions. You will still be able to transmit when mute is depressed, but you will not be able to receive audio. Channel Selection: From the rest state of the radio press the Mode button once; the word CHANNEL will appear under the channel number in the display. Use the UP or DOWN button to select the desired channel. Your radio has 15 channels from which to choose. Interference Elimination Code Selection: The INTERFERENCE ELIMINATION CODE (a.k.a. Continuous Tone Coded Squelch System: CTCSS) prevents radios that use different codes from being heard on your communication system. These codes do not make your conversation private. When the code is set at “0”, you will be able to hear all transmissions on the selected channel. You will only be able to transmit to other riders using the same channel and code “0”. To Select the Interference Elimination Code: From the rest state of the radio press the Mode button twice; the word CODE will appear under the number in the display. Use the UP or DOWN button to select the desired interference elimination code. Your radio has 38 codes available; these codes correspond with those used on handheld GMRS radios. Note: For optimal performance it is important to have everyone within the riding group set their systems to the same CHANNEL and INTERFERENCE ELIMINATION CODE. Adjusting the Passenger’s Volume: From the rest state of the radio, press the Mode button three times. F/R will be shown on the display. Use the UP or DOWN button to adjust the passenger’s volume level to the desired level. The volume selected for the passenger is based on the rider’s selected volume level. If the rider has their volume at a low volume, the passenger’s audio can be equal to, higher or lower than the rider’s selected volume level. When making adjustments to the passenger’s volume, the left side of the display shows a number between –9 and 9 indicating the volume level. More bars indicate a higher volume level. At 0 the passenger and the rider’s

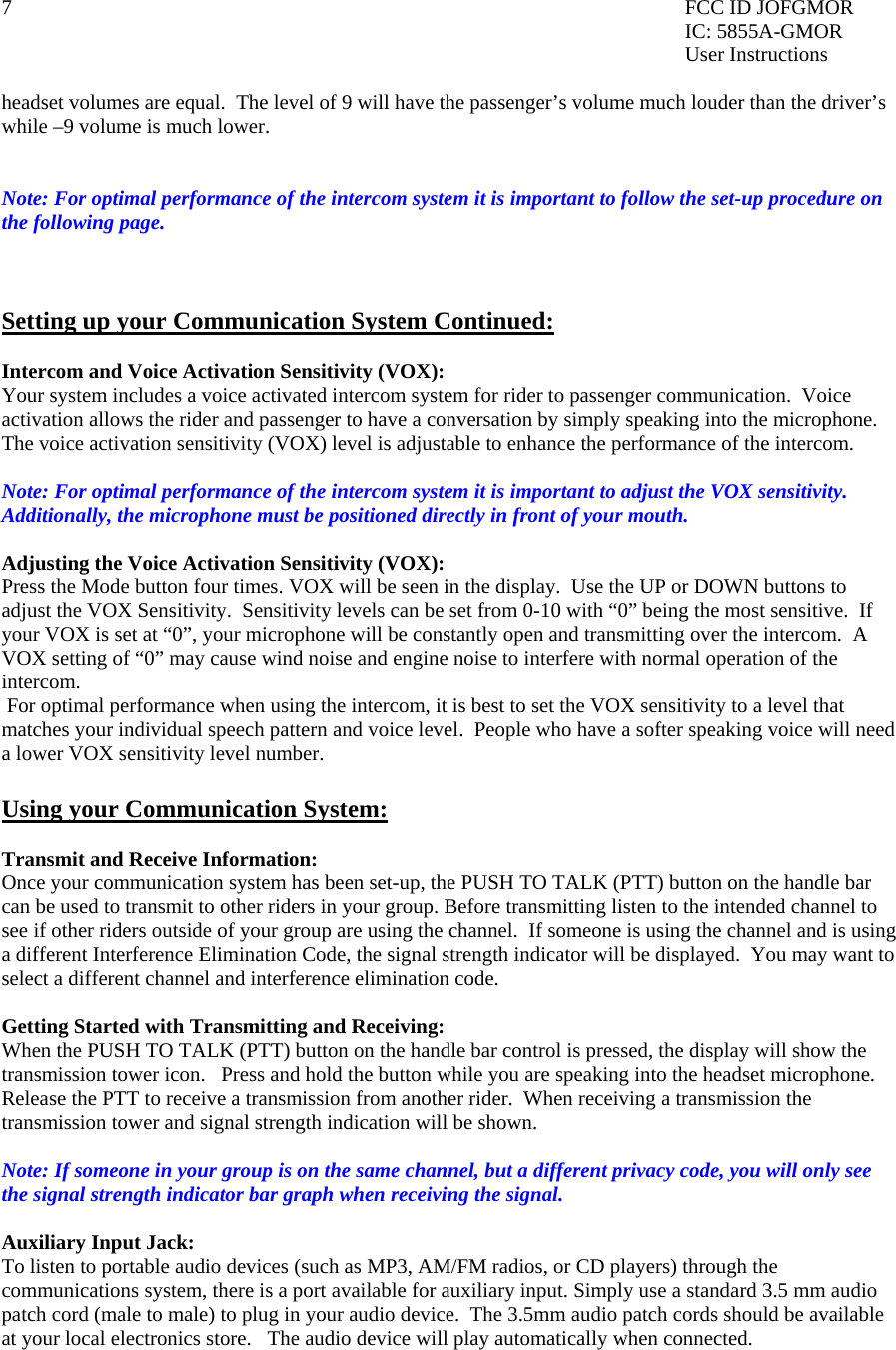

7 FCC ID JOFGMOR IC: 5855A-GMOR User Instructions headset volumes are equal. The level of 9 will have the passenger’s volume much louder than the driver’s while –9 volume is much lower. Note: For optimal performance of the intercom system it is important to follow the set-up procedure on the following page. Setting up your Communication System Continued: Intercom and Voice Activation Sensitivity (VOX): Your system includes a voice activated intercom system for rider to passenger communication. Voice activation allows the rider and passenger to have a conversation by simply speaking into the microphone. The voice activation sensitivity (VOX) level is adjustable to enhance the performance of the intercom. Note: For optimal performance of the intercom system it is important to adjust the VOX sensitivity. Additionally, the microphone must be positioned directly in front of your mouth. Adjusting the Voice Activation Sensitivity (VOX): Press the Mode button four times. VOX will be seen in the display. Use the UP or DOWN buttons to adjust the VOX Sensitivity. Sensitivity levels can be set from 0-10 with “0” being the most sensitive. If your VOX is set at “0”, your microphone will be constantly open and transmitting over the intercom. A VOX setting of “0” may cause wind noise and engine noise to interfere with normal operation of the intercom. For optimal performance when using the intercom, it is best to set the VOX sensitivity to a level that matches your individual speech pattern and voice level. People who have a softer speaking voice will need a lower VOX sensitivity level number. Using your Communication System: Transmit and Receive Information: Once your communication system has been set-up, the PUSH TO TALK (PTT) button on the handle bar can be used to transmit to other riders in your group. Before transmitting listen to the intended channel to see if other riders outside of your group are using the channel. If someone is using the channel and is using a different Interference Elimination Code, the signal strength indicator will be displayed. You may want to select a different channel and interference elimination code. Getting Started with Transmitting and Receiving: When the PUSH TO TALK (PTT) button on the handle bar control is pressed, the display will show the transmission tower icon. Press and hold the button while you are speaking into the headset microphone. Release the PTT to receive a transmission from another rider. When receiving a transmission the transmission tower and signal strength indication will be shown. Note: If someone in your group is on the same channel, but a different privacy code, you will only see the signal strength indicator bar graph when receiving the signal. Auxiliary Input Jack: To listen to portable audio devices (such as MP3, AM/FM radios, or CD players) through the communications system, there is a port available for auxiliary input. Simply use a standard 3.5 mm audio patch cord (male to male) to plug in your audio device. The 3.5mm audio patch cords should be available at your local electronics store. The audio device will play automatically when connected.
8 FCC ID JOFGMOR IC: 5855A-GMOR User Instructions Note: Audio output levels vary by portable device. It may be necessary for you to increase the volume on your personal audio device to get maximum volume from the sound system. Troubleshooting Tips: TBA
