Important Precautions
Invisible
Fence
®
Brand pet
containment
systems have
contained
over two million pets. However, there are
some
precautions
you should take
.
Read and retain manuals: Read the entire Owners
Manual
before using your new Invisible
Fence
®
Brand pet
containment
system.
Adhere to all warnings and cautions contained in any Invisible
Fence
®
Brand
manual.
WARNING
CAUTION
NOTICE
WARNING
indicates a
hazardous situation
which, if not avoided, could result in death or
serious
injur
y
.
CAUTION
used without the safety alert symbol, indicates a
hazardous situation
which, if not
a
v
oided,
could result in harm to your
pet.
NOTICE
is used to address safe use practices not related to personal injury
.
WARNING
Replacing the battery backup with a battery not specifically approved by Invisible
Fence
®
Brand may cause fire
or
explosion. Refer all service to your Invisible
Fence
®
Brand Dealer only
.
Not every pet can be trained to avoid the
established boundary. Sometimes
even a properly trained pet may cross
the
boundar
y
.
Therefore,
Invisible Fence, Inc., as well as Invisible
Fence
®
Distributors
and Dealers, cannot guarantee
the
system
will, in all cases, keep a customers pet within the
established boundary.
Accordingly, if a
customer
has reason to believe
tha
t
their pet may pose a danger to others, or harm itself, the
customer
should not rely solely upon the Invisible
Fence
®
Brand
pet
containment
system to keep the pet from crossing the
boundar
y
.
Do not install,
connect,
or remove your system during a lightning storm. If the storm is close enough for you to
hear
thunder,
it is close enough to create
hazardous
surges
.
CAUTION
Read and follow the
important instructions
on how to avoid pressure necrosis in your Invisible
Fence
®
Brand
Computer
Collar
®
Unit manual
.
Train your pet according to the
instructions
in the Invisible
Fence
®
Brand training manuals
. Complete
all steps
before
allowing your pet to run free. Do not become overly
confident
if your pet has become conditioned
to the Invisible
F
ence
®
Brand pet
containment
system sooner than expected
.
Your Invisible
Fence
®
Brand Dealer has professionally installed your pet
containment
system and
ensured
it is w
orking
properly. You will want to perform periodic maintenance
checks to make sure the system is properly functioning
for
y
our
pets safe
containment.
Check the Invisible
Fence
®
Brand
transmitter
periodically to make sure it is
operating
properly. To do this, simply bring
the
Computer Collar
®
Unit to the edge of the
containment
field to verify
function.
The transmitter
has visual and audible signals to warn of a system
malfunction.
The transmitter
should be installed where
such
signals may be easily seen and heard. If the
transmitter
is installed by the
customer
in an enclosed box, or in a
place
not
readily accessible to the
customer,
the
customer
will not benefit from the systems warning
functions,
for which
In
visible
Fence, Inc., as well as Invisible
Fence
®
Distributors
and Dealers, assume no
responsibility
.
Do not
attempt
to service any Invisible
Fence
®
Brand
equipment.
Refer all service to your
authorized
Invisible
F
ence
®
Brand Dealer. Only your
authorized
Invisible
Fence
®
Brand Dealer should make
adjustments
to your pet
containment
system.
All Invisible
Fence
®
Brand pet
containment
systems are designed for
domesticated
animal use only. Never
attempt
to
use
this
product
for any
purpose
not specifically
described
in this
manual.
NOTICE
Use care when mowing, aerating, or
trimming
your lawn so as not to cut the loop
wire.
If you have any
questions
about any aspect of your Invisible
Fence
®
Brand pet
containment
system, call your
In
visible
Fence
®
Brand Dealer immediately
.
Congratulations on your purchase of the worlds premier pet containment solution, the Invisible
F
ence
®
Brand.
When professionally installed, the Invisible Fence® Brand pet containment system is backed with a one-year,
money-back performance guarantee. The support of your Invisible Fence® Brand Dealer gives you peace of
mind that your pet remains safe at home. Refer to the back of your sales contract for
complete
details
.
Table
of Contents
Components
................................................................................................................................................. 4
How the Systems Works
................................................................................................................................. 4
Transmitter
Status Indicators
........................................................................................................................... 5
Periodic Maintenance Check...............................................................................
5
Troubleshooting
........................................................................................................................................... 6
Battery Disposal...............................................................................................................................
6
Compliance..............................................................................................................................................................
7

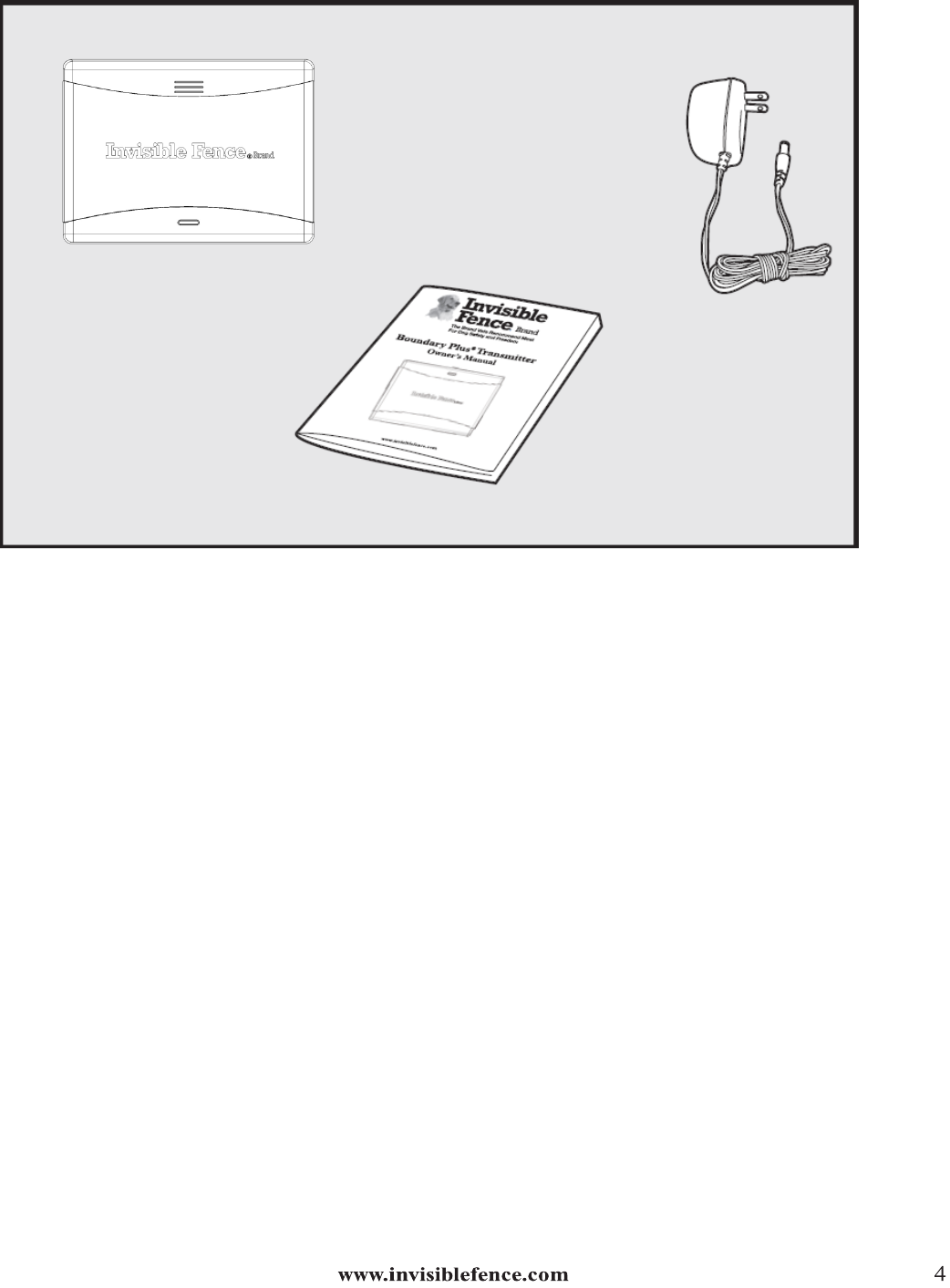

Components
How
the
System
Works
The Boundary
Plus®
Transmitter
is designed to work with an Invisible
Fence
®
Brand
Computer Collar
®
Unit to contain your
pet
within areas you choose, or teach your pet to avoid specific areas such as flower beds, gardens, or pools. The transmitter
produces
a signal that travels along the signal field wire and back to the
transmitter
to
produce
an Invisible
Boundar
y
®
barr
ier
.
When your pet
approaches
the
established boundary,
the
Computer Collar
®
Unit generates a tone and
correction
to
remind
your pet of the
boundar
y
.
With training and praise, your pet will quickly learn to stay within or avoid the
established
boundar
y
.
Definition
:
A
correction
is a training term used to
describe
an action taken to
discourage
unwanted pet behavior. The Computer
Collar® Unit
applies
a
correction
when your pet
crosses
the boundary of an Invisible Fence® Brand
electronic
pet containment system.
Corrections
are used in combination with
rewards
to alter unwanted pet behavior.
Your
Invisible Fence
®
Brand
pet
containment system
will only work
w
hen:
a. The adapter
is
connected
to the
transmitter
and to a
functional standard
electric outlet, via an approved Lightning
Protection
Device. All Invisible
Fence
®
Brand pet
containment
systems must be
grounded
per the
National Electr
ic
Code to be
protected
against lightning (for
North
American customers
only).
b. The transmitter
is on,
connected
to the signal field wire, and
producing
a signal along the entire length of the
wire.
c. The signal field wire is intact, continuous
,
and the
transmitters
Status Indicator
Light is blinking
blue.
d. The Computer
Collar
®
Unit is correctly fitted and worn by your pet. The Computer
Collar
®
Unit must be adjusted so
that
both of the
correction
posts touch your pets
skin.
e. The Power
Cap
®
Battery in the
Computer Collar
®
Unit is good and correctly
installed.
About
Thunder
and
Electrical Storms:
Even though your Invisible
Fence
®
Brand pet
containment
system is
equipped
with a Lightning Protection
Device (for
North
American customers
only), it is still possible that it may be
damaged
dur
ing
a
thunderstorm,
or when an electrical storm is in the area. After a storm has ended, check the signal field width. See page
5
for
periodic maintenance
checks
.
Boundary Plus® Single Loop
Transmitter
Owner’s Manual
AC Adapter
Transmitter Status
Indicators
Status Indicator
Light: This is the only light visible outside the
transmitter
.
The chart below explains the various
Status
Indicator
Light
conditions
.
Audible Alarm:
There is an audible alarm for certain alert
conditions
(see chart below). Pressing either the Mode or
CFG
b
utton
on the
transmitter
circuit board will silence the alarm. The alarm will re-activate on
power-up
if a failure
condition
still
exists. Access the Mode and CFG buttons by gently lifting upward on the top of the cover. T he top co ver wi l l re mai n
attach e d to t h e base.
Status
LED
Color
Indica
tor
Alar
m
System
OK
Blue
Slow green flash:
1 sec. on, 4 sec. off
None
AC failure
(operating
on backup
ba
tter
y)
if
applicable
Red
Slow red flash:
1 sec. on, 4 sec.
off
Chirp every 5
seconds
Loop wire break or decrease in signal field
Red
Steady red
light
Constant beeping
Defective or low backup
ba
tter
y
Red
Steady red
light
Chirp every 5
seconds
Periodic Maintenance Checks
Your Invisible
Fence
®
Brand Dealer has professionally installed your pet
containment
system and
ensured
it is w
orking
properly. You will want to perform periodic maintenance
checks to make sure the system is properly functioning
for
y
our
pets safe
containment.
System Device
How
often
What to look
for
Computer Collar
®
Unit
Daily
Check Power
Cap
®
Battery status light on top of
unit.
Review status
indicators
chart in
Computer Collar
®
Unit
manual.
Signal
Field
Monthly
and after
a
thunder
stor
m
Verify the signal field wire is active
throughout the
property;
see
“Monthly
Signal Field Testbelow
.
Monthly Signal
Field
T
est
You should always be aware of your systems signal
field.
Check the signal field from only one place on the signal field loop wire. Always check
the
signal field from the same place. Take the
Computer Collar
®
Unit off your pet to
measure
the signal
field.
1. Hold the Invisible
Fence
®
Brand
Computer Collar
®
Unit so it is parallel to the
signal
field
wire.
2. Hold the collar so it is about the same height and at the same angle as it will be
when
the pet is wearing
it.
3. Walk slowly toward the signal field wire. The Computer
Collar
®
Unit will activate
when
you reach the buried signal field wire. Do NOT touch
the
correction posts
at
this
time!
4.
Move back into the safe area; raise the
Computer Collar
®
Unit to twice the height of your
pet and repeat Step 3. The Computer
Collar
®
Unit will activate when you reach
the
buried
signal field
wire.
If the
Computer Collar
®
Unit does not sound a warning tone where the signal is
supposed
to be,
immediately
call your Invisible
Fence
®
Brand Dealer for service. Use a leash
(lead)
or
other means to contain your pet until all necessary service has been
completed.
Invisible
Fence
®
Brand
Computer Collar
®
Unit
Troub
leshooting
Symptom
Possible Cause
Action
Pet is getting
out.
Power
Cap
®
Battery in the
Computer
Collar
®
Unit is dead or w
eak.
Computer Collar
®
Unit is not fit properly on
the
pet.
Signal field wire has a
break.
Power is not supplied to the
transmitter or
power is
out.
Pet needs
additional training.
Replace the Power
Cap
®
Ba
tter
y
.
Properly fit the
collar
.
Contact
your Invisible
Fence
®
Brand
Dealer
.
Make sure
transmitter
power supply is plugged
in.
Contact
your Invisible
Fence
®
Brand Dealer for
additional
pet
training.
Pet will not
enter
the
y
ard.
Pet needs
additional training.
Contact
your Invisible
Fence
®
Brand Dealer for
additional
pet
training.
Computer
Collar
®
Unit not
responding
to
signal field
(loop)
wire.
Power
Cap
®
Battery in the
Computer
Collar
®
Unit is dead or w
eak.
Signal field wire has a
break.
Power is not supplied to the
transmitter or
power is
out.
Replace the Power
Cap
®
Ba
tter
y
.
Contact
your Invisible
Fence
®
Brand
Dealer
.
Make sure
transmitter
power supply is plugged
in.
Battery Disposal
Separate collection of spent batteries is
required
in many regions; check the
regulations
in your area before
discarding spent
ba
tter
ies
.
The Computer
Collar
®
Unit operates on one (1)
Lithium (Li-MnO2)
battery with a 3
Volt, 160 mAh
capacity
.
Replace only with equivalent Power
Cap
®
Battery that can be
obtained
from your
Invisible
Fence
®
Brand Dealer.
The
Transmitter
operates on one (1) Valve
Regulated
Lead Acid Battery with a
12 Volt, 5Ah capacity or 12 Volt, .8Ah
capacity
.
Computer Collar
®
Unit: Please see your manual for
instructions
on how to remove the Power
Cap
®
Battery for
separa
te
disposal.
Transmitter:
At the end of
product
life of the
Transmitter,
please contact your Invisible
Fence
®
Brand Dealer to
receiv
e
instructions
on proper disposal of the backup battery (if
installed).
Please do not dispose of the backup
battery in
household
or
municipal
waste
receptacle.
WARNING
Replacing the battery backup with a battery not
specifically
approved by Invisible Fence® Brand, may cause fire or
explosion. Refer all service to your Invisible Fence® Brand Dealer
only
.
Perchlorate
Ba
tter
y
Perchlorate Material
special
handling may
apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Important Recycling Advice
Please respect the Waste Electrical and
Electronic Equipment regulations
in your
countr
y
.
This
equipment
must
be
rec
ycled.
If you no longer require this
equipment,
do not place it in the normal municipal
waste system. Please
return it to where
it
w
as
purchased
so it can be placed in our recycling system. If this is not possible, please
contact your Invisible
Fence
®
Brand
Dealer
.
Compliance
US and
Canada
Model:
Boundary
Plus® Single Loop Transmitter
(RIG00-11350)
FCC
ID:
KE3-3002587
IC:
2721A-3002587
This device complies with
Industry Canada license-exempt
RSS
standard(s).
This device complies with Part 15
of the
FCC
Rules.
Operation
is subject to the following two
conditions:
(1) this device may not cause
interference,
and (2) this
device
must accept any
interference,
including interference
that may cause
undesired
operation
of the
device.
Le présent appareil est conforme aux CNR
d’Industrie Canada
applicables aux appareils radio exempts de
licence.
Cet
appareil est conforme à la partie 15 des régles
FCC. L’exploitation
est autorisée aux deux
conditions
suivantes :
(1)
l’appareil ne doit pas
produire
de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage
radioélectrique
subi, même si le brouillage est
susceptible
d’en
compromettre
le
fonctionnement.
Modification
or changes to this
equipment
not expressly approved by Radio
Systems
®
Corporation
may void the
user
s
authority
to operate the
equipment.
This
equipment
has been tested and found to comply with the limits for a Class B digital device,
pursuant
to part
15 of
the
FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference
in a
residential installation.
This
equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used
in accordance
with the
instructions,
may cause harmful interference
to radio
communications.
However, there is no
guarantee
that
interference
will not occur in a specific
installation.
If
interference
does occur
to radio or television
reception,
which
can
be
determined
by turning the
equipment
off and on, the user is
encouraged
to try to correct the
interference
by one or
more
of the following
measures:
Reorient or relocate the receiving
antenna.
Increase the
separation
between the
equipment
and the
Computer Collar
®
Unit.
Connect
the
equipment
to an outlet on a circuit different from that to which the
Computer Collar
®
Unit is
connected.
Consult
the dealer, or an
experienced
radio/TV technician
for
help
.
This Class B digital
apparatus
complies with
Canadian ICES-003.
Cet appareil numérique
de la classe B est conforme à la norme NMB
-003
du
Canada.
Australia
This device complies with the applicable EMC requirements
specified by the ACMA (
Australian Communications
and
Media
Authority).
European Union
This
equipment
has been tested and found to comply with relevant EU
Electromagnetic Compatibility,
Low
Voltage
and R&TTE
Directives. Before using this
equipment
outside the EU
countries,
check with the relevant
local
R&TTE author
ity
.
Unauthorized
changes or
modifications
to the
equipment
that are not approved by
Radio Systems
Corporation
are
in
violation of EU
R&TTE regulations,
could void the users
authority
to
operate the
equipment,
and void the w
arranty
.
This
product
is in full
compliance
with the provisions of the
R&TTE
- Directive 1999
/05/EEC.
The Declaration
of
Conformity
can be found at:
http://ww
w
.in
visiblefence.com/inter
na
tional/declarations-of-confor
mity
.asp
.
Dealer
Name:
Dealer
Phone:
Notes:
800-578-3647
(USA) (
865)
777-5404
(Inter
na
tional)
400-14XX/1
©2012 Radio
Systems
®
Cor
poration
All rights
reser
v
ed.
Protected by Patents:
U.S.: #7,046,152, #7,565,885, #5,576,694
#7,117,822, Patents Pending
Canada: #2173169
Australia: #2007202433

Navigation menu
