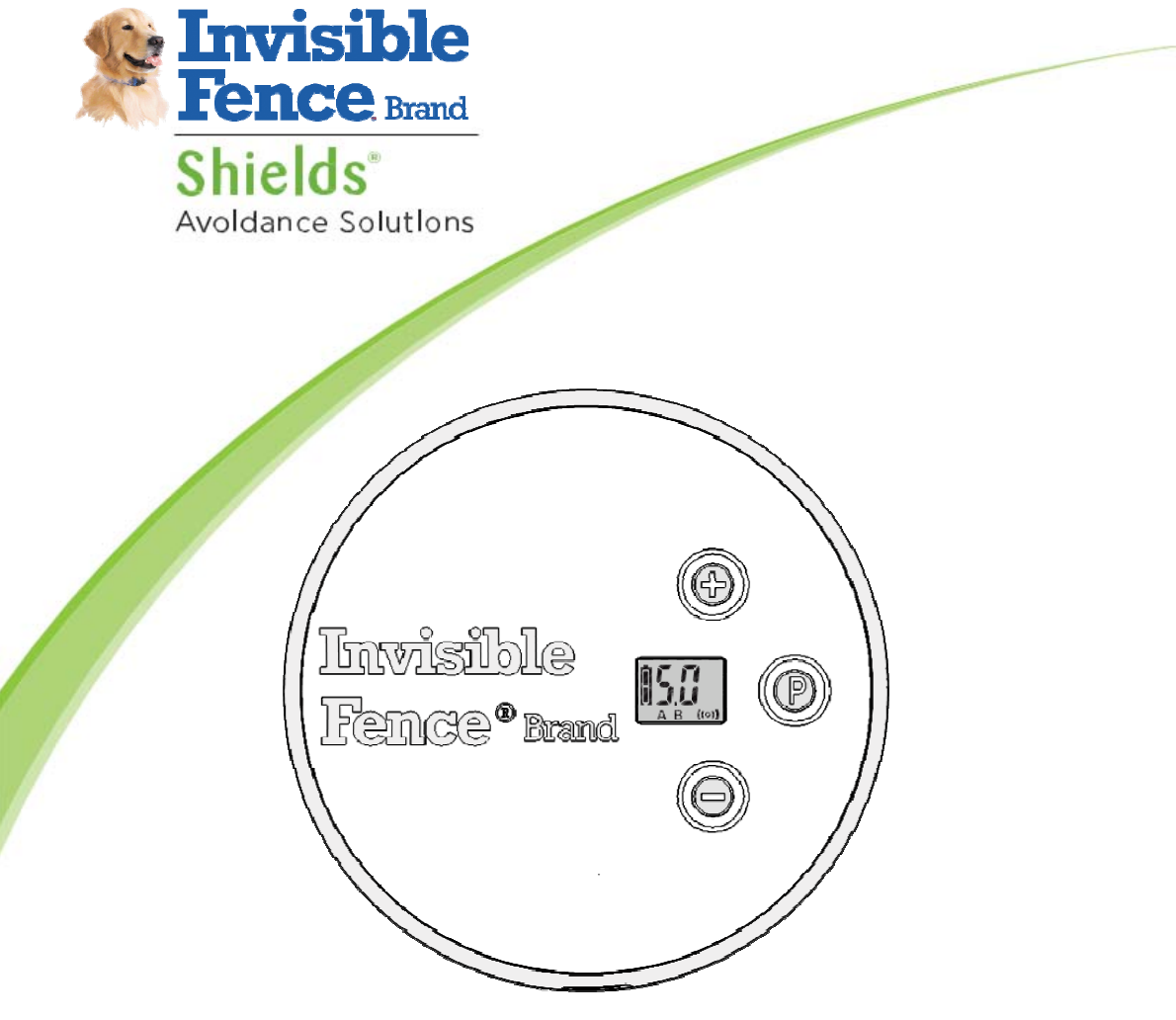

Indoor Shields
®
Plus
Owner’s Manual
Please read this entire guide before operating.
www.InvisibleFence.com
www.InvisibleFence.com
2
Important Precautions
•
Invisible Fence
®
Brand pet containment systems have contained over two million pets.
However, there are some precautions you should take.
•
Read and retain manuals: Read the entire Owner’s Manual before using your new Indoor
Shields® Plus solution. If you have any questions after reading this manual, call your
Invisible Fence
®
Brand dealer.
•
Adhere to all warnings and cautions contained in any Invisible Fence
®
Brand manual.
Explanation of Attention Words and Symbols used in this guide
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury or
death.
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION used with the safety alert symbol, indicates a hazardous situation
which, if not avoided, could result in minor or moderate injury.
NOTICE is used to address safe use practices not related to personal injury.
•
Not every pet can be trained to avoid the established boundary. Sometimes even a properly
trained pet may cross the boundary. Therefore, Invisible Fence, Inc., as well as Invisible
Fence
®
Brand Distributors and Dealers cannot guarantee the system will, in all cases, keep
a customer’s pet within the established boundary. Accordingly, if a customer has reason
to believe that their pet may pose a danger to others, or harm itself, the customer should
not rely solely upon the Invisible Fence
®
Brand system to keep the pet from crossing the
boundary.
•
Do not install, connect, or remove your system during a lightning storm. If the storm is close
enough for you to hear thunder, it is close enough to create hazardous surges.
www.InvisibleFence.com
3
•
Read and follow the important tips on how to avoid pressure necrosis in your Invisible Fence
®
Brand Computer Collar
®
unit manual.
•
Train your pet according to the instructions in the Invisible Fence
®
Brand training manuals.
Complete all steps before allowing your pet to run free. Do not become overly confident
if your pet has become conditioned to the Invisible Fence® Brand pet containment system
sooner than expected.
•
Your Invisible Fence
®
Brand dealer has professionally installed your pet containment system
and ensured it is working properly. You will want to perform periodic maintenance checks to
make sure the system is properly functioning for your pet’s containment.
•
Check the Invisible Fence
®
Brand transmitter periodically to make sure it is operating properly.
To do this, simply bring the Computer Collar® unit to the edge of the signal field to verify
function.
•
Do not attempt to service any Invisible Fence
®
Brand equipment. Refer all service to your
authorized Invisible Fence
®
Brand dealer. Only your authorized Invisible Fence® Brand dealer
should make adjustments to your pet containment system.
•
All Invisible Fence
®
Brand pet containment systems are designed for domesticated animal
use only. Never attempt to use this product for any purpose not specifically described in this
manual.
•
Congratulations on your purchase of the Indoor Shields
®
Plus solution. Please read and
review this entire manual to become familiar with Indoor Shields
®
Plus solution components
and its operation. It is strongly recommended you review this information before using the
product.
•
The Indoor Shields
®
Plus solution gives you control over the areas a pet or pets have access
to inside your home. It is designed to work independently or to complement your Invisible
Fence® Brand 800 Series and/or Boundary Plus
®
digital electronic pet containment system.
The Indoor Shields
®
Plus transmitter is designed for indoor use only. For information on or
about Outdoor Shields
®
products, please contact your local Invisible Fence
®
Brand dealer or
visit us at www.invisiblefence.com. This device is not designed to operate as a containment
transmitter.
•
Important: To ensure your pet does not receive an unintended correction, make sure your pet is not
wearing the Computer Collar® Unit when turning ON or adjusting the Indoor Shields® Plus transmitter.
www.InvisibleFence.com
4
Table of Contents
Important Precautions
.................................................................................................................
2-3
Components..........................................................................................................................5
How the System Works..........................................................................................................5
Operating Guide..............................................................................................................6
Charging................................................................................................................6
Turning On and Off.................................................................................................6
Adjust Signal Field Range............................................................................................7
Verify Signal Field Range.............................................................................................7
Changing the Channel Setting on the Indoor Micro Shield® Transmitter..................7
Wired Operation…………………………………………………………………………………………8
Signal Field Wire Preparation………………………………………………………………………….8
Connect the Wires to the Indoor Shields® Plus……………………………………………………...8
Test the Signal Field……………………………………………………………………………………8
Multi-Area Avoidance .............................................................................................9
Programming the Computer Collar® Unit ...............................................................9
Training Guide.....................................................................................................................10
For Pets trained to the Invisible Fence® Brand Outdoor Pet
Containment System............................................................................................10
For Pets New to Invisible Fence® Brand ....................................................................10
Troubleshooting
..............................................................................................................................
11
Battery Disposal
..............................................................................................................................
12
Perchlorate Battery
........................................................................................................................
12
Important Recycling Advice
..........................................................................................................
12
Compliance
.................................................................................................................................. 13-14
www.InvisibleFence.com
5

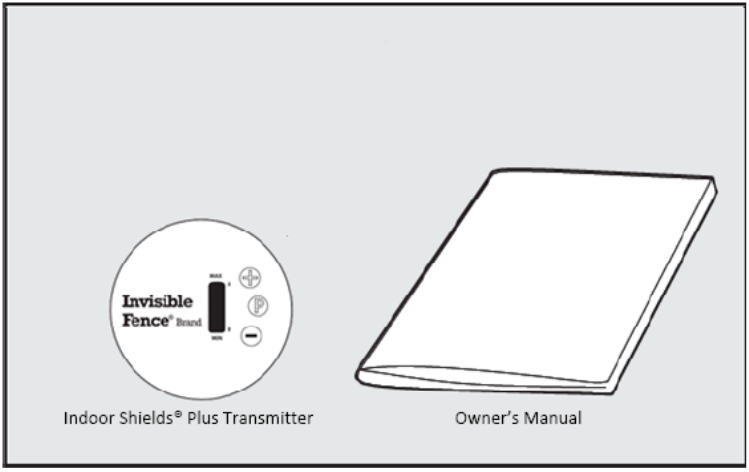

Components
How the System Works
Indoor Shields
®
Plus Transmitter
The transmitter is the heart of the system. It produces a signal that communicates with your
pet’s Computer Collar
®
to keep your pet away from unwanted areas. The signal can be delivered
through a wireless sphere that is transmitted from the transmitter or by up to 150 feet of wire. The
lightweight, portable design is easy to use and powered by an internal
rechargeable battery
pack. You may use the included AC adapter for locations near an electrical
outlet. The AC
adapter is also used for charging the transmitter.
The Transmitter has three control buttons:
•
Two for controlling the signal field range (RANGE UP & RANGE DOWN). These buttons also
control power ON and OFF during normal use.
•
One for use when programming the Computer Collar
®
unit to the Indoor Shields®
Plus
transmitter.
Power input
EUT with built-in battery, the user can freely choose to buy to meet the requirements of FCC, the
input parameters to meet the requirements of the external charger EUT charger for charging.
Charging Technical Data: DV5V Max 210mA.
The built-in Battery Technical Data: DC3.7V 1900mAh
www.InvisibleFence.com
6
Operating Guide
Important: To ensure your pet does not receive an unintended correction, make sure your pet is
not wearing the Computer Collar
®
unit when turning ON or adjusting the Indoor Shields
®
Plus
transmitter.
1.
Charge the Indoor Shields
®
Plus transmitter
•

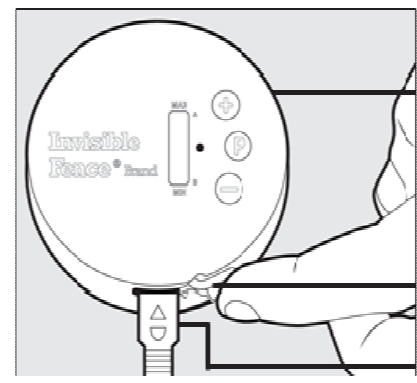

Lift the rubber cover protecting the charging jack located on the Indoor Shields
®
Plus
transmitter. Connect the charger connector to the charging jack with the keyed side facing
down.
•
Plug the AC Charger ( Out put DC5V Max210mA) into a standard 120 volt wall outlet.
•
Allow the unit to charge a full 4 hours before initial use and after prolonged storage. A
charge time
of 2 hours is required after the initial charge.
•
When charging is complete remove the charger connector and replace the rubber cover.
•
Battery life of approximately 30 days can be expected from a fully charged battery.
•
The Indoor Shields® Plus transmitter will give an audible chirp every 30 seconds when the battery is low.
2.
Turning on and off
•
Turn on by pressing RANGE UP (+) button.
•
Turn off by pressing RANGE DOWN (-) button until LCD no longer displays signal field range.
IndoorShields®PlusTransmitte
r
RubberCover
ChargerConnector
www.InvisibleFence.com
7

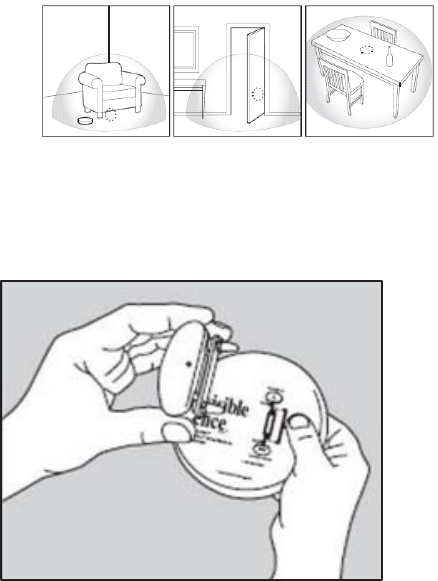

Wireless Option
1.
Adjust signal field range
•
Determine the desired location and the signal field range required.
-Wireless: 1.5 ft. minimum
radius up to 6 ft. maximum radius.
•
With the unit ON, press the RANGE UP (+) or the RANGE DOWN (-) buttons
to increase or
decrease the signal field range. The first segment of the range
indicator equals 1 ft. radius of signal fie. Each additional segment
represents approximately 6 inches radius of
r
ange.
2.
Verify signal field range
•
Turn the Indoor Shields
®
Plus transmitter ON.
•
Holding the Computer Collar
®
unit, start outside the range and move slowly towards the Indoor
Shields
®
Plus transmitter. Do not touch the correction posts at this time.
•
The Computer Collar
®
unit will beep as it approaches the outer range of the signal field width
set in
Step 2. The beeping will be accompanied by a correction.
•
If the Computer Collar
®
unit fails to beep, see the troubleshooting chart found on page 11.
•
Adjust range and/or relocate the Indoor Shields
®
Plus transmitter until desired area is
protected.
3.
Changing the Channel Setting on the Indoor Shields
®
Plus transmitter
1.
Press and release the RANGE DOWN (-)
button until no bars
appear on the LCD.
2.
Turn the unit over and remove the bottom
lid by rotating
counter-clockwise until in the unlocked position.
3.
Locate the switch for the Channel (A),
Channel (B) and Channels (A+B).
(Figure 1)
4.
Select the desired setting. Note: The
Indoor Shields® Plus transmitter will
not
enter into programming mode if this
switch is set to A+B. See
Programming
Computer Collar
®
unit
on
Page9.
5.
Replace the bottom lid making sure that it is aligned in the
unlocked position and turn clockwise
until it is in the
locked position.
Note: Ensure the O-ring is in the top housing and
seated in the channel before replacing the bottom
lid.
Failure to do so may allow moisture leakage and
failure of the device.
Locked
Unlocke
d
Figure
1:
www.InvisibleFence.com
8
WIRED OPTION
You can create a signal field using up to 150 feet of boundary wire (14 – 20 gauge). The recommended
wire can be purchased from your local Invisible Fence® Brand dealer. Visit www.invisiblefence.com to find
an authorized dealer in your area.
1. Signal Field Wire Preparation
• When using the wire option it will be required to start at a minimum range setting of 2
segments. A setting below 2 segments will not produce a signal field great enough to be picked
up by the Computer Collar® Unit.
• The range will vary depending on the length of wire and shape of the layout.
• The wire must make a complete loop starting and ending at the Indoor Shields® Plus transmitter.
• It is important to test the system and make adjustments to your layout prior to training your pet.

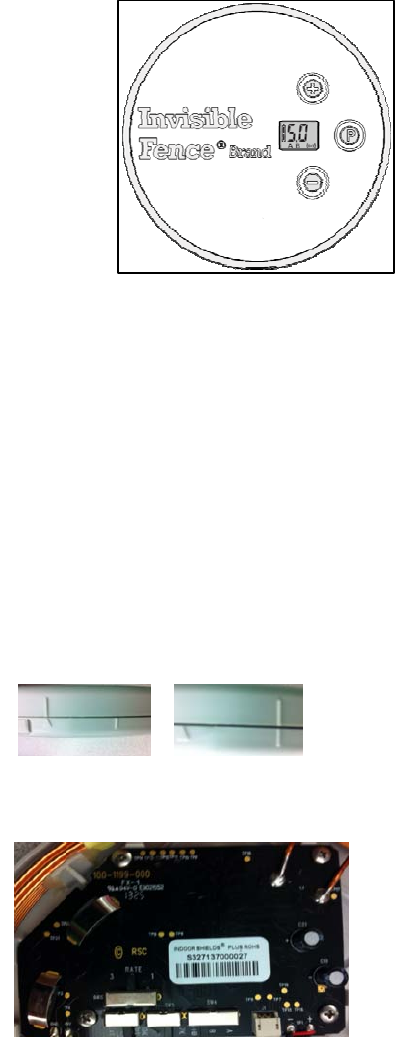

2. Connect the Wires to the Indoor Shields® Plus
• Open the case byturning the unit over and removing the bottom lid by rotating
counter-clockwise until in the unlocked position.
• Locate the switch inside the battery compartment labeled “INT/EXT”.
This switch allows the Indoor Shields® Plus to operate as a wireless (INT) or wired
(EXT) unit. Move the switch to the EXT position.
•Replace the bottom lid making sure that it is aligned in the unlocked position and turn
clockwise until it is in the locked position.
• Locate the wire connectors on the bottom of the Indoor Shields® Plus transmitter.
• Strip ½ inch of insulation from each end of the boundary wire. Bend the ends to form
a 90 degree angle.
• Loosen the 2 Phillips head wire connection screws adjacent to the battery compartment
and insert the boundary wire. Once in place, tighten each screw. Make sure the bare wires
do not touch.
• Position the Indoor Shields® Plus unit and wire in the desired location.
• Before securing wire, test and verify signal field.
3. Test the Signal Field
• Start with the range set to 2 segments and adjust the range up to 6 segments to get your desired
coverage. There is a 1ft minimum radius and up to a 5ft maximum radius.
• Holding the Computer Collar® Unit at the approximate height of your pet’s neck, start outside the
signal field and walk slowly towards the boundary wire. Do not touch the correction posts at this
time.
• The Computer Collar® Unit will beep as it approaches the outer range of the signal field. The
www.InvisibleFence.com
9
beeping will be accompanied by a correction.
• If the Computer Collar® Unit fails to beep, see the Troubleshooting chart found on page 11.
•Adjust the signal field range and boundary wire position until the desired area is covered.
4. Install the Boundary Wire
• The avoidance wire may be installed under furniture, cabinets, islands, rugs, carpets or underneath
the floor (if you have access via crawlspace or basement).
Multi-Area Avoidance
Your Indoor Shields® Plus Transmitter and the Computer Collar® unit are preset to
operate on
Channel A (CH.A). For homes with two or more pets, this setting is usually
sufficient as long as
all pets are required to avoid the same protected areas like keeping
all pets away from the trash,
off the counter tops off the sofa, etc. In some multi-pet homes, it may be desired to allow one
pet
access to an area while denying access to another pet.
•
When set to Channel A (CH.A), the Indoor Shields® Plus
transmitter denies access to pets
wearing a Computer
Collar® unit programmed to Channel A. (Channel A is the
default setting for the Computer Collar® unit.)
•
When set to Channel B (CH.B), the Indoor Shields® Plus
transmitter denies access to pets
wearing a Computer Collar®
unit programmed to Channel B.
•
When set to Channel A-B (CH. A and CH.B), the Indoor Shields® Plus transmitter
denies
access to all pets wearing a Computer Collar® unit.
Programming the Computer Collar® unit
1.
Ensure all Computer Collar® units are
removed from pets
and are at least 3 feet from
the Indoor Shields® Plus
transmitter.
2.
Follow procedure on page 7, Changing the
Channel Setting on the Indoor Shields®
Plus transmitter, to select
Channel A or
Channel B to program into the Computer
Collar® unit. Note: The Indoor Shields® Plus
transmitter
will not enter into programming
mode if this switch is
set to A+B. Turn the
unit back over and set it down on a
flat
surface.
www.InvisibleFence.com
10
3.
Press and hold the PROGRAM button while lowering the Computer Collar® unit from
directly
above the Indoor Shields® Plus transmitter.
4.
Stop lowering when the Computer Collar® unit begins to flicker yellow and
release the PROGRAM button when the Computer Collar® unit begins to flash
green.
5.
The Computer Collar® unit is now programmed to the desired channel.
6.
Verify operation by turning ON the Indoor Shields® Plus transmitter and
listening for
Computer Collar® unit activation.
Note: Make sure any Computer Collar® units you do not wish to program are more than 3
feet from the
Indoor Shields® Plus transmitter or have the Power Cap® Battery removed. Do
not perform this procedure
while the Computer Collar® Unit is on a pet
.
www.InvisibleFence.com
11

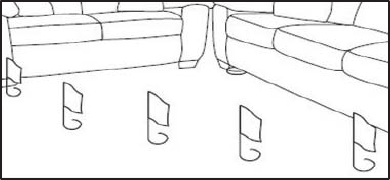

Training Guide
For pets trained to the Invisible Fence
®
Brand system
•
Use Invisible Fence
®
Brand training flags to mark
the
outside of the signal field range. This gives
your pet a
visual marker, similar to how they
learned the signal
field range of the outdoor pet
containment system.
•
Allow your pet to enter the protected area. By
already being familiar with the training flags
and
the warning beep, your pet should react
immediately by moving away from the protected
area. It may take several times for your pet to recognize
and avoid the protected area.
•
Praise your pet for leaving the protected area.
•
If the Computer Collar
®
Unit is set to a delay you may need to adjust the signal field range so
your pet
receives the warning beep earlier.
For pets new to the Invisible Fence
®
Brand system
•
Use Invisible Fence
®
Brand training flags to mark the edge of the signal field range. This gives
your pet a
visual marker.
•
Use Invisible Fence
®
Brand safety posts on the Computer Collar
®
Unit
for the first training session. This will
introduce your pet to the idea of leaving the protected
area when he hears the warning beep.
•
Attach a long lead to your pet’s collar strap and show your pet how to avoid the protected area
by gently
guiding the pet out of the range when the warning beep sounds.
•
Notice: Do not attach a lead to the Computer Collar
®
unit strap. This can result in pulling the Correction
Posts too tightly against your pet’s neck. Attach a lead to a separate, nonmetallic
collar or harness,
making sure the extra collar strap does not put pressure on the Correction Posts.
•
Praise your pet for leaving the protected area.
•
Repeat this process until your pet reacts to the warning beep on their own by moving away
from the
protected area.
•
Remove the safety posts on the Computer Collar
®
unit. Allow your pet to enter
the protected area. Your
pet should react immediately to the warning beep and correction by
moving away from the protected
area. It may take several times for your pet to recognize and
avoid the protected area.
•
After training is complete, remove your pet’s Computer Collar
®
unit each night to prevent irritation.
However, if this is not possible, please check the tightness of the collar each time you
feed your pet by
removing the collar and then replacing it back on your pet.
12
www.InvisibleFence.com
Troubleshooting
Need additional help? Contact your local Invisible Fence
®
Brand dealer. Call 1-800-578-3647
or visit
www.InvisibleFence.com to find your local dealer.
Indoor
Shields
®
Plus does
not
appear to work
•
Check for low battery (audible chirp once every 30 seconds
and flashing LCD). If low battery is indicated, plug the AC
adapter into the unit and charge for 2 hours.
•
Check/replace the Power Cap
®
Battery in the Computer Collar®
unit.
•
The Indoor Shields
®
Plus transmitter power could be
completely drained. Apply power to the Indoor Shields® Plus
transmitter using the AC adapter to verify operation.
•
If using AC adapter for power, check connections.
•
Check the Computer Collar
®
unit fit to ensure posts have direct
skin contact.
•
Ensure the Computer Collar
®
unit is programmed properly
to the
Indoor Shields
®
Plus transmitter
LCD is black
•
Operating the Indoor Shields
®
Plus transmitter in direct sunlight
may
cause the LCD to overheat and turn completely black. The
LCD will return to normal when the temperature drops below
150
º
F/65
º
C.Operating the transmitter when the LCD is black
will not damage the device.
Range is too low
or too high
•
Check for low battery (audible chirp once every 30 seconds
and flashing LCD). If low battery is indicated, plug the AC
adapter into the unit and charge for 2 hours.
•
Adjust the Indoor Shields
®
Plus transmitter to increase/
decrease signal field range. See Step 3 on page 7 (Adjust signal
field range).
•
Metal objects may distort the transmitter’s range. Consider
alternate location for the Indoor Shields
®
Plus transmitter.
Computer
Collar
®
Unit
does not seem
to deter pet
•
Check/replace the Power Cap
®
Battery in the Computer Collar
®
unit and check collar fit.
•
Check the signal field range on the Indoor Shields
®
Plus
transmitter.
•
Ensure the training posts are removed from the Computer
Collar
®
unit
after training
Computer
Collar
®
Unit
fails
to sound
warning beep
•
Check/replace the Power Cap
®
Battery in the Computer Collar
®
unit.
•
Ensure the Computer Collar
®
unit is set to same Indoor Shields
®
Plus transmitter CHANNEL setting. See Multi-Area Avoidance
Section on page 9.
www.InvisibleFence.com
14
Battery Disposal
Separate collection of spent batteries is required in many regions; check the regulations in your
area before discarding spent batteries. The Computer Collar
®
unit operates on one (1) Lithium
(Li-MnO2) battery with a 3 Volt, 160 mAh capacity, replace only with equivalent battery that may
be obtained from your Invisible Fence
®
Brand dealer. The transmitter operates on
1
rechargeable
Lithium Ion Polymer (Li-ion) battery pack with a 3.7 Volt, 420 mAh capacity.
Perchlorate Battery
Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlo-
rate.
Important Recycling Advice
Please respect the Waste Electrical and Electronic Equipment regulations in your country. This
equipment must be recycled. If you no longer require this equipment, do not place it in the normal
municipal waste system. Please return it to where it was purchased in order that it can be placed in
our recycling system. If this is not possible, please contact your Invisible Fence
®
Brand dealer.
www.InvisibleFence.com
14
Compliance
US and Canada
FCC ID: KE3-3002769
IC: 2721A-3002769
This device complies with Industry Canada rules. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts
de licence. Cet appareil est conforme à la partie 15 des régles FCC. L’exploitation est autorisée aux
deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Modification or changes to this equipment not expressly approved by Radio Systems®
Corporation may void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a specific installation. If interference does occur to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the Computer Collar® Unit.
•
Connect the equipment to an outlet on a circuit different from that to which the Computer Collar®
Unit is connected.
•
Consult the dealer, or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian RSS-210.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Australia
This device complies with the applicable EMC requirements specified by the ACMA (Australian
Communications and Media Authority).
European Union
This equipment has been tested and found to comply with relevant EU Electromagnetic
Compatibility, Low Voltage and R&TTE Directives. Before using this equipment outside
the EU countries, check with the relevant local R&TTE authority. Unauthorized changes or
modifications to the equipment that are not approved by Radio Systems Corporation are in violation of
EU R&TTE regulations, could void the user’s authority to operate the equipment, and void the warranty.
This product is in full compliance with the provisions of the R&TTE - Directive 1999/05/EEC.
The Declaration of Conformity can be found at:
http://www.invisiblefence.com/international/declarations-of-conformity.asp.
www.InvisibleFence.com
14
800-578-3647 (USA)
(865) 777-5404 (International)
400-XXXX-X
©2013 Radio System Corporation
All rights reserved.
Protected by Patents:
U.S.: 7,046,152; 7,068,174; 7,204,204;
