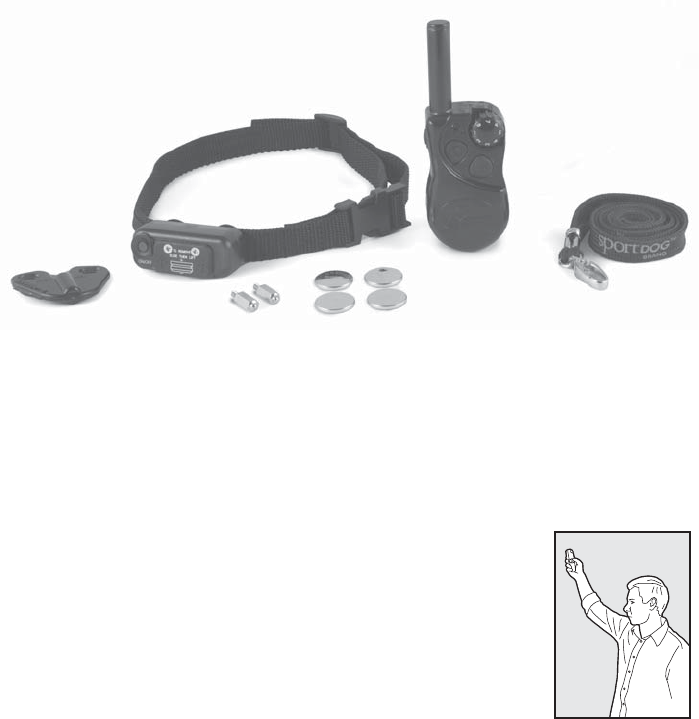

Components
How the System Works
The SportDOG YardTrainer SD-105 has been proven safe, comfortable and effective for all dogs
over 8 pounds. Consistent, correct use of this product allows you to reinforce commands and
correct misbehavior from up to 100 yards. The Remote Transmitter sends a signal, activating
the Collar Receiver to deliver a harmless stimulation. With proper training, a dog will learn to
associate this signal with a command. Like all SportDOG products, this model features adjustable
stimulation levels so you can tailor the stimulation level to your dog’s temperament, eliminating
the risk of over-correction.
Important: The YardTrainer SD-105 has a range of up to 100 yards.
Depending on the way you hold the Remote Transmitter, the
maximum range may vary. For consistent results at longer ranges,
hold the Remote Transmitter in a vertical position away from your
body and over your head. Terrain, weather, vegetation, transmission
from other radio devices, and other factors will affect the maximum
range.
4 1-800-732-0144
Intensity
Dial

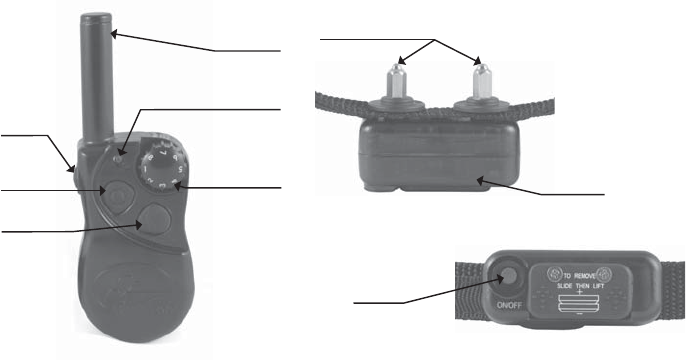

Key Defi nitions
Remote Transmitter: Transmits the radio signal to the Collar Receiver. It is weatherproof and cannot be
submerged in water.
Intensity Dial: Provides multiple levels of stimulation so you can match the correction to your dog’s
temperament.
Transmitter Indicator Light: Indicates that a button is pressed and also serves as a low battery indicator.
Upper Button: This button is factory-set to deliver Continuous Stimulation.
Lower Button: This button is factory-set to deliver Continuous Stimulation two levels higher than the
setting on the Intensity Dial.
Side Button: This button is factory-set to deliver a tone without stimulation.
Collar Receiver: Receives the radio signal from the Remote Transmitter. It is waterproof and can be
submerged in water.
Receiver Indicator Light: Indicates when the Collar Receiver has been turned on or off and also serves as
a low battery indicator.
Contact Points: The contacts through which the Collar Receiver delivers stimulation when the Remote
Transmitter upper or lower button is pressed.
On/Off Button: Momentarily pressing and holding this button turns the Collar Receiver on and off.
Continuous Stimulation: You control both when and how long stimulation is delivered to your dog
through the Collar Receiver’s Contact Points. When a Continuous Stimulation button is pressed for 8
seconds or more, the Remote Transmitter will “time-out.” The button will need to be released and pressed
again before additional stimulation can be delivered.
On/Off
Button
Contact Points
Receiver
Indicator
Light
Collar Receiver
Remote Transmitter
Transmitter
Indicator Light
Transmitter
Antenna
Upper
Button
Lower
Button
Side
Button
www.sportdogbrand.com 5
Prepare the Remote Transmitter
Inserting 3-Volt Batteries

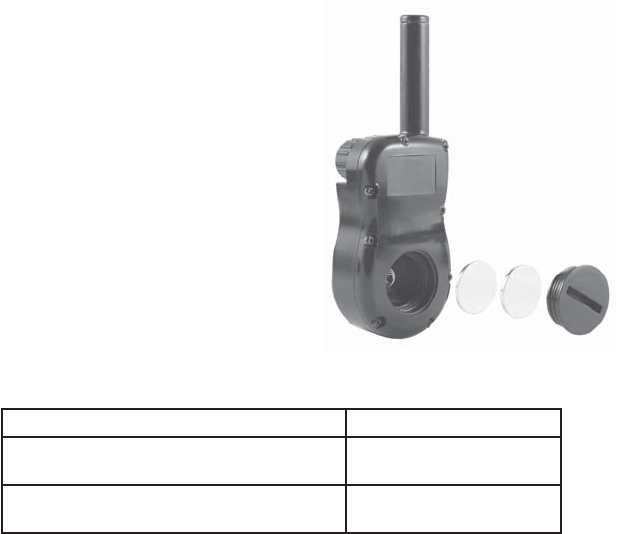

1. Remove the battery cover from the back of
the Remote Transmitter by using a coin and
turning it counter-clockwise.
2. Insert 3-volt batteries and secure the
battery cover.
Note: Approximate battery life will be 3 months,
depending upon frequency of use.
Transmitter Indicator Light
Remote Transmitter Function Indicator Light Response
Continuous Stimulation or Tone Only button
pressed
Solid in color
Low battery – Continuous Stimulation or Tone
Only button pressed
Flashes continuously
Step
1
6 1-800-732-0144
Prepare the Collar Receiver
Inserting 3-Volt Batteries

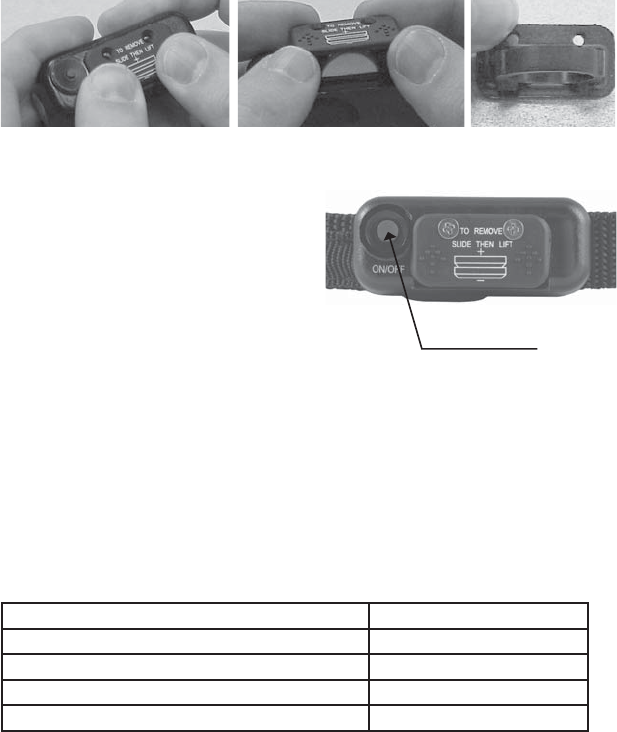

1. Use a small Philips screwdriver to remove the two screws on the receiver.
2. Press the battery door up in the direction of the arrows on the door. It will move up
slightly and the door will release.
3. Insert two, 3-volt lithium CR2032 batteries per the diagram on the receiver.
4. Replace the battery door. Check to ensure the gasket is in place and clean.
5. Tighten the screws. Do not over tighten.
Press Door Up Pull Door Out Gasket
To Turn the Collar Receiver On:
1. Press and hold the On/Off Button until the
Receiver Indicator Light comes on
and the Collar Receiver beeps 5 times.
2. Release the On/Off Button.
The Receiver Indicator Light will fl ash until
the Collar Receiver is turned off. The fl ashing
light indicates the Collar Receiver is ready
to receive a radio signal from the Remote
Transmitter.
On/Off Button
To Turn the Collar Receiver Off:
1. Press and hold the On/Off Button until the Receiver Indicator Light comes on and
the Collar Receiver beeps 2 times.
2. Release the On/Off Button.
Important: If the Receiver Collar is left on continuously, the maximum battery
life (before replacing batteries) will be two weeks.
Receiver Indicator Light
Function Indicator Light Response
Collar Receiver on – good battery Flashes once per second
Collar Receiver on - low battery Flashes once every 4 seconds
Continuous Stimulation button pressed Solid in color
Tone Only button pressed No response
Step
2
www.sportdogbrand.com 7
Fit the Collar Receiver
Important: The proper fi t and placement of the Collar Receiver is important
for effective training. The Contact Points must have direct contact with your
dog’s skin.
To ensure a proper fi t, follow these steps:

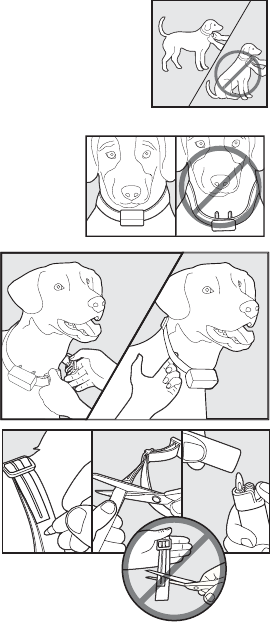

1. With your dog standing (3A), center the Collar Receiver where the
Contact Points are underneath your dog’s neck, touching the skin
(3B). If your dog has a long or thick coat, trim the hair around the
Contact Points to ensure consistent contact.
2. The Collar Receiver should fi t snugly, yet loose enough to allow
one fi nger to fi t between the strap and your dog’s neck (3C).
3A
3. Allow your dog to wear the collar for several minutes,
and then recheck the fi t. Check the fi t again as your dog
becomes more comfortable wearing the Collar Receiver.
4. Trim the collar as follows (3D):
a. Mark the desired length of the collar with a pen. Allow for
growth if your dog is young or grows a thick winter coat.
3B
b. Remove the Receiver Collar from your dog
and cut off the excess. Important: Do not
cut the part of the collar containing the
Antenna.
c. Before placing the Receiver Collar back
onto your dog, seal the edge of the cut collar
by applying a fl ame along the frayed edge.
3C
Care and Cleaning
To ensure the effectiveness of this product and
the comfort and safety of your dog, check the
fi t of his collar frequently. This Guide describes
proper collar fi tting. If you notice that your dog
is experiencing skin irritation, discontinue use of
the collar for a few days. If the condition persists
beyond 48 hours, see your veterinarian.
3D
To prevent skin irritation from occurring:
• The Collar Receiver should not be worn for more than 8 hours out of every 24-hour period.
• Your dog’s neck and the Contact Points must be washed weekly with a washcloth and mild
hand soap, then rinsed thoroughly.
Step
3
8 1-800-732-0144
To Re-Thread the Collar
Slide Buckle
Ridges
The slide buckle prevents the collar from
becoming loose around your dog’s neck.
The ridges must be facing up; the collar will
slip if it is not properly threaded.
_________________________________________
Find the Best Intensity Level for Your Dog
The YardTrainer SD-105 has multiple intensity levels. This allows you to choose the
stimulation that is best for your dog.
Note: Always start at the lowest level and work your way up.
For training effi ciency, it is important to fi nd the right intensity level for your dog. This
is called the Recognition Level, at which your dog swallows, looks around in curiosity, or
fl icks his ears.
Finding Your Dog’s Recognition Level:
Note: Every dog is different and you cannot predict where your dog’s Recognition Level will be.
Watch closely for any slight change in behavior that tells you your dog is feeling the stimulation.
1. With the Collar Receiver turned on and properly fi t to your dog, set the Remote
Transmitter’s Intensity Dial at Level 1 and press the Continuous Stimulation Button
for 1 to 2 seconds.
2. If your dog shows no reaction to Level 1, go to Level 2 and repeat the process.
3. YOUR DOG SHOULD NOT VOCALIZE OR PANIC WHEN RECEIVING
STIMULATION. IF THIS HAPPENS, THE STIMULATION LEVEL IS TOO
HIGH AND YOU NEED TO GO BACK TO THE PREVIOUS LEVEL AND
REPEAT THE PROCESS.
4. Once you fi nd your dog’s Recognition Level, this is the level you should use when
you begin a training exercise.
5. If you have progressed to Level 8 while searching for your dog’s Recognition Level
and your dog continues to show no response, check to see if Collar Receiver is snug
against your dog’s neck. Then go back to Intensity Level 1 and repeat the process. If
your dog still does not indicate he is feeling the stimulation, you may have to trim the
hair beneath the Contact Points.
If after completing all of these steps your dog still does not indicate he is feeling the
stimulation, please contact Customer Care Center at 1-800-732-0144.
Step
4
www.sportdogbrand.com 9
Reset the Collar Receiver
To reset the Collar Receiver to work with a new Remote Transmitter or to reprogram a
new Collar Receiver to work with your existing Remote Transmitter:
A. Turn the Collar Receiver off.
B. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then
turn off after 4-5 seconds. If the On/Off Button is released too early, the Receiver
Indicator Light will begin fl ashing as normal. If this occurs, start over from A.
C. After the Receiver Indicator Light has turned off, release the On/Off Button.
D. Press and hold the Upper Button on the Remote Transmitter until the Receiver
Indicator Light fl ashes 5 times. You may need to hold both units 2-3 feet from each
other before this occurs. Once the Receiver Indicator Light has fl ashed 5 times, the
Collar Receiver has been reset and will begin fl ashing as normal. If the Receiver
Indicator Light does not fl ash 5 times, start over and repeat the process.
_________________________________________
General Training Tips
Now you are ready to use the YardTrainer SD-105 and begin training your dog. Please
keep the following training tips in mind.
• Eliminate one misbehavior or teach one obedience command at a time. If you move
too fast with the training, your dog may become confused.
• Be consistent. Give your dog a stimulation with each misbehavior.
• Do not overcorrect your dog. Use as few stimulations as possible to train your dog.
• Restrict your dog from situations in which he has a history of misbehaving unless you
can supervise him and use the YardTrainer SD-105 for applying stimulation.
• If you notice one situation in which your dog misbehaves repeatedly, set up this
situation as a training session. This will dramatically increase your chances of success.
• If your dog has a timid reaction to the stimulation (especially the fi rst couple of times),
do not be alarmed. Redirect his attention to a simple and appropriate behavior (i.e. a
known command, such as “Sit”).
• Never use the YardTrainer SD-105 to correct or eliminate any form of aggressive
behavior. If your dog exhibits such behavior, contact a professional trainer. Aggression
in dogs is the result of many factors – it may be a learned behavior or it may be
brought on as a result of fear. Another factor contributing to aggression in dogs is
social dominance. Every dog is different.
Step
5
10 1-800-732-0144
Frequently Asked Questions
Is the stimulation safe for
my dog?
While the stimulation is unpleasant, it is harmless to your
dog. Electronic training devices require interaction and
training from the owner to achieve desired results.
How old does a dog have to be
before using the YardTrainer
SD-105?
Your dog should be able to learn basic obedience
commands such as “Sit” or “Stay.” The Collar Receiver
may be too large for dogs under 8 pounds.
Once my dog is trained and has
been obeying my commands,
will my dog have to continue to
wear the Collar Receiver?
Your dog may need to wear the Collar Receiver from time
to time for reinforcement. Also, many hunters keep the
Collar Receiver on their dogs while hunting for maximum
control.
Is the Collar Receiver
waterproof?
Yes. When the batteries need to be replaced, make sure the
o-ring and o-ring groove are free from dirt and debris.
Can I use the YardTrainer
SD-105 on aggressive dogs?
We do not recommend any of our products to be used on
aggressive dogs. We recommend you contact your local
veterinarian or professional trainer to determine if your
dog might be aggressive.
Will I get exactly 100 yards of
range with the YardTrainer
SD-105?
The range you get with your YardTrainer SD-105 will
vary according to terrain, weather, vegetation, as well
as transmission from other radio devices. To get the
maximum amount of range, please refer to “How the
System Works” section of this guide.
How long can I continuously
deliver stimulation to my dog?
The maximum amount of time you can press the
Continuous Stimulation Button and deliver stimulation to
your dog continuously is 8 seconds. After eight seconds,
the Remote Transmitter will time-out, and the Continuous
Stimulation Button must be released and pressed again.
What do I do if my dog’s neck
becomes red and irritated?
This condition is due to the Contact Points irritating the
skin. Discontinue use of the Collar Receiver for a few
days. If the condition persists beyond 48 hours, see your
veterinarian. Once the skin returns to normal, replace
Collar Receiver, and monitor the skin condition closely.
Can my Collar Receiver be
used around salt water?
If the Collar Receiver is used in or around salt water,
the Collar Receiver should be rinsed with fresh water
following each use.
www.sportdogbrand.com 11
Troubleshooting
The answers to these questions should help you solve any problem you have with this system. If
they do not, please contact the Customer Care Center at 1-800-732-0144 or visit our website at
www.sportdogbrand.com.
My dog is not responding when
I press a button.
• Check to see if the Collar Receiver has been turned on.
• If your range has reduced from the fi rst time you have
used it, please check to see if the battery is low in either
the Remote Transmitter or Collar Receiver.
• Many factors can impact the range you have with the
YardTrainer SD-105. For a list of these factors, please
refer to “How the System Works”.
• You can verify the Collar Receiver is delivering
stimulation to your dog by placing the test light, enclosed
in your kit, on the Collar Receiver. Please refer to the
“Test Light Instructions” for details.
• Increase the Intensity Dial. Refer to “Find the Best
Intensity Level For Your Dog” for more information.
• Make sure the Collar Receiver’s Contact Points are
placed snugly against your dog’s skin. Refer to “Fit the
Collar Receiver” for more information.
The Collar Receiver will not
turn on.
• Make sure the Collar Receiver does not have low
batteries - refer to page 6. If so, replace the batteries with
new ones.
The Collar Receiver is not
responding to the Remote
Transmitter.
• Verify the Collar Receiver has been turned on. Refer to
“Turning the Collar Receiver On and Off”.
• Refer to “Reset the Collar Receiver.”
12 1-800-732-0144
Test Light Instructions
1. Hold the Test Light Contacts to the Contact Points.
2. Press a Stimulation Button on the Remote Transmitter.
3. The Test Light will fl ash.
Note: At higher Intensity Levels the Test Light will fl ash brighter.
Save the Test Light for future testing.
Note: If the Test Light does not fl ash, replace batteries and re-test. If Test Light still does not fl ash, contact
the Customer Care Center at 1-800-732-0144.
Terms of Use and Limitation of Liability
1. Terms of Use
This Product is offered to you conditioned upon your acceptance without modifi cation of the
terms, conditions and notices contained herein. Usage of this product implies acceptance of all
such terms, conditions, and notices.
2. Proper Use
This Product is designed for use with dogs where training is desired. The specifi c temperament
of your dog may not work with this product. We recommend that you not use this product if your
dog is less than 8 pounds or if your dog is aggressive. If you are unsure whether this is appropriate
for your dog, please consult your veterinarian, certifi ed trainer or contact our Customer Care
Center at 1-800-732-0144.
Proper use includes reviewing the entire Operating and Training Guide provided with your
product and any specifi c Caution statements.
3. No Unlawful or Prohibited Use
This Product is designed for use with dogs only. This dog training device is not intended to harm,
injure, or provoke. Using this product in a way that is not intended could result in violation of
Federal, State or local laws.
4. Limitation of Liability
In no event shall Radio Systems Corporation be liable for any direct, indirect, punitive, incidental,
special or consequential damages, or any damages whatsoever arising out of or connected with the
use or misuse of this Product. Buyer assumes all risks and liability from the use of this Product.
5. Modifi cation of Terms and Conditions
Radio Systems Corporation reserves the right to change the terms, conditions and notices under
which this Product is offered.
www.sportdogbrand.com 13
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction guide, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a practical installation. If this
equipment causes harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Relocate the interfered receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different to which the receiver is connected.
• Contact the Customer Care Center at 1-800-732-0144.
Unauthorized changes or modifi cations to the equipment, not approved by Radio Systems
Corporation, could result in not meeting compliance with FCC regulations and could void the
user’s authority to operate the equipment.
14 1-800-732-0144
www.sportdogbrand.com 15
Radio Systems Corporation
10427 Electric Avenue
Knoxville, TN 37932
1-800-732-0144
www.sportdogbrand.com
400-834
Protected by Patent #6,637,376
©Copyright 2006, Radio Systems Corporation
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
