Radio Thermostat of America WIFI-M-0210 WIFI THERMOSTAT ADAPTER User Manual
Radio Thermostat Company of America, Inc WIFI THERMOSTAT ADAPTER Users Manual
Users Manual
1
Marvell Confidential
Provisioning your Thermostat
that is, make it connect to your home Wi-Fi Network
2
Marvell Confidential
Step 1: Connect to the Thermostat Using Wi-Fi
3
Marvell Confidential
1. Power up the
thermostat. The
Yellow LED will
be blinking.
2. Find the
thermostat’s Wi-
Fi network. It will
begin with tstat.
3. Select to connect
to the thermost’s
network.
4
Marvell Confidential
You will get a
192.168.10.x
address. This
means that you
are connected.
5
Marvell Confidential
Step 2: Network Provisioning
Set up the Thermostat to Connect to your Home Network
6
Marvell Confidential
1. Launch your browser
2. Type 192.168.10.1 in the
URL Bar
3. Press Scan Wireless
Networks
7
Marvell Confidential
1. Find your Home Network
and Select it.
8
Marvell Confidential
1. Enter your Password
2. Select Unmask
Password to see what
you are typing
3. Press Next
9
Marvell Confidential
1. Enter PIN. PIN is
displayed on the
thermostat.
2. Press Set Network.
This makes sure that some
one else in the vicinity cannot
provision your thermostat
and/or compromise your
network password.
10
Marvell Confidential

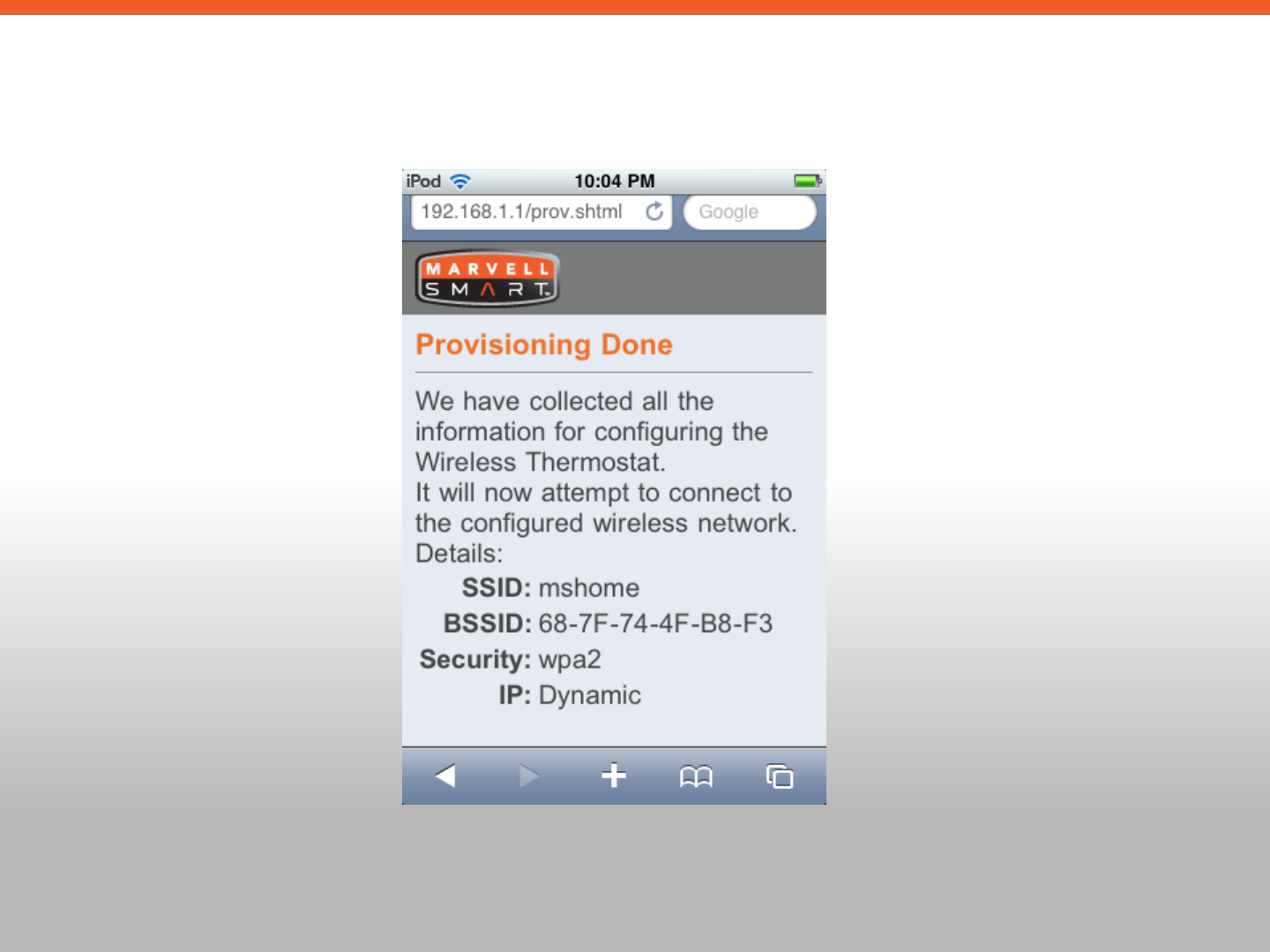

After a small delay you will
see this screen.
Check your thermostat. After
a little bit it will blink Green.
And, you will see Link under
the radio tower icon. That
means the thermostat is now
connected to your home
network.
If you see RED LED blinking,
then there was an error
(typically, wrong password or
PIN) and you will have to go
through provisioning again.
11
Marvell Confidential
Step 3: Connect back to your Home Network
and, Enjoy your Thermostat
12
Marvell Confidential
1. Connect back to your
home network
2. Launch your iphone
application to talk to the
thermostat.
13
Marvell Confidential
1. You can use your
browser to talk to see if
everything is working
fine.
2. Enter the thermostat’s IP
Address. You can find
the last number on the
top-left corner of the
thermostat.
14
Marvell Confidential
Thank You!!!
Caution: Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
Caution: To comply with FCC RF Exposure requirements, users of
this device must ensure that the module be installed and/or
configured to operate with a separation distance of 20cm or more
from all persons.
