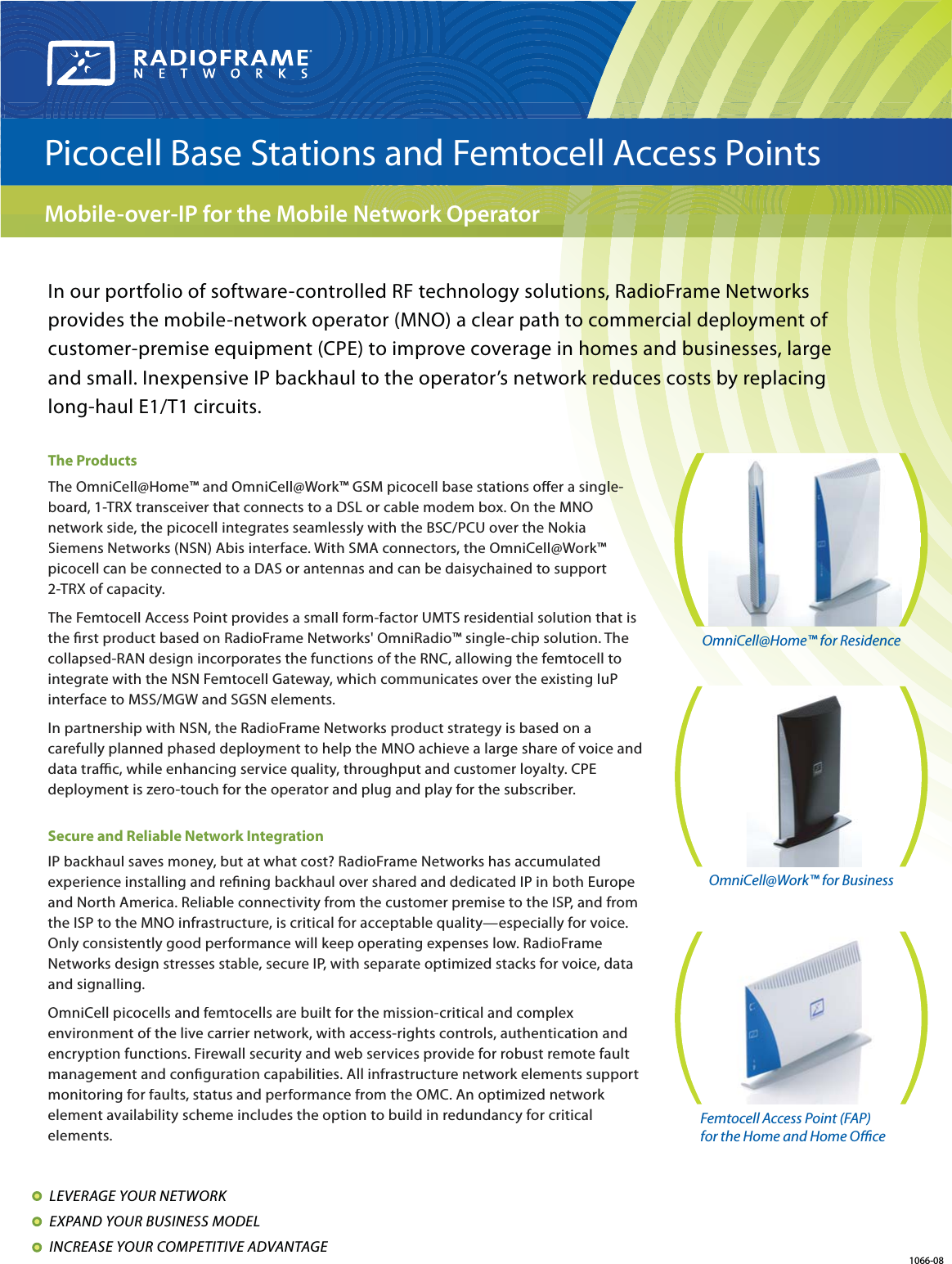

In our portfolio of software-controlled RF technology solutions, RadioFrame Networks provides the mobile-network operator (MNO) a clear path to commercial deployment of customer-premise equipment (CPE) to improve coverage in homes and businesses, large and small. Inexpensive IP backhaul to the operator’s network reduces costs by replacing long-haul E1/T1 circuits. The ProductsThe OmniCell@Home™ and OmniCell@Work™ GSM picocell base stations oer a siglesingl-board, 1-TRX transceiver that connects to a DSL or cable modem box. On the MNOO network side, the picocell integrates seamlessly with the BSC/PCU over the Nokia Siemens Networks (NSN) Abis interface. With SMA connectors, the OmniCell@Work™ ™picocell can be connected to a DAS or antennas and can be daisychained to support 2-TRX of capacity.The Femtocell Access Point provides a small form-factor UMTS residential solution that isthe rst product based on RadioFrame Networks' OmniRadio™ single-chip solution. The collapsed-RAN design incorporates the functions of the RNC, allowing the femtocell to integrate with the NSN Femtocell Gateway, which communicates over the existing IuP interface to MSS/MGW and SGSN elements.In partnership with NSN, the RadioFrame Networks product strategy is based on a carefully planned phased deployment to help the MNO achieve a large share of voice anddata trac, while enhancing service quality, throughput and customer loyalty. CPEdeployment is zero-touch for the operator and plug and play for the subscriber.Secure and Reliable Network IntegrationIP backhaul saves money, but at what cost? RadioFrame Networks has accumulated experience installing and rening backhaul over shared and dedicated IP in both Europeand North America. Reliable connectivity from the customer premise to the ISP, and from the ISP to the MNO infrastructure, is critical for acceptable quality—especially for voice. Only consistently good performance will keep operating expenses low. RadioFrame Networks design stresses stable, secure IP, with separate optimized stacks for voice, data and signalling.OmniCell picocells and femtocells are built for the mission-critical and complex environment of the live carrier network, with access-rights controls, authentication and encryption functions. Firewall security and web services provide for robust remote fault management and conguration capabilities. All infrastructure network elements support monitoring for faults, status and performance from the OMC. An optimized network element availability scheme includes the option to build in redundancy for criticalelements.LEVERAGE YOUR NETWORK EXPAND YOUR BUSINESS MODEL INCREASE YOUR COMPETITIVE ADVANTAGE Picocell Base Stations and Femtocell Access Points Mobile-over-IP for the Mobile Network Operator 1066-08 Femtocell Access Point (FAP)for the Home and Home OceOmniCell@Work™ for Business OmniCell@Home™ for Residence

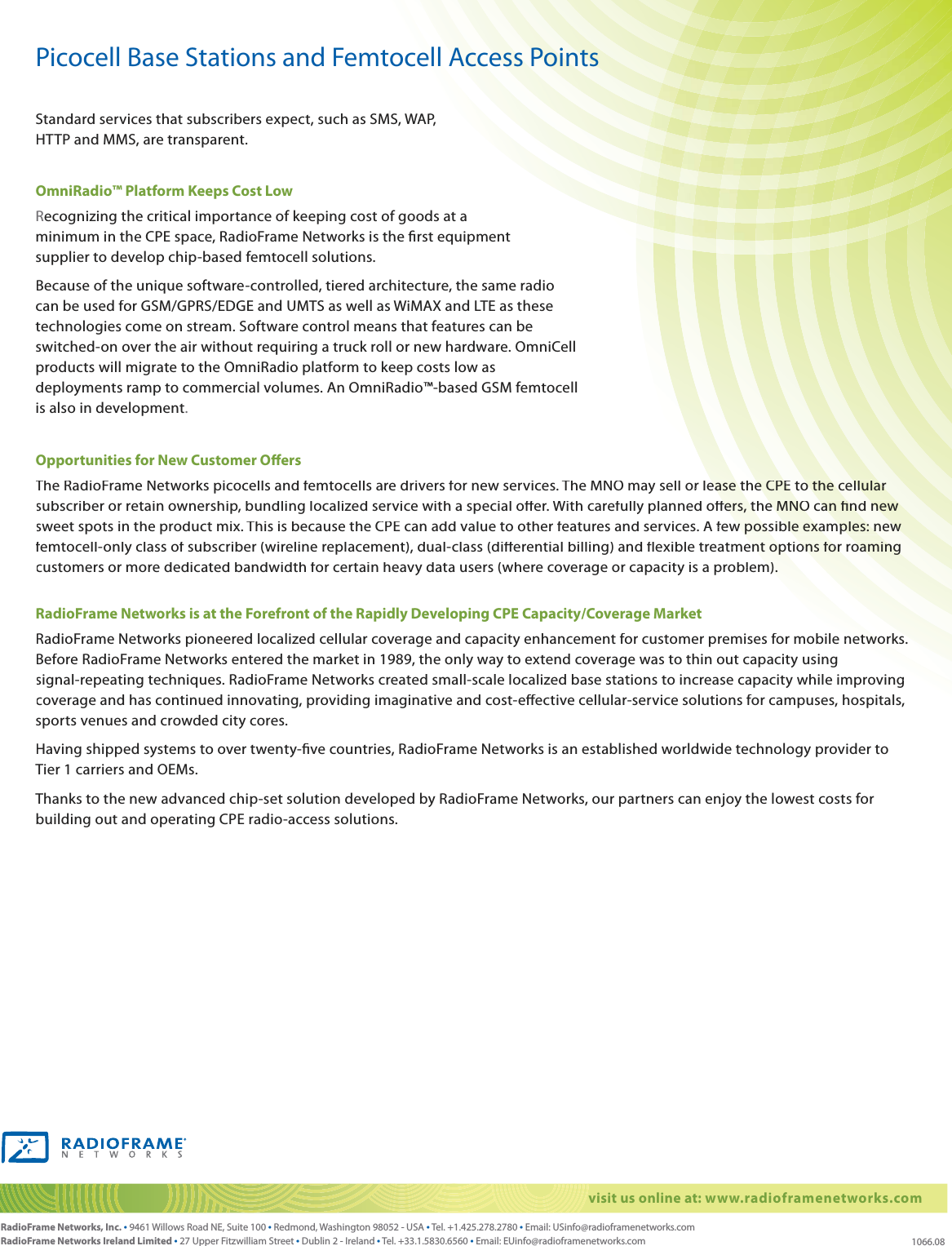

visit us online at: www.radioframenetworks.com RadioFrame Networks, Inc. • 9461 Willows Road NE, Suite 100 • Redmond, Washington 98052 - USA • Tel. +1.425.278.2780 • Email: USinfo@radioframenetworks.com RadioFrame Networks Ireland Limited • 27 Upper Fitzwilliam Street • Dublin 2 - Ireland • Tel. +33.1.5830.6560 • Email: EUinfo@radioframenetworks.com Opportunities for New Customer OersThe RadioFrame Networks picocells and femtocells are drivers for new services. The MNO may sell orease the CPE to the cellularor lease the CPE to the cellularsubscriber or retain ownership, bundling localized service with a special oer. With carefully planned oers, the MNO can nd new oers, the MNO can nd new sweet spots in the product mix. This is because the CPE can add value to other features and services. A few possible examples: newfew possible examples: newfemtocell-only class of subscriber (wireline replacement), dual-class (dierential billing) and exible treatment options for roaming tment options for roaming customers or more dedicated bandwidth for certain heavy data users (where coverage or capacity is a problem).blem).RadioFrame Networks is at the Forefront of the Rapidly Developing CPE Capacity/Coverage MarketRadioFrame Networks pioneered localized cellular coverage and capacity enhancement for customer premises for mobie networks.obile networks.Before RadioFrame Networks entered the market in 1989, the only way to extend coverage was to thin out capacity using gsignal-repeating techniques. RadioFrame Networks created small-scale localized base stations to increase capacity while improvngprovingcoverage and has continued innovating, providing imaginative and cost-eective cellular-service solutions for campuses, hospitals,lssports venues and crowded city cores.Having shipped systems to over twenty-ve countries, RadioFrame Networks is an established worldwide technology provider toTier 1 carriers and OEMs.Thanks to the new advanced chip-set solution developed by RadioFrame Networks, our partners can enjoy the lowest costs for building out and operating CPE radio-access solutions.Standard services that subscribers expect, such as SMS, WAP,HTTP and MMS, are transparent.OmniRadio™ Platform Keeps Cost LowRecognizing the critical importance of keeping cost of goods at a minimum in the CPE space, RadioFrame Networks is the rst equipmentsupplier to develop chip-based femtocell solutions.Because of the unique software-controlled, tiered architecture, the same radio can be used for GSM/GPRS/EDGE and UMTS as well as WiMAX and LTE as these technologies come on stream. Software control means that features can beswitched-on over the air without requiring a truck roll or new hardware. OmniCellproducts will migrate to the OmniRadio platform to keep costs low asdeployments ramp to commercial volumes. An OmniRadio™-based GSM femtocellis also in development.Picocell Base Stations and Femtocell Access Points 1066.08
