Radiodetection ND1579A ND1579-P-3 Short Range Datasonde User Manual Notes on

Radiodetection Ltd ND1579-P-3 Short Range Datasonde Notes on

Notes on User Manual

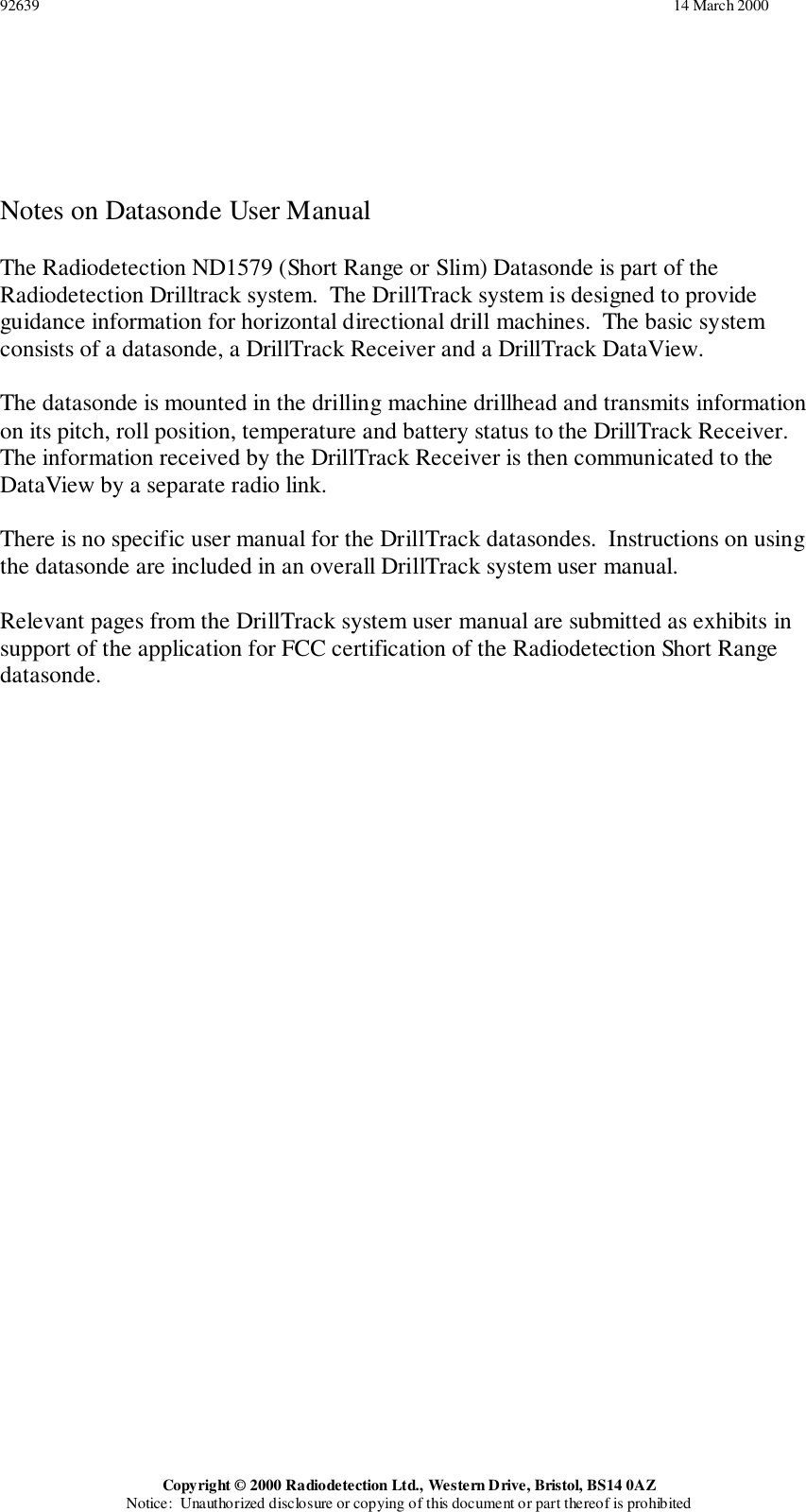

92639 14 March 2000Copyright © 2000 Radiodetection Ltd., Western Drive, Bristol, BS14 0AZNotice: Unauthorized disclosure or copying of this document or part thereof is prohibitedNotes on Datasonde User ManualThe Radiodetection ND1579 (Short Range or Slim) Datasonde is part of theRadiodetection Drilltrack system. The DrillTrack system is designed to provideguidance information for horizontal directional drill machines. The basic systemconsists of a datasonde, a DrillTrack Receiver and a DrillTrack DataView.The datasonde is mounted in the drilling machine drillhead and transmits informationon its pitch, roll position, temperature and battery status to the DrillTrack Receiver.The information received by the DrillTrack Receiver is then communicated to theDataView by a separate radio link.There is no specific user manual for the DrillTrack datasondes. Instructions on usingthe datasonde are included in an overall DrillTrack system user manual.Relevant pages from the DrillTrack system user manual are submitted as exhibits insupport of the application for FCC certification of the Radiodetection Short Rangedatasonde.
