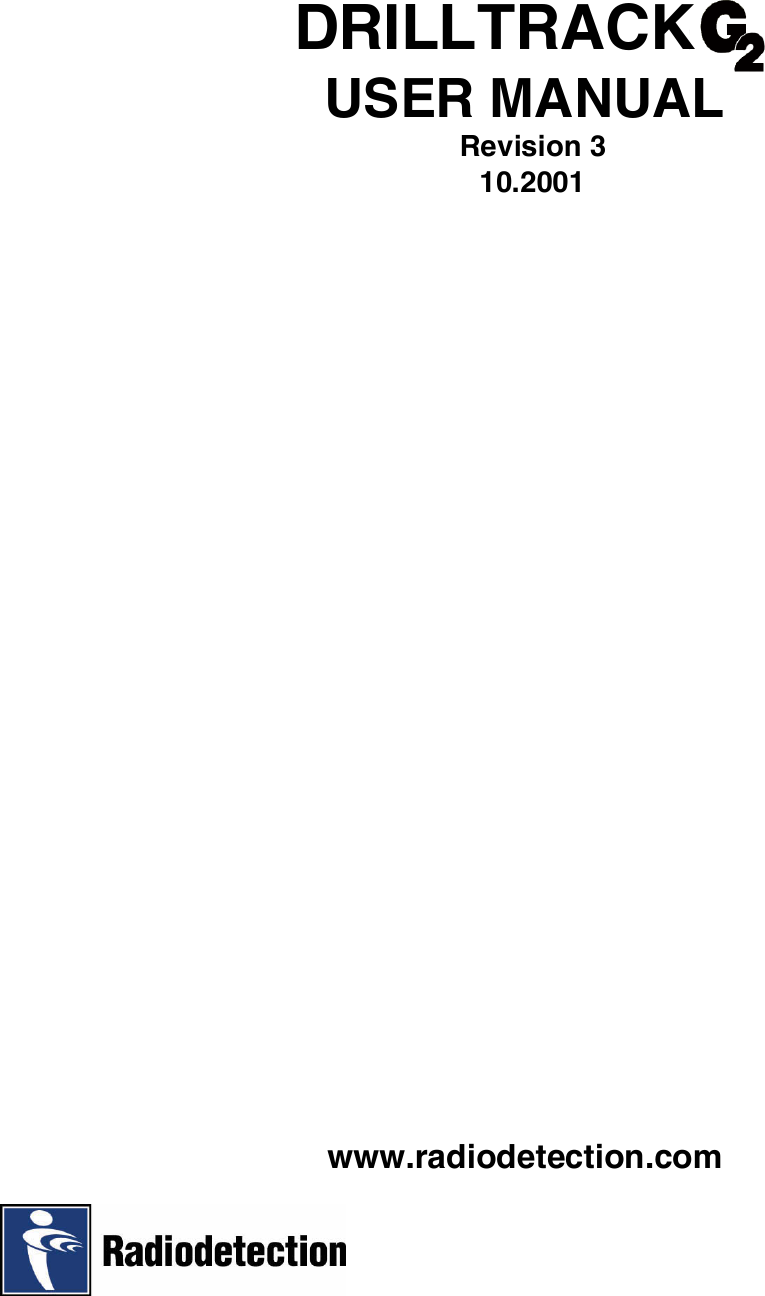

DRILLTRACKUSER MANUAL Revision 3 10.2001www.radiodetection.com

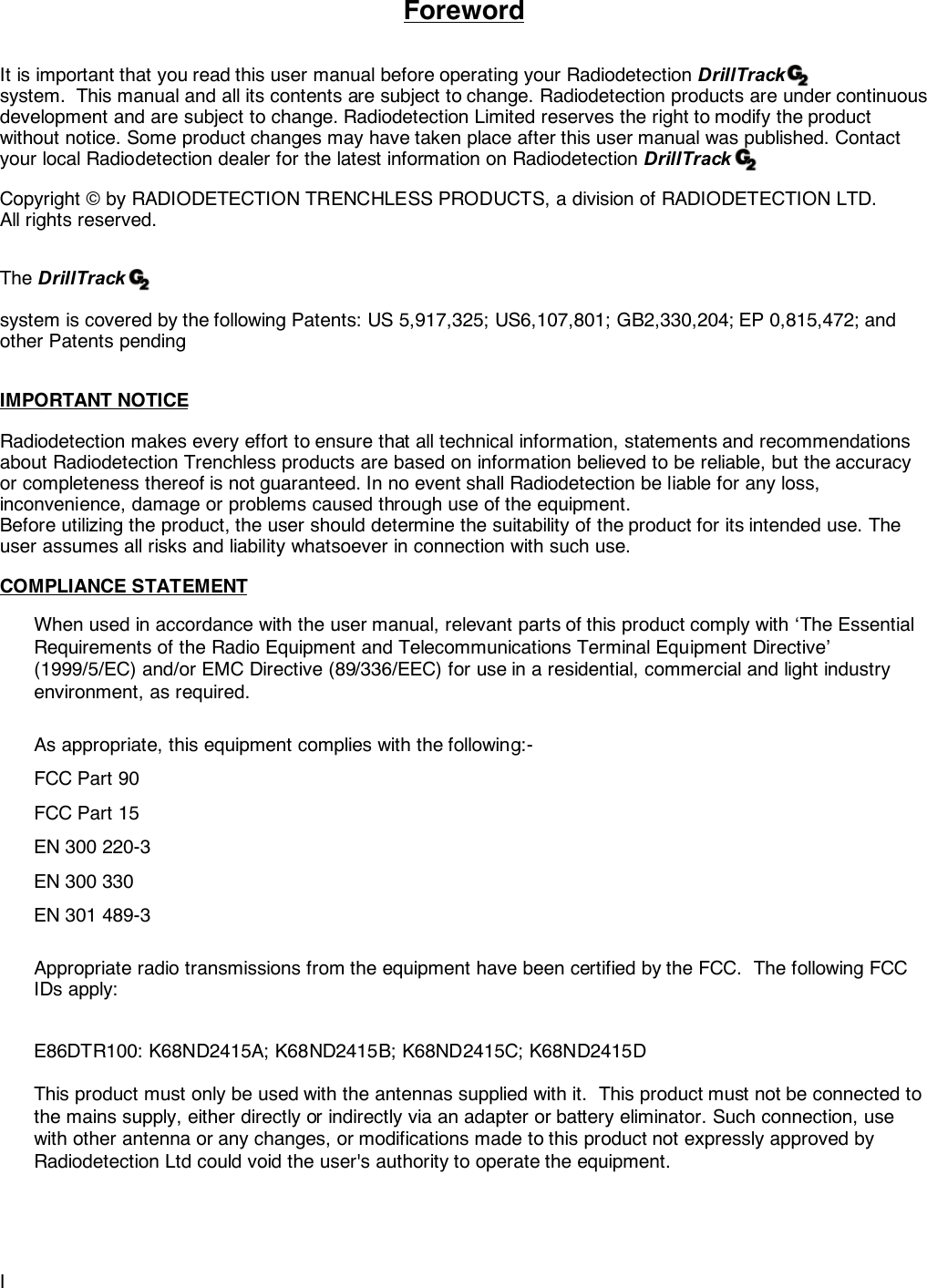

IForewordIt is important that you read this user manual before operating your Radiodetection DrillTracksystem. This manual and all its contents are subject to change. Radiodetection products are under continuousdevelopment and are subject to change. Radiodetection Limited reserves the right to modify the productwithout notice. Some product changes may have taken place after this user manual was published. Contactyour local Radiodetection dealer for the latest information on Radiodetection DrillTrackCopyright © by RADIODETECTION TRENCHLESS PRODUCTS, a division of RADIODETECTION LTD.All rights reserved.The DrillTracksystem is covered by the following Patents: US 5,917,325; US6,107,801; GB2,330,204; EP 0,815,472; andother Patents pendingIMPORTANT NOTICERadiodetection makes every effort to ensure that all technical information, statements and recommendationsabout Radiodetection Trenchless products are based on information believed to be reliable, but the accuracyor completeness thereof is not guaranteed. In no event shall Radiodetection be liable for any loss,inconvenience, damage or problems caused through use of the equipment.Before utilizing the product, the user should determine the suitability of the product for its intended use. Theuser assumes all risks and liability whatsoever in connection with such use.COMPLIANCE STATEMENTWhen used in accordance with the user manual, relevant parts of this product comply with ‘The EssentialRequirements of the Radio Equipment and Telecommunications Terminal Equipment Directive’(1999/5/EC) and/or EMC Directive (89/336/EEC) for use in a residential, commercial and light industryenvironment, as required.As appropriate, this equipment complies with the following:-FCC Part 90FCC Part 15EN 300 220-3EN 300 330EN 301 489-3Appropriate radio transmissions from the equipment have been certified by the FCC. The following FCCIDs apply:E86DTR100: K68ND2415A; K68ND2415B; K68ND2415C; K68ND2415DThis product must only be used with the antennas supplied with it. This product must not be connected tothe mains supply, either directly or indirectly via an adapter or battery eliminator. Such connection, usewith other antenna or any changes, or modifications made to this product not expressly approved byRadiodetection Ltd could void the user's authority to operate the equipment.

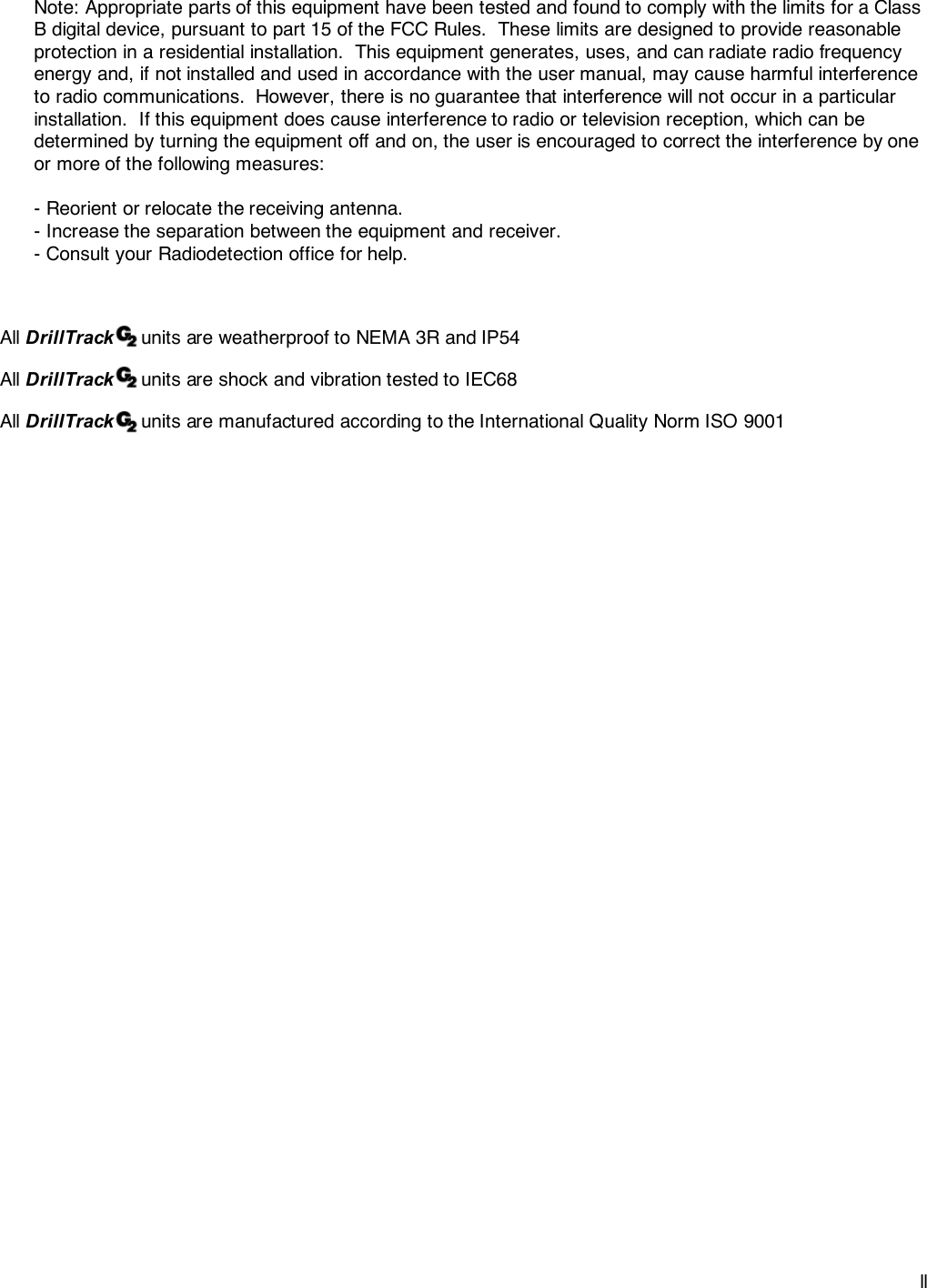

llNote: Appropriate parts of this equipment have been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection in a residential installation. This equipment generates, uses, and can radiate radio frequencyenergy and, if not installed and used in accordance with the user manual, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to correct the interference by oneor more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Consult your Radiodetection office for help.All DrillTrack units are weatherproof to NEMA 3R and IP54All DrillTrack units are shock and vibration tested to IEC68All DrillTrack units are manufactured according to the International Quality Norm ISO 9001

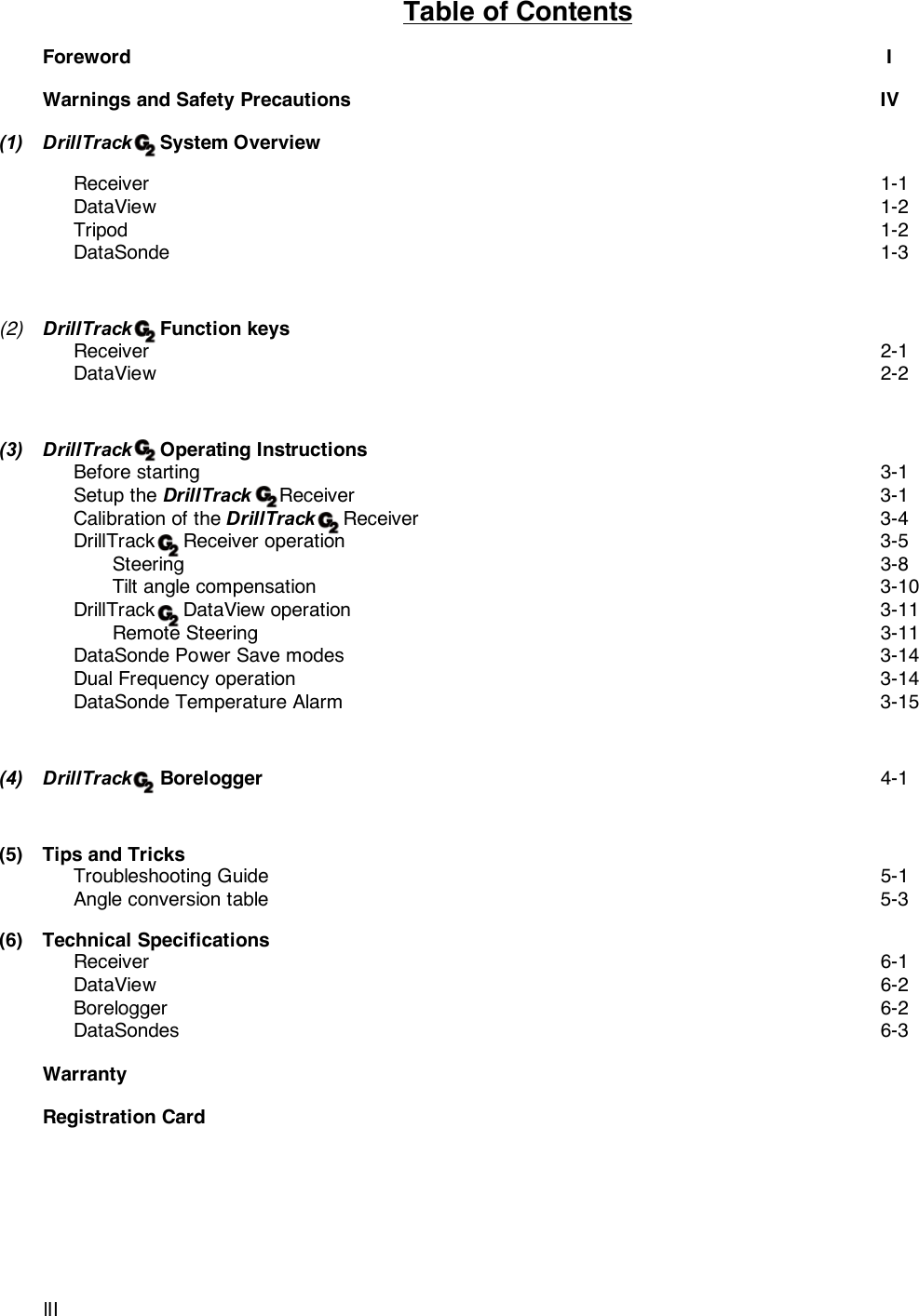

lIITable of ContentsForeword IWarnings and Safety Precautions IV(1) DrillTrack System OverviewReceiver 1-1DataView 1-2Tripod 1-2DataSonde 1-3(2) DrillTrack Function keysReceiver 2-1DataView 2-2(3) DrillTrack Operating InstructionsBefore starting 3-1Setup the DrillTrack Receiver 3-1Calibration of the DrillTrack Receiver 3-4DrillTrack Receiver operation 3-5Steering 3-8Tilt angle compensation 3-10DrillTrack DataView operation 3-11Remote Steering 3-11DataSonde Power Save modes 3-14Dual Frequency operation 3-14DataSonde Temperature Alarm 3-15(4) DrillTrack Borelogger 4-1(5) Tips and TricksTroubleshooting Guide 5-1Angle conversion table 5-3(6) Technical SpecificationsReceiver 6-1DataView 6-2Borelogger 6-2DataSondes 6-3WarrantyRegistration Card

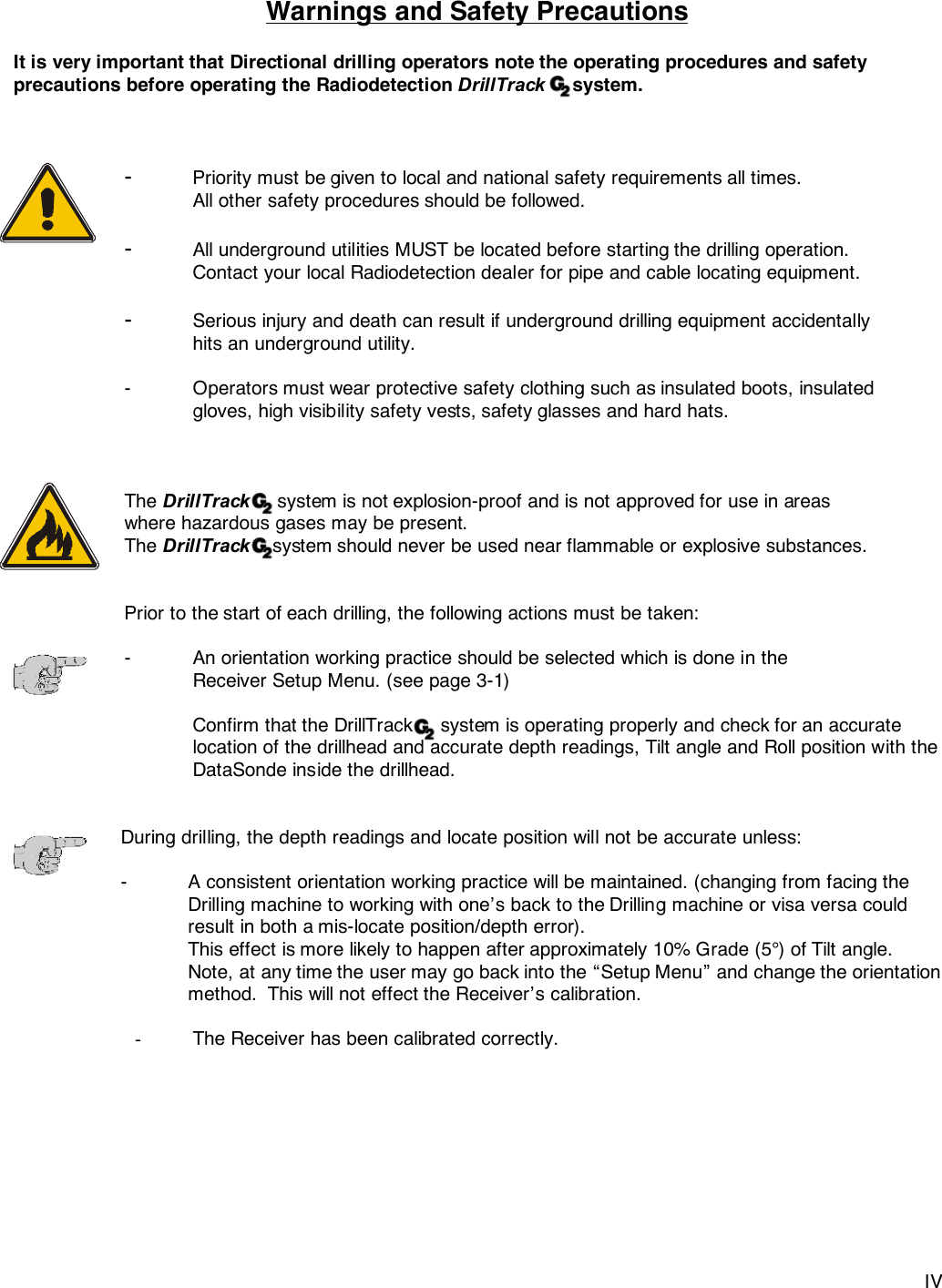

IVWarnings and Safety PrecautionsIt is very important that Directional drilling operators note the operating procedures and safetyprecautions before operating the Radiodetection DrillTrack system.-Priority must be given to local and national safety requirements all times.All other safety procedures should be followed.-All underground utilities MUST be located before starting the drilling operation.Contact your local Radiodetection dealer for pipe and cable locating equipment.-Serious injury and death can result if underground drilling equipment accidentally hits an underground utility.- Operators must wear protective safety clothing such as insulated boots, insulated gloves, high visibility safety vests, safety glasses and hard hats.The DrillTrack system is not explosion-proof and is not approved for use in areas where hazardous gases may be present.The DrillTrack system should never be used near flammable or explosive substances.Prior to the start of each drilling, the following actions must be taken:- An orientation working practice should be selected which is done in theReceiver Setup Menu. (see page 3-1)Confirm that the DrillTrack system is operating properly and check for an accuratelocation of the drillhead and accurate depth readings, Tilt angle and Roll position with theDataSonde inside the drillhead.During drilling, the depth readings and locate position will not be accurate unless:- A consistent orientation working practice will be maintained. (changing from facing theDrilling machine to working with one’s back to the Drilling machine or visa versa couldresult in both a mis-locate position/depth error).This effect is more likely to happen after approximately 10% Grade (5°) of Tilt angle.Note, at any time the user may go back into the “Setup Menu” and change the orientationmethod. This will not effect the Receiver’s calibration.- The Receiver has been calibrated correctly.

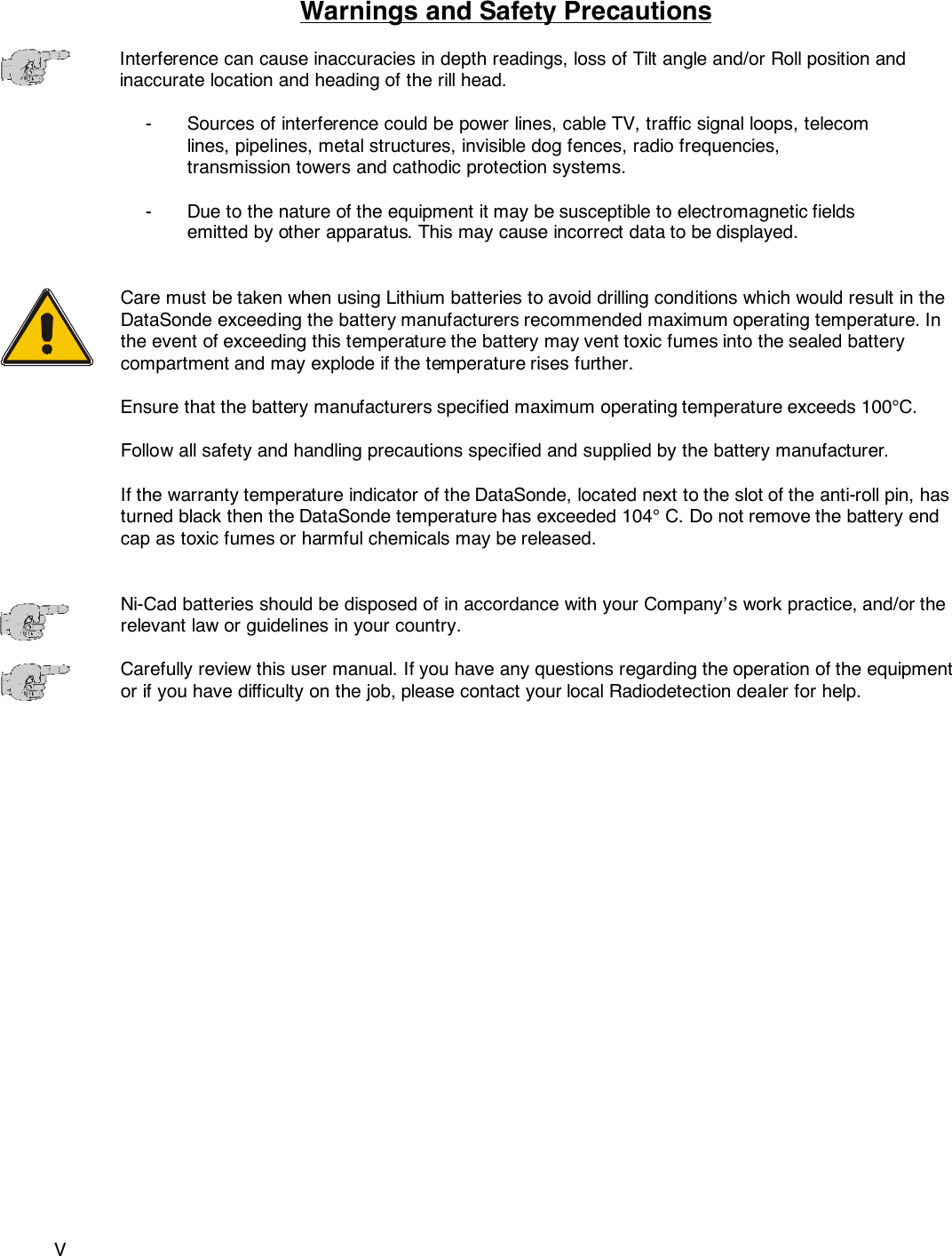

VWarnings and Safety PrecautionsInterference can cause inaccuracies in depth readings, loss of Tilt angle and/or Roll position andinaccurate location and heading of the rill head.- Sources of interference could be power lines, cable TV, traffic signal loops, telecom lines, pipelines, metal structures, invisible dog fences, radio frequencies, transmission towers and cathodic protection systems.- Due to the nature of the equipment it may be susceptible to electromagnetic fields emitted by other apparatus. This may cause incorrect data to be displayed.Care must be taken when using Lithium batteries to avoid drilling conditions which would result in theDataSonde exceeding the battery manufacturers recommended maximum operating temperature. Inthe event of exceeding this temperature the battery may vent toxic fumes into the sealed batterycompartment and may explode if the temperature rises further.Ensure that the battery manufacturers specified maximum operating temperature exceeds 100°C.Follow all safety and handling precautions specified and supplied by the battery manufacturer.If the warranty temperature indicator of the DataSonde, located next to the slot of the anti-roll pin, hasturned black then the DataSonde temperature has exceeded 104° C. Do not remove the battery endcap as toxic fumes or harmful chemicals may be released.Ni-Cad batteries should be disposed of in accordance with your Company’s work practice, and/or therelevant law or guidelines in your country.Carefully review this user manual. If you have any questions regarding the operation of the equipmentor if you have difficulty on the job, please contact your local Radiodetection dealer for help.

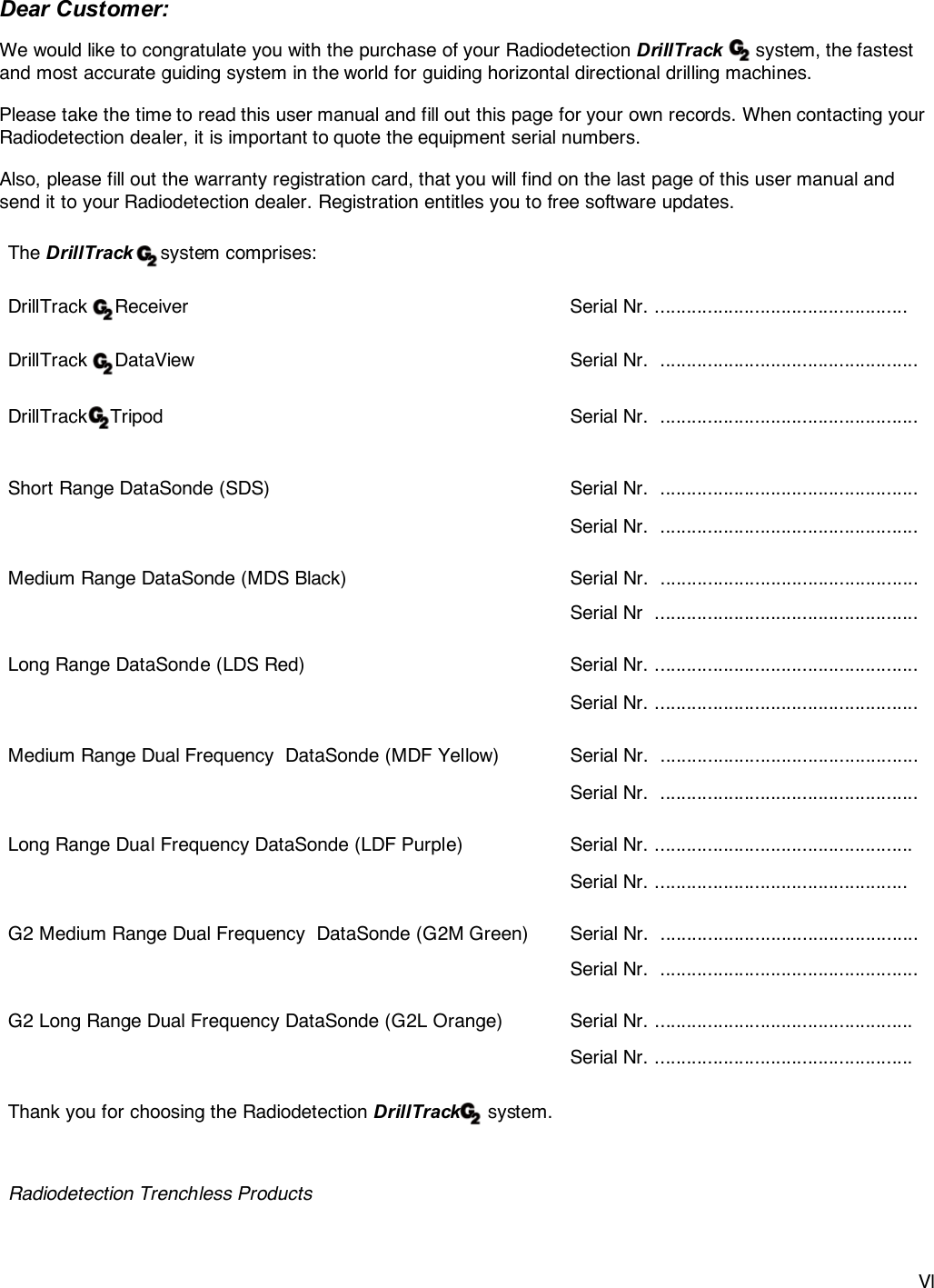

VlDear Customer:We would like to congratulate you with the purchase of your Radiodetection DrillTrack system, the fastestand most accurate guiding system in the world for guiding horizontal directional drilling machines.Please take the time to read this user manual and fill out this page for your own records. When contacting yourRadiodetection dealer, it is important to quote the equipment serial numbers.Also, please fill out the warranty registration card, that you will find on the last page of this user manual andsend it to your Radiodetection dealer. Registration entitles you to free software updates.The DrillTrack system comprises:DrillTrack Receiver Serial Nr. ................................................DrillTrack DataView Serial Nr. .................................................DrillTrack Tripod Serial Nr. .................................................Short Range DataSonde (SDS) Serial Nr. .................................................Serial Nr. .................................................Medium Range DataSonde (MDS Black) Serial Nr. ................................................. Serial Nr .................................................. Long Range DataSonde (LDS Red) Serial Nr. .................................................. Serial Nr. ..................................................Medium Range Dual Frequency DataSonde (MDF Yellow) Serial Nr. .................................................Serial Nr. ................................................. Long Range Dual Frequency DataSonde (LDF Purple) Serial Nr. ................................................. Serial Nr. ................................................ G2 Medium Range Dual Frequency DataSonde (G2M Green) Serial Nr. .................................................Serial Nr. ................................................. G2 Long Range Dual Frequency DataSonde (G2L Orange) Serial Nr. ................................................. Serial Nr. ................................................. Thank you for choosing the Radiodetection DrillTrack system.Radiodetection Trenchless Products
1-1DrillTrack System OverviewThe Radiodetection DrillTrack system is designed to provide guidance information for Horizontal DirectionDrilling (HDD) machines.The system comprises of a DrillTrack Receiver, a DrillTrack DataView , a DrillTrack Tripod and one ormore DataSondes.ReceiverThe DrillTrack Receiver has been developed with the needs of the operator as the main priority.Providing essential information automatically makes the equipment very easy to use and allows the operator towork with confidence.Once drilling has started the operation is fully automatic and the large LCD shows the operator informationabout the drillhead.The Receiver LCD provides automatic walkover positioning of the drillhead.Four arrows automatically direct the operator left/right and forward/backward.When all four arrows are displayed the depth automatically appears on the screen and can be stored in theintegral Borelog.The display also provides the operator with a Drill Heading (compass), Tilt angle (Inclination), Roll Position(clock) and in the Manual Mode a Signal Strength reading (if selected in the user Setup).Feature highlights include:- Integral Borelogger- Automatic tracking arrows that indicate Go... Left/Right/Forward/Backward.- Drill head direction compass indicator.- Interference rejection technology.- Filtered rejection of standard line locator frequencies.- DataSonde frequency scanner- No mis-locates due to ‘ghost signals’.- No confusion caused by +/- locates.- Down hole frequency change to overcome localised interference.- Tilt angle compensated locate position and depth measurements.- Automatic Depth readout.- Metric or Imperial readout selection.- Continuous display of Tilt angle and Roll position.- Tilt angle in % of Grade or degrees.- Display Backlight.- Comfortable working height to minimize fatigue.

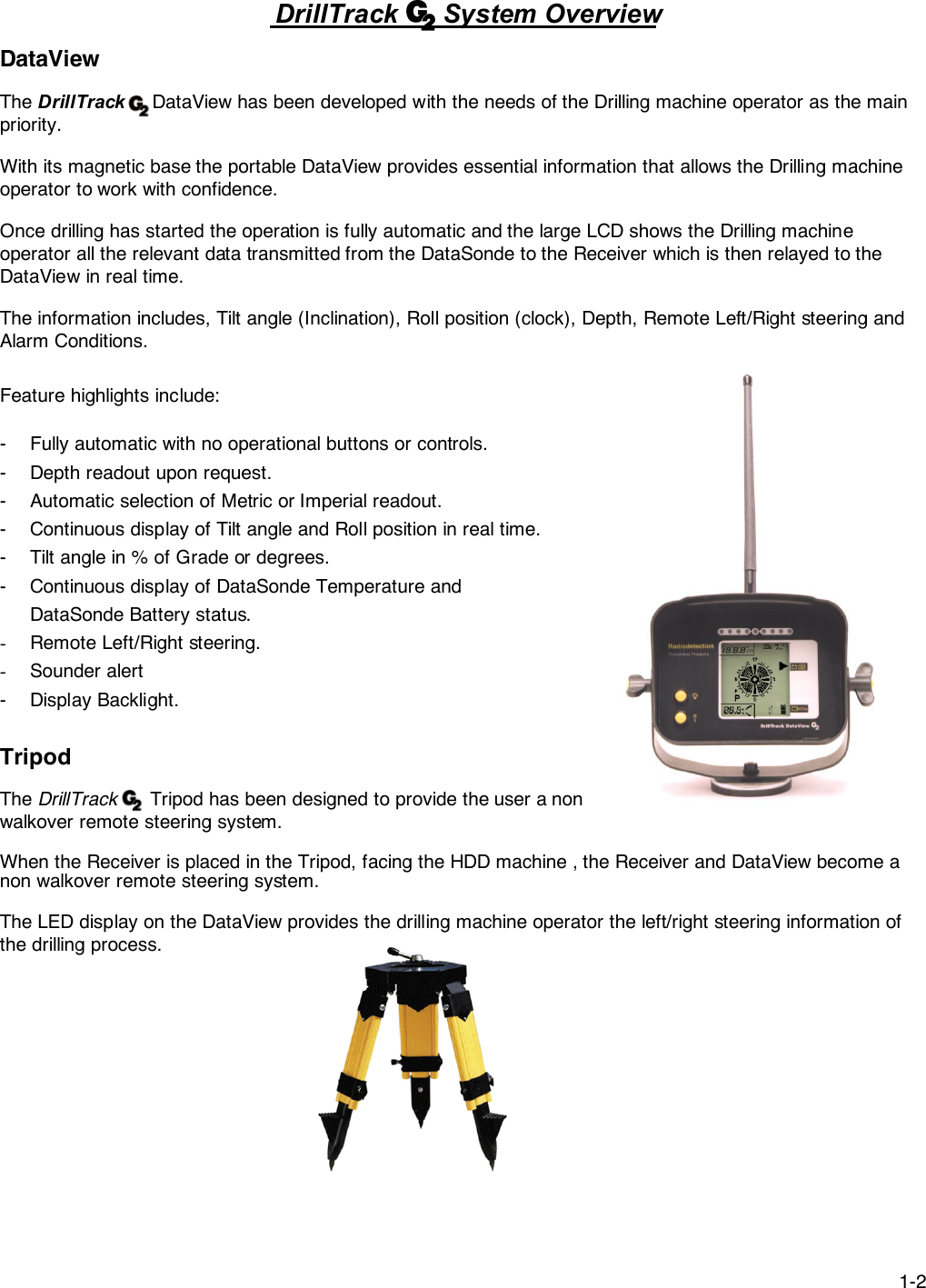

1-2DrillTrack System OverviewDataViewThe DrillTrack DataView has been developed with the needs of the Drilling machine operator as the mainpriority.With its magnetic base the portable DataView provides essential information that allows the Drilling machineoperator to work with confidence.Once drilling has started the operation is fully automatic and the large LCD shows the Drilling machineoperator all the relevant data transmitted from the DataSonde to the Receiver which is then relayed to theDataView in real time.The information includes, Tilt angle (Inclination), Roll position (clock), Depth, Remote Left/Right steering andAlarm Conditions.Feature highlights include:- Fully automatic with no operational buttons or controls.- Depth readout upon request.- Automatic selection of Metric or Imperial readout.- Continuous display of Tilt angle and Roll position in real time.- Tilt angle in % of Grade or degrees.- Continuous display of DataSonde Temperature andDataSonde Battery status.- Remote Left/Right steering.- Sounder alert- Display Backlight.TripodThe DrillTrack Tripod has been designed to provide the user a nonwalkover remote steering system.When the Receiver is placed in the Tripod, facing the HDD machine , the Receiver and DataView become anon walkover remote steering system.The LED display on the DataView provides the drilling machine operator the left/right steering information ofthe drilling process.

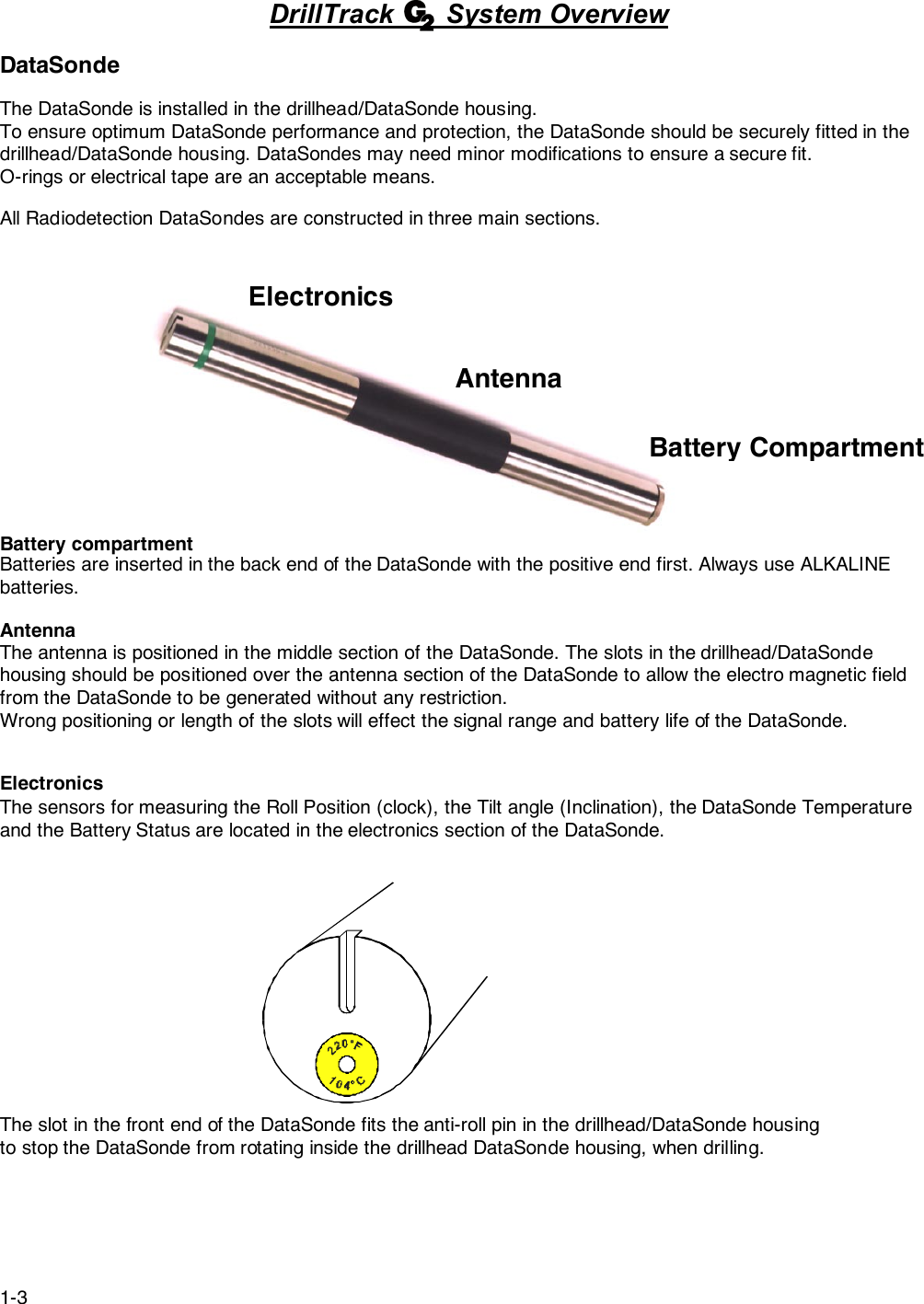

1-3DrillTrack System OverviewDataSondeThe DataSonde is installed in the drillhead/DataSonde housing.To ensure optimum DataSonde performance and protection, the DataSonde should be securely fitted in thedrillhead/DataSonde housing. DataSondes may need minor modifications to ensure a secure fit.O-rings or electrical tape are an acceptable means.All Radiodetection DataSondes are constructed in three main sections.Battery compartmentBatteries are inserted in the back end of the DataSonde with the positive end first. Always use ALKALINEbatteries.AntennaThe antenna is positioned in the middle section of the DataSonde. The slots in the drillhead/DataSondehousing should be positioned over the antenna section of the DataSonde to allow the electro magnetic fieldfrom the DataSonde to be generated without any restriction.Wrong positioning or length of the slots will effect the signal range and battery life of the DataSonde.ElectronicsThe sensors for measuring the Roll Position (clock), the Tilt angle (Inclination), the DataSonde Temperatureand the Battery Status are located in the electronics section of the DataSonde.The slot in the front end of the DataSonde fits the anti-roll pin in the drillhead/DataSonde housingto stop the DataSonde from rotating inside the drillhead DataSonde housing, when drilling.Battery CompartmentAntennaElectronics

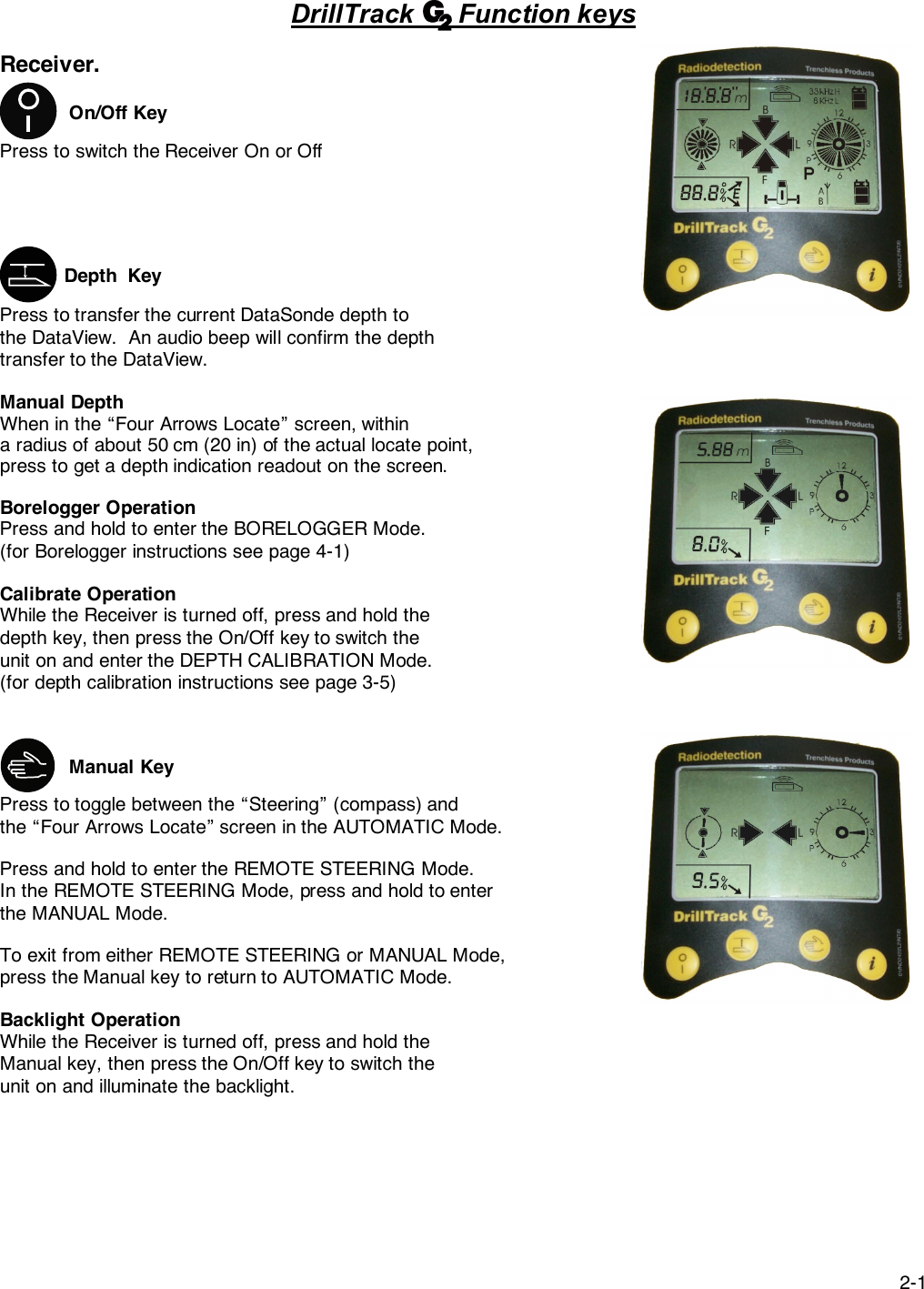

2-1DrillTrack Function keysReceiver. On/Off KeyPress to switch the Receiver On or Off Depth KeyPress to transfer the current DataSonde depth tothe DataView. An audio beep will confirm the depthtransfer to the DataView.Manual DepthWhen in the “Four Arrows Locate” screen, withina radius of about 50 cm (20 in) of the actual locate point,press to get a depth indication readout on the screen. Borelogger OperationPress and hold to enter the BORELOGGER Mode.(for Borelogger instructions see page 4-1)Calibrate OperationWhile the Receiver is turned off, press and hold thedepth key, then press the On/Off key to switch theunit on and enter the DEPTH CALIBRATION Mode.(for depth calibration instructions see page 3-5) Manual KeyPress to toggle between the “Steering” (compass) andthe “Four Arrows Locate” screen in the AUTOMATIC Mode.Press and hold to enter the REMOTE STEERING Mode.In the REMOTE STEERING Mode, press and hold to enterthe MANUAL Mode.To exit from either REMOTE STEERING or MANUAL Mode,press the Manual key to return to AUTOMATIC Mode.Backlight OperationWhile the Receiver is turned off, press and hold theManual key, then press the On/Off key to switch theunit on and illuminate the backlight.

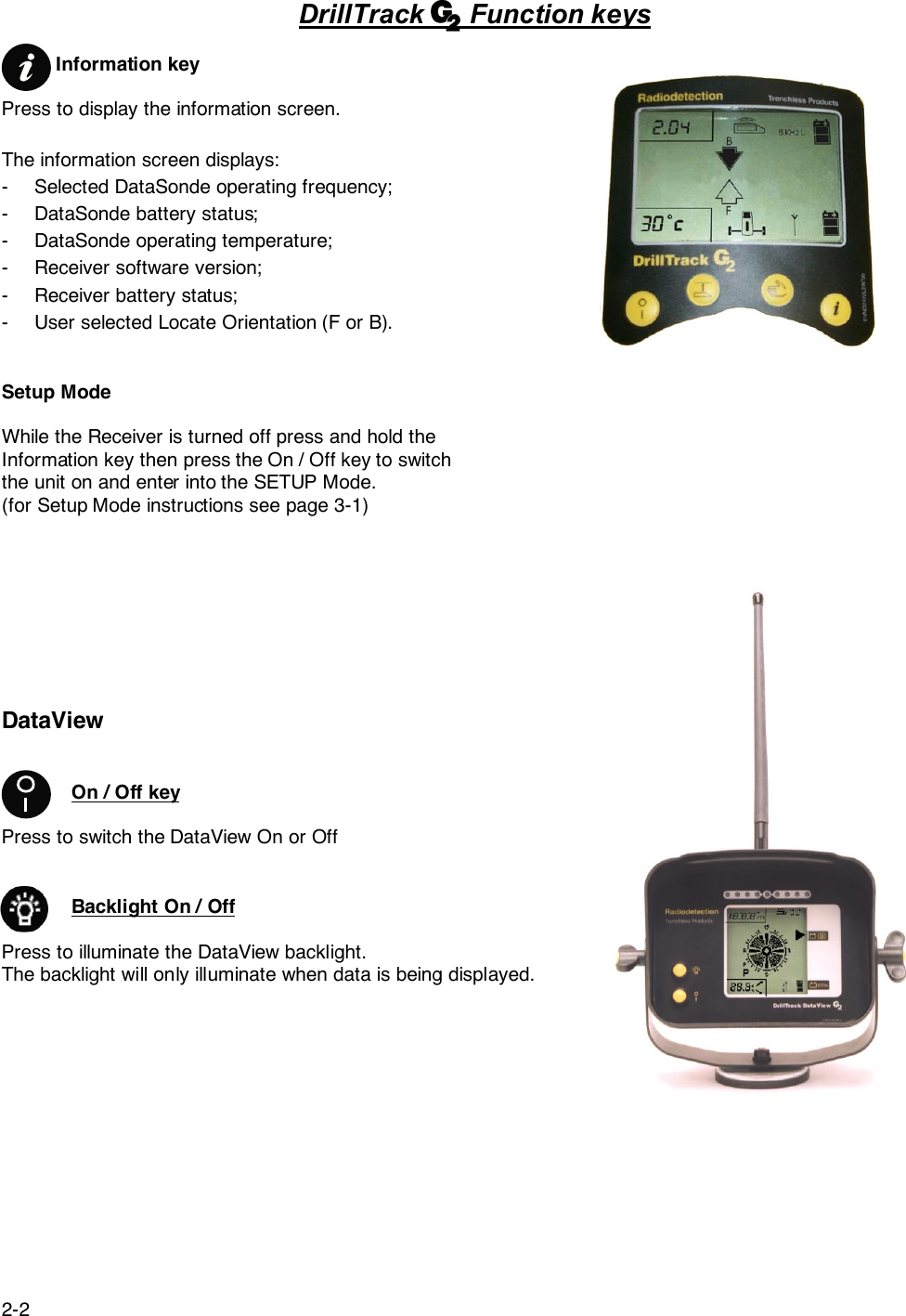

2-2DrillTrack Function keys Information keyPress to display the information screen.The information screen displays:- Selected DataSonde operating frequency;- DataSonde battery status;- DataSonde operating temperature;- Receiver software version;- Receiver battery status;- User selected Locate Orientation (F or B).Setup ModeWhile the Receiver is turned off press and hold theInformation key then press the On / Off key to switchthe unit on and enter into the SETUP Mode.(for Setup Mode instructions see page 3-1)DataViewOn / Off keyPress to switch the DataView On or OffBacklight On / OffPress to illuminate the DataView backlight.The backlight will only illuminate when data is being displayed.

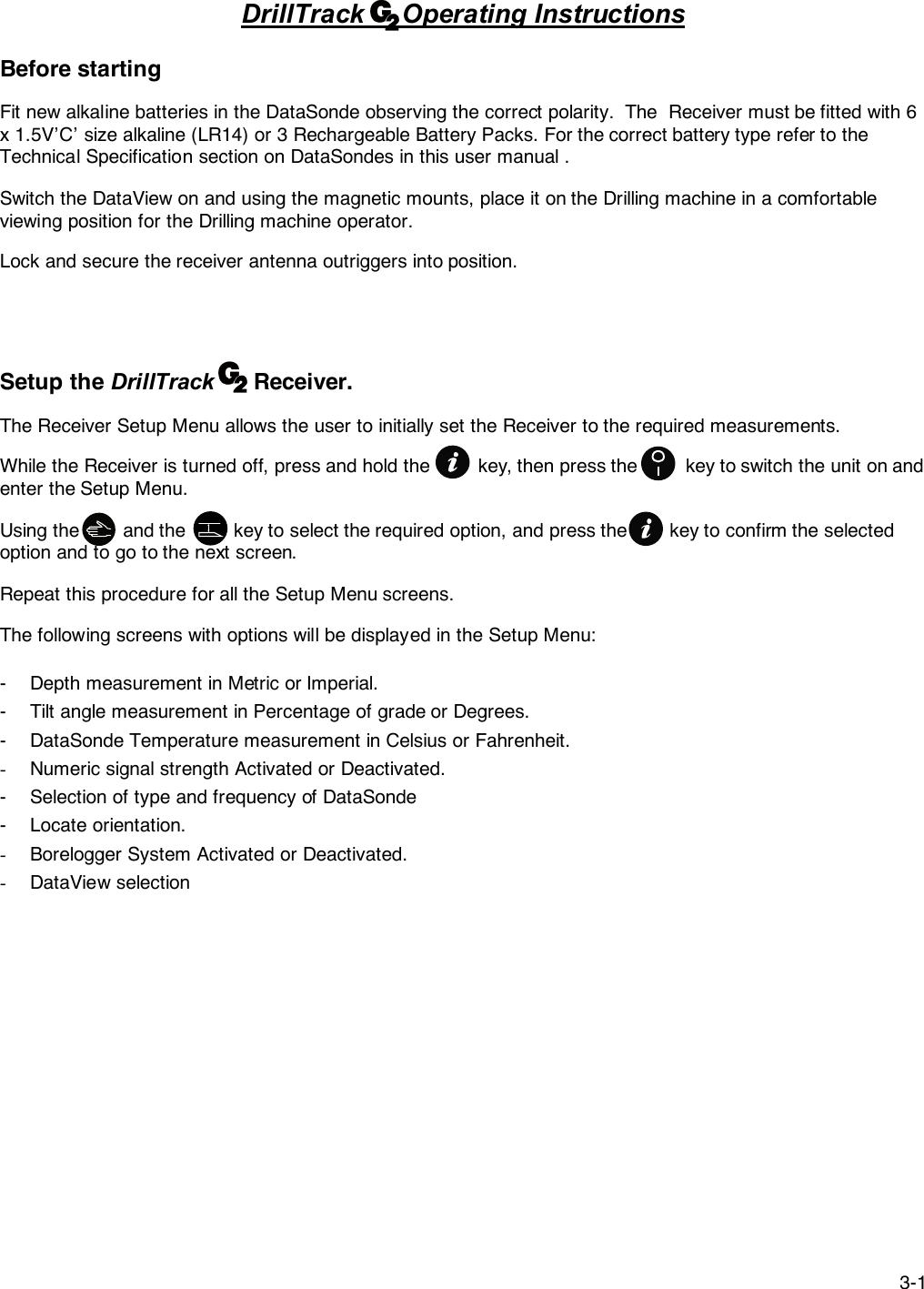

3-1DrillTrack Operating InstructionsBefore startingFit new alkaline batteries in the DataSonde observing the correct polarity. The Receiver must be fitted with 6x 1.5V’C’ size alkaline (LR14) or 3 Rechargeable Battery Packs. For the correct battery type refer to theTechnical Specification section on DataSondes in this user manual .Switch the DataView on and using the magnetic mounts, place it on the Drilling machine in a comfortableviewing position for the Drilling machine operator.Lock and secure the receiver antenna outriggers into position.Setup the DrillTrack Receiver.The Receiver Setup Menu allows the user to initially set the Receiver to the required measurements.While the Receiver is turned off, press and hold the key, then press the key to switch the unit on andenter the Setup Menu.Using the and the key to select the required option, and press the key to confirm the selectedoption and to go to the next screen.Repeat this procedure for all the Setup Menu screens.The following screens with options will be displayed in the Setup Menu:- Depth measurement in Metric or Imperial.- Tilt angle measurement in Percentage of grade or Degrees.- DataSonde Temperature measurement in Celsius or Fahrenheit.- Numeric signal strength Activated or Deactivated.- Selection of type and frequency of DataSonde- Locate orientation.- Borelogger System Activated or Deactivated.- DataView selection

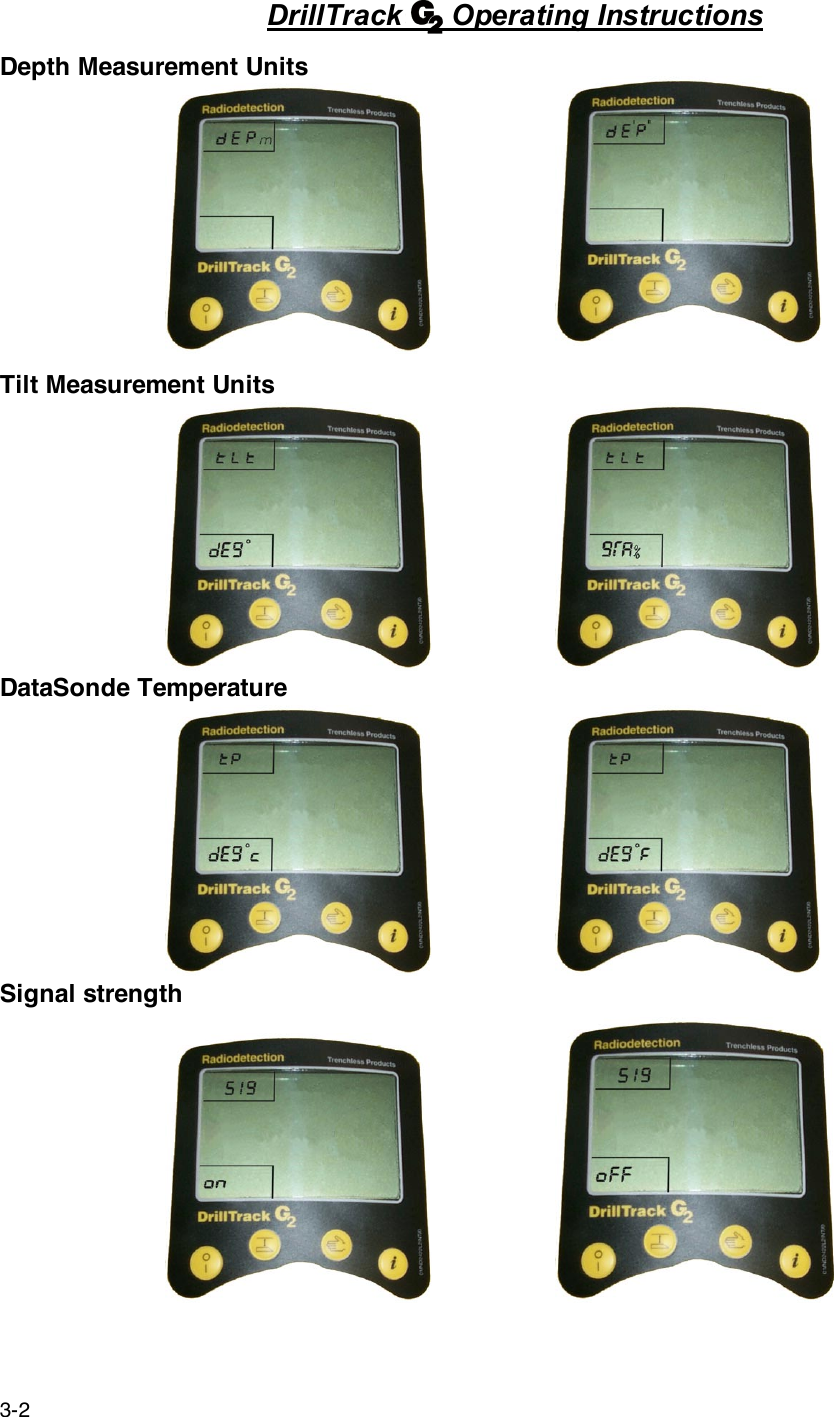

3-2DrillTrack Operating InstructionsDepth Measurement UnitsTilt Measurement UnitsDataSonde TemperatureSignal strength

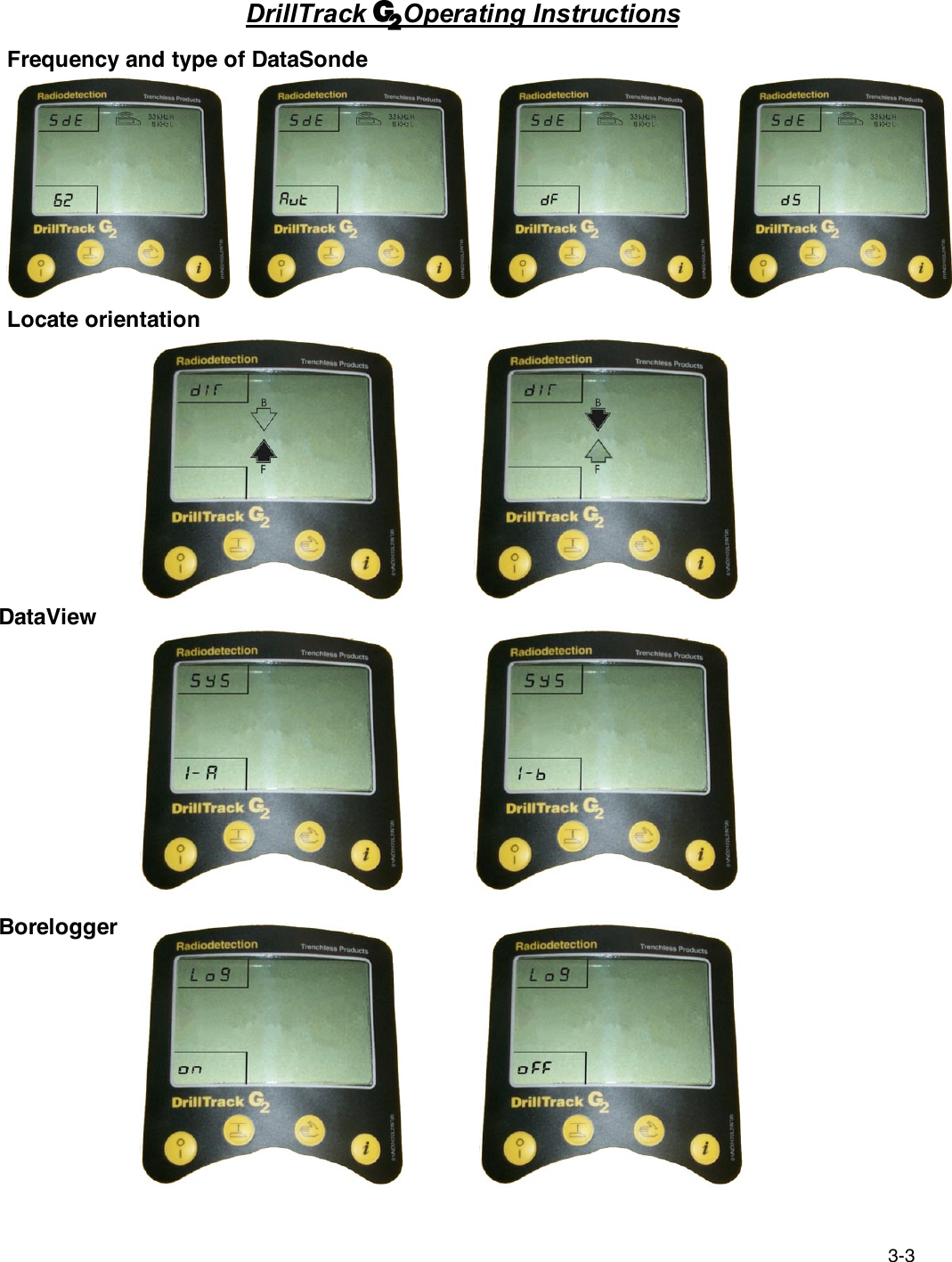

3-3DrillTrack Operating InstructionsFrequency and type of DataSondeLocate orientation DataViewBorelogger

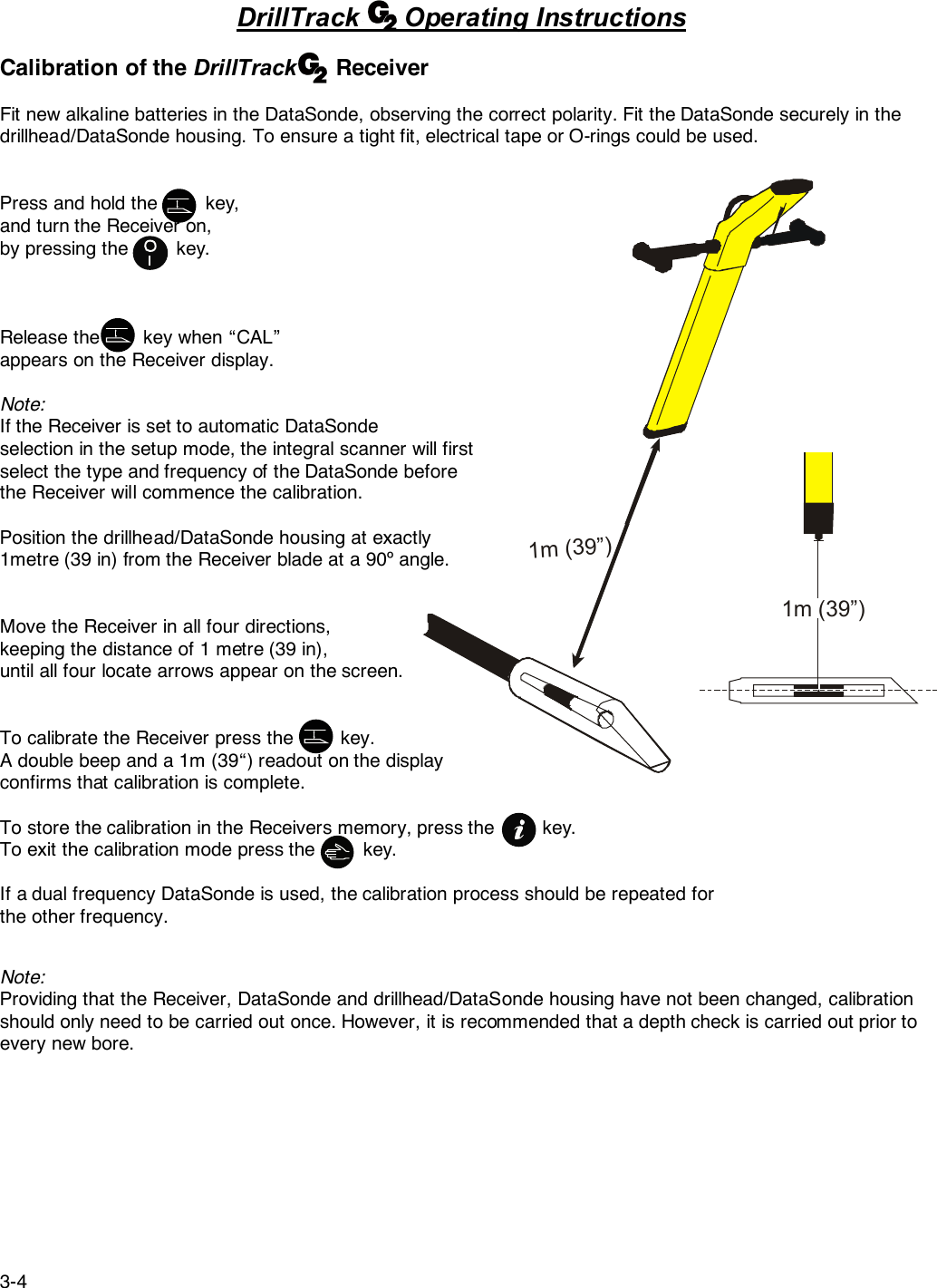

3-41m (39”)1m (39”) DrillTrack Operating InstructionsCalibration of the DrillTrack ReceiverFit new alkaline batteries in the DataSonde, observing the correct polarity. Fit the DataSonde securely in thedrillhead/DataSonde housing. To ensure a tight fit, electrical tape or O-rings could be used.Press and hold the key,and turn the Receiver on,by pressing the key.Release the key when “CAL”appears on the Receiver display.Note:If the Receiver is set to automatic DataSondeselection in the setup mode, the integral scanner will firstselect the type and frequency of the DataSonde beforethe Receiver will commence the calibration.Position the drillhead/DataSonde housing at exactly1metre (39 in) from the Receiver blade at a 90º angle.Move the Receiver in all four directions,keeping the distance of 1 metre (39 in),until all four locate arrows appear on the screen.To calibrate the Receiver press the key.A double beep and a 1m (39“) readout on the displayconfirms that calibration is complete.To store the calibration in the Receivers memory, press the key.To exit the calibration mode press the key.If a dual frequency DataSonde is used, the calibration process should be repeated forthe other frequency.Note:Providing that the Receiver, DataSonde and drillhead/DataSonde housing have not been changed, calibrationshould only need to be carried out once. However, it is recommended that a depth check is carried out prior toevery new bore.

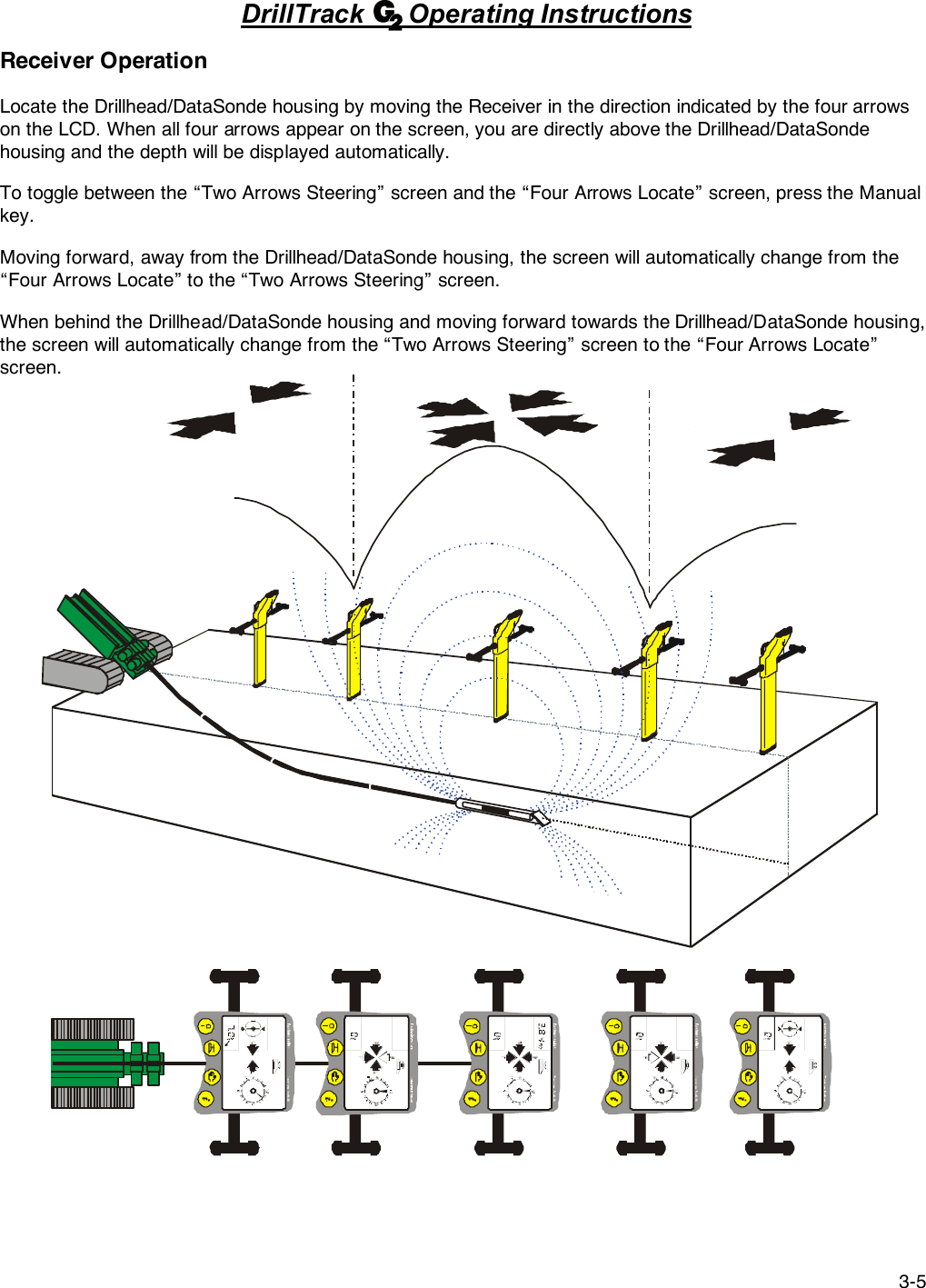

3-5 DrillTrack Operating InstructionsReceiver OperationLocate the Drillhead/DataSonde housing by moving the Receiver in the direction indicated by the four arrowson the LCD. When all four arrows appear on the screen, you are directly above the Drillhead/DataSondehousing and the depth will be displayed automatically.To toggle between the “Two Arrows Steering” screen and the “Four Arrows Locate” screen, press the Manualkey.Moving forward, away from the Drillhead/DataSonde housing, the screen will automatically change from the“Four Arrows Locate” to the “Two Arrows Steering” screen.When behind the Drillhead/DataSonde housing and moving forward towards the Drillhead/DataSonde housing,the screen will automatically change from the “Two Arrows Steering” screen to the “Four Arrows Locate”screen.

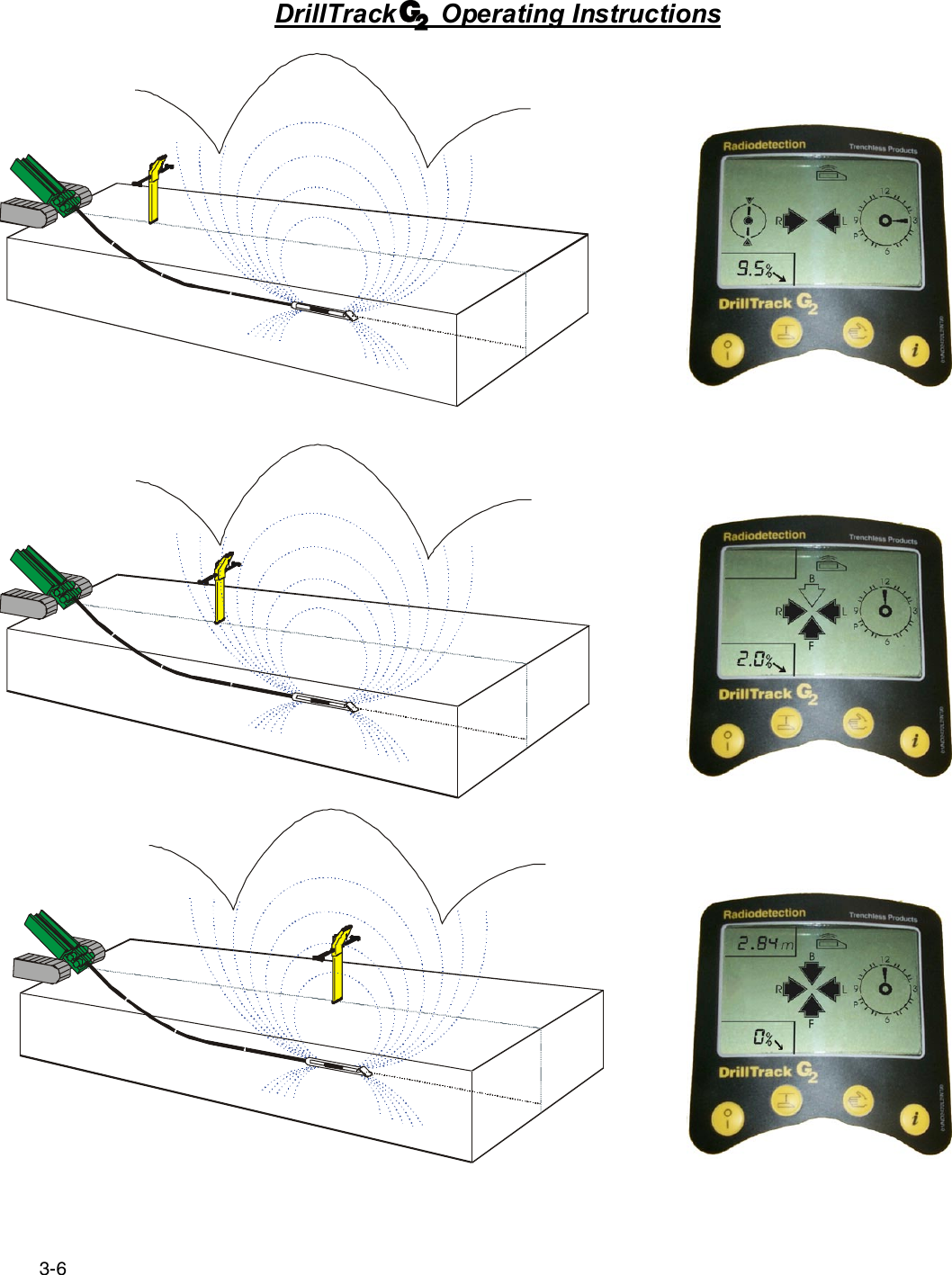

3-6DrillTrack Operating Instructions

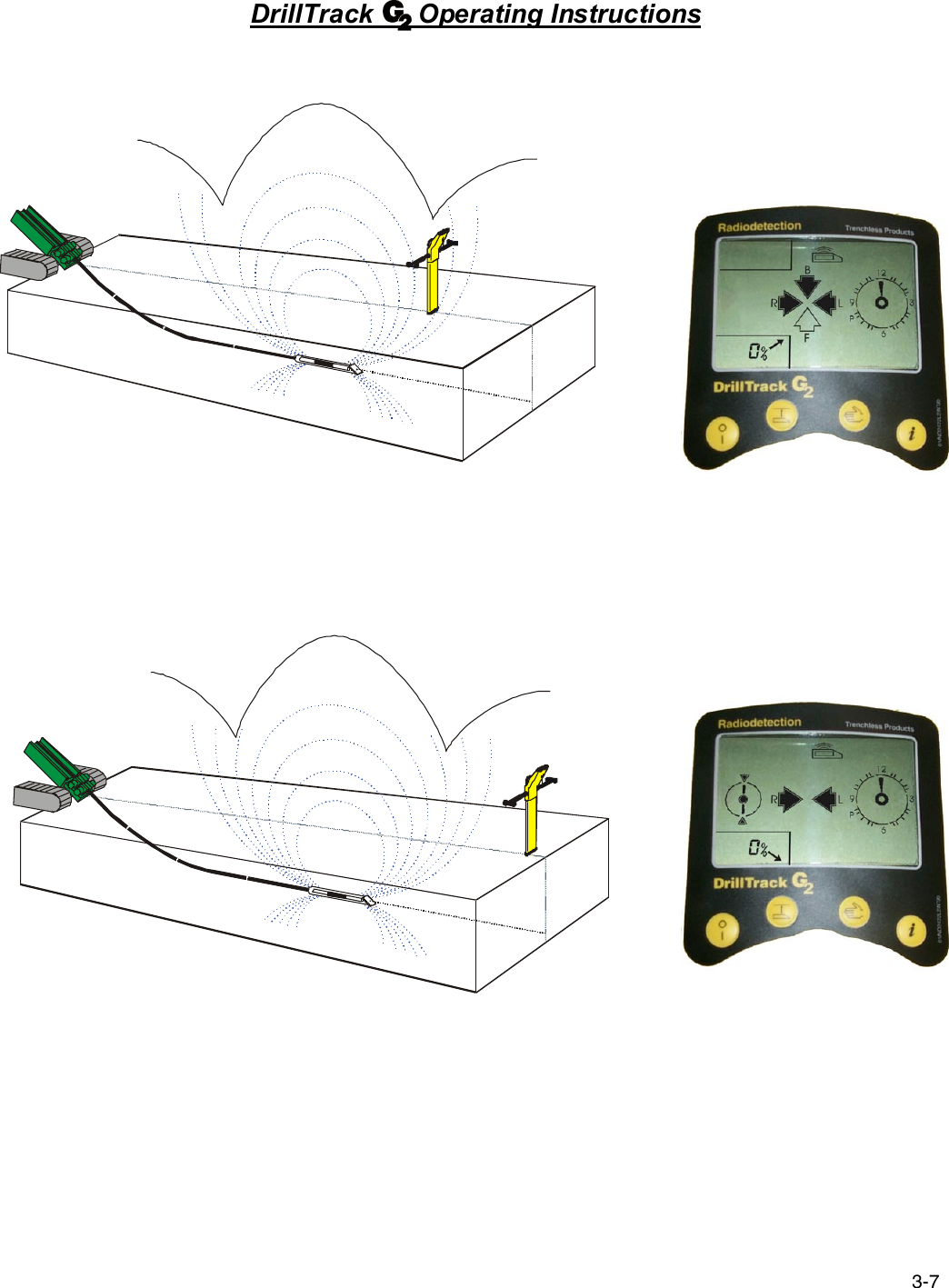

3-7DrillTrack Operating Instructions

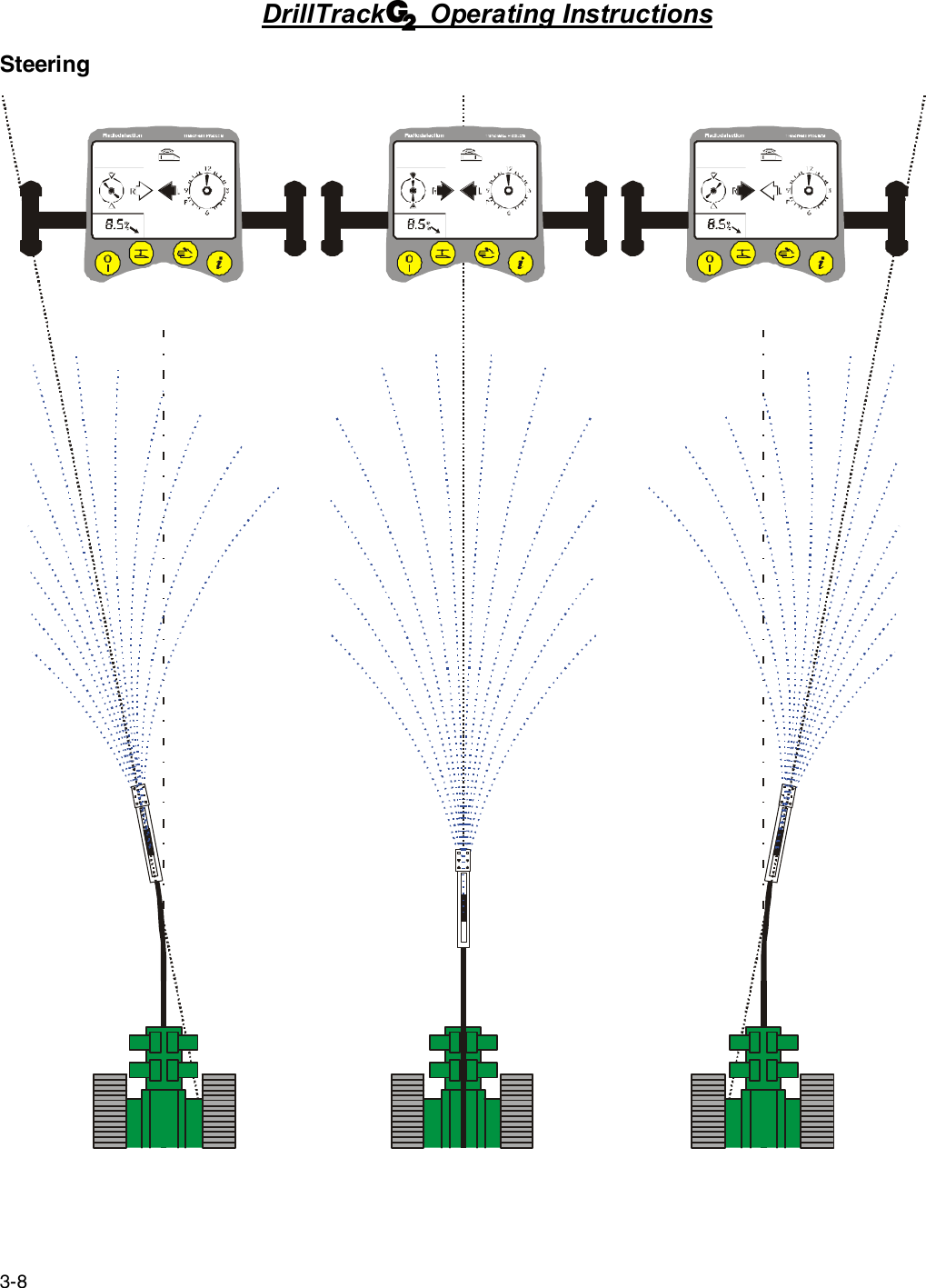

3-8DrillTrack Operating InstructionsSteering

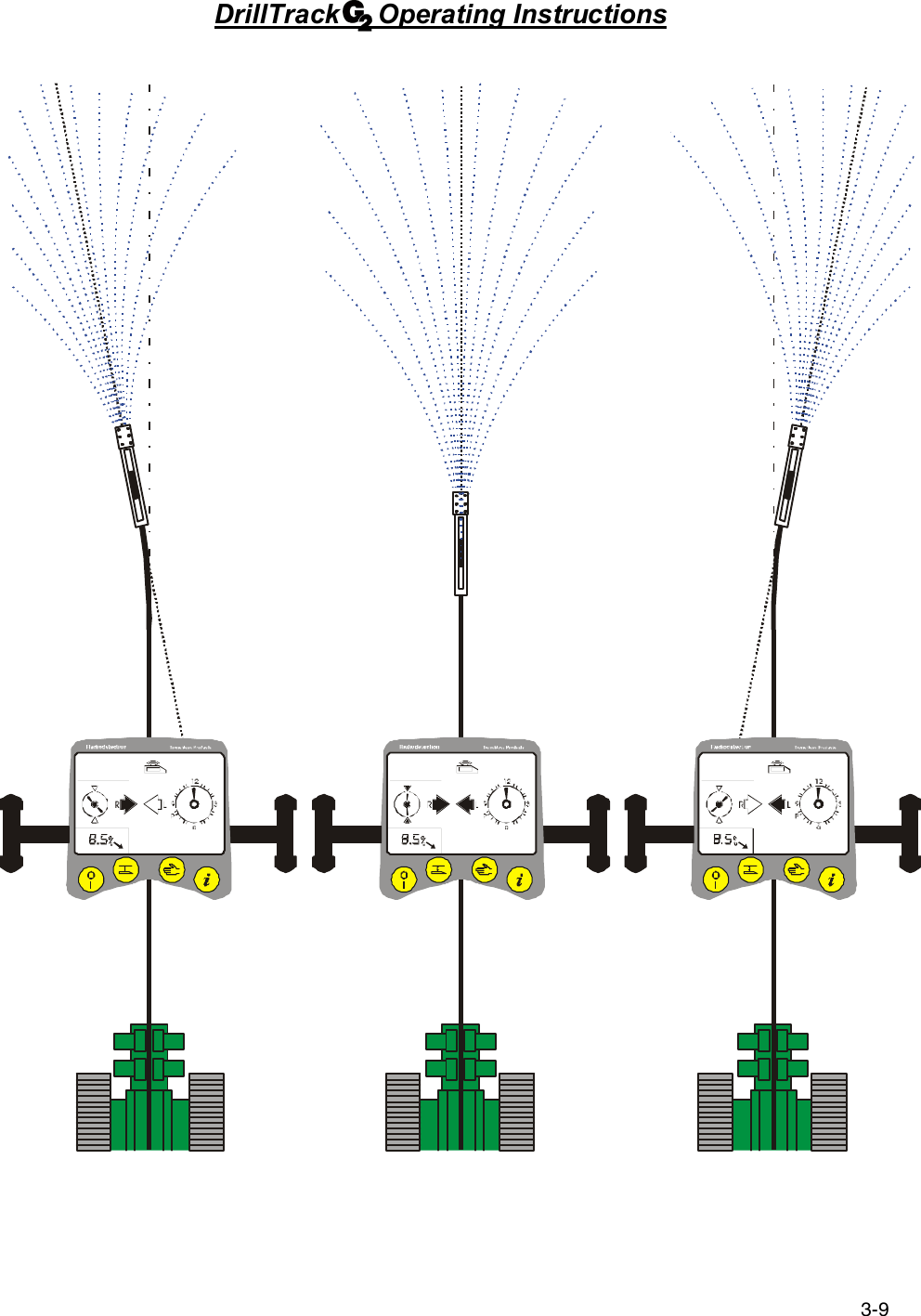

3-9DrillTrack Operating Instructions

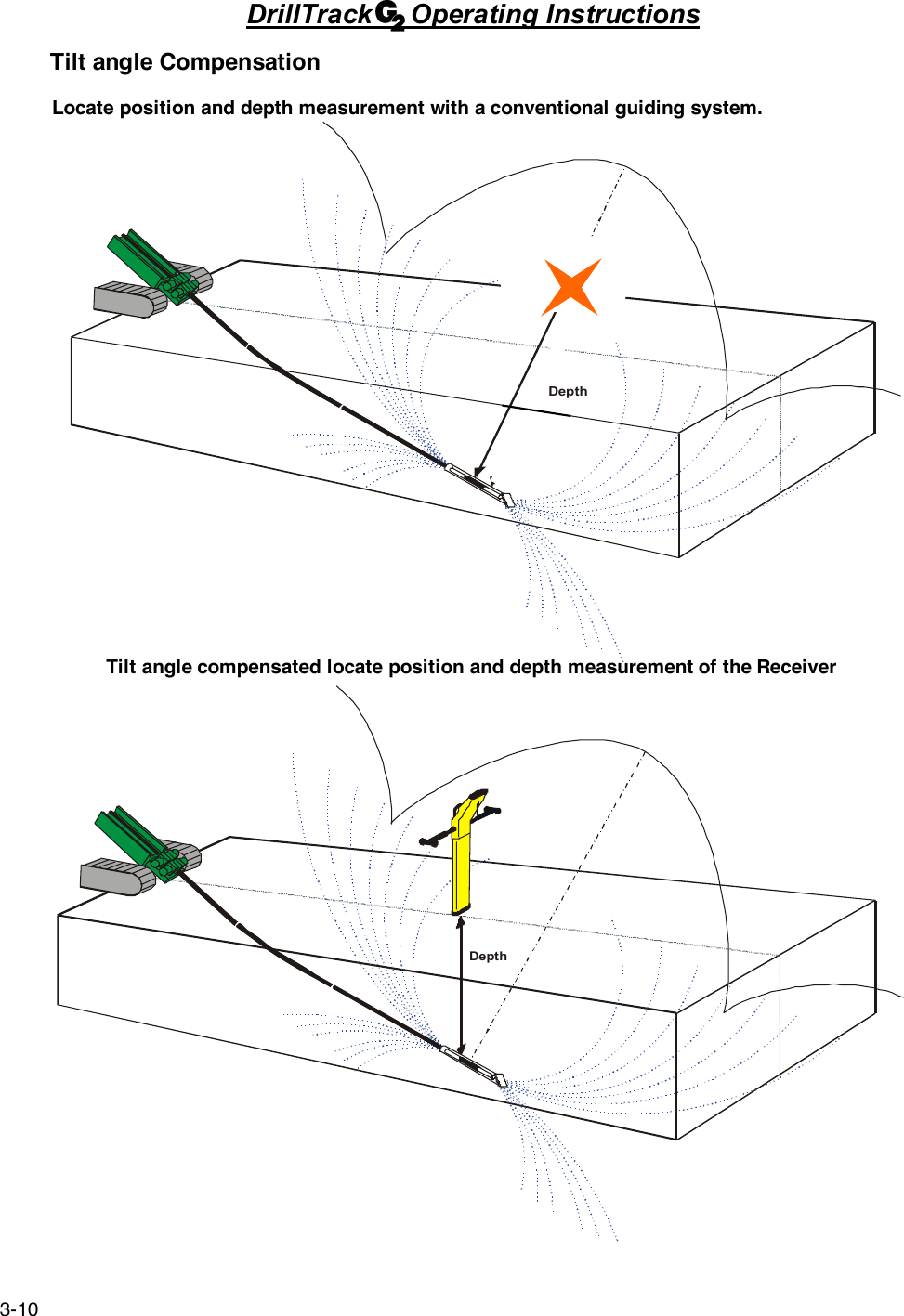

3-10DrillTrack Operating InstructionsTilt angle CompensationLocate position and depth measurement with a conventional guiding system.Depth Depth Tilt angle compensated locate position and depth measurement of the Receiver

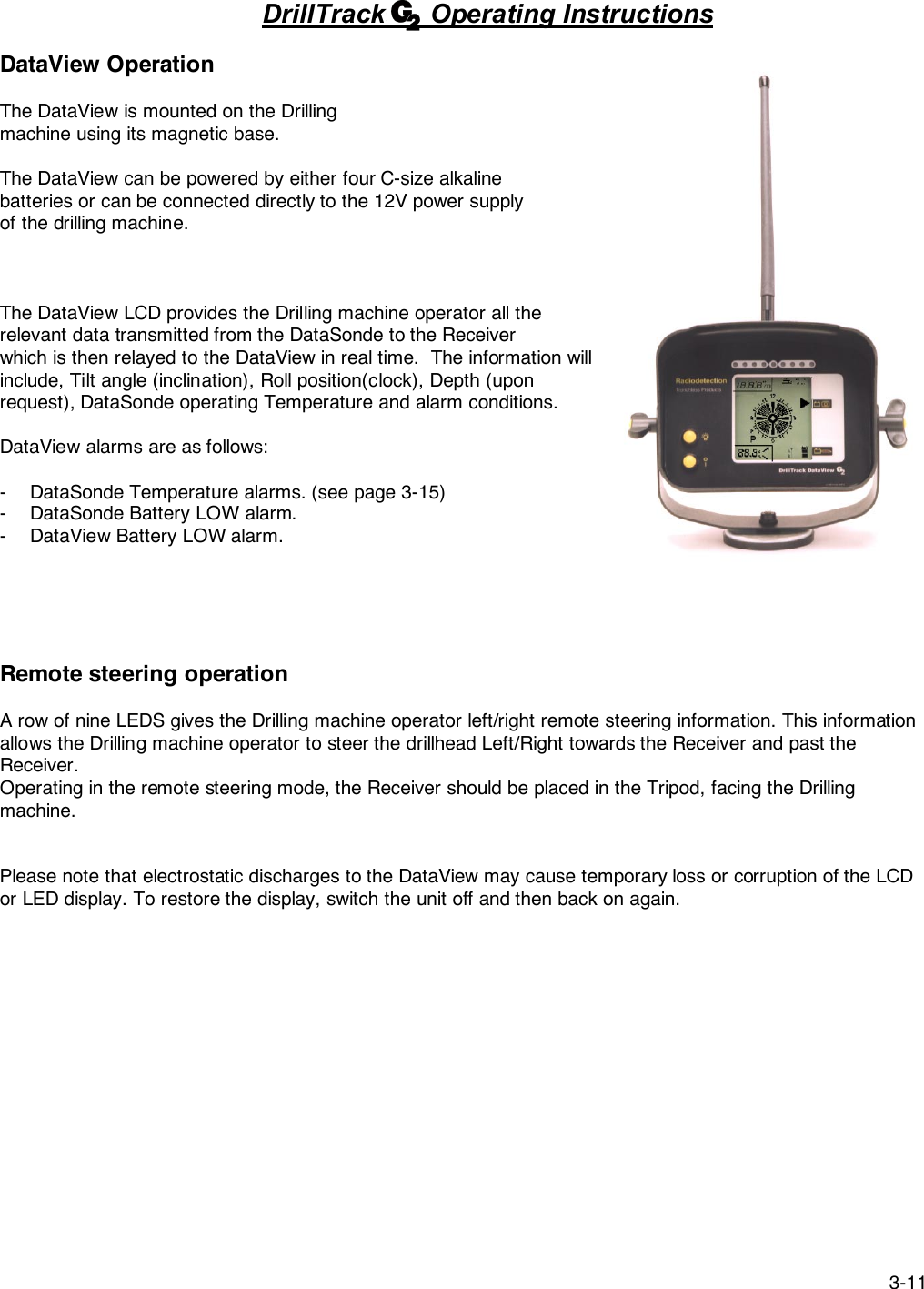

3-11DrillTrack Operating InstructionsDataView OperationThe DataView is mounted on the Drillingmachine using its magnetic base.The DataView can be powered by either four C-size alkalinebatteries or can be connected directly to the 12V power supplyof the drilling machine.The DataView LCD provides the Drilling machine operator all therelevant data transmitted from the DataSonde to the Receiverwhich is then relayed to the DataView in real time. The information willinclude, Tilt angle (inclination), Roll position(clock), Depth (uponrequest), DataSonde operating Temperature and alarm conditions.DataView alarms are as follows:- DataSonde Temperature alarms. (see page 3-15)- DataSonde Battery LOW alarm.- DataView Battery LOW alarm.Remote steering operationA row of nine LEDS gives the Drilling machine operator left/right remote steering information. This informationallows the Drilling machine operator to steer the drillhead Left/Right towards the Receiver and past theReceiver.Operating in the remote steering mode, the Receiver should be placed in the Tripod, facing the Drillingmachine.Please note that electrostatic discharges to the DataView may cause temporary loss or corruption of the LCDor LED display. To restore the display, switch the unit off and then back on again.

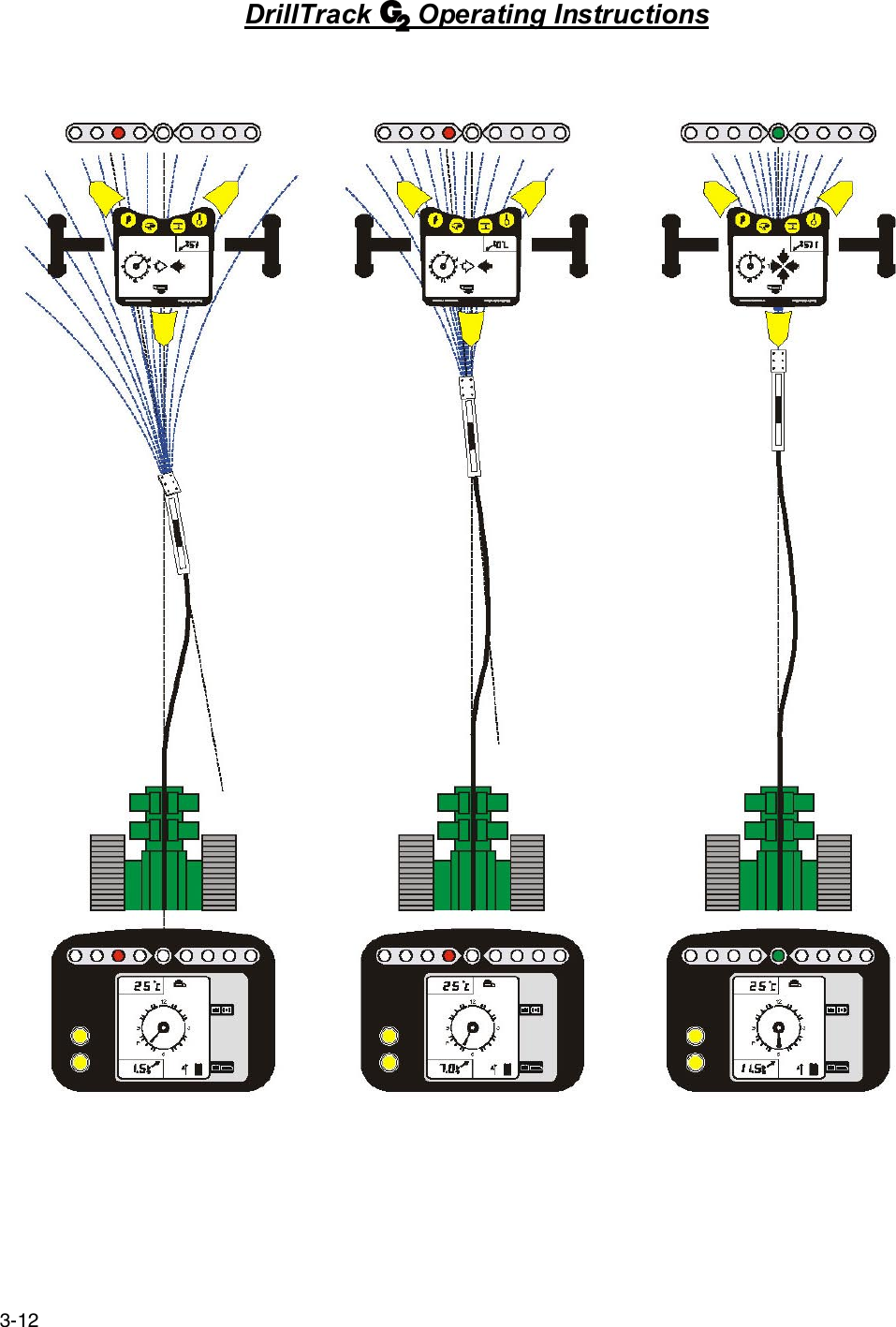

3-12DrillTrack Operating Instructions

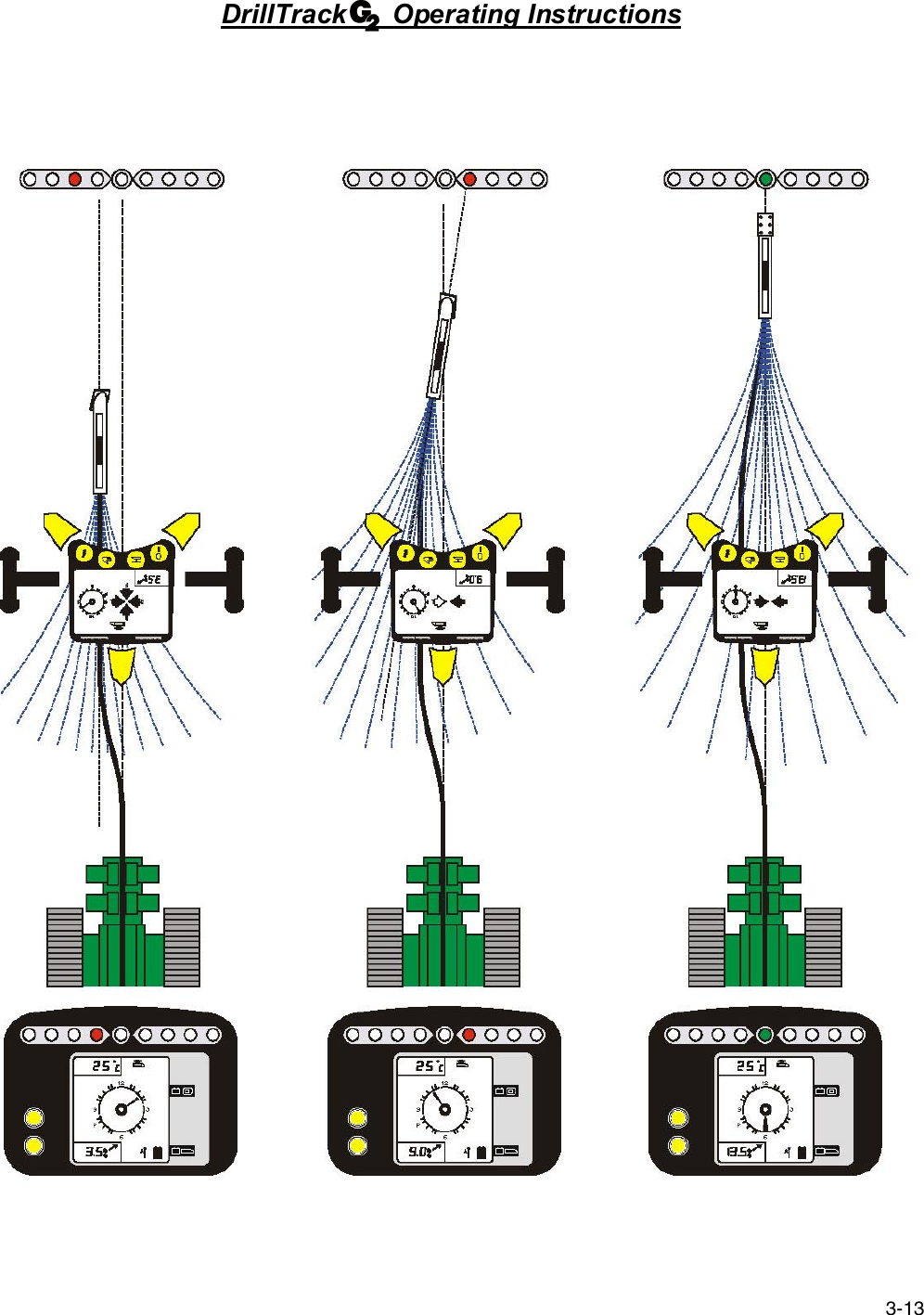

3-13DrillTrack Operating Instructions

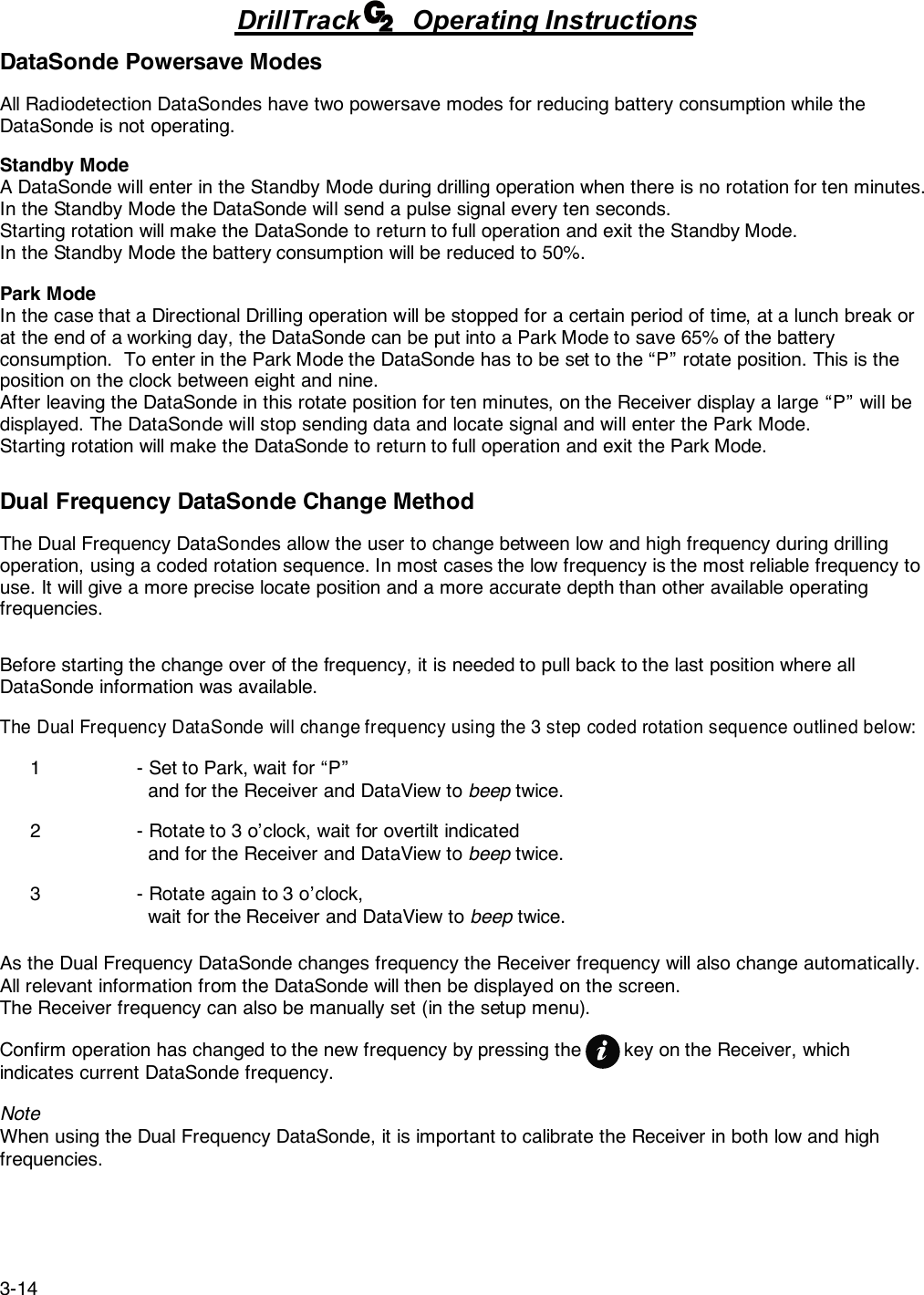

3-14DrillTrack Operating InstructionsDataSonde Powersave ModesAll Radiodetection DataSondes have two powersave modes for reducing battery consumption while theDataSonde is not operating.Standby ModeA DataSonde will enter in the Standby Mode during drilling operation when there is no rotation for ten minutes.In the Standby Mode the DataSonde will send a pulse signal every ten seconds.Starting rotation will make the DataSonde to return to full operation and exit the Standby Mode.In the Standby Mode the battery consumption will be reduced to 50%.Park ModeIn the case that a Directional Drilling operation will be stopped for a certain period of time, at a lunch break orat the end of a working day, the DataSonde can be put into a Park Mode to save 65% of the batteryconsumption. To enter in the Park Mode the DataSonde has to be set to the “P” rotate position. This is theposition on the clock between eight and nine.After leaving the DataSonde in this rotate position for ten minutes, on the Receiver display a large “P” will bedisplayed. The DataSonde will stop sending data and locate signal and will enter the Park Mode.Starting rotation will make the DataSonde to return to full operation and exit the Park Mode.Dual Frequency DataSonde Change MethodThe Dual Frequency DataSondes allow the user to change between low and high frequency during drillingoperation, using a coded rotation sequence. In most cases the low frequency is the most reliable frequency touse. It will give a more precise locate position and a more accurate depth than other available operatingfrequencies.Before starting the change over of the frequency, it is needed to pull back to the last position where allDataSonde information was available.The Dual Frequency DataSonde will change frequency using the 3 step coded rotation sequence outlined below:1 - Set to Park, wait for “P” and for the Receiver and DataView to beep twice.2 - Rotate to 3 o’clock, wait for overtilt indicated and for the Receiver and DataView to beep twice.3 - Rotate again to 3 o’clock, wait for the Receiver and DataView to beep twice.As the Dual Frequency DataSonde changes frequency the Receiver frequency will also change automatically.All relevant information from the DataSonde will then be displayed on the screen.The Receiver frequency can also be manually set (in the setup menu).Confirm operation has changed to the new frequency by pressing the key on the Receiver, whichindicates current DataSonde frequency.NoteWhen using the Dual Frequency DataSonde, it is important to calibrate the Receiver in both low and highfrequencies.

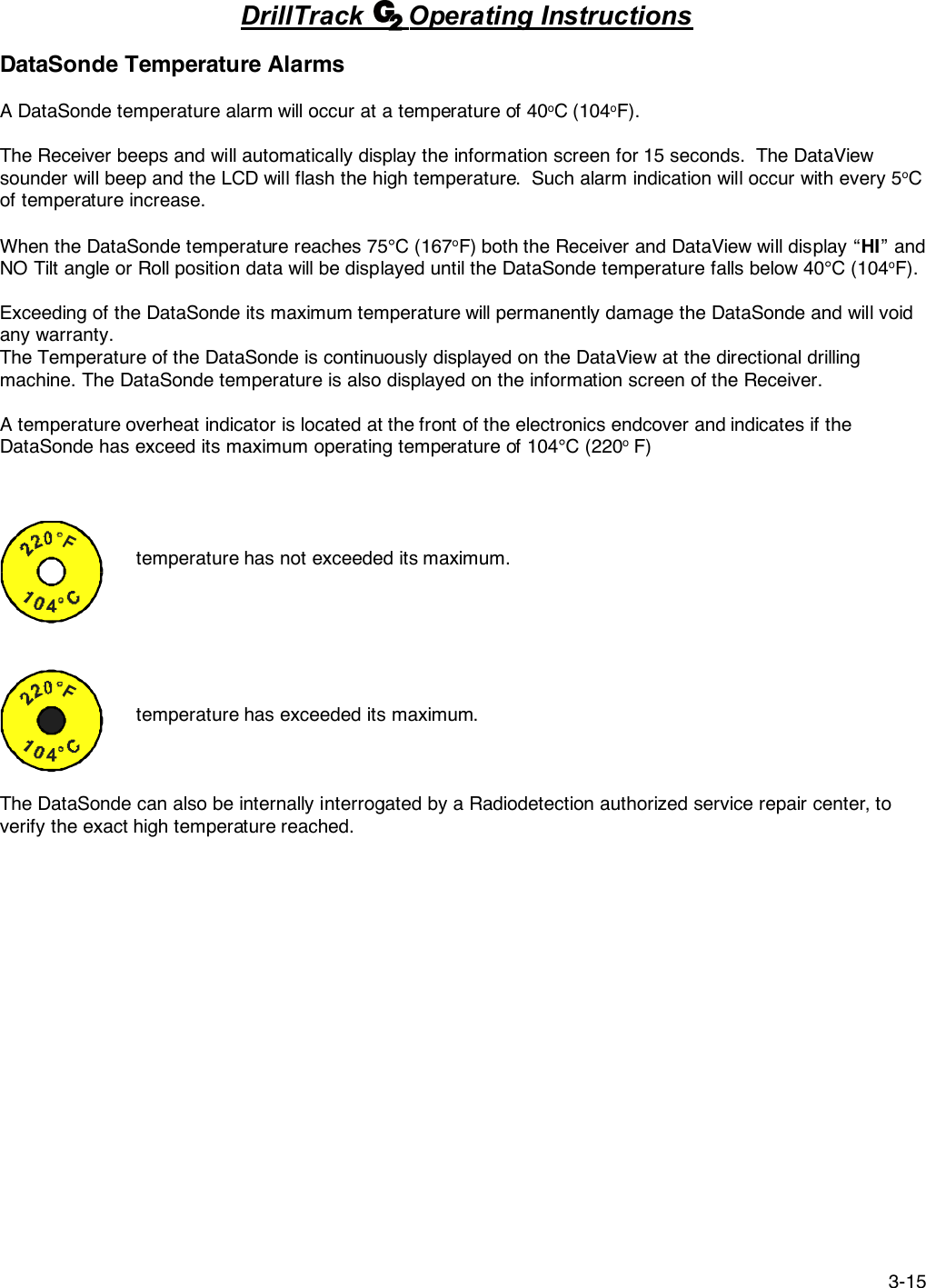

3-15DrillTrack Operating InstructionsDataSonde Temperature AlarmsA DataSonde temperature alarm will occur at a temperature of 40oC (104oF).The Receiver beeps and will automatically display the information screen for 15 seconds. The DataViewsounder will beep and the LCD will flash the high temperature. Such alarm indication will occur with every 5oCof temperature increase.When the DataSonde temperature reaches 75°C (167oF) both the Receiver and DataView will display “HI” andNO Tilt angle or Roll position data will be displayed until the DataSonde temperature falls below 40°C (104oF).Exceeding of the DataSonde its maximum temperature will permanently damage the DataSonde and will voidany warranty.The Temperature of the DataSonde is continuously displayed on the DataView at the directional drillingmachine. The DataSonde temperature is also displayed on the information screen of the Receiver.A temperature overheat indicator is located at the front of the electronics endcover and indicates if theDataSonde has exceed its maximum operating temperature of 104°C (220o F) temperature has not exceeded its maximum.temperature has exceeded its maximum.The DataSonde can also be internally interrogated by a Radiodetection authorized service repair center, toverify the exact high temperature reached.

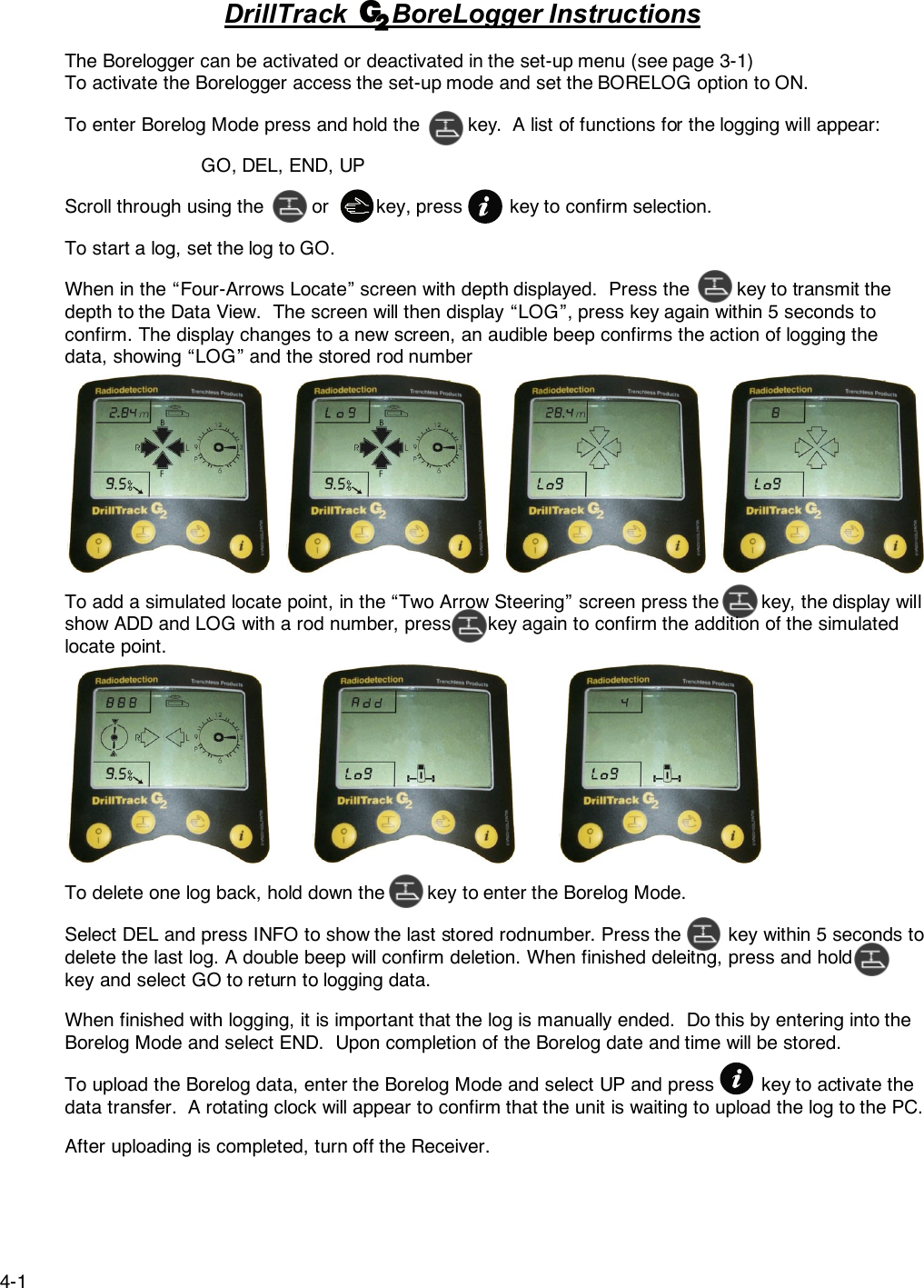

4-1DrillTrack BoreLogger InstructionsThe Borelogger can be activated or deactivated in the set-up menu (see page 3-1)To activate the Borelogger access the set-up mode and set the BORELOG option to ON.To enter Borelog Mode press and hold the key. A list of functions for the logging will appear:GO, DEL, END, UPScroll through using the or key, press key to confirm selection.To start a log, set the log to GO.When in the “Four-Arrows Locate” screen with depth displayed. Press the key to transmit thedepth to the Data View. The screen will then display “LOG”, press key again within 5 seconds toconfirm. The display changes to a new screen, an audible beep confirms the action of logging thedata, showing “LOG” and the stored rod numberTo add a simulated locate point, in the “Two Arrow Steering” screen press the key, the display willshow ADD and LOG with a rod number, press key again to confirm the addition of the simulatedlocate point.To delete one log back, hold down the key to enter the Borelog Mode.Select DEL and press INFO to show the last stored rodnumber. Press the key within 5 seconds todelete the last log. A double beep will confirm deletion. When finished deleitng, press and holdkey and select GO to return to logging data.When finished with logging, it is important that the log is manually ended. Do this by entering into theBorelog Mode and select END. Upon completion of the Borelog date and time will be stored.To upload the Borelog data, enter the Borelog Mode and select UP and press key to activate thedata transfer. A rotating clock will appear to confirm that the unit is waiting to upload the log to the PC.After uploading is completed, turn off the Receiver.

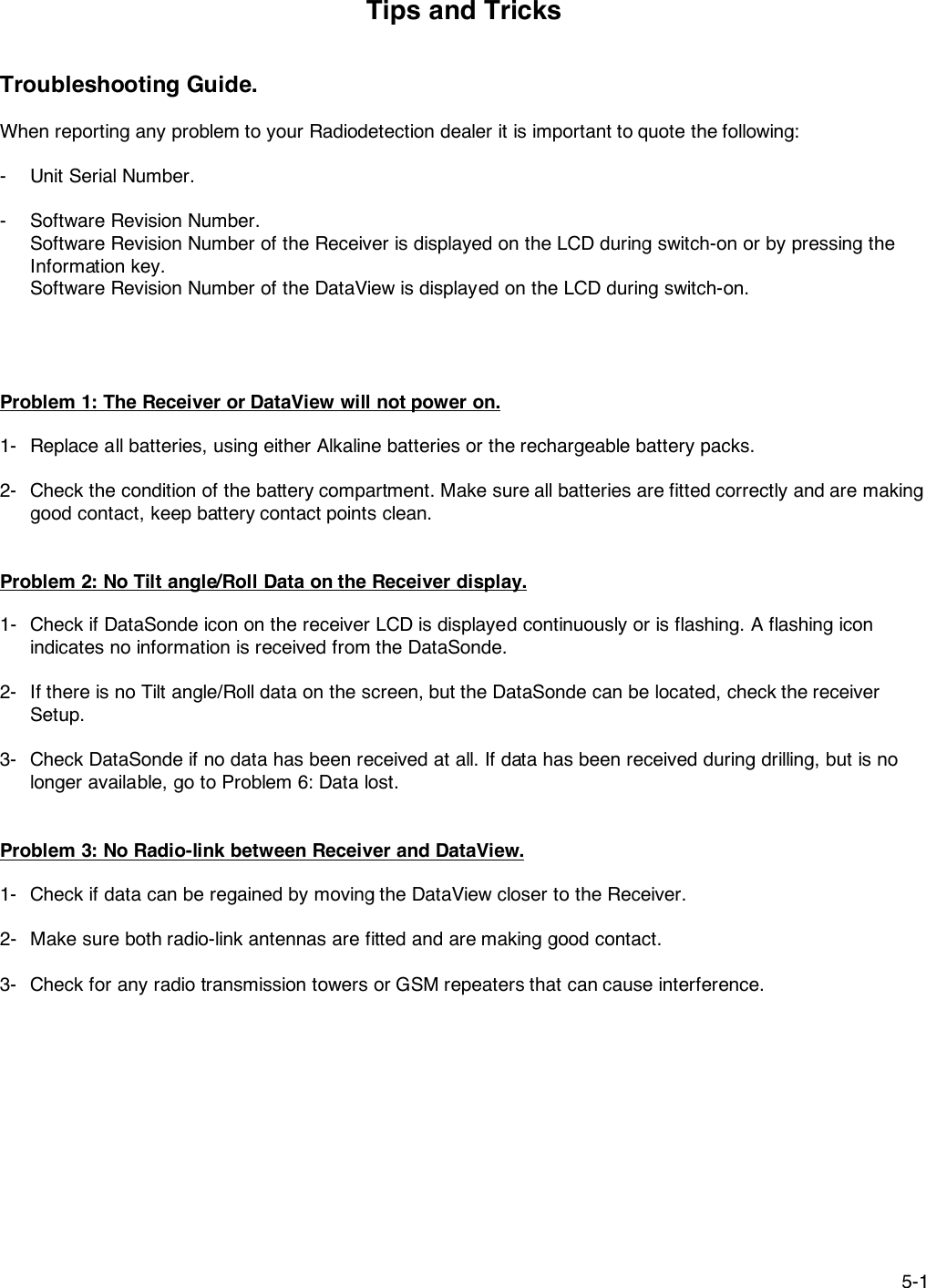

5-1Tips and TricksTroubleshooting Guide.When reporting any problem to your Radiodetection dealer it is important to quote the following:- Unit Serial Number.- Software Revision Number.Software Revision Number of the Receiver is displayed on the LCD during switch-on or by pressing theInformation key.Software Revision Number of the DataView is displayed on the LCD during switch-on.Problem 1: The Receiver or DataView will not power on.1- Replace all batteries, using either Alkaline batteries or the rechargeable battery packs.2- Check the condition of the battery compartment. Make sure all batteries are fitted correctly and are makinggood contact, keep battery contact points clean.Problem 2: No Tilt angle/Roll Data on the Receiver display.1- Check if DataSonde icon on the receiver LCD is displayed continuously or is flashing. A flashing iconindicates no information is received from the DataSonde.2- If there is no Tilt angle/Roll data on the screen, but the DataSonde can be located, check the receiverSetup.3- Check DataSonde if no data has been received at all. If data has been received during drilling, but is nolonger available, go to Problem 6: Data lost.Problem 3: No Radio-link between Receiver and DataView.1- Check if data can be regained by moving the DataView closer to the Receiver.2- Make sure both radio-link antennas are fitted and are making good contact.3- Check for any radio transmission towers or GSM repeaters that can cause interference.

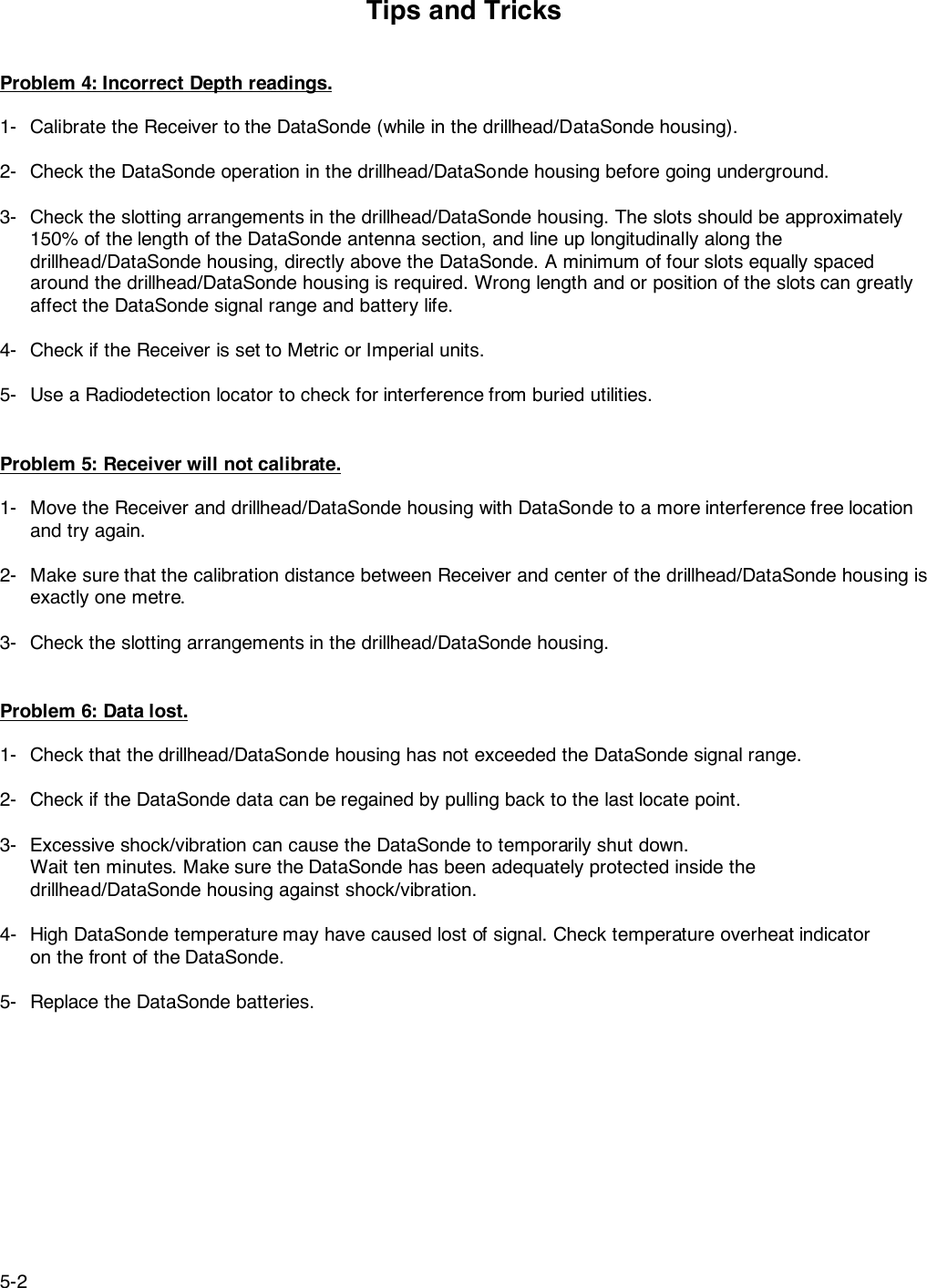

5-2Tips and TricksProblem 4: Incorrect Depth readings.1- Calibrate the Receiver to the DataSonde (while in the drillhead/DataSonde housing).2- Check the DataSonde operation in the drillhead/DataSonde housing before going underground.3- Check the slotting arrangements in the drillhead/DataSonde housing. The slots should be approximately150% of the length of the DataSonde antenna section, and line up longitudinally along thedrillhead/DataSonde housing, directly above the DataSonde. A minimum of four slots equally spacedaround the drillhead/DataSonde housing is required. Wrong length and or position of the slots can greatlyaffect the DataSonde signal range and battery life.4- Check if the Receiver is set to Metric or Imperial units.5- Use a Radiodetection locator to check for interference from buried utilities.Problem 5: Receiver will not calibrate.1- Move the Receiver and drillhead/DataSonde housing with DataSonde to a more interference free locationand try again.2- Make sure that the calibration distance between Receiver and center of the drillhead/DataSonde housing isexactly one metre.3- Check the slotting arrangements in the drillhead/DataSonde housing.Problem 6: Data lost.1- Check that the drillhead/DataSonde housing has not exceeded the DataSonde signal range.2- Check if the DataSonde data can be regained by pulling back to the last locate point.3- Excessive shock/vibration can cause the DataSonde to temporarily shut down.Wait ten minutes. Make sure the DataSonde has been adequately protected inside thedrillhead/DataSonde housing against shock/vibration.4- High DataSonde temperature may have caused lost of signal. Check temperature overheat indicatoron the front of the DataSonde.5- Replace the DataSonde batteries.

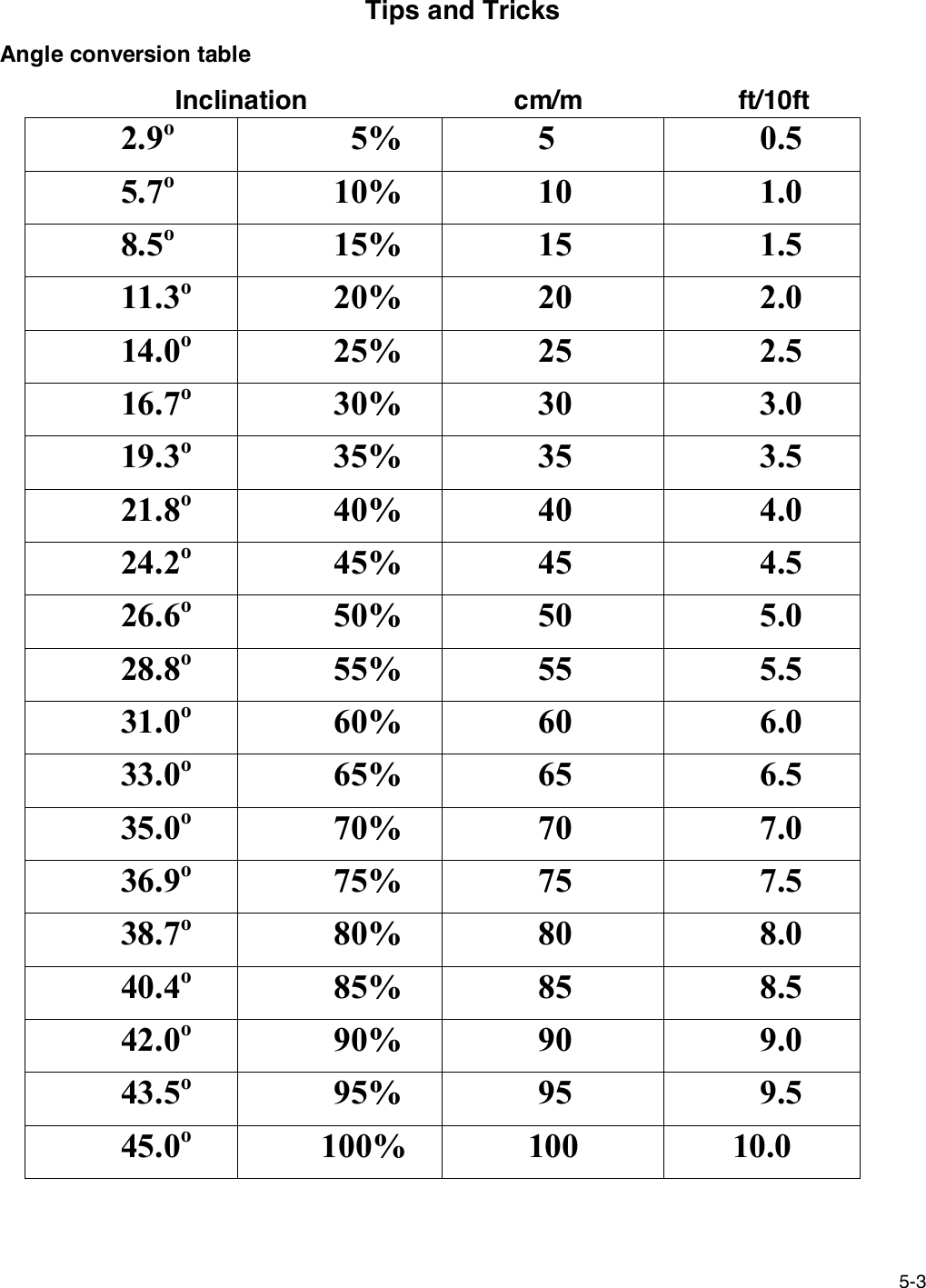

5-3Tips and TricksAngle conversion table Inclination cm/m ft/10ft2.9o 5% 5 0.55.7o10% 10 1.08.5o15% 15 1.511.3o20% 20 2.014.0o25% 25 2.516.7o30% 30 3.019.3o35% 35 3.521.8o40% 40 4.024.2o45% 45 4.526.6o50% 50 5.028.8o55% 55 5.531.0o60% 60 6.033.0o65% 65 6.535.0o70% 70 7.036.9o75% 75 7.538.7o80% 80 8.040.4o85% 85 8.542.0o90% 90 9.043.5o95% 95 9.545.0o100% 100 10.0

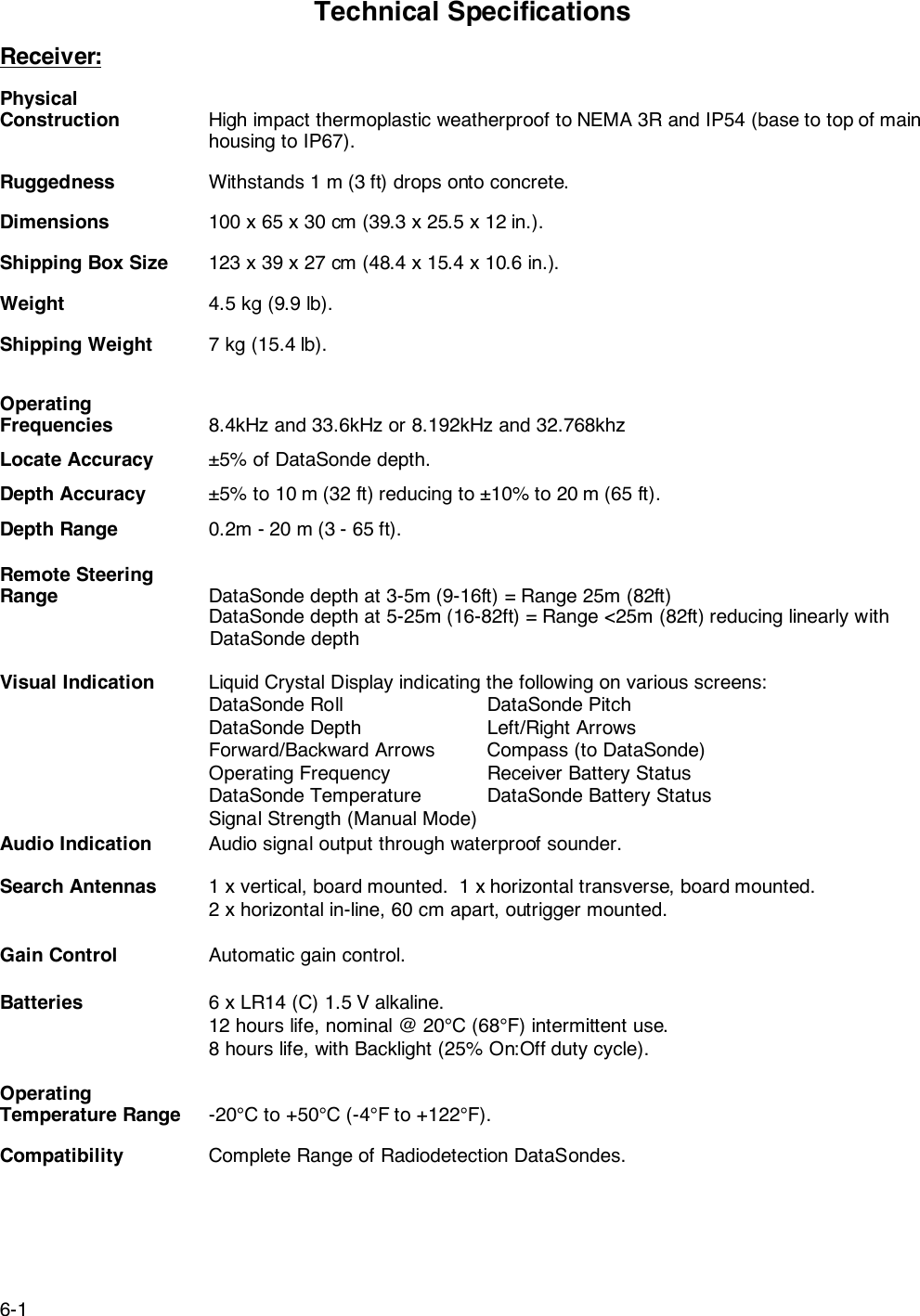

6-1Technical SpecificationsReceiver:PhysicalConstruction High impact thermoplastic weatherproof to NEMA 3R and IP54 (base to top of mainhousing to IP67).Ruggedness Withstands 1 m (3 ft) drops onto concrete.Dimensions 100 x 65 x 30 cm (39.3 x 25.5 x 12 in.).Shipping Box Size 123 x 39 x 27 cm (48.4 x 15.4 x 10.6 in.).Weight 4.5 kg (9.9 lb).Shipping Weight 7 kg (15.4 lb).OperatingFrequencies 8.4kHz and 33.6kHz or 8.192kHz and 32.768khzLocate Accuracy ±5% of DataSonde depth.Depth Accuracy ±5% to 10 m (32 ft) reducing to ±10% to 20 m (65 ft).Depth Range 0.2m - 20 m (3 - 65 ft).Remote SteeringRange DataSonde depth at 3-5m (9-16ft) = Range 25m (82ft)DataSonde depth at 5-25m (16-82ft) = Range <25m (82ft) reducing linearly withDataSonde depthVisual Indication Liquid Crystal Display indicating the following on various screens:DataSonde Roll DataSonde PitchDataSonde Depth Left/Right ArrowsForward/Backward Arrows Compass (to DataSonde)Operating Frequency Receiver Battery StatusDataSonde Temperature DataSonde Battery StatusSignal Strength (Manual Mode)Audio Indication Audio signal output through waterproof sounder.Search Antennas 1 x vertical, board mounted. 1 x horizontal transverse, board mounted.2 x horizontal in-line, 60 cm apart, outrigger mounted.Gain Control Automatic gain control.Batteries 6 x LR14 (C) 1.5 V alkaline.12 hours life, nominal @ 20°C (68°F) intermittent use.8 hours life, with Backlight (25% On:Off duty cycle).OperatingTemperature Range -20°C to +50°C (-4°F to +122°F).Compatibility Complete Range of Radiodetection DataSondes.

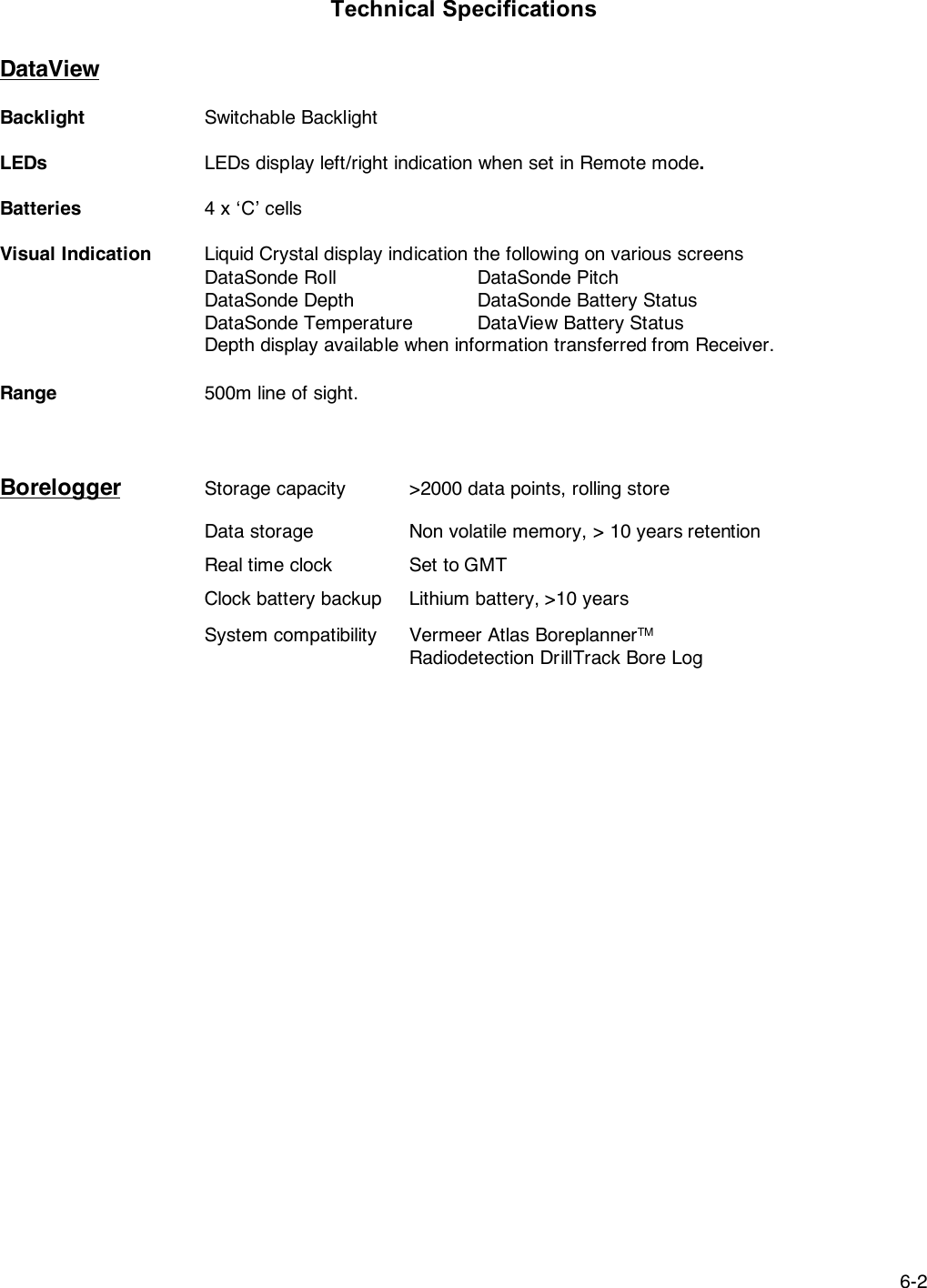

6-2Technical SpecificationsDataViewBacklight Switchable BacklightLEDs LEDs display left/right indication when set in Remote mode.Batteries 4 x ‘C’ cellsVisual Indication Liquid Crystal display indication the following on various screensDataSonde Roll DataSonde PitchDataSonde Depth DataSonde Battery StatusDataSonde Temperature DataView Battery StatusDepth display available when information transferred from Receiver.Range 500m line of sight.Borelogger Storage capacity >2000 data points, rolling storeData storage Non volatile memory, > 10 years retentionReal time clock Set to GMTClock battery backup Lithium battery, >10 yearsSystem compatibility Vermeer Atlas BoreplannerTMRadiodetection DrillTrack Bore Log

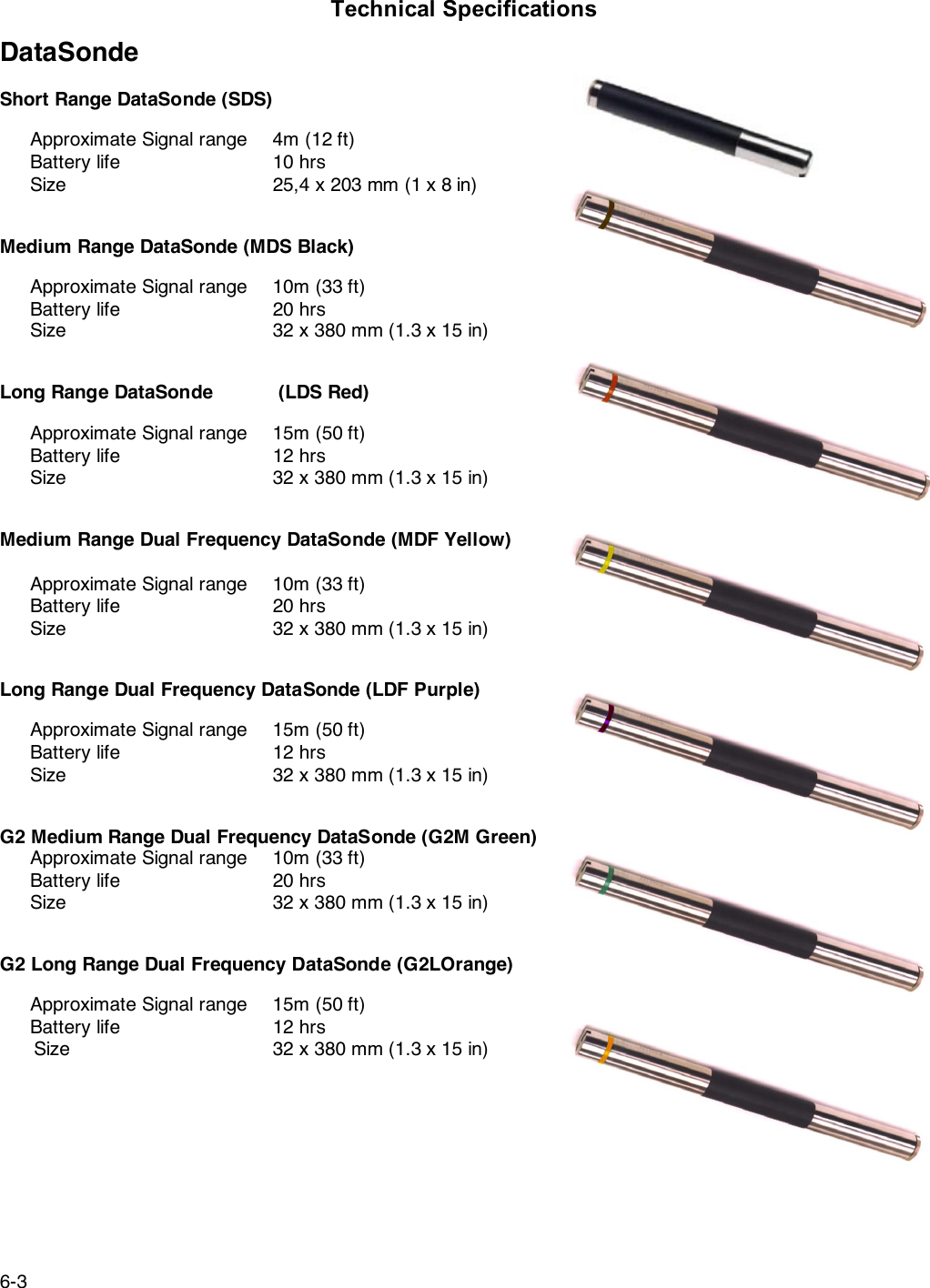

6-3Technical SpecificationsDataSondeShort Range DataSonde (SDS)Approximate Signal range 4m (12 ft)Battery life 10 hrsSize 25,4 x 203 mm (1 x 8 in)Medium Range DataSonde (MDS Black)Approximate Signal range 10m (33 ft)Battery life 20 hrsSize 32 x 380 mm (1.3 x 15 in)Long Range DataSonde (LDS Red)Approximate Signal range 15m (50 ft)Battery life 12 hrsSize 32 x 380 mm (1.3 x 15 in)Medium Range Dual Frequency DataSonde (MDF Yellow)Approximate Signal range 10m (33 ft)Battery life 20 hrsSize 32 x 380 mm (1.3 x 15 in)Long Range Dual Frequency DataSonde (LDF Purple)Approximate Signal range 15m (50 ft)Battery life 12 hrsSize 32 x 380 mm (1.3 x 15 in)G2 Medium Range Dual Frequency DataSonde (G2M Green)Approximate Signal range 10m (33 ft)Battery life 20 hrsSize 32 x 380 mm (1.3 x 15 in)G2 Long Range Dual Frequency DataSonde (G2LOrange)Approximate Signal range 15m (50 ft)Battery life 12 hrsSize 32 x 380 mm (1.3 x 15 in)

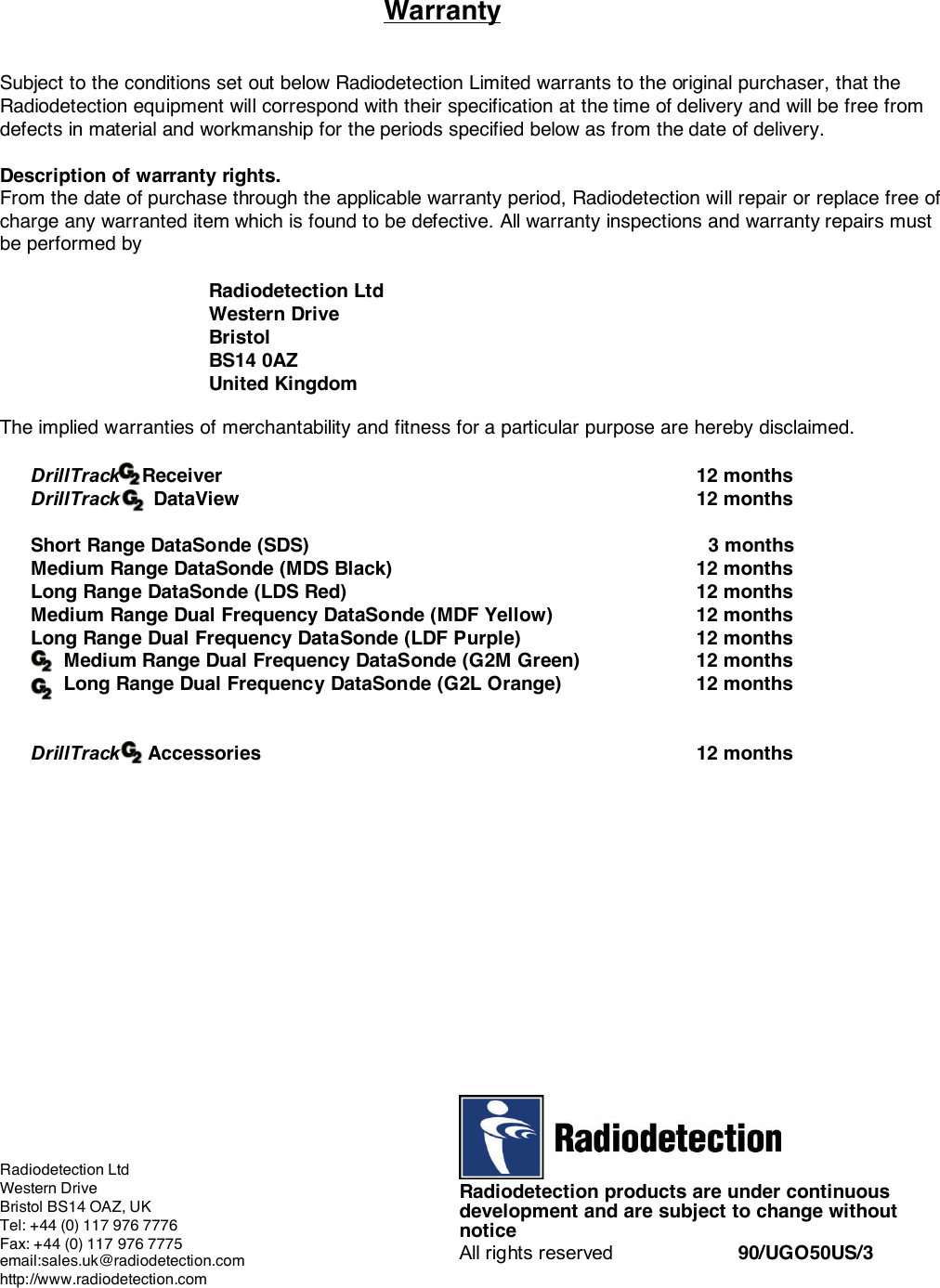

WarrantySubject to the conditions set out below Radiodetection Limited warrants to the original purchaser, that theRadiodetection equipment will correspond with their specification at the time of delivery and will be free fromdefects in material and workmanship for the periods specified below as from the date of delivery.Description of warranty rights.From the date of purchase through the applicable warranty period, Radiodetection will repair or replace free ofcharge any warranted item which is found to be defective. All warranty inspections and warranty repairs mustbe performed byRadiodetection LtdWestern DriveBristolBS14 0AZUnited KingdomThe implied warranties of merchantability and fitness for a particular purpose are hereby disclaimed.DrillTrack Receiver 12 monthsDrillTrack DataView 12 monthsShort Range DataSonde (SDS) 3 monthsMedium Range DataSonde (MDS Black) 12 monthsLong Range DataSonde (LDS Red) 12 monthsMedium Range Dual Frequency DataSonde (MDF Yellow) 12 monthsLong Range Dual Frequency DataSonde (LDF Purple) 12 months Medium Range Dual Frequency DataSonde (G2M Green) 12 months Long Range Dual Frequency DataSonde (G2L Orange) 12 monthsDrillTrack Accessories 12 monthsRadiodetection products are under continuousdevelopment and are subject to change withoutnoticeAll rights reserved 90/UGO50US/3Radiodetection LtdWestern DriveBristol BS14 OAZ, UKTel: +44 (0) 117 976 7776Fax: +44 (0) 117 976 7775email:sales.uk@radiodetection.comhttp://www.radiodetection.com

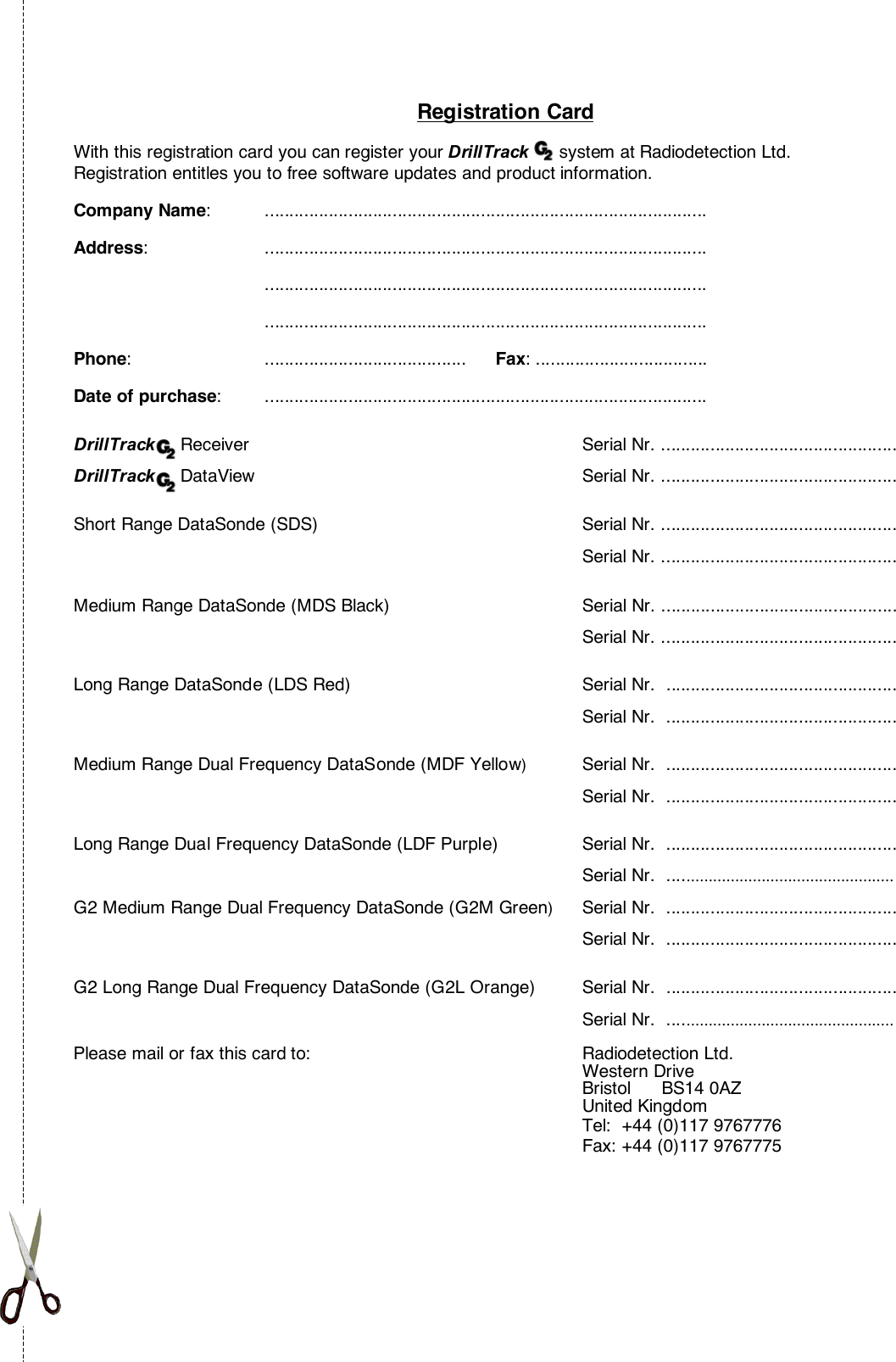

Registration CardWith this registration card you can register your DrillTrack system at Radiodetection Ltd.Registration entitles you to free software updates and product information.Company Name: ..........................................................................................Address: ..............................................................................................................................................................................................................................................................................Phone: ......................................... Fax: ...................................Date of purchase: ..........................................................................................DrillTrack Receiver Serial Nr. ................................................DrillTrack DataView Serial Nr. ................................................Short Range DataSonde (SDS) Serial Nr. ................................................Serial Nr. ................................................Medium Range DataSonde (MDS Black) Serial Nr. ................................................ Serial Nr. ................................................ Long Range DataSonde (LDS Red) Serial Nr. ............................................... Serial Nr. ............................................... Medium Range Dual Frequency DataSonde (MDF Yellow)Serial Nr. ............................................... Serial Nr. ............................................... Long Range Dual Frequency DataSonde (LDF Purple) Serial Nr. ............................................... Serial Nr. ................................................... G2 Medium Range Dual Frequency DataSonde (G2M Green)Serial Nr. ............................................... Serial Nr. ............................................... G2 Long Range Dual Frequency DataSonde (G2L Orange) Serial Nr. ............................................... Serial Nr. ...................................................Please mail or fax this card to: Radiodetection Ltd.Western DriveBristol BS14 0AZUnited KingdomTel: +44 (0)117 9767776Fax: +44 (0)117 9767775
