Radius Networks, Inc. Mini tent, Tall tent EMBC02 Data Sheet
Users Manual
![](/img.php?id=4089008&img=bg1.png)
RBT-007 firmware can be customized for individual
RBT-007 can be delivered in any quantity with guaranteed
General Description
is a Bluetooth Low-Energy proximity beacon
with integrated accelerometer for attachment to objects
that move. advertises ID data that is
compatible with common beacon standards (UUID, Major
ID, and Minor
ID), ONLY when an object is moving, or ONLY after an
object has fallen. There is also a mode to display
accelerometer data and gesture counts.
Similar to is part of the coin-cell family of
beacons which come in a small, weatherproof enclosure,
using a standard coin-cell battery, or as a PCB panel. A
push-button with LED feedback allows the user to select
the right operating mode for their deployment.
operating modes offer tradeoffs between
different functional modes.
EMBC02 is shipped pre-programmed with several
operating modes:
xSleep Mode with over 7 years of shelf life typical
xSensor Mode offers 1s beacon interval, 60m range
line-of-sight (LOS), and 4.5 months of battery life
typical while displaying raw accelerometer data and
a tap counter.
xMoving Mode offers 100ms beacon interval, 30m
range, and consumes an average of 275 µA when
beaconing and 6 µA while idling. The device only
beacons when movement is detected and one
minute after the device is still
xFall Mode offers 100ms beacon interval, 120m
range, and consumes an average of 350 µA when
beaconing and 13 µA while idling. The device only
beacons after a fall has occurred and 10 minutes
after the event
Any mode can be locked for final deployment
unique ID numbers. A unique serial number is printed on
the label and encoded in a QR code for optical scanning.
deployments with the Proximity Beacon Development Kit.
Custom parameters include UID, power level, beacon
interval, state-machine, gesture alarm mode, gesture
threshold, and accelerometer data and settings. Gestures
include: any movement, no movement, taps, falls, and
shocks.
EMBC02 is FCC, IC, and CE certified, RoHS, Reach, and
halogen free compliant.
Features
xWeatherproof Enclosure
o IP-64 rating, -20C to +60C operating range
o Size: 30mm x 10mm disk; Weight: 7 grams
o Replaceable CR2032 3V Li battery
o Integrated push-button with LED indicators
o PCB-only format also available
xAccessories
o Wall-mount
o Key-fob
o Wrist-band
xSelectable ID Mode beaconing
o ID packet format includes:
x UUID, Major ID, and Minor ID
x Output power information
oSensor Mode: 60m LOS, 1s beacon interval, with
tap counter
oMoving Mode: 30m LOS, 100ms beacon interval,
1 minute broadcast period after movement is
detected
oFall Mode: 120m LOS, 100ms beacon interval, 10
minute broadcast period after a fall is detected
x Unique Identification
o UUID:
x 699EBC80-E1F3-11E3-9A0F-0CF3EE3BC012
oUnique Major and Minor IDs (serialized)
oUnique Serial Number
oSerial number, Major/Minor ID embedded in QR
Code for deployment
“EMBC Finder” Smart Device App
x iOS App available on App Store
o iPhone® 4S and above
o iPad® 3 and above (Mini, Air, etc.)
x Android App available on Google Play™
o 4.3 and newer devices
Applications
xInventory tracking
xElectronic Leash Applications
xActivity monitoring
RONGMAI

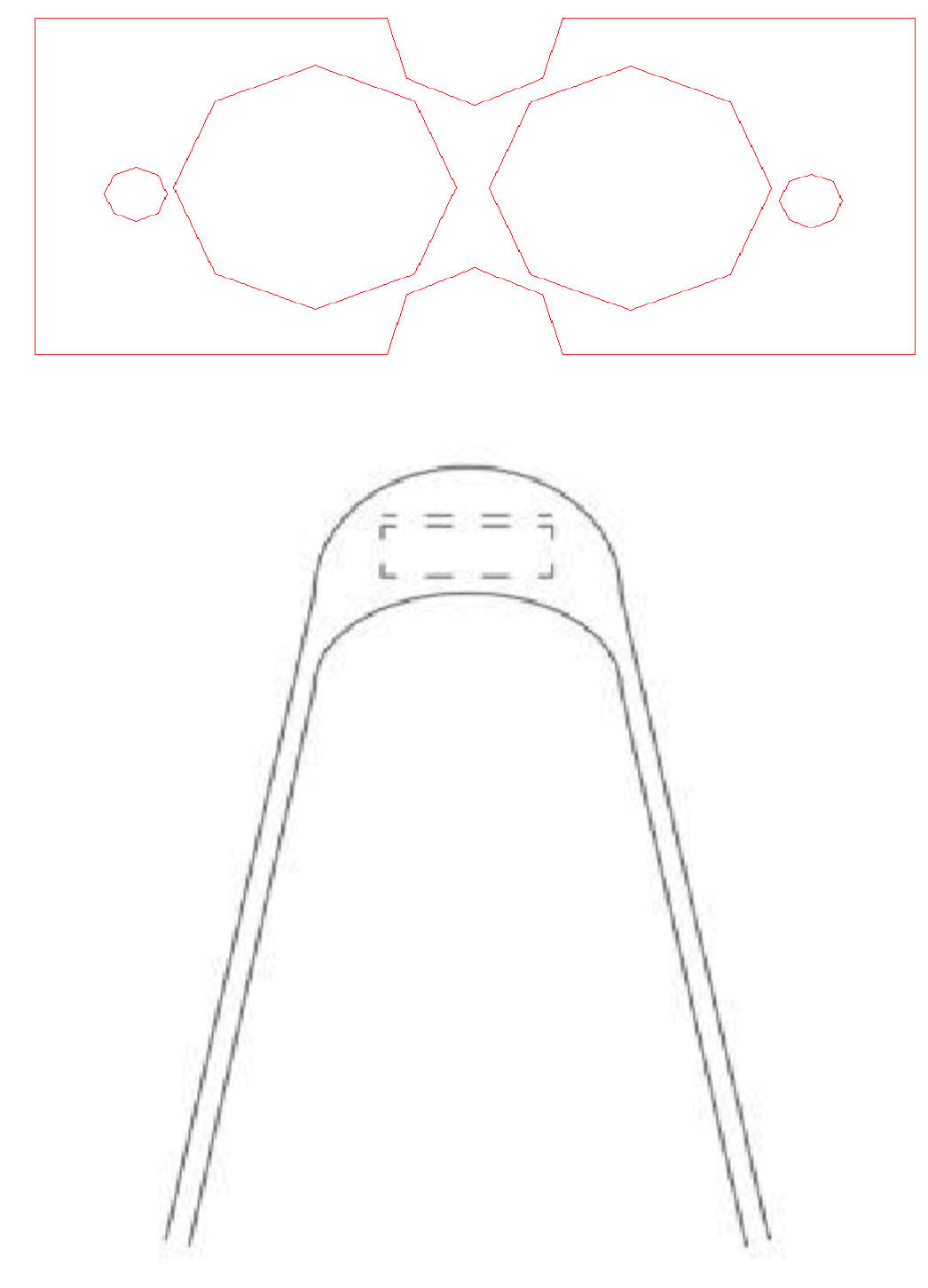

Tall Tent
RBT-007
RBT-007
RBT-007
RBT-007
RBT-007
![](/img.php?id=4089008&img=bg2.png)
FCC Information and Copyright
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment . This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
IC WARNING
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject
to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS)
d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux
deux conditions suivantes :
(1) Cet appareil ne doit pas causer d'interférences.
(2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles de
provoquer un fonctionnement indésirable de l'appareil.
