Chapter1:Introduction
1.1ScopeofThisDocument
ThisdocumentshowshowtoconfigureRADWIN5000radiosandsectors.Foradetailed
descriptionofhowtophysicallyinstallRADWIN5000radios,seetheRADWIN5000
InstallationManual.
ThisdocumentshowshowtoinstallRADWIN5000radios.
ForadetaileddescriptionofhowtoconfigureRADWIN5000radiosandsectors,seethe
RADWIN5000ConfigurationGuide.
1.2Notifications
NotificationsconsistofNotes,Cautions,andWarnings:
Caution:Riskofdamagetoequipmentorofservicedegradation
Warning:Riskofdangertopersonsoperatingneartheequipment
ThepurposeofaNoteisto:
Drawyourattentiontosomethingthatmaynotbeobvious
Emphasizeaspecialfeature
Provideadditionalbackground
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 12
RADWIN5000Overview Introduction
1.3RADWIN5000Overview
1.3.1Sector
TheRADWIN5000systemconsistsofa“sectorthatincludesabasestation,andatleastone
subscriberunit.Thesubscriberunitsareinstalledandworkoppositethebasestations.
Figure11:ARADWIN5000Sector
1.3.2BaseStation
Therearetwothreetypesofbasestations,allofwhichareHighCapacityBaseStations(HBS):
•LargeFormFactor(LFF)‐Withanintegratedorexternalantenna
Figure12:LFFbasestationwithinte
gratedantenna
Figure13:LFFbasestationconnector
izedforexternalantenna
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 13
SubscriberUnit Introduction
1.3.3SubscriberUnit
TherearetwotypesofRADWIN5000subscriberunits:
High Capacity Subscriber Unit (HSU)
SU PRO/AIR units
HighCapacitySubscriberUnit(HSU)
AnHSUcanhaveoneofthefollowingresourceallocations:
CIR‐CommittedInformationRate:receivesaguaranteedpercentageof
resources
BE‐BestEffort:receivesresourcesaccordingtoavailability
Inaddition,anHSUcanhaveoneofthefollowingformfactors:
• Beamforming(JET)‐Withanintegratedantenna
Figure14:RADWIN5000JET
• Beamforming(DUO)‐Withanintegratedantenna
Figure15:RADWINJETDUO
•LargeFormFactor(LFF)‐ItsexternalappearanceissimilartoaLargeFormFactor
HBS,andcanhaveanintegratedorexternalantenna.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 14
SubscriberUnit Introduction
SUPRO/AIRunits
SUPRO‐CanoperateusingtheCIRorBEresourcetype
Figure16:LFFsubscriberunitwith
integratedantenna
Figure17:LFFsubscriberunitconnec
torizedforexternalantenna
•SmallFormFactor(SFF)‐Asitsnameimplies,thisunitissmallerthananLFFunit,
butcanalsohaveanintegratedorexternalantenna.
Figure18:SFFsubscriberunitwith
integratedantenna
Figure19:SFFsubscriberstationcon
nectorizedforexternalantenna
SUAIR‐OperatesusingtheBEresourcetypeonly.
UsesasmallerformfactorthanthatoftheHBSorHSU.
Canuseanintegratedantenna,theTurboGainantennaoraseparate,noninte
grated,externalantenna.
Figure110:SUPRO/AIRunitFigure111:SUPRO/AIRunitwith
TurboGainantenna
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 15
MethodofWork Introduction
1.3.4MethodofWork
Boththebasestationsandthesubscriberunitscommunicaterespectively,withtheservice
providerandusersthroughPoEdevices.Thecommunicationprotocolforboththeservice
providerandtheusersisEthernet.
Seefigure 112,RADWIN5000ConnectionScheme:
APoEdevice(orIDUH1)isconnectedtopowerandthecommunicationsnetwork:
Onthebasestationside,thePoEisconnectedtothebackhaulnetwork
Onthesubscriberunitside,thePoEisconnectedtoenduserequipment:routers,
WiFidevices,etc.
TheRADWINJETDUOcanhavetrafficandmanagementviaeitheritsPoEport,or
itsSFPdataport,butmuststillreceivevoltageviaaPoE.
UsingCAT5ecables,theradiounitsareconnectedtopowerandthecommunications
networkviaaPoweroverEthernet(PoE)device.
TheradiounitsandPoEdevicesarealsoconnectedtoground.
TheBaseStationcommunicateswiththeSubscriberUnitorUnitsviatheairinterface.
Figure112:RADWIN5000ConnectionScheme
1. TheIDUHdoesnotsupportbeamformingradios:JETorDUO
Forsimplicity,LightningProtectionUnits(LPU)arenotshowninFigure 112,but
thesearerecommended.See“MountingtheLightningProtectionUnitsonpage
227fordirectionsonhowtoinstalltheLPUs.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 16
SectorManagementTools Introduction
1.3.5SectorManagementTools
WINTouch
WINTouchisamobileapplicationthatguidesyouininstallingandaligningSUPRO/AIR
devices,aswellasbasestationsthatworkwiththem.
RADWINWebInterface
TheWebInterfaceenablesyoutocarryoutbasicunitand/orsectormanagementfunctions
usingaWebbrowser.Itisaneasywaytorapidlyconfigureandsetupalink.
Itmaybeusedto‐
Setorchangebasicradiounitparametersinthefield
Establishasectoronaminimalbasis
Checklinkparametersandmakebasicchanges
ViewthelinkInventory
InspecttheRecentEventslogs
RADWINManager
TheRADWINManagerisanSNMPbasedmanagementapplicationwhichmanagesa
completesectoroverasingleIPaddress.
TheWebInterfacefortheSUPRO/AIRandforlegacyHBSandHSUradiosare
different.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 17
KeyFeaturesofRADWIN5000 Introduction
1.4KeyFeaturesofRADWIN5000
1.4.1General
»Ethernetconnectivity
»AdvancedOFDM&MIMO2x2fornLOSandNLOSperformance
»Enhancedinterferencemitigationcapability
»Inter&intrasitesynctoreduceselfinterference
»Multibandradios:Differentfrequenciesinthesameradiounit
»DedicatedBandwidthensuringSLA&latency
»Regulationssupported‐FCC/IC/ETSI/WPC/MII/Universal
»Upto64SubscriberUnitsperbasestation
»FullyintegratedwithRADWINLegacysolutions:
BasestationcancoexistwithRADWIN2000andWinLink1000products
CommonRADWINManager
»Nomadicsupport(standardinallbasestationmodels)
1.4.2BeamformingSolutions(optional)
RADWIN5000JETandRADWINJETDUO
»Smartbeamformingantenna,integratedindedicatedbasestation
»Ontheflybeamformingcapabilityreducesinterference,increasesefficiency
»Narrowbeam
»Supportforethernetbasedsynchronization
»IntegratedGPSsynchronizationcapability
RADWINJETDUO
»Dualbandplatformfor3.xand5.xGHzbands
Availableconfigurationoffersasinglebandselectiononly
Futureupgradeabletoconcurrentdualbands
»2x750Mbpswhenoperatedasadualbandsolution(softwareupgradeableby2018)
»UptoQAM256,2x80MHz
»Exceptionalinterferenceimmunitythrough2ndgen.beamformingantennawith
exceptionallysmallsidelobes
»Support64customers,upgradeableto2x64(softwareupgradeableby2018)
»Interfaces:Fiber(SFP)andGbE
1.5What’sNewinRelease4.9.30
»Newproduct:theRADWINJETDUOdualcarrierbasestation:abilitytoworkin
eitherthe3.xGHzbandor5.xGHzband,userconfigurable
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 18
What’sNewinRelease4.9.30 Introduction
Forcompleteandcomprehensivecharacteristicsofthespecificmodelyouare
workingwith,refertoitsDataSheet.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 21
Chapter2:InstallationSteps
Toinstallandestablishabasicconnectionwitharadiounit,carryoutthestepsshownbelow.
Printoutthislist,andplaceacheckmarknexttoacompletedtask.
Table21:InstallationCheckList
Step Action Page Done?
Beforedeployingatinstallationsite
1. PrepareLaptop page 22
2. ConnectLaptoptoRadioUnit page 22
3. UpdateConnectivityParametersofRadioUnit page 25
4. Checkitemstobeinstalled page 27
5. PrepareTools page 27
Installation
6. InstallStandardMountingKit page 28
7. InstallMountingKitfortheSUPRO/AIRRadioUnit page 215
8. MountingaUnitwiththeStandardMountingKit page 217
9. GroundRadioUnit page 222
10. MountingtheSUPRO/AIRRadioUnit page 225
11. MountingtheLightningProtectionUnits page 227
12. ConnectExternalAntenna(ifapplicable) page 230
13. Waterproofing page 232
Commissioning
14. ConnectRadio(ExternalConnections) page 233
15. CheckConnectivitytoRadio page 239
16. ActivateBaseStation page 239
17. AlignSubscriberUnit page 240
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 22
PrepareLaptop InstallationSteps
2.1PrepareLaptop
ConfigureIPaddressandsubnetmaskoflaptopasfollows:
ControlPanel‐>NetworkandInternet‐>NetworkandSharingCenter‐>Change
Adaptersettings‐>clickonNetworkInterfaceCardname
Properties‐>SelectInternetProtocolVersion4(TCP/IPv4)‐>Properties‐>setIPaddress
to10.0.0.100andSubnetmaskto255.255.0
2.2ConnectLaptoptoRadioUnit
ConnectPoEtopower,connectthelaptop’sethernetporttotheIN(orLAN)socketonthe
PoE,thenconnecttheOUT(orPoE)socketonthePoEtotheappropriatesocketontheradio
unit.MakesureyouareusingtheappropriatePoEforyourspecificradiounit.
Figure21:Connectinglaptoptoaradiounit
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 23
RADWIN5000(LFFandSFF)Units InstallationSteps
2.2.1RADWIN5000(LFFandSFF)Units

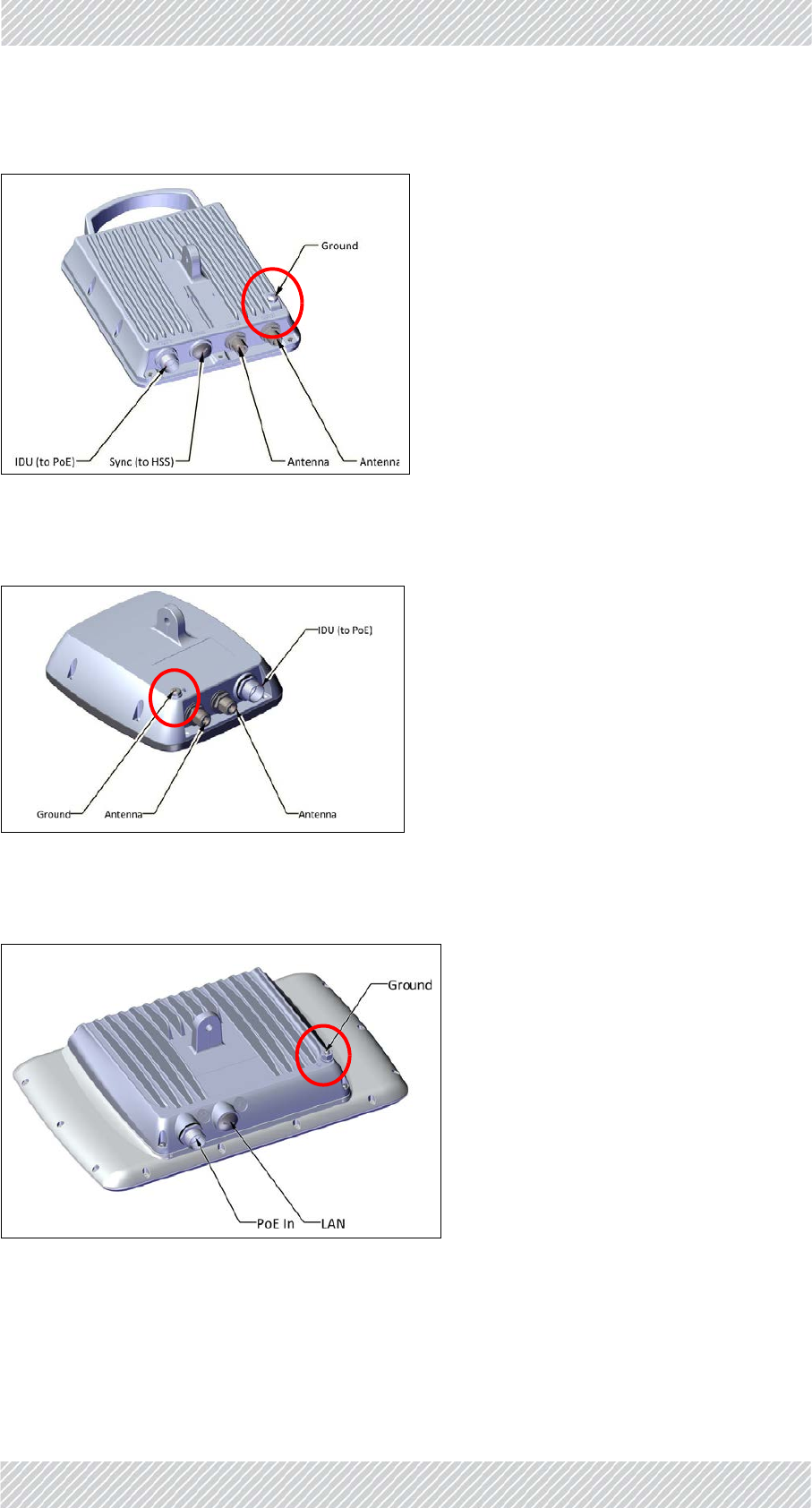

Connecttosocketlabeled‐>IDU”

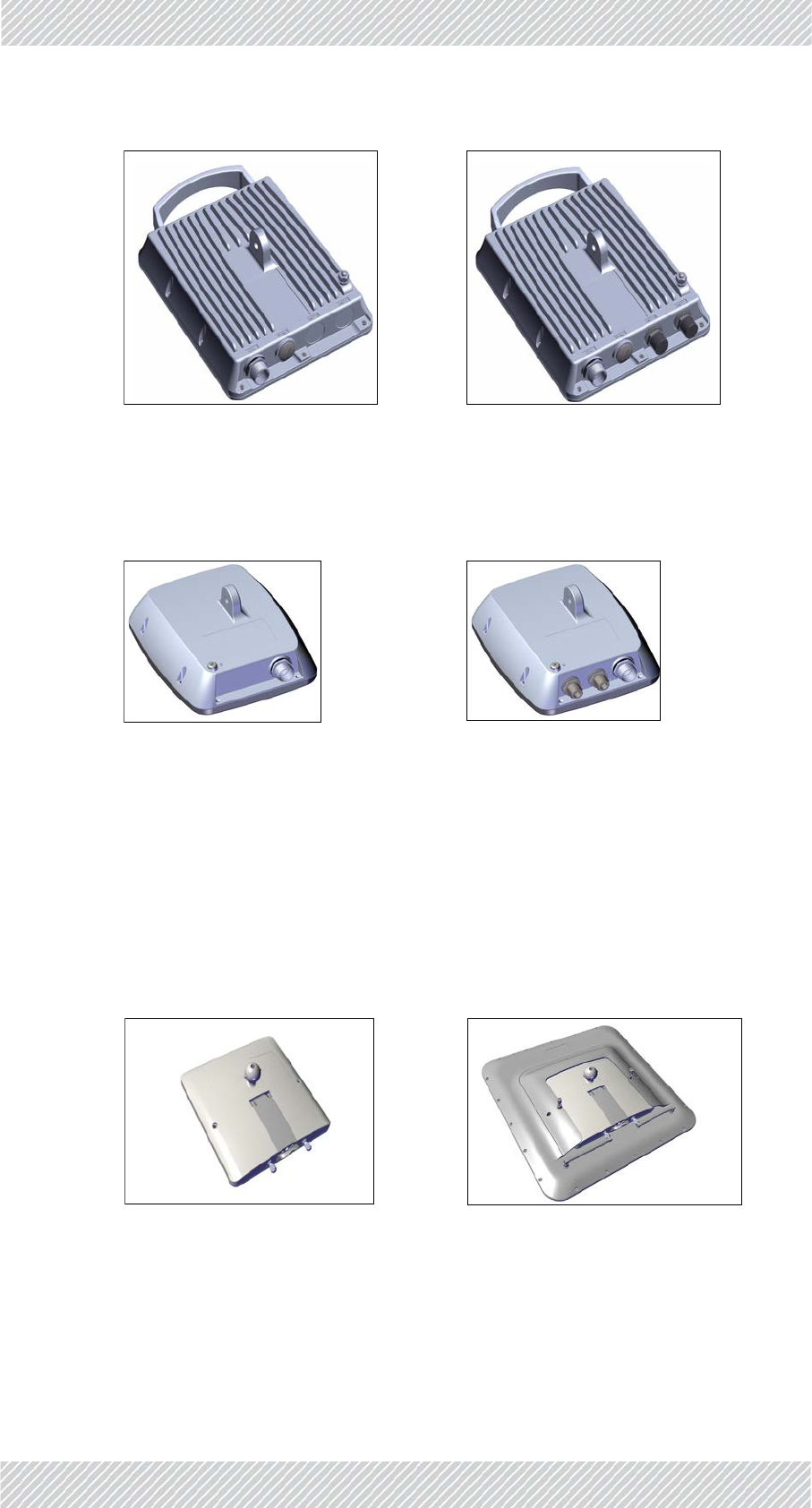

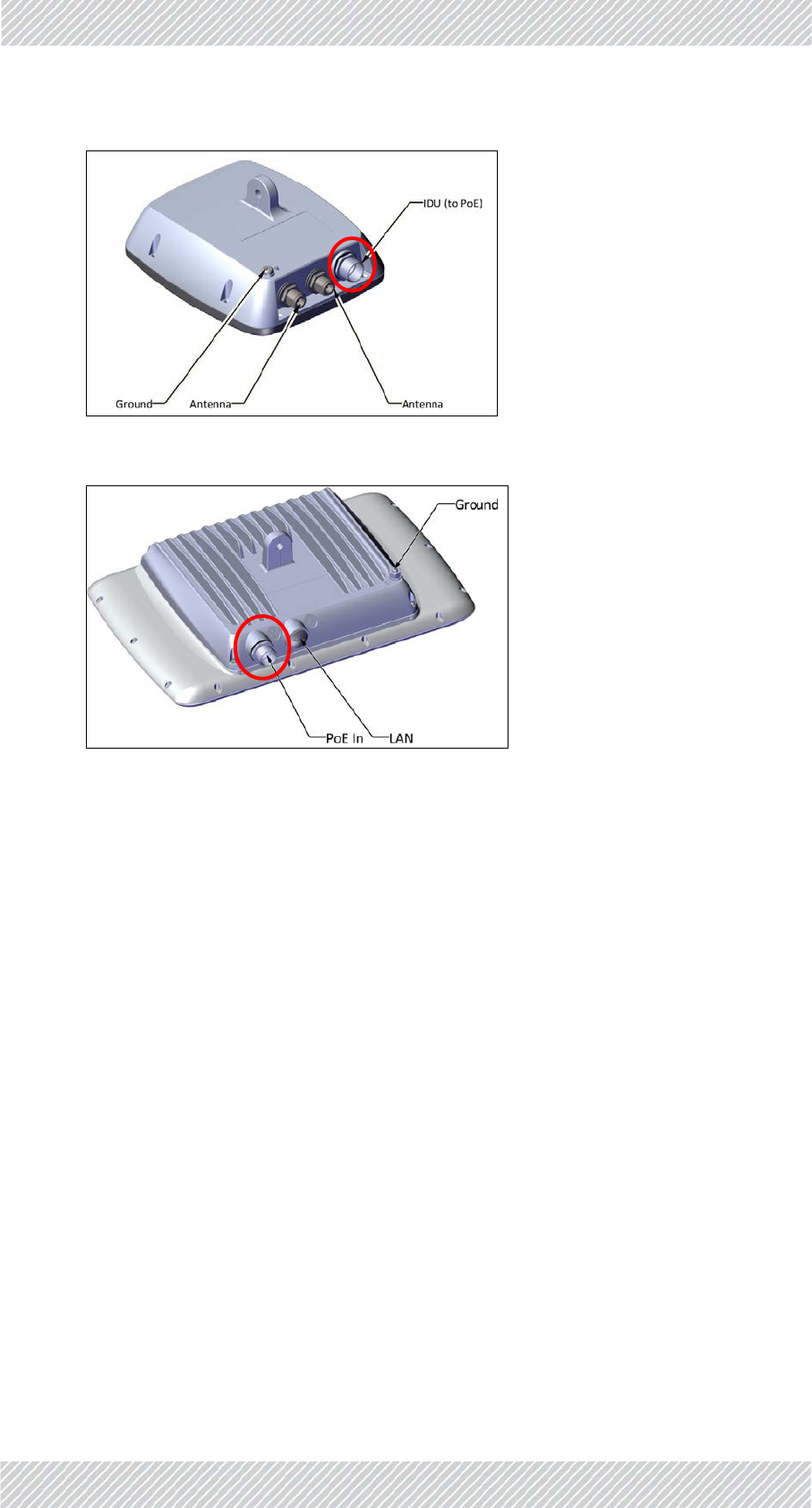

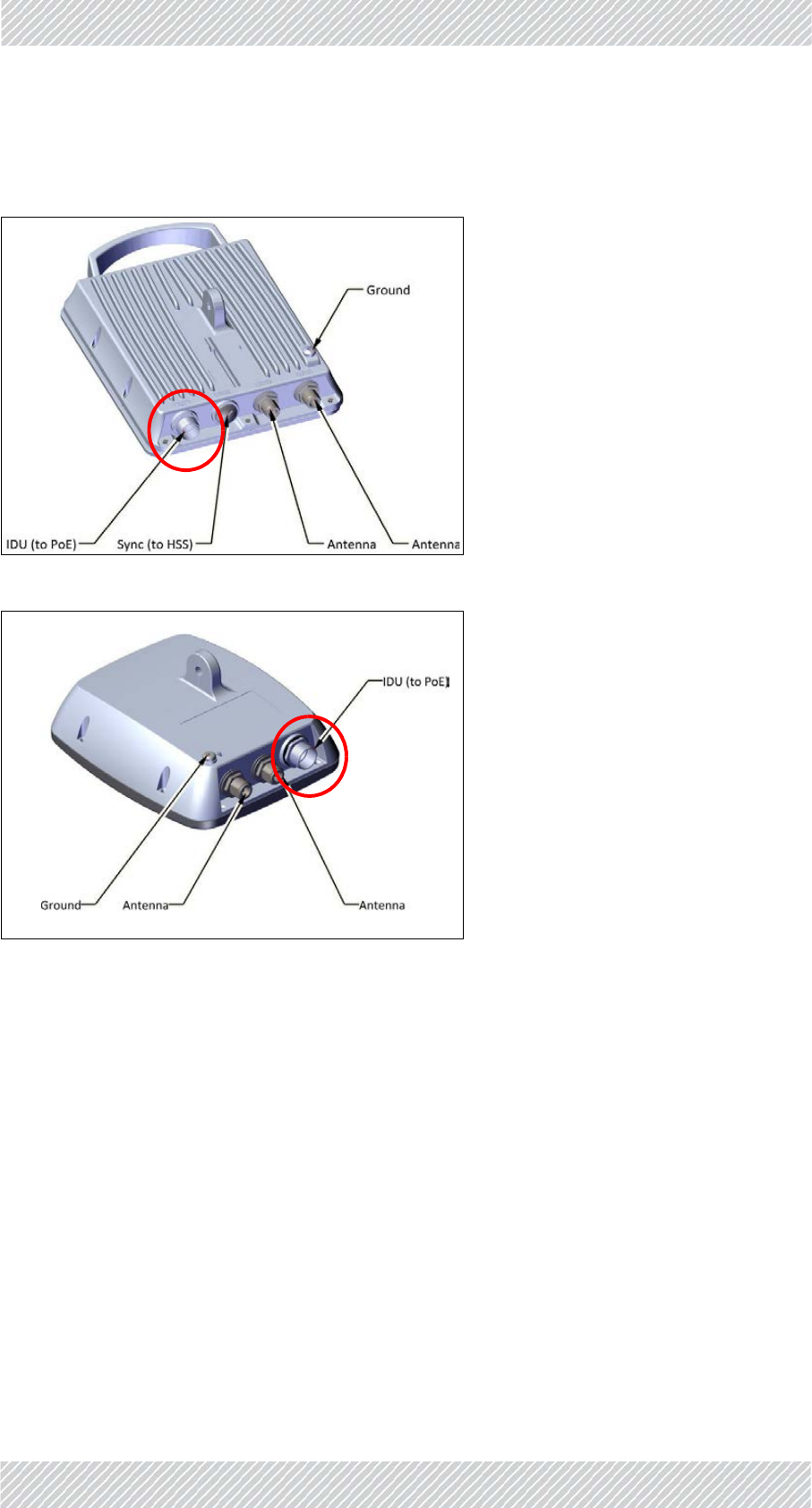

Figure22:Laptop/networkport:LFFradiounit(connectorizedunitshown)
Figure23:Laptop/networkport:SFFradiounit(connectorizedunitshown)
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 24
JETandDUOUnits InstallationSteps
2.2.2JETandDUOUnits

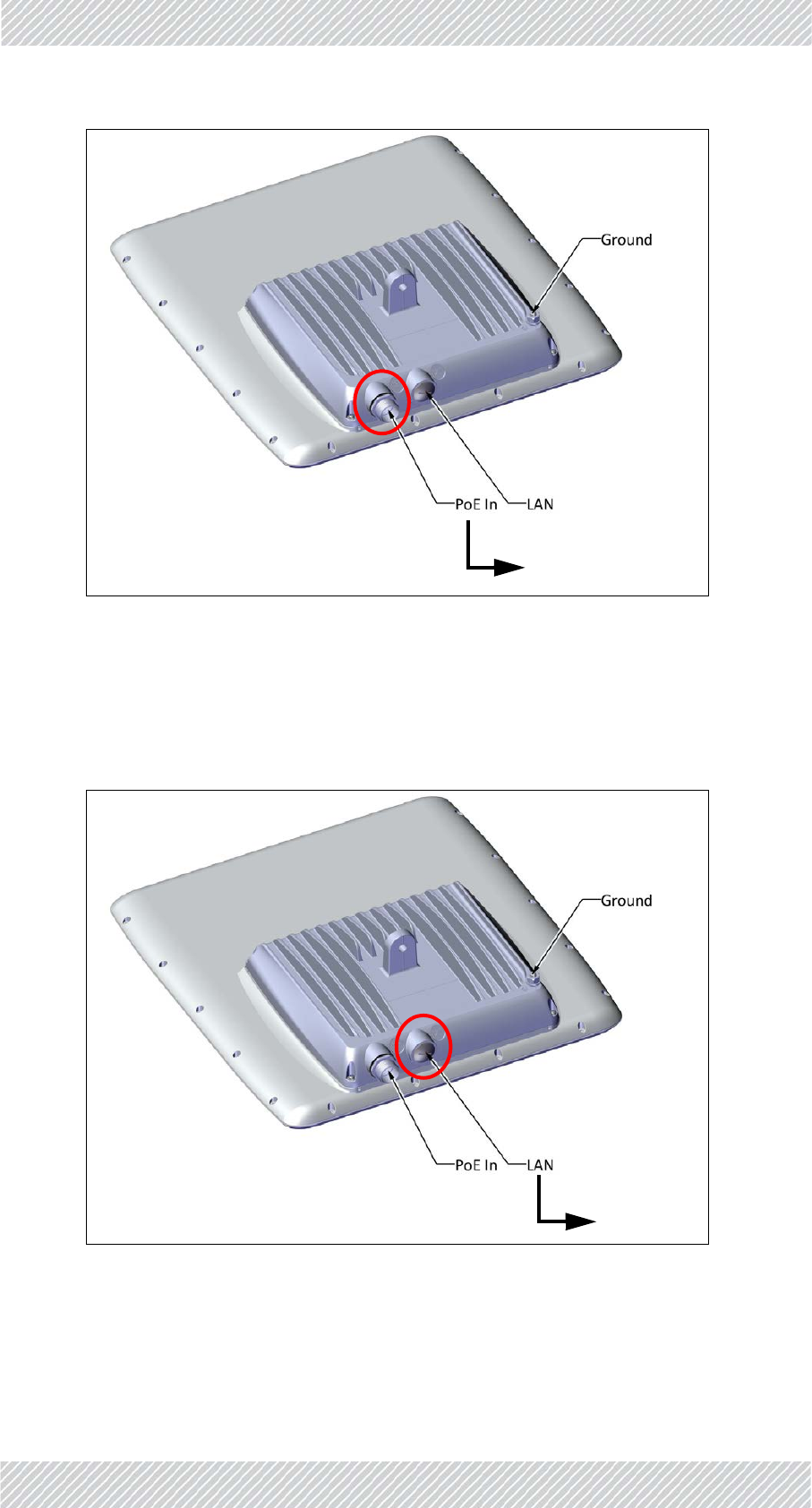

Connecttosocketlabeled‐>PoEIn”
Figure24:Laptop/networkport:JETradiounit
Figure25:Laptop/networkport:DUOradiounit
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 25
SUPRO/AIRUnits InstallationSteps
2.2.3SUPRO/AIRUnits
Connectto‐>Inputsocket(notlabeled)
Figure26:Laptop/networkport:SUPRO/AIRradiounit
2.3UpdateConnectivityParametersofRadio
Unit
1. Inaninternetbrowser,enterhttp://10.0.0.120
2. EnterUserNameadminandPasswordnetman.
3. ClickLogIn.
4. Continueaccordingtothetypeofradiounityouareusing:
2.3.1HSU:RADWIN5000(LFForSFFradiounits)
a. ClickConfig.
b. ClickManagement.
c. EnternewIPAddress,SubnetMask,andDefaultGateway.
d. ClickSaveandexitbrowser.
e. Fromacommandline,pingradiounitusingnewIPaddresstoverifychange.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 26
HBS:RADWIN5000,JET,orDUOradiounits InstallationSteps
2.3.2HBS:RADWIN5000,JET,orDUOradiounits
a. InstalltheRADWINManagerapplicationfrom:http://www.radwin.com/
download,orusetheQRcode:
b. LogontotheRADWINManageras
an“Installerandenterthedefault
IPaddress(http://10.0.0.120)and
password:wireless.
c. FromtheRADWINManager,click
Activate,andfollowtheinstructionsin
thewizard.
d. Duringthecourseofthewizard,enterthe
newmanagementIPAddress,Subnet
Mask,andDefaultGateway,SectorID,
operatingchannel,andchannel
bandwidth.
e. Fromacommandline,pingradiounitusingnewIPaddresstoverifychange.
f. Onceyouarefinishedwiththestepsabove,disconnecttheradiounitandprepareit
fordeploymentinthefield.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 27
SUPRO/AIRUnits InstallationSteps
2.3.3SUPRO/AIRUnits
a. ClickConfigure
b. ClickNetwork
c. EnternewIPAddress,SubnetMask,andDefaultGateway.
d. ClickApplyAllandexitbrowser.
e. Fromacommandline,pingradiounitusingnewIPaddresstoverifychange.
f. Onceyouarefinishedwiththestepsabove,disconnecttheradiounitandprepareit
fordeploymentinthefield.
2.4Checkitemstobeinstalled
Radiounit+mountingkit
2LPUsforeachradio(recommended)
PoE(ifoutdoor,requiresmountingkit)
CAT5ecables
Groundingcables(10AWG)forradiounit,LPUsandoutdoorPoE(ifused)
Externalantenna+mountingkit(ifusinganexternalantennaforLFForSFFunits)
RFcables(ifusinganexternalantennaforLFForSFFunits)
TurboGainantenna(ifusingthisantennafortheSUPRO/AIRunit)
2.5PrepareTools
Crimpingtool
Spanner/wrench13mm(1/2”)
Cableties
Sealingmaterial
Waterproofingtape(likeScotch23)

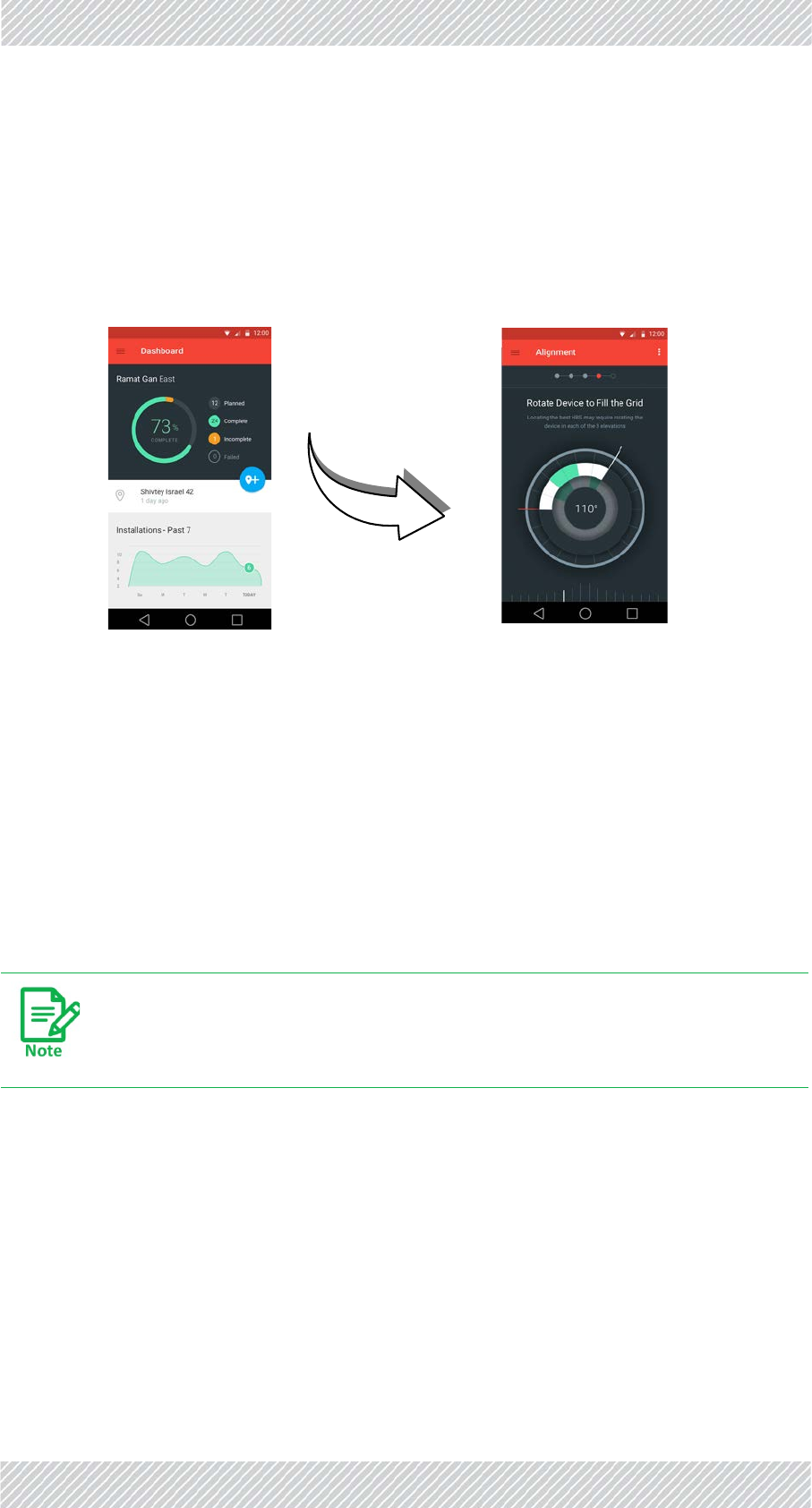

Alternatively,youcanusetheWINTouchsmartphoneapplicationtochangetheIP
address.LogontoWINTouchandfollowtheinstructions.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 28
InstallStandardMountingKit InstallationSteps
2.6InstallStandardMountingKit
2.6.1StandardMountingKit
Usethestandardmountingkitfor:
LFF(largeformfactor)radiounits
SFF(smallformfactor)radiounits
JETradiounits
DUOradiounits
ExternalPoEs
RADWINGSUs
Externalantennas(withmountingkitadaptor)
TheSUPRO/AIRhasitsownmountingkit:seeInstallMountingKitfortheSUPRO/AIRRadio
Unitonpage 215.

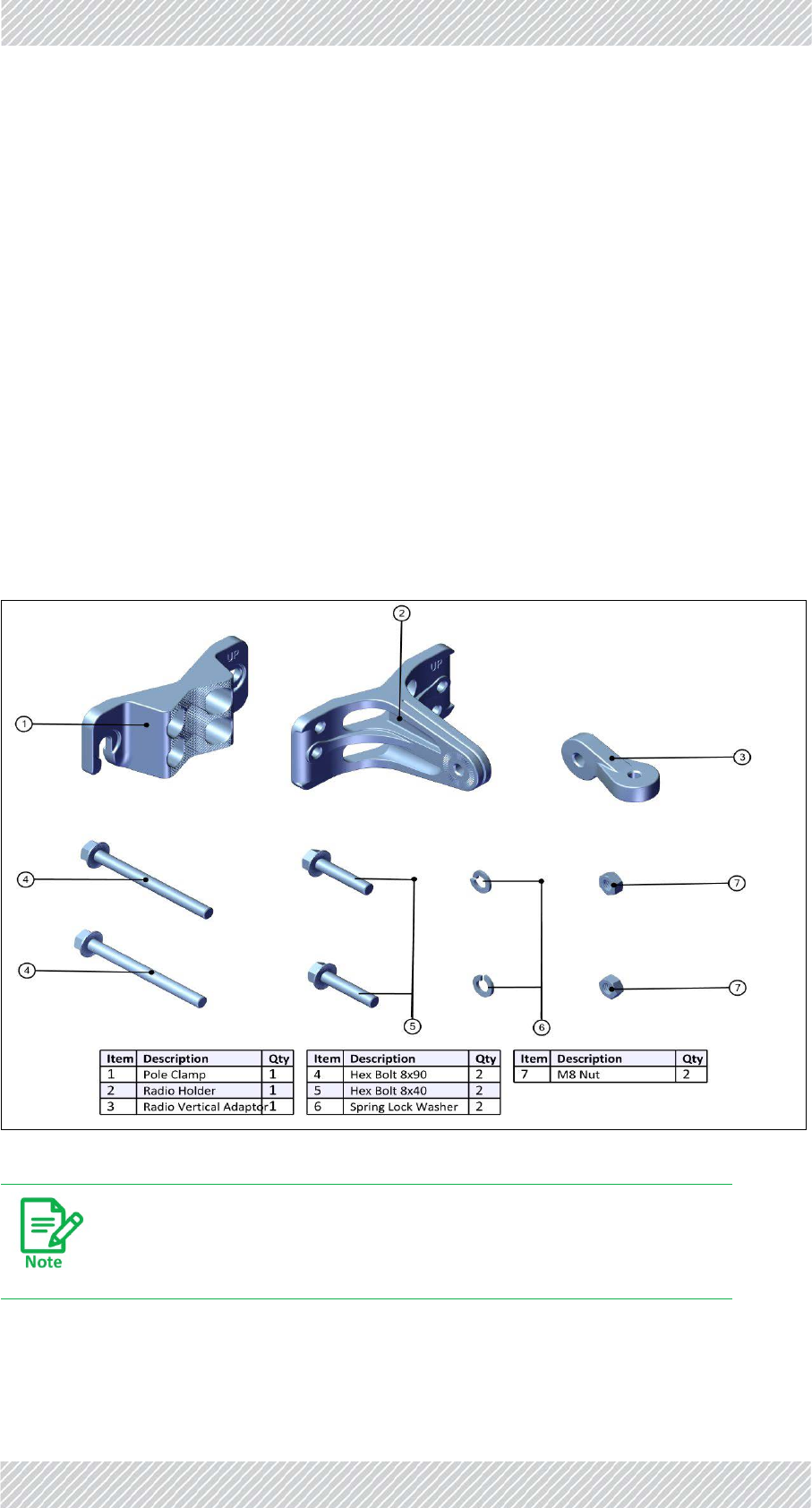

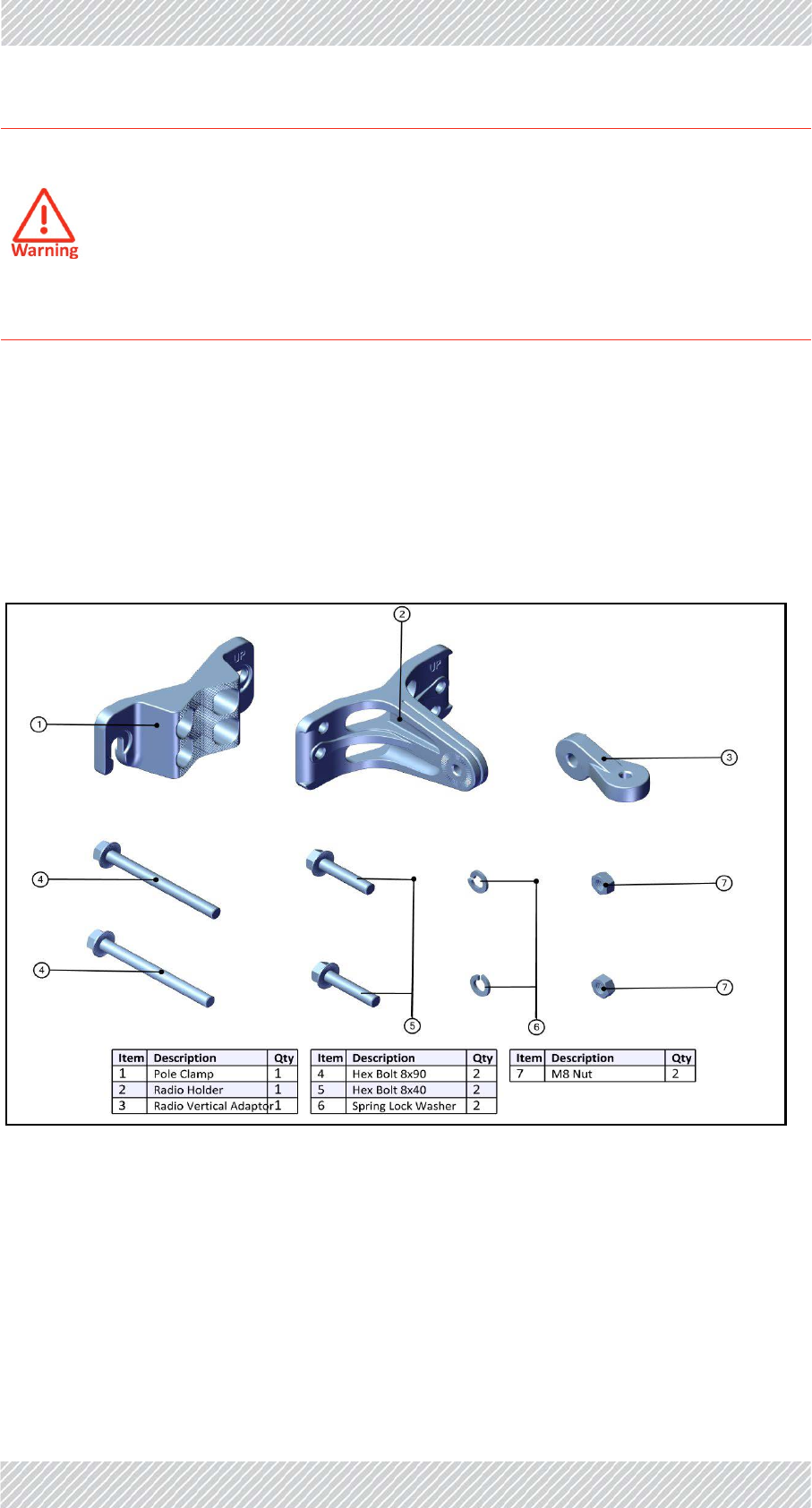

Figure27:MountingKitContents
Tightenallboltswithatorqueof15Nm.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 29
VerticalPole InstallationSteps
Themountingkitcanbeusedonaverticalorhorizontalpoleoronawall:
2.6.2VerticalPole

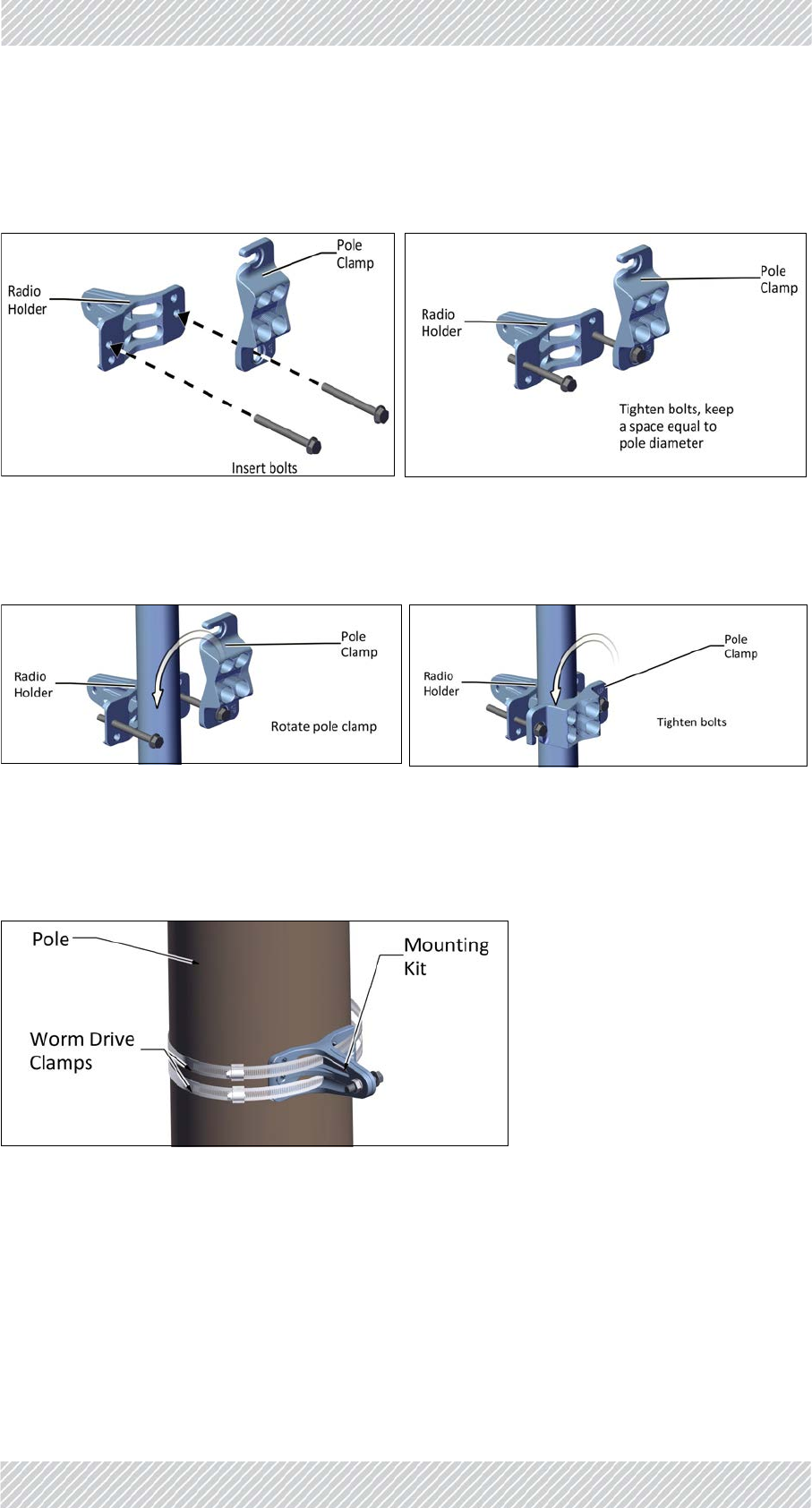

Themountingkitcanbeusedonathin,medium,orthickpole.
ThinPole
1. Diameter3/4to11/2:Positionthepoleclampasshowninthefollowingfigures.
Donottightentheboltsalltheway.
2. Placethis“unitonthepolewhereyouwanttomountthedevice.Onceitisin
place,rotatethepoleclampasshown,thentightenbothbolts.
VerticalPolepage 29
HorizontalPole page 212
Wall page 214
ThinPole Dia.3/4‐11/2 page 29
MediumPole Dia.2‐3page 210
ThickPole Dia.>3page 210
Figure28:ConnectPoleClamptoRadio
Holder
Figure29:Partiallytightenbolts
Figure210:RotateClampandtightenbolts Figure211:Completelytightenbolts
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 210
VerticalPole InstallationSteps
MediumPole
1. Diameter2to3:Positionthepoleclampasshowninthefollowingfigures.Donottighten
theboltsalltheway.
2. Placethis“unitonthepolewhereyouwanttomountthedevice.Onceitisin
place,rotatethepoleclampasshown,thentightenbothbolts.
ThickPole
1. Diameterlargerthan3:Usewormdriveclamps(notsupplied),threadedthroughtheholes
asshown:
Figure216:Mountingkitonathickpole
Thepoleclampisnotneeded.
Figure212:ConnectPoleClamptoRadio
Holder
Figure213:Tightenbolts
Figure214:RotateClamp Figure215:Completelytightenbolts
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 211
VerticalPole InstallationSteps
JETandDUORadioUnits

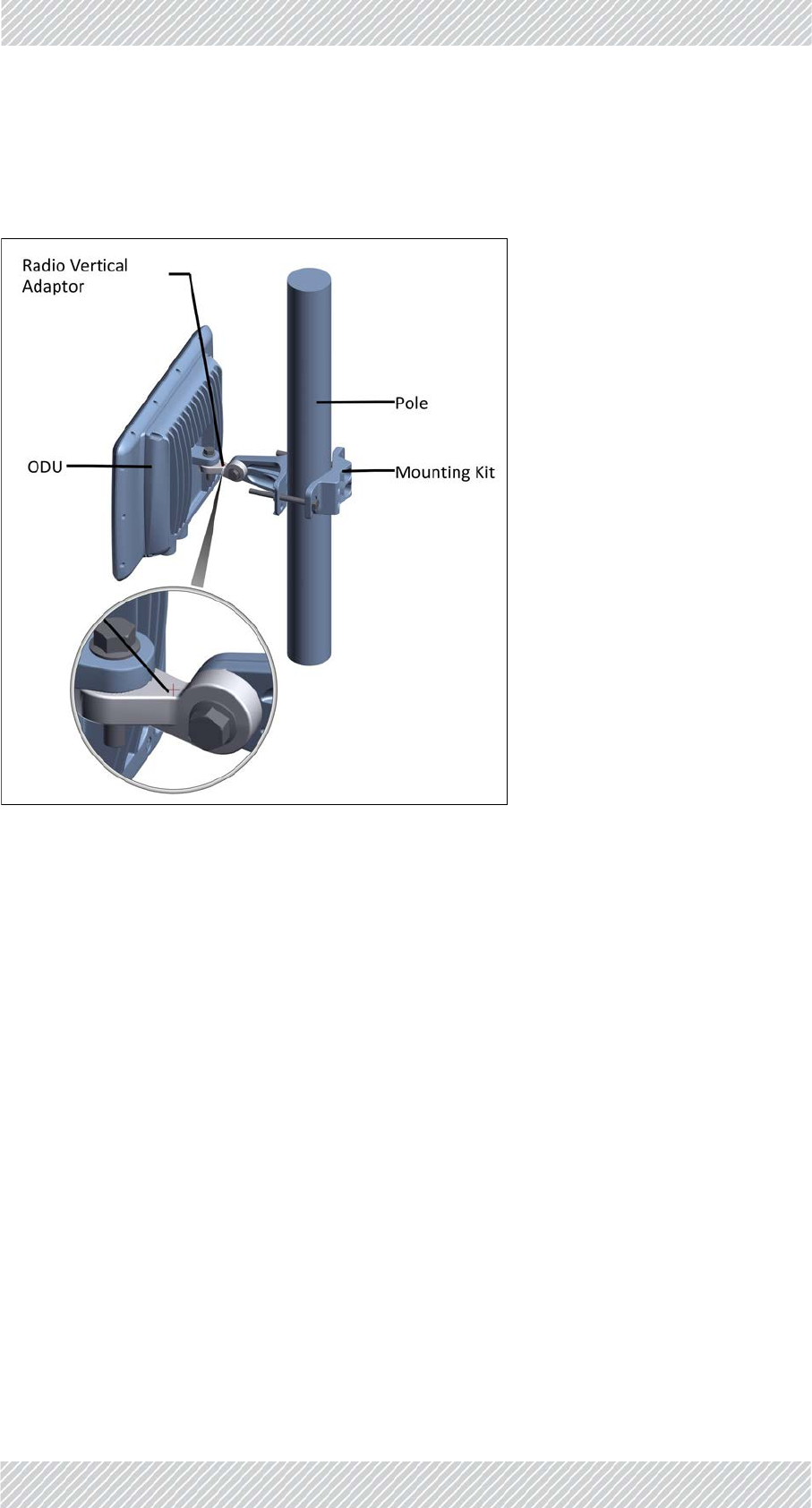

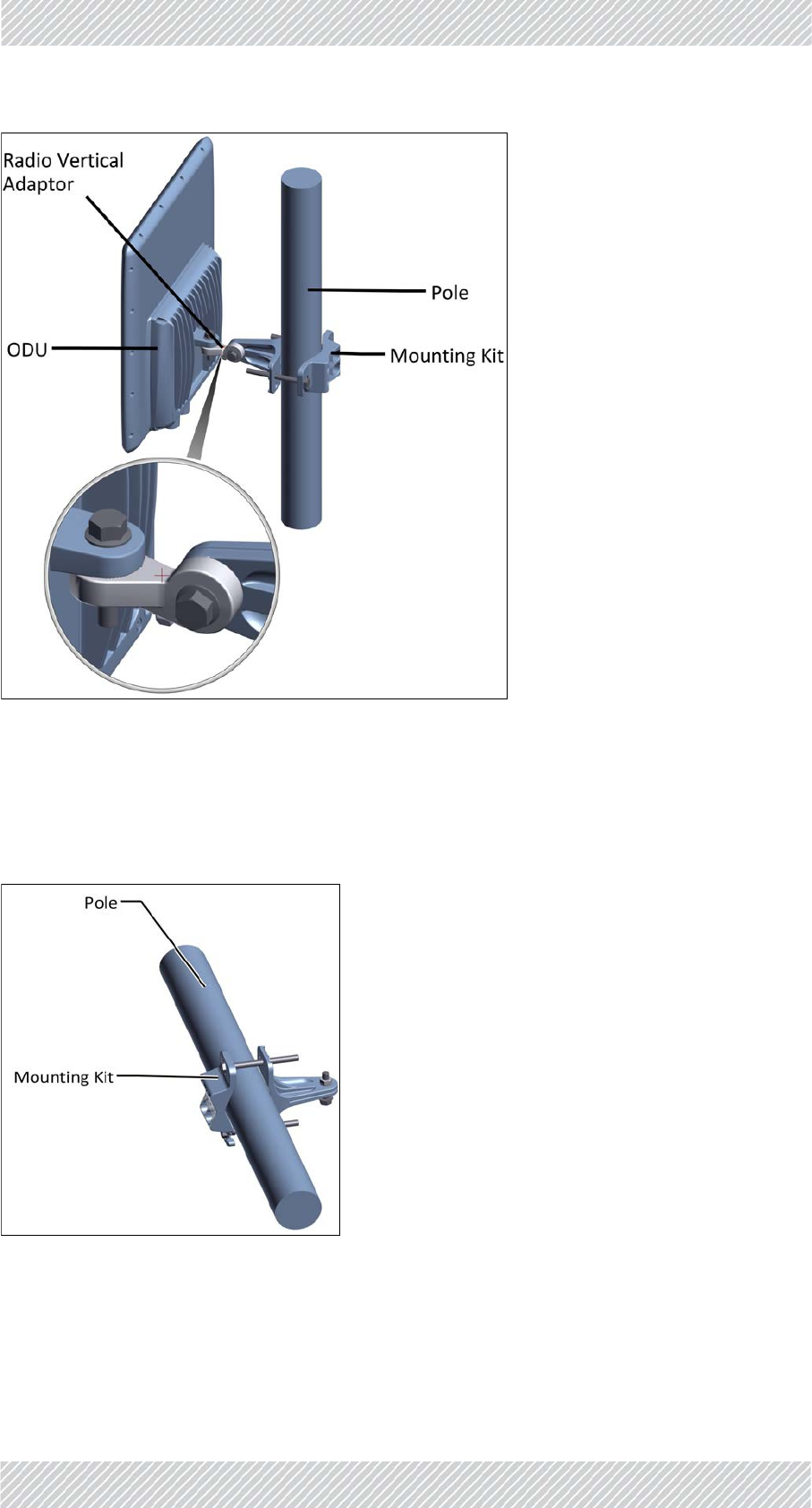

WhenmountingaJETorDUOradiounitonaverticalpole,usetheradioverticaladaptoras
shown:

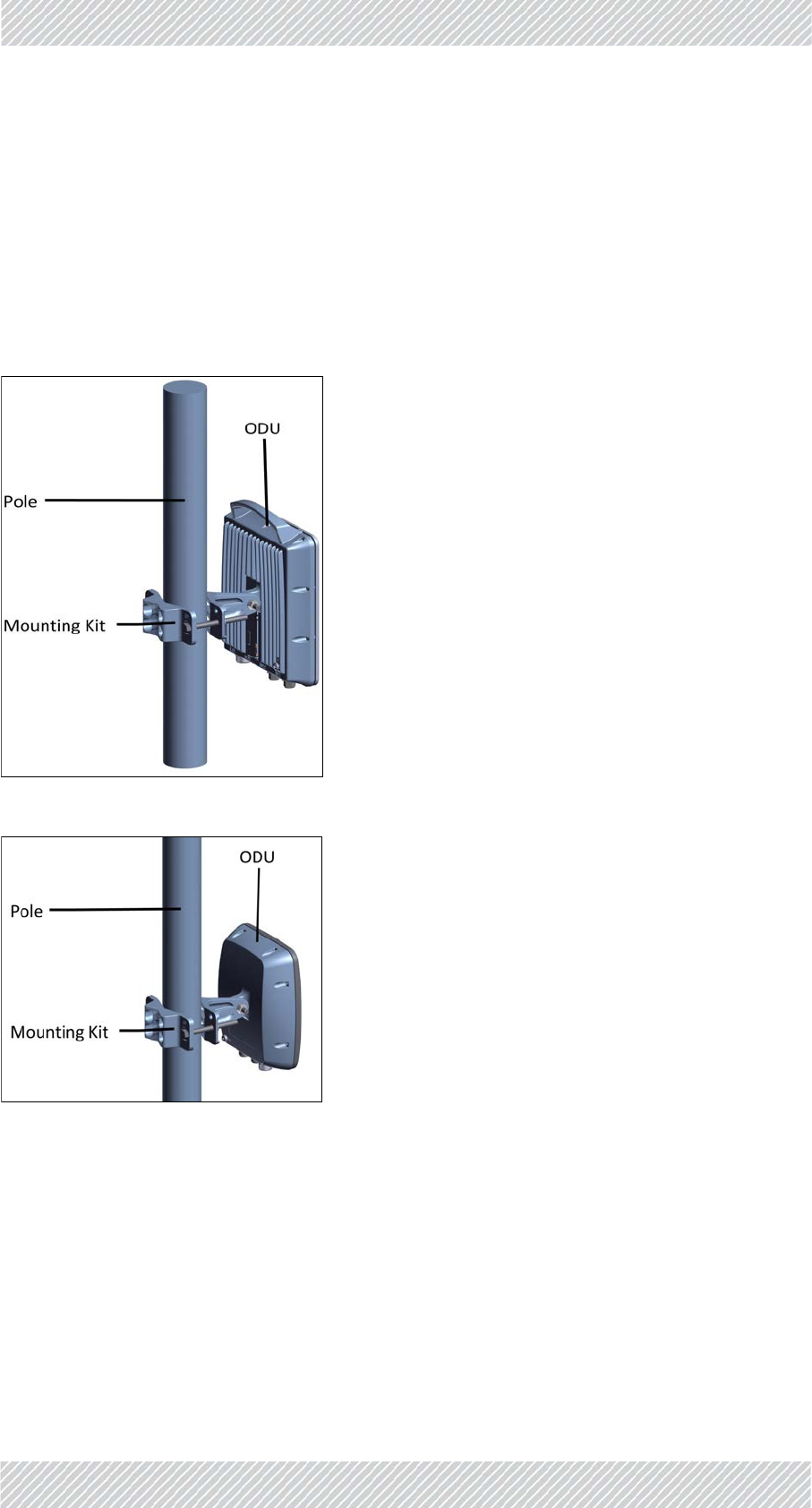

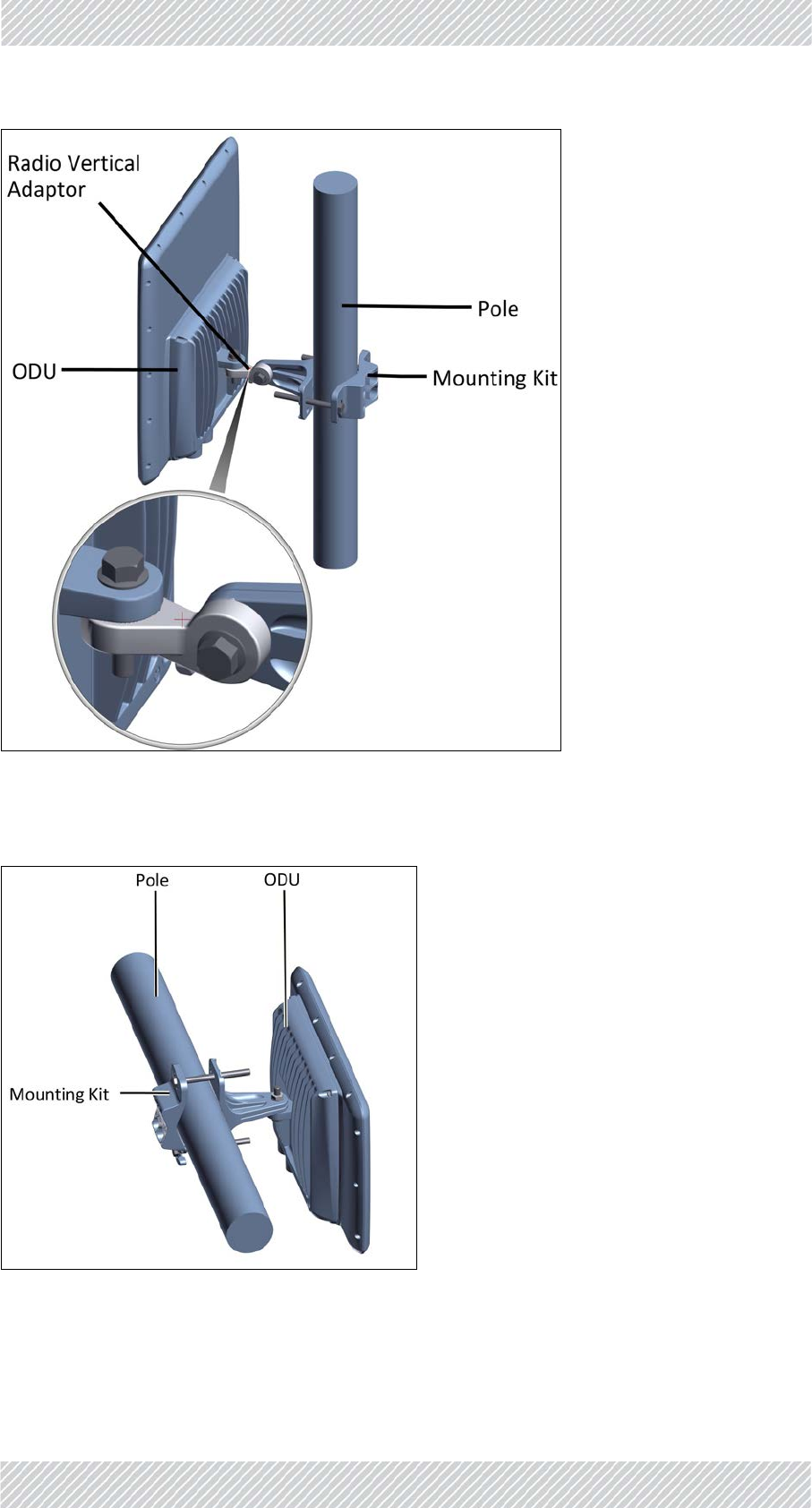

Figure217:JETradiounitmountedonaverticalpole
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 212
HorizontalPole InstallationSteps
Figure218:DUOradiounitmountedonaverticalpole
2.6.3HorizontalPole

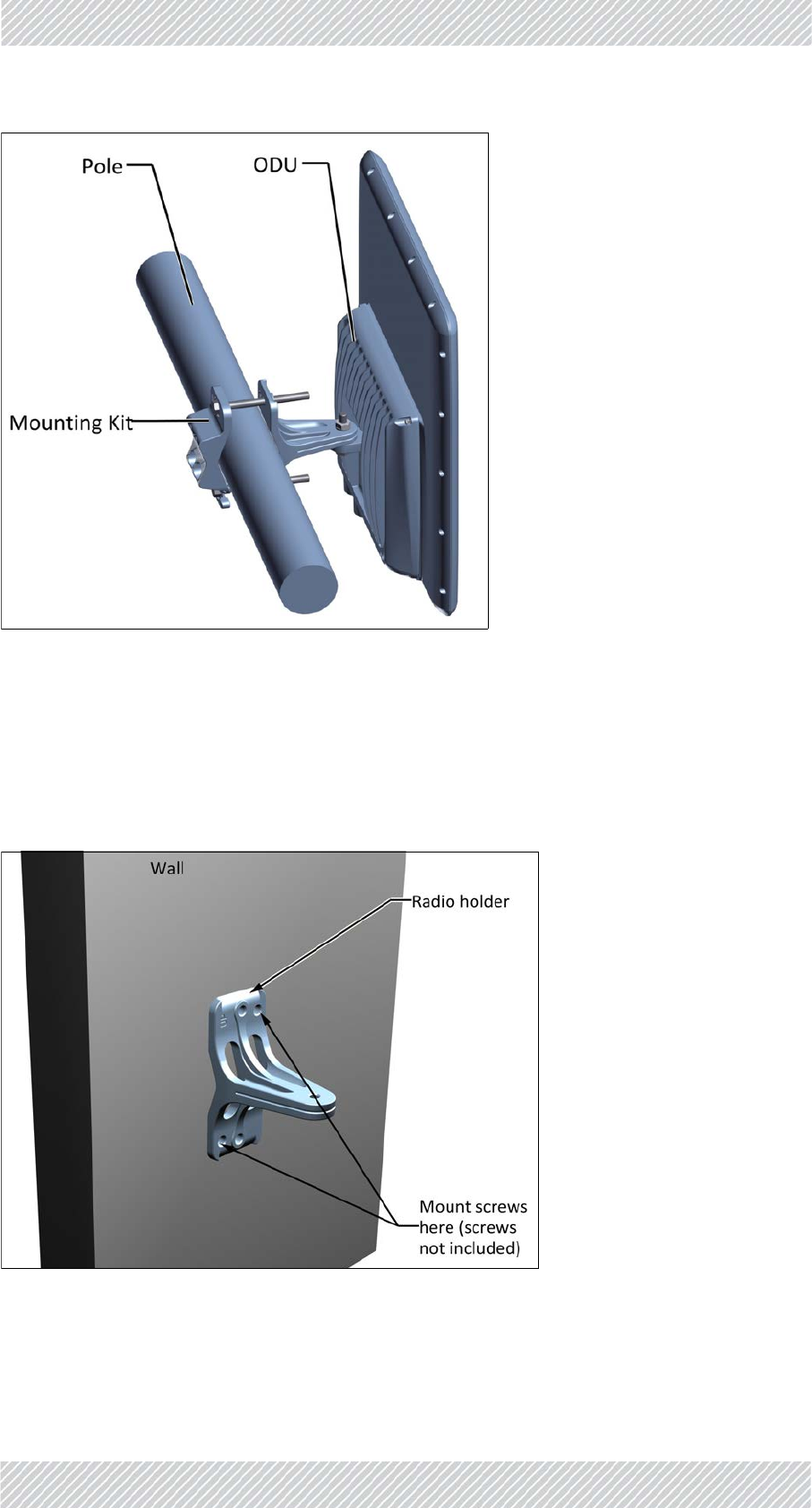

Installingthemountingkitonahorizontalpoleisdoneinasimilarmannertothatona
verticalpole(thin,medium,orthicksizes):

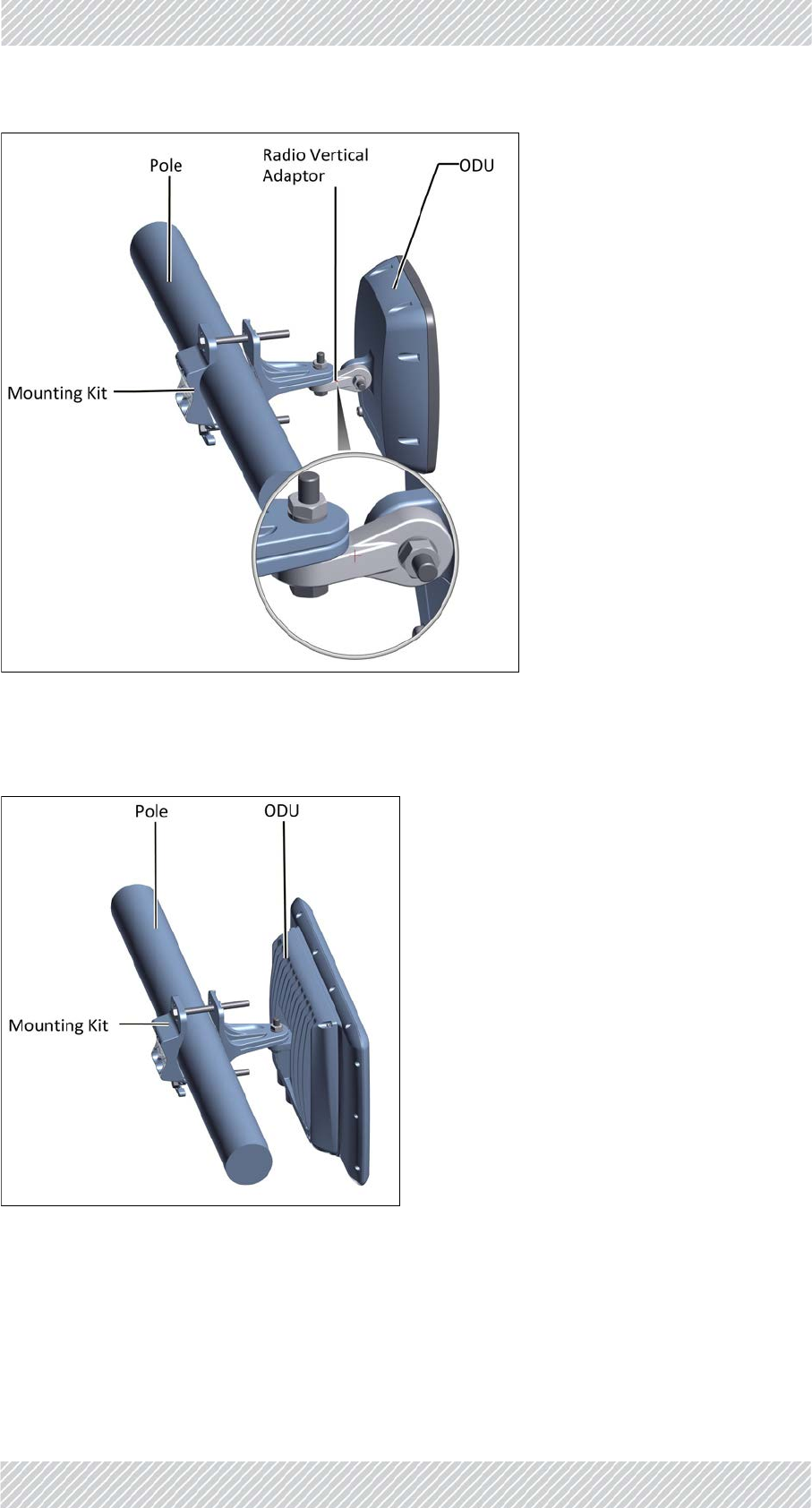

Figure219:MountingKitonahorizontalpole
WhenmountingaLargeFormFactor(LFF)radiounit,SmallFormFactor(SFF)radiounit,GSU,
PoE,orexternalantennaonahorizontalpole,usetheradioverticaladaptor:
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 213
HorizontalPole InstallationSteps
Figure220:Radiounitmountedonahorizontalpole
WhenmountingaJETorDUOradiounitonahorizontalpole,theverticaladaptorisnot
needed:
Figure221:JETradiounitmountedonahorizontalpole
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 214
Wall InstallationSteps
Figure222:DUOradiounitmountedonahorizontalpole
2.6.4Wall
Usetwomountingscrews(notincluded)appropriateforthetypeofwalltoinstallthe
mountingkitonawall.Makesureyouusetheindicatedholes.
Thepoleclampisnotneeded.

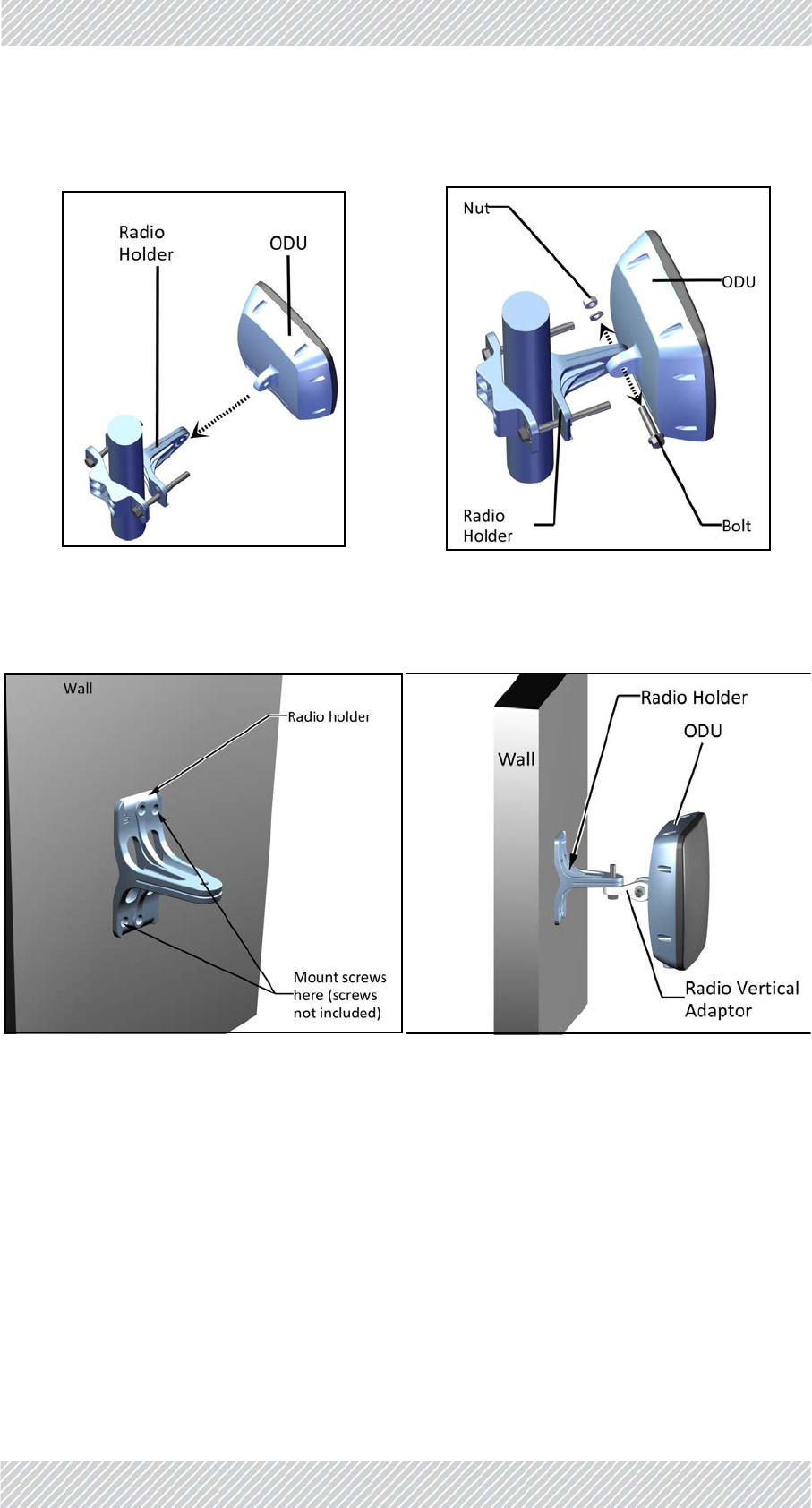

Figure223:Mountingkitonawall
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 215
InstallMountingKitfortheSUPRO/AIRRadioUnit InstallationSteps
2.7InstallMountingKitfortheSUPRO/AIR
RadioUnit
TheSUPRO/AIRhasitsownmountingkit.Mountthisunitasshowninthestepsbelow:
1. Placethemountonapoleorwall:

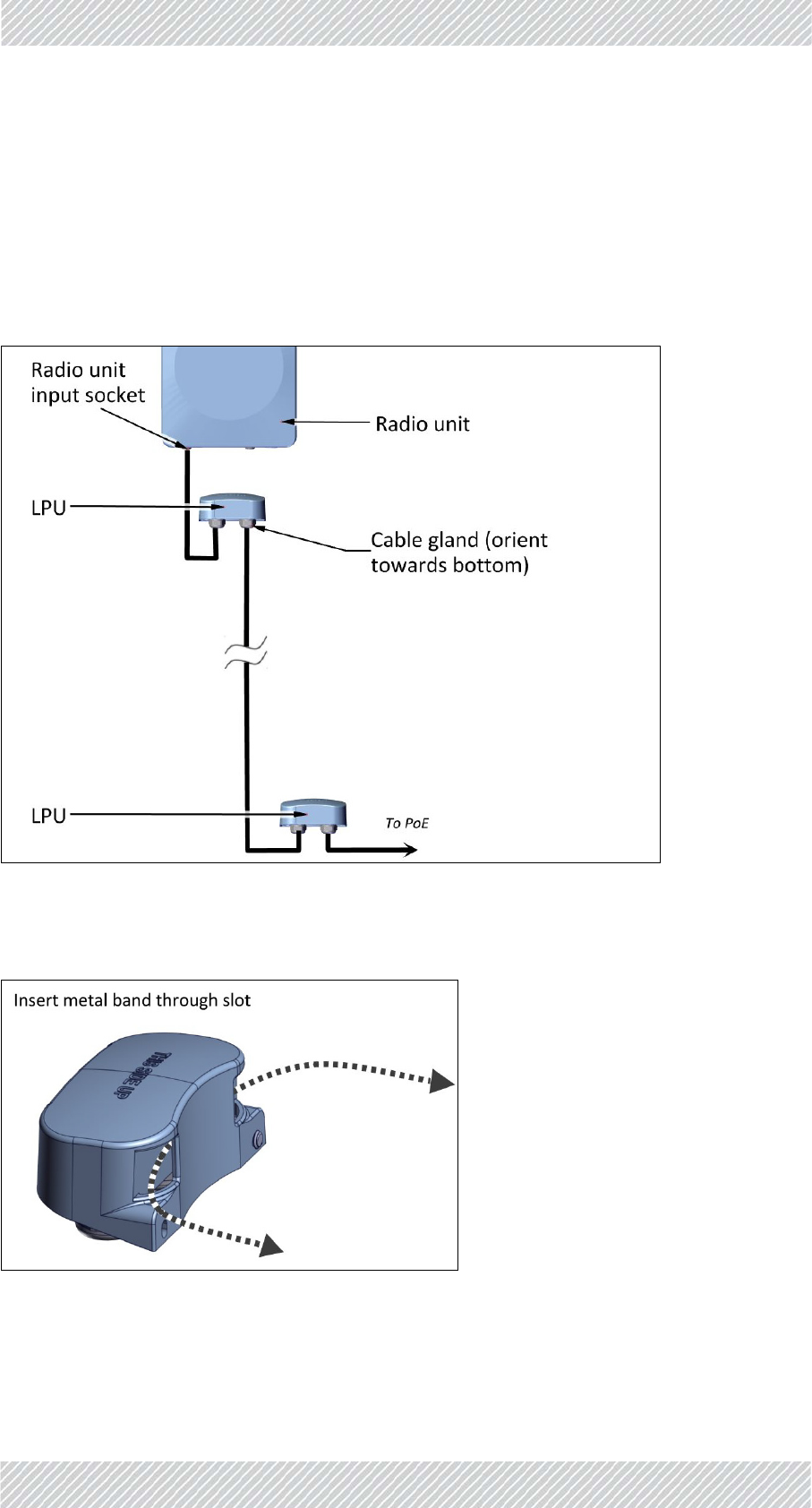

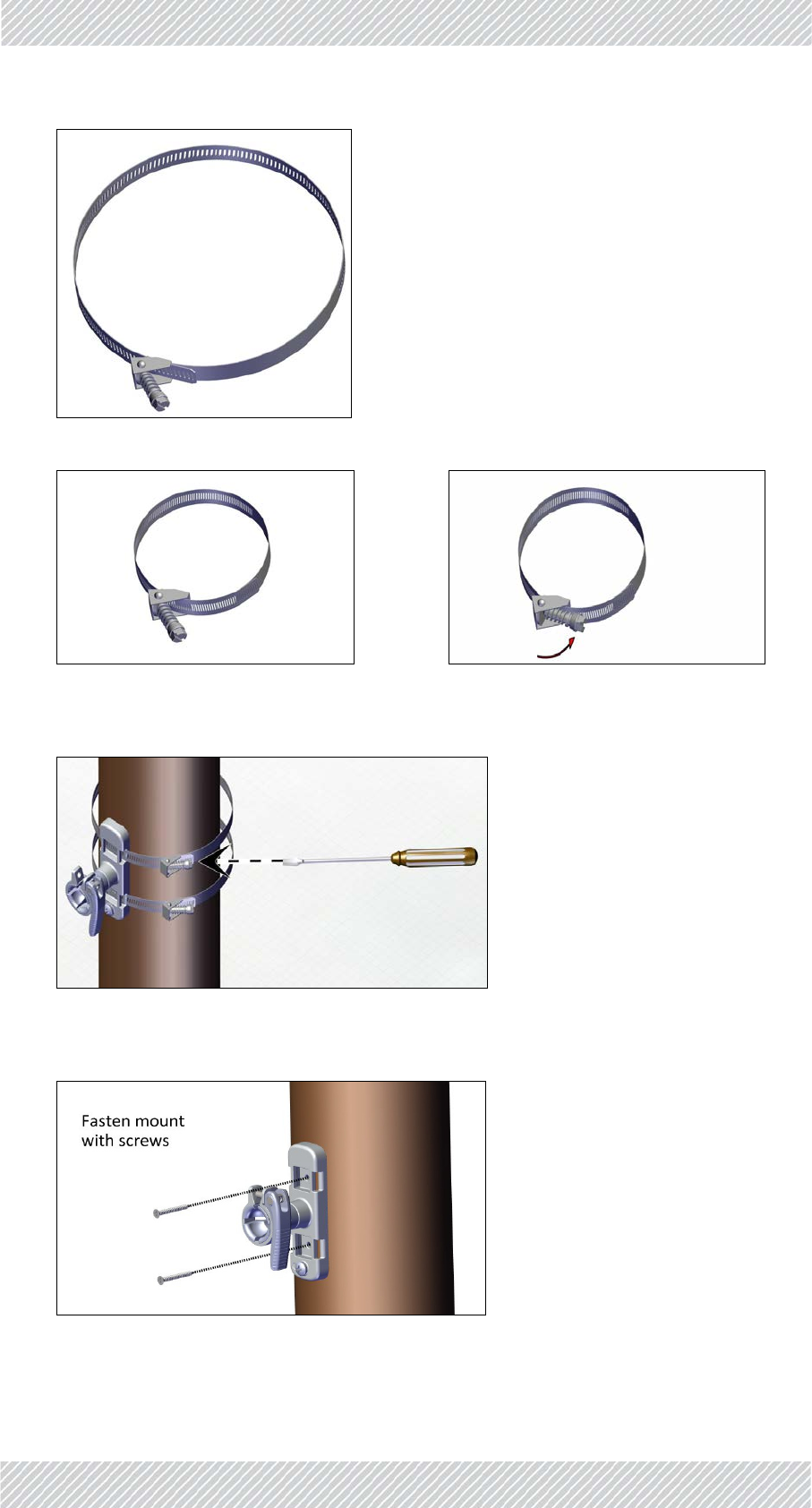

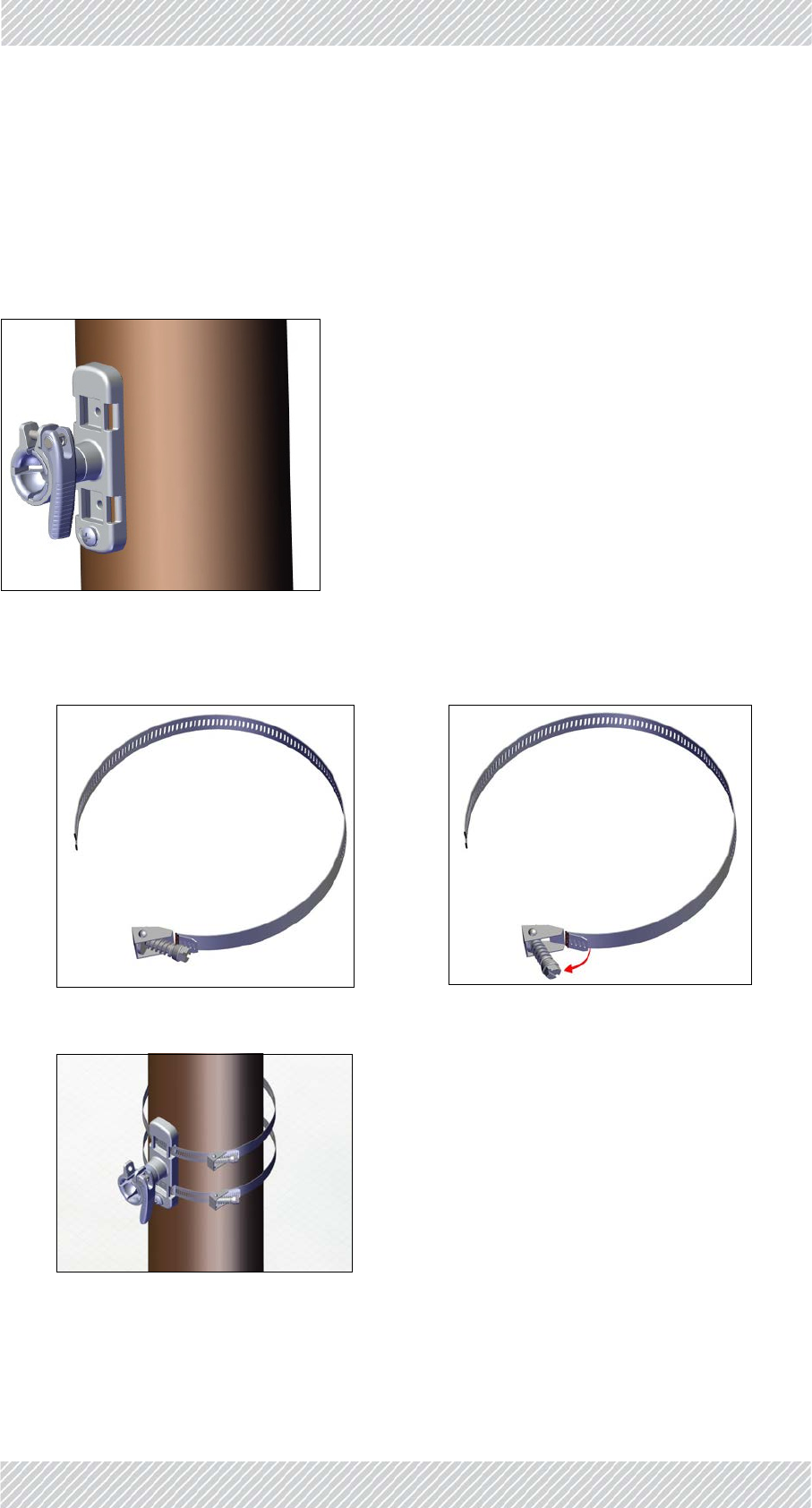

2. Securethemountusingthewormdriveclamps.Thesearequickreleaseclamps,
andworkasfollows:
a. Opentheclamp:
b. Slidethemetalbandthroughthemount:
c. Slidethemetalbandthroughtheclamp:
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 216
InstallMountingKitfortheSUPRO/AIRRadioUnit InstallationSteps
d. Adjusttheradiusoftheband,andlockitwiththeclamp:
e. Oncethebandisatthecorrectradius,closetheclampandtightenwitha
screwdriver(makesurethetopsofthescrewsfaceawayfromthemount):
3. Alternatively,youcanfastenthemountwithscrews(notincluded)appropriatefor
thesurfacebeingused:
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 217
MountingaUnitwiththeStandardMountingKit InstallationSteps
2.8MountingaUnitwiththeStandard
MountingKit

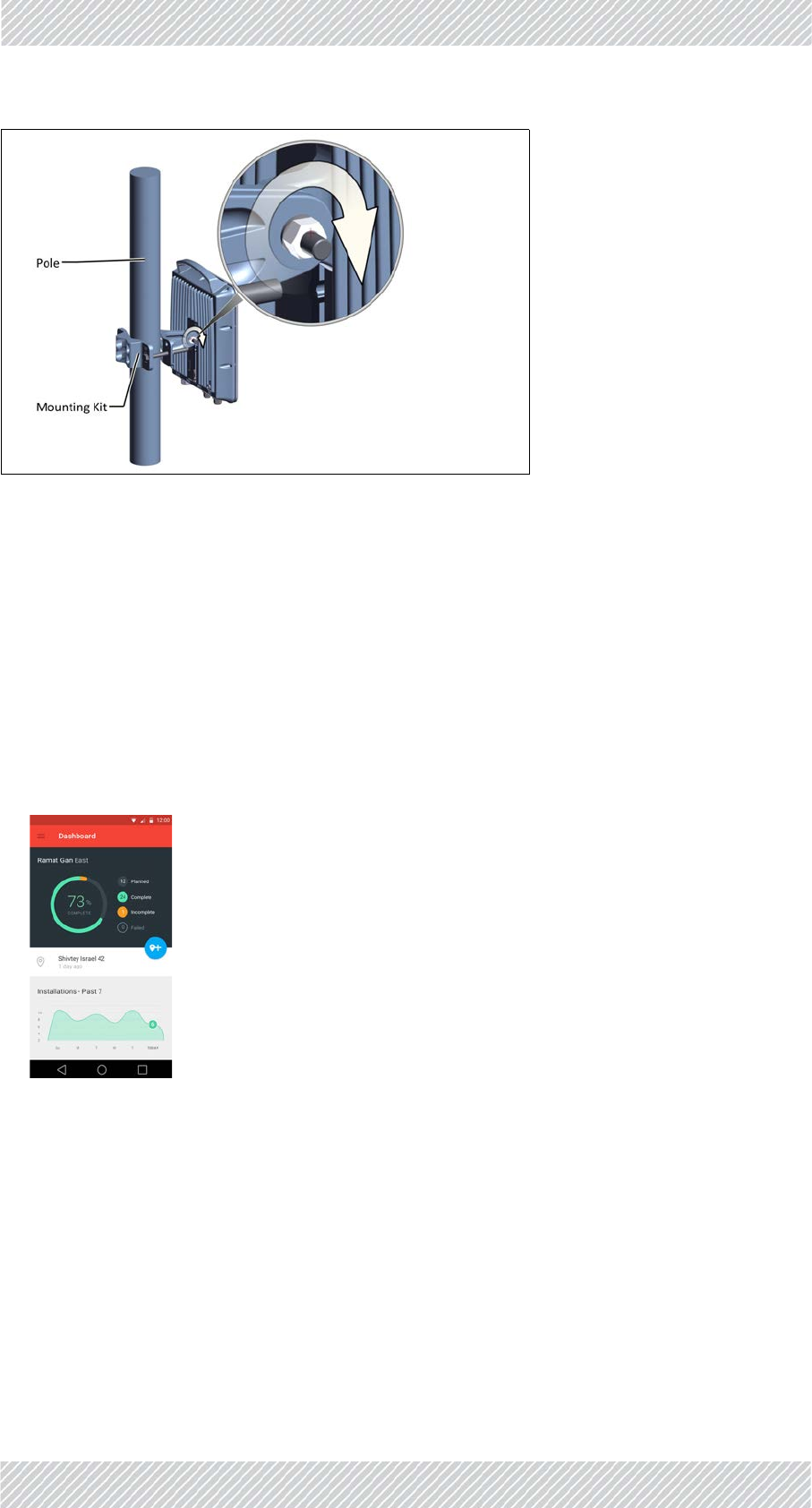

FastenanLFF(largeformfactor),SFF(smallformfactor)JETradiounits,aswellasexternal
PoEs,andRADWINGSUs,andexternalantennastothemountingkitasshowninFigure 224
toFigure 226:

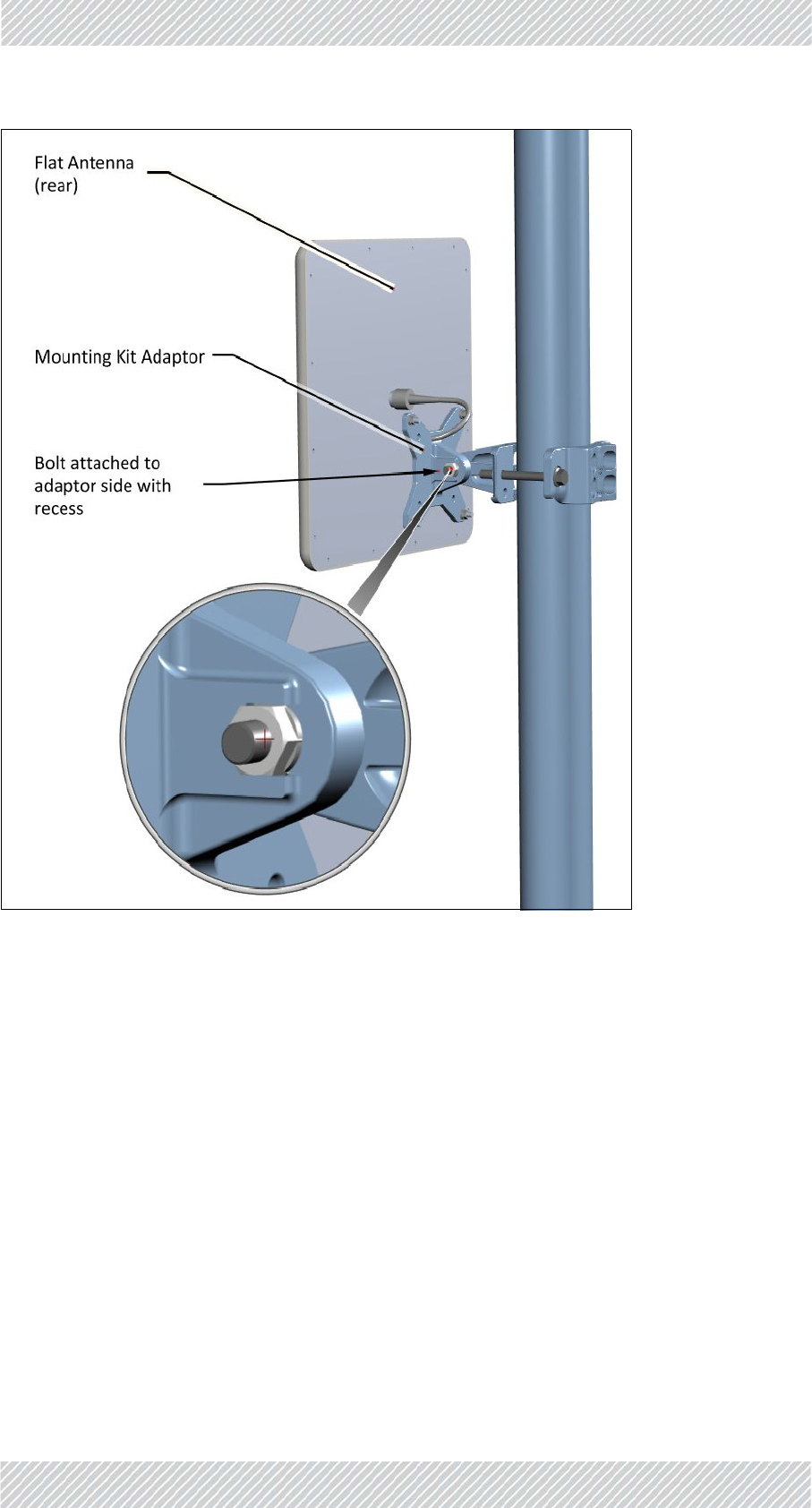

(ifmountingaflatpanelantenna,seepage 221).
Figure224:MountedLFFradiounit
Figure225:MountedSFFradiounitorGSU
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 218
MountingaUnitwiththeStandardMountingKit InstallationSteps

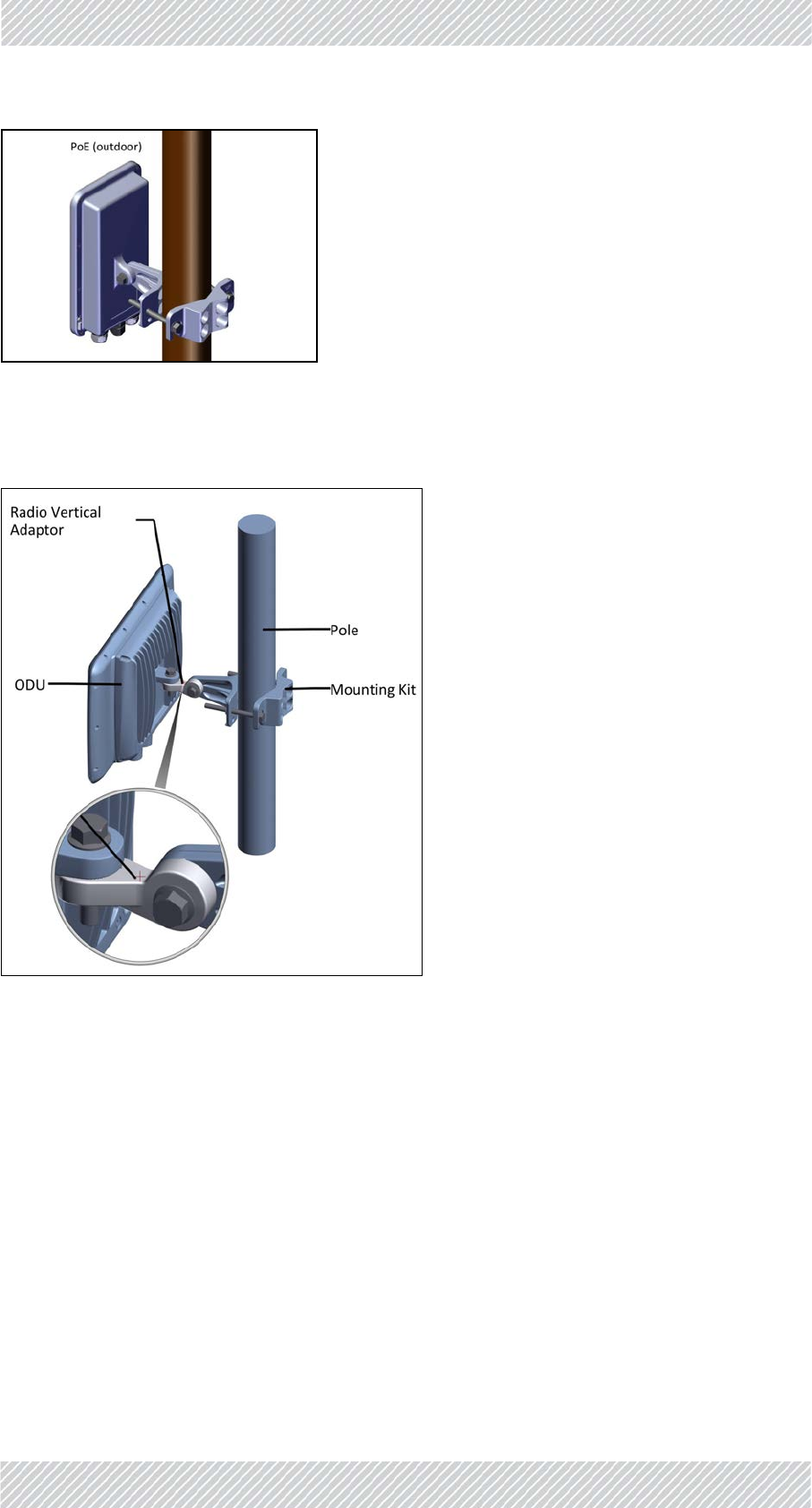

Figure226:MountedPoE
ForJETradiounits,mountasshowninFigure 227andFigure 229:
UsetheradioverticaladaptorwhenmountingaJETorDUOunitonaverticalpole
Figure227:JETradiounitmountedonaverticalpole
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 219
MountingaUnitwiththeStandardMountingKit InstallationSteps
Figure228:DUOradiounitmountedonaverticalpole
WhenmountingaJETorDUOunitonahorizontalpole,theradioverticaladaptorisnot
needed:
Figure229:JETradiounitmountedonahorizontalpole
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 220
MountingaUnitwiththeStandardMountingKit InstallationSteps
Figure230:DUOradiounitmountedonahorizontalpole
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 221
MountingaUnitwiththeStandardMountingKit InstallationSteps
Flatpanelantenna
Ifmountingaflatpanelantenna,amountingkitadapterisrequired(seeFigure 231):
Figure231:Flatpanelantennamountingkitadapter
Attachthemountingkitadaptortotherearoftheexternalantennaasshown:
Figure232:FlatPanelantenna‐rearwithmountingkitadapter
Mounttheantennawiththeadaptortoaverticalorhorizontalpole(asshowninFigure 224
toFigure 225).
Figure 233showsamountedantenna.Attachthemountingbolttothesideoftheadaptor
withtherecess,asshown.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 222
GroundRadioUnit InstallationSteps
Figure233:FlatPanelantenna‐mountedonapole
2.9GroundRadioUnit
Connectagroundcabletotheindicatedgroundconnectionontheradiounitasshowninthe
sectionsbelow:
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 223
LFFUnits InstallationSteps
2.9.1LFFUnits
Figure234:Ground:LFFradiounit
2.9.2SFFUnits
Figure235:Ground:SFFradiounit
2.9.3JETUnits
Figure236:Ground:JETradiounit
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 224
DUOUnits InstallationSteps
2.9.4DUOUnits

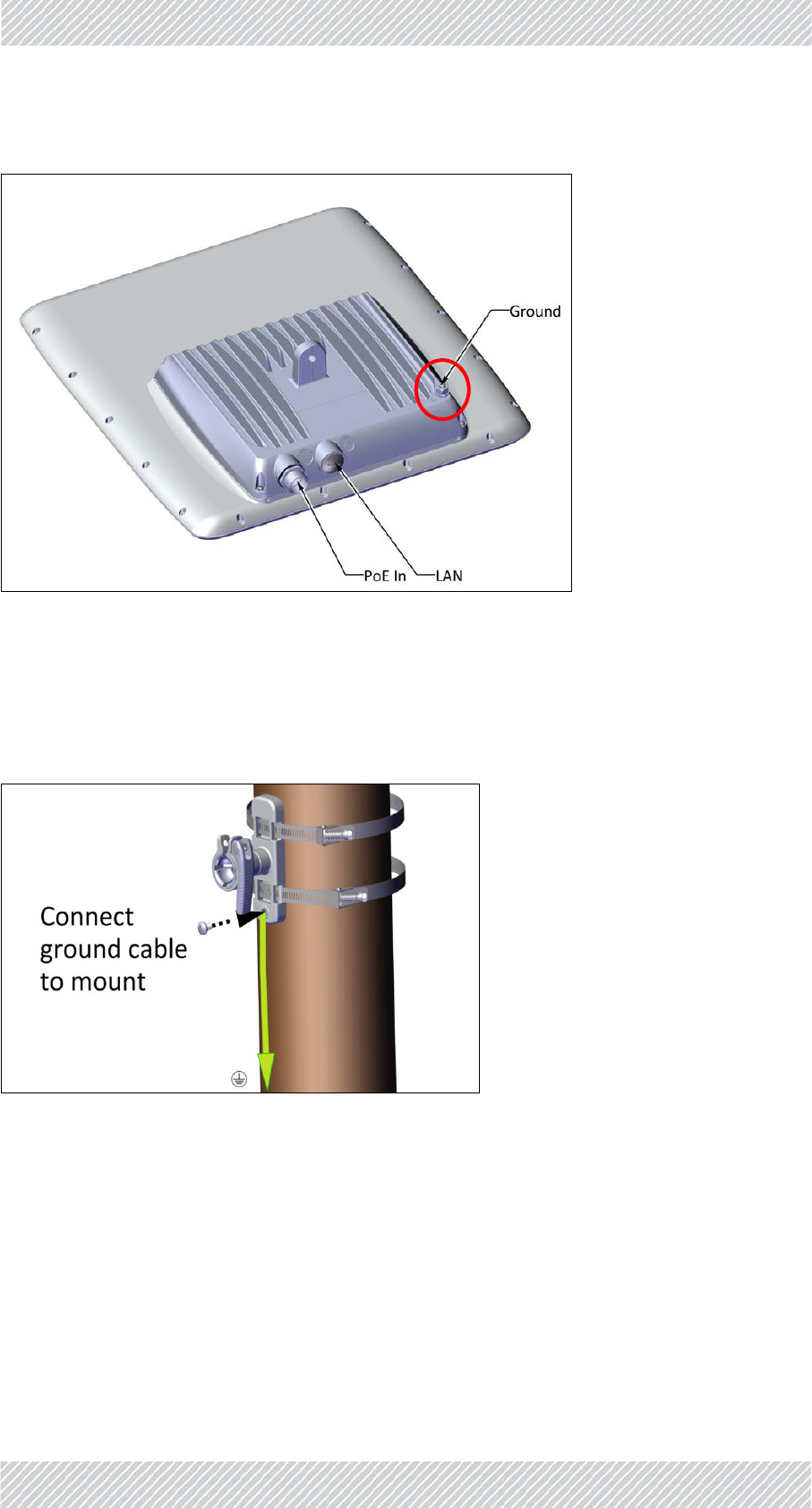

Figure237:Ground:DUOradiounit
2.9.5SUPRO/AIRUnits
SincetheSUPRO/AIRisgroundedviaitsmountingkit,itmustbegroundedbeforebeing
mounted.
Figure238:Ground:SUPRO/AIRradiounit
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 225
MountingtheSUPRO/AIRRadioUnit InstallationSteps
2.10MountingtheSUPRO/AIRRadioUnit

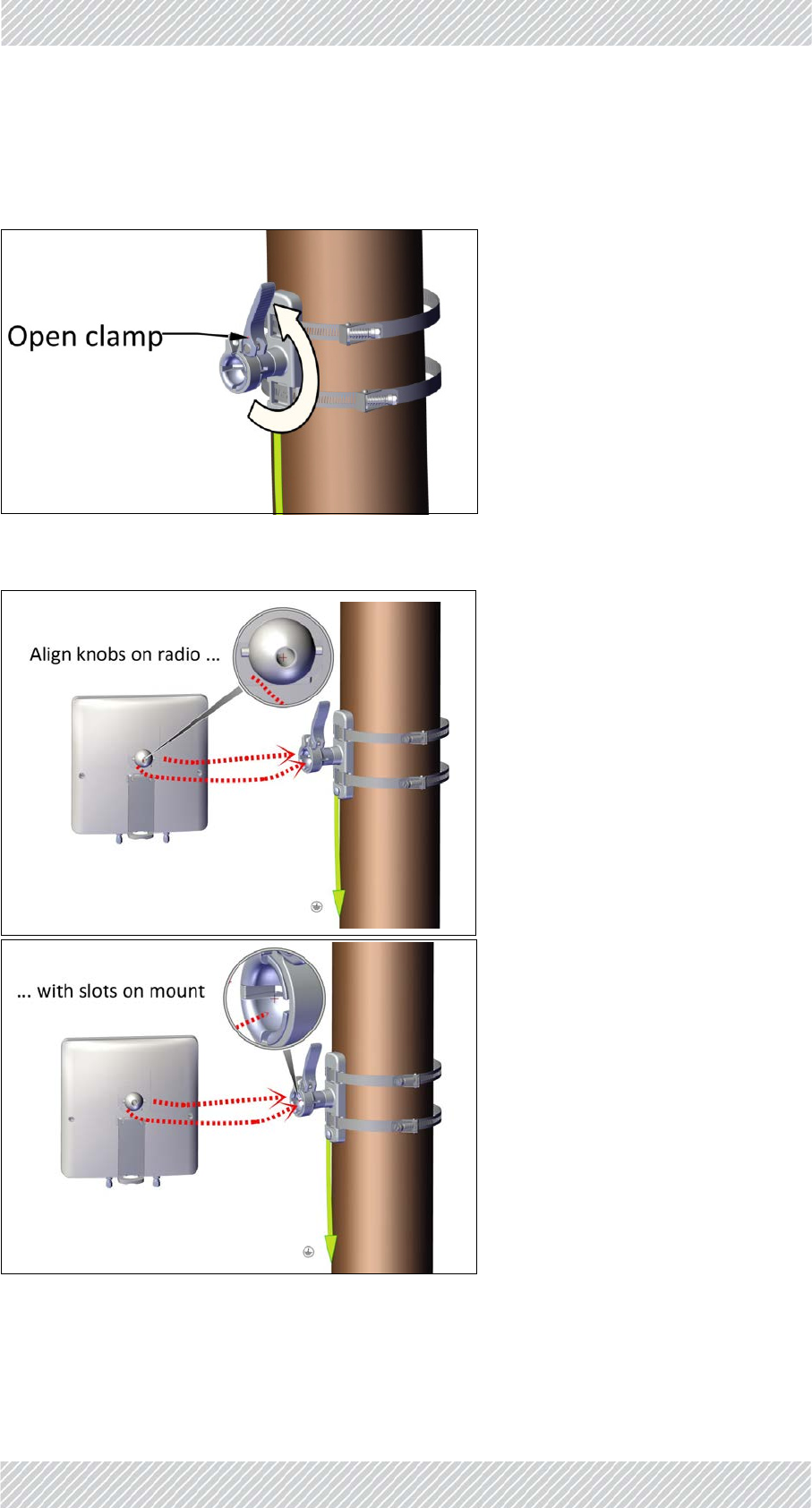

1. Opentheclamp(forradiounit):
2. Positiontheradiounitsothattheknobsonthemountingballontherearare
oppositetheslotsonthemount:
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 226
MountingtheSUPRO/AIRRadioUnit InstallationSteps
3. Firmlyplacetheradiounitintothemountuntilyouhearaclick:
4. Closetheclamphalfway:
5. Keeptheclamphalfcloseduntilthealignmentprocedureiscomplete.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 227
MountingtheLightningProtectionUnits InstallationSteps
2.11MountingtheLightningProtectionUnits
Werecommendusingtwolightningprotectionunits(LPUs)foreachradiounitinstalla
tion:OneneartheradiounitandonenearthePoE.
TheLPUcanbemountedonapoleoronawall.
MakesuretheLPUisorientedwiththecableglandsorientedtowardsthebottom.
MountoneLPUneartheradiounit,andthesecondnearthePoE:
2.11.1MountingtheLPUonapole

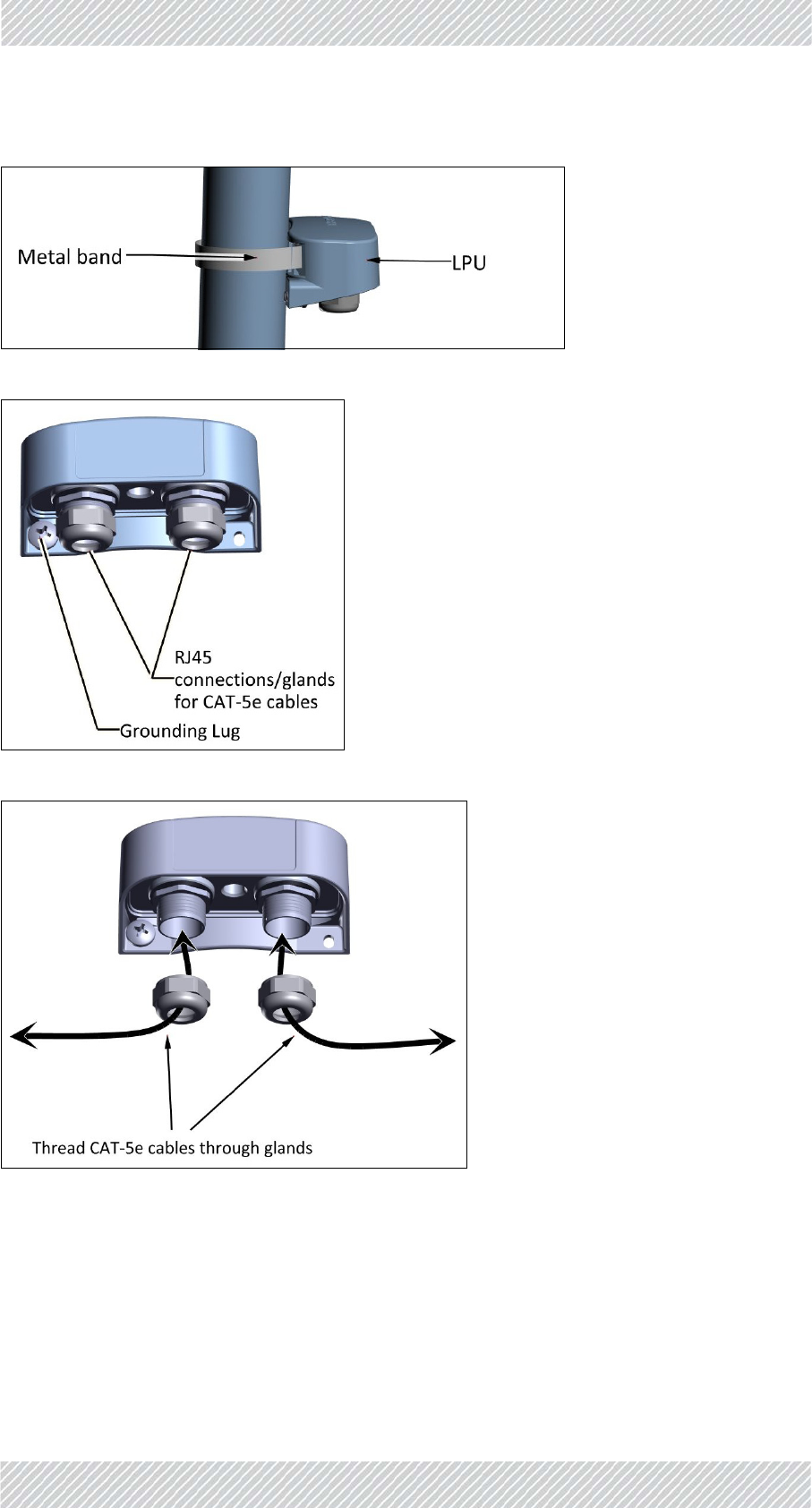

1. InsertthemetalbandthroughtheslotsontheLPUasshown:
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 228
MountingtheLPUonapole InstallationSteps
2. Tightenthemetalband.
3. Connectthegroundinglugtoagroundsource.
4. Removethecableglands,andthreadtheCAT5ecablesthroughthem:
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 229
MountingtheLPUonawall InstallationSteps
5. ConnectthecablestotheLPU’ssockets,andtheglandsaroundthecablesas
shown:
6. RouteoneCAT5ecableuptotheradiounit,andtheotherdowntothePoE(via
thelowerLPU).AnLPUinstalledonapoleisshownbelow:
2.11.2MountingtheLPUonawall
1. Removethegroundinglug.
2. FastentheLPUtothewallusingscrewsappropriateforthewall(screwsnot
included).
3. Connecttheleftscrew(wherethegroundinglugwaslocated)toagrounding
sourceviaagroundingcable.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 230
ConnectExternalAntenna(ifapplicable) InstallationSteps
4. AttachtheCAT5ecablesasshowninSteps4.and5.above.
2.12ConnectExternalAntenna(ifapplicable)
Anexternalorsupplementalantennacanbeusedfortheseunits:
ConnectorizedLFF(largeformfactor)radiounits
ConnectorizedSFF(smallformfactor)radiounits
SUPRO/AIRradiounits
2.12.1LFFandSFFUnits

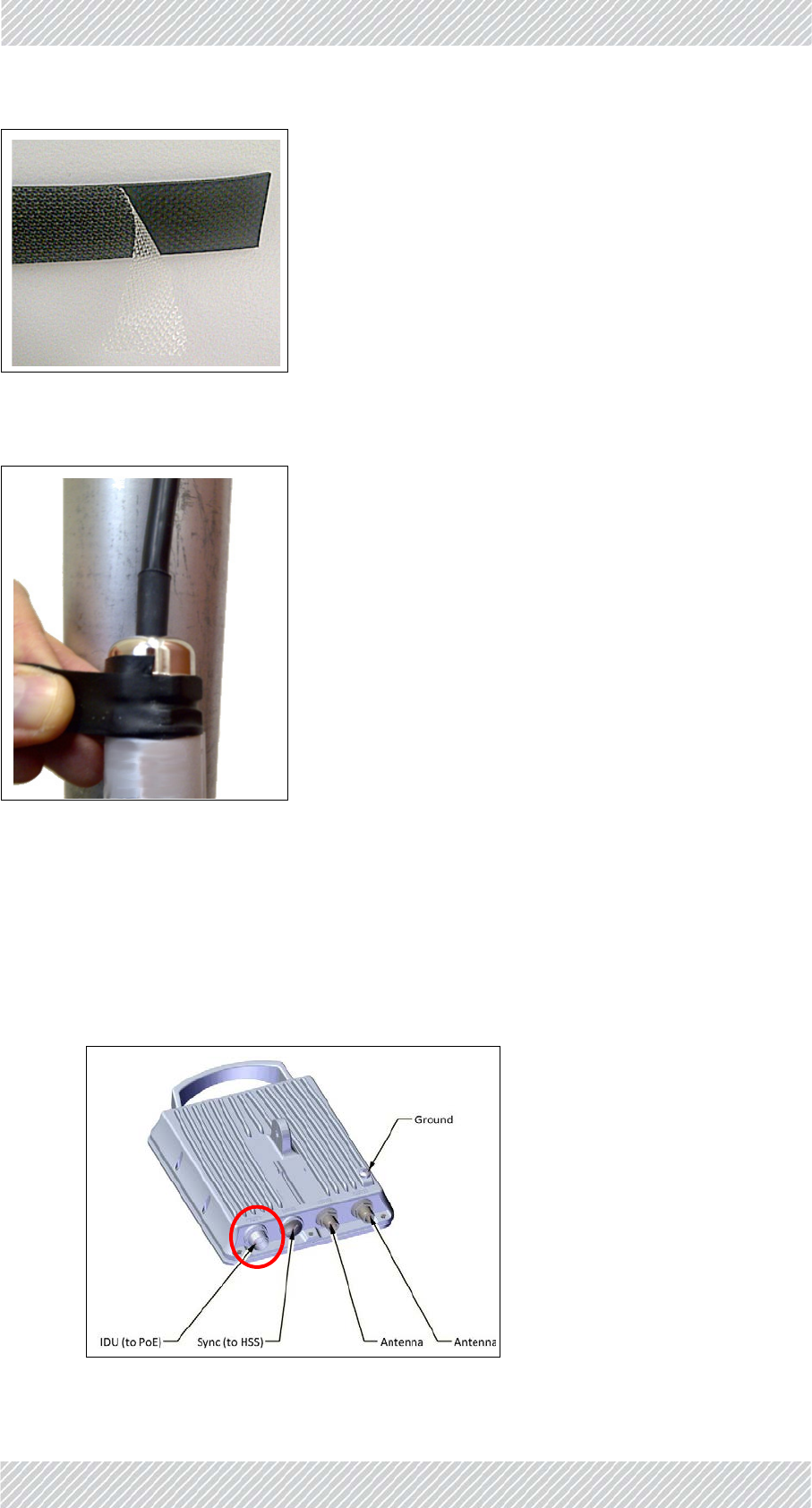

Connecttheexternalantennatotheantennaconnectionsontheradioasshown.
Mounttheradiounitusingastandardmountingkit(seeMountingaUnitwiththeStandard
MountingKitonpage 217),aswellastheexternalantenna(needsitsownmountingkit).
Toantenna Toantenna
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 231
SUPRO/AIRUnits InstallationSteps
ItdoesnotmatteriftheVorHconnectionoftheantennaisconnectedtoeithertheANT1or
ANT2connectionoftheradio,butwhatisimportantisthatyoupreservethesame
connectionschemethroughoutthesector(eg:VisalwaysconnectedtoANT1,Hisalways
connectedtoANT2).
2.12.2SUPRO/AIRUnits
TurboGainantenna
FastentheTurboGainantennaontheSUPRO/AIRunitusingthesesteps::
a. Connectthecablestotheradio
b. Sealthecables(seeWaterproofingonpage 232)
c. ConnecttheTurboGainantenna
d. ClosethescrewsoftheTurboGainantenna
e. SealtheconnectorsontheTurboGainantennausingthesealingtape.
Connectcables Preparesealingtape Applysealingtape‐1
Applysealingtape‐2 Sealingtapeapplied ConnectTurboGainantenna
ConnectcablestoTurboGain SealingtapeforTurboGain TapeappliedonTurboGain‐2
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 232
Waterproofing InstallationSteps
External,nonintegratedantenna
Followthesestepstoconnectanexternal,nonintegratedtotheSUPRO/AIRunit:
a. Connectthecablestotheradio
b. SealthecablesusingScotchTM23splicingtapeorsimilar.
c. Mountanexternal,nonintegratedantennausingthestandardmountingkit(see
MountingaUnitwiththeStandardMountingKitonpage 217).
d. Connectthecablestotheexternal,nonintegratedantenna
e. Sealtheconnectorsontheexternal,nonintegratedantenna(seeWaterproofingon
page 232)
ItdoesnotmatteriftheVorHconnectionoftheantennaisconnectedtoeithertheANT1or
ANT2connectionoftheradio,butwhatisimportantisthatyoupreservethesame
connectionschemethroughoutthesector(eg:VisalwaysconnectedtoANT1,Hisalways
connectedtoANT2).
2.13Waterproofing
Protectalloutdoorconnections1fromrain,dust,moistureandsaltbytapingthecable/gland
connectionwithanappropriatesealanttape.WerecommendusingScotchTM23splicingtape
orsimilar.
Youmayneedtorealigntheunit.
Reconfiguretheunitashavinganexternalantenna(seetheRADWIN5000
ConfigurationGuide).
Youmayneedtorealigntheantenna.
1. ThisisnotrequiredfortheSUPRO/AIRunit
Toantenna
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 233
ConnectRadio(ExternalConnections) InstallationSteps
Figure239:Sealanttape
Addtapeasshownbelow.
Figure240:Applyingsealanttapetoanexternalconnection
2.14ConnectRadio(ExternalConnections)
2.14.1LFF,SFFandJETUnits
1. ConnectaCAT5ecabletotheinputportoftheradioasshown:
Figure241:Inputport:LFFunit(connectionlabel:“IDU”)
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 234
DUOUnits InstallationSteps
2.14.2DUOUnits
1. ConnectaCAT5ecabletothe“PoEIN”portoftheradioasshown.Thisconnection
providespowertotheunitandcanalsoserveasamanagementanddataconnection.Itis
referredtoas“LAN1”intheRADWINManagerapplication:
Figure242:Inputport:SFFunit(connectionlabel:“IDU”)
Figure243:Inputport:JETunit(connectionlabel:“PoEIn”)
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 235
DUOUnits InstallationSteps
3. Addsealanttapetotheconnections(see"Waterproofing"onpage232.)
Figure244:Inputpoweranddataport:DUOunit(“PoEIN”=LAN1)
2. Alternatively,youcanusetheSFPconnection(labeled“LAN”),which
providesmanagementanddataconnectiononly(nopower).This
connectionisreferredtoas“LAN2”intheRADWINManager
application.NotethatyoumuststillconnectaCAT5ecableto“PoEIn”
toprovidepower:
Figure245:Inputdataport:DUOunit(LAN=“LAN2”)
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 236
DUOUnits InstallationSteps
4. RoutetheCAT5eandgroundcablesdownfromtheradiotoaPoEvia2LPUs:one
neartheradio,onenearthePoE.FastenCAT5ecableconnectionswithacable
gland,addsealanttape.
5. Connectgroundcabletoground.
6. PerformfinalconnectionsviaaPoE,dependingonthetypeofPoEyouareusing,
asfollows:
IndoorPoE
a. ConnectCAT5ecablefromlowerLPUto“Outport
b. ConnectLANcableto“In”port.
c. Connectpowercable
OutdoorPoE
ConnectCAT5ecablefromlowerLPUto“Po E”port,fasten withgland,addtape.
a. ConnectLANcableto“ETHport,fastenwithcablegland,addtape.
b. Connectgroundcable.
Ifyouusethe“LAN”portformanagementordata,itmustconfiguredproperly.
SeetheRADWIN5000ConfigurationGuideformoredetails.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 237
DUOUnits InstallationSteps
c. Connectpowercable
IDUH
(TheIDUHdoesnotsupportthebeamformingHBS(JETorDUO).
TheIDUHisanaggregationswitchwiththefunctionalityofsixPoEdevices.Itisidealforuse
atabasestationhavingseveralcollocatedradios.

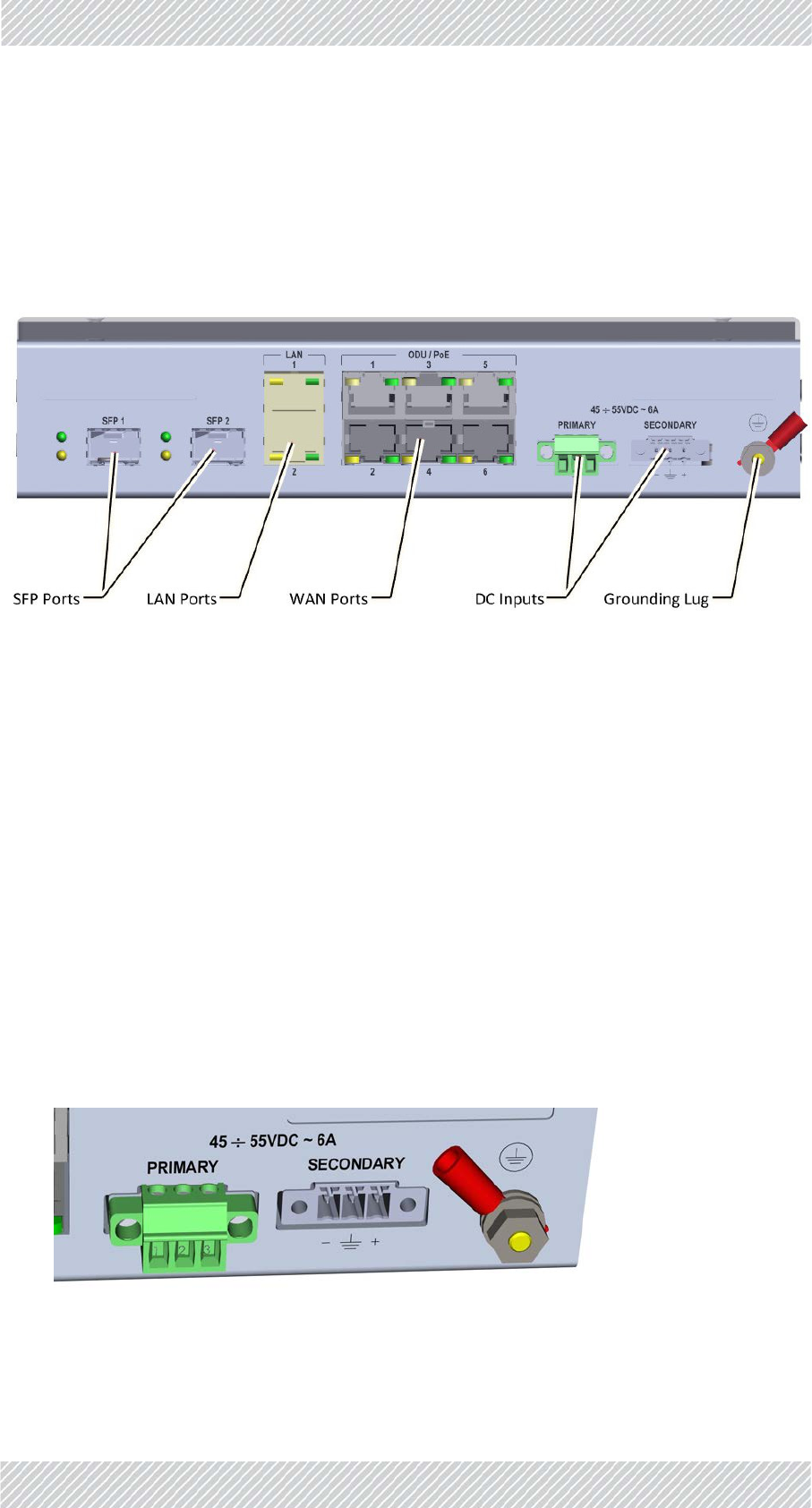

Figure246:IDUH
TheIDUHhasthefollowingconnections:
SFPports
LANports:Ethernet,supportingGbE.
WANports:FunctionidenticallytotheLANOutportonaPoEdevice.
DCInputs
Groundinglug
LEDcolors:Green=link/activity,Yellow=Duplex/twowaycommunication
InstallingtheIDUH:
TheIDUHcansitonatabletop,butisbestinstalledinarack.
ConnecttheHBSIDUporttoanyofthesixPoEportsoftheIDUH.
TheIDUHhastwoLANports,eitherofwhichmaybeusedfornetworkconnection.
TheIDUHhasredundantpowerconnectioncircuits.Aviewofthepowerconnectorsis
shownbelow.Inthiscase,onlytheprimarycircuithasapowerconnector:
Figure247:IDUHpowerconnectorsandgroundinglug.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 238
SUPRO/AIRUnits InstallationSteps

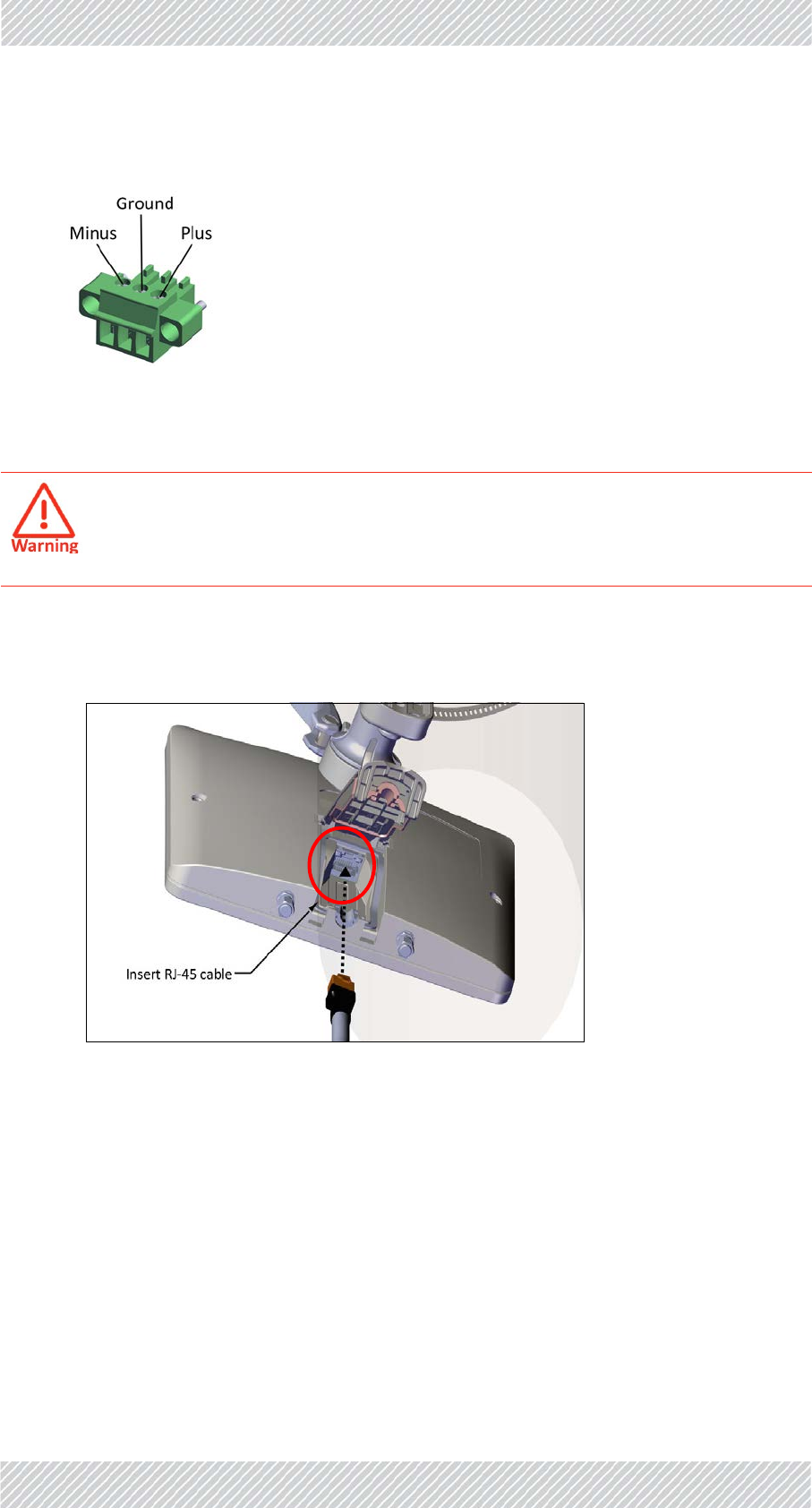

FordirectDCconnection:Theconnectorsare3pininlinefemale,withpolarities(leftto
right)minus,ground,plus,asshown:
ForACconnection:ToavoiddamagetotheIDUH,alwaysuseanAC/DCadapterand
powerplugsuppliedbyRADWIN.
2.14.3SUPRO/AIRUnits
1. ConnectaCAT5ecabletotheinputportoftheradioasshown:
2. RoutetheCAT5eandgroundcablesdownfromtheradiotoaPoE.
Recommended,althoughnotrequired:routetheCAT5ecablevia2LPUs:onenear
theradio,onenearthePoE.FastenCAT5ecableconnectionswithgland,addseal
anttape.
3. Connectgroundcabletoground.
4. PerformfinalconnectionsviatheSUPRO/AIRPoE:
Groundtheunitwitha10AWGwirebeforeapplyingpower.
Figure248:Inputport:SUPRO/AIRunit
Connectionlabel:None
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 239
CheckConnectivitytoRadio InstallationSteps
5. ConnectCAT5ecablefromlowerLPUtothe“PoE”port.
6. ConnectLANcableto“LAN”port.
7. Connectpowercable.
2.15CheckConnectivitytoRadio
1. Connecttoradiounit:
Fromalaptopinthefield:DisconnectthePoEfromthecommunicationsnetwork
(LANconnection),andconnectthelaptop.
FromtheNOC:KeepthePoEconnectedtotheLAN.
YoucanusetheSFPconnectionoftheRADWINJETDUO(labeled“LAN”)forcom
municationsandmanagementpurposesonly.
2. Fromacommandline,pingradiousingradio’sIPaddress.
2.16ActivateBaseStation
Applicableonlyifyouareinstallingabasestation.
1. Connecttoradiounit:
Fromalaptopinthefield:DisconnectthePoEfromthecommunicationsnetwork
(LANconnection),andconnectthelaptop.
FromtheNOC:KeepthePoEconnectedtotheLAN.
YoucanusetheSFPconnectionoftheRADWINJETDUO(labeled“LAN”)forcom
municationsandmanagementpurposesonly.
2. LogontotheRADWINManagerapplicationas“Installer.
3. EnterIPaddressofBaseStation(HBS).
4. FrommainwindowoftheRADWINManagerapplication,clickActivate.
5. Followwizardinstructionstoactivateradio.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 240
AlignSubscriberUnit InstallationSteps
2.17AlignSubscriberUnit
Makesurethesubscriberunitsbasestationisactivated(checkwiththeNOC).

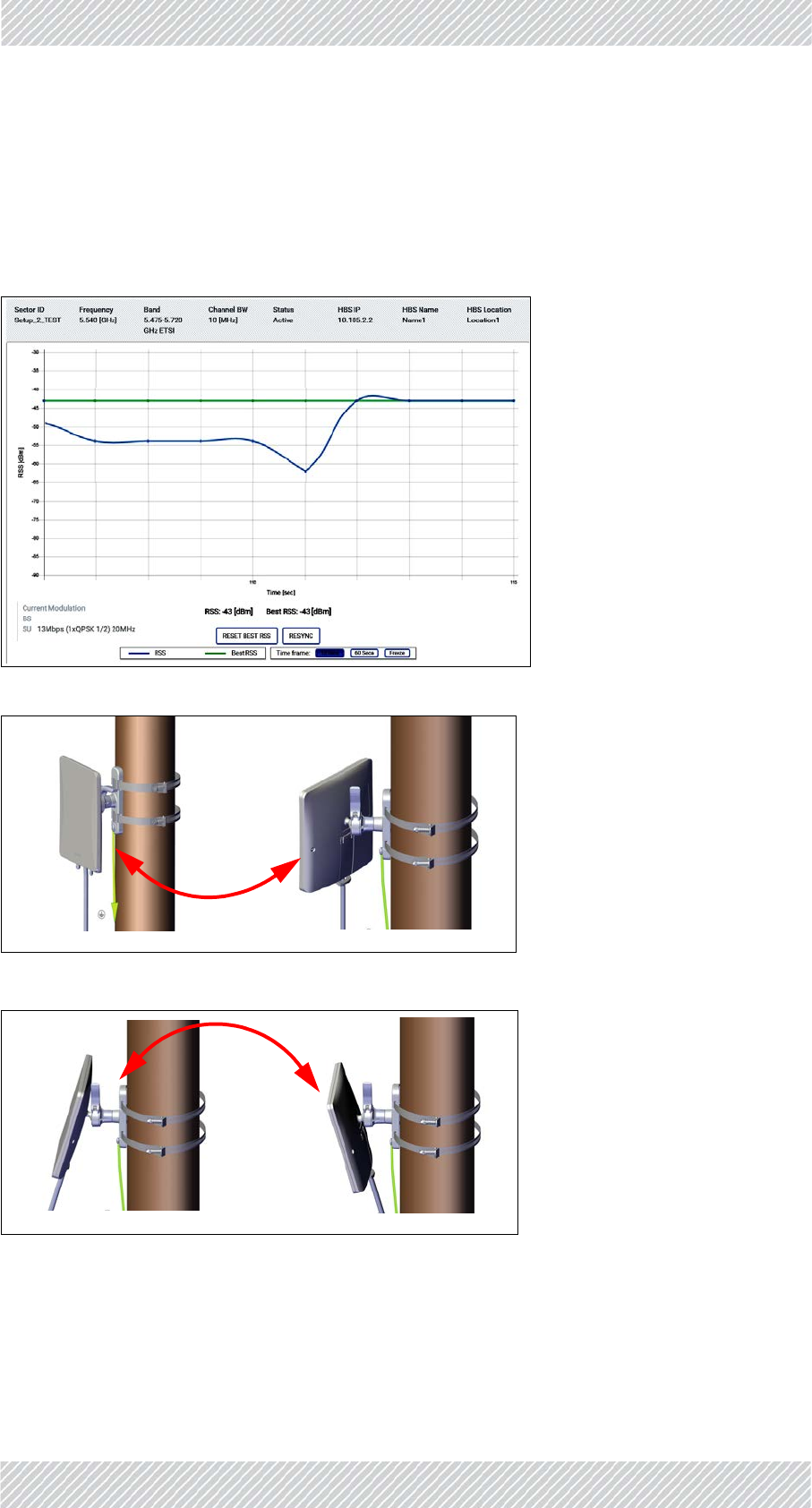

Pointthesubscriberunit(oritsexternalantenna)inthegeneraldirectionofitsbasesta
tion.
Continueaccordingtothetypeofunityouareusing:
2.17.1LFFandSFFUnits
1. Aligntheunithorizontally(inazimuth):
a. Swiveltheunit90ototheleftslowly,180ototheright,andthen90obacktowards
thebasestation.

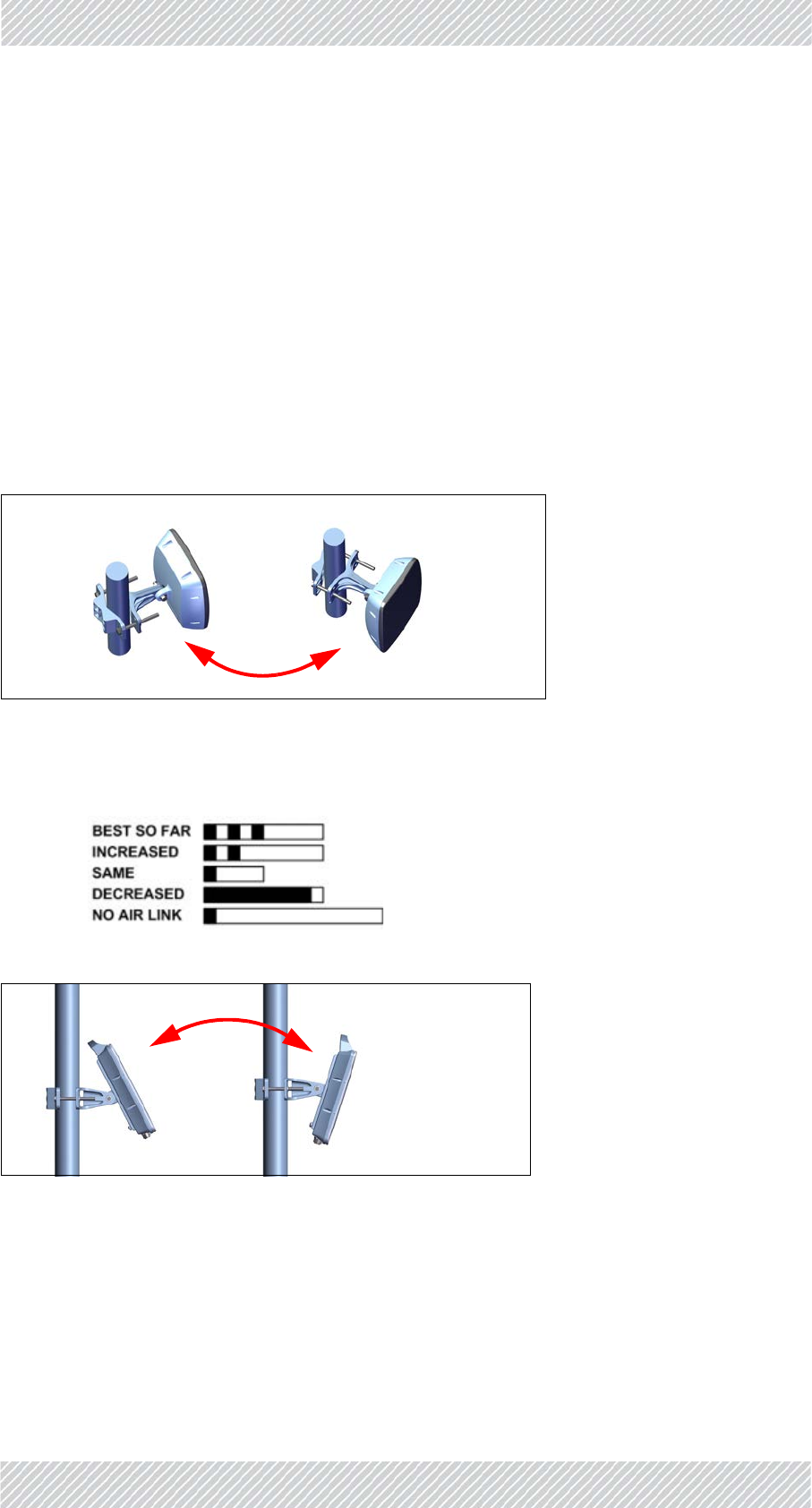

Figure249:Swivelhorizontally(SFFunitshown)
b. Whileswivelingtheunit,listentothebuzzerbeepsequenceuntiloptimal
alignmentisachieved(3beepsandapause,asshownbelow).
2. Repeattheaboveinelevation.
Figure250:Swivelvertically(LFFunitshown)
3. Oncealignmentiscomplete,tightentheboltholdingtheradioonthemounting
kit.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 241
SUPRO/AIRUnits InstallationSteps
Thesubscriberunitwillstopbeepingwhenitisalignedwiththebasestation,andcon
figured.
YoucanmanuallyceasethebeepingviatheRADWINManagerapplication.
2.17.2SUPRO/AIRUnits
1. ConnecttotheunitviaWiFiusingasmartphone.
2. UsingWINTouch:
OperatetheWINTouchapplication,andfollowitsinstructions.
3. UsingtheWebInterface:
a. UsingaPCorlaptop:accessthewebinterface(entertheunitsIPaddressinaweb
browser)
b. Loginusingusernameadminandpasswordnetman.
c. ActivatethedevicebyclickingTools‐>Operations‐>Functions‐>Device
Activation.
d. YoucancontinuewithaPCorasmartphone:ClickTools‐>AntennaAlignment.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 242
SUPRO/AIRUnits InstallationSteps
e. AgraphwillappearshowingtherealtimeRSSvalueandthebestRSSvalueforthe
testperiod.WhilereferringtotherealtimeRSSvalue,dothefollowing:
f. Swiveltheunitoritsexternalantenna90ototherightslowly,180ototheleft,and
then90obacktowardsthebasestation.NoteatwhichpointtheRSSvalueis
maximum.
g. Repeattheaboveinelevation.
Figure251:Swivelhorizontally
Figure252:Swivelvertically
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 243
SUPRO/AIRUnits InstallationSteps
4. Oncealignmentiscomplete,tightenthearmonthemountingkit(seeFigure 253
fortheSUPRO/AIR,seeFigure 233foranexternalantenna).
5. Iftheunitrequiresmoretightening,usethehexscrewwitha5mmhexkeyas
showninFigure 254.
Figure253:Tightenarmonmount:SUPRO/AIRradiounit
Figure254:Usehexscrewtofurthertightenarmonmount:SUPRO/AIRradiounit
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 31
Chapter3:SafetyPracticesand
Provisions
3.1ScopeofthisChapter
Thischapterdescribesvarioussafetypractices.
3.1.1PreventingOverexposuretoRFEnergy
ToprotectagainstoverexposuretoRFenergy,installtheradiounitssoastoprovideand
maintainminimalseparationdistancesfromallpersons.
Whenthesystemisoperational,avoidstandingdirectlyinfrontoftheantenna.StrongRF
fieldsarepresentwhenthetransmitterison.Theradiounitmustnotbedeployedina
locationwhereitispossibleforpeopletostandorwalkinadvertentlyinfrontoftheantenna.
3.1.2Grounding
AllRADWINproductsshouldbegroundedduringoperation.Inaddition:
AllODUsshouldbegroundedbyawirewithdiameterofatleast10AWG.
ThegroundlugonanIDUHshouldbeconnectedtotheprotectiveearthatalltimes,by
awirewithadiameterof18AWGorwider.
Rackmountedequipmentshouldbemountedonlyingroundedracksandcabinets.
Further,youshould‐
Alwaysmakethegroundconnectionfirstanddisconnectitlast
Neverconnecttelecommunicationcablestoungroundedequipment
Ensurethatallothercablesaredisconnectedbeforedisconnectingtheground
3.1.3ProtectionagainstLightning
Theuseoflightningprotectionisdependentonregulatoryandenduserrequirements.All
RADWINoutdoorunitsaredesignedwithsurgelimitingcircuitstominimizetheriskof
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 32
General SafetyPracticesandProvisions
damageduetolightningstrikes.RADWINrecommendstheuseofadditionalsurgearrestor
devicestoprotecttheequipmentfromnearbylightningstrikes.
3.1.4General
Itisrecommendedthatinstallationofoutdoorunitsbecontractedtoaprofessional
installer
Beforeworkingonequipmentconnectedtopowerlinesortelecommunicationlines,
removejewelryoranyothermetallicobjectthatmaycomeintocontactwithenergized
parts
Useextremecarewheninstallingantennasnearpowerlines
Useextremecarewhenworkingatheights
WhenusinganACpowersourceforRADWINdevices,alwaysusetheACpoweradapter
suppliedbyRADWIN
Usetherighttools!
Donotmountanradiounitupsidedownorhorizontally.Doingthismayvoidyouprod
uctwarranty.
3.1.5InternalESDProtectioncircuits
RADWINequipmentisdesignedtomeettheETSI/FCC/Aus/NZ/CSAEMCandSafety
requirements.Tofulfilltheserequirements,thesystem'sTelecomlinesattheradiounit/PoE
areTransformerisolatedandincludeinternalESD(ElectroStaticDischarge)Protection
circuits.
WheninstallinganACpoweredHSU:TomaintainOvervoltage
(Installation)CategoryII,installasuitablesurgesuppressordeviceinthe
branchcircuittolimitexpectedtransientstoOvervoltageCategoryII
values.
ThelimitsarebasedonIEC60664andarealsolocatedinTable2Hof
UL60950(formains<=150V,thetransientratingis1500V;for150V<
mains<=300V,thetransientratingis2500V;andfor300V<mains<=
600V,thetransientratingis4000V).
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 A1
AppendixA:Terminology
TableA1:Terminology(Sheet1of3)
Term Description
Assuredthroughput Actualnumberoftimeslotsallocatedtoaradiounit.
ACS
AutomaticChannelSelection.Optionthatinstructstheradioto
choosewhichfrequencytouse.Enablingordisablingthisoption
hasvariousramificationsasshowninthedocumentation.
ATPC AutomaticTransmitPowerControl
BE
BestEffort:Alevelofpriorityfortrafficinwhichusersreceive
dynamicresourceallocationaccordingtooveralldemand.They
arenotguaranteedresources.SeealsoCIR.
BS BaseStation:aradiothatcantransmitandreceivetomorethan
onepoint.SeealsoHBS
CIR
CommittedInformationRate:Alevelofpriorityfortrafficinwhich
usersreceiveaguaranteedpercentageofresourcesinadditionto
dynamicresourcesifavailable.SeealsoBE.
CPE CustomerPremisesEquipment
DBA
DynamicBandwidthAllocation:amethodthatallocates
bandwidthbetweenthevarioususersofthatsamebandwidthin
thenetwork.
DHCP
DynamicHostConfigurationProtocol:aprotocolthat
automaticallyassignsIPaddressesandothernetwork
configurationparameters.
Diversity
Atechniquebywhichthereliabilityofaradiolinkisincreased
usingmultipletransmittingandreceivingantennas,transmitting
thesamesignalonallantennas.
Downlink DatatrafficfromanHBStoanHSU,or
DatatrafficfromanRTAtoanRTB
DUO DualBandbasestation
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 A2
EIRP
Equivalent(orEffective)IsotropicallyRadiatedPower:Thepower
thatanantennamustemittoproducethepeakpowerdensityin
thedirectionofmaximumantennagain.Inourcases,thisis
usually:SystemTxPower+Antenna
Gain‐CableLoss.
FAA FederalAviationAdministration.AU.S.federalofficethatmanages
aviationregulationsthroughouttheUnitedStates.
Fixed(HSU) A“fixed”HSUremainsinonelocation,ascontrastedwitha
nomadicormobileHSU,whichdoesnotremaininonelocation.
GHSS GPSHubSiteSynchronization
HBS HighcapacityBaseStation.SameasaBS
HMU HighcapacityMobility(subscriber)Unit.SimilartoanHSU,butcan
bemobile.
HSC
HubSyncClient:WhenusingHubSiteSynchronization,oneunitis
amaster(generatesthesyncpulses),andtheotherunitsare
clients.
HSM
HubSyncMaster:WhenusingHubSiteSynchronization,oneunit
isamaster(generatesthesyncpulses),andtheotherunitsare
clients.
HSU HighcapacitySubscriberUnit.SameasanSU
ISU IntegratedSynchronizationUnit:anetworkdevicethatprovidesa
synchronizationsignaltoundergroundHBSs.
ITHO Intratrainhandovermechanism
LFF LargeFormFactor
MIMO
MultipleIn,MultipleOut.Atechniquebywhichthecapacityofa
radiolinkisincreasedusingmultipletransmittingandreceiving
antennas,transmittingadifferentsignalonallantennas.
MIR MaximumInformationRate
Mobile(HSU) A“mobile”HSUcanmovefromlocationtolocationandprovide
servicewhileitmovesorwhenitisstationary.
Nomadic(HSU) A“nomadic”HSUmovefromlocationtolocationbutcanonly
provideservicewhenitisstationary.
ODU OutdoorUnit:agenerictermforanyradio,andcanusuallybe
exchangedforHBSorHSU.
PtMP PointtoMultiPoint:linkfromanHBStoseveralHSUs
PtP PointtoPoint
RADIUS RemoteAuthenticationDialInUserService
TableA1:Terminology(Sheet2of3)
Term Description
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 A3
QoS QualityofService
SBM SmartBandwidthManagement
Sector AgroupofradiosthatconsistsofoneHBSandseveralHSUsthat
communicatewiththeHBS.
SFF SmallFormFactor
SLA ServiceLevelAgreement
SSM
SynchronizationStatusMessage:Providestraceabilityof
synchronizationsignals,andisusedintheSynchronousEthernet
standardofcommunication.
SU SubscriberUnit:aradiothatcantransmitandreceivetoonepoint.
SeealsoHSU
SyncEorSyncE
SynchronousEthernet:Astandardofcommunicationforethernet
thatprovidesasynchronizationsignaltonetworkelementsthat
needsuchasignal.
TBS TransportationBaseStation.SimilartoanHBSorBS,butusedwith
highspeedtransportationapplications.
TDWR
TerminalDopplerWeatherRadar:atypeofradarstationusedin
theU.S.andothercountriesforweatherreporting.Ifaradiounitis
installedcloseenoughtooneofthesestations,theFCCrequires
thatcertainactionsmustbetakenonthepartofthecustomer.
Regulationsinothercountriesvaries.
TMU TransportationMobileUnit.SimilartoanSU
TrackSide Itemsorsubjectmatterthatrelatestotheenvironmentnotonor
insidethetrain.Itisnotlimitedtopreciselynexttothetrack.
TrainSide Itemsorsubjectmatterthatrelatestotheenvironmentonor
insidethetrainitself.
Uplink DatatrafficfromanHSUtoanHBS,or
DatatrafficfromanRTBtoanRTA
VMUVehicularMobileUnit
WI WebInterface:webbasedapplicationthatprovidessimple
configurationcapabilitiesfortheradiounits.
WISPA
WirelessInternetServiceProviderAssociation.Anorganization
thatmanagesregistrationofwirelessdevicesthatoperatecloseto
TDWRfacilitiesrunbytheFAA.
TableA1:Terminology(Sheet3of3)
Term Description
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 B1
AppendixB:Wiring
Specifications
B.1ScopeofthisAppendix
ThisappendixshowswiringspecificationsfortheHBSandHSU.
B.1RadiounitPoECable(HBSandHSU)
TheradiounitPoEcableisshielded/outdoorclassCAT5e,4twistedpair24AWGterminated
withRJ45connectorsonbothends.Acableglandontheradiounitsideprovideshermetic
sealing.
Thefollowingtableshowstheconnectorpinout:
TableB1:RadiounitPoERJ45ConnectorPinout
Function Color PoE ODU
RxNWhite/Green 1 1
RxTGreen 2 2
TxTWhite/Orange 3 3
TxNOrange 6 6
Power(+) Blue 4 4
Power(+) White/Blue 5 5
Power()White/Brown 7 7
Power()Brown 8 8
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 B2
ScopeofthisAppendix
B.2UserPortConnectors
B.2.1LANPort
TheLAN10/100BaseTinterfaceterminatesinan8pinRJ45connector,wiredinaccordance
toTable B3.
B.3DCPowerTerminals
B.3.1DCPoE
DCpowerterminalsareasfollows:
TableB2:LANGbEPoERJ45ConnectorPinout
Function Color PoE LAN
TxRxAWhite/Green 1 1
TxRxAGreen 2 2
TxRxBWhite/Orange 3 3
TxRxBOrange 6 6
TxRxC&Power(+) Blue 4 4
TxRxC&Power(+) White/Blue 5 5
TxRxD&Power()White/Brown 7 7
TxRxD&Power()Brown 8 8
TableB3:FastEthernetConnectorPinout
Function Signal Pin
TransmitData(positive) TD(+) 1
TransmitData(negative) TD(–) 2
ReceiveData(positive) RD(+) 3
ReceiveData(negative) RD(–) 6
TableB4:TerminalBlock2pin‐48VDC
Function Pin
+Right
Left
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 B3
ScopeofthisAppendix
B.4SU2ACPowerTerminal
TheSU2ACpowerportisafourpinmalesocketwithpinassignmentsasfollows:
TableB5:SU2ACpowerpinassignments
PinWireColor Function
1Red Line
2Notused
3 Black Neutral
4GreenorGreen
Yellow Ground
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 C1
AppendixC:AboutAntennas
C.1ScopeofthisAppendix
Thisappendixprovidessomebasicinformationandconsiderationsregardingantennasand
whatyouneedtotakeintoaccountwhenconfiguringantennaparameters.
C.1AntennaIssues
ThechoiceofTxPower,antennagainandcableloss(betweentheradioandtheantenna)
determinestheEIRPandisaffectedbysuchconsiderationsasradiolimitationsandregulatory
restrictions.
Beforeproceedingtoantennainstallationdetails,thefollowingbackgroundinformation
shouldbeconsidered:
C.2AboutSingleandDualAntennas
EachRADWIN5000HPMPODUismadeoftworadiotransceivers(radios).Theradiosmake
useofalgorithmsthatutilizebothSpatialMultiplexing(alsocalledMIMO)andDiversity
resultinginenhancedcapacity,rangeandlinkavailability.Thenumberofantennas(i.e.
radios)usedisdeterminedbyuserconfigurationandbyautomaticsystemdecisions,
explainedbelow.
C.2.1DualAntennasattheHBSandanHSU
Whenusingdualantennasatbothsites(singlebipolarantennaortwomounipolarantennas)
youcanchoosebetweenSpatialMultiplexingModeandDiversityMode.
SpatialMultiplexingMode
Underthismode,thesystemdoublesthelinkcapacity.Atthesametime,itkeepsthesame
rateandmodulationperradioaswasusedwithsingleantenna,thusincreasingcapacity,
rangeandavailability.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 C2
ScopeofthisAppendix
ForexamplewithadualantennaRADWIN5000HPMPcantransmitatmodulationof64QAM
andFECof5/6andgetanairrateof130Mbps,comparedto65Mbpswithsingleantenna.
Toworkinthismode,eachantennaportmustbeconnectedtoanantenna,theRSSlevelin
bothreceiversshouldbebalancedandaminimalseparationbetweentheantennasmustbe
maintained.(Forexample,byusingdualpolarizationantennasacrosspolarizationseparation
isattained).
UponselectingAntennaTypeasDual,RADWIN5000HPMPautomaticallyselectsthismode
anddoublestheairrates.
RADWINManagerindicatesacaseofunbalancedRSSbetweenthetwoantennasintheHBS
panels.
DiversityMode
DiversityModeusestwoantennastoimprovethequalityandreliabilityofthelink.Often,
thereisnotaclearlineofsight(LOS)betweentransmitterandreceiver.Insteadthesignalis
reflectedalongmultiplepathsbeforefinallybeingreceived.
Eachsuch“bounce”canintroducephaseshifts,timedelays,attenuations,andeven
distortionsthatcandestructivelyinterferewithoneanotherattheapertureofthereceiving
antenna.Antennadiversityisespeciallyeffectiveatmitigatingthesemultipathsituations.
Thisisbecausemultipleantennasaffordareceiverseveralrecordingsofthesamesignal.Each
antennawillbeexposedtoadifferentinterferenceenvironment.Thus,ifoneantennais
undergoingadeepfade,itislikelythatanotherhasasufficientsignal.Collectivelysucha
systemcanprovidearobustlink.
Antennadiversityrequiresantennaseparationwhichispossiblebyusingadualpolarization
antennaorbytwospatiallyseparatedantennas.
UseDiversityinsteadofSpatialMultiplexinginthefollowingsituations:
WhenthesystemcannotoperateinSpatialMultiplexingMode
Whenoneofthereceivershashighinterferencecomparedtothesecondreceiver(i.e.
thesystemis“unbalanced”)
WhenyouachievehighercapacityinDiversityModethaninSpatialMultiplexingMode
WhenhighrobustnessisofimportanceandthecapacityofDiversityModeissufficient
(upto25Mbpsfullduplex)
C.2.2SingleAntennasatBothSites
ByselectingasingleantennaattheHBSandHSU,theODUsoperatewithasingleradiothatis
connectedtotheANT1connector.Thesecondradioisautomaticallyshutdown.
C.2.3SingleatOneSite,DualAntennasattheOther
InthismodeoneofthesitesusestheODUwithasingleantennawhiletheothersiteusesthe
ODUwithadualantenna.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 C3
ScopeofthisAppendix
Theadvantagesinthismodeincomparisontousingasingleantennainbothsitesare
doubledtotalTxPowerandadditionalpolarizationand/orspacediversity(dependingonthe
polarizationofinstalledantennas).
Theairratesusedinthismodearesameaswhenusingsingleantennasinbothsites.
Table C1summarizesthesituation:(SM=SpatialMultiplexing)
SiteAandBmaybeHBSorHSU.
C.3ConsiderationsforChangingAntenna
Parameters
Let:
maxAvailableTxPowerdenotethemaximumTxPowerpracticallyavailablefromanODU.(It
appearsasTxPowerperRadio.)
maxRegEIRPdenotethemaximumEIRPavailablebyregulation.Itwillbedeterminedby
threefactors:
perband/regulation
perchannelbandwidth
antennagain
maxRegTxPowerdenotethemaximumregulatoryTxPowerfortheequipment,alsohaving
regardtheabovethreepoints.
Then,thefollowingrelationshipmustbesatisfied:
...(*)
TheTxPower(perradio)indicatesthepowerofeachradioinsidetheODUandisusedforLink
BudgetCalculations.TheTxPower(System)showsthetotaltransmissionpoweroftheODU
andisusedtocalculatetheEIRPaccordingtoregulations.
TableC1:SpatialMultiplexing‐Diversitysettings
Numberof
Antennas Mode MaxFull
Duplex
Capacity
SiteASiteBSiteASiteB
2 2
Spatial
Multiplexing
Spatial
Multiplexing 50Mbps
Diversity Diversity 25Mbps
2 1 Diversity Single 25Mbps
1 2 Single Diversity 25Mbps
1 1 Single Single 25Mbps
maxAvailableTxPower min maxRegEIRP
AntennaGain CableLoss maxRegTxPower+()
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 C4
ScopeofthisAppendix
Theinequality(*)aboveisalwayssatisfiedbythesysteminaccordancewiththerelevant
regulation.
Thepreciserelationshipbetweentheitemsininequality(*)isasfollows:
RequiredTxPower(perradio)willbeadjusteddowntothelesserofthevalueentered
andmaxAvailableTxPower
TxPower(system)ismaxAvailableTxPower+3(for2radios)
MaxEIRPismaxRegEIRP.
EIRPismaxAvailableTxPower+AntennaGain‐CableLoss
TheMaxEIRPlevelwillbeautomaticallysetaccordingtothe
selectedbandandregulation.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 D1
AppendixD:RegionalNotice:
FrenchCanadian
D.1Procéduresdesécurité
D.1.1Généralités
Avantdemanipulerdumatérielconnectéàdeslignesélectriquesoudetélécommunications,
ilestconseillédesedéfairedebijouxoudetoutautreobjetmétalliquequipourraitentreren
contactaveclesélémentssoustension.
D.1.2Miseàlaterre
TouslesproduitsRADWINdoiventêtremisàlaterrependantl'usagecourant.Lamiseàla
terreestassuréeenreliantlafiched'alimentationàuneprisedecourantavecuneprotection
deterre.Enoutre:
Lacossedemassesurl'IDUCdoitêtreconstammentconnectéeàlaprotectionde
terre,paruncâbledediamètrede18AWGouplus.Lematérielmontésurrackdoitêtre
installéseulementsurdesracksouarmoiresreliésàlaterre
UneODUdoitmiseàlaterreparuncâbledediamètrede10AWGouplus
Ilnedoitpasyavoirdefusiblesoud'interrupteurssurlaconnectionàlaterre
Deplus:
Ilfauttoujoursconnecterlaterreenpremieretladéconnecterendernier
Ilnefautjamaisconnecterlesblesdetélécommunicationàdumatérielnonàlaterre
Ilfauts'assurerquetouslesautrescâblessontdéconnectésavantdedéconnecterla
terre
D.1.3Protectioncontrelafoudre
L'utilisationdedispositifsdeprotectioncontrelafoudredépenddesexigences
réglementairesetdel'utilisateurfinal.TouteslesunitésextérieuresRADWINsontconçues
avecdescircuitsdelimitationdesurtensionafindeminimiserlesrisquesdedommagesdusà
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 D2
lafoudre.RADWINconseillel'utilisationd'undispositifdeparafoudresupplémentaireafinde
protégerlematérieldecoupsdefoudreproches.
Matérielsupplémentairerequis
L'équipementrequispourl'installationdumatérielestlesuivant:
PinceàsertirRJ45(siuncâblepréassembODU/IDUn'estpasutilisé)
Perceuse(pourlemontagesurmurseulement)
CâblesdeterreIDUetODU
Clef13mm)
CâbleODU‐IDUsinoncommandé(typeextérieur,CAT5e,4pairestorsadées,24AWG)
Colliersdeserrage
OrdinateurportableavecWindows2000ouWindowsXP.
D.1.4PrécautionsdesécuritépendantlemontagedeODU
Avantdeconnecteruncâbleàl'ODU,laborneprotectricedemasse(visse)del'ODUdoitêtre
connectéeàunconducteurexterneprotecteurouàunpylônereliéàlaterre.Ilnedoitpasy
avoirdefusiblesoud'interrupteurssurlaconnectionàlaterre.
Seulementunpersonnelqualifiéutilisantl'équipementdesécuritéappropriédoitpouvoir
montersurlepylôned'antenne.Demême,l'installationouledémontagedeODUoude
pylônesdoitêtreeffectuéeseulementpardesprofessionnelsayantsuiviuneformation.
Pourmonterl'ODU:
1.rifierquelessupportsdefixationdel'ODUsontcorrectementmisàlaterre.
2. Monterl'unitéODUsurlepylôneousurlemur;seréféreràlaInstallationsur
pylôneetmuraudessous.
3. Connecterlacâbledeterreaupointdechâssissurl'ODU.
4. RelierlecâbleODUIDUauconnecteurODURJ45.
5. Visserlespressesétoupedecâblespourassurerlescellementhermétiquedes
unitésODU.
6. AttacherlecâbleaupylôneouauxsupportsenutilisantdescolliersclassésUV.
7. Répéterlaprocéduresurlesitedistant.
D.1.5ConnecterlaterreàIDUC
Connecteruncâbledeterrede18AWGàlabornedemassedel'appareil.L'appareildoitêtre
constammentconnectéàlaterre.
Nepasseplacerenfaced'uneODUsoustension.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 D3
D.2Installationsurpylôneetmur
L'ODUoul'OPoEpeuventêtremontéssurunpylôneouunmur.
D.2.1ContenudukitdemontageODU
LekitdemontageODUcomprendlespiècessuivantes:
FigureD1:ContenudukitdemontageODU
•Lesappareilssontprévuspourêtreinstallésparunpersonneldeser
vice.
•Lesappareilsdoiventêtreconnectésàuneprisedecourantavecune
protectiondeterre.
•LecourantCCduIDUCdoitêtrefourniparl'intermédiaired'undisjonc
teurbipolaireetlediamètreducâbledoitêtrede14mmavecuncon
duitde16mm.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 D4
D.2.2Montagesurunpylône
D.2.3Montagesurunmur
D.2.4Montaged'uneantenneexterne
L'antenneexterneoptionnellepeutêtremontéesurunpylône.
D.2.5Contenudukitdemontaged'uneantenneexterne
Lekitdemontaged'uneantenneexternecomprendlespiècessuivantes
Douzerondellesplates
Huitrondellesélastiques
Huitécroushex
FigureD2:Montagesurunpylône(1) FigureD3:Montagesurunpylône(2)
FigureD4:Montagesurunmur(1) FigureD5:Montagesurunmur(2)
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 D5
Quatreboulons
UnsupportenU
Unsupportàpivotement
Deuxcourroiesdefixationental
Pourinstalleruneantenneexternesurunpylône:
1.AttacherlesupportenUàl'arrièredel'antenneenutilisantquatrerondellesplates,
quatrerondellesélastiquesetquatreécroushex.
2. AttacherlesupportàpivotementausupportenUenutilisanthuitrondellesplates,
quatrerondellesélastiques,quatreécroushexetquatreboulons.
3. Passerlesdeuxcourroiesdefixationparlesfentesverticalesdanslesupportà
pivotement.
4. Attacherl'antenneaupylôneenutilisantlesdeuxcourroiesdefixation.
Ajusterl'inclinaisonnécessaireenutilisantl'échelleangulaireetserrertouslesboulonset
écrousàlapositionrequise.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 E1
AppendixE:CertifiedAntennas
E.1ForDeploymentinUS/Canada
RadiodevicesthatbearthefollowingFCC/ICIDsrefertoTable E1toTable E4below:
ContainsFCCID:Q3K‐5XACMOLD
ContainsIC:5100A‐5XACMOD
Onlytheantennasshowninthetablesbeloworantennasofthesametypewithlowergain
areapprovedforuseinthissystem.Theantennasmustbeinstalledsoastoprovidea
minimumseparationdistancefrombystandersasspecifiedinthetablesbelow:
TableE1:FrequencyBand57255850MHz
Cat.No. Type Gain(dBi) Dir
BW
TxPower
perchain
(dBm)
Min.Safe
Distance(cm)
Integrated FlatDPBS 11.0 120° 25 26
RW90615004 FlatDPBS 11.0 120° 25 26
Integrated FlatDPBS 12.0 95° 25 29
Integrated FlatDPBS 13.0 90° 25 32
RW90615001 FlatDPBS 14.0 90° 25 36
RW90615002 FlatDPBS 15.5 60° 25 43
Integrated FlatDP 16.0 35° 25 45
Integrated FlatDP 16.5 35° 25 48
RW96134960 FlatDP 23.0 8° 25 100
Integrated FlatDP 23.5 8° 25 107
RW96225001 FlatDP 29.0 5° 25 200
RW94015002 SharkFinSP 12.5 50° 25 30
RW97215158 DishDP 28.0 5.5° 25 178
RW97324958 DishDP 32.0 4° 25 314
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 E2
TableE2:FrequencyBands52505350MHzand54705725MHz
Cat.No. Type Gain(dBi) Dir
BW
TxPower
perchain
(dBm)
Min.Safe
Distance(cm)
Integrated FlatDPBS 11.0 120° 16 20
RW90615004 FlatDPBS 11.0 120° 16 20
Integrated FlatDPBS 12.0 95° 15 20
Integrated FlatDPBS 13.0 90° 14 20
RW90615001 FlatDPBS 14.0 90° 13 20
RW90615002 FlatDPBS 15.5 60° 11.5 20
Integrated FlatDP 16.0 35° 11 20
Integrated FlatDP 16.5 35° 10.5 20
RW96134960 FlatDP 23.0 8° 4 20
Integrated FlatDP 23.5 8° 3.5 20
RW96225001 FlatDP 29.0 220
RW94015002 SharkFinSP 12.5 50° 14.5 20
RW97215158 DishDP 28.0 5.5° 120
RW97324958 DishDP 32.0 520
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 E3
TableE3:FrequencyBands51505250MHz
Cat.No. Type Gain(dBi) Dir
BW
TxPower
perchain
(dBm)
Min.Safe
Distance(cm)
Integrated FlatDPBS 11.0 120° 22 20
RW90615004 FlatDPBS 11.0 120° 22 20
Integrated FlatDPBS 12.0 95° 21 20
Integrated FlatDPBS 13.0 90° 18 20
RW90615001 FlatDPBS 14.0 90° 18 20
RW90615002 FlatDPBS 15.5 60° 18 20
Integrated FlatDP 16.0 35° 24 40
Integrated FlatDP 16.0 35° 24 40
RW96134960 FlatDP 23.0 8° 25 100
Integrated FlatDP 23.5 8° 25 107
RW96225001 FlatDP 29.0 5° 22 142
RW94015002 SharkFinSP 12.5 50° 21 20
RW97215158 DishDP 28.0 5.5° 19 90
RW97324958 DishDP 32.0 4° 19 142
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 E4
TableE4:FrequencyBands49404990MHz
Cat.No. Type Gain(dBi) Dir
BW
TxPower
perchain
(dBm)
Min.Safe
Distance(cm)
Integrated FlatDPBS 11.0 120° 25 26
RW90615004 FlatDPBS 11.0 120° 25 26
Integrated FlatDPBS 12.0 95° 25 29
Integrated FlatDPBS 13.0 90° 25 32
RW90615001 FlatDPBS 14.0 90° 25 36
RW90615002 FlatDPBS 15.0 60° 25 40
Integrated FlatDP 14.0 35° 25 36
Integrated FlatDP 16.0 35° 25 45
RW96134960 FlatDP 23.0 8° 25 100
Integrated FlatDP 21.0 8° 25 80
RW96225001 FlatDP 29.0 5° 25 200
RW94015002 SharkFinSP 12.5 50° 25 30
RW97215158 DishDP 28.0 5.5° 25 178
RW97324958 DishDP 30.0 4° 25 225
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 E5
TheRADWINSUPRO/AIRbearsthefollowingFCC/ICIDsonthelabel.RefertoTable E5to
Table E9below:
FCCID:Q3K5XACULCX
IC:5100A5XACULCX
TheRADWINSUPRO/AIRmustbeinstalledsoastoprovideaminimumseparationdistance
frombystandersasspecifiedinthetablesbelow:
TableE5:FrequencyBand57255850MHz
Cat.No. Type Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.Safe
Distance(cm)
Embedded FlatDB 16.0 17.Hor
29.1°Ver 27 110
RW96145359 FlatDB 23.0 10.0° 27 110
TableE6:FrequencyBands52505350MHzand54705725MHz
Cat.No. Type Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.Safe
Distance(cm)
Embedded FlatDB 16.0 17.Hor
29.1°Ver 10 20
RW96145359 FlatDB 23.0 10.0° 4 20
TableE7:FrequencyBand51505250MHz
Cat.No. Type Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.Safe
Distance(cm)
Embedded FlatDB 16.0 17.Hor
29.1°Ver 11 107
RW96145359 FlatDB 23.0 10.0° 4 107
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 E6
TheRADWIN5000JETbearsthefollowingFCC/ICIDsonthelabel,andrefertoTable E10to
Table E13below:
FCCID:Q3KBFJET5X
IC:5100ABFJET5X
TheRADWIN5000JETmustbeinstalledsoastoprovideaminimumseparationdistancefrom
bystandersasspecifiedinthetablesbelow:
TableE8:FrequencyBand49404990MHz
Cat.No. Type Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.Safe
Distance(cm)
Embedded FlatDB 14.0 17.Hor
29.1°Ver 17 43
RW96145359 FlatDB 23.0 10.0° 17 43
TableE9:FrequencyBand24002483.5MHzWiFi
Cat.No. Type Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.Safe
Distance(cm)
OnBoard Printed 3.0 360° 26 110
TableE10:FrequencyBand57255850MHz
OperatingForm Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.SafeDistance
(cm)
Uniform 20.0 9.4° 13 96
Floodlight 11.0 60° 22 96
TableE11:FrequencyBands52505350MHzand54705725MHz
OperatingForm Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.SafeDistance
(cm)
Uniform 20.0 9.4° 7 20
Floodlight 11.0 60° 16 20
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 E7
TheRADWINJETDUObearsthefollowingFCC/ICIDsonthelabel,andrefertoTable E14to
Table E16below:
FCCID:Q3KJETDB5X3X
IC:5100AJETDB5X3X
TheRADWINJETDUOmustbeinstalledsoastoprovideaminimumseparationdistancefrom
bystandersasspecifiedinthetablesbelow:
TableE12:FrequencyBands51505250MHz
OperatingForm Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.SafeDistance
(cm)
Uniform 20.0 9.4° 13 20
Floodlight 11.0 60° 13 20
TableE13:FrequencyBands49404990MHz
OperatingForm Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.SafeDistance
(cm)
Uniform 17.0 9.4° 21 55
Floodlight 8.0 60° 21 55
TableE14:FrequencyBand57255850MHz
OperatingForm Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.Safe
Distance(cm)
Uniform 20.0 12°13 32
Sharp 19.0 16°14 32
Floodlight 11.0 85°22 32
TableE15:FrequencyBand51505250MHz
OperatingForm Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.Safe
Distance(cm)
Uniform 20.0 12°13 30
Sharp 19.0 16°14 30
Floodlight 11.0 85°22 30
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 E8
E.2ForDeploymentinETSICountries
TheRADWIN5000JETmustbeinstalledsoastoprovideaminimumseparationdistancefrom
bystandersasspecifiedinthetablesbelow:
TableE16:FrequencyBand36503700MHz
OperatingForm Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.Safe
Distance(cm)
Uniform 17.0 17°27 55
Floodlight 11.0 70°27 55
TableE17:SafetyDistancesforRADWIN5000ETSIProducts
FrequencyBand
[GHz]
Antennagain
[dBi]
Min.Safety
Distance
[cm]
5.8/5.3/5.4/2.4 Allgains 20
TableE18:FrequencyBand57255875MHz
OperatingForm Gain(dBi) DirBW TxPowerper
chain(dBm)
Min.Safe
Distance(cm)
Uniform 20.0 9.4 7 20
Floodlight 11.0 60 16 20
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 F1
AppendixF:RevisionHistory
TableF1:RevisionHistory:RADWIN5000HPMPInstallationGuide:DQ0193780/0.6
Cat.No. Date Description
DQ0193780/0.1
SystemRelease4.9
Feb,
2017
Initialrelease
DQ0193770/0.2
SystemRelease
4.9.15
Jun,
2017
TurboGainantennadescriptionadded(seeSUPRO/AIR
Unitsonpage 231
Regulatorycommentadded(seeRegulatoryCompliance:
GeneralNote)
DQ0193770/0.3
SystemRelease
4.9.17
Sep,
2017
ExternalantennaaddedforSU/PROAir(seeSUPRO/AIR
Unitsonpage 231andseeExternal,nonintegrated
antennaonpage 232)
DescriptionforattachingcablesfortheTurboGain
antennamodified(seeSUPRO/AIRUnitsonpage 231)
DQ0193770/0.4
SystemRelease
4.9.20
Nov,
2017
DescriptionaddedforsealingtapewheninstallingTurbo
GainantennaonSU/PROAirunits(seeSUPRO/AIRUnits
onpage 231)
DQ0193770/0.6
SystemRelease
4.9.30
Dec,
2017
Newproduct:RADWINJETDUO:
Hastwofrequencybands(3.xand5.x)
Usesalarger,integratedantennathanthatoftheJETplat
form(seeJETandDUOUnitsonpage 24)
UsesthesecondinputportontheJETplatformasanSFPport
(seeDUOUnitsonpage 234)
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 i
RegulatoryCompliance
GeneralNote
ThissystemhasachievedTypeApprovalinvariouscountriesaroundtheworld.Thismeans
thatthesystemhasbeentestedagainstvariouslocaltechnicalregulationsandfoundto
comply.Thefrequencybandsinwhichthesystemoperatesmaybe“unlicensed”andinthese
bands,thesystemcanbeusedprovideditdoesnotcauseinterference.
Forinformationontherestrictionsonputtingthedeviceintoservicepleasecontactyour
nationaltelecommunicationauthorities.
FCC/ISED‐Compliance
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital
device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable
protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipment
generates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin
accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.
However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.If
thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcan
bedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrect
theinterferencebyoneormoreofthefollowingmeasures:
• Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Changesormodificationstothisequipmentnotexpresslyapprovedbythepartyresponsible
forcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.
RFExposure
Forthesafetyofthegeneralpublicitisrecommendedtokeepaminimumsafedistancefrom
radiatingantennasaccordingtothetablebelow:
Pourlasécuritédugrandpublic,ilestrecommandéderespecterunedistancedesécurité
minimaleparrapportauxantennesrayonnantes,conformémentautableaucidessous:
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 ii
IndoorUnitscomplywithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)Thesedevicesmaynotcauseharmfulinterference.
(2)Thesedevicesmustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
FCCIdentifier ICIdentifier Band(GHz)
SafeDistance
(cm)
U.S. Canada
ContainsFCCID:Q3K5XACMOLD ContainsIC:5100A5XACMOD 4.95.8 310 314
FCCID:Q3KBFJET5X IC:5100A‐BFJET5X 4.95.8 94.38 96
FCCID:Q3KJETDB5X3X IC:5100AJETDB5X3X 3.6;5.1;5.8 55 66
FCCID:Q3K5XACULCXIC:5100A5XACULCX 2.4;4.95.8 110 115
Itistheresponsibilityoftheinstallertoensurethatwhenusingthe
outdoorantennakitsintheUnitedStates(orwhereFCCrulesapply),only
thoseantennascertifiedwiththeproductareused.Theuseofany
antennaotherthanthosecertifiedwiththeproductisexpresslyforbidden
byFCCrules47CFRpart15.204.
Itistheresponsibilityoftheinstallertoensurethatwhenconfiguringthe
radiointheUnitedStates(orwhereFCCrulesapply),theTxpowerisset
accordingtothevaluesforwhichtheproductiscertified.TheuseofTx
powervaluesotherthanthose,forwhichtheproductiscertified,is
expresslyforbiddenbyFCCrules47CFRpart15.204.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 iii
OutdoorunitsandantennasshouldbeinstalledONLYbyexperienced
installationprofessionalswhoarefamiliarwithlocalbuildingandsafety
codesand,whereverapplicable,arelicensedbytheappropriate
governmentregulatoryauthorities.Failuretodosomayvoidtheproduct
warrantyandmayexposetheenduserortheserviceprovidertolegaland
financialliabilities.Resellersordistributorsofthisequipmentarenot
liableforinjury,damageorviolationofregulationsassociatedwiththe
installationofoutdoorunitsorantennas.Theinstallershouldconfigure
theoutputpowerlevelofantennasaccordingtocountryregulationsand
antennatype.
Lesunitésexrieuresetlesantennesdoiventêtreinstallées
UNIQUEMENTpardeslesprofessionnelsdel'installationquiconnaissent
lebâtimentetlasécuritélocauxcodeset,lecaséchéant,sontautorisés
parlesautoritéscompétentesautoritésderéglementation
gouvernementales.Nepaslefairepeutannulerleproduitgarantieetpeut
exposerl'utilisateurfinaloulefournisseurdeservicesàdespassifs
financiers.Lesrevendeursoudistributeursdecetéquipementnesontpas
responsabledesblessures,desdommagesoudelaviolationdela
réglementationinstallationd'unitésextérieuresoud'antennes.
L'installateurdoitconfigurerleniveaudepuissancedesortiedesantennes
selonlesréglementationsdupaysettyped'antenne.
WhereOutdoorunitsareconfigurablebysoftwaretoTxpowerval
uesotherthanthoseforwhichtheproductiscertified,itisthe
responsibilityoftheProfessionalInstallertorestricttheTxpowerto
thecertifiedlimits.
Thisproductwastestedwithspecialaccessories‐indoorunit(IDUor
PoE),FTPCAT5eshieldedcablewithsealinggasket,10AWGground
ingcable‐whichmustbeusedwiththeunittoinsurecompliance.
Thesystemmustbeprofessionallyinstalledtoensurecompliancewiththe
Part15certification.Itistheresponsibilityoftheoperatorand
professionalinstallertoensurethatonlycertifiedsystemsaredeployedin
theUnitedStates.Theuseofthesysteminanyothercombination(suchas
colocatedantennastransmittingthesameinformation)isexpressly
forbidden.Theradiomustbeinstalledandusedinstrictaccordancewith
themanufacturer'sinstructionsasdescribedinthisguide.Anyother
installationoruseoftheproductviolatesFCCPart15regulations.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 iv
Lesystèmedoitêtreprofessionnellementinstallépourassurerla
conformitéavecCertificationdelapartie15Ilestdelaresponsabilitéde
l'opérateuretdel'installateurprofessionnelqueseulslessysmes
certifiéssontdéployésauxÉtatsUnis.L'utilisationdusystèmedanstoute
autrecombinaison(p.antennestransmettantlamêmeinformation)est
expressémentinterdite.Laradiodoitêtreinstalléeetutiliséeenstricte
conformitéaveclesinstructionsdufabricantdécritesdansceguide.Toute
autreinstallationouutilisationduproduitenfreintlesrèglementsde
l'ISDErèglements.
Itistheresponsibilityoftheinstallertoensurethatwhenusingthe
outdoorantennakitsintheUnitedStates(orwhereFCCrulesapply),only
thoseantennascertifiedwiththeproductareused.Theuseofany
antennaotherthanthosecertifiedwiththeproductisexpresslyforbidden
byFCCrules47CFRpart15.204.Alistofapprovedexternalantennascan
befoundinAppendixE:CertifiedAntennas.
Lesystèmedoitêtreprofessionnellementinstallépourassurerla
conformitéavecCertificationdelapartie15Ilestdelaresponsabilitéde
l'opérateuretdel'installateurprofessionnelqueseulslessysmes
certifiéssontdéployésauxÉtatsUnis.L'utilisationdusystèmedanstoute
autrecombinaison(p.antennestransmettantlamêmeinformation)est
expressémentinterdite.Ilestdelaresponsabilitédel'installateurde
s'assurerquelorsdel'utilisationdukitsd'antenneexrieureauxÉtats
Unis(oulorsquelesglesdelaFCCs'appliquent),seulementlesantennes
certifiéesavecleproduitsontutilisées.L'utilisationdetoutl'antenne
autrequecellescertifiéesavecleproduitestexpresmentinterditepar
lesrèglementsISED.Unelisted'antennesexternesapprouvéespeutse
trouveàl'annexeAntennesCertifiées(AppendixE:CertifiedAntennas)
Itistheresponsibilityoftheoperatorandprofessionalinstallertoensure
thatwhenconfiguringtheradiointheUnitedStates(orwhereFCCrules
apply),theTxpowerissetaccordingtothevaluesforwhichtheproductis
certified.TheuseofTxpowervaluesotherthanthose,forwhichthe
productiscertified,isexpresslyforbiddenbyFCCrules47CFRpart15.204
Ilestdelaresponsabilitédel'opérateuretdel'installateur
professionnelquelorsdelaconfigurationdelaradioauCanada
(oulorsquelesrèglescanadiennesappliquer),lapuissanceTxest
définieenfonctiondesvaleurspourlesquellesleproduitest
agréé.L'utilisationdevaleursdepuissanceTxautresquecelles
pourlesquellesleproduitestcertifié,estexpressémentinterdit
parlesrèglementsdel'ISDE
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 v
ItistheresponsibilityoftheinstallertoensurethatSectorand
BaseStationradiosoperatingintheband51505250MHzare
installedsothattheantennasdonotexceed21dBmEIRPatany
elevationangleabove30degreesasmeasuredfromthehorizon,
asrequiredbyFCCrule47CFRPart15.407(a)(1)(i).
InCanadaRadioLocalAreaNetworkDevicesOperatinginthe
51505250MHzFrequencyBandmayonlybeallowedfollowing
licensingprocess.
AuCanada,lesappareilsduréseaulocalradiofonctionnantdans
labandedefréquences51505250MHznepeuventêtreautorisés
qu'aprèsunprocessusd'attributiondelicence.
UnderregulatoryenvironmentssupportingotherthanFCC/ISED
rules:WhereOutdoorunitsareconfigurablebysoftwaretoTx
powervaluesotherthanthoseforwhichtheproductiscertified,it
istheresponsibilityoftheProfessionalInstallertorestricttheTx
powertothecertifiedlimits.
Thisproductwastestedwithspecialaccessories?indoorunit(IDU
orPoE),FTPCAT?5eshieldedcablewithsealinggasket,10AWG
groundingcable‐whichmustbeusedwiththeunittoinsure
compliance.
Dansdesenvironnementsréglementairesprenantencharge
d'autresrèglesquecellesdelaFCC/ISED:lesunités
extérieuressontconfigurablesparlogicielauxvaleursdepuissance
Txautresqueceuxpourlesquelsleproduitestcertifié,c'estlela
responsabilitédel'installateurprofessionnelderestreindrela
puissanceTxàleslimitescertifiées.
Ceproduitaététestéavecdesaccessoiresspéciaux‐unité
intérieure(UDIouPoE),câbleblindéFTPCAT5eavecjoint
d'étanchéité,miseàlaterre10AWGble‐quidoitêtreutilisé
avecl'unitépourassurerlaconformité.
Radiodevicesusingexternalantennasoperatinginthe52505350MHz
and54705725MHzbandsmustcomplywiththeEIRPlimitsasspecifiedin
AppendixE:
Appareilsradioutilisantdesantennesexternesfonctionnantdansles
bandes52505350MHzet54705725MHzserontconformesalaEIRP
limitesiniqueesal’AppendixE:
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 vi
Radiodevicesusingexternalantennasoperatinginthe57255850MHz
bandmustcomplywiththeEIRPlimitsasspecifiedinAppendixE:for
pointtopointandpointtomultipointoperation.
Appareilsradioutilisantdesantennesexternesfonctionnantdansla
bande57255850MHzserontconformesalaEIRPlimitesiniqueesa
l’AppendixE:pourunfonctionnementpointapointetnonpointapoint.
Radiodevicesshallbesoinstalledtohaveworstcasetiltangletoremain
compliantwiththeEIRPelevationmaskrequirementsetforthinRSS247
Section6.2.2(3).
Appareilsderadiodoiventetreinstallesdemaniereaavoirl’angle
d’inclinaisondupirepoirresterconformealaEIRPexigencedemasque
d’elevationselonlaRSS247Section6.2.2(3)
Installersareadvisedtoconsiderhighpowerradarsallocationaspriorityusersof
thebands52505350MHzand54705725MHzandthattheseradarscouldcause
interferenceand/ordamagetotheradiodevices.
Lesinstallateurssontinvitesaenvisagerderadarsahautepuissanceallocation
quelesutilisateursprioritairesdesbandes52505350MHz‐54705725MHzet
quecesradarspourraientcauserinterferenceset/ouendommagerlesappareils
deradio.
TheradiodevicesinthismanualhavebeenapprovedbyIndustryCanada
tooperatewiththeantennatypeslistedinAppendixE:withthemaximum
permissiblegainandrequiredantennaimpedanceforeachantennatype
indicated.
Antennatypesnotincludedinthislist,havingagaingreaterthanthe
maximumgainindicateforthattype,arestrictlyprohibitedforusewith
thisdevice.
LesappareilsderadiodanscemanuelonteteapprouvesparIndustrie
Canadapourfonctionneraveclestypesd’antenneenumeriesaAppendix
E:aveclegainmaximaladmissibleetl’impedanced’antennerequisepour
chaquetyped’antenneindique.
Typesd’antennesnoninclusdanscetteliste,ayantungainsuperieurau
gainmaximumindiquepourcetype,sontstrictementinterdicspurune
utilisationaveccetappareil.
RadiodevicessubjecttoRSS247issue2shallnotbecapableof
transmittingintheband56005650MHz.
DispositifsradiosoumisaladelivranceRS2472nesontpascapablesde
transmettredanslabande56005650MHz.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 vii
Radiodevicesoperatinginthe36503700MHzbandmustcomplywiththeoutputpower
limitsasspecifiedinAppendixE
Basestationsoperatinginthe36503700MHzbandmaynotbelocatedwithin150kmofany
grandfatheredsatelliteearthstationoperatinginthe36503700MHzband.Thecoordinates
ofthesestationsareavailableathttp://www.fcc.gov/ib/sd/3650/.
Basestationsoperatinginthe36503700MHzbandmaynotbelocatedwithin80kmofthe
followingFederalGovernmentradiolocationfacilities:
‐ St.Inigoes,MD‐38°10′N.,76°,23′W
‐ Pensacola,FL‐30°21′28″N.,87°,16′26″W
‐ Pascagoula,MS‐30°22′N,88°29
Licenseesinstallingequipmentinthe36503700MHzbandshoulddetermineifthereareany
nearbyU.S.FederalGovernmentradarsystemsthatcouldaffecttheiroperations.Information
regardingthelocationandoperationalcharacteristicsoftheradarsystemsoperatingadjacent
tothisbandareprovidedinNTIATR99361.
Requestsforbasestationlocationscloserthan80kmtotheU.S.FederalGovernmentradio
locationfacilitieslistedabovewillonlybeapproveduponsuccessfulcoordinationbythe
CommissionwithNTIAthroughtheFrequencyAssignmentSubcommitteeofthe
InterdepartmentalRadioAdvisoryCommittee.
Fixeddevicesoperatinginthe36503700MHzbandgenerallymustbelocatedatleast8
kilometersfromtheU.S./CanadaorU.S./Mexicoborderiftheantennaofthatdevicelooks
withinthe160°sectorawayfromtheborder.Fixeddevicesmustbelocatedatleast56
kilometersfromeachborderiftheantennalookswithinthe200°sectortowardstheborder.
FixeddevicesmaybelocatednearertotheU.S./CanadaorU.S./Mexicoborderthanspecified
aboveonlyiftheCommissionisabletocoordinatesuchusewithCanadaorMexico,as
appropriate.
Licenseesinthe36503700MHzbandmustcomplywiththerequirementsofcurrentand
futureagreementswithCanadaandMexicoregardingoperationinU.S./CanadaandU.S./
Mexicoborderareas.
RadiodevicessubjecttoRSS247issue2shallnotbecapableof
transmittingintheband56005650MHz.
DispositifsradiosoumisaladelivranceRSS2472nesontpascapablesde
transmettredanslabande56005650MHz.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 viii
CanadianEmissionRequirementsforIndoorUnits
ThisClassBdigitalapparatuscomplieswithCanadianISED003.
CetappareilnumriquedelaclasseBestconformeảlanormeNMB003duCanada.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 ix
EUCompliance
Restrictionsontheuseof5.8GHzBandinEUmemberstates
ChinaMII
OperationoftheequipmentisonlyallowedunderChinaMII5.8GHzbandregulation
configurationwithEIRPlimitedto33dBm(2Watt).
IndiaWPC
OperationoftheequipmentisonlyallowedunderIndiaWPCGSR38for5.8GHzband
regulationconfiguration.
RadiotransmittersoperatingintheEUneedtocomplytheREDIRECTIVE
2014/53/EU,EMCDirective2014/30/EU,LowVoltageDirective2014/35/EU.
The5.8GHzproductsaresuitableforusein,andcomplywiththe
BroadbandWirelessAccessSystem(WAS).ItisaClass2deviceanduses
operatingfrequenciesthatarenotharmonizedthroughouttheEU
memberstates.Theoperatorisresponsibleforobtaininganynational
licensesrequiredtooperatethisproductandthesemustbeobtained
beforeusingtheproductinanyparticularcountry.
TheRADWIN5000JET5.8GHzproductcomplieswiththerequirementsof
theharmonizedstandardETSIEN302502andtheECC
RECOMMENDATION(06)04
BE EL LT PT BG ES
LU RO CZ FR HU SI
DK HR SK DE IT UL
NL CY AT SE IE LV
PL
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 x
Brazil
Theequipmentwilloperateonlyinthefrequencybands5470‐5725MHzand5725‐5850
MHz.ThesoftwareversiontobesoldinBrazilwithblockingisfromversion4.6.
Thepowersuppliespresentedinthisusermanualarenotsoldwiththisproduct.
Oequipamentoiráoperarapenasnasfaixasdefrequências5470‐5725MHze5725‐5850
MHz.AversãodosoftwareasercomercializadonoBrasilcombloqueioéapartirdaversão
4.6.
Asfontesdealimentaçãoapresentadasnestemanualnãoserãocomercizliadasjuntocom
esteproduto.
ForNorwayandSwedenonly
Equipmentconnectedtotheprotectiveearthingofthebuildinginstallationthroughthe
mainsconnectionorthroughotherequipmentwithaconnectiontoprotectiveearthing‐and
toacabledistributionsystemusingcoaxialcable,mayinsomecircumstancescreateafire
hazard.Connectiontoacabledistributionsystemhasthereforetobeprovidedthrougha
deviceprovidingelectricalisolationbelowacertainfrequencyrange(galvanicisolator,seeEN
6072811).
Norway
Utstyrsomerkoplettilbeskyttelsesjordvianettpluggog/ellerviaannetjordtilkoplet
utstyr‐ogertilkopletetkabelTVnett,kanforsakebrannfare.Foråunngådetteskaldet
vedtilkoplingavutstyrettilkabelTVnettetinstalleresengalvaniskisolatormellom
utstyretogkabel‐TVnettet
Sweden
Utrustningsomärkoppladtillskyddsjordviajordatvägguttagoch/ellerviaannanutrust
ningochsamtidigtärkoppladtillkabelTVnätkanivissafallmedförariskrbrand.För
attundvikadettaskallvidanslutningavutrustningentillkabelTVätgalvaniskisolator
finnasmellanutrustningenochkabelTVnätet.
Unregulated
Incountrieswheretheradioisnotregulatedtheequipmentcanbeoperatedinany
regulationconfiguration,bestresultswillbeobtainedusingUniversalregulation
configuration.
SafetyPractices
ApplicablerequirementsofNationalElectricalCode(NEC),NFPA70;andtheNational
ElectricalSafetyCode,ANSI/IEEEC2,mustbeconsideredduringinstallation.
NOTES:
1.APrimaryProtectorisnotrequiredtoprotecttheexposedwiringaslongastheexposed
wiringlengthislimitedtolessthanorequalto140feet,andinstructionsareprovidedto
avoidexposureofwiringtoaccidentalcontactwithlightningandpowerconductorsin
accordancewithNECSections72554(c)and80030.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 xi
Inallothercases,anappropriateListedPrimaryProtectormustbeprovided.RefertoArticles
800and810oftheNECfordetails.
2.ForprotectionofODUagainstdirectlightningstrikes,appropriaterequirementsofNFPA
780shouldbeconsideredinadditiontoNEC.
3.ForCanada,appropriaterequirementsoftheCEC22.1includingSection60andadditional
requirementsofCAN/CSAB72mustbeconsideredasapplicable.
4.OnlyULListedpartsandcomponentswillbeusedforinstallation.UseULListeddevices
havinganenvironmentalratingequaltoorbetterthantheenclosureratingtocloseall
unfilledopenings.
5.Usemin.10AWGexternalprotectiveearthingconductor.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 1v
RADWIN 5000 HPMP
User Handbook
Notice
ThishandbookcontainsinformationthatisproprietarytoRADWINLtd(RADWINhereafter).
Nopartofthispublicationmaybereproducedinanyformwhatsoeverwithoutpriorwritten
approvalbyRADWIN.
Right,titleandinterest,allinformation,copyrights,patents,knowhow,tradesecretsand
otherintellectualpropertyorotherproprietaryrightsrelatingtothishandbookandtothe
RADWINproductsandanysoftwarecomponentscontainedthereinareproprietaryproducts
ofRADWINprotectedunderinternationalcopyrightlawandshallbeandremainsolelywith
RADWIN.
TheRADWINnameisaregisteredtrademarkofRADWIN.Noright,license,orinteresttosuch
trademarkisgrantedhereunder,andyouagreethatnosuchright,license,orinterestshallbe
assertedbyyouwithrespecttosuchtrademark.
Youshallnotcopy,reversecompileorreverseassemblealloranyportionoftheInstallation
GuideoranyotherRADWINdocumentationorproducts.Youareprohibitedfrom,andshall
not,directlyorindirectly,develop,market,distribute,license,orsellanyproductthat
supportssubstantiallysimilarfunctionalitybasedorderivedinanywayfromRADWIN
products.YourundertakinginthisparagraphshallsurvivetheterminationofthisAgreement.
ThisAgreementiseffectiveuponyouropeningofaRADWINproductpackageandshall
continueuntilterminated.RADWINmayterminatethisAgreementuponthebreachbyyouof
anytermthereof.UponsuchterminationbyRADWIN,youagreetoreturntoRADWINany
RADWINproductsanddocumentationandallcopiesandportionsthereof.
ForfurtherinformationcontactRADWINatoneoftheaddressesunderWorldwideContacts
beloworcontactyourlocaldistributor.
Disclaimer
Theparametersquotedinthisdocumentmustbespecificallyconfirmedinwritingbefore
theybecomeapplicabletoanyparticularorderorcontract.RADWINreservestherightto
makealterationsoramendmentstothedetailspecificationatitsdiscretion.Thepublication
ofinformationinthisdocumentdoesnotimplyfreedomfrompatentorotherrightsof
RADWIN,orothers.
Trademarks
WinLink1000,RADWIN2000,RADWIN5000,RADWIN6000,RADWIN600and
FiberinMotionaretrademarksofRADWINLtd.
Windows2000,XPPro,Vista,Windows7andInternetExploreraretrademarksof
MicrosoftInc.
MozillaandFirefoxaretrademarksoftheMozillaFoundation.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 1vi
Otherproductnamesaretrademarksoftheirrespectivemanufacturers.
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 1vii
RADWINWorldwideOffices
CorporateandEMEARegionalHeadquarters
CorporateandEMEAHeadquarters
27 Habarzel Street
Tel Aviv,6971039
Israel
Tel: +972.3.766.2900
Fax: +972.3.766.2902
Email: sales@radwin.com
NorthAmericaRegional
Headquarters
900 Corporate Drive
Mahwah, NJ, 07430
USA
Tel: +1-877-RADWIN US
(+1-877 723-9468)
Tel: +1-201-252-4224
Fax: +1-201-621-8911
Email: salesna@radwin.com
Customer Support - North America:
Hours: 9 am - 6 pm EST (Mon - Fri)
Email:supportusa@radwin.com
RADWINRegionalOffices
RADWINBrazil
Av. Chucri Zaidan, 920 – 9º
São Paulo, 04583-904
Brazil
Tel: +55.11.3048-4110
Email:salesbr@radwin.com
RADWINMexico
Quinto #20 Col El Centinela
Mexico, DF, O4450
Mexico
Tel: +52 (55) 5689 8970
Email: salesmx@radwin.com
RADWINPeru
Av. Antares 213
Lima, 33
Peru
Tel: +511.6285105
Fax: +511-990304095
Email: salespe@radwin.com
RADWINIndia
E-13,B-1 Extn., Mohan Co-operative Industrial Estate
New Delhi, 110 044
India
Tel: +91-11-40539178
Email:salesin@radwin.com
RADWINPhilippines
5 Bur Bank St.
Laguna, Belair, Santa Rosa
Laguna Philippines
Tel: +63 928 7668230
Email: salesph@radwin.com
RADWINSouthAfrica
P.O. Box 3554, Rivonia
Johannesburg ,2128
South Africa
Tel: +27 (0)82 551 5600
Email: sales@radwin.com
RADWINItalyandSpain
Piazza Arenella 7/H
Napoli ,80128
Italy
Tel:+390815564116
Fax: +39335433620
Email: salesit@radwin.com
RADWINCentralAmerica
Calle La Cañada # 108-E
Jardines de la Hacienda
Ciudad Merliot El Salvador
Tel: +503 2278-5628
Email: sales@radwin.com
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 1viii
RADWINSouthEastAsia
All Season Mansion
87/38 Wireless Road Lumpinee
Bangkok ,10330
Thailand
Tel: +66811707503
Email: sales@radwin.com
RADWINWorldwideOffices(Continued)
FOR REGULATORY APPROVAL ONLY
RADWIN5000InstallationGuide Release4.9.30 viii
LastpageofEndPagefiles
FOR REGULATORY APPROVAL ONLY

Navigation menu
