USER MANUAL
MODEL RJ-1301
BRAND VIZMONET
FCC ID VJA-RJ1301
IC 7382A-RJ1301
RJ-1301 is an IEEE 802.11b/g/n ISM Band 2.4 GHz Radio Module engineered for carrier class long
range high data capacity applications. With superior TX power efficient RF design, the product
supports high TX Power offering best-in class EVM performance at higher modulation schemes. This
facilitates to achieve long range without compromising on data throughput. With well-engineered
RX Design, RJ-1301 offers ultra-low receive sensitivity to achieve long range. RJ-1301 is ideal for
deployment in harsh outdoor environment and available with plenty of options for customization to
enable easy integration into OEM systems.
IEEE 802.11n standards compliant operating in the ISM Band 2400 MHz to 2483.5 MHz
Backward compatible with legacy IEEE 802.11b/g systems
2x2 MIMO with 2xMMCX Antenna connector supports spatial multiplexing
Atheros AR9223 Chipset
Mini PCI Type IIIA form factor – 59.6mm(W)x51mm(L)x9mm (H)
Additional screw holes for ground lug & easy integration into OEM integration
Support for Customization for OEM integration
Operating Temperature range (-15 deg C to +70 deg C)
RADIO MODULE – GENERAL INFO
Chipset Info
Atheros AR9223
Operating Frequency Channels
2412 MHz ~ 2462 MHz
Security
802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
Data Rates
Legacy 11g up to 54 Mbps
11n HT20-1S up to 65 Mbps
11n HT30-2S up to 130 Mbps
11n HT40-2S up to 300 Mbps
6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps,54Mbps
(Legacy IEEE802.11g)
1 Mbps,2 Mbps,5.5 Mbps,11 Mbps (Legacy IEEE 802.11b)
MCS0,MCS1,MCS2,MCS3,MCS4,MCS5,MCS6,MCS7 –IEEE 802.11n
HT20/HT40 Single Stream
MCS8,MCS9,MCS10,MCS11,MCS12,MCS3,MCS14,MCS15 – IEEE 802.11n
HT20/HT40 Dual Stream
Channel Bandwidth
5 MHz/10 MHz/20 MHz/40 MHz
INTERFACE SPECIFICATIONS
Interface
PCI 32 bit,33 MHz, mini PCI Form Factor
Operating Voltage
3.3V
RF Antenna connector
Dual MMCX, VERTICAL
FEATURES
TECHNICAL SPECIFICATION
Vizmonet Pte Ltd
enquiry@vizmonet.com
Federal Communication Commission Interference Statement

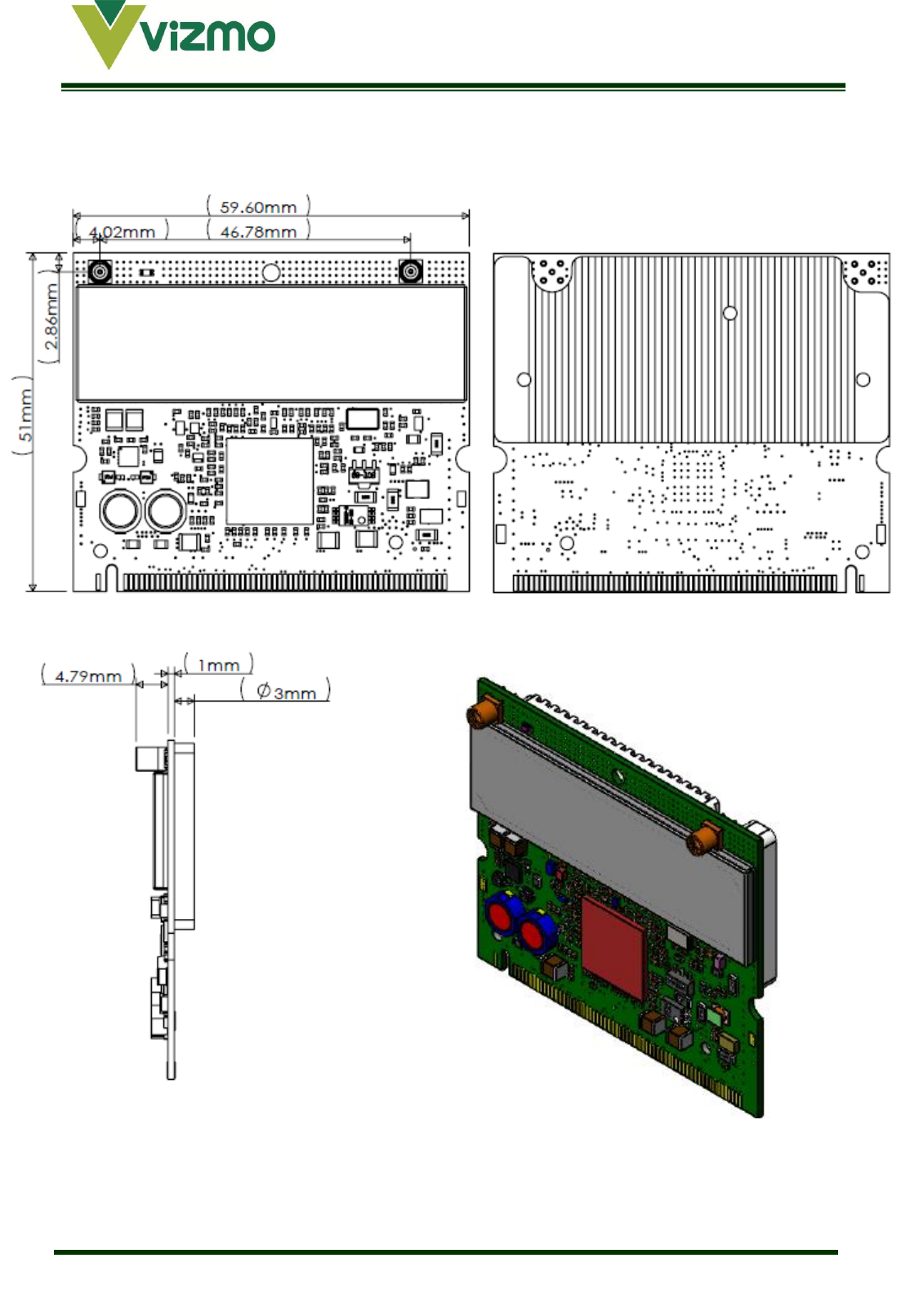

MECHANICAL DIEMNSION
Vizmonet Pte Ltd
enquiry@vizmonet.com
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
o Consult the dealer or an experienced technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
The transmitter module may not be co-located with any other transmitter or antenna,
IMPORTANT NOTE:
In the event that these conditions cannot be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the
FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
Vizmonet Pte Ltd
enquiry@vizmonet.com
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users.
The final end product must be labeled in a visible area with the following:
“Contains FCC ID: VJA-RJ1301 and IC: 7382A-RJ1301”
Canada Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device. Le présent appareil
est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur
de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement. The device meets the exemption from the routine evaluation limits in
section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on
RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la
section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information
canadienne sur l'exposition et la conformité de rf.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator
and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune
autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum
de 20 centimètres entre le radiateur et votre corps.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une
antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le
but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
This radio transmitter (identify the device by certification number, or model number if Category II) has been
approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain
and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having
a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait
partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne
énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne.
Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.
The final end product must be labelled in a visible area with the following:
The Industry Canada certification label of a module shall be clearly visible at all times when installed in the host
device, otherwise the host device must be labelled to display the Industry Canada certification number of the
module, preceded by the words “Contains transmitter module”, or the word “Contains”, or similar wording
expressing the same meaning, as follows: Contains transmitter module IC: 7382A-RJ1301
This End equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body.
Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur
et votre corps.
The end user manual shall include all required regulatory information/warning as show in this manual.
