Ralinwi Nanjing Electronic Technology CON2005 Embedded WiFi Module User Manual Manual

Ralinwi Nanjing Electronic Technology Co., Ltd. Embedded WiFi Module Manual

Contents

Manual

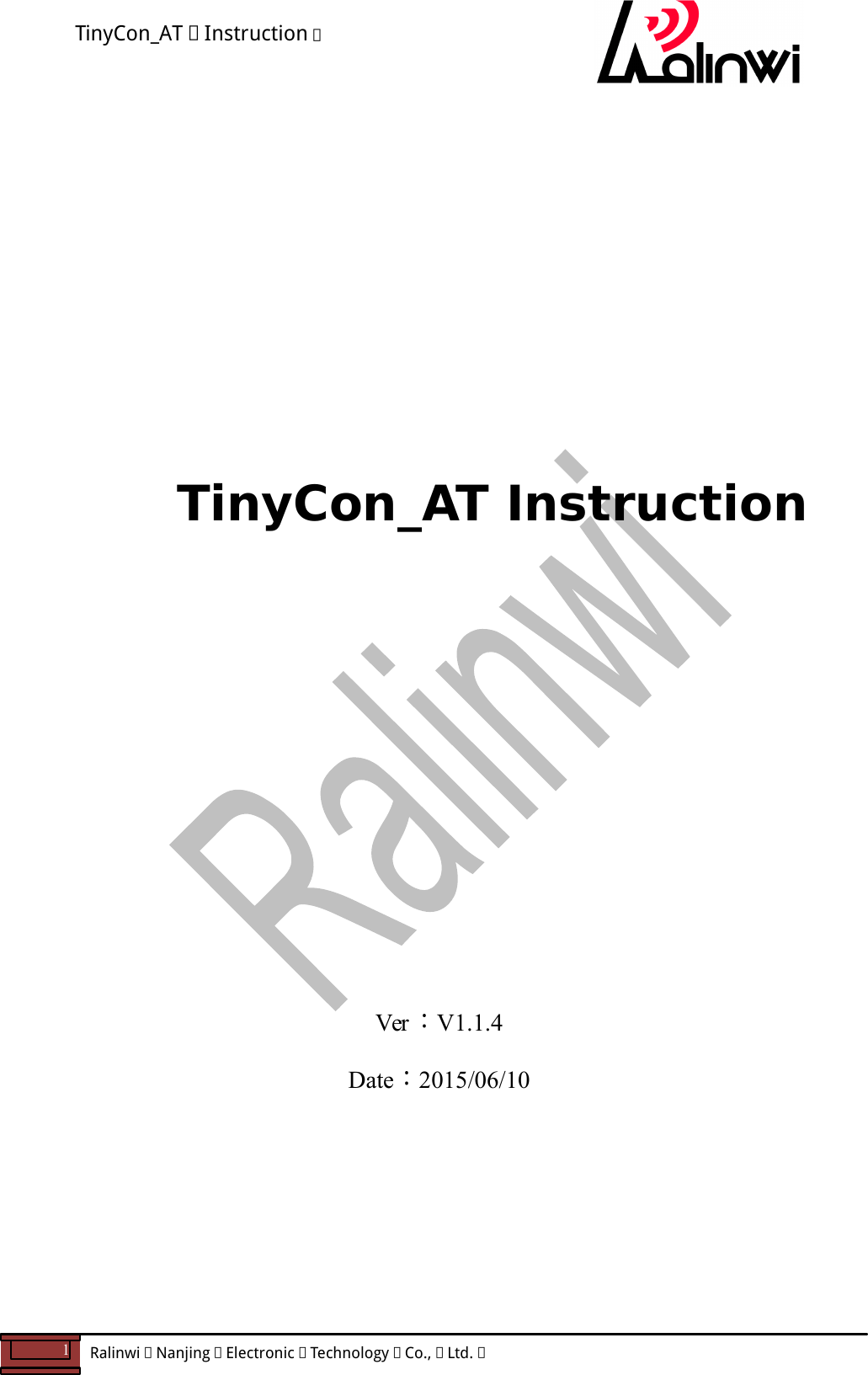

TinyCon_AT Instruction 1 Ralinwi Nanjing Electronic Technology Co., Ltd.       TinyCon_AT Instruction Ver ：V1.1.4 Date：2015/06/10

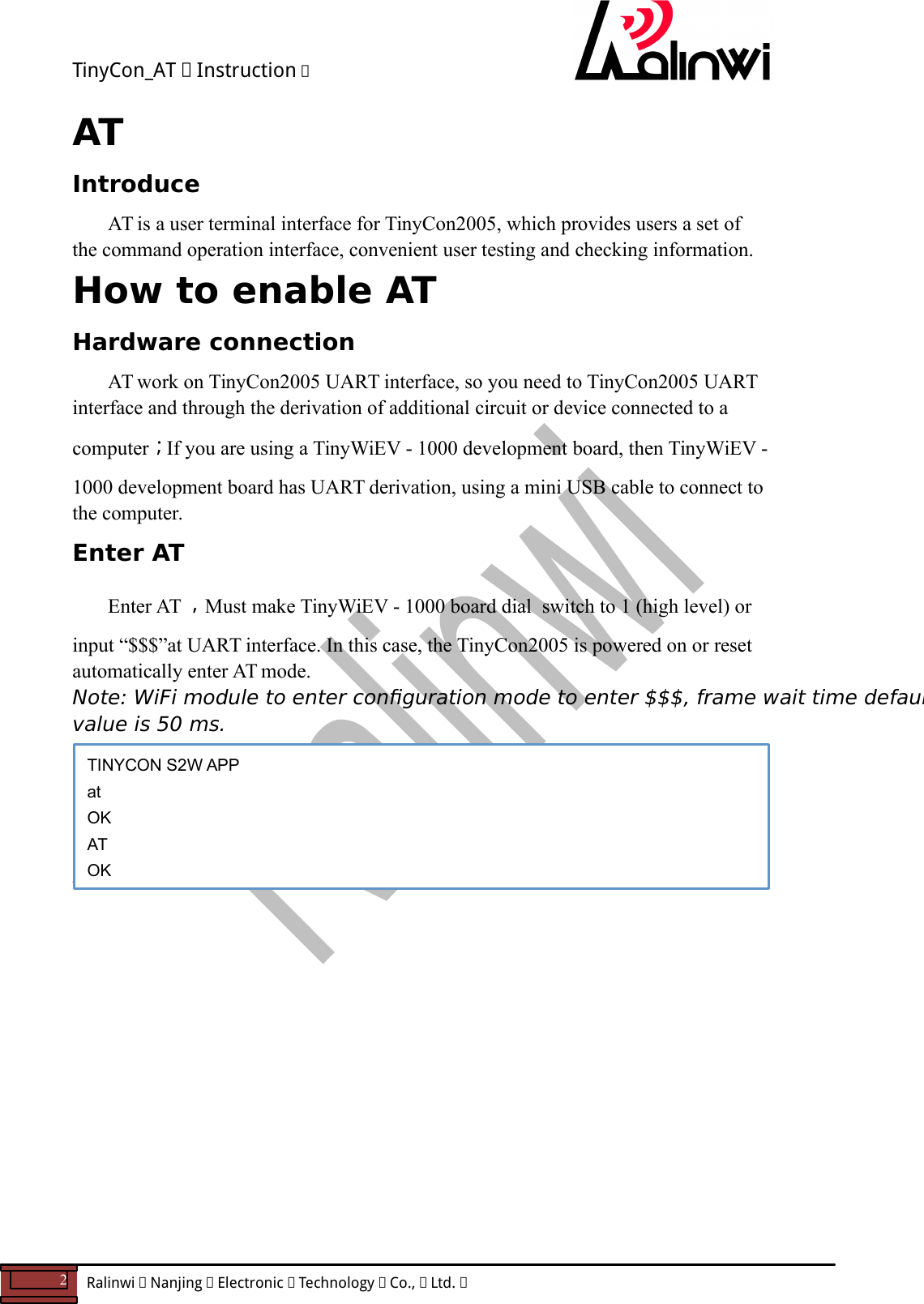

TinyCon_AT Instruction 2 Ralinwi Nanjing Electronic Technology Co., Ltd.       AT Introduce AT is a user terminal interface for TinyCon2005, which provides users a set of the command operation interface, convenient user testing and checking information. How to enable AT Hardware connection AT work on TinyCon2005 UART interface, so you need to TinyCon2005 UART interface and through the derivation of additional circuit or device connected to a computer；If you are using a TinyWiEV - 1000 development board, then TinyWiEV - 1000 development board has UART derivation, using a mini USB cable to connect to the computer. Enter AT Enter AT ，Must make TinyWiEV - 1000 board dial switch to 1 (high level) or input “$$$”at UART interface. In this case, the TinyCon2005 is powered on or reset automatically enter AT mode. Note: WiFi module to enter conguration mode to enter $$$, frame wait time defaults value is 50 ms. When serial return OK by entering the AT (or at), into command mode. AT Command Introduce TINYCON S2W APP at OK AT OK

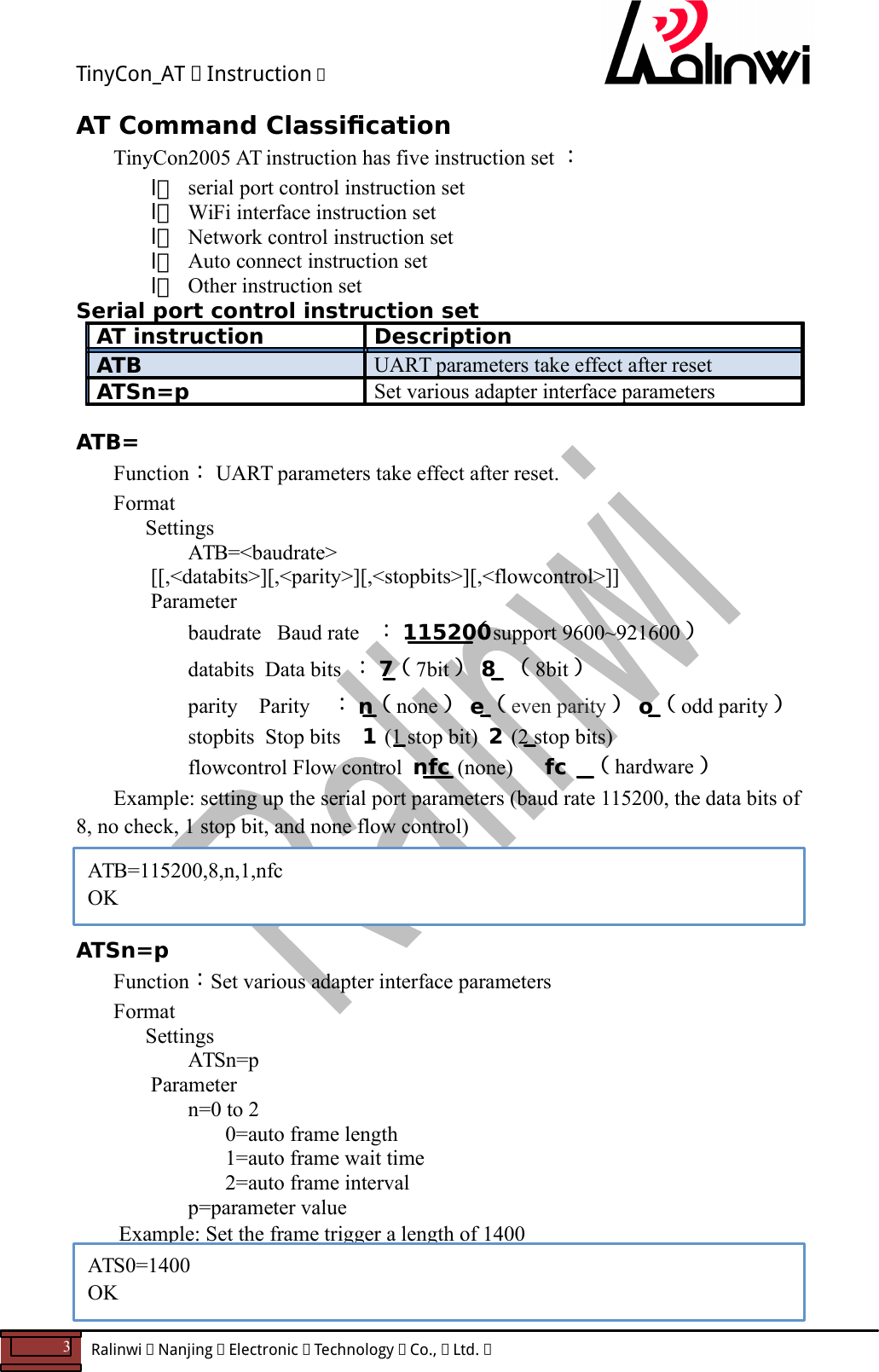

TinyCon_AT Instruction 3 Ralinwi Nanjing Electronic Technology Co., Ltd.       AT Command Classication TinyCon2005 AT instruction has five instruction set ： l serial port control instruction set l WiFi interface instruction set l Network control instruction set l Auto connect instruction set l Other instruction set Serial port control instruction set AT instruction Description ATB UART parameters take effect after reset ATSn=p Set various adapter interface parameters ATB= Function： UART parameters take effect after reset. Format Settings ATB=<baudrate> [[,<databits>][,<parity>][,<stopbits>][,<flowcontrol>]] Parameter baudrate Baud rate ： 115200（support 9600~921600） databits Data bits ： 7（7bit） 8 （8bit） parity Parity ： n（none） e（even parity） o（odd parity） stopbits Stop bits 1 (1 stop bit) 2 (2 stop bits) flowcontrol Flow control nfc (none) fc （hardware） Example: setting up the serial port parameters (baud rate 115200, the data bits of 8, no check, 1 stop bit, and none flow control) ATSn=p Function：Set various adapter interface parameters Format Settings ATSn=p Parameter n=0 to 2 0=auto frame length 1=auto frame wait time 2=auto frame interval p=parameter value Example: Set the frame trigger a length of 1400 ATB=115200,8,n,1,nfc OK ATS0=1400 OK

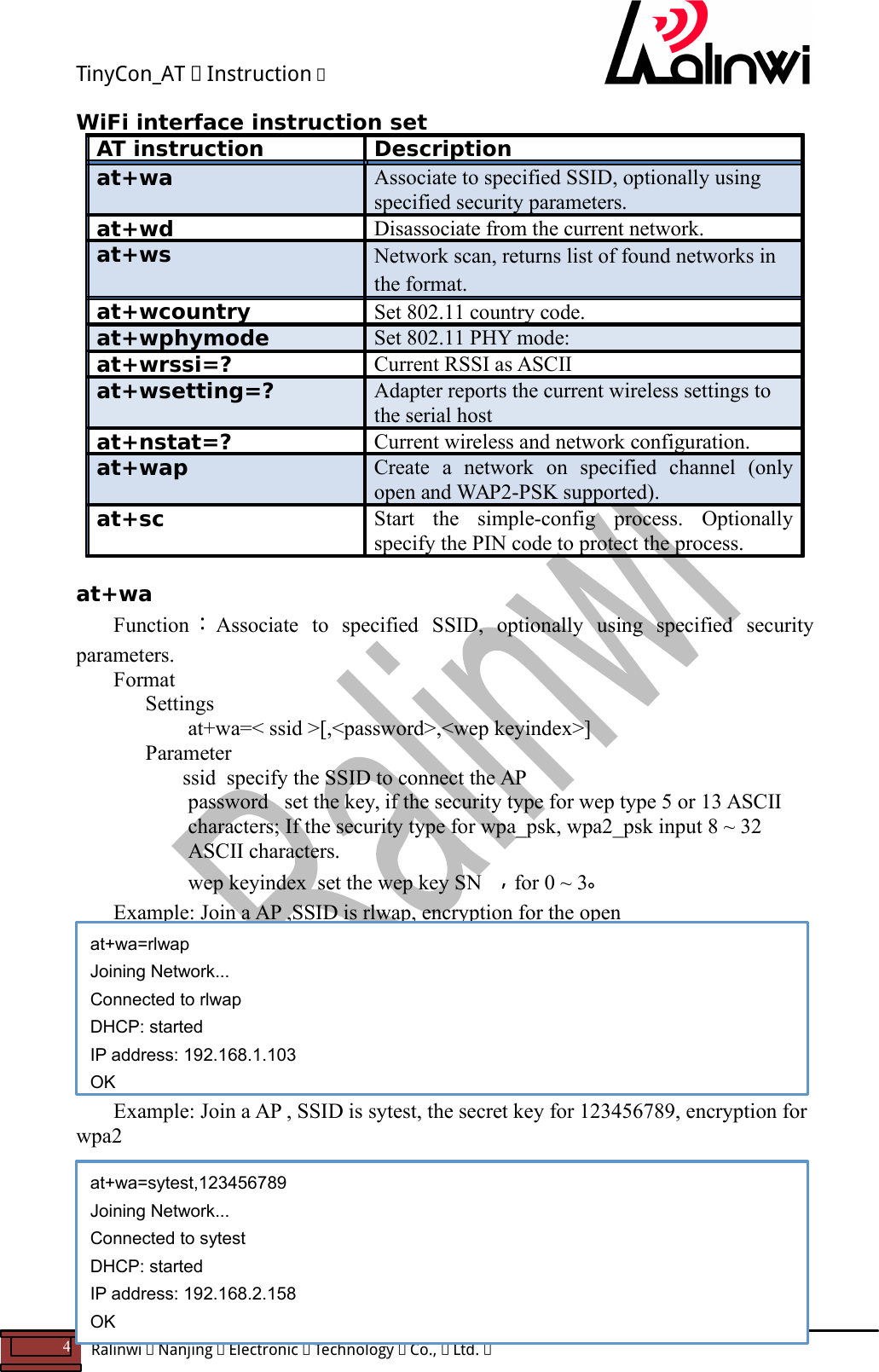

TinyCon_AT Instruction 4 Ralinwi Nanjing Electronic Technology Co., Ltd.       WiFi interface instruction set AT instruction Description at+wa Associate to specified SSID, optionally using specified security parameters. at+wd Disassociate from the current network. at+ws Network scan, returns list of found networks in the format. at+wcountry Set 802.11 country code. at+wphymode Set 802.11 PHY mode: at+wrssi=? Current RSSI as ASCII at+wsetting=? Adapter reports the current wireless settings to the serial host at+nstat=? Current wireless and network configuration. at+wap Create a network on specified channel (only open and WAP2-PSK supported). at+sc Start the simple-config process. Optionally specify the PIN code to protect the process. at+wa Function ：Associate to specified SSID, optionally using specified security parameters. Format Settings at+wa=< ssid >[,<password>,<wep keyindex>] Parameter ssid specify the SSID to connect the AP password set the key, if the security type for wep type 5 or 13 ASCII characters; If the security type for wpa_psk, wpa2_psk input 8 ~ 32 ASCII characters. wep keyindex set the wep key SN ，for 0 ~ 3。 Example: Join a AP ,SSID is rlwap, encryption for the open Example: Join a AP , SSID is sytest, the secret key for 123456789, encryption for wpa2 at+wa=rlwap Joining Network... Connected to rlwap DHCP: started IP address: 192.168.1.103 OK at+wa=sytest,123456789 Joining Network... Connected to sytest DHCP: started IP address: 192.168.2.158 OK

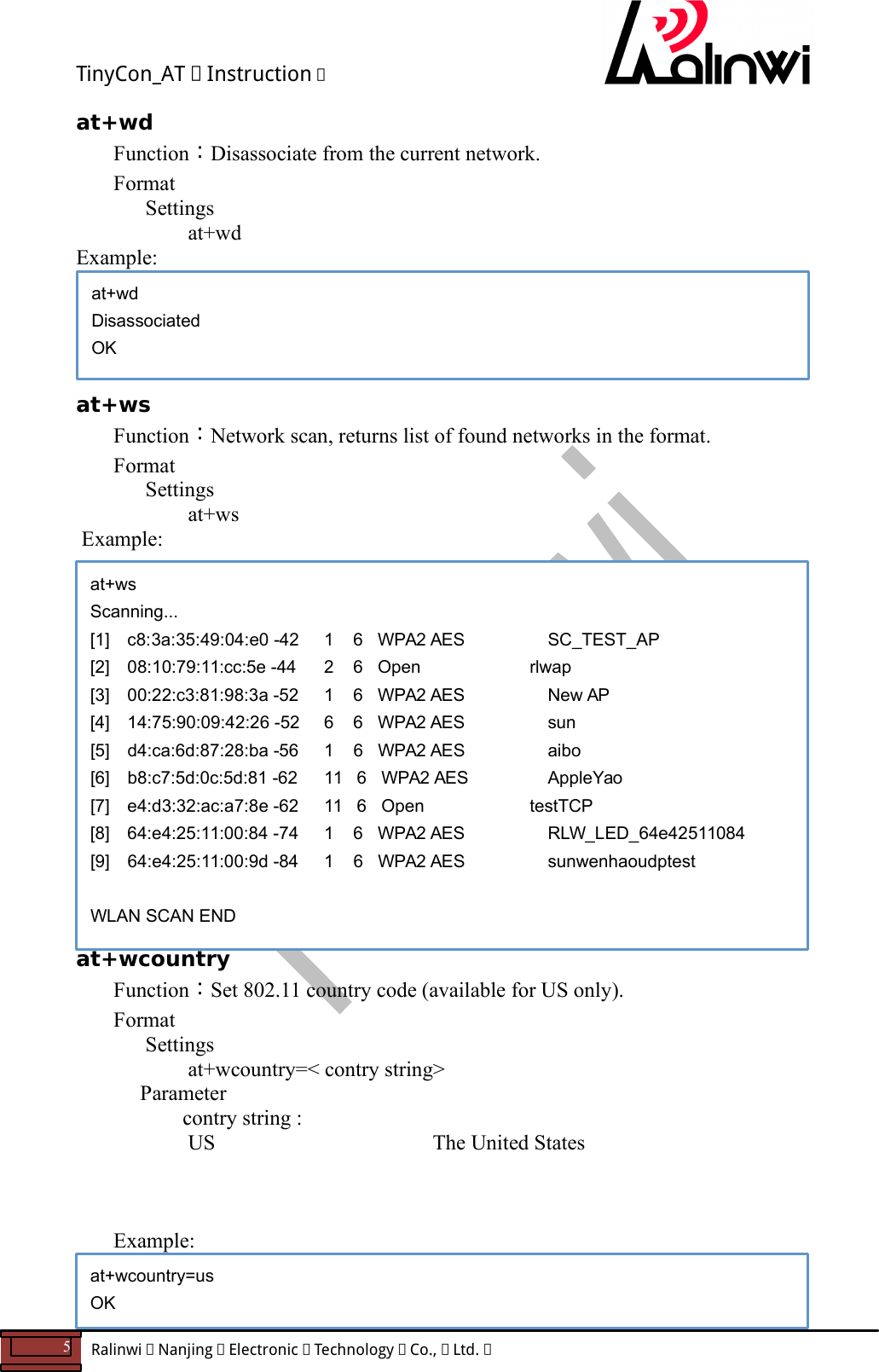

TinyCon_AT Instruction 5 Ralinwi Nanjing Electronic Technology Co., Ltd.       at+wd Function：Disassociate from the current network. Format Settings at+wd Example: at+ws Function：Network scan, returns list of found networks in the format. Format Settings at+ws Example: at+wcountry Function：Set 802.11 country code (available for US only). Format Settings at+wcountry=< contry string> Parameter contry string : US The United States Example: at+wd Disassociated OK at+ws Scanning... [1] c8:3a:35:49:04:e0 -42 1 6 WPA2 AES SC_TEST_AP [2] 08:10:79:11:cc:5e -44 2 6 Open rlwap [3] 00:22:c3:81:98:3a -52 1 6 WPA2 AES New AP [4] 14:75:90:09:42:26 -52 6 6 WPA2 AES sun [5] d4:ca:6d:87:28:ba -56 1 6 WPA2 AES aibo [6] b8:c7:5d:0c:5d:81 -62 11 6 WPA2 AES AppleYao [7] e4:d3:32:ac:a7:8e -62 11 6 Open testTCP [8] 64:e4:25:11:00:84 -74 1 6 WPA2 AES RLW_LED_64e42511084 [9] 64:e4:25:11:00:9d -84 1 6 WPA2 AES sunwenhaoudptest WLAN SCAN END at+wcountry=us OK

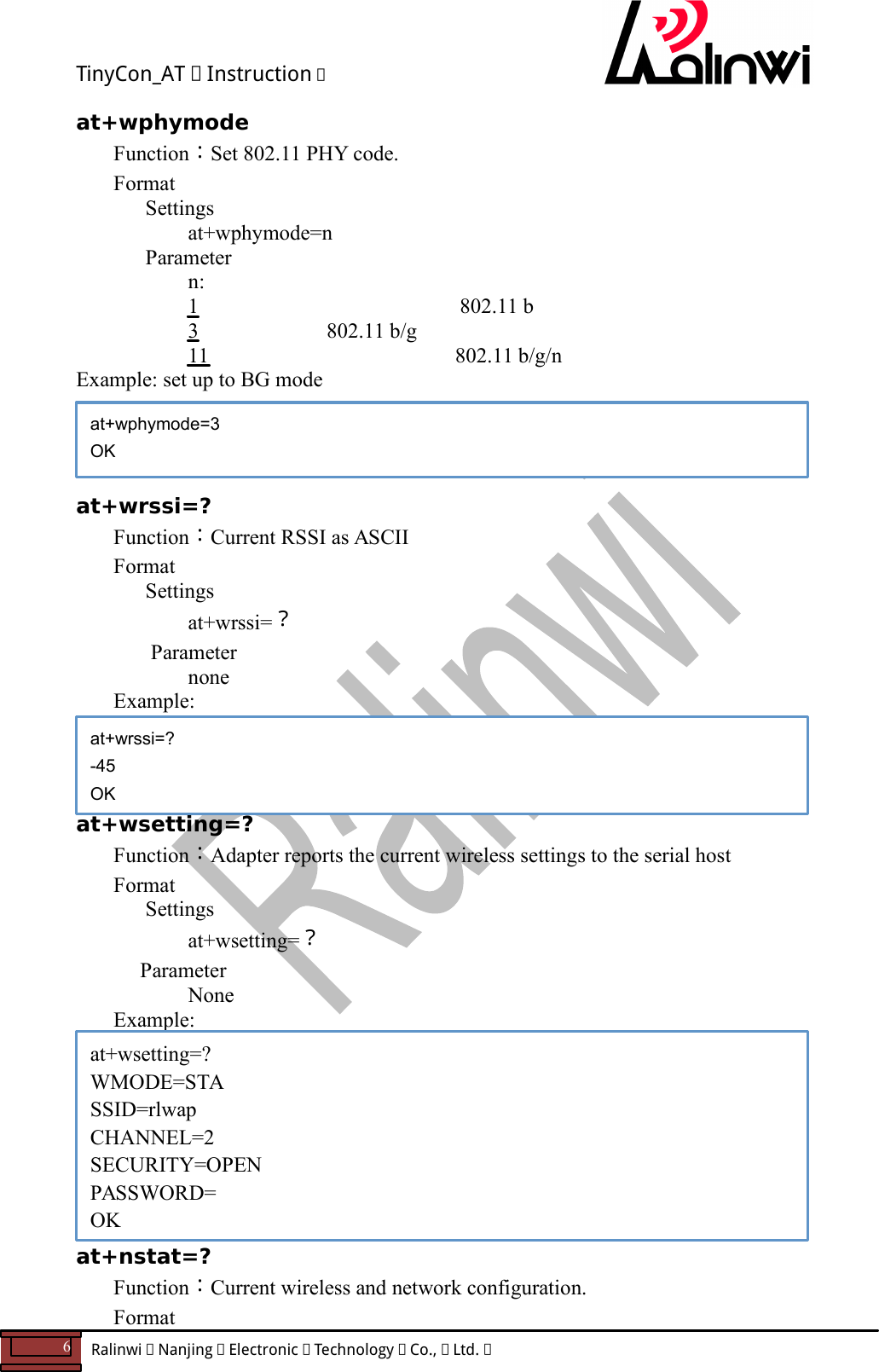

TinyCon_AT Instruction 6 Ralinwi Nanjing Electronic Technology Co., Ltd.       at+wphymode Function：Set 802.11 PHY code. Format Settings at+wphymode=n Parameter n: 1 802.11 b 3 802.11 b/g 11 802.11 b/g/n Example: set up to BG mode at+wrssi=? Function：Current RSSI as ASCII Format Settings at+wrssi=？ Parameter none Example: at+wsetting=? Function：Adapter reports the current wireless settings to the serial host Format Settings at+wsetting=？ Parameter None Example: at+nstat=? Function：Current wireless and network configuration. Format at+wphymode=3 OK at+wrssi=? -45 OK at+wsetting=? WMODE=STA SSID=rlwap CHANNEL=2 SECURITY=OPEN PASSWORD= OK

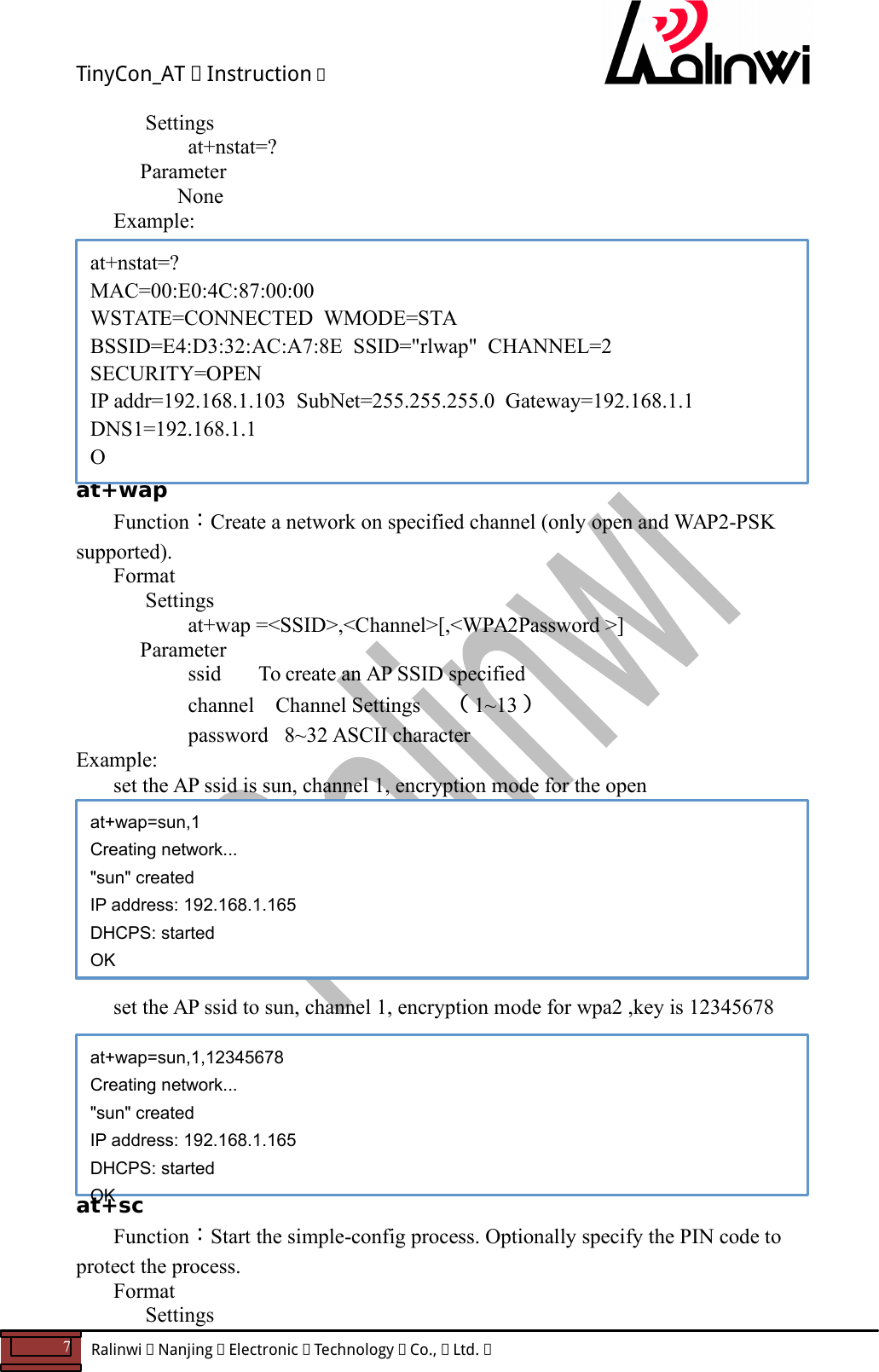

TinyCon_AT Instruction 7 Ralinwi Nanjing Electronic Technology Co., Ltd.       Settings at+nstat=? Parameter None Example: at+wap Function：Create a network on specified channel (only open and WAP2-PSK supported). Format Settings at+wap =<SSID>,<Channel>[,<WPA2Password >] Parameter ssid To create an AP SSID specified channel Channel Settings （1~13） password 8~32 ASCII character Example: set the AP ssid is sun, channel 1, encryption mode for the open set the AP ssid to sun, channel 1, encryption mode for wpa2 ,key is 12345678 at+sc Function：Start the simple-config process. Optionally specify the PIN code to protect the process. Format Settings at+nstat=? MAC=00:E0:4C:87:00:00 WSTATE=CONNECTED WMODE=STA BSSID=E4:D3:32:AC:A7:8E SSID="rlwap" CHANNEL=2 SECURITY=OPEN IP addr=192.168.1.103 SubNet=255.255.255.0 Gateway=192.168.1.1 DNS1=192.168.1.1 O at+wap=sun,1 Creating network... "sun" created IP address: 192.168.1.165 DHCPS: started OK at+wap=sun,1,12345678 Creating network... "sun" created IP address: 192.168.1.165 DHCPS: started OK

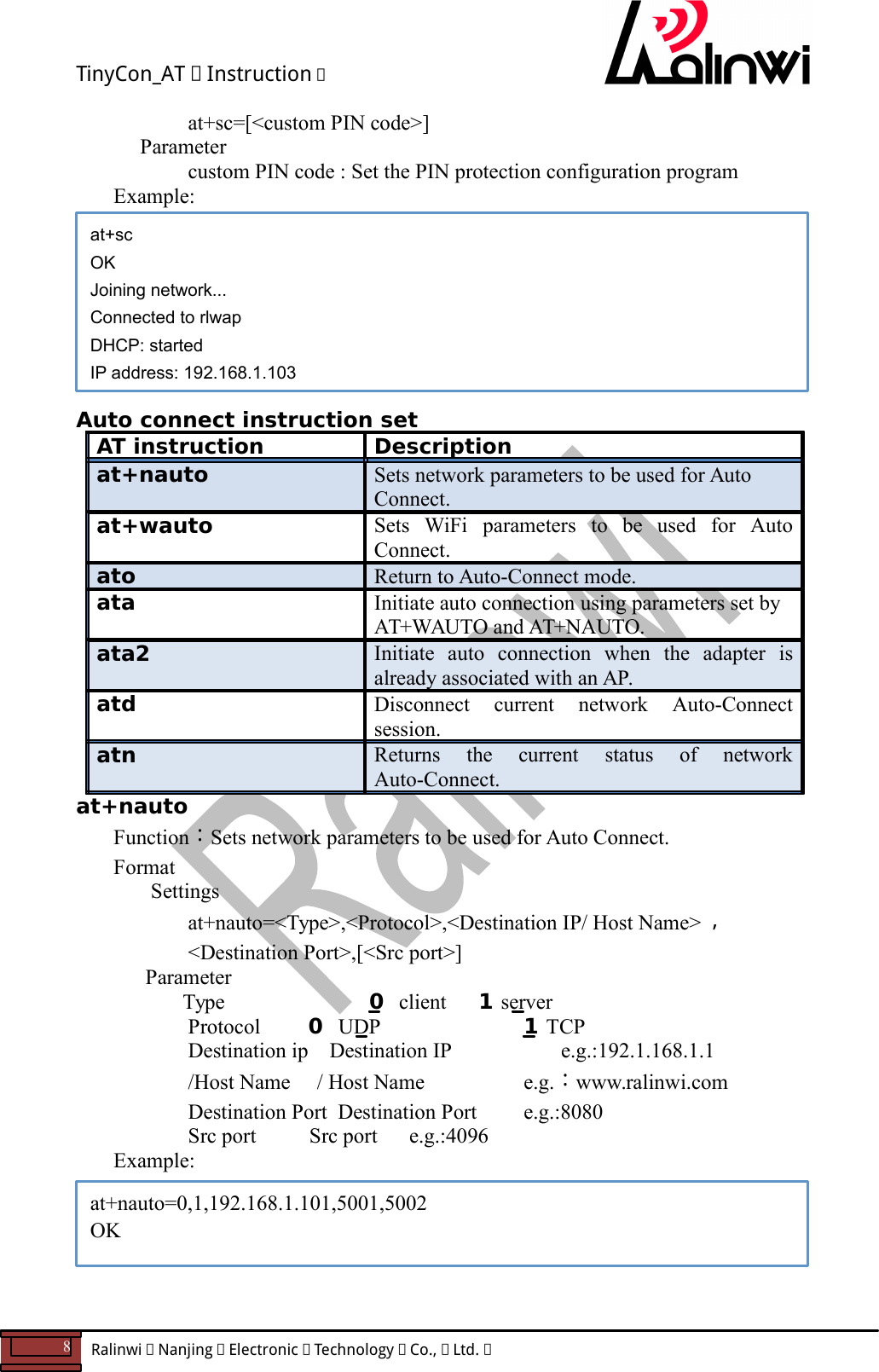

TinyCon_AT Instruction 8 Ralinwi Nanjing Electronic Technology Co., Ltd.       at+sc=[<custom PIN code>] Parameter custom PIN code : Set the PIN protection configuration program Example: Auto connect instruction set AT instruction Description at+nauto Sets network parameters to be used for Auto Connect. at+wauto Sets WiFi parameters to be used for Auto Connect. ato Return to Auto-Connect mode. ata Initiate auto connection using parameters set by AT+WAUTO and AT+NAUTO. ata2 Initiate auto connection when the adapter is already associated with an AP. atd Disconnect current network Auto-Connect session. atn Returns the current status of network Auto-Connect. at+nauto Function：Sets network parameters to be used for Auto Connect. Format Settings at+nauto=<Type>,<Protocol>,<Destination IP/ Host Name> ，<Destination Port>,[<Src port>] Parameter Type 0 client 1 server Protocol 0 UDP 1 TCP Destination ip Destination IP e.g.:192.1.168.1.1 /Host Name / Host Name e.g.：www.ralinwi.com Destination Port Destination Port e.g.:8080 Src port Src port e.g.:4096 Example: at+sc OK Joining network... Connected to rlwap DHCP: started IP address: 192.168.1.103 at+nauto=0,1,192.168.1.101,5001,5002 OK

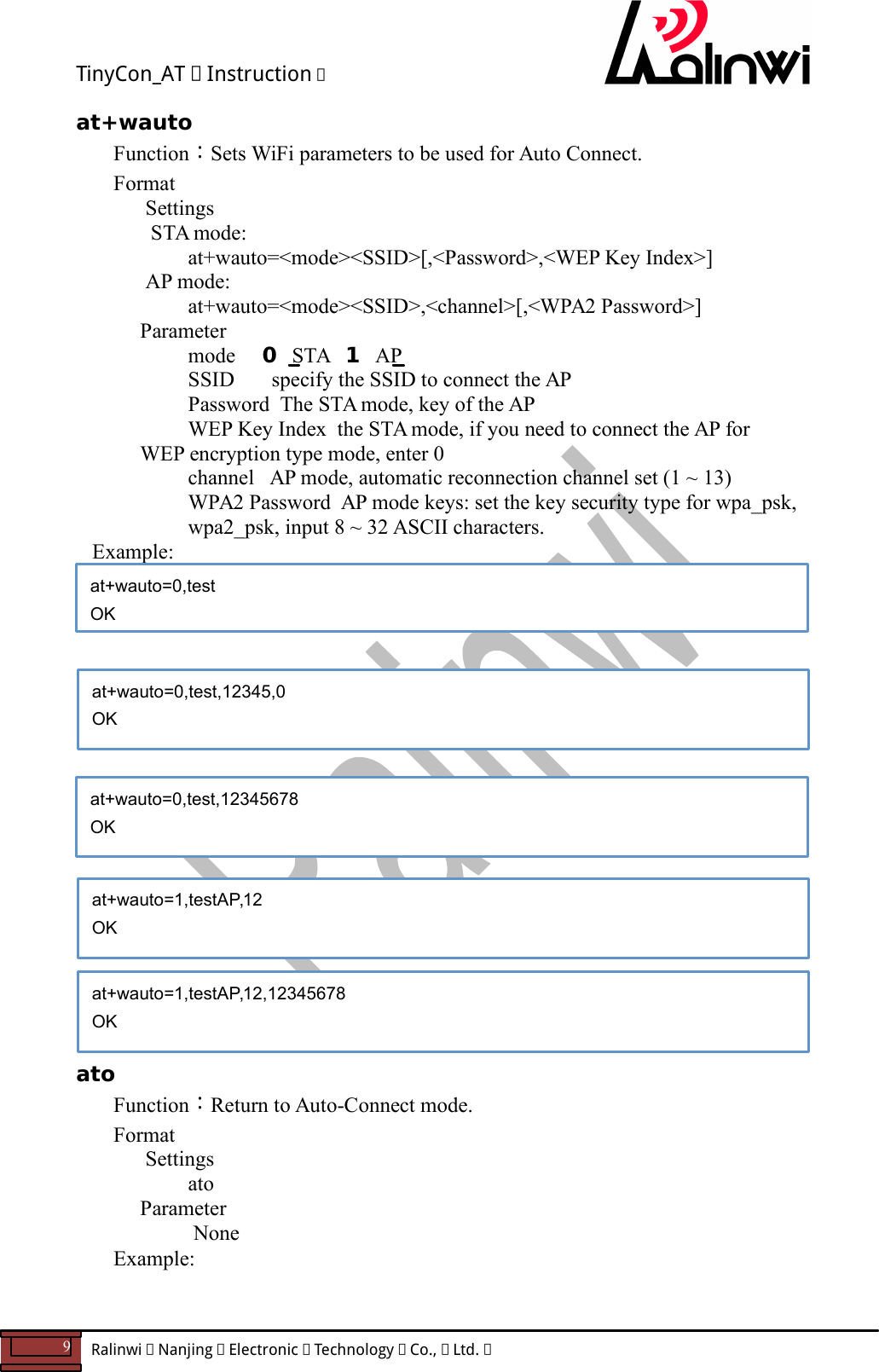

TinyCon_AT Instruction 9 Ralinwi Nanjing Electronic Technology Co., Ltd.       at+wauto Function：Sets WiFi parameters to be used for Auto Connect. Format Settings STA mode: at+wauto=<mode><SSID>[,<Password>,<WEP Key Index>] AP mode: at+wauto=<mode><SSID>,<channel>[,<WPA2 Password>] Parameter mode 0 STA 1 AP SSID specify the SSID to connect the AP Password The STA mode, key of the AP WEP Key Index the STA mode, if you need to connect the AP for WEP encryption type mode, enter 0 channel AP mode, automatic reconnection channel set (1 ~ 13) WPA2 Password AP mode keys: set the key security type for wpa_psk, wpa2_psk, input 8 ~ 32 ASCII characters. Example: ato Function：Return to Auto-Connect mode. Format Settings ato Parameter None Example: at+wauto=0,test OK at+wauto=0,test,12345678 OK at+wauto=0,test,12345,0 OK at+wauto=1,testAP,12,12345678 OK at+wauto=1,testAP,12 OK

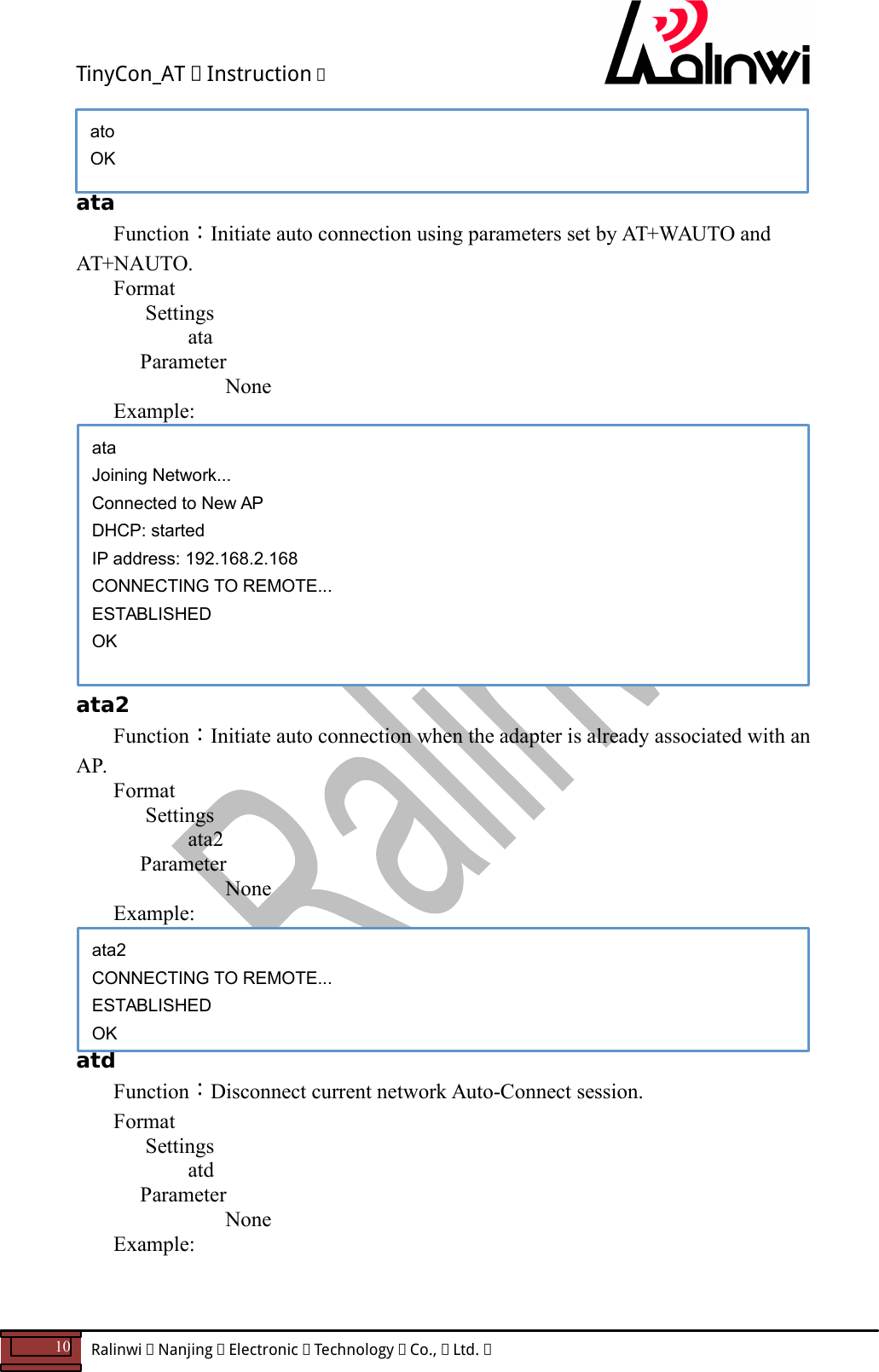

TinyCon_AT Instruction 10 Ralinwi Nanjing Electronic Technology Co., Ltd.       ata Function：Initiate auto connection using parameters set by AT+WAUTO and AT+NAUTO. Format Settings ata Parameter None Example: ata2 Function：Initiate auto connection when the adapter is already associated with an AP. Format Settings ata2 Parameter None Example: atd Function：Disconnect current network Auto-Connect session. Format Settings atd Parameter None Example: ata2 CONNECTING TO REMOTE... ESTABLISHED OK ata Joining Network... Connected to New AP DHCP: started IP address: 192.168.2.168 CONNECTING TO REMOTE... ESTABLISHED OK ato OK

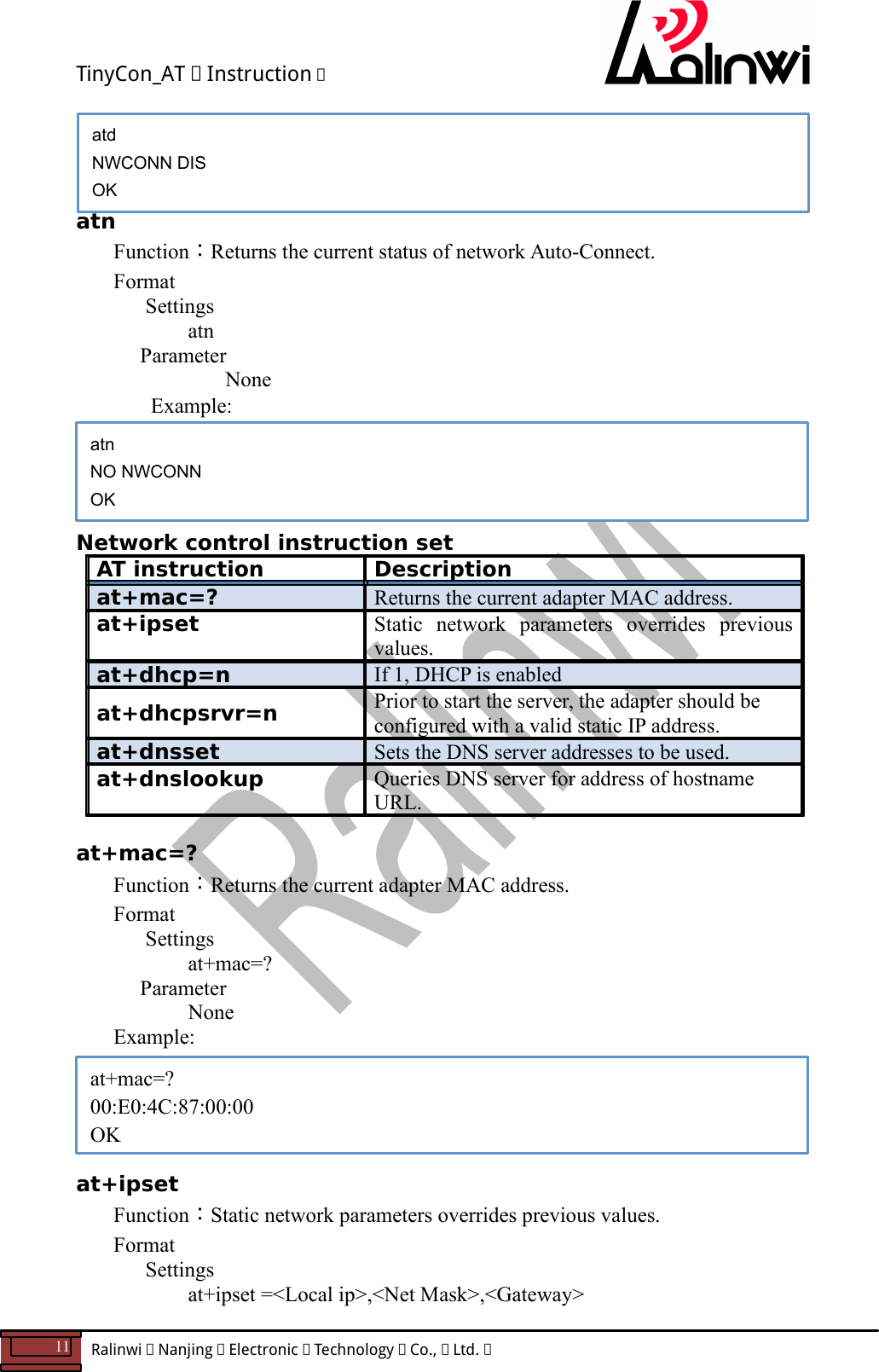

TinyCon_AT Instruction 11 Ralinwi Nanjing Electronic Technology Co., Ltd.       atn Function：Returns the current status of network Auto-Connect. Format Settings atn Parameter None Example: Network control instruction set AT instruction Description at+mac=? Returns the current adapter MAC address. at+ipset Static network parameters overrides previous values. at+dhcp=n If 1, DHCP is enabled at+dhcpsrvr=n Prior to start the server, the adapter should be configured with a valid static IP address. at+dnsset Sets the DNS server addresses to be used. at+dnslookup Queries DNS server for address of hostname URL. at+mac=? Function：Returns the current adapter MAC address. Format Settings at+mac=? Parameter None Example: at+ipset Function：Static network parameters overrides previous values. Format Settings at+ipset =<Local ip>,<Net Mask>,<Gateway> at+mac=? 00:E0:4C:87:00:00 OK atn NO NWCONN OK atd NWCONN DIS OK

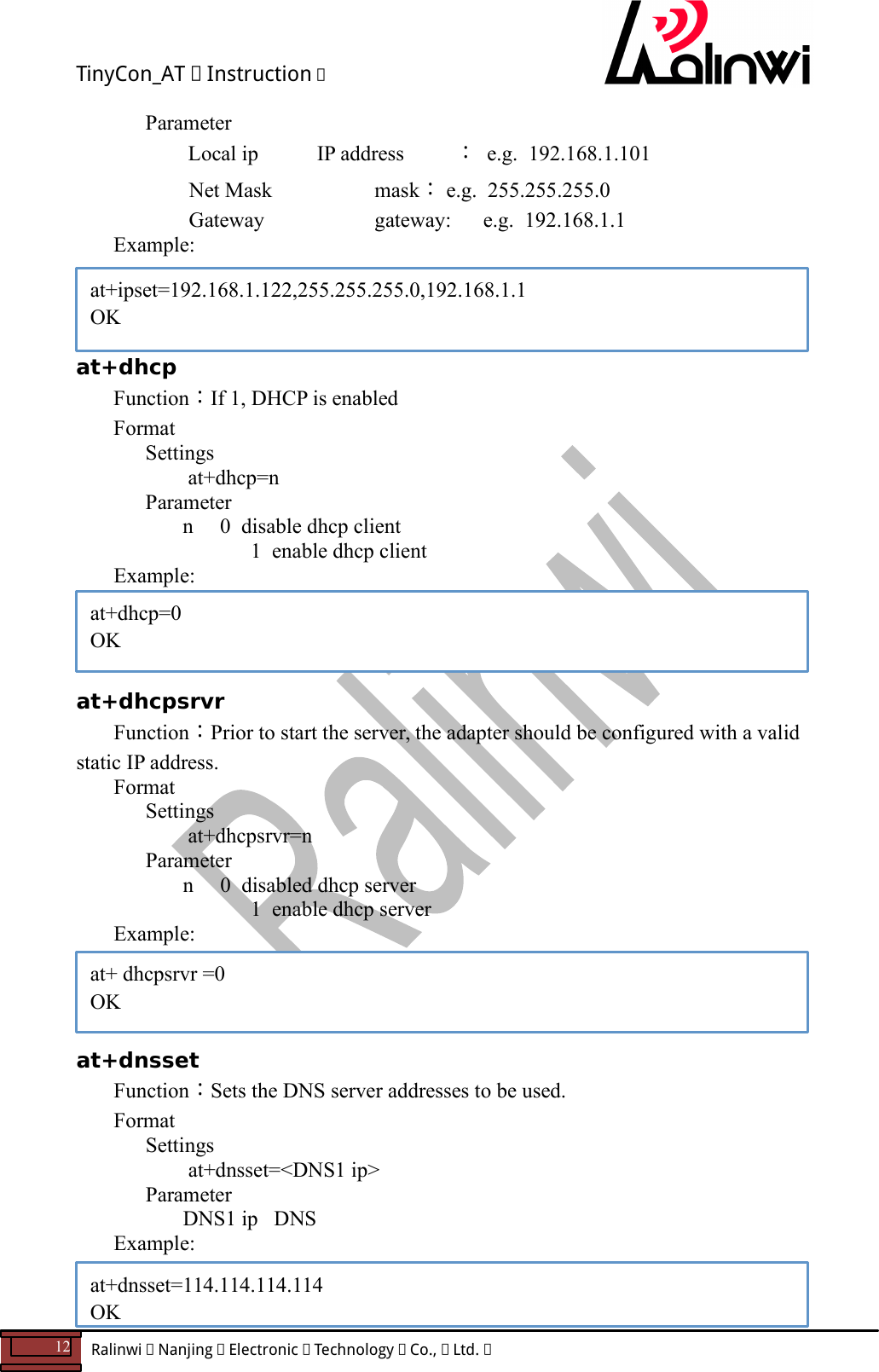

TinyCon_AT Instruction 12 Ralinwi Nanjing Electronic Technology Co., Ltd.       Parameter Local ip IP address ： e.g. 192.168.1.101 Net Mask mask： e.g. 255.255.255.0 Gateway gateway: e.g. 192.168.1.1 Example: at+dhcp Function：If 1, DHCP is enabled Format Settings at+dhcp=n Parameter n 0 disable dhcp client 1 enable dhcp client Example: at+dhcpsrvr Function：Prior to start the server, the adapter should be configured with a valid static IP address. Format Settings at+dhcpsrvr=n Parameter n 0 disabled dhcp server 1 enable dhcp server Example: at+dnsset Function：Sets the DNS server addresses to be used. Format Settings at+dnsset=<DNS1 ip> Parameter DNS1 ip DNS Example: at+ipset=192.168.1.122,255.255.255.0,192.168.1.1 OK at+dhcp=0 OK at+ dhcpsrvr =0 OK at+dnsset=114.114.114.114 OK

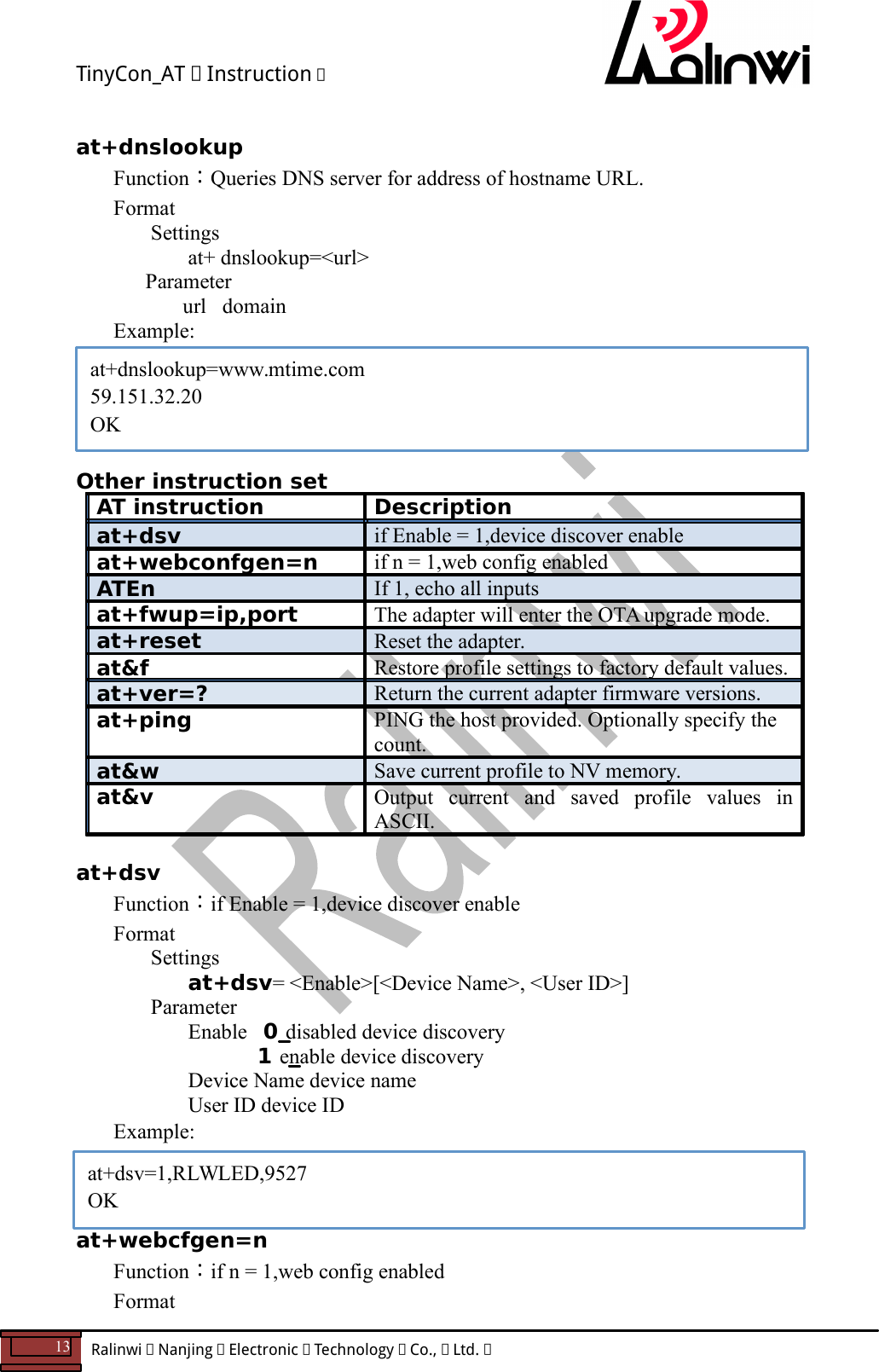

TinyCon_AT Instruction 13 Ralinwi Nanjing Electronic Technology Co., Ltd.       at+dnslookup=www.mtime.com 59.151.32.20 OK at+dnslookup Function：Queries DNS server for address of hostname URL. Format Settings at+ dnslookup=<url> Parameter url domain Example: Other instruction set AT instruction Description at+dsv if Enable = 1,device discover enable at+webconfgen=n if n = 1,web config enabled ATEn If 1, echo all inputs at+fwup=ip,port The adapter will enter the OTA upgrade mode. at+reset Reset the adapter. at&f Restore profile settings to factory default values. at+ver=? Return the current adapter firmware versions. at+ping PING the host provided. Optionally specify the count. at&w Save current profile to NV memory. at&v Output current and saved profile values in ASCII. at+dsv Function：if Enable = 1,device discover enable Format Settings at+dsv= <Enable>[<Device Name>, <User ID>] Parameter Enable 0 disabled device discovery 1 enable device discovery Device Name device name User ID device ID Example: at+webcfgen=n Function：if n = 1,web config enabled Format at+dsv=1,RLWLED,9527 OK

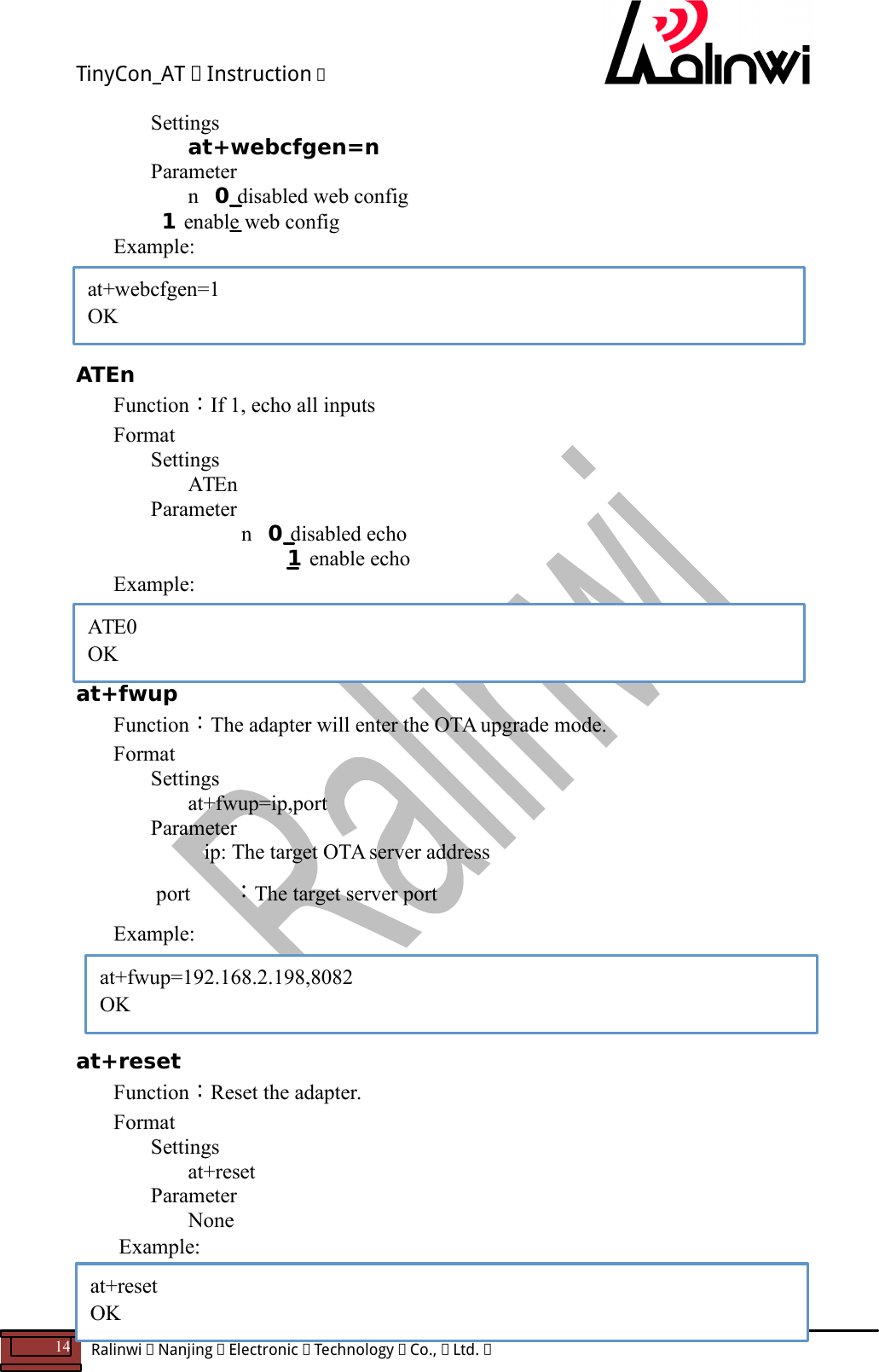

TinyCon_AT Instruction 14 Ralinwi Nanjing Electronic Technology Co., Ltd.       Settings at+webcfgen=n Parameter n 0 disabled web config 1 enable web config Example: ATEn Function：If 1, echo all inputs Format Settings ATEn Parameter n 0 disabled echo 1 enable echo Example: at+fwup Function：The adapter will enter the OTA upgrade mode. Format Settings at+fwup=ip,port Parameter ip: The target OTA server address port ：The target server port Example: at+reset Function：Reset the adapter. Format Settings at+reset Parameter None Example: ATE0 OK at+fwup=192.168.2.198,8082 OK at+reset OK at+webcfgen=1 OK

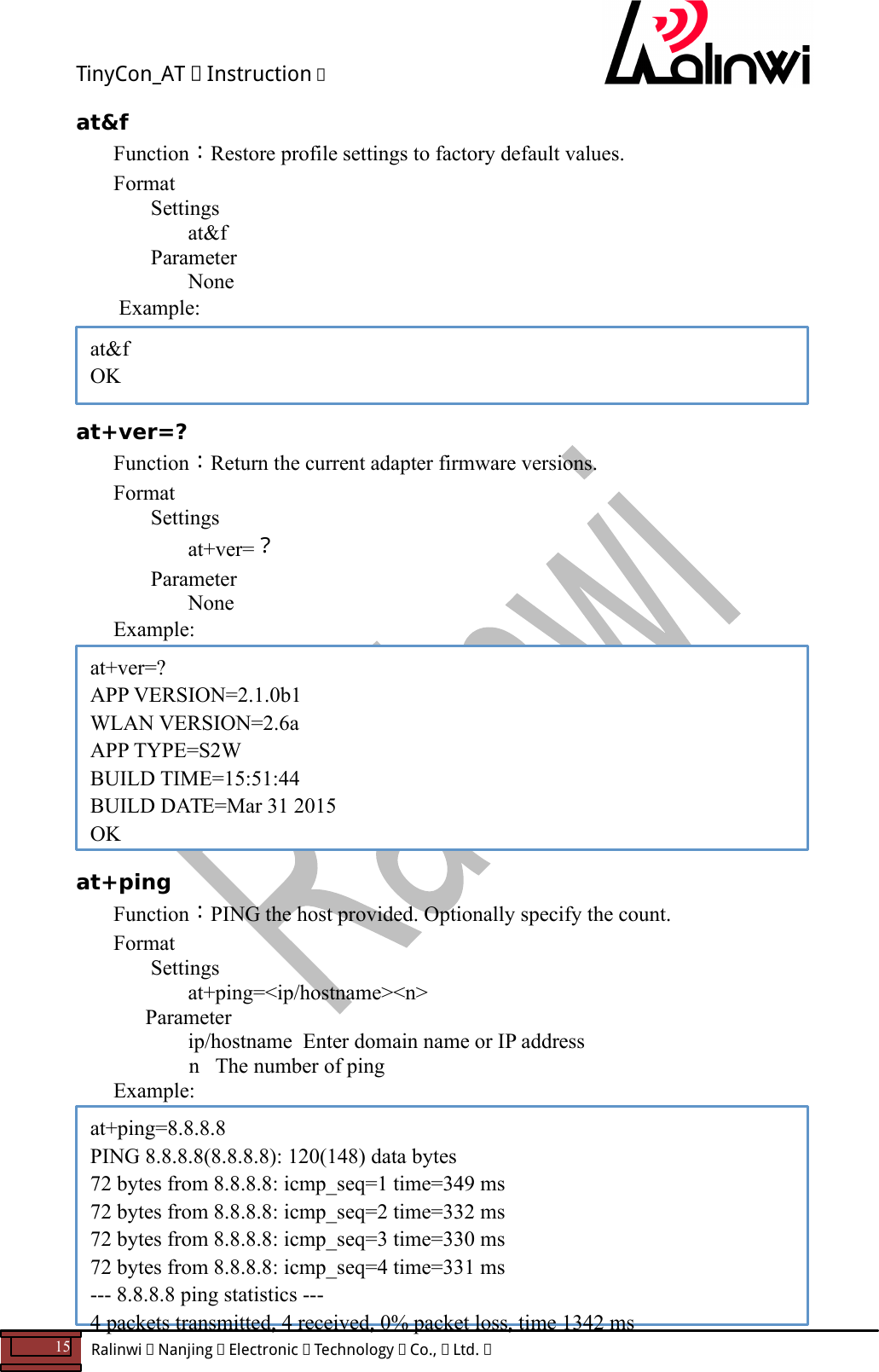

TinyCon_AT Instruction 15 Ralinwi Nanjing Electronic Technology Co., Ltd.       at&f Function：Restore profile settings to factory default values. Format Settings at&f Parameter None Example: at+ver=? Function：Return the current adapter firmware versions. Format Settings at+ver=？ Parameter None Example: at+ping Function：PING the host provided. Optionally specify the count. Format Settings at+ping=<ip/hostname><n> Parameter ip/hostname Enter domain name or IP address n The number of ping Example: at&f OK at+ver=? APP VERSION=2.1.0b1 WLAN VERSION=2.6a APP TYPE=S2W BUILD TIME=15:51:44 BUILD DATE=Mar 31 2015 OK at+ping=8.8.8.8 PING 8.8.8.8(8.8.8.8): 120(148) data bytes 72 bytes from 8.8.8.8: icmp_seq=1 time=349 ms 72 bytes from 8.8.8.8: icmp_seq=2 time=332 ms 72 bytes from 8.8.8.8: icmp_seq=3 time=330 ms 72 bytes from 8.8.8.8: icmp_seq=4 time=331 ms --- 8.8.8.8 ping statistics --- 4 packets transmitted, 4 received, 0% packet loss, time 1342 ms

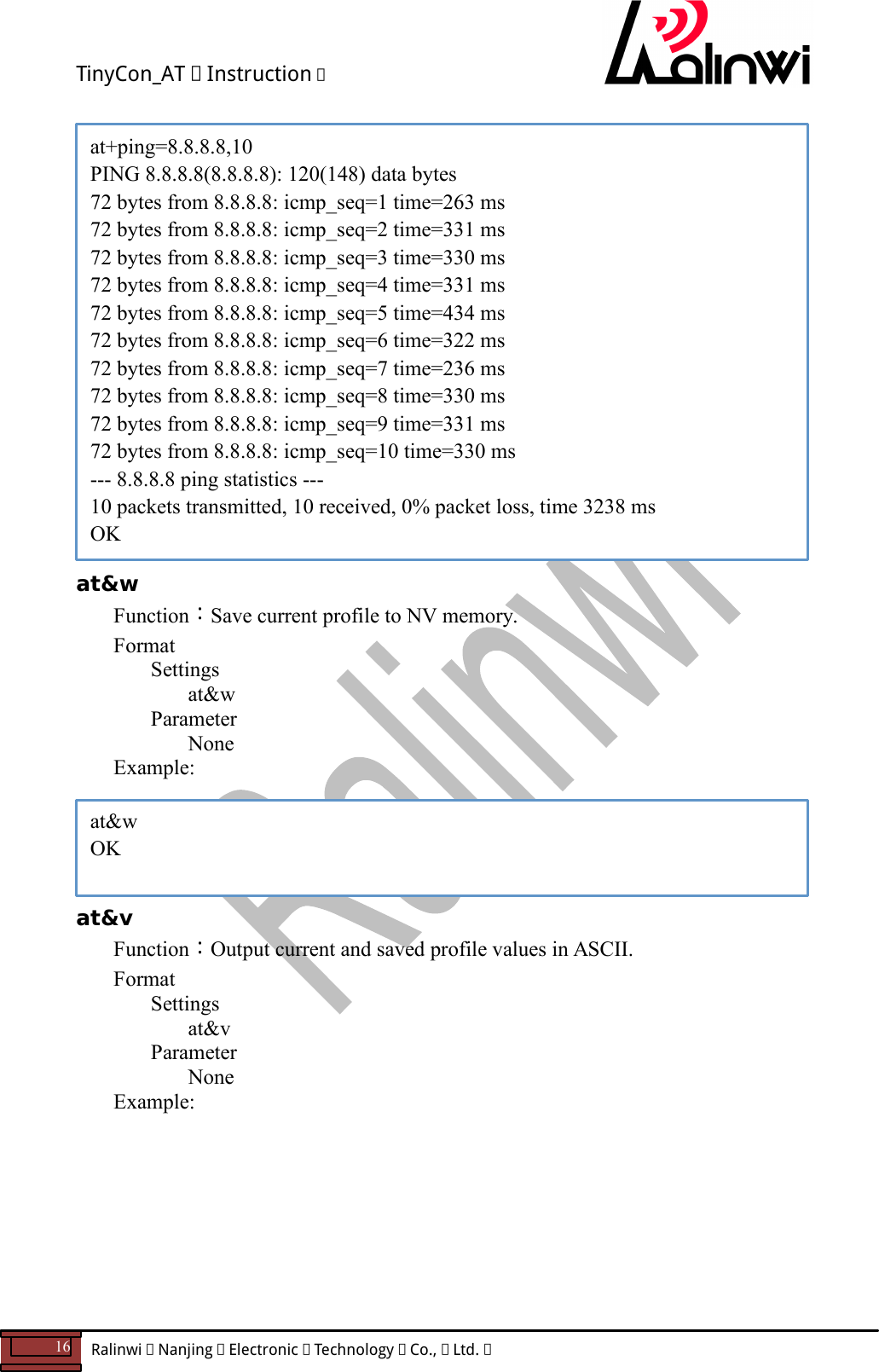

TinyCon_AT Instruction 16 Ralinwi Nanjing Electronic Technology Co., Ltd.       at&w Function：Save current profile to NV memory. Format Settings at&w Parameter None Example: at&v Function：Output current and saved profile values in ASCII. Format Settings at&v Parameter None Example: at&w OK at+ping=8.8.8.8,10 PING 8.8.8.8(8.8.8.8): 120(148) data bytes 72 bytes from 8.8.8.8: icmp_seq=1 time=263 ms 72 bytes from 8.8.8.8: icmp_seq=2 time=331 ms 72 bytes from 8.8.8.8: icmp_seq=3 time=330 ms 72 bytes from 8.8.8.8: icmp_seq=4 time=331 ms 72 bytes from 8.8.8.8: icmp_seq=5 time=434 ms 72 bytes from 8.8.8.8: icmp_seq=6 time=322 ms 72 bytes from 8.8.8.8: icmp_seq=7 time=236 ms 72 bytes from 8.8.8.8: icmp_seq=8 time=330 ms 72 bytes from 8.8.8.8: icmp_seq=9 time=331 ms 72 bytes from 8.8.8.8: icmp_seq=10 time=330 ms --- 8.8.8.8 ping statistics --- 10 packets transmitted, 10 received, 0% packet loss, time 3238 ms OK

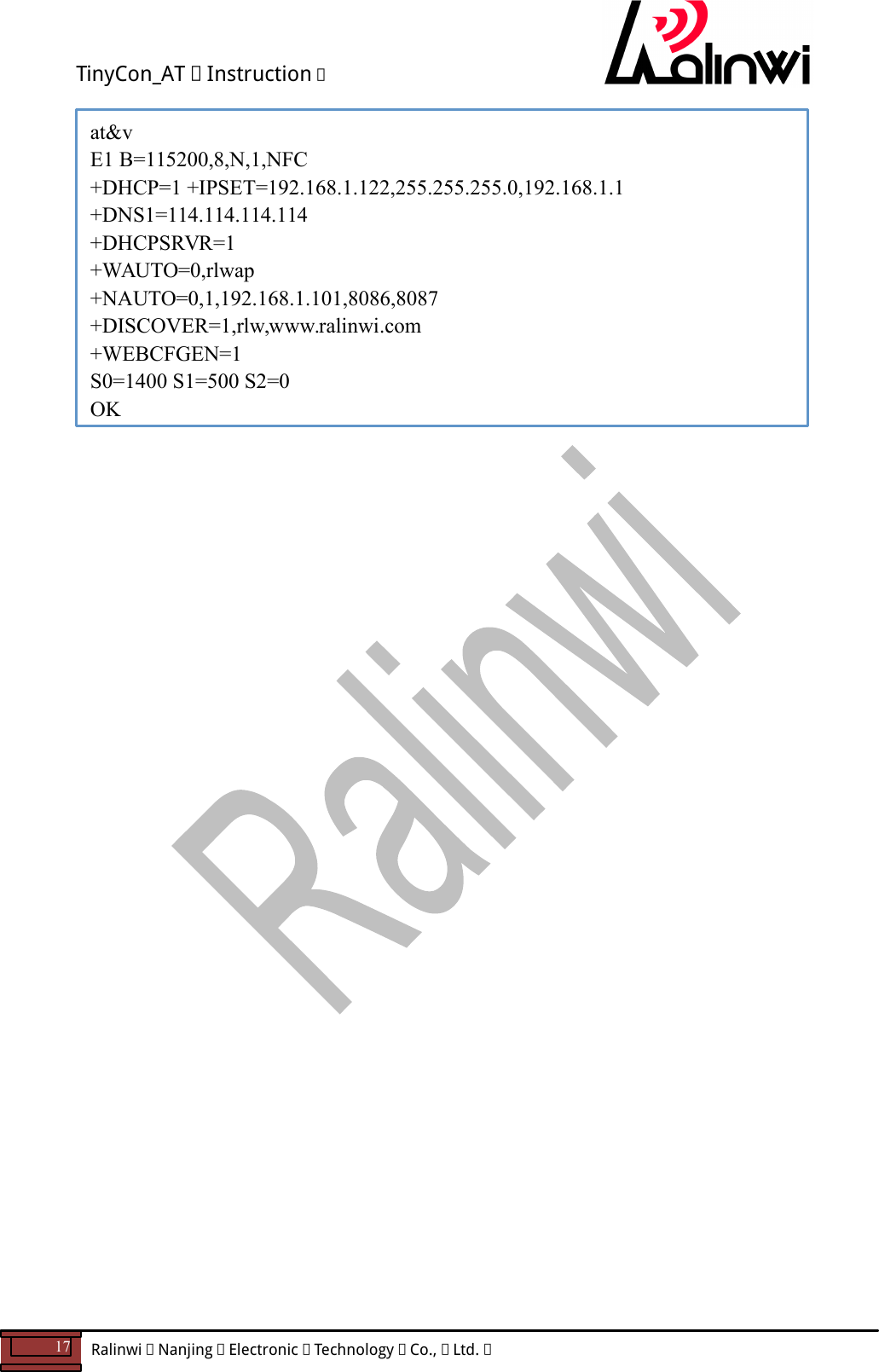

TinyCon_AT Instruction 17 Ralinwi Nanjing Electronic Technology Co., Ltd.       at&v E1 B=115200,8,N,1,NFC +DHCP=1 +IPSET=192.168.1.122,255.255.255.0,192.168.1.1 +DNS1=114.114.114.114 +DHCPSRVR=1 +WAUTO=0,rlwap +NAUTO=0,1,192.168.1.101,8086,8087 +DISCOVER=1,rlw,www.ralinwi.com +WEBCFGEN=1 S0=1400 S1=500 S2=0 OK

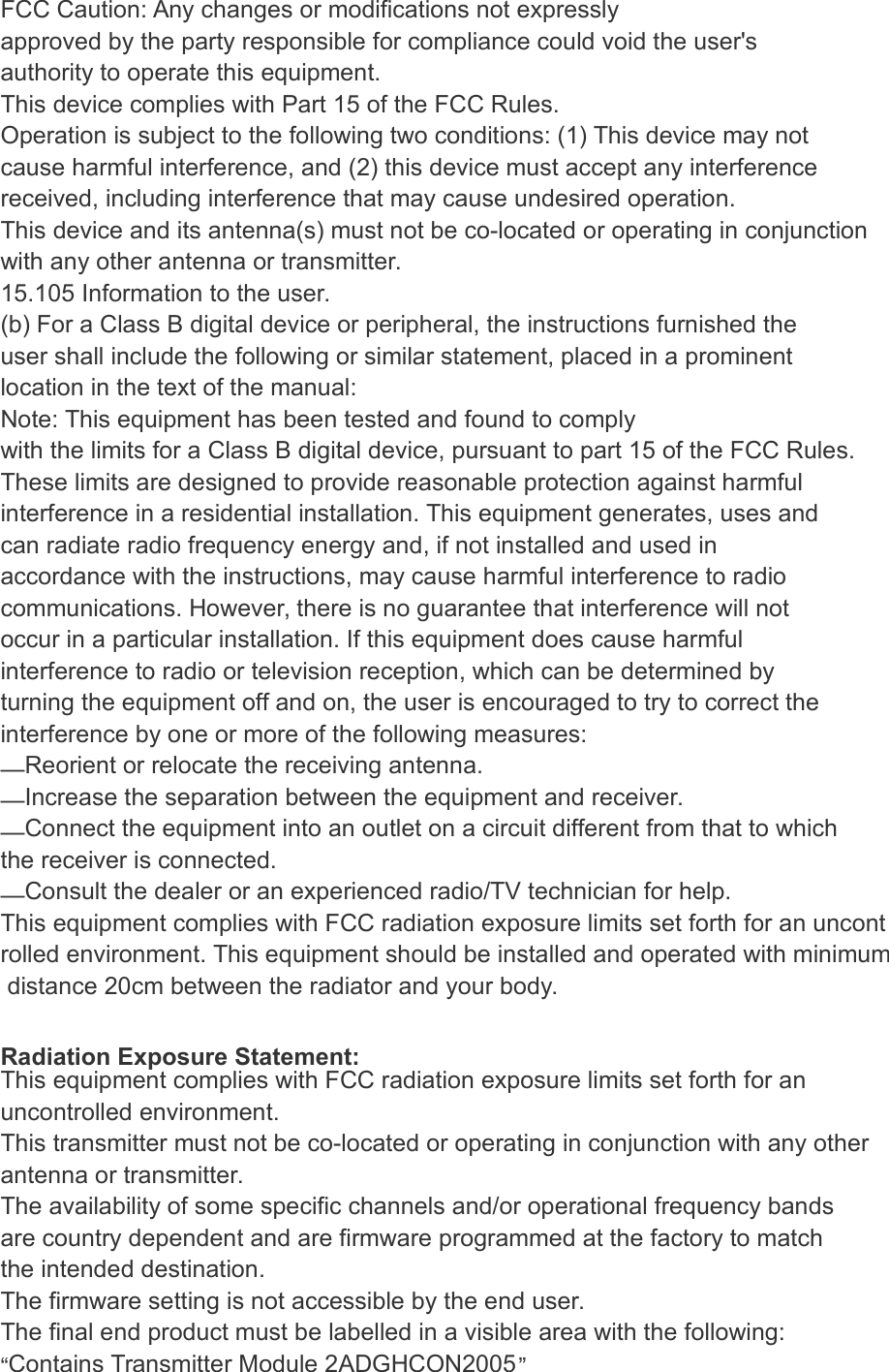

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Information to the user. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. The final end product must be labelled in a visible area with the following: “Contains Transmitter Module 2ADGHCON2005”
