ELITE ONE
CITIZENS BAND
AM Mobile Transceiver
Owner’s Manual
- 1 -
CONTENS
A
PAGE
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Mounting The Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Ignition Noise Interference . . . . . . . . . . . . . . . . . . . . . . . 4
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Tuning The Antenna for Optimum SWR . . . . . . . . . . . . . 5
External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Frequency Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Procedure to Receive And Transmit . . . . . . . . . . . . . . . . 10

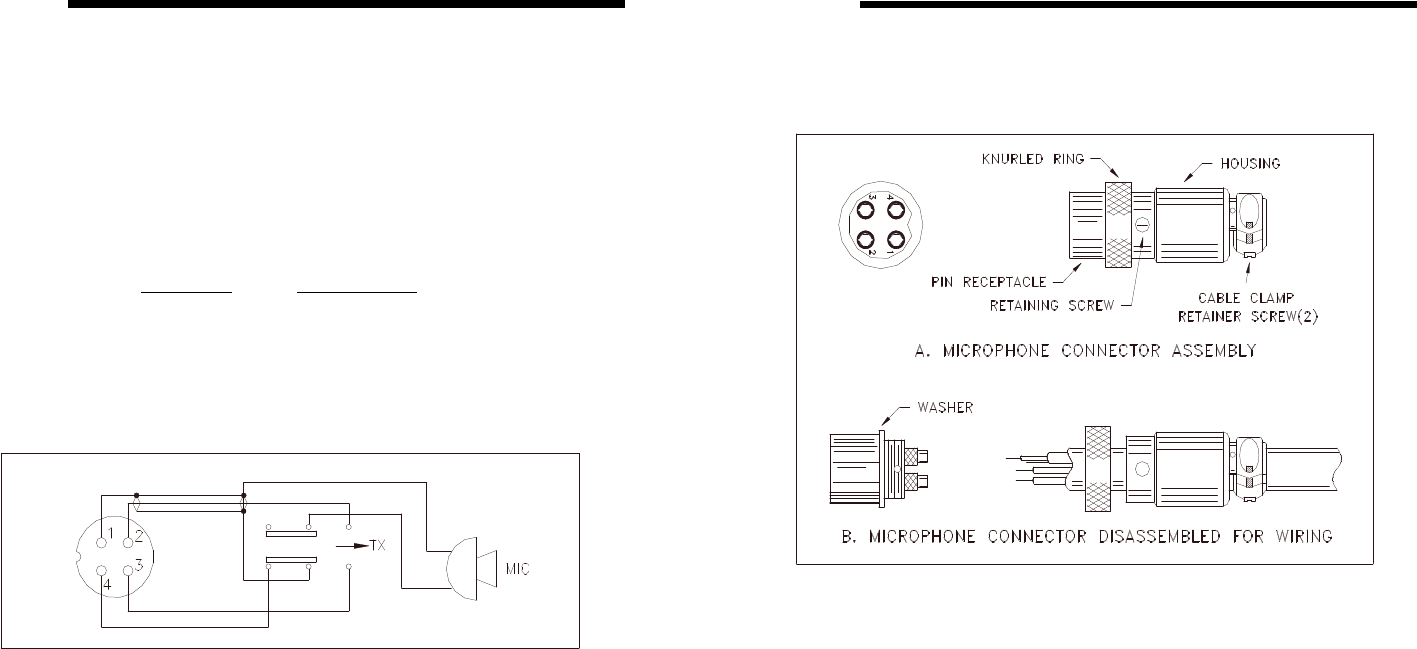

Alternate Microphone And Installation . . . . . . . . . . . . . . 11
Maintenance And Adjustment . . . . . . . . . . . . . . . . . . . . 12
A Few Rules That Should Be Obeyed . . . . . . . . . . . . . . 13
How Your CB Can Serve You . . . . . . . . . . . . . . . . . . . . . 14
- 2 -
SPECIFICATIONS
A
GENERAL
Model ELITE ONE
Channels 40
Frequency Range 26.965 ~ 27.405 MHz
Emission AM
Frequency Control Phase-Lock-loop (PLL) Synthesizer
Frequency Stability 0.001%
Temperature Range -30°C to +50°C
Antenna Impedance 50 Ohms
Antenna Connectors Standard SO-239 type
Input Voltage 13.8V DC
Size 190 (W) x 120 (D) x 31 (H) m/m
Weight 1 kg.
TRANSMITTER
RF Power Output AM: 4W
Spurious Emission More than -60 dB
Audio Distortion <10%
Frequency Response 300 to 2500 Hz
Microphone CONDENSER MIC
RECEIVER
Sensitivity AM: 0.5 uV for 10dB Sinad
Squelch Sensitivity < 0.5 uV
Image Rejection More than 60 dB
AGC Figure of Merit 100 mV for 10dB Change in Audio Output
Audio Power Output 3W @ 10% Distortion
Audio Response 300 to 2500 Hz
(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
- 3 -
INSTALLATION
A
LOCATION
Plan the location of the transceiver and microphone bracket before starting the installation.
Select a location that is convenient for operation and does not interfere with the drive or
passengers in the automobiles, the transceiver is usually mounted the dash panel with the
microphone bracket beside it.
MOUNTING THE RADIO
The transceiver is supplied with a universal mounting bracket. When mounting the bracket and
radio to your car, make sure it is mechanically strong. Also provide a good electrical connection
to the chassis of the vehicle. Proceed as follows to mount the transceiver:
1. After you have determined the most convenient location in your vehicle, hold the
transceiver with mounting bracket in the exact location desired. If nothing will interfere with
mounting it in the desired position remove the mounting bolts. Before drilling the holes,
make sure nothing will interfere with the installation of the mounting bolts.
2. Connect the antenna cable plug to the standard receptacle on the rear panel. Most
transceiver antennas are terminated with a type PL-259 plug and mate with the receptacle.
3. Connect the red DC power input wire (with the fuse) to +13.8V DC. This wire extends from
the rear panel. In automobile installation, +13.8V DC is usually obtained from the
accessory contact on the ignition switch. This prevent the set being left on accidentally
when the driver leaves the car and also permits operating the unit without the engine
running. Locate the accessory contact on most ignition switches by tracing the power wire
from the AM broadcast receiver in the car.
4. Connect the black lead to –13.8V DC. This is usually the chassis of the car. Any convenient
location with good electrical contact (remove paint) may be used.
5. Mount the microphone bracket on the right side of the transceiver, using two screws
supplied. When mounting in an automobile, place the bracket under the dash so that
microphone is readily accessible.
- 4 -
INSTALLATION
A
IGNITION NOISE INTERFERENCE
Use of a mobile receiver at low signal levels is normally limited by the presence of electrical
noise. The primary source of noise in automobile installation is from the generator and ignition
system in the vehicle. Under most operating conditions, when signal level is adequate, the
background noise does not present a serious problem. Also, when extremely low level signals
are being received, the transceiver may be operated with vehicles engine turned off. The unit
requires very little current and therefore will not significantly discharge the vehicle battery.
Even though the transceiver has ANL and NB controls, in some installation ignition
interference may be high enough to make good communications impossible. The electrical
noise may come from several sources. Many possibilities exist, as variations between vehicles
require different solutions to reduce the noise.
ANTENNA
A vertically polarized, quarter-wavelength whip antenna provides the most reliable operation
and greatest range. Shorter, loaded-type whip antennas are more attractive, compact and
adequate for applications where the maximum possible distance is not required. Also, loaded
whips do not present the problems of high wind resistant imposed by a full quarter-wavelength
whip.
Mobile whip antennas utilize the metal body of the vehicle as a ground plane. When mounted
at a corner of the vehicle they are slightly directional, in the direction of the body of the vehicle.
For all practical purpose, however, the radiation pattern is nondirectional. The slight directional
characteristic will be observed only at extreme distances. A standard antenna connector (type
SO-239) is provided on the transceiver for easy connection to a standard PL-259 cable
termination.
If the transceiver is not mounted on a metal surface, it is necessary to run a separate ground
wire from the unit to good metal electrical ground in the vehicle. When installed in a boat, the
transceiver will not operate at maximum efficiency without a ground plate, unless the vessel has
a steel hull.
Before installing the transceiver in a boat, consult your dealer for information regarding an
adequate grounding system and prevention of electrolysis between fittings in the hull and water.
- 5 -
INSTALLATION
A
TUNING THE ANTENNA FOR OPTIMUM S.W.R
Since there is such a wide variety of a base and mobile antenna, this section will strictly
concern itself to the various types of mobile adjustable antennas.
Because the antenna length is directly related to the channel frequency, it must be tuned to
resonate optimally on all channels of the transceiver. Channel 1 requires a longer antenna than
Channel 40 because it is lower in its frequency of operation.
Due to the various methods of adjusting antennas for proper S.W.R. we have chosen what
we think is the optimum method:
A. Antenna with adjustment screws (set screws).
1. Starts with the antenna extended and tighten the set screw lightly enough so that the
antenna can be lightly tapped with your finger for easy adjustment.
2. Set your transceiver to Channel 20. Press the PTT (push-to-talk) switch, and tap the
antenna (making it shorter). The S.W.R meter will show a lower reading each time the
antenna is tapped. By continuing to shorten the antenna, you will notice the S.W.R reading
will reach a low point and then start rising again. This means that you have passed the
optimum point for Channel 20.
Extend the antenna a short distance and again follow the procedure above. When the lowest
point has been reached, switch to Channel 1 and then to Channel 40 and compare S.W.R
readings. They should be almost equal.
NOTE
The proper setting is achieved when the SWR is 1.5 or
below, and when it has the same reading for channels 1
and 40.
B. Antennas which must be cut to proper length
1. Follow the same procedure as above but adjust the length by cutting in 1/8” increments
until a good match is obtained.
2. Be very careful not to cut too much at one time, as one it is cut, it can no longer be
lengthen.
3. The whip is easily cut by filing a notch all the way around and breaking the piece off with
pliers.
- 6 -
INSTALLATION
A
If you’re having difficulties in adjusting your antenna, check the following:
a. All doors must be closed when adjusting the antenna
b. Make sure the antenna base is grounded.
c. Check your coaxial cable routing (it may be pinched when routed into the car)
d. Try a different location in your car (keeping in mind the radiation pattern you wish.)
e. Is the antenna perfectly vertical?
f. Try a different location in your neighborhood. Stay away from large metal objects when
adjusting (metal telephone polls or light post, fences, etc.)
NOTE
The transceiver will operate into an SWR of 2 to 1
indefinitely and sustain an SWR of 20 : 1 for a maximum of
5 minutes at rated operating conditions.
EXTERNAL SPEAKER
The external speaker jack (EXT SP.) on the rear panel is used for remote receiver monitoring.
The external speaker should have 8 ohms impedance and be able to handle at least 4 watts.
When the external speaker is plugged in, the internal speaker is disconnected.
- 7 -
OPERATION
A

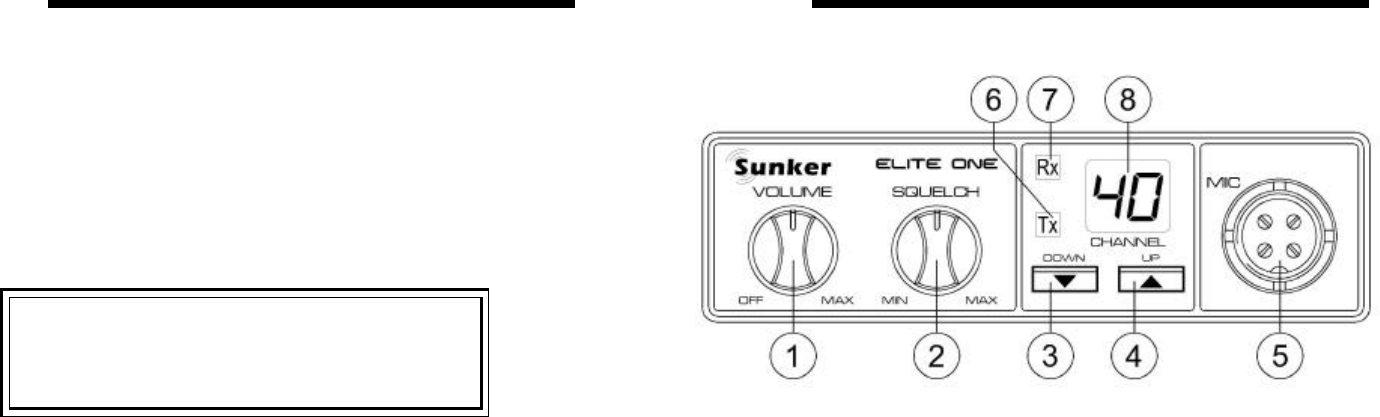

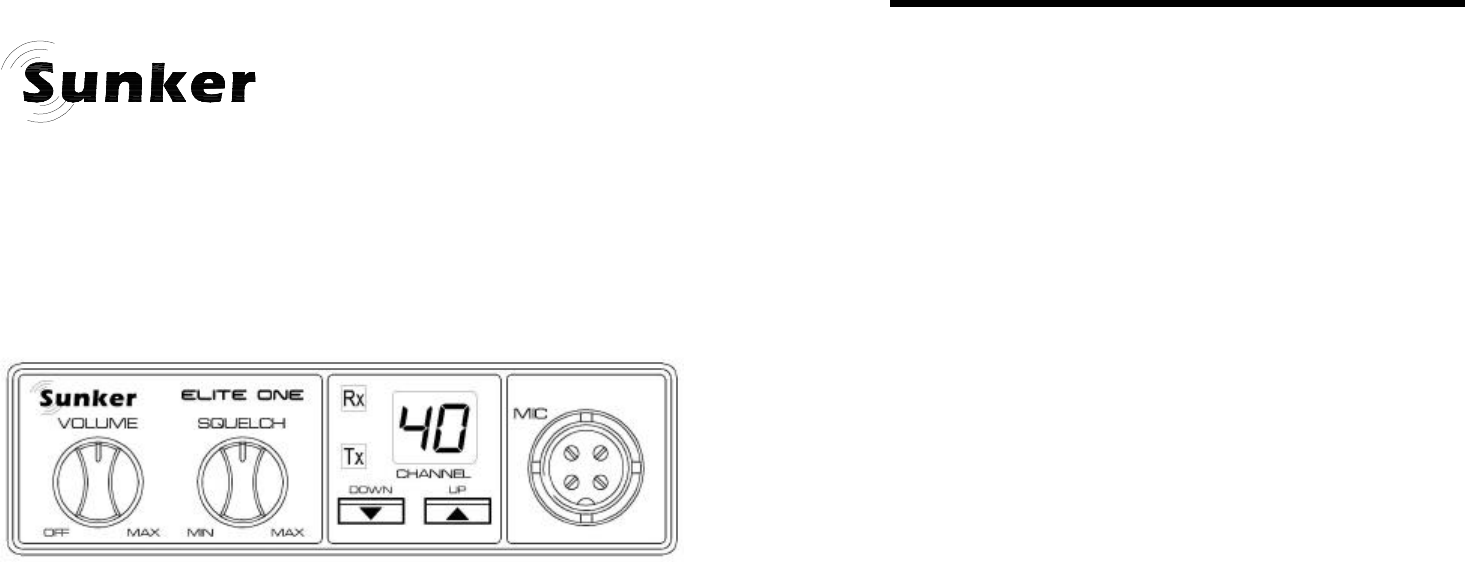

FRONT PANEL
1. ON/OFF VOLUME CONTROL: This knob controls the volume and power to the radio. To turn
radio on, rotate the knob clockwise. Turning the knob further will increase the volume of the
receiver.
2. SQUELCH CONTROL: This switch is used to eliminate background noise being heard
through the receiver, which can be disturbing when no transmission is being heard through
the received. To use this feature, turn the switch fully counterclockwise and then turn
clockwise slowly until the background noise is just eliminated. Further clockwise rotation
will increase the threshold level, which a signal must overcome in order to be heard. Only
strong signal will be heard at a maximum clockwise setting.
3. CHANNEL SELECTOR: this switch is used to select a desired transmit and receive channel
the selected channel appears on the LED read our directly the Channel Selector DOWN
Knob.
4. CHANNEL SELECTOR: this switch is used to select a desired transmit and receive channel
the selected channel appears on the LED read our directly the Channel Selector UP Knob.

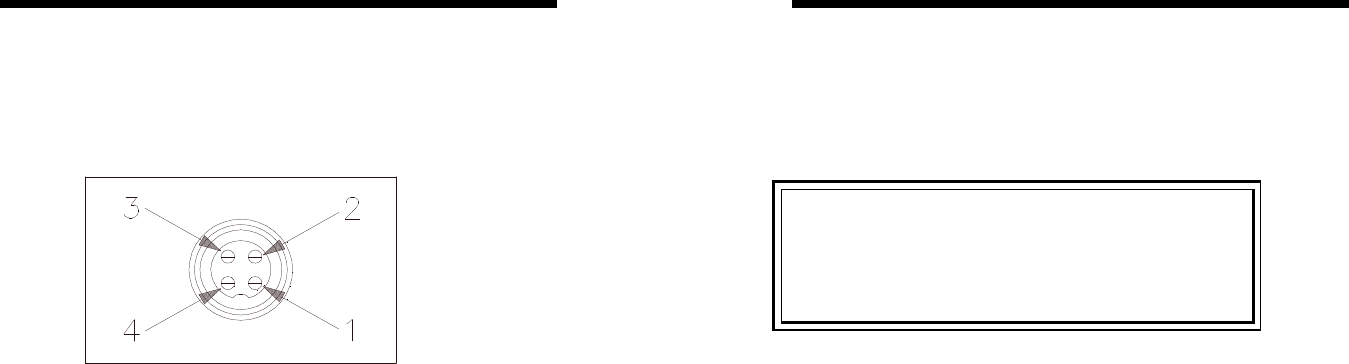

5. MICROPHONE JACK: Used to connect microphone for voice source.
6. TX LED: The red LED indicates the unit is in the transmit mode. The Red LED indicates the
unit is in the receive mode.
- 8 -
OPERATION
A
7. RX LED: The red LED indicates the unit is in the transmit mode. The green LED indicates
the unit is in the receive mode.
8. CHANNEL DISPLAY: The channel display indicates the current selected channel
- 9 -
OPERATION
A

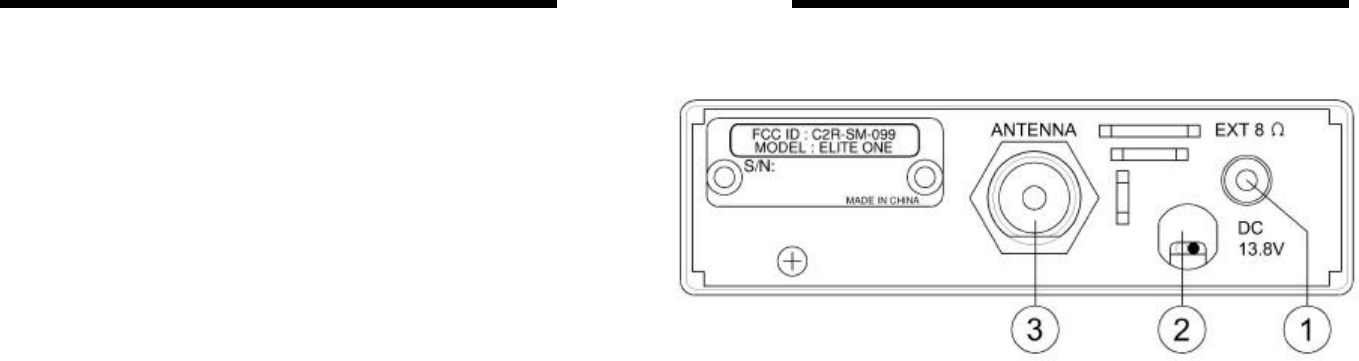

REAR PANEL
1. EXT. SP: This jack accepts 4 to 8 ohms, 5 watts external speaker. When the external
speaker is connected to this jack, the built-in speaker will be disabled.
2. DC POWER: This accepts 13.8V DC power cable with built-in fuse. The power cord
provided with the radio has a black and red wire. The black goes to negative and red goes
to positive.
3. ANTENNA: This jack accepts 50 ohms coaxial cable with a PL-259 type plug
- 10 -
OPERATION
A
FREQUENCY CHART
Channel Channel Frequency Channel Channel Frequency
1 26.965 MHz 21 27.215 MHz
2 26.975 MHz 22 27.225 MHz
3 26.985 MHz 23 27.255 MHz
4 27.005 MHz 24 27.235 MHz
5 27.015 MHz 25 27.245 MHz
6 27.025 MHz 26 27.265 MHz
7 27.035 MHz 27 27.275 MHz
8 27.055 MHz 28 27.285 MHz
9 27.065 MHz 29 27.295 MHz
10 27.075 MHz 30 27.305 MHz
11 27.085 MHz 31 27.315 MHz
12 27.105 MHz 32 27.325 MHz
13 27.115 MHz 33 27.335 MHz
14 27.125 MHz 34 27.345 MHz
15 27.135 MHz 35 27.355 MHz
16 27.155 MHz 36 27.365 MHz
17 27.165 MHz 37 27.375 MHz
18 27.175 MHz 38 27.385 MHz
19 27.185 MHz 39 27.395 MHz
20 27.205 MHz 40 27.405 MHz
- 11 -
OPERATION
A
PROCEDURE TO RECEIVE AND TRANSMIT
A. MICROPHONE
The receiver and transmitter are controlled by the push-to-talk switch on the microphone.
Press the switch the transmitter is activated, release switch to receive. When transmitting, hold
the microphone two inches from the mouth and speak clearly in a normal voice. This
transceiver comes complete with a low impedance dynamic microphone.
B. PROCEDURE TO RECEIVE
1. Be sure that power source, microphone and antenna are connected to the proper
connectors before going to the next step.
2. Turn VOL knob clockwise to apply power to the radio.
3. Set the VOL for a comfortable listening level.
4. Set the MODE switch to the desired mode.
5. Listen to the background noise from the speaker. Turn the SQ knob slowly clockwise until
the noise just disappears. The SQ is now properly adjusted. The receiver will remain quiet
until a signal is actually received. Do not advance the control too far or some of weaker
signals will not be heard.
6. Set the CHANNEL selector switch to the desired channel.
C. PROCEDURE TO TANSMIT
1. Select the desired channel of transmission
2. If the channel is clear, depress the push-to-talk switch on the microphone and speak in a
normal voice.
- 12 -
OPERATION
A
ALTERNATE MICROPHONES AND INSTALLATION
For best results, the user should select a Condenser type microphone. The microphones
must be provided with a four-lead cable. The audio conductor and its shielded lead
Comprise two of the leads. The third lead is for transmit control and fourth is for receiving
Control
The microphone should provide the functions shown in schematic below.
4 WIRE MIC CABLE
Pin Number Mic Cable Lead
1 Audio Shield
2 Audio Lead
3 Transmit Control
4 Receive Control
Fig. 1 Transceiver Microphone Schematic Diagram
If the microphone to be used is provided with precut leads, they must be revised as follows.
1. Cut leads so that they extend 7/16" beyond the plastic insulating jacket of the microphone
cable.
2. All leads should be cut to the same length. Strip the ends of each wire 1/8" and tin the
exposed wire.
- 13 -
OPERATION
A
Before beginning the actual wiring, read carefully the circuit and wiring information provided
with the microphone you select. Use the minimum heat required in soldering the connections.
Keep the exposed wire lengths to a minimum to avoid shorting when the microphone plug is
reassembled.
Fig. 2 Microphone plug wiring
To wire the microphone cable to the plug provided, proceed as follows:
1. Remove the retaining screw.
2. Unscrew the housing from the pin receptacle body.
3. Loosen the two cable clamp retainer screws.
4. Feed the microphone cable through the housing, knurled ring as shown Figure 2.
- 14 -
OPERATION
A
5. The wires must now be soldered to the pins as indicated in the above wiring tables. If a vise
or clamping tool is available it should be used to hold the pin receptacle body during the
soldering operation, so that both hands are free to perform the soldering. If a vise or
clamping tool is not available, the pin receptacle body can be held in a stationary position
by inserting it into the microphone jack on the front panel. Before soldering the wire to the
pins, pre-tin the wire receptacle of each pin of the plug.
Fig. 3 Microphone plug pin numbers viewed from rear of pin receptacle.
6. Be sure that the housing and the knurled ring of Figure 2 are pushed back onto the
microphone cable before starting to solder.
7. When all soldering connections to the pins of the microphone are completed, push the
knurled ring and the housing forward and screw the housing onto the threaded portion of
the pin receptacle body. Note the location of the screw clearance hole in the plug housing
with respect to the threaded hole in the pin receptacle body. When the housing is
completely threaded into the pin receptacle body, a final fraction of a turn either clockwise
or counterclockwise may be required to align the screw hole with the threaded hole in the
pin receptacle body. When these are aligned, the retaining screw is then screwed into place
to secure the housing to the pin receptacle body.
8. The two cable clamp retainer screws should now be tightened to secure the housing to the
microphone cord. If the cutting directions have been carefully followed, the cable clamp
should secure to the insulation jacket of the microphone cable.
9. Upon completion of the microphone plug wiring, connect and secure the microphone plug
in the transceiver.
- 15 -
OPERATION
A
MAINTENANCE AND ADJUSTMENT
This transceiver is specifically designed for the environment encountered in base installations.
The use of all solid state circuitry and its light weight result in high reliability. Should a failure
occur, however, replace parts only with identical parts. Do not substitute.
NOTE
If the performance described in the OPERATION and
MAINTENANCE AND ADJUSTMENT sections is not obtained,
review the operating instructions to insure that proper
procedures were followed.
- 16 -
OPERATION
A
A FEW RULES THAT SHOULD BE OBEYED
1. You are not allowed to carry on a conversation with another station for more than five
minutes at a time without taking a one-minute break, to give others a chance to use the
channel.
2. You are not allowed to blast others off the air by over-powering them with illegally amplified
transmitter power, or illegally high antennas.
3. You can’t use the transceiver to promote illegal activities.
4. You are not allowed to use profanity.
5. You may not play music in your transceiver.
6. You may not use your transceiver to sell merchandised or professional service.
HOW YOUR CB CAN SERVE YOU
1. Warn of traffic tie-ups ahead.
2. Provide weather and road information.
3. Provide help fast in event of emergency or breakdown.
4. Suggest good spots to eat and sleep.
5. Make long trips more interesting, and help keep you awake.
6. Provide direct contact with your office or home.
7. Make friends for you as you travel.
8. Provide “local information” to find your destination.
9. Help law enforcement officers by reporting drunk and reckless drivers.
- 17 -
MEMO
- 18 -
MEMO
- 19 -
Printed in China
AT7799010OI
