CPE/USER DRAFT 1.0

RapidLink 54 Wireless Point-to-MultiPoint Network

CPE/User Installation Guide/Users Manual

RapidLink 54 Wireless Point-to-Multipoint Networks

2 Installation Guide

Rev. 0.1 09-20-04

RapidLink is a trademark of RapidWave, Inc. Other trademarks or brand names mentioned herein are trademarks or

registered trademarks of their respective companies.

RapidWave, Inc.

6296 A San Ignacio Ave.

San Jose, CA 95119

Telephone: (408) 363-5984

Fax: (408) 363-5972

URL: http://www.rapidwaveinc.com

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

No part of this document may be copied or reproduced in any form or by any means without the prior written consent

of RapidWave, Inc.

RapidWave makes no warranties with respect to this documentation and disclaims any implied warranties of

merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change

without notice. RapidWave reserves the right to make revisions to this publication without obligation to notify any

person or entity of any such changes.

RapidLink 54 Wireless Point-to-Multipoint Networks

3 Installation Guide

Table of Contents:

1. For your safety...........................................................................................…..4

2. Components...........................……………………………...........................…...5

3. Installation................................……………………………….......……………...6

3.1 Connecting the Outdoor Units……………………………………..…….6

3.2 Mounting External Sector Antennas…………………………………….8

3.3 Connecting the Indoor Units (Power-over-Ethernet Injectors)………..9

4. Basic CPE/User Radio Configuration…………………………………… …….13

4.1 Overview of the RapidLink 54 Web Interface…………………………13

4.2 Setting Basic Network Parameters…………………………………….13

5. Advanced Configuration Options and Tools……………………………………15

5.1 Advanced Page…………………………………………………………..15

5.2 Aligning the Antenna…………………………………………………….19

5.3 Security………………………………………………………………..….20

5.4 Firmware Upgrade……………………………………………………….23

6. Establishing a Wireless Link……………………….………………………….…24

7. Notes……………………………………………………………………………….26

8. Warranty……………………………………………………………………………27

__________________________________________________________________________

RapidLink 54 Wireless Point-to-Multipoint Networks

4 Installation Guide

Section 1: For Your Safety

WARNING

Use extreme care when installing equipment or working near power lines.

CAUTION

When the unit is in operation, avoid standing directly in

front of the antenna. Strong RF fields are present when

the transmitter is on.

The antenna used for this transmitter must be installed to provide a

separation distance of at least 150 cm from all persons.

This Point-to-MultiPoint device and its antenna(s) must not be

co-located or operating in conjunction with any other antenna or

transmitter.

This equipment has been tested and found to comply with the limits for

a Class A digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

RapidLink 54 Wireless Point-to-Multipoint Networks

5 Installation Guide

Section 2: Components for Integrated CPE models RL54-SU-22, 23, 26

Model RL54-SU-22 comes with an integrated 22dBi gain antenna, installed from the manufacture.

Model RL54-SU-23 comes with an integrated 23dBi gain antenna, installed from the manufacture.

Model RL54-SU-26 comes with an integrated 26dBi gain antenna, installed from the manufacture.

Components for External CPE models RL54-SU-28

Model RL54-SU-28 comes with an External 28dBi gain antenna

ALL OTHER COMPONENTS ARE IDENTICAL.

N

-

Type RF

Bulkhead Cable

Adapter

28 dBi External

Antenna

26 dBi

Integrated

Antenna

22 & 23 dBi

Integrated

Antenna

RapidLink 54 Wireless Point-to-Multipoint Networks

6 Installation Guide

Section 3: Installation

3.1 Connecting the Outdoor Units

NOTICE To meet regulatory restrictions, RapidWaves’ external antenna configuration and any

external antenna must be professional installed.

Step 1: Select optimal locations for the outdoor CPE unit, with a clear line-of-sight to the sector base station unit.

Consider the following criteria to ensure maximum performance and stability of your wireless connection:

§ Best signal path possible, ideally the highest spot pointing towards the sector Base Station. It is always

recommended to have a professional site survey done prior to installation to confirm adequate signal strength

§ Fresnel zone clearance

§ Less than 320 feet of total Power-Over-Ethernet UTP cable, the shorter the better

§ Optimal transmission range (visit the online range calculator at http://www.rapidwaveinc.com)

Step 2: Attach the outdoor units mounting brackets.

Weatherproof

Wire Gland

Indoor Power

-

Over-Ethernet

Adapter Base Unit

Indoor AC/DC

Power Adapter

28 dBi External

Antenna

N

-

Type to N

-

Type

2 ft RF Cable

Heavy Duty

Mounting

Hardware

CPE Radio

Unit

RapidLink 54 Wireless Point-to-Multipoint Networks

7 Installation Guide

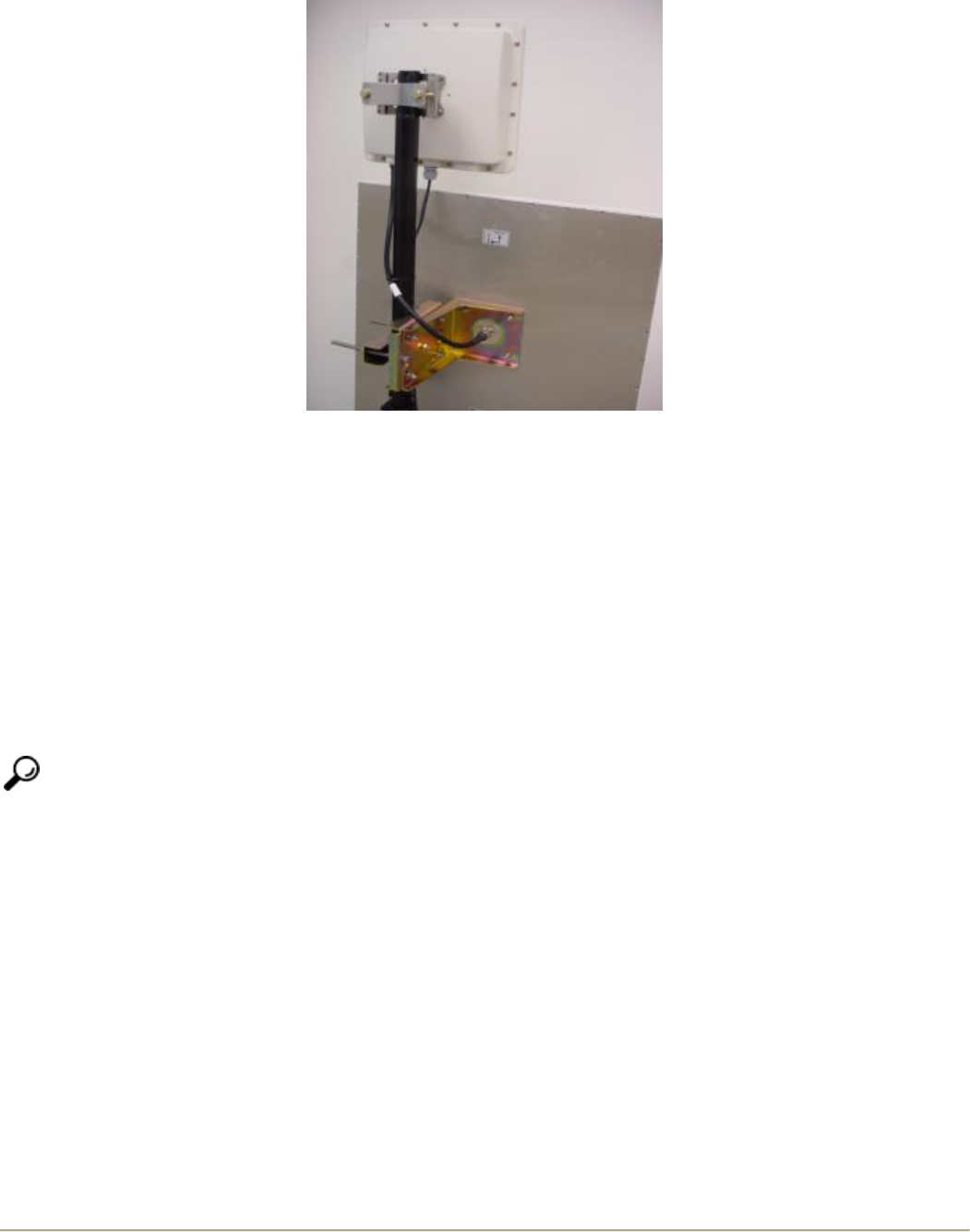

Tip Only use the supplied extension bracket if necessary, otherwise it is recommended to mount the antenna-

mounting bracket directly to the female pole-mounting bracket as depicted below. If the extension bracket is

required for appropriate installation, than it will also be necessary to remount the antenna bracket on the back of the

antenna, to maintain an upright and vertical position.

Step 3: Install “User Supplied” CAT5 Weatherized Ethernet straight-through cable.

------ Do not exceed 320 feet (100 Meters) of cable per installation------

Step 4: Determine the appropriate routing length for your Ethernet cable and cut to length.

Step 5: Splice and crimp indoor mounting side of the CAT5 Ethernet Cable with an RJ-45 connector.

Step 6: The RL54 mounting side of the Ethernet cable must first be routed through the supplied weatherized wiring

gland, than spliced and crimped with a RJ-45 connector. It is Highly recommended that you test the cable with an RJ-

45 wiring tester before final installation.

RapidLink 54 Wireless Point-to-Multipoint Networks

8 Installation Guide

Step 7: Connect the RJ-45 to the female connecter located directly inside the enclosure, make sure the

connection is locked in place before tightening the gland.

Step 8: Tighten the gland to the enclosure and than tighten the compression nut around the Ethernet

cable

Step 9: Mount the outdoor units to the predetermined CPE location you chose in step 1

3.2 Mounting External CPE Antenna

NOTICE To meet regulatory restrictions, RapidWaves’ external antenna configuration and any external antenna

must be professional installed.

RapidLink 54 Wireless Point-to-Multipoint Networks

9 Installation Guide

NOTE All external antenna configurations will come with an N-type Bulkhead adapter installed at the bottom of

the main radio enclosure.

Step 1: Carefully attach one end of the supplied N-type RF cable to the main radio unit first and than install to the

permanent poll location.

Step 2: Mount the external antenna with supplied mounting brackets to the same poll and attach the other end of the

RF cable to the antenna.

NOTE When determining the location of the external antenna, keep in mind to not exceed the distance of the

supplied RF cable

Tip RapidWave recommends mounting all external antennas either “under” or “back-to-back” with the main radio

enclosure unit (as shown above). This will insure proper RF cable routing and maintain the best guard against

the weather. Adding any other RF cable may decrease the performance of the connection.

Step 3: After mounting the outdoor units, loosen the pole mounting clamp (antenna only) just enough to maneuver to the

ideal vertically and horizontally position to obtain maximum signal strength from the sector antenna.

Step 4: Secure the outdoor unit’s Ethernet cable (that you attached to the bottom of the outdoor unit) along the length

of the pole using tie-wraps, run the cable toward the inside of the building.

RapidLink 54 Wireless Point-to-Multipoint Networks

10 Installation Guide

Tip For best results, secure this cable to the pole at least every 10 feet with tie-wraps.

3.3 Connecting the Indoor Units (Power-over-Ethernet Injectors)

The indoor unit is the point at which the outdoor units connect with your indoor LAN. More specifically, the indoor unit

connects your wireless unit to the network and transmits both data and power to the outdoor unit.

Perform the following steps (1-6) to connect the indoor unit of the wireless outdoor unit.

Step 1: Place the indoor unit in an appropriate location that meets the following criteria:

§ The distance from the outdoor unit to the indoor Power-Over-Ethernet adapter must not exceed the length of

your Ethernet cable after attached to the bottom of the outdoor unit

§ The distance from the indoor unit to the Ethernet network backbone device (e.g., hub or switch) must not

exceed 320 ft (100 meters)

§ The distance from the indoor unit to an available AC outlet must not exceed the length of the supplied power

cable

Step 2: Bring the Ethernet cable into to the wiring closet (where the indoor unit is located), and plug the RJ-45

connector into the combined Ethernet/power output port (P + Data Out) on the front panel of the indoor unit.

RapidLink 54 Wireless Point-to-Multipoint Networks

11 Installation Guide

Caution Connecting any device other than the outdoor unit to the indoor unit may cause permanent hardware

damage. Do not confuse the RJ-45 connector of the outdoor unit’s with that of the Ethernet cable connected to

your backbone device.

Step 3: Connect one end of the brick style power adapter cable to the power jack (Power In) on the rear panel of the

indoor unit, and plug the other end of the power cable into the AC wall outlet.

Step 4: Check the front panel of the indoor unit to make certain that the power LED is on. If the power LED is not on,

confirm that the power cable is securely connected and that your power source is operational.

RapidLink 54 Wireless Point-to-Multipoint Networks

12 Installation Guide

Step 5: Plug your Ethernet patch cable into the Ethernet input port (Data In) of the indoor unit and into the data port of

your backbone device.

Caution Do not confuse the Ethernet input port with the Ethernet/Power output port. To avoid permanent hardware

damage, make certain that you connect your backbone device to the Ethernet input port (not the Ethernet/Power

output port).

Step 6: Check the link LED on your backbone device to confirm that it is on.

Congratulations!

At this point, you have completed all the h

ardware related steps necessary to

establish your point-to-

multipoint wireless link. However, your wireless link is not yet operational. The

next section will describe basic software configuration and antenna alignment procedures necessary

to activate the wireless network.

RapidLink 54 Wireless Point-to-Multipoint Networks

13 Installation Guide

Section 4: Basic CPE/User Radio Configuration

4.1 Overview of the RapidLink 54 PtMP CPE Web Interface

All basic radio configuration management parameters are accessible through an embedded web server interface

called the Wireless Link Manager (WLM). Using a web browser, you can easily log into the web server of your wireless

unit. From this user-friendly interface, you can communicate with any RapidLink 54 CPE and perform configuration,

management and trouble-shooting tasks for this local radio.

4.2 Setting Basic CPE Radio Parameters

In this section, you will log into the RapidLink 54 WLM for the first time and modify your radios default settings.

NOTICE You may need to change your computers TCP/IP local area connection setting to an IP

range that is compatible with the default IP of the CPE

Step 1: Load your Web browser.

Step 2: Type the factory default IP address: 192.168.1.55 into the address field of your browser and press Enter. This

will load the RapidLink 54 WLM.

Step 3: Enter the default (Case Sensitive) Login: admin and Password: rl54 when prompted and click Enter.

Tip It is strongly recommended that you change the Password and Login as soon as you have

completed the basic configuration by clicking on the Security tab. See section 5.3 under Security for

full details on changing password.

RapidLink 54 Wireless Point-to-Multipoint Networks

14 Installation Guide

Now you will see the RapidWave 54 WLM. Along the top of the page, you will find five tabs that contain all the

configuration options available for RapidLink 54 CPE. These tabs are: Setup, Advanced, Security, Antenna Align

and Upgrade. You will use the Setup page to set network parameters

Step 4: Enter a new IP Address for the CPE (the IP address of each device must be unique)

Write down your new IP Address for future reference in the NOTES section of this Installation Guide. If the IP

is changed and than forgotten, you may need to reset all default values to recover, disrupting service to this

CPE’s wireless link.

Step 5: Enter a Subnet Mask (if different than the default value).

Step 6: Enter the current Gateway Address to which you are connected.

Step 7: Enter the Name of your Base Station Sector.

Step 8: Click Apply.

Step 9: Enter the Wireless MAC address of the Base Station this CPE should communicate with. This can be found on

the back of the Base Station radio i.e. (00:50:c2:39:6x:xx). It is critical that this number is correctly entered. This

number is not case sensitive, but does require Colons between each set of two digits.

Step 10: To put the changes into effect, click Restart, a dialog box will appear, click OK. The CPE will then restart.

RapidLink 54 Wireless Point-to-Multipoint Networks

15 Installation Guide

Section 5: Advanced Configuration Options and Tools

From radio-related parameters and security algorithms to diagnostic tools and firmware upgrade utilities, the WLM

offers numerous options that help you effectively manage the system and achieve the highest performance possible.

This section describes RapidLink 54’s advanced configuration options, which you can find in the following categories:

? Advanced ? Security ? Antenna Align ? Upgrade

Accessing the advanced options is simple. From the RapidLink 54 WLM, simply click on the tab corresponding to the

category you need. The following sub-sections will explain how to configure each parameter within these categories.

Tip While the options differ, each page functions similarly. As you read the next subsections, keep in mind that

regardless of the page, any change you make can only go into effect if you click Apply. If you do not click Apply

before moving to the next page, your changes will be lost.

Also be advised that certain parameters in the Advanced and Security pages require you to restart the system in

order to take effect. In such cases, go back to the setup page and click on Restart. If you know that you will be

making more changes, you can complete all other changes, and restart the system later.

5.1 Advanced Page

This page allows you to control radio-related parameters, including Transmit Mode, Data Rate, SSID, Channel and

Link Distance. These parameters must be identical on both sides of all wireless links. Therefore, any change on the

Base Station should also be executed for all CPE’s. This sub-section explains the options in each field of the

Advanced page.

Tip Transmit Mode, Data Rate, and Channel settings are interdependent. Data Rate and Channel are always

updated according to the Transmit Mode setting. It is therefore recommended that you select the Transmit Mode

first and follow the instructions below in the order that they are presented.

RapidLink 54 Wireless Point-to-Multipoint Networks

16 Installation Guide

Set Transmit Mode:

Simply click the drop-down menu in the Transmit Mode field and select either Turbo or Standard Mode. Data Rate

and Channel options will then update according to the new setting. Must match the Base Station setting!

Set Data Rate:

RapidLink 54 supports several possible data rates ranging from 6 to 108 Mbps. The highest transmission rate is 108

Mbps, with automatic fallback rates that allow the unit to operate in the most efficient manner. By default, the system

automatically switches between these rates to maximize coverage. However, you may wish to select a fixed Data Rate

based on your specific objectives or needs.

Step 1: To adjust this parameter, click the drop-down menu in the Data Rate field and select the desired rate.

RapidLink 54 Wireless Point-to-Multipoint Networks

17 Installation Guide

Note The default setting, Auto, is recommended.

§ Auto: When the Data Rate is set to Auto, the CPE will follow an algorithm to determine the highest bit

rate possible for communication with the Base Station on the network.

§ Fixed Bit Rate: The Auto setting is disabled by selecting a specific bit rate to be used for the wireless link.

This would be appropriate when operating in a well-understood environment, and when full rate operation is

not possible. If you choose to set a fixed rate It is recommended that you start with the lowest bit rate, working

your way up to the highest achievable data rate.

Enter SSID:

The SSID is a service set identifier that uniquely describes your Base Stations sector and all of the CPE’s that will

receive signal from this Base Station. Always use the same SSID for all CPE’s in the covered sector.

Set Channel:

Channels are used to set the center frequency used to transmit data over the wireless link. You can avoid active

interference by switching channels if you suspect interferers operating on the same frequency. Available channels

shown in the drop-down menu are based on local regulatory requirements.

To set the Channel: Click the drop-down menu in the Channel field and select the desired frequency.

§ Five channels are available in Transmit Mode Standard

§ Two channels are available in Transmit Mode Turbo

§ Note Always set all CPE’s to the same channel as the host Base Station

RapidLink 54 Wireless Point-to-Multipoint Networks

18 Installation Guide

Tip If active interference is not an issue, it is recommended that you choose the default

Channel (lowest frequency) in order to maximize range.

Set Link Distance:

Entering the correct Link Distance maximizes performance by ensuring the system is ideally tuned to the distance

between the Base Station and the CPE. You should only change this at the point of installation by clicking the drop-

down Link Distance menu and selecting the correct CPE distance form the Base Station.

RapidLink 54 Wireless Point-to-Multipoint Networks

19 Installation Guide

5.2 Aligning the Antennas

Depending upon the characteristics of your antennas and the distance between them, antenna alignment can be

performed visually or you may opt to use more sophisticated tools and methods of aiming such as telescopes or laser

pointers. The WLM provides a tool designed to help you optimize antenna alignment, ensuring the highest signal

quality and stability possible, the longer the distance, the greater the need for this tool. As you make physical

adjustments to the antenna, the antenna alignment tool will show the resultant transmission quality between the two

devices in the form of signal strength and RSSI value. Follow the procedures below for each CPE/User.

Step 1: From the Base Station and CPE sides of the link you will need to start a continuous PING to each opposing

computers IP address.

§ Open a command Prompt on both computers

§ Type in the IP Address of the remote field laptop, followed by a space, minus sign & than a lowercase t

i.e. (192.168.1.100 –t). Do the same for the base Station computer.

§ Enter

Step 2: Take the laptop computer to the antenna location and load the RapidLink 54 user interface.

Step 3: Select the Antenna Align tab and click Start to enable the antenna alignment tool. The Signal Strength and

Received Value indicators will now show dynamically updated measurements until you click Stop.

RapidLink 54 Wireless Point-to-Multipoint Networks

20 Installation Guide

Step 3: Monitor the Signal Strength indicator as you align the antenna vertically (if antennas are not on the same

elevation). When the signal quality reaches an acceptable level, tighten the screws.

Step 4: Repeat step 3 for horizontal alignment.

§ Note Be advised that different data rates have different sensitivities, which will impact range.

5.3 Security

This section describes the parameters available through the Security menu. RapidLink 54 provides two forms of

security, access control and privacy. Access control is achieved by MAC address authentication, which allows only

known devices to associate with the Base Station and establish a wireless connection. Another component of access

control is the password protected user interface, which can be configured on the Security page. Privacy is

accomplished by enabling encryption that prevents rogue stations or wireless sniffers from decoding any captured

data. RapidLink 54 provides 128-bit WEP encryption option on the Security page.

Changing your Password

We recommend that you change your Login and Password from the factory default setting to authenticate the identity

of the RapidLink 54 administrator and ensure that no unauthorized users gain access to the WLM.

To change your Login and Password, type a new Login name (16 characters maximum). Next, enter a new

Password, (16 characters maximum) and enter it again to confirm.

Tip Create passwords according to the following guidelines:

RapidLink 54 Wireless Point-to-Multipoint Networks

21 Installation Guide

Do Not

§ Share passwords with unauthorized users

§ Use personal information easily obtained, such as your actual first or last name, system name, etc.

§ Use words commonly used as passwords

§ Use dictionary words or names

Do

§ Base passwords on non-dictionary words, combined with obscure character substitutions

§ Use the maximum number of characters

§ Change passwords regularly

Privacy

You can enhance link privacy by setting the Encryption Mode to WEP-128 and entering a valid encryption key. You

have the option of either creating a key manually or having the system generate a key for you automatically.

By default, the Encryption Mode is Off. If you wish to increase link privacy, perform the following steps for the Base

Station, then repeat these steps for all CPE’s.

Step 1: If you wish to enable encryption, select WEP-128.

Step 2: Click the Key Generation drop-down menu and select either Manual or Automated. If you select Manual,

you are required to manually enter a key as described below. If you prefer, you can select Automated, and

the system automatically generates a distinct key based on a passphrase that you enter.

Step 3: To generate a valid encryption key. The steps are as follows:

§ If the Key Generation field is set to Manual, enter a key directly into the field. The key must be

composed of 32 hexadecimal characters in the range of A-F and 0-9.

§ If Key Generation is set to Automated, the Passphrase field and Generate button are enabled.

a. Type a Passphrase (no more than 32 characters) that you can easily memorize.

RapidLink 54 Wireless Point-to-Multipoint Networks

22 Installation Guide

b. Click Generate, and a one-way hash algorithm will be applied to hash the Passphrase using the

specified character encoding and copy the results into the encryption key field.

Note The passphrase is not exchanged over the air. It is as secure as a manually generated key, but easier to

remember.

CPE / Home Network Security

By the nature of this wireless network, all CPE’s located on the same Base Station will be able to access one another,

opening up a potential security problem. Depending on your network deployment, it is highly recommended that you

install or recommend to CPE subscribers to install a firewall inline with their home network deployment. Please see

the basic network configuration below.

Note Telnet and CPE Web interface access is all password protected, so system administrators will have total

control and access for updates and maintenance of the PtMP networks, dictating all individual CPE subscribers

access as well, without the ability to intrude on any private home networks.

RapidLink 54 Wireless Point-to-Multipoint Networks

23 Installation Guide

5.4 Firmware Upgrade

Periodically, RapidWave, Inc. will release firmware updates that enhance various aspects of RapidLink 54 firmware.

After registering on http://www.rapidwaveinc.com, you will have access to all the firmware upgrades available. If you

have questions about upgrading your firmware, please contact RapidWave’s support team.

The steps involved in performing a firmware upgrade are as follows:

Step 1: Obtain firmware image from RapidWave and save it to a directory on your computer or network drive.

Step 2: Start an FTP Server on your network computer. Configure an entry for the user name “rapidwave”, with the

password “rapidwave”. The home directory for the “rapidwave” user should be set to the directory where the

firmware image is stored.

Step 3: Login to the CPE WLM Web interface

Step 4: From the RapidLink 54 WLM browser interface select Upgrade.

RapidLink 54 Wireless Point-to-Multipoint Networks

24 Installation Guide

Step 5: Specify your FTP Server address in the space provided.

Step 6: Click browse to open the Windows browse file dialog.

Step 7: Click Upgrade to upload the image to the CPE.

Step 8: Click OK when you see the pop-up with a warning and OK/Cancel options.

Step 9: When you have successfully loaded the new firmware, the system must be restarted.

Step 10: Repeat steps 2-9 for the all CPE’s as they will utilize the same upgrade image.

Tip For greatest interoperability, upload the same firmware image or revision for the Base Stations and all CPE’s.

Depending on CPE deployment, you will need to make sure to notify all users to the upgrade. Make sure that the

firmware revisions match on both sides.

6.0 Establishing a Wireless Link

Now that you have your Base Station(s), CPE’s and Network Management Center (NMC) tool all installed, configured

and aligned, the following steps will help you establish wireless connectivity throughout your new network if it does not

already exist:

Step 1: From the Base Station - type the new IP address that you created in the address field of your web browser

and press Enter to load the web interface of the Base Station. Login with your New user name and password,

before moving on to the next step, make certain that the Setup page shows the new settings you initiated in

the Base Station Installation Guide.

Tip Now that you have assigned the final IP address, it is a good time to bookmark your user interface for

easy access as you manage your wireless link.

Step 2: From the CPE - type the new IP address that you created in the address field of your web browser and press

Enter to load the web interface of the CPE. Login with your New user name and password, before moving on

to the next step, make certain that the Setup page shows the new settings you initiated earlier in this

Installation Guide.

§ Tip You will not be able to connect if certain Base Station and CPE settings are not identical. If

you have changed any of the following parameters: Transmit Mode, Data Rate, Channel, SSID,

Encryption Mode and Active Encryption Key, ensure that the configurations of both the CPE

and Base Station are compatible.

RapidLink 54 Wireless Point-to-Multipoint Networks

25 Installation Guide

Step 3: Start a continuous Ping from the Base Station computer to the CPE computers IP address and a continuous

Ping from the CPE computer to the Base Station computers IP address.

(See section 5.2 Step:1 for Ping instructions)

Step 4: Start the Antenna alignment tool on the CPE Web interface. If you do not see any RSSI or signal strength,

you will not be able to establish a link. You must confirm that your antenna alignment is still true and all

parameters from the TIP above are identically configured.

Step 5: Bring up the NMC tool from the Base Station side of the link.

Step 6: Confirm that all MAC addresses and Radio IP addresses are correct for all Base Stations and

corresponding CPE’s.

Step 7: Enter the User section and select the New CPE that you are establishing a link with, confirm that all

parameters are correct, hit apply. (You may see an error message during this step until the Sector has been

updated. At this point you are staging the sector to receive this new CPE’s information)

Step 8: Select Main.

Step 9: Go into the Station section, choose the sector network that will communicate with this new CPE and select

apply. (This transaction should be successful, now the Sector can authenticate with the CPE)

Step 10: Bring up the Command Prompts that are running the pings, you should see successful ping coming though

within 15 to 30 seconds.

Step 11: New that you have a link between the Base Station and remote CPE, you should go back into the NMC

Users section, select the New CPE once more and hit apply. (This will send the CPE’s bandwidth allocation

and QoS parameters to the CPE via the Base Station, allowing the Base Station and CPE to sync up.)

Congratulations!

You have now completed all the steps to set up and manage an RL54 Point

-

to

-

Multipoint High-Speed communication Network!

RapidLink 54 Wireless Point-to-Multipoint Networks

26 Installation Guide

Section 7: Notes

___________________________________________________________________________

_____________________________

RapidLink 54 Wireless Point-to-Multipoint Networks

27 Installation Guide

Section 8: Warranty

RapidWave - Limited Warranty

RapidWave Inc. warrants that hardware products will be free from material defects in materials and workmanship for the term of one

year from product shipment date. RapidWave Inc. warrants that software media will be free from material defects in materials and

workmanship for a period of one year from shipment date.

This Hardware Product warranty covers all RapidWave Inc. parts, accessories, and upgrades sold with your RapidWave Inc.

Hardware Product. Unless otherwise set forth, RapidWave Inc. accessories and upgrades purchased and added on to the

Hardware Product after the initial Hardware Product purchase assume the warranty deliverables and term of the system into which

they are installed.

Limitations

NEITHER PARTY WILL BE LIABLE FOR ANY INDIRECT, PUNITIVE, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IN

CONNECTION WITH OR ARISING OUT OF THIS WARRANTY (INCLUDING, WITHOUT LIMITATION, LOSS OF BUSINESS, REVENUE,

PROFITS, GOODWILL, USE, DATA, ELECTRONICALLY TRANSMITTED ORDERS, OR OTHER ECONOMIC ADVANTAGE), HOWEVER THEY

ARISE, WHETHER IN BREACH OF CONTRACT, BREACH OF WARRANTY OR IN TORT, INCLUDING NEGLIGENCE, AND EVEN IF THAT

PARTY HAS PREVIOUSLY BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. LIABILITY FOR DAMAGES WILL BE LIMITED ADND

EXCLUDED, EVEN IF ANY EXCLUSIVE REMEDY PROVIDED FOR FAILS OF ITS ESSENTIAL PURPOSE. SOME STATES AND

JURISDICTIONS DO NOT ALLOW LIMITATIONS UPON CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO

YOU.

YOUR SOLE AND EXCLUSIVE REMEDY AND RAPIDWAVE INC.'S ENTIRE LIABILITY FOR BREACH OF WARFRANTY WILL BE: (A) THE

REPAIR OR, AT RAPIDWAVE INC.'S OPTION AND EXPENSE, REPLACEMENT OF THE DEFECTIVE PRODUCT, OR, IF SUCH REPAIR OR

REPLACEMENT IS NOT REASONABLY ACHIEVABLE, THE REFUND OF THE PURCHASE PRICE. ALL EXPRESS OR IMPLIED CONDITIONS,

REPRESENTATIONS, AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY, SATISFACTORY

QUALITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT, ARE HEREBY EXCLUDED TO THE MAXIMUM EXTENT

PERMITTED BY LAW. SOME STATES AND JURISDICATIONS DO NOT ALLOW LIMITATIONS UPON IMPLIED WARRANTIES, SO THE ABOVE

LIMITATION MAY NOT APPLY TO YOU.

Founded in July 2002, RapidWave Inc. is a privately held company headquartered in San Jose, California. RapidWave is focused on designing and

manufacturing high-performance point-to-point and point-to-multipoint fixed wireless access solutions to address the needs of building

communication infrastructures in the emerging economies of the world. RapidWave’s product line offers end-to-end solutions for service providers,

government organizations, universities, and businesses to quickly and cost-effectively solve their voice and data communication needs – without

wires. For more information, visit the RapidWave web site at http://www.rapidwaveinc.com.

RapidWave RWIRL54BR1 High Rate Wireless Bridge User Manual CPE 1 0

RapidWave Inc. High Rate Wireless Bridge CPE 1 0

Contents

CPE User Manual

Navigation menu

Namespaces

Views

Navigation
