Rapoo Technology 010180 Wireless Optical Mouse User Manual
Shenzhen Rapoo Technology Co., Ltd Wireless Optical Mouse Users Manual
User Manual
Applicant : MLK Industries (ShenZhen) Limited
FCC ID : PP2010180
SPECIFICATION
Of
WMU92SCordless Optical Mouse
Note:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Caution:
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications
to this equipment. Such modifications could void the user authority to operate the equipment.
REV : 1.00
Prepared by MLK Technologies Limited
31 July 2003
Part 1.0 : General features and description
- Prevent Repetitive Strain Injury on your wrists and arms!
- Radio frequency : 27 MHz, single channel with 256 random ID, no more problems with radio
frequency interference .
- Battery suggestion: Two AA size alkaline batteries for mouse.
- The operation distance of 1.5M (typically under normal office environment).
- Mouse resolution of 800cpi counts per inch of motion.
- Sensor detects motion on all kinds of surface, including wood, plastics, pants, etc… ( Highly
reflective like mirror or deep dark color may not work properly).
- 5 Programmable buttons, Super 3D wheel scrolling functions, easy to scroll or zoom for the
window and web.
- Comfortable shape:
The comfortable shape provides easy control.
- Compatible with windows 98/ME/2000/XP.
Part 2.0 : System Requirements
. IBM PC or compatible system
Part 3.0 : Preface
The functionality and performance requirements related to the mouse are defined in this
specification.
Part 4.0 : Version
- PS/2 Interface
- USB Interface
- USB + PS/2 Interface
Part 5.0 : Physical characteristics and configuration

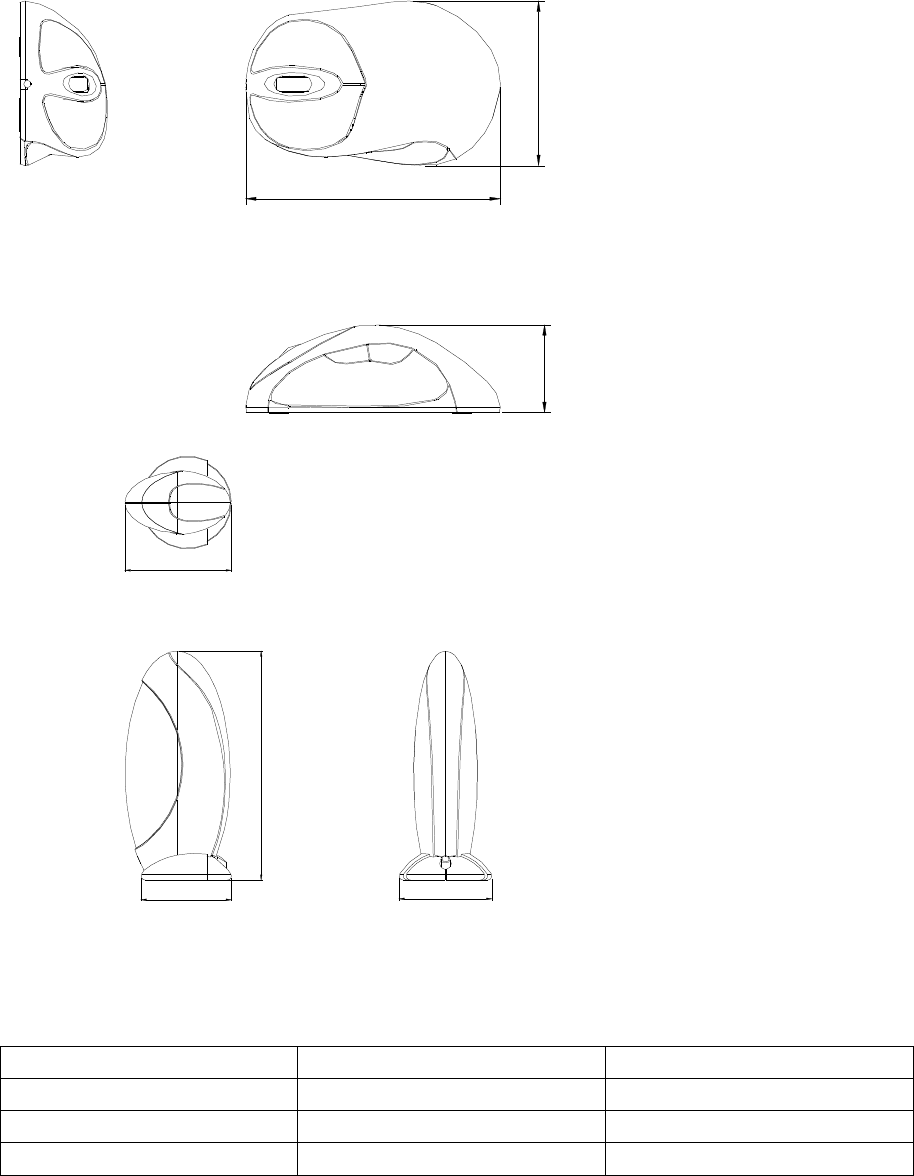

Item 5.1: Dimension
- Mouse : 123mm(L) x 74mm(W) x 42mm(H)
- Receiver:50mm(L) x 42mm(W) x 107mm(H)
121
42 79
107
43
42
50
Item 5.2: Material
Mouse Body ABS
Wheel Rubber
Left contact side Rubber
Receiver Body ABS
Item 5.3: Finish: Texture
Item 5.4: Color: To be defined by ID
Item 5.5: Button
Mouse: 5 Buttons with scrolling wheel, 1 CONNECT button,
Receiver: 1 CONNECT button.
Item 5.6: Mechanical Performance
5.6.1 Operating force of mouse buttons: 80g±20gf
5.6.2 Operating force of browser switches: 170g ± 25gf
5.6.3 Operating force of wheel scrolling: 20 ± 10gf
5.6.4 Operating force of movable: 60 ± 10gf
5.6.5 Mouse weight: 160 ± 15gf
Part 6.0 : Electrical specification
Item 6.1: Compatibility
- The USB mode is using the low speed interface defined in the USB specification. It’s
compliant to the USB specification as well as to the HID class specifications.
- The USB mode shall be compatible with IBM PC/PENTIUM and works with operating system
such as Windows 98/2000/ME/XP as well as the most software applications.
Item 6.2 : Technical of mouse
Optical sensor for X/Y axis, the precise sensor detects motion on hundreds of surfaces, including
wood, plastic, and even your pants leg. ( highly reflective surface or deep dark color surface may
not work properly) .Wheel button uses a mechanical encoder.
Item 6.3 : Sensor Report Rate on Mouse
2300 times per second
Item 6.4 : Sensor Light on mouse
Red LED
Item 6.5 : Power Requirement (Receiver)
5V/ DC 20mA directly from Computer USB Port
Item 6.6 : Cable
The length of the cable on receiver is 1.6 meters and the color is defined by ID.
Item 6.7 : Operating Angle
The mouse operation angle is 360 degrees.
Item 6.8 : Operating Distance
The Mouse operation distance is 1.5 Meter ( typically under normal office environment, Mouse to
Receiver set),
Item 6.9 : ID changeable
The ID is changed by the CONNECT button .
Item 6.10 Battery
6.10.1 Battery Type
The mouse use two AA alkaline batteries.
6.10.2 Battery Consumption
Mouse have 4 level sleep mode
Operating mode: 30mA±10% @ 3V
Stand-by mode: 13.5mA ±10% @ 3V
Sleep mode: 0.10mA ±10% @ 3V
6.10.3: Low Battery Indicator
When the battery voltage is less than 2.1, the indicator on front of the rubber wheel should be
blinking when moving the mouse.
6.10.4: Battery saving mode, provides for longer battery life
6.10.5: Battery life
3 months under normal operation (alkaline battery)
Item 6.11 : Tracking Speed
The unit shall be capable of tracking between 50mm/s and 400mm/s of hand movement on the
matt white paper without loss of data.
Item 6.12 :Sensor Features
- Optical motion estimation technology
- Complete 2D motion sensor
- Accurate motion estimation over a wide range of surfaces
- High speed motion detection up to 16+inches/sec
- High resolution up to 800cpi
Part 7.0: Reliability and environmental specification
Item 7.1 : Button Switch Activation
Conditions: 3 cycles per second.
Testing method: a small DC motor fixed with cam automatically press the key for three time per
second. The switch is connected to a calculator. The number displayed on
calculator is pressed cycle of the key.
Result: key tested have a lift cycle of more than 1,000,000.00.
Item 7.2 : Cable Bending Strength
Conditions: Cable load at 100gram,
Testing methods: bend 60 degrees any direction from its centerline at speed of 30 cycles/min.
5000 cycles.
Result: No visible damage and no breakage in each wire.
Item 7.3 : Drop Shock with Bare Unit
Conditions: Drop the Unit from 76cm height onto floor.
Testing Methods: drop the unit on top, bottom and 4 side of the unit ( 1 time for each side).
Result: The Unit function properly, no mechanical failure.
Item 7.4 : Drop Shock in Gift box
Conditions: Unit have been packed with gift box
Testing Methods: Drop the gift box from 91cm onto a floor, on the 4 corners and 6 sides of the box
(1 time for each side)
Result: no content escape from packaging.
Item 7.5 : High Temperature Test for operating pattern
Conditions: N/A
Testing Methods: Keep the unit at the temperature of 0 to 40 degrees Celsius and relative
humidity of 0% to 95% for 25 hours and then left at ambient room temperature
for 2 hours.
Result: the unit work properly
Item 7.6 : Heat Cycle Test for Shipment Pattern
Conditions: N/A
Testing Methods: -40 degrees Celsius to 65 degrees Celsius under 0% to 90% related humidity
with total time of 40 hours, and then left at ambient room temperature for 2
hours.
Result: The unit work properly
Item 7.7 : Vibration Test
Unit shall survive a vibration within a frequency range of 10 to 200Hz at 0.015 square of g/Hz and
200 to 500 Hz at –6dB/oct for X,Y, and Z axis and 0.5 hour per axis.
Part 8.0 : Product Compliance
Item 8.1 : Actual Compliance Label
The mouse is certified to comply with the limits for class B computing device pursuant, to subpart
of part of 15 of FCC rules and CE mark.
