SPECIFICATION
Of
NWU90S Cordless Optical Mouse
Note:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Caution:
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications
to this equipment. Such modifications could void the user authority to operate the equipment.
REV: 1.0
Prepared by MLK Industries (ShenZhen) Limited
26 March 2004
DR： Sam CHECK： APPD：
Part 1.0: General features and description
- Prevent Repetitive Strain Injury on your wrists and arms!
- Radio frequency : 27 MHz, single channel with 256 random ID, no more problems with radio
frequency interference .
- Battery suggestion: Two AAA size alkaline batteries for mouse.
- Mouse resolution of 800 counts per inch of motion.
- Sensor detects motion on all kinds of surface, including wood, plastics, pants, etc… ( Highly
reflective like mirror or deep dark color may not work properly).
- Comfortable shape:
The comfortable shape provides easy control.
- Compatible with windows 98/ME/2000/XP.
Part 2.0: System Requirements
. IBM PC or compatible system
Part 3.0: Preface
The functionality and performance requirements related to the mouse are defined in this
specification.
Part 4.0: Version
- USB Interface
DR： Sam CHECK： APPD：
Part 5.0: Physical characteristics and configuration

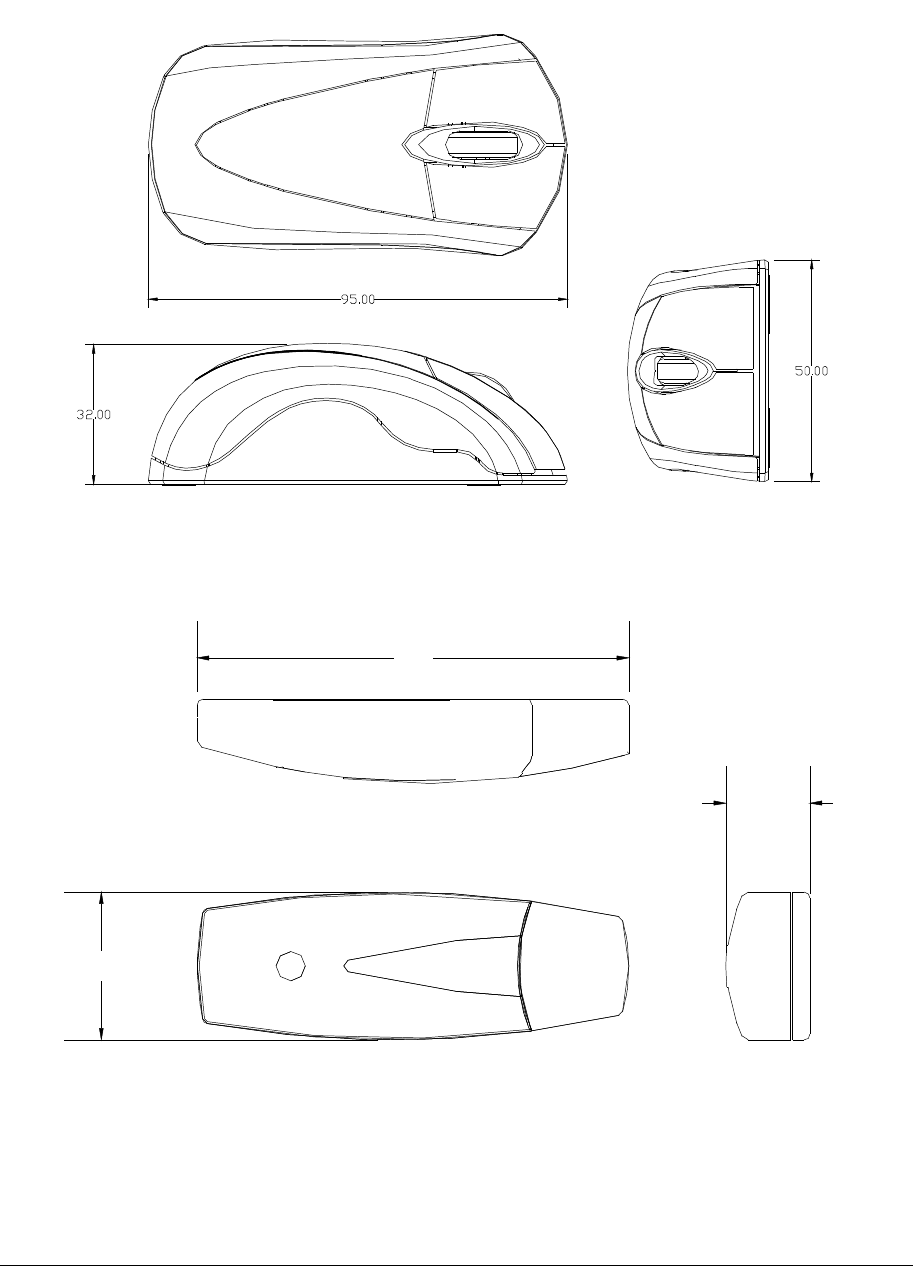

Item 5.1: Dimension
Mouse: 95mm(L) x 50mm(W) x 32mm(H)
Receiver: 74mm(L) x 25.3mm(W) x 14.4mm(H)
74
25.3
14.4
-
DR： Sam CHECK： APPD：
Item 5.2: Material
Mouse Body ABS
Wheel Rubber
Receiver Body ABS
Item 5.3: Finish: Texture
Item 5.4: Color: To be defined by ID
Item 5.5: Button
Mouse: 3 Buttons with scrolling wheel, 1 CONNECT button.
Receiver: 1 CONNECT button.
Item 5.6: Mechanical Performance
5.6.1 Operating force of mouse buttons: 80 ±15gf
5.6.2 Operating force of browser switches: 170 ± 25gf
5.6.3 Operating force of wheel scrolling: 20 ± 10gf
5.6.4 Operating force of movable: 60 ± 10gf
5.6.5 Mouse weight: 50± 5g
5.6.5 Receiver weight: 14± 2g
Part 6.0: Electrical specification
Item 6.1: Compatibility
- The USB mode is using the low speed interface defined in the USB specification. It’s
compliant to the USB specification as well as to the HID class specifications.
- The USB mode shall be compatible with IBM PC/PENTIUM and works with operating system
such as Windows 98/2000/ME/XP as well as the most software applications.
-
Item 6.2: Technical of mouse
Optical sensor for X/Y axis, the precise sensor detects motion on hundreds of surfaces, including
wood, plastic, and even your pants leg. (Highly reflective surface or deep dark color surface may
not work properly). Wheel button uses a mechanical encoder.
Item 6.3: Sensor Report Rate on Mouse
2300 times per second
Item 6.4: Sensor Light on mouse
Red LED
Item 6.5: Power Requirement (Receiver)
5V/ DC 50mA directly from Computer USB Port
DR： Sam CHECK： APPD：
Item 6.6: Operating Angle
The mouse operation angle is 360 degrees.
Item 6.7: Operating Distance
The Mouse operation distance is 1.8 Meter (typically under normal office environment, Mouse to
Receiver set),
Item 6.8: ID changeable
The ID is changed by the CONNECT button.
Item 6.9 Battery
6.9.1 Battery Type
The mouse use two AAA alkaline batteries.
6.9.2 Battery Consumption
Mouse have 4 level mode
Operating mode: ＜40 mA @ 3.0V （white paper）if no mouse movement and mouse click after
maintaining for approximately 3 seconds.
Sleep mode1: ＜3.5 mA@ 3.0V（white paper）after maintaining for approximately 2 minutes
Sleep mode2: ＜1.3 mA @ 3.0V（white paper）after maintaining for approximately 6 minutes
Sleep mode3: ＜0.5 mA @ 3.0V （white paper）
6.9.3: Battery saving mode, provides for longer battery life
Item 6.10: Tracking Speed
The unit shall be capable of tracking between 50mm/s and 400mm/s of hand movement on the
matt white paper without loss of data.
Item 6.11:Sensor Features
- Optical motion estimation technology
- Complete 2D motion sensor
- No mechanical moving parts
- Accurate motion estimation over a wide range of surfaces
- High speed motion detection up to 16+inches/sec
- High resolution up to 800cpi
Part 7.0: Reliability and environmental specification
Item 7.1: Button Switch Activation
Conditions: 3 cycles per second.
Testing method: a small DC motor fixed with cam automatically presses the key for three times
per second. The switch is connected to a calculator. The number displayed on
Calculator is pressed cycle of the key.
Result: key tested have a lift cycle of more than 1,000,000.00.
DR： Sam CHECK： APPD：
Item 7.2: Drop Shock with Bare Unit
Conditions: Drop the Unit from 76cm height onto floor.
Testing Methods: drop the unit on top, bottom and 4 side of the unit ( 1 time for each side).
Result: The Unit function properly, no mechanical failure.
Item 7.3: Drop Shock in Gift box
Conditions: Unit have been packed with gift box
Testing Methods: Drop the gift box from 91cm onto a floor, on the 4 corners and 6 sides of the box
(1 time for each side)
Result: no content escape from packaging.
Item 7.4: High Temperature Test for operating pattern
Conditions: N/A
Testing Methods: Keep the unit at the temperature of 0 to 40 degrees Celsius and relative
humidity of 0% to 95% for 25 hours and then left at ambient room temperature
for 2 hours.
Result: the unit work properly
Item 7.5: Heat Cycle Test for Shipment Pattern
Conditions: N/A
Testing Methods: -40 degrees Celsius to 40 degrees Celsius under 0% to 90% related humidity
with total time of 40 hours, and then left at ambient room temperature for 2
hours.
Result: The unit work properly
Item 7.6: Vibration Test
Unit shall survive a vibration within a frequency range of 10 to 200Hz at 0.015 square of g/Hz and
200 to 500 Hz at –6dB/oct for X,Y, and Z axis and 0.5 hour per axis.
Item 7.7: WORK Test
Work Voltage： 1.8V-3V
Work（DC +3V）Work current≤50mA
Sleep current≤25mA
Part 8.0: Product Compliance
