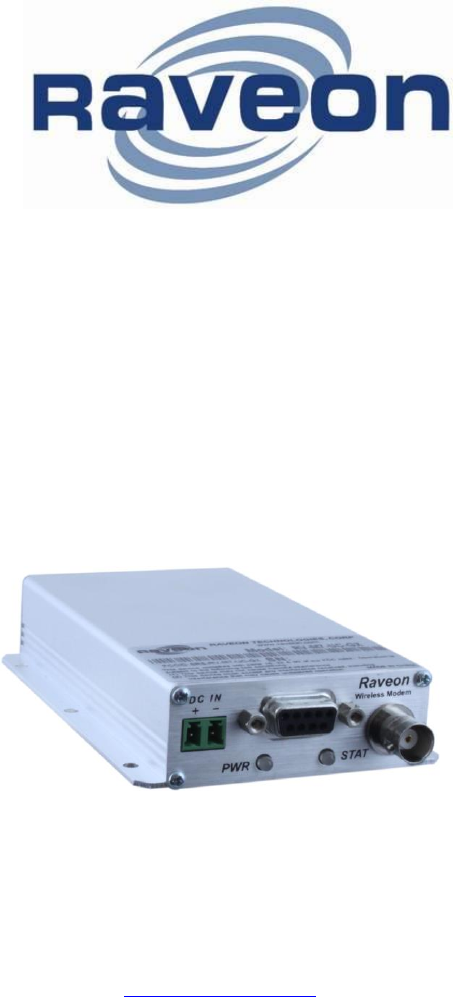

Raveon Technologies orporated M7-UC DART Data Modem M7UC User Manual
Raveon Technologies, Incorporated DART Data Modem M7UC
User Manual
Company Confidential 2 Raveon Technologies
Table of Contents
1. General Information about the M7-UC ........................................................... 5
1.1 Congratulations! ............................................................................................................................ 5
1.2 NOTICE ......................................................................................................................................... 5
1.3 Safety / Warning Information ......................................................................................................... 5
1.4 FCC Part 15 Compliance Information ............................................................................................ 6
1.5 Antenna Compliance Information .................................................................................................. 7
1.6 FCC Part 121.15 Statement .......................................................................................................... 7
1.7 Transmitter Output Power: Warning .............................................................................................. 7
1.8 Part 90 Allowable Transmitter Frequencies ................................................................................... 7
1.9 Industry Canada Compliance ........................................................................................................ 8
2 Overview ........................................................................................................ 9
2.1 Features ........................................................................................................................................ 9
3 Specifications ............................................................................................... 10
3.1 General .........................................................................................................................................10
3.2 Transmitter ...................................................................................................................................10
3.3 Receiver .......................................................................................................................................11
3.4 User Input and Output Signals .....................................................................................................11
4 Electrical Inputs and Outputs ....................................................................... 12
4.1 LEDs .............................................................................................................................................12
4.2 DC Power .....................................................................................................................................12
4.3 EIA-485/RS-485 Serial I/O ...........................................................................................................14
RS-485 Connector Pin Out ...................................................................................................................14
Configuring ...........................................................................................................................................14
Bias and Termination Resistors ............................................................................................................15
4.4 RS422/EIA-422 Serial I/O Connector ...........................................................................................15
Configuring for RS-422 .........................................................................................................................16
Bias and Termination Resistors ............................................................................................................16
4.5 Low Power Mode (LPM) ...............................................................................................................16
5 Serial Port Commands ................................................................................. 18
5.1 Overview ......................................................................................................................................18
5.2 Command Mode ...........................................................................................................................18
5.3 Setting a Parameter ......................................................................................................................19
5.4 Reading a Parameter ...................................................................................................................19
5.5 CONFIG Button ............................................................................................................................19
5.6 Exiting the Command Mode .........................................................................................................20
5.7 Restoring Factory Defaults ...........................................................................................................20
5.8 Other non-AT commands .............................................................................................................24
5.9 Factory Default Settings ...............................................................................................................25
6 Using the M7-UC Modem – Packet Mode .................................................... 26
6.1 Setup ............................................................................................................................................27
6.2 Programming Channels and Frequencies ....................................................................................28
6.3 Data Transmission ........................................................................................................................29
Serial Port Baud Rate ...........................................................................................................................29
Flow Control .........................................................................................................................................29
Packet Size...........................................................................................................................................30
Key-On_Data ........................................................................................................................................30
Busy-Channel Lock Out ........................................................................................................................30
6.4 Data Reception .............................................................................................................................30
6.5 Addressing (Packetized Mode only) .............................................................................................31
Addressing Basics ................................................................................................................................31
Hexadecimal Numbers .........................................................................................................................31
Setting A System-Wide Address ...........................................................................................................32
Broadcast Transmissions .....................................................................................................................32
The Address Mask ................................................................................................................................32
Company Confidential 3 Raveon Technologies
Addressing Examples: ..........................................................................................................................33
6.6 Error Correction ............................................................................................................................34
6.7 Store-and-Forward Repeating and Routing ..................................................................................35
Using the M7-UC Modem – Streaming Mode ..................................................... 38
6.8 Streaming Mode Operation ..........................................................................................................38
7 For operation of the modem in the Packetized Mode, see the section on
page 18 entitled .................................................................................................. 38
8 Serial Port Commands ................................... Error! Bookmark not defined.
8.1 Overview ........................................................................................ Error! Bookmark not defined.
8.2 Command Mode ............................................................................. Error! Bookmark not defined.
8.3 Setting a Parameter ........................................................................ Error! Bookmark not defined.
8.4 Reading a Parameter ..................................................................... Error! Bookmark not defined.
8.5 CONFIG Button .............................................................................. Error! Bookmark not defined.
8.6 Exiting the Command Mode ........................................................... Error! Bookmark not defined.
8.7 Restoring Factory Defaults ............................................................. Error! Bookmark not defined.
8.8 Other non-AT commands ............................................................... Error! Bookmark not defined.
8.9 Factory Default Settings ................................................................. Error! Bookmark not defined.
8.10 Baud Rate Selection .....................................................................................................................47
8.11 Bit Errors ......................................................................................................................................47
8.12 Carrier Detect ...............................................................................................................................47
8.13 Serial Data Flow Control ...............................................................................................................48
9 Installation .................................................................................................... 49
10 FCC Licensing Information ........................................................................ 49
10.1 Setting the Over-The-Air Data Rate ..............................................................................................51
10.2 Debug Related Commands ..........................................................................................................52
11 M7-UC Diagnostic Provisions ................................................................... 53
11.1 Overview of Diagnostics ...............................................................................................................53
11.2 Reading the Diagnostic Information..............................................................................................53
11.3 Status and Statistics Command ...................................................................................................53
11.4 ATST Command ...........................................................................................................................55
11.5 ATST2 Command .........................................................................................................................55
11.6 ATST3 Command .........................................................................................................................56
11.7 ATST4 Command .........................................................................................................................56
11.8 AutoStatus ....................................................................................................................................56
12 Tune-up and Alignment ............................................................................. 58
12.1 Periodic Calibration ......................................................................................................................58
12.2 Center Frequency .........................................................................................................................58
12.3 TX Deviation .................................................................................................................................58
12.4 TX Modulation Balance ................................................................................................................59
12.5 RX Carrier Detect .........................................................................................................................59
13 SkyLine Compatibility ................................................................................ 61
13.1 General .........................................................................................................................................61
13.2 Configuring M7-UC to Communicate with a SkyLine ....................................................................61
14 Appendix A. Serial Port Hardware........................................................... 62
14.1 Serial Port Data and Handshaking Signals ...................................................................................62
14.2 Null modem without handshaking .................................................................................................64
14.3 Compatibility issues ......................................................................................................................64
14.4 Null modem with full handshaking ................................................................................................65
14.5 Compatibility issues ......................................................................................................................65
15 Troubleshooting ........................................................................................ 66
Symptom: Unit will not receive.............................................................................................................66
Symptom: Unit will not transmit ...........................................................................................................66
Company Confidential 4 Raveon Technologies
Symptom: Receive light blinks, but no data is received .......................................................................66
Symptom: Long delay before transmitting ...........................................................................................67
Symptom: Modified parameters are lost at power-up ..........................................................................67
Symptom: Cannot enter Command Mode ...........................................................................................67
Symptom: Modem appears dead. ........................................................................................................67
16 Mechanical ................................................................................................ 68
Company Confidential 5 Raveon Technologies
1. General Information about the M7-UC
1.1 Congratulations!
Congratulations on your purchase of a M7-UC radio modem – the most
advance UHF radio modem available today.
Please take a few minutes to read this manual carefully. The information
presented here will allow you to derive maximum performance from your radio
modem. After reading it, keep the manual handy for quick reference, in case
questions arise later on.
1.2 NOTICE
Besides the fuse, there are no user-serviceable points inside this transceiver.
All service work must be referred to your Authorized Service Center or
Raveon Technologies Service Department.
1.3 Safety / Warning Information
Service
This equipment should be serviced by qualified technicians only.
Blasting Caps and Blasting Areas
To avoid possible interference with blasting operations, turn off this radio or
remove the DC power when you are near electrical blasting caps, in a
blasting area, or in areas posted: “Turn off two-way radio.” Obey all signs
and instructions.
Potentially Explosive Atmospheres
Turn off your radio prior to entering any area with a potentially explosive
atmosphere. Do not install this product for use in areas with potentially
explosive atmospheres. Do not remove, install, or charge batteries in such
areas. Sparks in a potentially explosive atmosphere can cause an explosion
or fire resulting in bodily injury or even death.
Note: The areas with potentially explosive atmospheres referred to above include fueling
areas such as below decks on boats, fuel or chemical transfer or storage facilities, areas
where the air contains chemicals or particles, such as grain, dust or metal powders, and any
other area where you would normally be advised to turn off your vehicle engine. Areas with
potentially explosive atmospheres are often but not always posted.
Company Confidential 6 Raveon Technologies
FCC MPE Regulations:
WARNING: It is the responsibility of the user to guarantee compliance with
the FCC MPE regulations when operating this device in a way other than
described in this manual.
Human body Exposure:
This equipment is approved only for mobile and base station transmitting
devices, separation distances of
(i) 49 centimeters or more for antennas with gains of 0 dBi or less or
(ii) 1 meters or more for antennas with gains 0 to 6 dBi should be maintained
between the antenna of this device and nearby persons during operation.
To ensure compliance, operation at distances closer than this is not
recommended and the EUT has not been approved for operation with
antennas having a gain that exceeds 6 dBi.
1.4 FCC Part 15 Compliance Information
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Company Confidential 7 Raveon Technologies
1.5 Antenna Compliance Information
The radio modem must be used in fixed vehicle-mount configurations or at
fixed base-station sites. It is not intended for portable applications.
Antenna Installation:
For rear deck trunk installation, the antenna must be located at least the
following range away from rear seat passengers and bystanders in order to
comply with the FCC RF exposure requirements. For vehicular roof top
installation, the antenna must be placed in the center of the roof.
For model M7-UC:
Radiated frequency and Distance
M7-UC (450-470MHz 5 watts)
1.25 Feet (0.38 m)
FCC ID: SRS-M7-UC
Raveon Technologies Corporation
1.6 FCC Part 121.15 Statement
Changes or modifications made to this equipment not expressly approved by
the party responsible for compliance could void the user's authority to operate
the equipment.
1.7 Transmitter Output Power: Warning
Adjusting the transmitter output power may jeopardize the granted licenses
and authority to use this radio. This radio is manufactured fully calibrated to
within federal limits.
1.8 Part 90 Allowable Transmitter Frequencies
The user of this equipment must use a transmit frequency within the allowable
bands defined by the FCC for Part 90 operation. Transmitting outside these
bands is a violation of FCC rules.
Part 90: Allowable Frequency Bands
450.00 MHz – 454.00 MHz
Company Confidential 8 Raveon Technologies
456.00 MHz – 460.00 MHz
460.0000 MHZ - 462.5375 MHz
462.7375 MHz - 467.5375 MHz
467.7375 MHz – 470.0000 MHz
1.9 Industry Canada Compliance
Category I radio communication devices comply with Industry Canada
Standard RSS-119. This device complies with Industry Canada licensed RSS
standard(s).
Conformité aux normes d’Industrie Canada
Dispositifs de communication radio de catégorie I sont conformes à la norme
Industrie Canada RSS – 119. Cet appareil est conforme avec Industrie
Canada une licence standard RSS (s ) .
Company Confidential 9 Raveon Technologies
2 Overview
The M7-UC data radio is a rugged high-performance, high-speed narrow-
band data modem. It contains a receiver, a transmitter, and modem, creating
an easy-to-use transparent data radio link. The M7-UC’s user interface is
asynchronous RS-232 data into and out of the M7-UC (CMOS level optional).
Modem operation is virtually transparent to the user and the configuration of
the modem is via the user serial port.

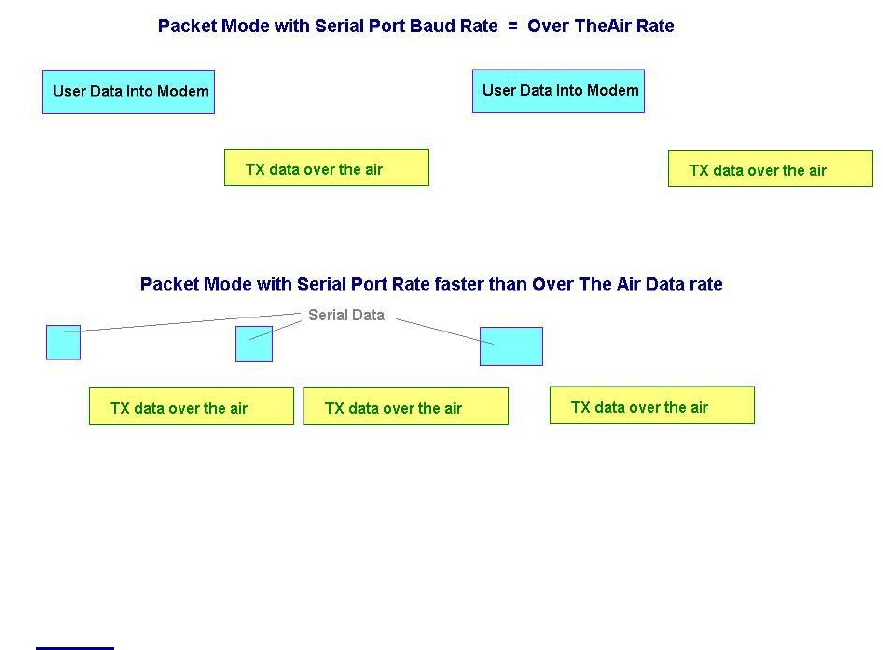

Unlike any other radio modem on the market, the M7-UC may be operated in
either a “Packetized Mode” or a “Streaming Real-Time Mode”. There are
advantages to each approach, and your choice depends upon how your
system operates.
For privacy and network versatility, the M7-UC incorporates a 16 bit
identification code. Its protocol also uses a 16bit CRC to guarantee the

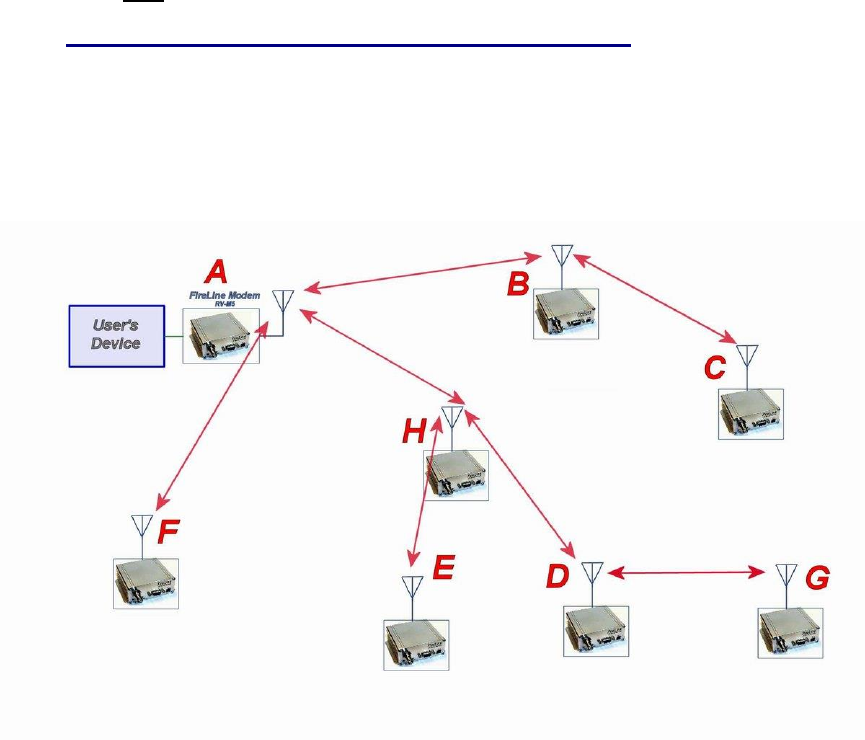

integrity of the data. Perfect for SCADA and telemetry applications, the
M7-UC can be used for simple point-to-point data communication
applications, or for more sophisticated point-to-multipoint, peer-to-peer, or
mesh networks.
Although the M7-UC is the easiest to use modem on the market, its re-
programmability makes it extremely versatile. Most parameters within the
modem may be re-configured to optimize it for specialized operations,
extended range, or higher data throughput.
2.1 Features
High-speed over the air data rates , 4800bps in 6.25Khz, or 9600bps in 12.5kHz.
Built-in radio transceiver with integrated modem
Easy to use. Plug-in, Turn-on, and GO. Transmit data in = Receive data out.
Lowest current draw in industry.
Wide input voltage with high-efficiency switching voltage regulator.
Integrated Packet data protocol and built-in Streaming Real-Time operation.
ARQ error correction and retransmission capability. Totally transparent to the application.
Capable of store-and-forward repeating operation.
Small sized and very rugged extruded enclosure.
16 bit addressing for up to 65,525 different unique device addresses per channel
Supports group and broadcast transmissions. Network mask allows groups of any size.
5 watts of RF output. Other RF power levels available upon request.
Easily configured using “AT” commands
Very fast Transmit-to-Receive turn around time.
RS-232 serial input and output. Programmable serial baud rates up to 57600.
Programmable over-the-air data rates for long-range or high-speed
Automatic key of transmitter on data.
RF carrier-detect is not required receiving. No squelch setting required.
Company Confidential 10 Raveon Technologies
3 Specifications
3.1 General
All measurements made per TIA-603-B
Frequency: Model M7-UC ................................................................................................ 450 – 470MHz
Size ..........................................................................................................3.0D X 3.76W X 1.40H
Weight ................................................................................................................. 6 ounces (0.17kg)
DC input voltage 10-16V DC
Typical current draw, receiving, over-the-air rates < 4800bps ............................................................... <80mA
Typical current draw, receiving, over-the-air rates >= 4800bps ............................................................. <90mA
Current draw when transmitting data ............................................................ <1.5A max, 1.2A typical at 2watts
.................................................................................................................... <2.5A at 5watts
Low Power Mode standby current (AT command) ................................................................................ <30mA
Sleep Mode standby current (hardware control) ...................................................................................... <1mA
Frequency stability .............................................................................................................................. ±1.5ppm
Over-the-air baud rates (programmable).................................................. 1200, 2400, 4800, 5142, 8000, 9600
Internal data buffers (transmit and receive) ................................................................................... >2000 bytes
Operating temperature range ............................................................-30ºC to +60ºC (-30ºC to +80ºC storage)
TX-RX and RX-TX turn-around time ........................................................................................................ <3mS
Power on time to operational ............................................................................................................... <500mS
LPM Standby to operational ................................................................................................................... <20mS
Internal fuse ............... 3A mini blade. Littlefuse part number 0297003 or Raveon part, number 1X726-3
FCC ID Model M7-UC .................................................................................................... SRS-M7-UC
All other models for export or OEM use
3.2 Transmitter
Maximum RF power output .............................................................................................................. ½ - 5 watts
Maximum duty cycle .................................................................................................. 100% at 2W, 25% at 5W
Maximum transmit frequency deviation .............................................................................................. ± 2.25kHz
Occupied bandwidth ............................................................................................................. Per FCC Part 90
TX spurious outputs………………………………………………………………………………………….. < -70dBc
Emissions designator………………………………………………………………………………………..8K20F1D
Frequency Stability …………………….............................................................................. Better than ±1.5ppm
Company Confidential 11 Raveon Technologies
3.3 Receiver
Typical RX sensitivity (1% BER)
9600bps, 4-level, 12.5kHz channel ........................................................................ -109dBm
4800bps, 2-level ..................................................................................................... -115dBm
2400bps.................................................................................................................. -116dBm
1200 ....................................................................................................................... -118dBm
No-tune bandwidth ................................................................................................................................. 20MHz
RX selectivity ......................................................................................... -50dB (12.5kHz channel spacing)
............................................................................................ -65dB (25kHz channel spacing)
Spurious and image rejection ................................................................................................................... -70dB
RX intermodulation rejection .................................................................................................................... -70dB
Conducted spurious emissions ........................................................................................................... <-53dBm
3.4 User Input and Output Signals
Serial port baud rates ............................................................... 1200, 2400, 4800, 9600, 19200, 38400, 57600
Voltage levels .................................................................... RS-232, RS-422, and RS-485 complaint levels
Modem handshake signals ..................................................................................... RTS, CTS, DTR, DSR, CD
RF I/O ......................................................................................................................... 50 ohm BNC
Power ............................................................................................................. B+ input and Ground
Power Connector ....................................................................... Phoenix 18 36 18 9 ( Raveon P/N 1J165-3 )
Company Confidential 12 Raveon Technologies
4 Electrical Inputs and Outputs

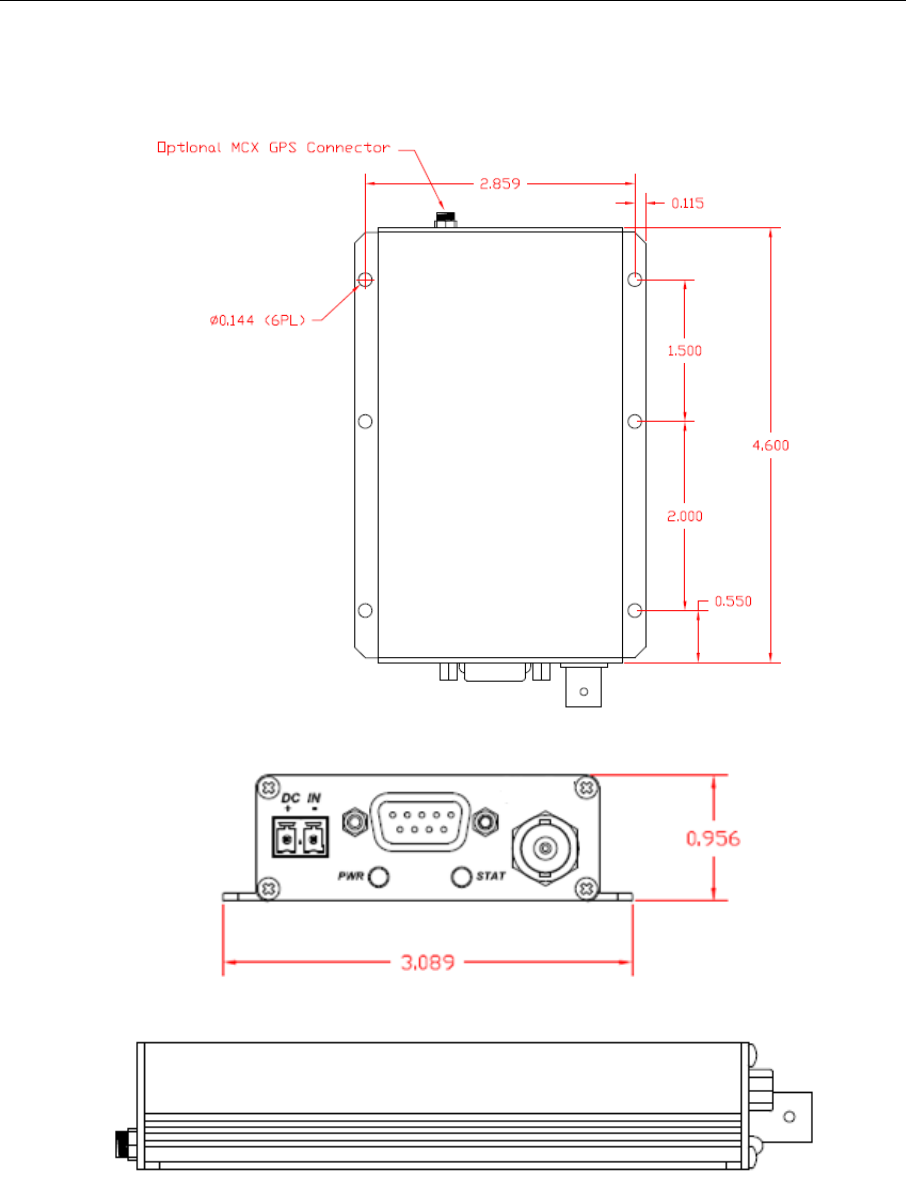

The front panel of the M7-UC modem has these features:
1. RF connector
2. Power LED
3. Status LED (Receive data = green, TX = red)
4. 9-Pin Serial I/O connector
5. DC Power Jack
4.1 LEDs
The status LED visually show the current status of the radio.
Status LED (TX) This LED blinks red when the transmitter keys and is
putting out RF power. It blinks green upon the reception of data or RF carrier.
Power LED (PWR) This LED does a short blink, once every two seconds,
indicating to the user that the power to the modem is ON and the modem is
working. When the modem is in the command mode, this LED will blink on
and off, once per second.
4.2 DC Power
DC power for the modem is connected to the 2-pin DC power input jack
labeled DC IN. Use the supplied cable to connect the DC power. The red
wire is positive (+) and the black wire is negative (-). Its connection is
optional, as the user may alternately apply power to Pin 9 and ground to pin 5
of the 9-pin I/O connector.
The M7-UC modem is supplied with a DC power cable, Raveon part number
1C738-1.
Company Confidential 13 Raveon Technologies

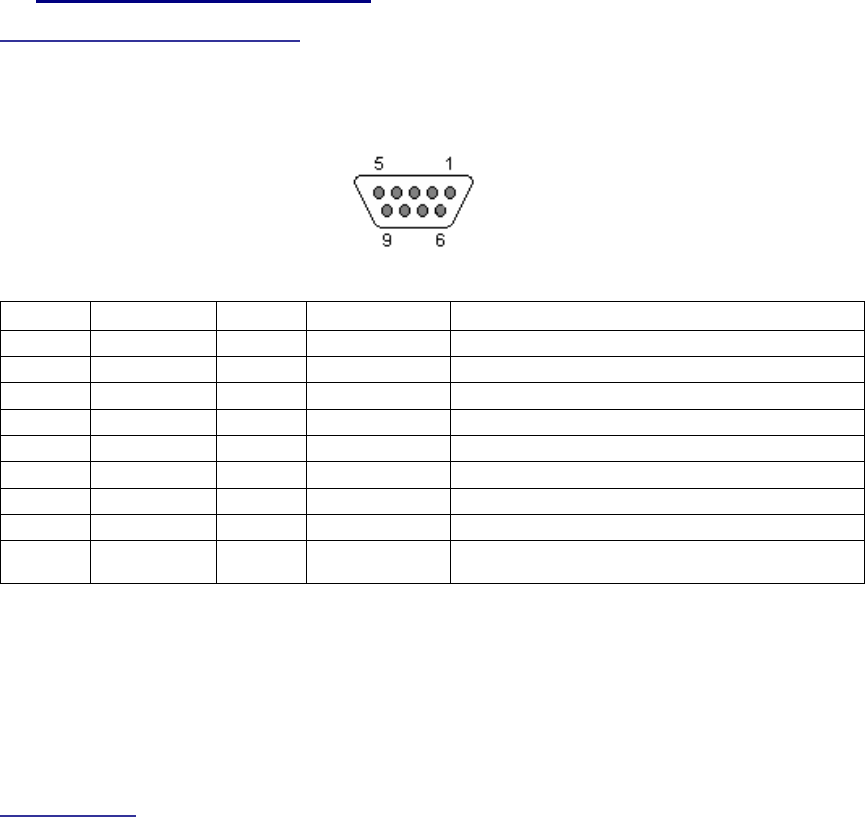

RS232/EIA232 Serial I/O Connector
The RS232 9-pin serial I/O connector is a female 9-pin D-subminiature
connector having the following pins configuration. It is pinned out so that it
may be plugged directly into a computer or PC’s 9-pin COM port.

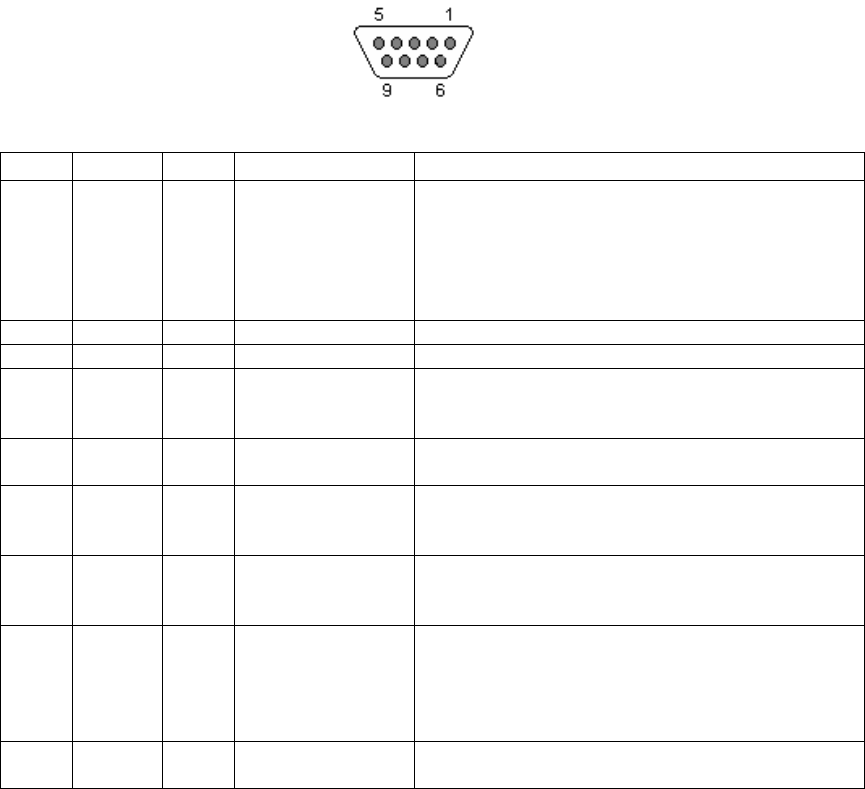

Front-view of DB-9 connector on modem (female)
Pin
Name
Dir
Function
Level / Specification
1
CD
out
Carrier detect
If enabled, indicates presence of carrier.
Logical 0 (+ voltage on RS-232) means carrier
is present. If disabled, it is asserted (0)
whenever the modem is operational, and not in
the configuration mode. It will be a 1 when the
modem is in the configuration mode.
2
RxD
out
Receive data
Data out of the modem.
3
TxD
in
Transmit data
Data into the modem.
4
DTR
in
Data terminal
ready
Normally ignored by the M7-UC modem. May
control the power-state of the modem in low-
power mode if this feature is enabled.
5
GND
Ground
connection
Signal and power ground
6
DSR
out
Data Set Ready
Normally is set to 0 when modem is powered on
and running. Modem sets to a 1 when in low-
power mode.
7
RTS
in
Request to send
Used to stop/start the flow of data coming out of
the modem TxD pin. 0 = OK to send, 1 = don’t
send. Leave disconnected if not used.
8
CTS
out
Clear to send
Used to stop the flow of data going into the RxD
pin from the device connected to the M7-UC. 0
= OK to send, 1 = don’t send. If the M7-UC
cannot accept more data, it will negate this
signal (set to a 1).
9
Power
In/out
DC power (not
Ring signal)
User may supply the DC power to the modem
on this pin.
Note: RS-232 signals use positive and negative voltages to represent digital 1s and 0s. A positive
voltage is a 0, and a negative voltage is a digital 1.
This pin-out allows it to be directly plugged into a computer’s 9-pin serial port

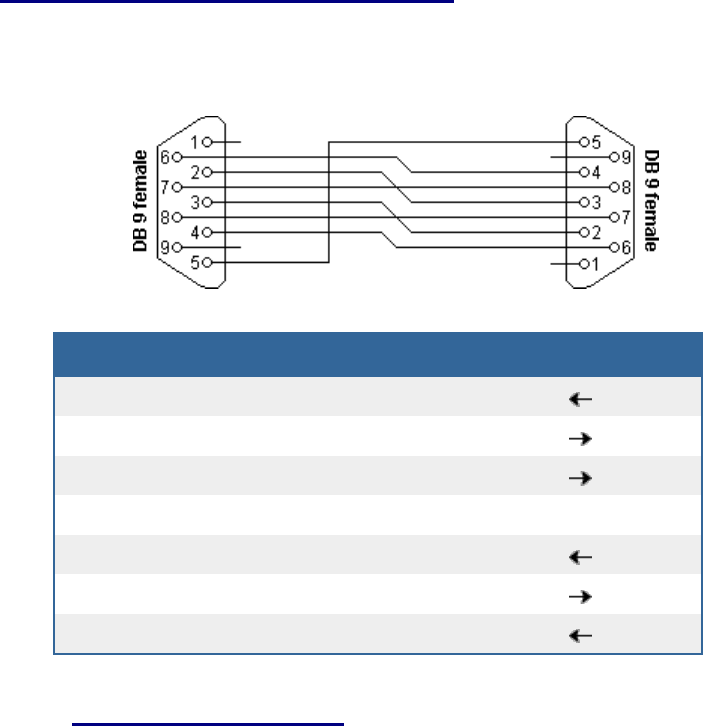

using a conventional 9-pin RS-232 serial cable. To connect it to a modem, or
computer peripheral that has a serial port, you will need a “null-modem”
cable. See Appendix A for more information on wiring a null-modem cable.
To configure the M7-UC modem for RS-232 operation, use the ATIO 0
command. RS-232 is the default operation mode for the connector. RS-485
is a factor option. See the next section for details on the RS-485 option.
Company Confidential 14 Raveon Technologies

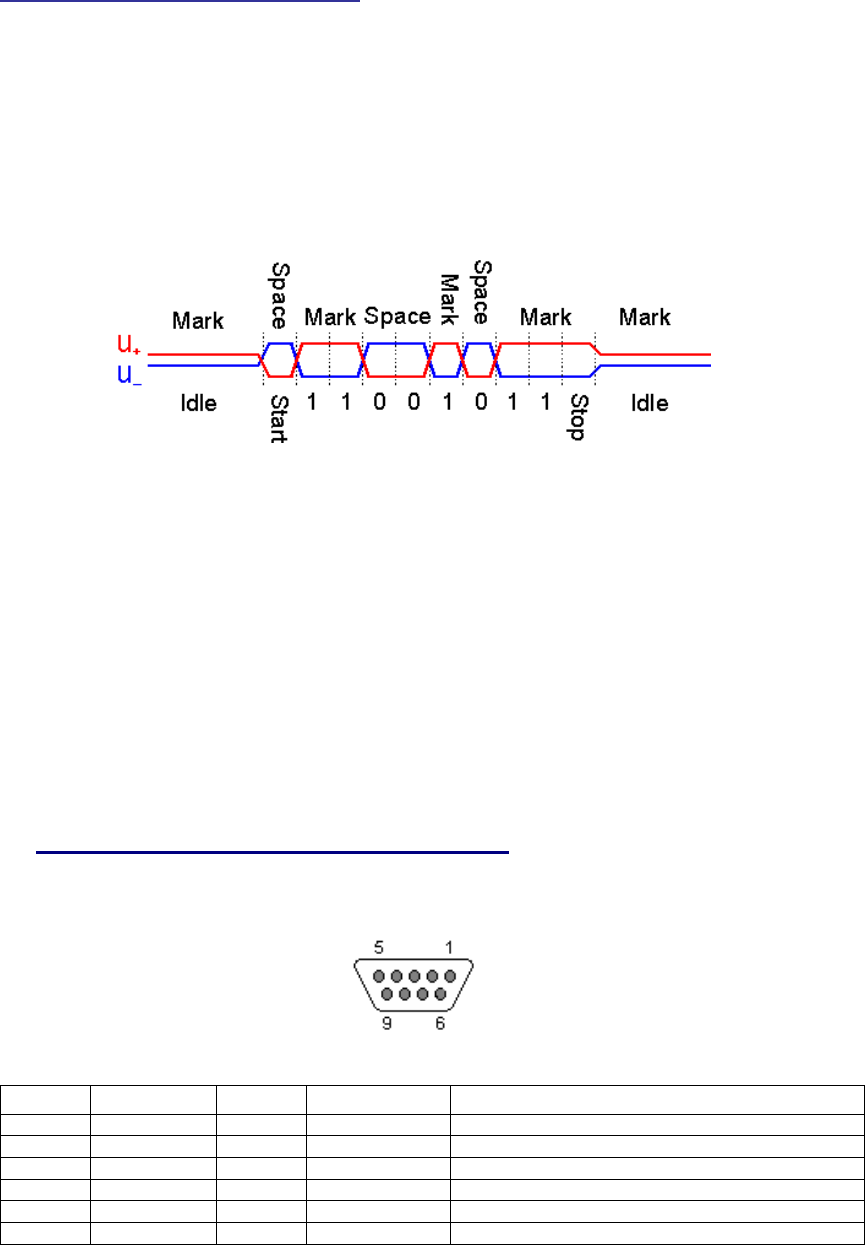

4.3 EIA-485/RS-485 Serial I/O
RS-485 Connector Pin Out
With the RS-485 enabled (ATIO 2 command), the 9-pin serial I/O connector
on the front of the M7-UC is a female 9-p D-subminiature connector having
the following pins configuration.
Front-view of DB-9 connector on modem (female)
Pin #
Name
Dir
Function
Level / Specification
1
-
Do not connect
Do not connect this pin to anything.
2
-
Do not connect
Do not connect this pin to anything.
3
B (-)
I/O
B
Inverting RS-485 line
4
A (+)
I/O
A
Non-inverting RS-485 line
5
GND
Ground
Connect to earth ground.
6
-
Do not connect
Do not connect this pin to anything.
7
Out +
out
Do not connect
Internal connection to pin 4
8
In -
in
Do not connect
Internal connection to pin 3
9
Vin
In/Out
DC Power
DC Power in or out if unit is powered using DC in
jack.
The RS485 differential line consists of two pins, A and B.
A TxD-/RxD- aka inverting pin which is negative (compared to B) when the
line is idle.
B TxD+/RxD+ aka non-inverting pin which is positive (compared to A)
when the line is idle.
Configuring
To configure the M7-UC modem for RS-485 operation, use the ATIO x
command. ATIO 2 sets the serial port for standard RS-485, full duplex. ATIO
3 sets the serial port for RS-485 simplex mode. In most cases, simplex is
preferred (ATIO 3 ). In simplex RS-485 mode, the M7-UC’s serial data
receiver is internally disabled whenever it sends a character out the serial
port, so that it will not receive its own data. You must order the RS-485
option for this to work, and only modems with Revision E or higher hardware
can work in RS-485 mode. For most application use the RS485 simplex
mode, ATIO 3. If you are using two M7-UC modems with RS485 on both
units, you must use the simplex RS485 mode instead of the duplex RS485
mode, or the modems will enter an infinite loop-back condition.
Raveon’s RS-485 I/O circuit uses 3.3V logic to drive the lines, and the RS485
pins are ESD protected to ±15kV and 7kV human body model. Input current
is less than 150uA. Output current when not driving the line is less than
50uA.
Company Confidential 15 Raveon Technologies
Bias and Termination Resistors
RS-485 installations typically have a termination resistor across the A and B
lines. For low-speed operation (<57600 baud), this resistor is probably not
necessary. If you wish to use a terminating resistor, a value of 150 ohms
should work in most applications.
These A/B pin names are all in use on various types of equipment. The
RS485 signaling specification states that signal A is the inverting or '-' pin and
signal B is the non-inverting or '+' pin. The same naming is specified in the
NMEA standards.
When an RS-485 network is in an idle state, all nodes are in listen (receive)
mode. Under this condition there are no active drivers on the network. All
drivers are tri-stated. Without anything driving the network, the state of the A
and B line is unknown. If the voltage level at the receiver's A and B inputs is
less than ±200mV the logic level at the output of the receivers will be the
value of the last bit received. In order to maintain the proper idle voltage
state, bias resistors must be applied to force the data lines to the idle
condition.
M7-UC RS-485 receivers have built-in bias resistors, offering the network a
true “1/8 unit load”. In most allocations, these internal bias resistors are
sufficient, and an external bias resistor is not required.
4.4 RS422/EIA-422 Serial I/O Connector
The RS422 9-pin serial I/O connector is a female 9-p D-subminiature
connector having the following pins configuration.
Front-view of DB-9 connector on modem (female)
Pin #
Name
Dir
Function
Level / Specification
1
NC
-
Do not connect
Do not connect this pin.
2
NC
-
Do not connect
Do not connect this pin.
3
OUT -
out
TX out -
0, 3.3V. Inverted version of pin 7.
4
IN +
in
RX input +
5
GND
Ground
Connect to earth ground.
6
NC
-
Do not connect
Do not connect this pin.
Company Confidential 16 Raveon Technologies
7
Out +
out
TX out +
3.3,0V.
8
In -
in
RX input -
9
Vin
In/Out
DC Power
DC Power in or out if unit is powered using DC in
jack.
Configuring for RS-422
To configure the M7-UC modem for RS-422 operation, use the ATIO 4
command. You must order the RS-422 option for this to work, and only M7-
UC modems with Revision E or higher hardware will work in RS-422 mode.
The M7-UC’s hardware is identical to the RS-485 version, with the exception
of two internal loop-back resistors.
Raveon’s RS-422 I/O circuit uses 3.3V logic to drive the lines, and the RS422
pins are ESD protected to ±15kV and 7kV human body model.
RS-422 installations typically have a termination resistor across the In and the
Out lines. A value of 150 ohms should work in most applications.
Bias and Termination Resistors
M7-UC RS-422 receivers have built-in bias resistors, offering the network a
true “1/8 unit load”. In most allocations, these internal bias resistors are
sufficient, and an external bias resistor is not required.
Serial out data comes out pins 3 and 7. Serial input data comes in via pins 4
and 8. Connect pin 5 to earth ground.
M7-UC RS-422 receivers have built-in bias resistors, offering the network a
true “1/8 unit load”. In most allocations, these internal bias resistors are
sufficient, and an external bias resistor is not required.
4.5 Low Power Mode (LPM)
The M7-UC modem, has the ability to be put into a low power mode (LPM).
In LPM the modem draws much less current from the DC input. In LPM, the
internal radio in the M7-UC is disabled, as well as certain current-consuming
hardware circuits. The ability of the M7-UC to go into LPM is set with a
configuration bit, using the ATRP 1 command. ATRP 1 configures the M7-UC
to monitor the DTR input line, and enter the LPM mode whenever DTR is
negated. If the DTR signal is asserted, the M7-UC modem will operate
normally.
The ATRP 2 command forces the M7-UC modem into the low-power mode.
IN the Low Power mode, the M7-UC’s radio circuits are off, but it will still
respond to serial commands and it will still transmit characters over the air,
albeit with some latency as it has to power-up the radio each time it wishes to
transmit.
The ATRP 0 command returns the M7-UC modem into the normal-operating
mode with the receiver and transmitter operational.
Company Confidential 17 Raveon Technologies
The M7-UC can switch between LPM and normal mode using the DTR line,
and it switches much faster than using the DC power supply. The M7-UC
takes about ½ of a second to power on when DC is applied, but can switch
between normal and LPM in about 25milliseconds.
The factory default value for the ATRP setting is 0. When ATRP is a zero,
the M7-UC will not ever enter the LPM mode, and the DTR input signal is
ignored.
DTR negated means it is a negative voltage. A voltage less than zero volts
applied to DTR will turn the M7-UC off by putting it into LPM.
To assert the DTR signal (turn the modem on), the DTR line must be high (>
3V). DTR is an input to an RS-232 transceiver IC. It is ESD protected, and
is safe for voltages from –20V to +20V input.
Company Confidential 18 Raveon Technologies
5 Serial Port Commands
5.1 Overview
Only trained radio technicians are allowed to modify the settings in this product.
The serial port the RF modem is used to send and receive data over the air, as
well as to configure the RF modem. In normal operation, the user sends data into
the TxD pin of the user port, and this data is transmitted over the air. Received
data from another RF modem is output to the user via the RxD pin of the user
port. This is the default operating condition of the RF modem. No special
characters, hardware control lines, or timing is required to operate the M7-UC
modem.
There is also a “Command Mode” used to program and configure the M7-UC. In
the Command Mode, the M7-UC modem accepts commands via the serial port
TxD pin. The commands can be used to change certain internal parameters of
the M7-UC modem as well as to read-out the current configuration and
diagnostic statistics.
5.2 Command Mode
The M7-UC modem may be put into a “Command Mode”, by entering a
sequence of three plus characters (+++). To keep the M7-UC modem from
unintentionally entering the Command Mode because of the +++ pattern
occurring in a stream of data entering the modem, there must be a pause in the
data stream before the +++ as well as a pause after the +++ is sent. If either
pause is missing, the modem will not enter the command mode.
Using serial communications software such as HypterTerminal, send the 3-
character command sequence “+++” while observing times of silence before [BT
(Silence Before Sequence) Command] and after [AT (Silence After Sequence)
Command] the command characters. The default BT and AT times are 500mS.
The default sequence for entering into AT Command Mode:
1. No characters sent for ½ a second.
2. Input three (3) plus characters (“+++”) within ½ of a second.
3. No characters sent for ½ a second.
When the M7-UC modem first enters the Command Mode, it sends the phrase
“M7-UC” out it serial port, and then an “OK” sequence. The “OK” sequence is a
sequence of 4 characters:
An “O”, “K”, <CR>, and <LF> characters (<CR> = ASCII 0D, <LF> = ASCII 0A)
Company Confidential 19 Raveon Technologies
5.3 Setting a Parameter
To set a parameter in the M7-UC modem, enter the Command Mode as
described above. Then enter the proper AT command, a space, the parameter,
and then a carriage return. For Example, to set the address of the M7-UC
modem to 1234, enter the following command:
ATDT 1234 <CR>.
Once a Parameter is changed, the modem will begin using the new parameter as
soon as it exits the Command Mode and returns to its normal operation mode. If
the new parameter was saved to non-volatile memory using the ATSV command,
then the new parameter will be used as well the next time the M7-UC modem is
powered on.
If a parameter is changed, but the ATSV command is not issued, the new
parameter is used to operate the modem, but when power is turned off and back
on, upon powering up, the M7-UC will revert back to the previously saved
parameter value. If parametric changes are to be permanent, always issue the
ATSV command after all parameter changes have been made.
5.4 Reading a Parameter
To read the value of a particular setting, issue the command, with no parameter.
The modem will return the value followed by an “OK”. The modem’s OK
response is:
The value in ASCII decimal format.
A <CR> <LF> (<CD> = ASCII 0D, <LF> = ASCII 0A).
An “O”, “K”, <CR>, and <LF> sequence.
For example, if the user enters the command to read the M7-UC’s modem
address and its address was 1234, the user would issue the following command:
ATDT<cr>
and the modem will respond with:
1234 <CR> <LF> OK <CR> <LF>
To get on-line help with a command, enter the command and put a question
mark in for the parameter. For example, to see what the ATDT command is for,
type ATDT ?. The modem will respond by listing a brief description of the
command. To see a list of all commands, type HELP.
5.5 CONFIG Button
If certain parameters within the modem are modified in a manor that causes the
modem to cease functioning or if the user cannot enter the command mode via
the “+++” method described above, there is a small push button internal to the
Company Confidential 20 Raveon Technologies
M7-UC modem to assist in this case. This CONFIG button may be pressed at
any time, and forces the modem into a known operational state. The CONFIG
button is located inside the modem. Remove the rear cover, exposing the two
circuit boards. The button is in the center of the lower circuit board as shown
below.
The default settings that the modem will revert to when the CONFIG button is
pressed are:
1. Serial port 9600 baud, 8 data bits 1 stop, no parity
2. ATCT setting set to 60000 (60 second time-out)
3. Serial port on the front of the unit in RS232 mode, 9600bps, N/8/1.
If the unit was configured for RS-485, RS-422, or Ethernet, you must disconnect
other devices and use an RS-232 device to configure the M7-UC.
Even though the serial baud rate reverts to 9600 baud when the CONFIG button
is pressed and the IO port is RS232, it will revert back to the settings
programmed into the M7-UC modem once the Command Mode is exited.
5.6 Exiting the Command Mode
There are three ways to exit the command mode. They are:
1. ATSV Issuing the ATSV command saves the current configuration to non-
volatile memory, and then returns to the normal operation mode.
2. ATCN Issuing the ATCN command does not save the current configuration,
but it does cause the modem to continue to operate. If changes to the
configuration were done in the Command mode, these changes will be used in
operation, but they are not be saved to non-volatile memory. The next time the
modem is powered down and back up, the modem will operate with the
previously saved settings.
3. Time Out. After a pre-set amount of time (60 seconds is the factory default
time), the modem will automatically exit the Command Mode, and continue
normal operation. Changes will not automatically be saved. This time-out
duration may be set with the ATCT command.
5.7 Restoring Factory Defaults
The AT&F command may be used to restore the modem back to the factory-
default condition. Use this command with caution, as it will erase all previously
configured parameters. It will cause the modem to revert back to the factory-
defaults, as shown in the command table, “Factory Default” column. The only
parameters that it does not restore to default are the radio type and radio
calibration values R0-R9, and RA. This is so that the user may restore defaults,
and not have to re-calibrate the radio.
Company Confidential 21 Raveon Technologies
To erase ALL parameters, including the radio type and radio calibration, issue
the AT&F 123 command. There should not be any reason do this command,
because it will require the radio to be re-calibrated per the factory alignment
procedure. Command Mode Commands
AT
Command
Command Description
Parameters
Factory
Default
AK
Enable/Disable ARQ – When ARQ is enabled, this modem
will automatically send an ACK packet back to a modem that
sends it data. 0=off, 1=on.
Range: 0 – 1
0 (no AKCs
sent)
AS
Auto Status Report Interval– Sets the time between auto
status reports. Time is in minutes. 0 means disabled.
Range: 0 –56000
(minutes)
0 (Off)
AT
Silence AFTER Sequence - Sets period of silence after the
command sequence characters in mS.
Range:0 – 1000
(mS)
500
BD
Baud Rate – Sets serial com port baud rate (bps). Over-the-
air (throughput) baud rate is set with ATR2 command.
If a PC’s serial baud rate is set higher than the fixed over-the-
air baud rate of the module, hardware handshaking may be
required.
Range: 0 – 6
0 = 1200 bps
1 = 2400
2 = 4800
3 = 9600
4 = 19200
5 = 38400
6 = 57600
3
BC
Busy Channel Lock Out – Enable/disable the BCL. If
enabled, the modem will not transmit on a radio channel that
is busy (has RF on if). 0-OFF, 1=ON.
Range: 0-1
0
BT
Silence BEFORE Sequence – Sets period of silence before
the command sequence character in mS.
Range: 0-1000
mS
500
CH
Configure Hardware Flow Control – Enable (1) or disable
(0) flow control. When enabled, the modem will monitor the
RTS line, and if it is negated, stop sending data out the serial
port. If disabled, the modem will ignore the state of RTS, and
always send out charators.
1 = Enable
0 = Disable
0
CN
Exit AT Command Mode – Exits module from AT Command
Mode and returns it to Idle Mode. Parameters are not saved
in EEPROM.
none
none
CT
Time Out from AT Command Mode – If no valid commands
have been received within this time period (in milliseconds),
modem returns to normal operation mode from Command
mode. If the CONFIG button inside the M7-UC is pressed,
this parameter will be automatically set to 60000.
Range: 100-60000mS
60000
DT
Destination Address to call– Sets address of the modem to
send data to. Note, this parameter is entered in HEX format.
Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or an F.
Range: 0-FFFF
1234
E
Echo – Character echo set on (E1) or off (E0). This applies to
the Command Mode only.
Range: 0 , 1
0 (no echo)
F
Display frequencies – Display all of the frequencies
programmed into all of the channel memories.
N/A
Company Confidential 22 Raveon Technologies
FT
Transmit Frequency – Program the transmit frequency for
this channel. Enter in Hz or in MHz. The frequency will
automatically be saved in non-volatile memory (flash) for this
current channel number.
Range: See product data
sheet. For MURS products,
frequency cannot be changed.
See
product
data sheet.
FR
Receive Frequency – Program the receive frequency for this
channel. Enter in Hz or MHz. The frequency will
automatically be saved in non-volatile memory (flash) for this
current channel number.
Range: See product data
sheet. For MURS products,
frequency cannot be changed.
See
product
data sheet.
FX
TX and RX Frequency – Program the receive and transmit
frequency for this channel. Enter in Hz or MHz. Same as
issuing an ATFR and an ATFT command. The frequency will
automatically be saved in non-volatile memory (flash) for this
current channel number.
Range: See product data
sheet.
N/A
HP
Channel Number – Select separate channels to minimize
interference between multiple sets of modules operating in the
same vicinity.
Range: 1 - 6
1
IO
Configure the I/O The proper hardware option must be
installed in the modem. All M7-UC modems support RS-232
mode.
Range: 0 - 5 0=RS232
1=Ethernet 2=RS485 dup
3=RS485 simplx 4=RS422
5=GPS
0
L
Enable/Disable the LEDs – 1 = LEDs always off. This
reduces some power consumption. 0 = LED operate normally.
0 or 1
0
MA
Monitor Address – – Configures the address that status
transmissions are sent to. Only used if Auto Status is enabled.
Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or F. Note:
FF is interpreted as a group. See addressing section.
Range: 0000 - FFFF
FFFF
MK
Address Mask – Configures local and global address space.
Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or F. In
most applications, this is kept at FFFF.
Range: 0000 - FFFF
FFFF
MT
Protocol Select – The over-the-air communication protocol.
0=Packetized mode, 2=Streaming data.
Range: 0-2
0
MY
Unit Address – Configures the individual; address for this unit.
Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or F. Note:
FF is interpreted as a group. See addressing section.
Range: 0000 - FFFF
1234
NB
Parity – Selects parity format. Settings 0-4 transfer 8-bits over
antenna port and generate the parity bit on the RF receiving
side.
Range: 0 – 5
0 = none
1 = Odd
2 = Even
3 = Mark (1)
4 = Space (0)
0
NS
Stop Bits – Selects the number of stop bits.
Range: 1-2
1
PE
Packet Error Display – Shows statistics to compute packet-
error rate. Displays Packets Per Minute (PPM) and a running
total.
None (display PER)
1 = reset counters
2 = Stop PER display
None
PO
RF Power Output. Set or show the RF power output setting.
Value is in percent, from 0% to 100%. Use and RF wattmeter
to confirm the power setting, and adjust the % accordingly to
obtain the desired RF power level.
0-100
100
R0
Symbol Peak Deviation – Set the peak FM deviation of the
transmit symbols. Note: This can be a negative number to
invert the modulation.
Range: -1000 – 1000
120**
R1
Select CD pin output signal – CD may be RF carrier detect,
or modem data detect.
Range : 0 - 2
2 = Always assert CD
1 = Data CD
0 = RF CD
1
R2
Over-The-Air bit rate - This is the data rate the radio uses
to send data over the air. All RF modems in the network
must use the same over-the-air baud rate. Refer to
section 10.1 for information on how to set the OTA baud rate.
Range:
0 = 800 5 = 9600 2L
1 = 1200 6 = 19200 4L
2 = 2400 7 = 5142 2L
3 = 4800 8 = 9600 4L
3
Company Confidential 23 Raveon Technologies
4 = 8000 4L 9 = 2000 2L
R3
Serial Port time out – Number of mS of no activity before
transmitting.
Range: 1 - 5000
20 (mS)
R5
Preamble length – The number of bytes to send over-the-air
in the pre-amble.
Range: 3 - 255
4**
(Varies based
on data rate
and radio
type. 7 typical)
R8
Frequency Offset. Used to set the radio on the center of the
radio channel.
Range: -500 to +500
0**
R9
Modulation Balance.
Range: 0-100
20**
RA
Select RF CD output threshold – This value is the RSSI
threshold where the carrier detect is asserted. Note: To force
CD always on, set this to 0, and R1 to RF Carrier Detect.
Range : 0-999
300**
RB
Number of retries. If this modem does not get an ACK
back when it sends data, this is the number of times it will re-
transmit the packet and wait for an ACK. 0=disabled feature.
Range: 0-99
0
(ACKs are not
used)
RF
RF Carrier Required – When enabled, there must be RF
energy on the channel for the modem to output data.
Streaming data mode only. 1-RF required. 0=ignore rf
energy when receiving.
Range: 0, 1
0 (no RF
required)
RG
Transmit Time-Out-Timer – Sets the transmitter time-out-
timer in seconds. This is a fail-safe timer for improper
configuration or operation of the modem. In normal
operation, the TOT setting is not changed.
Range: 0-999
(seconds)
60
RQ
Receiver Signal Level – Reads the Receiver Signal
Strength this instant, and returns the level in dBm.
Range: -40 to –140 (dBm)
varies by model
-
RS
RSSI (Receive Signal Strength Indicator) – Returns the
signal level of last received packet. The reading is in dBm.
No parameters. Returns a
number : -40 to –140
(dBm) varies by model.
none
RT
Radio Type – Select the type of radio module installed within
the modem. If this parameter is changed, you must fully
recalibrate the modem. The type of radio module installed
is listed on the serial number. Various
Range: 1-9
0 = RV-M7-Ux
1 = RV-M6-Vx
2**
RV
Enable Remote Access – When enabled (set to a 1), the
modem will respond to over-the-air RPR requests, Pings, and
over-the-air commands. Default is ON (0).
0= Remote Access on
1=Remote Access off
0
SL
Serial Number – Reads and returns a unique serial number
for thjs unit.
Read Only
1 - 999999999
unique
SH
Show – Display the configuration of the modem. This will
return a page of ASCII characters, showing the main
configuration parameters.
none
None
SM
LPM Operation Enable – When set to 1, the DTR input line
controls the M7-UC’s low-power operation. When set to 0,
the M7-UC will not go into LPM, regardless of the state of the
DTR pin. When set to 2, the modem is forced into a low-
power mode, disabling the receiver.
Range: 0, 1, 2
0
ST
Statistics – Show the unit’s operational statistics. See
Statistics section of user manual.
0, 1,2, 3, 4, or 5
None
Company Confidential 24 Raveon Technologies
SV
Save – Save all the parameters to EEPROM. This command
must be used if changed parameters are to be stored in non-
volatile memory, and used next time the modem is powered
up. Modem exits configuration mode after this command is
executed. It saves all parameters except the frequency (The
frequency is automatically saved when an ATFT, ATFR, or
ATFX command is executed)
none
None
TD
Transmit Random Data – When issued, the modem will begin
sending random data. Entering a <CR> will terminate the
transmission.
0 = Go back to normal
1 = Random
2 = Hop up/dn one channel
3 = 1010… at ¼ baud rate
4 = TX all 0s
5 = TX all 1s
6 = Test Points ON
7 = Transmit CW
8 = Transmit 1010101…
TE
Read product temperature – Read the internal temperature
of the unit’s circuit board.
1 - 512
200
TT
Max Packet Size – Set the maximum number of bytes in an
over-the-air packet.
1 - 512
200
VB
Read DC input Voltage– Returns the DC input voltage
reading, in mV (12500 = 12.5VDC input).
None
none
VR
Firmware Version – Returns firmware version currently
loaded on the module.
Read Only, 3
characters
none
Xn
Show or Configure the Repeat Table – Set the addresses
that this unit will store-and-forward data to/from. n = 1, 2, 3, or
4 designating the entry in the table to show or edit..
Four parameters
aaaa bbbb cccc dddd where
aaaa=Source Address
bbbb = S.A. Mask
cccc = Destination Address
dddd = D.A. Mask
XR
Enable/Disable Store and Forward Repeating – 0=disabled,
1 – enabled.
0 or 1
0 (Off)
XT
Read/set repeater delay – Read or set the repeater delay.
This is the time between receiving a data packet, and the time
the repeater will re-send it.
&F
Restore Factory – Restore the factory default values. This
command will not erase the calibration values. After this
command executes, the modem will still be in the CONFIG
mode.
none
** indicates values that are calibrated in the factory and are unit-specific. If the “Radio
Type” is changed, these will need to be re-calibrated.
5.8 Other non-AT commands
SHOW
Show/display an overview of the radio’s configuration.
None
none
PING
Ping another modem. Format is PING xxxx, where xxxx is
the ID of the modem to ping. If remote access is enabled on
xxxx, it will respond.
RPR
Remote Procedure Request. Used to request execution of a
command on a remote mode (over the air). See M7-UC
System Protocol manual for information on using this feature.
Company Confidential 25 Raveon Technologies
5.9 Factory Default Settings
For the UHF M7-UC, model RV-M7-UC, the main factory defaults are:
Channel 1 ....................................................... 464.500 MHz
Over-the-air baud rate: ...................................... 4800 baud, 2-level
Serial port .......................................................... RS-232, 9600baud, N/8/1
Hardware flow control ....................................... Off
RF Power Output .............................................. 100%
Channel number selected ................................. 1
Protocol ............................................................. Packetized protocol
Company Confidential 17 Raveon Technologies
6 Using the M7-UC Modem – Packet Mode
This section describes the operation of the when it is in the Packet Mode of
operation. Packet Mode is the factory-default operating mode. It is the
easiest and most reliable mode of operation for a modem. Note: The
configuration of the M7-UC is done when the M7-UC is in the “Command
Mode”. Refer to Section 2 on page 18 for details on all of the available
commands and programmable features.
In Packet Mode, all transmissions are sent in bursts or packets, and contain
address, error detection, and error correction information. Date enters the
M7-UC modem’s serial I/O port, and is stored in a buffer within the modem
until it is ready to be transmitted. Packetized operation has these advantages
over non-packet modems:
Packet Mode Advantages
1. Error Detection The modem uses a 16-bit CRC at the end of every
packet of data. The CRC is used to check the data for errors, and if there
are any errors, the data will not be passed onto the user.
2. Error Correction Automatic error correction may be used. M7-UC
modems incorporate an optional ARQ method to re-transmit packets with
error, to ensure the user’s data is delivered error-free.
3. Addressing Packetized operation allows for a more versatile network
architecture, with source, destination, and network addresses. M7-UC
uses a 16-bit address to identify data packets.
4. No Dribble Data Even in the presence of noise, the M7-UC modem will
not output extra data or have random bit errors. Modems without packet
operation generally do not work well with weak noisy signals.
5. Transparent Operation Because of the high-reliability and error-free
operation the Packet Mode offers the user, most user applications will
seamlessly work using the M7-UC in its Packet Mode.
6. Repeatable and Routable. M7-UC packets are structured so that they
may be repeated using a store-and-forward repeater, and/or routed using
specialized hardware.
Streaming Mode Advantages
1. Low Latency The transmitter will key-up immediately upon the user’s first
byte of data entering the modem. Packetized operation waits until a
packet has been loaded before keying. (Although high serial-port data
rates can minimize this packet latency to a negligible level).
2. Data with Errors The M7-UC will continue to receive data, down into the
noise-floor of the radio. If the channel is noisy or the signal is weak, there
may be bit-errors in the data, or the M7-UC may output additional noise
data. User applications must (and often do), take this into account, and
Company Confidential 17 Raveon Technologies
thus can operate with weaker signals and have longer communication
range.

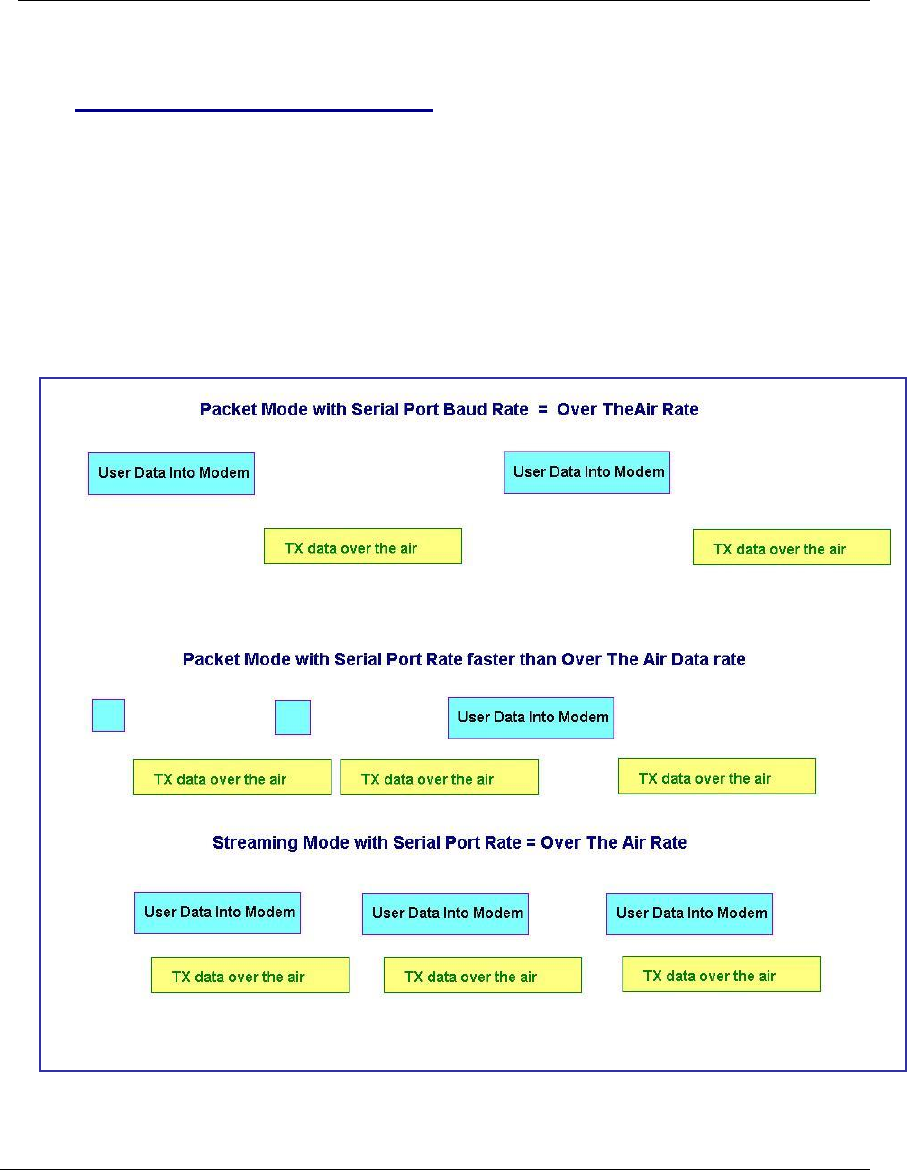

Figure 1 (Packet Mode of Operation)
For operation of the modem in the streaming data, non-packetized mode, see
the section Streaming Mode on page 37. The Packet or Streaming
operation is configured using the ATMT command, with Packet Mode being
the factory default.
6.1 Setup
1. Connect a DC power source to the DC IN connection on the front of the
modem.
2. Connect a good quality antenna, cut to the operating frequency, to the
BNC connector on the front of the modem. Use a good antenna, and
place is at high-above obstructions as possible.
3. Connect a computer terminal, or PC computer running HyperTerminal, to
the 9-pin I/O connector. The factory default serial ports settings are 9600
bps, 8 data bits, 1 stop, no parity.
4. Program the modem’s operating frequency to your desired operating
frequency. This is done with the ATFX xxx.xxxxx command. See the
section “Serial Port Commands” for information describing the various
parameters that may be modified in the modem. In most applications, the
default settings from the factory will work fine.
5. Using the AT commands, change any of the default operating parameters
that must be modified. From the factory, the modems are configured and
Company Confidential 17 Raveon Technologies
shipped ready-to-use. Out of the box, they will communicate on the
default radio channel using the factory defaults. In general, the
parameters you may want to modify will be:
ATFX Frequency for this channel. Set to your frequency.
ATMT 0 0 for normal Packetized operation. Default mode.
ATAK 0 for no ARQ, 1 if this unit sends ACKs. Default is no ARQ.
ATRB Set the number of retries if ARQ is used (x). 0 if no ARQ used.
Factory default is no ARQ.
ATBD Serial port baud rate
ATMY The ID of this unit. Default is 1234.
ATMK The network address mask. Default is FFFF.
ATDT The address of the unit this modem will talk to. Default is 1234.
ATBC Enable/disable busy channel lock-out. Default is off, 0.
6. Connect your serial data device to the 9-pin connector on the front of the
modem.
The radio is now ready to use. Any serial data going into the modem will be
transmitted over the air, and any data received over the air will be sent out the
serial port.
Remember, that from the factory, all M7-UC modems are configured to simply
work. Plug in power and connect to the serial port at 9600 baud, and the
modems will communicate on the default channel. Change the channel
frequency to your specific frequency, and they will be ready to work on your
channel.
6.2 Programming Channels and Frequencies
The M7-UC modem has memory for up to 6 channels. A channel is a pair of
frequencies, one for transmit and one for receive. They may be different or
they may be the same. You may program any valid frequency into any
channel number. To program a channel, perform the following steps.
1. Change to the channel you wish to program, using the ATHP x command,
where x is the channel number.
2. Program the frequency for this channel x, using the ATFT, ATFR, or
ATFX command. Note that the frequency may be entered in MHz as long
as you use a decimal point. For Example, enter ATFX 450.1 to set the
channel frequency to 450.100MHz. Alternately, you may enter the
frequency in hertz by entering ATFX 450100000. You must enter all of
the zeros if you enter the frequency in hertz.
3. Review the frequency setting with the ATFT, ATFR, or ATFX command.
To see a list of all of the channels, enter ATF.
4. To change the radio channel, use the ATHP x command while the modem
is in the command mode.
Company Confidential 17 Raveon Technologies
If the channel number is changed using the ATHP command, and power is
later lost, the channel number will be retained in non-volatile memory as long
as was saved using the ATSV (Save to non-volatile memory) command.
Due to the nature of the synthesizer used in the M7-UC’s radio, the frequency
programmed into the unit must be an even multiple of its internal reference
frequency. For narrow-band radios (12.5kHz channels), the user’s frequency
must be a multiple of either 6.25khz or 5.00kHz. For wide-band models, the
frequency must be an even multiple of 10kHz or 12.5kHz.
6.3 Data Transmission
To transmit data, send one or more bytes of data into the serial port of the
modem. When a full packet of data has been collected into the internal buffer
of the modem, or when there is a pause in the data, the modem will
automatically key its transmitter, and send the data over the air.
Serial Port Baud Rate
While the modem is transmitting, the user may continue to send more data
into the M7-UC. Because the buffers in the M7-UC are full-duplex, the serial
port data rate and the over-the-air data rates are independent. The serial port
baud-rates may be set slow to accommodate legacy equipment, or set at
high-speed to minimize latency. The over-the-air data rate us usually 4800
baud for narrow-band channels, and 9600 baud for wide-band, although
faster or slower rates may be used.
In Packet Mode, selection of the serial port baud-rate is important. As shown
above, if the serial port baud-rate is the same as the over-the-air baud rate
and the packets are short, the channel utilization is only about 50%. But, if
the serial port baud rate is set much higher, say 2-8X the over-the air rate, the
channel utilization becomes near 100%.
Because the M7-UC can handle serial-port data rate far in excess of the over-
the-air rate, the efficiency of the M7-UC in Packet Mode is approximately the
same as other brand modems that cannot operate in a Packet Mode — with
the added benefit or ARQ, error-free data, and addressing.
Note that many Windows applications which use the serial port, such as
HyperTerminal, put large gaps between the bytes of data they send out the
serial port. If an application is not getting the desired throughput, verify that it
is not an artifact of the Operating System or the computer.
Flow Control
If large amounts of data will be sent with the M7-UC, it may be possible to
overflow the internal data buffer. To ensure the transmit buffer does not
overflow, enable and use hardware flow control. Hardware flow control is
enabled with the ATCH 1 command. Note that the M7-UC modem will
always indicate the status of its internal buffer using the CTS signal on the
DB-9 serial connector. When CTS is negated, the internal buffers are more
Company Confidential 17 Raveon Technologies
than 80% full. When it is asserted and it is “Clear to Send”, the buffers are
less than 80% full.
Packet Size
The over-the-air packet size may be set with the ATTT xx command. Once
the modem receives one full packet of data into via the serial port, it will
automatically key the transmitter and send the data. Factory default is 80
bytes.
Key-On_Data
When serial data is entering the M7-UC’s RS-232 port, the M7-UC looks for
pauses in the data as indication that it is time to send a packet of data over
the air. The factory default duration of the pause it looks for is 20mS, but the
user may change this to over values using the ATR3 xxx command, where
xxx is in milliseconds.
Busy-Channel Lock Out
If your system operation require the M7-UC modem to monitor-before-
transmit, of if you do not want the M7-UC to transmit on a channel that is
busy, you can enable “Busy-Channel-Lockout”, using the ATBC 1 command.
ATBC 0 disables BCL, and thus the modem will transmit whenever it has data
to send out. The factory-default is BCL disabled. Use caution when enabling
it, as a CW interferer, PC with poor shielding, or some other source of RF can
stop the modem from transmitting. The threshold where the M7-UC senses
RF carrier, and determines that the channel is busy is set by the ATRA
command. This is factory calibrated to an equivalent RF level of
approximately -110dBm.
6.4 Data Reception
When the modem receives data over the radio, it checks it for errors, and if it
is error-free, it will send it out the serial port. Again, the serial port may be set
to any baud rate the user wishes, and the radio receiver and transmitter will
continue to operate independently of the baud rate.
When the modem receives a signal, it will assert the CD hardware signal on
the RS-232 serial port if it was configured to do so.
In general, the slower the over-the-air data rate, the easier it is for the modem
to receive the signal, and thus the more communication range the radio will
have. M7-UC modems have a unique switched-filter along with digital signal
processing, that gives them more range a lower data rates. See Section 10.1
Setting the Over-The-Air Data Rate for more information about choosing the
over-the-air data rate.
Company Confidential 17 Raveon Technologies
6.5 Addressing (Packetized Mode only)
Addressing Basics
One of the more powerful aspects of the M7-UC modem is its addressing
scheme. Incorporating addressing in the modem allows multiple radio
systems on the same frequency to co-exist, and not interfere with each other.
Also, some user application cannot tolerate receiving data that was not
intended for it, and by setting the addresses in the modems properly, the
system can be configured to allow reception of only data intended for the
recipient.
If addressing is not needed or desired, it can be turned off so that all modems
receive data from all other modems, and all modems can talk to all other
modems.
Each M7-UC contains a 16 bit address, called its Unit Address, and is
represented as a 4 digit hexadecimal number. M7-UC address may be any
number between 0000 and FFFF, which is effectively 65,535 different
addresses. Every M7-UC has a Unit Address programmed into it, as well as
the ID of the unit it will send data to. The Unit Address is programmed with
the ATMY xxxx command, and the Unit Address of the destination modem
(the Destination Address) is configured with the ATDT xxxx command.
The defaults UNIT ID in al M7-UC modems is 1234, and 1234 is the default
for the destination ID. An Address Mask is used to select which digits of the
address will be used to determine if a particular reception was intended for
the M7-UC modem. The default Address Mask is FFFF, which means all
digits will be used.
Hexadecimal Numbers
For those not familiar with hexadecimal numbers, a hexadecimal digit
represents a 4-bit binary pattern. There are 16 possible values
(0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,and F). These 16 values represent 4 bits of
information, thus 4 hexadecimal digits can represent 16 bits of information.
The hexadecimal numbers represent 4 bit data in the following way:
Hexadecimal Table
Hex #
Binary
Hex #
Binary
Hex #
Binary
Hex #
Binary
0
0000
5
0100
8
1000
C
1100
1
0001
6
0101
9
1001
D
1101
2
0010
7
0110
A
1010
E
1110
3
0011
8
0111
B
1011
F
1111
When communicating over the air, M7-UC modems transmit their Unit
Address and the Destination Address along with the data. Receiving
modems check the received Destination Address, and see if it matches their
Unit Address. If it does match, the receiving modem outputs the data it
received via its serial port. If it does not match, the receiving modem discards
the data, and does not send it out the serial port.
Company Confidential 17 Raveon Technologies
Setting A System-Wide Address
If individual addressing is not needed in your system, there are two ways to
ensure it is not used. One way is to set all modems in the system with the
same Unit Address and destination address. From the factory, these are both
set to 1234, and thus, all modems can communicate with all other modems,
using the address 1234. The advantage of using this system-wide address, is
that if there are other M7-UC modems on the channel, but in some other
system, they probably will not have the same Unit Address, and thus will not
interfere with your system. To reduce the possibility of data cross-talk, the
system implementer may wish to use a different system-wide address for the
Unit Address instead of 1234. There are over 65,000 addresses available.
An alternate way to disable addressing altogether, is set the Address Mask to
0000 (ATMK 0000 command). This tells the M7-UC to ignore the address,
and receive every transmission. The disadvantage to this method is the
adjacent-system problem. If there is another M7-UC system on the same
channel, all modems with the 0000 mask will receive them also.
Most users who do not use individual modem addressing, choose to set a
global system address, and have all modems in their system use the same
Unit ID and same destination address.
Broadcast Transmissions
The double FF is used to identify a broadcast packet. A transmission with a
two digit FF in the first two positions of the destination ID, or in the last two
positions of the destination ID, will be interpreted as a broadcast, and any
modem with an ID that matches the two non-FF digits will receive the data.
For example, sending data with a destination ID of 12FF will be received by
any modem with a unit ID 1200 through 12FF. Sending data with a
destination ID of FF34 will be received by any modem with a unit ID of 0034
through FF34.
The Address Mask
The reason to use hexadecimal digits to represent the unit address, is that
along with the Unit Address programmed into the M7-UC, there is an
“Address Mask” programmed into it. The default mask is FFFF. The address
mask is also used to determine if a particular data transmission should be
received by the modem. For most applications, where one modem talks to
one modem, or where all modems in the system communicate with all other
modems in the system, the Address Mask should stay set to FFFF.
Only in systems where some modems should only talk to certain other
modems, might you want to change the address mask. Whenever data is
received over the air, the Destination Address of the transmission is logically
“ANDed” with the Address Mask in the receiving modem. This is the Effective
Destination Address. The receiving M7-UC also ANDs its own Unit Address
with its Address Mask. The result is the Effective Unit Address. The Effective
Company Confidential 17 Raveon Technologies
Unit Address is compared to the Effective Destination Address, and if the two
are identical, the data will be received.
Note: Logically 1 AND 1 = 1, 0 AND 0 = 0, 1 AND 0 = 0, 0 AND 1 = 0
` Figure 2 (Address Filtering)
One effect of this is that an address mask of 0000 will cause the M7-UC
modem to received any data from any unit that transmits. The Destination
Address will effectively be ignored if the mask is set to 0000.
Addressing Examples:
Example 1 (default configuration)
Sending Destination Address = 1234
Receiving Unit Address = 1234
Receiving Unit’s Address Mask = FFFF
Result: Unit will receive the data, because the addresses identically match. When the
addresses are identical, the value of the mask is not important.
Notes: This is the default configuration. All units have address 1234, and all modems will
talk to all other modems with address 1234.
Example 2 (a configuration that won’t work)
Sending to Destination Address = 1236
Receiving Unit Address = 1234
Receiving Unit’s Address Mask = FFFF
Result: No data will be received, because the address do not match, and the address
mask of FFFF requires that all digits in the address match. .
Example 3 (able to receive a data from a group, 1230 – 123F)
Sending to Destination Address = 1236
StingRay receives
data over-the-air to
Destination Address
xxxx
StingRay has
Unit Address
yyyy
StingRay has
Address Mask
zzzz
“AND” them
together
Compare the two
results from these
two ANDs
“AND” them
together
Output the data via
serial port if the two
results were
identical
Company Confidential 17 Raveon Technologies
Receiving M7-UC Unit Address = 1234
Receiving M7-UC Address Mask = FFF0
Result: Data will be received. 1236 ANDed with FFF0 is 1230. 1234 ANDed with FFF0
is 1230. The results of the ANDing match, and thus the data will be received.
Example 4 (able to receive from a group, xx34 where xx is any two digits)
Sending Destination Address = 2234
Receiving M7-UC’s Unit Address = 1234
Receiving M7-UC’s Address Mask = 00FF
Result: Data will be received. 2234 AND 00FF equals 0034. 1234 AND 00FF equals
0034, therefore they match. The results of the ANDing match, and thus the data will be
received.
6.6 Error Correction
The M7-UC modem has a built-in error correction mode, commonly referred
to as Automatic Repeat request (ARQ). It works by checking each reception
for errors, and if the data is OK, it sends a short “ACK” packet back over the
air telling the sending station the data was OK.
The M7-UC modem uses a traditional Carrier Sense Multiple-Access (CSMA)
algorithm with randomized re-try time slots to determine when to re-transmit
packets that must be re-sent. The duration between re-tries increases as the
number of attempts increases.
If received data has an error in it or if the receiving modem does not get the
data due to interference, the receiving modem does not send the ACK back,
and the sending station will automatically re-send the data. There are two
aspects to configuring ARQ:
1) Enable the ARQ mode in the modem to allow it to transmit ACKs
(ATAK 1 command). This command enables the modem to
transmit ACK packets.
2) Configure the number of retries the modem should attempt if an
ACK packet is not received back when it sends data (ATRB xx
command). For example, if you set ATRB to 5 with the ATRB 5
command, the modem will wait for an ACK whenever it sends data.
If it receives and ACK back from the modem that it sent data to, it
will do nothing more. But if it does not receive an ACK, it will
resend the same data, trying up to 5 more times.
The factory default condition is not to send or require ACK packets, so if you
wish to use this mode, program the M7-UC to transmit ACKs with the ATAK 1
command. This will cause the modem to send an ACK anytime it receives
data from another modem. Note: If the destination address was a broadcast
(FFFF, FFxx, or xxFF), it will not wait for an ACK.
The number of times it retries to send data that does not get through (does
not get an ACK) is up to the user, but a number of 5 is usually a good
Company Confidential 17 Raveon Technologies
compromise. If after 5 times, the data does not get through, then there
probably is something seriously wrong with the channel or system.
The retried-transmissions are randomly spaced at intervals between
approximately 200mS and 400mS, increasing by 50mS for each attempted
transmission. Once the modem has sent its data the number of times the
user specified in the ATRB xx command, the data is discarded, and the
modem will continue to operate as normal.
It is very important that if one modem is configured to send ACK packets
(ATAK 1) that all other modems communicating with it are also set to expect
ACK packets using the ATRB xx command.
To disable ARQ (the default condition of the modem), disable ARQ with the
ATAK 0 and set retries to zero with the ATRB 0 command.
6.7 Store-and-Forward Repeating and Routing
The M7-UC modem has a built-in wireless repeater/router. Each M7-UC is
capable of not only sending and receiving data from/to its serial port, but also
re-transmitting over-the-air data. It is also able to re-transmit data that is
addressed to other modems in the system.
Figure 3 Overview of Repeater Operation
In the example shown in Figure 3 above, M7-UC A is will communicate with
all other modems in the system. It can directly communicate with B, H, and
F. Because of propagation limits, it cannot communicate reliable to E, D, C,
and G.
Company Confidential 17 Raveon Technologies
To solve this problem, some of the M7-UC modems are configured as
repeaters. The still are able to send and receive data, but they also will
repeat data out to the modems that are out of range of M7-UC A.
H is configured to repeat all messages to/from E, D, and G. B is configured
to repeat all messages to/from C, and D is configured to repeat all messages
to/from G.
The following table illustrates one possible way the M7-UCs could be
programmed to accomplish this type of system.
M7-UC
Unit ID
(ATMY)
Destination
(ATDT)
Network
Mask
(ATMK)
Repeat
Source
Repeat
Source
Mask
Repeat
Destination
Repeat
Destination
Mask
Addresses programmed into unit
Repeater table programmed into unit
A
1000
1000
FF00
-
-
-
-
B
1010
1000
FF00
1020
FFFF
1000
FFFF
1000
FFFF
1000
FFFF
C
1020
1000
FF00
-
-
-
-
D
1030
1000
FF00
1031
FFFF
1000
FFFF
1000
FFFF
1000
FFFF
E
1032
1000
FF00
-
-
-
-
F
1021
1000
FF00
-
-
-
-
G
1031
1000
FF00
-
-
-
-
H
1022
1000
FF00
1030
FFFF
1000
FFFF
1000
FFF0
1000
FFFF
Store-and-forward repeating is enabled with the ATXR command. ATXR 1
enables repeating. ATXR 0 disables it.
The Repeat Source, Repeat Source Mask, and the Repeat Destination are
programmed into a Repeater Table in the M7-UC. The ATX command is
used to program the Repeater Table. The Repeater Table may have up to 4
entries.
For example, M7-UC B in the above example will have two entries in its
Repeater Table. The command to set the two entries is:
ATX1 1020 FFFF 1000 FFFF
ARX2 1000 FFFF 1000 FFFF
The first command above sets the Repeat Source to 1020 and the Repeat
Destination to 1000, both with a Mask of FFFF. The FFFF mask means all
digits of the source and destination are used to determine if the transmission
should be repeated. All packets from units with MYID 1020 (C) sent to 1000
will be repeated by this unit. It will not repeat messages from D, E, F, G, or H
because their Unit IDs are not in the Repeat Source repeater table.
Company Confidential 17 Raveon Technologies
The second command above sets the Repeat Source to 1000 and the Repeat
Destination to 1000, both with a Mask of FFFF. The FFFF mask means all
digits of the source and destination are used to determine if the transmission
should be repeated. All packets from units with MYID 1000 (A)sent 1000
will be repeated by this unit. In other words, all transmissions from A will be
repeated by B.
To view the Repeater Table, use the ATX command, with no parameter. To
view a single entry in the table, use the ATXn, where n=1, 2, 3, or 4.
To delete an entry in the table so it has no effect on the operation, set the
fields to 0. For example, to disable make entry 1, use the ATX1 0 0 0 0
command.
Company Confidential 17 Raveon Technologies
Using the M7-UC Modem – Streaming Mode
This section describes the operation of the Streaming Mode of operation.
This mode is selected with the command ATMT 2.
6.8 Streaming Mode Operation
In Streaming Mode, radio transmissions will begin whenever data enters the
mode, and the transmission will continue as long as there is data to send.
The transmitter will automatically key when data enters the modem, and there
is no need to assert any control lines. It will automatically de-key when there
is no more data to send.
Figure 3 illustrates the difference between the Packet Mode and the
Streaming Mode of operation.
` Figure 4 (Streaming Mode of Operation)
7 For operation of the modem in the Packetized
Mode, see the section on page 18 entitled
Company Confidential 25 Raveon Technologies
8 Serial Port Commands
8.1 Overview
Only trained radio technicians are allowed to modify the settings in this product.
The serial port the RF modem is used to send and receive data over the air, as
well as to configure the RF modem. In normal operation, the user sends data into
the TxD pin of the user port, and this data is transmitted over the air. Received
data from another RF modem is output to the user via the RxD pin of the user
port. This is the default operating condition of the RF modem. No special
characters, hardware control lines, or timing is required to operate the M7-UC
modem.
There is also a “Command Mode” used to program and configure the M7-UC. In
the Command Mode, the M7-UC modem accepts commands via the serial port
TxD pin. The commands can be used to change certain internal parameters of
the M7-UC modem as well as to read-out the current configuration and
diagnostic statistics.
8.2 Command Mode
The M7-UC modem may be put into a “Command Mode”, by entering a
sequence of three plus characters (+++). To keep the M7-UC modem from
unintentionally entering the Command Mode because of the +++ pattern
occurring in a stream of data entering the modem, there must be a pause in the
data stream before the +++ as well as a pause after the +++ is sent. If either
pause is missing, the modem will not enter the command mode.
Using serial communications software such as HypterTerminal, send the 3-
character command sequence “+++” while observing times of silence before [BT
(Silence Before Sequence) Command] and after [AT (Silence After Sequence)
Command] the command characters. The default BT and AT times are 500mS.
The default sequence for entering into AT Command Mode:
1. No characters sent for ½ a second.
2. Input three (3) plus characters (“+++”) within ½ of a second.
3. No characters sent for ½ a second.
When the M7-UC modem first enters the Command Mode, it sends the phrase
“M7-UC” out it serial port, and then an “OK” sequence. The “OK” sequence is a
sequence of 4 characters:
An “O”, “K”, <CR>, and <LF> characters (<CR> = ASCII 0D, <LF> = ASCII 0A)
Company Confidential 25 Raveon Technologies
8.3 Setting a Parameter
To set a parameter in the M7-UC modem, enter the Command Mode as
described above. Then enter the proper AT command, a space, the parameter,
and then a carriage return. For Example, to set the address of the M7-UC
modem to 1234, enter the following command:
ATDT 1234 <CR>.
Once a Parameter is changed, the modem will begin using the new parameter as
soon as it exits the Command Mode and returns to its normal operation mode. If
the new parameter was saved to non-volatile memory using the ATSV command,
then the new parameter will be used as well the next time the M7-UC modem is
powered on.
If a parameter is changed, but the ATSV command is not issued, the new
parameter is used to operate the modem, but when power is turned off and back
on, upon powering up, the M7-UC will revert back to the previously saved
parameter value. If parametric changes are to be permanent, always issue the
ATSV command after all parameter changes have been made.
8.4 Reading a Parameter
To read the value of a particular setting, issue the command, with no parameter.
The modem will return the value followed by an “OK”. The modem’s OK
response is:
The value in ASCII decimal format.
A <CR> <LF> (<CD> = ASCII 0D, <LF> = ASCII 0A).
An “O”, “K”, <CR>, and <LF> sequence.
For example, if the user enters the command to read the M7-UC’s modem
address and its address was 1234, the user would issue the following command:
ATDT<cr>
and the modem will respond with:
1234 <CR> <LF> OK <CR> <LF>
To get on-line help with a command, enter the command and put a question
mark in for the parameter. For example, to see what the ATDT command is for,
type ATDT ?. The modem will respond by listing a brief description of the
command. To see a list of all commands, type HELP.
8.5 CONFIG Button
If certain parameters within the modem are modified in a manor that causes the
modem to cease functioning or if the user cannot enter the command mode via
the “+++” method described above, there is a small push button internal to the
Company Confidential 25 Raveon Technologies
M7-UC modem to assist in this case. This CONFIG button may be pressed at
any time, and forces the modem into a known operational state. The CONFIG
button is located inside the modem. Remove the rear cover, exposing the two
circuit boards. The button is in the center of the lower circuit board as shown
below.
The default settings that the modem will revert to when the CONFIG button is
pressed are:
4. Serial port 9600 baud, 8 data bits 1 stop, no parity
5. ATCT setting set to 60000 (60 second time-out)
6. Serial port on the front of the unit in RS232 mode, 9600bps, N/8/1.
If the unit was configured for RS-485, RS-422, or Ethernet, you must disconnect
other devices and use an RS-232 device to configure the M7-UC.
Even though the serial baud rate reverts to 9600 baud when the CONFIG button
is pressed and the IO port is RS232, it will revert back to the settings
programmed into the M7-UC modem once the Command Mode is exited.
8.6 Exiting the Command Mode
There are three ways to exit the command mode. They are:
1. ATSV Issuing the ATSV command saves the current configuration to non-
volatile memory, and then returns to the normal operation mode.
2. ATCN Issuing the ATCN command does not save the current configuration,
but it does cause the modem to continue to operate. If changes to the
configuration were done in the Command mode, these changes will be used in
operation, but they are not be saved to non-volatile memory. The next time the
modem is powered down and back up, the modem will operate with the
previously saved settings.
3. Time Out. After a pre-set amount of time (60 seconds is the factory default
time), the modem will automatically exit the Command Mode, and continue
normal operation. Changes will not automatically be saved. This time-out
duration may be set with the ATCT command.
8.7 Restoring Factory Defaults
The AT&F command may be used to restore the modem back to the factory-
default condition. Use this command with caution, as it will erase all previously
configured parameters. It will cause the modem to revert back to the factory-
defaults, as shown in the command table, “Factory Default” column. The only
parameters that it does not restore to default are the radio type and radio
calibration values R0-R9, and RA. This is so that the user may restore defaults,
and not have to re-calibrate the radio.
Company Confidential 25 Raveon Technologies
To erase ALL parameters, including the radio type and radio calibration, issue
the AT&F 123 command. There should not be any reason do this command,
because it will require the radio to be re-calibrated per the factory alignment
procedure. Command Mode Commands
AT
Command
Command Description
Parameters
Factory
Default
AK
Enable/Disable ARQ – When ARQ is enabled, this modem
will automatically send an ACK packet back to a modem that
sends it data. 0=off, 1=on.
Range: 0 – 1
0 (no AKCs
sent)
AS
Auto Status Report Interval– Sets the time between auto
status reports. Time is in minutes. 0 means disabled.
Range: 0 –56000
(minutes)
0 (Off)
AT
Silence AFTER Sequence - Sets period of silence after the
command sequence characters in mS.
Range:0 – 1000
(mS)
500
BD
Baud Rate – Sets serial com port baud rate (bps). Over-the-
air (throughput) baud rate is set with ATR2 command.
If a PC’s serial baud rate is set higher than the fixed over-the-
air baud rate of the module, hardware handshaking may be
required.
Range: 0 – 6
0 = 1200 bps
1 = 2400
2 = 4800
3 = 9600
4 = 19200
5 = 38400
6 = 57600
3
BC
Busy Channel Lock Out – Enable/disable the BCL. If
enabled, the modem will not transmit on a radio channel that
is busy (has RF on if). 0-OFF, 1=ON.
Range: 0-1
0
BT
Silence BEFORE Sequence – Sets period of silence before
the command sequence character in mS.
Range: 0-1000
mS
500
CH
Configure Hardware Flow Control – Enable (1) or disable
(0) flow control. When enabled, the modem will monitor the
RTS line, and if it is negated, stop sending data out the serial
port. If disabled, the modem will ignore the state of RTS, and
always send out charators.
1 = Enable
0 = Disable
0
CN
Exit AT Command Mode – Exits module from AT Command
Mode and returns it to Idle Mode. Parameters are not saved
in EEPROM.
none
none
CT
Time Out from AT Command Mode – If no valid commands
have been received within this time period (in milliseconds),
modem returns to normal operation mode from Command
mode. If the CONFIG button inside the M7-UC is pressed,
this parameter will be automatically set to 60000.
Range: 100-60000mS
60000
DT
Destination Address to call– Sets address of the modem to
send data to. Note, this parameter is entered in HEX format.
Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or an F.
Range: 0-FFFF
1234
E
Echo – Character echo set on (E1) or off (E0). This applies to
the Command Mode only.
Range: 0 , 1
0 (no echo)
F
Display frequencies – Display all of the frequencies
programmed into all of the channel memories.
N/A
Company Confidential 25 Raveon Technologies
FT
Transmit Frequency – Program the transmit frequency for
this channel. Enter in Hz or in MHz. The frequency will
automatically be saved in non-volatile memory (flash) for this
current channel number.
Range: See product data
sheet. For MURS products,
frequency cannot be changed.
See
product
data sheet.
FR
Receive Frequency – Program the receive frequency for this
channel. Enter in Hz or MHz. The frequency will
automatically be saved in non-volatile memory (flash) for this
current channel number.
Range: See product data
sheet. For MURS products,
frequency cannot be changed.
See
product
data sheet.
FX
TX and RX Frequency – Program the receive and transmit
frequency for this channel. Enter in Hz or MHz. Same as
issuing an ATFR and an ATFT command. The frequency will
automatically be saved in non-volatile memory (flash) for this
current channel number.
Range: See product data
sheet.
N/A
HP
Channel Number – Select separate channels to minimize
interference between multiple sets of modules operating in the
same vicinity.
Range: 1 - 6
1
IO
Configure the I/O The proper hardware option must be
installed in the modem. All M7-UC modems support RS-232
mode.
Range: 0 - 5 0=RS232
1=Ethernet 2=RS485 dup
3=RS485 simplx 4=RS422
5=GPS
0
L
Enable/Disable the LEDs – 1 = LEDs always off. This
reduces some power consumption. 0 = LED operate normally.
0 or 1
0
MA
Monitor Address – – Configures the address that status
transmissions are sent to. Only used if Auto Status is enabled.
Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or F. Note:
FF is interpreted as a group. See addressing section.
Range: 0000 - FFFF
FFFF
MK
Address Mask – Configures local and global address space.
Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or F. In
most applications, this is kept at FFFF.
Range: 0000 - FFFF
FFFF
MT
Protocol Select – The over-the-air communication protocol.
0=Packetized mode, 2=Streaming data.
Range: 0-2
0
MY
Unit Address – Configures the individual; address for this unit.
Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or F. Note:
FF is interpreted as a group. See addressing section.
Range: 0000 - FFFF
1234
NB
Parity – Selects parity format. Settings 0-4 transfer 8-bits over
antenna port and generate the parity bit on the RF receiving
side.
Range: 0 – 5
0 = none
1 = Odd
2 = Even
3 = Mark (1)
4 = Space (0)
0
NS
Stop Bits – Selects the number of stop bits.
Range: 1-2
1
PE
Packet Error Display – Shows statistics to compute packet-
error rate. Displays Packets Per Minute (PPM) and a running
total.
None (display PER)
1 = reset counters
2 = Stop PER display
None
PO
RF Power Output. Set or show the RF power output setting.
Value is in percent, from 0% to 100%. Use and RF wattmeter
to confirm the power setting, and adjust the % accordingly to
obtain the desired RF power level.
0-100
100
R0
Symbol Peak Deviation – Set the peak FM deviation of the
transmit symbols. Note: This can be a negative number to
invert the modulation.
Range: -1000 – 1000
120**
R1
Select CD pin output signal – CD may be RF carrier detect,
or modem data detect.
Range : 0 - 2
2 = Always assert CD
1 = Data CD
0 = RF CD
1
R2
Over-The-Air bit rate - This is the data rate the radio uses
to send data over the air. All RF modems in the network
must use the same over-the-air baud rate. Refer to
section 10.1 for information on how to set the OTA baud rate.
Range:
0 = 800 5 = 9600 2L
1 = 1200 6 = 19200 4L
2 = 2400 7 = 5142 2L
3 = 4800 8 = 9600 4L
3
Company Confidential 25 Raveon Technologies
4 = 8000 4L 9 = 2000 2L
R3
Serial Port time out – Number of mS of no activity before
transmitting.
Range: 1 - 5000
20 (mS)
R5
Preamble length – The number of bytes to send over-the-air
in the pre-amble.
Range: 3 - 255
4**
(Varies based
on data rate
and radio
type. 7 typical)
R8
Frequency Offset. Used to set the radio on the center of the
radio channel.
Range: -500 to +500
0**
R9
Modulation Balance.
Range: 0-100
20**
RA
Select RF CD output threshold – This value is the RSSI
threshold where the carrier detect is asserted. Note: To force
CD always on, set this to 0, and R1 to RF Carrier Detect.
Range : 0-999
300**
RB
Number of retries. If this modem does not get an ACK
back when it sends data, this is the number of times it will re-
transmit the packet and wait for an ACK. 0=disabled feature.
Range: 0-99
0
(ACKs are not
used)
RF
RF Carrier Required – When enabled, there must be RF
energy on the channel for the modem to output data.
Streaming data mode only. 1-RF required. 0=ignore rf
energy when receiving.
Range: 0, 1
0 (no RF
required)
RG
Transmit Time-Out-Timer – Sets the transmitter time-out-
timer in seconds. This is a fail-safe timer for improper
configuration or operation of the modem. In normal
operation, the TOT setting is not changed.
Range: 0-999
(seconds)
60
RQ
Receiver Signal Level – Reads the Receiver Signal
Strength this instant, and returns the level in dBm.
Range: -40 to –140 (dBm)
varies by model
-
RS
RSSI (Receive Signal Strength Indicator) – Returns the
signal level of last received packet. The reading is in dBm.
No parameters. Returns a
number : -40 to –140
(dBm) varies by model.
none
RT
Radio Type – Select the type of radio module installed within
the modem. If this parameter is changed, you must fully
recalibrate the modem. The type of radio module installed
is listed on the serial number. Various
Range: 1-9
0 = RV-M7-Ux
1 = RV-M6-Vx
2**
RV
Enable Remote Access – When enabled (set to a 1), the
modem will respond to over-the-air RPR requests, Pings, and
over-the-air commands. Default is ON (0).
0= Remote Access on
1=Remote Access off
0
SL
Serial Number – Reads and returns a unique serial number
for thjs unit.
Read Only
1 - 999999999
unique
SH
Show – Display the configuration of the modem. This will
return a page of ASCII characters, showing the main
configuration parameters.
none
None
SM
LPM Operation Enable – When set to 1, the DTR input line
controls the M7-UC’s low-power operation. When set to 0,
the M7-UC will not go into LPM, regardless of the state of the
DTR pin. When set to 2, the modem is forced into a low-
power mode, disabling the receiver.
Range: 0, 1, 2
0
ST
Statistics – Show the unit’s operational statistics. See
Statistics section of user manual.
0, 1,2, 3, 4, or 5
None
Company Confidential 25 Raveon Technologies
SV
Save – Save all the parameters to EEPROM. This command
must be used if changed parameters are to be stored in non-
volatile memory, and used next time the modem is powered
up. Modem exits configuration mode after this command is
executed. It saves all parameters except the frequency (The
frequency is automatically saved when an ATFT, ATFR, or
ATFX command is executed)
none
None
TD
Transmit Random Data – When issued, the modem will begin
sending random data. Entering a <CR> will terminate the
transmission.
0 = Go back to normal
1 = Random
2 = Hop up/dn one channel
3 = 1010… at ¼ baud rate
4 = TX all 0s
5 = TX all 1s
6 = Test Points ON
7 = Transmit CW
8 = Transmit 1010101…
TE
Read product temperature – Read the internal temperature
of the unit’s circuit board.
1 - 512
200
TT
Max Packet Size – Set the maximum number of bytes in an
over-the-air packet.
1 - 512
200
VB
Read DC input Voltage– Returns the DC input voltage
reading, in mV (12500 = 12.5VDC input).
None
none
VR
Firmware Version – Returns firmware version currently
loaded on the module.
Read Only, 3
characters
none
Xn
Show or Configure the Repeat Table – Set the addresses
that this unit will store-and-forward data to/from. n = 1, 2, 3, or
4 designating the entry in the table to show or edit..
Four parameters
aaaa bbbb cccc dddd where
aaaa=Source Address
bbbb = S.A. Mask
cccc = Destination Address
dddd = D.A. Mask
XR
Enable/Disable Store and Forward Repeating – 0=disabled,
1 – enabled.
0 or 1
0 (Off)
XT
Read/set repeater delay – Read or set the repeater delay.
This is the time between receiving a data packet, and the time
the repeater will re-send it.
&F
Restore Factory – Restore the factory default values. This
command will not erase the calibration values. After this
command executes, the modem will still be in the CONFIG
mode.
none
** indicates values that are calibrated in the factory and are unit-specific. If the “Radio
Type” is changed, these will need to be re-calibrated.
8.8 Other non-AT commands
SHOW
Show/display an overview of the radio’s configuration.
None
none
PING
Ping another modem. Format is PING xxxx, where xxxx is
the ID of the modem to ping. If remote access is enabled on
xxxx, it will respond.
RPR
Remote Procedure Request. Used to request execution of a
command on a remote mode (over the air). See M7-UC
System Protocol manual for information on using this feature.
Company Confidential 25 Raveon Technologies
8.9 Factory Default Settings
For the UHF M7-UC, model RV-M7-UC, the main factory defaults are:
Channel 1 ....................................................... 464.500 MHz
Over-the-air baud rate: ...................................... 4800 baud, 2-level
Serial port .......................................................... RS-232, 9600baud, N/8/1
Hardware flow control ....................................... Off
RF Power Output .............................................. 100%
Channel number selected ................................. 1
Protocol ............................................................. Packetized protocol
Company Confidential 47 Raveon Technologies
Using the M7-UC Modem – Packet Mode.
8.10 Baud Rate Selection
In Streaming Mode, the user data may still enter the modem at any baud rate, as
set with the ATBD x command. The M7-UC modem will buffer the data and
send it out over the air in the same order as it enters the modem. When the
buffer is empty and there is no more data coming into the modem, it will
automatically de-key the radio and go back into the receive mode. The M7-UC
modem will send a hidden end-of-message signal to the receiving modem, thus
avoiding any extra data bytes “dribble bytes” from coming out of the user serial
port. When the modem is operating with very weak signals, the end-of-message
signal may be obscured, and missed by the receiving M7-UC. In this case,
additional noise bytes may come out of the user serial port.
While receiving, the modem will also output the receive data out the serial port at
the rate set by the ATBD command. If the serial port baud-rate is slower than
the over-the-air rate, an internal buffer in the M7-UC modem will hold the data as
it is sent out the serial port.
8.11 Bit Errors
Unlike Packet Mode operation, there is no error-detection nor error-correction in
the Streaming Mode, so user data may contain bit errors. The user’s application
must be able to handle these errors or additional bytes of noise data.
If the application that is using the M7-UC cannot tolerate have erroneous data
when the channel is noisy, the modem should be operated in the Packet Mode
instead of Streaming mode ( In Packet Mode, data is always first checked for bit-
errors, and never outputted if it detects any errors).
The end of a transmission is detected by the receiving modem by the presence
of a special end-of-message signal. Transmitting M7-UCs automatically put the
end-of-message signal out after the user’s data has been transmitted. If the
receiving modem does not receive this signal (due to noise or interference), the
receiving modem may continue to output some more data, until it detects that the
RF carrier is gone, or the received signal is actually noise. This may take a byte
or two of time, and during this time period, the receiving modem may output
random noise bytes.
8.12 Carrier Detect
To reduce, and virtually eliminate bit errors and additional noise bytes, the user
may configure the M7-UC to require and RF carrier Detect before receiving any
data. Because the RF carrier Detect Threshold is set above the noise-floor of the
receiver, bit-errors will be rare if RF carrier is required to receive. By default, the
M7-UC does not require RF carrier detect to receive. To enable it, use the ATRF
1 command. To disable the need for RF carrier detect, us the ATRF 0 command
(Factory default).
When ATRF is 0, the modem will be more sensitive, and be able to receive weak
signals, but there is more likely to be bit errors when the signals are weak.
Company Confidential 48 Raveon Technologies
8.13 Serial Data Flow Control
If large amounts of data will be sent with the M7-UC, and the serial port is
operated at a faster data rate than the over-the-air rate, it may be possible to
overflow the internal data buffer. To ensure the transmit buffer does not
overflow, enable and use hardware flow control. Hardware flow control is
enabled with the ATCH 1 command. Note that the M7-UC modem will always
indicate the status of its internal buffer using the CTS signal on the DB-9 serial
connector. When CTS is negated, the internal buffers are more than 80% full.
When it is asserted and it is “Clear to Send”, the buffers are less than 80% full.
Company Confidential 49 Raveon Technologies
9 Installation
1. Secure the M7-UC modem using the four mounting holes on the side
flanges of the unit.
2. Connect a DC power source to the DC IN connection on the front of the
modem. Use the supplied cable, and connect the RED wire to +, and the
black wire to – (ground). The black wire and the case of the M7-UC
should be connected to earth ground.
3. Connect a good quality antenna, tuned to the operating frequency, to the
RF connector on the front of the modem. Use a good antenna, and place
is at as high-above obstructions as possible.
4. A separation distance of at least 20 centimeters must be maintained
between the transmitter's radiating structures and the body of the user or
nearby persons.
5. Connect the computer, terminal, controller, or other hardware device that
will be using the M7-UC modem to its DB-9 serial I/O connector using a
shielded cable. Secure it to the M7-UC with the two mounting screws on
the sides of the DB-9 connector.
6. If the antenna is mounted out doors, us a lighting arrestor in-line with the
antenna, and properly ground the antenna and the M7-UC chassis to an
earth ground.
10 FCC Licensing Information
M7-UC radio modems operate on radio frequencies that are regulated by the
Federal Communications Commission (FCC). In order to transmit on these
frequencies, you are required to have a license issued by the FCC.
Almost everyone engaged in public safety activities - as well as private
organizations, are required, to obtain a radio station license from the Federal
Communications Commission if they wish to use a radio transmitter.
The FCC will help you through the licensing process.
You can find the basic information you need to begin the process at the FCC
website. If you are engaged in public safety activities, you can go directly to:
http://wireless.fcc.gov/publicsafety
If you are a business, commercial, or institutional organization, you can go
directly to:
http://wireless.fcc.gov/services/ind&bus
In either case, you will be shown the regulations and the information you will
need to gather before you get started - your desired operating frequencies,
Company Confidential 50 Raveon Technologies
wideband/narrowband, antenna type and size, power/wattage, etc. You'll also get
information on how to obtain the necessary application forms - either in hard-
copy or electronic format - and how to proceed.
The FCC website also offers a list of Frequency Coordinators. These are private
organizations officially certified by the FCC to help you through the process, and
who in most cases will handle the actual filing of your application. With few
exceptions, you must apply for an FCC license through a Frequency Coordinator.
They are located throughout the country, making it easy for you to find one that is
familiar with radio operations in your area.
There are companies who specialize in assisting with licensing radio modems.
You may consider contacting one of the following:
Atlas License Company and Data Services
1-800-252-0529
http://www.alcds.com
Airwaves Licensing
1-717-334-0910
http://www.airwaveslicensing.com
Company Confidential 51 Raveon Technologies
10.1 Setting the Over-The-Air Data Rate
The SkyLine has programmable over-the-air baud rates. The over-the-air rate is
stored in register R2, and is programmed with the ATR2 x command, where x is
a number corresponding to the rate. The are many possible baud rates, but not
all rates may be used with all radio modem models. Consult the following table.
Over-the-air rate
Radio
Bandwidth
Number of
Modulation
Levels
M7-UC Modem Models
that support the rates
800bps (R2=0)
12.5kHz or 25kHz
2
RV-M7-UC-N, RV-M7-UC-W
1200bps (R2=1)
12.5kHz or 25kHz
2
RV-M7-UC-N, RV-M7-UC-W
2400bps (R2=2)
12.5kHz or 25kHz
2
RV-M7-UC-N, RV-M7-UC-W
4800bps (R2=3)
Default setting
12.5kHz or 25kHz
2
RV-M7-UC-N, RV-M7-UC-W
8000bps (R2=4)
12.5kHz or 25kHz
4
RV-M7-UC-N, RV-M7-UC-W
9600bps (R2=5)
25kHz
2
RV-M7-UC-W only
19200bps (R2=6)
25kHz
4
RV-M7-UC-W
(will not work with Radio Type 5)
5142bps (R2=7)
12.5kHz or 25kHz
2
RV-M7-UC-N, RV-M7-UC-W, RV-
M7-UC-S
9600bps (R2=8)
12.5kHz or 25kHz
4
RV-M7-UC-N, RV-M7-UC-W
Changing the over-the-air data rate will change the sensitivity of the receiver.
Higher-data rates require a stronger signal at the receiver to be properly
received. The default over-the-air data rate for M7-UC radio modems is 4800
baud for narrow-band versions, and 9600 baud for wide-band versions.
The maximum over-the-air baud-rate for a narrow-band radio (12.5kHz channel-
spacing) is 9600bps. Due to IF filter limitations, the M7-UC does not work as well
at 9600 baud as some other rates. Its performance is optimized for 4800 baud 2-
level modulation and 8000 baud 4-level modulation.
The maximum over-the-air baud-rate for a wide-band model (25kHz channel
spacing) is 19200bps. Due to IF filter limitations, it does not work as well at
19200 baud as lower data rates. Its performance is optimized for 9600 baud 2-
level modulation.
M7-UC (narrow-band version)
Factory default, set R2 to 3 (4800 baud).
For high-speed operation, set R2 to 4 (8000 baud).
For best range (longest distance), set R2 to 1 (1200 baud)
Other data rates of 0(800bps), 2(2400bps), 3(4800bps), and 7(9600bps) will
work, but have a less optimal bit-error-rate vs. receive sensitivity.
Company Confidential 52 Raveon Technologies
M7-UC-W (wide-band version)
For high-speed operation, set R2 to 5 (9600 baud).
For best range (longest distance), set R2 to 1 (1200 baud)
Other data rates of 0(800bps), 2(2400bps), 3(4800bps), 7(9600bps), and
6(19,200bps) will work, but have a less optimal bit-error-rate vs. receive
sensitivity.
10.2 Debug Related Commands
Bench Testing
(Must be in command mode to test. Enter +++ at the keyboard to put unit into config/test mode.)
ATTD x Various transmit test routines.
0 = Go back to normal mode. Stops the test.
1 = Random data transmit.
2 = Hop up/down one channel
3 = Force PLL to fast lock mode
4 = Transmit all 0s
5 = Transmit all 1s
6 = Enable the test points on the PCB.
7 = Transmit CW on center of channel
8 = Transmit preamble (101010 pattern)
SHOW Display an overview of the configuration.
Ping xxxx Ping another modem over the air. Transmits a request to xxxx to see if
xxxx can hear the sending station. If it does, it answers with a response
transmission, containing its ID and the signal strength of the reception. .
ATST Display statistics of how the modem is working.
ATST 1 Display statistics of how the modem’s GPS is working (if installed).
AT$5 Display RSSI. It will scroll the reading until another character comes in
the serial port.
Packet Counter
The packet counter mode will output packet count statistics once per minute. It
will output the number of packets received in the last minute as well as the
running total. T
ATPE Begin counting and displaying the packet counters every minute
ATPE 1 Reset the packet counters back to zero
ATPE 2 Stop counting and displaying packet counters
Upon power up, the packet counter feature is always disabled.
Company Confidential 53 Raveon Technologies
11 M7-UC Diagnostic Provisions
11.1 Overview of Diagnostics
Internal to the M7-UC radio modem, is a powerful 32-bit microprocessor. Along
with handing all aspects of radio modulation and demodulation, the
microprocessor also maintains an extensive array of diagnostic information.
This section details the diagnostic information available, and describes how to us
the information to optimize or troubleshoot a M7-UC radio network.
11.2 Reading the Diagnostic Information
M7-UC diagnostic information is read using AT commands, while the unit is in the
Command Mode. Refer to the section “User Serial Port Commands” to learn
how to put the M7-UC modem into the Command Mode.
To see a general overview of how the modem has been operating, us the ATST
command (status request command), without any parameter. The radio modem
will respond with a list of certain operation statistics that it maintains. All statistics
start counting at 0. The ATST 1 command can be used to reset all statistics back
to 0, except the run-time timers.
Other operation and configuration statistics are available using the ATST
command, with a parameter to specify the desired statistic. The following table
describes the various statistics available.
11.3 Status and Statistics Command
AT
Command
Command Description
Response
ST
General Communication Statistics – This command will cause the
M7-UC to output a table of various operational statistics.
Statistics
overview screen
ST1
GPS Statistics – Statistics related to the GPS operation, if installed.
GPS Statistics
overview screen
ST2
Low-level internal statistics – Returns various low-level statistics.
These are subject to change in various firmware revisions.
Low-level
statistics screen
ST3
Compile date and time – Returns the data and the time that the
firmware was compiled.
Date and time
ST4
Run Time – Returns the amount of time that the modem has been
powered up and running.
Run time display
screen
ST9
Reset all statistics counters
OK
Company Confidential 54 Raveon Technologies
ST10
Statistic Read – Returns numeric values, comma separated, of all
statistics as described in the ST command.
Run time display
screen
Company Confidential 55 Raveon Technologies
11.4 ATST Command
The ATST command, will return the following information:
STATISTICS
Good RX Packets : nnn (packets received over the air with no bit-errors and correct address)
With Bad CRCs : nnn (over-the-air packets with bit errors that were discarded)
With Bad Noise : nnn (receptions that were aborted due to noise, CW jamming, lost signal…)
Bytes received : nnn (number of bytes this modem received, and sent out its serial port)
Bytes transmitted: nnn (number of bytes this modem received via the serial port, and
transmitted over the air)
Packets send : nnn (number of packets this modem has transmitted over the air.
Retransmissions in the ARQ mode are not counted)
ACKs received : nnn (Number of ACK packets this modem received, when ARQ was
enabled)
ACKs transmitted : nnn (Number of ACK packets sent over-the-air in the ARQ mode)
Pkts last minute : nnn (Number of packets received during the last minute)
UART errors : nnn (serial port framing and overrun errors. Usually these are caused by
incorrect serial port settings)
OK
If there is a hardware problem, there may be one ore more hardware error
messages listing the error types (CPU Exceptions, OS Rebooted, or
Fatal OS failures). Consult the factory if any of these messages ever
appear.)
11.5 ATST2 Command
The ATST2 command, will return additional lower-level statistics:
RF FIFO overruns : nnn (number of times the modem was too busy to receive data over-the-air)
Wrong address : nnn (packets with addresses intended for some other unit. Also will count
apparent false packets due to random noise)
Duplicate packets: nnn (number of packets discarded because they already were received, and
subsequently re-received due to ARQ mode or a repeater)
Missing ACKs : nnn (number of transmissions in ARQ mode, where this sending M7-UC did
not receive an ACK back as it expected to)
TX FIFO overflows: nnn (number of bytes of data that came into the M7-UC over-the-air, and
there because there was no buffer space for the data, were discarded.
If greater than 0, the serial-port baud-rate should in increased. )
RX FIFO overflows: nnn (number of bytes of data came into the M7-UC’s serial port, and there
was no room in the M7-UC to buffer the data before transmission, so
these bytes were discarded. If greater than 0, flow-control should be
enabled, hardware flow-control implemented, or the serial-port baud
rate reduced.)
OS loop time : nnn (number of times OS executes, per baud. Typical 10-200. 0 or >5000
means there is a serious OS problem).
OS Speed : nnn (speed of the main Operating System, in Hz. Typical 8000-30000. )
VCO Bias : nnn (the DAC value that biases the VCO in the radio. 0-1024 = 0-3.3V)
Config : hhhh (hexadecimal representation of an internal configuration word.)
OK
Company Confidential 56 Raveon Technologies
11.6 ATST3 Command
The ATST3 command, will return the time and date the firmware in the M7-UC was compiled.
11.7 ATST4 Command
The ATST4 command will return internal timers that tell how long the modem has been powered
up and running. All of these timers restart a 0 upon power up.
Run time:
Years: nnn (number of years running)
Days : nnn (number of days running, resets to 0 after one year)
Hours: nnn (number of hours running, resets to 0 after 23 hours, 59 minutes, 59 seconds)
Min: nnn (number of minutes running, resets to 0 after 59 minutes, 59 seconds)
Sec: nnn (number of seconds running, resets to 0 after 59 seconds)
Uptime:nnn (number of seconds running. Does not reset.
OK
11.8 AutoStatus
The auto-status feature of the M7-UC enables it to automatically transmit a packet of status
information. By default, this feature is disabled.
To enable the Auto Status feature, use the ATAS xxx command, where xxx is the status interval
in minutes. The interval may be between 1minute an 65000 minutes (45 days).
The general format of the message that the modem will send is:
[an ASCII STX character, 02]
BEGIN STATUS
ATMY=1234
ATVR=D1
ATDT=1234
ATVB=12300
UPTIME=120
OSERR=0
PRX=1295
PTX=7933
[an ASCII ETX character, 03]
The first character is a Start of Text character. This is followed by the phrase “BEGIN STATUS”.
Each line in the status transmission is terminated with an ASCII carriage return (0D) and line feed
(0A).
As new features are added to the M7-UC, there may be new status lines added, but all M7-UC
modems with Revsion D or higher firmware support at a minimum, the above shown status
parameters. The status transmission will end with an ASCII 0 character, the End of Text
character.
The parameters passed in the status message are:
ATMY The ID of the modem sending the status.
ATVR The firmware version in the modem
ATDT The ID the modem is programmed to send data to.
ATVB DC voltage, in millivolts of the DC input to the modem.
UPTIME Number of seconds since this modem has turned on.
OSERR The number of Operatin System Errors. Normally this is 0.
Company Confidential 57 Raveon Technologies
PRX The number of packets this modem has received.
PTX The number of packets this modem has transmitted.
The ID code that the status information is sent to, is set with the ATMA xxxx command.
Whenever a status transmission is sent, the “TO ID” of the transmission is the address set using
the ATMA command. This allows the system to be configured in a way the normal modem
communications take place between the modems, and the status information only is delivered to
modems that need to receive it.
Company Confidential 58 Raveon Technologies
12 Tune-up and Alignment
Do not key the transmitter for more than 30 seconds out of
every 150 seconds if the RF power is set above 2 watts.
Radio calibration and alignment is performed using the ATRx commands. The
M7-UC modem has been factory calibrated, in should not require any re-
calibration when installed, or when changing frequency or channel. Unless the
user is trained in radio test and calibration, the values stored in the R registers
should not be modified.
Improper adjustment of the radio calibration (R0-R9 and RA registers), can
result in failure of the radio modem.
Calibration and alignment values are stored internal to the modem in the “R”
registers. (R0-R9 and RA). For example, to read R5, issue the ATR8 command
without any parameter. To change the setting, issue the ATR8 nn command,
where nn is the new value you would like to store.
Once you read a register using an ATRx command, you may modify its value by
entering a “U” for up or a “D” for down. U or D will change the value by one. Use
this trick carefully, because it modifies the last R register that was read, and it is
easy to unintentionally modify the wrong register.
12.1 Periodic Calibration
The only setting that may require adjustment is the center frequency. After years
of operation, all crystals will age and change frequency slightly. The ATR8
command is used to adjust the center frequency. Like all narrow-band radios,
semi-annual checks and adjustment of frequency is recommended.
12.2 Center Frequency
1. Key the transmitter with CW output using this command:
ATTD 7
2. The modem will now put out CW on the center of the channel.
3. Read the frequency offset with the ATR8 command.
4. Adjust the frequency to the center of the channel with the ATR8
command. You can use the “U” key and the “D” key to change the
settings up and down one value in real time.
12.3 TX Deviation
1. Switch to channel 1.
2. Key the transmitter into a 50 ohm load using the ATTD 3 command. The
unit will now transmit, and send a digital 0 continuously. This should be
+2.0kHz in frequency for narrow-band radios (12.5kHz spaced channels)
and +4.0kHz for wide-band (25kHz channels).
Company Confidential 59 Raveon Technologies
3. Adjust the deviation register setting so that the frequency deviation is
correct. The deviation is set with a digital adjustment. Use the ATR0
command to read or set the deviation level.
12.4 TX Modulation Balance
(Note: This step is not performed on radios with Radio Type 5)
1. Set-up a service monitor to monitor the FM deviation of the transmitted
signal on an oscilloscope. The frequency response of the demodulated
FM signal must be greater than 10Hz to 5kHz without any de-emphasis.
2. Transmit random data with the M7-UC, using the ATDT 1 command. This
command will cause the M7-UC to automatically key up, and send random
data for one minute.
3. Verify the DC center of the demodulated data is stable. The random data
should be randomly timed 1s and 0s, and have little to no AC component
on them. See pictures below for details.
4. If necessary, change the ATR9 setting so that the long data bit have the
same amplitude and DC value as the shorter ones.
12.5 RX Carrier Detect
The DCD signal from the modem may be generated by detection of RF, using an
internal signal called RSSI (Receive Signal Strength Indication). The RSSI signal
is an analog signal representing the strength of the RF carrier. It is compared
with a pre-set value, and if it is above this value, Carrier Detect is asserted. The
pre-set value may be change with the ATRA command.
When the modem is used in the Streaming Mode (non-packetized operation, you
may wish to configure the modem to require RF carrier detect to be active for the
modem to receive data. Use the ATRF command to enable/disable this feature.
To set the RF carrier detect level, perform the following steps:
1. Generate a test signal, 1kHz tone, 1.5kHz deviation, on the receive
frequency. Connect the signal generator to the antenna input. Turn the RF
level off.
2. Watch the RSSI DAC value by issuing the AT$5 command. The current
reading will be sent out the serial port.
3. Adjust the RF level to a point where you would like the RSSI to trigger the CD
signal. This is factory-set to -110dBm.
4. Send the ATRA nnn command. Set nnn to be equal to the RSSI setting you
would like the CD signal to trip at. The BUSY LED will also indicate an RF
carrier when the RF carrier is above the threshold set with the ATRA
command.
Company Confidential 60 Raveon Technologies
5. Generate an RF signal on-channel with a level of -110dBm. Verify the
Power/BUSY LED stays on. If it does not, repeat step 4, adjusting in
increments of 10.
Company Confidential 61 Raveon Technologies
13 SkyLine Compatibility
13.1 General
The M7-UC RF modem has built-in compatibility with a radio modem made by
Sonik Technologies, Vytek Wireless, and Cal Amp called the SkyLine. In most
applications, Raveon’s M7-UC modem can communicate with SkyLine modems,
provided the M7-UC is properly configured. There are two versions of the
Skyline, a wide-band version running at 9600 bps over the air, and a narrow-
band version running at 5142bps over the air.
13.2 Configuring M7-UC to Communicate with a SkyLine
To configure the M7-UC modem to talk to an old SkyLine modem, the user must
configure the M7-UC with these commands:
ATR2 7 This command tells the M7-UC modem to operate with an over-the-air
baud rate of 5124 bits per second. This is the baud-rate of all narrow-
band (12.5Khz spaced) SkyLine radio modems. Wide-band SkyLine
radios operated at 9600 baud over the air. The command to set the
M7-UC to 9600 baud over the air is ATR2 5.
ATR5 8 This command tells the M7-UC modem to send 8 bytes of pre-amble
before every transmission.
MYID 1234 The MYID of the M7-UC modem is set with the ATMY command or
the MYID command. The default MYID of the SkyLine was 1234.
TOID FFFF The TOID of the M7-UC modem is set with the ATDT command or the
TOID command. The default TOID of the SkyLine was FFFF
(broadcast address).
A quick-configure command is included in the M7-UC, to allow it to be easily
switch to the M7-UC mode. The command is “SKYLINE”. When in the
configuration mode, enter SKYLINE, and the modem will reconfigure itself as a
narrow-band SkyLine modem, with TOID = FFFF, MYID=1234, 80 byte packets,
20mS serial port time out, channel 1 frequency, over-the-air baud rate 5142.
Company Confidential 62 Raveon Technologies
14 Appendix A. Serial Port Hardware
14.1 Serial Port Data and Handshaking Signals
In computer terminology, the RF modem is considered a “Data Communications
Equipment” device, or DCE. The user’s hardware that the modem is connected
to is considered “Data Terminal Equipment”, or DTE.
Following is a description of how data and control is communicated over the
various serial port signals between the modem (DCE) and another device (DTE)
that the modem’s I/O port is connected to.
TxD (INPUT)
This line is used to transmit data from the DTE to the DCE. It is maintained at a
logical 1 state when nothing is transmitted. If Hardware Flow Control is enabled
in the modem, the terminal will start to transmit data to the modem when a logical
1 is present on all of the following lines:
Clear To Send (output from modem)
Request to Send (output from the DTE)
RxD (OUTPUT)
This circuit is used to receive data from the DCE to the DTE. The modem will
start to transmit data to the DTE when a logical 1 is present on all of the following
lines:
Data Terminal Ready (reply that it is OK to send)
Data Set Ready (asserted by the modem)
RTS
On this line, the DTE will send a signal when it wants to receive data from the
M7-UC modem. The M7-UC modem will not output data unless this pin is low, or
“Flow Control” has been disabled in the modem set-up. When a DTE (such as a
PC or microcontroller) wants to stop the flow into it, it negates RTS. Negated
"Request To Send" (digital 1) means "request NOT to send to me" (stop
sending). When the DTE is ready for more bytes it asserts RTS (digital 0) and the
flow of bytes to it resumes. DCE equipment works the same way but sends the
stop signal out the CTS pin. Thus it's RTS/CTS flow control using 2 lines. The
user may turn this feature off or on, using the ATCH command. The default is
OFF. To turn it on, issue an ATCH 1 command.
CTS
This signal is an output from the M7-UC, and it indicates the M7-UC’s ability to
send more data. If the user tries to send more data into the M7-UC than the M7-
UC can transmit over the air, it will negate the signal on this pin. The CTS may
be asserted when the serial-port data rate is greater to or equal to the over-the-
air rate. For example, if the over-the-air data rate is set to 2400 baud, and the
Company Confidential 63 Raveon Technologies
user is send data into the modem at 9600 baud, the modem will negate the CTS
signal once the M7-UC’s internal data buffers become full.
CD
On this line the modem indicates to the DTE that it has received a carrier from a
remote device. It will assert this signal any time there is a carrier detected. The
modem may be configured to assert this when an RF carrier is detected (any on-
channel RF, voice or data), assert it only when another RF modem signal is
detected, or always assert it. The operation of this line is configured with the
ATR1 command. The default is 1 (asserts when M7-UC data is detected on the
radio receiver).
DTR
This line is an input to the M7-UC. It is normally ignored because the default
configuration of the M7-UC modem is to ignore this signal. If the DTR line is
enabled for use, using the ATK5 1 command, the DTR input line can be used to
put the M7-UC modem into its SLEEP mode. With DTR enabled, anytime the
DTR line is a logic 0, the M7-UC will be operating normally. With DTR enabled,
anytime the DTR line is a logic 1, the M7-UC will go into a SLEEP mode, drawing
much less DC power.
Company Confidential 64 Raveon Technologies
14.2 Null modem without handshaking
Sometimes, a “Null Modem” cable may be required to connect the M7-UC
modem to another device. The specific connections are very dependent upon
the type of hardware and handshaking used, but the following sections should
help in configuring a null-modem cable.
How to use the handshaking lines in a null modem configuration? The simplest
way is to don't use them at all. In that situation, only the data lines and signal
ground are cross connected in the null modem communication cable. All other
pins have no connection. An example of such a null modem cable without
handshaking can be seen in the figure below.
Simple null modem without handshaking
(DB-9 Female shown. Same wiring for male-to-male cable)
Connector 1
Connector 2
Function
2
3
Rx
Tx
3
2
Tx
Rx
5
5
Signal ground
14.3 Compatibility issues
There is a problem, if either of the two devices checks the DSR or CD inputs.
These signals normally define the ability of the other side to communicate. As
they are not connected, their signal level will never go high. This might cause a
problem.
The same holds for the RTS/CTS handshaking sequence. If the software on
both sides is well structured, the RTS output is set high and then a waiting cycle
is started until a ready signal is received on the CTS line. This causes the
software to hang because no physical connection is present to either CTS line to
make this possible. The only type of communication which is allowed on such a
null modem line is data-only traffic on the cross connected Rx/Tx lines.
Company Confidential 65 Raveon Technologies
14.4 Null modem with full handshaking
In this null modem cable, seven wires are present. The cable is shown in the
following figure.
Null modem with full handshaking
(DB-9 Female shown. Same wiring for male-to-male cable)
Connector 1
Connector 2
Function
2
3
Rx
Tx
3
2
Tx
Rx
4
6
DTR
DSR
5
5
Signal ground
6
4
DSR
DTR
7
8
RTS
CTS
8
7
CTS
RTS
14.5 Compatibility issues
The null modem cable with full handshaking does not permit the older way of flow
control to take place. The main incompatibility is the cross connection of the RTS
and CTS pins. Originally, these pins are used for a question/answer type of flow
control. When the full handshaking null modem cable is used, there is no request
anymore. The lines are purely used for telling the other side if communication is
possible.
The main advantage of this cable is, that there are two signaling lines in each
direction. Both the RTS and DTR outputs can be used to send flow control
information to the other device. This makes it possible to achieve high
communication speeds with this type of null modem cable, provided that the
system has been designed for it.
Company Confidential 66 Raveon Technologies
15 Troubleshooting
Symptom: Unit will not receive
Solution #1. Verify that the modem is on the correct RF channel. If it is, the RX LED should
blink every time another modem tries to transmit to it. If the RX LED does not blink when it
should be receiving, it is on the wrong RF frequency.
Soultion #2. If the addresses match, and RX LED blinks but still no reception of data, verify
that the RTS signal is asserted. The M7-UC will not output data if the RTS signal on the DB-9 I/O
connector is not asserted. If the user’s hardware cannot assert the RTS hardware line, disable
hardware flow control in the M7-UC modem, using the ATCH 0 command.
Solution #3. If the RX LED blinks, verify that the Unit Address of the sending modem matches
the unit address of the receiving modem. If this is OK, verify that the over-the-air baud rate of all
modems is the same (ATR2 command).
Solution #4. Verify Low Power Mode. The M7-UC has an optional Low Power Mode (LPM).
If LPM is enabled, the M7-UC will power down whenever the DTR line of the serial port is turned
off. The Power LED will blink once every 10 seconds in the LPM mode. The ATRP command is
used to set or read the Low Power Mode. ATRP 1 enables it, and ATRP 0 disables it. If LPM is
used (ATRP 1), then the M7-UC will turn off when the DTR line is off, or the program connected
to the serial port is closed, or the RS-232 connector is un plugged.
Symptom: Unit will not transmit
Solution #1. Verify that CTS is wired. Some devices that could be connected to the M7-UC
will require the CTS signal to be asserted. The M7-UC does assert this signal, but if the wire is
not connected, you device may not be outputting data to the M7-UC. If the TX LED blinks, the
M7-UC is transmitting data. Every time data enters the modem, the TX LED should blink
Solution #2. Verify that serial port timeout is OK. The ATG0 command sets the number of
microseconds that the M7-UC will look for in the serial input data stream. If a pause greater than
this value happens, the modem will transmit. If the ATG0 paramter is set very large, say
2000000, this means 2 seconds, and the modem may simply be waiting a long time
Solution #3. Verify that the radio channel is clear or BCL is off. The ATBC 1 command
enables Busy Channel Lockout. If BCL is on, the modem will not transmit on a busy channel.
The ATBC 0 command turns it off, and thus the modem will transmit when it needs to, regardless
if the channel is busy. The RX led on the front of the modem is illuminated whenever the radio
channel is busy (RF present).
Solution #4. Verify Low Power Mode. The M7-UC has an optional Low Power Mode (LPM).
If LPM is enabled, the M7-UC will power down whenever the DTR line of the serial port is turned
off. The Power LED will blink once every 10 seconds in the LPM mode. The ATRP command is
used to set or read the Low Power Mode. ATRP 1 enables it, and ATRP 0 disables it. If LPM is
used (ATRP 1), then the M7-UC will turn off when the DTR line is off, or the program connected
to the serial port is closed, or the RS-232 connector is un plugged.
Symptom: Receive light blinks, but no data is received
Solution #1. Verify Input/Output Configuration. The M7-UC has numerous I/O options.
RS232 is standard, but Ethernet, RS485 or RS422 may be configured also. Use the ATIO
command to view how the I/O is configured. ATIO 0 is the default (RS232 mode).
Solution #2. Verify the serial port baud rate. This is difficult if it is set wrong, because you
cannot enter the command mode to check it. Try all possible baud rates, and see if one of them
works with the modem. Alternately, remove the rear cover of the modem, and press the CONFIG
button. This will force the modem into the Command Mode, as well as set the serial port to 9600
Company Confidential 67 Raveon Technologies
baud, 8 data bits, one stop, and no parity. If the baud-rate was OK, verify the AT, BT and CT
times, that they are long enough for you to enter the +++ string.
Symptom: Long delay before transmitting
Solution #1. Verify that serial port timeout is OK. The ATR3 command sets the number of
milliseconds that the M7-UC will look for in the serial input data stream. If a pause greater than
this value happens, the modem will transmit. If the ATG0 parameter is set very large, say 2000,
this means 2 seconds, and the modem may simply be waiting a long time. Typical settings for
this parameter are 20 (20mS).
Symptom: Modified parameters are lost at power-up
Solution #1. Issue an ATSV command. After any parameter is modified, the modem will
operate with the new setting, but unless the ATSV command is issued, it will revert to the old
setting upon turning power off and back on again. The ATSV command saves all parameters into
EEPROM memory, and these saved parameters are restored upon power up.
Symptom: Cannot enter Command Mode
Solution #1. Verify the serial port baud rate. This is difficult if it is set wrong, because you
cannot enter the command mode to check it. Try all possible baud rates, and see if one of them
works with the modem. Alternately, remove the rear cover of the modem, and press the CONFIG
button. This will force the modem into the Command Mode, as well as set the serial port to 9600
baud, 8 data bits, one stop, and no parity. If the baud-rate was OK, verify the AT, BT and CT
times, that they are long enough for you to enter the +++ string.
Solution #2. Handshaking. You may have hardware handshaking enabled on your terminal
program, but the hardware or cable may not support it. Disable hardware handshaking on your
terminal program to verify this is the issue.
Symptom: Modem appears dead.
Solution #1. Verify the power is on. When the modem has good DC power, the PWR LED
will blink once per second. If it is not blinking, either the modem does not have power, the
modem is broken, or the LEDs have been disabled via the ATL0 command.
Solution #2. Verify the internal fuse OK. There is an internal fuse in the RV-M7, protecting it
from reverse-voltage and electrical failures. If the power LED does not blink or come on when
DC is applied, check the fuse and replace it with the same type 3-amp mini fuse, and try again. If
you replace the fuse, the unit must be carefully check for damage and proper operation before
being installed. If you replace the fuse, you must use a Littlefuse brand fuse, part number
0297003 or Raveon part, number 1X726-3 to maintain calibration of your unit.
Solution #3. Verify Low Power Mode. The M7-UC has an optional Low Power Mode (LPM).
If LPM is enabled, the M7-UC will power down whenever the DTR line of the serial port is turned
off. The Power LED will blink once every 10 seconds in the LPM mode. The ATRP command is
used to set or read the Low Power Mode. ATRP 1 enables it, and ATRP 0 disables it. If LPM is
used (ATRP 1), then the M7-UC will turn off when the DTR line is off, or the program connected
to the serial port is closed, or the RS-232 connector is un plugged.
Company Confidential 68 Raveon Technologies
16 Mechanical
