C1 March 2010 R V - M 7 D a t a Radio Modem T ech n ic a l Ma n ua l Version C1 Feb 2010 (IP65 Weatherproof Version) Raveon Technologies Corporation 2780 La Mirada Drive, Suite C Vista, CA 92081 www.raveontech.com

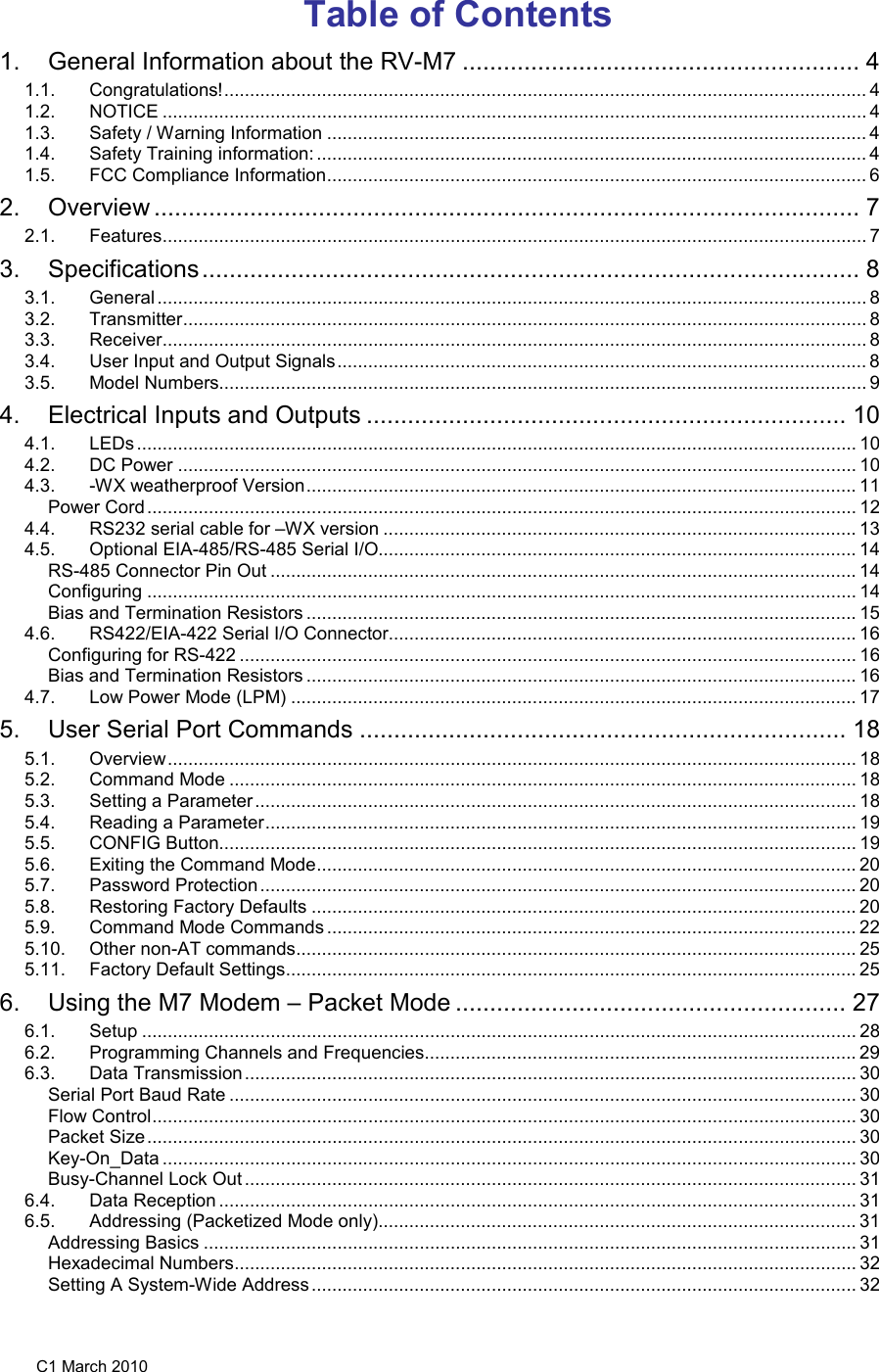

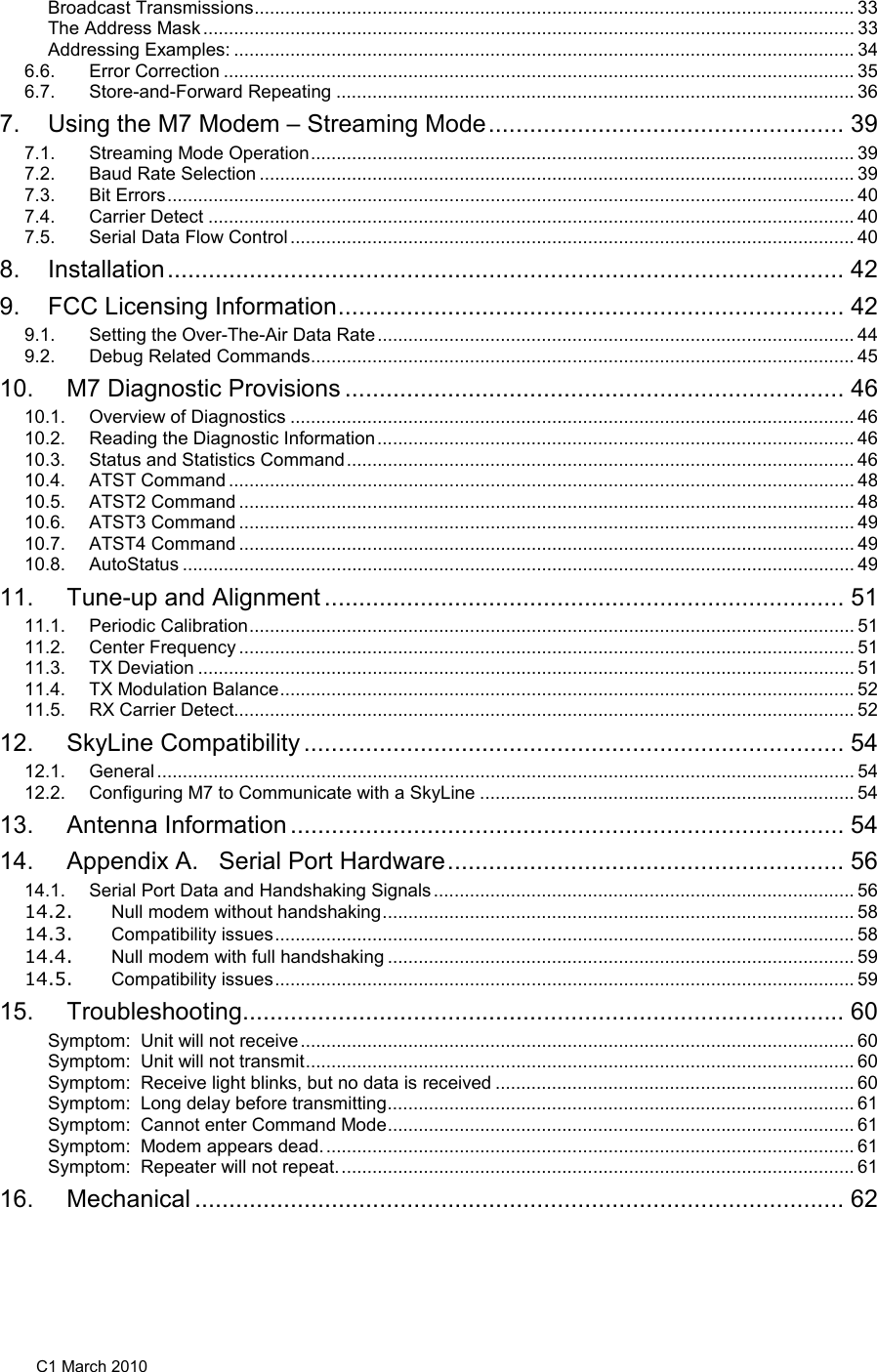

C1 March 2010 Table of Contents 1. General Information about the RV-M7 .......................................................... 4 1.1. Congratulations! ............................................................................................................................. 4 1.2. NOTICE ......................................................................................................................................... 4 1.3. Safety / Warning Information ......................................................................................................... 4 1.4. Safety Training information: ........................................................................................................... 4 1.5. FCC Compliance Information ......................................................................................................... 6 2. Overview ....................................................................................................... 7 2.1. Features ......................................................................................................................................... 7 3. Specifications ................................................................................................ 8 3.1. General .......................................................................................................................................... 8 3.2. Transmitter ..................................................................................................................................... 8 3.3. Receiver ......................................................................................................................................... 8 3.4. User Input and Output Signals ....................................................................................................... 8 3.5. Model Numbers.............................................................................................................................. 9 4. Electrical Inputs and Outputs ...................................................................... 10 4.1. LEDs ............................................................................................................................................ 10 4.2. DC Power .................................................................................................................................... 10 4.3. -WX weatherproof Version ........................................................................................................... 11 Power Cord .......................................................................................................................................... 12 4.4. RS232 serial cable for –WX version ............................................................................................ 13 4.5. Optional EIA-485/RS-485 Serial I/O............................................................................................. 14 RS-485 Connector Pin Out .................................................................................................................. 14 Configuring .......................................................................................................................................... 14 Bias and Termination Resistors ........................................................................................................... 15 4.6. RS422/EIA-422 Serial I/O Connector ........................................................................................... 16 Configuring for RS-422 ........................................................................................................................ 16 Bias and Termination Resistors ........................................................................................................... 16 4.7. Low Power Mode (LPM) .............................................................................................................. 17 5. User Serial Port Commands ....................................................................... 18 5.1. Overview ...................................................................................................................................... 18 5.2. Command Mode .......................................................................................................................... 18 5.3. Setting a Parameter ..................................................................................................................... 18 5.4. Reading a Parameter ................................................................................................................... 19 5.5. CONFIG Button............................................................................................................................ 19 5.6. Exiting the Command Mode ......................................................................................................... 20 5.7. Password Protection .................................................................................................................... 20 5.8. Restoring Factory Defaults .......................................................................................................... 20 5.9. Command Mode Commands ....................................................................................................... 22 5.10. Other non-AT commands ............................................................................................................. 25 5.11. Factory Default Settings ............................................................................................................... 25 6. Using the M7 Modem – Packet Mode ......................................................... 27 6.1. Setup ........................................................................................................................................... 28 6.2. Programming Channels and Frequencies .................................................................................... 29 6.3. Data Transmission ....................................................................................................................... 30 Serial Port Baud Rate .......................................................................................................................... 30 Flow Control ......................................................................................................................................... 30 Packet Size .......................................................................................................................................... 30 Key-On_Data ....................................................................................................................................... 30 Busy-Channel Lock Out ....................................................................................................................... 31 6.4. Data Reception ............................................................................................................................ 31 6.5. Addressing (Packetized Mode only)............................................................................................. 31 Addressing Basics ............................................................................................................................... 31 Hexadecimal Numbers ......................................................................................................................... 32 Setting A System-Wide Address .......................................................................................................... 32
C1 March 2010 Broadcast Transmissions ..................................................................................................................... 33 The Address Mask ............................................................................................................................... 33 Addressing Examples: ......................................................................................................................... 34 6.6. Error Correction ........................................................................................................................... 35 6.7. Store-and-Forward Repeating ..................................................................................................... 36 7. Using the M7 Modem – Streaming Mode .................................................... 39 7.1. Streaming Mode Operation .......................................................................................................... 39 7.2. Baud Rate Selection .................................................................................................................... 39 7.3. Bit Errors ...................................................................................................................................... 40 7.4. Carrier Detect .............................................................................................................................. 40 7.5. Serial Data Flow Control .............................................................................................................. 40 8. Installation ................................................................................................... 42 9. FCC Licensing Information .......................................................................... 42 9.1. Setting the Over-The-Air Data Rate ............................................................................................. 44 9.2. Debug Related Commands .......................................................................................................... 45 10. M7 Diagnostic Provisions ......................................................................... 46 10.1. Overview of Diagnostics .............................................................................................................. 46 10.2. Reading the Diagnostic Information ............................................................................................. 46 10.3. Status and Statistics Command ................................................................................................... 46 10.4. ATST Command .......................................................................................................................... 48 10.5. ATST2 Command ........................................................................................................................ 48 10.6. ATST3 Command ........................................................................................................................ 49 10.7. ATST4 Command ........................................................................................................................ 49 10.8. AutoStatus ................................................................................................................................... 49 11. Tune-up and Alignment ............................................................................ 51 11.1. Periodic Calibration ...................................................................................................................... 51 11.2. Center Frequency ........................................................................................................................ 51 11.3. TX Deviation ................................................................................................................................ 51 11.4. TX Modulation Balance ................................................................................................................ 52 11.5. RX Carrier Detect......................................................................................................................... 52 12. SkyLine Compatibility ............................................................................... 54 12.1. General ........................................................................................................................................ 54 12.2. Configuring M7 to Communicate with a SkyLine ......................................................................... 54 13. Antenna Information ................................................................................. 54 14. Appendix A. Serial Port Hardware .......................................................... 56 14.1. Serial Port Data and Handshaking Signals .................................................................................. 56 14.2. Null modem without handshaking ............................................................................................ 58 14.3. Compatibility issues ................................................................................................................. 58 14.4. Null modem with full handshaking ........................................................................................... 59 14.5. Compatibility issues ................................................................................................................. 59 15. Troubleshooting ........................................................................................ 60 Symptom: Unit will not receive ............................................................................................................ 60 Symptom: Unit will not transmit ........................................................................................................... 60 Symptom: Receive light blinks, but no data is received ...................................................................... 60 Symptom: Long delay before transmitting ........................................................................................... 61 Symptom: Cannot enter Command Mode ........................................................................................... 61 Symptom: Modem appears dead. ....................................................................................................... 61 Symptom: Repeater will not repeat. .................................................................................................... 61 16. Mechanical ............................................................................................... 62
C1 March 2010 1. General Information about the RV-M7 1.1. Congratulations! Congratulations on your purchase of a M7 radio modem – the most advanced radio modem of its kind available today. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio modem. After reading it, keep the manual handy for quick reference, in case questions arise later on. 1.2. NOTICE Besides the fuse, there are no user-serviceable points inside this transceiver. All service work must be referred to your Authorized Service Center or Raveon Technologies Service Department. 1.3. Safety / Warning Information WARNING - DO NOT operate theRV-M7-U radio modem when bystanders are within 2 feet (.6 meters) of the antenna. Blasting Caps and Blasting Areas To avoid possible interference with blasting operations, turn off this radio or remove the DC power when you are near electrical blasting caps, in a blasting area, or in areas posted: “Turn off two-way radio.” Obey all signs and instructions. Potentially Explosive Atmospheres Turn off your radio prior to entering any area with a potentially explosive atmosphere. Do not install this product for use in areas with potentially explosive atmospheres. Do not remove, install, or charge batteries in such areas. Sparks in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death. Note: The areas with potentially explosive atmospheres referred to above include fueling areas such as below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine. Areas with potentially explosive atmospheres are often but not always posted. 1.4. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The radio modem must be used in fixed vehicle-mount configurations or at fixed base-station sites. It is not intended for portable applications. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure conditions of its passengers and bystanders by maintaining the minimum

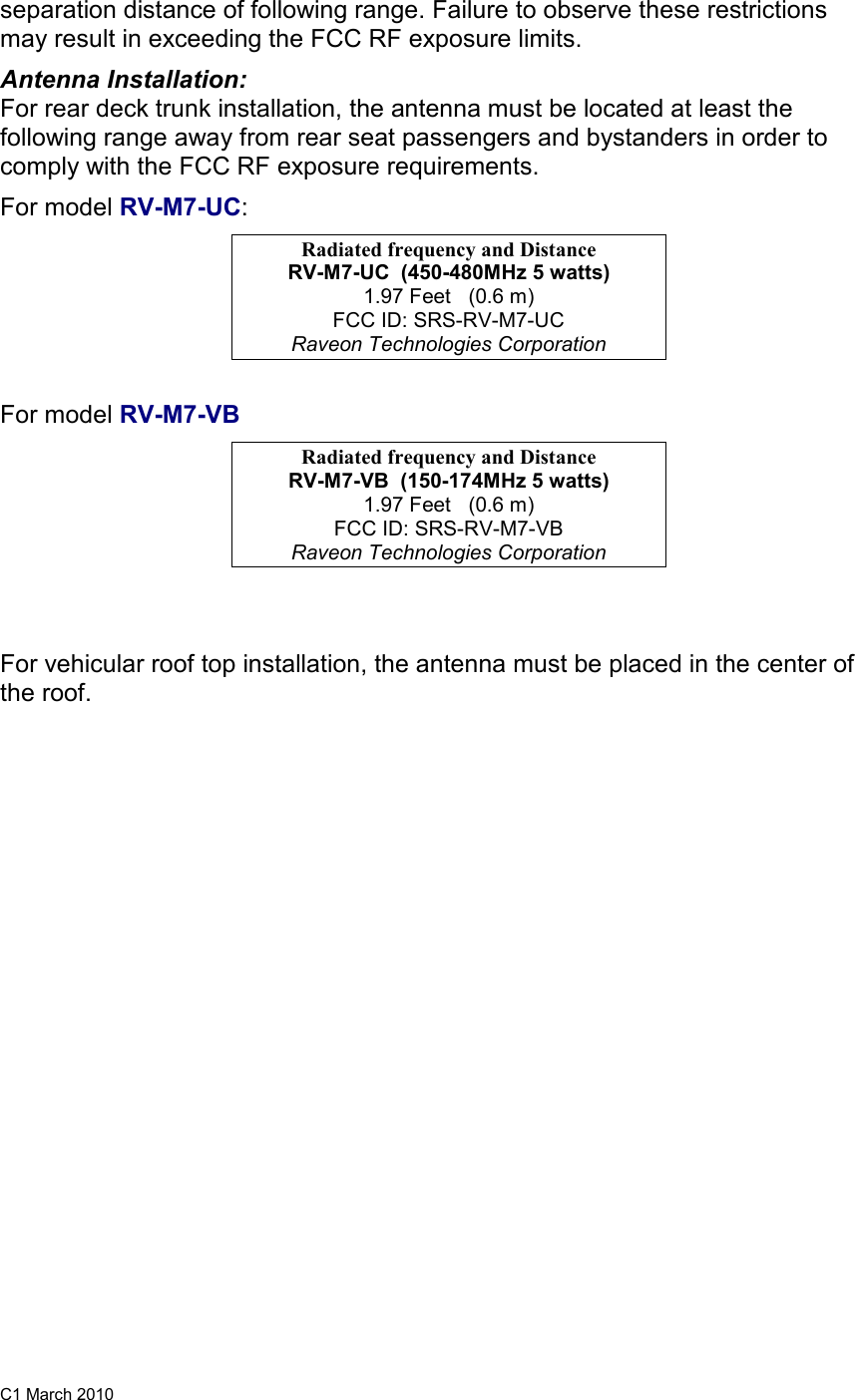

C1 March 2010 separation distance of following range. Failure to observe these restrictions may result in exceeding the FCC RF exposure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least the following range away from rear seat passengers and bystanders in order to comply with the FCC RF exposure requirements. For model RV-M7-UC: Radiated frequency and Distance RV-M7-UC (450-480MHz 5 watts) 1.97 Feet (0.6 m) FCC ID: SRS-RV-M7-UC Raveon Technologies Corporation For model RV-M7-VB Radiated frequency and Distance RV-M7-VB (150-174MHz 5 watts) 1.97 Feet (0.6 m) FCC ID: SRS-RV-M7-VB Raveon Technologies Corporation For vehicular roof top installation, the antenna must be placed in the center of the roof.

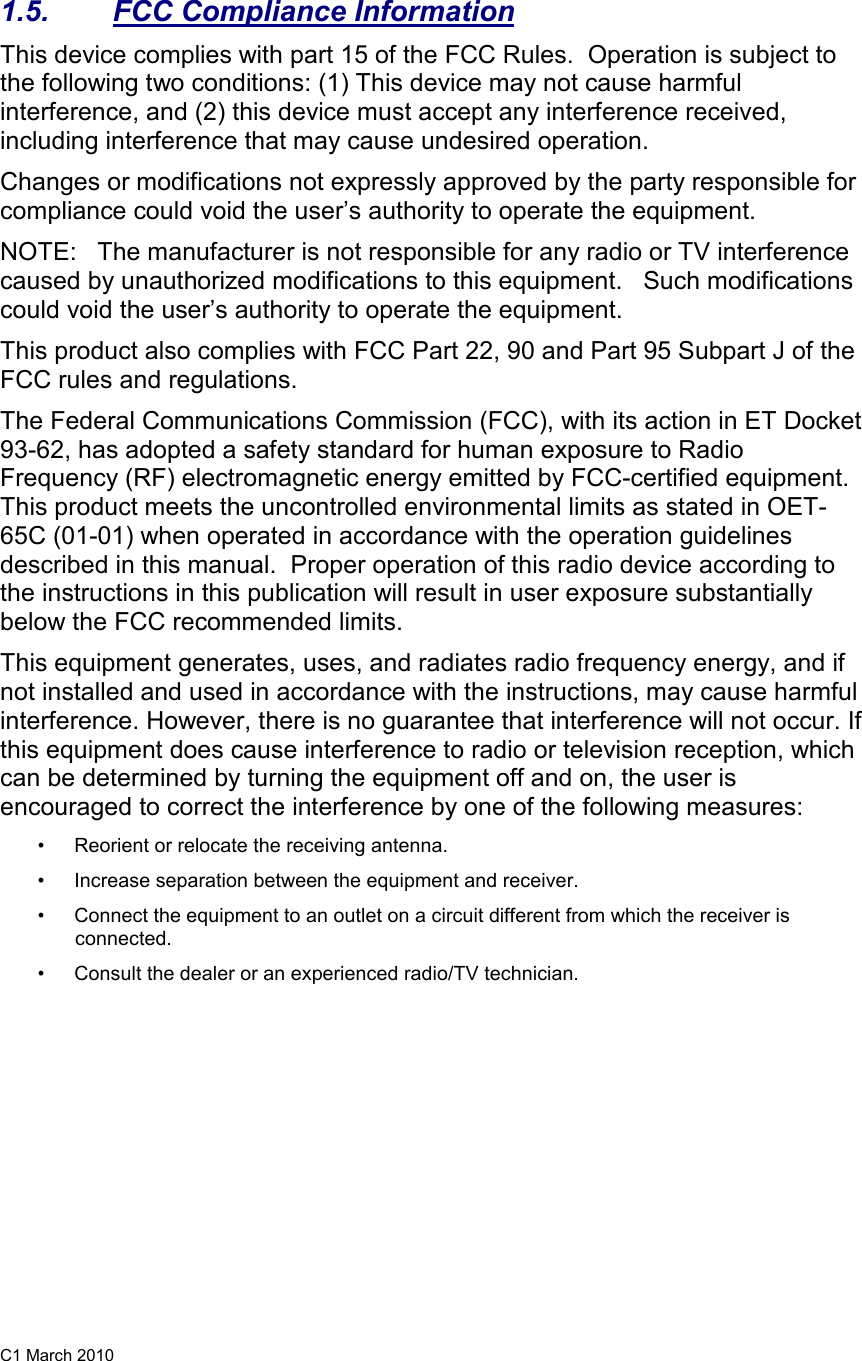

C1 March 2010 1.5. FCC Compliance Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This product also complies with FCC Part 22, 90 and Part 95 Subpart J of the FCC rules and regulations. The Federal Communications Commission (FCC), with its action in ET Docket 93-62, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC-certified equipment. This product meets the uncontrolled environmental limits as stated in OET-65C (01-01) when operated in accordance with the operation guidelines described in this manual. Proper operation of this radio device according to the instructions in this publication will result in user exposure substantially below the FCC recommended limits. This equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. •Increase separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from which the receiver is connected. • Consult the dealer or an experienced radio/TV technician.

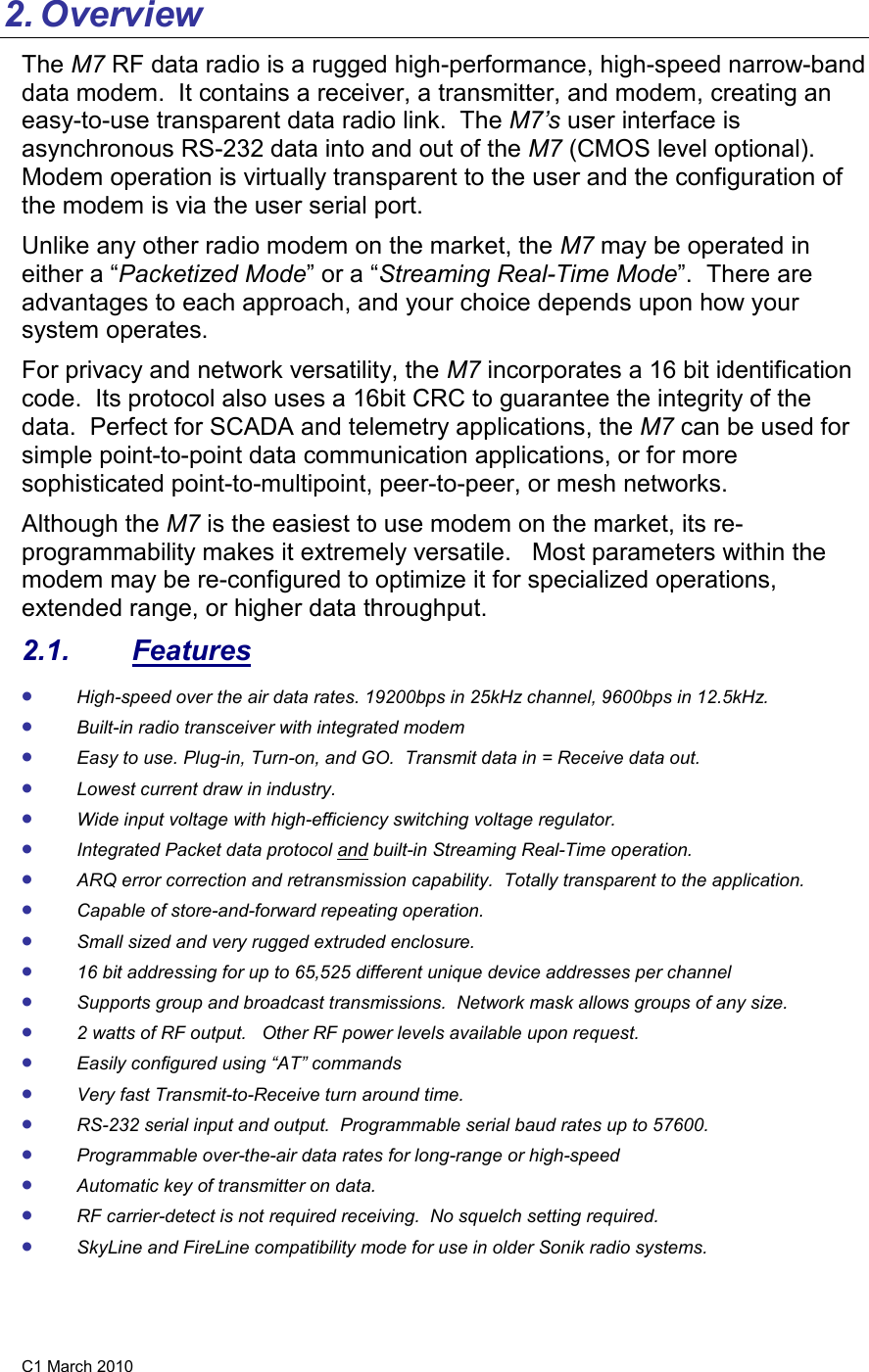

C1 March 2010 2. Overview The M7 RF data radio is a rugged high-performance, high-speed narrow-band data modem. It contains a receiver, a transmitter, and modem, creating an easy-to-use transparent data radio link. The M7’s user interface is asynchronous RS-232 data into and out of the M7 (CMOS level optional). Modem operation is virtually transparent to the user and the configuration of the modem is via the user serial port. Unlike any other radio modem on the market, the M7 may be operated in either a “Packetized Mode” or a “Streaming Real-Time Mode”. There are advantages to each approach, and your choice depends upon how your system operates. For privacy and network versatility, the M7 incorporates a 16 bit identification code. Its protocol also uses a 16bit CRC to guarantee the integrity of the data. Perfect for SCADA and telemetry applications, the M7 can be used for simple point-to-point data communication applications, or for more sophisticated point-to-multipoint, peer-to-peer, or mesh networks. Although the M7 is the easiest to use modem on the market, its re-programmability makes it extremely versatile. Most parameters within the modem may be re-configured to optimize it for specialized operations, extended range, or higher data throughput. 2.1. Features • High-speed over the air data rates. 19200bps in 25kHz channel, 9600bps in 12.5kHz. • Built-in radio transceiver with integrated modem • Easy to use. Plug-in, Turn-on, and GO. Transmit data in = Receive data out. • Lowest current draw in industry. • Wide input voltage with high-efficiency switching voltage regulator. • Integrated Packet data protocol and built-in Streaming Real-Time operation. • ARQ error correction and retransmission capability. Totally transparent to the application. • Capable of store-and-forward repeating operation. • Small sized and very rugged extruded enclosure. • 16 bit addressing for up to 65,525 different unique device addresses per channel • Supports group and broadcast transmissions. Network mask allows groups of any size. • 2 watts of RF output. Other RF power levels available upon request. • Easily configured using “AT” commands • Very fast Transmit-to-Receive turn around time. • RS-232 serial input and output. Programmable serial baud rates up to 57600. • Programmable over-the-air data rates for long-range or high-speed • Automatic key of transmitter on data. • RF carrier-detect is not required receiving. No squelch setting required. • SkyLine and FireLine compatibility mode for use in older Sonik radio systems.

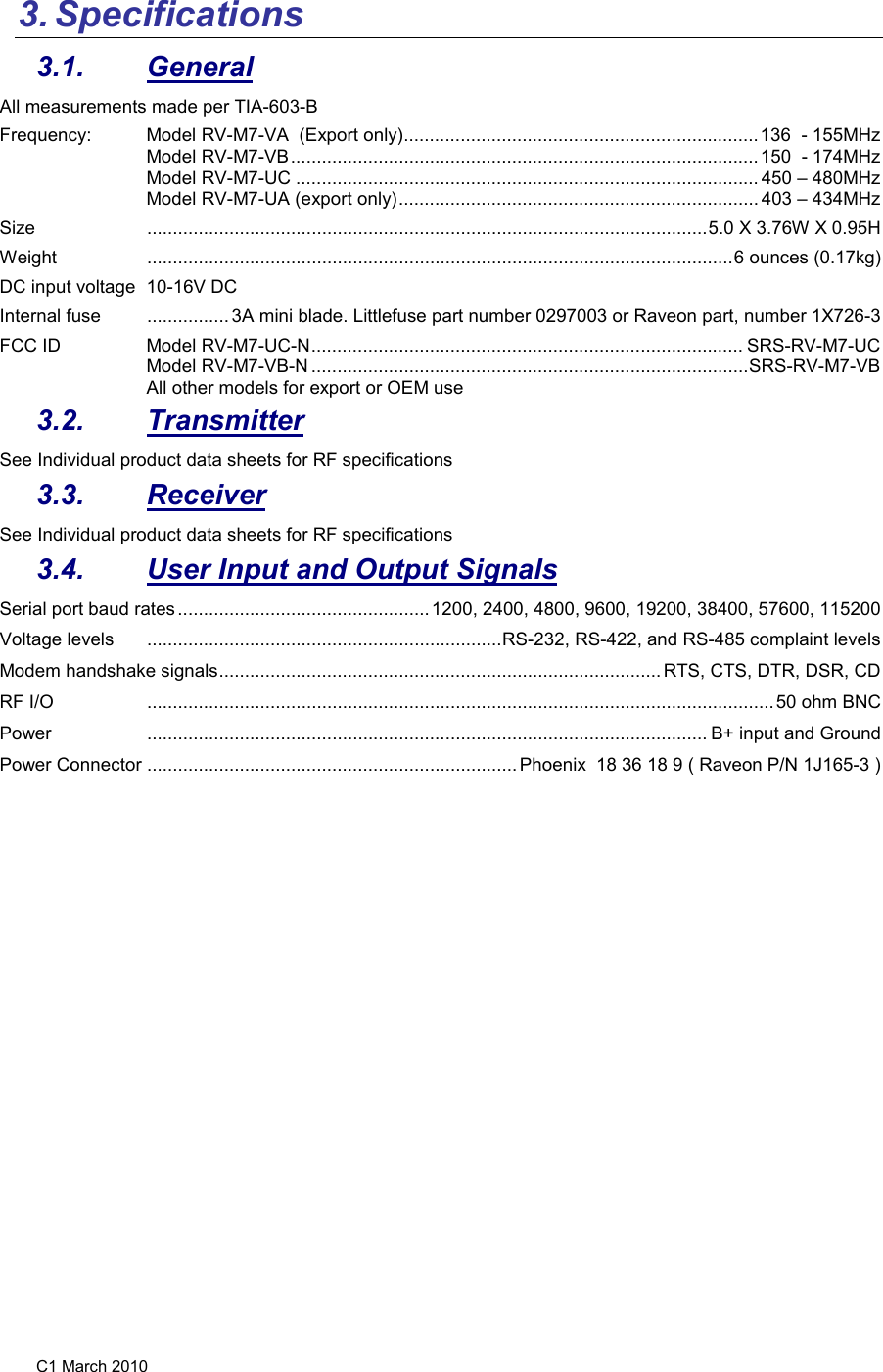

C1 March 2010 3. Specifications 3.1. General All measurements made per TIA-603-B Frequency: Model RV-M7-VA (Export only) ..................................................................... 136 - 155MHz Model RV-M7-VB ........................................................................................... 150 - 174MHz Model RV-M7-UC .......................................................................................... 450 – 480MHz Model RV-M7-UA (export only) ...................................................................... 403 – 434MHz Size ............................................................................................................. 5.0 X 3.76W X 0.95H Weight .................................................................................................................. 6 ounces (0.17kg) DC input voltage 10-16V DC Internal fuse ................ 3A mini blade. Littlefuse part number 0297003 or Raveon part, number 1X726-3 FCC ID Model RV-M7-UC-N .................................................................................... SRS-RV-M7-UC Model RV-M7-VB-N ..................................................................................... SRS-RV-M7-VB All other models for export or OEM use 3.2. Transmitter See Individual product data sheets for RF specifications 3.3. Receiver See Individual product data sheets for RF specifications 3.4. User Input and Output Signals Serial port baud rates ................................................. 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Voltage levels ..................................................................... RS-232, RS-422, and RS-485 complaint levels Modem handshake signals ...................................................................................... RTS, CTS, DTR, DSR, CD RF I/O .......................................................................................................................... 50 ohm BNC Power ............................................................................................................. B+ input and Ground Power Connector ........................................................................ Phoenix 18 36 18 9 ( Raveon P/N 1J165-3 )

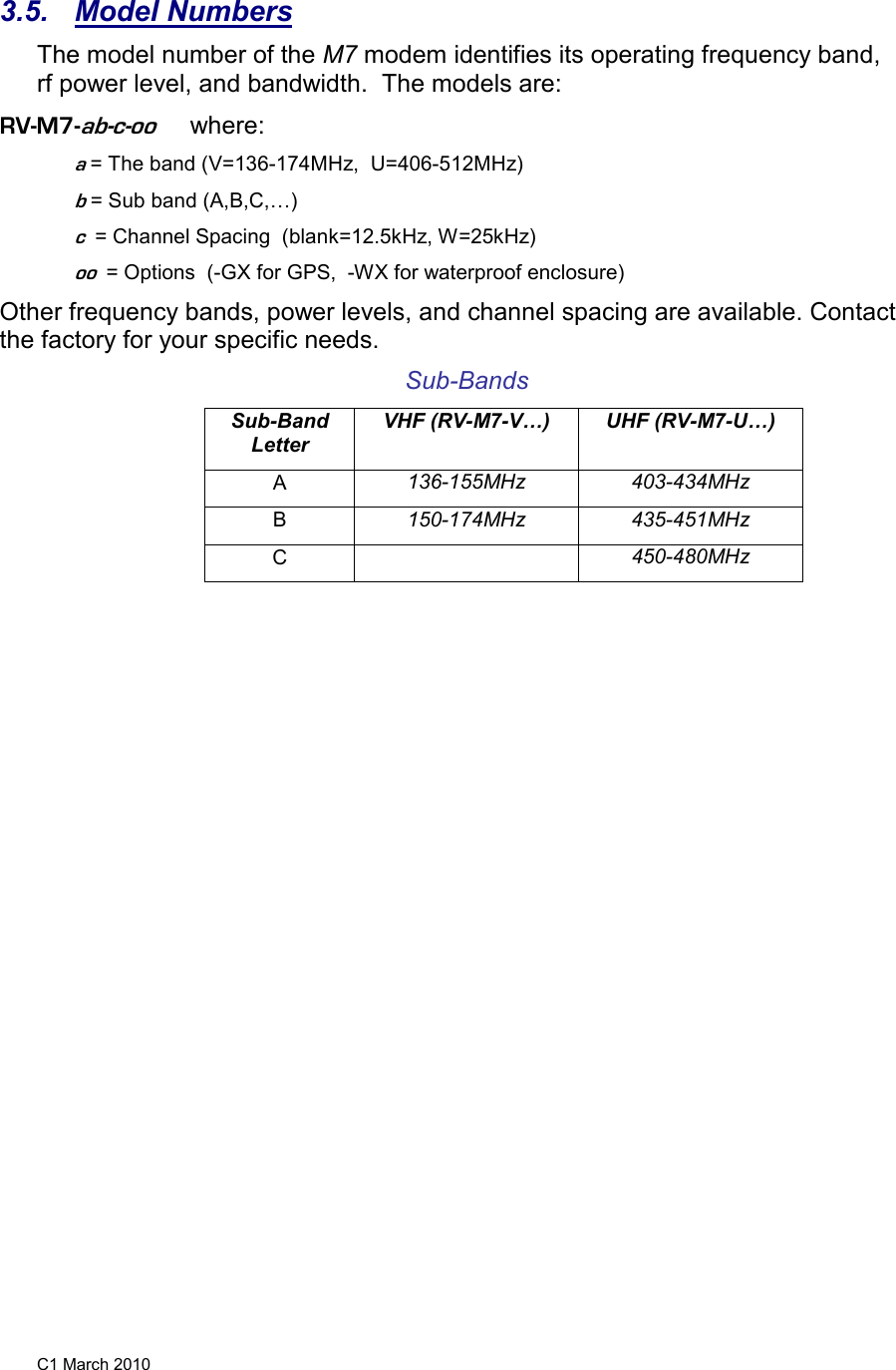

C1 March 2010 3.5. Model Numbers The model number of the M7 modem identifies its operating frequency band, rf power level, and bandwidth. The models are: RV-M7-ab-c-oo where: a = The band (V=136-174MHz, U=406-512MHz) b = Sub band (A,B,C,) c = Channel Spacing (blank=12.5kHz, W=25kHz) oo = Options (-GX for GPS, -WX for waterproof enclosure) Other frequency bands, power levels, and channel spacing are available. Contact the factory for your specific needs. Sub-Bands Sub-Band Letter VHF (RV-M7-V) UHF (RV-M7-U) A 136-155MHz 403-434MHz B 150-174MHz 435-451MHz C 450-480MHz

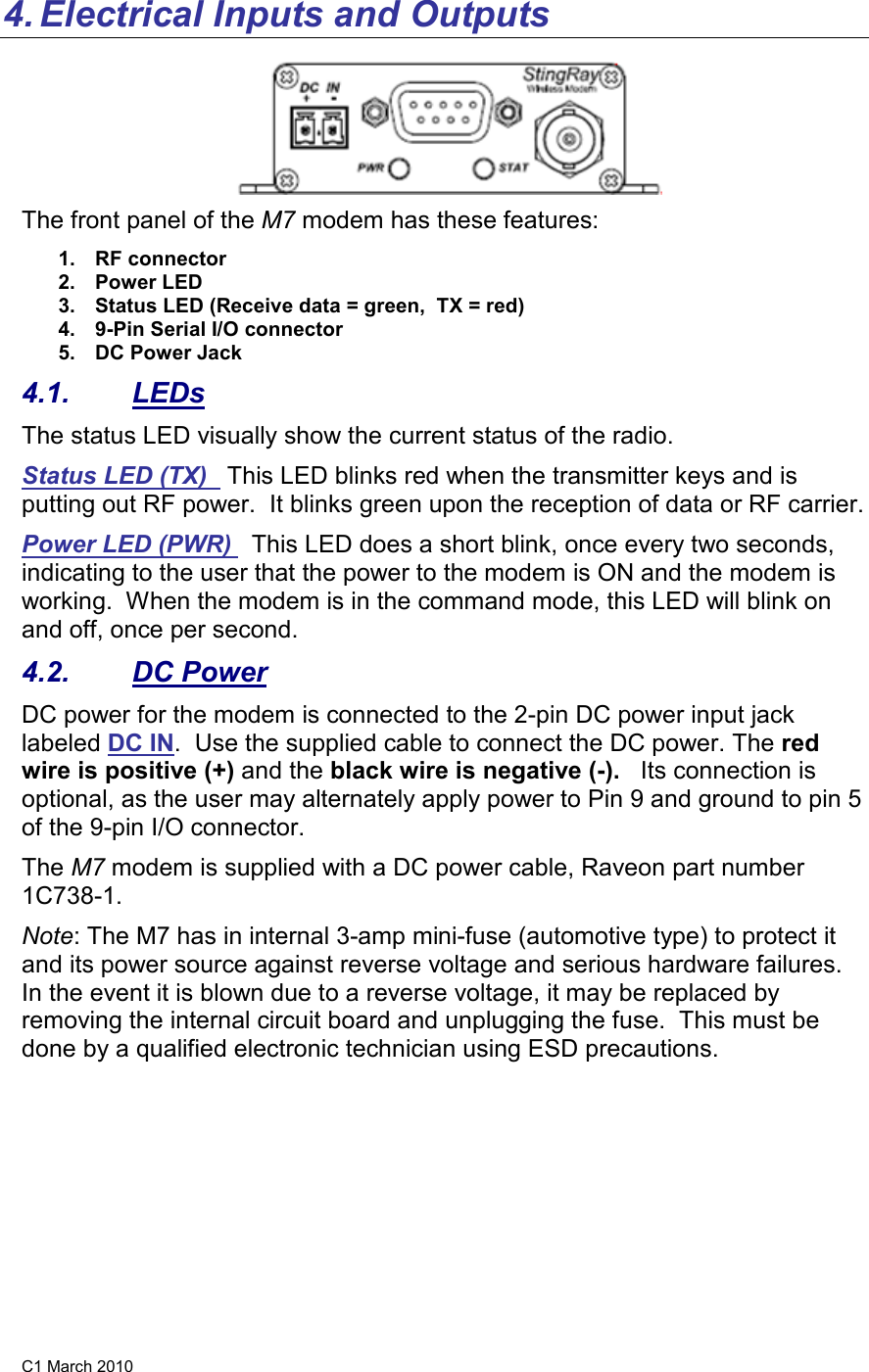

C1 March 2010 4. Electrical Inputs and Outputs The front panel of the M7 modem has these features: 1. RF connector 2. Power LED 3. Status LED (Receive data = green, TX = red) 4. 9-Pin Serial I/O connector 5. DC Power Jack 4.1. LEDs The status LED visually show the current status of the radio. Status LED (TX) This LED blinks red when the transmitter keys and is putting out RF power. It blinks green upon the reception of data or RF carrier. Power LED (PWR) This LED does a short blink, once every two seconds, indicating to the user that the power to the modem is ON and the modem is working. When the modem is in the command mode, this LED will blink on and off, once per second. 4.2. DC Power DC power for the modem is connected to the 2-pin DC power input jack labeled DC IN. Use the supplied cable to connect the DC power. The red wire is positive (+) and the black wire is negative (-). Its connection is optional, as the user may alternately apply power to Pin 9 and ground to pin 5 of the 9-pin I/O connector. The M7 modem is supplied with a DC power cable, Raveon part number 1C738-1. Note: The M7 has in internal 3-amp mini-fuse (automotive type) to protect it and its power source against reverse voltage and serious hardware failures. In the event it is blown due to a reverse voltage, it may be replaced by removing the internal circuit board and unplugging the fuse. This must be done by a qualified electronic technician using ESD precautions.

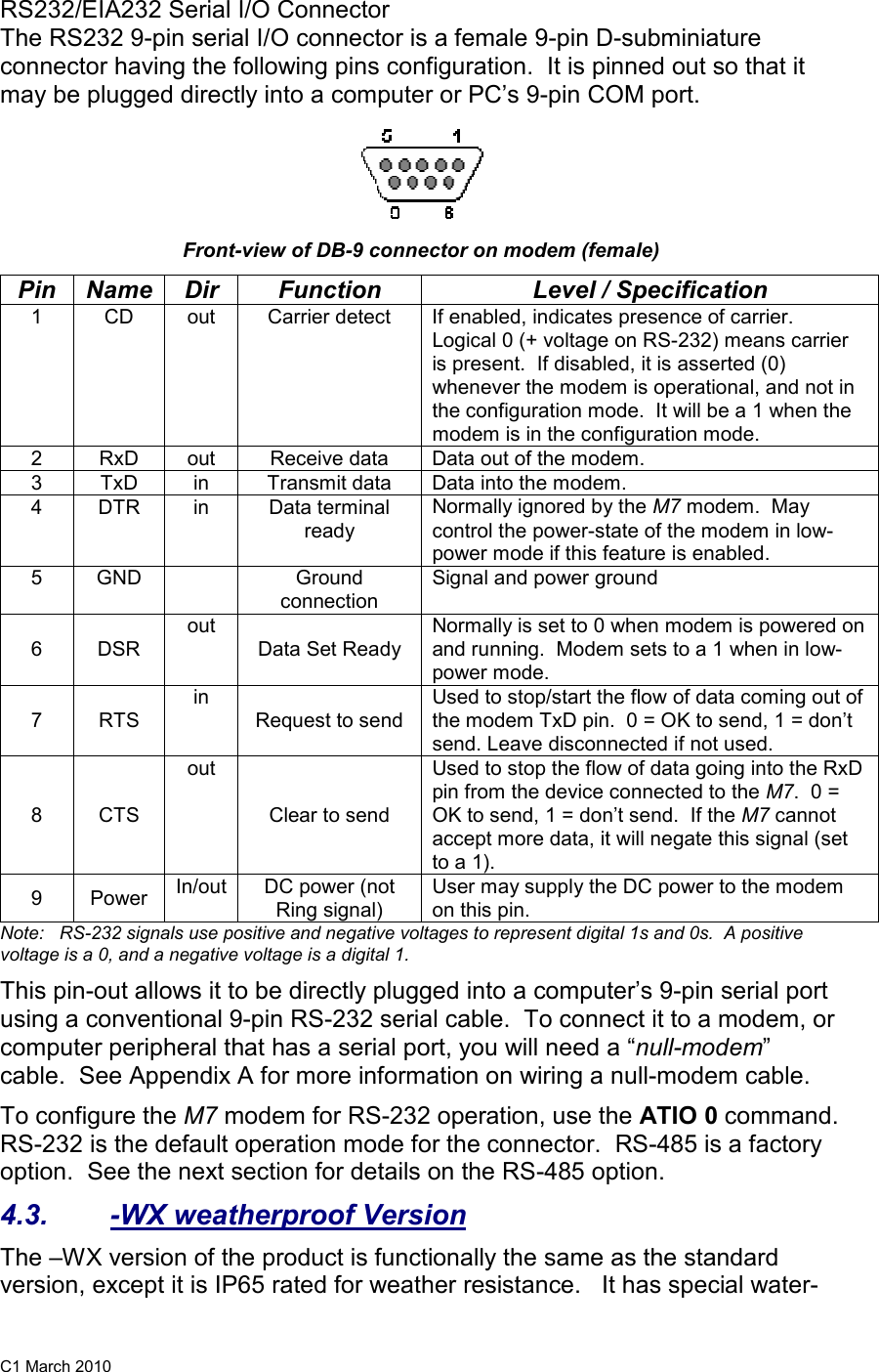

C1 March 2010 RS232/EIA232 Serial I/O Connector The RS232 9-pin serial I/O connector is a female 9-pin D-subminiature connector having the following pins configuration. It is pinned out so that it may be plugged directly into a computer or PC’s 9-pin COM port. Front-view of DB-9 connector on modem (female) Pin Name Dir Function Level / Specification 1 CD out Carrier detect If enabled, indicates presence of carrier. Logical 0 (+ voltage on RS-232) means carrier is present. If disabled, it is asserted (0) whenever the modem is operational, and not in the configuration mode. It will be a 1 when the modem is in the configuration mode. 2 RxD out Receive data Data out of the modem. 3 TxD in Transmit data Data into the modem. 4 DTR in Data terminal ready Normally ignored by the M7 modem. May control the power-state of the modem in low-power mode if this feature is enabled. 5 GND Ground connection Signal and power ground 6 DSR out Data Set Ready Normally is set to 0 when modem is powered on and running. Modem sets to a 1 when in low-power mode. 7 RTS in Request to send Used to stop/start the flow of data coming out of the modem TxD pin. 0 = OK to send, 1 = don’t send. Leave disconnected if not used. 8 CTS out Clear to send Used to stop the flow of data going into the RxD pin from the device connected to the M7. 0 = OK to send, 1 = don’t send. If the M7 cannot accept more data, it will negate this signal (set to a 1). 9 Power In/out DC power (not Ring signal) User may supply the DC power to the modem on this pin. Note: RS-232 signals use positive and negative voltages to represent digital 1s and 0s. A positive voltage is a 0, and a negative voltage is a digital 1. This pin-out allows it to be directly plugged into a computer’s 9-pin serial port using a conventional 9-pin RS-232 serial cable. To connect it to a modem, or computer peripheral that has a serial port, you will need a “null-modem” cable. See Appendix A for more information on wiring a null-modem cable. To configure the M7 modem for RS-232 operation, use the ATIO 0 command. RS-232 is the default operation mode for the connector. RS-485 is a factory option. See the next section for details on the RS-485 option. 4.3. -WX weatherproof Version The –WX version of the product is functionally the same as the standard version, except it is IP65 rated for weather resistance. It has special water-

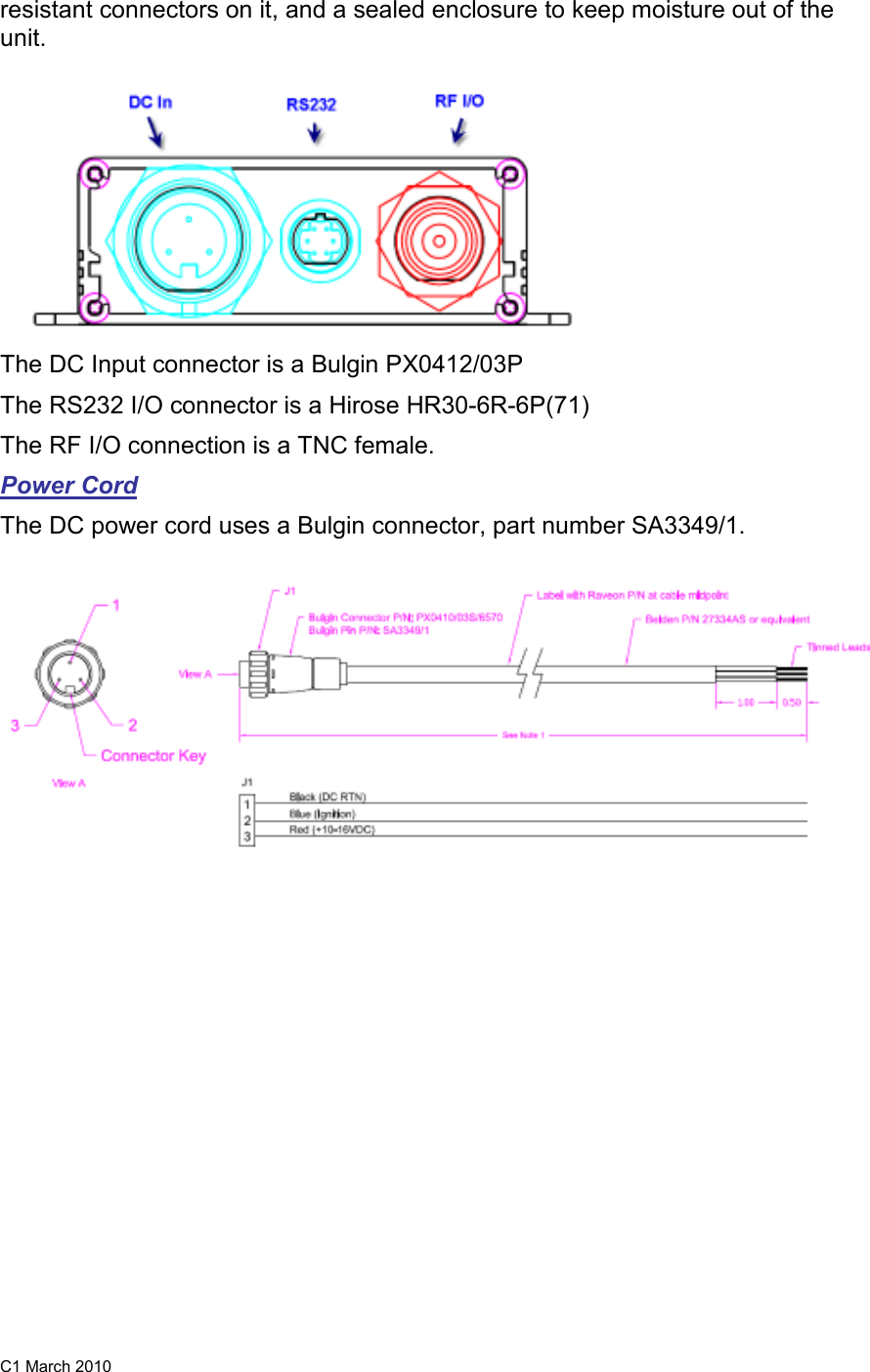

C1 March 2010 resistant connectors on it, and a sealed enclosure to keep moisture out of the unit. The DC Input connector is a Bulgin PX0412/03P The RS232 I/O connector is a Hirose HR30-6R-6P(71) The RF I/O connection is a TNC female. Power Cord The DC power cord uses a Bulgin connector, part number SA3349/1.

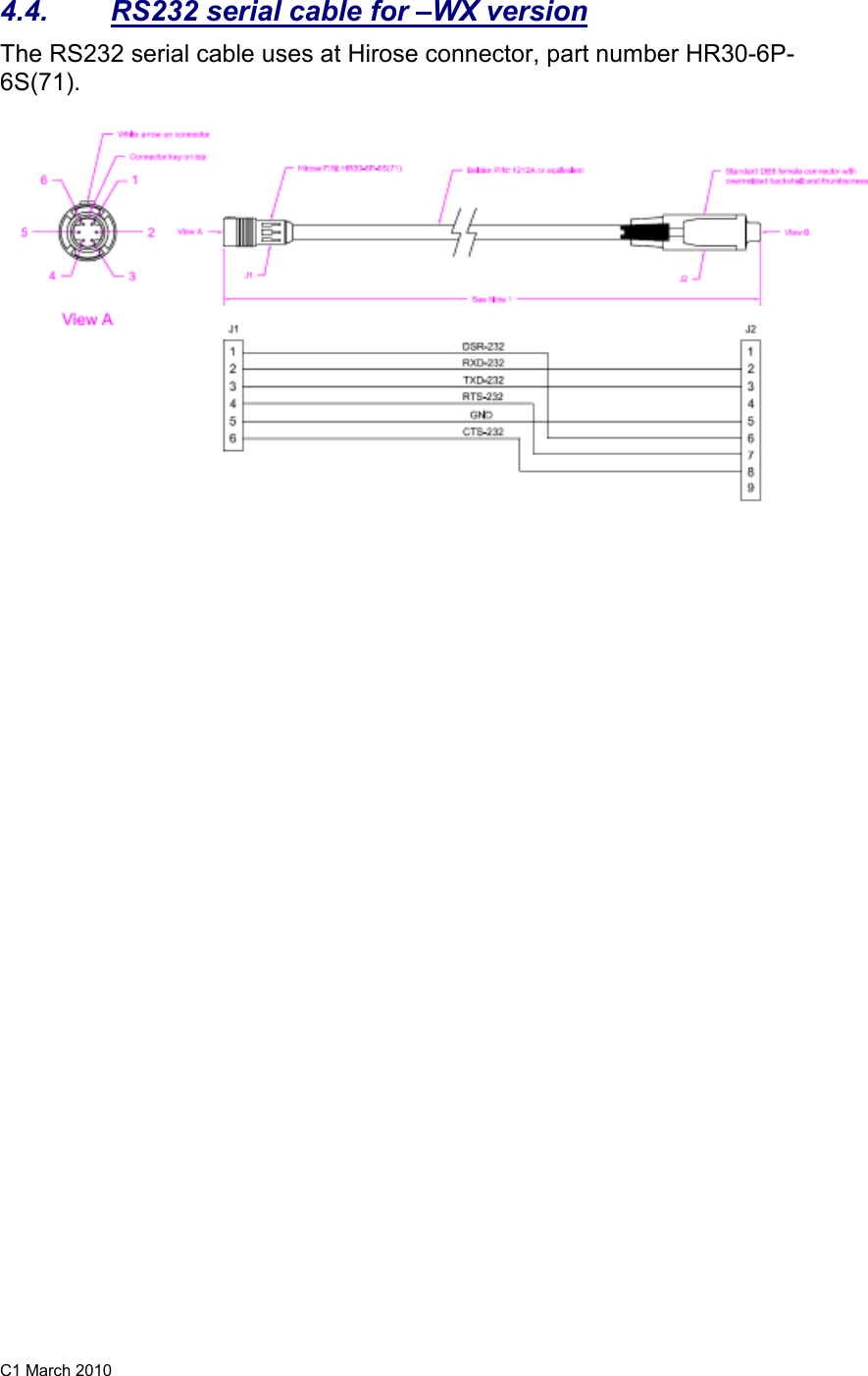

C1 March 2010 4.4. RS232 serial cable for –WX version The RS232 serial cable uses at Hirose connector, part number HR30-6P-6S(71).

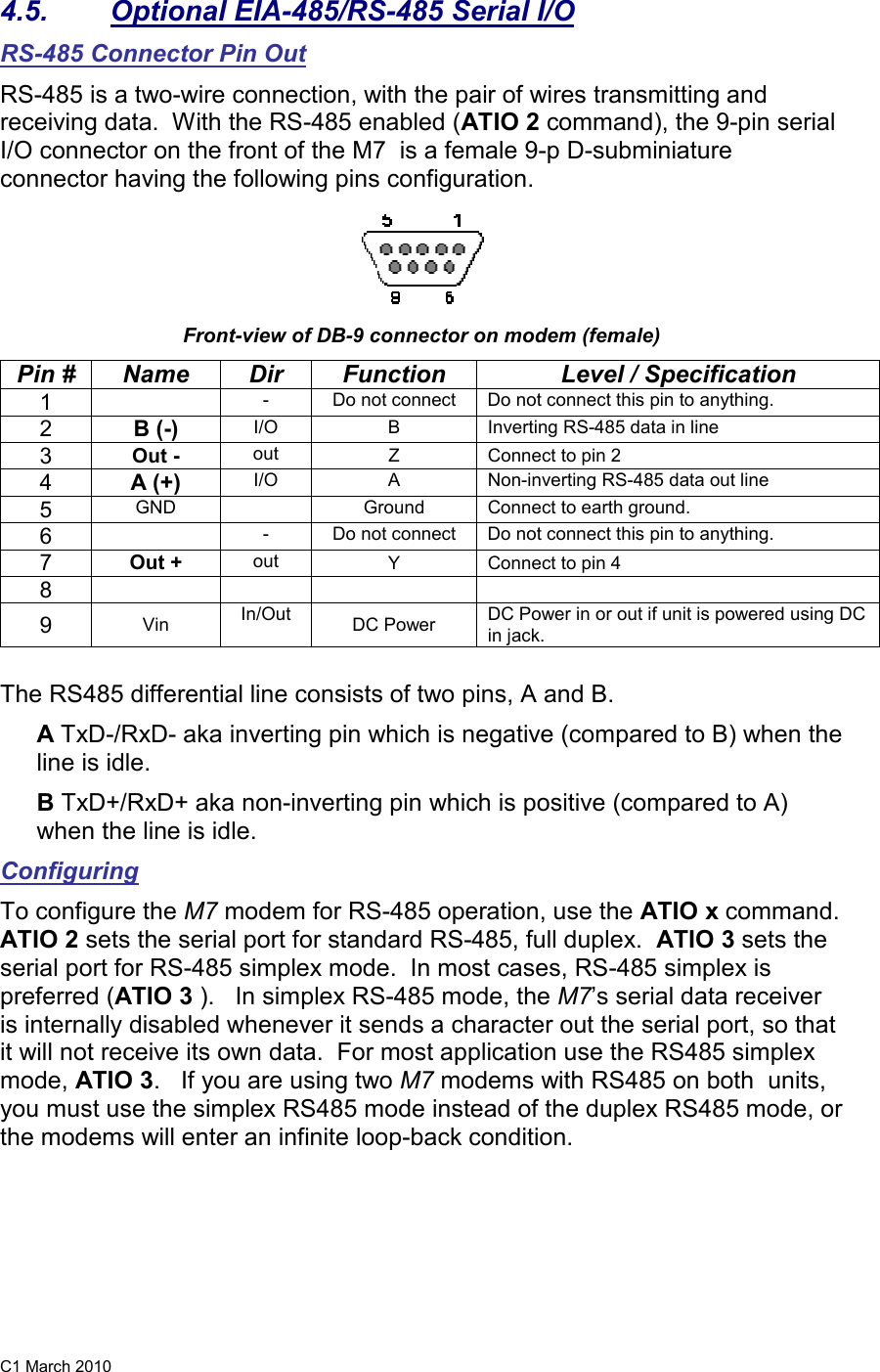

C1 March 2010 4.5. Optional EIA-485/RS-485 Serial I/O RS-485 Connector Pin Out RS-485 is a two-wire connection, with the pair of wires transmitting and receiving data. With the RS-485 enabled (ATIO 2 command), the 9-pin serial I/O connector on the front of the M7 is a female 9-p D-subminiature connector having the following pins configuration. Front-view of DB-9 connector on modem (female) Pin # Name Dir Function Level / Specification 1 - Do not connect Do not connect this pin to anything. 2 B (-) I/O B Inverting RS-485 data in line 3 Out - out Z Connect to pin 2 4 A (+) I/O A Non-inverting RS-485 data out line 5 GND Ground Connect to earth ground. 6 - Do not connect Do not connect this pin to anything. 7 Out + out Y Connect to pin 4 8 9 Vin In/Out DC Power DC Power in or out if unit is powered using DC in jack. The RS485 differential line consists of two pins, A and B. A TxD-/RxD- aka inverting pin which is negative (compared to B) when the line is idle. B TxD+/RxD+ aka non-inverting pin which is positive (compared to A) when the line is idle. Configuring To configure the M7 modem for RS-485 operation, use the ATIO x command. ATIO 2 sets the serial port for standard RS-485, full duplex. ATIO 3 sets the serial port for RS-485 simplex mode. In most cases, RS-485 simplex is preferred (ATIO 3 ). In simplex RS-485 mode, the M7’s serial data receiver is internally disabled whenever it sends a character out the serial port, so that it will not receive its own data. For most application use the RS485 simplex mode, ATIO 3. If you are using two M7 modems with RS485 on both units, you must use the simplex RS485 mode instead of the duplex RS485 mode, or the modems will enter an infinite loop-back condition.
C1 March 2010 Raveon’s RS-485 I/O circuit uses 3.3V logic to drive the lines, and the RS485 pins are ESD protected to ±15kV and 7kV human body model. Input current is less than 150uA. Output current when not driving the line is less than 50uA. Bias and Termination Resistors RS-485 installations typically have a termination resistor across the A and B lines. For low-speed operation (<57600 baud), this resistor is probably not necessary. If you wish to use a terminating resistor, a value of 150 ohms should work in most applications. These A/B pin names are all in use on various types of equipment. The RS485 signaling specification states that signal A is the inverting or '-' pin and signal B is the non-inverting or '+' pin. The same naming is specified in the NMEA standards. When an RS-485 network is in an idle state, all nodes are in listen (receive) mode. Under this condition there are no active drivers on the network. All drivers are tri-stated. Without anything driving the network, the state of the A and B line is unknown. If the voltage level at the receiver's A and B inputs is less than ±200mV the logic level at the output of the receivers will be the value of the last bit received. In order to maintain the proper idle voltage state, bias resistors must be applied to force the data lines to the idle condition.
C1 March 2010 M7 RS-485 receivers have built-in bias resistors, offering the network a true “1/8 unit load”. In most allocations, these internal bias resistors are sufficient, and an external bias resistor is not required. Phoenix Contact/Tyco makes a convenient DB-9 to terminal-block connector, part number 2761839. 4.6. RS422/EIA-422 Serial I/O Connector RS-422 communications uses 4-wire differential signals. The RS422 9-pin serial I/O connector is a female 9-p D-subminiature connector having the following pins configuration. Front-view of DB-9 connector on modem (female) Pin # Name Dir Function Level / Specification 1 - Do not connect Do not connect this pin to anything. 2 B (-) In B Inverting RS-485 data in line 3 Out - out Z Inverting data out pin 4 A (+) in A Non-inverting RS-485 data in line 5 GND Ground Connect to earth ground. 6 - Do not connect Do not connect this pin to anything. 7 Out + out Y No-inverting data out 8 9 Vin In/Out DC Power DC Power in or out if unit is powered using DC in jack. Configuring for RS-422 To configure the M7 modem for RS-422 operation, use the ATIO 4 command. You must order the RS-422 option for this to work, and only M7 modems with Revision E or higher hardware will work in RS-422 mode. The M7’s hardware is identical to the RS-485 version, with the exception of two internal loop-back resistors. Raveon’s RS-422 I/O circuit uses 3.3V logic to drive the lines, and the RS422 pins are ESD protected to ±15kV and 7kV human body model. RS-422 installations typically have a termination resistor across the In and the Out lines. A value of 150 ohms should work in most applications. Bias and Termination Resistors M7 RS-422 receivers have built-in bias resistors, offering the network a true “1/8 unit load”. In most allocations, these internal bias resistors are sufficient, and an external bias resistor is not required. Serial out data comes out pins 3 and 7. Serial input data comes in via pins 4 and 8. Connect pin 5 to earth ground.

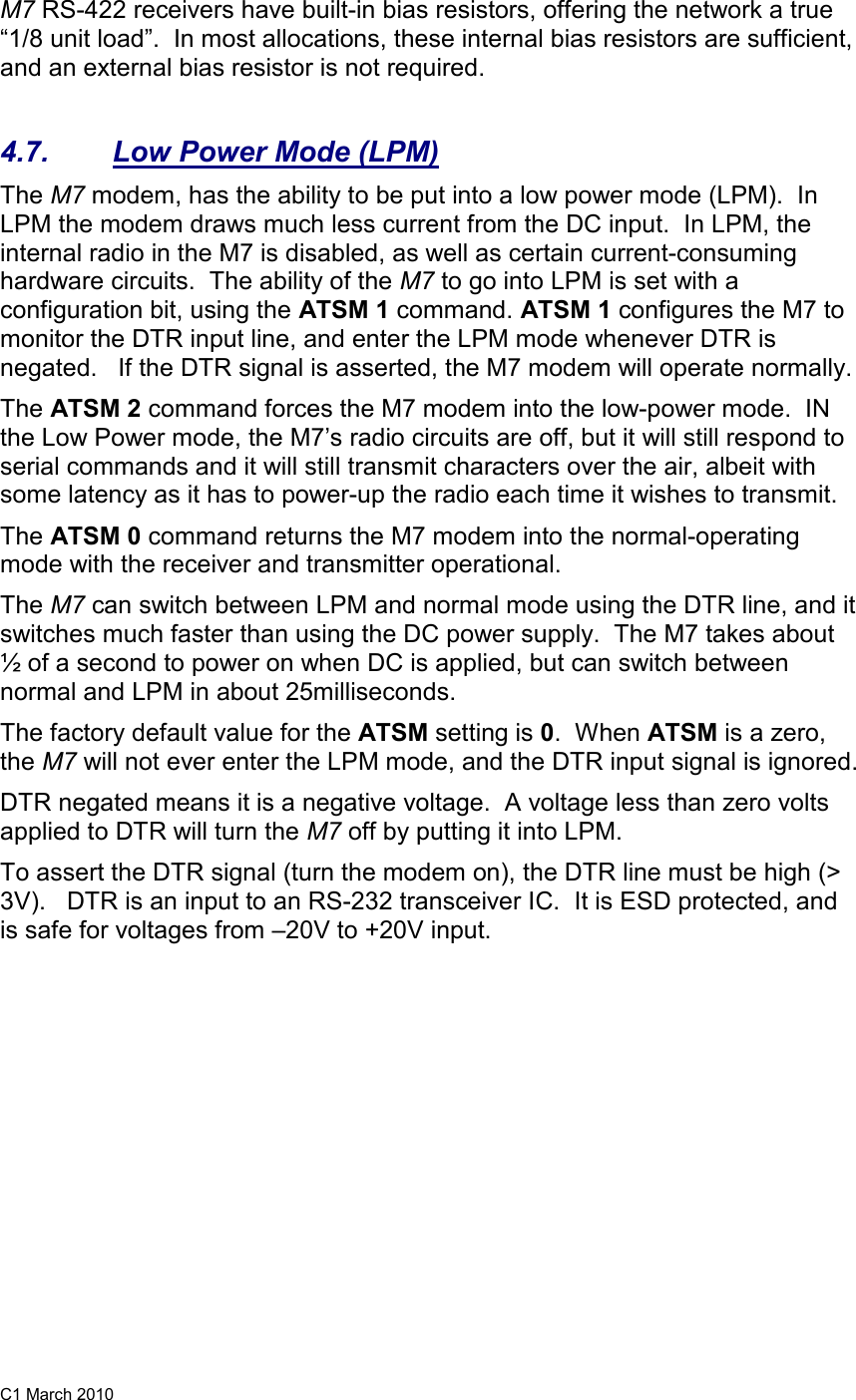

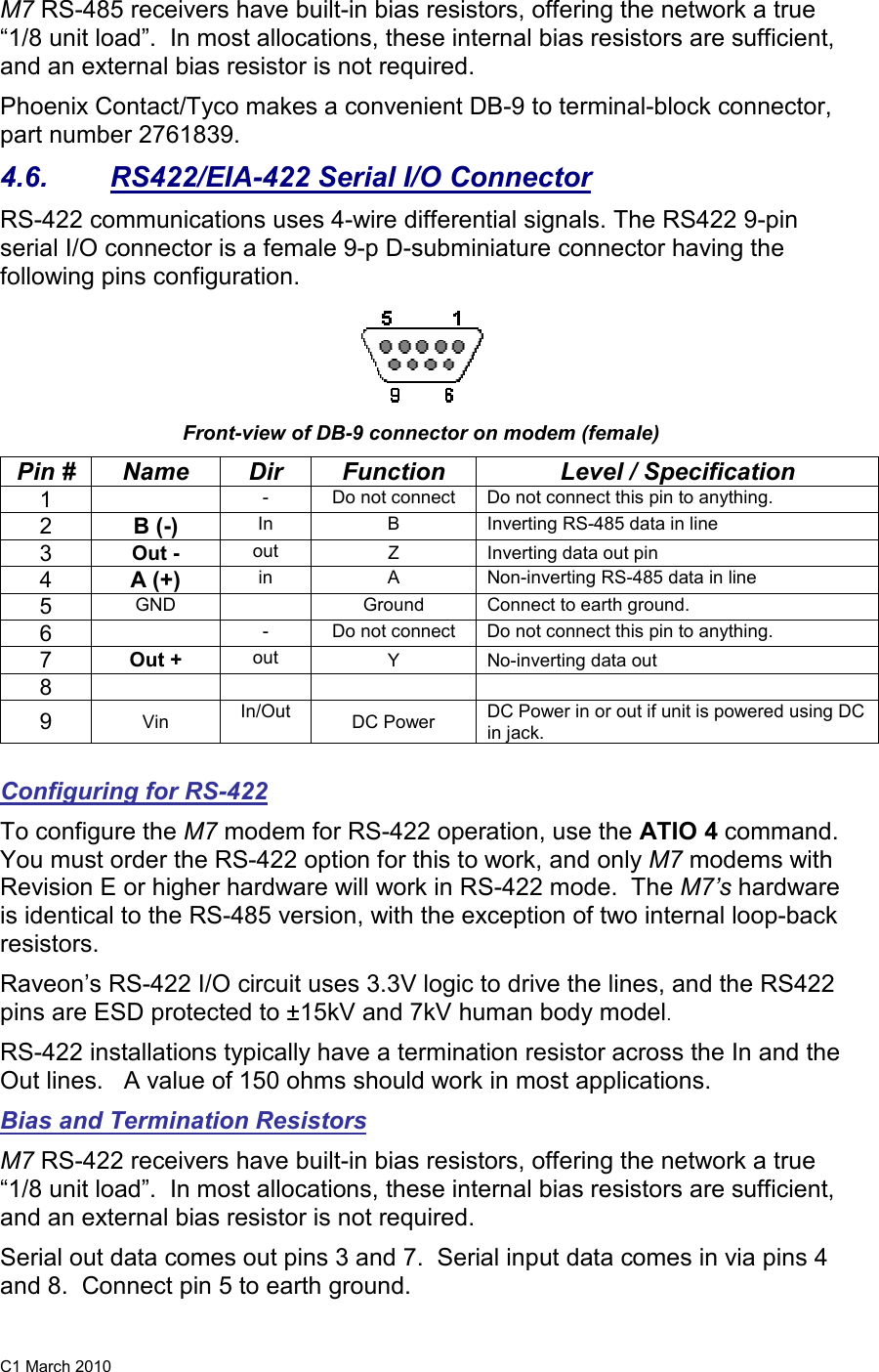

C1 March 2010 M7 RS-422 receivers have built-in bias resistors, offering the network a true “1/8 unit load”. In most allocations, these internal bias resistors are sufficient, and an external bias resistor is not required. 4.7. Low Power Mode (LPM) The M7 modem, has the ability to be put into a low power mode (LPM). In LPM the modem draws much less current from the DC input. In LPM, the internal radio in the M7 is disabled, as well as certain current-consuming hardware circuits. The ability of the M7 to go into LPM is set with a configuration bit, using the ATSM 1 command. ATSM 1 configures the M7 to monitor the DTR input line, and enter the LPM mode whenever DTR is negated. If the DTR signal is asserted, the M7 modem will operate normally. The ATSM 2 command forces the M7 modem into the low-power mode. IN the Low Power mode, the M7’s radio circuits are off, but it will still respond to serial commands and it will still transmit characters over the air, albeit with some latency as it has to power-up the radio each time it wishes to transmit. The ATSM 0 command returns the M7 modem into the normal-operating mode with the receiver and transmitter operational. The M7 can switch between LPM and normal mode using the DTR line, and it switches much faster than using the DC power supply. The M7 takes about ½ of a second to power on when DC is applied, but can switch between normal and LPM in about 25milliseconds. The factory default value for the ATSM setting is 0. When ATSM is a zero, the M7 will not ever enter the LPM mode, and the DTR input signal is ignored. DTR negated means it is a negative voltage. A voltage less than zero volts applied to DTR will turn the M7 off by putting it into LPM. To assert the DTR signal (turn the modem on), the DTR line must be high (> 3V). DTR is an input to an RS-232 transceiver IC. It is ESD protected, and is safe for voltages from –20V to +20V input.

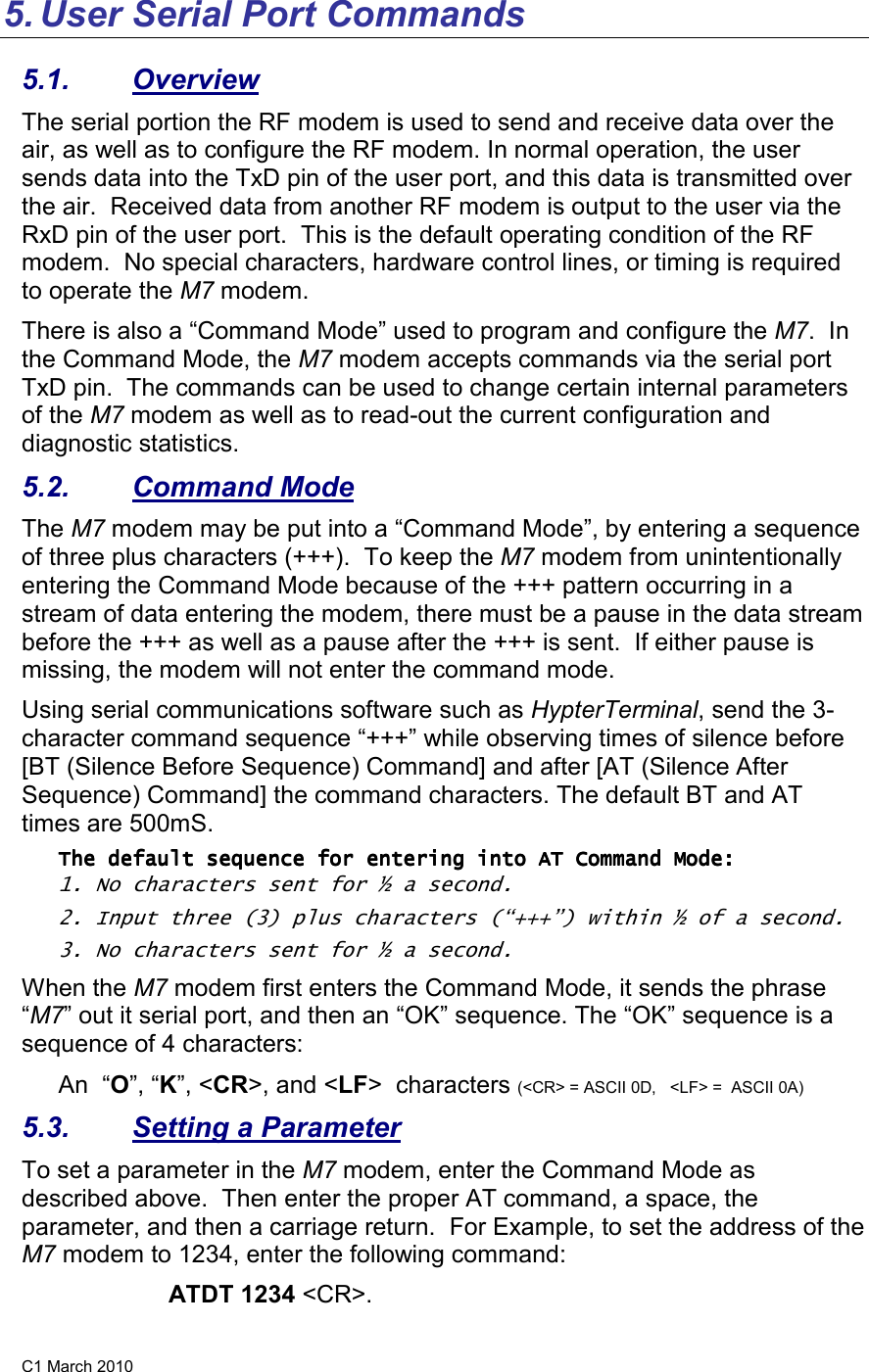

C1 March 2010 5. User Serial Port Commands 5.1. Overview The serial portion the RF modem is used to send and receive data over the air, as well as to configure the RF modem. In normal operation, the user sends data into the TxD pin of the user port, and this data is transmitted over the air. Received data from another RF modem is output to the user via the RxD pin of the user port. This is the default operating condition of the RF modem. No special characters, hardware control lines, or timing is required to operate the M7 modem. There is also a “Command Mode” used to program and configure the M7. In the Command Mode, the M7 modem accepts commands via the serial port TxD pin. The commands can be used to change certain internal parameters of the M7 modem as well as to read-out the current configuration and diagnostic statistics. 5.2. Command Mode The M7 modem may be put into a “Command Mode”, by entering a sequence of three plus characters (+++). To keep the M7 modem from unintentionally entering the Command Mode because of the +++ pattern occurring in a stream of data entering the modem, there must be a pause in the data stream before the +++ as well as a pause after the +++ is sent. If either pause is missing, the modem will not enter the command mode. Using serial communications software such as HypterTerminal, send the 3-character command sequence “+++” while observing times of silence before [BT (Silence Before Sequence) Command] and after [AT (Silence After Sequence) Command] the command characters. The default BT and AT times are 500mS. The default sequence for entering into AT Command Mode:The default sequence for entering into AT Command Mode:The default sequence for entering into AT Command Mode:The default sequence for entering into AT Command Mode: 1. No characters sent for ½ a second. 2. Input three (3) plus characters (“+++”) within ½ of a second. 3. No characters sent for ½ a second. When the M7 modem first enters the Command Mode, it sends the phrase “M7” out it serial port, and then an “OK” sequence. The “OK” sequence is a sequence of 4 characters: An “O”, “K”, <CR>, and <LF> characters (<CR> = ASCII 0D, <LF> = ASCII 0A) 5.3. Setting a Parameter To set a parameter in the M7 modem, enter the Command Mode as described above. Then enter the proper AT command, a space, the parameter, and then a carriage return. For Example, to set the address of the M7 modem to 1234, enter the following command: ATDT 1234 <CR>.

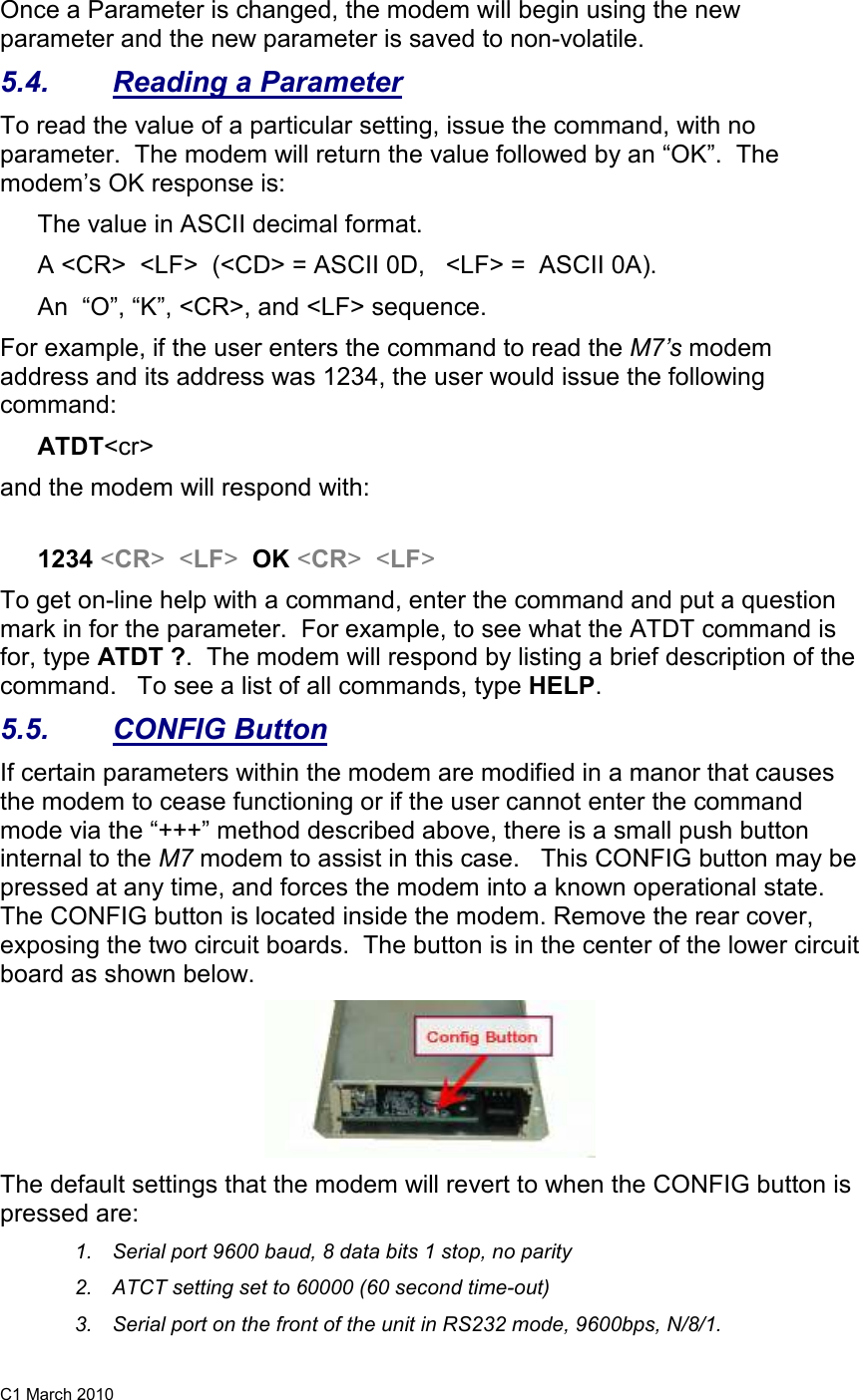

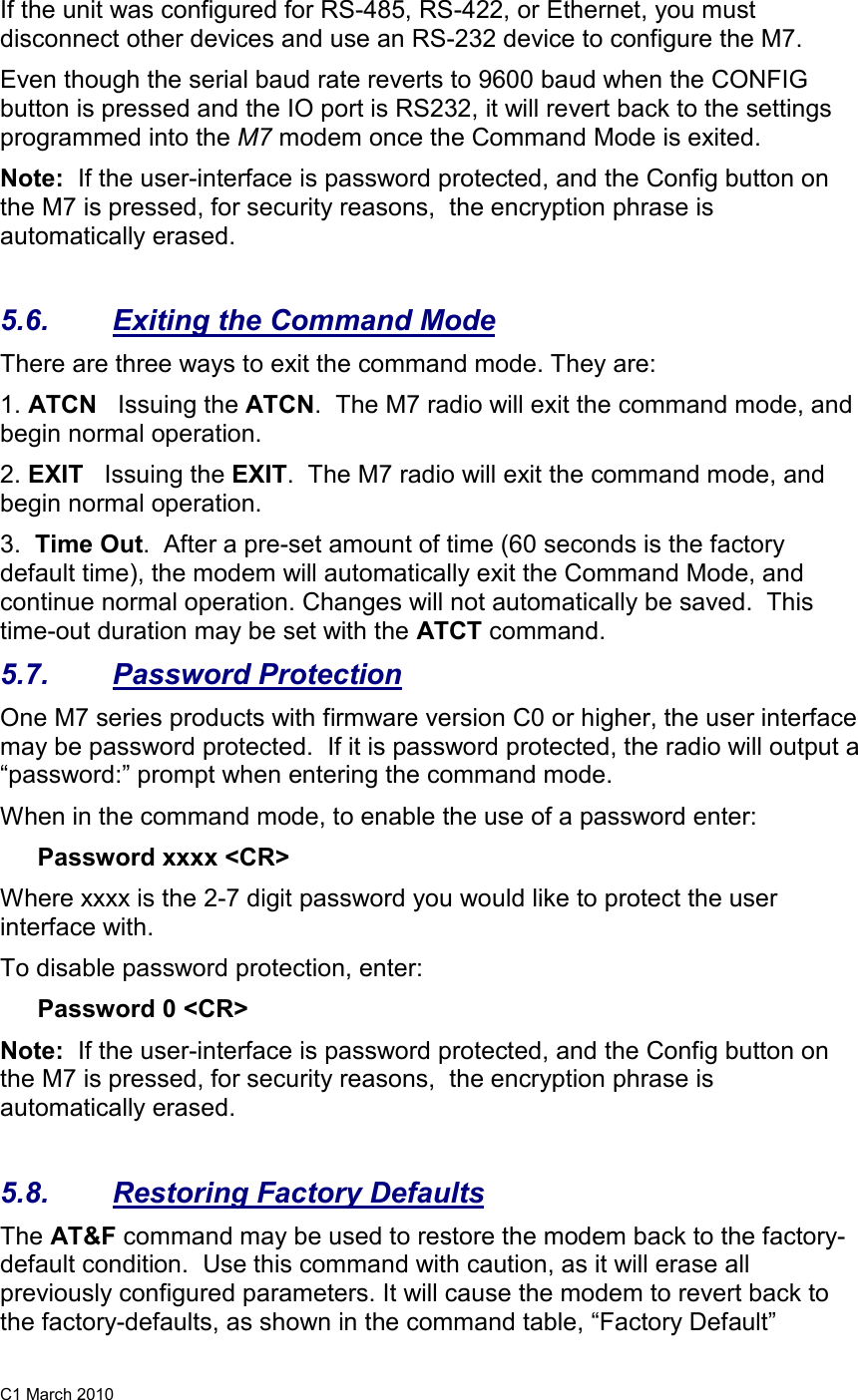

C1 March 2010 Once a Parameter is changed, the modem will begin using the new parameter and the new parameter is saved to non-volatile. 5.4. Reading a Parameter To read the value of a particular setting, issue the command, with no parameter. The modem will return the value followed by an “OK”. The modem’s OK response is: The value in ASCII decimal format. A <CR> <LF> (<CD> = ASCII 0D, <LF> = ASCII 0A). An “O”, “K”, <CR>, and <LF> sequence. For example, if the user enters the command to read the M7’s modem address and its address was 1234, the user would issue the following command: ATDT<cr> and the modem will respond with: 1234 <CR> <LF> OK <CR> <LF> To get on-line help with a command, enter the command and put a question mark in for the parameter. For example, to see what the ATDT command is for, type ATDT ?. The modem will respond by listing a brief description of the command. To see a list of all commands, type HELP. 5.5. CONFIG Button If certain parameters within the modem are modified in a manor that causes the modem to cease functioning or if the user cannot enter the command mode via the “+++” method described above, there is a small push button internal to the M7 modem to assist in this case. This CONFIG button may be pressed at any time, and forces the modem into a known operational state. The CONFIG button is located inside the modem. Remove the rear cover, exposing the two circuit boards. The button is in the center of the lower circuit board as shown below. The default settings that the modem will revert to when the CONFIG button is pressed are: 1. Serial port 9600 baud, 8 data bits 1 stop, no parity 2. ATCT setting set to 60000 (60 second time-out) 3. Serial port on the front of the unit in RS232 mode, 9600bps, N/8/1.
C1 March 2010 If the unit was configured for RS-485, RS-422, or Ethernet, you must disconnect other devices and use an RS-232 device to configure the M7. Even though the serial baud rate reverts to 9600 baud when the CONFIG button is pressed and the IO port is RS232, it will revert back to the settings programmed into the M7 modem once the Command Mode is exited. Note: If the user-interface is password protected, and the Config button on the M7 is pressed, for security reasons, the encryption phrase is automatically erased. 5.6. Exiting the Command Mode There are three ways to exit the command mode. They are: 1. ATCN Issuing the ATCN. The M7 radio will exit the command mode, and begin normal operation. 2. EXIT Issuing the EXIT. The M7 radio will exit the command mode, and begin normal operation. 3. Time Out. After a pre-set amount of time (60 seconds is the factory default time), the modem will automatically exit the Command Mode, and continue normal operation. Changes will not automatically be saved. This time-out duration may be set with the ATCT command. 5.7. Password Protection One M7 series products with firmware version C0 or higher, the user interface may be password protected. If it is password protected, the radio will output a “password:” prompt when entering the command mode. When in the command mode, to enable the use of a password enter: Password xxxx <CR> Where xxxx is the 2-7 digit password you would like to protect the user interface with. To disable password protection, enter: Password 0 <CR> Note: If the user-interface is password protected, and the Config button on the M7 is pressed, for security reasons, the encryption phrase is automatically erased. 5.8. Restoring Factory Defaults The AT&F command may be used to restore the modem back to the factory-default condition. Use this command with caution, as it will erase all previously configured parameters. It will cause the modem to revert back to the factory-defaults, as shown in the command table, “Factory Default”

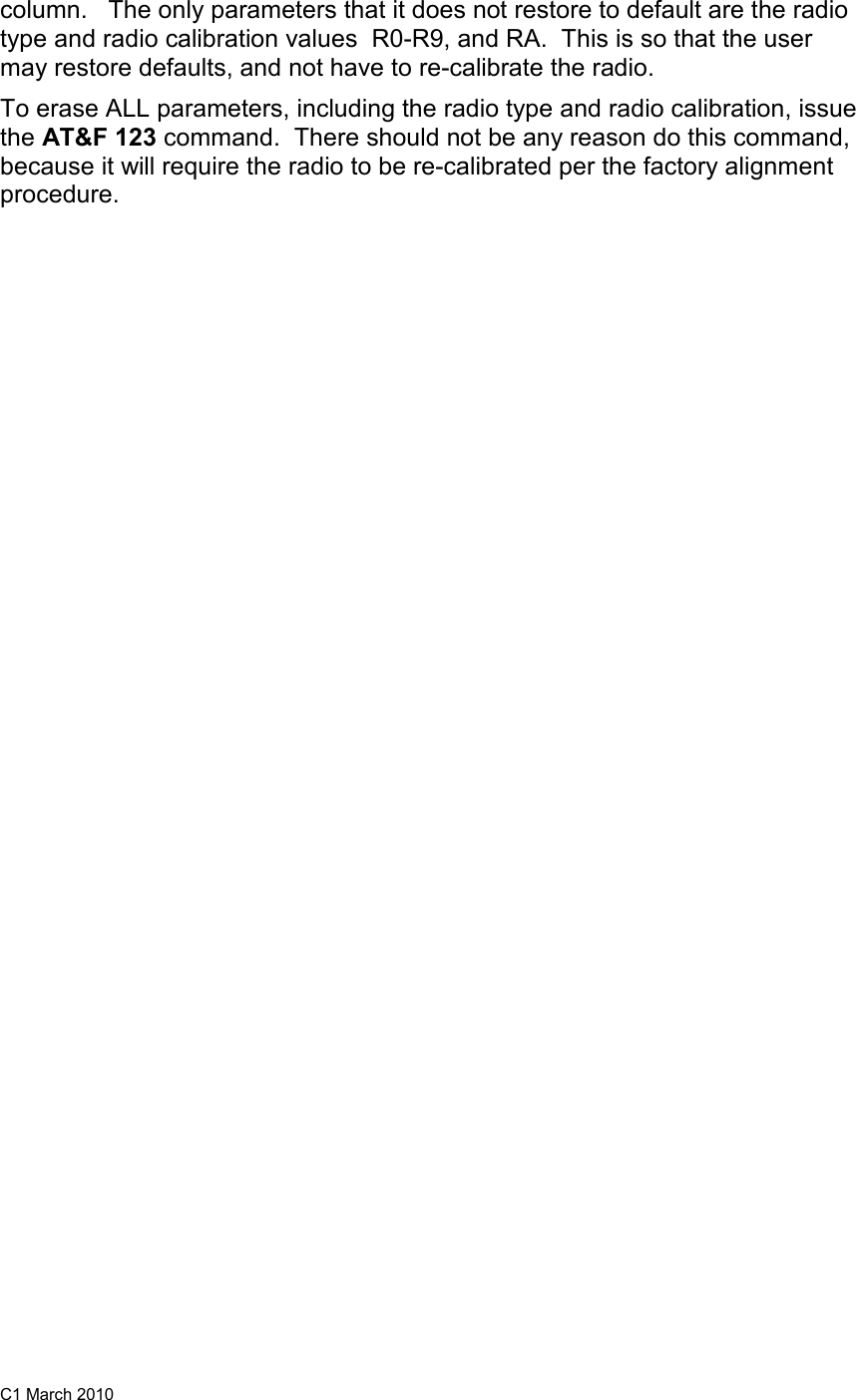

C1 March 2010 column. The only parameters that it does not restore to default are the radio type and radio calibration values R0-R9, and RA. This is so that the user may restore defaults, and not have to re-calibrate the radio. To erase ALL parameters, including the radio type and radio calibration, issue the AT&F 123 command. There should not be any reason do this command, because it will require the radio to be re-calibrated per the factory alignment procedure.

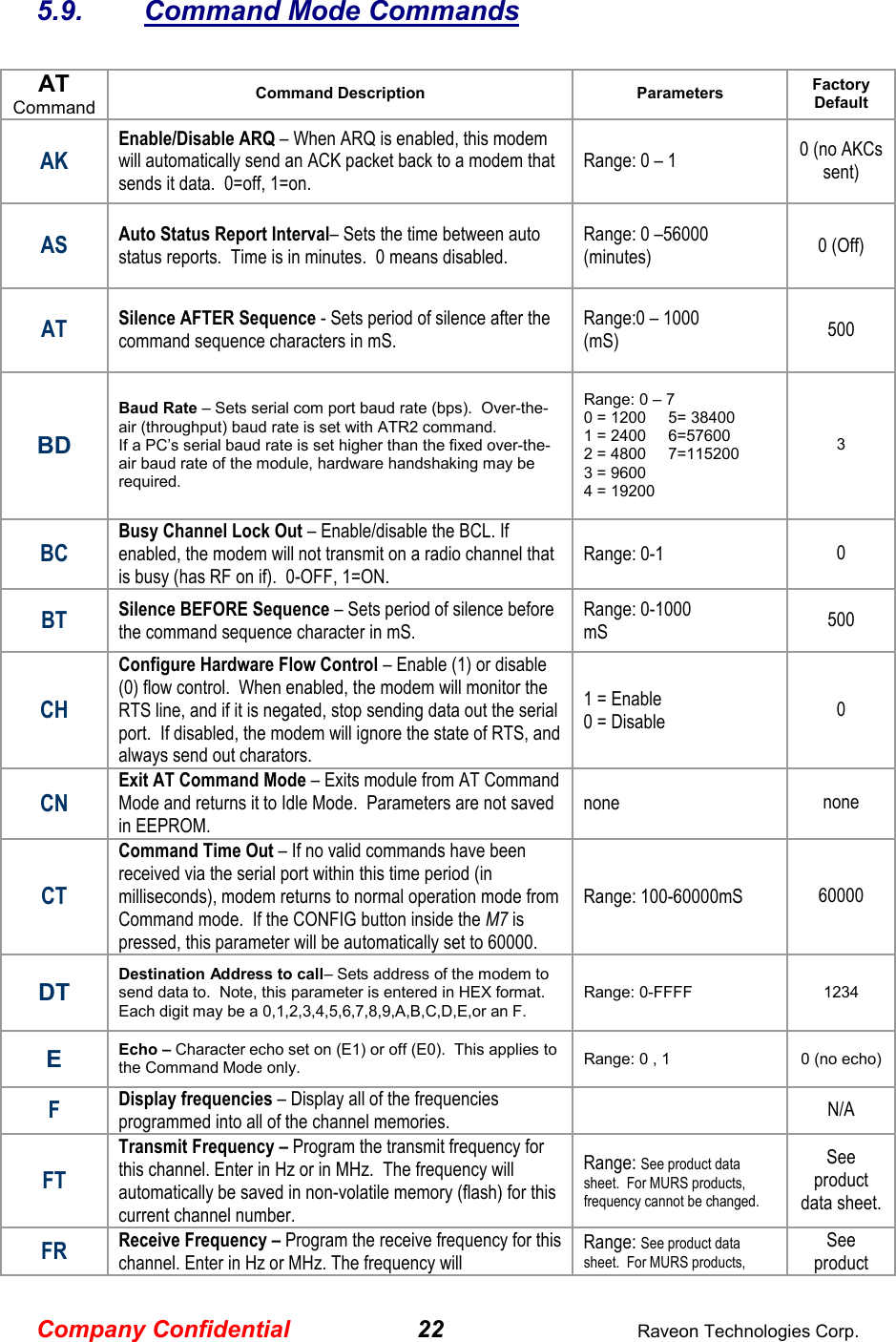

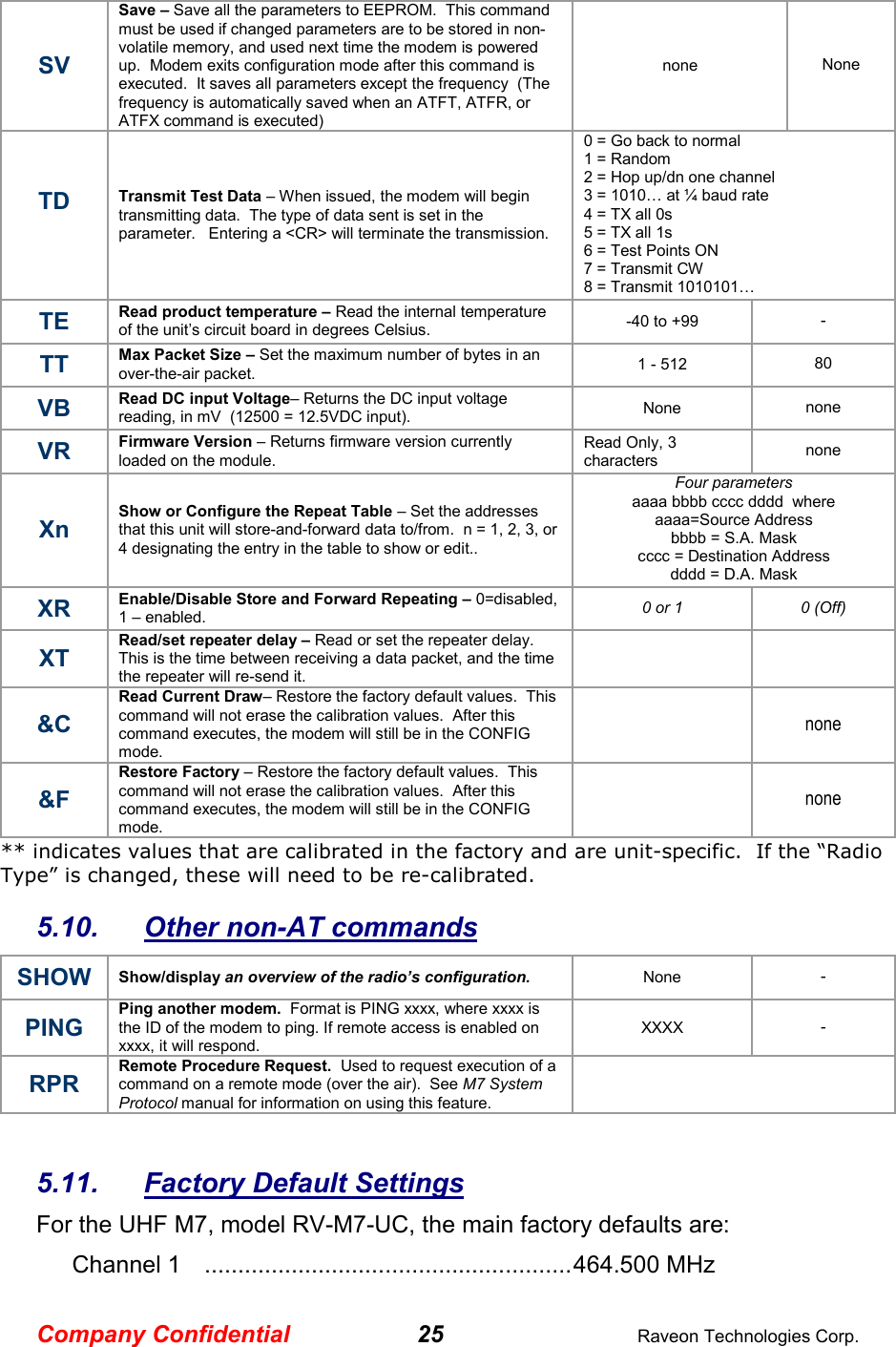

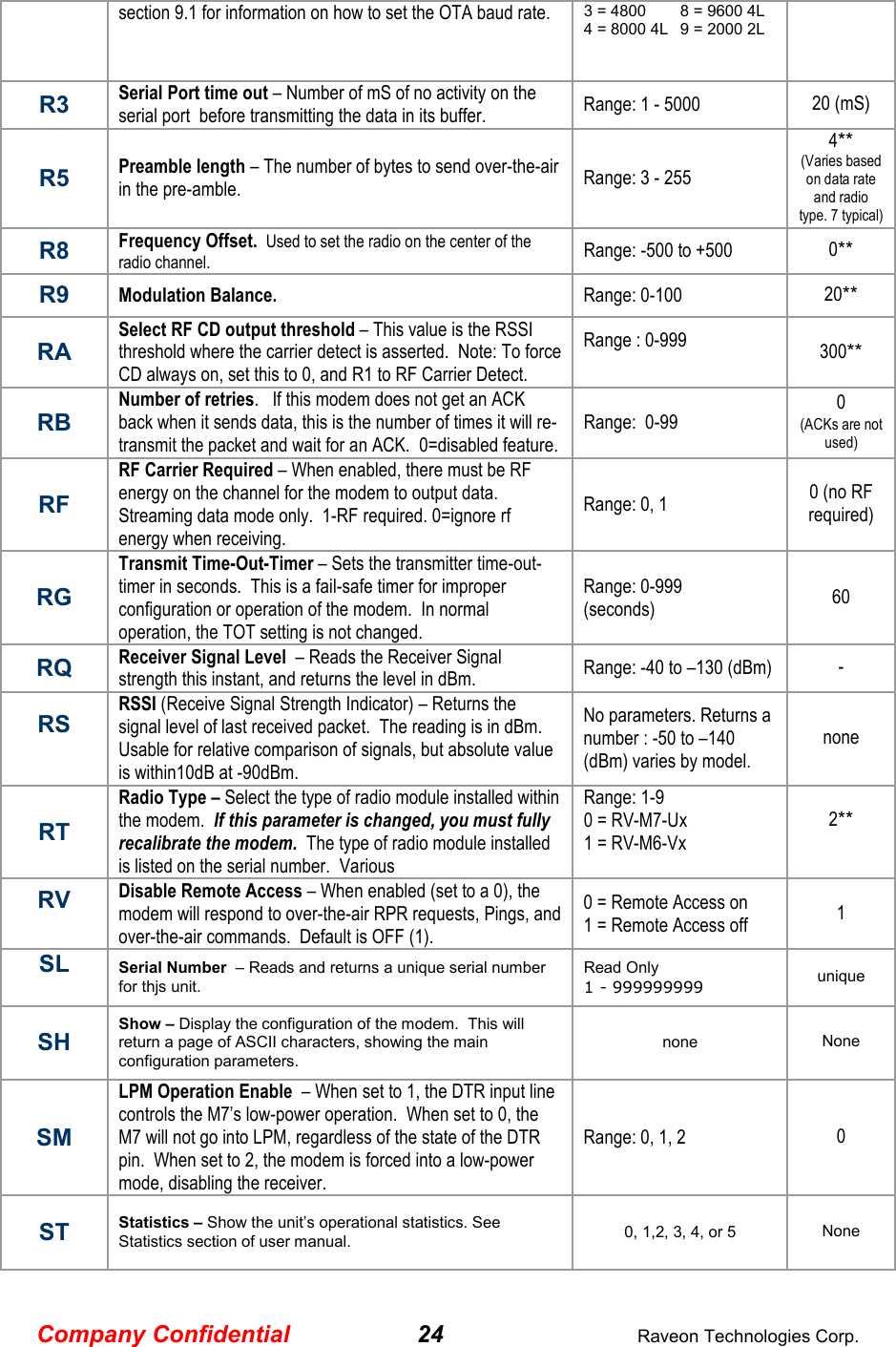

Company Confidential 22 Raveon Technologies Corp. 5.9. Command Mode Commands AT Command Command Description Parameters Factory Default AK Enable/Disable ARQ – When ARQ is enabled, this modem will automatically send an ACK packet back to a modem that sends it data. 0=off, 1=on. Range: 0 – 1 0 (no AKCs sent) AS Auto Status Report Interval– Sets the time between auto status reports. Time is in minutes. 0 means disabled. Range: 0 –56000 (minutes) 0 (Off) AT Silence AFTER Sequence - Sets period of silence after the command sequence characters in mS. Range:0 – 1000 (mS) 500 BD Baud Rate – Sets serial com port baud rate (bps). Over-the-air (throughput) baud rate is set with ATR2 command. If a PC’s serial baud rate is set higher than the fixed over-the-air baud rate of the module, hardware handshaking may be required. Range: 0 – 7 0 = 1200 5= 38400 1 = 2400 6=57600 2 = 4800 7=115200 3 = 9600 4 = 19200 3 BC Busy Channel Lock Out – Enable/disable the BCL. If enabled, the modem will not transmit on a radio channel that is busy (has RF on if). 0-OFF, 1=ON. Range: 0-1 0 BT Silence BEFORE Sequence – Sets period of silence before the command sequence character in mS. Range: 0-1000 mS 500 CH Configure Hardware Flow Control – Enable (1) or disable (0) flow control. When enabled, the modem will monitor the RTS line, and if it is negated, stop sending data out the serial port. If disabled, the modem will ignore the state of RTS, and always send out charators. 1 = Enable 0 = Disable 0 CN Exit AT Command Mode – Exits module from AT Command Mode and returns it to Idle Mode. Parameters are not saved in EEPROM. none none CT Command Time Out – If no valid commands have been received via the serial port within this time period (in milliseconds), modem returns to normal operation mode from Command mode. If the CONFIG button inside the M7 is pressed, this parameter will be automatically set to 60000. Range: 100-60000mS 60000 DT Destination Address to call– Sets address of the modem to send data to. Note, this parameter is entered in HEX format. Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or an F. Range: 0-FFFF 1234 E Echo – Character echo set on (E1) or off (E0). This applies to the Command Mode only. Range: 0 , 1 0 (no echo) F Display frequencies – Display all of the frequencies programmed into all of the channel memories. N/A FT Transmit Frequency – Program the transmit frequency for this channel. Enter in Hz or in MHz. The frequency will automatically be saved in non-volatile memory (flash) for this current channel number. Range: See product data sheet. For MURS products, frequency cannot be changed. See product data sheet. FR Receive Frequency – Program the receive frequency for this channel. Enter in Hz or MHz. The frequency will Range: See product data sheet. For MURS products, See product

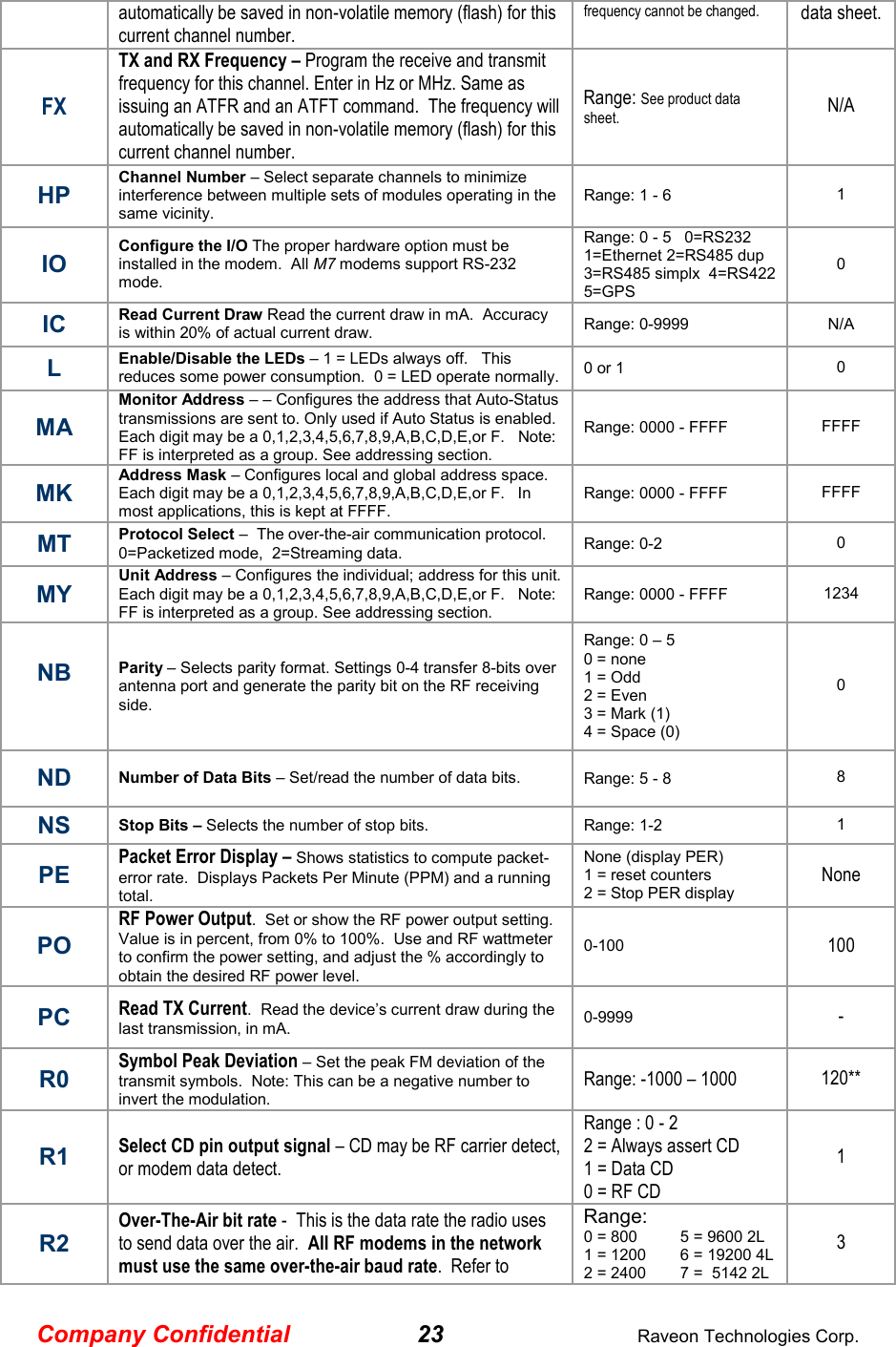

Company Confidential 23 Raveon Technologies Corp. automatically be saved in non-volatile memory (flash) for this current channel number. frequency cannot be changed. data sheet. FX TX and RX Frequency – Program the receive and transmit frequency for this channel. Enter in Hz or MHz. Same as issuing an ATFR and an ATFT command. The frequency will automatically be saved in non-volatile memory (flash) for this current channel number. Range: See product data sheet. N/A HP Channel Number – Select separate channels to minimize interference between multiple sets of modules operating in the same vicinity. Range: 1 - 6 1 IO Configure the I/O The proper hardware option must be installed in the modem. All M7 modems support RS-232 mode. Range: 0 - 5 0=RS232 1=Ethernet 2=RS485 dup 3=RS485 simplx 4=RS422 5=GPS 0 IC Read Current Draw Read the current draw in mA. Accuracy is within 20% of actual current draw. Range: 0-9999 N/A L Enable/Disable the LEDs – 1 = LEDs always off. This reduces some power consumption. 0 = LED operate normally. 0 or 1 0 MA Monitor Address – – Configures the address that Auto-Status transmissions are sent to. Only used if Auto Status is enabled. Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or F. Note: FF is interpreted as a group. See addressing section. Range: 0000 - FFFF FFFF MK Address Mask – Configures local and global address space. Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or F. In most applications, this is kept at FFFF. Range: 0000 - FFFF FFFF MT Protocol Select – The over-the-air communication protocol. 0=Packetized mode, 2=Streaming data. Range: 0-2 0 MY Unit Address – Configures the individual; address for this unit. Each digit may be a 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,or F. Note: FF is interpreted as a group. See addressing section. Range: 0000 - FFFF 1234 NB Parity – Selects parity format. Settings 0-4 transfer 8-bits over antenna port and generate the parity bit on the RF receiving side. Range: 0 – 5 0 = none 1 = Odd 2 = Even 3 = Mark (1) 4 = Space (0) 0 ND Number of Data Bits – Set/read the number of data bits. Range: 5 - 8 8 NS Stop Bits – Selects the number of stop bits. Range: 1-2 1 PE Packet Error Display – Shows statistics to compute packet-error rate. Displays Packets Per Minute (PPM) and a running total. None (display PER) 1 = reset counters 2 = Stop PER display None PO RF Power Output. Set or show the RF power output setting. Value is in percent, from 0% to 100%. Use and RF wattmeter to confirm the power setting, and adjust the % accordingly to obtain the desired RF power level. 0-100 100 PC Read TX Current. Read the device’s current draw during the last transmission, in mA. 0-9999 - R0 Symbol Peak Deviation – Set the peak FM deviation of the transmit symbols. Note: This can be a negative number to invert the modulation. Range: -1000 – 1000 120** R1 Select CD pin output signal – CD may be RF carrier detect, or modem data detect. Range : 0 - 2 2 = Always assert CD 1 = Data CD 0 = RF CD 1 R2 Over-The-Air bit rate - This is the data rate the radio uses to send data over the air. All RF modems in the network must use the same over-the-air baud rate. Refer to Range: 0 = 800 5 = 9600 2L 1 = 1200 6 = 19200 4L 2 = 2400 7 = 5142 2L 3
Company Confidential 24 Raveon Technologies Corp. section 9.1 for information on how to set the OTA baud rate. 3 = 4800 8 = 9600 4L 4 = 8000 4L 9 = 2000 2L R3 Serial Port time out – Number of mS of no activity on the serial port before transmitting the data in its buffer. Range: 1 - 5000 20 (mS) R5 Preamble length – The number of bytes to send over-the-air in the pre-amble. Range: 3 - 255 4** (Varies based on data rate and radio type. 7 typical) R8 Frequency Offset. Used to set the radio on the center of the radio channel. Range: -500 to +500 0** R9 Modulation Balance. Range: 0-100 20** RA Select RF CD output threshold – This value is the RSSI threshold where the carrier detect is asserted. Note: To force CD always on, set this to 0, and R1 to RF Carrier Detect. Range : 0-999 300** RB Number of retries. If this modem does not get an ACK back when it sends data, this is the number of times it will re-transmit the packet and wait for an ACK. 0=disabled feature. Range: 0-99 0 (ACKs are not used) RF RF Carrier Required – When enabled, there must be RF energy on the channel for the modem to output data. Streaming data mode only. 1-RF required. 0=ignore rf energy when receiving. Range: 0, 1 0 (no RF required) RG Transmit Time-Out-Timer – Sets the transmitter time-out-timer in seconds. This is a fail-safe timer for improper configuration or operation of the modem. In normal operation, the TOT setting is not changed. Range: 0-999 (seconds) 60 RQ Receiver Signal Level – Reads the Receiver Signal strength this instant, and returns the level in dBm. Range: -40 to –130 (dBm) - RS RSSI (Receive Signal Strength Indicator) – Returns the signal level of last received packet. The reading is in dBm. Usable for relative comparison of signals, but absolute value is within10dB at -90dBm. No parameters. Returns a number : -50 to –140 (dBm) varies by model. none RT Radio Type – Select the type of radio module installed within the modem. If this parameter is changed, you must fully recalibrate the modem. The type of radio module installed is listed on the serial number. Various Range: 1-9 0 = RV-M7-Ux 1 = RV-M6-Vx 2** RV Disable Remote Access – When enabled (set to a 0), the modem will respond to over-the-air RPR requests, Pings, and over-the-air commands. Default is OFF (1). 0 = Remote Access on 1 = Remote Access off 1 SL Serial Number – Reads and returns a unique serial number for thjs unit. Read Only 1 - 999999999 unique SH Show – Display the configuration of the modem. This will return a page of ASCII characters, showing the main configuration parameters. none None SM LPM Operation Enable – When set to 1, the DTR input line controls the M7’s low-power operation. When set to 0, the M7 will not go into LPM, regardless of the state of the DTR pin. When set to 2, the modem is forced into a low-power mode, disabling the receiver. Range: 0, 1, 2 0 ST Statistics – Show the unit’s operational statistics. See Statistics section of user manual. 0, 1,2, 3, 4, or 5 None
Company Confidential 25 Raveon Technologies Corp. SV Save – Save all the parameters to EEPROM. This command must be used if changed parameters are to be stored in non-volatile memory, and used next time the modem is powered up. Modem exits configuration mode after this command is executed. It saves all parameters except the frequency (The frequency is automatically saved when an ATFT, ATFR, or ATFX command is executed) none None TD Transmit Test Data – When issued, the modem will begin transmitting data. The type of data sent is set in the parameter. Entering a <CR> will terminate the transmission. 0 = Go back to normal 1 = Random 2 = Hop up/dn one channel 3 = 1010 at ¼ baud rate 4 = TX all 0s 5 = TX all 1s 6 = Test Points ON 7 = Transmit CW 8 = Transmit 1010101 TE Read product temperature – Read the internal temperature of the unit’s circuit board in degrees Celsius. -40 to +99 - TT Max Packet Size – Set the maximum number of bytes in an over-the-air packet. 1 - 512 80 VB Read DC input Voltage– Returns the DC input voltage reading, in mV (12500 = 12.5VDC input). None none VR Firmware Version – Returns firmware version currently loaded on the module. Read Only, 3 characters none Xn Show or Configure the Repeat Table – Set the addresses that this unit will store-and-forward data to/from. n = 1, 2, 3, or 4 designating the entry in the table to show or edit.. Four parameters aaaa bbbb cccc dddd where aaaa=Source Address bbbb = S.A. Mask cccc = Destination Address dddd = D.A. Mask XR Enable/Disable Store and Forward Repeating – 0=disabled, 1 – enabled. 0 or 1 0 (Off) XT Read/set repeater delay – Read or set the repeater delay. This is the time between receiving a data packet, and the time the repeater will re-send it. &C Read Current Draw– Restore the factory default values. This command will not erase the calibration values. After this command executes, the modem will still be in the CONFIG mode. none &F Restore Factory – Restore the factory default values. This command will not erase the calibration values. After this command executes, the modem will still be in the CONFIG mode. none ** indicates values that are calibrated in the factory and are unit-specific. If the “Radio Type” is changed, these will need to be re-calibrated. 5.10. Other non-AT commands SHOW Show/display an overview of the radio’s configuration. None - PING Ping another modem. Format is PING xxxx, where xxxx is the ID of the modem to ping. If remote access is enabled on xxxx, it will respond. XXXX - RPR Remote Procedure Request. Used to request execution of a command on a remote mode (over the air). See M7 System Protocol manual for information on using this feature. 5.11. Factory Default Settings For the UHF M7, model RV-M7-UC, the main factory defaults are: Channel 1 ....................................................... 464.500 MHz

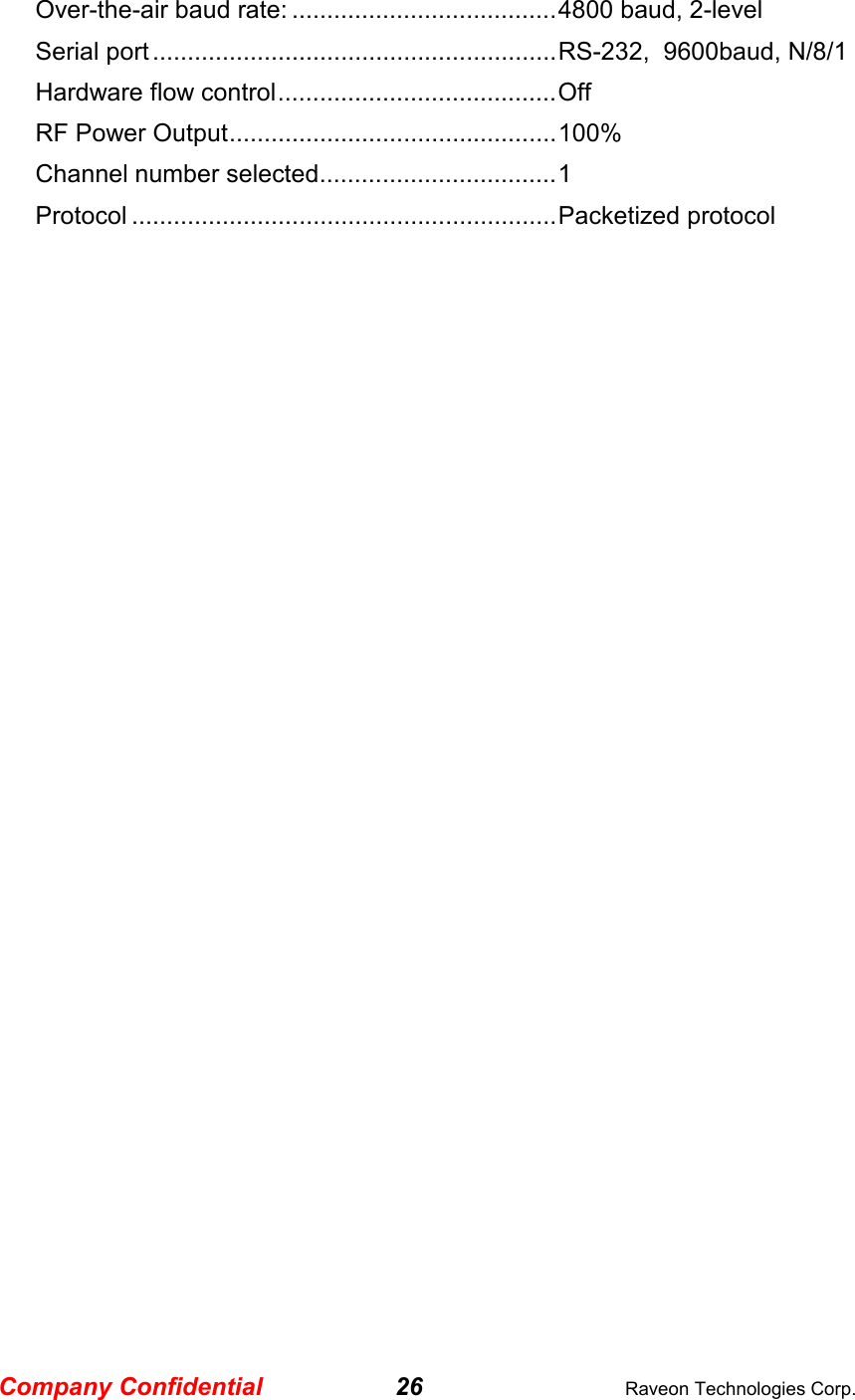

Company Confidential 26 Raveon Technologies Corp. Over-the-air baud rate: ...................................... 4800 baud, 2-level Serial port .......................................................... RS-232, 9600baud, N/8/1 Hardware flow control ........................................ Off RF Power Output ............................................... 100% Channel number selected .................................. 1 Protocol ............................................................. Packetized protocol

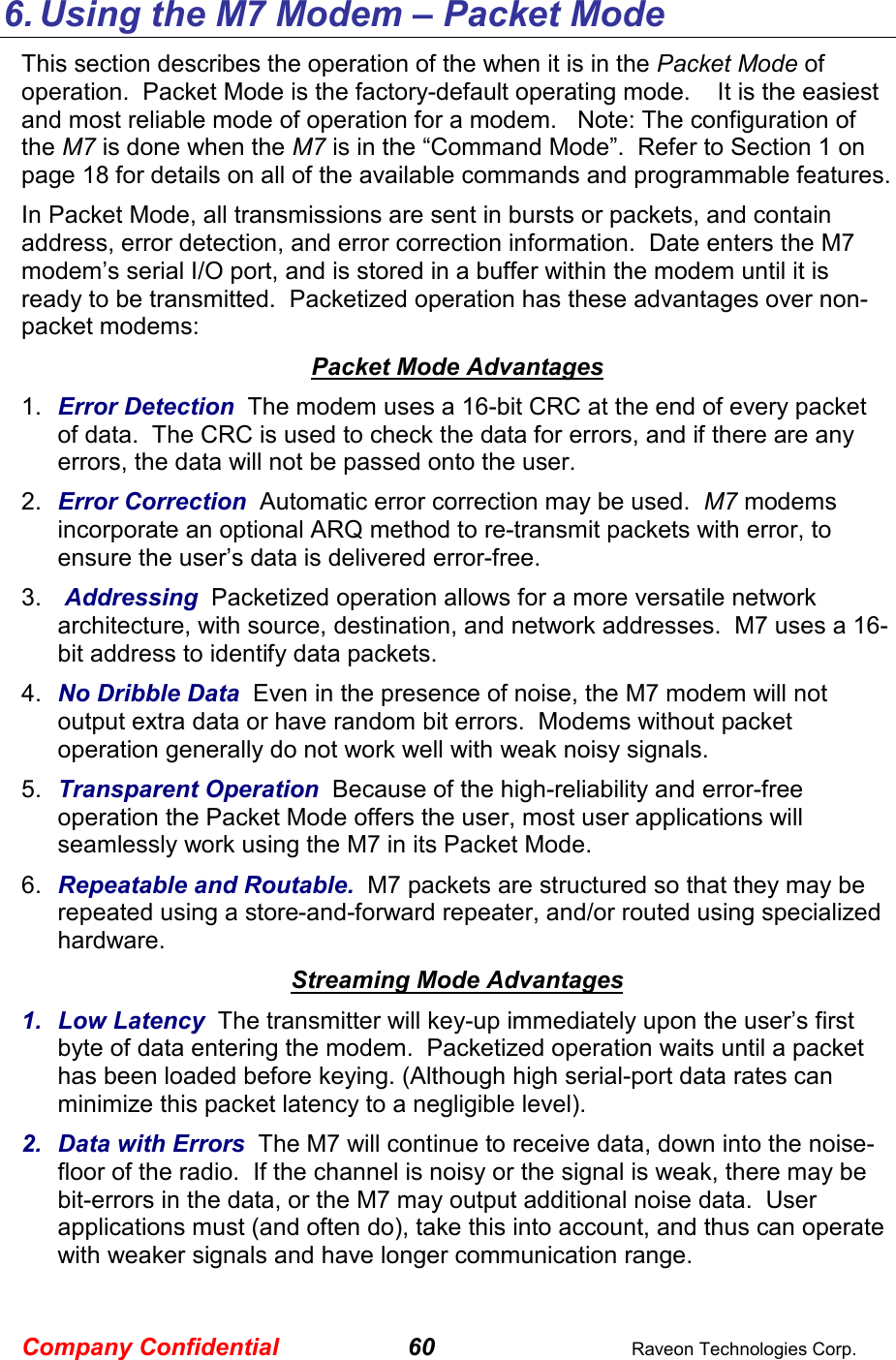

Company Confidential 60 Raveon Technologies Corp. 6. Using the M7 Modem – Packet Mode This section describes the operation of the when it is in the Packet Mode of operation. Packet Mode is the factory-default operating mode. It is the easiest and most reliable mode of operation for a modem. Note: The configuration of the M7 is done when the M7 is in the “Command Mode”. Refer to Section 1 on page 18 for details on all of the available commands and programmable features. In Packet Mode, all transmissions are sent in bursts or packets, and contain address, error detection, and error correction information. Date enters the M7 modem’s serial I/O port, and is stored in a buffer within the modem until it is ready to be transmitted. Packetized operation has these advantages over non-packet modems: Packet Mode Advantages 1. Error Detection The modem uses a 16-bit CRC at the end of every packet of data. The CRC is used to check the data for errors, and if there are any errors, the data will not be passed onto the user. 2. Error Correction Automatic error correction may be used. M7 modems incorporate an optional ARQ method to re-transmit packets with error, to ensure the user’s data is delivered error-free. 3. Addressing Packetized operation allows for a more versatile network architecture, with source, destination, and network addresses. M7 uses a 16-bit address to identify data packets. 4. No Dribble Data Even in the presence of noise, the M7 modem will not output extra data or have random bit errors. Modems without packet operation generally do not work well with weak noisy signals. 5. Transparent Operation Because of the high-reliability and error-free operation the Packet Mode offers the user, most user applications will seamlessly work using the M7 in its Packet Mode. 6. Repeatable and Routable. M7 packets are structured so that they may be repeated using a store-and-forward repeater, and/or routed using specialized hardware. Streaming Mode Advantages 1. Low Latency The transmitter will key-up immediately upon the user’s first byte of data entering the modem. Packetized operation waits until a packet has been loaded before keying. (Although high serial-port data rates can minimize this packet latency to a negligible level). 2. Data with Errors The M7 will continue to receive data, down into the noise-floor of the radio. If the channel is noisy or the signal is weak, there may be bit-errors in the data, or the M7 may output additional noise data. User applications must (and often do), take this into account, and thus can operate with weaker signals and have longer communication range.

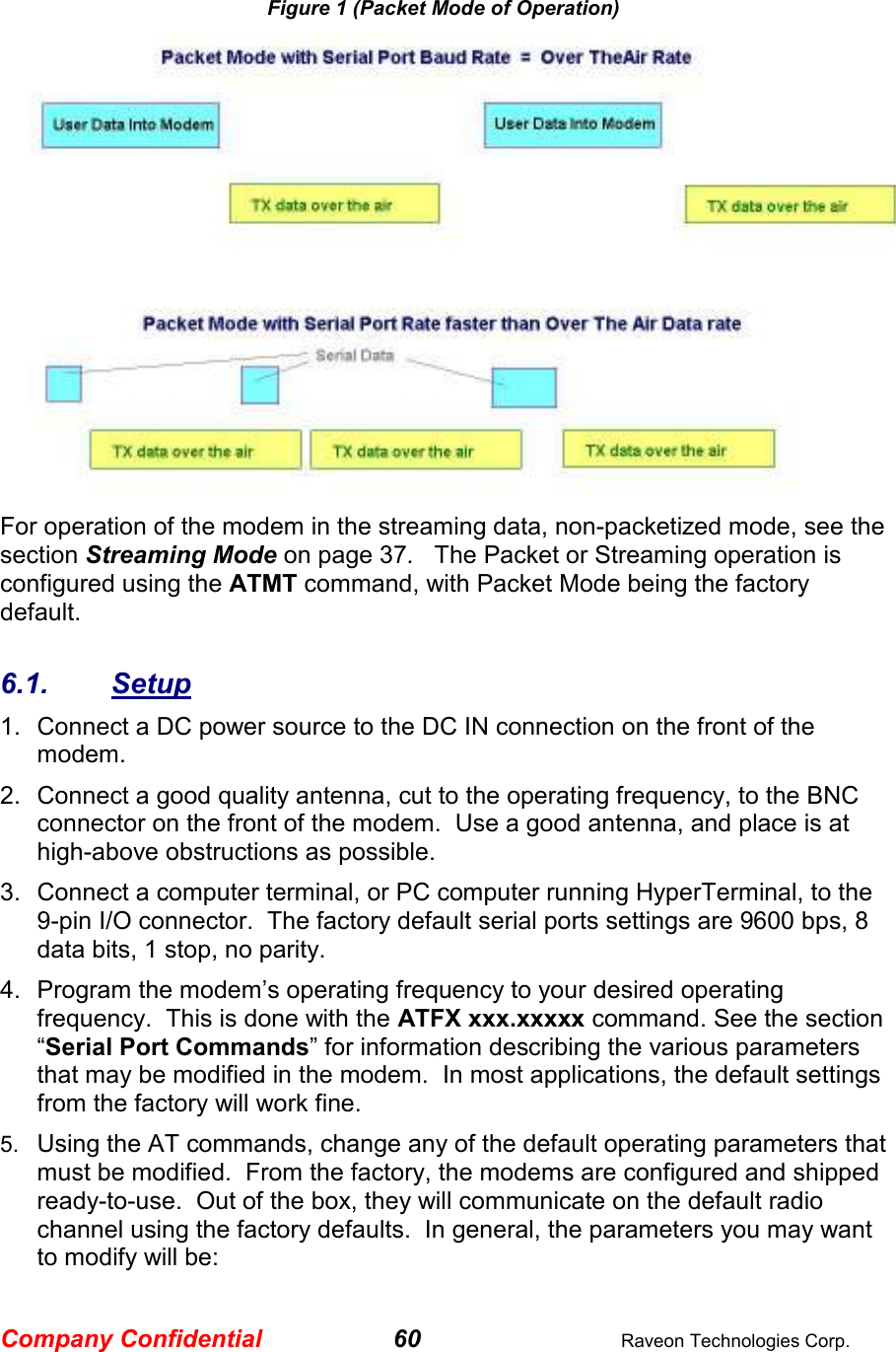

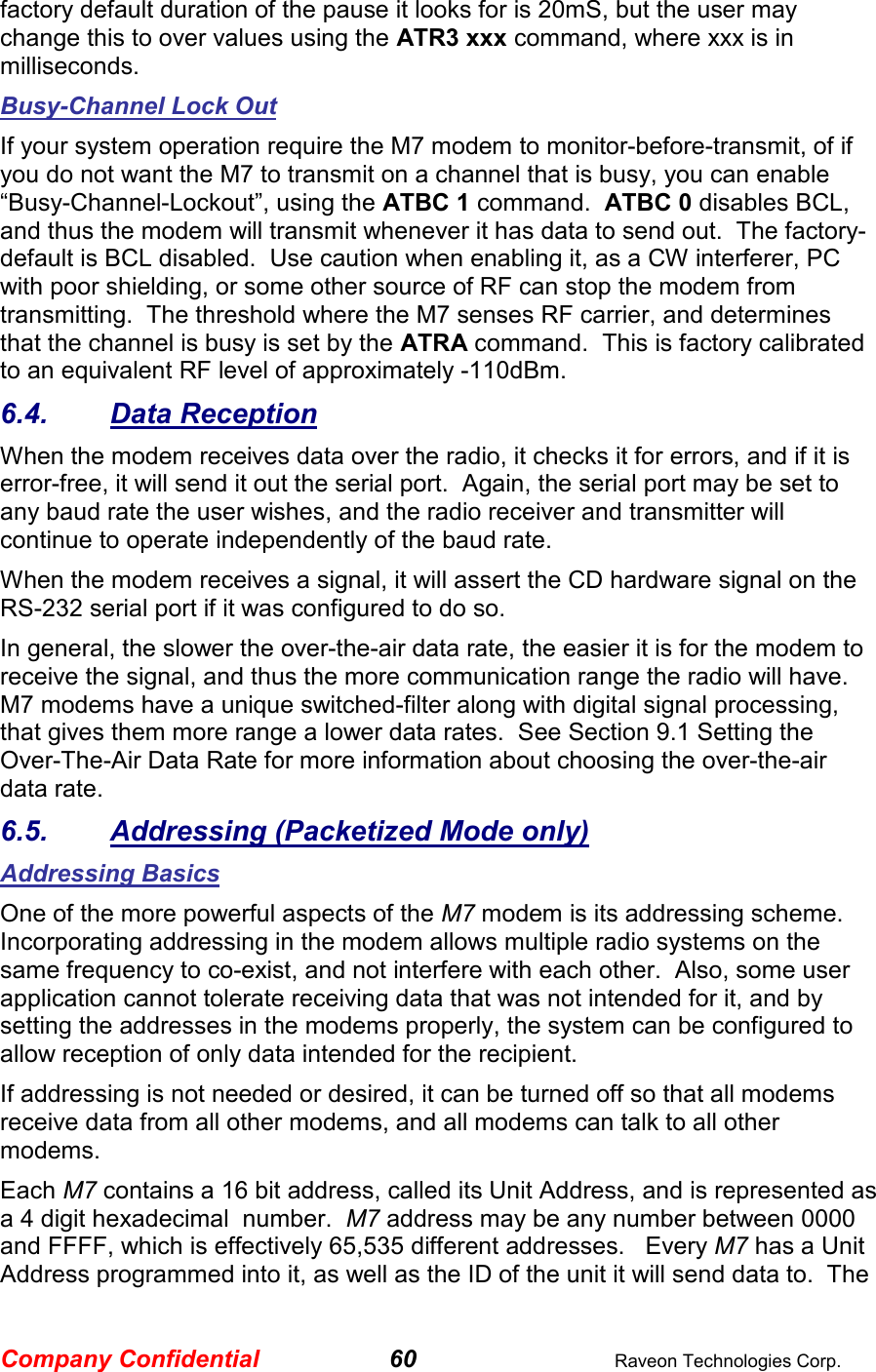

Company Confidential 60 Raveon Technologies Corp. Figure 1 (Packet Mode of Operation) For operation of the modem in the streaming data, non-packetized mode, see the section Streaming Mode on page 37. The Packet or Streaming operation is configured using the ATMT command, with Packet Mode being the factory default. 6.1. Setup 1. Connect a DC power source to the DC IN connection on the front of the modem. 2. Connect a good quality antenna, cut to the operating frequency, to the BNC connector on the front of the modem. Use a good antenna, and place is at high-above obstructions as possible. 3. Connect a computer terminal, or PC computer running HyperTerminal, to the 9-pin I/O connector. The factory default serial ports settings are 9600 bps, 8 data bits, 1 stop, no parity. 4. Program the modem’s operating frequency to your desired operating frequency. This is done with the ATFX xxx.xxxxx command. See the section “Serial Port Commands” for information describing the various parameters that may be modified in the modem. In most applications, the default settings from the factory will work fine. 5. Using the AT commands, change any of the default operating parameters that must be modified. From the factory, the modems are configured and shipped ready-to-use. Out of the box, they will communicate on the default radio channel using the factory defaults. In general, the parameters you may want to modify will be:

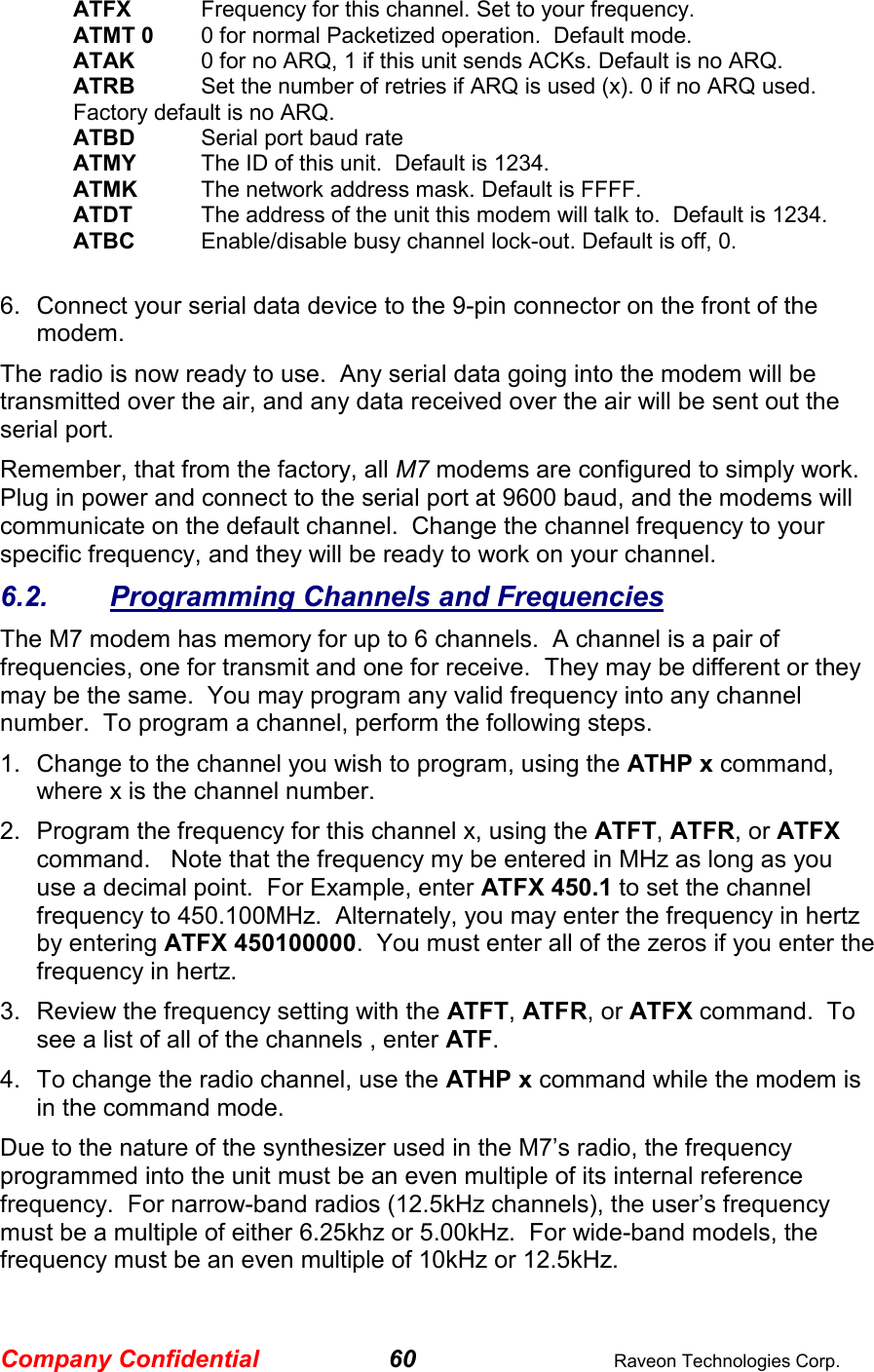

Company Confidential 60 Raveon Technologies Corp. ATFX Frequency for this channel. Set to your frequency. ATMT 0 0 for normal Packetized operation. Default mode. ATAK 0 for no ARQ, 1 if this unit sends ACKs. Default is no ARQ. ATRB Set the number of retries if ARQ is used (x). 0 if no ARQ used. Factory default is no ARQ. ATBD Serial port baud rate ATMY The ID of this unit. Default is 1234. ATMK The network address mask. Default is FFFF. ATDT The address of the unit this modem will talk to. Default is 1234. ATBC Enable/disable busy channel lock-out. Default is off, 0. 6. Connect your serial data device to the 9-pin connector on the front of the modem. The radio is now ready to use. Any serial data going into the modem will be transmitted over the air, and any data received over the air will be sent out the serial port. Remember, that from the factory, all M7 modems are configured to simply work. Plug in power and connect to the serial port at 9600 baud, and the modems will communicate on the default channel. Change the channel frequency to your specific frequency, and they will be ready to work on your channel. 6.2. Programming Channels and Frequencies The M7 modem has memory for up to 6 channels. A channel is a pair of frequencies, one for transmit and one for receive. They may be different or they may be the same. You may program any valid frequency into any channel number. To program a channel, perform the following steps. 1. Change to the channel you wish to program, using the ATHP x command, where x is the channel number. 2. Program the frequency for this channel x, using the ATFT, ATFR, or ATFX command. Note that the frequency my be entered in MHz as long as you use a decimal point. For Example, enter ATFX 450.1 to set the channel frequency to 450.100MHz. Alternately, you may enter the frequency in hertz by entering ATFX 450100000. You must enter all of the zeros if you enter the frequency in hertz. 3. Review the frequency setting with the ATFT, ATFR, or ATFX command. To see a list of all of the channels , enter ATF. 4. To change the radio channel, use the ATHP x command while the modem is in the command mode. Due to the nature of the synthesizer used in the M7’s radio, the frequency programmed into the unit must be an even multiple of its internal reference frequency. For narrow-band radios (12.5kHz channels), the user’s frequency must be a multiple of either 6.25khz or 5.00kHz. For wide-band models, the frequency must be an even multiple of 10kHz or 12.5kHz.

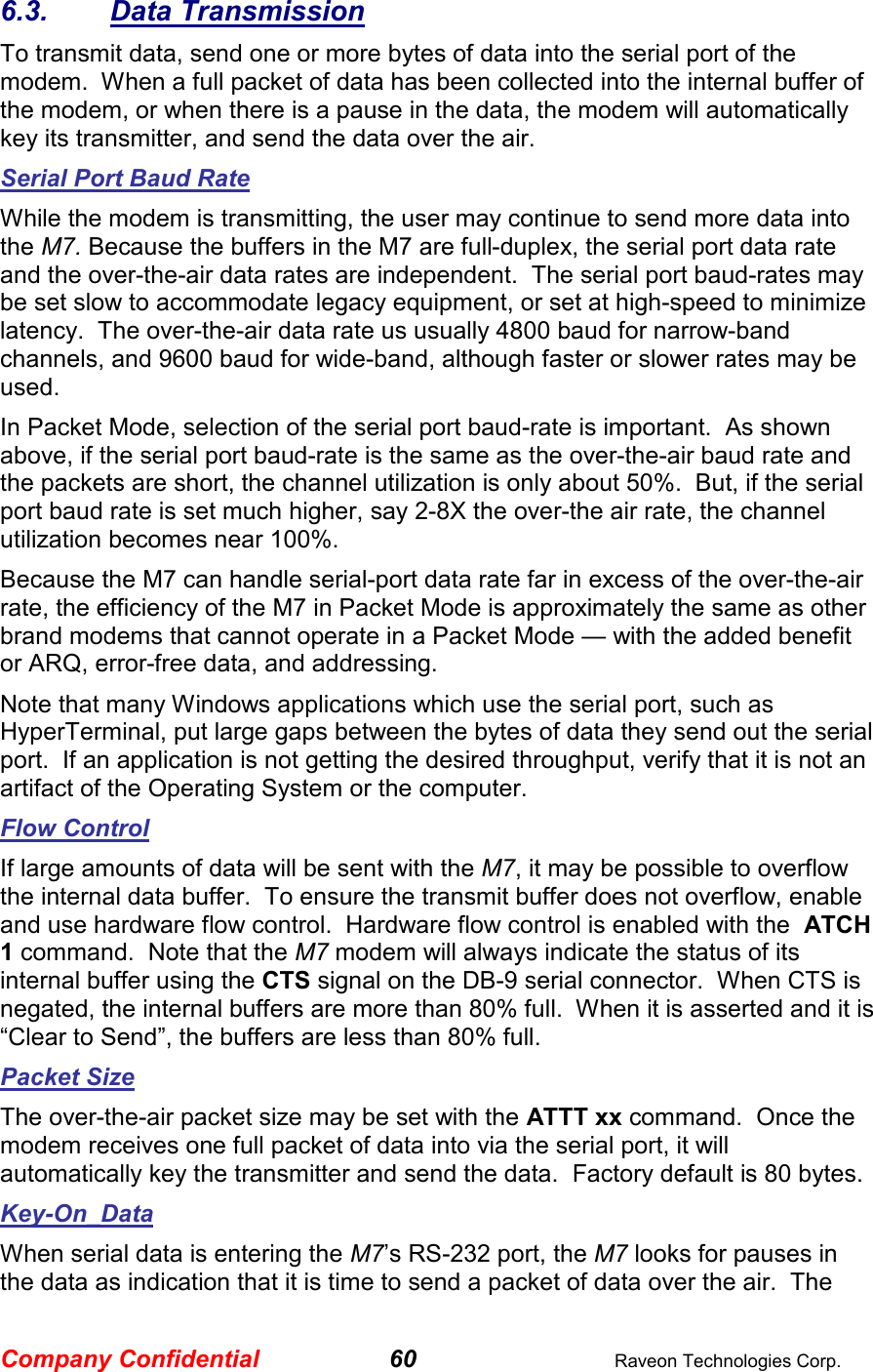

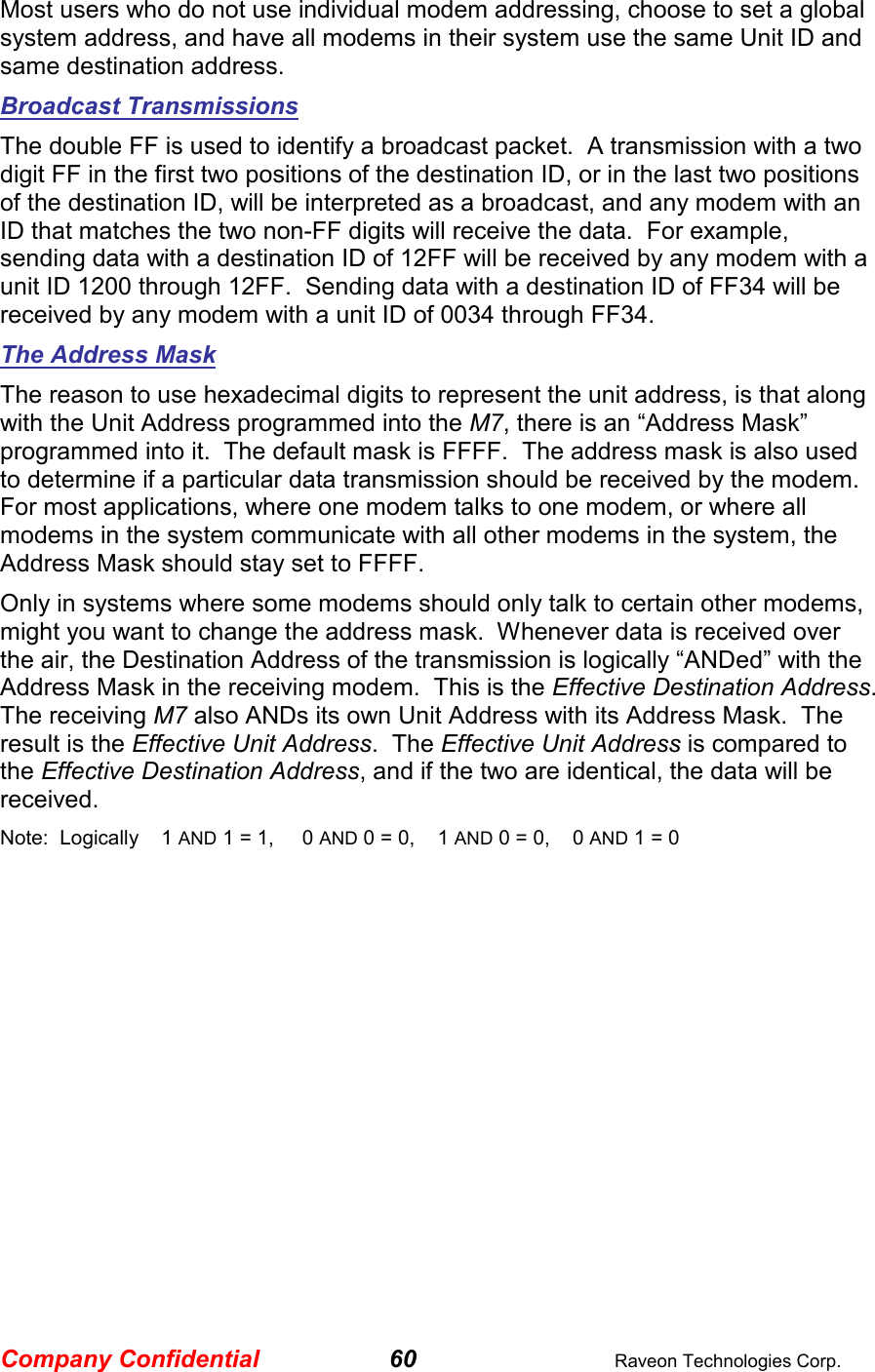

Company Confidential 60 Raveon Technologies Corp. 6.3. Data Transmission To transmit data, send one or more bytes of data into the serial port of the modem. When a full packet of data has been collected into the internal buffer of the modem, or when there is a pause in the data, the modem will automatically key its transmitter, and send the data over the air. Serial Port Baud Rate While the modem is transmitting, the user may continue to send more data into the M7. Because the buffers in the M7 are full-duplex, the serial port data rate and the over-the-air data rates are independent. The serial port baud-rates may be set slow to accommodate legacy equipment, or set at high-speed to minimize latency. The over-the-air data rate us usually 4800 baud for narrow-band channels, and 9600 baud for wide-band, although faster or slower rates may be used. In Packet Mode, selection of the serial port baud-rate is important. As shown above, if the serial port baud-rate is the same as the over-the-air baud rate and the packets are short, the channel utilization is only about 50%. But, if the serial port baud rate is set much higher, say 2-8X the over-the air rate, the channel utilization becomes near 100%. Because the M7 can handle serial-port data rate far in excess of the over-the-air rate, the efficiency of the M7 in Packet Mode is approximately the same as other brand modems that cannot operate in a Packet Mode — with the added benefit or ARQ, error-free data, and addressing. Note that many Windows applications which use the serial port, such as HyperTerminal, put large gaps between the bytes of data they send out the serial port. If an application is not getting the desired throughput, verify that it is not an artifact of the Operating System or the computer. Flow Control If large amounts of data will be sent with the M7, it may be possible to overflow the internal data buffer. To ensure the transmit buffer does not overflow, enable and use hardware flow control. Hardware flow control is enabled with the ATCH 1 command. Note that the M7 modem will always indicate the status of its internal buffer using the CTS signal on the DB-9 serial connector. When CTS is negated, the internal buffers are more than 80% full. When it is asserted and it is “Clear to Send”, the buffers are less than 80% full. Packet Size The over-the-air packet size may be set with the ATTT xx command. Once the modem receives one full packet of data into via the serial port, it will automatically key the transmitter and send the data. Factory default is 80 bytes. Key-On_Data When serial data is entering the M7’s RS-232 port, the M7 looks for pauses in the data as indication that it is time to send a packet of data over the air. The
Company Confidential 60 Raveon Technologies Corp. factory default duration of the pause it looks for is 20mS, but the user may change this to over values using the ATR3 xxx command, where xxx is in milliseconds. Busy-Channel Lock Out If your system operation require the M7 modem to monitor-before-transmit, of if you do not want the M7 to transmit on a channel that is busy, you can enable “Busy-Channel-Lockout”, using the ATBC 1 command. ATBC 0 disables BCL, and thus the modem will transmit whenever it has data to send out. The factory-default is BCL disabled. Use caution when enabling it, as a CW interferer, PC with poor shielding, or some other source of RF can stop the modem from transmitting. The threshold where the M7 senses RF carrier, and determines that the channel is busy is set by the ATRA command. This is factory calibrated to an equivalent RF level of approximately -110dBm. 6.4. Data Reception When the modem receives data over the radio, it checks it for errors, and if it is error-free, it will send it out the serial port. Again, the serial port may be set to any baud rate the user wishes, and the radio receiver and transmitter will continue to operate independently of the baud rate. When the modem receives a signal, it will assert the CD hardware signal on the RS-232 serial port if it was configured to do so. In general, the slower the over-the-air data rate, the easier it is for the modem to receive the signal, and thus the more communication range the radio will have. M7 modems have a unique switched-filter along with digital signal processing, that gives them more range a lower data rates. See Section 9.1 Setting the Over-The-Air Data Rate for more information about choosing the over-the-air data rate. 6.5. Addressing (Packetized Mode only) Addressing Basics One of the more powerful aspects of the M7 modem is its addressing scheme. Incorporating addressing in the modem allows multiple radio systems on the same frequency to co-exist, and not interfere with each other. Also, some user application cannot tolerate receiving data that was not intended for it, and by setting the addresses in the modems properly, the system can be configured to allow reception of only data intended for the recipient. If addressing is not needed or desired, it can be turned off so that all modems receive data from all other modems, and all modems can talk to all other modems. Each M7 contains a 16 bit address, called its Unit Address, and is represented as a 4 digit hexadecimal number. M7 address may be any number between 0000 and FFFF, which is effectively 65,535 different addresses. Every M7 has a Unit Address programmed into it, as well as the ID of the unit it will send data to. The

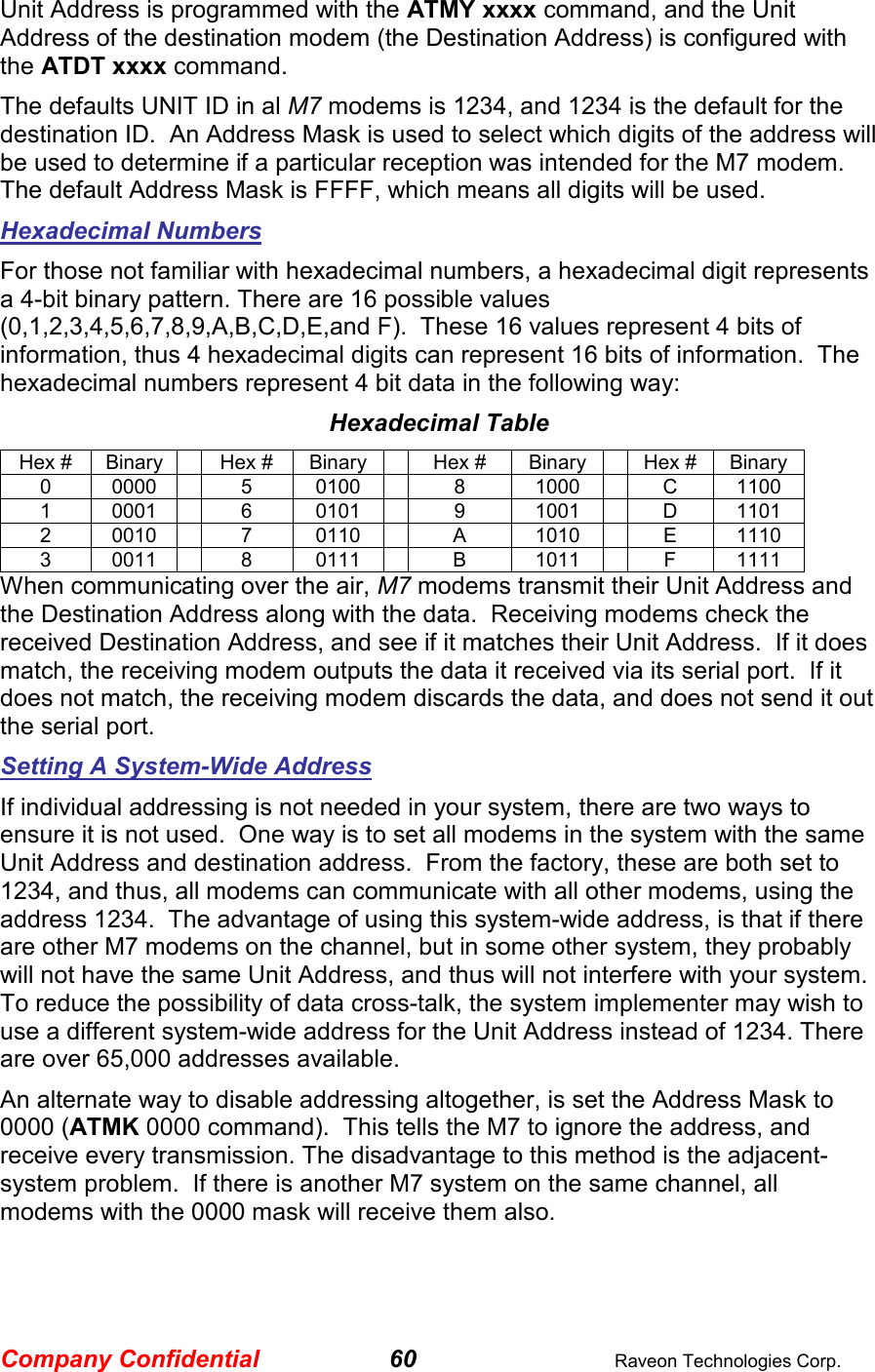

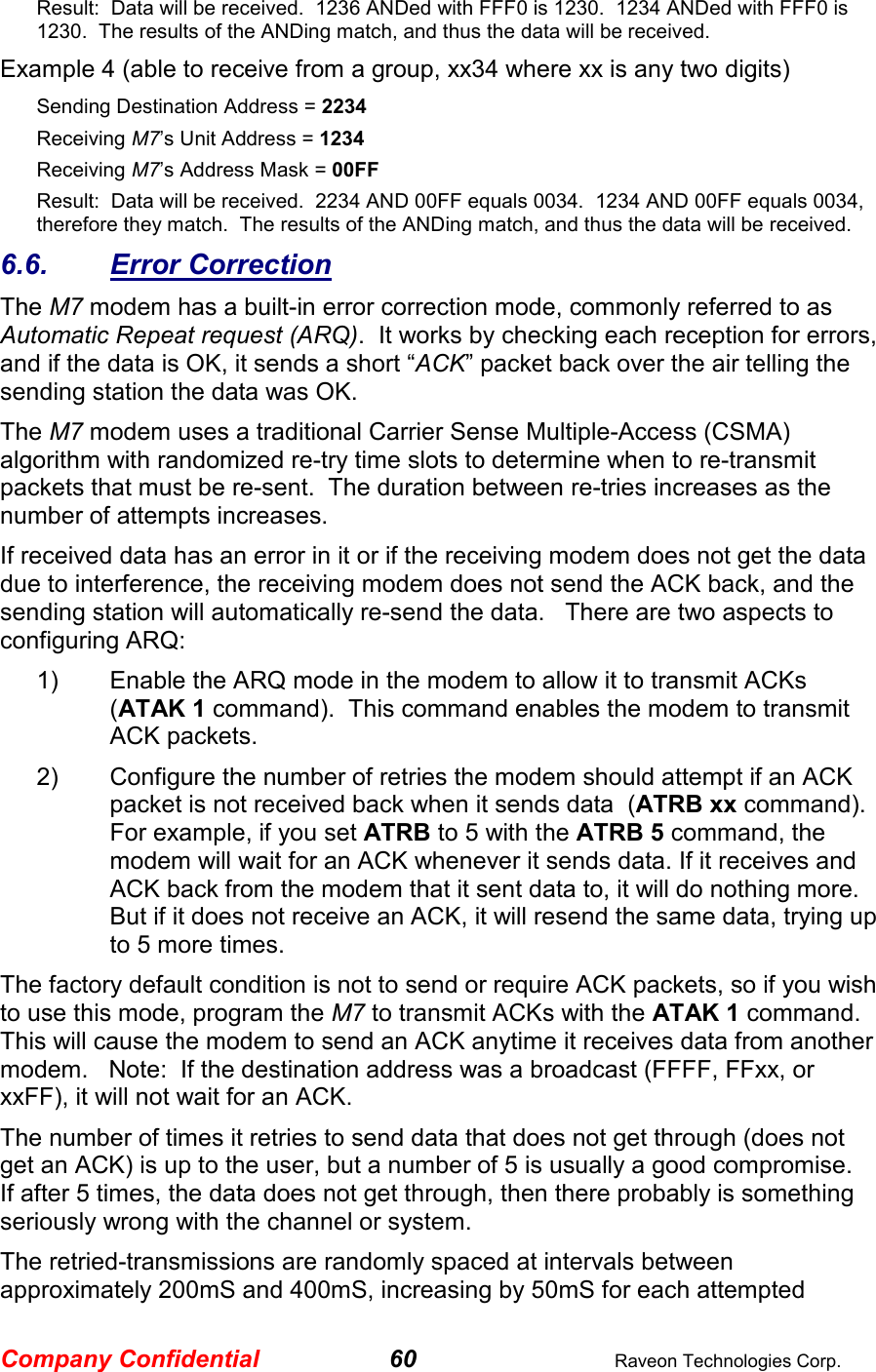

Company Confidential 60 Raveon Technologies Corp. Unit Address is programmed with the ATMY xxxx command, and the Unit Address of the destination modem (the Destination Address) is configured with the ATDT xxxx command. The defaults UNIT ID in al M7 modems is 1234, and 1234 is the default for the destination ID. An Address Mask is used to select which digits of the address will be used to determine if a particular reception was intended for the M7 modem. The default Address Mask is FFFF, which means all digits will be used. Hexadecimal Numbers For those not familiar with hexadecimal numbers, a hexadecimal digit represents a 4-bit binary pattern. There are 16 possible values (0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,and F). These 16 values represent 4 bits of information, thus 4 hexadecimal digits can represent 16 bits of information. The hexadecimal numbers represent 4 bit data in the following way: Hexadecimal Table Hex # Binary Hex # Binary Hex # Binary Hex # Binary 0 0000 5 0100 8 1000 C 1100 1 0001 6 0101 9 1001 D 1101 2 0010 7 0110 A 1010 E 1110 3 0011 8 0111 B 1011 F 1111 When communicating over the air, M7 modems transmit their Unit Address and the Destination Address along with the data. Receiving modems check the received Destination Address, and see if it matches their Unit Address. If it does match, the receiving modem outputs the data it received via its serial port. If it does not match, the receiving modem discards the data, and does not send it out the serial port. Setting A System-Wide Address If individual addressing is not needed in your system, there are two ways to ensure it is not used. One way is to set all modems in the system with the same Unit Address and destination address. From the factory, these are both set to 1234, and thus, all modems can communicate with all other modems, using the address 1234. The advantage of using this system-wide address, is that if there are other M7 modems on the channel, but in some other system, they probably will not have the same Unit Address, and thus will not interfere with your system. To reduce the possibility of data cross-talk, the system implementer may wish to use a different system-wide address for the Unit Address instead of 1234. There are over 65,000 addresses available. An alternate way to disable addressing altogether, is set the Address Mask to 0000 (ATMK 0000 command). This tells the M7 to ignore the address, and receive every transmission. The disadvantage to this method is the adjacent-system problem. If there is another M7 system on the same channel, all modems with the 0000 mask will receive them also.

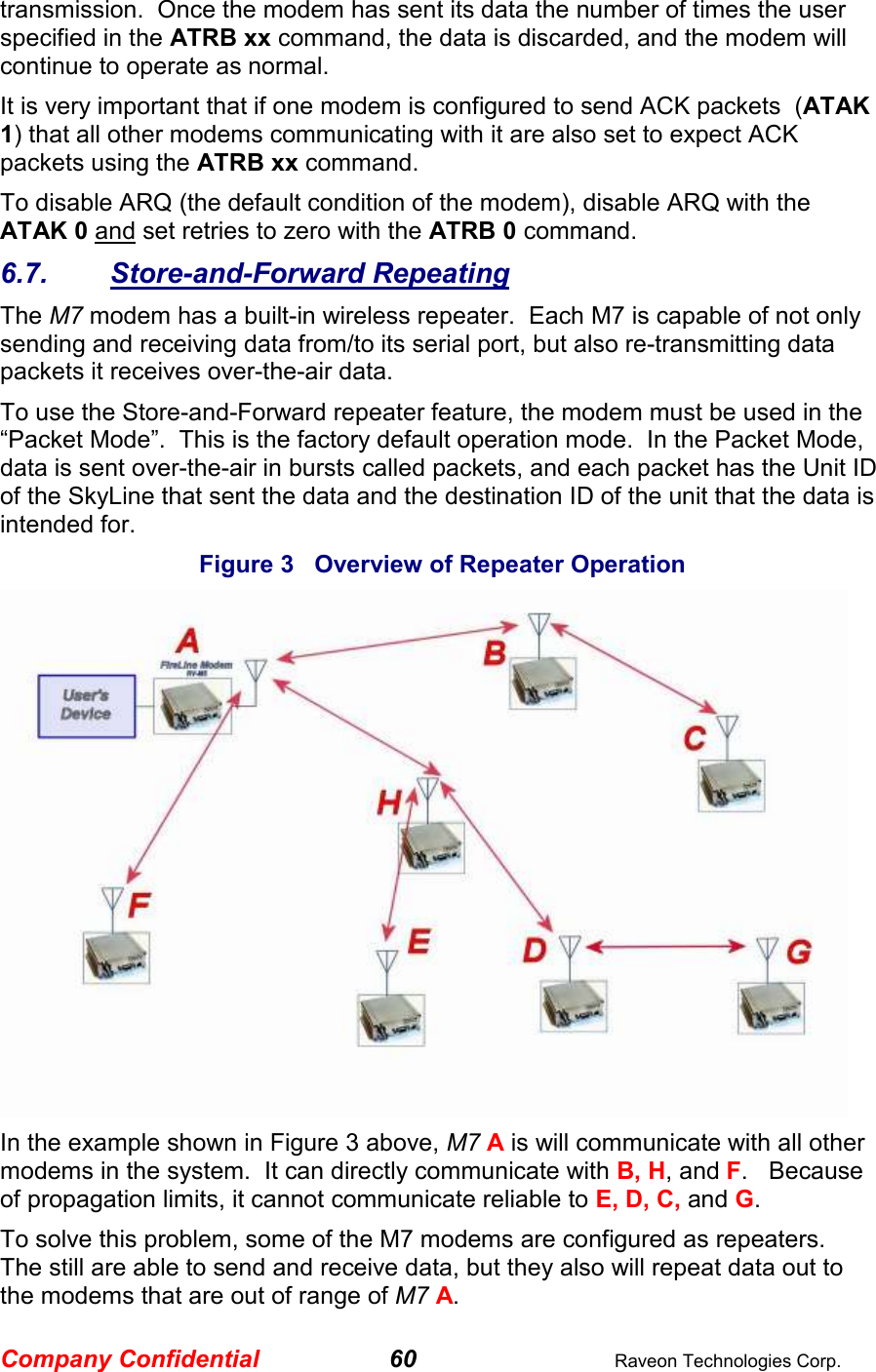

Company Confidential 60 Raveon Technologies Corp. Most users who do not use individual modem addressing, choose to set a global system address, and have all modems in their system use the same Unit ID and same destination address. Broadcast Transmissions The double FF is used to identify a broadcast packet. A transmission with a two digit FF in the first two positions of the destination ID, or in the last two positions of the destination ID, will be interpreted as a broadcast, and any modem with an ID that matches the two non-FF digits will receive the data. For example, sending data with a destination ID of 12FF will be received by any modem with a unit ID 1200 through 12FF. Sending data with a destination ID of FF34 will be received by any modem with a unit ID of 0034 through FF34. The Address Mask The reason to use hexadecimal digits to represent the unit address, is that along with the Unit Address programmed into the M7, there is an “Address Mask” programmed into it. The default mask is FFFF. The address mask is also used to determine if a particular data transmission should be received by the modem. For most applications, where one modem talks to one modem, or where all modems in the system communicate with all other modems in the system, the Address Mask should stay set to FFFF. Only in systems where some modems should only talk to certain other modems, might you want to change the address mask. Whenever data is received over the air, the Destination Address of the transmission is logically “ANDed” with the Address Mask in the receiving modem. This is the Effective Destination Address. The receiving M7 also ANDs its own Unit Address with its Address Mask. The result is the Effective Unit Address. The Effective Unit Address is compared to the Effective Destination Address, and if the two are identical, the data will be received. Note: Logically 1 AND 1 = 1, 0 AND 0 = 0, 1 AND 0 = 0, 0 AND 1 = 0

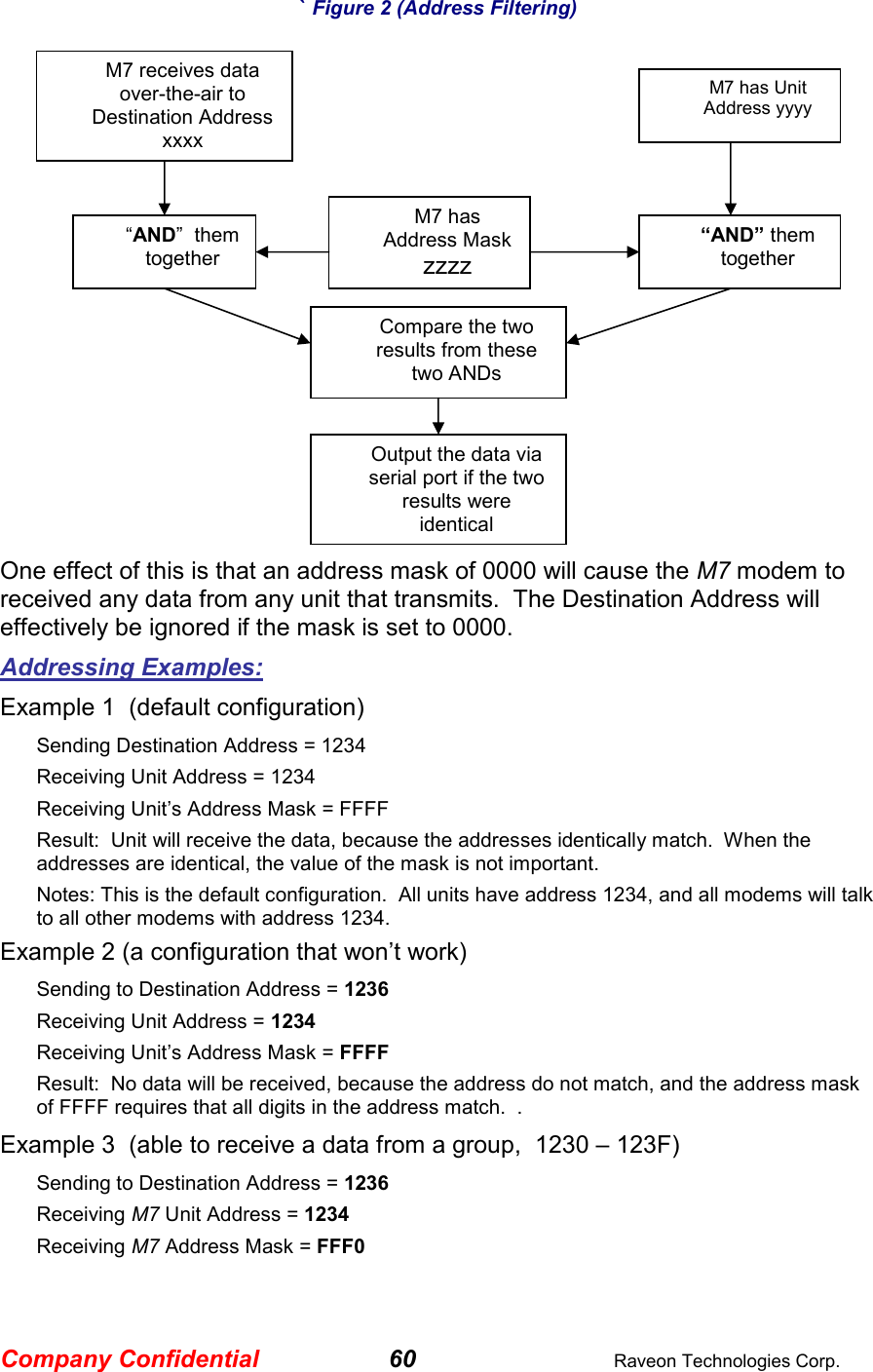

Company Confidential 60 Raveon Technologies Corp. ` Figure 2 (Address Filtering) One effect of this is that an address mask of 0000 will cause the M7 modem to received any data from any unit that transmits. The Destination Address will effectively be ignored if the mask is set to 0000. Addressing Examples: Example 1 (default configuration) Sending Destination Address = 1234 Receiving Unit Address = 1234 Receiving Unit’s Address Mask = FFFF Result: Unit will receive the data, because the addresses identically match. When the addresses are identical, the value of the mask is not important. Notes: This is the default configuration. All units have address 1234, and all modems will talk to all other modems with address 1234. Example 2 (a configuration that won’t work) Sending to Destination Address = 1236 Receiving Unit Address = 1234 Receiving Unit’s Address Mask = FFFF Result: No data will be received, because the address do not match, and the address mask of FFFF requires that all digits in the address match. . Example 3 (able to receive a data from a group, 1230 – 123F) Sending to Destination Address = 1236 Receiving M7 Unit Address = 1234 Receiving M7 Address Mask = FFF0 M7 receives data over-the-air to Destination Address xxxx M7 has Unit Address yyyy M7 has Address Mask zzzz “AND” them together Compare the two results from these two ANDs “AND” them together Output the data via serial port if the two results were identical
Company Confidential 60 Raveon Technologies Corp. Result: Data will be received. 1236 ANDed with FFF0 is 1230. 1234 ANDed with FFF0 is 1230. The results of the ANDing match, and thus the data will be received. Example 4 (able to receive from a group, xx34 where xx is any two digits) Sending Destination Address = 2234 Receiving M7’s Unit Address = 1234 Receiving M7’s Address Mask = 00FF Result: Data will be received. 2234 AND 00FF equals 0034. 1234 AND 00FF equals 0034, therefore they match. The results of the ANDing match, and thus the data will be received. 6.6. Error Correction The M7 modem has a built-in error correction mode, commonly referred to as Automatic Repeat request (ARQ). It works by checking each reception for errors, and if the data is OK, it sends a short “ACK” packet back over the air telling the sending station the data was OK. The M7 modem uses a traditional Carrier Sense Multiple-Access (CSMA) algorithm with randomized re-try time slots to determine when to re-transmit packets that must be re-sent. The duration between re-tries increases as the number of attempts increases. If received data has an error in it or if the receiving modem does not get the data due to interference, the receiving modem does not send the ACK back, and the sending station will automatically re-send the data. There are two aspects to configuring ARQ: 1) Enable the ARQ mode in the modem to allow it to transmit ACKs (ATAK 1 command). This command enables the modem to transmit ACK packets. 2) Configure the number of retries the modem should attempt if an ACK packet is not received back when it sends data (ATRB xx command). For example, if you set ATRB to 5 with the ATRB 5 command, the modem will wait for an ACK whenever it sends data. If it receives and ACK back from the modem that it sent data to, it will do nothing more. But if it does not receive an ACK, it will resend the same data, trying up to 5 more times. The factory default condition is not to send or require ACK packets, so if you wish to use this mode, program the M7 to transmit ACKs with the ATAK 1 command. This will cause the modem to send an ACK anytime it receives data from another modem. Note: If the destination address was a broadcast (FFFF, FFxx, or xxFF), it will not wait for an ACK. The number of times it retries to send data that does not get through (does not get an ACK) is up to the user, but a number of 5 is usually a good compromise. If after 5 times, the data does not get through, then there probably is something seriously wrong with the channel or system. The retried-transmissions are randomly spaced at intervals between approximately 200mS and 400mS, increasing by 50mS for each attempted
Company Confidential 60 Raveon Technologies Corp. transmission. Once the modem has sent its data the number of times the user specified in the ATRB xx command, the data is discarded, and the modem will continue to operate as normal. It is very important that if one modem is configured to send ACK packets (ATAK 1) that all other modems communicating with it are also set to expect ACK packets using the ATRB xx command. To disable ARQ (the default condition of the modem), disable ARQ with the ATAK 0 and set retries to zero with the ATRB 0 command. 6.7. Store-and-Forward Repeating The M7 modem has a built-in wireless repeater. Each M7 is capable of not only sending and receiving data from/to its serial port, but also re-transmitting data packets it receives over-the-air data. To use the Store-and-Forward repeater feature, the modem must be used in the “Packet Mode”. This is the factory default operation mode. In the Packet Mode, data is sent over-the-air in bursts called packets, and each packet has the Unit ID of the SkyLine that sent the data and the destination ID of the unit that the data is intended for. Figure 3 Overview of Repeater Operation In the example shown in Figure 3 above, M7 A is will communicate with all other modems in the system. It can directly communicate with B, H, and F. Because of propagation limits, it cannot communicate reliable to E, D, C, and G. To solve this problem, some of the M7 modems are configured as repeaters. The still are able to send and receive data, but they also will repeat data out to the modems that are out of range of M7 A.

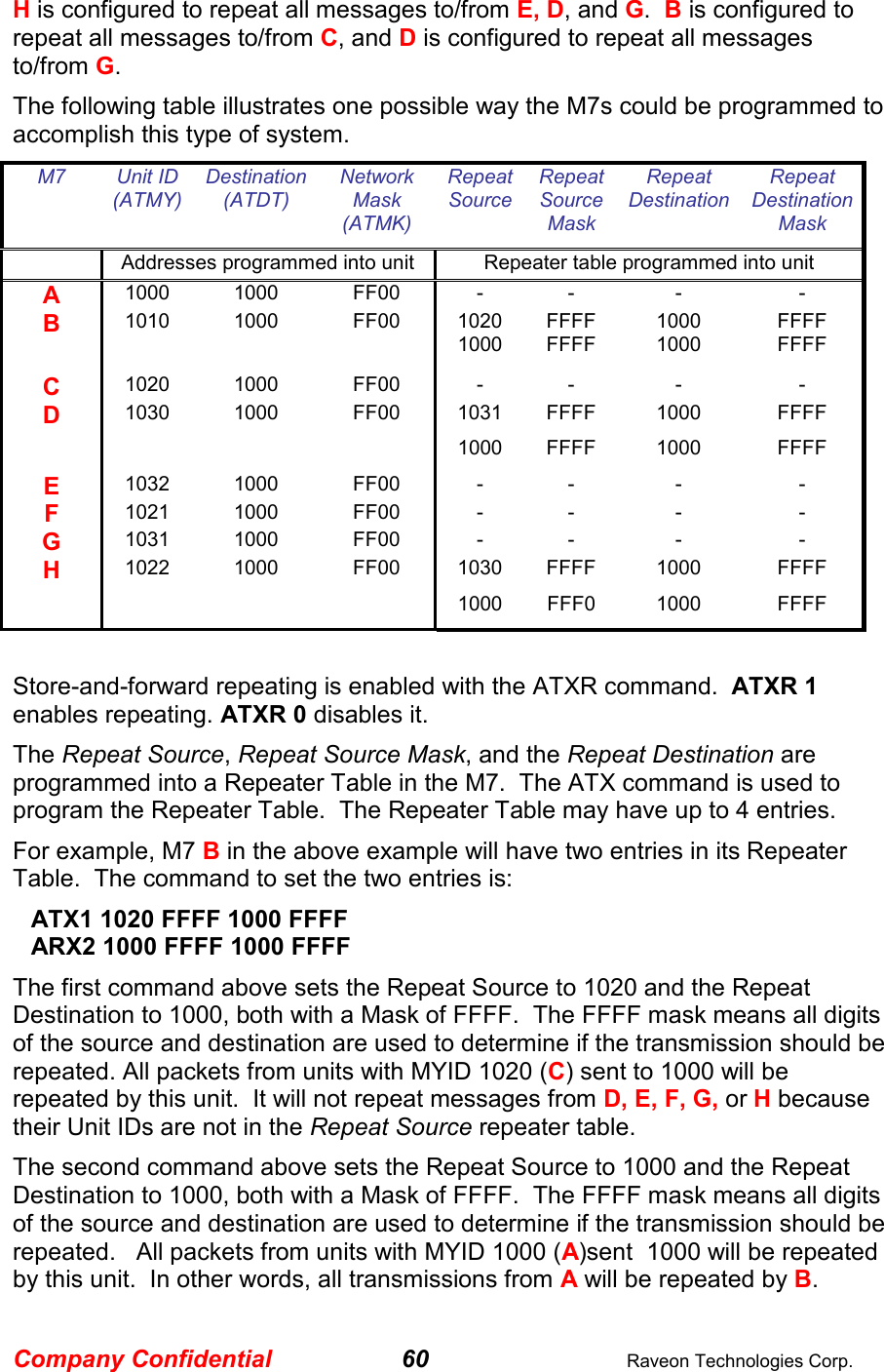

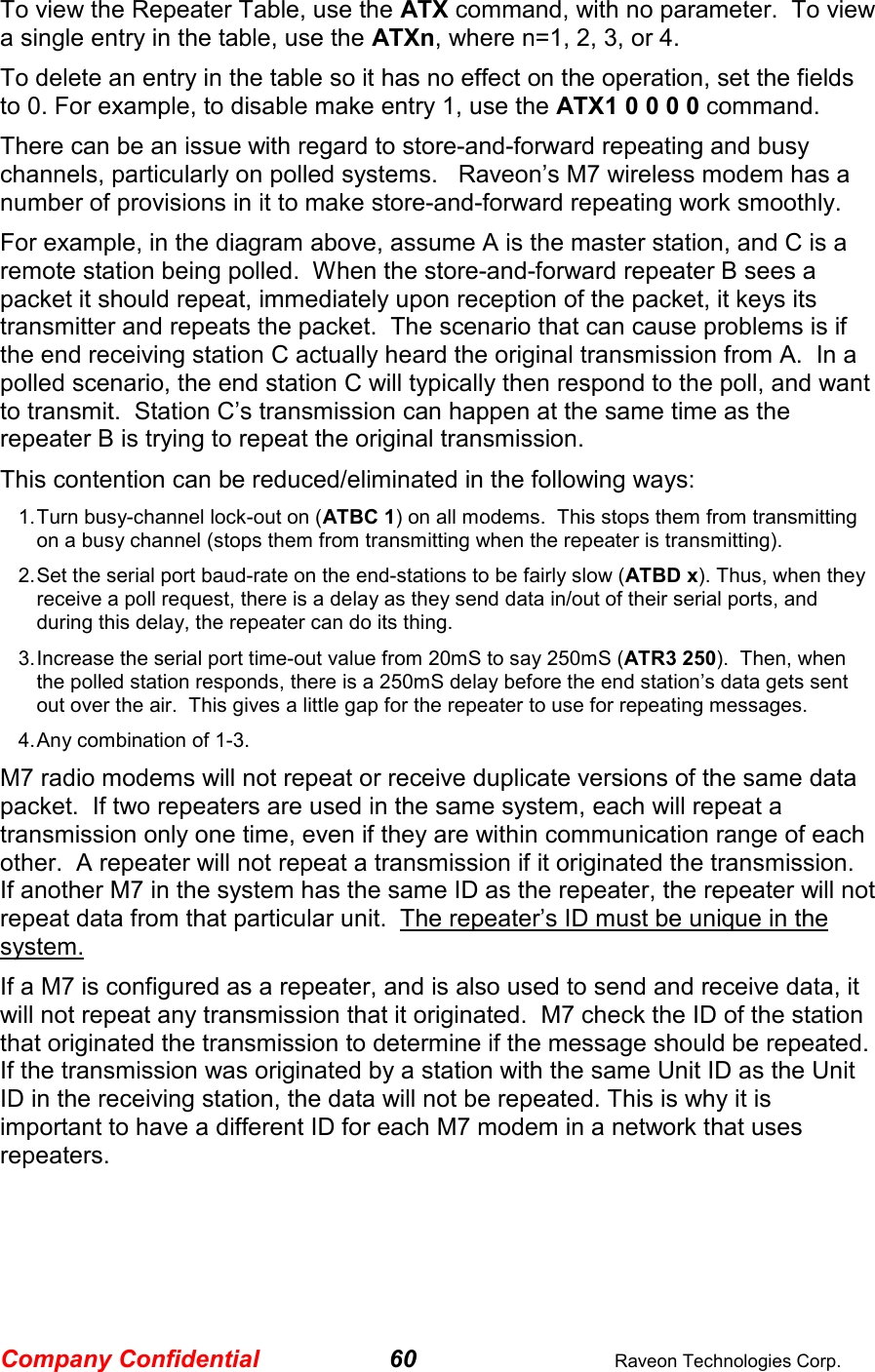

Company Confidential 60 Raveon Technologies Corp. H is configured to repeat all messages to/from E, D, and G. B is configured to repeat all messages to/from C, and D is configured to repeat all messages to/from G. The following table illustrates one possible way the M7s could be programmed to accomplish this type of system. M7 Unit ID (ATMY) Destination (ATDT) Network Mask (ATMK) Repeat Source Repeat Source Mask Repeat Destination Repeat Destination Mask Addresses programmed into unit Repeater table programmed into unit A 1000 1000 FF00 - - - - B 1010 1000 FF00 1020 FFFF 1000 FFFF 1000 FFFF 1000 FFFF C 1020 1000 FF00 - - - - D 1030 1000 FF00 1031 FFFF 1000 FFFF 1000 FFFF 1000 FFFF E 1032 1000 FF00 - - - - F 1021 1000 FF00 - - - - G 1031 1000 FF00 - - - - H 1022 1000 FF00 1030 FFFF 1000 FFFF 1000 FFF0 1000 FFFF Store-and-forward repeating is enabled with the ATXR command. ATXR 1 enables repeating. ATXR 0 disables it. The Repeat Source, Repeat Source Mask, and the Repeat Destination are programmed into a Repeater Table in the M7. The ATX command is used to program the Repeater Table. The Repeater Table may have up to 4 entries. For example, M7 B in the above example will have two entries in its Repeater Table. The command to set the two entries is: ATX1 1020 FFFF 1000 FFFF ARX2 1000 FFFF 1000 FFFF The first command above sets the Repeat Source to 1020 and the Repeat Destination to 1000, both with a Mask of FFFF. The FFFF mask means all digits of the source and destination are used to determine if the transmission should be repeated. All packets from units with MYID 1020 (C) sent to 1000 will be repeated by this unit. It will not repeat messages from D, E, F, G, or H because their Unit IDs are not in the Repeat Source repeater table. The second command above sets the Repeat Source to 1000 and the Repeat Destination to 1000, both with a Mask of FFFF. The FFFF mask means all digits of the source and destination are used to determine if the transmission should be repeated. All packets from units with MYID 1000 (A)sent 1000 will be repeated by this unit. In other words, all transmissions from A will be repeated by B.
Company Confidential 60 Raveon Technologies Corp. To view the Repeater Table, use the ATX command, with no parameter. To view a single entry in the table, use the ATXn, where n=1, 2, 3, or 4. To delete an entry in the table so it has no effect on the operation, set the fields to 0. For example, to disable make entry 1, use the ATX1 0 0 0 0 command. There can be an issue with regard to store-and-forward repeating and busy channels, particularly on polled systems. Raveon’s M7 wireless modem has a number of provisions in it to make store-and-forward repeating work smoothly. For example, in the diagram above, assume A is the master station, and C is a remote station being polled. When the store-and-forward repeater B sees a packet it should repeat, immediately upon reception of the packet, it keys its transmitter and repeats the packet. The scenario that can cause problems is if the end receiving station C actually heard the original transmission from A. In a polled scenario, the end station C will typically then respond to the poll, and want to transmit. Station C’s transmission can happen at the same time as the repeater B is trying to repeat the original transmission. This contention can be reduced/eliminated in the following ways: 1. Turn busy-channel lock-out on (ATBC 1) on all modems. This stops them from transmitting on a busy channel (stops them from transmitting when the repeater is transmitting). 2. Set the serial port baud-rate on the end-stations to be fairly slow (ATBD x). Thus, when they receive a poll request, there is a delay as they send data in/out of their serial ports, and during this delay, the repeater can do its thing. 3. Increase the serial port time-out value from 20mS to say 250mS (ATR3 250). Then, when the polled station responds, there is a 250mS delay before the end station’s data gets sent out over the air. This gives a little gap for the repeater to use for repeating messages. 4. Any combination of 1-3. M7 radio modems will not repeat or receive duplicate versions of the same data packet. If two repeaters are used in the same system, each will repeat a transmission only one time, even if they are within communication range of each other. A repeater will not repeat a transmission if it originated the transmission. If another M7 in the system has the same ID as the repeater, the repeater will not repeat data from that particular unit. The repeater’s ID must be unique in the system. If a M7 is configured as a repeater, and is also used to send and receive data, it will not repeat any transmission that it originated. M7 check the ID of the station that originated the transmission to determine if the message should be repeated. If the transmission was originated by a station with the same Unit ID as the Unit ID in the receiving station, the data will not be repeated. This is why it is important to have a different ID for each M7 modem in a network that uses repeaters.

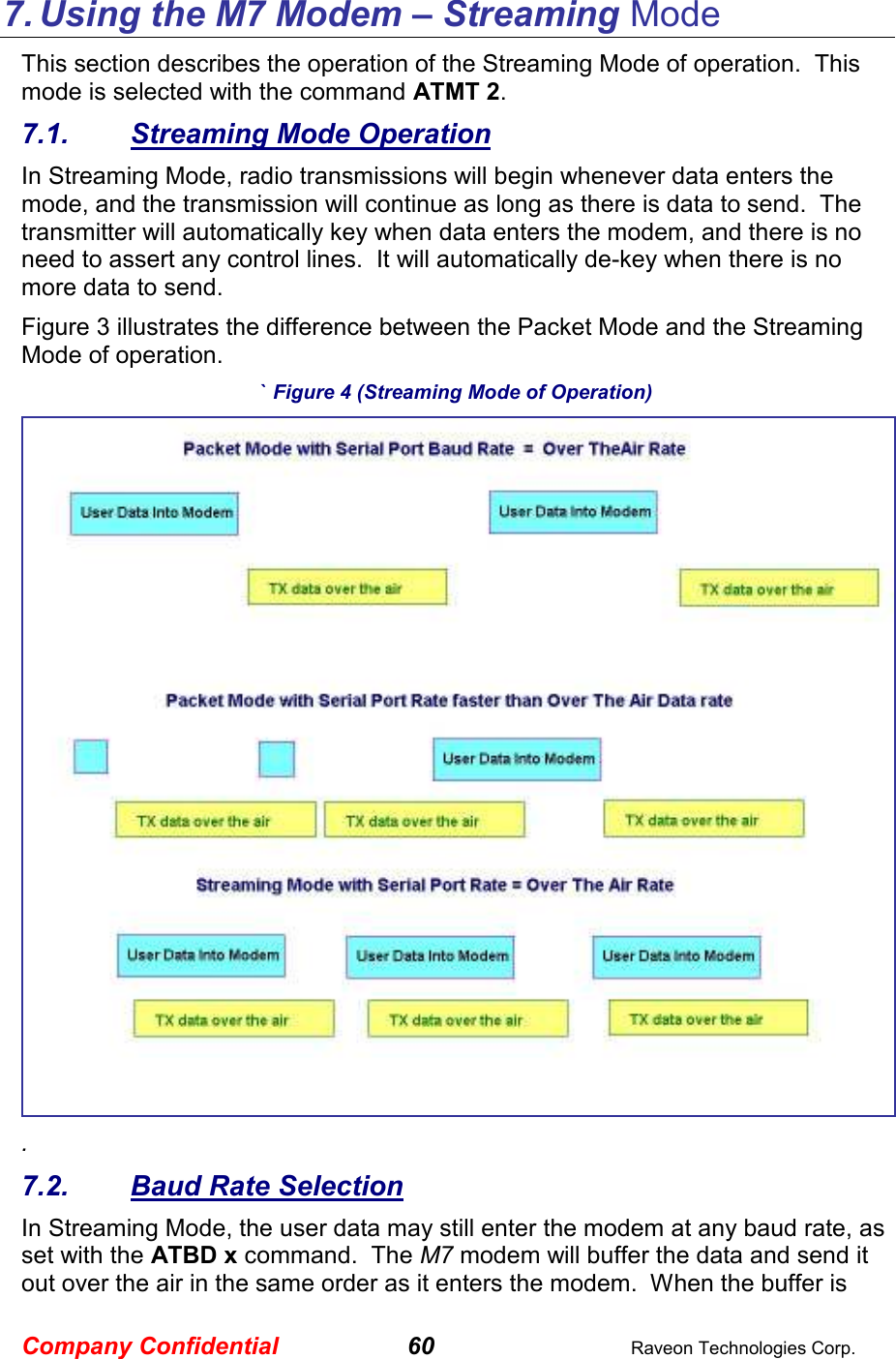

Company Confidential 60 Raveon Technologies Corp. 7. Using the M7 Modem – Streaming Mode This section describes the operation of the Streaming Mode of operation. This mode is selected with the command ATMT 2. 7.1. Streaming Mode Operation In Streaming Mode, radio transmissions will begin whenever data enters the mode, and the transmission will continue as long as there is data to send. The transmitter will automatically key when data enters the modem, and there is no need to assert any control lines. It will automatically de-key when there is no more data to send. Figure 3 illustrates the difference between the Packet Mode and the Streaming Mode of operation. ` Figure 4 (Streaming Mode of Operation) . 7.2. Baud Rate Selection In Streaming Mode, the user data may still enter the modem at any baud rate, as set with the ATBD x command. The M7 modem will buffer the data and send it out over the air in the same order as it enters the modem. When the buffer is
Company Confidential 60 Raveon Technologies Corp. empty and there is no more data coming into the modem, it will automatically de-key the radio and go back into the receive mode. The M7 modem will send a hidden end-of-message signal to the receiving modem, thus avoiding any extra data bytes “dribble bytes” from coming out of the user serial port. When the modem is operating with very weak signals, the end-of-message signal may be obscured, and missed by the receiving M7. In this case, additional noise bytes may come out of the user serial port. While receiving, the modem will also output the receive data out the serial port at the rate set by the ATBD command. If the serial port baud-rate is slower than the over-the-air rate, an internal buffer in the M7 modem will hold the data as it is sent out the serial port. 7.3. Bit Errors Unlike Packet Mode operation, there is no error-detection nor error-correction in the Streaming Mode, so user data may contain bit errors. The user’s application must be able to handle these errors or additional bytes of noise data. If the application that is using the M7 cannot tolerate have erroneous data when the channel is noisy, the modem should be operated in the Packet Mode instead of Streaming mode ( In Packet Mode, data is always first checked for bit-errors, and never outputted if it detects any errors). The end of a transmission is detected by the receiving modem by the presence of a special end-of-message signal. Transmitting M7s automatically put the end-of-message signal out after the user’s data has been transmitted. If the receiving modem does not receive this signal (due to noise or interference), the receiving modem may continue to output some more data, until it detects that the RF carrier is gone, or the received signal is actually noise. This may take a byte or two of time, and during this time period, the receiving modem may output random noise bytes. 7.4. Carrier Detect To reduce, and virtually eliminate bit errors and additional noise bytes, the user may configure the M7 to require and RF carrier Detect before receiving any data. Because the RF carrier Detect Threshold is set above the noise-floor of the receiver, bit-errors will be rare if RF carrier is required to receive. By default, the M7 does not require RF carrier detect to receive. To enable it, use the ATRF 1 command. To disable the need for RF carrier detect, us the ATRF 0 command (Factory default). When ATRF is 0, the modem will be more sensitive, and be able to receive weak signals, but there is more likely to be bit errors when the signals are weak. 7.5. Serial Data Flow Control If large amounts of data will be sent with the M7, and the serial port is operated at a faster data rate than the over-the-air rate, it may be possible to overflow the internal data buffer. To ensure the transmit buffer does not overflow, enable and use hardware flow control. Hardware flow control is enabled with the ATCH 1

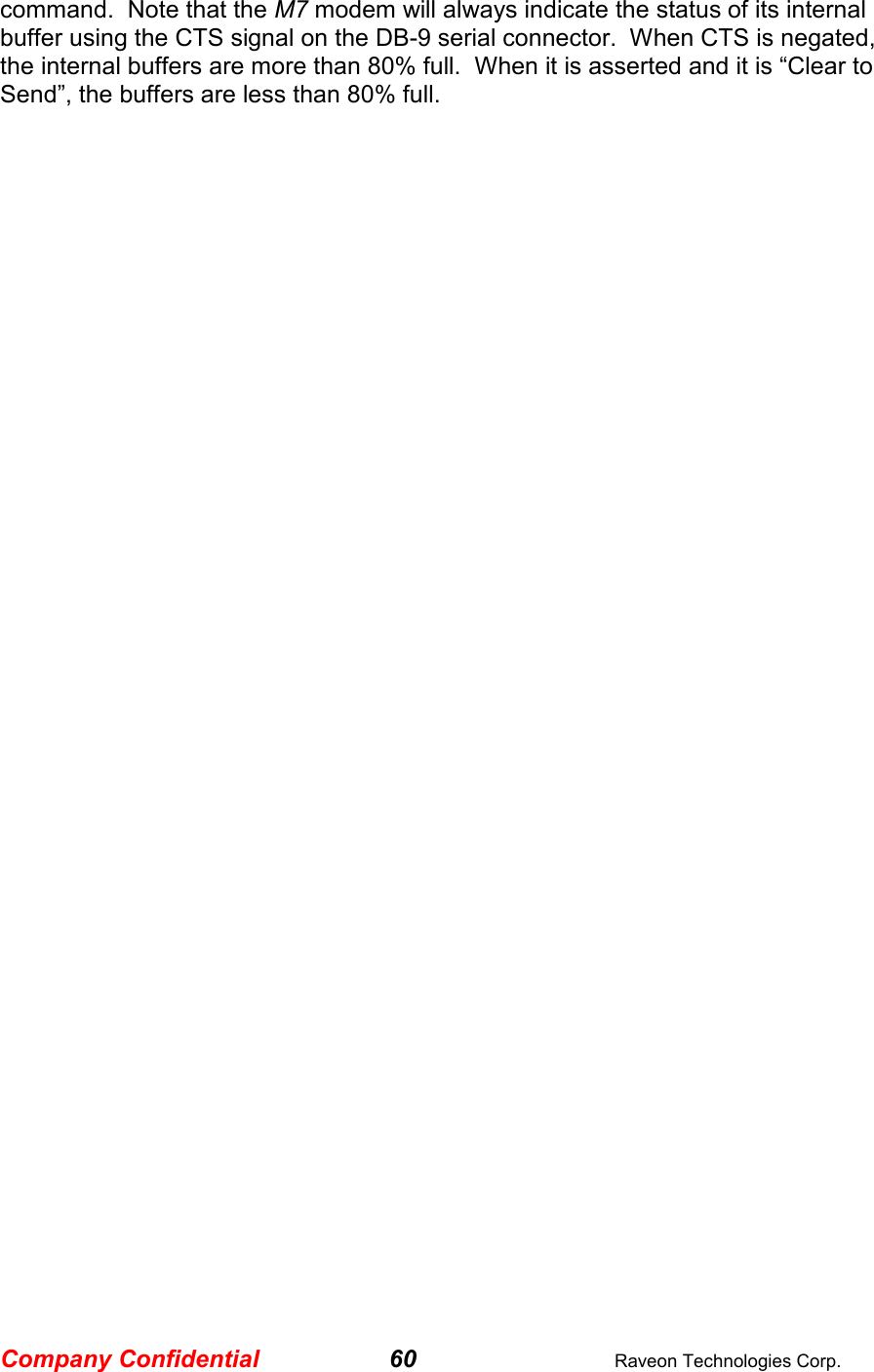

Company Confidential 60 Raveon Technologies Corp. command. Note that the M7 modem will always indicate the status of its internal buffer using the CTS signal on the DB-9 serial connector. When CTS is negated, the internal buffers are more than 80% full. When it is asserted and it is “Clear to Send”, the buffers are less than 80% full.

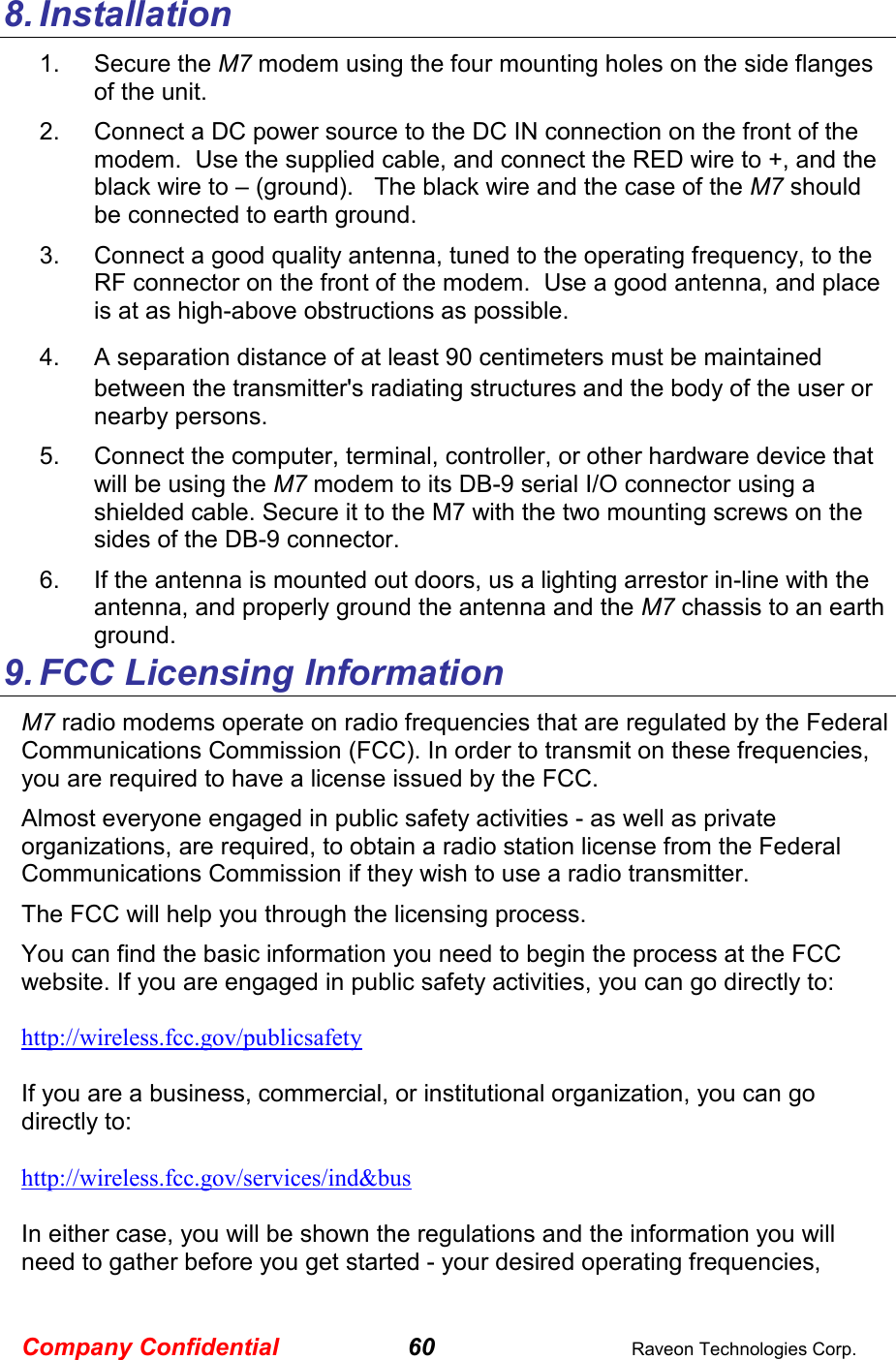

Company Confidential 60 Raveon Technologies Corp. 8. Installation 1. Secure the M7 modem using the four mounting holes on the side flanges of the unit. 2. Connect a DC power source to the DC IN connection on the front of the modem. Use the supplied cable, and connect the RED wire to +, and the black wire to – (ground). The black wire and the case of the M7 should be connected to earth ground. 3. Connect a good quality antenna, tuned to the operating frequency, to the RF connector on the front of the modem. Use a good antenna, and place is at as high-above obstructions as possible. 4. A separation distance of at least 90 centimeters must be maintained between the transmitter's radiating structures and the body of the user or nearby persons. 5. Connect the computer, terminal, controller, or other hardware device that will be using the M7 modem to its DB-9 serial I/O connector using a shielded cable. Secure it to the M7 with the two mounting screws on the sides of the DB-9 connector. 6. If the antenna is mounted out doors, us a lighting arrestor in-line with the antenna, and properly ground the antenna and the M7 chassis to an earth ground. 9. FCC Licensing Information M7 radio modems operate on radio frequencies that are regulated by the Federal Communications Commission (FCC). In order to transmit on these frequencies, you are required to have a license issued by the FCC. Almost everyone engaged in public safety activities - as well as private organizations, are required, to obtain a radio station license from the Federal Communications Commission if they wish to use a radio transmitter. The FCC will help you through the licensing process. You can find the basic information you need to begin the process at the FCC website. If you are engaged in public safety activities, you can go directly to: http://wireless.fcc.gov/publicsafety If you are a business, commercial, or institutional organization, you can go directly to: http://wireless.fcc.gov/services/ind&bus In either case, you will be shown the regulations and the information you will need to gather before you get started - your desired operating frequencies,

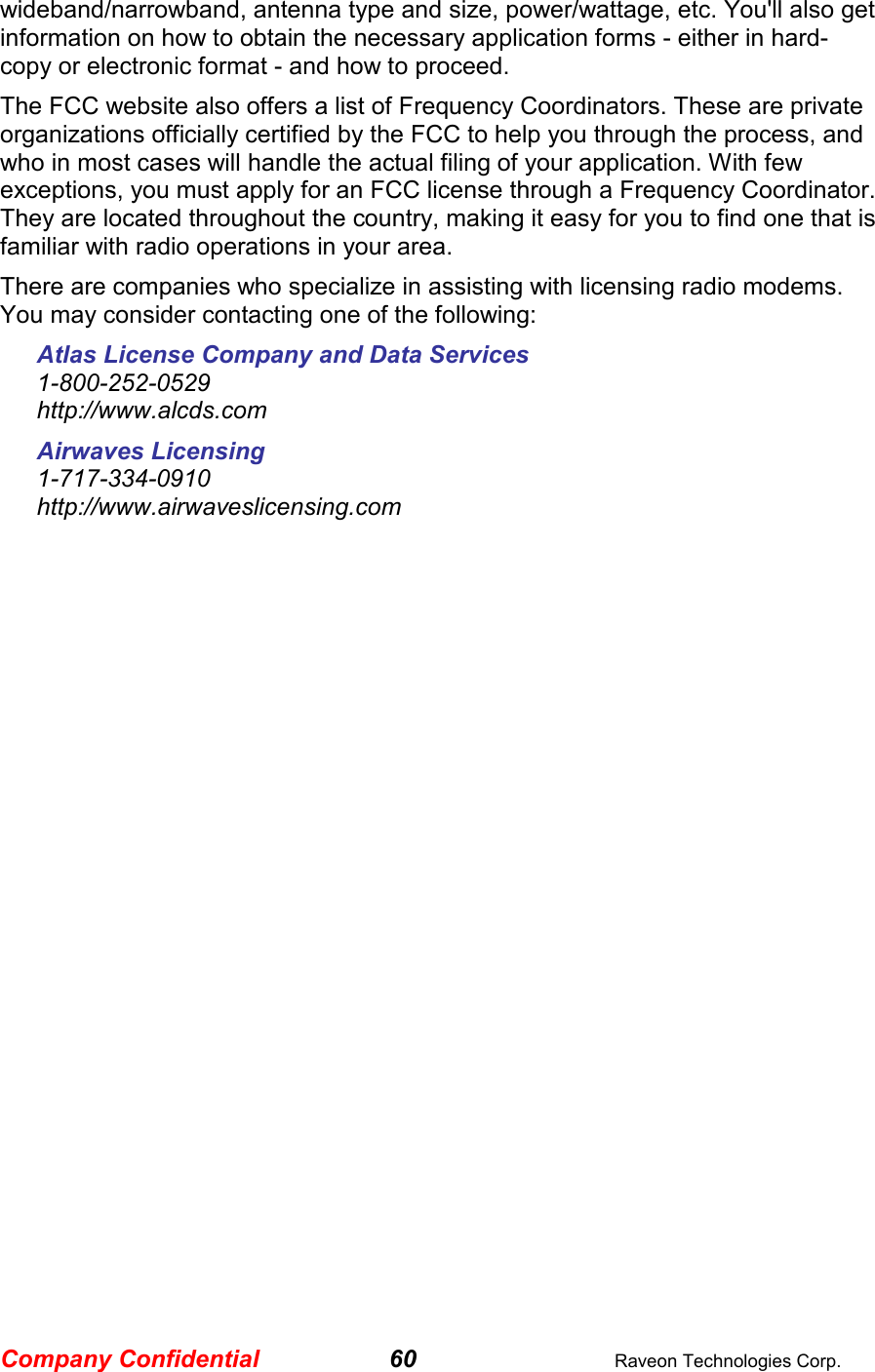

Company Confidential 60 Raveon Technologies Corp. wideband/narrowband, antenna type and size, power/wattage, etc. You'll also get information on how to obtain the necessary application forms - either in hard-copy or electronic format - and how to proceed. The FCC website also offers a list of Frequency Coordinators. These are private organizations officially certified by the FCC to help you through the process, and who in most cases will handle the actual filing of your application. With few exceptions, you must apply for an FCC license through a Frequency Coordinator. They are located throughout the country, making it easy for you to find one that is familiar with radio operations in your area. There are companies who specialize in assisting with licensing radio modems. You may consider contacting one of the following: Atlas License Company and Data Services 1-800-252-0529 http://www.alcds.com Airwaves Licensing 1-717-334-0910 http://www.airwaveslicensing.com

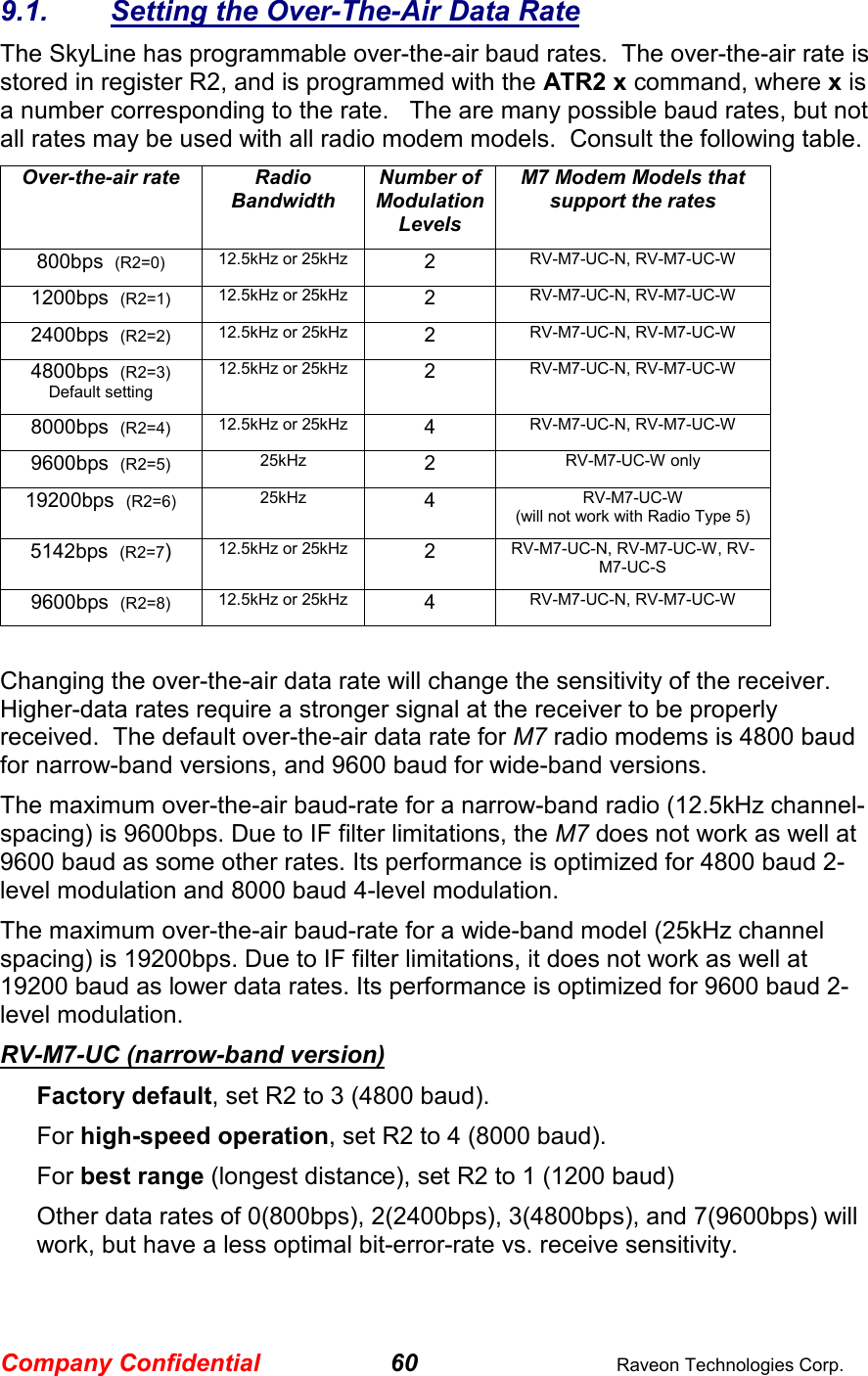

Company Confidential 60 Raveon Technologies Corp. 9.1. Setting the Over-The-Air Data Rate The SkyLine has programmable over-the-air baud rates. The over-the-air rate is stored in register R2, and is programmed with the ATR2 x command, where x is a number corresponding to the rate. The are many possible baud rates, but not all rates may be used with all radio modem models. Consult the following table. Over-the-air rate Radio Bandwidth Number of Modulation Levels M7 Modem Models that support the rates 800bps (R2=0) 12.5kHz or 25kHz 2 RV-M7-UC-N, RV-M7-UC-W 1200bps (R2=1) 12.5kHz or 25kHz 2 RV-M7-UC-N, RV-M7-UC-W 2400bps (R2=2) 12.5kHz or 25kHz 2 RV-M7-UC-N, RV-M7-UC-W 4800bps (R2=3) Default setting 12.5kHz or 25kHz 2 RV-M7-UC-N, RV-M7-UC-W 8000bps (R2=4) 12.5kHz or 25kHz 4 RV-M7-UC-N, RV-M7-UC-W 9600bps (R2=5) 25kHz 2 RV-M7-UC-W only 19200bps (R2=6) 25kHz 4 RV-M7-UC-W (will not work with Radio Type 5) 5142bps (R2=7) 12.5kHz or 25kHz 2 RV-M7-UC-N, RV-M7-UC-W, RV-M7-UC-S 9600bps (R2=8) 12.5kHz or 25kHz 4 RV-M7-UC-N, RV-M7-UC-W Changing the over-the-air data rate will change the sensitivity of the receiver. Higher-data rates require a stronger signal at the receiver to be properly received. The default over-the-air data rate for M7 radio modems is 4800 baud for narrow-band versions, and 9600 baud for wide-band versions. The maximum over-the-air baud-rate for a narrow-band radio (12.5kHz channel-spacing) is 9600bps. Due to IF filter limitations, the M7 does not work as well at 9600 baud as some other rates. Its performance is optimized for 4800 baud 2-level modulation and 8000 baud 4-level modulation. The maximum over-the-air baud-rate for a wide-band model (25kHz channel spacing) is 19200bps. Due to IF filter limitations, it does not work as well at 19200 baud as lower data rates. Its performance is optimized for 9600 baud 2-level modulation. RV-M7-UC (narrow-band version) Factory default, set R2 to 3 (4800 baud). For high-speed operation, set R2 to 4 (8000 baud). For best range (longest distance), set R2 to 1 (1200 baud) Other data rates of 0(800bps), 2(2400bps), 3(4800bps), and 7(9600bps) will work, but have a less optimal bit-error-rate vs. receive sensitivity.

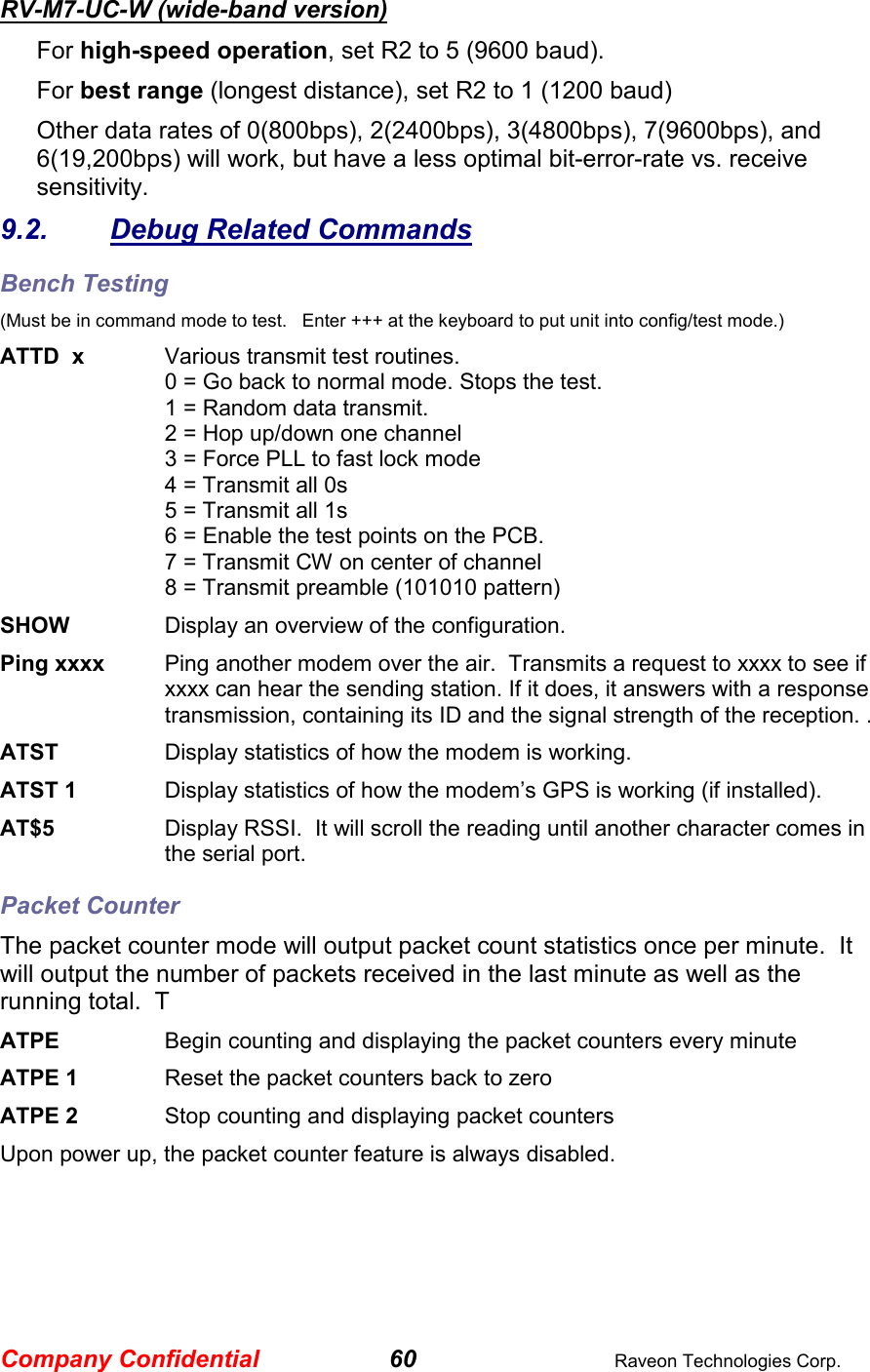

Company Confidential 60 Raveon Technologies Corp. RV-M7-UC-W (wide-band version) For high-speed operation, set R2 to 5 (9600 baud). For best range (longest distance), set R2 to 1 (1200 baud) Other data rates of 0(800bps), 2(2400bps), 3(4800bps), 7(9600bps), and 6(19,200bps) will work, but have a less optimal bit-error-rate vs. receive sensitivity. 9.2. Debug Related Commands Bench Testing (Must be in command mode to test. Enter +++ at the keyboard to put unit into config/test mode.) ATTD x Various transmit test routines. 0 = Go back to normal mode. Stops the test. 1 = Random data transmit. 2 = Hop up/down one channel 3 = Force PLL to fast lock mode 4 = Transmit all 0s 5 = Transmit all 1s 6 = Enable the test points on the PCB. 7 = Transmit CW on center of channel 8 = Transmit preamble (101010 pattern) SHOW Display an overview of the configuration. Ping xxxx Ping another modem over the air. Transmits a request to xxxx to see if xxxx can hear the sending station. If it does, it answers with a response transmission, containing its ID and the signal strength of the reception. . ATST Display statistics of how the modem is working. ATST 1 Display statistics of how the modem’s GPS is working (if installed). AT$5 Display RSSI. It will scroll the reading until another character comes in the serial port. Packet Counter The packet counter mode will output packet count statistics once per minute. It will output the number of packets received in the last minute as well as the running total. T ATPE Begin counting and displaying the packet counters every minute ATPE 1 Reset the packet counters back to zero ATPE 2 Stop counting and displaying packet counters Upon power up, the packet counter feature is always disabled.
Company Confidential 60 Raveon Technologies Corp. 10. M7 Diagnostic Provisions 10.1. Overview of Diagnostics Internal to the M7 radio modem, is a powerful 32-bit microprocessor. Along with handing all aspects of radio modulation and demodulation, the microprocessor also maintains an extensive array of diagnostic information. This section details the diagnostic information available, and describes how to us the information to optimize or troubleshoot a M7 radio network. 10.2. Reading the Diagnostic Information M7 diagnostic information is read using AT commands, while the unit is in the Command Mode. Refer to the section “User Serial Port Commands” to learn how to put the M7 modem into the Command Mode. To see a general overview of how the modem has been operating, us the ATST command (status request command), without any parameter. The radio modem will respond with a list of certain operation statistics that it maintains. All statistics start counting at 0. The ATST 1 command can be used to reset all statistics back to 0, except the run-time timers. Other operation and configuration statistics are available using the ATST command, with a parameter to specify the desired statistic. The following table describes the various statistics available. 10.3. Status and Statistics Command AT Command Command Description Response ST General Communication Statistics – This command will cause the M7 to output a table of various operational statistics. Statistics overview screen ST1 GPS Statistics – Statistics related to the GPS operation, if installed. GPS Statistics overview screen ST2 Low-level internal statistics – Returns various low-level statistics. These are subject to change in various firmware revisions. Low-level statistics screen ST3 Compile date and time – Returns the data and the time that the firmware was compiled. Date and time ST4 Run Time – Returns the amount of time that the modem has been powered up and running. Run time display screen ST9 Reset all statistics counters OK

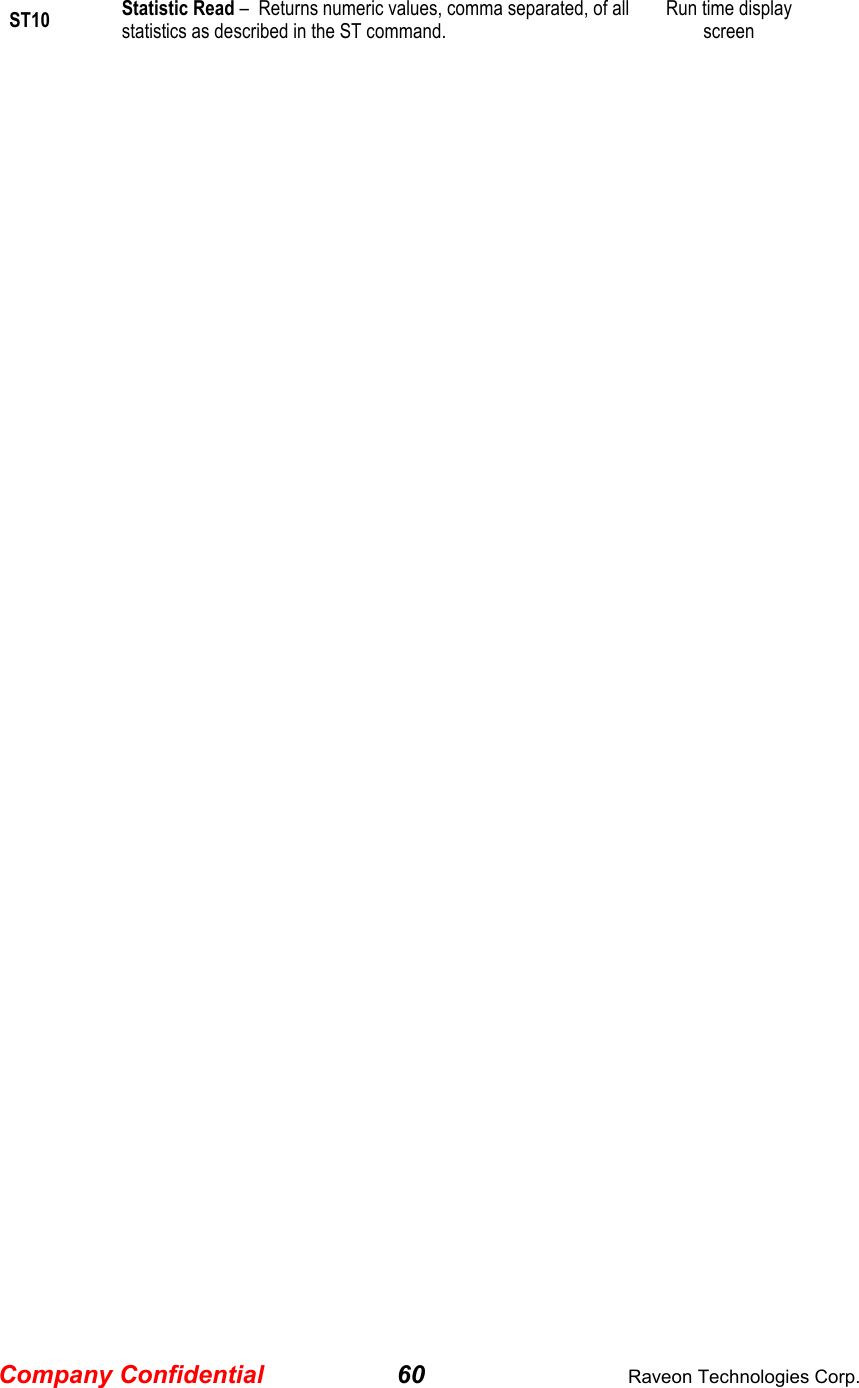

Company Confidential 60 Raveon Technologies Corp. ST10 Statistic Read – Returns numeric values, comma separated, of all statistics as described in the ST command. Run time display screen

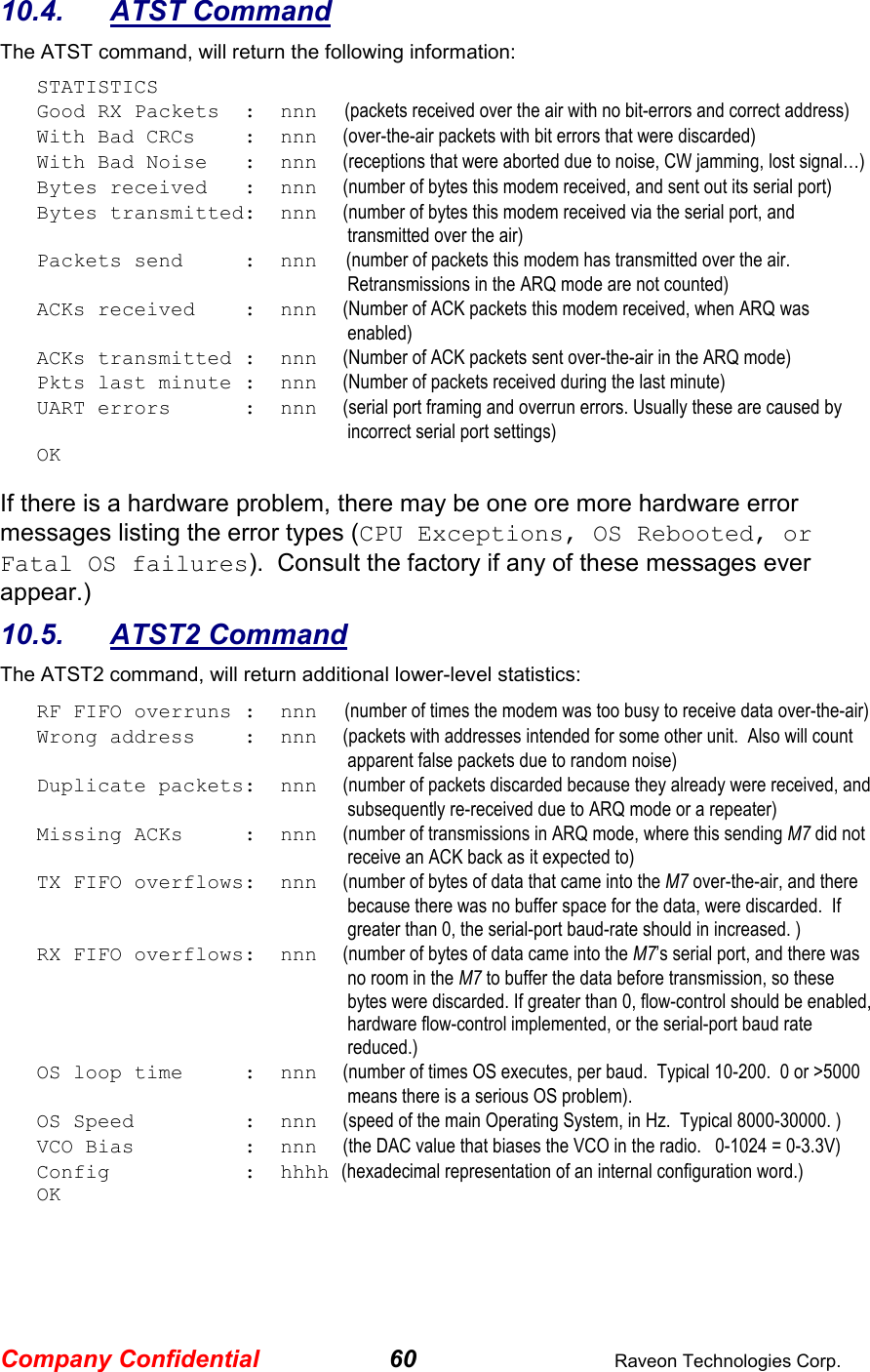

Company Confidential 60 Raveon Technologies Corp. 10.4. ATST Command The ATST command, will return the following information: STATISTICS Good RX Packets : nnn (packets received over the air with no bit-errors and correct address) With Bad CRCs : nnn (over-the-air packets with bit errors that were discarded) With Bad Noise : nnn (receptions that were aborted due to noise, CW jamming, lost signal…) Bytes received : nnn (number of bytes this modem received, and sent out its serial port) Bytes transmitted: nnn (number of bytes this modem received via the serial port, and transmitted over the air) Packets send : nnn (number of packets this modem has transmitted over the air. Retransmissions in the ARQ mode are not counted) ACKs received : nnn (Number of ACK packets this modem received, when ARQ was enabled) ACKs transmitted : nnn (Number of ACK packets sent over-the-air in the ARQ mode) Pkts last minute : nnn (Number of packets received during the last minute) UART errors : nnn (serial port framing and overrun errors. Usually these are caused by incorrect serial port settings) OK If there is a hardware problem, there may be one ore more hardware error messages listing the error types (CPU Exceptions, OS Rebooted, or Fatal OS failures). Consult the factory if any of these messages ever appear.) 10.5. ATST2 Command The ATST2 command, will return additional lower-level statistics: RF FIFO overruns : nnn (number of times the modem was too busy to receive data over-the-air) Wrong address : nnn (packets with addresses intended for some other unit. Also will count apparent false packets due to random noise) Duplicate packets: nnn (number of packets discarded because they already were received, and subsequently re-received due to ARQ mode or a repeater) Missing ACKs : nnn (number of transmissions in ARQ mode, where this sending M7 did not receive an ACK back as it expected to) TX FIFO overflows: nnn (number of bytes of data that came into the M7 over-the-air, and there because there was no buffer space for the data, were discarded. If greater than 0, the serial-port baud-rate should in increased. ) RX FIFO overflows: nnn (number of bytes of data came into the M7’s serial port, and there was no room in the M7 to buffer the data before transmission, so these bytes were discarded. If greater than 0, flow-control should be enabled, hardware flow-control implemented, or the serial-port baud rate reduced.) OS loop time : nnn (number of times OS executes, per baud. Typical 10-200. 0 or >5000 means there is a serious OS problem). OS Speed : nnn (speed of the main Operating System, in Hz. Typical 8000-30000. ) VCO Bias : nnn (the DAC value that biases the VCO in the radio. 0-1024 = 0-3.3V) Config : hhhh (hexadecimal representation of an internal configuration word.) OK

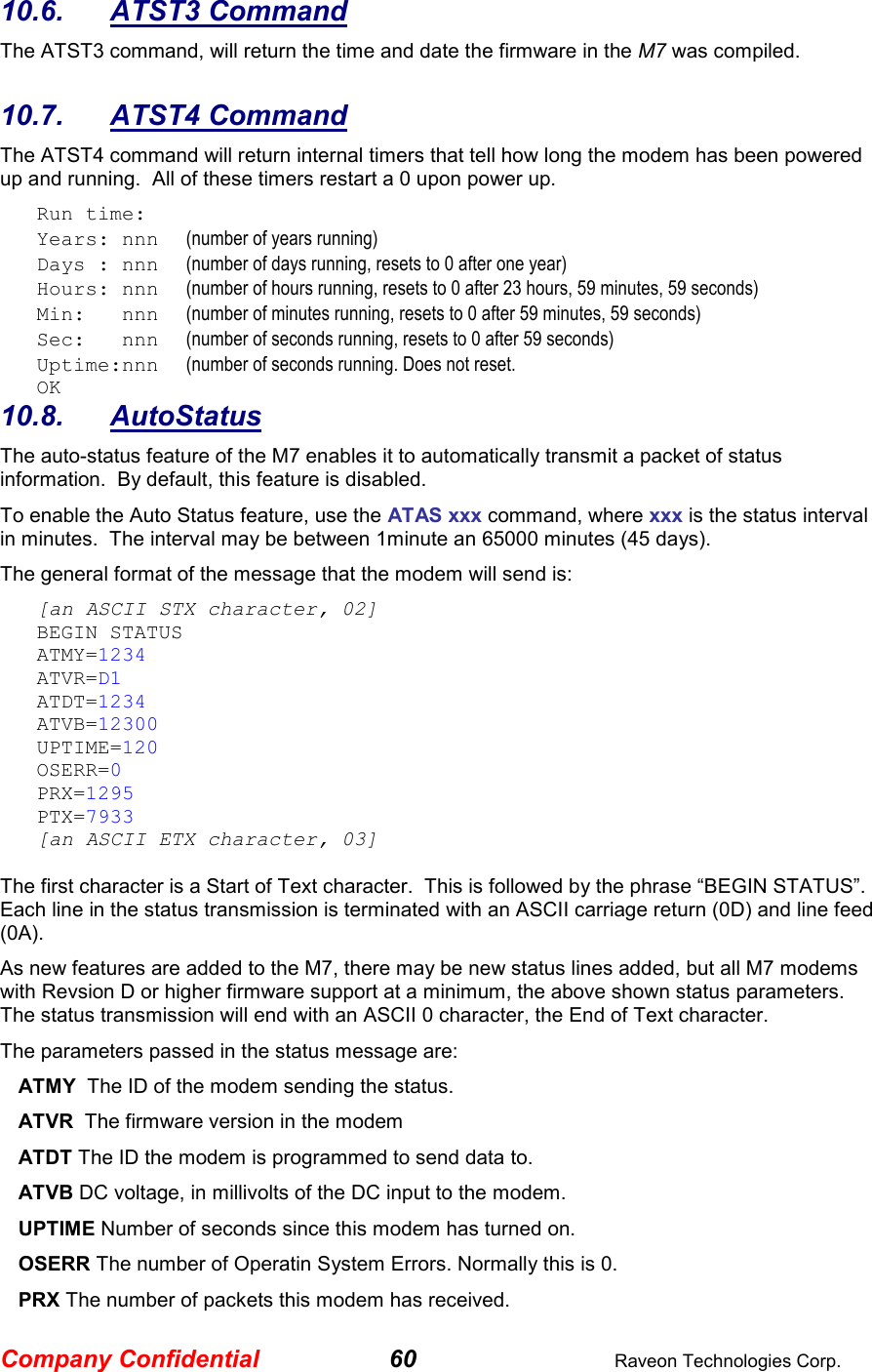

Company Confidential 60 Raveon Technologies Corp. 10.6. ATST3 Command The ATST3 command, will return the time and date the firmware in the M7 was compiled. 10.7. ATST4 Command The ATST4 command will return internal timers that tell how long the modem has been powered up and running. All of these timers restart a 0 upon power up. Run time: Years: nnn (number of years running) Days : nnn (number of days running, resets to 0 after one year) Hours: nnn (number of hours running, resets to 0 after 23 hours, 59 minutes, 59 seconds) Min: nnn (number of minutes running, resets to 0 after 59 minutes, 59 seconds) Sec: nnn (number of seconds running, resets to 0 after 59 seconds) Uptime:nnn (number of seconds running. Does not reset. OK 10.8. AutoStatus The auto-status feature of the M7 enables it to automatically transmit a packet of status information. By default, this feature is disabled. To enable the Auto Status feature, use the ATAS xxx command, where xxx is the status interval in minutes. The interval may be between 1minute an 65000 minutes (45 days). The general format of the message that the modem will send is: [an ASCII STX character, 02] BEGIN STATUS ATMY=1234 ATVR=D1 ATDT=1234 ATVB=12300 UPTIME=120 OSERR=0 PRX=1295 PTX=7933 [an ASCII ETX character, 03] The first character is a Start of Text character. This is followed by the phrase “BEGIN STATUS”. Each line in the status transmission is terminated with an ASCII carriage return (0D) and line feed (0A). As new features are added to the M7, there may be new status lines added, but all M7 modems with Revsion D or higher firmware support at a minimum, the above shown status parameters. The status transmission will end with an ASCII 0 character, the End of Text character. The parameters passed in the status message are: ATMY The ID of the modem sending the status. ATVR The firmware version in the modem ATDT The ID the modem is programmed to send data to. ATVB DC voltage, in millivolts of the DC input to the modem. UPTIME Number of seconds since this modem has turned on. OSERR The number of Operatin System Errors. Normally this is 0. PRX The number of packets this modem has received.

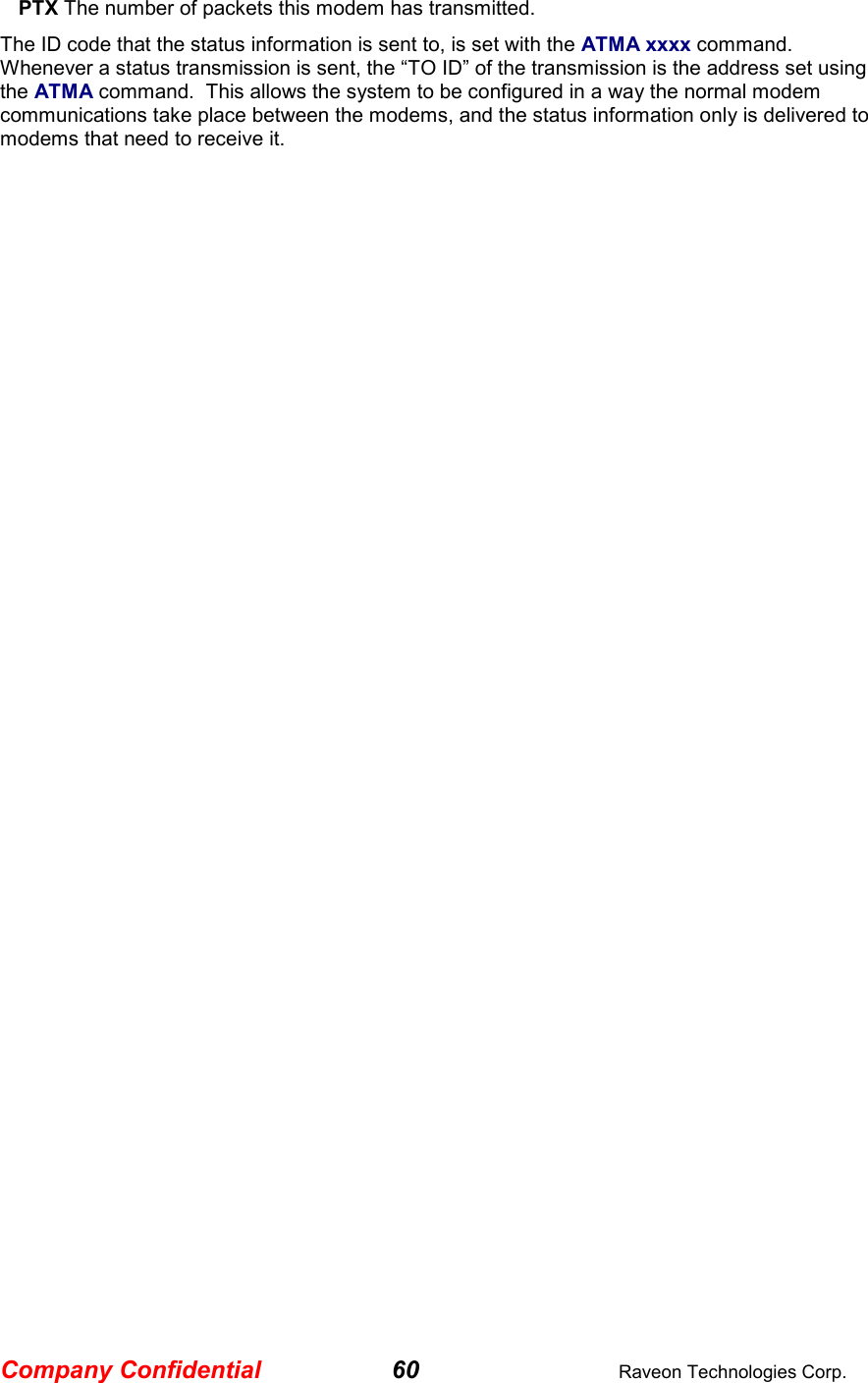

Company Confidential 60 Raveon Technologies Corp. PTX The number of packets this modem has transmitted. The ID code that the status information is sent to, is set with the ATMA xxxx command. Whenever a status transmission is sent, the “TO ID” of the transmission is the address set using the ATMA command. This allows the system to be configured in a way the normal modem communications take place between the modems, and the status information only is delivered to modems that need to receive it.

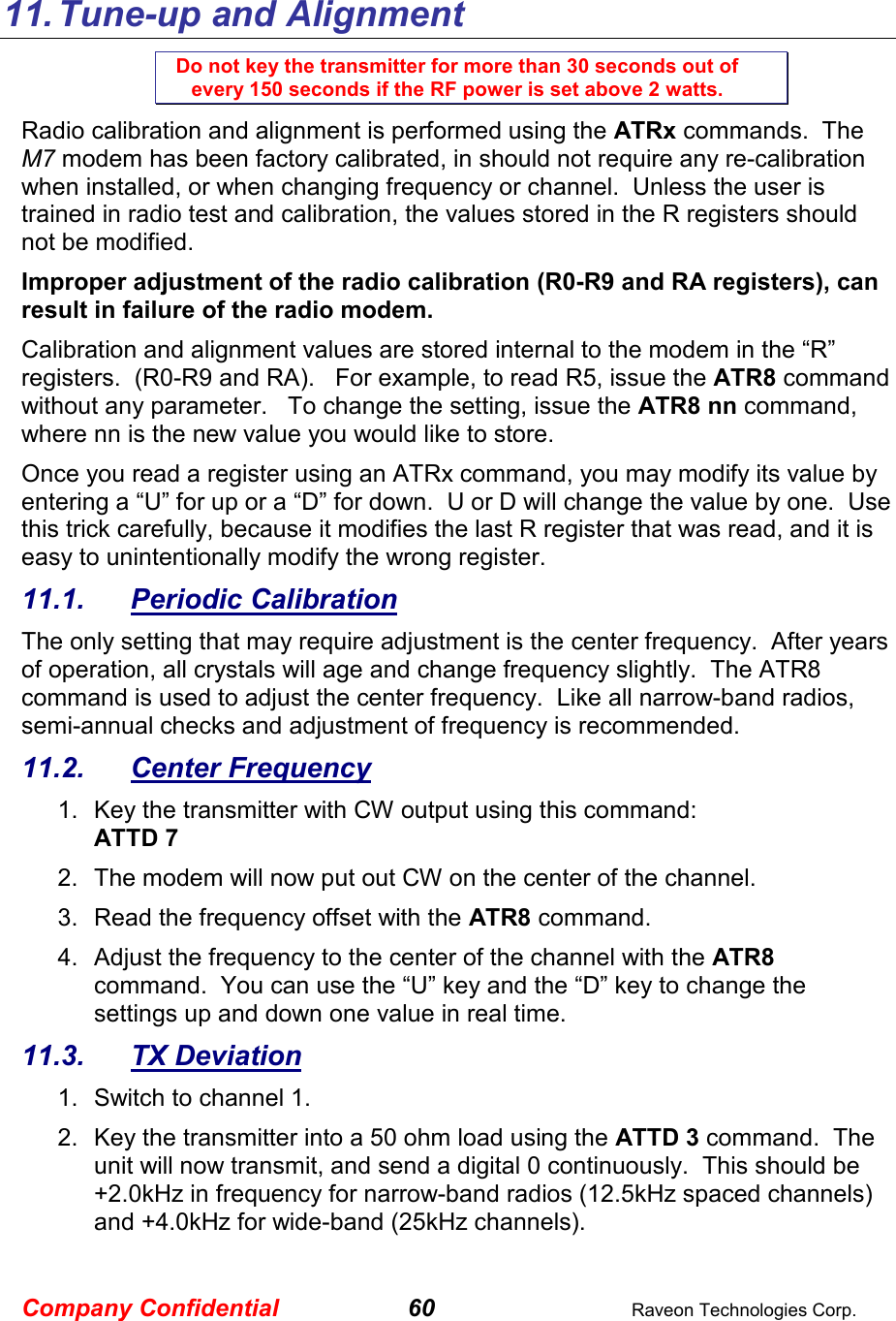

Company Confidential 60 Raveon Technologies Corp. 11. Tune-up and Alignment Do not key the transmitter for more than 30 seconds out of every 150 seconds if the RF power is set above 2 watts. Radio calibration and alignment is performed using the ATRx commands. The M7 modem has been factory calibrated, in should not require any re-calibration when installed, or when changing frequency or channel. Unless the user is trained in radio test and calibration, the values stored in the R registers should not be modified. Improper adjustment of the radio calibration (R0-R9 and RA registers), can result in failure of the radio modem. Calibration and alignment values are stored internal to the modem in the “R” registers. (R0-R9 and RA). For example, to read R5, issue the ATR8 command without any parameter. To change the setting, issue the ATR8 nn command, where nn is the new value you would like to store. Once you read a register using an ATRx command, you may modify its value by entering a “U” for up or a “D” for down. U or D will change the value by one. Use this trick carefully, because it modifies the last R register that was read, and it is easy to unintentionally modify the wrong register. 11.1. Periodic Calibration The only setting that may require adjustment is the center frequency. After years of operation, all crystals will age and change frequency slightly. The ATR8 command is used to adjust the center frequency. Like all narrow-band radios, semi-annual checks and adjustment of frequency is recommended. 11.2. Center Frequency 1. Key the transmitter with CW output using this command: ATTD 7 2. The modem will now put out CW on the center of the channel. 3. Read the frequency offset with the ATR8 command. 4. Adjust the frequency to the center of the channel with the ATR8 command. You can use the “U” key and the “D” key to change the settings up and down one value in real time. 11.3. TX Deviation 1. Switch to channel 1. 2. Key the transmitter into a 50 ohm load using the ATTD 3 command. The unit will now transmit, and send a digital 0 continuously. This should be +2.0kHz in frequency for narrow-band radios (12.5kHz spaced channels) and +4.0kHz for wide-band (25kHz channels).

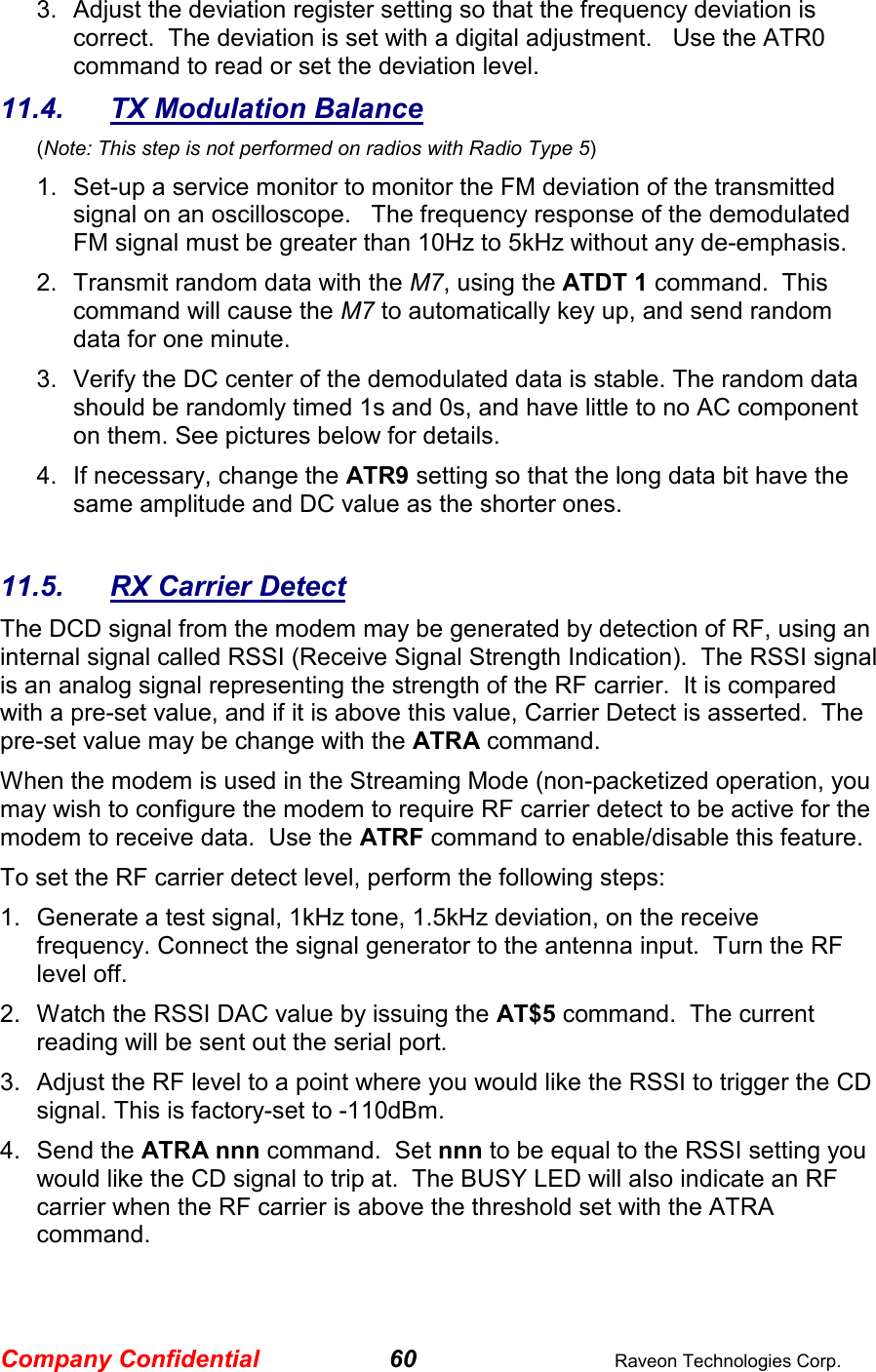

Company Confidential 60 Raveon Technologies Corp. 3. Adjust the deviation register setting so that the frequency deviation is correct. The deviation is set with a digital adjustment. Use the ATR0 command to read or set the deviation level. 11.4. TX Modulation Balance (Note: This step is not performed on radios with Radio Type 5) 1. Set-up a service monitor to monitor the FM deviation of the transmitted signal on an oscilloscope. The frequency response of the demodulated FM signal must be greater than 10Hz to 5kHz without any de-emphasis. 2. Transmit random data with the M7, using the ATDT 1 command. This command will cause the M7 to automatically key up, and send random data for one minute. 3. Verify the DC center of the demodulated data is stable. The random data should be randomly timed 1s and 0s, and have little to no AC component on them. See pictures below for details. 4. If necessary, change the ATR9 setting so that the long data bit have the same amplitude and DC value as the shorter ones. 11.5. RX Carrier Detect The DCD signal from the modem may be generated by detection of RF, using an internal signal called RSSI (Receive Signal Strength Indication). The RSSI signal is an analog signal representing the strength of the RF carrier. It is compared with a pre-set value, and if it is above this value, Carrier Detect is asserted. The pre-set value may be change with the ATRA command. When the modem is used in the Streaming Mode (non-packetized operation, you may wish to configure the modem to require RF carrier detect to be active for the modem to receive data. Use the ATRF command to enable/disable this feature. To set the RF carrier detect level, perform the following steps: 1. Generate a test signal, 1kHz tone, 1.5kHz deviation, on the receive frequency. Connect the signal generator to the antenna input. Turn the RF level off. 2. Watch the RSSI DAC value by issuing the AT$5 command. The current reading will be sent out the serial port. 3. Adjust the RF level to a point where you would like the RSSI to trigger the CD signal. This is factory-set to -110dBm. 4. Send the ATRA nnn command. Set nnn to be equal to the RSSI setting you would like the CD signal to trip at. The BUSY LED will also indicate an RF carrier when the RF carrier is above the threshold set with the ATRA command.

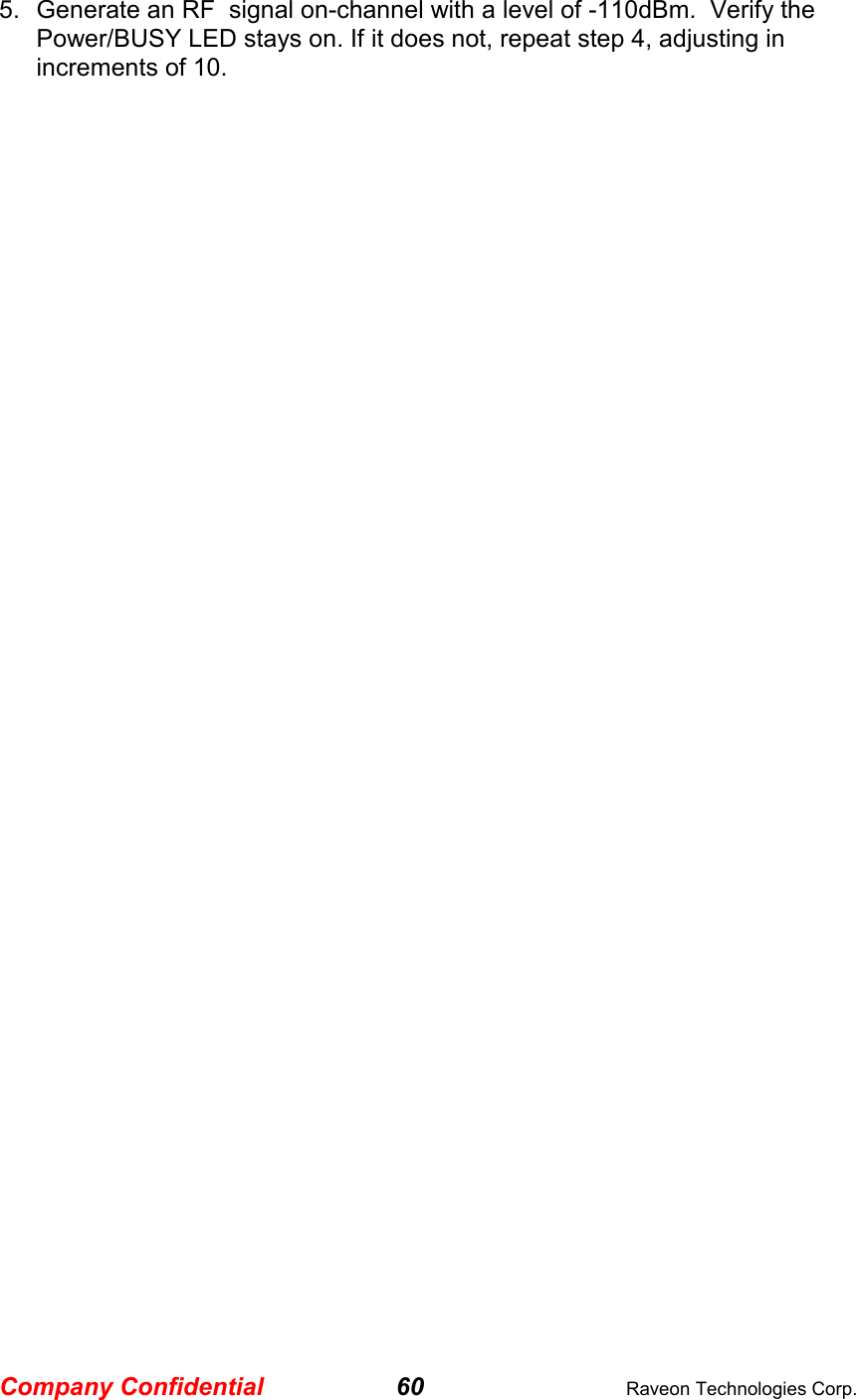

Company Confidential 60 Raveon Technologies Corp. 5. Generate an RF signal on-channel with a level of -110dBm. Verify the Power/BUSY LED stays on. If it does not, repeat step 4, adjusting in increments of 10.

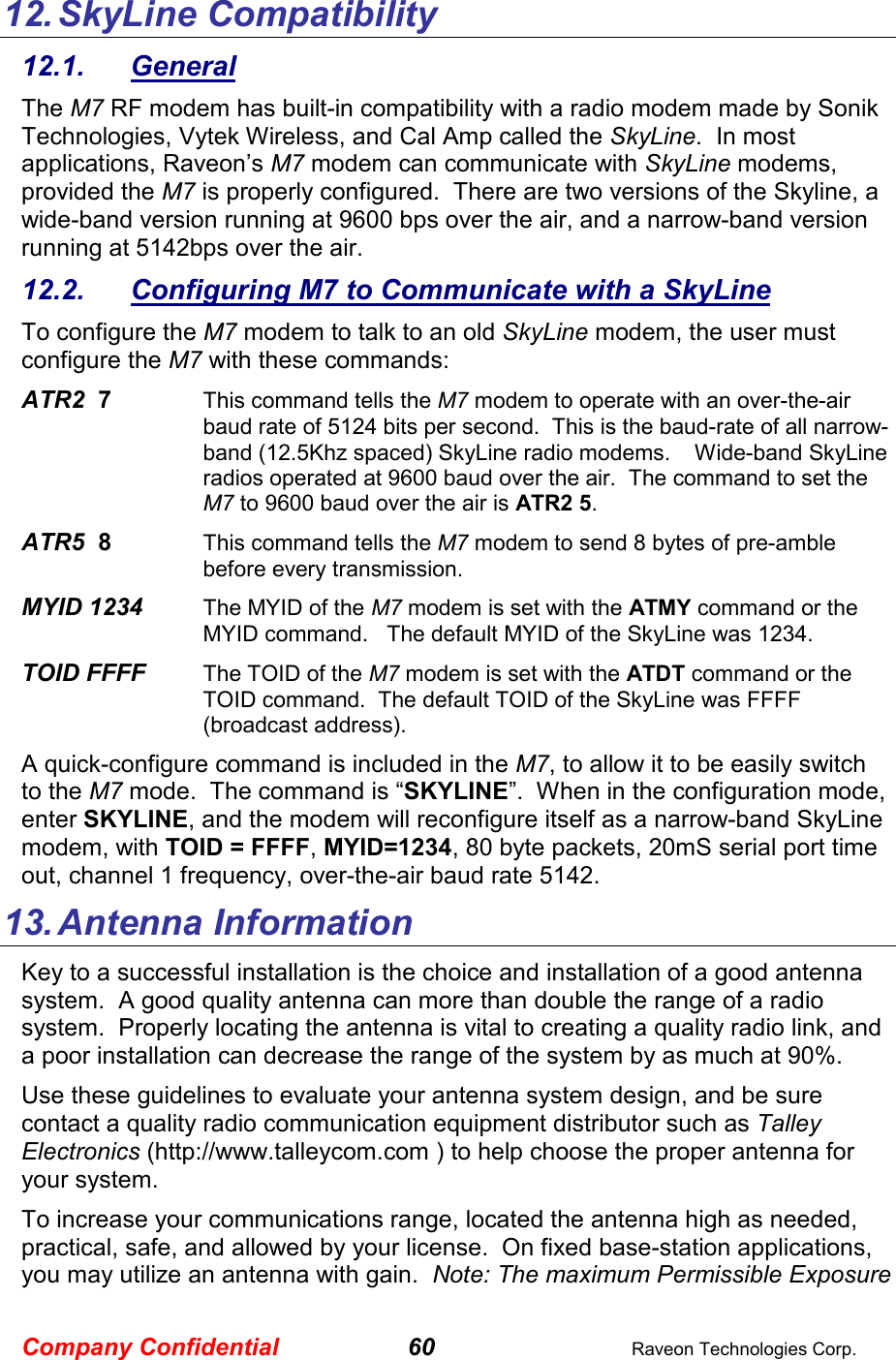

Company Confidential 60 Raveon Technologies Corp. 12. SkyLine Compatibility 12.1. General The M7 RF modem has built-in compatibility with a radio modem made by Sonik Technologies, Vytek Wireless, and Cal Amp called the SkyLine. In most applications, Raveon’s M7 modem can communicate with SkyLine modems, provided the M7 is properly configured. There are two versions of the Skyline, a wide-band version running at 9600 bps over the air, and a narrow-band version running at 5142bps over the air. 12.2. Configuring M7 to Communicate with a SkyLine To configure the M7 modem to talk to an old SkyLine modem, the user must configure the M7 with these commands: ATR2 7 This command tells the M7 modem to operate with an over-the-air baud rate of 5124 bits per second. This is the baud-rate of all narrow-band (12.5Khz spaced) SkyLine radio modems. Wide-band SkyLine radios operated at 9600 baud over the air. The command to set the M7 to 9600 baud over the air is ATR2 5. ATR5 8 This command tells the M7 modem to send 8 bytes of pre-amble before every transmission. MYID 1234 The MYID of the M7 modem is set with the ATMY command or the MYID command. The default MYID of the SkyLine was 1234. TOID FFFF The TOID of the M7 modem is set with the ATDT command or the TOID command. The default TOID of the SkyLine was FFFF (broadcast address). A quick-configure command is included in the M7, to allow it to be easily switch to the M7 mode. The command is “SKYLINE”. When in the configuration mode, enter SKYLINE, and the modem will reconfigure itself as a narrow-band SkyLine modem, with TOID = FFFF, MYID=1234, 80 byte packets, 20mS serial port time out, channel 1 frequency, over-the-air baud rate 5142. 13. Antenna Information Key to a successful installation is the choice and installation of a good antenna system. A good quality antenna can more than double the range of a radio system. Properly locating the antenna is vital to creating a quality radio link, and a poor installation can decrease the range of the system by as much at 90%. Use these guidelines to evaluate your antenna system design, and be sure contact a quality radio communication equipment distributor such as Talley Electronics (http://www.talleycom.com ) to help choose the proper antenna for your system. To increase your communications range, located the antenna high as needed, practical, safe, and allowed by your license. On fixed base-station applications, you may utilize an antenna with gain. Note: The maximum Permissible Exposure

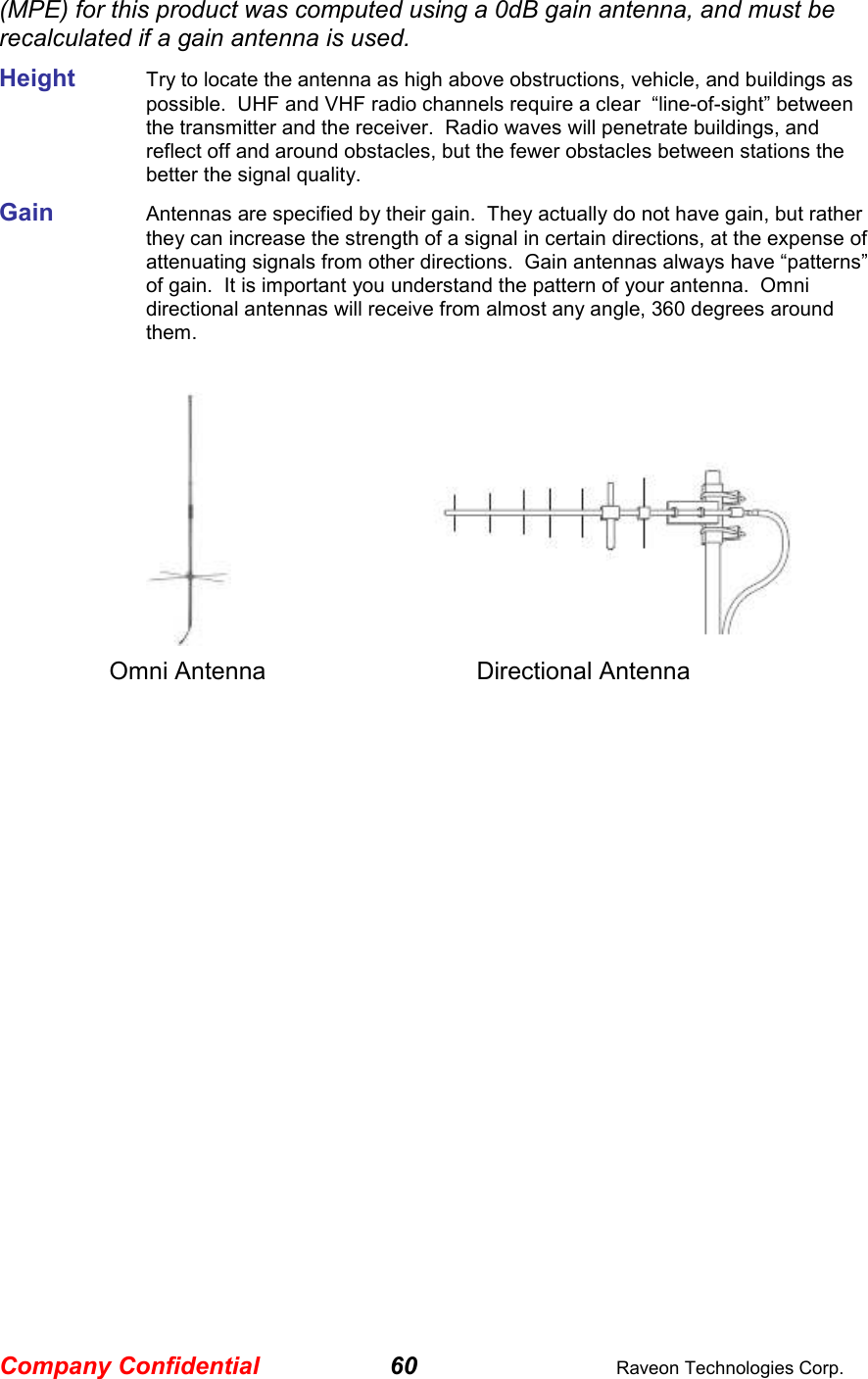

Company Confidential 60 Raveon Technologies Corp. (MPE) for this product was computed using a 0dB gain antenna, and must be recalculated if a gain antenna is used. Height Try to locate the antenna as high above obstructions, vehicle, and buildings as possible. UHF and VHF radio channels require a clear “line-of-sight” between the transmitter and the receiver. Radio waves will penetrate buildings, and reflect off and around obstacles, but the fewer obstacles between stations the better the signal quality. Gain Antennas are specified by their gain. They actually do not have gain, but rather they can increase the strength of a signal in certain directions, at the expense of attenuating signals from other directions. Gain antennas always have “patterns” of gain. It is important you understand the pattern of your antenna. Omni directional antennas will receive from almost any angle, 360 degrees around them. Omni Antenna Directional Antenna
Company Confidential 60 Raveon Technologies Corp. 14. Appendix A. Serial Port Hardware 14.1. Serial Port Data and Handshaking Signals In computer terminology, the RF modem is considered a “Data Communications Equipment” device, or DCE. The user’s hardware that the modem is connected to is considered “Data Terminal Equipment”, or DTE. Following is a description of how data and control is communicated over the various serial port signals between the modem (DCE) and another device (DTE) that the modem’s I/O port is connected to. TxD (INPUT) This line is used to transmit data from the DTE to the DCE. It is maintained at a logical 1 state when nothing is transmitted. If Hardware Flow Control is enabled in the modem, the terminal will start to transmit data to the modem when a logical 1 is present on all of the following lines: • Clear To Send (output from modem) • Request to Send (output from the DTE) RxD (OUTPUT) This circuit is used to receive data from the DCE to the DTE. The modem will start to transmit data to the DTE when a logical 1 is present on all of the following lines: • Data Terminal Ready (reply that it is OK to send) • Data Set Ready (asserted by the modem) RTS On this line, the DTE will send a signal when it wants to receive data from the M7 modem. The M7 modem will not output data unless this pin is low, or “Flow Control” has been disabled in the modem set-up. When a DTE (such as a PC or microcontroller) wants to stop the flow into it, it negates RTS. Negated "Request To Send" (digital 1) means "request NOT to send to me" (stop sending). When the DTE is ready for more bytes it asserts RTS (digital 0) and the flow of bytes to it resumes. DCE equipment works the same way but sends the stop signal out the CTS pin. Thus it's RTS/CTS flow control using 2 lines. The user may turn this feature off or on, using the ATCH command. The default is OFF. To turn it on, issue an ATCH 1 command. CTS This signal is an output from the M7, and it indicates the M7’s ability to send more data. If the user tries to send more data into the M7 than the M7 can transmit over the air, it will negate the signal on this pin. The CTS may be asserted when the serial-port data rate is greater to or equal to the over-the-air rate. For example, if the over-the-air data rate is set to 2400 baud, and the user
Company Confidential 60 Raveon Technologies Corp. is send data into the modem at 9600 baud, the modem will negate the CTS signal once the M7’s internal data buffers become full. CD On this line the modem indicates to the DTE that it has received a carrier from a remote device. It will assert this signal any time there is a carrier detected. The modem may be configured to assert this when an RF carrier is detected (any on-channel RF, voice or data), assert it only when another RF modem signal is detected, or always assert it. The operation of this line is configured with the ATR1 command. The default is 1 (asserts when M7 data is detected on the radio receiver). DTR This line is an input to the M7. It is normally ignored because the default configuration of the M7 modem is to ignore this signal. If the DTR line is enabled for use, using the ATK5 1 command, the DTR input line can be used to put the M7 modem into its SLEEP mode. With DTR enabled, anytime the DTR line is a logic 0, the M7 will be operating normally. With DTR enabled, anytime the DTR line is a logic 1, the M7 will go into a SLEEP mode, drawing much less DC power.

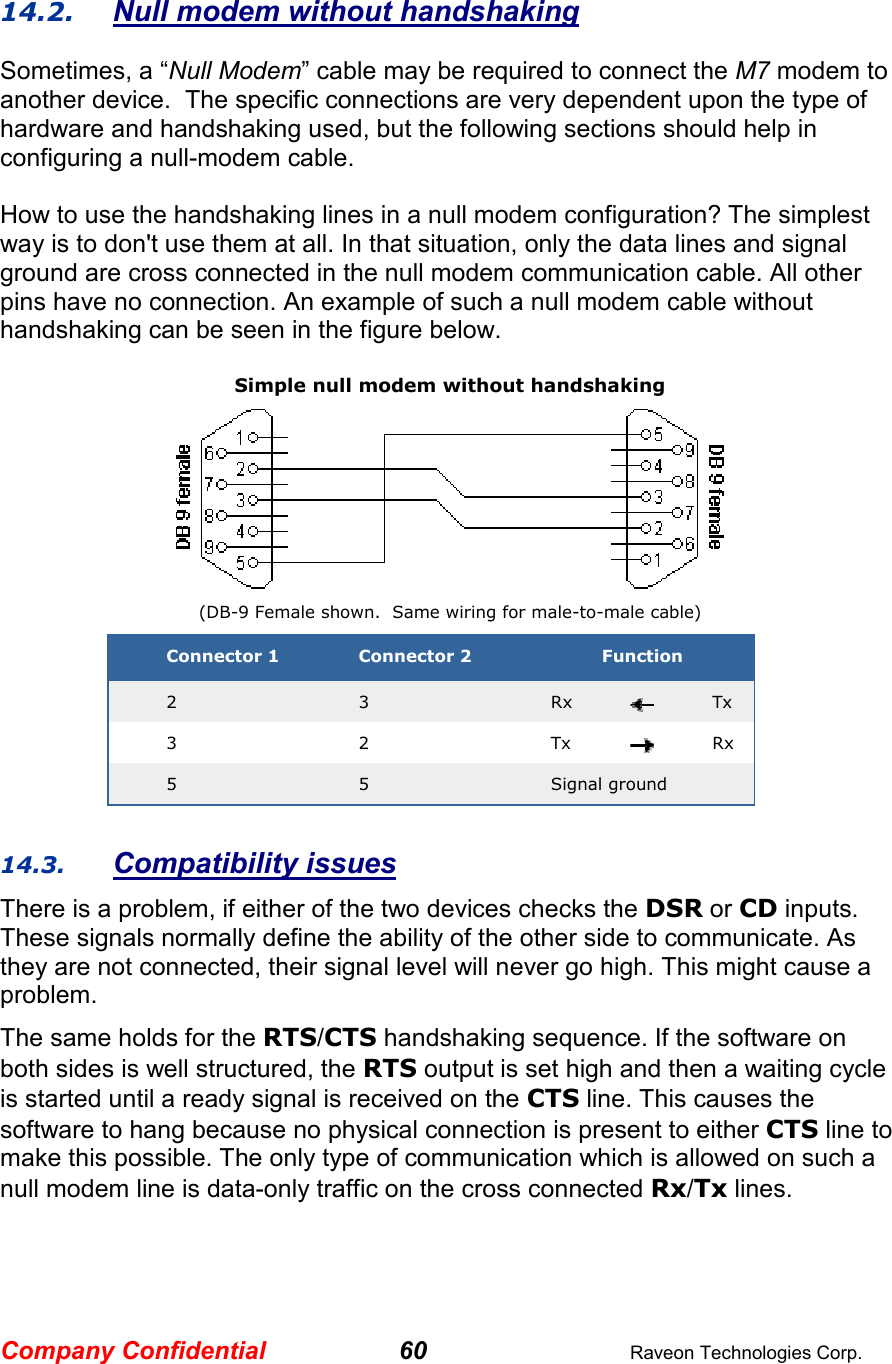

Company Confidential 60 Raveon Technologies Corp. 14.2. Null modem without handshaking Sometimes, a “Null Modem” cable may be required to connect the M7 modem to another device. The specific connections are very dependent upon the type of hardware and handshaking used, but the following sections should help in configuring a null-modem cable. How to use the handshaking lines in a null modem configuration? The simplest way is to don't use them at all. In that situation, only the data lines and signal ground are cross connected in the null modem communication cable. All other pins have no connection. An example of such a null modem cable without handshaking can be seen in the figure below. Simple null modem without handshaking (DB-9 Female shown. Same wiring for male-to-male cable) Connector 1 Connector 2 Function 2 3 Rx Tx 3 2 Tx Rx 5 5 Signal ground 14.3. Compatibility issues There is a problem, if either of the two devices checks the DSR or CD inputs. These signals normally define the ability of the other side to communicate. As they are not connected, their signal level will never go high. This might cause a problem. The same holds for the RTS/CTS handshaking sequence. If the software on both sides is well structured, the RTS output is set high and then a waiting cycle is started until a ready signal is received on the CTS line. This causes the software to hang because no physical connection is present to either CTS line to make this possible. The only type of communication which is allowed on such a null modem line is data-only traffic on the cross connected Rx/Tx lines.

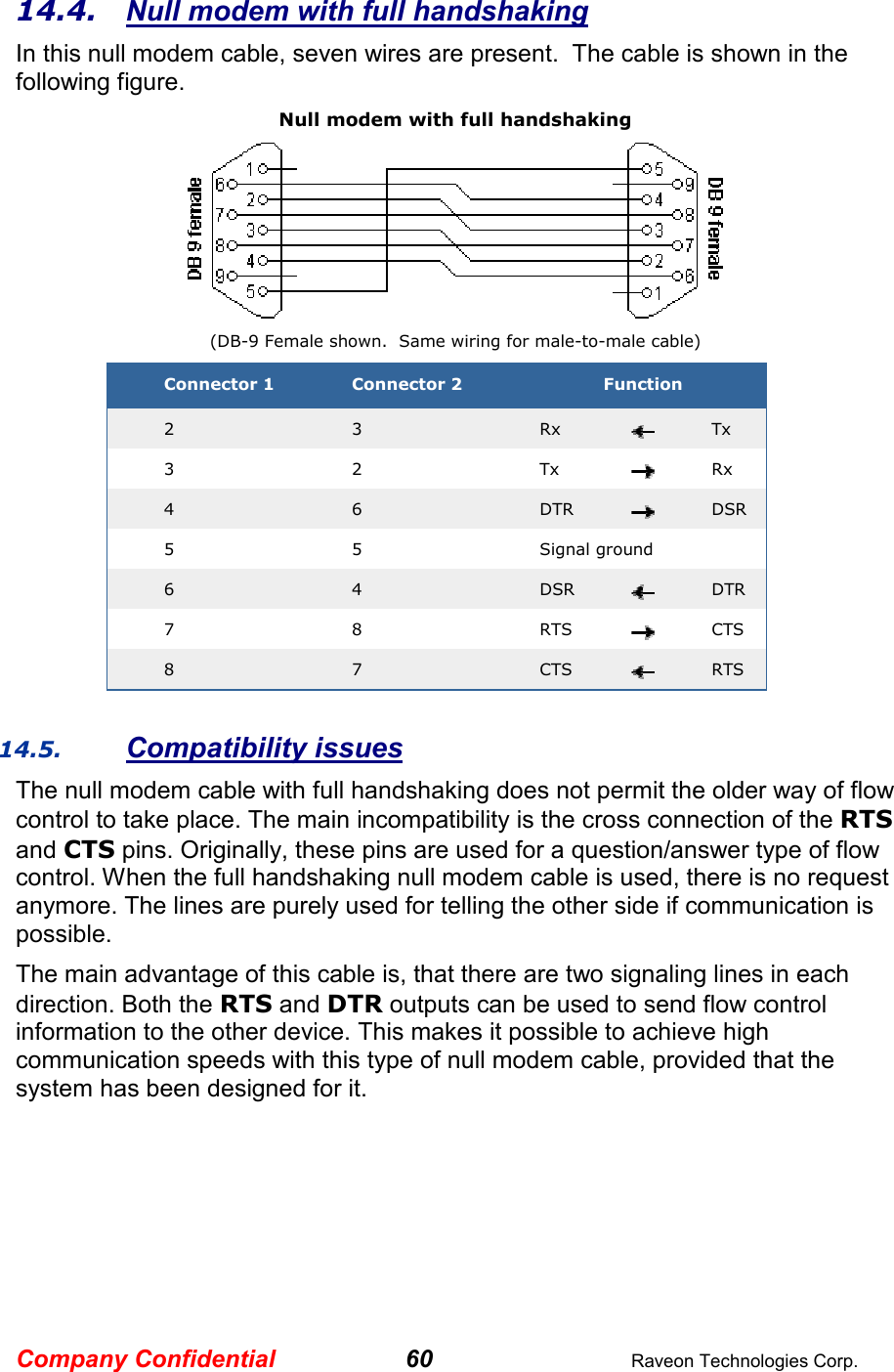

Company Confidential 60 Raveon Technologies Corp. 14.4. Null modem with full handshaking In this null modem cable, seven wires are present. The cable is shown in the following figure. Null modem with full handshaking (DB-9 Female shown. Same wiring for male-to-male cable) Connector 1 Connector 2 Function 2 3 Rx Tx 3 2 Tx Rx 4 6 DTR DSR 5 5 Signal ground 6 4 DSR DTR 7 8 RTS CTS 8 7 CTS RTS 14.5. Compatibility issues The null modem cable with full handshaking does not permit the older way of flow control to take place. The main incompatibility is the cross connection of the RTS and CTS pins. Originally, these pins are used for a question/answer type of flow control. When the full handshaking null modem cable is used, there is no request anymore. The lines are purely used for telling the other side if communication is possible. The main advantage of this cable is, that there are two signaling lines in each direction. Both the RTS and DTR outputs can be used to send flow control information to the other device. This makes it possible to achieve high communication speeds with this type of null modem cable, provided that the system has been designed for it.

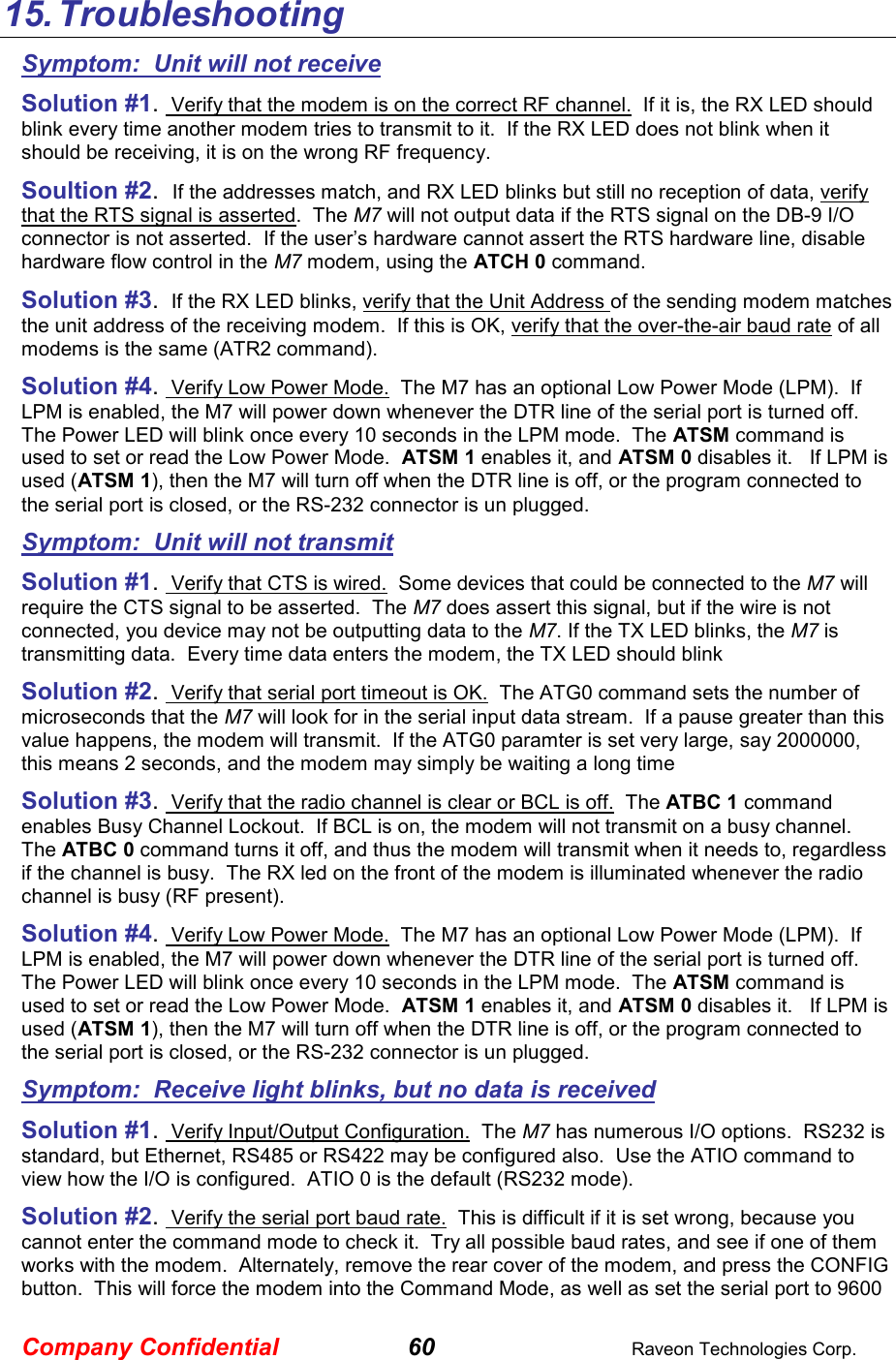

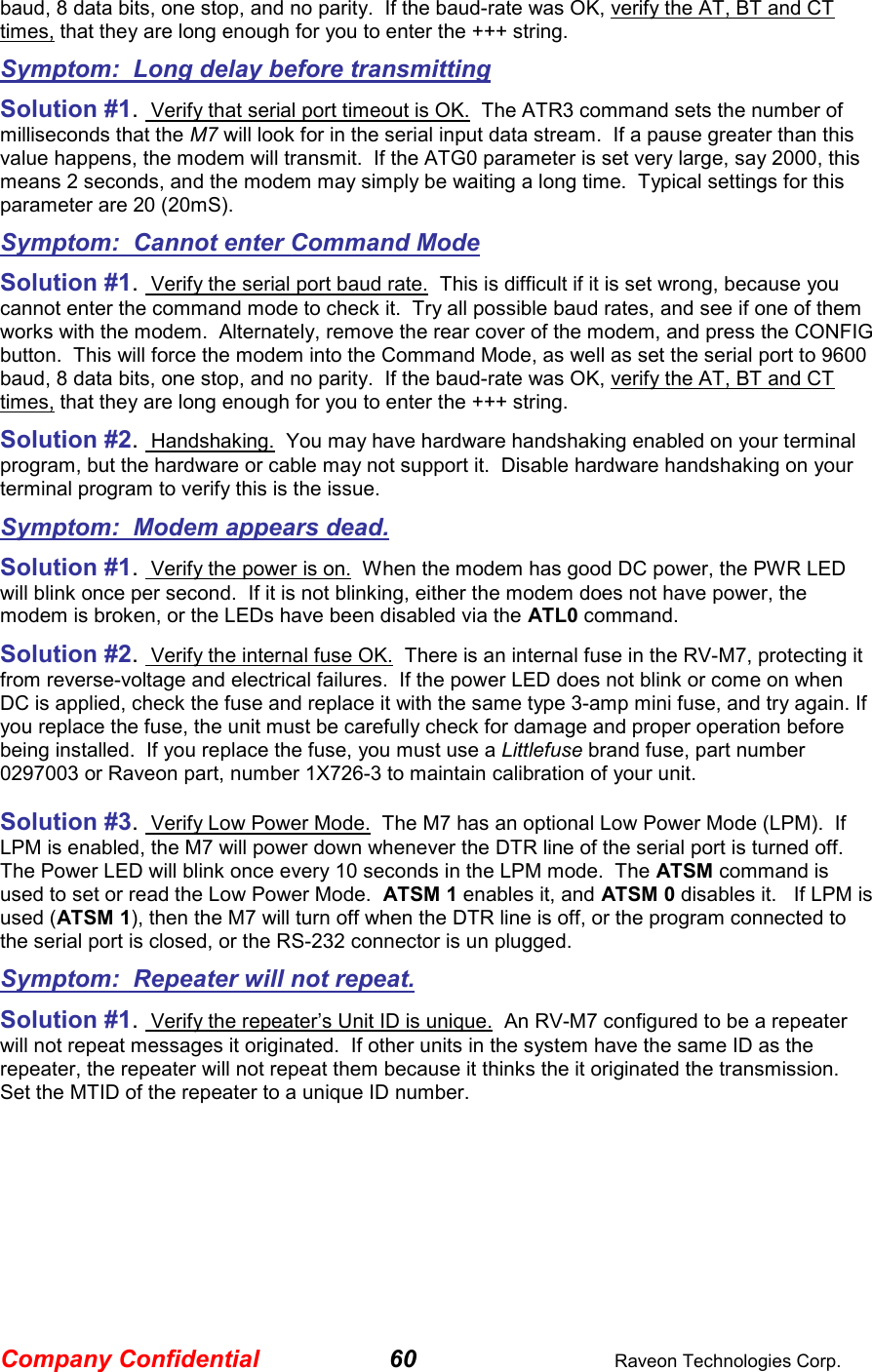

Company Confidential 60 Raveon Technologies Corp. 15. Troubleshooting Symptom: Unit will not receive Solution #1. Verify that the modem is on the correct RF channel. If it is, the RX LED should blink every time another modem tries to transmit to it. If the RX LED does not blink when it should be receiving, it is on the wrong RF frequency. Soultion #2. If the addresses match, and RX LED blinks but still no reception of data, verify that the RTS signal is asserted. The M7 will not output data if the RTS signal on the DB-9 I/O connector is not asserted. If the user’s hardware cannot assert the RTS hardware line, disable hardware flow control in the M7 modem, using the ATCH 0 command. Solution #3. If the RX LED blinks, verify that the Unit Address of the sending modem matches the unit address of the receiving modem. If this is OK, verify that the over-the-air baud rate of all modems is the same (ATR2 command). Solution #4. Verify Low Power Mode. The M7 has an optional Low Power Mode (LPM). If LPM is enabled, the M7 will power down whenever the DTR line of the serial port is turned off. The Power LED will blink once every 10 seconds in the LPM mode. The ATSM command is used to set or read the Low Power Mode. ATSM 1 enables it, and ATSM 0 disables it. If LPM is used (ATSM 1), then the M7 will turn off when the DTR line is off, or the program connected to the serial port is closed, or the RS-232 connector is un plugged. Symptom: Unit will not transmit Solution #1. Verify that CTS is wired. Some devices that could be connected to the M7 will require the CTS signal to be asserted. The M7 does assert this signal, but if the wire is not connected, you device may not be outputting data to the M7. If the TX LED blinks, the M7 is transmitting data. Every time data enters the modem, the TX LED should blink Solution #2. Verify that serial port timeout is OK. The ATG0 command sets the number of microseconds that the M7 will look for in the serial input data stream. If a pause greater than this value happens, the modem will transmit. If the ATG0 paramter is set very large, say 2000000, this means 2 seconds, and the modem may simply be waiting a long time Solution #3. Verify that the radio channel is clear or BCL is off. The ATBC 1 command enables Busy Channel Lockout. If BCL is on, the modem will not transmit on a busy channel. The ATBC 0 command turns it off, and thus the modem will transmit when it needs to, regardless if the channel is busy. The RX led on the front of the modem is illuminated whenever the radio channel is busy (RF present). Solution #4. Verify Low Power Mode. The M7 has an optional Low Power Mode (LPM). If LPM is enabled, the M7 will power down whenever the DTR line of the serial port is turned off. The Power LED will blink once every 10 seconds in the LPM mode. The ATSM command is used to set or read the Low Power Mode. ATSM 1 enables it, and ATSM 0 disables it. If LPM is used (ATSM 1), then the M7 will turn off when the DTR line is off, or the program connected to the serial port is closed, or the RS-232 connector is un plugged. Symptom: Receive light blinks, but no data is received Solution #1. Verify Input/Output Configuration. The M7 has numerous I/O options. RS232 is standard, but Ethernet, RS485 or RS422 may be configured also. Use the ATIO command to view how the I/O is configured. ATIO 0 is the default (RS232 mode). Solution #2. Verify the serial port baud rate. This is difficult if it is set wrong, because you cannot enter the command mode to check it. Try all possible baud rates, and see if one of them works with the modem. Alternately, remove the rear cover of the modem, and press the CONFIG button. This will force the modem into the Command Mode, as well as set the serial port to 9600
Company Confidential 60 Raveon Technologies Corp. baud, 8 data bits, one stop, and no parity. If the baud-rate was OK, verify the AT, BT and CT times, that they are long enough for you to enter the +++ string. Symptom: Long delay before transmitting Solution #1. Verify that serial port timeout is OK. The ATR3 command sets the number of milliseconds that the M7 will look for in the serial input data stream. If a pause greater than this value happens, the modem will transmit. If the ATG0 parameter is set very large, say 2000, this means 2 seconds, and the modem may simply be waiting a long time. Typical settings for this parameter are 20 (20mS). Symptom: Cannot enter Command Mode Solution #1. Verify the serial port baud rate. This is difficult if it is set wrong, because you cannot enter the command mode to check it. Try all possible baud rates, and see if one of them works with the modem. Alternately, remove the rear cover of the modem, and press the CONFIG button. This will force the modem into the Command Mode, as well as set the serial port to 9600 baud, 8 data bits, one stop, and no parity. If the baud-rate was OK, verify the AT, BT and CT times, that they are long enough for you to enter the +++ string. Solution #2. Handshaking. You may have hardware handshaking enabled on your terminal program, but the hardware or cable may not support it. Disable hardware handshaking on your terminal program to verify this is the issue. Symptom: Modem appears dead. Solution #1. Verify the power is on. When the modem has good DC power, the PWR LED will blink once per second. If it is not blinking, either the modem does not have power, the modem is broken, or the LEDs have been disabled via the ATL0 command. Solution #2. Verify the internal fuse OK. There is an internal fuse in the RV-M7, protecting it from reverse-voltage and electrical failures. If the power LED does not blink or come on when DC is applied, check the fuse and replace it with the same type 3-amp mini fuse, and try again. If you replace the fuse, the unit must be carefully check for damage and proper operation before being installed. If you replace the fuse, you must use a Littlefuse brand fuse, part number 0297003 or Raveon part, number 1X726-3 to maintain calibration of your unit. Solution #3. Verify Low Power Mode. The M7 has an optional Low Power Mode (LPM). If LPM is enabled, the M7 will power down whenever the DTR line of the serial port is turned off. The Power LED will blink once every 10 seconds in the LPM mode. The ATSM command is used to set or read the Low Power Mode. ATSM 1 enables it, and ATSM 0 disables it. If LPM is used (ATSM 1), then the M7 will turn off when the DTR line is off, or the program connected to the serial port is closed, or the RS-232 connector is un plugged. Symptom: Repeater will not repeat. Solution #1. Verify the repeater’s Unit ID is unique. An RV-M7 configured to be a repeater will not repeat messages it originated. If other units in the system have the same ID as the repeater, the repeater will not repeat them because it thinks the it originated the transmission. Set the MTID of the repeater to a unique ID number.

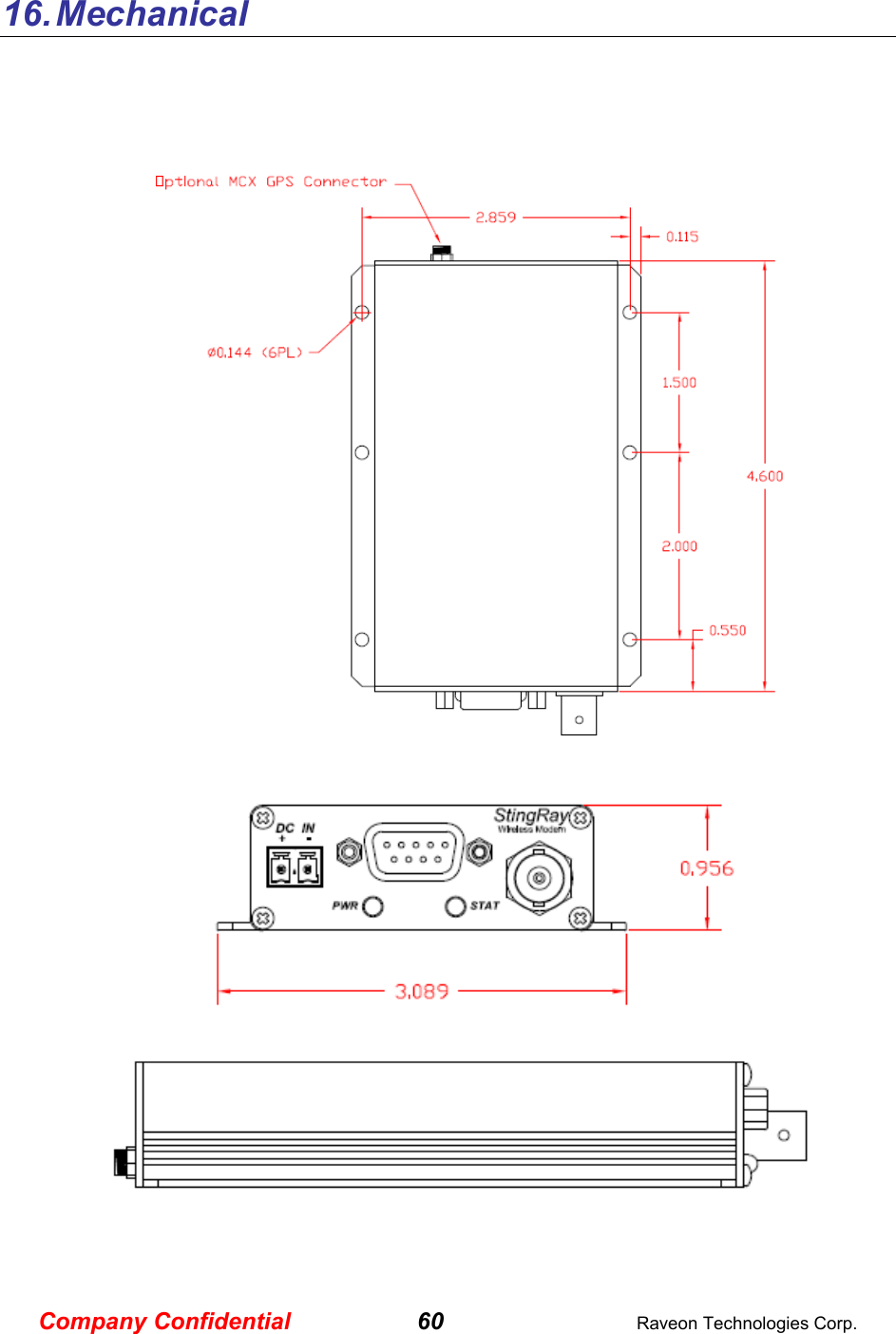

Company Confidential 60 Raveon Technologies Corp. 16. Mechanical

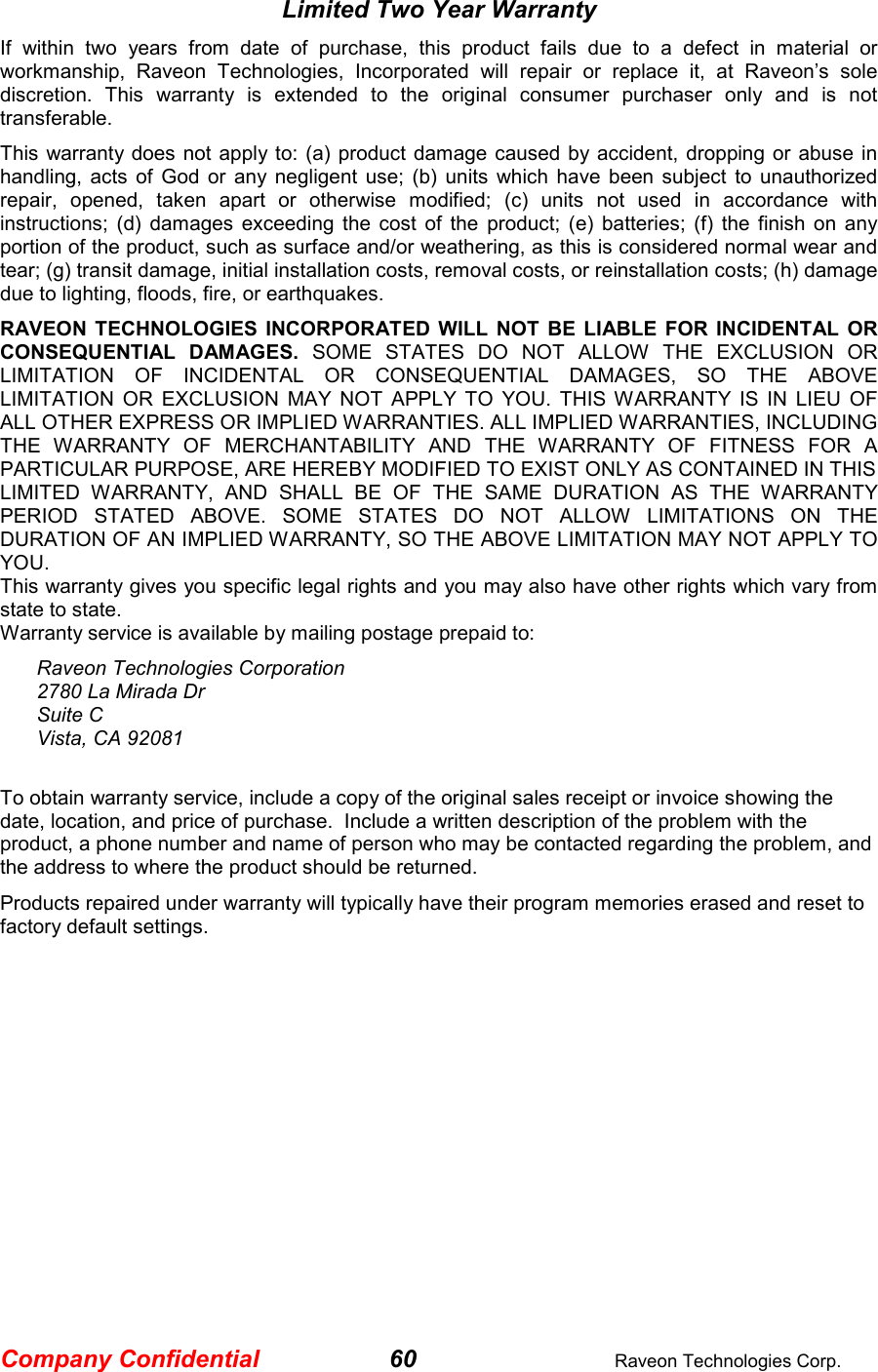

Company Confidential 60 Raveon Technologies Corp. Limited Two Year Warranty If within two years from date of purchase, this product fails due to a defect in material or workmanship, Raveon Technologies, Incorporated will repair or replace it, at Raveon’s sole discretion. This warranty is extended to the original consumer purchaser only and is not transferable. This warranty does not apply to: (a) product damage caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs; (h) damage due to lighting, floods, fire, or earthquakes. RAVEON TECHNOLOGIES INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Warranty service is available by mailing postage prepaid to: Raveon Technologies Corporation 2780 La Mirada Dr Suite C Vista, CA 92081 To obtain warranty service, include a copy of the original sales receipt or invoice showing the date, location, and price of purchase. Include a written description of the problem with the product, a phone number and name of person who may be contacted regarding the problem, and the address to where the product should be returned. Products repaired under warranty will typically have their program memories erased and reset to factory default settings.
