ST7001+
Autopilot
Control Unit
Owner’s
Handbook
Document number: 81191-2
Date: May 2001
ii ST7001+ Autopilot Control Unit - Owner’s Handbook
Autohelm, HSB (High Speed Bus), SailPilot, SeaTalk and SportPilot
are registered trademarks of Raymarine Ltd.
Raymarine, AST (Advanced Steering Technology), AutoAdapt,
AutoLearn, AutoRelease, AutoSeastate, AutoTack, AutoTrim,
FastTrim, GyroPlus, RayGyro, RayPilot and WindTrim are
trademarks of Raymarine Ltd.
Handbook contents © Raymarine Ltd 2001.
Preface iii
Contents
About this handbook ......................................................... vii
Important Information ..................................................... viii
Warranty ...................................................................................viii
Safety notices ...........................................................................viii
EMC conformance .....................................................................ix
Handbook information ...............................................................ix
Chapter 1: Introduction ............................................................1
Chapter 2: Basic Operation .......................................................3
2.1 Using the control unit ................................................................ 4
Start-up mode ............................................................................ 4
Keypad functions ...................................................................... 4
Display layout ........................................................................... 5
2.2 Using Auto mode ...................................................................... 6
Engaging the autopilot (Auto mode) ......................................... 6
Disengaging the autopilot (Standby mode) .............................. 6
Changing course in Auto mode ................................................. 7
Adjusting performance – Type 150G/400G ............................. 7
Adjusting performance – Types 150/400 and 100/300 .............9
Off Course warning ................................................................. 10
Dodging obstacles and then resuming course ......................... 10
Using the set course feature .................................................... 12
Using sail boat features ...........................................................12
2.3 Adjusting display/keypad lighting and contrast ..................... 15
Lighting ................................................................................... 15
Contrast ...................................................................................16
Chapter 3: Advanced Operation ............................................17
3.1 Using Track mode ................................................................... 18
Selecting Track mode ............................................................. 18
Exiting Track mode ................................................................. 19
Cross track error ...................................................................... 19
Tidal stream compensation ..................................................... 20
Waypoint arrival and advance ................................................. 21
Waypoint Advance warning – summary ................................. 22
Dodges in Track mode ............................................................23
Safety in Track mode .............................................................. 24
3.2 Using Wind Vane mode – sail boats ........................................25
About Wind Vane mode .......................................................... 25
iv ST7001+ Autopilot Control Unit - Owner’s Handbook
Selecting Wind Vane mode ..................................................... 26
Exiting Wind Vane mode ........................................................ 26
Adjusting the locked wind angle ............................................. 26
Returning to the previous wind angle (LAST WND) ............. 27
Dodges in Wind Vane mode .................................................... 27
Wind Shift warning ................................................................. 28
Using AutoTack in Wind Vane mode ...................................... 28
Operating hints for Wind Vane mode ...................................... 29
3.3 Adjusting the rudder gain ........................................................ 29
3.4 Displaying data pages ............................................................. 31
Waypoint names ..................................................................... 32
Watch timer ............................................................................. 32
Warning messages .................................................................. 33
3.5 Remotely controlling ST60 and ST80 instruments ................ 34
Chapter 4: Fault Finding & Maintenance ..............................35
4.1 Fault finding ............................................................................36
Common autopilot problems .................................................. 36
Autopilot alarm messages ....................................................... 37
4.2 General maintenance .............................................................. 39
Routine checks ........................................................................ 39
Cleaning the display ................................................................ 39
EMC advice ............................................................................39
4.3 Product support ....................................................................... 40
Chapter 5: Installing the ST7001+ ..........................................45
5.1 Select the location ................................................................... 46
Site requirements .................................................................... 46
5.2 Control unit installation .......................................................... 49
5.3 SeaTalk connections ............................................................... 50
5.4 NMEA connections ................................................................ 51
Receiving NMEA data ............................................................ 51
5.5 Functional test – repeater units only ....................................... 54
Chapter 6: Commissioning the Autopilot ............................55
6.1 Dockside Checks .................................................................... 56
Step 1 - Switch on ................................................................... 56
Step 2 - Check the SeaTalk and NMEA connections .............. 57
Step 3 - Check the autopilot operating sense ........................... 58
Step 4 - Adjust basic autopilot settings ................................... 59
6.2 Seatrial Calibration ................................................................. 63
Calibrating the compass .......................................................... 64
Adjusting autopilot settings .................................................... 68
Preface v
Chapter 7: Adjusting Autopilot Settings ..............................75
7.1 Calibration basics ....................................................................76
Calibration groups .................................................................. 76
Accessing the Calibration mode .............................................78
7.2 Display Calibration ................................................................ 79
Display Calibration screens .................................................... 79
7.3 User Calibration ......................................................................87
User Calibration screens ......................................................... 87
7.4 Seatrial Calibration ................................................................. 91
7.5 Dealer Calibration ...................................................................92
Accessing Dealer Calibration ................................................. 92
Dealer Calibration screens and settings ..................................92
Dealer Calibration defaults: Types 150/150G & 400/400G .101
Dealer Calibration options: Types 150/150G & 400/400G ..102
Appendix: Using the ST7001+
With Non-150/400 Autopilots ...........................................103
Using the autopilot (non-150/400 systems) ............................104
Commissioning the autopilot (non-150/400 systems) ............105
Dockside Checks .................................................................. 105
Seatrial Calibration ............................................................... 105
Calibration mode (non-150/400 systems) ...............................106
Calibration groups ................................................................ 106
Dealer Calibration screens .................................................... 108
Dealer Calibration: possible settings with Type 100/300 ..... 114
Specifications .....................................................................115
ST7001+ control unit ..............................................................115
Course computer functions .....................................................115
Glossary ..............................................................................116
Index ....................................................................................119
vi ST7001+ Autopilot Control Unit - Owner’s Handbook
Preface vii
About this handbook
Welcome to the handbook for the ST7001+ autopilot control unit.
This handbook contains two main parts:
Part 1: Using the ST7001+
Part 2: Installing the ST7001+
At the end of this handbook we have included an appendix, product
specifications, a glossary, an index, installation template, and
warranty information.
Note: This handbook contains important information about
installing, using and maintaining your new Raymarine product. To
get the best from the product, please read this handbook thoroughly.
1Chapter 1: Introduction
Introduces the autopilot, its features and its use. page 1
2
Chapter 2: Basic Operation
Covers basic autopilot operation: using Auto mode,
adjusting autopilot performance, and changing the control
unit lighting.
page 3
3Chapter 3: Advanced Operation
Explains how to use Track and Wind Vane modes, adjust
rudder gain and display data pages.
page 17
4Chapter 4: Fault Finding & Maintenance
Provides general maintenance procedures and
trouble-shooting information (including alarm messages).
page 35
5
Chapter 5: Installing the ST7001+
Explains how to install your ST7001+ control unit and
connect it to your autopilot system.
page 45
6
Chapter 6: Commissioning the Autopilot
Covers dockside checks after installation, and the initial
seatrial calibration.
page 55
7
Chapter 7: Adjusting Autopilot Settings
Provides details on adjusting the control unit and autopilot
settings in Calibration mode.
page 75
viii ST7001+ Autopilot Control Unit - Owner’s Handbook
Important Information
Warranty
To register your new Raymarine product, please take a few minutes to
fill out the warranty card. It is important that you complete the owner
information and return the card to us to receive full warranty benefits.
Safety notices
WARNING: Product installation
This equipment must be installed and operated in accordance
with the instructions contained in this handbook. Failure to do so
could result in poor product performance, personal injury
and/or damage to your boat.
WARNING: Electrical safety
Make sure the power supply is switched off before you make any
electrical connections.
WARNING: Calibration
We supply this product calibrated to default settings that should
provide initial stable performance for most boats. To ensure
optimum performance on your boat, you must complete Chapter
6: Commissioning the Autopilot before use.
WARNING: Navigation aid
Although we have designed this product to be accurate and
reliable, many factors can affect its performance. As a result, it
should only be used as an aid to navigation and should never
replace common sense and navigational judgement. Always
maintain a permanent watch so you can respond to situations as
they develop.
Your Raymarine autopilot will add a new dimension to your boating
enjoyment. However, it is the skipper’s responsibility to ensure the
safety of the boat at all times by following these basic rules:
•Ensure that someone is present at the helm AT ALL TIMES, to
take manual control in an emergency.
Preface ix
•Make sure that all members of crew know how to disengage the
autopilot.
•Regularly check for other boats and any obstacles to navigation –
no matter how clear the sea may appear, a dangerous situation can
develop rapidly.
•Maintain an accurate record of the boat’s position by using either
a navigation aid or visual bearings.
•Maintain a continuous plot of your boat’s position on a current
chart. Ensure that the locked autopilot heading will steer the boat
clear of all obstacles. Make proper allowance for tidal set – the
autopilot cannot.
•Even when your autopilot is locked onto the desired track using a
navigation aid, always maintain a log and make regular positional
plots. Navigation signals can produce significant errors under
some circumstances and the autopilot will not be able to detect
these errors.
EMC conformance
All Raymarine equipment and accessories are designed to the best
industry standards for use in the recreational marine environment.
The design and manufacture of Raymarine equipment and
accessories conform to the appropriate Electromagnetic
Compatibility (EMC) standards, but correct installation is required to
ensure that performance is not compromised.
Handbook information
To the best of our knowledge, the information in this handbook was
correct when it went to press. However, Raymarine cannot accept
liability for any inaccuracies or omissions it may contain. In addition,
our policy of continuous product improvement may change
specifications without notice. As a result, Raymarine cannot accept
liability for any differences between the product and the handbook.
x ST7001+ Autopilot Control Unit - Owner’s Handbook
Part 1:
Using the
ST7001+
Part 1: Using the ST7001+
Part 1: Using the ST7001+
Chapter 1: Introduction 1
1 Introduction
Chapter 1: Introduction

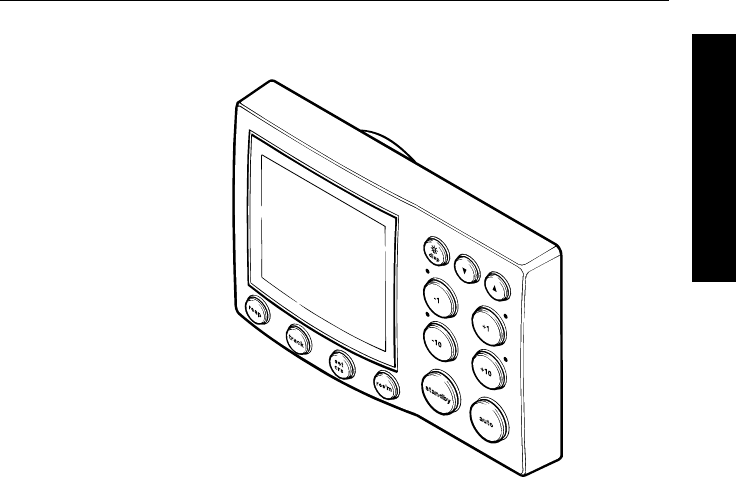

The Raymarine ST7001 Plus (ST7001+) is a SeaTalk® compatible
autopilot control unit. It is designed as the main control unit for
Raymarine Type 150, 150G, 400 and 400G course computers.
The ST7001+control unit has the following modes:
1. Standby: autopilot off (see page 6)
2. Auto: autopilot steers the boat to maintain a locked heading
(see page 6)

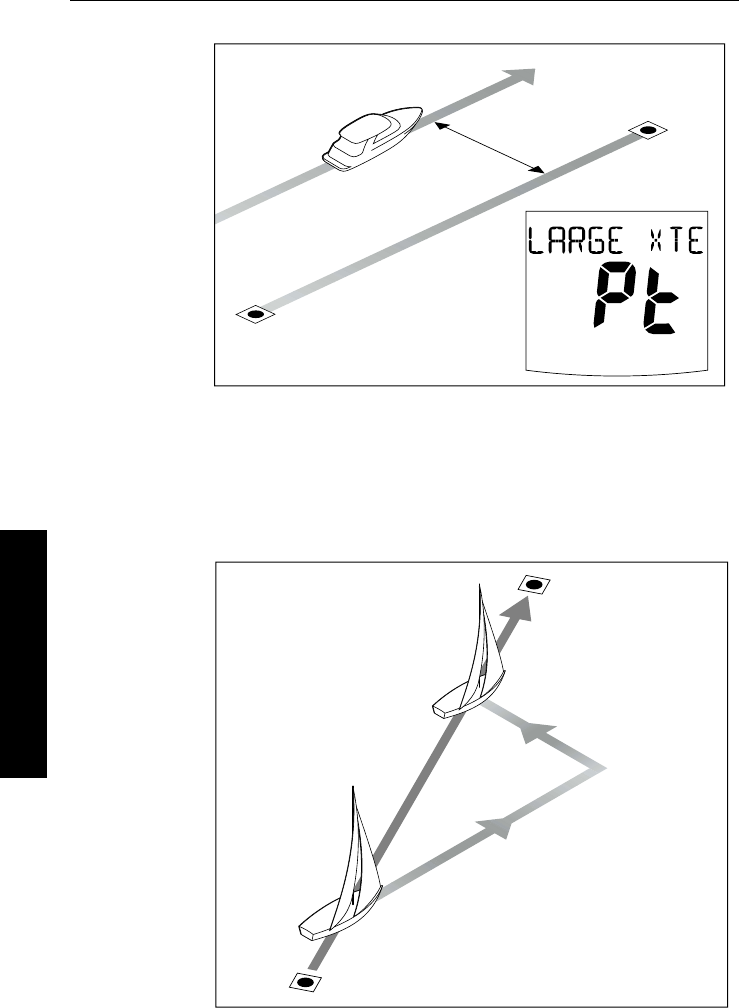

3. Track: autopilot steers the boat to maintain a track between two
waypoints created on a navigation aid (see page 18)
4. Wind Vane: autopilot steers the boat to maintain a course relative
to a true or apparent wind angle (see page 25)

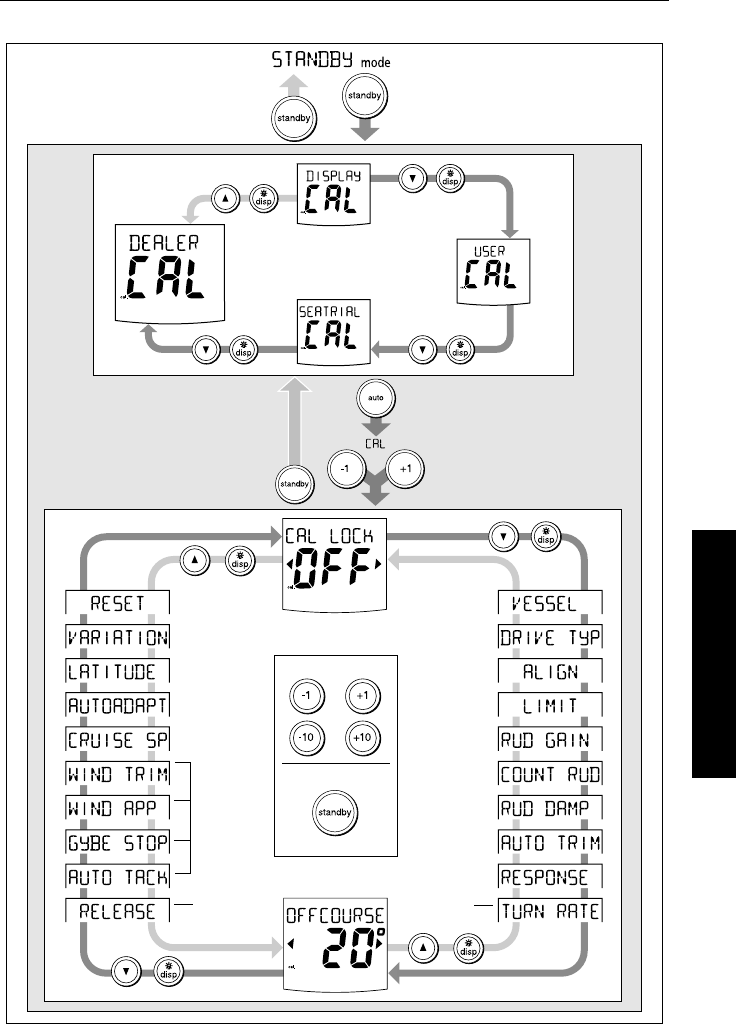

5. Calibration: so you can adjust the autopilot to give optimum
performance for your boat (see page 76). This includes automatic
compass deviation correction (all autopilots) and AutoLearn
automatic steering calibration (Type 150G/400G systems only)
The ST7001+ also provides:
•automatic tack (AutoTack) in Auto and Wind Vane modes
•Northerly/Southerly heading compensation
•waypoint advance feature in Track mode
D5461-1
2 ST7001+ Autopilot Control Unit - Owner’s Handbook
1 Introduction
Functions with Type 150/150G and 400/400G autopilots
The functions provided with Type 150/150G and Type 400/4000G
autopilots depend on whether the course computer contains an
internal GyroPlus yaw sensor:
Extended systems

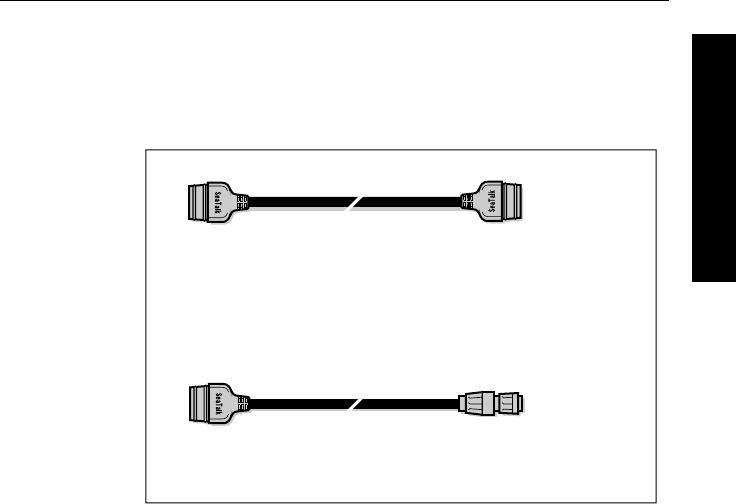

You can connect the ST7001+ to other Raymarine SeaTalk
equipment so it can send and receive SeaTalk data:
•it can use wind information from a SeaTalk wind instrument for
Wind Vane steering
•it can use waypoint information from a SeaTalk navigation
instrument to provide track control
•it can use boat speed from a SeaTalk speed instrument to optimize
track-keeping performance

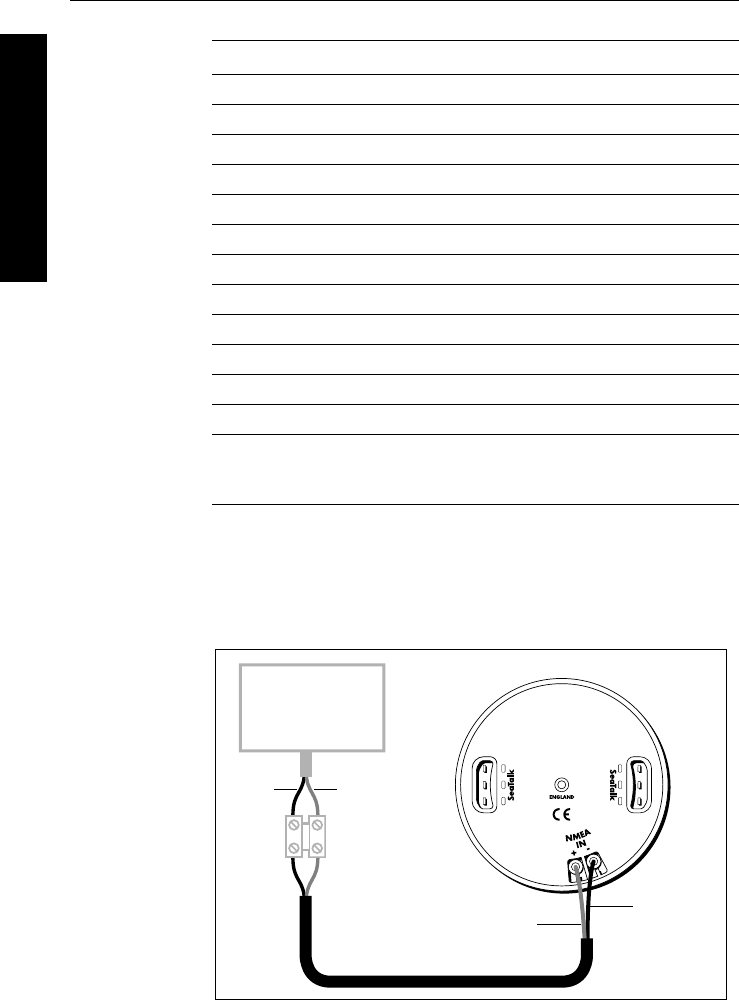

You can also use the ST7001+ autopilot with any navigator
(GPS, Decca, Loran) or wind instrument that transmits National
Marine Electronics Association (NMEA) 0183 data.
The ST7001+ can display SeaTalk and NMEA instrument data in a
user-defined selection of data pages. When you are using the
ST7001+ to repeat instrument data, it shows a ‘pop-up’ pilot page for
5 seconds whenever you make a change in autopilot control.
Compatibility with other autopilots
The ST7001+ is also compatible with Raymarine Type 100 and
Type 300 course computers (see the Appendix for more details).
You can also use it as an additional repeater control unit for any
SeaTalk autopilot system, allowing autopilot control from a
secondary location.
Type 150G/400G (with GyroPlus) Type 150/400 (without GyroPlus)
Internal GyroPlus yaw sensor provides
enhanced course keeping using AST
(Advanced Steering Technology)
Full basic functionality: uses Raymarine
steering algorithm without AST
Improved track-keeping Improved track-keeping
Steering to true and apparent wind in
Wind Vane mode
Steering to true and apparent wind in
Wind Vane mode
Improved calibration access, including
AutoLearn (self-learning calibration)
Improved calibration access, but
without AutoLearn
Chapter 2: Basic Operation 3
2 Basic Operation
Chapter 2: Basic Operation
The sections in this chapter explain how to use the basic functions on
your ST7001+ autopilot control unit:
Note: If you are using the control unit with a non-150/400 autopilot
system, refer to the notes in the Appendix.
2.1 Using the control unit
Summarizes the key functions and screen layout on the
ST7001+ control unit.
page 4
2.2
Using Auto mode
Provides instructions for engaging/disengaging the
autopilot, using Auto mode and adjusting the
autopilot’s performance.
page 6
2.3

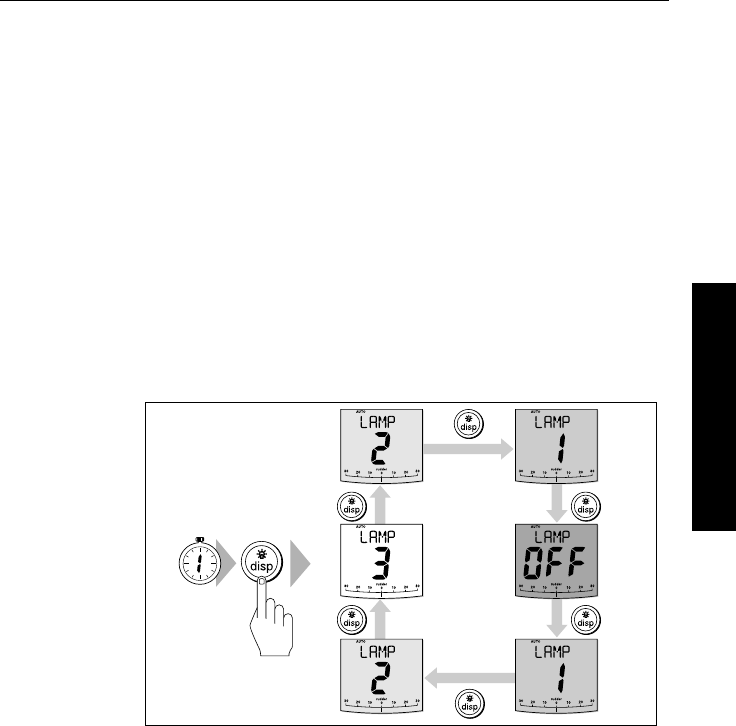

Adjusting display/keypad lighting and
contrast
Explains how to change the lighting and contrast on
the control unit display and keypad.
page 15
4 ST7001+ Autopilot Control Unit - Owner’s Handbook
2 Basic Operation
2.1 Using the control unit
Start-up mode
The autopilot always powers up in Standby mode with the display
showing the boat’s current compass heading.
Note: You can press standby at any time to return to manual
steering.

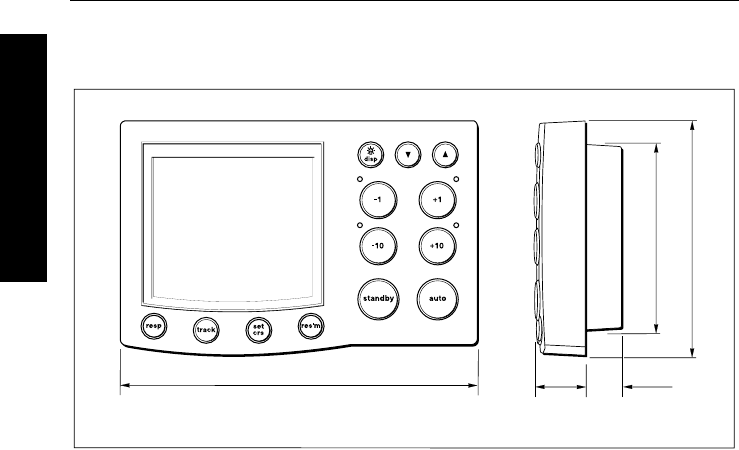

Keypad functions
The autopilot is controlled using simple push-button operations, all of
which are confirmed with a short beep. In addition to the main
single-key functions, there are several dual key operations.
&
track
Press for Track mode from Auto mode
(if a navigator is connected)
Press to accept waypoint advance
Press for 1 second to skip waypoint
auto
Press for Auto mode
Press for 1 second
for Last Heading
Press again to
accept Last Heading
standby
Press for Standby
mode
Press for 2 seconds
to enter Calibration
mode
course change keys
-1 = Port 1˚
-10 = Port 10˚
+1 = Starboard 1˚
+10 = Starboard 10˚
-1 plus -10
Press together for
AutoTack to port
+1 plus +10
Press together for
AutoTack to starboard
-1 plus +1
Press together for
response level
-1 plus +1
Press for 1 second
for rudder gain

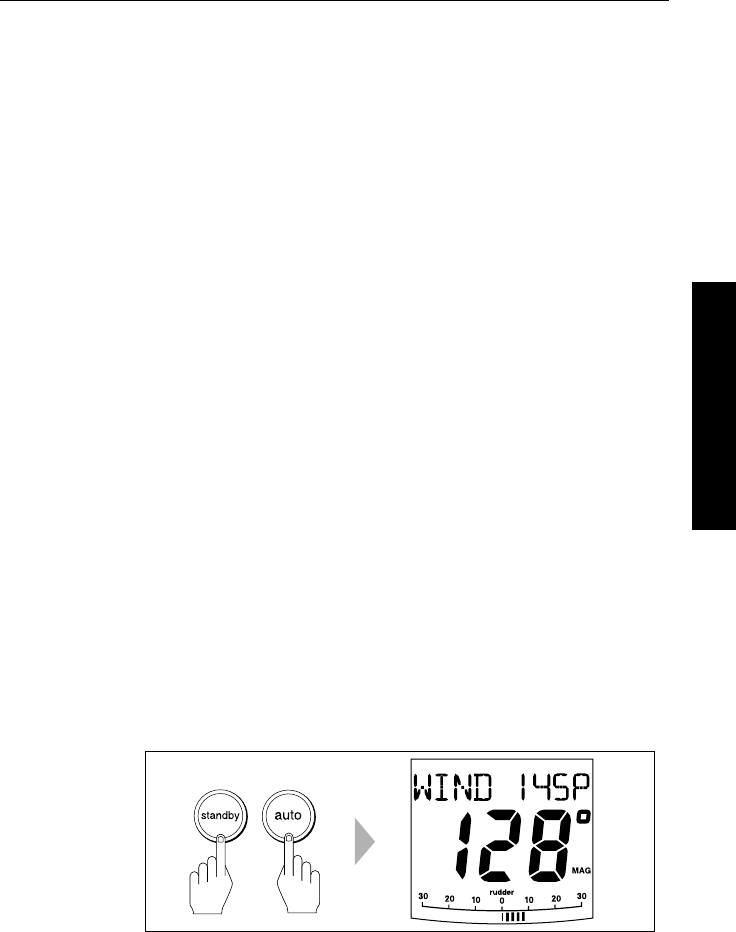

standby plus auto
Press for Wind Vane mode (if a wind vane is connected)
Press for 1 second to display Last Wind
Press again to accept Last Wind D5448-1
resp
Press to display
response level
Press for 1 second
for rudder gain
set crs
Press to set course bearing
res'm
Press to resume previous course
Press to adjust calibration parameters,
response and gain
disp
Press to display
data pages
Press for 1 second
for lamp control
Chapter 2: Basic Operation 5
2 Basic Operation
Display layout
The ST7001+ display screen provides the following information:
The bar graph at the bottom of the screen is normally a rudder position
indicator. This indicates the current position of the rudder, as
measured by the rudder position sensor.
Note: You can change this to a heading/cross track/wind error bar in
Display Calibration, see page 79.
Autopilot mode indicators
Rudder position indicator or error bar
GyroPlus indicator (appears if a
yaw sensor is connected to the autopilot)
Variable text area (up to 9 characters)
Port and Starboard
direction-to-steer
indicators
Heading indicators
Calibration mode indicator
(displayed on calibration pages)
D5458-1
Distance units:
•no units = kilometres
•nm = nautical miles
•SM = statute miles
6 ST7001+ Autopilot Control Unit - Owner’s Handbook
2 Basic Operation
2.2 Using Auto mode
CAUTION:
Before using Auto mode, make sure that the pilot has been
correctly commissioned.
Engaging the autopilot (Auto mode)
To engage the autopilot:
1. Steady the boat on the required heading.
2. Press auto:
•in Auto mode, the display shows the locked autopilot heading
CAUTION:
Autopilot course control makes it easier to sail a boat, but it is
NOT a substitute for good seamanship. ALWAYS maintain a
permanent watch by the helm.
Disengaging the autopilot (Standby mode)
Press standby to disengage the autopilot:
•in Standby mode, the display shows the boat’s current compass
heading.

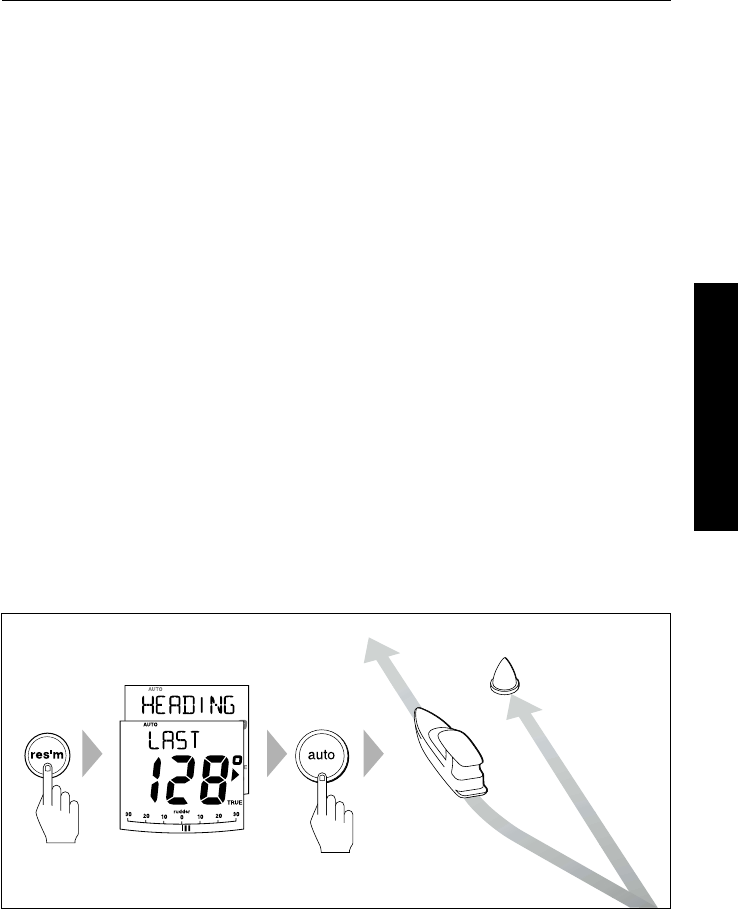

•the last heading is memorized and can be recalled (see page 11).
D5515-1
D4209-2
Chapter 2: Basic Operation 7
2 Basic Operation

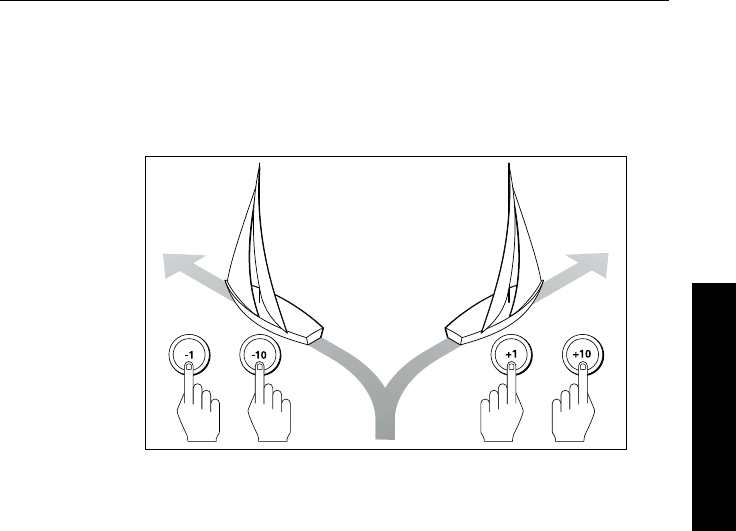

Changing course in Auto mode
In Auto mode, use the -1 and -10 (port) and +1 and +10 (starboard)
keys to change the locked heading in steps of 1° or 10°. For example:
press -10 three times for a 30° course change to port.
Adjusting performance – Type 150G/400G
The main way you can adjust the performance of Type 150G/400G
(GyroPlus) autopilot systems is by changing the response level. This
is the only user adjustment you should need to make to the autopilot
on a regular basis.

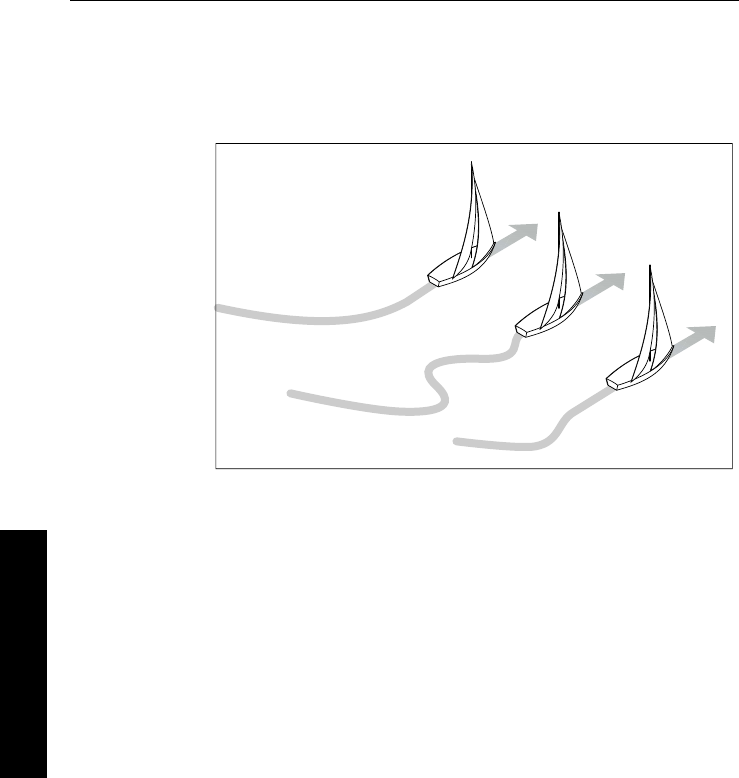

The response level controls the relationship between the autopilot’s
course keeping accuracy and the amount of helm/drive activity.
Type 150G and 400G autopilot systems have 9 levels of response:
•level 1 gives the least pilot activity to conserve power, but may
compromise short-term course-keeping accuracy
•levels 4 to 6 should give good course keeping under normal
operating conditions – with crisp, well controlled turns but
without being over-aggressive
•level 9 gives the tightest course keeping and greatest rudder
activity, but may lead to a rough passage in open waters as the
autopilot may ‘fight’ the sea
When you require extra tight course keeping (e.g. for pilotage in
confined and sheltered waters), increase the setting. If you want to
minimize drive activity and conserve battery power, decrease
the setting.
Port Starboard
oror
D3320-2
8 ST7001+ Autopilot Control Unit - Owner’s Handbook
2 Basic Operation
You can adjust the default response level in either User or Dealer
Calibration (see page 89). This determines the default power-up
response level.
However, when using your autopilot on a day-to-day basis, you can
make temporary adjustments to the response level. By doing this
you can match autopilot performance to different conditions.
Temporary changes to response – Type 150G/400G
With these points in mind, you should use the following procedure to
make temporary adjustments to the response level when required:
1. Display the RESPONSE screen by pressing either the resp key or
the -1 and +1 keys together momentarily.

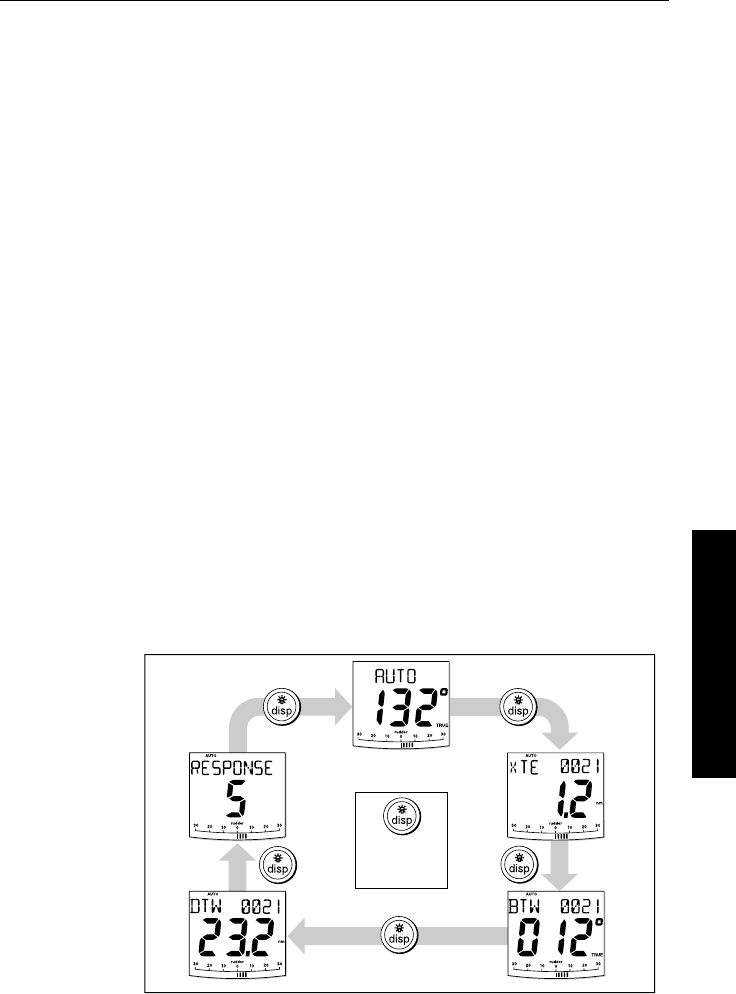

Note: The RESPONSE screen is set as a default data page (see
page 81) so you can also access it by pressing disp and then scrolling
through the data pages.
2. Press -1 or +1 or the up arrow or down arrow keys to change the
response level.
3. Press disp or wait for 5 seconds to return to the previous display.
Note: You will lose these temporary changes to response level
whenever the system is powered off. You can make permanent
adjustments in User or Dealer Calibration (see page 89).
D5453-1
Increase
response
Decrease
response OR
OR
OR
and
Chapter 2: Basic Operation 9
2 Basic Operation
Adjusting performance – Types 150/400 and 100/300
To adjust the performance of Type 150/400 (non-GyroPlus) and
Type 100/300 autopilot systems you can change the response level.
Response level – Types 150/400 and 100/300
The response level controls the relationship between the autopilot’s
course keeping accuracy and the amount of helm/drive activity.
You can adjust the default response level in either User or Dealer
Calibration (see page 89). This determines the default power-up
response level.
However, when using your autopilot on a day-to-day basis, you will
need to make temporary adjustments to the response level. By doing
this you can match autopilot performance to different conditions.
Type 150/400 (without GyroPlus) and Type 100/300 autopilot
systems have three different response levels:
• Response Level 1: AutoSeastate on (Automatic deadband)
This setting causes the autopilot to gradually ignore repetitive
boat movements and only react to true variations in course. This
provides the best compromise between power consumption and
course keeping accuracy, and is the default calibration setting.
• Response Level 2: AutoSeastate off (Minimum deadband)
This setting provides tighter course keeping. However, this
results in increased power consumption and drive unit activity.
• Response Level 3: AutoSeastate off + yaw damping
This setting provides the tightest possible course keeping by
introducing counter rudder yaw damping. You can adjust the
counter rudder setting in Dealer Calibration (see page 95)
To make a temporary change to the response setting:
1. Display the RESPONSE screen by pressing either the resp key or
the -1 and +1 keys together momentarily.
2. Press -1 or +1 or the up arrow or down arrow keys to change the
response between levels 1 to 3.
3. Press disp or wait for 5 seconds to return to the previous display.
Note: You will lose these temporary changes to response level
whenever the system is powered off. You can make permanent
adjustments in User or Dealer Calibration (see page 89).
10 ST7001+ Autopilot Control Unit - Owner’s Handbook
2 Basic Operation

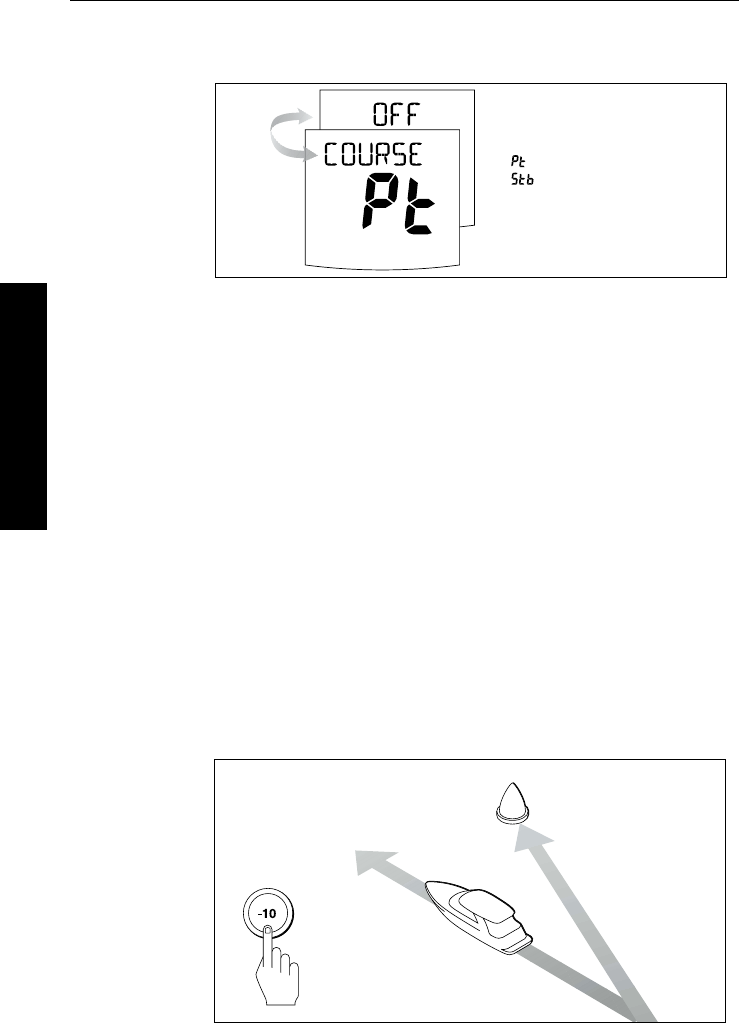

Off Course warning
The ST7001+ activates the OFF COURSE warning when the boat has
been off course from the locked heading by more than the specified
angle* for longer than 20seconds. It shows whether the deviation is to
port or starboard.
Note: * You can adjust this specified off course angle in Dealer
Calibration (see page 97).
1. To cancel the off course warning, press standby to return to hand
steering.
2. Check whether your boat is carrying too much sail, or whether the
sails are badly balanced. You can usually significantly improve
course keeping by improving the sail balance.
Note: The ST7001+ also clears the warning if the heading recovers,
if you change the course, or if you change the operating mode.
Dodging obstacles and then resuming course
To avoid an obstacle when your boat is under autopilot control, you
can dodge the obstacle and then resume your previous course.
D4229-2
= deviation to port
= deviation to starboard
D3303-2P
Original
course
Dodge
Obstacle
Dodging an obstacle
Chapter 2: Basic Operation 11
2 Basic Operation
Dodging an obstacle
1. Select a course change in the appropriate direction. For example,
press -10 three times for a 30° dodge to port.
2. When safely clear of the obstacle, you can either:
•reverse the previous course change (for example, press +10
three times), or
•return to the previous locked heading (LAST HEADING) as
described below
Returning to the previous heading (LAST HEADING)
When the boat is in Auto mode and you have steered the boat away
from the selected locked heading for any reason (for example, to
execute a dodge maneuver), you can return to the previous locked
heading (the most recent heading held for 20 seconds). To do this:
1. Press res’m. The display flashes and shows the previous locked
heading (LAST HEADING) for 10 seconds. The direction-to-steer
indicator shows the direction the boat will turn.
2. To accept this heading, and resume this course, press auto when
the display is flashing.
Note: If you do not press auto while the display is flashing, the
autopilot will maintain the current heading.
Original
course
Resumed
course
Dodge
Obstacle
D5498-1
Returning to last heading
12 ST7001+ Autopilot Control Unit - Owner’s Handbook
2 Basic Operation
Using the set course feature
The ST7001+ has a set course feature that allows you to set up a
course and then apply it at a specific time (e.g. to make a course
change at a pre-determined time or location).
To set up a course:
1. Press the set crs key. You will then see the SETCOURSE screen
with a flashing heading.
2. Use the -1, +1, -10 and +10 keys to set the heading you want. The
autopilot will not accept the new heading at this stage.
3. If you do not want to accept the new course at this time, return to
the previous autopilot mode by either pressing the disp key or
waiting 10 seconds for the screen to time-out.
To accept the heading you have set on the SETCOURSE screen:
1. Press set crs to show the SETCOURSE screen.
2. Press auto: the control unit will sound an alarm and show the
direction the autopilot will steer (PORT or STARBOARD).
3. Press auto again to accept the new heading. The autopilot will
then turn the boat onto the set course.
Using sail boat features
Automatic tack (AutoTack)
The ST7001+ has a built in automatic tack facility (AutoTack) that
turns the boat through 100° in the required direction. If you have set
the vessel type to SAIL BOAT, you can adjust the default AutoTack
angle in User or Dealer calibration (see page 87).
•to AutoTack to port: press the -1 and -10 keys together
•to AutoTack to starboard: press the +1 and +10 keys together
CAUTION:
When making major course changes, the trim on the boat may
change substantially. Because of this, the autopilot may take
some time to settle accurately onto the new course.
Chapter 2: Basic Operation 13
2 Basic Operation
Preventing accidental gybes
Note: For the gybe inhibit feature to work, the autopilot needs
suitable wind information (see page 25).
The gybe inhibit feature stops the boat from performing an AutoTack
away from the wind – this will prevent accidental gybes. On Type
150/150G and 400/400G autopilots, you can turn off this feature if
required:
•with gybe inhibit on:
•you will be able to perform an AutoTack into the wind
•to prevent accidental gybes, the autopilot will prevent the boat
from performing an AutoTack away from the wind
•with gybe inhibit off:
•you can perform an AutoTack into or away from the wind.
Note: Gybe inhibit is switched on as a default. On Type 150/150G
and Type 400/400G autopilots you can switch it off in User or Dealer
Calibration (see page 87).
Gusty conditions
In gusty conditions, the course may tend to wander slightly,
particularly if the sails are badly balanced. If you take the following
precautions, the autopilot will be able to maintain competent control
even in gale force conditions:
Wind
AutoTack - Starboard
D5399-1
Wind
AutoTack - Port
AutoTack
angle
AutoTack
angle
14 ST7001+ Autopilot Control Unit - Owner’s Handbook
2 Basic Operation
•You can significantly improve course keeping by improving the
sail balance:
•do not allow the boat to heel over excessively
•ease the mainsheet traveller to leeward to reduce heeling and
weather helm
•if necessary, reef the mainsail a little early
•In very strong winds and large seas, you should avoid sailing with
the wind dead astern:
•ideally, bring the wind at least 30° away from a dead run
•in severe conditions, you may also need to remove the
mainsail and sail under headsail only
Chapter 2: Basic Operation 15
2 Basic Operation
2.3 Adjusting display/keypad lighting and contrast
Lighting
Note: When the display lighting is off, the control unit illuminates the
keys at a courtesy level.
To adjust the display and keypad lighting:
1. Press disp for 1 second from any mode to access the LAMP screen
and turn on the lights.
2. Press the disp key to cycle through the possible illumination
settings: LAMP 3 (the brightest setting), LAMP 2, LAMP 1, OFF,
LAMP 1, LAMP 2, LAMP 3 and so on:
•as you change the setting, the illumination on any other
SeaTalk instruments or control units will also change
3. The display automatically returns to the previous mode if you do
not press a key for 10 seconds:
•if you press another mode key within 10 seconds you will
select the mode assigned to that key (for example: auto
selects Auto mode, standby selects Standby mode)
Note: You can also adjust the lighting level from any other SeaTalk
instrument or control unit.
Note: When you switch off the unit you lose any changes you have
made to the lighting level.
D5517-1
SECOND
16 ST7001+ Autopilot Control Unit - Owner’s Handbook
2 Basic Operation
Contrast
To set the contrast level for the ST7001+ display:
1. With the autopilot in Standby mode, press the disp key for one
second to access the LAMP screen.
2. Press the disp key for one second again, to display the CONTRAST
screen.
3. Use the up and down arrow keys to set the required contrast level
(from 1 to 15).
4. The display automatically returns to the previous mode if you do
not press a key for 10 seconds:
•if you press another mode key within 10 seconds you will
select the mode assigned to that key (for example: auto
selects Auto mode, standby selects Standby mode)
Chapter 3: Advanced Operation 17
3 Advanced Operation
Chapter 3: Advanced Operation
The sections in this chapter explain how to use the more advanced
functions on your autopilot:
Note: If you are using the control unit with a non-150/400 autopilot
system, refer to the notes in the Appendix.
3.1 Using Track mode
Tracking between waypoints created on navigation
equipment connected to the autopilot system.
page 18
3.2 Using Wind Vane mode – sail boats
Using the autopilot to maintain a course relative to a
true or apparent wind angle.
page 25
3.3 Adjusting the rudder gain
Explains how to adjust the rudder gain setting (mainly
applies to non-GyroPlus Type 150/400 systems).
page 29
3.4
Displaying data pages
Describes how to use data pages to display SeaTalk and
NMEA information on the control unit. This section also
explains the Watch timer feature.
page 31
3.5
Remotely controlling ST60 and ST80
instruments
Describes how to use the ST7001+ as a remote control
keypad for ST60 and ST80 instruments.
page 34
18 ST7001+ Autopilot Control Unit - Owner’s Handbook
3 Advanced Operation
3.1 Using Track mode
Note: You can only use Track mode if you have connected the
autopilot to a suitable navigation system providing SeaTalk or
NMEA navigation information.
The autopilot system can receive track information from either:
•a SeaTalk navigation instrument or chartplotter (see page 50 for
information on connecting to SeaTalk), or
•a non-SeaTalk navigation system transmitting data in the
NMEA 0183 format (see page 51 for information on connecting
NMEA equipment)
In Track mode, the autopilot maintains a track between waypoints
created on the navigation system. The autopilot makes any course
changes necessary to keep your boat on track, automatically
compensating for tidal streams and leeway.
Selecting Track mode
CAUTION:
When you enter Track mode, the autopilot will bring the boat
onto the track in a controlled way. The closer the boat is to the
correct heading and track, the quicker the autopilot will settle the
boat onto the new course. To avoid an unexpected turn,
approximately align the boat with the required track before
entering Track mode.
To select Track mode:
1. Start with the autopilot in Auto mode.
2. Press track to enter Track mode.
3. Wait for the Waypoint Advance warning to sound. The display
will show the bearing to the next planned waypoint and the
direction the boat will turn to reach this waypoint.
4. Check that it is safe for the boat to turn onto the new course.
5. Press the track key:
•the autopilot will turn the boat onto the new course in a
controlled way
•the display shows the heading required to achieve the
required track
Chapter 3: Advanced Operation 19
3 Advanced Operation
Note: The closer the boat is to the correct heading and track when
you press track, the quicker the autopilot will bring the boat onto the
new course. If the boat is more than 0.3 nm from the track, the Large
Cross Track Error warning will sound (see page 19).
Exiting Track mode
You can exit Track mode and return to Auto or Standby mode by:
•pressing auto to return to Auto mode
•pressing standby to steer manually in Standby mode
Cross track error
Cross track error (XTE) is the distance between the current position
and a planned route. The autopilot receives the cross track error
information from the navigation equipment, and displays the XTE in
nautical miles (nm), statute miles (SM) or kilometres.
If the cross track error is greater than 0.3 nm, the ST7001+ will sound
the Large Cross Track Error warning and show whether you are to the
port (Pt) or starboard (Stb) of the planned track.
Automatic track acquisition
Current
heading
Previous
heading
Waypoint at 270˚
D5445-1P
Waypoint at 270˚
From auto mode, press track to enter Track mode: Then press track again to turn boat to waypoint:
20 ST7001+ Autopilot Control Unit - Owner’s Handbook
3 Advanced Operation
Tidal stream compensation
Under most conditions, the autopilot will hold the selected track to
within ±0.05 nm (300 ft) or better. The autopilot takes account of the
boat’s speed when computing course changes to ensure optimum
performance over a wide range of boat speeds.
Waypoint 1
Waypoint 2
Cross track error (XTE)
more than 0.3 nm
D4231-2P
Planned route
Actual route
D3261-2
Waypoint 2
Waypoint 1
Tidal component
Boat's speed through water
Boat's speed over ground
Chapter 3: Advanced Operation 21
3 Advanced Operation
In order of preference, the autopilot uses:
•measured boat speed (speed through water)
•if this is not available, it uses the speed over ground (SOG)
•if this is not available, it uses the cruise speed specified in Dealer
Calibration (see page 99)
Waypoint arrival and advance
Note: Waypoint advance only operates if the ST7001+ is receiving
valid bearing to waypoint and waypoint name information.
Arrival
As the boat arrives at the target waypoint the navigation aid will select
the next target waypoint and transmit this to the autopilot. The
autopilot will then detect the new target waypoint name, sound the
Waypoint Advance warning and display the Waypoint Advance
(NEXT WPT) screen. This shows the new bearing to the next waypoint
and the direction the boat will turn to acquire the new track.
Waypoint arrival and advance
Target
waypoint
Old target
waypoint
D5446-1P
Next target
waypoint at 270˚
New target
waypoint at 270˚
Waypoint arrival Waypoint advance
22 ST7001+ Autopilot Control Unit - Owner’s Handbook
3 Advanced Operation
Advance
When the ST7001+ sounds the Waypoint Advance warning, it
suspends Track mode and maintains the current boat heading.To
advance to the next waypoint:
1. Check that it is safe to turn onto the new track.
2. Press the track key. This will cancel the Waypoint Advance
warning and turn the boat towards the next waypoint.
Note: If you do not press track to accept the Waypoint Advance, the
autopilot will maintain the current heading and continue sounding
the warning.
Skipping a waypoint – SeaTalk navigators only
If you want to advance to the next waypoint before you have arrived
at the target waypoint, you can skip a waypoint by pressing track for
1 second. The display will then show the Waypoint Advance screen
for the next waypoint. Check it is safe to turn, then press track to turn
the boat towards the next waypoint.
WARNING:
Skipping a waypoint will take you straight to the next waypoint.
Check your navigation before making the turn.
Route Completed warning
The ST7001+ displays the ROUTE COMPLETED warning when you
have reached the last waypoint on a route in Track mode.
To respond to this message:
•press auto to continue on the same heading
•or press standby to return to hand steering
Waypoint Advance warning – summary
The ST7001+ activates the Waypoint Advance warning (NEXT WPT?)
in Track mode whenever the target waypoint name changes. This
occurs when:
•you select automatic acquisition by pressing track from Auto
•you request waypoint advance by pressing track for 1 second in
Track mode (with SeaTalk navigators only)
Chapter 3: Advanced Operation 23
3 Advanced Operation
•the boat arrives at the target waypoint and the navigator accepts
the next waypoint
•you activate the Man Overboard (MOB) function in Track mode
When the warning sounds, the pilot continues on its current heading
but displays:
•the bearing to the next waypoint
•the direction the boat will turn to take up that bearing
Responding to a Waypoint Advance warning
To respond to a Waypoint Advance warning:
•check that it is safe to turn onto the new track, then press track to
accept the waypoint advance
•alternatively, you can cancel the warning without accepting the
waypoint advance by pressing:
•standby to return to hand steering
•or auto to return to Auto mode
Dodges in Track mode
When the autopilot is in Track mode you still have full control from
the keypad.
Initiating a dodge maneuver
In Track mode, you can make a dodge maneuver by using the course
change keys (-1,+1, -10 or +10) to select the desired course change.
Cancelling a dodge maneuver
After you have avoided the hazard, you can cancel the dodge course
change by making an equal course change in the opposite direction.
24 ST7001+ Autopilot Control Unit - Owner’s Handbook
3 Advanced Operation
Safety in Track mode
CAUTION:
Track mode provides accurate track keeping even in complex
navigational situations. However, it is still the skipper’s
responsibility to ensure the safety of their boat at all times
through careful navigation and frequent position checks.
Sailing in Track mode assists precise navigation and removes the
tasks of compensating for wind and tidal drift. However, you MUST
still maintain an accurate log with regular plots.
Confirming position at the start of a journey
At the start of a journey you must always use an easily identifiable
fixed object to confirm the fix given by the navigation system. Check
for fixed positional errors and compensate for them.
Verifying computed positions
Always verify the computed position with a dead reckoned position,
calculated from the average course steered and the distance logged.
Plot frequency
•In open water, you should make plots at least every hour.
•In confined waters or when near to potential hazards, you should
make plots more frequently.
Chapter 3: Advanced Operation 25
3 Advanced Operation
3.2 Using Wind Vane mode – sail boats
Note: You can only select Wind Vane mode if the autopilot is
receiving suitable SeaTalk or NMEA wind direction information.
About Wind Vane mode
When the autopilot is in Wind Vane mode it uses the fluxgate
compass as the primary heading reference. As changes in the true or
apparent wind angle occur, the autopilot adjusts the locked compass
heading to maintain the original wind angle.
Wind information
To use Wind Vane mode, the autopilot must receive wind information
from one of the following sources:
•SeaTalk wind instrument connected to the autopilot via SeaTalk
•NMEA wind instrument
•Raymarine pushpit wind vane connected via a SeaTalk interface
True and apparent wind
Type 150/150G and 400/400G autopilots can maintain a course
relative to either an apparent or true wind angle in Wind Vane mode:
•steering to apparent wind, the autopilot maintains the apparent
wind angle
•steering to true wind, the autopilot maintains the true wind angle
Note: The default setting is apparent wind. On Type 150/150G and
400/400G autopilots you can change this to true wind in User or
Dealer Calibration (see page 89). Type 100/300 autopilots can only
maintain a course relative to apparent wind.
WindTrim
In Wind Vane mode the autopilot uses WindTrim to eliminate the
effects of turbulence and short term wind variations. This provides
smooth and precise performance with minimal power consumption.
You can adjust the wind response (WindTrim) level in User or Dealer
Calibration (see page 89) to control how quickly the autopilot
responds to changes in the wind direction. Higher wind trim settings
will result in a pilot that is more responsive to wind changes.
26 ST7001+ Autopilot Control Unit - Owner’s Handbook
3 Advanced Operation
Selecting Wind Vane mode
You can select Wind Vane mode from either Standby or Auto mode:
1. Steady the boat onto the required wind angle.
2. Press standby and auto together to select Wind Vane mode and
lock the current wind angle:
•the display shows the locked heading (e.g. 128°) and the wind
angle (e.g.WIND 145P indicates an wind angle of 145° to port)
•if the autopilot does not enter Wind Vane mode, it is not
receiving wind data - check the instrument and connections
The autopilot will then adjust the boat’s heading to maintain the
locked wind angle.
Exiting Wind Vane mode
You can exit Wind Vane mode by:
•pressing auto to return to Auto mode
•pressing standby to steer manually in Standby mode
Adjusting the locked wind angle
You can adjust the locked wind angle by using the -1, +1, -10 and +10
keys to change course. For example, to bear away by 10° when the
boat is on a starboard tack:
•press -10 to turn the boat 10° to port – the locked wind angle and
locked heading will both change by 10°
•the autopilot will then adjust the locked heading as required to
maintain the new wind angle
Note: Because turning the boat affects the relationship between the
true and apparent wind angles, you should only use this method to
make minor adjustments to the wind angle. For major changes,
return to Standby mode, steer onto the new heading, then reselect
Wind Vane mode.
D4214-2
Chapter 3: Advanced Operation 27
3 Advanced Operation
Returning to the previous wind angle (LAST WND)
If you have steered the boat away from the selected wind angle for
any reason (such as a dodge maneuver or selecting Standby mode),
you can return to the previous locked wind angle:
1. Press res’m to display the previous wind angle (LAST WIND):
•the LAST WIND text alternates with the previous wind angle
and direction. The display shows the previous locked heading
and an indication of which direction the boat will turn
2. Check that it is safe to turn onto this course.
3. To accept this wind angle, press standby and auto together
within 10 seconds.
Note: If you do not accept the previous wind angle within 10 seconds,
the autopilot will lock onto the current wind angle.
Dodges in Wind Vane mode
When the autopilot is in Wind Vane mode you still have full control
from the keypad.
Initiating a dodge maneuver
In Wind Vane mode, you can make a dodge maneuver by using the
course change keys (-1,+1, -10 or +10) to select the desired course
change. The autopilot will adjust both the locked heading and locked
wind angle.
Cancelling a dodge maneuver
After you have avoided the hazard, you can reverse the previous
course change, or return to the previous wind angle (LAST WIND).
D4233-2
28 ST7001+ Autopilot Control Unit - Owner’s Handbook
3 Advanced Operation
Wind Shift warning
If the autopilot detects a wind shift of more than 15° it will sound the
wind shift warning and display the WIND SHIFT message:
•To cancel the warning, and retain the existing wind angle and new
heading, press standby and auto together.
•Alternatively, to cancel the warning and return to the previous
heading, either:
•adjust the locked wind angle using the -1, +1, -10 and
+10 keys,
or
•press standby to return to hand steering, steer onto the
required heading, and press standby and auto together to
return to Wind Vane mode with the new wind angle
Using AutoTack in Wind Vane mode
Note: If you use the AutoTack function in Wind Vane mode, make
sure the wind vane has been centered accurately.
The ST7001+ has a built in automatic tack facility (AutoTack) that
turns the boat through 100° in the required direction:
•to AutoTack to port: press the -1 and -10 keys together
•to AutoTack to starboard: press the +1 and +10 keys together
Note: If you have set the vessel type to SAIL BOAT, you can adjust the
default AutoTack angle in User or Dealer calibration (see page 87).
Wind
AutoTack - Starboard
D5399-1
Wind
AutoTack - Port
AutoTack
angle
AutoTack
angle
Chapter 3: Advanced Operation 29
3 Advanced Operation
When you AutoTack in Wind Vane mode, the boat turns through the
AutoTack angle. The autopilot will then trim the heading to mirror the
locked wind angle from the previous tack.
Operating hints for Wind Vane mode
•Always trim your sails carefully to minimize the amount of
standing helm.
•Reef the headsail and mainsail a little early rather than too late.
•In Wind Vane mode the pilot will react to long-term wind shifts,
but will not correct for short-term changes such as gusts.
•In gusty and unsteady inshore conditions, it is best to sail a few
degrees further off the wind so that changes in wind direction can
be tolerated.
3.3 Adjusting the rudder gain
Note: Although this feature is available on all systems, you should
not need to adjust the rudder gain setting on Type 150G/400G
autopilot systems after completing the AutoLearn (see page 68).
On Type 150/400 (non-GyroPlus) and Type 100/300 systems, you
can make temporary adjustments to rudder gain to change the
autopilot’s steering characteristics. Rudder gain is a measure of how
much helm the autopilot will apply to correct course errors:
•if rudder gain is adjusted correctly, the course changes should
result in a crisp turn followed by an overshoot of no more than 5°
D5454-1
SECOND OR
OR
OR
and
1 second
Increase
rudder gain
Decrease
rudder gain
30 ST7001+ Autopilot Control Unit - Owner’s Handbook
3 Advanced Operation
•if rudder gain is too high, courses change will result in a distinct
overshoot (A)
•if rudder gain is too low, the boat will feel sluggish – it will take a
long time to make the turn and there will be no overshoot (B)
Note: See page 71 for a full explanation of rudder gain and how to
adjust it correctly.
If necessary, you can make a temporary change to rudder gain
as follows:
1. Press the resp key or the -1 and +1 keys together for 1 second to
display the rudder gain (RUDD GAIN) screen:
•if you have set up the RUDD GAIN screen as a default data page
(see page 81) you can also access it by pressing disp and then
scrolling through the data pages.
2. Press -1 or +1 or up/ down arrow keys to change the rudder gain.
3. Press disp or wait for 5 seconds to return to the previous display.
Note: You will lose these temporary changes to rudder gain
whenever the system is powered off. You can make permanent
adjustments in User or Dealer Calibration (see page 95).
WARNINGS:
1. You must set rudder gain correctly on planing craft. Incorrect
rudder gain will lead to poor steering performance and can be
dangerous at high speeds.
2. If you increase the rudder gain setting on a Type 150G/400G
autopilot, you must also increase the counter rudder setting.
New
heading
New
heading
A
New
heading
B
Correct
rudder gain
Rudder gain
too high
Rudder gain
too low
D3262-2
Chapter 3: Advanced Operation 31
3 Advanced Operation
3.4 Displaying data pages
Use the disp key to show ‘data pages’ of SeaTalk or NMEA data:
1. Press disp to access the first data page, and press it again to cycle
through each data page in turn:
•to return to a previous data page, press disp for 1 second
within 2 seconds of displaying a page
•when you cycle past the last data page, the display returns to
the current autopilot mode screen (for example, Auto)
•4 data pages are set in the factory as a default (see diagram):
within User setup you can select up to 15 pages and control the
information they display (see page 81)
2. Select the data page you want to use as the main display:
•the current autopilot mode is shown at the left of the display
and the autopilot bar graph remains in use
•if you then select a new mode or make a course change, the
autopilot mode screen appears as a ‘pop-up’ for 5 seconds
(you can adjust the ‘pop-up’ time as described on page 81)
Notes: 1. If the autopilot system cannot obtain the required
information, the data page will show dashes instead of a value.
2. The direction-to-steer arrows relate to the data page information.
3. Most data pages show repeated data so you cannot adjust them: the
exceptions are the RESPONSE and RUDDER GAIN data pages, which
you can adjust using the -1 and +1 or up/down arrow keys
t
D5456-1
Default data pages
Autopilot mode
Data page 1
Data page 3
Data page 4
Data page 2
Press for 1 sec to
return to previous
data page
32 ST7001+ Autopilot Control Unit - Owner’s Handbook
3 Advanced Operation
Waypoint names
If waypoint names have been allocated, the ST7001+ will display
them on the Cross Track Error (XTE), Bearing To Waypoint (BTW) and
Distance To Waypoint (DTW) data pages:
•waypoint names of five characters or less are displayed together
with the page name (as shown by screen A below)
•waypoint names of more than five characters alternate with
the page name (as shown by screen B below)
•if the waypoint name has more than nine characters, the display
only shows the first nine characters
Watch timer
The ST7001+ has a Watch timer controlled by the WATCH data page.
This timer sounds a warning every 4 minutes, requiring a keypad
press on the autopilot.
Setting the Watch timer
To set the Watch timer:
1. First, you must configure the WATCH screen as one of the data
pages for display (see page 81).
2. When you have done this select Auto, Track or Wind Vane mode.
3. Press the disp key until you see the WATCH data page:
•the watch timer will start counting
•when the timer reaches 3 minutes, the WATCH text starts
flashing to indicate that the timer is in the last minute
•when the timer reaches 4 minutes, the ST7001+ activates the
audible Watch warning
D4326-2
A
B
Chapter 3: Advanced Operation 33
3 Advanced Operation
Responding to a Watch warning
To respond to a Watch warning:
•press auto to silence the warning and reset the timer to 4 minutes
or
•press any other key to silence the warning, reset the timer and
perform that key’s normal function
Note: You cannot engage Auto mode directly when the WATCH screen
is displayed – pressing auto will only reset the Watch timer. If you
want to enter Auto mode, you must first exit the WATCH screen
(see below).
Exiting the Watch screen
To exit the Watch screen:
•press disp to display a different data page
or
•press standby
Warning messages
Shallow warning (SHALLOW)
The ST7001+ shows the Shallow warning if it receives a shallow
depth message from an instrument on the SeaTalk system. Press
standby or disp to cancel the warning.
Man Overboard warning (MOB)
The ST7001+ activates the Man Overboard warning if it receives a
man overboard (MOB) message from another instrument on the
SeaTalk system. It displays the text MOB instead of the waypoint
number for the XTE, DTW and BTW data pages.
34 ST7001+ Autopilot Control Unit - Owner’s Handbook
3 Advanced Operation
3.5 Remotely controlling ST60 and ST80 instruments
You can use the ST7000+ to remotely control ST60 or ST80
instruments (both standard 110 mm and Maxiview instruments).
Note: Before attempting to remotely control ST60 or ST80
instruments, you first need to define the instrument grouping and
allocate the ST7001+ to the required group (see page 83).
To operate ST60 or ST80 instruments from the ST7001+ control unit:
1. Select either:
•the INST REM data page (to control standard instruments), or
•the MAXI REM data page (to control ST80 Maxiviews).
2. Carry out the required instrument control functions from your
ST7001+ (using the keys shown in the following illustration).
Note: The currently-selected instrument is indicated as follows:
•on ST80 instruments, the characters are displayed as white
characters on a black background (instead of black on white)
•on ST60 digital instruments, you will see a REMOTE message
•on ST60 analogue instruments, you will see a flashing TRUE/MAG
and/or TRUE/APP message
D4325-2
Replicates the key-layout of the selected instrument.
For example: if you press resp, the selected instrument
responds as though its far left key has been pressed.
Controlling a standard instrument Controlling a Maxiview instrument
Chapter
select Page
select
Select instrument
All instrument types
Chapter 4: Fault Finding & Maintenance 35
4 Fault Finding & Maintenance
Chapter 4: Fault Finding & Maintenance
All Raymarine products are designed to provide many years of
trouble-free operation. We also put them through comprehensive
testing and quality assurance procedures before shipping.
This chapter provides information about identifying common
problems, interpreting alarm messages, maintaining your autopilot
system and obtaining product support.
If a fault occurs with your autopilot, use the fault finding tables in this
section to help identify the problem and provide a solution.If you
cannot resolve the problem yourself, refer to the product support
information.
4.1
Fault finding
This section provides information to help you identify
and resolve common autopilot problems and error
messages.
page 36
4.2 General maintenance
This section explains how to maintain your autopilot
system.
page 39
4.3 Product support
This section outlines the product support available
from Raymarine worldwide.
page 40
36 ST7001+ Autopilot Control Unit - Owner’s Handbook
4 Fault Finding & Maintenance
4.1 Fault finding
Common autopilot problems
SYMPTOM CAUSE and SOLUTION
Display is blank No power – check the power and SeaTalk fuses
on course computer, then check main
fuse/circuit breaker.
Display shows stationary dashes The control unit is not receiving data – check
cabling.
Display shows rotating dashes Compass correction in progress (see page 64).
Displayed compass heading does
not agree with the boat’s compass
You have not calibrated the compass. Carry out
the deviation and alignment procedures (see
page 64).
No display bar on the display Rudder bar switched off in Display Calibration
– select RUDD BAR or STEER BAR
Rudder bar display moves in
opposite direction to rudder
Reverse the red and green rudder position
sensor connections at the course computer
Boat turns slowly and takes a long
time to come onto course
Rudder gain too low (see page 71). Complete
AutoLearn or increase setting.
Boat overshoots when turning onto
a new course
Rudder gain too high (see page 71). Complete
AutoLearn or decrease setting,
The autopilot appears to be
unstable in Track mode, or
track-holding is slow
If tide speed exceeds 35% of boat speed, and
boat speed is not available via SeaTalk, change
the Cruise Speed setting in Dealer Calibration
to the boat’s cruising speed (see page 99).
The autopilot appears to be
unstable on Northerly headings in
the Northern hemisphere (or
Southerly headings in the Southern
hemisphere)
Northerly/Southerly heading correction
(AutoAdapt) is not set up (see page 99). [Does
not apply to 150G/400G systems.]
You cannot enter Seatrial
Calibration
Seatrial calibration lock is on – turn off the
calibration protection feature in Dealer
Calibration (see page 92).
The autopilot will not ‘talk’ to other
SeaTalk instruments
Cabling problem – make sure all the cables are
connected properly.
Position information not received Navigator not transmitting the correct position
data.
The autopilot will not auto advance
to the next waypoint
No bearing to waypoint information received
from the navigator.
Chapter 4: Fault Finding & Maintenance 37
4 Fault Finding & Maintenance
Autopilot alarm messages
When the autopilot detects a fault or failure on the system, it will
activate one of the alarm messages listed in the following table.
•Unless otherwise stated, you should respond to the alarm by
pressing standby to clear the alarm and return to hand steering,
before you attempt to resolve the problem.
•In some situations, the autopilot will raise more than one alarm.
When you have dealt with the first alarm, the autopilot will
display the next alarm.
ALARM MESSAGE CAUSE and SOLUTION
AUTO RELEASE Possible fault with rudder position sensor – check connections.
OR
Stern (I/O) drives only – you have taken manual control of
steering with AutoRelease on. The alarm cancels automatically
after 10 seconds.
CURRENT and LIMIT Serious drive failure – the drive is taking too much current due
to short-circuit or jamming. Check the drive unit.
DRIVE and STOPPED The autopilot is unable to turn the rudder (this occurs if the
weather load on helm is too high, or if the rudder position
sensor has passed beyond the preset rudder limits or rudder
end-stops).
Check drive and rudder position sensor.
LOW and BATTERY Supply voltage has dropped below acceptable limits.
To respond to a Low Battery alarm:
• press standby to clear the alarm and return to hand steering
• start the engine to recharge the battery
LRN FAIL 1, 2 or 4 AutoLearn not completed successfully.
Failure codes:
1 = AutoLearn has not been carried out (default setting)
2 = AutoLearn failed, usually due to manual interruption
4 = AutoLearn failed, probably due to drive or compass failure
Repeat the AutoLearn procedure.
MOT POW and SWAPPED Motor cables are connected to power terminals (and power
cables are connected to motor terminals) at course computer.
Turn off power and swap over connections.
[Table continues over page]
38 ST7001+ Autopilot Control Unit - Owner’s Handbook
4 Fault Finding & Maintenance
NO DATA Caused by any of the following situations:
• the compass is not connected
• the autopilot is in Wind Vane mode and it has not received
wind angle data for 30 seconds
• the autopilot is in Track mode and:
• the autopilot is not receiving SeaTalk navigation data, or
• the position sensor (GPS, Loran, Decca) is receiving a low
strength signal – this will clear when the signal improves
Check the connections to the compass and/or wind instrument
and/or navigator.
Note: The autopilot stops adjusting the heading as soon as it
loses data.
NO PILOT The control unit is not receiving data from the course computer.
Check connections and check course computer is switched on.
RG FAIL GyroPlus yaw sensor has failed:
• If you have a Type 150G/400G course computer with internal
GyroPlus sensor – call a Raymarine service agent.
• If you have a Type 150/400 course computer with external
GyroPlus yaw sensor – check the sensor and connections,
then call a Raymarine service agent.
SEATALK and FAIL 1 or 2 SeaTalk data problem on one of the SeaTalk lines – check
connections.
SEATALK and FAIL The control unit cannot transmit data to the SeaTalk system.
Make sure all SeaTalk cables are connected properly.
ALARM MESSAGE CAUSE and SOLUTION
Chapter 4: Fault Finding & Maintenance 39
4 Fault Finding & Maintenance
4.2 General maintenance
Routine checks
CAUTION:
The control unit does not contain any user serviceable parts.
It should be serviced only by authorized Raymarine service
technicians.
The control unit is a sealed unit. As a result, user maintenance is
limited to the following checks:
•make sure all cable connectors are firmly attached
•examine the cables for signs of wear or damage – replace any
damaged cables
Cleaning the display
CAUTION:
Take care when cleaning the display. Avoid wiping the display
screen with a dry cloth as this could scratch the screen coating.
If necessary, only use a mild detergent.
•Never use chemical or abrasive materials to clean the control unit.
If it is dirty, wipe it with a clean, damp cloth.
•In certain conditions, condensation may appear inside the display
screen. This will not harm the unit, and you can clear it by
switching on the illumination for a short time.
EMC advice
•When powered up, all electrical equipment produces
electromagnetic fields. These can cause adjacent pieces of
electrical equipment to interact with one another, with a
consequent adverse effect on operation.
•To minimize these effects and enable you to get the best possible
performance from your Raymarine equipment, guidelines are
given in the installation instructions, to enable you to ensure
minimum interaction between different items of equipment, i.e.
ensure optimum Electromagnetic Compatibility (EMC).
40 ST7001+ Autopilot Control Unit - Owner’s Handbook
4 Fault Finding & Maintenance
•Always report any EMC-related problems to your nearest
Raymarine dealer. We use such information to improve our
quality standards.
•In some installations, it may not be possible to prevent the
equipment from being affected by external influences. In general
this will not damage the equipment but it can lead to spurious
resetting action, or momentarily may result in faulty operation.
4.3 Product support
Raymarine products are supported by a worldwide network of
distributors and Authorized Service Representatives. If you
encounter any difficulties with this product, please contact either
your national distributor, service representative, or the Raymarine
Technical Services Call Center. Refer to the back cover or the
Worldwide Distributor List for contact details.
Before you consider returning the autopilot, make sure that the power
supply cable is sound and that all connections are tight and free from
corrosion. If the connections are secure, refer to the Fault Finding
section in this chapter (see page 36).
If you cannot trace or rectify the fault, contact your nearest
Raymarine dealer or Service Center, specifying:
•the control unit and course computer serial numbers:
•the control unit serial number is printed on its rear cover
•the course computer serial number is printed under its
connector cover
•the control unit and course computer software version numbers
The following illustration shows how to display the software
information:
•press and hold standby for 4 seconds:
•after 2 seconds you will see the DISPLAY CAL screen
•then after another 2 seconds you see control unit software
version
•press disp to display the course computer software version
•press disp again to display the total number of hours the autopilot
has been used in Auto mode (Note: Type 100/300 systems do not
display hours used.)
Chapter 4: Fault Finding & Maintenance 41
4 Fault Finding & Maintenance
Product details table
For future reference, you may want to use this table to record serial
and software information for your autopilot system:
Serial number Software version
Control unit
Course computer
Hours used hours
4 seconds
Software Information
1 second1 second Control unit
software version
Time autopilot
used in Auto
Course computer
software version
1 second
D5494-1
42 ST7001+ Autopilot Control Unit - Owner’s Handbook
4 Fault Finding & Maintenance
Part 2:
Installing the
ST7001+
Part 2: Installing the ST7001+
Part 2: Installing the ST7001+
Chapter 5: Installing the ST7001+ 45
5 Installing the ST7001+
Chapter 5: Installing the ST7001+
The sections in this chapter explain how to install the ST7001+
control unit and connect it to an autopilot system:
Tools required
To install the ST7001+ control unit you will need the following items:
•tape measure (metric/imperial)
•pencil and center punch
•pliers
•sandpaper/file to smooth cut edges
•additional SeaTalk cables (if required – see page 51)
•90 mm hole cutter (for the control unit aperture)
•drill and 5 mm (5/32 in) drill bit
Parts supplied
•control unit and sun cover
•fixing studs (x4) and thumb nuts (x4)
•self-adhesive gasket
•9 m (29 ft 6 in) SeaTalk cable
5.1 Select the location
How to select a suitable location for the ST7001+
control unit.
page 46
5.2 Control unit installation
How to install the ST7001+control unit. page 49
5.3 SeaTalk connections
How to connect the control unit to SeaTalk (for power
supply and SeaTalk data exchange).
page 50
5.4 NMEA connections
How to connect NMEA equipment to the control unit. page 51
5.5 Functional test – repeater units only
How to check an ST7001+ connected as a repeater unit
on an existing autopilot system.
page 54
46 ST7001+ Autopilot Control Unit - Owner’s Handbook
5 Installing the ST7001+
5.1 Select the location
Site requirements
Locate the ST7001+ control unit so it is:
•within easy reach from the steering position
•viewable straight on, or with a maximum viewing angle of 30°
•protected from physical damage
•at least 230 mm (9 in) from any compass
•at least 1 m (3 ft) from any radio or radar receivers or transmitters
The selected location should also:
•be clean, smooth and flat
•be accessible from behind (so you can secure and run cables)
•have sufficient space to accommodate the rear of the control unit
and connectors
•allow at least 6 mm (1/4in) between adjacent control
units/instruments so you can fit their sun covers
•meet the cabling and EMC installation guidelines detailed below
CAUTION:
The ST7001+ front cover is waterproof when installed according
to the following instructions. However, you must protect the rear
of the control unit from water in a ventilated and drained area.
D4219-2
175 mm (6.9 in) 24 mm
(0.9 in)
90 mm (3.55 in)
115 mm (4.5 in)
17 mm
(0.7 in)
Chapter 5: Installing the ST7001+ 47
5 Installing the ST7001+
Any moisture or water vapor in this area could cause damage by
coming into contact with electrical connections, or condensation
by entering the control unit through its breathing hole.
Cabling guidelines
•consider how you will run cables to and from the control unit
•avoid running cables through bilges where possible
•avoid running cables close to fluorescent lights, engines, radio
transmitting equipment etc.
EMC installation guidelines
All Raymarine equipment and accessories are designed to the best
industry standards for use in the recreational marine environment.
Their design and manufacture conforms to the appropriate
Electromagnetic Compatibility (EMC) standards, but correct
installation is required to ensure that performance is not
compromised.
Although every effort has been taken to ensure that they will perform
under all conditions, it is important to understand what factors could
affect the operation of the product.
The guidelines given here describe the conditions for optimum EMC
performance, but it is recognized that it may not be possible to meet
all of these conditions in all situations. To ensure the best possible
conditions for EMC performance within the constraints imposed by
any location, always ensure the maximum separation possible
between different items of electrical equipment.
For optimum EMC performance, it is recommended that wherever
possible:
•Raymarine equipment and cables connected to it are:
•At least 3 ft (1 m) from any equipment transmitting or cables
carrying radio signals e.g. VHF radios, cables and antennas.
In the case of SSB radios, the distance should be increased to
7ft (2m).
•More than 7 ft (2 m) from the path of a radar beam. A radar
beam can normally be assumed to spread 20 degrees above
and below the radiating element.
•The equipment is supplied from a separate battery from that used
for engine start. Voltage drops below 10 V, and starter motor
48 ST7001+ Autopilot Control Unit - Owner’s Handbook
5 Installing the ST7001+
transients, can cause the equipment to reset. This will not damage
the equipment, but may cause the loss of some information and
may change the operating mode.
•Raymarine specified cables are used. Cutting and rejoining these
cables can compromise EMC performance and must be avoided
unless doing so is detailed in the installation manual.
•If a suppression ferrite is attached to a cable, this ferrite should not
be removed. If the ferrite needs to be removed during installation
it must be reassembled in the same position.
EMC suppression ferrites
The following illustration shows typical cable suppression ferrites
used with Raymarine equipment. Always use the ferrites supplied by
Raymarine.
Connections to other equipment
If your Raymarine equipment is to be connected to other equipment
using a cable not supplied by Raymarine, a suppression ferrite MUST
always be attached to the cable near to the Raymarine unit.
D3548-2
Chapter 5: Installing the ST7001+ 49

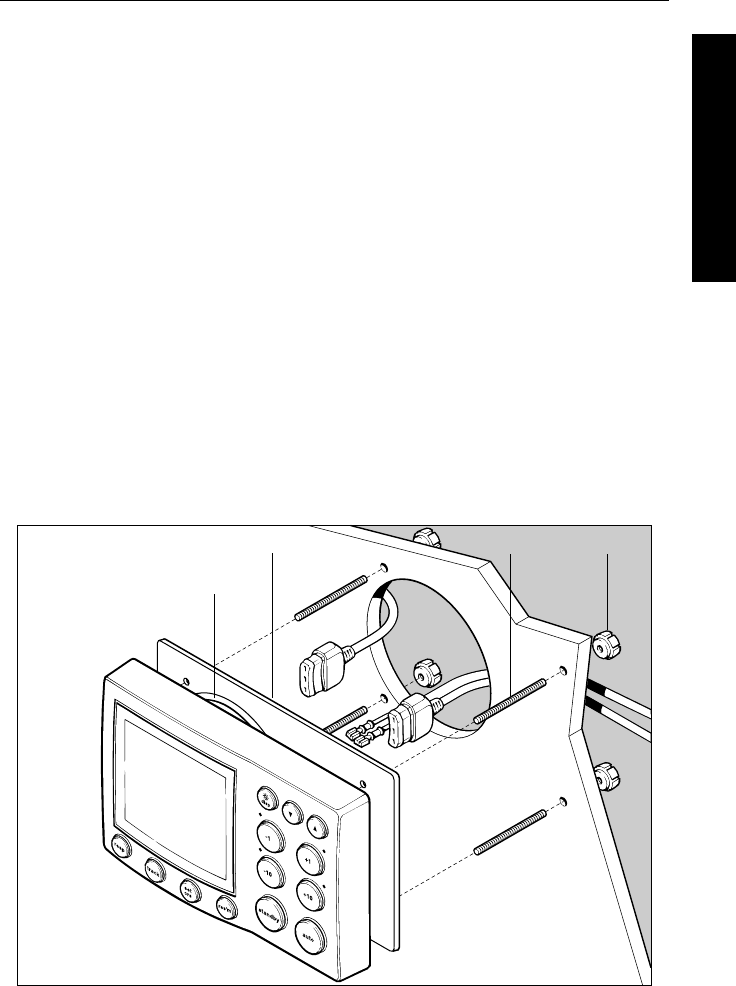

5 Installing the ST7001+
5.2 Control unit installation
To fit the control unit:
1. Apply the template (supplied at the back of this handbook) to the
selected bulkhead.
2. Mark the centers of the four fixing holes and the cable boss.
3. Drill four 5 mm (3/16 in) diameter holes for the fixing studs.
4. Use a 90 mm (3.55 in) diameter cutter to drill the hole for the
cable boss.
5. Peel the protective sheets from the self-adhesive gasket, then stick
the gasket into position on the rear of the control unit.
6. Screw the four fixing studs into the threaded sockets on the rear of
the control unit.
7. Pass the SeaTalk/NMEA cables through the bulkhead and
connect them to the appropriate terminals (as described later in
this chapter).
8. Assemble the control unit to the bulkhead.
9. Secure the control unit with the thumb nuts provided.
Hand-tighten the thumb nuts – do NOT use a wrench.
Fixing stud Thumb nut
Cable boss
Self-adhesive gasket
D4226-2
50 ST7001+ Autopilot Control Unit - Owner’s Handbook
5 Installing the ST7001+
5.3 SeaTalk connections
The SeaTalk connections on the ST7001+ provide it with its 12 V DC
power supply and allow it to share data with SeaTalk equipment.
Connecting to a course computer
If you are using the ST7001+ as the main control unit for a course
computer autopilot system, connect it directly to the course computer
SeaTalk terminals. To do this:
•cut off the moulded plug at one end of the SeaTalk cable
•strip 5 mm (1/2 in) of insulation from each wire
•then connect to the course computer terminals as shown
Note: If you are connecting the ST7001+ to a course computer
autopilot system that includes other control units, refer to the
information contained in the Autopilot System Installation Guide.
Connecting to SeaTalk
If you are using the ST7001+ as an additional control unit, use a
SeaTalk cable to connect it to another SeaTalk unit as shown.
Connecting to course computer as main control unit
ST7001+ or ST6001+
control unit (rear)
Type 150/400 course computer terminals
Screen Red Yellow
D5500-1
D5501-1
Connecting to SeaTalk as additional control unit
To SeaTalk
power supply
ST7001+ or ST6001+
control unit (rear)
SeaTalk
unit (rear)
Chapter 5: Installing the ST7001+ 51
5 Installing the ST7001+
We supply the ST7001+ with a 9 m (29 ft 6 in) SeaTalk cable as
standard. Depending on your installation, you may need to obtain
alternative or additional SeaTalk cables (as shown in the following
illustration).
5.4 NMEA connections
The ST7001+ has a set of NMEA inputs so it can receive data in
NMEA 0183 format from navigation or wind instruments. It can use
this data to operate in Track or Wind Vane modes.
Note: If your ST7001+ control unit is part of a course computer
system, you can connect additional NMEA equipment to other parts
of the system. To decode the maximum amount of NMEA data (so it
can be transmitted onto SeaTalk), connect the navigator to the course
computer NMEA terminals. Refer to the Autopilot System Installation
Guide for more information.
Receiving NMEA data
NMEA data formats
The ST7001+ can decode the following NMEA 0183 navigation and
wind data received:
Flat moulded plug to round plug
Flat moulded plugs at each end
D5417-1
Part no. Type Length
D187 Flat moulded plug to male round plug 0.15 m (6 in)
D188 Flat moulded plug to female round plug 0.3 m (12 in)
Part no. Type Length
D284 Flat moulded plugs at each end 1 m (3 ft 3 in)
D285 Flat moulded plugs at each end 3 m (9 ft 10 in)
D286 Flat moulded plugs at each end 5 m (16 ft 5 in)
D287 Flat moulded plugs at each end 9 m (29 ft 6 in)
D288 Flat moulded plugs at each end 20 m (65 ft 6 in)
52 ST7001+ Autopilot Control Unit - Owner’s Handbook
5 Installing the ST7001+
NMEA cabling
Connect the NMEA navigator or wind instrument to the NMEA IN
terminals on the rear of the ST7001+ control unit. You can only
connect a single piece of NMEA equipment to these terminals.
Information NMEA 0183 data
Latitude and Longitude GLL, RMC, RMA, GLP, GOP, GXP, GGA, GDP
Course Over Ground VTG, RMC, RMA
Speed Over Ground VTG, RMC, RMA
Cross Track Error APB, APA, RMB, XTE
Bearing to Waypoint APB, BWR, BWC, RMB
Distance to Waypoint BWR, BWC, RMB
Waypoint Number APB, APA, BWR, BWC, RMB
Apparent Wind Speed VWR, MWV
Apparent Wind Angle VWR, MWV
Speed Through Water VHW
Depth DBT
Water Temperature MTW
Note: The ST7001+ only decodes the last four characters of waypoint names.
This means that the last four characters of long waypoint names must be
unique for the waypoint advance function to work.
Red
(data in +ve)
Blue
(data in -ve)
D3442-2
Navigator or
wind instrument
with NMEA output
Data
out (+ve)
Data
out (-ve)
Control unit
(rear)
Chapter 5: Installing the ST7001+ 53
5 Installing the ST7001+
NMEA cable connectors
NMEA connections are made using spade connectors. When fitting
the spade connectors, make sure the connector fits securely over the
blade and not between the connector and its plastic insulating cover.
Incorrect fitting will give intermittent contact which will lead to
faulty autopilot operation.
Transmitting NMEA data
Transmitting NMEA data on SeaTalk
If the ST7001+ receives any of the NMEA data shown above, and the
equivalent data is not present on SeaTalk, it will transmit the data onto
SeaTalk to make it available to other SeaTalk instruments:
•the ST7001+ transmits depth information in the units defined by
the first page in the data page rollover
•the ST7001+ always transmits water temperature in °C
Transmitting NMEA data to other NMEA equipment
If you want to transmit NMEA information to non-SeaTalk
equipment you can either:
•connect the NMEA equipment to the NMEA outputs on the
course computer (if your system includes a course computer)
or
•use a SeaTalk/NMEA Interface (part number: E85001) to convert
SeaTalk data to NMEA data (if your system does not include a
course computer)
D3286-2
54 ST7001+ Autopilot Control Unit - Owner’s Handbook
5 Installing the ST7001+
5.5 Functional test – repeater units only
If you have installed the ST7001+ as an additional control unit for an
existing autopilot system, complete the following checks to make
sure you have installed the control unit correctly.
Note: If you have connected the ST7001+ as part of a new autopilot
installation, you MUST calibrate the autopilot as described in
Chapter 6: Commissioning the Autopilot.
Switch on
1. When you have installed the ST7001+ control unit, switch on the
main power breaker.
2. If the control unit is active and the system operating, the control
unit will beep and display the control unit type (ST7001) for
2 seconds.
3. After 2 seconds, the control unit will display the STANDBY screen.
SeaTalk and NMEA connections
If you have connected the ST7001+ to other SeaTalk instruments or
control units, check the links as follows:
1. Select display lighting level 3 (LAMP 3) on one of the other
SeaTalk instruments or control units.
2. The ST7001+ should immediately switch on its display lighting:
•if the lighting does not switch on, there is a fault in the SeaTalk
cabling between the ST7001+ and the other units
3. If you have connected an NMEA navigator to the control unit
NMEA inputs, check the connections as described on page 57.
Troubleshooting
•If the head does not beep, check the fuse/circuit breaker.
•If the display shows the SEATALK FAILURE or NO DATA alarm
message, check the SeaTalk connections.
Chapter 6: Commissioning the Autopilot 55
6 Commissioning the Autopilot
Chapter 6: Commissioning the Autopilot
WARNING:
All new autopilot system installations MUST be calibrated.
If you have connected the ST7001+ to a newly installed Type
150/150G or Type 400/400G course computer autopilot system, you
must commission the system This involves a series of dockside
checks and then the seatrial calibration:
Note: If you have connected the ST7001+ to a non-150/400 autopilot
system refer to the notes in the Appendix.
6.1
Dockside Checks
With the boat safely tied up, you need check the
autopilot system and adjust some key autopilot
settings.
page 56
6.2 Seatrial Calibration
The purpose of this seatrial is to calibrate the compass
and optimize the autopilot set-up for your boat.
page 63
56 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot
6.1 Dockside Checks
With the boat safely tied up, complete the following dockside checks:
1. Switch on.
2. Check the SeaTalk and NMEA connections.
3. Check the autopilot operating sense.
4. Set the basic autopilot parameters.
WARNING:
For safe control of your boat, you MUST complete the dockside
checks before starting the initial seatrial.
Step 1 - Switch on
1. When you have installed the ST7001+ control unit and the rest of
the autopilot system, switch on the main power breaker.
2. If the control unit and system are active, the control unit will beep
and display the control unit type (ST7001) for 2 seconds.
3. You will then see a CALIBRATE REQUIRED message for 4 seconds
if either: the vessel type is not selected (see page 59), or the
compass is not calibrated (see page 64).
4. The control unit will then display the STANDBY screen.
5. Check that the STANDBY screen displays a live compass heading
and a rudder angle.
Troubleshooting
•If the head does not beep or the display is blank, check the
fuse/circuit breaker and the SeaTalk fuse in the course computer.
•If the display shows the SEATALK FAILURE or NO DATA alarm
message, check the SeaTalk connections.
•If the STANDBY screen does not display a live compass heading or
a rudder angle, check the sensor connections.
D4236-2
Chapter 6: Commissioning the Autopilot 57
6 Commissioning the Autopilot
Step 2 - Check the SeaTalk and NMEA connections
SeaTalk connections
If you have connected the ST7001+ to other SeaTalk instruments or
control units, check the links as follows:
1. Select display lighting level 3 (LAMP 3) on one of the SeaTalk
instruments or control units.
2. The ST7001+ should immediately switch on its display lighting:
•if the lighting does not switch on, there is a fault in the SeaTalk
cabling between the ST7001+ and the other units
NMEA navigator connections
If you have connected the ST7001+ to an NMEA navigator, check the
links by displaying the default navigation data pages (XTE/BTW/DTW):
•press disp to display the first data page, and check that this page
shows the expected data
•press disp again to check each successive data page
If the display shows dashes instead of data values, the cause could be
one or more of the following:
•navigator not switched on or not transmitting an active waypoint
•cabling error: check for open circuit, short circuit, reversed wires
•navigator is not configured to transmit the required data format
Wind instrument connections
If you have connected the autopilot to an NMEA or SeaTalk wind
instrument, check the links by pressing standby and auto together:
•the ST7001+ should display the Wind Vane mode screen, with the
locked wind angle and locked heading:
•if nothing happens when you press standby and auto together,
the ST7001+ is not receiving wind data: check the wind
instrument and connections
D4214-2
58 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot
Step 3 - Check the autopilot operating sense
Check the rudder position sensor
1. Turn the wheel manually to starboard.
2. Check that the rudder bar on the display moves to starboard.
If the rudder bar display moves the wrong way:
•turn off the power
•reverse the red and green wires connected to the RUDDER
inputs on the course computer
•switch on the power and re-check
Check the autopilot steering sense
1. Manually center the wheel, then press the auto key so the
autopilot is in Auto mode. Check that the display shows AUTO.
Be ready to press standby if the rudder moves hardover.
2. Press the +10 key once. Check that the rudder moves to starboard
a few degrees and then stops.
•if the rudder drives hardover, immediately press standby to
prevent further rudder movement
If the rudder moves to port or the rudder drives hardover:
•press standby
•turn off the power
•reverse the motor wires connected to the course computer
•switch on the power and re-check
Note: If the rudder overshoots and has to drive back or starts to hunt
back and forth, you will need to increase the rudder damping level as
described in Step 3 (see page 62).
D3568-2
Chapter 6: Commissioning the Autopilot 59
6 Commissioning the Autopilot
Step 4 - Adjust basic autopilot settings
Note: For more information about these calibration settings refer to
the following pages: vessel type (page 94), drive type (page 94),
rudder sensor alignment (page 94), rudder limits (page 95).
The autopilot system has four main calibration groupings, as
illustrated on the following page (for more information about these
groupings see Chapter 7: Adjusting Autopilot Settings).
The next step in the dockside set-up is to enter Dealer Calibration
mode so you can adjust some basic autopilot settings.
Enter Dealer Calibration mode
1. Start with the autopilot in Standby mode.
2. Enter DEALER CAL as follows:
•press and hold the standby key for two seconds to enter the
Calibration mode
•when the screen shows DISPLAY CAL, press the disp key or
up/down arrow keys until you see the DEALER CAL screen
•press the auto key: the display will change to CAL
•press the -1 and +1 keys together to enter Dealer Calibration
(DEALER CAL)
Set the vessel type
1. Use the disp key to page through the Dealer Calibration screens
until you reach the VESSEL TYPE screen.
2. Use the -1 or +1 keys to select a vessel type suitable for your boat:
•Displacement: DISPLACE
•Semi Displacement: SEMI DISPLACE
•Planing: PLANING
•Stern (I/O) Drive: STERN DRV
•Work Boat: WORK BOAT
•Sail Boat: SAIL BOAT
Note: When you select the vessel type, the autopilot will select
appropriate defaults for various other calibration settings.
60 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot

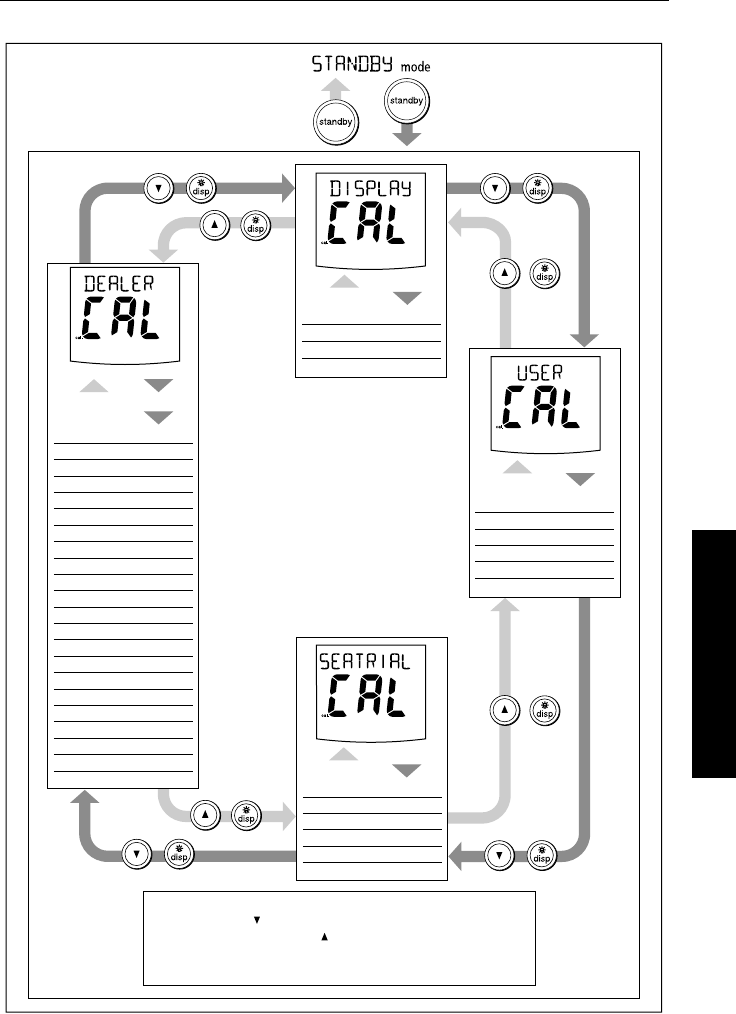

Calibration Mode Overview
Calibration Mode
D5487-1
standby
auto
-1 and +1
standby
auto
standby
auto
standby
auto
Calibration lock
Vessel type
Drive type
Align rudder
Rudder limit
Rudder gain
Counter rudder
Rudder damping
AutoTrim
Response level
Turn rate limit
Off course alarm angle
AutoRelease (stern drive)
AutoTack angle*
Gybe inhibit*
Wind type*
Wind response (WindTrim)*
Cruise speed
AutoAdapt
Latitude
Magnetic variation
Autopilot reset
AutoTack angle*
Gybe inhibit*
Wind type*
Wind response (WindTrim)*
Response level
Magnetic variation
Swing compass
Compass deviation
Align heading
Align rudder
AutoLearn start
AutoLearn pass/fail
Display bar selection
Heading type
Pop-up pilot time-out
Data pages 1 to 15
1 second
or
1 second
or
or
or
or
or
2 seconds
2 seconds
(saves changes)
1 second
or
1 second
or
Within DISPLAY CAL, USER CAL, SEATRIAL CAL and DEALER CAL:
-- press disp or to move forwards through items (*sail boats only)
-- press disp for 1 second or to move backwards
-- use -1, +1, -10, +10 to adjust settings
-- press standby for 2 seconds to save changes
Chapter 6: Commissioning the Autopilot 61
6 Commissioning the Autopilot
Set the drive type
1. With the autopilot still in Dealer Calibration, use the disp key to
page through the calibration screens until you reach the Drive
Type screen (DRIVE TYP).
2. Use the -1 or +1 keys to select the appropriate drive type:
•3 = Linear drive, rotary drive or I/O (stern) drive
•4 = Hydraulic pump or hydraulic linear drive
•5 = Constant running hydraulic pump solenoids
Align the rudder position sensor
1. With the autopilot still in Dealer Calibration, press the disp key to
page through the calibration screens until you reach the
ALIGN RUDDER screen.
2. Use the wheel to manually center the rudder.
3. Use the -1 and +1 keys to adjust the displayed rudder bar so its
offset is zero:
•you can only use this screen to adjust offsets within ±7°: if the
offset is beyond these limits, you will need to physically
adjust the sensor’s alignment (as described in the Autopilot
System Installation Guide)
Note: Alternatively, you can zero the rudder bar with the boat
underway during the initial seatrial, by manually steering a straight
course then accessing the ALIGN RUDDER screen in Seatrial
Calibration to adjust the offset.
Set the rudder limits
1. With the autopilot still in Dealer Calibration press the disp key to
page through the Dealer Calibration screens until you reach the
RUDDER LIMIT screen
2. Turn the wheel to move the rudder:
•to the port end stop and note the angle
•to the starboard end stop and note the angle
3. Use the -1, +1, -10 and +10 keys to set the rudder limit to 5°less
than the lowest angle you have noted.
62 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot
Adjust the rudder damping
Note: You only need to adjust the rudder damping value if the
autopilot ‘hunts’ when trying to position the rudder. Increasing the
rudder damping value reduces hunting.
To adjust the rudder damping:
1. Use the disp key to page through the Dealer Calibration screens
until you reach the RUDD DAMP screen.
2. Use the -1 or +1 keys to adjust the rudder damping:
•increase the damping one level at a time until the autopilot
stops hunting, and always use the lowest acceptable value
Save the new settings
When you have adjusted these basic settings in Dealer Calibration:
•press and hold standby for two seconds to store the changes
•the screen will show DEALER CAL then the STANDBY screen
Chapter 6: Commissioning the Autopilot 63
6 Commissioning the Autopilot
6.2 Seatrial Calibration
When you have completed the dockside calibration, you must
complete the setup by taking the boat on a short seatrial to:
1. Calibrate the compass:
•complete the automatic deviation correction
•align the compass heading
2. Adjust the autopilot settings to suit your boat:
•automatically on Type 150G/400G autopilot systems
•manually on Type 150/400 (non-GyroPlus) and Type 100/300
autopilot systems
Seatrial safety
Note: You can return to hand steering at any time during the
seatrial by pressing standby.
You should only perform the initial seatrial:
•when you have successfully completed the dockside calibration
•in conditions of light wind and calm water, so you can assess
autopilot performance without the influence of strong winds or
large waves
•in waters that are clear of any obstructions, so the boat has plenty
of clear space to maneuver
Note: Before you start your seatrial, make sure you have switched on
any ancillary equipment – such as a GPS (providing course over
ground (COG), speed over ground (SOG) and latitude (LAT) data) or
a speed log (providing speed through the water). This information
will help the autopilot achieve its best performance.
CAUTION: EMC conformance
Always check the installation before going to sea to make sure
that it is not affected by radio transmissions, engine starting etc.
64 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot
Calibrating the compass
Note: This section does not apply if you have connected an NMEA
compass to your autopilot system. Refer to the handbook supplied
with the NMEA compass for information about calibration.
Depending on your boat type, deviating magnetic fields can cause
significant compass errors. The correction procedure reduces these
errors to a few degrees, so you MUST perform this procedure as the
first item in your initial seatrial. The autopilot will then automatically
correct the fluxgate compass.
CAUTION:
If you fail to complete the deviation correction, your autopilot’s
performance will be impaired on some compass headings.
The deviation correction procedure (swinging the compass) involves
turning your boat in slow circles so the autopilot can determine the
deviation and calculate any correction required. You must carry out
this procedure in calm conditions and preferably on flat water.
Automatic compass deviation correction
1. With the pilot in Standby mode, enter Seatrial Calibration as
follows (see the following illustration):
•press and hold the standby key for two seconds to enter
Calibration mode
•when you see the DISPLAY CAL screen, press the disp key or
up/down arrow keys until you see the SEATRIAL CAL screen
•press the auto key to enter Seatrial Calibration
Note: If you cannot access SeaTrial Calibration, you need to turn off
the calibration lock in Dealer Setup (see page 92).
2. You should see the SWING COMPASS screen when you first enter
Seatrial Calibration. (If not, use the disp key to page through the
Seatrial Calibration items until you see SWING COMPASS)
3. When you are ready to start, press the +1 key to select
SWING COMPASS On. You will then see the TURN BOAT screen.
Chapter 6: Commissioning the Autopilot 65
6 Commissioning the Autopilot
2 sec x2
2 sec
D5477-1
or
or

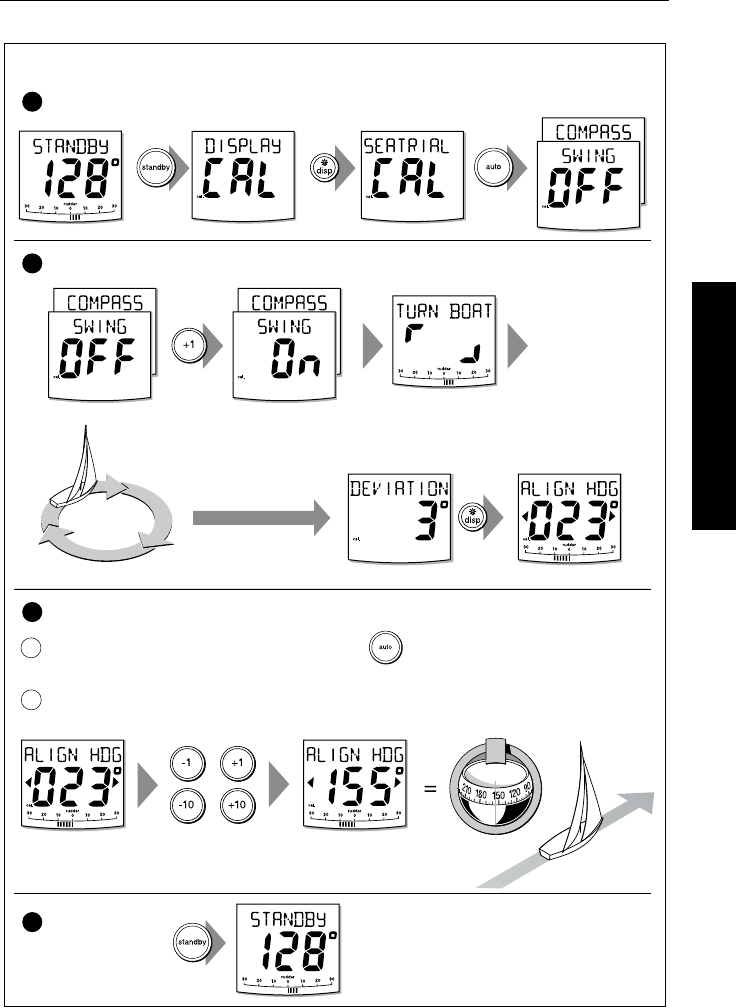

Compass calibration
Enter Seatrial Calibration
1
Compass deviation correction
2
Compass heading alignment
3
Save changes
4
Turn boat in slow circles so:
• boat's speed stays below 2 knots
• each circle takes at least 2 minutes
To:
• save deviation correction
• save heading alignment
• return to STANDBY mode
Minimum of
2 circles
Keep turning the boat until
you see the DEVIATION screen
Start turning boat
(see below)
Autopilot heading
Autopilot heading
Steering compass
Known
heading
Adjust the autopilot heading so it shows the
same value as the boat's steering compass
a
b
Coarse adjustment: If COG is available from GPS, press to set autopilot heading to COG value,
then fine tune manually (see below).
Fine adjustment: If COG is not available (or after setting heading to COG), align autopilot heading manually:
66 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot
4. Start turning the boat in slow circles (with the boat’s speed below
2 knots). You will need to complete at least two circles, taking at
least 2 minutes to complete each 360°:
•the display will show a TOO FAST message if you turn the boat
too quickly for the course computer to correct the compass –
if you see this message apply less helm to turn in a larger circle
Note: If necessary, you can quit the correction process by pressing
the standby or disp. If you then want to repeat the deviation
correction, return to the SWING COMPASS screen.
5. Continue slowly turning the boat until the control unit beeps and
displays the DEVIATION screen to indicate that the autopilot has
completed the deviation correction.
This screen shows the maximum deviation encountered over
360° (not as an east/west value).
Note: If the deviation figure exceeds 15° or the display shows no
deviation value, the compass is being affected by ferrous objects on
your boat. You should move the compass to a better location. Higher
deviation figures are acceptable on steel boats.
Aligning the compass heading
1. Once the deviation is displayed, press the disp key to move onto
the Heading Alignment screen (ALIGN HDG).
2. Manually steer the boat on a steady course at a speed which
enables you to hold that course.
3. If you have a GPS connected to your autopilot:
•increase the boat speed to more than 3 knots
•press the auto key: the autopilot will then set the heading to
agree with the COG (course over ground) heading received
from the GPS
•because many factors can cause a difference between heading
and COG (such as tides and leeway affecting the boat) you
must then fine-tune the heading alignment so it matches the
boat’s steering compass or a known transit bearing
4. Use -1, +1, -10 and +10 to adjust the displayed heading until it
matches boat’s steering compass or a known transit bearing.
5. Press and hold standby for 2 seconds to exit Seatrial Calibration
and save the new compass settings.
Chapter 6: Commissioning the Autopilot 67
6 Commissioning the Autopilot
Adjusting the heading alignment
If you experience difficulties with compass alignment, you can check
the compass alignment after completing the deviation correction
procedure (swinging the compass). After completing the initial
compass calibration, you can make further adjustments to the
alignment without swinging the compass again.
Although the compass calibration removes most of the alignment
error, small errors (of the order of a few degrees) will probably
remain. These will vary depending on the heading.
Ideally, you should check the heading reading against a number of
known headings, plot a deviation curve, and determine the heading
alignment value that will give the lowest average alignment error.
You can then enter this value on the Heading Alignment screen, as
described above.
If the average heading error is more than 5°, you should perform the
compass deviation correction procedure again, circling more slowly
and in more favorable conditions.
68 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot
Adjusting autopilot settings
The next stage of the seatrial is to set key autopilot parameters that
affect the autopilot’s steering characteristics. You can do this in one of
two ways:
•using AutoLearn: Type 150G and Type 400G autopilot systems
use AutoLearn – a self-learning calibration feature that
automatically adjusts rudder gain, counter rudder and AutoTrim
to suit your boat
•manual set-up: if you have a Type 150/400 (non-GyroPlus) or
Type 100/300 autopilot you will need to adjust these settings
manually – as described on page 71
Note: For a full explanation of the parameters set during the
AutoLearn, and how to adjust them manually, refer to the manual
set-up section.
AutoLearn: Type 150G/400G systems
WARNING:
The AutoLearn process requires a significant amount of CLEAR
SEA SPACE in front of the boat. The autopilot will take the boat
through a number of zig-zag maneuvers until it has acquired
enough data. If you need to cancel the AutoLearn at any time,
press the standby key to gain manual control of the boat.

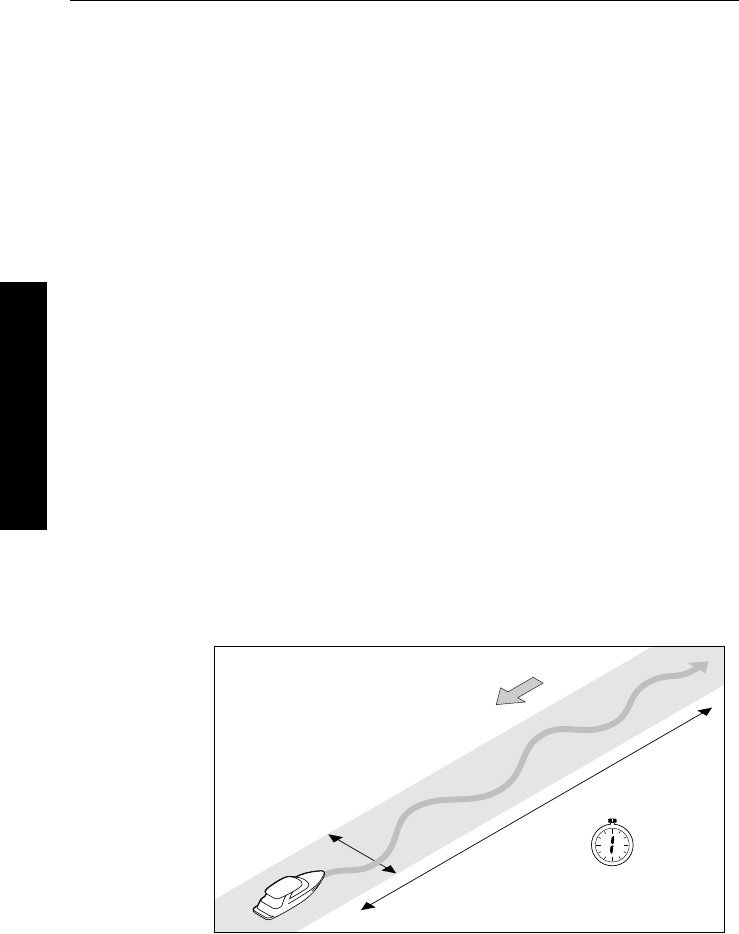

At least 0.25 nm (500 m) of clear sea space
At least 0.04 nm (100 m)
of clear sea space
D5495-1
MINUTE
(approximately)
AutoLearn maneuvers
Wind
Chapter 6: Commissioning the Autopilot 69
6 Commissioning the Autopilot
x4
2 sec
D5480-1
To prepare for the AutoLearn:
• steer straight ahead at cruising speed
(planing boats – off the plane)
• head into wind and waves Check you have sufficient
clear sea space before proceeding
AutoLearn in progress
AutoLearn successful
Note: If you see a
LRN FAIL message,
press disp to return to
the AUTOLEARN screen
then repeat from Step 2
After
7 to 27
steps
2 sec x2
If you need to cancel the AutoLearn, press or
!
AutoLearn calibration
Enter Seatrial Calibration
1
Start the AutoLearn
2
Boat completes AutoLearn
3
Save new settings
4To:
• save AutoLearn calibration settings
• return to STANDBY mode
70 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot
1. Access the AUTOLEARN screen in Seatrial Calibration:
•from Standby mode, press standby for 2 seconds, then disp
twice to see the SEATRIAL CAL screen
•then press auto to enter Seatrial Calibration, and disp 4 times
until you see the AUTOLEARN screen
2. Prepare to start the AutoLearn:
•power boats: steer straight ahead (with the rudder centered),
and set the boat’s speed at 8 to 15 knots – planing boats should
be off the plane
•sail boats: with the sails down, steer straight ahead (with the
rudder centered) and motor the boat at typical cruising speed
•if conditions are not calm, head into the wind and waves
3. When you are ready to start the AutoLearn, press the +1 key to
select AUTOLEARN On.
4. The screen will then show the CLEAR TO MANEUVER message.
Press the auto key to start the AutoLearn process:
•the boat will start its AutoLearn maneuvers and the display
will show a LEARNING message, with a number that increases
to show that the AutoLearn is in progress
•the number will increase as the autopilot steps through the
various maneuvers
•typically, the AutoLearn will be complete within 7 to 27 steps
(depending on boat characteristics and sea conditions)
Note: If you need to cancel the AutoLearn for any reason, press the
standby or disp key.
5. When the autopilot has finished learning, the control unit will
beep and the display will change to LRN PASS or LRN FAIL:
•LRN PASS = AutoLearn completed successfully
•LRN FAIL = AutoLearn was not successful and should be
repeated again. Failure codes:
•LRN FAIL 1 = AutoLearn has not been carried out
•LRN FAIL 2 = AutoLearn failed, due to manual interruption
•LRN FAIL 4 = AutoLearn failed, probably due to drive or
compass failure
6. Press and hold the standby key for two seconds to store the new
calibration settings.
The pilot is now fully calibrated and ready for use. The only
setting you should now need to adjust is the response level
(see page 7).
Chapter 6: Commissioning the Autopilot 71
6 Commissioning the Autopilot
Manual set-up: Type 150/400 & Type 100/300
If you have a Type 150/400 (non-GyroPlus) or Type 100/300
autopilot system you need to manually adjust the rudder gain,
counter rudder and AutoTrim settings, based on your observations
of the boat’s performance under autopilot control.
Adjust these settings when motoring your boat at cruising speed.
On sail boats, repeat if necessary under sail to optimize the pilot.
Checking autopilot operation
Before manually adjusting any of these settings, familiarize yourself
with basic autopilot operation:
1. Steer onto a compass heading and hold the course steady.
If necessary, control the boat manually for a while to check how
the boat steers.
2. Press auto to lock onto the current heading. The autopilot should
hold a constant heading in calm sea conditions.
3. Use the -1, +1, -10 and +10 keys to check how the autopilot alters
the course to port and starboard in multiples of 1° and 10°.
4. Press standby to return to hand steering.
Adjusting the rudder gain
Boats can vary widely in their response to helm, and by adjusting the
rudder gain you can change the autopilot’s steering characteristics.
Rudder gain is a measure of how much helm the autopilot applies to
correct course errors – higher settings mean more rudder is applied.
Complete the following test to determine whether the rudder gain is
set correctly:
1. Set RESPONSE to level 2:
•press the resp key, use the -1 or +1 key to adjust the setting,
then press disp
2. Sail your boat at cruising speed in clear water:
•you will find it easiest to recognize the steering response in
calm sea conditions where wave action does not mask basic
steering performance
3. Press auto to enter Auto mode, then alter course by 40°:
•if the rudder gain is adjusted correctly, the 40° course change
should result in a crisp turn followed by an overshoot of no
more than 5°
72 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot
•if the rudder gain setting is too high, the 40° course change
will result in a distinct overshoot of more than 5° and there
may be a distinct ‘S’ in the course (A)
Correct this oversteer by reducing the rudder gain setting.
•if the rudder gain is too low, the boat’s performance will be
sluggish – it will take a long time to make the 40° turn and
there will be no overshoot (B)
Correct this understeer by increasing the rudder gain setting.
To adjust the rudder gain:
1. Access the RUDD GAIN screen in Dealer Calibration.
2. Use the -1 or +1 keys to adjust the rudder gain.
3. Press and hold standby for 2 seconds to save the changes.
4. Press auto to check the autopilot performance in Auto mode.
Adjusting the counter rudder
If you intend to use RESPONSE level 3 on a Type 150/400
(non-GyroPlus) or Type 100/300 autopilot system, you will need to
adjust the counter rudder. Counter rudder is the amount of rudder the
autopilot applies to try to prevent the boat from yawing off course.
Higher counter rudder settings result in more rudder being applied.
To check the counter rudder setting
1. Set RESPONSE to level 3.
2. Sail your boat at cruising speed in clear water
3. Press auto to switch the autopilot to Auto mode, then make a
90°course change:
New
heading
New
heading
A
New
heading
B
Correct
rudder gain
Rudder gain
too high
Rudder gain
too low
D3262-2
Chapter 6: Commissioning the Autopilot 73
6 Commissioning the Autopilot
•when gain and counter rudder are both set correctly, the boat
performs a smooth continuous turn with minimal overshoot
•if the counter rudder is too low, the boat will still overshoot
•if counter rudder is too high, the boat will ‘fight’ the turn and
make a series of short, sharp turns: this results in a very
‘mechanical’ feel as the boat changes course
To adjust the counter rudder:
1. Access the COUNT RUD screen in Dealer Calibration.
2. Use the -1 or +1 keys to adjust the counter rudder.
3. Press and hold standby for 2 seconds to save the changes.
4. Press auto to check the autopilot performance in Auto mode.
The pilot is now calibrated and ready for use.
Further adjustments (Type 150/400 and Type 100/300)
Over time you may need to repeat these adjustments over a range of
sea conditions and headings to achieve good overall performance.
You may also need to adjust the AutoTrim setting. AutoTrim
determines how quickly the autopilot applies ‘standing helm’ to
correct for trim changes (caused, for example, by changes in the
wind load on the sails or superstructure, or an imbalance of engines).
Gain experience with your autopilot before attempting to adjust the
AutoTrim setting. On sail boats you can only evaluate the effect of
AutoTrim while under sail.
Increasing the AutoTrim level reduces the time the autopilot takes to
get back onto the correct course, but makes the boat less stable:
•if the autopilot gives unstable course keeping and the boat
‘snakes’ around the desired course, decrease the AutoTrim level
•if the autopilot hangs off course for excessive periods of time,
increase the AutoTrim level
If you need to adjust AutoTrim, go up one level at a time and use the
lowest acceptable value. The possible settings range from OFF (no
trim correction) to 4 (fastest trim correction). To adjust the AutoTrim:
1. Access the AUTOTRIM screen in Dealer Calibration.
2. Use the -1 or +1 keys to adjust the AutoTrim level.
3. Press and hold standby for 2 seconds to save the changes.
4. Press auto to check the autopilot performance in Auto mode.
74 ST7001+ Autopilot Control Unit - Owner’s Handbook
6 Commissioning the Autopilot
Chapter 7: Adjusting Autopilot Settings 75
7 Adjusting Autopilot Settings
Chapter 7: Adjusting Autopilot Settings
This chapter explains all of the calibration settings you can adjust on
the autopilot system. You will have adjusted many of these settings
when commissioning the system (see Chapter 6), and they should not
require further adjustment.
Note: Complete the procedures described in Chapter 6 before
adjusting any calibration settings.
The sections in this chapter provide explain the Calibration mode and
the settings in the 4 calibration groupings:
Note: If you are connecting the ST7001+ to a non-150/400 autopilot
system, the calibration groups are different. Refer to the Appendix for
more information.
7.1 Calibration basics
This explains the structure of the Calibration mode, and
how to access the four calibration groupings.
page 76
7.2
Display Calibration
The Display Calibration grouping allows you to control
the ST7001+ display features (bar graph type and data
page information). This section also explains how to
use data pages to set up the control unit as a remote
control for ST60/ST80 instruments.
page 79
7.3
User Calibration
The User Calibration grouping includes autopilot
settings that you may need to adjust in response to
changing sea conditions.
page 87
7.4
Seatrial Calibration
The Seatrial Calibration grouping is used specifically for
the initial autopilot seatrial (see Chapter 6 for full
details).
page 91
7.5 Dealer Calibration
The Dealer Calibration grouping controls the main
autopilot settings and also the calibration lock.
page 92
76 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
7.1 Calibration basics
Calibration groups
Note: If you are connecting the ST7001+ to a non-150/400 autopilot
system, the calibration groups are different. Refer to the Appendix for
full details.
The Calibration mode has 4 main calibration groups:
Display Calibration (DISPLAY CAL)
The items in Display Calibration only affect the individual control
unit. They are stored in the control unit and do not affect any other
control units connected through SeaTalk.
You can adjust the Display Calibration settings as often as necessary
– for example, to add or change information displayed on data pages
User Calibration (USER CAL)
The items in User Calibration vary according to the Vessel Type you
have selected in Dealer Calibration.
You will probably need to access User Calibration on a fairly regular
basis to adjust the autopilot settings in response to changing
conditions.
Seatrial Calibration (SEATRIAL CAL)
The Seatrial Calibration group is specifically designed for use during
the initial autopilot seatrial (see page 63 of Chapter 6 for full details).
You should not need to access Seatrial Calibration during normal
autopilot operation.
Dealer Calibration (DEALER CAL)
The Dealer Calibration group includes items that have a significant
impact on autopilot operation and can affect your boat’s safety.
After you have completed the initial installation and seatrial, you
should not normally need to alter the Dealer Calibration values. The
items in Dealer Calibration vary according to the Vessel Type you
have selected.
Chapter 7: Adjusting Autopilot Settings 77
7 Adjusting Autopilot Settings
Calibration Mode Overview
Calibration Mode
D5487-1
standby
auto
-1 and +1
standby
auto
standby
auto
standby
auto
Calibration lock
Vessel type
Drive type
Align rudder
Rudder limit
Rudder gain
Counter rudder
Rudder damping
AutoTrim
Response level
Turn rate limit
Off course alarm angle
AutoRelease (stern drive)
AutoTack angle*
Gybe inhibit*
Wind type*
Wind response (WindTrim)*
Cruise speed
AutoAdapt
Latitude
Magnetic variation
Autopilot reset
AutoTack angle*
Gybe inhibit*
Wind type*
Wind response (WindTrim)*
Response level
Magnetic variation
Swing compass
Compass deviation
Align heading
Align rudder
AutoLearn start
AutoLearn pass/fail
Display bar selection
Heading type
Pop-up pilot time-out
Data pages 1 to 15
1 second
or
1 second
or
or
or
or
or
2 seconds
2 seconds
(saves changes)
1 second
or
1 second
or
Within DISPLAY CAL, USER CAL, SEATRIAL CAL and DEALER CAL:
-- press disp or to move forwards through items (*sail boats only)
-- press disp for 1 second or to move backwards
-- use -1, +1, -10, +10 to adjust settings
-- press standby for 2 seconds to save changes
78 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
Accessing the Calibration mode
You can only access Calibration mode from Standby mode:
1. With the autopilot in Standby mode, press and hold the standby
key for 2 seconds. The display will change to show DISPLAY CAL.
2. Press the disp key or down arrow key to scroll down through the
4 calibration groupings:
•Display Calibration (DISPLAY CAL)
•User Calibration (USER CAL)
•Seatrial Calibration (SEATRIAL CAL)
•Dealer Calibration (DEALER CAL)
Note: You can go backwards through the groups by pressing and
holding the disp key for one second or by using the up arrow key.
3. When you reach the Calibration group you want to access, press
the auto key to enter that group:
To prevent accidental access, we have made entry to Dealer
Calibration more difficult than the other groups. After pressing
the auto key, the display will show CAL. When you see this, press
the -1 and +1 keys together to enter Dealer Calibration.
4. When you have entered one of the Calibration groupings, press
disp key or down arrow key to scroll down through the items
within that grouping:
Note: You can go backwards through the list by pressing and holding
the disp key for one second or by using the up arrow key.
5. When you reach an item you wish to adjust, use the -1, +1, -10 and
+10 keys (as appropriate) to change the value.
6. If you then want to adjust settings in another Calibration group,
press the standby key and then repeat steps 2 to 5 as necessary.
7. When you have made all the changes you want to make, press and
hold the standby key for two seconds to exit Calibration mode
and save changes.
Chapter 7: Adjusting Autopilot Settings 79
7 Adjusting Autopilot Settings
7.2 Display Calibration
Display Calibration allows you to select the type of bar graph and
heading shown on the ST7001+ display, and control the information
shown on the data pages.
Display Calibration screens
Display bar selection
This screen allows you to select the type of bar graph shown at the
bottom of the ST7001+ display.
Heading selection
This screen allows you to display any heading as either a magnetic or
true value. During normal autopilot operation the screen will indicate
MAG for magnetic headings and TRUE for true headings.
Options
RUDD BAR Rudder position bar
This is the default setting. It uses the bar graph to show the
true rudder angle. Requires rudder position sensor for
accurate rudder information.
STEER BAR Steer/error bar
This setting uses the bar graph to indicate different
information in different operating modes:
• Standby: rudder position bar
• Auto: heading error bar (in 2° increments)
• Track: cross track error (XTE) bar (in 0.02 nm increments)
• Wind Vane: wind angle error bar (in 2° increments)
BAR OFF No bar displayed.
Options
HDG MAG Magnetic heading.
HDG TRUE True heading.
80 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
Accessing Display Calibration
Display Calibration
D5488-1
or
or
To adjust values use
To exit and
save changes
2 seconds
2 seconds
2 seconds
(saves changes)
Calibration Mode
1 sec
or
1 sec
or
1 sec
or
1 sec
or
oror
oror
1 second
or
1 second
Data
pages 1-15
Press disp for
next page
or
1 second
or
1 second
or
oror
or
or
Chapter 7: Adjusting Autopilot Settings 81
7 Adjusting Autopilot Settings
Pop-up pilot time-out
During normal autopilot operation, you can set the control unit so it
has a data page as the main display (see page 31). Whenever you
select a new autopilot mode or make a course change, the autopilot
mode screen will ‘pop-up’. After a short period, the display will
revert to the selected data page. The default pop-up time is 5 seconds.
You can use this Display Calibration screen to adjust the pop-up pilot
display time-out.
Data pages 1-15
The next 15 screens allow you to modify the settings for the data
pages. These define the SeaTalk/NMEA data pages that will be
available during normal operation (see page 31). Each data page
setup screen initially shows the title DATA PAGE and the page number.
After 1 second, the text changes to the title of the data currently set for
that page.
The default settings are:
To change the data displayed on a data page:
•Press disp to move to the appropriate data page setup screen.
•Use the -1 and +1 keys to scroll forwards or backwards through
the available data pages (see following table).
•Then press disp to move to the next data page you want to
change, or press and hold standby for 2 seconds to save changes.
Screen text Options
POPUP TIMEOUT 1 seconds to 10 seconds;
Default = 5 seconds
Data page Default setting
1 XTE (Cross Track Error)
2 BTW* (Bearing to Waypoint)
3 DTW* (Distance to Waypoint)
4 RESPONSE
5 -15 NOT USED (These pages are not displayed when you scroll
through the data pages during normal operation)
*Note: It is good practice to keep the BTW and DTW pages for display. If the
autopilot receives a man overboard (MOB) message, these data pages will
show the bearing and distance to the MOB location.
82 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
Available data pages Displayed as
Speed Knots SPEED KTS
Log LOG XXXX.X
Trip TRIP XXX.X
Average Speed, Knots AV. SPD KTS
Wind Direction e.g. WIND PORT
Wind Speed WIND KTS
Depth Metres* DEPTH M
Depth Feet* DEPTH FT
Depth Fathoms* DEPTH FA
Heading HEADING
Water Temperature, Degrees C* WATER °C
Water Temperature, Degrees F* WATER °F
Course Over Ground COG
Speed Over Ground, Knots SOG KTS
Cross Track Error XTE
Distance to Waypoint DTW
Bearing to Waypoint BTW
Rudder Gain RUDD GAIN
Response RESPONSE
Watch WATCH - used to control the Watch
timer (see page 32)
Universal Time Coordinated UTC
Remote Control for Standard
ST60/80 Instruments
INST REM
Remote Control for
Maxiview Instruments
MAXI REM
NOT USED Page not displayed
(Any data page set to NOT USED is not
displayed when you scroll through the
data pages during normal operation)
*NOTE: There are 3 depth pages (meters, feet and fathoms) and 2 water
temperature pages (°C and °F). The ST7001+ will display the water
temperature or depth data in the units defined by data page you select.
Chapter 7: Adjusting Autopilot Settings 83
7 Adjusting Autopilot Settings
Using data pages to set up ST60 and ST80 remote
control
Where the ST7001+ is used in conjunction with ST60 or ST80
instrumentation, you can use the ST7001+ to control the ST60 or
ST80 instruments by duplicating the functions of the Remote
Keypads used by these instruments. This means you can operate your
autopilot and ST60/ST80 instruments from the same location.
By using the INST REM and MAXI REM data pages, you can use
ST7001+ as a remote keypad to control any ST60 or ST80
instruments connected to it:
•the INST REM data page can control a standard (110 mm)
ST60/ST80 instrument group
•the MAXI REM data page can control an ST80 Maxiview
instrument group
Each ST7001+ can control one group of up to eight standard
instruments and another group of up to eight Maxiview instruments.
Before you can use an ST7001+ to remotely control other
instruments, you must define the instrument grouping and then
allocate the ST7001+ to the required group.
Instrument grouping
Grouping allows you to create up to eight standard instrument and
eight Maxiview instrument groups:
•each group can have up to eight instruments
•each group must have one or more remote keypads or an
ST7001+ grouped to it
•each ST7001+ can be grouped with one ST80 Maxiview group
and one ST80/ST60 standard instrument group
•each instrument in a group has a unique alphanumeric identity
(e.g. A1, where A defines the group and 1 the instrument sequence
number within the group):
•standard ST60 or ST80 instruments are assigned group letters
from A to H
•maxiview instruments are assigned group letters from J to Q
•ungrouped instruments have a dash (-) in place of a group
letter
•The instrument sequence number range is from 1 to 8.
84 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
When you set up ST60 and ST80 instrument groups you will need to
use the following ST7001+ keys.
Press to select the required standard instrument.
Press for 4 sec to enter Group Setup mode.
Toggle to select either:
•group letter
or
•sequence number
Press to set the identification you want:
•A to H for group identity
•1 to 8 for instrument sequence, within group
D5447-1
Press to select the required Maxiview instrument.
Press for 4 sec to enter Group Setup mode.
Toggle to select either:
•group letter
or
•sequence number
Press to set the identification you want:
•A to H for group identity
•1 to 8 for instrument sequence, within group
Standard instruments
Maxiview instruments
Chapter 7: Adjusting Autopilot Settings 85
7 Adjusting Autopilot Settings
Setting up an instrument group
1. At the ST7001+:
•select the INST REM data page to group standard instruments
•select the
MAXI REM
data page to group Maxiview instruments
2. At the ST7001+, use the arrow keys to select an instrument.
Note: The currently-selected instrument is indicated as follows:
•on ST80 instruments (including Maxiview), the characters are
displayed as white characters on a black background (instead of
the standard black on white)
•on ST60 digital instruments, you will see a REMOTE message
•on ST60 analogue instruments, you will see the TRUE/MAG and/or
TRUE/APP message flashing
3. Press both the up and down arrow keys on the ST7001+ for
4 seconds, to put the instruments and the ST7001+ into
Group Setup mode.
When you enter Group Setup mode:
•one instrument will be selected with a flashing cursor (and
inverse characters on ST80 instruments, including Maxiview)
•the ST7001+ screen text will alternate between:
•INST REM and DSP SETUP for standard instruments
•MAXI REM and DSP SETUP for Maxiview instruments
4. At the ST7001+, use the up or down arrow key to select an
instrument to be the first in the group, i.e. so the required
instrument shows it has been selected (as described above).
5. Use the ST7001+ to allocate a group letter and sequence number
to the selected instrument. To do this:
•Standard instruments: use the track key to toggle between
group letter and sequence number, and the set crs key to set
the identifying character.
D5520-1
Standard instruments: group setup mode
Selected instrument
86 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
•Maxiview instruments: use the resp key to toggle between
group letter and sequence number, and the track key to set the
identifying character.
When you have identified the instrument, it should display its
group letter and sequence number, e.g. A2.
Note: You can select all instruments in Group Setup mode.
6. Press either the up arrow or down arrow key to select another
instrument and repeat the procedure in step 5.
7. Repeat steps 5 and 6 until all you have identified all instruments in
the group.
Note: If you have more than eight ST60 or ST80 instruments, you
must create a second group with a separate identification code (for
example B1, B2 etc.), operated by another remote keypad.
8. Use the arrow keys to select an instrument in the group to which
you want to allocate the ST7001+ as a keypad.
9. Press the up and down arrow keys together for 1 second. The
ST7001+ screen text will alternate between:
•INST REM and KPD SETUP for standard instruments
•MAXI REM and KPD SETUP for Maxiview instruments
Each instruments in the selected group will display PRESS KEY.
10. To allocate the ST7001+ to the selected group of instruments:
•press the track or set crs key for standard instruments
•press the resp or track key for Maxiview instruments
11. If you are creating more than one group, repeat steps 3 to 10 for
each group.
12. When you have set up all instrument groups, return to normal
operation as follows:
•standard instruments:
•press the track and set crs keys for 1 second to return to
Group Setup mode
•then press the track and set crs keys again for 2 seconds
to return to normal operation
•Maxiview instruments:
•press the resp and track keys for 1 second, to return to
Group Setup mode
•press the resp and track keys again for 2 seconds to
return to normal operation.
Chapter 7: Adjusting Autopilot Settings 87
7 Adjusting Autopilot Settings
7.3 User Calibration
Note: If you are connecting the ST7001+ to a non-150/400 autopilot
system, the User Calibration group is not available. Refer to the
Appendix for full details.
The User Calibration group includes settings that you may need to
adjust on a regular basis due to changing conditions.
User Calibration screens
AutoTack angle
Note: Only available if vessel type = SAIL BOAT.
The AutoTack angle is the angle through which the boat will turn
when you select an automatic tack (see page 12).
Gybe inhibit
Note: Only available if vessel type = SAIL BOAT.
With gybe inhibit on:
•you will be able to perform an AutoTack into the wind
•to prevent accidental gybes, the autopilot will prevent the boat
from performing an AutoTack away from the wind
With gybe inhibit off, you can perform an AutoTack into or away
from the wind.
Screen text Options
AUTO TACK 40° to 125° in 1° steps
Screen text Options
GYBE STOP On = Gybe inhibit on (gybes prevented)
OFF = Gybe inhibit off (gybes permitted)
Default = On
88 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
Sail boats only
Sail boats only
Sail boats only
Sail boats only
Accessing User Calibration
D5489-1
2 seconds
2 seconds
(saves changes)
Calibration Mode or
1 second
or
1 second
or
1 second
or
1 second
or
1 second
or
1 second
or
1 second
or
1 second
or
1 second
or
oror
oror
or
or
User Calibration
To exit & save changes
2 seconds
or
or
To adjust values use
Chapter 7: Adjusting Autopilot Settings 89
7 Adjusting Autopilot Settings
Wind selection
Note: Only available if vessel type = SAIL BOAT and appropriate wind
data is available.
This screen determines whether the boat steers to apparent or true
wind in Wind Vane mode.
WindTrim (wind response)
Note: Only available if vessel type = SAIL BOAT.
WindTrim (wind response) controls how quickly the autopilot
responds to changes in the wind direction. Higher wind trim settings
will result in a pilot that is more responsive to wind changes.
Response level
This is the default autopilot response level. The response level
controls the relationship between course keeping accuracy and the
amount of helm/drive activity. You can make temporary changes to
response during normal operation (see page 7).
Options
WIND APP Autopilot steers to apparent wind angle (default):
• the autopilot will maintain the apparent wind angle
WIND TRUE Autopilot steers to true wind angle:
• the autopilot will maintain the true wind angle
Screen text Options
WIND TRIM Range = 1 to 9
Lower values (1 to 3) = autopilot responds to longer term
wind changes (less pilot activity)
Typical values = 4 to 6
Higher values (7 to 9) = autopilot responds to shorter term
wind changes (more pilot activity)
90 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
Type 150G/400G autopilot systems
Type 150G/400G autopilot systems have 9 possible response levels.
Type 150/400 autopilot systems
Type 150/400 (non-GyroPlus) autopilot systems have 3 possible
response levels:
Magnetic variation
If required, set this value to the level of magnetic variation present at
your boat’s current position – indicated as east (VAR EAST) or west
(VAR WEST). The autopilot sends this variation setting to other
instruments on the SeaTalk system, and it can be updated by other
SeaTalk instruments.
Screen text Options
RESPONSE 1 to 9
• level 1 gives the least pilot activity to conserve power, but
may compromise short-term course-keeping accuracy
• levels 4 to 6 should give good course keeping with crisp,
well controlled turns under normal operating conditions
• level 9 gives the tightest course keeping and greatest
rudder activity, but may lead to a rough passage in open
waters as the autopilot may ‘fight’ the sea
Screen text Options
RESPONSE 1 AutoSeastate on (Automatic deadband)
• autopilot to gradually ignores repetitive boat movements
and only react to true variations in course
• provides the best compromise between power
consumption and course keeping accuracy
RESPONSE 2 AutoSeastate off (minimum deadband)
• provides tighter course keeping
• increased power consumption and drive unit activity
RESPONSE 3 AutoSeastate off + counter rudder yaw damping
• provides tightest possible course keeping by introducing
counter rudder yaw damping
Screen text Options
VARIATION Default setting = 0°
VAR EAST/ VAR WEST 30°EAST(-30°) to 30° WEST (+30°) in 1° steps
Chapter 7: Adjusting Autopilot Settings 91
7 Adjusting Autopilot Settings
7.4 Seatrial Calibration
The Seatrial Calibration group has been designed specifically for use
during the initial seatrial when commissioning your autopilot. Refer
to Chapter 6: Commissioning the Autopilot for full details.
CAUTION:
You should not need to access Seatrial Calibration to adjust
settings during normal autopilot operation.
Note: If you are connecting the ST7001+ to a non-150/400 autopilot
system, the Seatrial Calibration group is not available. You will need
to use the Compass Calibration group instead. Refer to the Appendix
for full details.
92 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
7.5 Dealer Calibration
The Dealer Calibration group includes items that have a significant
impact on autopilot operation and can affect your boat’s safety.
CAUTION:
After you have commissioned the autopilot, you should not
normally need to alter the Dealer Calibration values.
Note: If you are connecting the ST7001+ to a non-150/400 autopilot
system, the items in the Dealer Calibration group appear in a
different order and several items will not be available. Refer to the
Appendix for full details.
Accessing Dealer Calibration
To prevent accidental access, we have made entry to Dealer
Calibration more difficult than the other groups:
•when you see the DEALER CAL screen, press the auto key
•the display will show CAL
•press the -1 and +1 keys together to enter Dealer Calibration
Dealer Calibration screens and settings
The items in Dealer Calibration vary according to the vessel type you
have selected. See the table on page 92 for default values.
SeaTrial Calibration lock
This screen controls whether it is possible to access Seatrial Calibration.
Note: On non-150/400 systems, the calibration lock controls whether
it is possible to enter Compass Calibration. See the Appendix for full
details.
Options
CAL LOCK OFF Calibration lock off – Seatrial calibration can be
accessed (default)
CAL LOCK ON Calibration lock on – Seatrial calibration cannot be
accessed
Chapter 7: Adjusting Autopilot Settings 93
7 Adjusting Autopilot Settings
Accessing Dealer Calibration
Dealer Calibration
D5491-1
2 seconds
2 seconds
(saves changes)
1 second
or
or
1 second
or
or
or
or
To adjust values use
To save changes
2 seconds
Calibration Mode
1 second
or
or
or
or
Sail
boats
only
Stern
drives only Not sail boats
94 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
Vessel type
Vessel type should be set when commissioning the autopilot
(see page 59).
Note: When you select the vessel type, the autopilot will set
appropriate defaults for several other calibration settings. Refer to
the table on page 101 for default values.
Drive type
The drive type setting controls how the autopilot drives the steering
system. The drive type should be set when commissioning the
autopilot (see page 61).
Align rudder
Use the screen to center the rudder bar display after installing the
autopilot system (see page 61). This screen also appears in the
Seatrial Calibration grouping.
Options
DISPLACE Displacement powerboat
SEMI DISPLACE Semi-displacement powerboat
PLANING Planing powerboat
STERN DRV Planing powerboat with I/O drive (stern drive)
WORK BOAT Work boat (150/150G and 400/400G only)
SAIL BOAT Sail boat (150/150G and 400/400G only)
Options
DRIVE TYP 3 Linear drive, rotary drive or I/O (stern) drive
DRIVE TYP 4 Hydraulic pump or hydraulic linear drive
DRIVE TYP 5 Constant running hydraulic pump solenoids
Screen text Range
ALIGN RUDDER -7° to +7° in 1° steps
Chapter 7: Adjusting Autopilot Settings 95
7 Adjusting Autopilot Settings
Rudder limit
Use the rudder limit screen to set the limits of autopilot rudder control
just inside the mechanical end stops. This will avoid putting the
steering system under unnecessary load. You should adjust this
setting when commissioning the autopilot (see page 61).
Rudder gain
This screen determines the default rudder gain setting. Rudder gain is
a measure of how much helm the autopilot will apply to correct
course errors. The higher the setting the more rudder will be applied.
The default rudder gain is set during the initial seatrial:
•Type 150G/400G autopilots will adjust the rudder gain
automatically during the AutoLearn (see page 68)
•Type 150/400 and Type 100/300 autopilots will require manual
adjustment of rudder gain (see page 71)
You can make temporary changes to this rudder gain value during
normal operation (see page 29).
Counter rudder
Counter rudder is the amount of rudder the autopilot applies to try to
prevent the boat from yawing off course. Higher counter rudder
settings result in more rudder being applied.
The default rudder gain is set during the initial seatrial:
•Type 150G/400G autopilots will adjust the counter rudder setting
automatically during the AutoLearn (see page 68)
•Type 150/400 and Type 100/300 autopilots will require manual
adjustment of counter rudder (see page 71)
Screen text Range
RUDDER LIMIT 10° to 40° in 1° steps
Screen text Range
RUDD GAIN 1 to 9
Screen text Range
COUNT RUD 1 to 9
96 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
Rudder damping
Adjust the rudder damping value if the autopilot ‘hunts’ when trying
to position the rudder (see page 62). Increasing the rudder damping
value reduces hunting.
AutoTrim
The AutoTrim setting determines the rate at which the autopilot
applies ‘standing helm’ to correct for trim changes caused by varying
wind loads on the sails or superstructure.
The default AutoTrim is set when commissioning the autopilot:
•Type 150G/400G autopilots will adjust the AutoTrim setting
automatically during the AutoLearn (see page 68)
•Type 150/400 and Type 100/300 autopilots will require manual
adjustment of AutoTrim (see page 71) after the initial seatrial
If you need to change the setting, increase the AutoTrim one level at a
time and use the lowest acceptable value:
•decrease the AutoTrim level if the autopilot gives unstable course
keeping or excessive drive activity with a change in the heel angle
•increase the AutoTrim level if the autopilot reacts slowly to a
heading change due to a change in the heel angle
•if the AutoTrim level is too high, the boat will be less stable and
snake around the desired course
Note: Type 150G/400G autopilots have a ‘FastTrim’ feature within
AutoTrim. Select AUTO TRIM OFF to turn off FastTrim as well as
AutoTrim.
Screen text Range
RUDD DAMP 1 to 9
Setting Effect
AUTO TRIM OFF No trim correction
AUTO TRIM 1 Slow trim correction
AUTO TRIM 2 Medium trim correction
AUTO TRIM 3 Rapid trim correction
AUTO TRIM 4 Very rapid trim correction
Chapter 7: Adjusting Autopilot Settings 97
7 Adjusting Autopilot Settings
Response level
This screen determines the default response setting. This screen also
appears in User Calibration – see page 89 for full details (or refer to
the Appendix for Type 100/300 autopilots).
Turn rate limit
Note: Not available if vessel type = SAIL BOAT.
This limits your boat’s rate of turn under autopilot control.
Off course warning angle
This screen determines the angle used by the OFF COURSE warning
(see page 10). The OFF COURSE warning operates if the pilot strays off
course by more than the specified angle for more than 20 seconds.
AutoRelease (I/O drives only)
Note: Only available if vessel type = STERNDRV.
If the vessel type is set to STERN DRV (I/O or stern drive), you will see
the AutoRelease screen (AUTO RELEASE) set to ON as a default.
Screen text Range
TURN RATE 1° to 30° per second in 1° steps
Screen text Range
OFF COURSE 15° to 40° in 1° steps
D3264-2
Locked heading
Boat heading
15˚ minimum
98 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
AutoRelease provides emergency manual over-ride in situations
when you need to avoid an obstacle at the last moment.
AutoTack angle
Note: Only available if vessel type = SAIL BOAT (Type 150/150G or
Type 400/400G) or DISPLACEMENT (Type 100/300).
This screen also appears in User Calibration – see page 87 for full
details (or refer to the Appendix for Type 100/300 autopilots).
Gybe inhibit
Notes:
1. Only available if vessel type = SAIL BOAT.
2. Not available on Type 100/300 autopilot systems.
With gybe inhibit on you can only AutoTack into the wind. This
screen also appears in User Calibration – see page 87 for full details.
Wind type
Notes:
1. Only available if vessel type = SAIL BOAT.
2. Not available on Type 100/300 autopilot systems.
This screen determines whether the boat steers to apparent or true
wind in Wind Vane mode. This screen also appears in User
Calibration – see page 89 for full details.
WindTrim (wind response)
Note: Only available if vessel type = SAIL BOAT (Type 150/150G or
Type 400/400G) or DISPLACEMENT (Type 100/300).
WindTrim (wind response) controls how quickly the autopilot
responds to changes in the wind direction. This screen also appears
in User Calibration – see page 89 for full details (or refer to the
Appendix for Type 100/300 autopilots).
Screen text Range
AUTO RELEASE ON = AutoRelease on
OFF = AutoRelease off
Chapter 7: Adjusting Autopilot Settings 99
7 Adjusting Autopilot Settings
Cruise speed
Set the cruise speed to the boat’s typical cruising speed. If both the
boat’s speed through the water and speed over ground are unavailable
via SeaTalk or NMEA, the autopilot will use this default cruise speed
when computing course changes.
AutoAdapt
The AutoAdapt feature allows the autopilot to compensate for
heading errors at higher latitudes, which are caused by the increasing
dip of the earth’s magnetic field. The increased dip has the effect of
amplifying rudder response on northerly headings in the northern
hemisphere, and on southerly headings in the southern hemisphere.
Note: If you set AUTOADAPT to nth or Sth, you then need to enter your
current latitude in the next screen (LATITUDE), so that the autopilot
can provide accurate course keeping by automatically adjusting the
rudder gain depending on the heading. If you have a GPS connected,
the autopilot will take latitude information from the GPS.
Screen text Range
CRUISE SP 4 to 60 knots
Options
AUTOADAPT OFF AutoAdapt off
AUTOADAPT nth AudoAdapt compensation on – Northern hemisphere
AUTOADAPT Sth AutoAdapt compensation on – Southern hemisphere
D3263-2P
North
without
compensation
North
with
compensation
100 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
Latitude
The ST7001+ only displays this screen if you have set AutoAdapt to
nth or Sth. Use the -1,+1, -10 and +10 keys to set the value to your
boat’s current latitude, to the nearest degree.
Note: If valid latitude data is available via SeaTalk or NMEA, the
ST7001+ will use this data instead of the calibration value.
Magnetic variation
This is the degree of magnetic variation. This screen also appears in
User Calibration – see page 90 for full details.
Autopilot reset
Note: Not available on Type 100/300 autopilot systems.
WARNING:
Do NOT use this feature unless advised to do so by a Raymarine
dealer. If you complete a reset you will lose ALL autopilot
calibration settings. You will then need to repeat the autopilot
commissioning process.
Selecting an autopilot reset will reset all of the autopilot calibration
values in the course computer:
•all of the settings in User Calibration, Seatrial Calibration and
Dealer Calibration will return to the factory default values
•the settings in Display Calibration will not change, as these are
stored in each individual control head
To reset the autopilot:
1. Select the Autopilot reset (RESET) screen in Dealer Calibration.
2. Press the +1 key.
3. The screen will then show an ARE YOU SURE message:
•press the +1 key again to select ‘YES’ and reset the autopilot
•alternatively, press the disp key to cancel
4. You will then see the CAL LOCK screen:
•press standby for 2 seconds to save the new default settings,
then turn the course computer power off and back on
Screen text Range
LATITUDE 0° to 80° in 1° steps
Chapter 7: Adjusting Autopilot Settings 101
7 Adjusting Autopilot Settings
Dealer Calibration defaults: Types 150/150G & 400/400G
Calibration
setting Vessel type
Factory default
Displacement
Semi Displacement
Planing
Stern drive (I/O)
Work boat
Sail boat
Calibration lock OFF OFF OFF OFF OFF OFF OFF
Vessel type 0 DISPLACE SEMI
DISPLACE
PLANING STERN
DRV
WORK
BOAT
SAIL
BOAT
Drive type3444353
Rudder alignment0000000
Rudder limit30303020203030
Rudder gain4544452
Counter rudder4355522
Rudder damping2222232
AutoTrim 2233321
Response: with G
non-G
5
2
5
2
5
2
5
2
5
2
5
2
5
2
Turn rate limit 5 5 5 5 5 5 ---
Off course angle20202020202020
AutoRelease OFF --- --- --- ON --- ---
AutoTack angle 100 --- --- --- --- --- 100
Gybe inhibit ON --- --- --- --- --- ON
Wind type APP --- --- --- --- --- APP
Wind Trim 5 --- --- --- --- --- 5
Cruise speed 8 8 8 8 20 8 8
AutoAdapt nth nth nth nth nth nth nth
Latitude 0000000
Variation 0000000
Autopilot reset OFF OFF OFF OFF OFF OFF OFF
102 ST7001+ Autopilot Control Unit - Owner’s Handbook
7 Adjusting Autopilot Settings
Dealer Calibration options: Types 150/150G & 400/400G
Calibration
setting Vessel type
Factory default
Displacement
Semi Displacement
Planing
Stern drive (I/O)
Work boat
Sail boat
Your settings
Calibration lock OFF, ON
Vessel type DISPLACE, SEMI DISPLACE, PLANING, STERN DRV,
WORK BOAT, SAIL BOAT
Drive type 3, 4, 5
Rudder alignment -7 to +7
Rudder limit 10 to 40
Rudder gain 1 to 9
Counter rudder 1 to 9
Rudder damping 1 to 9
AutoTrim 0 to 4
Response 1 to 9 (Type 150G/400G)
1 to 3 (Type 150/400)
Turn rate limit 1 to 30
Off course angle 15 to 40
AutoRelease OFF, ON
AutoTack angle 40 to 125
Gybe inhibit OFF, ON
Wind type APPARENT, TRUE
Wind Trim 1 to 9
Cruise speed 4 to 60
AutoAdapt OFF, nth, Sth
Latitude 0 to 80
Variation -30 to +30
Autopilot reset OFF, ON
Appendix: Using the ST7001+ With Non-150/400 Autopilots 103
Appendix
Appendix: Using the ST7001+
With Non-150/400 Autopilots
Introduction
The information in this Appendix explains the key differences when
using, commissioning and calibrating the autopilot if you have
connected the ST7001+ to a Raymarine autopilot other than a Type
150/150G or Type 400/400G.
Type 100/300 autopilots
The ST7001+ is compatible with Raymarine Type 100/300 course
computers. When used with a Type 100/300 course computer, the
control unit provides:
•standard functionality using the Raymarine steering algorithm
without AST (Advanced Steering Technology)
•improved calibration access, but without the AutoLearn
calibration feature
Other autopilot systems
You can also use the ST7001+ as an additional control unit for any
SeaTalk autopilot system (e.g. ST4000+, ST5000+ or SportPilot)
allowing autopilot control from a secondary location.
Using the autopilot (non-150/400 systems)
This section explains the key differences when using the
ST7001+ to control a non-150/400 autopilot.
page 104
Commissioning the autopilot (non-150/400
systems)
This section explains how t o commission your autopilot
after installation. Commissioning consists of a series of
dockside checks followed by a seatrial.
page 105
Calibration mode (non-150/400 systems)
This section explains the Calibration mode when the
ST7001+ is used with a non-150/400 autopilot.
page 106
104 ST7001+ Autopilot Control Unit - Owner’s Handbook
Appendix
Using the autopilot (non-150/400 systems)
The operating procedures when using the ST7001+ control unit with
a non-150/400 autopilot are basically the same as the procedures for
using a 150/400 system without a GyroPlus.
Follow the instructions in Chapter 2: Basic Operation and Chapter
3: Advanced Operation, bearing in mind these main differences:
Adjusting autopilot performance
You can select three response levels to adjust autopilot performance:
•Response Level 1: AutoSeastate on (Automatic deadband)
This setting causes the autopilot to gradually ignore repetitive
boat movements and only react to true variations in course. This
provides the best balance between power consumption and
course keeping accuracy, and is the default calibration setting.
•Response Level 2: AutoSeastate off (Minimum deadband)
This setting provides tighter course keeping. However, this
results in increased power consumption and drive unit activity.
•Response Level 3: AutoSeastate off + yaw damping
This setting provides the tightest possible course keeping by
introducing counter rudder yaw damping.Yaw damping will use
the information provided by a GyroPlus, if connected.
Wind Vane mode
When using Wind Vane mode:
•you can only use the autopilot to maintain an apparent wind
angle (not a true wind angle)
•gybe inhibit is permanently switched on
•WindTrim provides two settings: 1 = normal; 2 = faster response
Manual (Joystick) mode
If you connect the ST7001+ to a Type 100/300 course computer
system fitted with a joystick, you will enter Manual (joystick) mode
when you press the joystick button.
In Manual (joystick) mode you can use the joystick to power steer the
rudder. The ST7001+ will return to Standby mode if you release the
joystick button or if you press the standby key on the control unit.
You can set the autopilot to power steer in either proportional or
bang-bang mode (see page 110).
Appendix: Using the ST7001+ With Non-150/400 Autopilots 105
Appendix
Commissioning the autopilot (non-150/400 systems)
Using the ST7001+ to commission a non-150/400 autopilot is
basically the same as the commissioning a 150/400 system without a
GyroPlus. It involves a series of dockside checks, then a seatrial to
calibrate the compass and manually adjust the autopilot’s settings.
Follow the instructions in Chapter 6: Commissioning the Autopilot
bearing in mind these main points:
Dockside Checks
With the boat safely tied up, complete the dockside checks described
on page 56 to page 57 of Chapter 6: Commissioning the Autopilot:
1. Switch on.
2. Check the autopilot operating sense.
3. Adjust the basic autopilot settings.
4. Check the SeaTalk and NMEA connections.
When adjusting the basic autopilot settings you will need to enter
Display Calibration, as shown on the illustration on page 107. When
setting the vessel type you will have the following options:
•Displacement: DISPLACE (including sail boats)
•Semi Displacement: SEMI DISPLACE
•Planing: PLANING
•Stern (I/O) Drive: STERN DRV
Seatrial Calibration
When you have completed the dockside checks, you must complete
the setup by taking the boat on a short seatrial to:
1. Calibrate the compass: complete the automatic deviation
correction and heading alignment as described in Chapter
6: Commissioning the Autopilot.
NOTE: You will need to enter COMPASS CALIBRATION
(not Seatrial Calibration) to swing the compass on a Type
100/300 course computer systems. For more details about
accessing and using the Compass Calibration grouping,
see the next page.
2. Manually adjust the autopilot settings to suit your boat, as
described in Chapter 6: Commissioning the Autopilot.
106 ST7001+ Autopilot Control Unit - Owner’s Handbook
Appendix
Calibration mode (non-150/400 systems)
Calibration groups
When connected to an autopilot other than a Type 150/150G or
400/400G, the Calibration mode provides 3 main calibration groups:
Display Calibration (DISPLAY CAL)
The items in Display Calibration only affect the individual control
unit. They are stored in the control unit and do not affect any other
control units connected through SeaTalk.
You can adjust the Display Calibration settings as often as necessary
– for example, to add or change information displayed on data pages
Compass Calibration (COMPASS CAL)
The Compass Calibration group is specifically designed for use
during the initial autopilot seatrial, so you can correct the compass
deviation and then align the compass.
Dealer Calibration (DEALER CAL)
The Dealer Calibration group includes items that have a significant
impact on autopilot operation and can affect your boat’s safety.
After you have completed the initial installation and seatrial, you
should not normally need to alter the Dealer Calibration values. The
items in Dealer Calibration vary according to the Vessel Type you
have selected.
Appendix: Using the ST7001+ With Non-150/400 Autopilots 107
Appendix
or
or
1 sec
1 sec
or
or
1 sec
or
or
2 seconds
2 seconds
(saves changes)
Calibration Mode Overview
100/300 Autopilot Systems
Calibration Mode
Within DISPLAY CAL, COMPASS CAL and DEALER CAL:
-- press disp or to move forwards through items
-- use -1, +1, -10, +10 to adjust settings
-- press standby for 2 seconds to save changes
D5492-1
standby
auto
-1 and +1
standby
auto
standby
auto
Vessel type
Calibration lock
Rudder gain
Counter rudder
Align rudder
Rudder limit
Turn rate limit
Cruise speed
Off course alarm angle
AutoTrim
Power steer on/off
Drive type
Rudder damping
Magnetic variation
AutoAdapt
Latitude
WindTrim (Displacement only)
AutoTack (Displacement only)
AutoRelease (Sterndrive only)
Response level
Swing compass
Compass deviation
Align heading
Display bar selection
Heading type
Pop-up pilot time-out
Data pages 1 to 15
108 ST7001+ Autopilot Control Unit - Owner’s Handbook
Appendix
Dealer Calibration screens
The illustration shows the screens that appear in the calibration
groups when the ST7001+ is connected to a Type 100/300 course
computer.
Vessel type
Vessel type should be set when commissioning the autopilot
(see page 59).
Note: When you select the vessel type, the autopilot will set
appropriate defaults for several other calibration settings.
Compass Calibration lock
This screen controls whether it is possible to access Compass
Calibration.
Rudder gain
This screen determines the default rudder gain setting. Rudder gain is
a measure of how much helm the autopilot will apply to correct
course errors. The higher the setting, the more rudder will be applied.
You should adjust this setting when commissioning the autopilot.
(see page 71). You can make temporary changes to this rudder gain
value during normal operation (see page 29).
Options
DISPLACE Displacement
SEMI DISPLACE Semi-displacement
PLANING Planing
STERN DRV Boat with I/O drive (stern drive)
Options
CAL LOCK OFF Lock off: Compass Calibration can be accessed
CAL LOCK ON Lock on: Compass Calibration cannot be accessed
Screen text Range
RUDD GAIN 1 to 9
Appendix: Using the ST7001+ With Non-150/400 Autopilots 109
Appendix
Counter rudder
Counter rudder is the amount of rudder the autopilot applies to try to
prevent the boat from yawing off course. Higher counter rudder
settings result in more rudder being applied. You should set the
default counter rudder when commissioning the autopilot
(see page 72).
Align rudder
Use this screen to center the rudder bar display after installing the
autopilot system.
Rudder limit
Use the rudder limit screen to set the limits of autopilot rudder control
just inside the mechanical end stops. This will avoid putting the
steering system under unnecessary load. You should adjust this when
commissioning the autopilot (see page 61).
Turn rate limit
This limits your boat’s rate of turn under autopilot control.
Cruise speed
Set the cruise speed to the boat’s typical cruising speed. If both the
boat’s speed through the water and speed over ground are unavailable
via SeaTalk or NMEA, the autopilot will use this default cruise speed
when computing course changes.
Screen text Range
COUNT RUD 1 to 9
Screen text Range
ALIGN RUDDER -7° to +7° in 1° steps
Screen text Range
RUDDER LIMIT 15° to 30° in 1° steps
Screen text Range
TURN RATE 5° to 20° per second in 1° steps
Screen text Range
CRUISE SP 4 to 60 knots
110 ST7001+ Autopilot Control Unit - Owner’s Handbook
Appendix
Off course warning angle
This screen determines the angle used by the OFF COURSE warning
(see page 10). The OFF COURSE warning operates if the pilot strays off
course by more than the specified angle for more than 20 seconds.
AutoTrim
The AutoTrim setting determines the rate at which the autopilot
applies ‘standing helm’ to correct for trim changes caused by varying
wind loads on the sails or superstructure.You should set the default
AutoTrim after commissioning the autopilot (see page 73).
Power steer
If you have a joystick connected to your Type 100/300 autopilot
system, use power steer to select the required joystick mode of
operation (see table).
Screen text Range
OFF COURSE 15° to 40° in 1° steps
Setting Effect
AUTO TRIM OFF No trim correction
AUTO TRIM 1 Slow trim correction
AUTO TRIM 2 Medium trim correction
AUTO TRIM 3 Rapid trim correction (default)
AUTO TRIM 4 Very rapid trim correction
Options
POWER STR OFF Power steer off
POWER STR 1 1 = Proportional power steer
Proportional power steer applies rudder in proportion to
joystick movement – the further the joystick is held over,
the greater the applied rudder.
POWER STR 2 2 = Bang-bang power steer
Bang-bang power steer applies continuous rudder in the
direction of the lever movement – to improve control, the
speed of rudder movement changes with the angle of the
lever. For maximum speed, push the lever hardover. If you
return the lever to the center position, the rudder will
remain in its current position.
Appendix: Using the ST7001+ With Non-150/400 Autopilots 111
Appendix
Drive type
The drive type setting controls how the autopilot drives the steering
system. You should set the drive type when commissioning the
autopilot (see page 61).
Rudder damping
Set this option during the initial dockside checks if the autopilot
‘hunts’ when trying to position the rudder (see page 62).
Magnetic variation
If required, set this value to the level of magnetic variation present at
your boat’s current position – indicated as east (VAR EAST) or west
(VAR WEST). The autopilot sends this variation setting to other
instruments on the SeaTalk system, and it can be updated by other
SeaTalk instruments.
AutoAdapt
The AutoAdapt feature allows the autopilot to compensate for
heading errors at higher latitudes, which are caused by the increasing
dip of the earth’s magnetic field.
The increased dip has the effect of amplifying rudder response on
northerly headings in the northern hemisphere, and on southerly
headings in the southern hemisphere.
Options
DRIVE TYP 1 or 2 Not used
DRIVE TYP 3 Linear drive, rotary drive or I/O (stern) drive
DRIVE TYP 4 Hydraulic pump or hydraulic linear drive
DRIVE TYP 5 Constant running hydraulic pump solenoids
Screen text Range
RUDD DAMP 1 to 9
Screen text Options
VARIATION Default setting = 0°
VAR EAST/ VAR WEST 30°EAST(-30°) to 30° WEST (+30°) in 1° steps
112 ST7001+ Autopilot Control Unit - Owner’s Handbook
Appendix
Note: If you set AUTOADAPT to nth or Sth, you then need to enter your
current latitude in the next screen (LATITUDE), so that the autopilot
can provide accurate course keeping by automatically adjusting the
rudder gain depending on the heading.
Latitude
The ST7001+ only displays this screen if you have set AutoAdapt to
nth or Sth. Use the -1,+1, -10 and +10 keys to set the value to your
boat’s current latitude, to the nearest degree.
Note: If valid latitude data is available via SeaTalk or NMEA, the
autopilot will use this data instead of the calibration value.
WindTrim (wind response)
Note: Only available if vessel type = DISPLACEMENT.
WindTrim (wind response) controls how quickly the autopilot
responds to changes in the wind direction.
AutoTack angle
Note: Only available if vessel type = DISPLACEMENT.
The AutoTack angle is the angle through which the boat will turn
when you select an automatic tack (see page 12).
Options
AUTOADAPT OFF AutoAdapt off
AUTOADAPT nth AudoAdapt compensation on – Northern hemisphere
AUTOADAPT Sth AutoAdapt compensation on – Southern hemisphere
Screen text Range
LATITUDE 0° to 80° in 1° steps
Screen text Options
WIND TRIM 1 = Normal setting
2 = Faster response for wind shifts
Screen text Options
AUTO TACK 40° to 125° in 1° steps
Appendix: Using the ST7001+ With Non-150/400 Autopilots 113
Appendix
AutoRelease (I/O drives only)
Note: Only available if vessel type = STERNDRV.
If the vessel type is set to STERN DRV (I/O or stern drive), you will see
the AutoRelease screen (AUTO RELEASE) set to ON as a default.
AutoRelease provides emergency manual over-ride in situations
when you need to avoid an obstacle at the last moment.
Response level
This is the default response setting. The response level controls the
relationship between the autopilot’s course keeping accuracy and the
amount of helm/drive activity. You can make temporary changes to
response during normal operation (see page 7).
Screen text Range
AUTO RELEASE ON = AutoRelease on
OFF = AutoRelease off
Screen text Options
RESPONSE 1 AutoSeastate on (Automatic deadband) = default
• autopilot to gradually ignores repetitive boat movements
and only react to true variations in course
• provides the best compromise between power
consumption and course keeping accuracy
RESPONSE 2 AutoSeastate off (minimum deadband)
• provides tighter course keeping
• increased power consumption and drive unit activity
RESPONSE 3 AutoSeastate off + counter rudder yaw damping
• provides tightest possible course keeping by introducing
counter rudder yaw damping
114 ST7001+ Autopilot Control Unit - Owner’s Handbook
Appendix
Dealer Calibration: possible settings with Type 100/300
Calibration setting Vessel type
Displacement
Semi Displacement
Planing
Stern drive (I/O)
Your settings
Vessel type DISPLACE SEMIDISP PLANING STERNDRV
Calibration lock OFF OFF OFF OFF
Rudder gain 5543
Counter rudder 7775
Rudder alignment 0000
Rudder limit 30 30 30 20
Turn rate limit 20 15 15 8
Cruise speed 6 8 15 15
Off course angle 20202020
AutoTrim 2333
Power steer OFF OFF OFF OFF
Drive type 3443
Rudder damping 2222
Variation OFF OFF OFF OFF
AutoAdapt NORTH NORTH NORTH NORTH
Latitude 0000
Wind Trim
(displacement only) 1 --- --- ---
AutoTack angle
(displacement only) 100 --- --- ---
AutoRelease
(stern drives only) --- --- --- ON
Response 1111
Note: Information applies to Type 100/300 Course Computers with Version 15 software.
Specifications 115
Specifications
ST7001+ control unit
Course computer functions
Nominal supply voltage: 12 V DC via SeaTalk
Operating voltage range: 10 V to 15 V DC
Current consumption (in Standby mode) 50 mA (less than 120 mA with full lighting)
Operating temperature: 0 °C to +70 °C (32 °F to 158 °F)
Water protection: waterproof to CFR46
Overall dimensions:
width
height
depth
175 mm (6.9 in)
115 mm (4.53 in)
41 mm (1.62 in)
Keypad: 13 button illuminated keypad
Liquid Crystal Display (LCD): shows heading, locked course and navigational data,
and up to 15 data pages
LCD illumination: 3 brightness levels + off; 15 contrast levels
Input connections: SeaTalk (x2) and NMEA 0183
Output connections: SeaTalk (x2)
CE approvals: conforms to: 89/336/EC (EMC), EN60945:1997
Control
unit
Course computer
Type 150G/400G Type 150/400 Type 100/300
ST7001+ •Internal GyroPlus yaw
sensor
•Enhanced course keeping
using AST
•FastTrim
•Full access to AutoLearn,
providing automatic
steering calibration
•Improved track-keeping
•Steers to true and apparent
wind in Wind Vane mode
•Improved calibration access
•Full basic functionality
•Improved track-keeping
•Steers to true and apparent
wind in Wind Vane mode
•Improved calibration
access, but without
AutoLearn
•Uses Raymarine steering
algorithm without AST
•No FastTrim
•Standard functionality
using Raymarine steering
algorithm without AST
•Improved calibration
access, but without
AutoLearn
•Steers to apparent wind
only in Wind Vane mode
116 ST7001+ Autopilot Control Unit - Owner’s Handbook
Glossary
Term Meaning
°Degrees
AAmp
AST
(Advanced Steering
Technology)
AST (Advanced Steering Technology) is Raymarine’s unique advanced
steering algorithm. It uses inputs from a wide variety of sensors to tune the
autopilot’s operation to provide superior control of the boat in any condition.
AutoLearn Self-learning calibration feature available on Type 150G and 400G autopilot
systems.
AutoTrim The AutoTrim setting determines the rate at which the autopilot applies
‘standing helm’ to correct for trim changes caused by varying wind loads on
the sails or superstructure.
AWG American Wire Gauge
CE Marked on Raymarine products that comply with defined European
Community standards
counter rudder Counter rudder is the amount of rudder the autopilot applies to try to prevent
the boat from yawing off course. Higher counter rudder settings result in
more rudder being applied.
CR pump Constant Running hydraulic pump
DC Direct current
EMC
(Electromagnetic
Compatibility)
When powered up, all electrical equipment produces electromagnetic fields.
These can cause adjacent pieces of electrical equipment to interact with one
another, and this can degrade their performance. By following the EMC
guidelines in this handbook, you can minimize these effects by ensuring
optimum Electromagnetic Compatibility (EMC) between equipment.
Fluxgate Standard Raymarine compass supplied with course computer core pack
ft Foot (1 ft = 305 mm)
GPS Global Positioning System
GyroPlus Raymarine’s GyroPlus yaw sensor that measures the boat’s rate of turn. It is
built into the Type 150G and Type 400G course computers.
Hz Hertz (cycles per second)
in Inch (1 in = 25.4 mm)
I/O drive Inboard/Outboard or stern drive
km Kilometre
m Metre (1 m = 39.4 inches)
mm Millimeter (1 mm = 0.04 inches)
Glossary 117
MOB Man overboard
nm Nautical mile
NMEA The NMEA (National Maritime Electronics Association) protocol is an
internationally accepted serial communication interface standard for
sharing data between electronic equipment. Raymarine products can share
information with non-SeaTalk equipment using the NMEA 0183 protocol.
response The autopilot response level controls the relationship between course
keeping accuracy and the amount of helm/drive activity.
rudder gain Rudder gain is a measure of how much helm the autopilot will apply to
correct course errors. The higher the setting the more rudder will be applied.
SeaTalk SeaTalk is Raymarine’s proprietary communication system. It links the
products to provide a single, integrated system sharing power and data.
SeaTalk bus This refers to the continuous SeaTalk system connecting together a series of
Raymarine units.
SM Statute (land) mile
SSB Single Side Band (radio)
Type 150 Raymarine 12 V course computer without internal GyroPlus
Type 150G Raymarine 12 V course computer with internal GyroPlus
Type 400 Raymarine 12/24 V course computer without internal GyroPlus
Type 400G Raymarine 12/24 V course computer with internal GyroPlus
VVolt
VHF Very High Frequency (radio)
WWatt
WindTrim WindTrim (wind response) controls how quickly the autopilot responds to
changes in the wind direction. Higher wind trim settings will result in a pilot
that is more responsive to wind changes.
XTE Cross track error
Yaw The boat’s rate of turn (°/sec)
Term Meaning
118 ST7001+ Autopilot Control Unit - Owner’s Handbook
Index 119
A
Adjusting autopilot settings 75–102
Accessing Calibration mode 78
Calibration groups 76
Dealer Calibration 92–100
Aligning rudder 94
AutoAdapt 99
Autopilot reset 100
AutoRelease 97
AutoTrim 96
Counter rudder 95
Cruise speed 99
Drive type 94
Latitude 100
Off course warning angle 97
Rudder damping 96
Rudder gain 95
Rudder limit 95
Seatrial Calibration lock 92
Turn rate limit 97
Vessel type 94
Display Calibration 79–86
Data pages 81
Display bar graph 79
Heading selection 79
Non-150/400 autopilots 106–114
Seatrial Calibration 63–73, 91
User Calibration 87–90
AutoTack angle 87
Gybe inhibit 87
Magnetic variation 90
Response 89
Wind selection 89
WindTrim (wind response) 89
Alarms and warnings
AUTO RELEASE 37
CURRENT LIMIT 37
DRIVE STOPPED 37
LARGE XTE 19
LOW BATT 37
LRN FAIL 37
MOB 33
MOT POW SWAPPED 37
NEXT WPT? 22
NO DATA 38
NO PILOT 38
OFF COURSE 10
RG FAIL 38
ROUTE COMPLETED 22
SEATALK FAIL 1 or 2 38
SEATALK/STLK FAIL 38
SHALLOW 33
WATCH 32
WINDSHIFT 28
Aligning rudder 61, 94
Apparent wind 25, 89
Auto mode 6–14
Changing course 7
Dodging obstacles 10
Entering Auto mode 6
Exiting Auto mode 6
Gusty conditions 13
Off course warning 10
Return to previous heading 11
Tacking (AutoTack) 12
AutoAdapt 99
AutoLearn 70
Autopilot commissioning
see Commissioning
Autopilot features 1
Autopilot operating modes
see Operating modes
Autopilot reset 100
Autopilot steering sense 58
AutoRelease
Alarm 37
Selecting (I/O drives) 97
AutoTack
Default angle 87
Gybe inhibit 13
Introduction 12
Wind Vane mode 28
AutoTrim, Setting 73, 96
Index
120 ST7001+ Autopilot Control Unit - Owner’s Handbook
B
Bar graph 5
Selecting bar type 79
C
Calibration mode 75–102
Accessing 78
Calibration groups 76
Dealer Calibration 92–100
Display Calibration 79–86
Non-150/400 autopilots 106–114
Seatrial Calibration 63–73, 91
User Calibration 87–90
Commissioning 55–73
Dockside checks 56–62
Step 1, Switch on 56
Step 2, Check connections 57
Step 3, Check sense 58
Step 4, Basic settings 59
Non-150/400 autopilots 105
Seatrial Calibration 63–73
Compass calibration 64–67
Set-up, AutoLearn 68–70
Set-up, Manual 71–73
Compass
Deviation correction 64
Heading alignment 66
Control unit
Display layout 5
Features 1
Installation 45–54
Keypad functions 4
Specifications 115
Counter rudder, Setting 72, 95
Course changes 7
Course computer functions 115
Cross track error
Explanation 19
LARGE XTE warning 19
Cruise speed 99
Current limit alarm 37
D
Data pages
Displaying 31
Setting up 81
Watch timer 32
Dealer Calibration 92–100
Disengaging the autopilot 6
Display Calibration 79–86
Display, Layout 5
Dodging obstacles
Auto mode 10
Track mode 23
Wind Vane mode 27
Drive stopped alarm 37
Drive type, Setting 61, 94
E
EMC
Installation guidelines 47
Servicing and safety guidelines 39
Engaging the autopilot 6
Error messages
see Alarms and warnings
F
Fault finding 36
Features 1
Functional test
Autopilot system 56
Repeater units 54
G
Glossary 116–117
Gusty conditions 13
Gybe inhibit 13, 87
GyroPlus fail alarm 38
H
Heading selection 79
Heading, Return to previous 11
I
Illumination 15
Initial sea trial
see Commissioning
Installation 45–54
Control unit 49
EMC guidelines 47
Index 121
Location 46
NMEA connections 51
Parts supplied 45
Power supply (via SeaTalk) 50
SeaTalk connections 50
Tools required 45
K
Keypad
Functions 4
Illumination 15
L
Large cross track error warning 19
Last (previous) heading 11
Last (previous) wind 27
Latitude, Setting 100
Learn fail alarm 37
Lighting 15
Low battery alarm 37
M
Magnetic variation, Setting 90
Maintenance 39
Man overboard (MOB) warning 33
Motor/Power swapped alarm 37
N
Navigator
Connections 57
Data pages 31
NMEA
Connections 51
Data decoded by control unit 51
Inputs on control unit 52
Receiving 51
Transmitting 53
No data alarm 38
No pilot alarm 38
Non-150/400 autopilots 103–114
Adjusting autopilot settings 106–114
Commissioning the autopilot 105
Using the autopilot 104
O
Off course warning
Default angle 97
Description 10
Operating (steering) sense 58
Operating modes
Auto mode 6–14
Calibration mode 75–102
Standby mode 6
Track mode 18–24
Wind Vane mode 25–29
P
Previous (last) heading 11
Previous (last) wind 27
Product support 40
R
Response level
Default setting 89
Temporary adjustments 7–9
RG fail alarm 38
Route Completed warning 22
Rudder alignment (offset) 61, 94
Rudder bar 79
Rudder damping 96
Rudder gain
Default setting 71, 95
Temporary adjustments 29
Rudder limit, Setting 61, 95
Rudder sense, Checking 58
S
SeaTalk
Connections 50, 57
Data pages 31
SeaTalk fail 1 or 2 alarm 38
SeaTalk fail alarm 38
Seatrial
see Commissioning
Seatrial Calibration 63–73, 91
Seatrial Calibration lock 92
Self-learn calibration (AutoLearn) 70
Servicing 39
Shallow warning 33
122 ST7001+ Autopilot Control Unit - Owner’s Handbook
Software version 41
Specifications 115
Standby mode, Selecting 6
Steering bar 79
Swinging the compass 64
T
Testing the system
see Commissioning
Tidal stream compensation 20
Timer (Watch timer) 32
Track mode 18–24
Dodging obstacles 23
Entering Track mode 18
Exiting Track mode 19
Safety advice 24
Waypoint arrival and advance 21
Trouble-shooting 36
True wind 25, 89
Turn rate limit 97
U
User Calibration 87–90
V
Vane mode
see Wind Vane mode
Variation, Setting 90
Vessel type, Setting 59, 94
W
Warning messages
see Alarms and warnings
Watch timer 32
Waypoint advance warning 18, 22
Waypoint arrival and advance 21
Wind angle
Adjusting 26
Return to previous 27
Wind instrument, Connections 57
Wind selection 89
Wind Vane mode 25–29
Adjusting wind angle 26
Apparent wind 25, 89
AutoTack 28
Dodging obstacles 27
Entering Wind Vane mode 26
Exiting Wind Vane mode 26
Previous wind angle 27
True wind 25, 89
Wind shift warning 28
WindTrim (wind response) 25
D4235-4
Drill 5mm Drill 5mm
Drill 5mm
Drill 5mm
Machine hole
90 mm (3.55 in)
diameter
Control unit - surface mount template
Document number: 84064-8
April 2001
Limited Warranty Certificate
Raymarine warrants each new Light Marine/Dealer Distributor Product to be of good materials and
workmanship, and will repair or exchange any parts proven to be defective in material and
workmanship under normal use for a period of 2 years/24 months from date of sale to end user, except
as provided below.
Defects will be corrected by Raymarine or an authorized Raymarine dealer. Raymarine will, except
as provided below, accept labor cost for a period of 2 years/24 months from the date of sale to end user.
During this period, except for certain products, travel costs (auto mileage and tolls) up to 100 round
trip highway miles (160 kilometres) and travel time of 2 hours, will be assumed by Raymarine only
on products where proof of installation or commission by authorized service agents, can be shown.
Warranty Limitations
Raymarine Warranty policy does not apply to equipment which has been subjected to accident, abuse
or misuse, shipping damage, alterations, corrosion, incorrect and/or non-authorized service, or
equipment on which the serial number has been altered, mutilated or removed.
Except where Raymarine or its authorized dealer has performed the installation, it assumes no
responsibility for damage incurred during installation.
This Warranty does not cover routine system checkouts or alignment/calibration, unless required by
replacement of part(s) in the area being aligned.
A suitable proof of purchase, showing date, place, and serial number must be made available to
Raymarine or authorized service agent at the time of request for Warranty service.
Consumable items, (such as: Chart paper, lamps, fuses, batteries, styli, stylus/drive belts, radar mixer
crystals/diodes, snap-in impeller carriers, impellers, impeller bearings, and impeller shaft) are
specifically excluded from this Warranty.
Magnetrons, Cathode Ray Tubes (CRT), TFT Liquid Crystal Displays (LCD) and cold cathode
fluorescent lamps (CCFL), hailer horns and transducers are warranted for 1 year/12 months from date
of sale. These items must be returned to a Raymarine facility.
All costs associated with transducer replacement, other than the cost of the transducer itself, are
specifically excluded from this Warranty.
Overtime premium labor portion of services outside of normal working hours is not covered by this
Warranty.
