Job:

Engineer:

Contractor:

Prepared By: Date:

Model: Indoor/Outdoor

RP2100™

ASME Series

Atmospheric Pool Heaters

Models 185B-405B

 82% Efficiency

 ASME Code Glass-Lined Cast Iron Headers

 ASME Code Copper Fin Tube

 125 lb. Pressure Relief Valve

 Small Footprint

 Unitherm Governor Anti-Condensation Control

 Internal Bypass for High Flow Rates (up to 125 gpm)

 Indoor/Outdoor

Digital model with outdoor top shown

Heat Exchanger

 ASME Inspected and Stamped

160 PSIG

 National Board Approved

 Glass-lined Cast Iron Headers

 Finned Tubing

Copper – Standard

Cupro Nickel – Optional

 ASME Steel Tube Sheet

 Silicone O-Rings

 125 PSIG Pressure Relief Valve

 Water Connections

Right Hand – Standard

Left Hand – Field Change

 Flow Configuration – Two-pass

Controls – Millivolt Option

 Standing Pilot Ignition

 Thermopile Generator

 Single Mechanical Sensor

 Flame Rollout Switch

 High Limit Control

 On/Off Switch

 Water Pressure Switch

Controls – Digital Option

 115/230V, 60Hz, 1 Ph Power Supply

 115/230/24V Transformer

 100% Pilot Shut-off; Lockout –

Propane units only

 Electronic, Intermittent Ignition Pilot

(IID)

 High Limit Control

 On/Off Switch

 Flame Rollout Switch

 Water Pressure Switch

 Dual Electronic Temp Sensor

 Digital Display With Diagnostics

Gas Control Train

 Fuel

Natural Gas

Propane

 Combination Control Valve

 On/Off Firing

 ANSI Z21.56 Design Certified

Construction

 Front Controls

 Stainless Steel Burners

 Polytuf Powder Coat Finish

 Indoor/Outdoor

 Vent Selection

Outdoor Stackless Top – Standard

Indoor Draft Diverter– Loose

D-2 Power Vent – Loose

 Base (Optional)

Combustible Floor Shield

Catalog No.: 6000.49 Effective: 3-15-04 Replaces: NEW

RP2100 – ASME Series

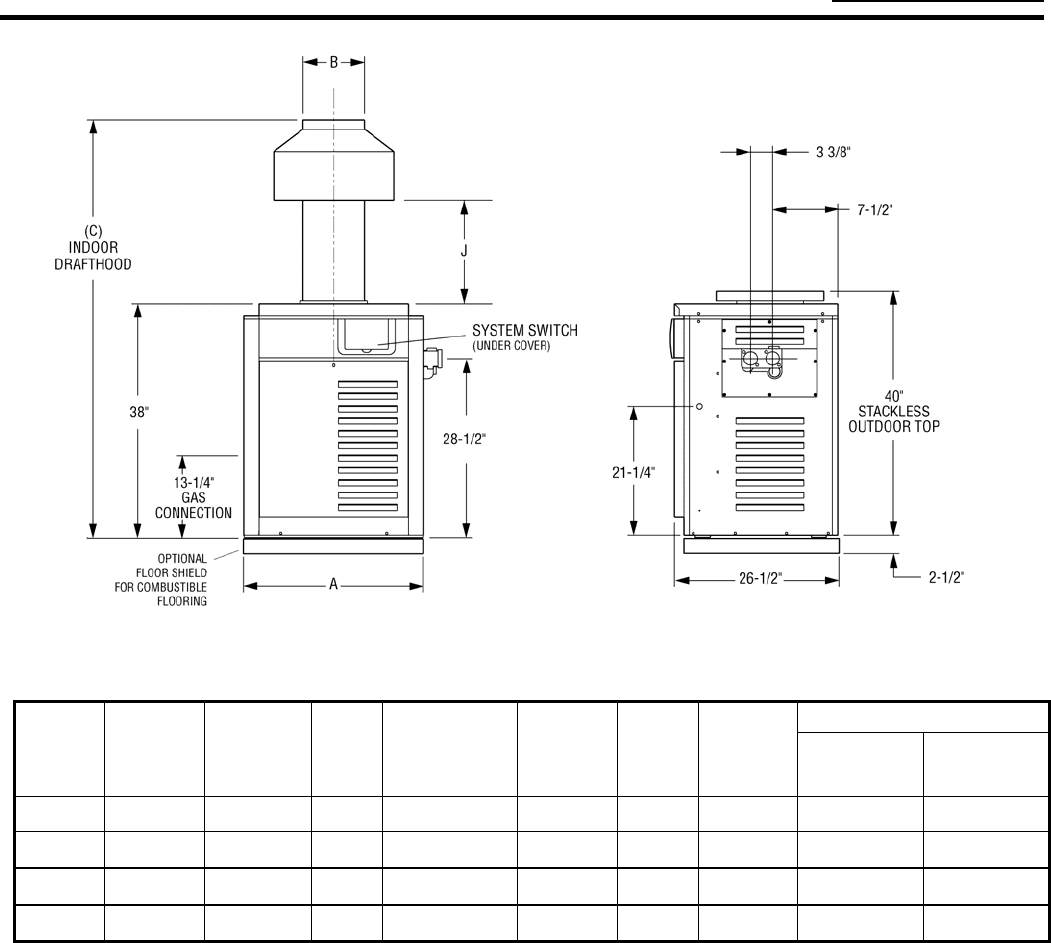

Atmospheric Pool Heaters Model

Shipping Weights (lbs)

Heater

Model

BTUH

Input

(000)

(A)

Cabinet

Width

(B)

Flue

Dia.

(C)

Indoor

Drafthood

(J) Gas

Conn. Water

Conn.

Heater with

Stackless

Top Indoor

Drafthood

R185B 181 18-1/4” 6” 62-5/8” 12-1/16” 3/4" 2” 191 12

R265B 264 22-3/8” 7” 62-7/8” 11-1/8” 3/4" 2” 214 15

R335B 334 25-3/4” 8” 63-3/4” 10-3/4” 3/4" 2” 234 17

R405B 399 29-1/4” 9” 65-3/8” 12-1/2” 3/4" 2” 253 20

NOTES:

Model number suffix indicates pilot type (E = digital, M = millivolt) and fuel type (P = propane, N = natural gas). Prefix “C”

indicates Cast Iron (ASME) headers. Example: Model number CR-405B-EN indicates an ASME unit with digital (IID) ignition

using natural gas.

Ratings are for natural gas and elevations up to 2,000 feet above sea level. Reduce input 4% for each 1,000 feet above sea

level when installed at over 2,000 feet elevation.

Manufactured under Patent No. 3,623,458.
