User manual
Version: A
Issued Date: 2016/03/24
Approval Sheet
(產品承認書)
產品名稱 (Product): BT 4.2 Module (nRF52832)
產品型號 (Model No.): MDBT42Q Series
Advantage of MDBT42Q series:
1. Long working distance: over 80 meters in open space.
Index
1. Overall Introduction ...................................................................................................... 1
1.1. Application ............................................................................................................ 1
1.2. Features ............................................................................................................... 2
1.3. Profile & Service Information ................................................................................ 3
2. Product Dimension ....................................................................................................... 4
2.1. MDBT42Q Series ................................................................................................. 4
2.2. Pin Assignment ..................................................................................................... 9
2.3. GPIO Located Near the Radio ............................................................................. 11
3. Main Chip Solution ....................................................................................................... 11
4. Specification ................................................................................................................ 12
4.1. Absolute Maximum Ratings ................................................................................ 12
4.2. Operation Conditions .......................................................................................... 12
4.3. Electrical Specifications ...................................................................................... 12
4.4. General Radio Characteristics ............................................................................ 12
4.5. Radio Current Consumption (Transmitter) .......................................................... 13
4.6. Radio Current Consumption (Receiver) .............................................................. 13
4.7. Transmitter Specification .................................................................................... 14
4.8. Receiver Operation ............................................................................................. 14
4.9. RX Selectivity ..................................................................................................... 14
5. FCC Compliance .......................................................................................................... 18
6. IC Caution .................................................................................................................... 20
7. NCC 警語 ...................................................................................................................... 21
1
1. Overall Introduction
Raytac’s MDBT42Q is a BT 4.0, BT 4.1 and BT 4.2 stack (Bluetooth low energy or BLE)
module designed based on Nordic nRF52832 SoC solution, which incorporates: GPIO, SPI,
UART, I2C, I2S, PWM and ADC interfaces for connecting peripherals and sensors.
Features of the module:
1. Dual Transmission mode of BLE & 2.4Ghz RF upon customer preference.
2. Compact size with (L) 16 x (W) 10 x (H) 2.2 mm.
3. Low power requirements, ultra-low peak, average and idle mode power consumption.
4. Be compatible with a large installed base of mobile phones, tablets and computers.
5. Fully coverage of BLE software stack. See 1.3 Profile & Service Information.
6. BLE & RF transmission switching helps products fit all operation system and most
hardware.
1.1. Application
‧IoT
‧Home automation
‧Sensor networks
‧Building automation
‧Personal Area Networks
‧Health / fitness sensor and monitor device
‧Medical devices
‧Key-fobs and wrist watches
‧Interactive entertainment devices
‧Remote control
‧Gaming controller
‧Beacons
‧A4WP wireless chargers and devices
‧Remote control toys
‧Computer peripherals and I/O devices
‧Mouse
‧Keyboard
‧Multi-touch trackpad
2
1.2. Features
‧Multi-protocol 2.4GHz radio
‧32-bit ARM Cortex – M4F processor
‧512KB flash programmed memory and 64KB RAM
‧Software stacks available as downloads
‧Application development independent from protocol stack
‧On-air compatible with nRF51, nRF24AP and nRF24L series
‧Programmable output power from +4dBm to -20dBm
‧RSSI
‧RAM mapped FIFOs using EasyDMA
‧Dynamic on-air payload length up to 256 bytes
‧Flexible and configurable 32 pin GPIO
‧Programmable peripheral interface - PPI
‧Simple ON / OFF global power mode
‧Full set of digital interface all with Easy DMA including:
‧3 x Hardware SPI master ; 3 x Hardware SPI slave
‧2 x two-wire master ; 2 x two-wire slave
‧1 x UART (CTS / RTS)
‧PDM for digital microphone
‧I2S for audio
‧Quadrature demodulator
‧12-bit / 200KSPS ADC
‧128-bit AES ECB / CCM / AAR co-processor
‧Lowe cost external crystal 32MHz ± 40ppm for Bluetooth ; ± 50ppm for ANT Plus
‧Lowe power 32MHz crystal and RC oscillators
‧Wide supply voltage range 1.7V to 3.6V
‧On-chip DC/DC buck converter
‧Individual power management for all peripherals
‧Timer counter
‧5 x 32-bit
‧3 x 24-bit RTC
‧NFC-A tag interface for OOB pairing
3
1.3. Profile & Service Information
Profile & Service are supported by MDBT40Q as below:
Profile Description
Service Description
Alert Notification Profile
Alert Notification Service
Blood Pressure Profile
Blood Pressure Service
Device Information Service
Cycling Speed & Cadence Profile
Cycling Speed & Cadence Service
Device Information Service
Glucose Profile
Glucose Service
Device Information Service
Health Thermometer Profile
Health Thermometer Service
Device Information Service
Heart Rate Profile
Heart Rate Service
Device Information Service
HID over GATT Profile
HID Service
Battery Service
Proximity Profile
Link Loss Service
Immediate Alert Service
TX Power Service
Running Speed & Cadence Profile
Running Speed & Cadence Service
Device Information Service
4
2. Product Dimension
2.1. MDBT42Q Series

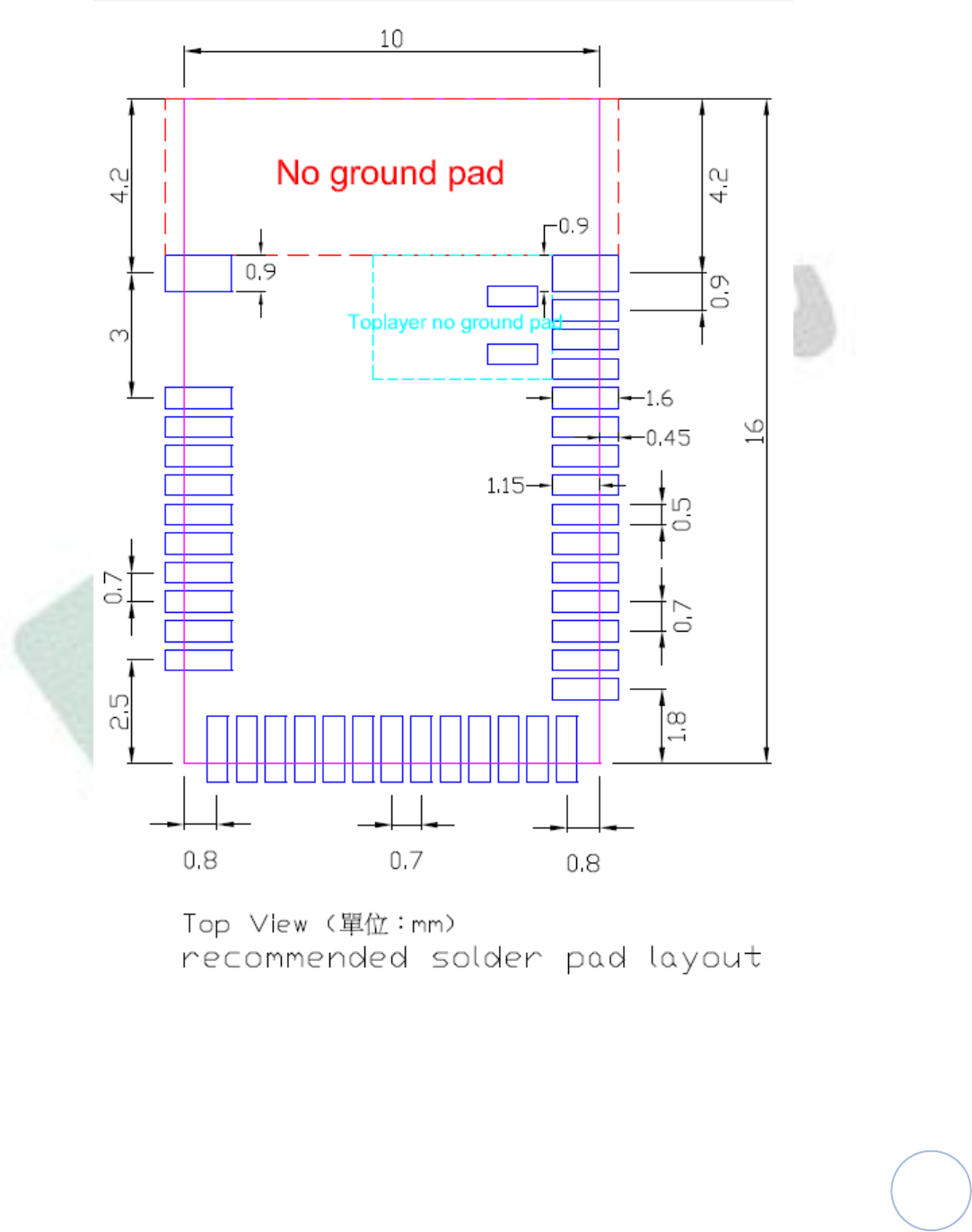

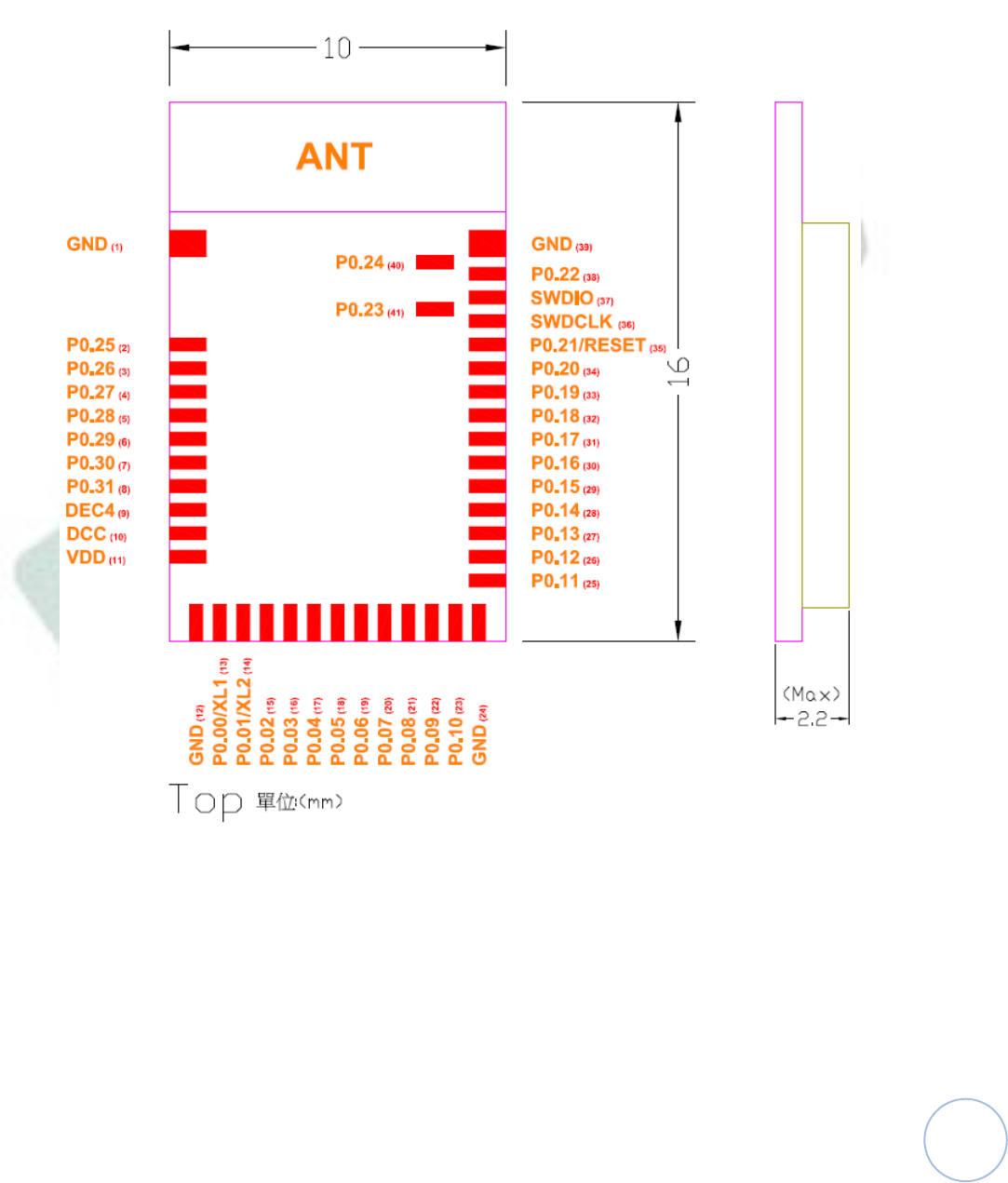

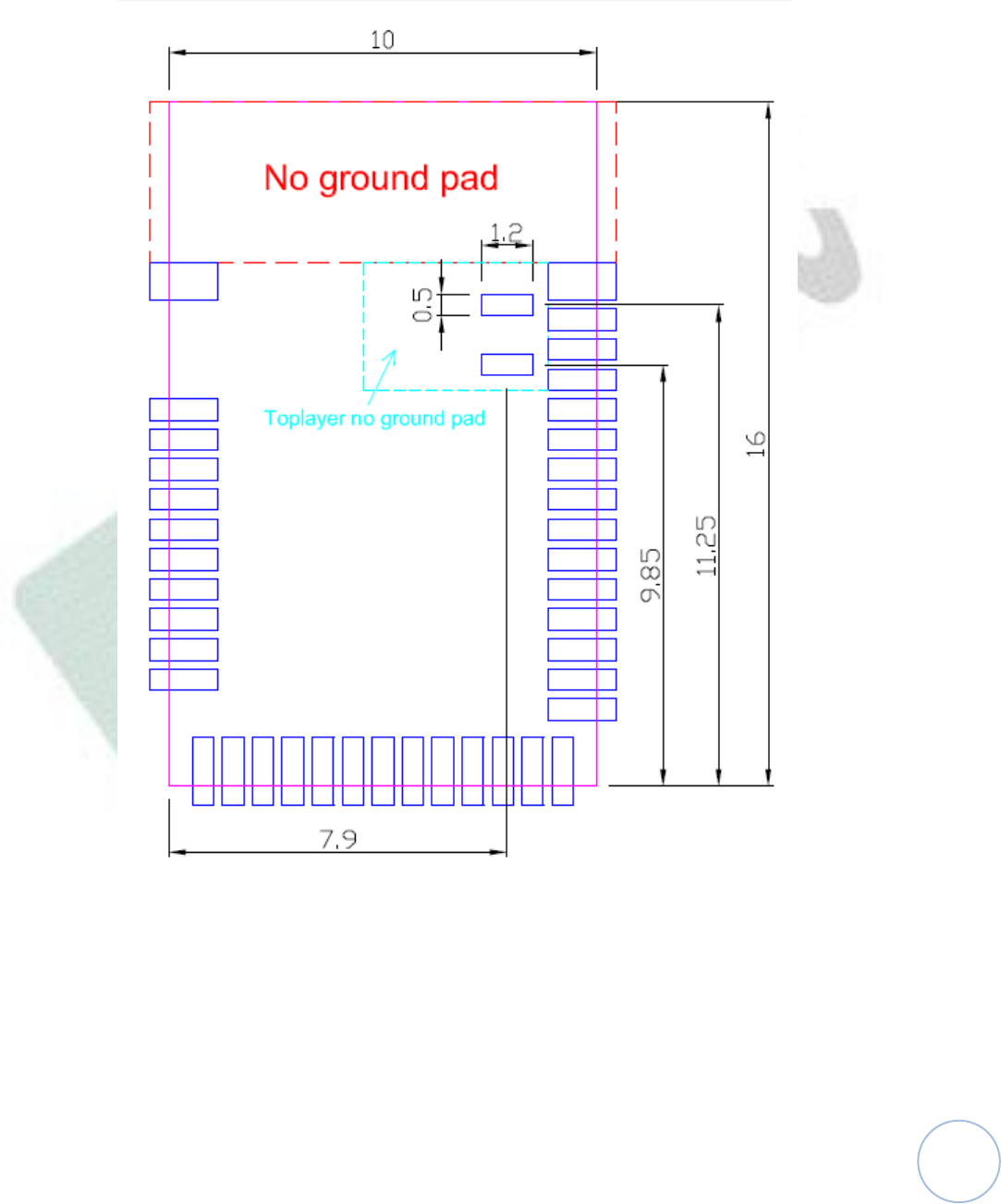

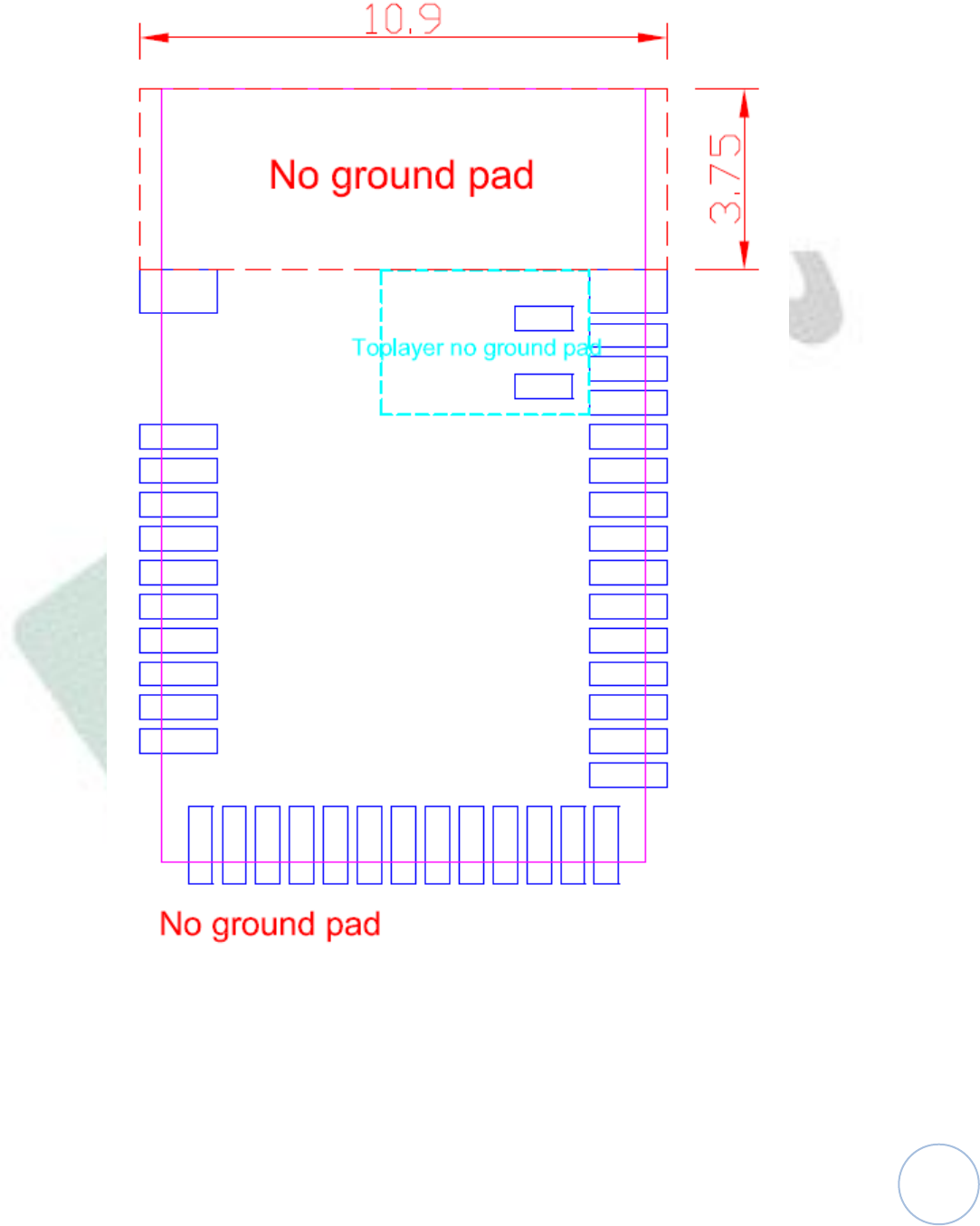

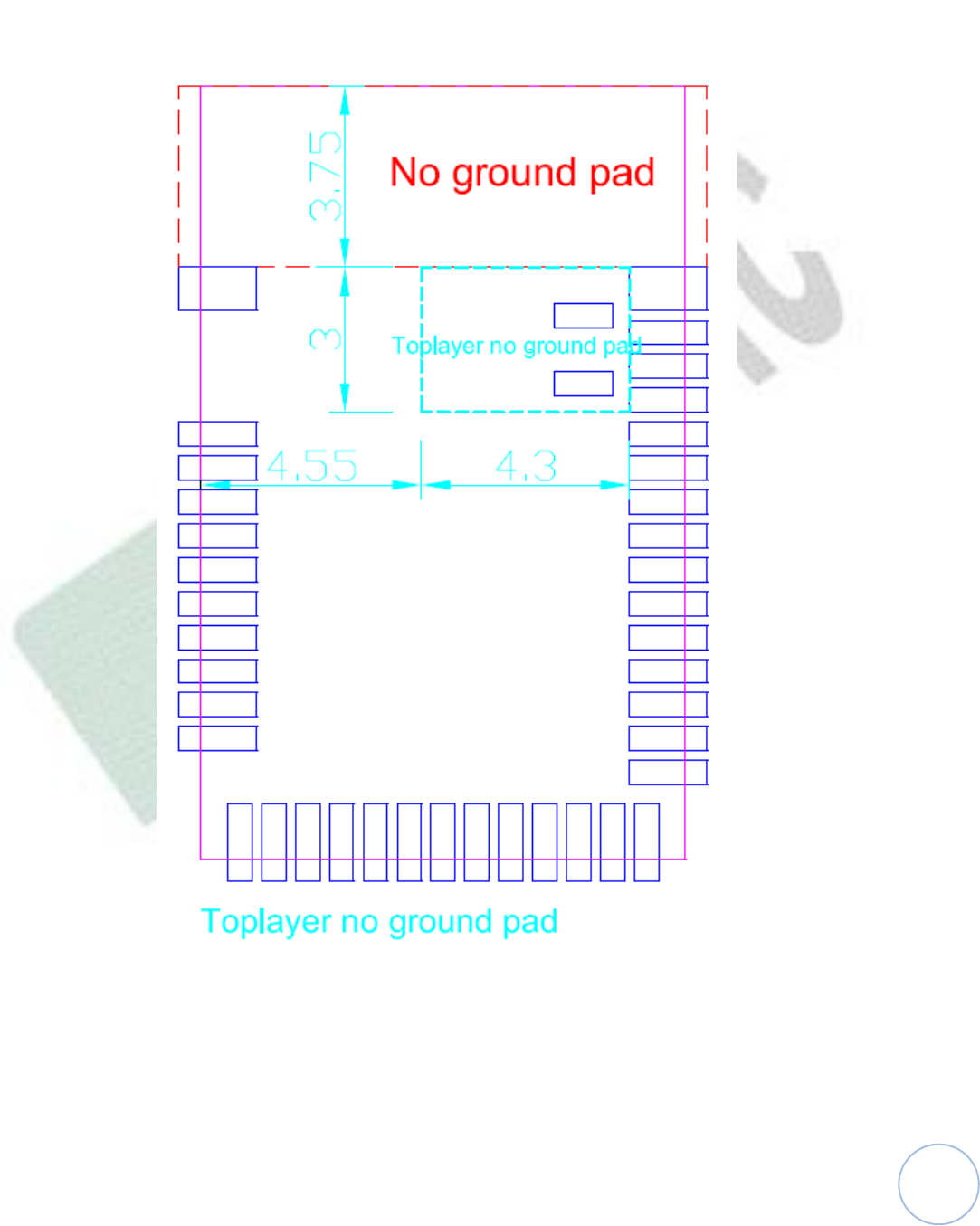

‧PCB Dimensions, Pin Indication and Layout Guide
PCB SIZE: (L) 16 x (W) 10 x (H) 2.2 mm
5
6
7
8
9
2.2. Pin Assignment
Pin No.
Name
Pin function
Description
(1)
GND
Ground
The pad must be connected to a solid ground plane
(2)
P0.25
Digital I/O
General-purpose digital I/O
(3)
P0.26
Digital I/O
General-purpose digital I/O
(4)
P0.27
Digital I/O
General-purpose digital I/O
(5)
P0.28
Digital I/O
General-purpose digital I/O
AIN4
Analog input
SAADC/COMP/LPCOMP input
(6)
P0.29
Digital I/O
General-purpose digital I/O
AIN5
Analog input
SAADC/COMP/LPCOMP input
(7)
P0.30
Digital I/O
General-purpose digital I/O
AIN6
Analog input
SAADC/COMP/LPCOMP input
(8)
P0.31
Digital I/O
General-purpose digital I/O
AIN7
Analog input
SAADC/COMP/LPCOMP input
(9)
DEC4
Power
1V3 regulator supply decoupling. Input from DC/DC converter.
Output from 1V3 LDO .
(10)
DCC
Power
DC/DC converter output pin
(11)
VDD
Power
Power-supply pin
(12)
GND
Ground
The pad must be connected to a solid ground plane
(13)
P0.00
Digital I/O
General-purpose digital I/O
XL1
Analog input
Connection to 32.768khz crystal (LFXO)
(14)
P0.01
Digital I/O
General-purpose digital I/O
XL2
Analog input
Connection to 32.768khz crystal (LFXO)
(15)
P0.02
Digital I/O
General-purpose digital I/O
AIN0
Analog input
SAADC/COMP/LPCOMP input
(16)
P0.03
Digital I/O
General-purpose digital I/O
AIN1
Analog input
SAADC/COMP/LPCOMP input
(17)
P0.04
Digital I/O
General-purpose digital I/O
AIN2
Analog input
SAADC/COMP/LPCOMP input
(18)
P0.05
Digital I/O
General-purpose digital I/O
AIN3
Analog input
SAADC/COMP/LPCOMP input
(19)
P0.06
Digital I/O
General-purpose digital I/O
(20)
P0.07
Digital I/O
General-purpose digital I/O
(21)
P0.08
Digital I/O
General-purpose digital I/O
10
Pin No.
Name
Pin function
Description
(22)
P0.09
Digital I/O
General-purpose digital I/O
NFC1
NFC input
NFC antenna connection
(23)
P0.10
Digital I/O
General-purpose digital I/O
NFC2
NFC input
NFC antenna connection
(24)
GND
Ground
The pad must be connected to a solid ground plane
(25)
P0.11
Digital I/O
General-purpose digital I/O
(26)
P0.12
Digital I/O
General-purpose digital I/O
(27)
P0.13
Digital I/O
General-purpose digital I/O
(28)
P0.14
Digital I/O
General-purpose digital I/O
TraceData(3)
Trace port output
(29)
P0.15
Digital I/O
General-purpose digital I/O
TraceData(2)
Trace port output
(30)
P0.16
Digital I/O
General-purpose digital I/O
TraceData(1)
Trace port output
(31)
P0.17
Digital I/O
General-purpose digital I/O
(32)
P0.18
Digital I/O
General-purpose digital I/O
TraceData(0)
Trace port output
(33)
P0.19
Digital I/O
General-purpose digital I/O
(34)
P0.20
Digital I/O
General-purpose digital I/O
TraceCLK
Trace port clock output
(35)
P0.21
Digital I/O
General-purpose digital I/O
RESET
Configurable as system RESET pin
(36)
SWDCLK
Digital input
Serial Wire debug clock input for debug and programming
(37)
SWDIO
Digital I/O
Serial Wire debug I/O for debug and programming
(38)
P0.22
Digital I/O
General-purpose digital I/O
(39)
GND
Ground
The pad must be connected to a solid ground plane
(40)
P0.24
Digital I/O
General-purpose digital I/O
(41)
P0.23
Digital I/O
General-purpose digital I/O
11

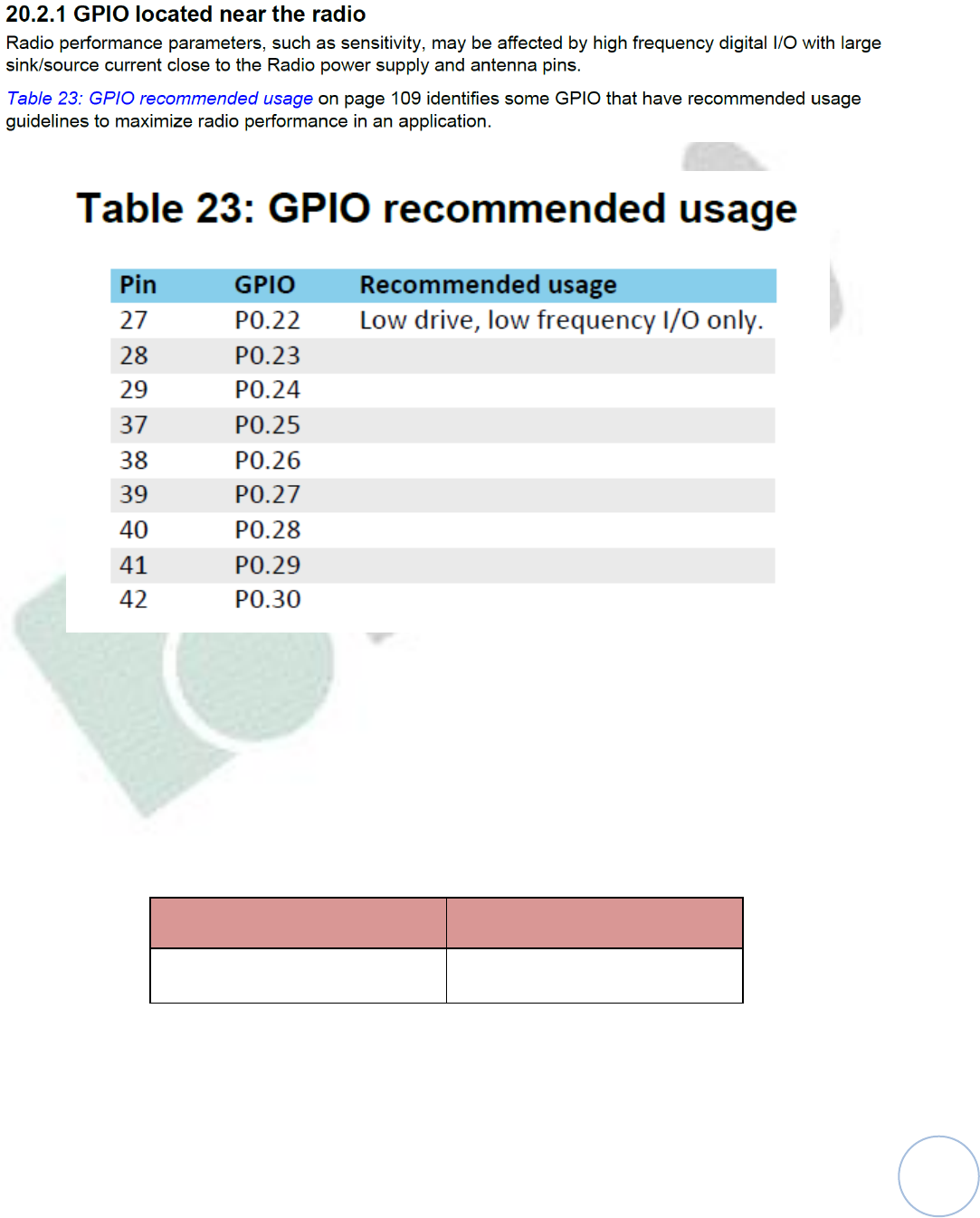

2.3. GPIO Located Near the Radio
Below remarks are extracted from Nordic’s nRF52832 Spec. Any updates shall refer to
Nordic’s official release as final reference.
3. Main Chip Solution
RF IC
Crystal Frequency
Nordic NRF52832
32MHZ
12
4. Specification

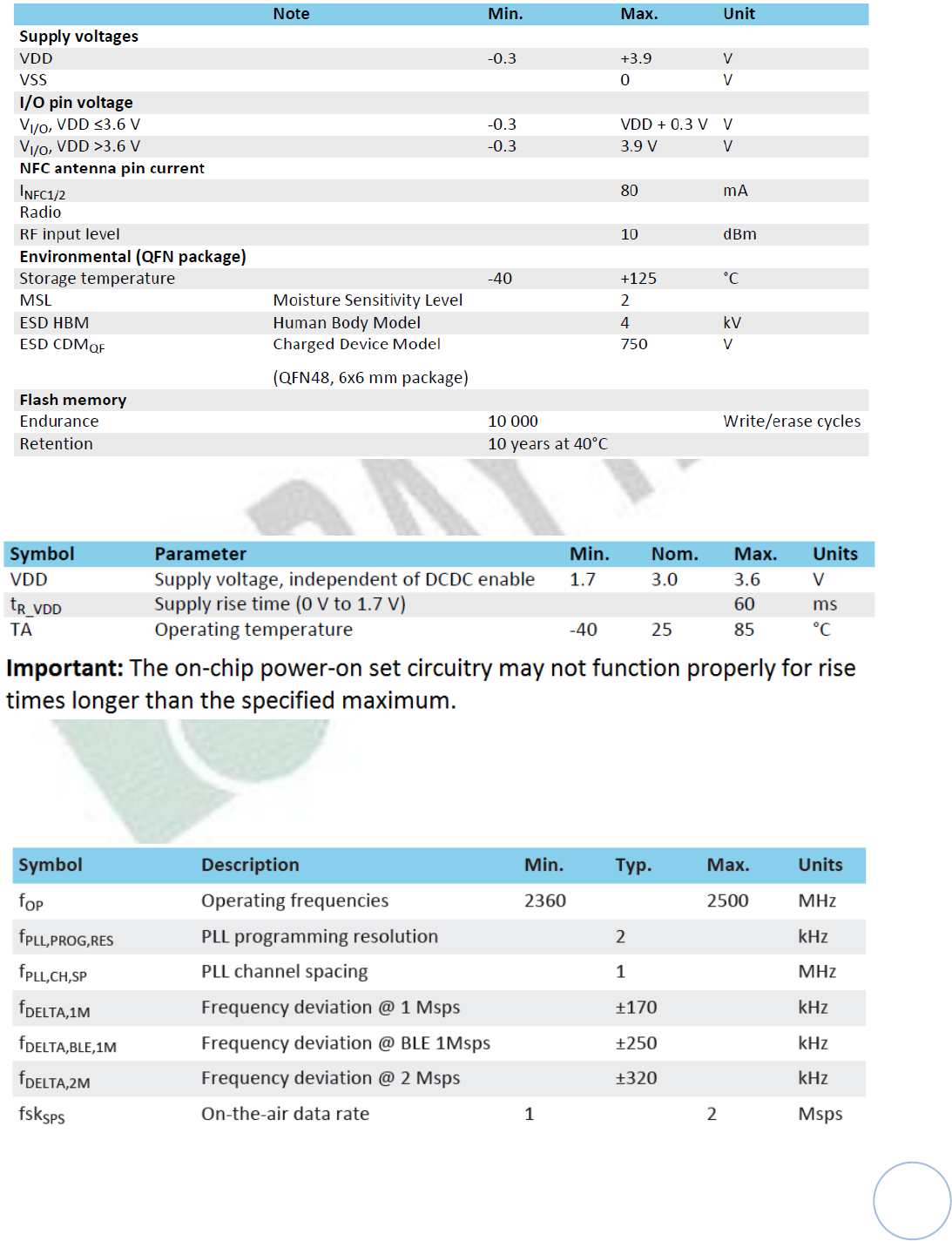

4.1. Absolute Maximum Ratings
4.2. Operation Conditions
4.3. Electrical Specifications
4.4. General Radio Characteristics
13

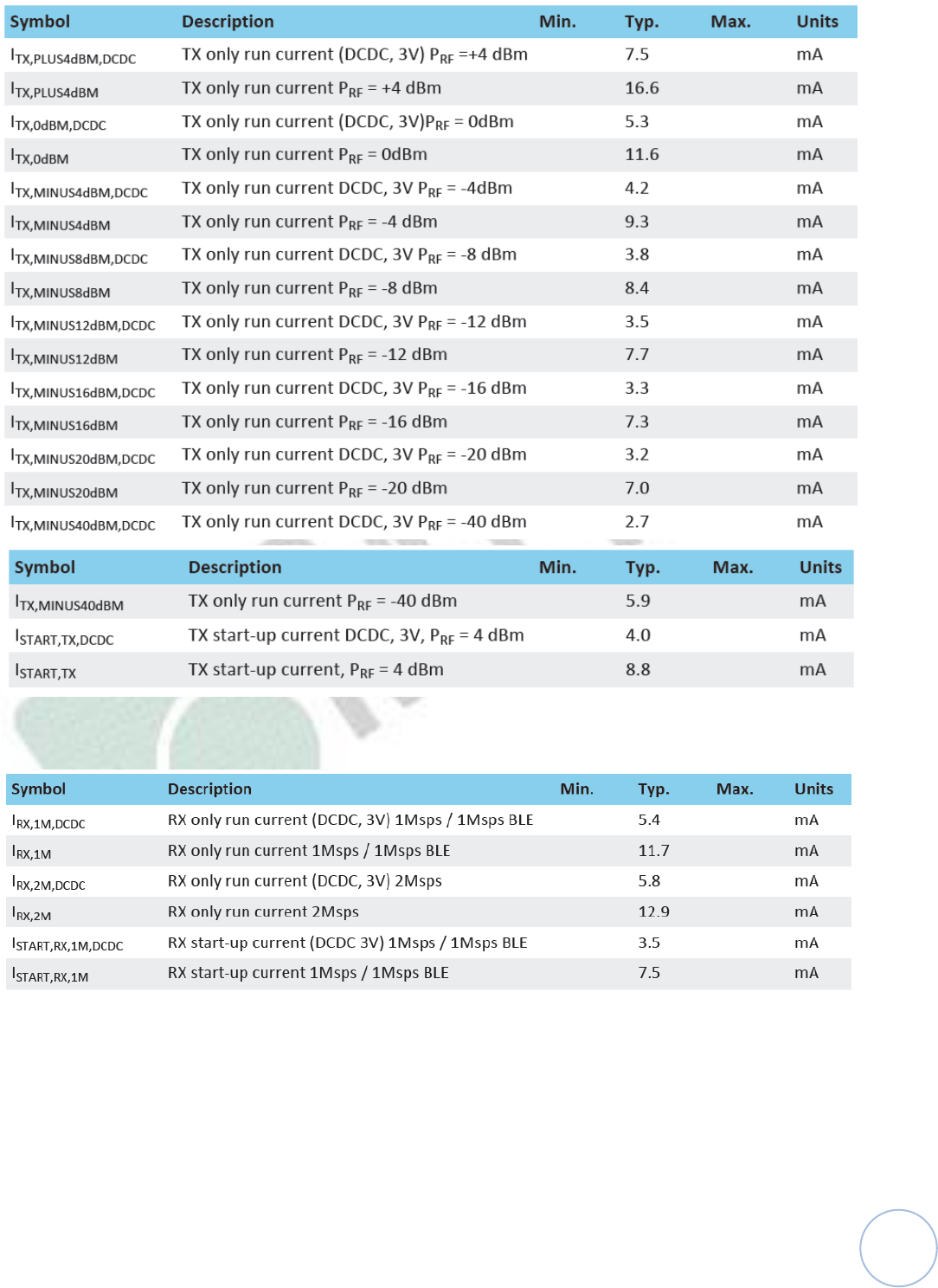

4.5. Radio Current Consumption (Transmitter)
4.6. Radio Current Consumption (Receiver)
14

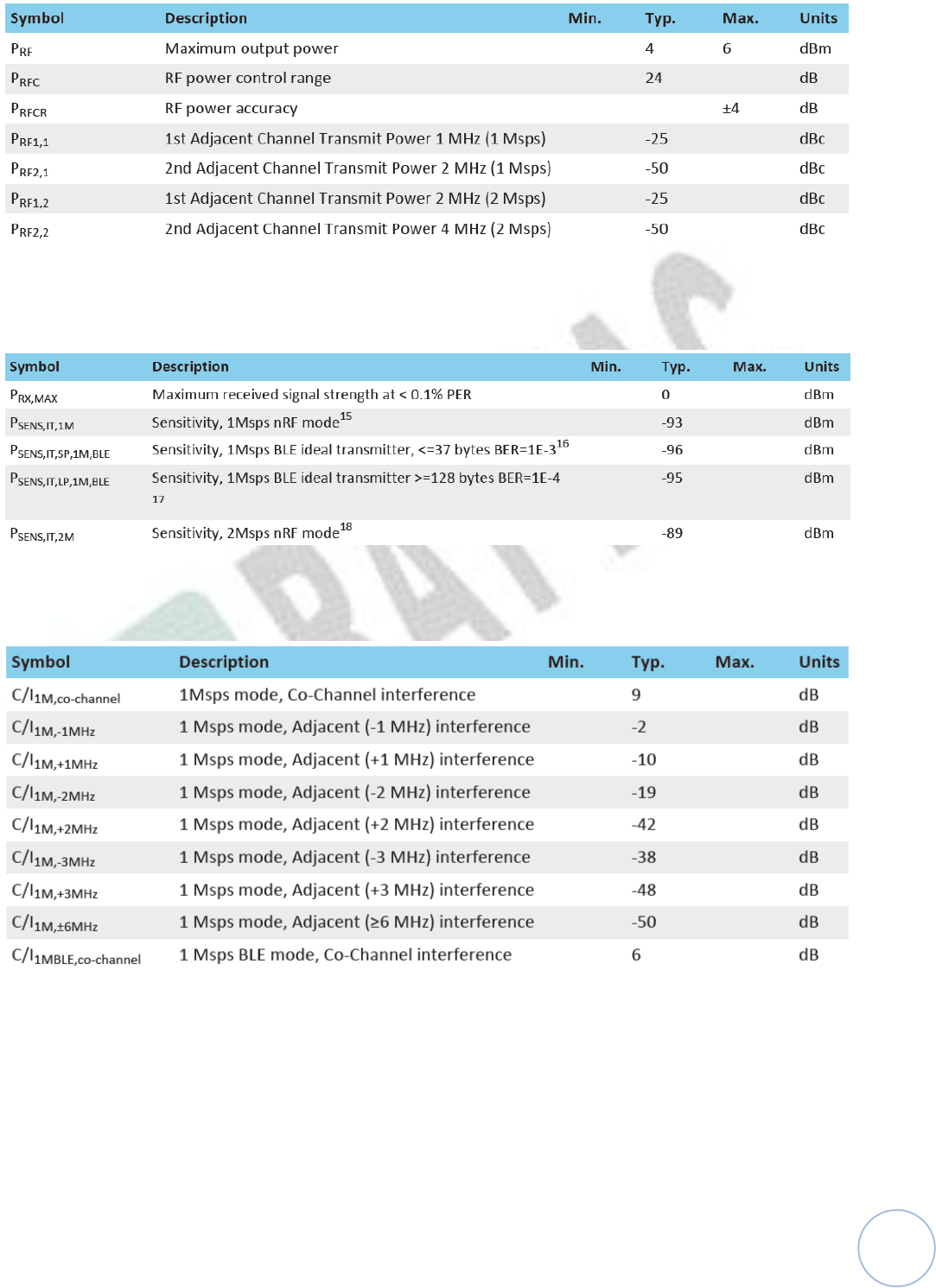

4.7. Transmitter Specification
4.8. Receiver Operation

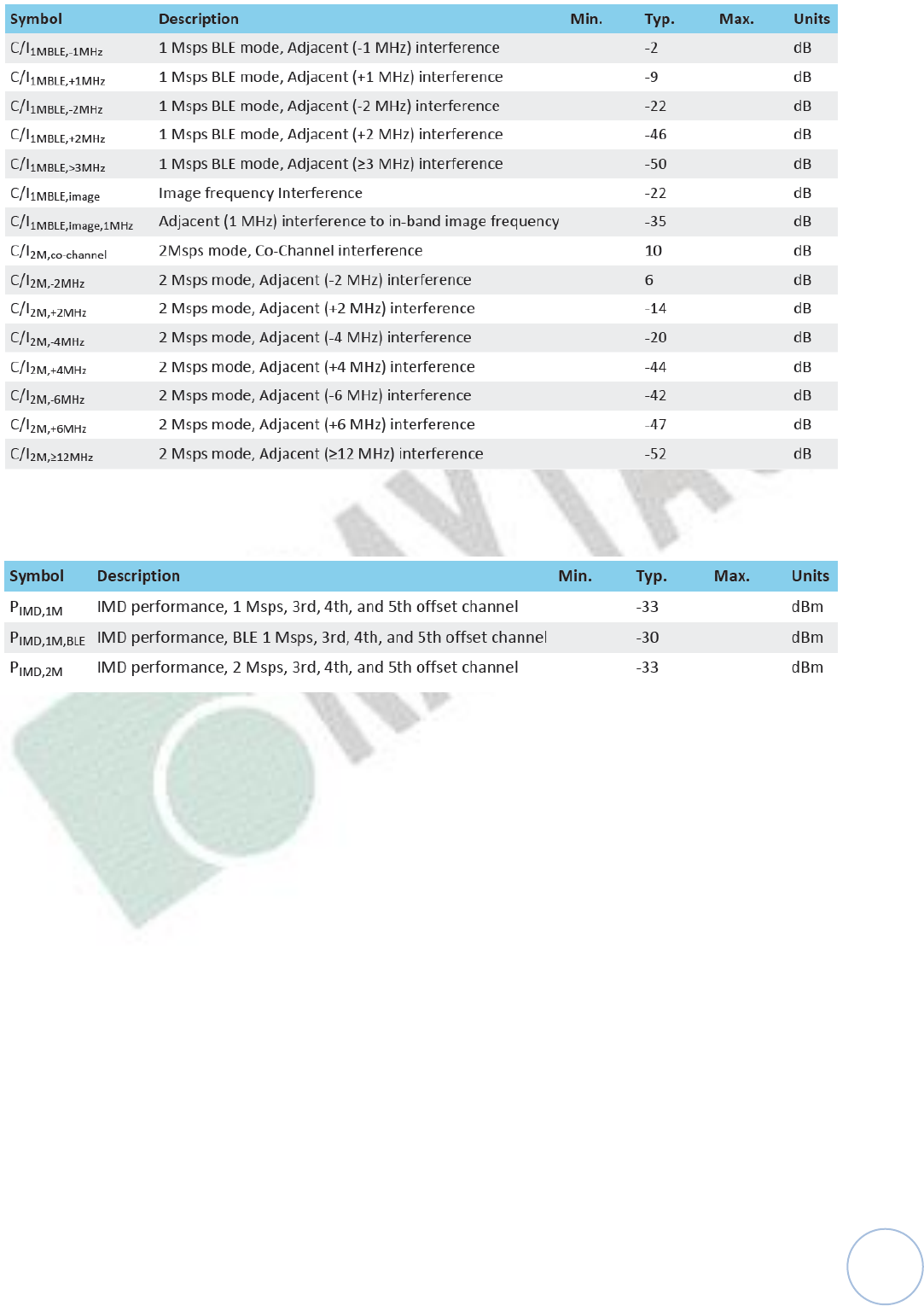

4.9. RX Selectivity
15
4.10. RX Intermodulation
16

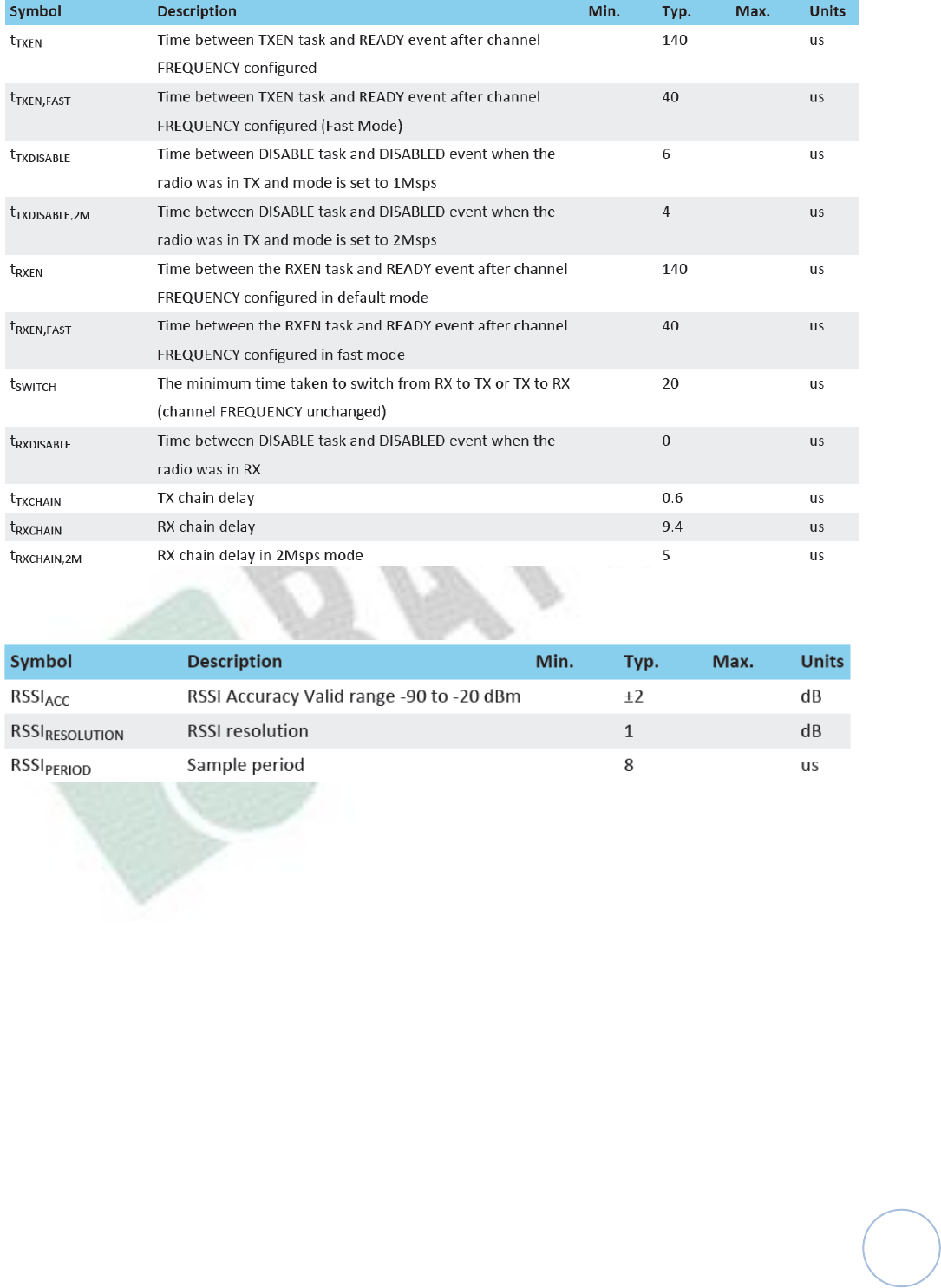

4.11. Radio Timing Parameters
4.12. RSSI Specifications
17

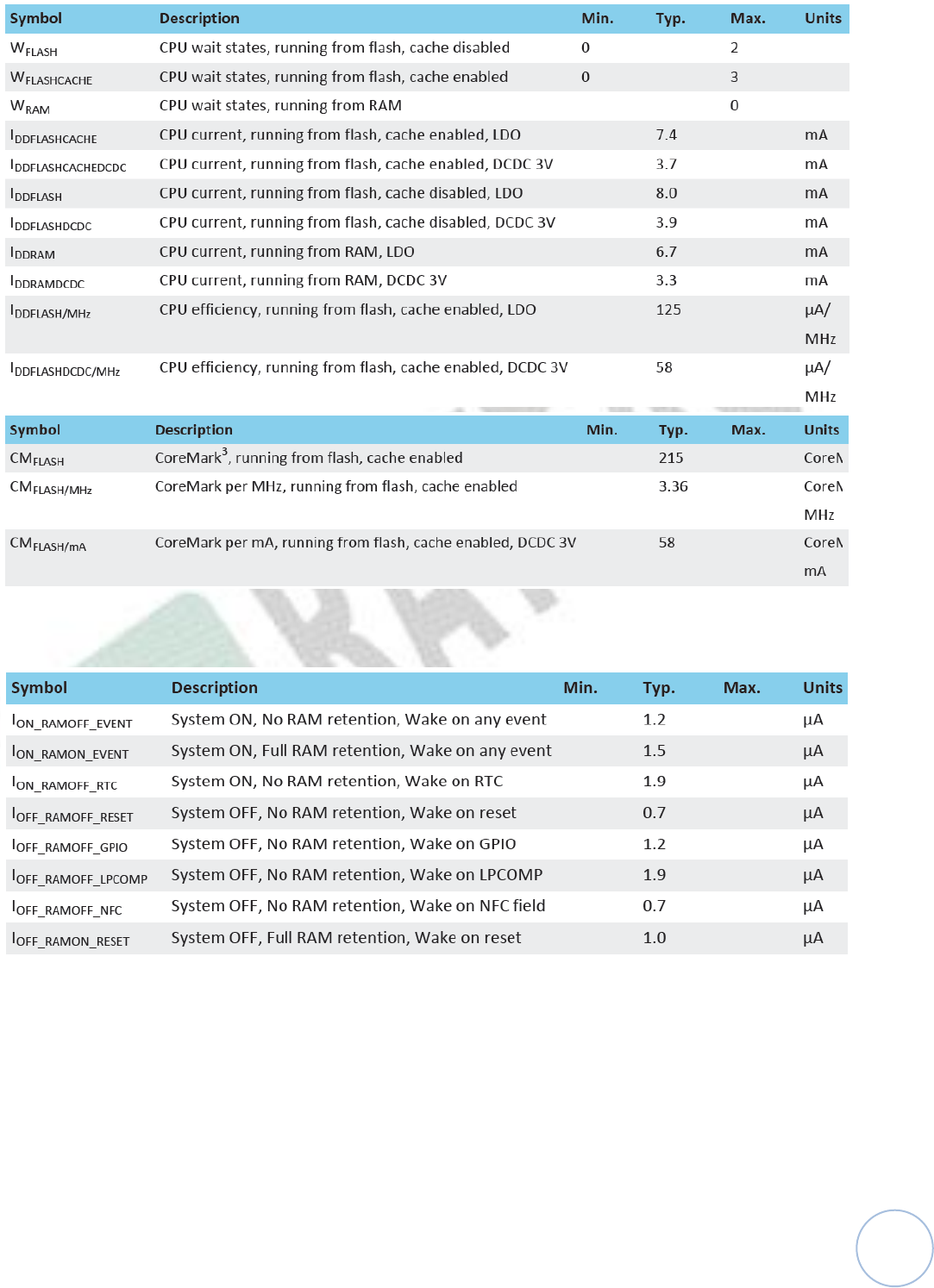

4.13. CPU
4.14. Power Management
18
5. FCC Compliance
This equipment has been tested and found to comply with the limits for a Class digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to the radio communications. However, there
are no guarantees that interference will not occur in a particular installation.
Troubleshooting
If this equipment does cause harmful interference to radio reception, which can be determined
by turning the equipment off and on, the user is encouraged to correct the interference by one
or more of the following instructions.
．Reorient or relocate the receiving antenna.
．Increase the separation between the equipment and receiver.
．Consult dealer or an experienced radio technician.
Conditions
Operation is subject to the following conditions
．This device may not cause harmful interference.
．This device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the authority to operate equipment.
This equipment must be installed and operated in accordance with provided instructions and
the antenna(s) used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provide with antenna
installation instructions and consider removing the no-collocation statement.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
19
installed such that 20cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following:
Contains FCC ID: SH6MDBT42Q
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how
to install or remove this RF module in the user’s manual of the end product which integrates
this module. The end user manual shall include all required regulatory information/warming as
shown in this manual.
20
6. IC Caution
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
．This device may not cause interference
．This device must accept any interference, including interference that may cause undesired
operation of the device
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:
．l'appareil ne doit pas produire de brouillage, et
．l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Pour se conformer aux exigences de conformité RF canadienne l'exposition, cet appareil et
son antenne ne doivent pas être co-localisés ou fonctionnant en conjonction avec une autre
antenne
ou transmetteur.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following:
Contains IC ID: 8017A-MDBT42Q
21
7. NCC 警語
根據 NCC 低功率電波輻射性電機管理辦法規定
第十二條：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或
變更原設計之特性及功能。
第十四條規定：
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善
至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
此模組於取得認證後將依規定於模組本體標示審驗合格標籤，並要求平台廠商於平台上標示
「本產品內含射頻模組：ID編號 xxxxx」字樣
22
