Raytac PF1000 Wireless Lighting Presenter User Manual
Raytac Corp. Wireless Lighting Presenter
Raytac >
User Manual
![](/img.php?id=1394643&img=bg1.png)
Wireless Lighting Presenter
(2.4GHz)
User’s Manual
Information in this document is subject to change without notice. No part of this document may be
reproduced or transcribed in any form or by any means, electronic or mechanical, for any purpose,
without the express written prior permission of the seller.
The seller provides this document without warranty, or condition of any kind. The seller may make
improvements or change in the product described in this documentation at any time.
Other product and company name herein may be the trademarks of their respective owners.
© 2010 All rights reserved.
Be sure to carefully read this User’s
Guide first for the proper use of this
product and keep it for future reference.
![](/img.php?id=1394643&img=bg2.png)
2
IMPORTANT SAFETY AND HEALTH INFORMATION
Laser beam can cause permanent damage to eyes. Do not look into the laser beam or
shine the laser beam into your eyes, other peoples’ eyes, or pet’s eyes.
Keep this device away from Children. This is a working tool, not a toy or entertainment
device. It should only be used by adults.
FEDERAL COMMUNICATIONS COMMISSION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s
authority to operate the equipment.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna
or transmitter.
EU DECLARATION OF CONFORMITY
This product is carrying the CE-Mark in accordance with the related European Directives.
Trademarks
Windows, Windows Vista, Microsoft and PowerPoint are registered trademarks of Microsoft Corporation. Mac,
Mac OS are registered trademarks of Apple, Inc. Other trademarks and registered trademarks not listed above
may be used in this manual.
![](/img.php?id=1394643&img=bg3.png)
3
General introduction
Product features
This Wireless Lighting Presenter is a 3-in-1 product integrating Laser pointer, PowerPoint slide control and
LED lighting function. In addition to its ergonomic shape design, we added continued slide page up and
down function which assists you be more comfortable and professional at PowerPoint presentation occasion,
especially the integrated white LED lighting function ensures no miss of your important idea or point even in
the dark presentation location!
Now just insert the batteries, plug the USB receiver and start to enjoy this plug-and-play, all-direction and
up-to-50M control distance device!!
Package contents
Wireless Lighting Presenter x 1
USB Receiver x 1
AAA Battery x 2
User’s Manual x 1
System Requirements
Windows® 2000 / XP / Vista / 7 & PowerPoint® 2000 (or later) for Windows
Mac OS® X v.10.4 (or later) & PowerPoint® X (or later) for Mac
Available USB port
Preparations to use

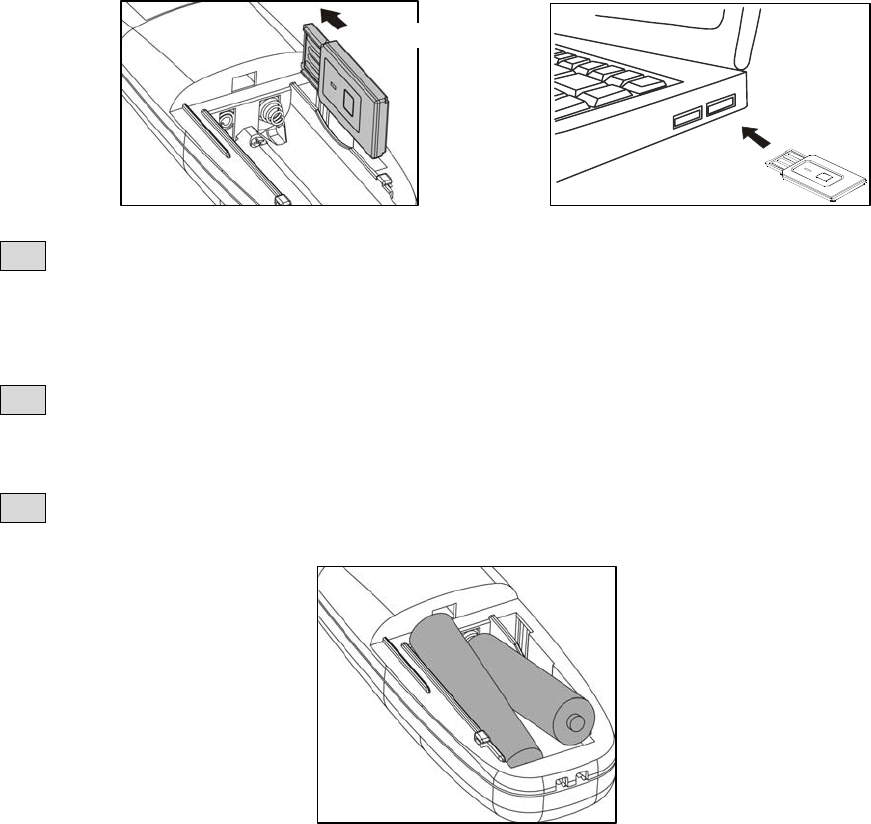

Take out USB receiver and plug it to your PC USB port
The USB receiver is stored in the battery chamber. Open the battery cover, take the USB receiver out and
plug it to your PC USB port.
Note When you put the USB receiver into the battery chamber, please note its storing direction.
Note For first use this product on Mac PC, you may need to do following setting for normal use:
Plug in USB receiver → Keyboard Setup Assistant → Click “Continue” → Identify Your Keyboard → Press
any key on the keyboard → Select “Skip” → Choose “ANSI” → Click “Done” button
Insert the batteries
Open the battery cover and insert the supplied batteries with correct
polarity. Now you can use this product.
Note After inserted batteries, the laser function will become available.
Please pay attention not point to any other person’s eyes when pressing
the laser button.
USB connector side up
+
-
- +
![](/img.php?id=1394643&img=bg4.png)
4

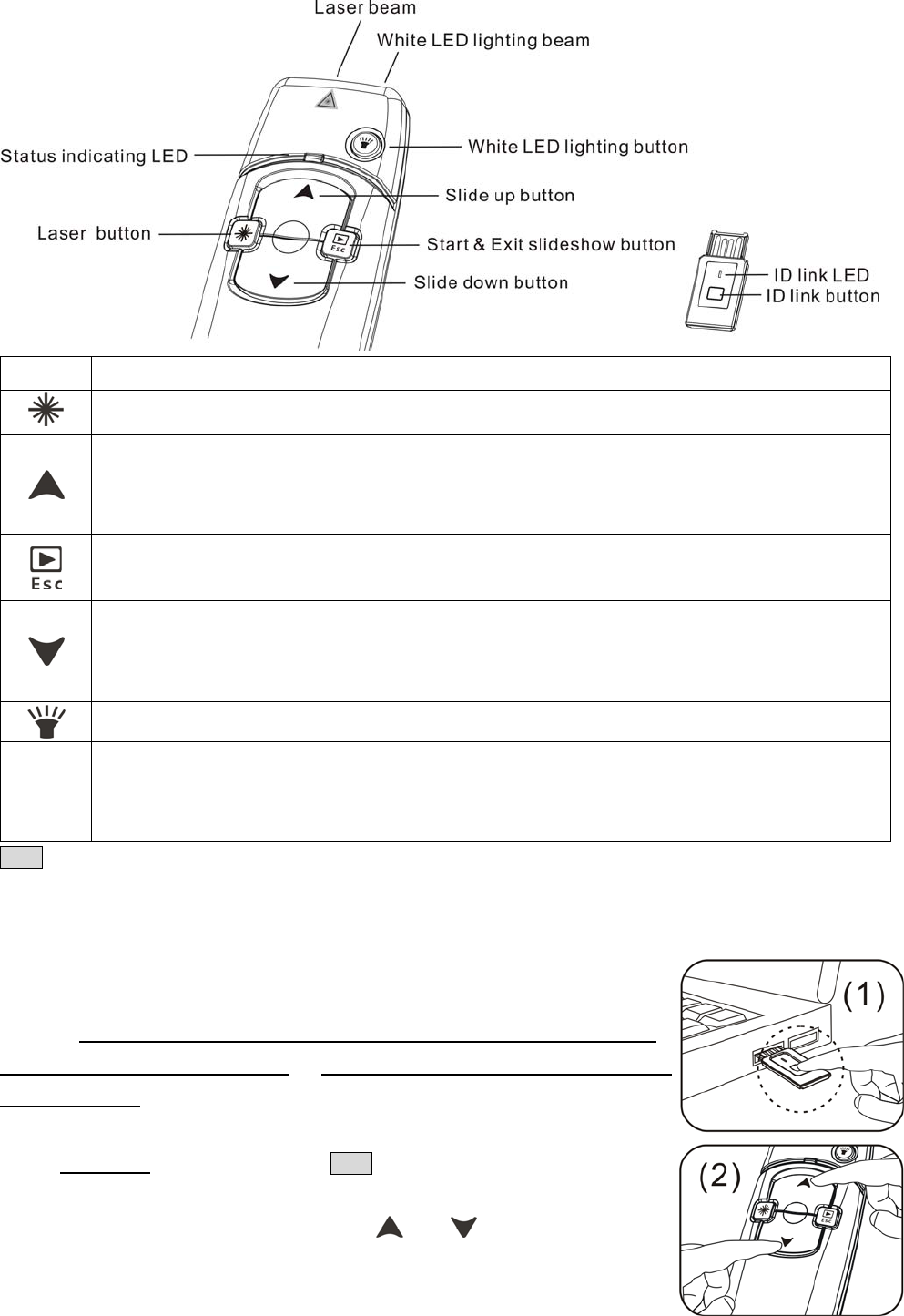

Function and operation
Icon Function and operation
Press this button to shoot laser beam
(1) Click this button to go to previous slide
(2) Press and hold over 1 second to start continued slide up at speed about 2~3 slides per second.
Release your finger to stop slide up
(1) Click to start the slide show from the 1st page
(2) Press and hold over 1 second to exit the slide show
(1) Click this button to go to next slide
(2) Press and hold over 1 second to start continued slide down at speed about 2~3 slides per
second. Release your finger to stop slide down
Press this button to shoot white LED light
Status
indicating
LED
(1) Light up when pressing the laser button
(2) Quick blink in 5 times after pressed any function key when battery power is detected low. Please
replace with new batteries soon for a stable control.
Note To avoid battery power consumption due to unintentional touch, any key function will be
automatically stopped after a continued pressing over 30 seconds!
ID Link
No need to conduct ID link process whenever you want to use this product,
UNLESS battery power is normal and USB receiver is within connection distance
but the product cannot be operated OR when you want to use plural of this product
at the same time. Please conduct following 2 steps to shun interference:
(1) Click the ID Link button on USB receiver and its red LED will light up and enter
into 20-second ID link stand-by time. Note If pressing again the ID Link button
during 20-second stand-by time, ID link action will be discontinued.
(2) Within the 20-second stand-by time, press and simultaneously until the
red LED of USB receiver becomes blinking for 3 times, the ID link has been
successfully done.
![](/img.php?id=1394643&img=bg5.png)
5
Trouble shooting
Question Possible cause How to resolve
Need to install software for first
use of this product? No need
Need to link ID before first use? No need
Possible to use 2 or more of this
product in a room at the same
time?
Yes, but please implement ID Link in
advance to avoid interference (see
“ID Link” for how to link)
Possible to use one presenter
with 2 or more USB receivers?
Yes but only when the presenter and
USB receivers are not conducted ID
Link
Laser pointer malfunction
1. Continued pressing of the laser
button over 30 second
2. Battery power is running out
1. Press the laser button again
2. Replace with new batteries
Remote control malfunction
1. Continued pressing of the
function button over 30 seconds
2. Interfered by other RF signal
1. Press the function button again
2. To Implement ID Link (see “ID
Link” for how to link)
Laser pointer and remote control
both malfunction
Batteries are inserted in wrong
direction or battery power run out
Check the insert direction of
batteries and battery power
Specifications (Note Design and specifications are subject to change without notice.)
Frequency range : 2400~2483MHz
Remote range : Approx. 160 feet (50 meters) line of sight
Operating voltage : 2.4V~3.2V
Power consumption: Normal operation < 10mA
Red laser operation < 30mA ; Green laser operation < 310mA
Sleep < 10uA
Power : AAA battery x 2
Output power : Under 1mW
Size : Presenter – 115 (L) x 38 (W) x 25 (H) mm ; USB receiver - 33.6 (L) x 16 (W) x 3.5 (H) mm
Weight : Approx. 33 grams (include USB receiver and Red laser)
Approx. 40 grams (include USB receiver and Green laser)
Operating temperature : 0°C (32°F) ~ 60°C (140°F)
※ Optimum operating temperature for green laser : 15°C(59°F) ~ 35°C(95°F)
Operating humidity (non-condensing) : 10%~85% RH
Red Laser :
Semiconductor laser (λ= 650nm), Emission duration : Continuous
Laser output power : Max. 0.95mW
Green Laser :
Semiconductor laser (λ= 532 nm), Emission duration : Continuous
Laser output power : Max. 0.95mW
![](/img.php?id=1394643&img=bg6.png)
6

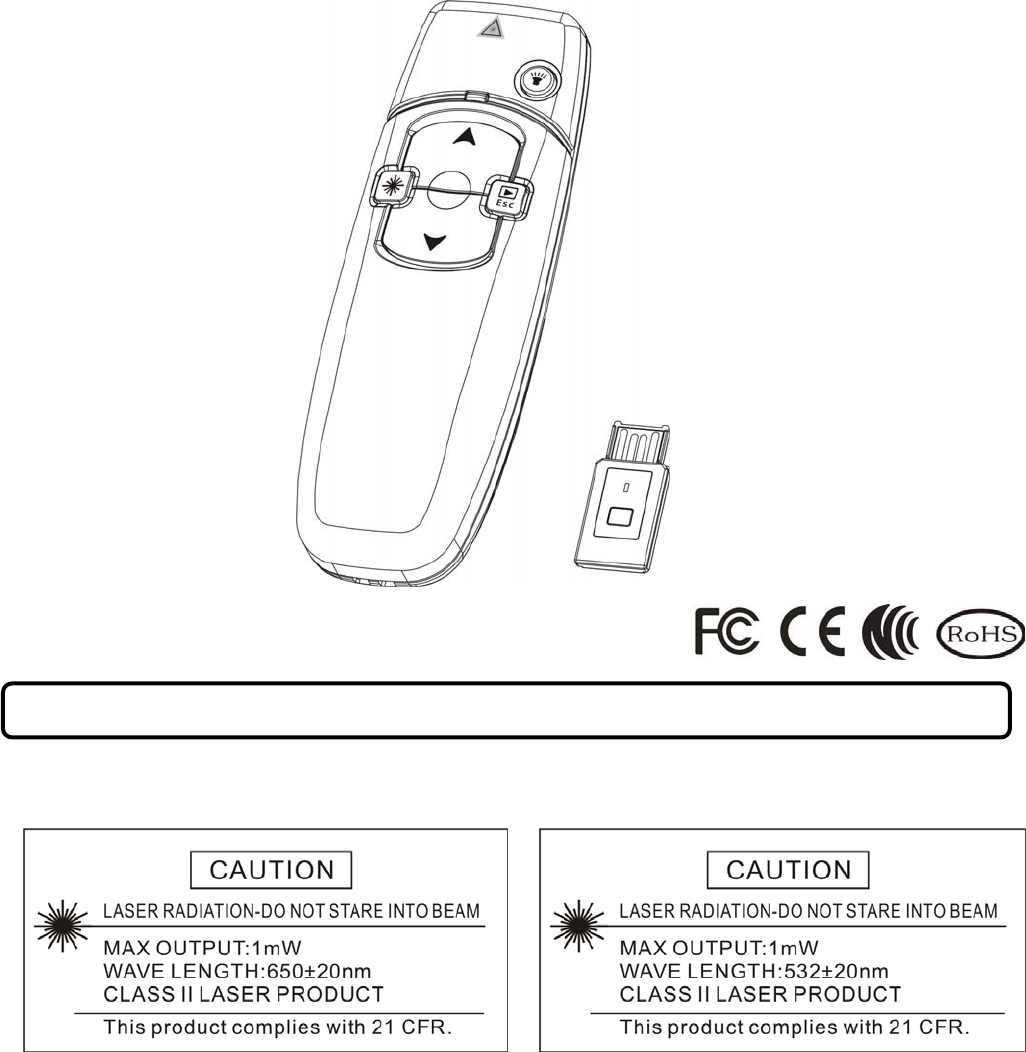

LED 照明無線簡報器 (2.4GHz)
使用說明書
© 2010 All rights reserved.
(注意:本產品具雷射功能,請勿將雷射光束直射眼睛並避免孩童把玩)
*經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或
變更原設計之特性及功能。
*低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善
至無干擾時方得繼續使用。前項合法通信,指依電信法規定作業之無線電通信。低功率射頻電機須忍受
合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
使用前請詳閱本使用說明,以正確操作本產品。 閱讀後並請妥善保存,以備日後參考
![](/img.php?id=1394643&img=bg7.png)
7
一、本產品包含:
1. 無線簡報器 x 1
2. USB 無線接收器 x 1
3. AAA 電池 x 2
4. 使用說明書 x 1
二、系統需求:
1. Windows® 2000 / XP / Vista / 7;簡報軟體:PowerPoint® 2000 或更新的版本
2. Mac OS X® v.10.4 (or later);簡報軟體:PowerPoint® X for Mac OS X 或更新的版本
3. USB 插孔

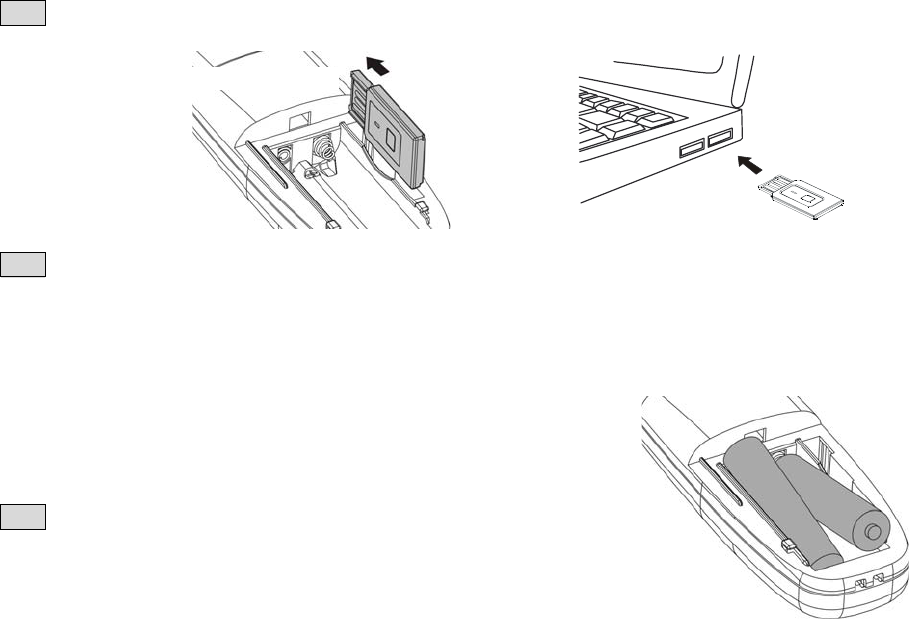

三、使用準備:
1. 打開簡報器背面的電池蓋,取出 USB 接收器,然後插到電腦之 USB 埠。 打開簡報所要用的
PowerPoint 檔案。
注意 第一次將 USB 接收器插入 Mac 電腦時,您的電腦可能無法辨識本裝置,請依下列步驟設定即
可正常使用。
插入 USB 接收器 → 鍵盤設定輔助程式 → 選擇"繼續"→ 按鍵盤上任意鍵 → 選擇“略過" →
選擇“ANSI" → 按"完成"
注意 將USB 接收器放回電池蓋內時,請注意接收器放置方向。
2. 打開無線簡報器背面之電池蓋,依電極指示方向置入電池。
注意 裝入電池後,按住雷射按鍵即會射出雷射光束,所以請特別注意不要將雷射出光口對著人的眼
睛使用雷射功能。
USB 金屬頭在前
+
-
-
+
![](/img.php?id=1394643&img=bg8.png)
8

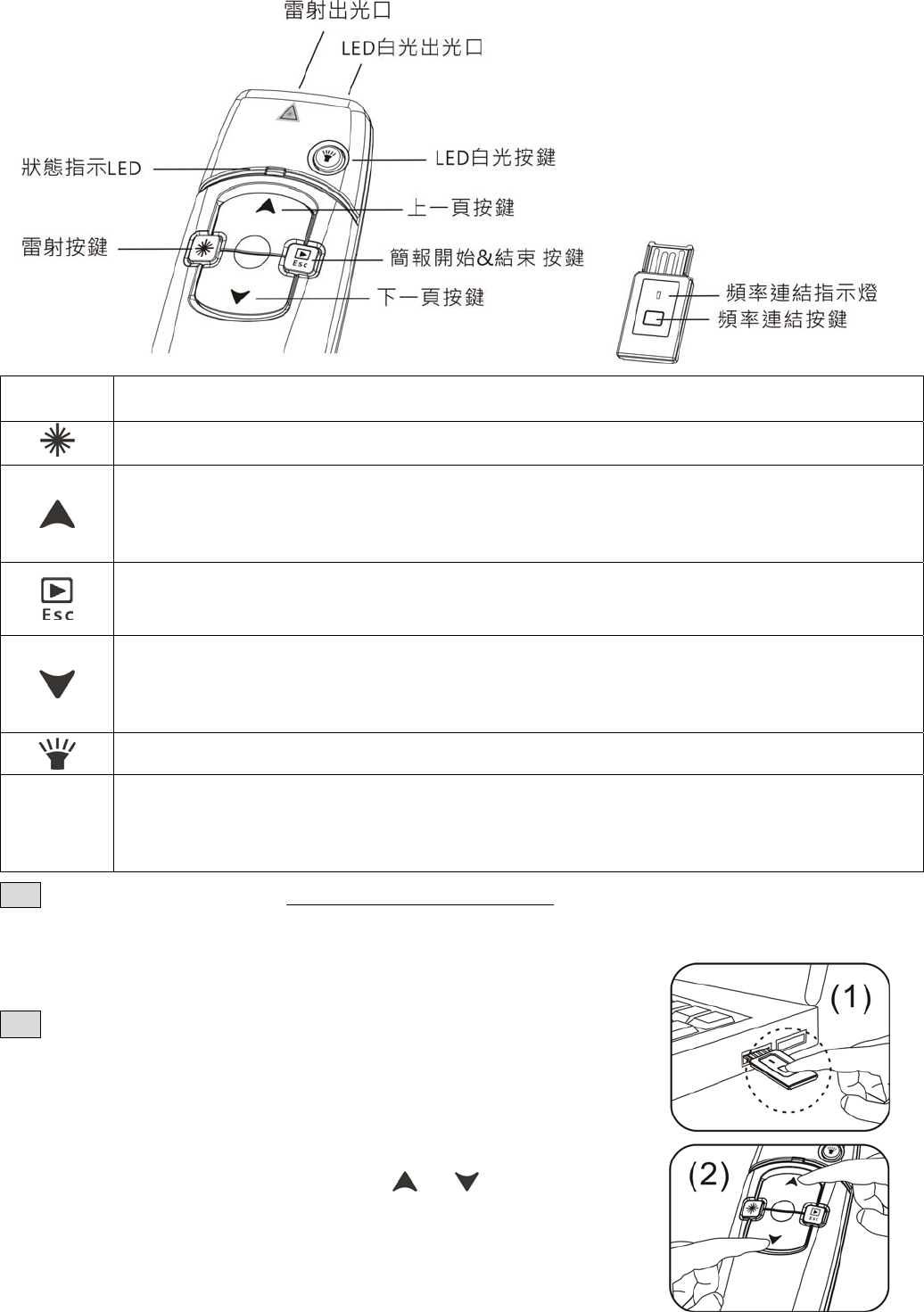

四、開始使用:
按鍵印刷 功能 & 操作說明
按住此鍵,發出雷射光束
1. 按一下此鍵,到上一張投影片
2. 按住此鍵超過 1秒以上,開始以每秒 2~3 張投影片的速度連續往上翻頁。 放開按鍵則停止
翻頁
1. 按一下此鍵,開始投影片放映
2. 按住此鍵超過 1秒鐘,結束投影片放映
1. 按一下此鍵,到下一張投影片
2. 按住此鍵超過 1秒以上,開始以每秒 2~3 張投影片的速度連續往下翻頁。 放開按鍵則停止
翻頁
按住此鍵,發出白色 LED 照明燈光
狀態指示
LED
1. 按住雷射按鍵時,LED 燈亮
2. 當簡報器電池電量被自動偵測出低電量時,按住任一功能鍵再放開後,LED 燈會快閃 5
次提醒。 建議儘快同時更換 2顆電池以確保操控功能及品質
注意 本產品有防誤觸設計,如果按住任一功能鍵超過 30 秒以上,功能會被自動關閉。 再按一下任一
功能鍵,即可重新開啟該功能。
五、重新連結頻率
注意 本產品出廠時已完成頻率連結,除非在電池電量正常,且簡報器跟接
收器在控制距離內卻無法控制或要在同一地點同時使用 2支以上本產品時,
才需執行重新連結頻率。 重新連結頻率步驟如下:
(1) 按一下 USB 接收器上的 LINK 按鍵,此時接收器上的紅色 LED 燈會亮
起,進入 20 秒重新連結頻率等待時間。
(2) 在20 秒等待時間內,同時按住簡報器上 及 兩按鍵直到接收器
上的紅色 LED 燈變成閃燈 3次,即表示成功完成重新連結頻率。
![](/img.php?id=1394643&img=bg9.png)
9
(六)、常見問題
問題 可能原因 解決方法
第一次使用時需先安裝軟
體嗎? 不需要
第一次使用時需先做頻率
切換嗎? 不需要
可以同時在同地點使用兩
支以上無線簡報器嗎? 可以,但在使用前請先執行 “重新連結頻
率” 以避免干擾
可以使用一支簡報器, 同時
控制兩台(或多台)電腦嗎? 可以,但需在簡報器以及 USB 接收器都
沒有執行過 “重新連結頻率” 才可以
雷射沒有反應 1. 連續按住雷射鍵超過 30 秒
2. 電池快沒電
1. 請放開再重按雷射鍵
2. 請更換新電池
簡報遙控功能沒有反應 1. 連續按住功能鍵超過 30 秒
2. 被其他 2.4GHz 產品干擾
1. 請放開再重按該功能鍵
2. 請執行 “重新連結頻率””
遙控及雷射同時沒有反應 電池沒電或放置方向錯誤 請檢查電池電極放置方向&電力
(七)、產品規格
使用頻率 2400~2483MHz
頻段/ID 數量 16 頻段/65,535 ID (每頻段)
遙控距離 開放空間︰50 公尺 (注意 控制距離可能因使用環境而有差異)
工作電壓 2.4V~3.2V
耗電量
遙控:< 10mA
雷射:紅光 < 30mA; 綠光 < 310mA
Standby:< 10μA
電源供應 AAA 電池 X 2
輸出功率 小於 1mW
重量 簡報器&接收器︰約 33 公克 (含紅光雷射);約 40 公克 (含綠光雷射)
體積(本體) 簡報器︰115 (長) x 38 (寬) x 25 (高) mm
USB 接收器︰33.6 (長) x 16 (寬) x 3.5 (高) mm
環境
操作溫度: 0℃(32℉) ~ 60℃(140℉)
※ 綠光雷射最佳操作:15℃(59℉) ~ 35℃(95℉)
操作濕度 (非冷凝狀態):10% ~ 85% RH
雷射 紅光:連續式半導體雷射 (λ= 650 nm);綠光:連續式半導體雷射 (λ= 532 nm)
雷射最大輸出功率:Max 0.95mW
注意 本裝置若有髒污,請用軟濕布擦拭(僅用清水),請勿使用酒精、揮發劑、稀釋劑、清潔劑擦拭。
