Raytrend Technology BOOMPACK Bluetooth Speaker User Manual

BoomPack

IN2UIT

Sound to go：iPad AlO BLUETOOTH SPEAKER CASE

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions carefully.

2. Heed all warnings.

3. Use in accordance with the manufacturer's instructions.

4. Only use attachments/accessories specified by the manufacturer.

5. Clean only with a dry cloth.

6. Do not use or place this apparatus near water.

7. Do not use near any heat sources such as radiators, stoves, or other

apparatus (including amplifiers) that radiate heat.

8. Protect the power cord from being trampled on, pinched or twisted at the

plug & tail ends.

9. Unplug this apparatus during lightning storms or when unused for long

periods of time.

10. Refer all servicing to qualified service personnel.

11. Servicing is required when the device has been damaged in any way.

.

WARNING

 To reduce the risk of fire or electrical shock, do not expose this

equipment to dripping or splashing and ensure that no objects with

liquids, such as vases, are placed near the device.

 Be advised that different operating voltages and power sockets require

matching adaptors and plugs for your particular region.

 Always observe the local safety regulations.

 If using the device connected to an AC power supply,, disconnect the

power supply cord from the AC outlet to completely turn off power

and/or battery charging.

 Do not place the device in a confined space with limited ventilation or

blockage.

 Do not open, disassemble or tamper with the device as there is a

serious risk of electric shock.

Service

 There are no user-serviceable parts.

 All service must be performed by qualified personnel

CAUTION

 Users are advised that any tampering or modifications to the device

that have not expressly stated in this manual could void your warranty

2

FEDERAL COMMUNICATIONS COMMISSION

(FCC) STATEMENT

This equipment has been tested and found to comply with the limits for a

Class B digital device, Pursuant to Part 15 the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reoiet o eloate the eeiig atea.

• Iease the sepaatio etee the euipet ad eeie.

• Conect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Cosult the deale o a epeieed adio/TV tehiia fo help.

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful Interference, and (2) This device must

accept any interference received, including interference that may cause

undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the

pat esposile fo opliae ould oid the use’s authoit to opeate

this equipment.

Contents

INTRODUCTION ............................................................................... 1

PACKAGE CONTENTS .................................................................. 1

Getting Started ................................................................................. 2

Opening ELECTROSTATZ™ tweeters ............................... 2

Using the cover as a stand ................................................... 3

OVERVIEW ........................................................................................ 5

Front view of the speaker ..................................................... 5

Rear panel of the speaker ..................................................... 5

OPERATING ...................................................................................... 6

Connecting to AC power ....................................................... 6

Inserting the iPad .................................................................... 6

Control button .......................................................................... 7

Audio Playback via Bluetooth wireless connection ...... 7

Charging the battery .............................................................. 9

Removing iPad ......................................................................... 9

System status indicator table .............................................. 9

Optimization of audio performance ................................. 10

TROUBLESHOOTING ................................................................... 11

CARE AND MAINTENANCE ........................................................ 12

CONTACTING CUSTOMER SERVICE ...................................... 13

WARRANTY .................................................................................... 13

TECHNICAL SPECIFICATIONS .................................................. 14

APPENDIX ....................................................................................... 14

Getting Started ....................................................................... 15

Overview .................................................................................. 16

Front view of the keyboard ......................................... 16

Rear view of the keyboard .......................................... 16

LED Indication ........................................................................ 17

Hot Key Functions ................................................................ 17

Pairing the keyboard ............................................................ 18

Troubleshooting and Tips ................................................... 21

1

INTRODUCTION

Dear Audiophile,

Thank you for purchasing ‘BoomPack’ by IN2UIT. BoomPack features

hi-end electrostatic tweeters using the proprietary SBESL (Self-Biased

ElectroStatic Loudspeaker) acoustic technology that we refer to as

ELECTROSTATZ™ Technology. The acoustic performance and

reproduction are of the highest quality and level, revitalizing your many

familiar sounding recordings into a new listening experience.

This advanced proprietary technology results from years of intense research

and development. IN2UIT are one of the very few companies who have

commercialized and realized this technology for the masses Each

ELECTROSTATZ™ tweeter is constructed in state-of-the-art facilities using

proprietary manufacturing techniques and equipment, cohering to rigorous

standards and manufacturing processes. To reproduce the ultimate sound

quality output from our devices, certain user requirements have been

addressed in this owner’s manual. By conforming to our tips and suggestions,

you will achieve the maximum performance from the device. We wish you

many years of enjoyment through BoomPack, our ultra-high performance

Bluetooth mobile speaker.

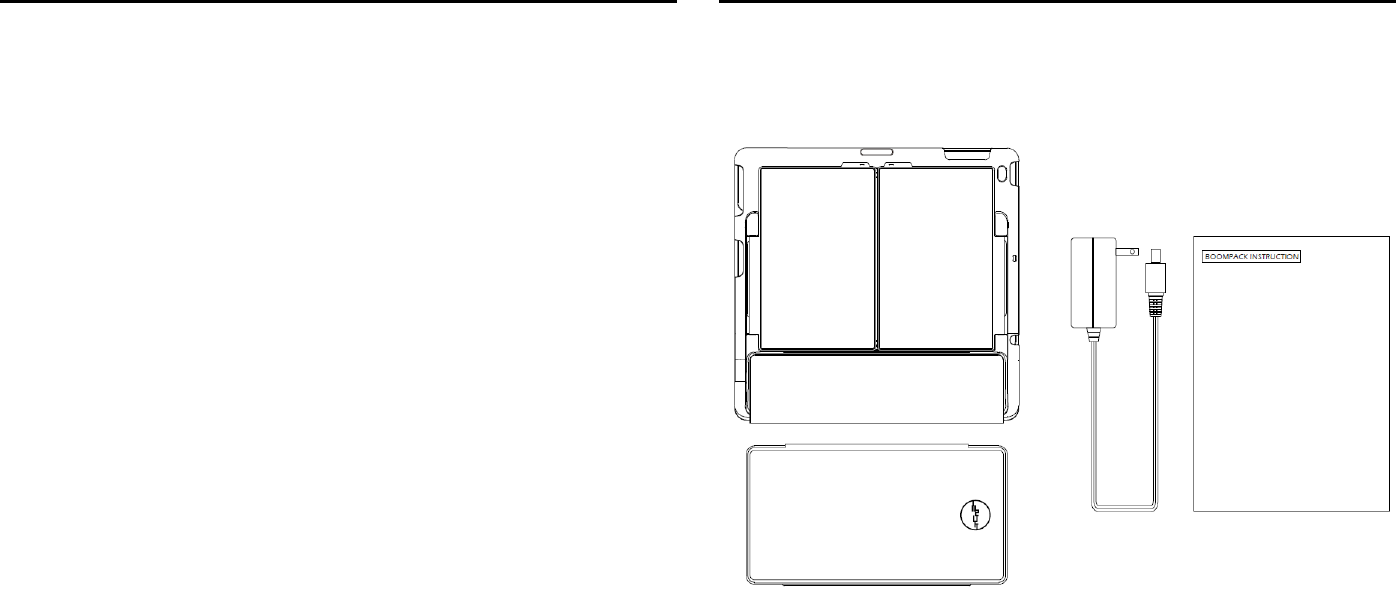

PACKAGE CONTENTS

 1 x BoomPack - Bluetooth mobile speaker device.

 1 x BoomPack - Bluetooth keyboard (optional)

 1 x 5V / 1A DC power adaptor (separated plug) (micro USB charger)

2

Getting Started

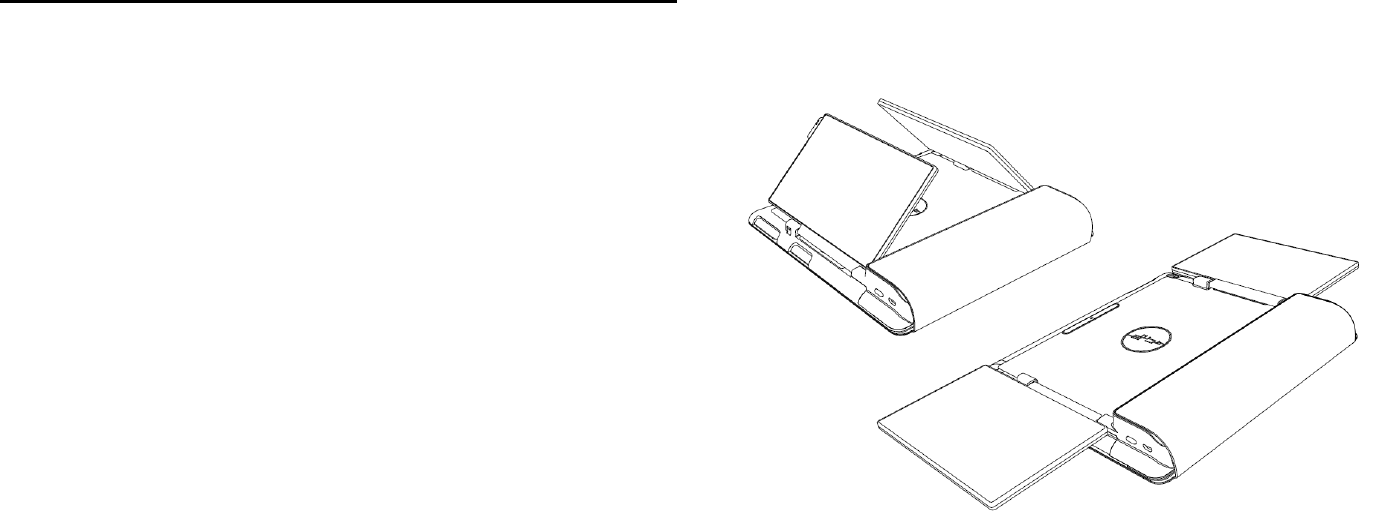

Opening ELECTROSTATZ™ tweeters

The ELECTROSTATZ™ tweeters are positioned in the rear of the

BoomPack case and held in position by hinges for convenient opening and

closing.To avoid damage, do not open/close or pull on the

ELECTROSTATZ™ tweeters with too much force and do not over extend

the tweeters past the engaged, listening position. Do not use the extended

tweeters as handles when carrying or moving the BoomPack.

1. In the closed position, the ELECTROSTATZ™ tweeters engage to the

rear of the case with magnets that hold the panels shut for convenient

mobiity and storage

2. For the best acoustic performance, the Electrostatz tweeters should

always be fully opened and facing the user when listening to

BoomPack’s audio playback.

3. To open the tweeters, gently rotate both panels outwards from the

closed position to the engaged, listening position. The panels should be

rotated until flush with the back surface of the rear case when fully

engaged. Do not over extend the tweeters past the flush, engaged

position as this will damage or break the Electrostatz tweeter panels

4. When fully opened and engaged the ELECTROSTATZ™ tweeters will

physically lock into position and the user will feel and hear the panels

‘click’ into position.

5. To close the panels, follow the above instructions in reverse order.

NOTICE: To avoid electric shock, do not use sharp objects such as pens

or needles to prod or pucture the ELECTROSTATZ™ tweeters.

3

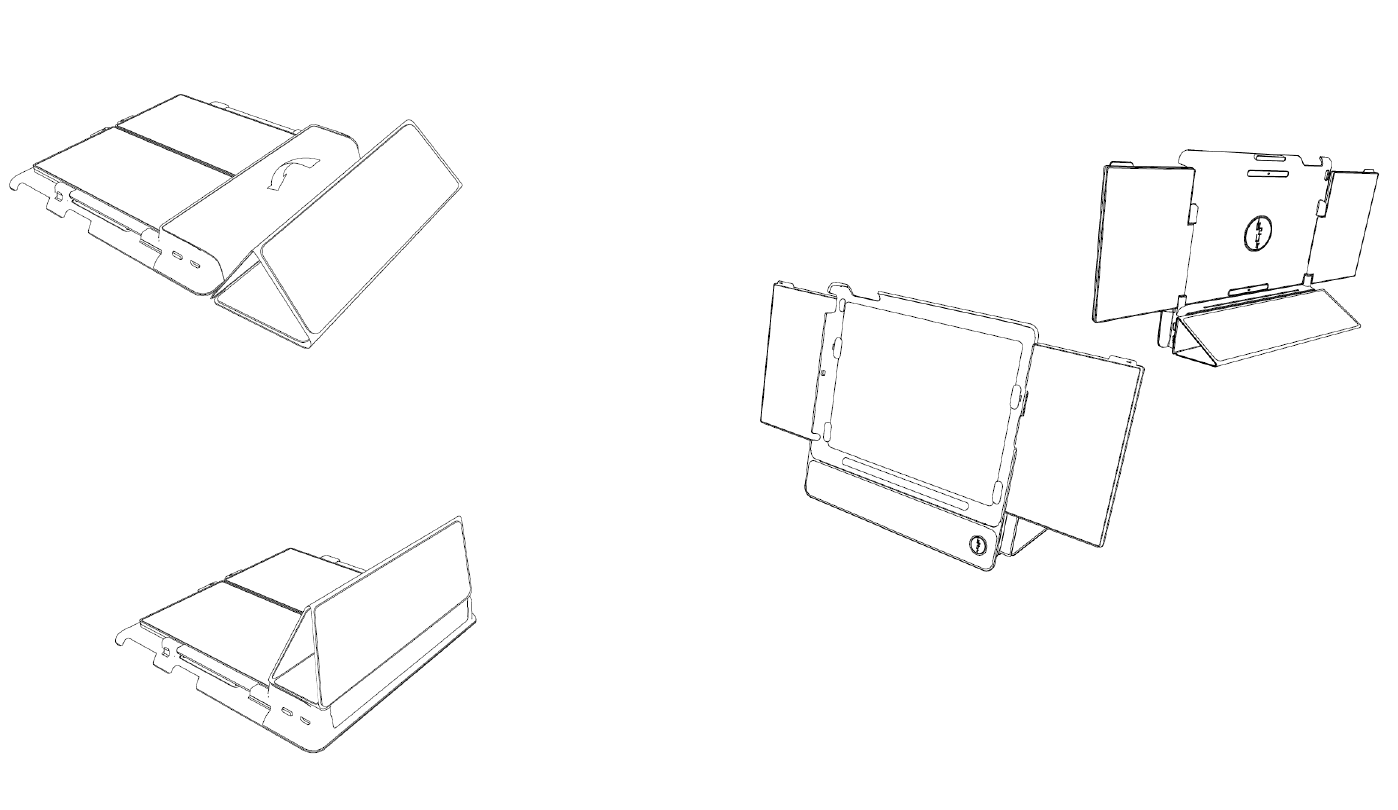

Using the cover as a stand

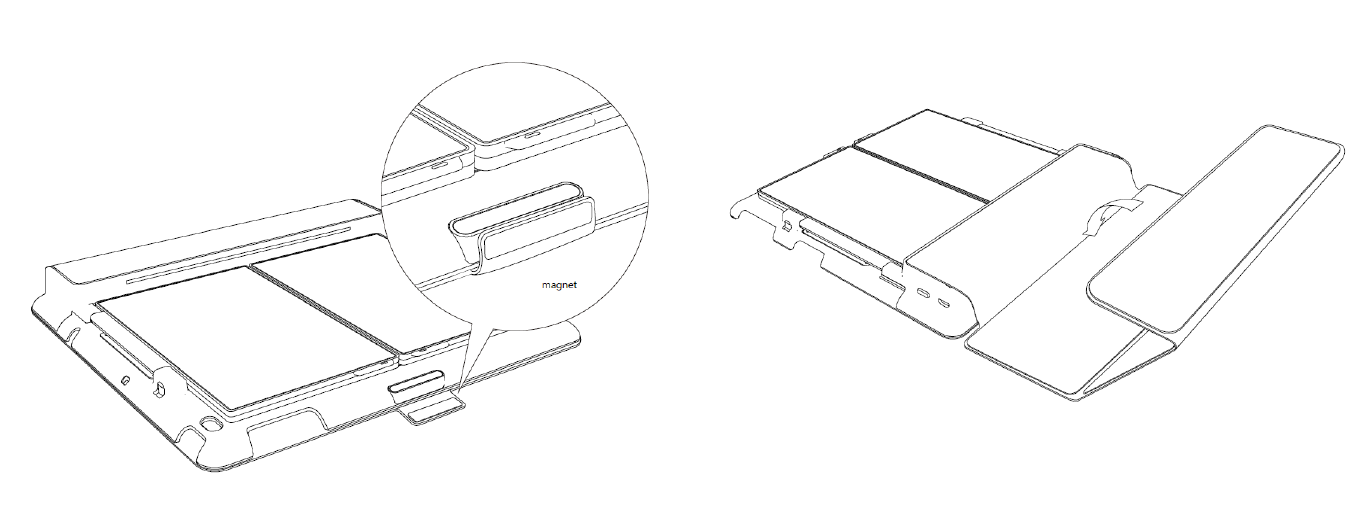

The display cover instantly attaches to the BoomPack with the magnetic

tabs .

1. In the closed position, the cover attaches to the front side of the

BoomPack. Pull on the magnetic tab to open the cover.

2. When the cover is folded up to act as a BoomPack stand, magnets

inside the Smart Cover automatically attach to the rear, protruding area

on the case. In the folded position the cover acts as a strurdy base.

4

3. Lean the BoomPack against the folded up cover for a sturdy base and

stand.

5

OVERVIEW

Front view of the speaker (opened position)

1. Receptacle fits both the iPad 2 and the New iPad

2. 2x SBESL ELECTROSTATZ™ tweeters (LHS / RHS stereo sound)

3. 1x Power / Bluetooth LED indicator (IN2UIT LOGO) (inset picture)

4. 1x mic (under mesh , near IN2UIT LOGO)

1x foldable cover stand

Rear view of the speaker (closed position)

1. 2x SBESL ELECTROSTATZ™ tweeter(LHS / RHS stereo sound)

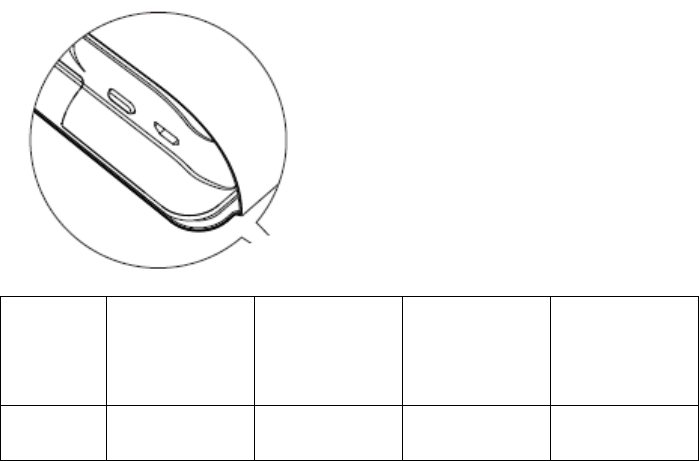

2. Power / Bluetooth pairing button (inset picture)

3. 1x micro USB connector (inset picture)

6

OPERATING

NOTICE:

For safety purposes always turn off the main power switch when plugging or

unplugging in the device from the AC power socket

Operating temperature is from -20 degrees to 40 degrees Celsius.

To avoid damage, don’t put the speaker in high temperature environment .

Connecting to AC power

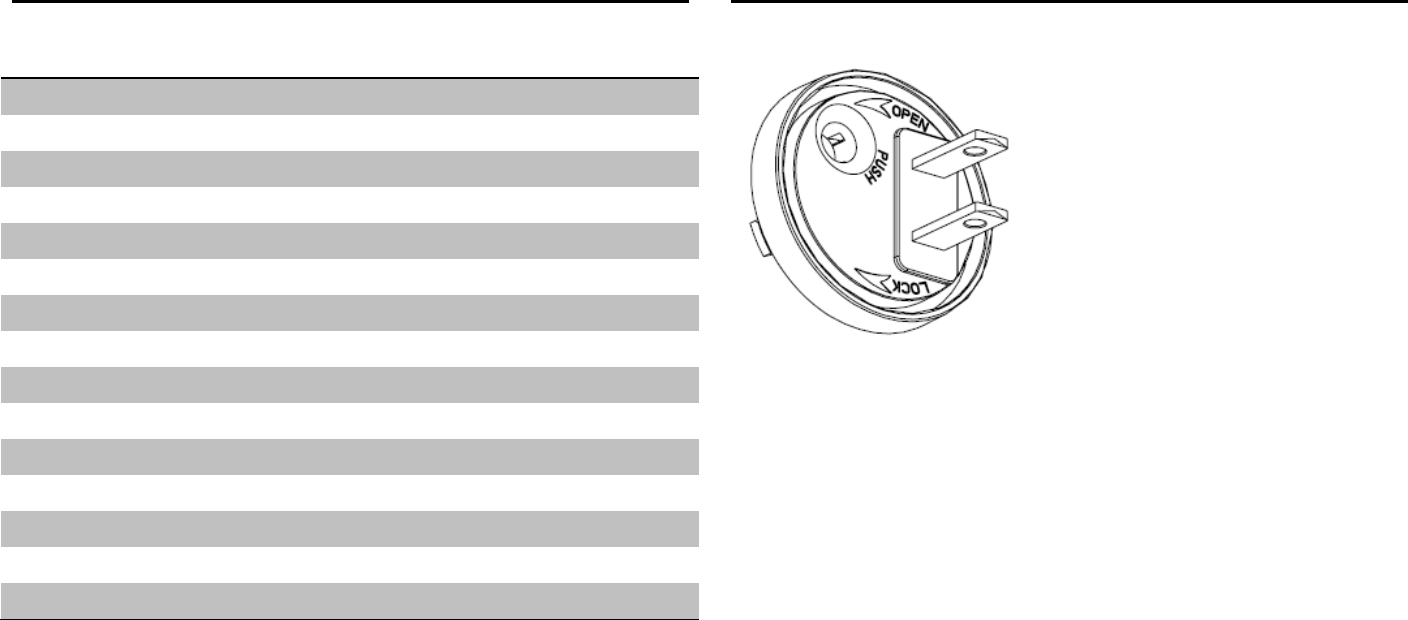

The universal power adaptor that comes with BoomPack accepts multiple

voltages (100-240V); however users are advised to check regional AC

voltage supply and plug type before connecting to the power supply. Prior to

connecting to the power supply, make sure the speakers are switched off

first. Engage the mirco USB on the side of the device. Turn on the speakers’

power as indicated below.

Inserting the iPad

Firstly, make certain the iPad is correctly orientated. Make sure all buttons,

connectors and camera of the iPad are aligned before inserting your iPad

into the Boompack receptacle. Place your iPad into the receptacle by

inserting the bottom edge of your iPad first and making certain it is securely

positioned and engaged with the corner underhooks. Rubber pads in the

receptacle should facilitate correct iPad fit for both iPad 2 and the new iPad..

Once the iPad’s lower edge is in position and secure, push the top edge of

the iPad firmly into the receptacle and ‘click’ into its fully engaged position.

Make sure the iPad is securely fixed before moving or using the BoomPack..

NOTICES:

 The BoomPack is designed for iPad2 and the new iPad.

 If the battery of your iPad is extremely low, charge it before operation.

7

Control button

Action

Power On

Power On +

Pairing

Re- Pairing

(after power is

on )

Power Off

Pressing

Time

1.5 seconds

2 seconds

Instant off

Audio Playback via Bluetooth wireless connection

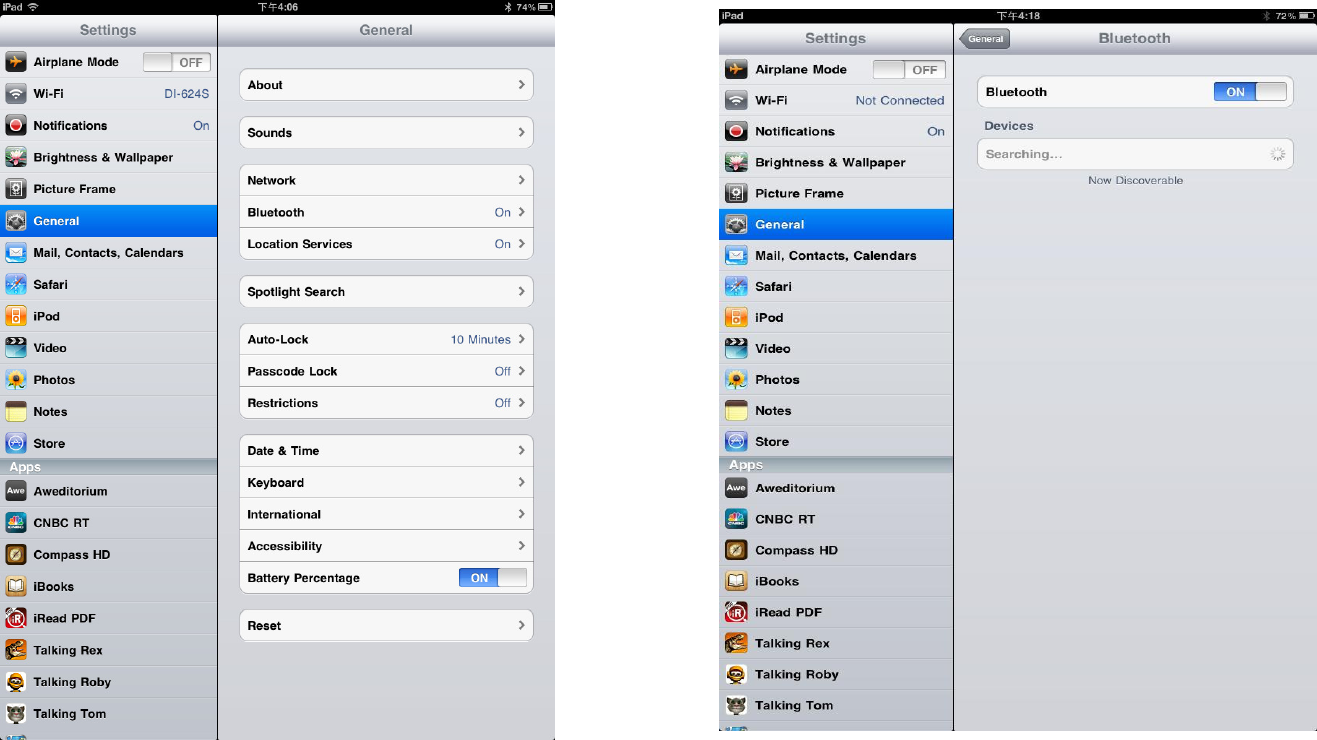

To begin pairing with your iPad for the first time

1. If the BoomPack device is already turned on, re-press and hold the

power button on the device for an additional two seconds (pairing mode)

to pair both devices for the first time. Please notice the LED will flash

from blue to orange when in pairing mode.

2. If the device’s power is off, press and hold the power button on the

speaker for two seconds to both turn on and pair the speaker.

3. Enable the Bluetooth function on your iPad and start the Bluetooth

search for the device named as “IN2UIT BoomPack”.

4. Choose and confirm the connection to “IN2UIT BoomPack” from your

iPad. When the devices are successfully paired a ‘Beep’ will ring out.

5. After successful connection, you are ready to listen to audio playback

from your iPad. Adjust the required volume on your iPad for comfortable

and non distorted playback. Maximum volume output may cause clipping

on some types of music.

8

NOTICES:

- Pairing occurs when two Bluetooth devices communicate with each other

and establish a connection. A record of information about this connection is

then stored in the memory of each device. Once you connect your iPad with

the BoomPack, you should not have to pair it again.

- You may have to enter the password “0000” in order to connect some

Bluetooth devices

- Setting up for conference calls. BoomPack supports Bluetooth

hands-free profile. You can use Skype and FaceTime on your iPad

connected to BoomPack for easy conference calling.

- Automatic Power shutdown. If there is no Bluetooth connection for over 10

minutes, the system will automatically shutdown. The user will need to

re-power the device after automatic shutdown.

Portable Operation

BoomPack is designed for mobile and convenient household and office

usage as a wireless Bluetooth speaker. It can be easily placed on any flat

surface. BoomPack can operate for up to 10 hours on a full battery charge. If

battery capacity is running low, the red LED indicator will flash twice per

second to remind you to recharge the device.

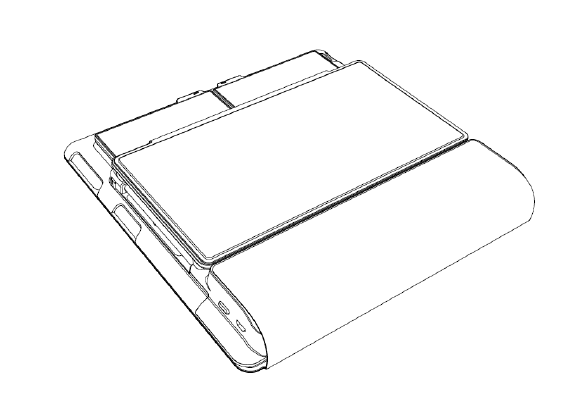

NOTICE: Perfect carrying case. You don’t need to remove the iPad when

you want to use the BoomPack in other places. The cover of the BoomPack

protects the iPad screen

NOTICE: Manually put your iPad into sleep mode, the BoomPack cover

does not have the sleep function mode

9

Charging the battery

To charge the battery, plug the power adaptor cable into the micro USB on

the side of the BoomPack speaker. Recommended charging time is 3 hours.

The red LED indicator will flash every 2 seconds when in charging mode and

will cease flashing when fully charged.

NOTICE: You can simultaneously charge your iPad and BoomPack. The

iPad charging port is completely accessible on the BoomPack. Use the

charging cable provided by Apple to separately charge iPad.

Removing iPad

1. Close the ELECTROSTATZ™ tweeters and shutdown the power of

BoomPack before inserting or removing iPad.

2. Remove iPad from the top edge first

3. Press the top edge corners of BoomPack first, one at a time,

disengaging the top corners of the iPad from the BoomPack

4. Pull out the iPad from the receptacle carefully, top edge of the iPad

should be removed first.

5. Inserting the iPad is in the reverse order of the above sequence

System status indicator table

LED Indication table

Table 1 status indication

Status

LEDs

BT Connected

Pairing

Not paired

Blue

On

Flash(0.5s)

On

Red/Orange?

Off

Flash(0.5s)

On

Table 2 charging indication

Status

If speaker is turned on

If speaker

is turned off

BT

Connected

Pairing

Not paired

Charging

Blue-LED

flashes twice

every 5

seconds

No effect

Blue-LED and

Red-LED

flash twice

every 5

seconds

Red-LED on

Fully

charged

No effect . LED indicator display same as

table1

Every LED off

10

Beep indication table

Status

Tones

Power

On

Power

Off

Connected

Disconnected

Low battery

High

3rd

1st

Mid

2nd

Low

1st

3rd

1st

1st+2nd

Actions

Low to

high

(triple)

High to

low

(triple)

High (once)

Low (once)

“Beep”twice

every 20 seconds

Optimization of audio performance

IN2UIT systems feature proprietary, leading edge Electrostatic Loudspeaker

(ESL) technology that we call our ELECTROSTATZ™ tweeter technology.

The ethereal acoustic characteristics provide the user with the highest class

of audio playback. In order to maximize this performance, it is advised to

read the following instructions:

1. ELECTROSTATZ™ tweeters are dipole transducers. This means

the sound waves are transmitted from both sides of the diaphragm in

opposite polarity. A dipole transducer produces one sound wave to

the front and another sound wave to the rear.

2. When correctly positioned, for example, closer to the wall, the

reflected ESL back sound wave can be amplified and help create a

wider, deeper sound stage for more realistic acoustic performance.

The result is life-like music reproduction previously unachieved in the

market place of comparably sized audio systems.

11

TROUBLESHOOTING

Problem

Action

Speaker will not turn

on (AC power)

• Make sure your system is connected to a working AC

(mains) outlet.

Speaker will not turn

on (battery power)

• Battery may be discharged – connect to working AC

(mains) outlet to recharge the battery to operational

mode.

Paired iPad will not

connect

• Turn the BoomPack speaker off and back on again

• Remove the BoomPack speaker from the pairing list on

your iPad pairing list (consult the device owner’s manual

for assistance). Then pair the iPad and the BoomPack

speaker again.

BoomPack speaker

indicates a

connection, but is not

playing music

• Turn off or disable Bluetooth on the iPad and reconnect

the iPad.

• Turn the BoomPack speaker off and back on again.

Cannot pair the

BoomPack speaker

with my iPad

• Make sure your BoomPack speaker is discoverable.

Press and hold the power button (three seconds) until the

LEDs slowly flash.

• Make sure the Bluetooth capability of your iPad is turned

on.

• Make sure your iPad supports the transfer of audio.

• Move your iPad and/or BoomPack speaker away from

other devices that generate electromagnetic interference.

Examples are cordless phones, microwave ovens,

wireless network routers, or other Bluetooth devices.

• If possible, turn off all other nearby Bluetooth devices.

• Turn the BoomPack speaker off and back on.

• Refer to the owner’s guide, help system, or technical

support for your mobile device to learn how it pairs with

other Bluetooth devices.

No audio from iPad

• Make sure your iPad is playing audio, and the volume is

up.

• Turn the BoomPack speaker off and back on again.

12

Poor sound quality

from iPad

• Move your iPad and/or BoomPack speaker away from

any device that generates electromagnetic interference,

such as another Bluetooth device, cordless phone,

microwave oven, or wireless router.

• Reduce the number of applications running on your

iPad. Running multiple applications can reduce the

amount of internal resources available to transmit audio.

Closing non-essential applications may improve audio

quality.

• Try turning off Wi-Fi to improve audio quality.

• Try un-pairing your iPad from the BoomPack speaker

and then re-pairing the two. This action can possibly clear

issues that might have occurred during initial device

pairing.

• Turn the BoomPack speaker off and back on

CARE AND MAINTENANCE

Components of the highest quality are used in BoomPack. This assures

years of trouble free operation. The following precautions should still be

strictly adhered to.

Cleaning

Use a specialized cleaning brush or vacuum cleaner (low setting) with nozzle

attachment to the device. If you wish to use a cleaning agent, apply it onto

the cleaning cloth, not directly onto the product. Test a small area first, as

some cleaning products may damage the surfaces and materials. Avoid

products that are abrasive, contain acid, alkali or anti-bacterial agents.

Recycling used products

This product is subjected to the European Union Waste

Electrical and Electronic Equipment directive (WEEE), 2002/96/EC. This

product must not be disposed of as unsorted municipal waste and must be

collected separately and disposed according to your national regulations.

13

CONTACTING CUSTOMER SERVICE

For questions concerning the BoomPack wireless, mobile speaker, contact

your local IN2UIT dealer. To contact IN2UIT directly, consult the contact

information included with your BoomPack speaker or visit www.IN2UIT.com

WARRANTY

 The warranty only covers faults or defects in material and production.

Damage caused as a result of abuse, misuse or tampering is not

covered by the warranty.

 All warranty claims must be accompanied by a copy of the original filled

out warranty document and certified by your dealer.

 Purchasing invoice and warranties are only valid in the country or

market of original origin and distribution. Should warranty service be

required, it must be arranged for in the country of purchase by an

authorized dealer.

14

TECHNICAL SPECIFICATIONS

System

Two-way active speaker

Bluetooth speaker with mic

Frequency Response (+/- 3 dB)

170Hz – 30kHz

Sensitivity (1m/1W on axis)

80dB

Power consumption

Idle: 2W / Max: 2.5W

Amplifier power

Tweeter: 2+2W / Woofer: 2+2W

Bass Principle

Closed

Crossover Frequency

1.6 kHz

Crossover Slope

12db/Oct

Tweeter

ELECTROSTATZ™ ESL x 2

Woofer

31mm PP cone x 2

Weight (Kg)

0.58kg

Dimensions (W x H x D) ( mm )

246 X 232 X 30

Bluetooth Specification

Version 2.1 + EDR

Supported Bluetooth Profiles

A2DP, Hands-Free

Bluetooth operating Range

Up to 10 meters

Battery

Li-Ion Polymer 3.7V, 1500mAh

APPENDIX

 Hold down the push button then rotate counterclockwise to open the

plug from the adapter.

 Hold down the push button then rotate clockwise to lock the plug on the

adapter.

15

BLUETOOTH KEYBOARD(OPTIONAL)

Getting Started

Thank you for choosing this ultrathin keyboard with Bluetooth

technology to ensure no hinder communication between the

keyboard and your computer without connecting cable. The

transmission and receiving of keyboard are free from angle

restriction with operation distance for 10 meters.

16

Overview

Front view of the keyboard

1. 1x Power / Bluetooth LED indicator (IN2UIT LOGO) (inset picture)

Rear view of the keyboard

1. Power / Bluetooth pairing button (right inset picture)

2. 1x micro USB (left inset picture)

17

LED Indication

 Battery Status

Battery low : Red Led flashes slowly

Charging：Red Led flashes quickly

Fully Charged：Led goes off

 Connect Status

Power On: Green Led brighten for few

seconds

Pairing : Green Led flashes for

approximately 3 minutes

Searching: Green Led flashes till search is

finished

Hot Key Functions

(ESC) : Go to Home Screen

(F1) : Hide or Unhide Screen Keyboard In

I-pad

(F2) : Activate Default Search Function

(F3) : Language Selection

(F4) : Screen Lock

(F5) : Photos

(F6) : Select All

(F7) : Copy

(F8) : Paste

18

(F9) : Cut

(F10): Go to Previous Track

(F11): Play/Pause

(F12): Go to Next Track

: Mute

: Volume Down

: Volume Up

Pairing the keyboard

1. Set power switch in the back of the keyboard to

͞On͟

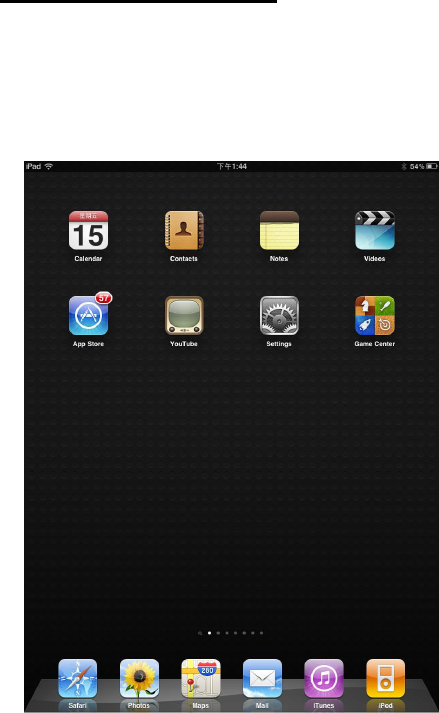

2. Tap the settings icon

19

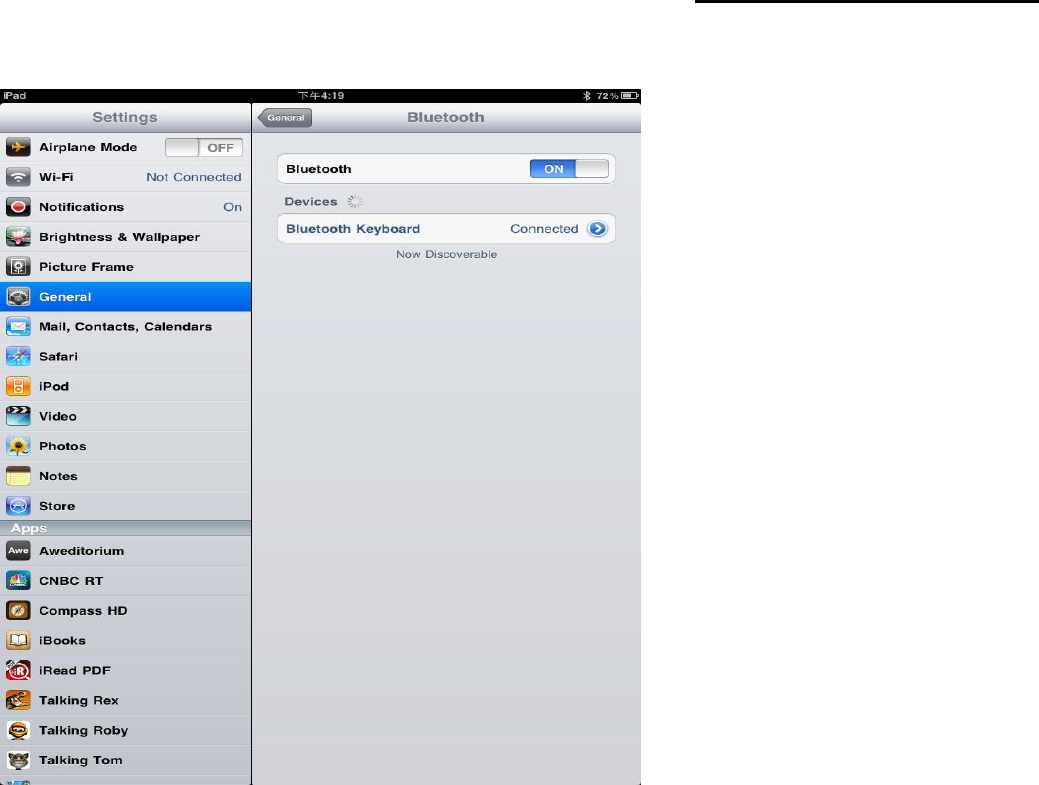

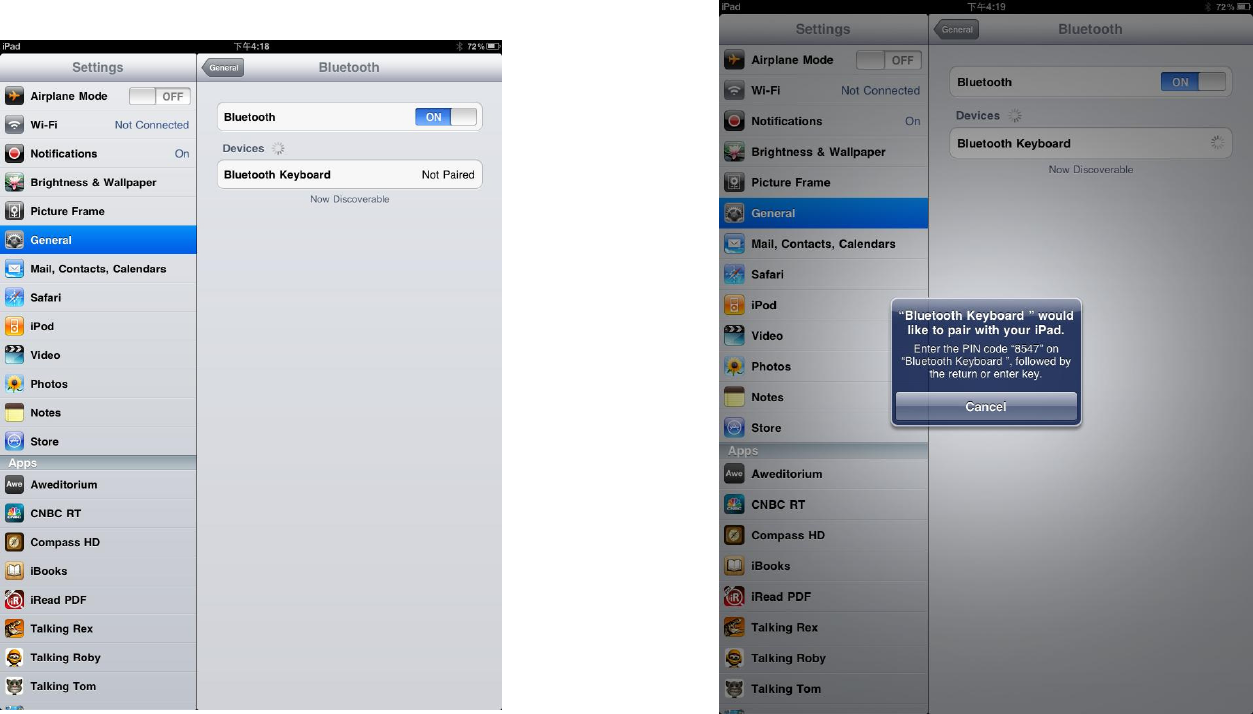

3. Under General, tap on Bluetooth

4. Turn Bluetooth ON from iPad

20

5. Press Connect Button in the bottom of the

keyboard. You will see a Green Led flashing on

IN2UIT LOGO.

6. Tab on “IN2UIT BT Keyboard”, and you will be

requested to enter a passkey on the keyboard

21

7. When the pairing finishes, you can see the IN2UIT

BT Keyboard is connected.

Troubleshooting and Tips

When the keoad does’t function or stop working, please help check

below:

• Make sue the rechargeable battery is not too weak.

• To deteie hethe the keyboard, mouse or computer cause the problem,

please test the keyboard and mouse on

second computer if possible; or test another keyboard and mouse on your

current computer.

If you are still unable to solve the problem, please contact your point of sale

or your dealer.

22
