Users Manual
DTD :1/2/2018
USER MANUAL FOR
GAMING MOUSE (MODEL: RZ01-0248)
AND
GAMING MOUSE MAT (MODEL: RZ02-0248)
F O R G A M E R S . B Y G A M E R S .
™
1
PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
Gaming Mouse (Model: RZ01-0248)
Gaming Mouse Mat (Model: RZ02-0248)
Detachable USB to Micro-USB cable
Important Product Information Guide
SYSTEM REQUIREMENTS
PRODUCT REQUIREMENTS
PC with a free USB port
RAZER SYNAPSE 3 REQUIREMENTS
Windows® 7 (or higher)
Internet connection
500 MB of free hard disk space
F O R G A M E R S . B Y G A M E R S .
™
2
REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Register your product online at razer-id.razerzone.com/warranty to get real-time information on
your product’s warranty status.
If you haven’t registered for a Razer ID yet, register now at razer-id.razerzone.com to get a wide
range of Razer benefits.
TECHNICAL SUPPORT
2 years limited manufacturer’s warranty.
Free online technical support at support.razerzone.com.
Your product’s serial number
can be found here.
PLACEHOLDER IMAGE
F O R G A M E R S . B Y G A M E R S .
™
3

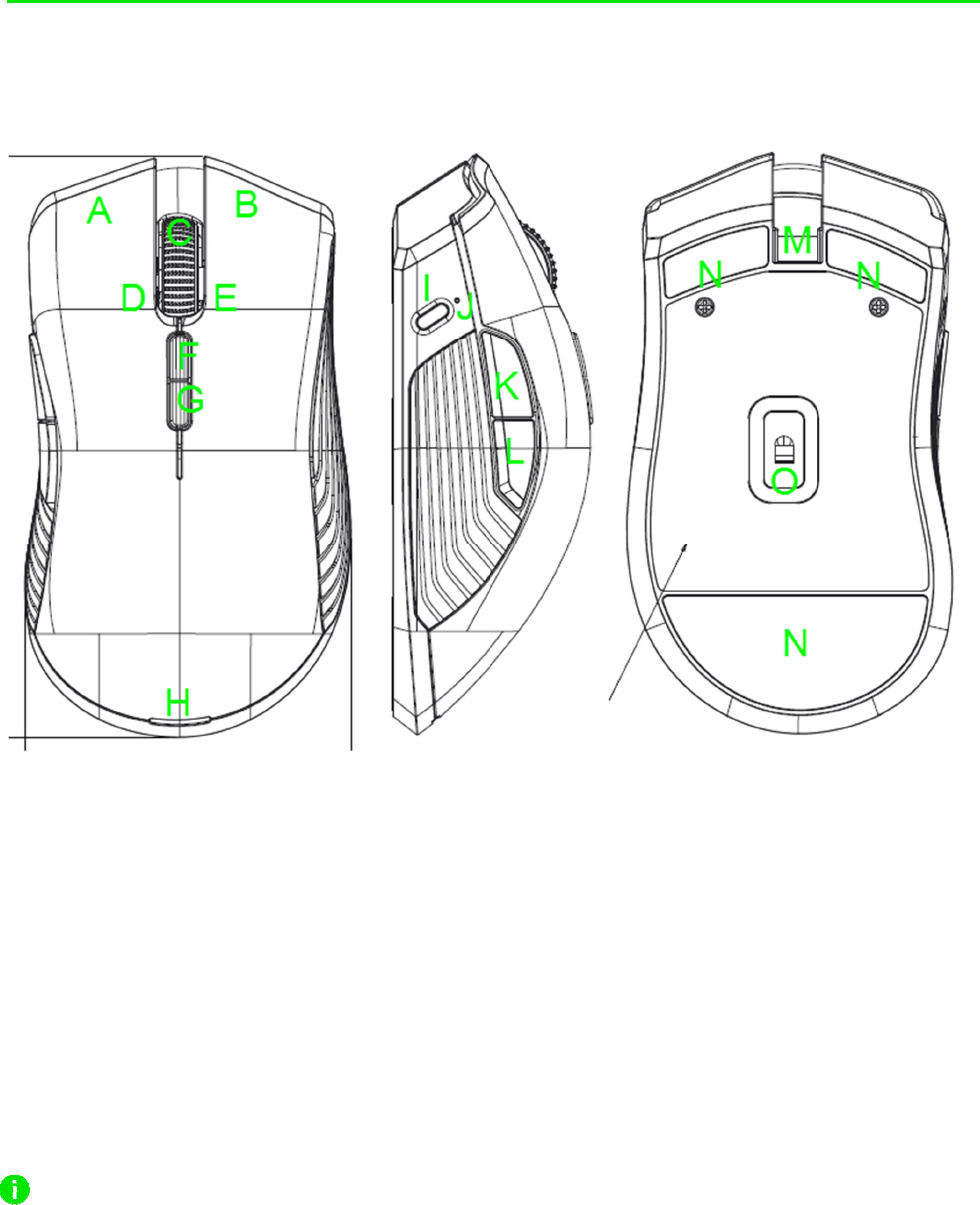

DEVICE LAYOUT
RAZER MAMBA HYPERFLUX
A. Left mouse button
B. Right mouse button
C. Scroll wheel
D. Left tilt-click —repeat scroll down
E. Right tilt-click —repeat scroll up
F. DPI stage up
G. DPI stage down
H. Power indicator (mouse)
I. Profile button
J. Profile indicator
K. Mouse button 5
L. Mouse button 4
M. Micro-USB port
N. Ultraslick mouse feet
O. True 16,000 DPI 5G optical sensor
Default DPI stages are as follows: 800, 1800, 4500, 9000, and 16000. The DPI stages can be
customized using Razer Synapse 3.
PLACEHOLDER IMAGE
F O R G A M E R S . B Y G A M E R S .
™
1

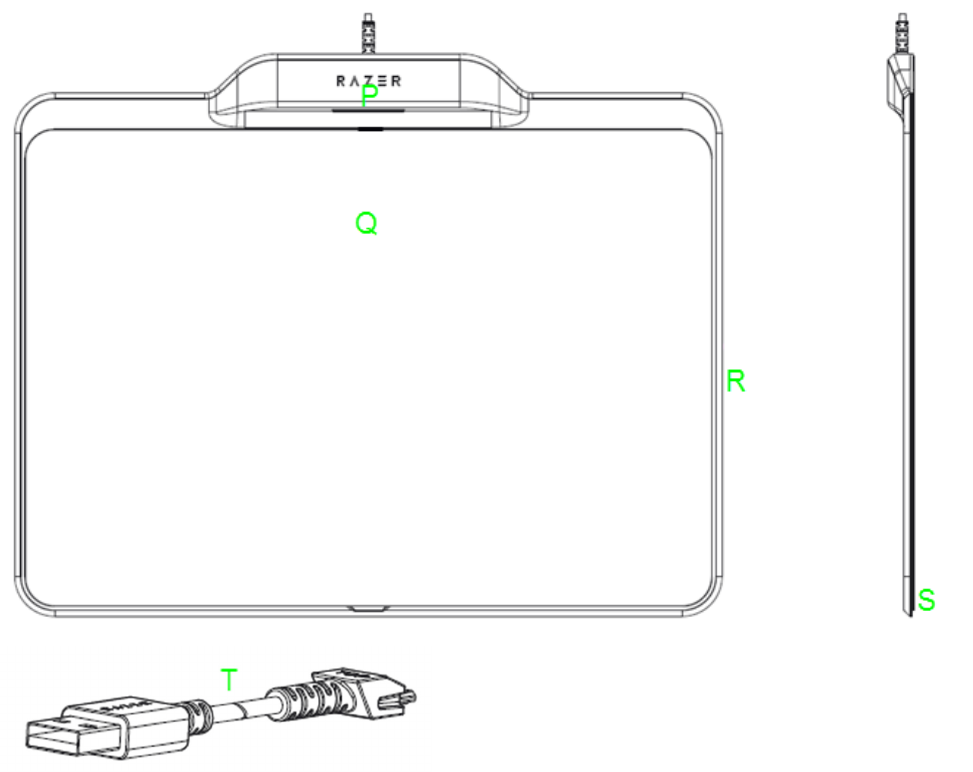

RAZER FIREFLY HYPERFLUX
P. Power indicator (mouse mat)
Q. Dual-sided hard/cloth mouse mat surface
R. Customizable Razer Chroma™ lighting
S. Non-slip rubber base
T. Detachable USB to Micro-USB cable
PLACEHOLDER IMAGE
F O R G A M E R S . B Y G A M E R S .
™
2
USING YOUR RAZER MAMBA HYPERFLUX AND RAZER FIREFLY
HYPERFLUX

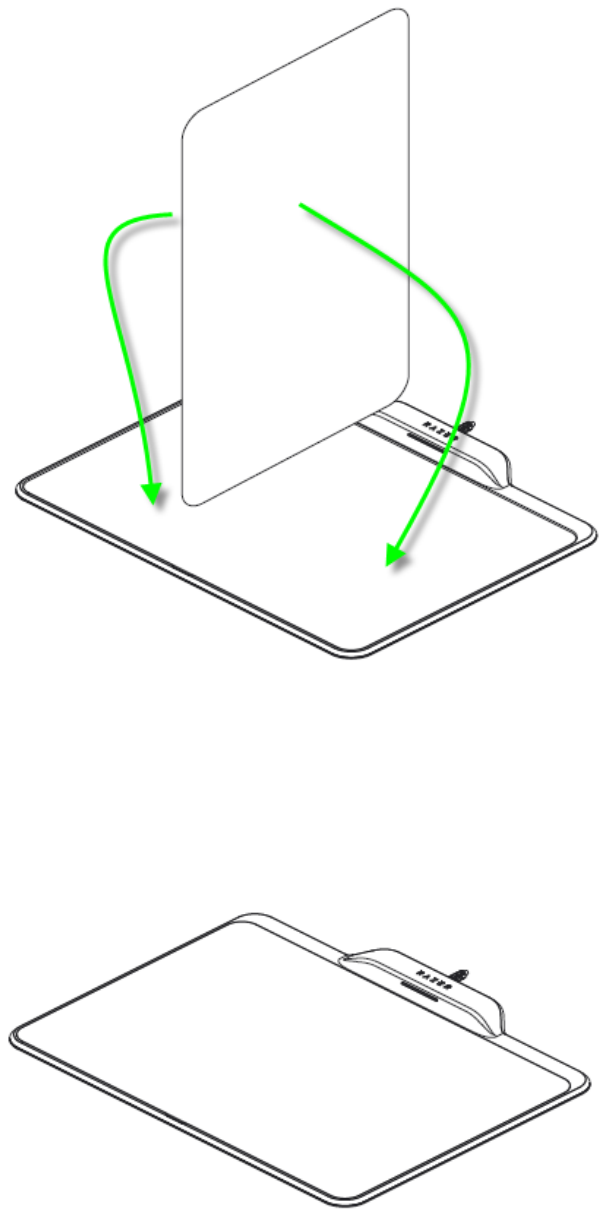

DUAL-SIDED HARD/CLOTH SURFACE
The Razer Firefly HyperFlux includes a dual-sided hard/cloth surface. To change surfaces:

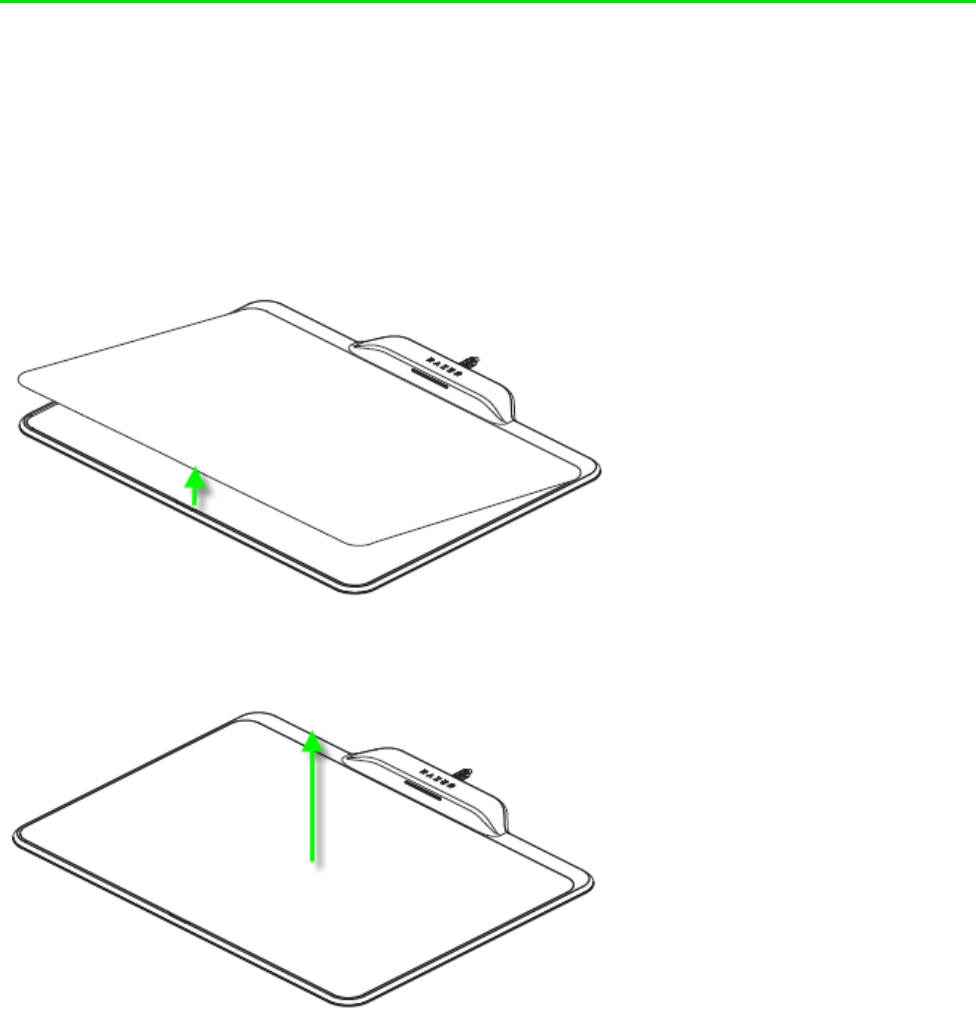

1. Remove the surface from the base using the pull tab on the bottom-middle of the mat.
2. Remove the protective film covering the charging plate.
3. Place either the hard or the cloth surface to the base.
PLACEHOLDER IMAGE
PLACEHOLDER IMAGE
F O R G A M E R S . B Y G A M E R S .
™
3
WIRELESS MODE
The Razer Mamba HyperFlux features a battery-free operation that is powered wirelessly via the
Razer Firefly HyperFlux. To setup the Razer Mamba HyperFlux in wireless mode:
1. Place the Razer Firefly HyperFlux on a flat, non-metallic surface.
PLACEHOLDER IMAGE
PLACEHOLDER IMAGE
F O R G A M E R S . B Y G A M E R S .
™
4

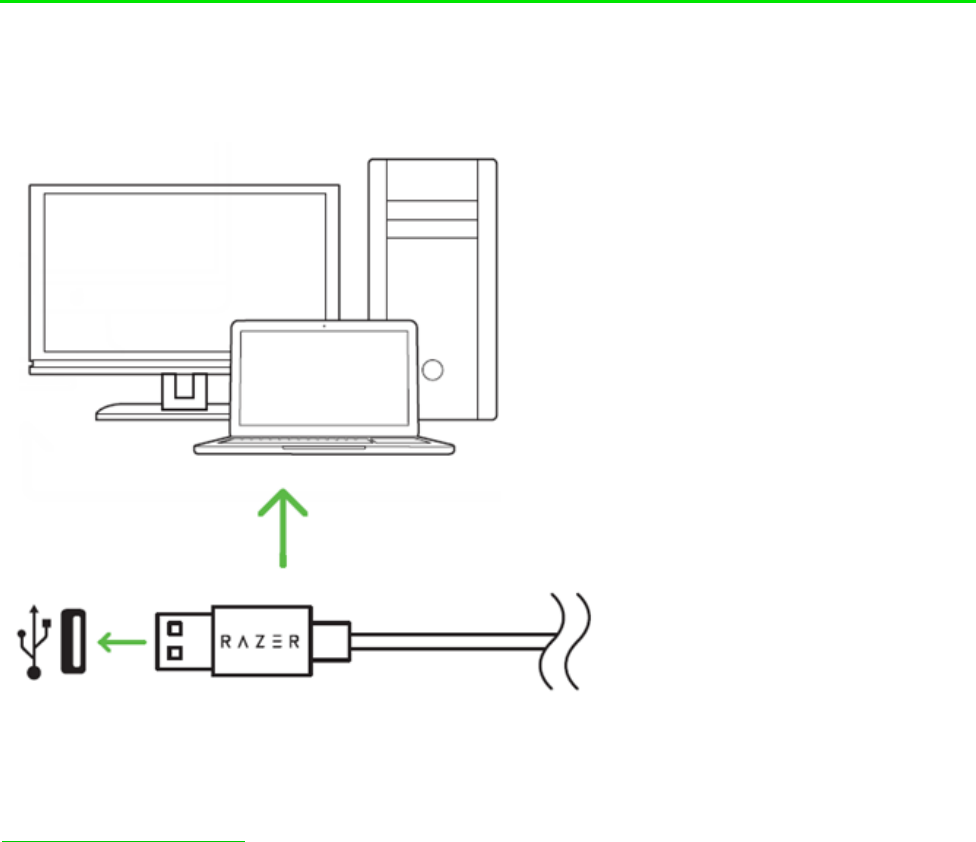

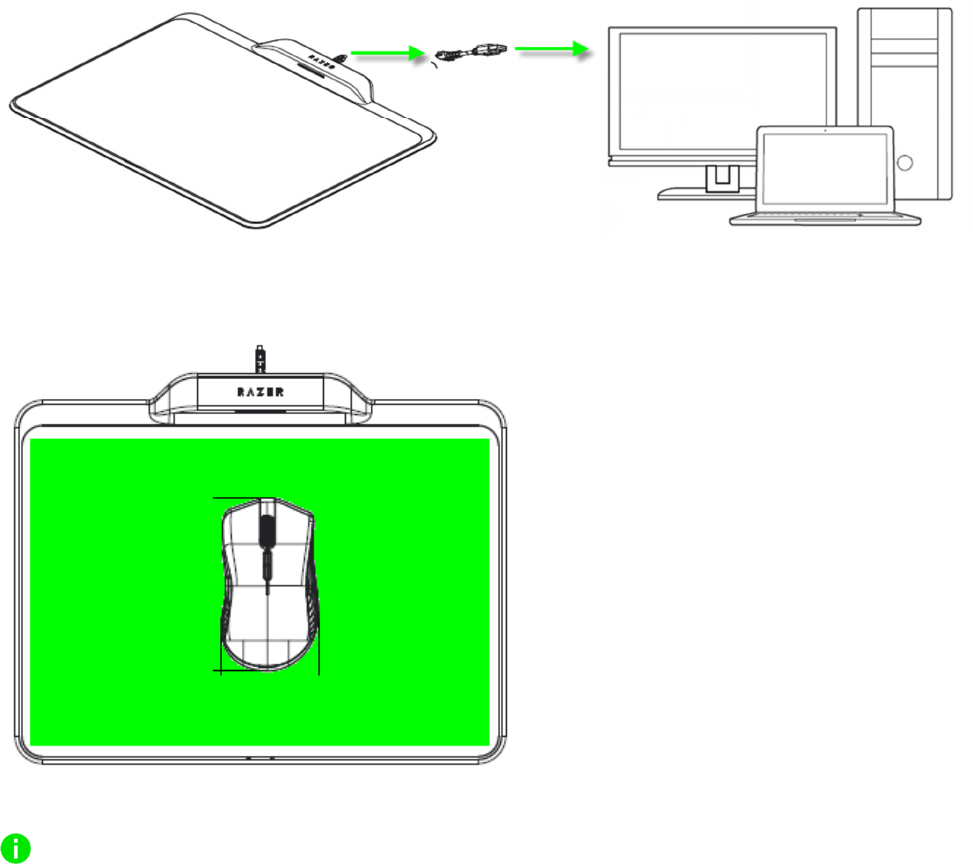

2. Plug the USB to Micro-USB cable from the Razer Firefly HyperFlux to your computer.
3. Place the Razer Mamba HyperFlux within the dual-sided hard/cloth surface area to ensure
that the Razer Mamba HyperFlux will receive adequate power.
Do not place the Razer Firefly HyperFlux on top of any metallic surface or place a cellphone or other
metallic objects on top of the mat as it will affect the power transfer between devices. Do not place
the Razer Firefly HyperFlux within 1 meter of a Wi-Fi router. The Razer Firefly HyperFlux requires a
USB connection that can supply sufficient power. It is recommended to connect the Razer Firefly
HyperFlux directly to the USB port of your computer as the power supply may be affected if
connected to a non-powered USB hub or non-powered USB port found on certain peripherals.
PLACEHOLDER IMAGE
PLACEHOLDER IMAGE
F O R G A M E R S . B Y G A M E R S .
™
5
WIRED MODE
The Razer Mamba HyperFlux also features a wired mode for use without the Razer Firefly
HyperFlux. To setup the Razer Mamba HyperFlux in wired mode, simply plug the provided
detachable USB to Micro-USB cable from the Razer Mamba HyperFlux to your computer.
POWER INDICATOR
The Razer Mamba HyperFlux and Razer Firefly HyperFlux includes a power indicator to show its
status as listed below:
Status Power indicator (mouse) Power indicator (mouse mat)
Razer Mamba
HyperFlux is on
Wireless Mode
100% brightness
100% brightness
Razer Mamba
HyperFlux is on Wired
Mode
0% brightness
0% brightness
Only Razer Firefly
HyperFlux is detected
0% brightness
50% brightness
Foreign object
detected on Razer
Firefly HyperFlux
Blinking red
Blinking red
F O R G A M E R S . B Y G A M E R S .
™
6
INSTALLING RAZER SOFTWARE FOR YOUR RAZER MAMBA HYPERFLUX
AND RAZER FIREFLY HYPERFLUX
Step 1: Make sure your Razer device to the USB port of your computer.
Step 2: Install the Razer software when prompted* or download the installer from
razerzone.com/software.
Step 3: Create your Razer ID or log in using an existing account.
*Applicable for Windows 8 or later.
PLACEHOLDER IMAGE
F O R G A M E R S . B Y G A M E R S .
™
7
CONFIGURING YOUR RAZER MAMBA HYPERFLUX AND RAZER FIREFLY
HYPERFLUX VIA RAZER SYNAPSE 3
STORED PROFILES
Your Razer Mamba HyperFlux can store up to 5 profiles from Razer Synapse 3, which you can use
even on systems that do not have Razer Synapse 3 installed. Pressing the profile button will cycle
through the different profiles, with the profile indicator’s color showing which profile is currently
selected.
Designated color
Active profile White
Profile 1 Red
Profile 2 Green
Profile 3 Blue
Profile 4 Cyan
PLACEHOLDER IMAGE
F O R G A M E R S . B Y G A M E R S .
™
8
LIGHTING EFFECTS
The Lighting Tab on Razer Synapse 3 gives you the flexibility to customize your Razer device
through different quick effects or you can create your own using the Chroma Studio. If you have
other supported Razer Chroma-enabled devices, you can synchronize their lighting effects with
your Razer Mamba HyperFlux and Razer Firefly HyperFlux.
Name Description How to set up
Breathing The lighting fades in and out of the
selected color(s)
Select up to 2 colors or
randomize
Reactive The LEDs will light up when you
click any of the mouse buttons
Select the color and the length
of time for the LED to remain lit
Spectrum
cycling
The LEDs will cycle between 16.8
million colors indefinitely
No further customization
required
Static The LEDs will remain lit in the
selected color Select a color
Wave
The lighting will scroll in the
direction selected with a default
spectrum of colors
Select either front-to-back or
back-to-front wave direction
Note: By default, the Razer Mamba HyperFlux and Razer Mamba HyperFlux are set to spectrum
cycling. To customize the lighting, please install Razer Synapse 3.
Please refer to the Online Master Guide at support.razerzone.com for in-depth instructions on how
to configure and use your Razer Mamba HyperFlux and Razer Firefly HyperFlux.
F O R G A M E R S . B Y G A M E R S .
™
9
REGULATORY &COMPLIANCE
INFORMATION
FCC DECLARATION OF CONFORMANCE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and the receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio TV
technician for help.
For more information, refer to the online help
system on razerzone.com.
FCC CAUTION STATEMENT
Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
F O R G A M E R S . B Y G A M E R S .
™
10
environment. End users must follow the specific
operating instructions for satisfying RF exposure
compliance. This transmitter must not be
co-located or operating in conjunction with any
other antenna or transmitter.
INDUSTRY CANADA STATEMEN
T
This device complies with Industry Canada licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement."
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à
la norme NMB-003 du Canada
RADIATION EXPOSURE STATEMENT:
The product comply with the Canada portable RF
exposure limit set forth for an uncontrolled
environment and are safe for intended operation as
described in this manual. The further RF exposure
reduction can be achieved if the product can be kept
as far as possible from the user body or set the device
to lower output power if such function is available.
DÉCLARATION D'EXPOSITION AUX RADIATIONS:
Le produit est conforme aux limites d'exposition pour
les appareils portables RF pour les Etats-Unis et le
Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que
décrit dans ce manuel. La réduction aux expositions
RF peut être augmentée si l'appareil peut être
conservé aussi loin que possible du corps de
l'utilisateur ou que le dispositif est réglé sur la
puissance de sortie la plus faible si une telle fonction
est disponible.
USAGE RESTRICTIONS
This Razer device was developed and designed to
F O R G A M E R S . B Y G A M E R S .™
11
comply with the various wireless and telecom agency
requirements throughout the world. This ensures that
the device do not cause any harm to Public Switching
Telecommunication Networks (PSTN) and do not
violate any power and frequency spectrum allocations
on a country by country basis. This device was also
designed to be compliant with regulatory agency
limits for Electromagnetic Compatibility (EMC).
IMPORTANT NOTICE FOR USE IN HEALTHCARE
ENVIRONMENTS
This Razer device is not a medical device and is not
listed under UL or IEC 60601 (or equivalent). This
device should be kept at a certain distance to avoid
harmful effects to patients or medical equipment.
AVIATION USAGE RESTRICTIONS
Certain restrictions apply to this device while onboard
an aircraft. Razer encourages you to understand these
restrictions to ensure the flight’s safety and security.
STATEMENT OF
COMPLIANCE WITH EU DIRECTIVE ENGLISH
ENGLISH
STATEMENT OF COMPLIANCE WITH EU DIRECTIVE
Hereby, Razer (Europe) GmbH, declares that this Razer Mamba Hyperflux (Gaming Mouse Model: RZ01-0248 and
Gaming Mouse Mat Model: RZ02-0248) is in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
Gaming Mouse:
Operating Frequency: 140 – 148.5KHz
2402 - 2480MHz
Max Output power: 6.81dbm +/- 2dbm
Gaming Mouse Mat:
Operating Frequency: 140 – 148.5KHz
2402 - 2480MHz
Max Output power: 5.81dbm +/- 2dbm
SW version:V1.0
The full Declaration of Conformity can be requested via the following:
Company: Razer (Europe) GmbH
Address: Essener Bogen 23, D-22419 Hamburg, Germany
E-mail: compliance@razerzone.com
Internet address: https://www.razerzone.com
The interference potential of the device could cause the interference to the system whose
fundamental is 140 to 148.5 KHz.
When using the product, maintain a distance of 10cm from the body to ensure compliance with
RF exposure requirements. Using with other antenna may cause RF exposure concern higher than
expected.
