USER MANUAL
1 | razer™
3. TECHNICAL SPECIFICATIONS
Lapboard (RZ03-0133)
• Anti-ghosting capability for up to 10 simultaneous key presses
• Chiclet styled keycaps
• Dedicated Android buttons
• Cortex quick launch button
• Battery life of up to 4 months - The life expectancy of this battery depends upon
its usage
• Battery type: Li-Po (1500 mAh)
Mouse (RZ01-0133)
• 3500 DPI optical sensor
• Ambidextrous form factor
• 40 hours battery life for continuous use - The life expectancy of this battery
depends upon its usage
• Battery type: Li-Po (1000 mAh)
2 | For gamers by gamers™
4. DEVICE LAYOUT
A. lapboard
B. mouse
C. RF USB Dongle
D. Rechargeable battery for Razer Turret gaming mouse
E. Charging dock
F. Power connector cable
G. Power adapter
H. Interchangeable plugs*
*May include adapter plugs for specific regions
3 | razer™
CONNECTING THE RAZER TURRET VIA BLUETOOTH® SMART
Note: The Razer Turret gaming lapboard and mouse are set to Bluetooth mode by default.

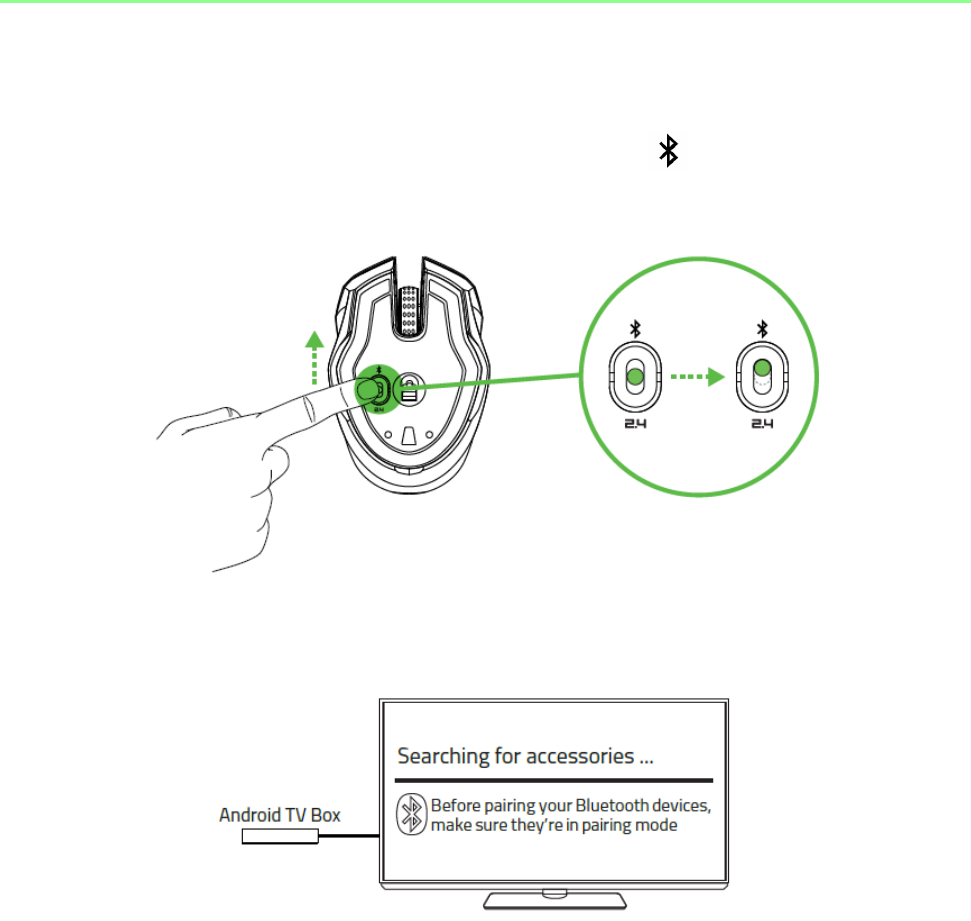

Razer Turret gaming mouse
1. Push the slider switch on the Razer Turret mouse to . This switches the mouse
on and activates pairing mode. The LED indicator will start to blink in blue.
2. Activate Bluetooth® on your device and search for new Bluetooth® devices.
3. Select “Razer Turret gaming mouse” from the list of devices found.
4 | For gamers by gamers™

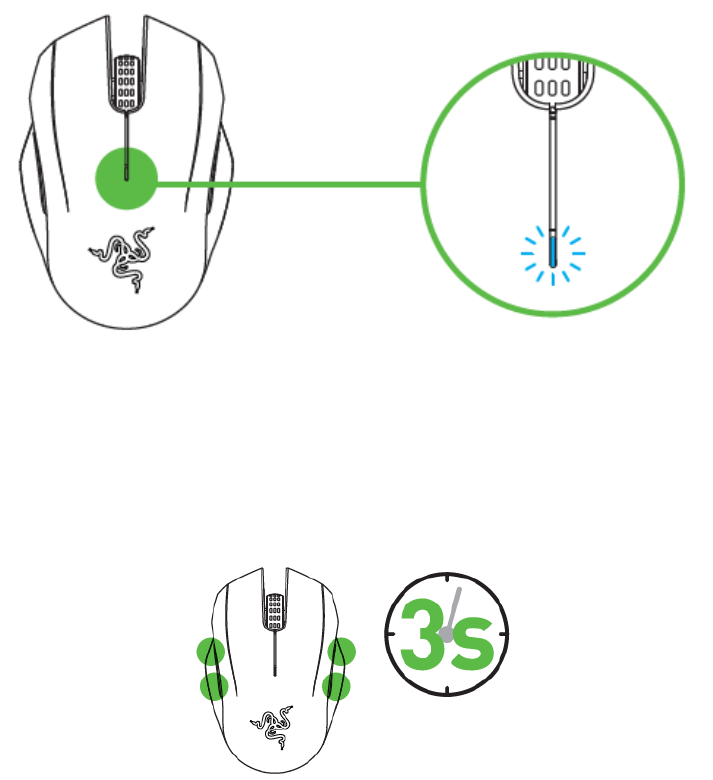

4. When pairing is complete, the LED indicator will stay lit in blue for 5s before
fading off.
Note: To pair your Razer Turret gaming mouse to a different device, disconnect the
current Bluetooth connection from host device. Then, press and hold the 4 side buttons
for 3s to manually activate pairing mode.
5 | razer™

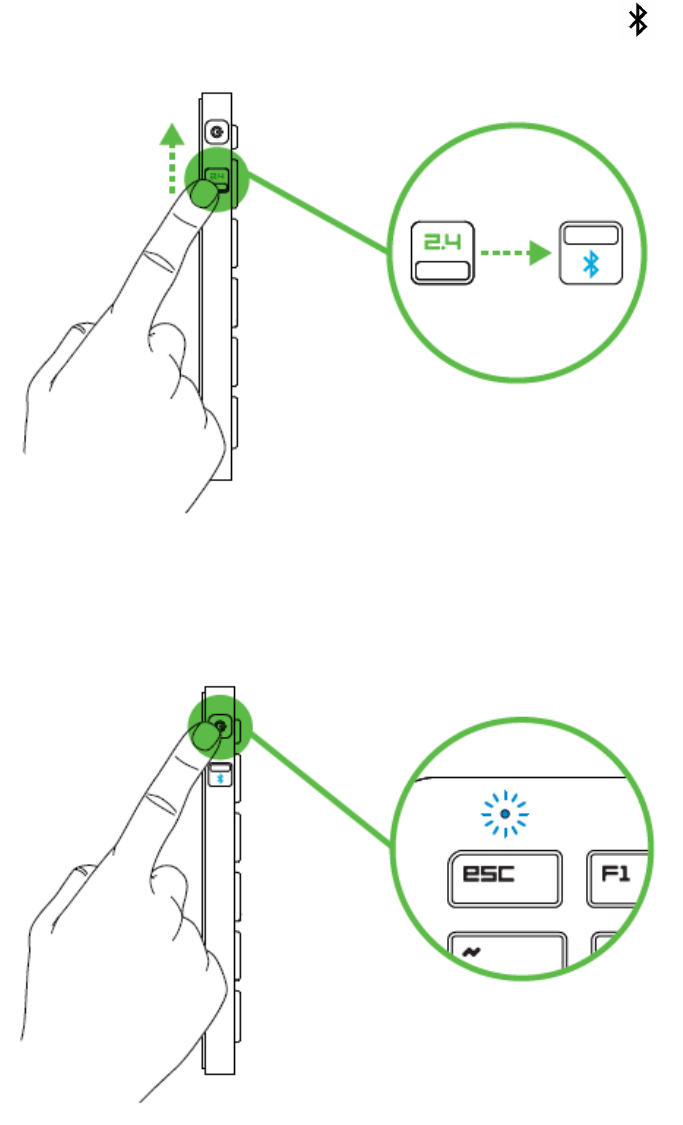

Razer Turret gaming lapboard
1. Push the Slider switch on the Razer Turret gaming lapboard to .
2. Press the Power button to turn the Razer Turret gaming lapboard on and activate
pairing mode. The LED indicator will start to blink in blue.
6 | For gamers by gamers™
3. Activate Bluetooth® on your device and search for new Bluetooth® devices.
4. Select “Razer Turret gaming lapboard” from the list of devices found.
5. When pairing is complete, the LED indicator will stay lit in blue for 5s before
fading off.
Note: To pair your Razer Turret gaming lapboard to a different device, disconnect the
current Bluetooth connection from host device. Then, press and hold the power button
for 3s to manually activate pairing mode.
7 | razer™

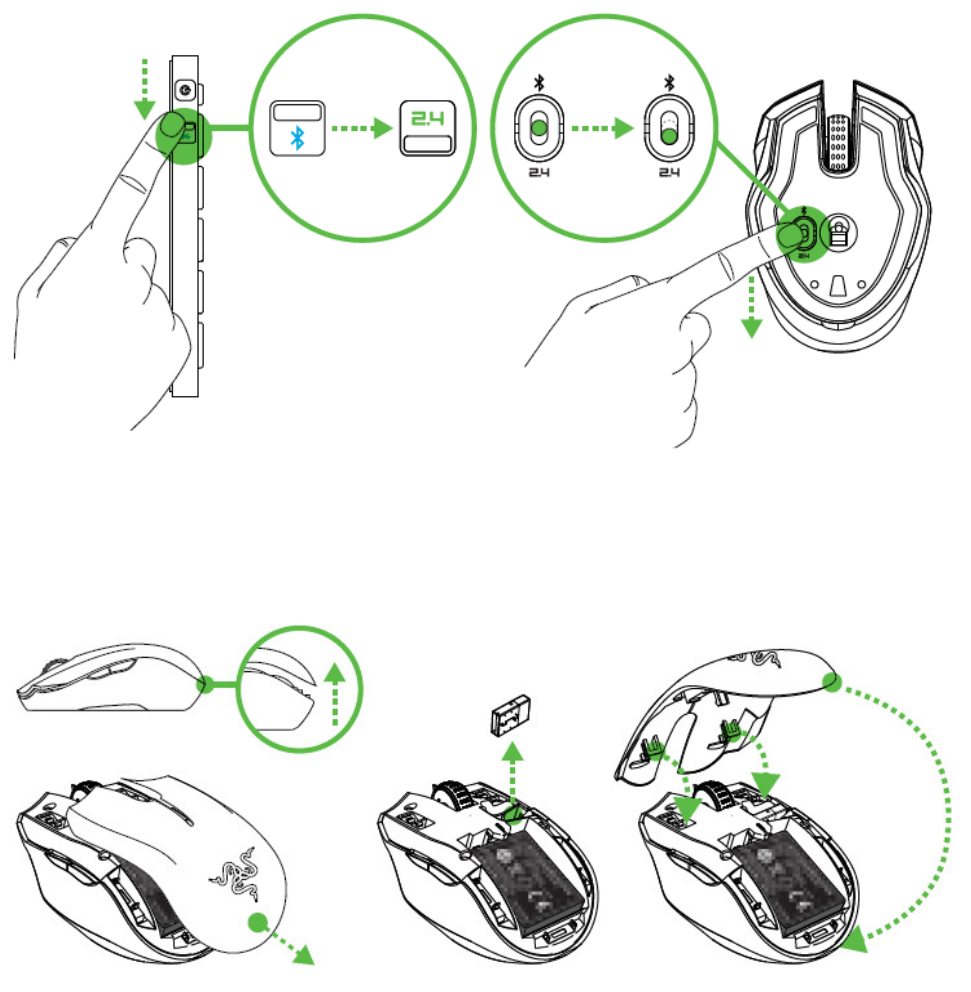

CONNECTING THE RAZER TURRET VIA THE WIRELESS DONGLE
1. Push the Slider switch on both the Razer Turret gaming lapboard and mouse to
(2.4GHz wireless).
2. Remove the top cover of the Razer Turret gaming mouse by lifting the back of
the top cover and pulling it backwards. Retrieve the USB dongle. Reattach the
top cover.
8 | For gamers by gamers™
3. Plug the USB dongle to the device you wish to pair to.
4. Press the Power button to turn the Razer Turret gaming lapboard on.
5. When successfully connected, the LED indicator will stay lit in green for 5s before
fading off.
9 | razer™
6. INSTALLING YOUR RAZER TURRET

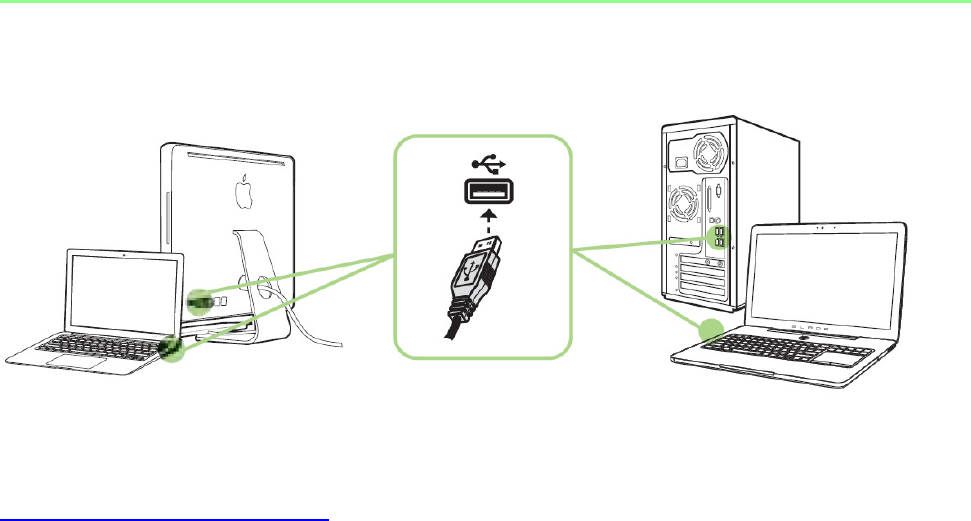

Step 1: Connect your Razer device to the USB port of your computer.
Step 2: Install Razer Synapse when prompted* or download the installer from
www.razerzone.com/synapse.
Step 3: Create your Razer ID or login to Synapse with your existing Razer ID.
*Applicable for Windows 8 or later.
Note: Razer Synapse is only available when the Razer Turret is connected to a PC.
10 | For gamers by gamers™
11. SAFETY AND MAINTENANCE
IMPORTANT SAFETY & MAINTENANCE INFORMATION
WARNING : Failure to follow these safety instructions could result in fire, electric
shock, or other injury or damage.
Please follow these safety rules for handling your Razer Turret and for working more
comfortably. Keep these guide handy for future reference by you and others.
To operate your Razer Turret safely and reduce the possibility of heat-related injuries,
follow these guidelines:
1. Set up your Razer Turret and power adapter on a stable work surface that
allows for adequate air circulation under and around the computer/TV.
2. Do not use or install near water, moisture, or other wet surfaces.
3. Do not use or install near any heat or naked flame sources. Do not use
around radiators, stoves, fire places, candles or other hot surfaces.
4. Do not block ventilation grills or openings. Install the apparatus in a cool,
dry place.
5. Clean only with a dry or damp cloth. Unplug the apparatus before cleaning
and do not use aerosol or liquid cleaning agents.
6. Do not insert or push any objects into openings on the product.
7. Refer all servicing to qualified service personnel. Do not attempt to service
this apparatus yourself. Removing the covers will expose you to dangerous
electric currents.
11 | razer™
POWER ADAPTER FOR THE RAZER TURRET
NOTICE : Incorrect storage or use of your power adapter may void the manufacturer’s
warranty.
This power adapter complies with the user-accessible surface temperature limits
defined by the International Standard for Safety of Information Technology Equipment
(IEC 60950-1).
This apparatus should only be operated from the type of power source indicated on
the label. If you are unsure of the power source in the location you intend to operate
the apparatus please consult the local power company or a qualified technician. The
use of AC Plug Adapters is cautioned because it can allow the product to be plugged
into voltages in which the product was not designed to operate. If you are unsure of
the correct operational voltage, please contact your local distributor and/or retailer.
1. Use only the power adapter that came with your Razer Turret, or the Razer-
authorized power adapter that is compatible with this product.
2. The power adapter is equipped with exchangeable adapter plug, use only
the appropriate adapter plug for your region.
3. Make sure the exchangeable adapter plug is fully inserted into the power
adapter before plugging the adapter into a power outlet.
4. The power adapter may become very warm during normal use. Never place
anything over the power adapter when operating your apparatus.
5. Unplug this apparatus during lightning storms or when unused for
extended periods of time to further protect the apparatus.
6. Protect the power cord from being walked on or pinched, particularly at
plugs, convenience receptacles, or the point where they exit from
the apparatus.
7. Do not overload wall electricity outlets, extension cords and plugs. This may
result in fire or electrical shock.
8. Disconnect the power adapter and disconnect any other cables if any of the
following conditions exists:
• You want to clean the case
• The power cord or plug becomes frayed or otherwise damaged.
• Your Razer Turret or power adapter is exposed to rain, excessive
moisture, or liquid spilled into the case.
• Your Razer Turret or power adapter has been dropped, the case has
been damaged, or you suspect that service or repair is required.
12 | For gamers by gamers™
SAFETY GUIDELINES
In order to achieve maximum safety while using your Razer Turret, we suggest that you
adopt the following guidelines:
1. Should you have trouble operating the device properly and troubleshooting does
not work, unplug the device and contact the Razer hotline or go to
www.razersupport.com for support. Do not attempt to service or fix the device
yourself at any time.
2. Do not take apart the device (doing so will void your warranty) and do not
attempt to operate it under abnormal current loads.
3. Keep the device away from liquid, humidity or moisture. Operate the device only
within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the
temperature exceed this range, unplug and/or switch off the device in order to
let the temperature stabilize to an optimal level.
13 | razer™
COMFORT
Research has shown that long periods of repetitive motion, improper positioning of
your computer peripherals, incorrect body position, and poor habits may be associated
with physical discomfort and injury to nerves, tendons, and muscles. Below are some
guidelines to avoid injury and ensure optimum comfort while using your Razer Turret.
1. Position your keyboard and monitor directly in front of you with your mouse
next to it. Place your elbows next to your side, not too far away and your
Keyboard within easy reach.
2. Keep your feet well supported, posture straight and your shoulders relaxed.
3. During gameplay, relax your wrist and keep it straight. If you do the same tasks
with your hands repeatedly, try not to bend, extend or twist your hands for long
periods.
4. Do not rest your wrists on hard surfaces for long periods. Use a wrist rest to
support your wrist while gaming.
5. Do not sit in the same position all day. Get up and do exercises to stretch your
arms, shoulders, neck and legs.
6. If you should experience any physical discomfort while using your device, such as
pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or
back, please consult a qualified medical doctor immediately.
MAINTENANCE AND USE
The Razer Turret requires minimum maintenance to keep it in optimum condition.
Once a month we recommend you unplug the device from the computer and clean it
using a soft cloth or cotton swab with a bit of warm water to prevent dirt buildup. Do
not use soap or harsh cleaning agents.
14 | For gamers by gamers™
LEGALESE
COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION
©2015 Razer Inc. Patent Pending. All rights reserved. Razer, For Gamers By Gamers,
and the triple-headed snake logo are trademarks or registered trademarks of Razer Inc.
and/or affiliated companies in the United States or other countries. All other
trademarks are the property of their respective owners. Actual product may differ from
pictures. Information is correct at time of printing. Windows and the Windows logo are
trademarks of the Microsoft group of companies.
Android™ and Android TV™ are trademarks of Google Inc.
The Bluetooth word mark and logos are owned by the Bluetooth SIG. Inc. and any use
of such marks by Razer is under license.
Razer Inc. (“Razer”) may have copyright, trademarks, trade secrets, patents, patent
applications, or other intellectual property rights (whether registered or unregistered)
concerning the product in this guide. Furnishing of this guide does not give you a
license to any such copyright, trademark, patent or other intellectual property right.
The Razer Turret (the “Product”) may differ from pictures whether on packaging or
otherwise. Razer assumes no responsibility for such differences or for any errors that
may appear. Information contained herein is subject to change without notice.
LIMITED PRODUCT WARRANTY
For the latest and current terms of the Limited Product Warranty, please visit
www.razerzone.com/warranty.
LIMITATION OF LIABILITY
Razer shall in no event be liable for any lost profits, loss of information or data, special,
incidental, indirect, punitive or consequential or incidental damages, arising in any way
out of distribution of, sale of, resale of, use of, or inability to use the Product. In no
event shall Razer’s liability exceed the retail purchase price of the Product.
15 | razer™
COSTS OF PROCUREMENT
For the avoidance of doubt, in no event will Razer be liable for any costs of
procurement unless it has been advised of the possibility of such damages, and in no
case shall Razer be liable for any costs of procurement liability exceeding the retail
purchase price of the Product.
GENERAL
These terms shall be governed by and construed under the laws of the jurisdiction in
which the Product was purchased. If any term herein is held to be invalid or
unenforceable, then such term (in so far as it is invalid or unenforceable) shall be given
no effect and deemed to be excluded without invalidating any of the remaining terms.
Razer reserves the right to amend any term at any time without notice.
16 | For gamers by gamers™
REGULATORY & COMPLIANCE INFORMATION
FCC DECLARATION OF CONFORMANCE
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
17 | razer™
Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to
the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102
and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF
exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de
RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information
canadienne sur l'exposition et la conformité de rf.
