0 | For gamers by gamers™
The Razer Naga Epic MMO Gaming Mouse is the upgrade to the original award-winning
and massively popular Razer Naga that shifts the balance between the keyboard and
mouse with its 17 MMO-optimized buttons.
The Razer Naga Epic takes it one step further by combining this with the dual mode
wired/wireless functionality and interchangeable side panels, designed by the world-
acclaimed Razer ergonomics team, which provides an optimal fit for various hand sizes
and grip styles so you can raid in comfort for hours on end. With the Razer Naga Epic,
prepare to Get Imba again.
From the casual MMO gamer to the serious hardcore raider, the Razer Naga Epic will
take you to the head of the pack in both PVE and PVP action.
Buff it with the Razer Anansi MMO gaming keyboard to use the Razer Naga Epic's 12-
button mouse keypad seamlessly with the keyboard's 7 thumb modifier keys, giving
you an unprecedented level of battle control while dual-wielding the world's most
phenomenal weapons for MMO gaming dominance.
1 | razer™
TABLE OF CONTENTS
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS / REGISTRATION ..................... 2
2. DEVICE LAYOUT .................................................................................................. 3
3. SETTING UP YOUR RAZER NAGA EPIC ................................................................. 5
4. USING YOUR RAZER NAGA EPIC.......................................................................... 9
5. INSTALLING YOUR RAZER NAGA EPIC ............................................................... 11
6. CONFIGURING YOUR RAZER NAGA EPIC ........................................................... 12
7. SAFETY AND MAINTENANCE ............................................................................ 31
8. LEGALESE ......................................................................................................... 33
2 | For gamers by gamers™
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS / REGISTRATION
PACKAGE CONTENTS
Razer Naga Epic Elite MMO Gaming Mouse
3 Interchangeable Side Panels
Charging Dock
Lithium-Ion Polymer Battery
USB Cable
Grid Trainer
Quick Start Guide
Master Guide
SYSTEM REQUIREMENTS
PC or Mac with a free USB port
Windows® 8 / Windows® 7 / Windows Vista® / Windows® XP (32-bit) / Mac OS X
(10.6 - 10.8)
Internet connection
100MB of free hard disk space
REGISTRATION
Please visit www.razerzone.com/registration for online product registration.
What you’ll get:
• 2 years limited manufacturer’s warranty.
• Free online technical support at www.razersupport.com.
3 | razer™
2. DEVICE LAYOUT
A. Left Mouse Button
B. Right Mouse Button
C. Scroll Wheel
D. Mouse Button 5
E. Mouse Button 4
F. Thumb Grid - 12 Buttons (Action Bar for MMO games)
G. Razer Precision 3.5G Laser Sensor
H. Wireless and Wired/Charging Switch *
I. Pairing Button
J. Basic [123] / Advanced [Num] Switch
K. Ultraslick Mouse Feet
* For optimum battery life, always move the switch to the Wired/Charging position when not using your
Razer Naga Epic in wireless mode.
4 | For gamers by gamers™

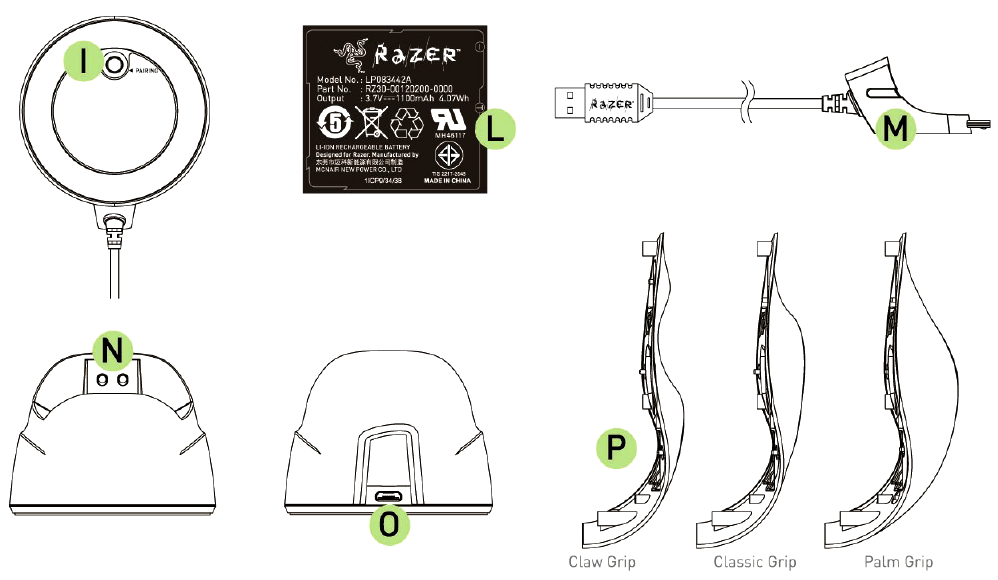

L. Rechargeable Battery
M. Cable Connector Jack
N. Battery Charging Connector
O. Connector Jack (Charging Dock)
P. 3 Interchangeable Side Panels – Classic Grip, Claw Grip, Palm Grip (default)
5 | razer™
3. SETTING UP YOUR RAZER NAGA EPIC
CHARGING THE RAZER NAGA EPIC
Charging
Fully Charged
Wireless Mode
- Spectrum Cycling option selected
Pulsating
Spectrum Cycling
Wireless Mode
- Color option selected
Pulsating
Constant Glow
For best results, please charge the battery fully the first time you use the Razer Naga
Epic. A depleted battery will be fully charged in about 5 hours. If the mouse has not
been used for an extended period, the battery might need to be recharged before
usage.
The Razer Naga Epic requires a USB connection that is able to supply sufficient power
during battery charging process. The battery charging process of the Razer Naga Epic
may be affected if connected to a non-powered USB hub or non-powered USB ports
found on certain keyboards and other peripherals.
When in doubt, it is preferable to connect the Razer Naga Epic directly to the USB port
found on the CPU unit of your computer system.
6 | For gamers by gamers™

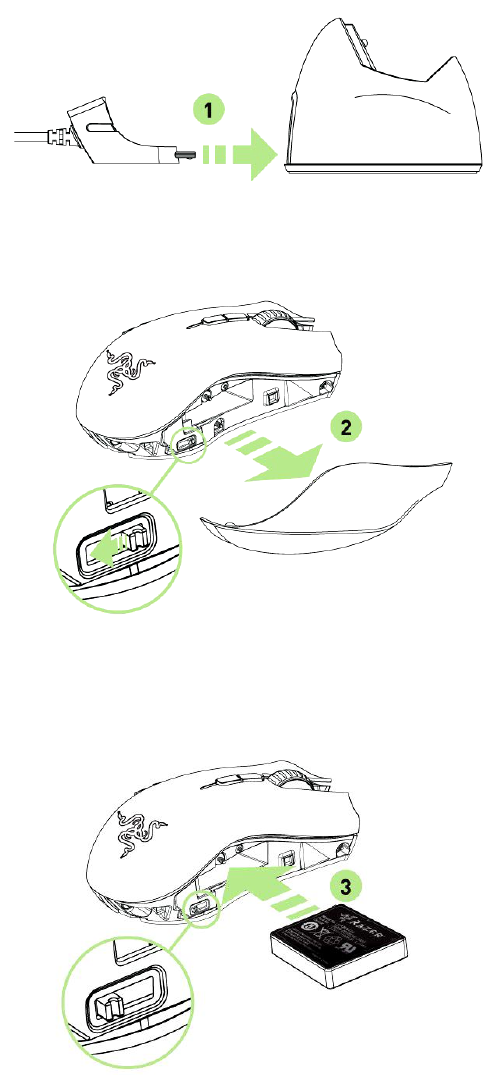

WIRELESS MODE
1. Connect the Cable Connector Jack to the Charging Dock.
2. Remove the side panel of the Razer Naga Epic.
3. Slide the lock switch and insert the battery into the battery compartment.
(Sliding the lock switch again will allow you to remove the battery).
7 | razer™

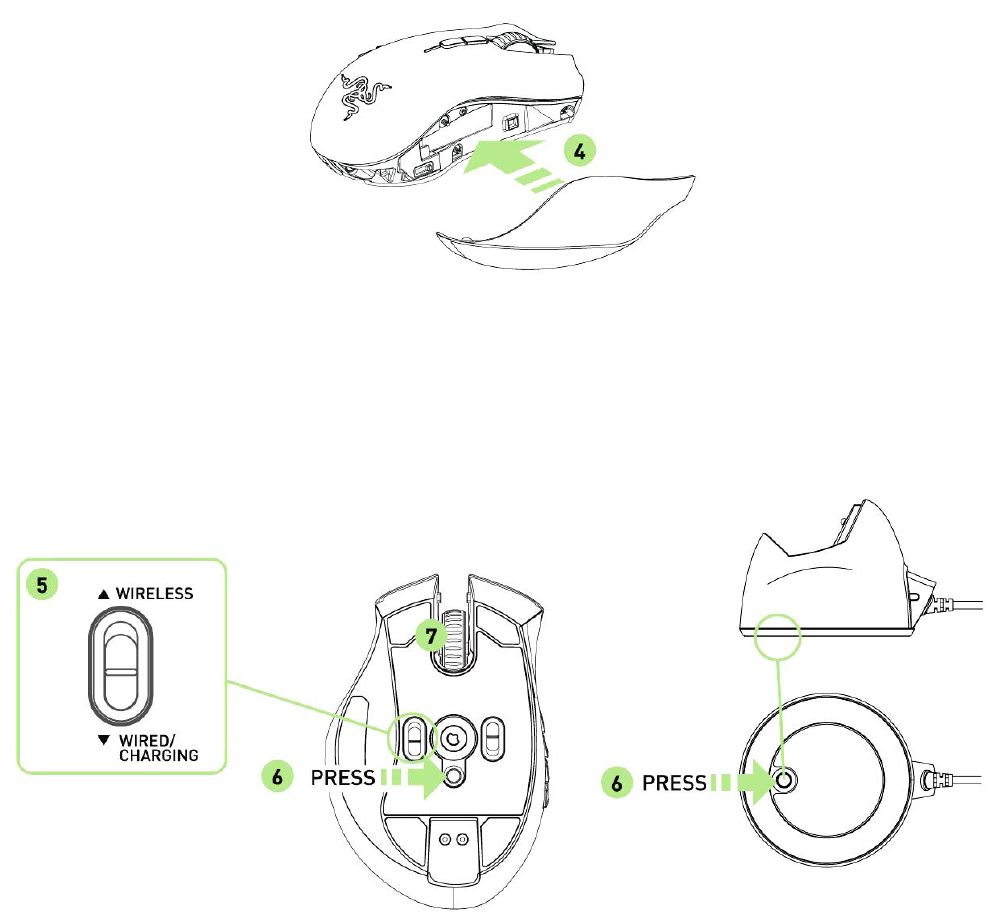

4. Replace the side panel.
5. Slide the shown switch to the Wireless position. To conserve battery power,
always move the switch to the Wired / Charging position when not using your mouse
in wireless mode.
6. Press the pairing buttons on the Razer Naga Epic and Charging Dock. The lights
on the Razer Naga Epic will start flashing to indicate the pairing process.
7. When the pairing process is completed, the lights on the Razer Naga Epic will stop
blinking. Your Razer Naga Epic is then ready for use in wireless mode.
8 | For gamers by gamers™

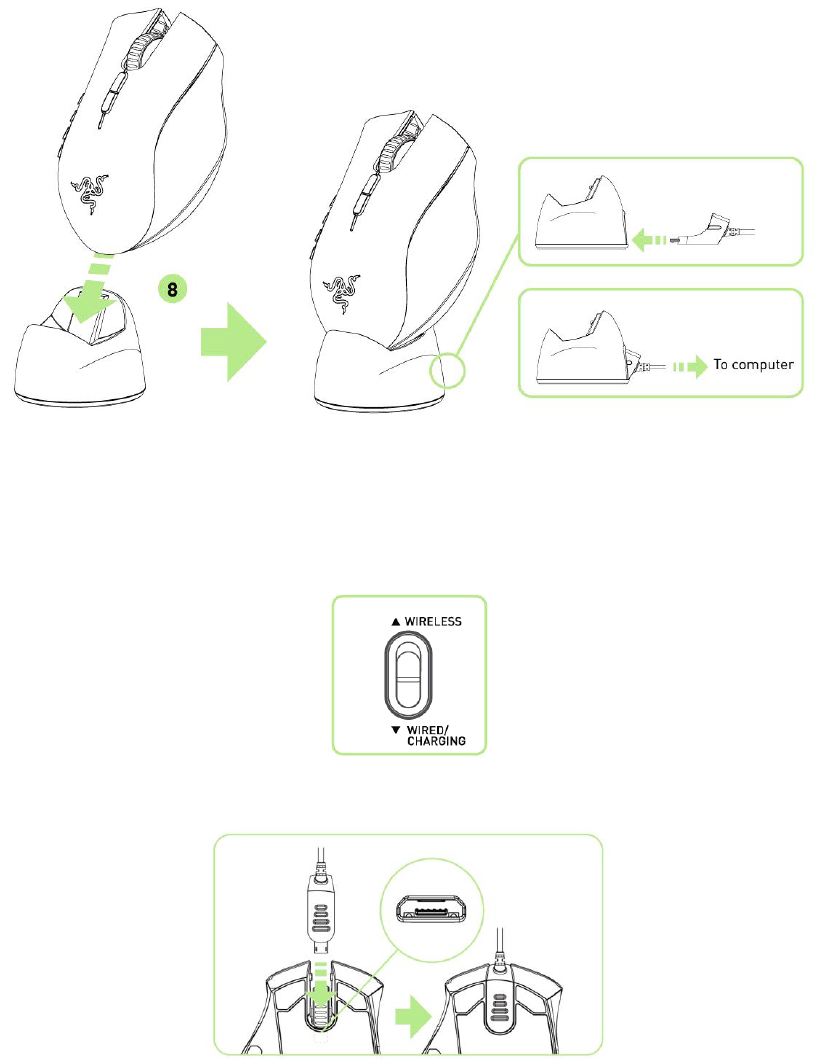

8. To charge the Razer Naga Epic in wireless mode, ensure that the shown switch is set
to the Wired/Charging position and place it on the Charging Dock.
WIRED MODE
1. Do ensure that the shown switch is set to the Wired/Charging position.
2. Connect the Cable Connector Jack to the Razer Naga Epic.
3. Plug mouse into the USB port of your computer. The Razer Naga Epic is then ready
for use as a high performance wired mouse. In addition, its battery will start charging
automatically in this wired mode.
9 | razer™
4. USING YOUR RAZER NAGA EPIC
USING BASIC [123] AND ADVANCED [NUM] MODES
The Razer Naga Epic provides a 12-button [1-12] Thumb Grid in two modes: Basic [123]
and Advanced [Num]. To change between the Basic [123] and Advanced [Num] mode,
simply use the switch at the bottom of your Razer Naga Epic.

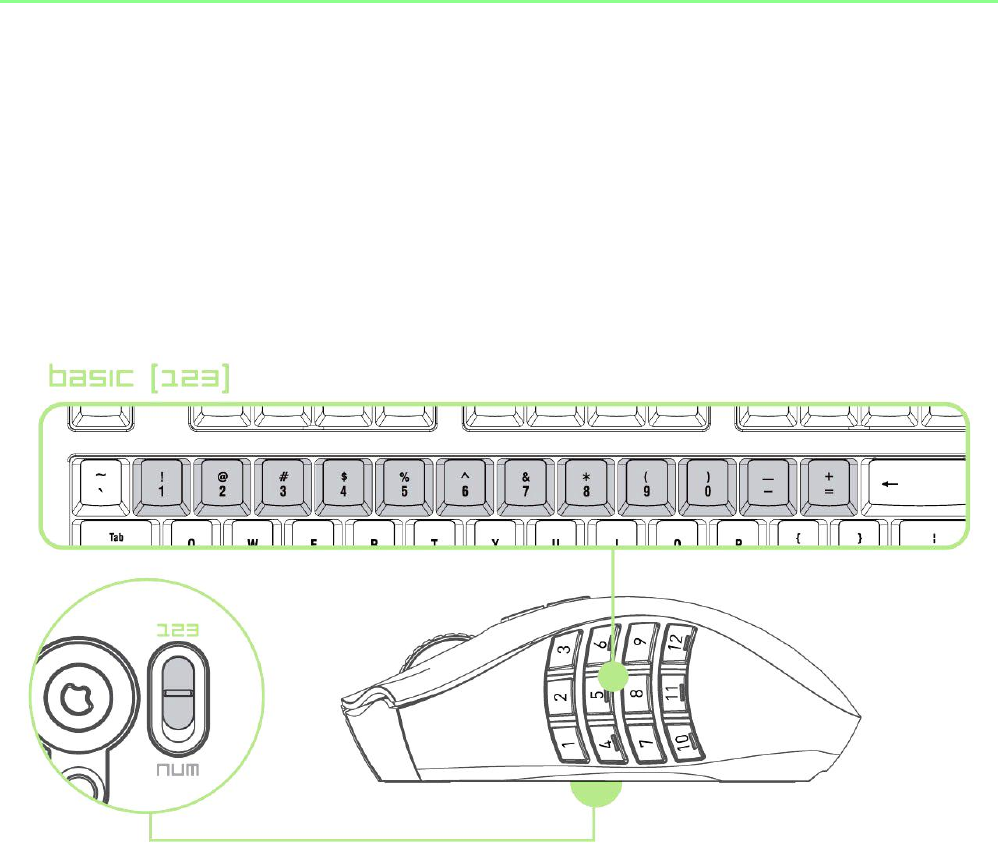

Basic [123] Configuration
In Basic [123] mode, the 12-button thumb grid works the same as a keyboard’s
numerical keys. These buttons allow you to replicate the action bar of most games onto
the thumb grid buttons.
10 | For gamers by gamers™

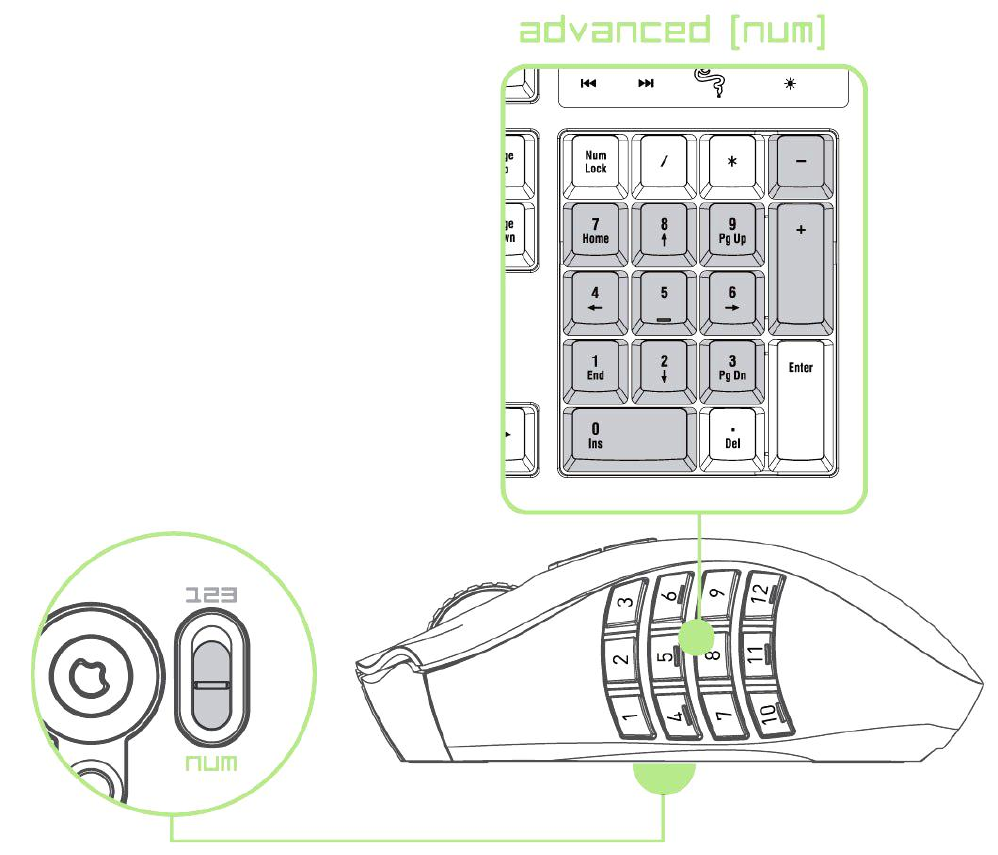

Advanced [NUM] Configuration
In the Advanced [Num] mode, the 12-button thumb grid works the same as a keypad’s
numerical keys. These buttons allow you to have quicker access to in-game commands
without having the need to reach for the keypad.
Note: Depending on your configuration, using the shift key or num lock key in-game may affect the functionality
of the thumb grid buttons (for example: numpad 4 may become left arrow).
11 | razer™
5. INSTALLING YOUR RAZER NAGA EPIC
Note: You may skip Steps 2-4 if you already have a Razer Synapse 2.0 installed and an existing account.

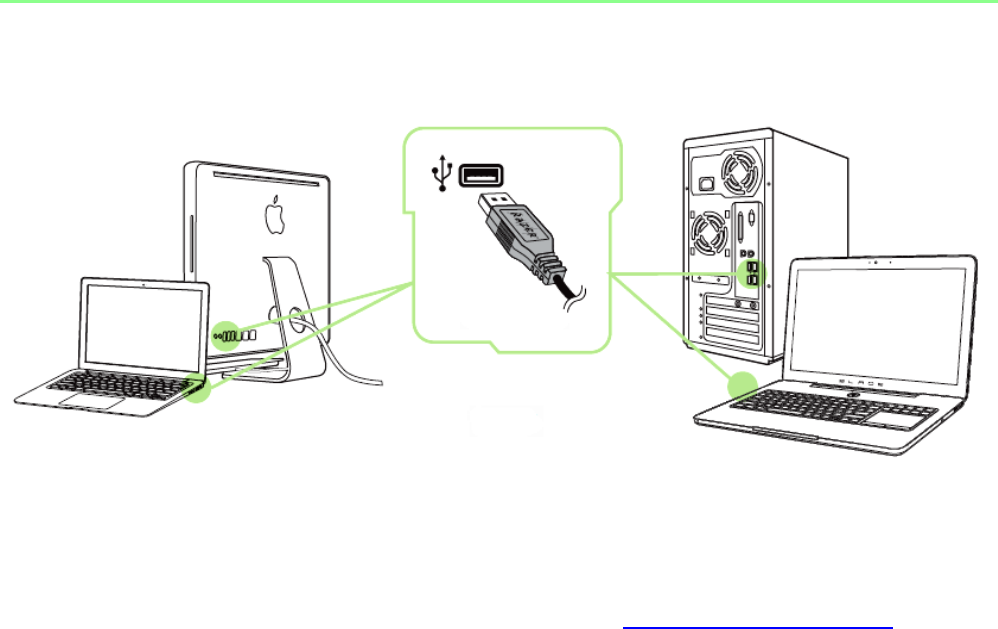

Step 1: Plug the Razer Naga Epic into the USB port of your computer.
Step 2: Download the Razer Synapse 2.0 installer from www.razersupport.com.
Step 3: Run the installer and follow the onscreen instructions.
Step 4: Register for a Razer Synapse 2.0 account and confirm your new account.
Step 5: Open Razer Synapse 2.0 and login to your account.
Step 6: Wait until the software automatically downloads and installs.
12 | For gamers by gamers™
6. CONFIGURING YOUR RAZER NAGA EPIC
Disclaimer: The features listed here require you to log in to Razer Synapse 2.0. These features are also subject
to change based on the current software version and your Operating System.
MOUSE TAB
The Mouse Tab is your default tab when you first install Razer Synapse 2.0. This tab
allows you to customize your device’s profiles, button assignments, performance and
lighting.
13 | razer™

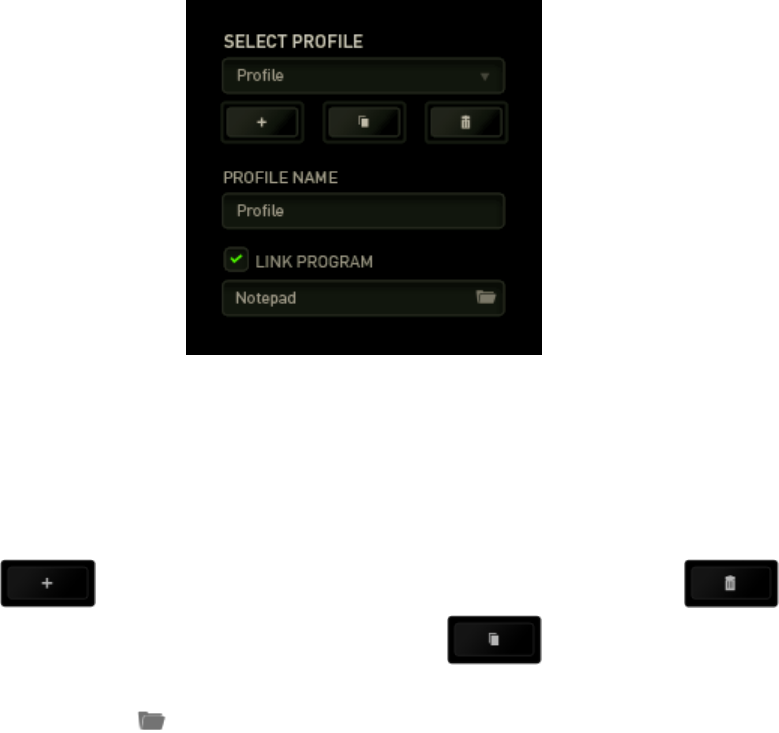

PROFILE
A Profile is a convenient way of saving all of the changes you have made on your
device. A single Profile can store numerous settings such as button assignments and
sensitivity adjustments.
Profile contains the default settings of your device. Any changes made within each tab
will automatically be saved into the current profile. If you want to rename this profile,
you may do so by typing on the field below PROFILE NAME.
There are other options available in the profile section such as creating a new profile by
clicking the button, deleting the current profile by clicking the button
and duplicating the current profile by clicking the button. You can even set a
profile to work with a specific program or application by using the LINK PROGRAM
option and clicking the button to search for it.
14 | For gamers by gamers™
CUSTOMIZE TAB
The Customize Tab is where you can modify the basic functionalities of your device
such as button assignments to suit your gaming needs. The changes made in this tab
are automatically saved to your current profile.

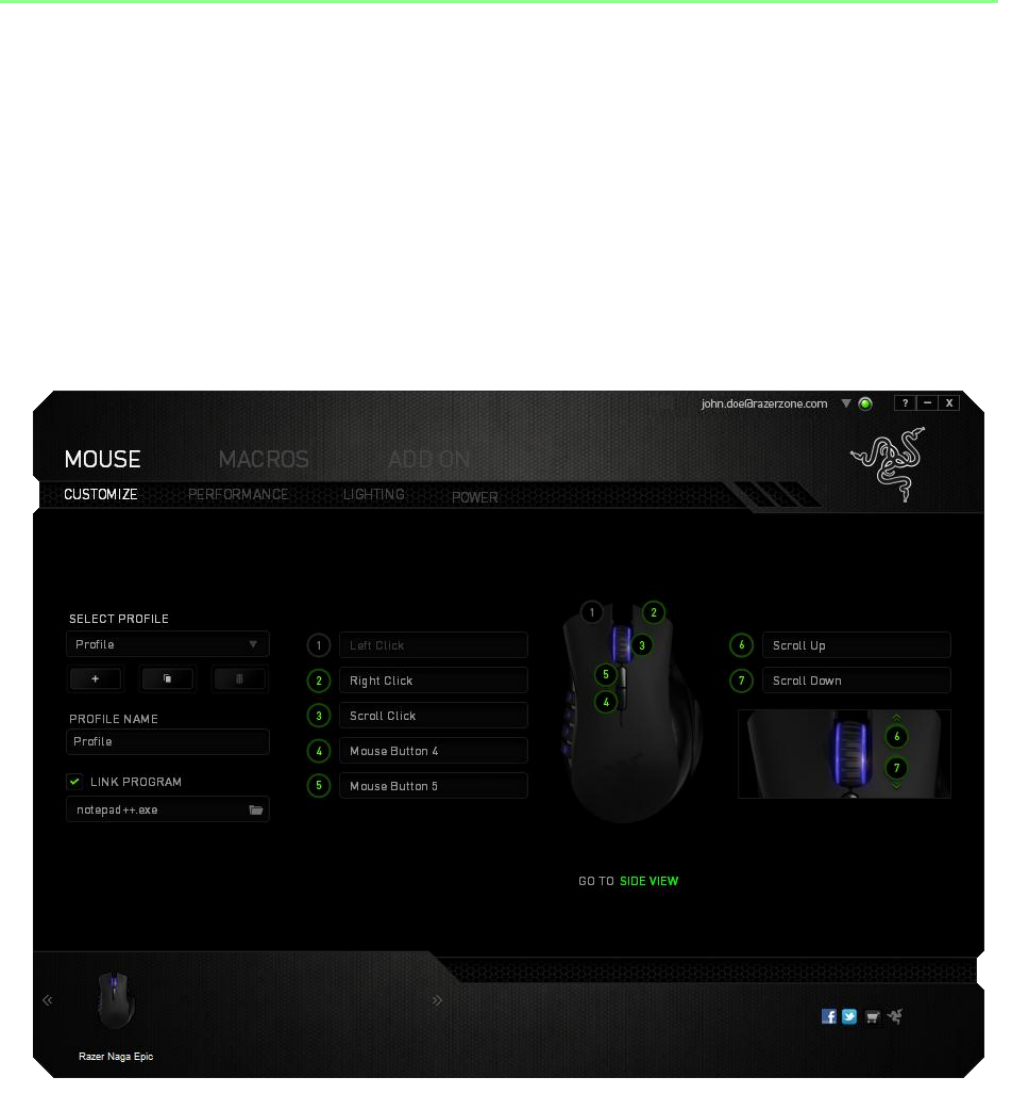

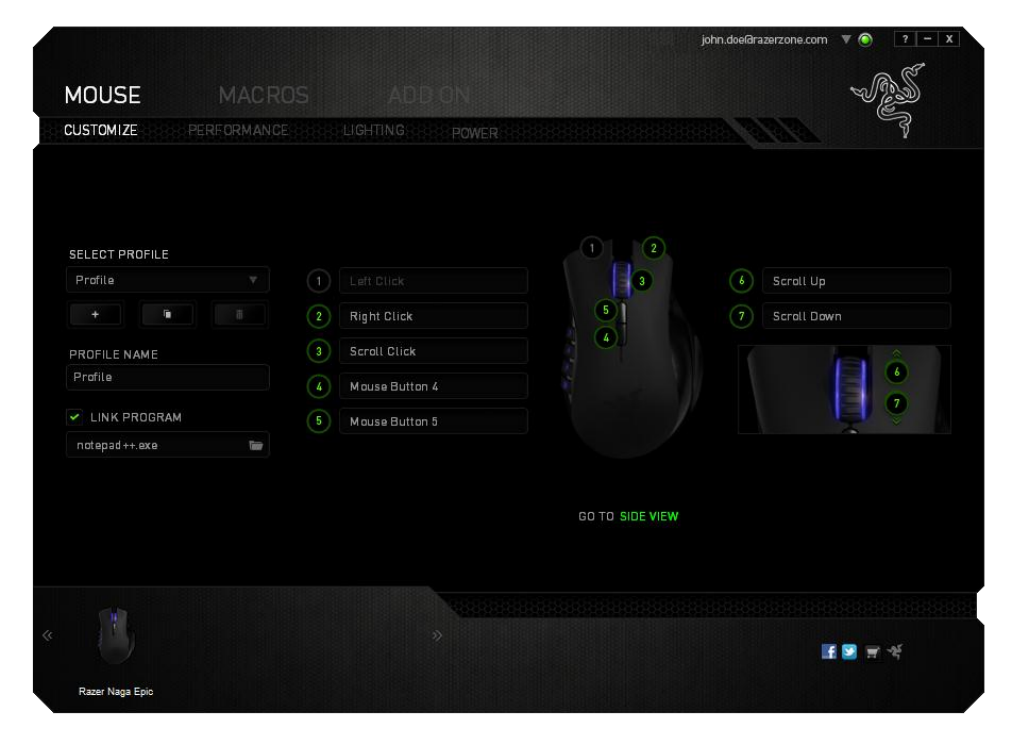

Top View
The Top View is where you can customize the 5 basic mouse buttons and the mouse
wheel.
15 | razer™

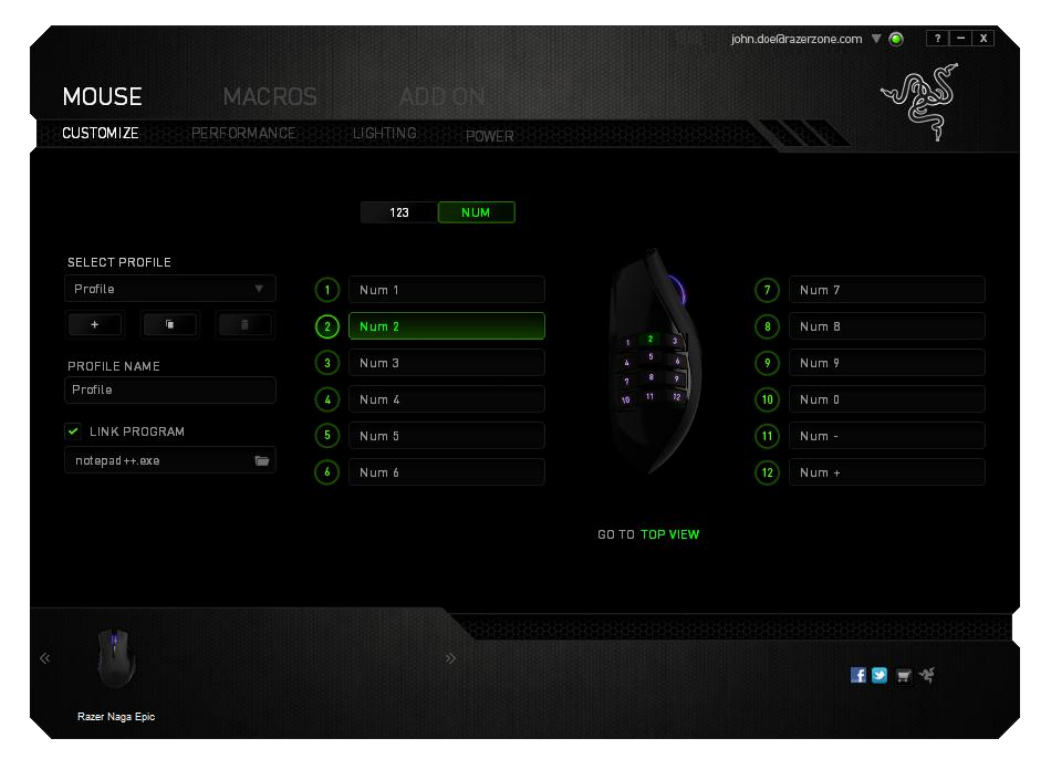

Side View
The Side View is where you can customize the 12-button thumb grid.
You may configure both the Basic [123] and the Advanced [NUM] modes using the
toggle located on the middle of the screen. Configuring the thumb grid buttons on any
mode does not require you to use the switch underneath the Razer Naga Epic.
However, you will still need to use the switch to change between the Basic [123] and
the Advanced [NUM] configuration.
16 | For gamers by gamers™

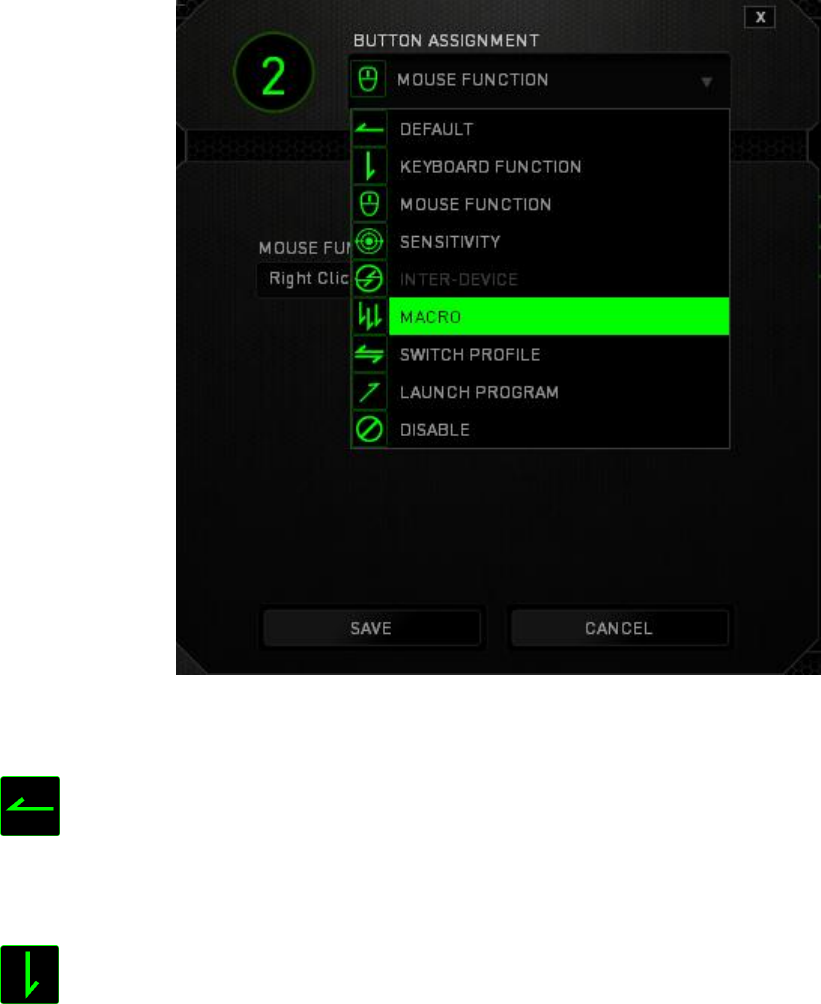

BUTTON ASSIGNMENT MENU
Initially, each of the mouse buttons is set to DEFAULT. However, you may change the
function of these buttons by clicking the desired button to access the Button
Assignment Menu.
Listed below are the customization options and their description.
Default
This option enables you to return the key to its original function. To choose the
DEFAULT, simple select it from the Button Assignment Menu.
Keyboard Function
This option enables you to change the mouse buttons into keyboard functions. To
choose a keyboard function, select KEYBOARD FUNCTION from the Button Assignment
Menu and enter the key you wish to use on the given field below. You may also include
modifier keys such as Ctrl, Shift, Alt or any of those combinations.
17 | razer™
Mouse Function
This option allows you to change the mouse buttons into other mouse functions. To
choose a mouse function, select MOUSE FUNCTION from the Button Assignment Menu
and an ASSIGN BUTTON submenu will appear.
Listed below are the functions which you can choose from the Assign Button submenu:
Left Click - Performs a left mouse click using the assigned button.
Right Click - Performs a right mouse click using the assigned button.
Scroll Click - Activates the universal scrolling function.
Double Click - Performs a double left click using the assigned button.
Mouse Button 4 - Performs a “Backward” command for most internet browsers.
Mouse Button 5 - Performs a “Forward” command for most internet browsers.
Scroll Up - Performs a “Scroll Up” command using the assigned button.
Scroll Down - Performs a “Scroll Down” command using the assigned button.
Sensitivity
Sensitivity refers to how fast the mouse pointer can travel across the screen. When you
select the Sensitivity function from the dropdown menu, a sub-menu will appear which
gives you access to the following options:

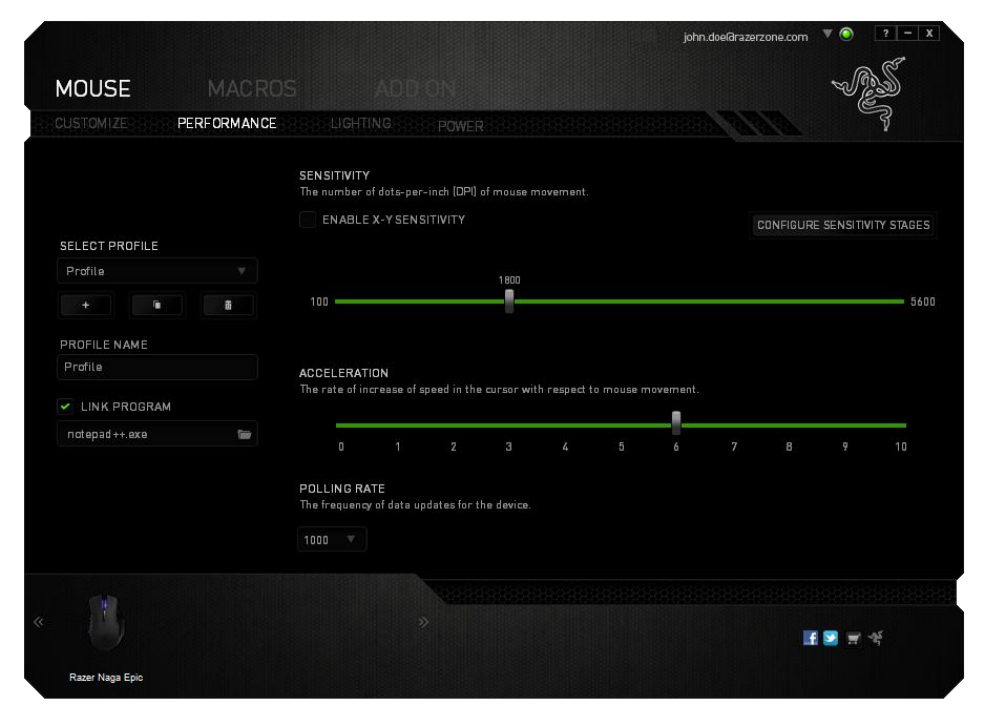

Sensitivity Stage Up - Increase the current sensitivity by one stage. See the
PERFORMANCE TAB to learn more about sensitivity
stages.
Sensitivity Stage Down - Decrease the current sensitivity by one stage. See
the PERFORMANCE TAB to learn more about
sensitivity stages.
Sensitivity Clutch - Change to a predefined sensitivity as long as the
designated button is pressed. Releasing the button
will return it to the previous sensitivity.
On-The-Fly Sensitivity - Readily adjust the current sensitivity using the
assigned button. If On‐The‐Fly Sensitivity has been
set, pressing the designated button and moving the
scroll wheel will produce a bar on your screen which
would indicate your current sensitivity level.
18 | For gamers by gamers™

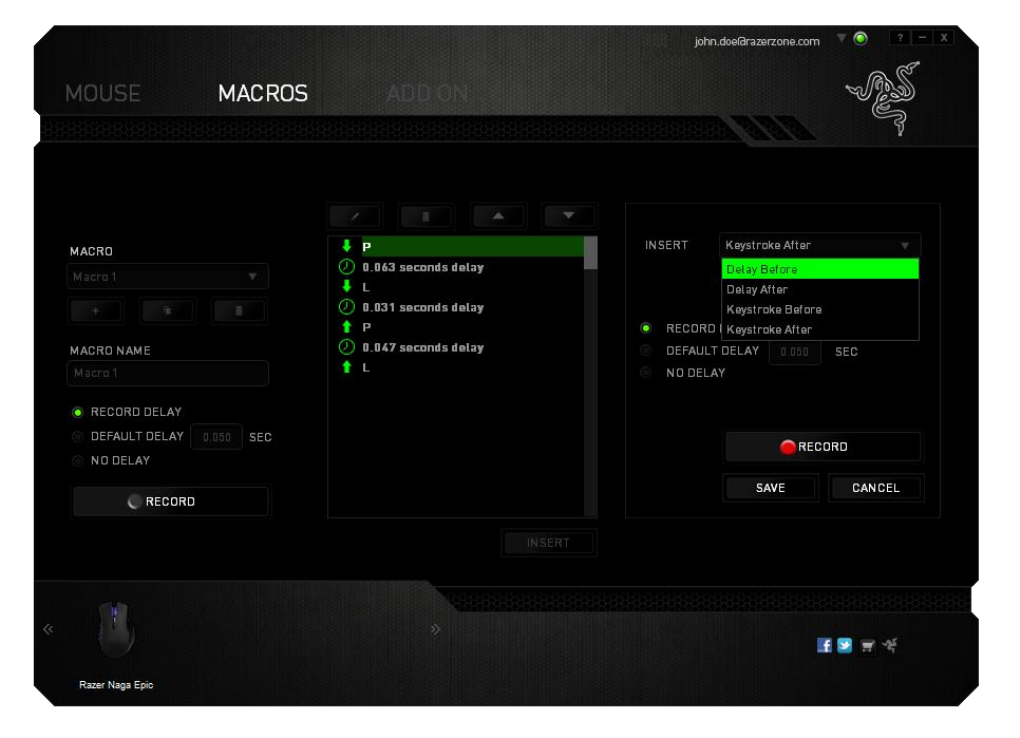

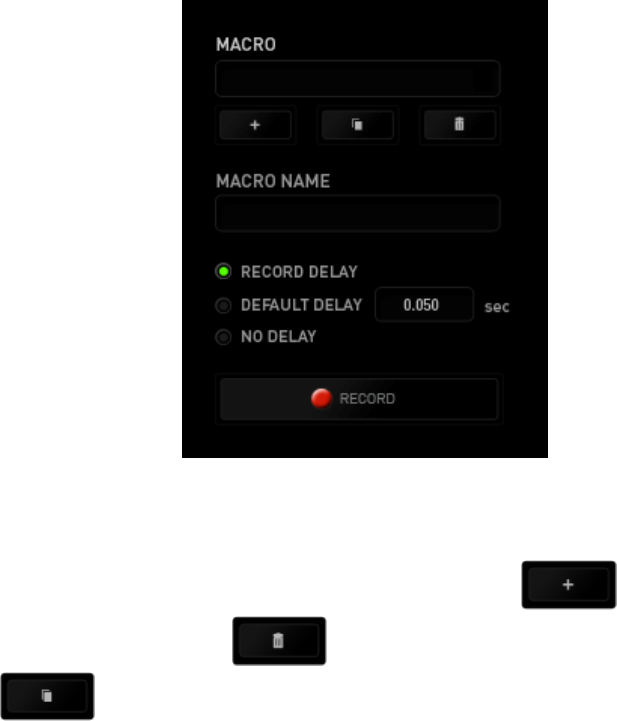

Macro
A Macro is a pre-recorded sequence of keystrokes and button presses that is executed
with precise timing. By assigning a Macro to a button, you can execute complex
combinations with ease. The ASSIGN MACRO allows you to choose which recorded
Macro to use while the PLAYBACK OPTION enables you to choose the behavior of the

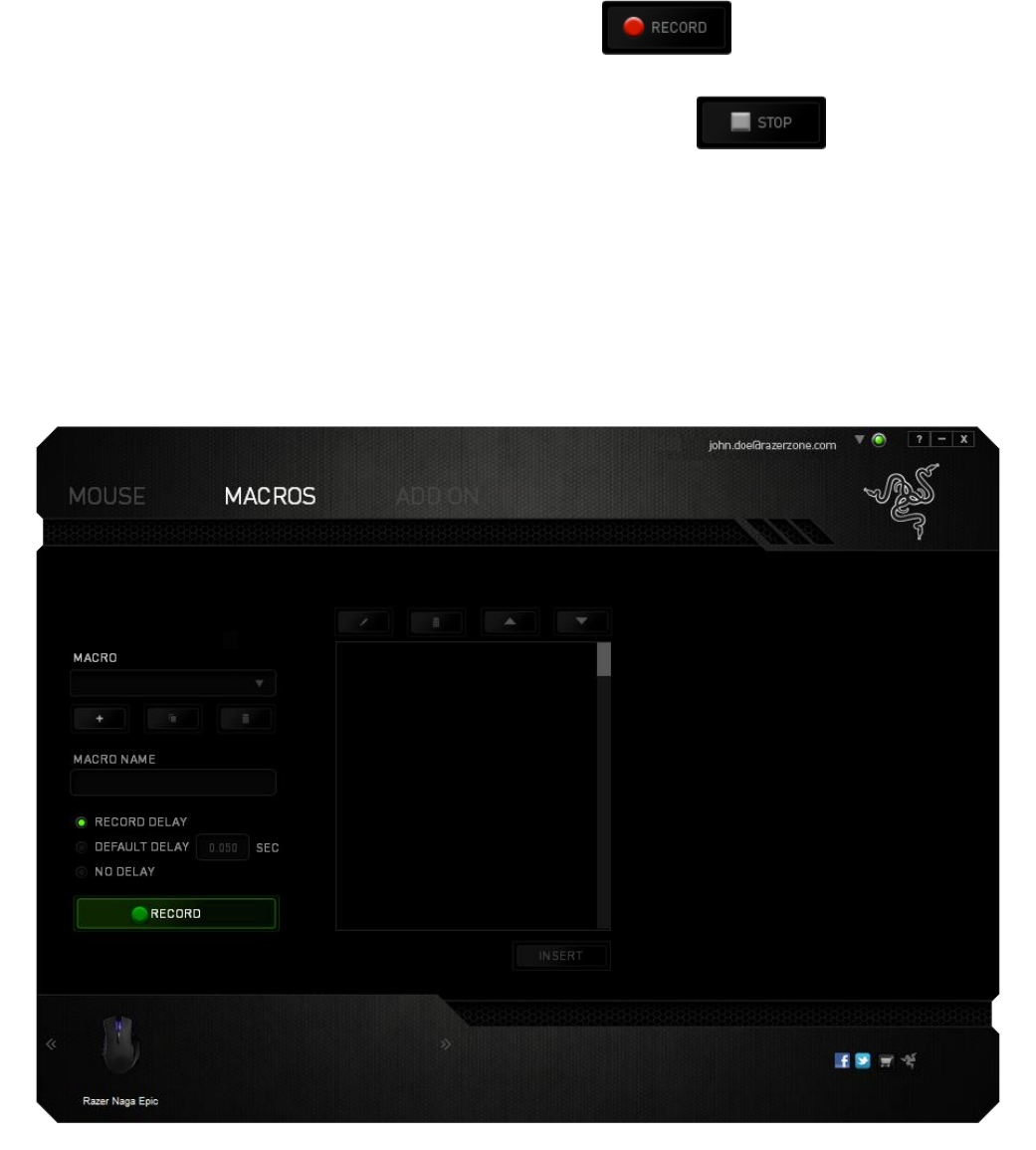

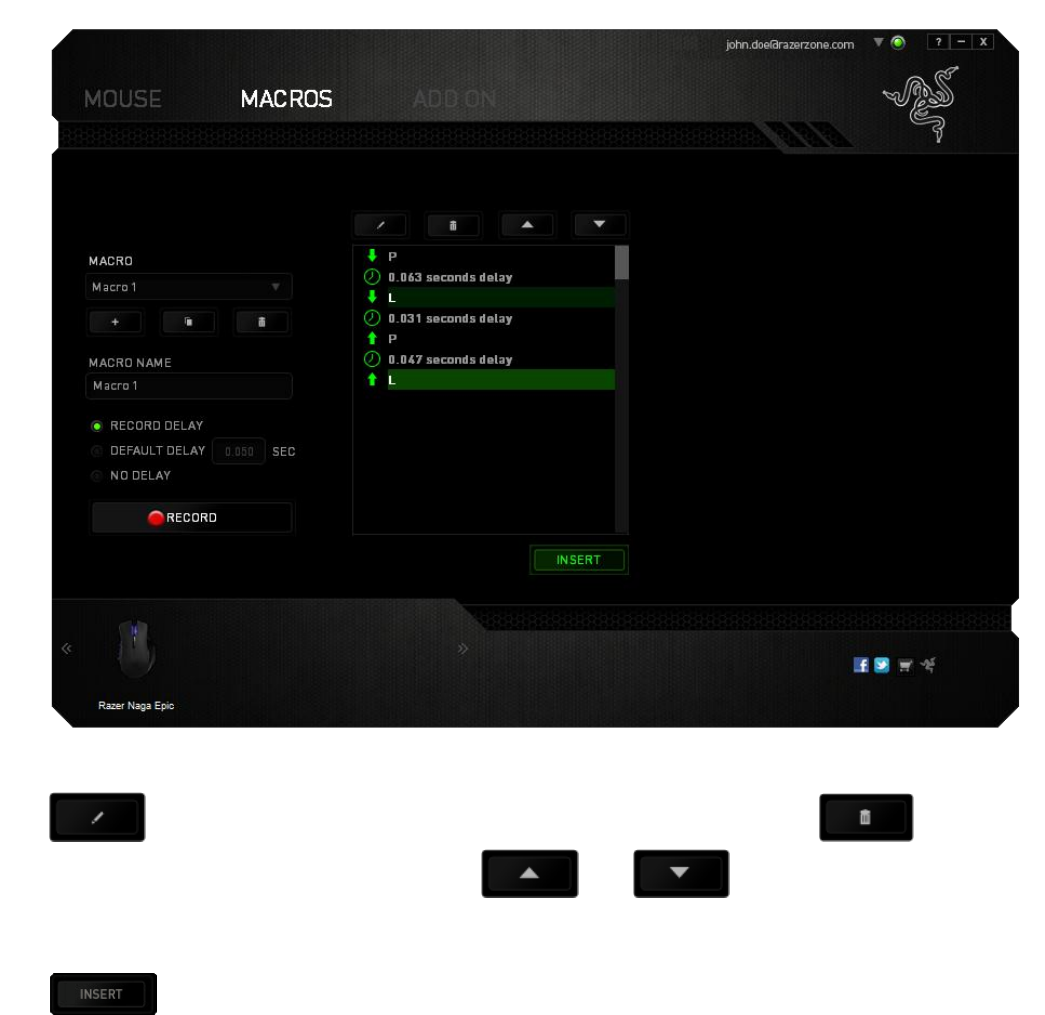

Macro. See the MACROS TAB to learn more about creating Macro commands.
Switch Profile
The Switch Profile enables you to change profiles on the fly and immediately load all
your pre-configured settings. When you select Switch Profile from the Button
Assignment Menu, a sub-menu will appear that will allow you to choose which profile
to use. An on-screen display will automatically appear whenever you switch profiles.
Launch Program
The Launch Program allows you to run a program or application using the assigned
button. When you select Launch Program from the dropdown menu, a button will
appear which allows you to search for the specific program or application you want to
use.
Disable
This option renders the assigned button unusable. Use Disable when you have no need
for a button or if a particular button interferes with your gaming.
19 | razer™
PERFORMANCE TAB
The Performance Tab allows you to enhance the speed and precision of your mouse
pointer. Similar to the Customize Tab, the changes made here are automatically saved
to your current profile.
Listed below are the performance options and their descriptions.
Sensitivity
Sensitivity pertains to how much effort is needed to move the mouse pointer in any
direction. The higher the sensitivity, the more responsive the mouse will be.
(Recommended setting: 1600 – 1800)
20 | For gamers by gamers™
Enable X-Y Sensitivity
By default, the X-axis (horizontal) and Y-axis (vertical) use the same sensitivity values.
However, you may set different sensitivity values to each of the axes by selecting the
“Enable X-Y Sensitivity” option.
Configure Sensitivity Stages
A sensitivity stage is a preset sensitivity value. You can create up to 5 different
sensitivity stages which you can cycle through using the sensitivity stage up/down
buttons.
Acceleration
Acceleration increases the cursor’s movement speed depending on how quickly you
move the mouse. The higher the value, the faster the mouse accelerates.
(Recommended settings: Windows 0, Mac 5)
Polling Rate
The higher the polling rate, the more often the computer receives information about
the status of your mouse, thus increasing the mouse pointer’s reaction time. You can
switch between 125Hz (8ms), 500Hz (2ms) and 1000Hz (1ms) by selecting your desired
polling rate on the dropdown menu. (Recommended setting: 500Hz – 1000Hz)
21 | razer™

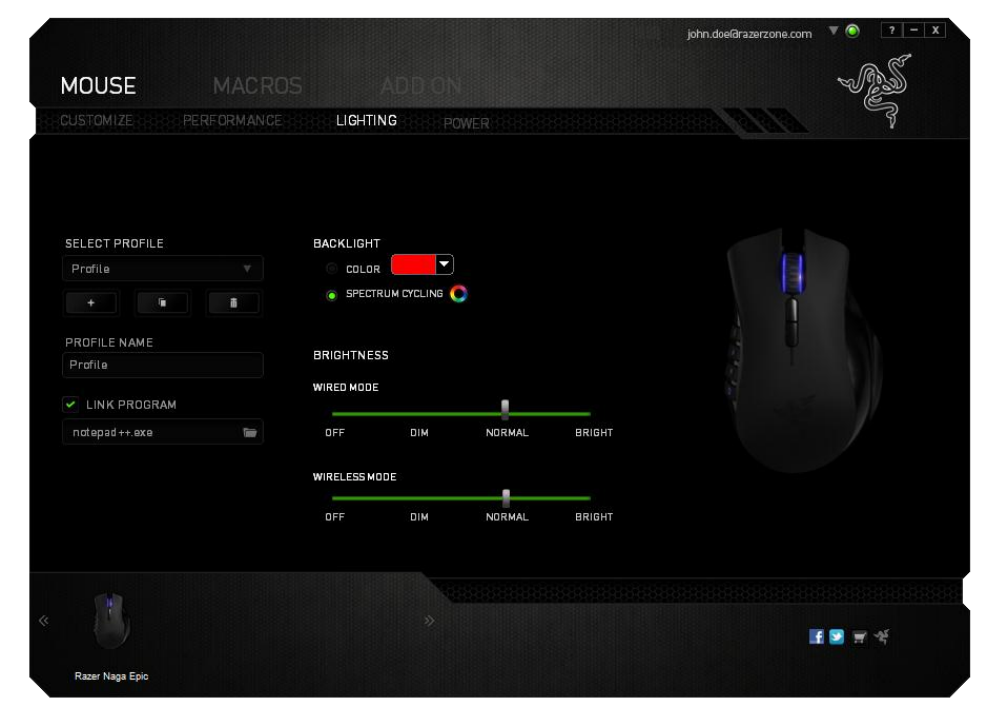

LIGHTING TAB
The Lighting Tab allows you to customize the look of your gaming mouse by choosing
from over 16 million colors for the backlight or you may select the SPECTRUM CYCLING
option to allow the colors to change indefinitely. This tab also allows you to adjust the
intensity of the backlight by using the BRIGHTNESS slider.
22 | For gamers by gamers™

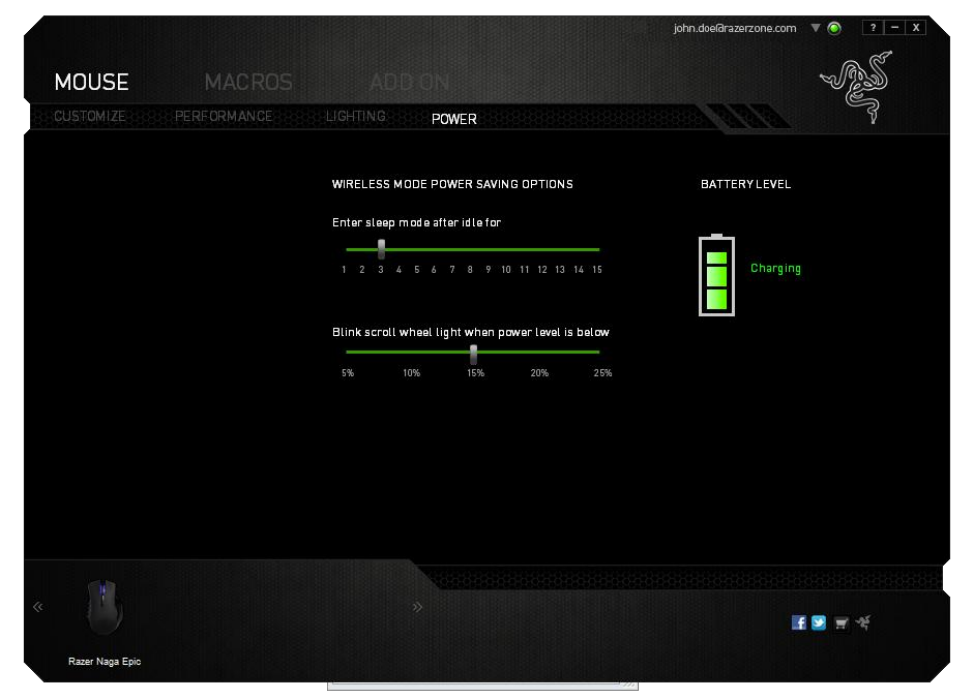

POWER TAB
The Power Tab allows you to manage your device’s energy consumption when running
on batteries. You can set your device to enter sleep mode when it has been idle for a
certain amount of time. The Power Tab also allows you to be notified when the
device’s power is at a certain level.
23 | razer™
MACROS TAB
The Macros Tab allows you to create a series of precise keystrokes and button presses.
This tab also allows you to have numerous macros and extremely long macro
commands at your disposal.
The Macro section works similarly to Profile wherein you can rename a macro by typing
on the field below MACRO NAME. There are also other options available in the macro
section such as creating a new macro by clicking the button, deleting the
current macro by clicking the button or duplicating the current macro by
clicking the button.
24 | For gamers by gamers™
To create a macro command, simply click the button and all your
keystrokes and button presses will automatically register on the macro screen. When
you are done recording your macro commands, click on the button to end
the session.
The Macro section allows you to input the delay in-between commands. In RECORD
DELAY the delay in-between commands are registered as how it is entered. The
DEFAULT DELAY uses a predefined time (expressed in seconds) as the delay. And NO
DELAY omits all the pauses in-between keystrokes and button presses.
Note: You may use up to three decimal places when inserting values on the seconds (sec) field.
25 | razer™
Once you have recorded a macro, you may edit the commands you have entered by
selecting each command on the macro screen. Each keystroke or button press is
arranged sequentially with the first command shown at the top of the screen.
The button allows you to edit a particular command and the button
enables you to delete a command. The and buttons gives you the
option to move the command up or down.
The button allows you to put in additional keystrokes, button presses or time
delays either before or after the selected command.
26 | For gamers by gamers™
Once you have pressed the Insert button, a new display window will appear beside the
list of macro commands. The dropdown menu on this window allows you to choose a
keystroke or a delay to be added in before or after the highlighted macro command.
27 | razer™
You may add in a new set of macro commands by clicking the button on the
keystroke menu; or input time delays on the duration field using the delay menu.
29 | razer™

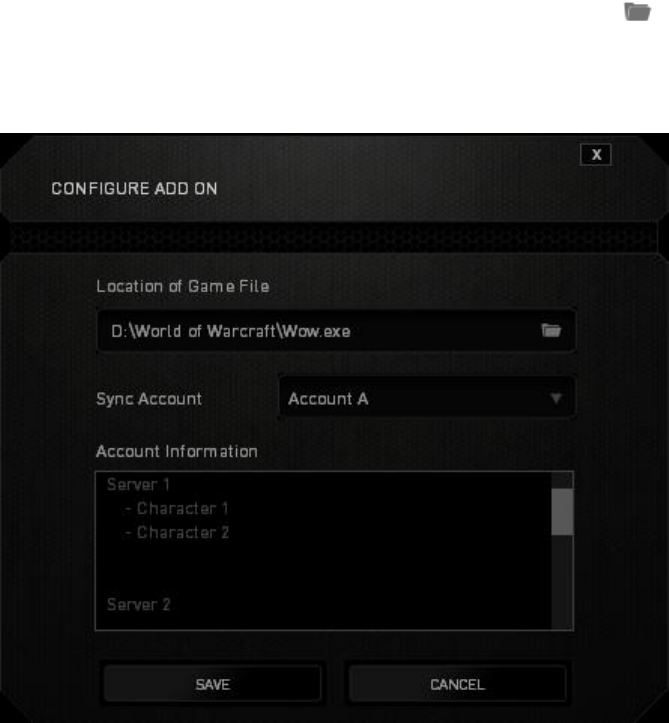

Next, search for the game program or game application using the button. Finally,
select your user account for the game by choosing it on the dropdown menu beside
Sync Account.
30 | For gamers by gamers™

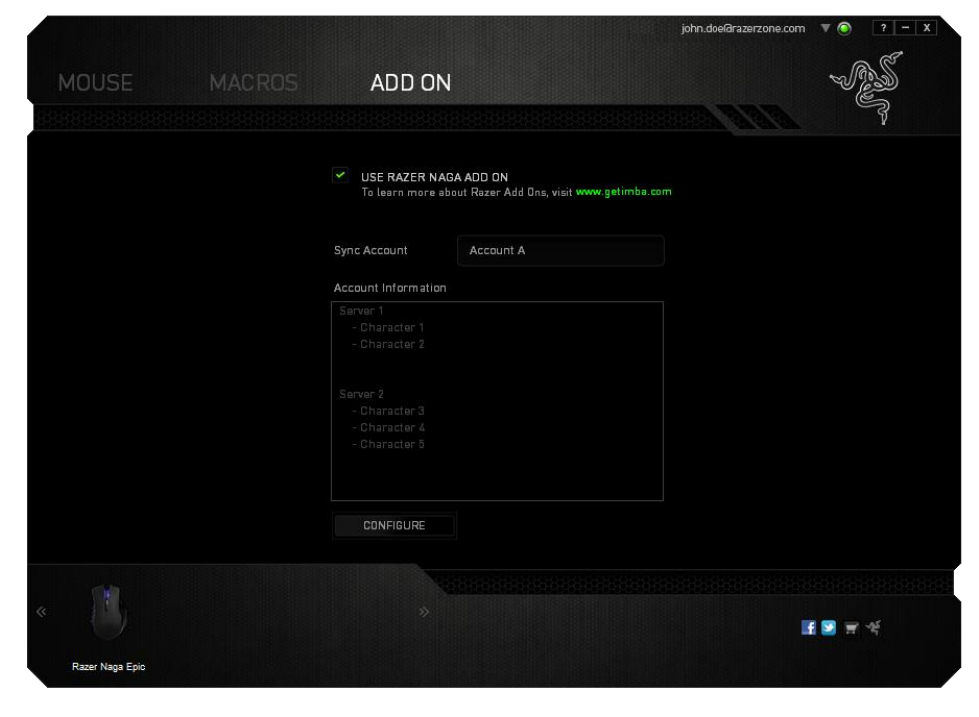

The Account Information screen will show you all the relevant information regarding
your user account.
31 | razer™
7. SAFETY AND MAINTENANCE
SAFETY GUIDELINES
In order to achieve maximum safety while using your Razer Naga Epic, we suggest that
you adopt the following guidelines:
1. Avoid looking directly at the tracking beam of your mouse or pointing the beam
in anyone else’s eye. Note that the tracking beam is NOT visible to the naked
human eye and is set on an Always-On mode.
2. Should you have trouble operating the device properly and troubleshooting does
not work, unplug the device and contact the Razer hotline or go to
www.razersupport.com for support. Do not attempt to service or fix the device
yourself at any time.
3. Do not take apart the device (doing so will void your warranty) and do not
attempt to operate it under abnormal current loads.
4. Keep the device away from liquid, humidity or moisture. Operate the device only
within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the
temperature exceed this range, unplug and switch off the device in order to let
the temperature stabilize to an optimal level.
COMFORT
Research has shown that long periods of repetitive motion, improper positioning of
your computer peripherals, incorrect body position, and poor habits may be associated
with physical discomfort and injury to nerves, tendons, and muscles. Below are some
guidelines to avoid injury and ensure optimum comfort while using your Razer Naga
Epic.
1. Position your keyboard and monitor directly in front of you with your mouse
next to it. Place your elbows next to your side, not too far away and your mouse
within easy reach.
32 | For gamers by gamers™
2. Adjust the height of your chair and table so that the keyboard and mouse are at
or below elbow height.
3. Keep your feet well supported, posture straight and your shoulders relaxed.
4. During gameplay, relax your wrist and keep it straight. If you do the same tasks
with your hands repeatedly, try not to bend, extend or twist your hands for long
periods.
5. Do not rest your wrists on hard surfaces for long periods. Use a wrist rest to
support your wrist while gaming.
6. Customize the buttons on your mouse to suit your style of gaming in order to
minimize repetitive or awkward motions while gaming.
7. Make sure that your mouse fits comfortably in your hands.
8. Do not sit in the same position all day. Get up, step away from your desk and do
exercises to stretch your arms, shoulders, neck and legs.
9. If you should experience any physical discomfort while using your mouse, such as
pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or
back, please consult a qualified medical doctor immediately.
MAINTENANCE AND USE
The Razer Naga Epic requires minimum maintenance to keep it in optimum condition.
Once a month we recommend you unplug the device from the USB port and clean it
using a soft cloth or cotton swab with a bit of warm water to prevent dirt buildup. Do
not use soap or harsh cleaning agents.
To get the ultimate experience in movement and control, we highly recommend a
premium mousing surface from Razer. Some surfaces will cause undue wear on the
feet requiring constant care and eventual replacement.
Do note that the sensor of the Razer Naga Epic is ‘tuned’ or optimized especially for the
Razer mousing surfaces. This means that the sensor has been tested extensively to
confirm that the Razer Naga Epic reads and tracks best on Razer mousing surfaces.
33 | razer™
8. LEGALESE
COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION
©2011 Razer USA Ltd. Patent Pending. All Rights Reserved. Razer™, the Razer Triple-
Headed Snake logo, the Razer distressed word logo and other trademarks contained
herein are trademarks or registered trademarks of Razer USA Ltd and/or its affiliated or
associated companies, registered in the United States and/or other countries. Windows
and the Windows logo are trademarks of the Microsoft group of companies. Mac OS,
Mac and the Mac logo are trademarks or registered trademarks of Apple.
Razer USA Ltd (“Razer”) may have copyright, trademarks, trade secrets, patents, patent
applications, or other intellectual property rights (whether registered or unregistered)
concerning the product in this Master Guide. Furnishing of this Master Guide does not
give you a license to any such copyright, trademark, patent or other intellectual
property right. The Razer Naga Epic (the “Product”) may differ from pictures whether
on packaging or otherwise. Razer assumes no responsibility for such differences or for
any errors that may appear. Information contained herein is subject to change without
notice.
LIMITED PRODUCT WARRANTY
For the latest and current terms of the Limited Product Warranty, please visit
www.razerzone.com/warranty.
LIMITATION OF LIABILITY
Razer shall in no event be liable for any lost profits, loss of information or data, special,
incidental, indirect, punitive or consequential or incidental damages, arising in any way
out of distribution of, sale of, resale of, use of, or inability to use the Product. In no
event shall Razer’s liability exceed the retail purchase price of the Product.
34 | For gamers by gamers™
COSTS OF PROCUREMENT
For the avoidance of doubt, in no event will Razer be liable for any costs of
procurement unless it has been advised of the possibility of such damages, and in no
case shall Razer be liable for any costs of procurement liability exceeding the retail
purchase price of the Product.
GENERAL
These terms shall be governed by and construed under the laws of the jurisdiction in
which the Product was purchased. If any term herein is held to be invalid or
unenforceable, then such term (in so far as it is invalid or unenforceable) shall be given
no effect and deemed to be excluded without invalidating any of the remaining terms.
Razer reserves the right to amend any term at any time without notice.
