Realtek Semiconductor RTL8192DE 802.11a/b/g/n RTL8192DE miniCard User Manual RTL8192 datasheet
Realtek Semiconductor Corp. 802.11a/b/g/n RTL8192DE miniCard RTL8192 datasheet
UserMan_TX2-RTL8192DE
RTL8192DE
802.11a/b/g/n RTL8192DE miniCard
User’s Manual
Rev. 1.0
08 Apr 2011
Realtek Semiconductor Corp.
No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan
Tel.: +886-3-578-0211. Fax: +886-3-577-6047
www.realtek.com.tw
RTL8192DE
Half Mini-Card User Manual
COPYRIGHT
©2011 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means without the written permission of Realtek Semiconductor Corp.
DISCLAIMER
Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied,
including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in
this document or in the product described in this document at any time. This document could include
technical inaccuracies or typographical errors.
TRADEMARKS
Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are
trademarks/registered trademarks of their respective owners.
USING THIS DOCUMENT
This document is intended for the software engineer’s reference and provides detailed programming
information.
Though every effort has been made to ensure that this document is current and accurate, more information
may have become available subsequent to the production of this guide. In that event, please contact your
Realtek representative for additional information that may help in the development process.
ii Rev.1.0
RTL8192DE
Half Mini-Card User Manual
Table of Contents
1. GENERAL DESCRIPTION................................................................................................................................................1
2. FEATURES...........................................................................................................................................................................2
3. PRODUCT SPECIFICATIONS..........................................................................................................................................4
3.1. MINI PCI EXPRESS PIN ASSIGNMENT ..............................................................................................................................4
3.2. MECHANICAL..................................................................................................................................................................5
3.3. ENVIRONMENTAL ............................................................................................................................................................5
3.3.1. Operating ...............................................................................................................................................................5
3.3.2. Storage....................................................................................................................................................................5
3.4. FUNCTIONAL SPECIFICATIONS .........................................................................................................................................5
3.5. WARNING ........................................................................................................................................................................7
3.5.1 Federal Communication Commission Interference Statement......................................................................................7
3.5.2 Industry Canada Statement ..........................................................................................................................................8
3.5.3 NCC
警語
....................................................................................................................................................................12
List of Tables
TABLE 1. MINI PCI EXPRESS PIN ASSIGNMENT.............................................................................................................................4
TABLE 2. FUNCTIONAL SPECIFICATIONS........................................................................................................................................5
List of Figures
FIGURE 1. RTL8192DE HALF MINI-CARD MECHANICAL SPECIFICATION.....................................................................................5
iii Rev.1.0
RTL8192DE
Half Mini-Card User Manual
1 Rev.1.0
1. General Description
The Realtek RTL8192DE is a highly integrated single-chip MIMO (Multiple In, Multiple Out) Wireless
LAN (WLAN) PCI Express network interface controller complying with the wireless high throughput
IEEE 802.11n specification. It combines a configurable dual MAC, 2T2R capable baseband and
2.4GHz/5GHz band RF in a single chip. The RTL8192DE provides a complete solution for a
high-performance wireless client.
The RTL8192DE implements dual MAC by PCI Express multi-function capability. The dual MAC feature
enables RTL8192DE to access two different wireless networks and to act as an WiFi station and an AP
concurrently. The RTL8192DE also supports WiFi Direct feature that can easily build a WiFi P2P PAN
network.
The RTL8192DE baseband implements Multiple Input, Multiple Output (MIMO) Orthogonal Frequency
Division Multiplexing (OFDM) with two transmit and two receive paths (2T2R). Features include two
spatial stream transmissions, short Guard Interval (GI) of 400ns, spatial spreading, and support for both
20MHz and 40MHz channel bandwidth. Moreover, RTL8192DE provides one spatial stream space-time
block code (STBC) to extend the range of transmission. At the receiver, extended range and good minimum
sensitivity is achieved by having receiver diversity up to 2 antennas. As the recipient, the RTL8192DE also
supports explicit sounding packet feedback that helps senders with beamforming capability. With 2
independent RF blocks, the RTL8192DE can perform fast roaming without link interruption.
For legacy compatibility, Direct Sequence Spread Spectrum (DSSS), Complementary Code Keying (CCK)
and OFDM baseband processing are included to support all IEEE 802.11b, 802.11g and 802.11a data rates.
Differential phase shift keying modulation schemes, DBPSK and DQPSK with data scrambling capability
are available, and CCK provides support for legacy data rates, with long or short preamble. The high speed
FFT/IFFT paths, combined with BPSK, QPSK, 16QAM, and 64QAM modulation of the individual
subcarriers, and rate compatible punctured convolutional coding with coding rate of 1/2, 2/3, 3/4, and 5/6,
provide the higher data rates than 54Mbps upto 300Mbps for IEEE 802.11n MIMO OFDM respectively.
The RTL8192DE builds in an enhanced signal detector, an adaptive frequency domain equalizer, and a
soft-decision Viterbi decoder to alleviate severe multi-path effects and mutual interference in the reception
of multiple streams. For better detection quality, receive diversity with Maximal-Ratio-Combine (MRC)
applying up to two receive paths is implemented. Robust interference detection and suppression are
provided to protect against Bluetooth, cordless phone, and microwave oven interference.
Receive vector diversity for multi-stream application is implemented for efficient utilization of the MIMO
channel. Efficient IQ-imbalance, DC offset, phase noise, frequency offset, and timing offset compensations
are provided for the radio frequency front-end. Selectable digital transmit and receive FIR filters are
RTL8192DE
Half Mini-Card User Manual
2 Rev.1.0
provided to meet transmit spectrum mask requirements and to reject adjacent channel interference,
respectively.
The RTL8192DE supports fast receiver Automatic Gain Control (AGC) with synchronous and
asynchronous control loops among antennas, antenna diversity functions, and adaptive transmit power
control functions to obtain better performance in the analog portions of the transceiver.
The RTL8192DE MAC supports 802.11e for multimedia applications, 802.11i and WAPI (Wireless
Authentication Privacy Infrastructure) for security, and 802.11n for enhanced MAC protocol efficiency.
Using packet aggregation techniques such as A-MPDU with BA and A-MSDU, protocol efficiency is
significantly improved. Power saving mechanisms such as Legacy Power Save, U-APSD, and MIMO
power saving reduce the power wasted during idle time, and compensate for the extra power required to
transmit MIMO OFDM. The RTL8192DE provides simple legacy and 20MHz/40MHz co-existence
mechanisms to ensure backward and network compatibility.
2. Features
General
QFN76 9x9mm package
CMOS MAC, Baseband PHY and RF in a
single chip for IEEE 802.11a/b/g/n
compatible WLAN
Complete 802.11n MIMO solution for
2.4GHz and 5Ghz band
2x2 MIMO technology for extended
reception robustness and exceptional
throughput
Maximum PHY data rate up to 144.4 Mbps
using 20MHz bandwidth, 300Mbps using
40MHz bandwidth
Complies with 802.11n specification
Backward compatible with 802.11a/b/g
devices while operating at 802.11n data rates
Host Interface
Complies with PCI Express Base
Specification Revision 1.1
Standards Supported
IEEE 802.11a/b/g/n compatible WLAN
IEEE 802.11e QoS Enhancement (WMM)
IEEE 802.11i (WPA, WPA2). Open, shared
key, and pair-wise key authentication
services
IEEE 802.11h TPC, Spectrum Measurement
IEEE 802.11k Radio Resource Measurement
WAPI (Wireless Authentication Privacy
Infrastructure) certified.
Cisco Compatible Extensions (CCX) for
WLAN devices
RTL8192DE
Half Mini-Card User Manual
3 Rev.1.0
MAC Features
Frame aggregation for increased MAC
efficiency (A-MSDU, A-MPDU)
Low latency immediate High-Throughput
Block Acknowledgement (HT-BA)
Long NAV for media reservation with
CF-End for NAV release
PHY-level spoofing to enhance legacy
compatibility
MIMO power saving mechanism
Channel management and co-existence
Multiple BSSID feature allows the
RTL8192DE to assume multiple MAC
identities when used as a wireless bridge
Supports Wake-On-WLAN via Magic
Packet and Wake-up frame
Transmit Opportunity (TXOP) Short
Inter-Frame Space (SIFS) bursting for higher
multimedia bandwidth
Dual MAC architecture allows dual band or
dual network access or behave a station and
an AP concurrently.
WiFi Direct supports wireless peer to peer
applications.
Peripheral Interfaces
General Purpose Input/Output (10 pins)
4-wire EEPROM control interface
(93C46/93C56)
Three configurable LED pins
Configurable Bluetooth Coexistence
Interface
PHY Features
IEEE 802.11n MIMO OFDM
Two Transmit and Two Receive paths
(2T2R)
20MHz and 40MHz bandwidth transmission
Support 2.4Ghz and 5Ghz band channels
Short Guard Interval (400ns)
Sounding packet
DSSS with DBPSK and DQPSK, CCK
modulation with long and short preamble
OFDM with BPSK, QPSK, 16QAM, and
64QAM modulation.
Convolutional Coding Rate: 1/2, 2/3, 3/4,
and 5/6
Maximum data rate 54Mbps in 802.11g and
300Mbps in 802.11n
OFDM receive diversity with MRC using up
to 2 receive paths. Switch diversity used for
DSSS/CCK
Hardware antenna diversity
Selectable digital transmit and receiver FIR
filters
Programmable scaling in transmitter and
receiver to trade quantization noise against
increased probability of clipping
Fast receiver Automatic Gain Control (AGC)
On-chip ADC
RTL8192DE
Half Mini-Card User Manual
3. Product specifications
3.1.
Mini PCI Express Pin Assignment
Table 1. Mini PCI Express Pin Assignment
PIN# Pin Name PIN# Pin Name
1 WAKE# YES 2 +3.3Vaux YES
3 RESERVED (*1) YES 4 GND YES
5 RESERVED (*2) YES* 6 +1.5V NC
7 CLKREQ# YES 8 UIM_PWR NC
9 GND YES 10 UIM_DATA NC
11 REFCLK- YES 12 UIM_CLK NC
13 REFCLK+ YES 14 UIM_RESET NC
15 GND YES 16 UIM_VPP NC
17 RESERVED NC 18 GND YES
19 RESERVED NC 20 W_DISABLE1# YES
21 GND YES 22 PERST# YES
23 PERn0 YES 24 +3.3Vaux NC
25 PERp0 YES 26 GND YES
27 GND YES 28 +1.5V YES
29 GND YES 30 SMB_CLK NC
31 PETn0 YES 32 SMB_DATA NC
33 PETp0 YES 34 GND YES
35 GND YES 36 USB_D- YES
37 GND YES 38 USB_D+ YES
39 +3.3Vaux NC 40 GND NC
41 +3.3Vaux NC 42 LED_WWAN# NC
43 GND YES 44 LED_WLAN# YES
45 RESERVED NC 46 LED_WPAN# NC
47 RESERVED NC 48 +1.5V YES
49 RESERVED NC 50 GND YES
51 W_DISABLE2# NC 52 +3.3Vaux YES
Note *1: WL_ACT
Note *2: BT_PRI
4 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
3.2.
Mechanical

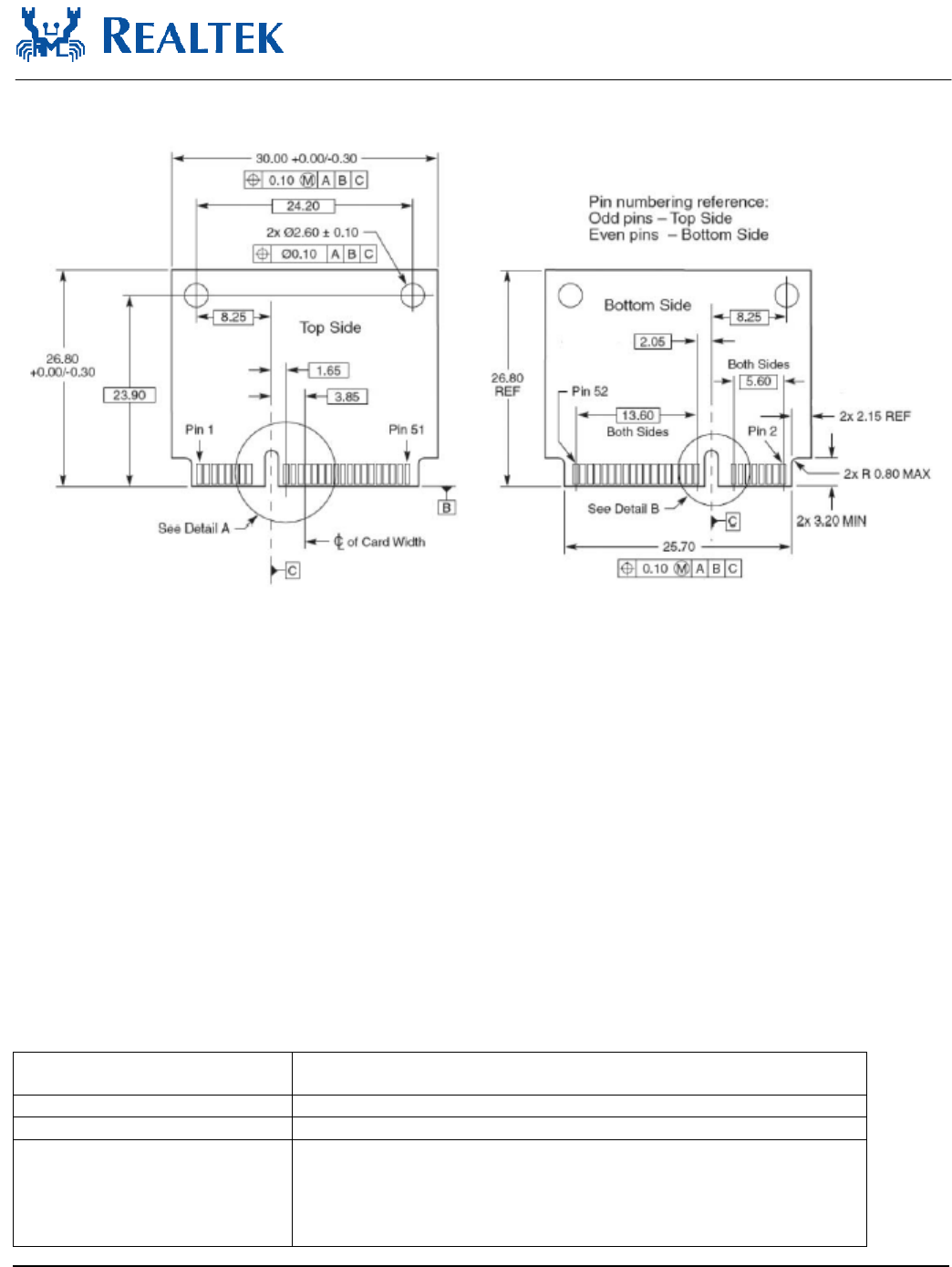

Figure 1. RTL8192DE Half Mini-Card Mechanical Specification
3.3.
Environmental
3.3.1. Operating
Operating Temperature: 0 to 70 °C
Relative Humidity: 5-90% (non-condensing)
3.3.2. Storage
Temperature: -55 to 125 °C
Relevant Humidity: 5-95% (non-condensing)
3.4.
Functional Specifications
Table 2. Functional Specifications
Standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE
802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k
Bus Interface PCI Express or USB
Form Factor Half Size Mini Card
Data Rate
802.11b:
11, 5.5, 2, 1 Mbps;
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
5 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
MCS 0 to 15 for HT20MHz;
MCS 0 to 15 for HT40MHz
Media Access Control CSMA/CA with ACK
Modulation Techniques
802.11b:
CCK, DQPSK, DBPSK
802.11a/g/n:
64 QAM, 16 QAM, QPSK, BPSK
Network Architecture WiFi:
Ad-hoc mode (Peer-to-Peer )
Infrastructure mode
Operating Channel
WiFi 2.4GHz:
11: (Ch. 1-11) – United States
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
WiFi 5GHz:
20MHz band width :
Ch36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124,
128,132,136, 140, 149,153, 157,161, 165.
40MHz band width :
Ch38, 42, 46, 50, 54, 58, 62, 102, 106, 110, 114, 118, 122, 126,
130,134,138, 151,155, 159,163.
Frequency Range
2.400GHz ~ 2.4835 GHz
5.1500GHz ~ 5.3500GHz
5.4700GHz ~ 5.7250GHz
5.7250GHz ~ 5.8250GHz
Security WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit, IEEE
802.11x, IEEE 802.11i
Operating Voltage 3.3 V ±9% I/O supply voltage
6 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
3.5.
Warning
3.5.1 Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through
11.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied
firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain
change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM
7 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed (for example, digital device emissions, PC peripheral requirements,
etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer considered
valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will
be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20
cm may be maintained between the antenna and users. The final end product must be labeled in a visible
area with the following: “Contains FCC ID: TX2-RTL8192DE”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
3.5.2 Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of
the device
French translation:
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts
de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire
de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
(The user manual of transmitter devices equipped with detachable antennas shall contain the following
information in a conspicuous location: )
This device has been designed to operate with an antenna having a maximum gain of 5 dBi. Antenna having
a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is
50 ohms.
8 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
French translation:
(Le manuel d'utilisation de dispositifs émetteurs équipés d'antennes amovibles doit contenir les
informations suivantes dans un endroit bien en vue:)
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximum de 5 dBi. Une antenne
à gain plus élevé est strictement interdite par les règlements d'Industrie Canada. L'impédance d'antenne
requise est de 50 ohms.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peutfonctionner avec une
antenne d'un type et d'un gain maximal (ou inférieur) approuvé pourl'émetteur par Industrie Canada. Dans
le but de réduire les risques de brouillage radioélectriqueà l'intention des autres utilisateurs, il faut choisir le
type d'antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire àl'établissement d'une communication satisfaisante.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
French translation:
NOTE IMPORTANTE: (Pour l'utilisation de dispositifs mobiles)
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
Caution: (DFS band usage-full bands)
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz
shall comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the
e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate.
9 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users)
of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or
damage to LE-LAN devices.
French translation:
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les
restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites
mobiles utilisant les mêmes canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5
725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se
conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas.
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont
désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5
850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
For all products market in Canada, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band
by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to
Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed.
French translation :
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour
utilisation de dispositif module)
1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les
utilisateurs, et
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne,
3) Pour tous les produits vendus au Canada, OEM doit limiter les fréquences de fonctionnement CH1 à
CH11 pour bandes de fréquences 2.4G grâce aux outils de microprogrammation fournis. OEM ne doit pas
10 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
fournir d'outil ou d'informations à l'utilisateur final en ce qui concerne le changement de réglementation de
domaine.
Tant que les 3 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas
nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final pour
toutes exigences de conformité supplémentaires requis pour ce module installé.
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the IC authorization is no longer considered
valid and the IC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate IC
authorization.
French translation:
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations
d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du Canada n'est
plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans ces circonstances,
l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une
autorisation distincte au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20
cm may be maintained between the antenna and users. The final end product must be labeled in a visible
area with the following: “Contains IC: 6317A-RTL8192DE”.
French translation:
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où l'antenne peut être
installée de telle sorte qu'une distance de 20cm peut être maintenue entre l'antenne et les utilisateurs. Le
produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient des IC:
6317A-RTL8192DE ".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
11 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
French translation:
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon
d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce
module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et
avertissements comme indiqué dans ce manuel.
3.5.3 NCC 警語
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功
率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並
改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電
機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
在5.25-5.35GHz頻帶內操作之無線資訊傳輸設備，限室內使用。
本模組於取得認證後將依規定於模組本體標示審合格籤，並要求平台上標示「本產品內含射頻模
組：ID編號」
12 Rev.1.0
RTL8192DE
Half Mini-Card User Manual

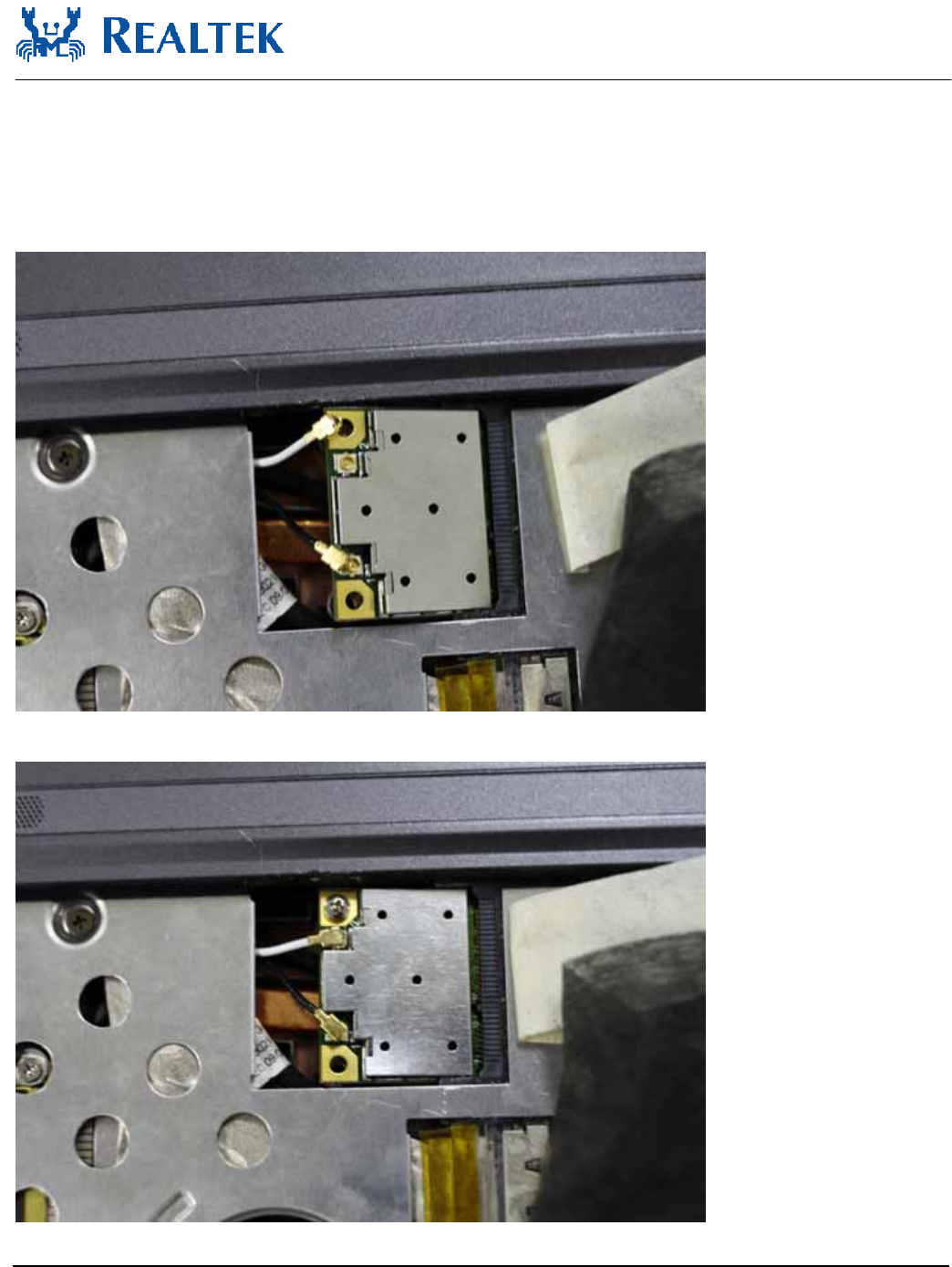

Installing the Wireless PCIe miniCard module
Hardware
Step 1. Shut down the computer.
Step 2. Installing PCIe MiniCard module to PCIe MiniCard connector.
Step 3. Connect two external Wi-Fi antennas on I-PEX connectors.
step4. Power on the computer.
13 Rev.1.0
RTL8192DE
Half Mini-Card User Manual

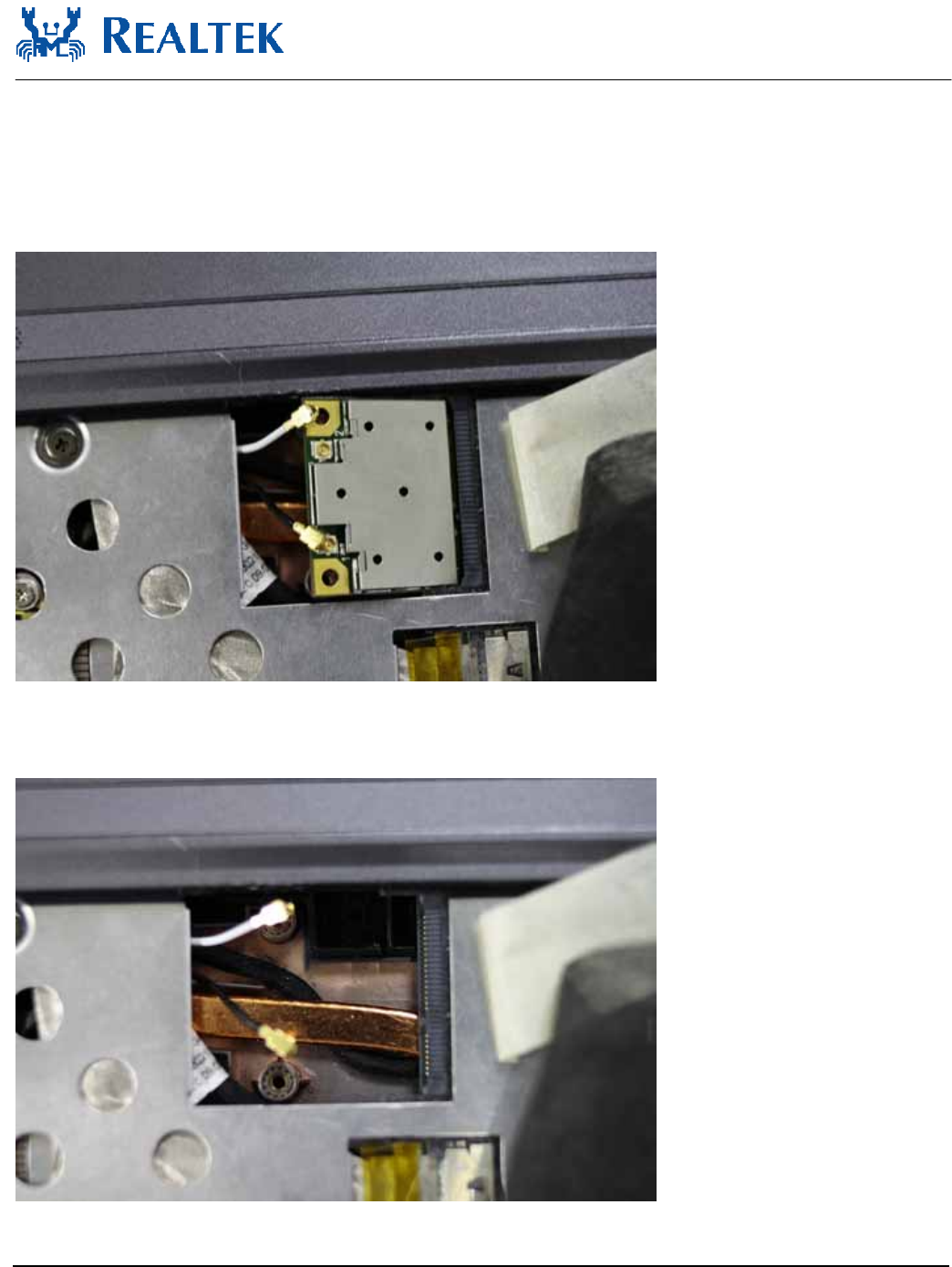

Un-installing the Wireless PCIe MiniCard module
Hardware
Step 1. Shut down the computer.
Step 2. Remove 2 external Wi-Fi Antennas from the Wireless PCIe MiniCard module board.
Step 3. Remove the Wireless PCIe MiniCard module board from PCIe MiniCard connector
port.
Step 4. Power on the computer.
14 Rev.1.0
RTL8192DE
Half Mini-Card User Manual

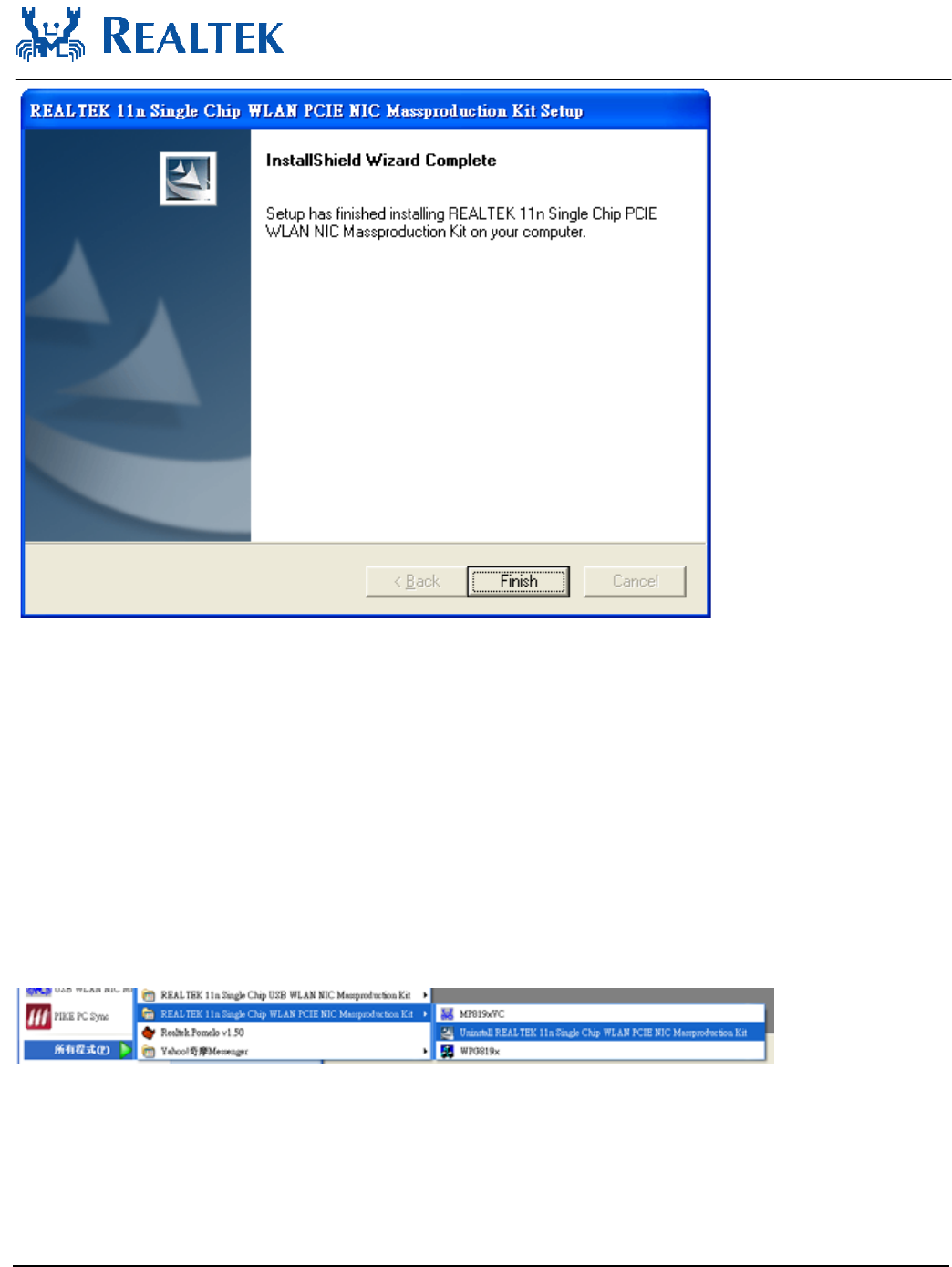

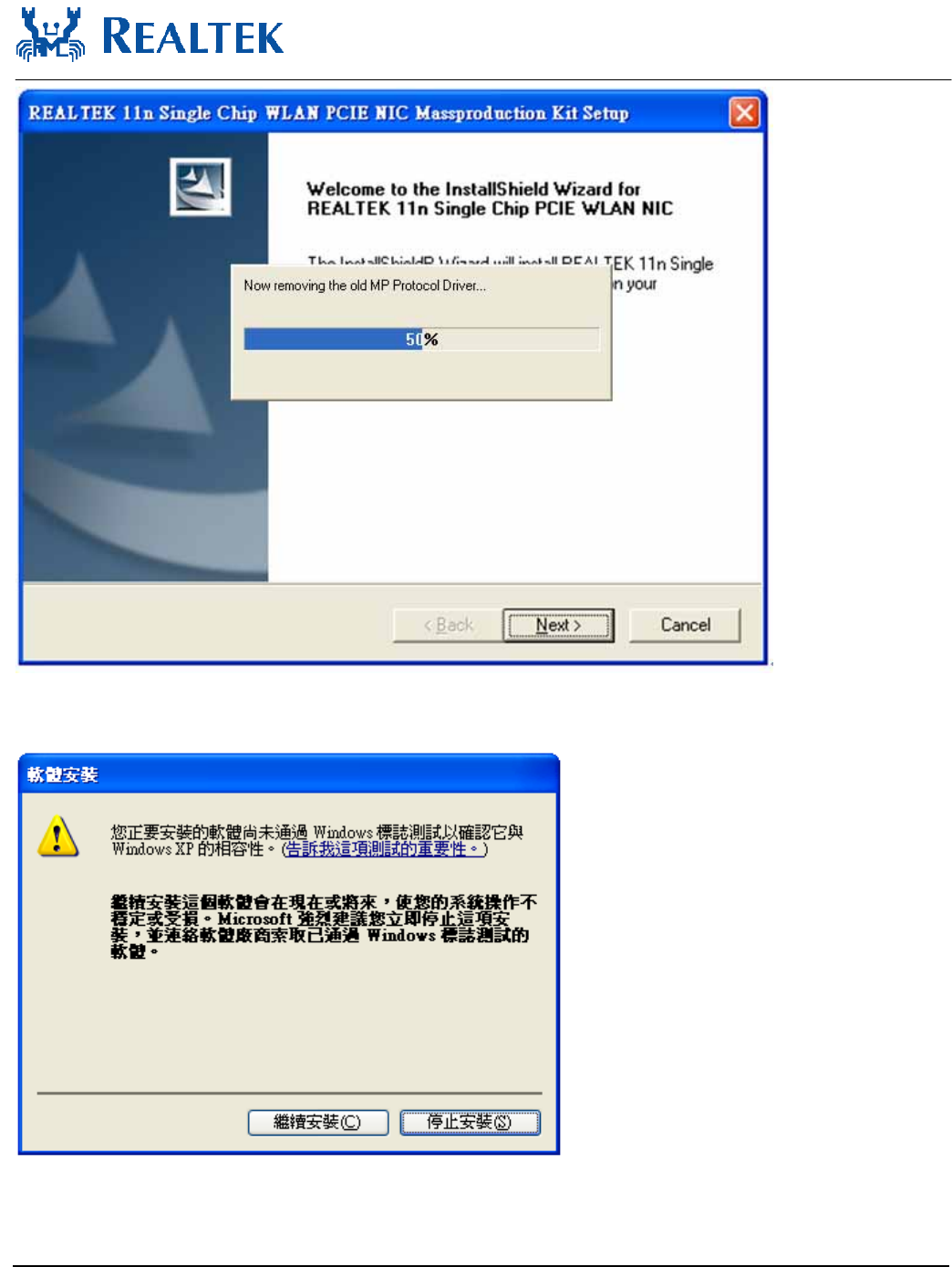

Installing the Wireless PCIe miniCard module
Software
Before you proceed with the installation, please notice following descriptions.
Note1: The following installation was operated under Windows XP.
(Procedures are similar for Windows Vista/Win7.)
Note2: If you have installed the WLAN driver & utility before, please
uninstall the old version first.
If you install the “Realtek11n Single Chip PCIE WLAN NIC Mass production kit” into your
laptop computer before installing the software program from
the CD.
A. Insert the Installation CD to your CD-ROM Drive. Execute the “setup”
program.
B. Click “Next” to process the installation
C. The system starts to install the software of the WLAN adapter.
15 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
D. The system will automatically detect the card and display “Hardware
Installation” screen. Click “繼續安裝” to continue.
E. Please click “Finish” to complete the installation.
16 Rev.1.0
RTL8192DE
Half Mini-Card User Manual
Un-installing the Wireless PCIe MiniCard module
Software
If you install Realtek11n Single Chip PCIE WLAN NIC Mass production kit into your laptop
computer after installing the software program from the CD.
When you install Realtek11n Single Chip WLAN PCIE MINICARD Adapter,
the following dialog will be shown.
A. Uninstall the RTL8192DE WLAN Driver from “Start”→ “All Programs”→
“Realtek11n Single Chip WLAN PCIE NIC Mass production kit” or “Control
Panel”“”→“Change or Remove Programs”.
Please click “Un-install” (or “Change/Remove”) to remove RTL8192DE
WLAN driver.
17 Rev.1.0
RTL8192DE
Half Mini-Card User Manual

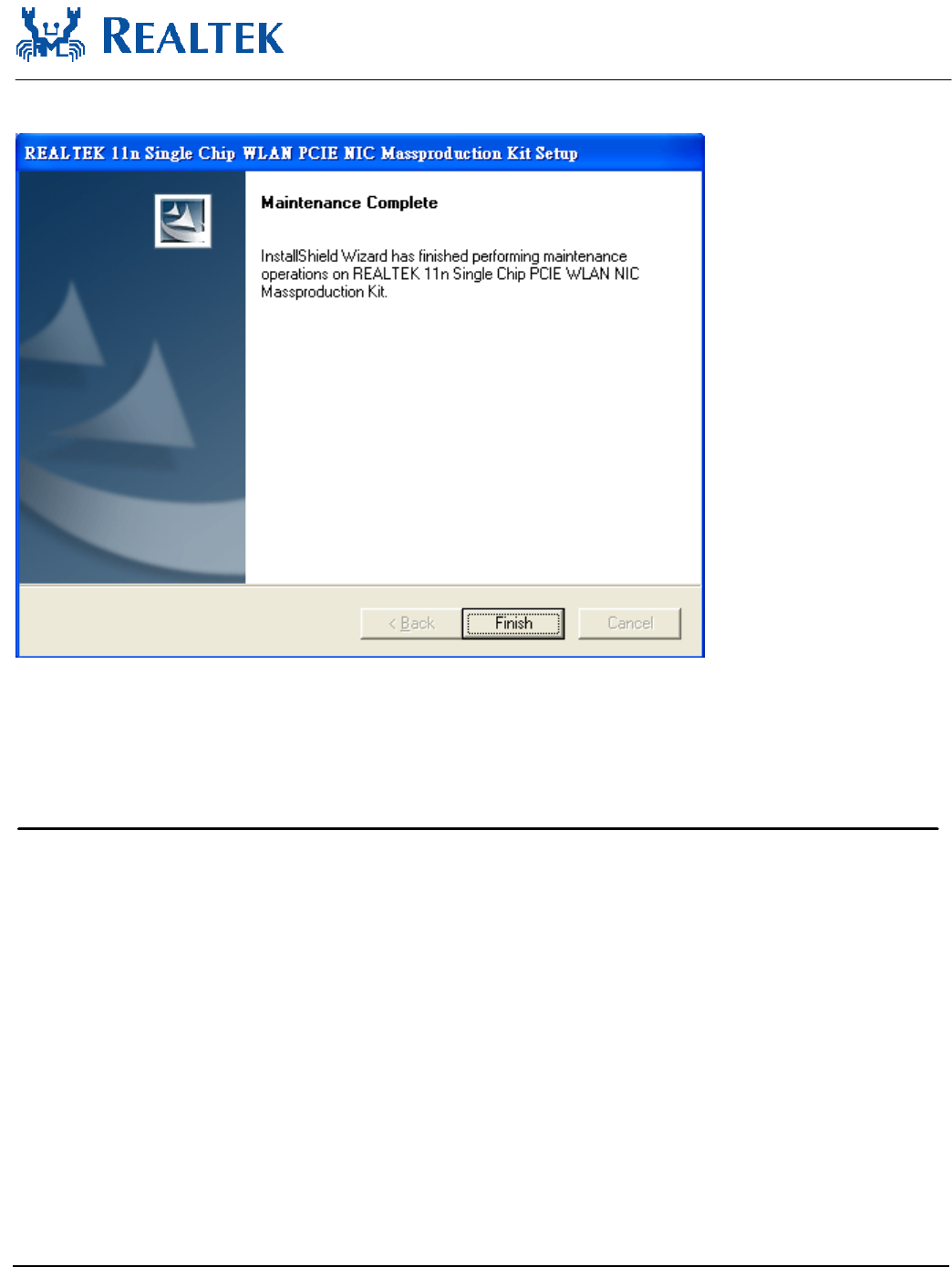

B. Please click “Finish” to complete the un-installation
Realtek Semiconductor Corp.
Headquarters
No. 2, Innovation Road II, Hsinchu Science Park,
Hsinchu, 300, Taiwan, R.O.C.
Tel: 886-3-5780211 Fax: 886-3-5776047
www.realtek.com.tw
18 Rev.1.0
